USER MANUAL WG584E WORX

Line drawing of a WORX remote control device (no text or symbols on body)

Cordless Li-Ion Blower/Sweeper	EN	P06
Gebläse/Kehrmaschine mit Lithiumbatterie	D	P13
Souffleur/Balayeur à piles de Lithium	F	P21
Soffiante/Spazzatrice con batteria al litio	I	P30
Sopladora/Barredora con Batería de Litio	ES	P39
Lithiumbatterij Blazer/Veger	NL	P47
Bezprzewodowa dmuchawa/zamiatarka z akumulatorem Li-Jon	PL	P55
Zsinór nélküli, lítium-ion elemmel működő porszívós seprů	HU	P63
Ventilator/Aspirator cu baterie din Li-Ion fără cablu	RO	P71
Bezdrátový Li-Ion foukač/zametač	CZ	P79
Akumulátorový (lítiovo-iónový) vysávač/dúchadlo	SK	P86
Soprador/Varredor com bateria de lítio	PT	P94
Blåsare/Sopare med litiumbatteri	SV	P102
Brezžični puhalnik/pometalnik z litijevim akumulatorjem	SL	P109

C 100% 0%

D !

E !

F ! 11

ON MARCHE ENCENDIDO OFF ARRÊT APAGADO POW SHAR

H POWER SHARES

POWER SHARE

J No Therms

PRODUCT SAFETY

WARNING Read all safety warnings and all instructions. Failure to follow

the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The appliance is only to be used with the power supply unit provided with the appliance.

IMPORTANT

READ CAREFULLY BEFORE USE.

KEEP FOR FUTURE REFERENCE.

Safe operating practices

1) TRAINING

a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
b) Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.
c) Never operate the machine while people, especially children, or pets are nearby.
d) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

2) PREPARATION

a) While operating the machine, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
b) Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets.
c) Obtain ear protection and safety glasses. Wear them at all times while operating the

machine.

d) Operate the machine in a recommended position and only on a firm, level surface.
e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury.

f) Before using, always visually inspect to see, that the fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.

3) OPERATION

a) Before starting the machine, make certain that the feeding chamber is empty.
b) Keep your face and body away from the feed intake opening.
c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
d) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.
e) Always stand clear of the discharge zone when operating this machine.
f) If the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Remove the battery pack from the machine and take the following steps before restarting and operating the machine:

i) inspect for damage;
ii) replace or repair any damaged parts;
iii) check for and tighten any loose parts.
g) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening.
h) If the machine becomes clogged, shut-off the power source and remove the battery pack from the machine before cleaning debris.
i) Never operate the machine with defective guards or shields, or without safety devices.

j) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
k) Do not transport this machine while the power source is running.
I) Always disconnect the machine from the power supply (e.g. remove the battery pack from the machine)
- whenever you leave the machine,
- before clearing blockages or unclogging chute,
- before checking, cleaning or working on the machine.
m) Avoid using the machine in bad weather conditions especially when there is a risk of lightning.

a) keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Replace worn or damaged parts.
c) Use only genuine replacement parts and accessories.
d) Store the machine in a dry place out of the reach of children.
e) When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.
f) Store the machine in a dry place out of the reach of children.
g) Always allow the machine to cool before storing.
h) Never attempt to override the interlocked feature of the guard.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs

haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

SYMBOL

	Read the operator's manual
	Wear eye protection
	Wear ear protection
	Do not expose to rain
	Warning of hazard

	Keep bystanders away
	Make sure the battery is removed prior to changing accessories.
	Do not expose to rain or water
	Do not burn
Li-Ion	Do not dispose of batteries.Return exhausted batteries to your local collection or recycling point.
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

COMPONENT LIST

1. HANDLE

1. ON/OFF SWITCH WITH MULTI-SPEED CONTROL

2. TURBO BUTTON FOR POWER BOOSTING

3. LOWER BLOWER TUBE

4. UPPER BLOWER TUBE

5. TUBE RELEASE BUTTON

6. FAN HOUSING

7. MOTOR HOUSING

8. BATTERY PACK*

9. BATTERY PACK RELEASE BUTTON*

10. POWER INDICATOR LIGHT (SEE FIG. F)

*Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WG584E WG584E.9 (5 -designation of machinery, representative of Cordless Blower)

	WG584E	WG584E.9
Rated voltage	40V =MAX(2x20V MAX)**
Air speed	I: 89 km/hII: 105 km/hIII: 120 km/hTurbo: 145 km/h
Air volume	I: 7.6 m3/minII: 9.1 m3/minIII: 10 m3/minTurbo: 12 m3/min
Battery type Lithium-ion /
Battery capacity	2.0 Ah(WA3551)	/
Charger model WA3883 /

Charger rating	Input:100-240V~50-60HzOutput 1: 20V---, 2.0 A ***Output 2: 20V---, 2.0 A ***	/
Charging time(approx.)Battery pack:2.0 Ah (1pc)2.0 Ah (2pcs)	0.5 hr1 hr	/
Machine weight(battery packincluded)	3.2 kg /
Machine weight(battery pack notincluded)	/ 2.5 kg

**Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
*** Charger output 1 and output 2 mean two ports with the same output voltage and current.

NOISE INFORMATION

A weighted sound pressure L pA : 75 dB(A) A weighted sound power L wA : 95dB(A)

K_pA : 3.0 dB(A)

Wear ear protection

VIBRATION INFORMATION

Typical weighted vibration	a_h < 2.5 m/s^2
Uncertainty	K=1.5m/s2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ the declared value depending on the ways in the tool is used dependant on the following

examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained.

Using the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WG584E WG584E.9
Battery pack	2 (WA3551) /
Charger	1 (WA3883) /

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATION

INTENDED USE:

The blower is intended for residential use only. Use the blower outdoors to move yard debris as needed.

ASSEMBLY AND OPERATION

ACTION FIGURE
ASSEMBLY
Assembling & disassembling the BlowerTube	See Fig. A & B
Checking the battery conditionNote:Fig. C only applies for the battery pack with battery indicator light.	See Fig. C

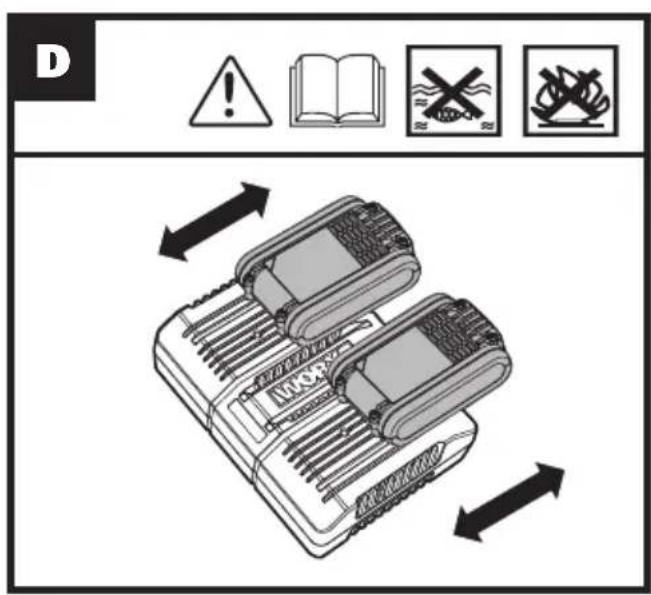

Charging the battery packNote:The batteries are shipped uncharged. Each battery must be fully charged before the first use.Always fully charge the two batteries at same time. More details can be found in charger's manual.WARNING! The charger and battery pack are specially designed to work together, so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because of an electrical failure and hazard will occur.	See Fig. D

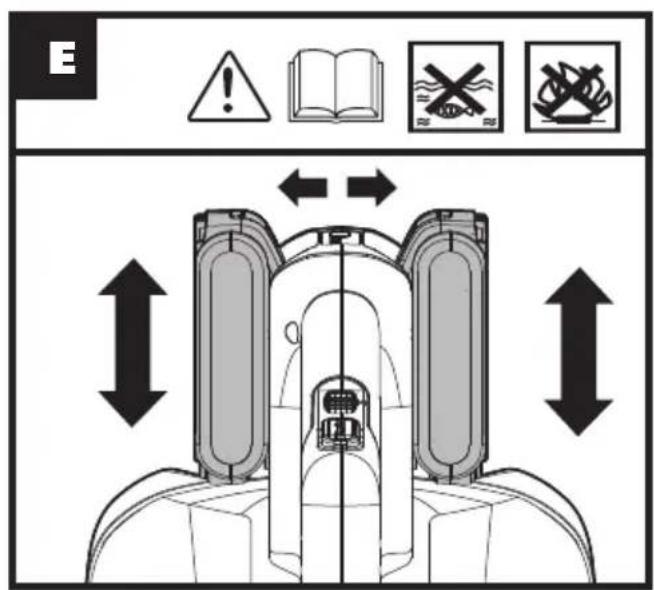

Installing and Removing the battery packNote:This machine will only run when 2 batteries are installed. It is recommended to use the same two batteries and charge the two batteries at the same time.When you use two batteries with different power, the machine will only run to the lower common denominator.	See Fig. E
OPERATION
Power indicator lightSee details in BATTERY STATUS partIMPORTANT:When only one light is illuminated, your battery is overly discharged, even though the machine may still be capable to work. Continuing to operate your machine with the battery in this discharged condition may reduce the life and performance of your battery.When no light is illuminated, at least one battery is not fully installed or battery may be defective, please double check the batteries are fully seated into position.	See Fig. F

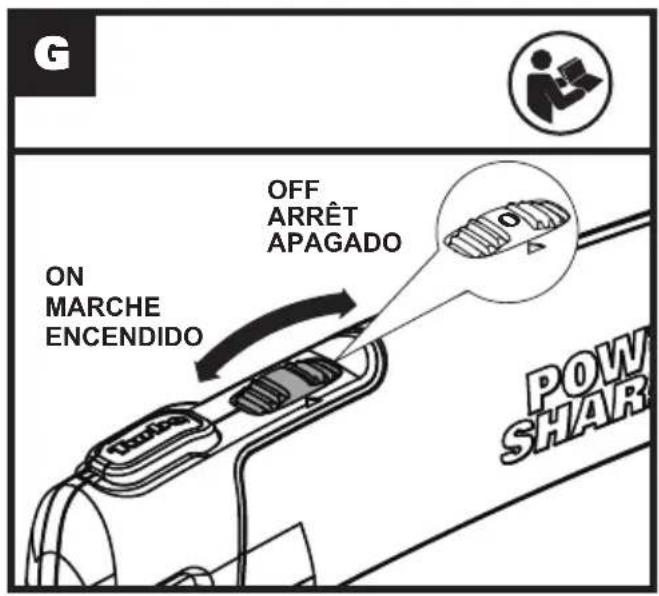

Starting & StoppingWARNING! The tool runs for a few seconds after it has been switched off.Let the motor come to a complete standstill before setting the tool down.	See Fig.G

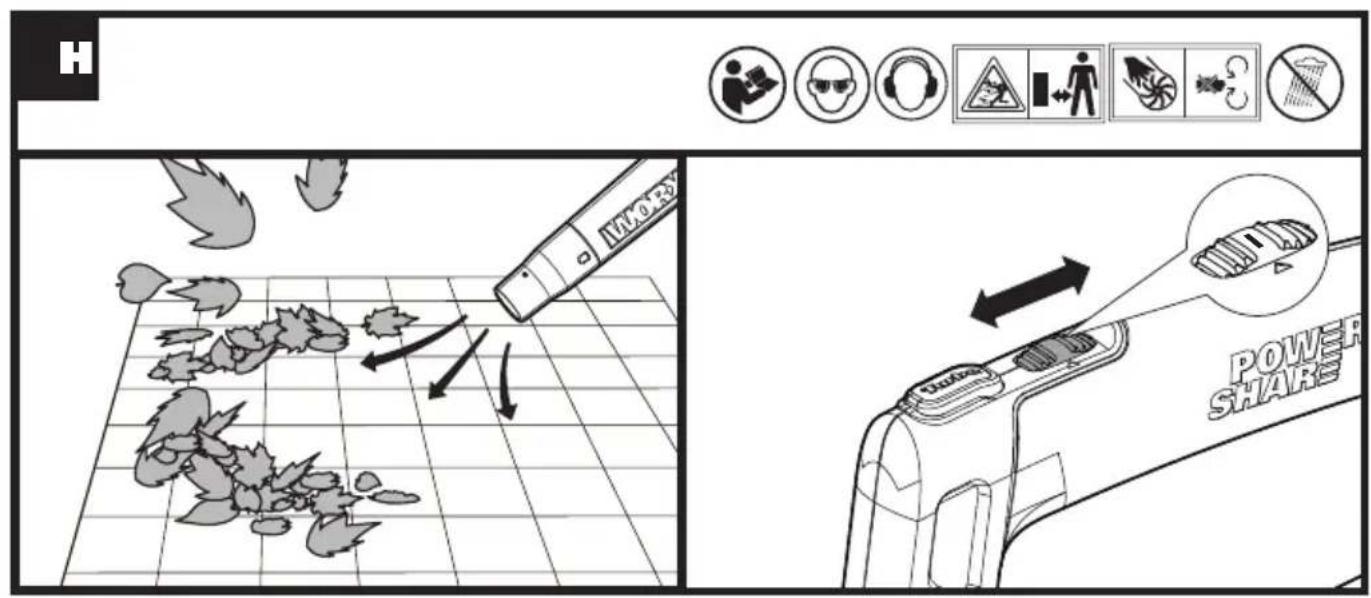

Blowing/ Adjusting the Blowing SpeedUSERTIPSHold the blow tube approximately 8" above the ground when operating the tool.Use a sweeping motion from side to side. Advance slowly keeping the accumulated debris/leaves in front of you.
Caution!Do not blow hard objects such as nails, bolts, or rocks.Do not operate the blower near bystanders or pets.Use extra care when cleaning debris from stairs or other tight areas.Wear safety goggles or other suitable eye protection, long pants, and shoes.	See Fig.H

Turbo button for power boostingNote:Turbo button for power boosting can increase air flow significantly, and it can be used for clearing heavy or wet debris.First switch on the blower and select an speed control (any speed from I to III), then depress the turbo button and hold it.Release the Turbo button, the blower will return to the previously selected speed.	See Fig. I

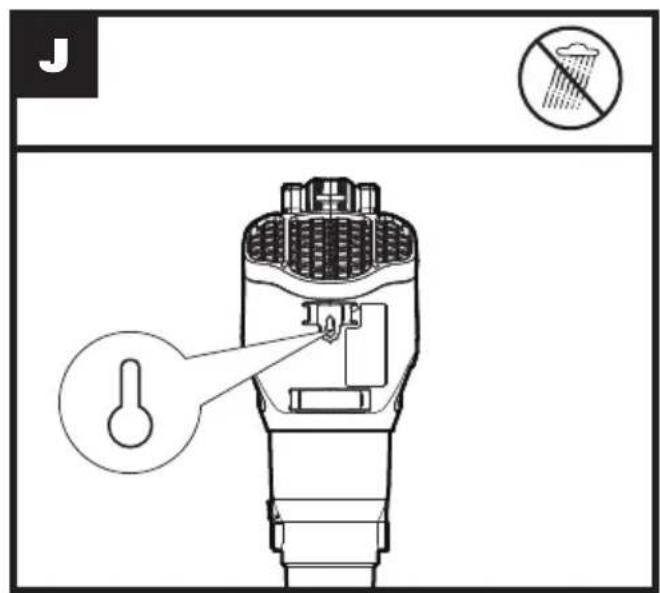

To store your cordless blowerNote: You can store your cordless blower by hanging it on the wall with the hanging hole at the back of the blower.	See Fig. J

NOTE:

It is recommended to use I or II blowing speed to blow debris/leaves on hard surfaces, while using III blowing speed or turbo button to blow debris/leaves within the lawn.

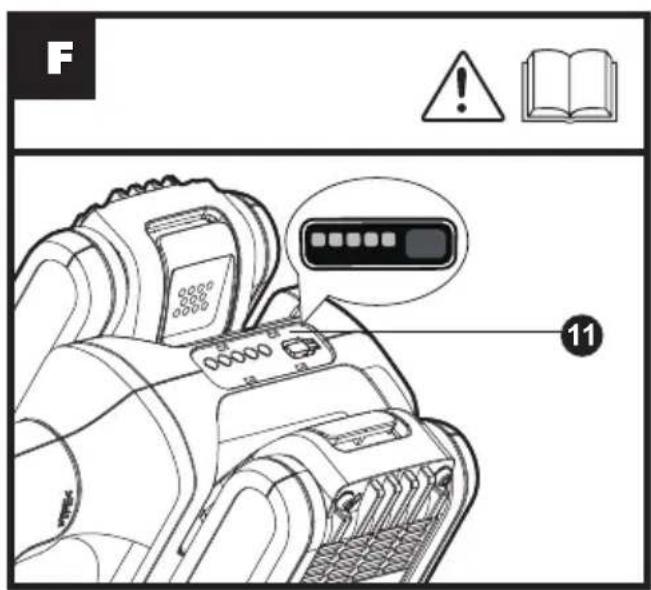

BATTERY STATUS (See Fig. F)

• Before starting or after use, press the button beside the power indicator light on the machine to check the battery capacity.
• During operation, the battery capacity will be indicated automatically by the battery power indicator. The indicator constantly senses and displays the battery condition as follows.
• For the machine with 2 battery packs with different power, the power indicator light displays the battery condition with the lower one of the two batteries.

Battery indicator light status	Battery condition
Five green lights (●) illuminated.	The two batteries are in a highly charged condition.
Two, three or four green lights are illuminated.	The two batteries have a remaining charge. The more lights are illuminated, the more battery capacity.
Only one green light (■)□□□□ is illuminated.	The battery level of at least one battery pack is very low. Please check and charge the battery pack.
No light is illuminated.	At least one battery is not fully installed or battery may be defective.
Only one light is flashing twice per cycle.	At least one battery is over discharged (please refer to the battery charge condition), please recharge the two batteries at once before use again or storage.
Only one light is flashing three times per cycle.	At least one battery is hot, wait for them cool down before start again.
Only one light is flashing four times per cycle.	The machine is over load. Remove tool from blowing area and try again.

CLEANING THE TOOL

Clean the tool regularly.

Warning! Keep your product dry. Under no circumstances spray with water.

• To clean the tool, use only mild soap and a damp cloth.
• Do not use any type of detergent, cleaner or solvent which may contain chemicals that could seriously damage the plastic.
• Self lubricating bearings are used in your product, therefore lubrication is not required.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste.

Please recycle where facilities exist.

Check with your local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

Declare that the product

Description WORX Cordless blower

Type WG584E WG584E.9 (5 -

designation of machinery, representative of Cordless blower)

Function blowing

Complies with the following Directives:

2006/42/EC, 2014/30/EU, 2011/65/EU,

2000/14/EC amended by 2005/88/EC

2000/14/EC amended by 2005/88/EC:

- Conformity Assessment Procedure as per

Annex V

- Measured Sound Power Level 95 dB(A)

- Declared Guaranteed Sound Power Level

96 dB(A)

Standards conform to:

EN 60335-1, EN 50636-2-100, EN

62233, EN ISO 3744, EN 55014-1, EN

55014-2

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSICHERHEIT

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SÉCURITÉ DU PRODUIT

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SICUREZZA DEL PRODOTTO

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUCTVEILIGHEID

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPIECZEŃSTWO PRODUKTU

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BIZTONSÁGOS TERMÉKHASZNÁLAT

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SECURITATEA PRODUSULUI

10, 50825 Cologne, Germany

A##

2018/05/08

Allen Ding

Adjunct Inginer şef, Testare si certificare

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOSŤ VÝROBKU

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SEGURANÇA DO PRODUTO

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSÄKERHET

WARNING! Läs alla instruktioner.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

VARNOSTNA NAVODILA

Completely black image with no visible content, text, or symbols.

WORX

it's your nature

www.worx.com

Copyright © 2018, Positec. All Rights Reserved.

AR01406600
