| Brand | Campingaz |
| Model | Party Grill R |
| Product type | Portable gas barbecue |
| Power source | Butane gas (direct pressure) |
| Compatible tanks | Campingaz 901, 904, 907 |
| Nominal flow rate | 99 g/h (1.36 kW) |
| Injector | No. 015556 |
| Ignition | Integrated piezo |
| Cooking surface | Non-stick plate with solid and perforated surface |
| Functions | Grilling, contact cooking, stove |
| Water tray capacity | Approximately 0.75 L |
| Materials | Steel, high quality non-stick coating |
| Cleaning | Removable parts dishwasher-safe (lid, plate, water tray, grates) |
| Warranty | 2 years parts and labor |
| Runtime | Up to 5 h (tank 901), 22 h (904), 39 h (907) |
| Use | Outdoor only, at least 20 cm from combustible walls |
| Safety | Seal gasket, stop by closing valve, piezo ignition without open flame |
| Approximate weight | 2.5 kg |
| Approximate dimensions | 35 x 35 x 25 cm |
Frequently Asked Questions - Party Grill R CAMPINGAZ
User questions about Party Grill R CAMPINGAZ
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Barbecue in PDF format for free! Find your manual Party Grill R - CAMPINGAZ and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Party Grill R by CAMPINGAZ.
USER MANUAL Party Grill R CAMPINGAZ
GB English
IT Italiano
NL Nederlands
PT Português
DE Deutsch
NO Norsk
SE Swedish
cz Český
ES Español
DK Dansk
FI Suomeksi
RU –усский
fig.1
fig.2
fig.3
Operation and maintenance
Figures 1 to 7 : see page 2
Consumption: 99 g/h (1.36 kW) - injector n° 015556
Category: direct butane pressure.
Thank you for having chosen this Campingaz®
PARTY-GRILL R.
A - IMPORTANT: YOU ARE USING GAS, TAKE GREAT CARE!
The purpose of these directions for use is to enable you to use your Campingaz ^® “PARTY-GRILL R” appliance properly and in complete safety.
Please read them carefully, so as to familiarise yourself with the appliance before assembling it onto its gas container.
Please follow the instructions that appear in these directions for use. Any failure to follow these instructions may pose a danger both to the user and to people in the vicinity.
Always keep these directions for use in a safe place so that you can refer to them if need be.
This appliance must only be used with Campingaz ^® cylinders 901, 904 and 907. It may be dangerous to use any other gas containers.
La Société Application Des Gaz will not accept any liability in the event that a cylinder manufactured by any other brand is used.
This equipment should only be used outside premises and kept away from inflammable materials. Do not use an appliance that is leaking, not working properly or damaged. Return it to the shop you bought it from, which will give you details of the nearest after-sales service outlet.
Never modify this appliance or use it for applications for which it is not intended.
Do not use this product in caravans, cars, tents, huts, sheds or any small enclosed areas.
The product should not be used while sleeping or left unattended.
This product consumes fuel through combustion or consumption of oxygen and gives off certain substances and gas, which could be dangerous such as carbon monoxide (CO).
Carbon monoxide is an odorless, clear gas that can cause flu-like symptoms, sickness, illness, and possibly death if produced inside aforesaid enclosed areas through use of the product without proper ventilation.
B - PUTTING THE APPLIANCE INTO SERVICE

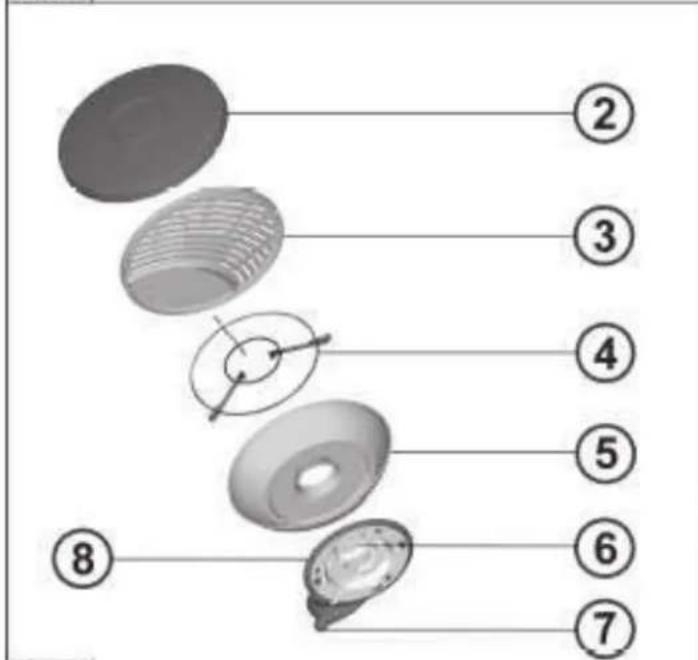

Take the appliance out of its packaging, and remove the lid (2), hotplate (3) pan support (crosspieces) (4) and water container (5)
C - FITTING TO CAMPINGAZ CYLINDERS 901, 904 and 907
(If an empty cylinder is in place, read section H: "Removing or changing the cylinder")
When inserting or removing a cylinder, always do so in an airy location, preferably outside and never close to a naked flame, heat source or spark (cigarette, electrical appliance, etc.), and well away from any other people and inflammable materials.

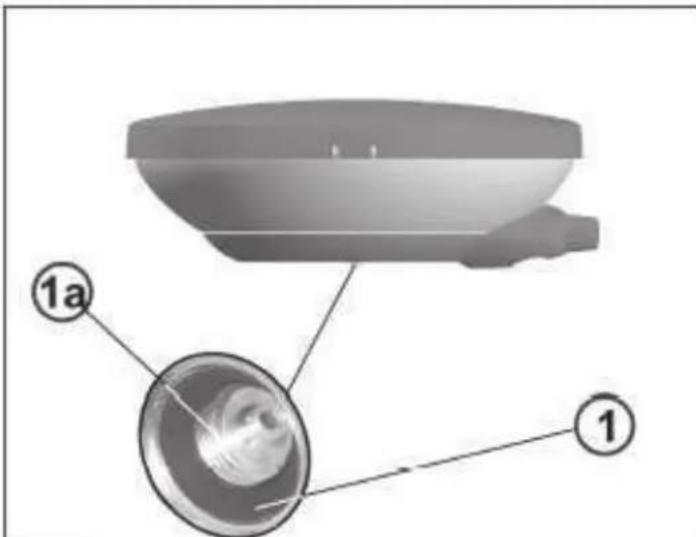

a) Check that the stove seal (1) and the tap thread (1a) (see fig.1) are in place and in good condition.
b) Do not use the stove if the seal is missing or damaged: return it to your stockist.
c) Check that the gas inlet is fully closed by turning the control knob (7) clockwise as far as the stop (direction “-” of the arrow).
d) Position the cylinder on a horizontal and solid surface, then remove the cap.

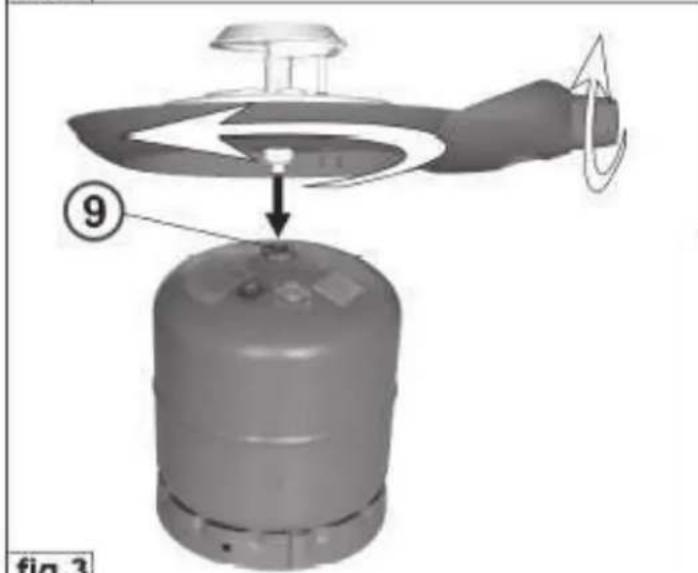

e) Take the tap/burner unit (8) and screw it as far as it will go onto the cylinder valve (9) (fig.3)
If you detect a leak (i.e. you can smell gas before the tap is opened), place the appliance outside immediately, in a well-ventilated location free of any ignition sources, where the leak can be diagnosed and stopped. If you wish to check the tightness of your appliance, you should do so outside. Use gas leak solution, not a naked flame, to search for any leaks.
D - ASSEMBLING THE CAMPINGAZ® PARTY-GRILL R STOVE

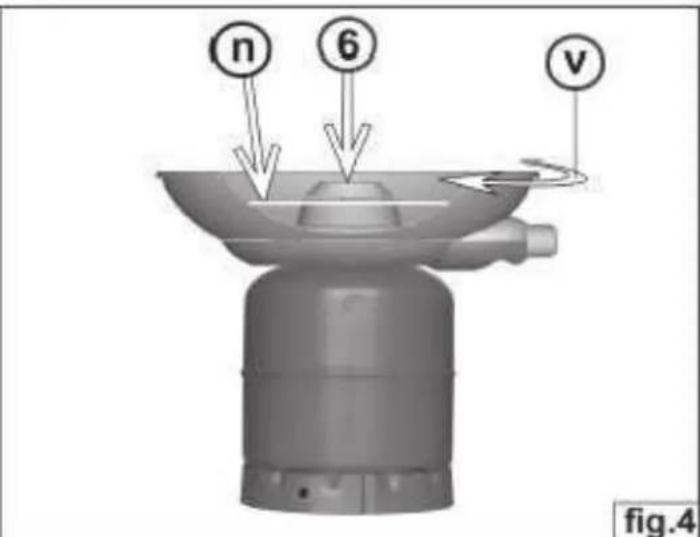

a) Fit the water container (5): connect it securely by turning as far as the stop, following the arrow marked "v" (fig.4).
b) Check whether the burner (6) is properly fitted (fig.4).
c) Put the crosspieces in place (4).
E - PREPARING TO USE THE "HOTPLATE" FUNCTION
a) Place approximately 3/4 of litre of water in the water container (5). The level should remain a few millimetres below the top of the central vent: (fig.4) "maxi" mark.
b) Position the hotplate (3) by indexing the notches on the crosspieces (4).

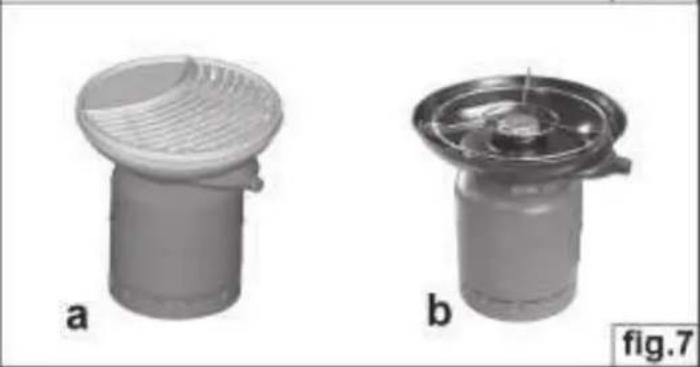

F - USING THE PARTY-GRILL AS A "HOT-PLATE" (fig.7a)
1) Lighting the burner
a) Open the tap by turning it (7) anti-clockwise: 1 rotation maximum.

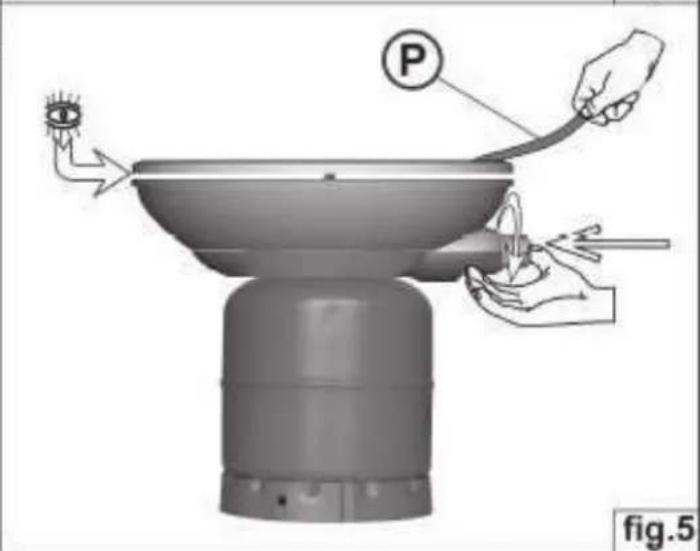

b) Press the button (7) with the thumb until the piezo system operates. This is made easy if the other fingers are placed in the slot provided. (fig.5)
c) If the burner flame is not visible under the hot-plate, (fig.5), recommence the procedure "b".
d) After 3 attempts, close the tap by turning it clockwise as far as it will go. Check that the cylinder contains gas and start the lighting operations a) and b) again.
2) Pre-heating
Pre-heat the hot-plate for one minute at maximum in order to reach the ideal temperature for cooking.
3) Cooking
The hot-plate is covered with a high quality anti-adhesive material which ensures healthy cuisine without adding fat or oil.
The hot-plate is divided into two zones:
1 - A flat surface for cooking eggs, thin slices of meat or fish, vegetables, toast...
2 - A ridged surface, ideal for barbeques.
Fatty substances are recuperated in the water tank, your cuisine is perfectly healthy (no residual or carbonised fats), your ingredients retain all their savor.
The hot-plate attains maximum temperature after about one minute of pre-heating (the ideal temperature for barbequing).
Place your ingredients on the plate and adjust the temperature with the gas tap according to your tastes (7).
It is also possible to ajust the speed of cooking according to where the ingredients are placed on the hot-plate: maximum in the center, less intense towards the edges.
While in use and still hot, you can remove the hotplate with the help of the removable handle (P) (Fig. 5)
4) Turning the hot-plate off
When you have finished with the hot-plate, turn the gas tap clockwise as far as it will go.
G - HOW TO USE THE PARTY-GRILL AS A STOVE (fig.7b)
1) Lighting the burner
Having installed the cylinder, light the burner by following the instructions in paragraph F 1 a) and b)
2) Cooking
Place the pan on the cross-pieces centered over the burner. Ensure that the flame does not exceed the underside of the pan.
H - REMOVING OR CHANGING CAMPINGAZ® CYLINDERS 901, 904 and 907
The cylinder can be removed even if it is not empty.
a) Check that the gas inlet is fully closed by turning the control knob (7) clockwise as far as it will go (direction “” of the arrow).
b) Empty out the water (note: this may be hot) from the water container by tilting the appliance.

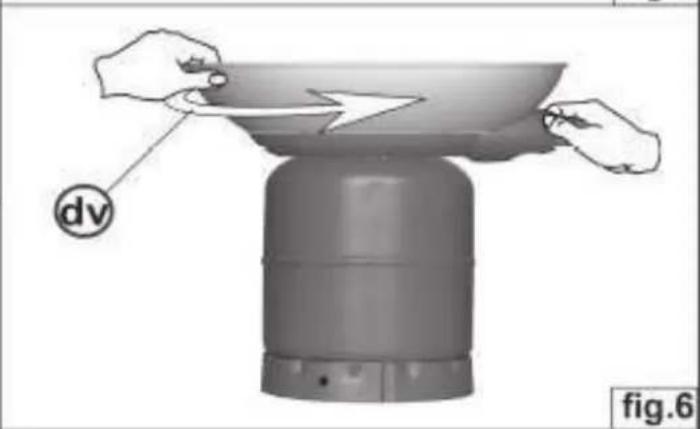

c) Release the water container by holding the tap control knob with one hand and turning the water container with the other in the direction of the arrow "dv" (fig.6)
d) Unscrew the tap/burner unit from the cylinder.
e) Before fitting the appliance to another cylinder, carefully follow the instructions in section "C" and "D".
I - PRECAUTIONS FOR USE
Do not use your appliance at a distance closer than 20 cm to a wall or flammable object.
When using with the hotplate: always ensure that water is present inside the water container.
Never allow the hotplate to function without any food on it for longer than the one-minute preheating period, otherwise the special coating will be damaged.
When hot, the hotplate should be manipulated using the removable handle (P)
Wait until the appliance has completely cooled down before attempting to manipulate it to put it away.
J - Maintenance, Storage and Troubleshooting
In case of burn back (ignition under the burner cap) switch the product off, allow it to cool down (approximately five minutes), then reignite the appliance. If the problem of burn back persists, then please contact your local Campingaz® representative.
a) Once the appliance has cooled down completely, which takes approximately 15 min.s, remove the hotplate and crosspieces, empty out the water and release the water container (5) by holding the tap control knob with one hand and turning the water container with the other in the direction of the arrow "dv" (fig.6)
b) Clean any greasy areas with soap and water or a non-abrasive detergent. (Do not use a scouring pad or abrasive products on the grill or water container)
c) For easier cleaning of the appliance, the lid, hotplate, water container and crosspieces can be placed in a dishwasher.
d) Fit the parts back onto the appliance and put the protective lid back in place.
e) The appliance should be stored, disconnected from its cylinder, in a cool, dry and airy location, out of the reach of children, and never in a basement or cellar.
K - AUTONOMY
Useful life with a cylinder:
| Cylinder type | Stove: maximum output | Grill: preheating and cooking |
| 901 | 4 hours 30 5 hours | |
| 904 | 20 hours 22 hours | |
| 907 | 35 hours 39 hours |
TERMS OF APPLICATION OF THE GUARANTEE
- The product is covered by a total parts and labor warranty for a period of 2 (two) years from its purchase date.
- The warranty applies to products that do not conform to the order or that are defective.
- Within the guarantee period, the product shall be either repaired, replaced or reimbursed - in full or in part. Liability to Buyer under a claim shall in no event exceed the price of the product.
- The warranty is null and void and does not apply should the damage arise from (i) abuse of the products (ii) failure to operate and maintain the products in accordance with the instructions of use (iii) repair, service, alteration or modification of the product by unauthorized third parties (iv) original parts are not used.
- The warranty is excluded in case of professional use.
- Proof of the purchase date (ie. invoice, till receipt) and claim report are required to obtain a free warranty service.
- Do not return the appliance with the gas container (cylinder or cartridge) fitted; ensure it is dismantled before sending back.
- Service under the guarantee does not affect the expiry date of the warranty.
- All other claims including for damages resulting from this warranty are excluded unless ADG's liability is legally mandatory.
- This guarantee in no way affects a Buyer's statutory rights.
- In the event of difficulty, please contact the Local Customer Service in your country. List of contacts is available in this leaflet.
