Product Type	Gas Barbecue
Brand	Campingaz
Model	Hacienda Deluxe
Overall Dimensions (L x W x H)	120 x 60 x 110 cm
Cooking Area	Approx. 2500 cm²
Weight	~38 kg
Power Source	Propane or Butane Gas (not included)
Number of Burners	3 main burners + side burner
Ignition Type	Piezo ignition
Material	Stainless steel and enamel coated steel
Temperature Gauge	Built-in lid thermometer
Cleaning	Removable grease tray and cooking grates
Safety Features	Gas regulator with safety shut-off, flame failure device
Assembly Required	Yes
Spare Parts Availability	Grill grates, burners, ignition system, grease tray
Warranty	2 years (manufacturer)

Frequently Asked Questions - Hacienda Deluxe CAMPINGAZ

How do I assemble the Campingaz Hacienda Deluxe barbecue?

Refer to the user manual for detailed assembly instructions. Typically, you need to attach the legs, side tables, and connect the gas cylinder. Ensure all connections are tight and leak-tested before use.

What type of gas does the Hacienda Deluxe use?

The barbecue is designed for use with propane or butane gas. Use a standard gas cylinder with a compatible regulator. Never use natural gas unless specified.

How do I clean the barbecue after use?

Allow the barbecue to cool completely. Remove the cooking grates and grease tray. Wash them with warm soapy water. Wipe the exterior with a damp cloth. Regularly check and clean burner ports to prevent blockage.

Why won't the barbecue ignite?

Check that the gas cylinder is open and has fuel. Ensure the ignition electrode is clean and dry. If using a match, light it first before turning on the gas. If the piezo igniter fails, replace the battery if applicable or manually light with a long lighter.

How do I perform a leak test?

Mix soap and water. Apply the solution to all gas connections, including the regulator, hose, and valves. Turn on the gas (do not light). If bubbles form, there is a leak. Tighten connections or replace parts. Do not use if leak persists.

Can I use the barbecue in windy conditions?

It is not recommended to use the barbecue in strong winds as it can affect performance and cause uneven cooking. If necessary, position the barbecue with its back to the wind and use the lid to shield.

What is the maximum cooking temperature?

The barbecue can reach temperatures up to 300°C (572°F) with the lid closed. Use the built-in thermometer to monitor. For low and slow cooking, maintain around 120-150°C.

How do I replace the gas cylinder?

Ensure the barbecue is turned off and cool. Close the cylinder valve. Disconnect the regulator. Remove the empty cylinder and attach the new one, tightening the regulator nut. Perform a leak test before lighting.

Is the barbecue safe to use on a wooden deck?

Always place the barbecue on a stable, non-combustible surface. Keep it at least 1 meter away from any structures or flammable materials. Use a protective mat underneath if placed on wood.

Where can I find spare parts for the Hacienda Deluxe?

Spare parts such as grill grates, burners, and thermometers can be purchased from Campingaz authorized dealers or online retailers. Contact customer support with your model number for exact parts.

USER MANUAL Hacienda Deluxe CAMPINGAZ

Guarantee certificate

Illustration of a portable outdoor grill with a dome-shaped top and wheels (no text or symbols)

064605/EX

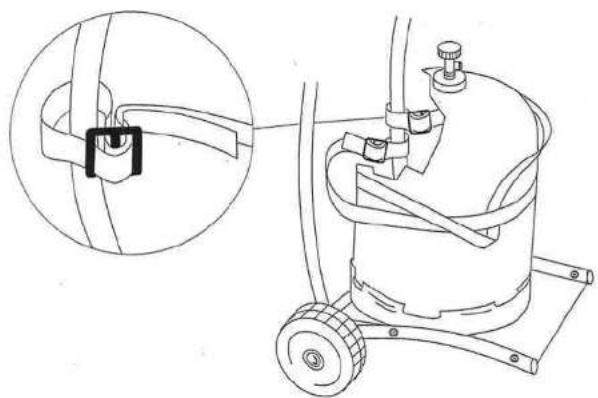

NL : I - Montage

Mechanical device with mounted components and a fan-like structure (no visible text or symbols)

L

Technical line drawing of a mechanical device with a magnified inset showing a component detail (no text or symbols)

N°063639 Pizza school

NL - Garantiebewijs

Mechanical device with mesh frame and cylindrical components (no visible text or symbols)

L

Technical line drawing of a mechanical device with a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a piano with visible structural components and wiring (no text or symbols)

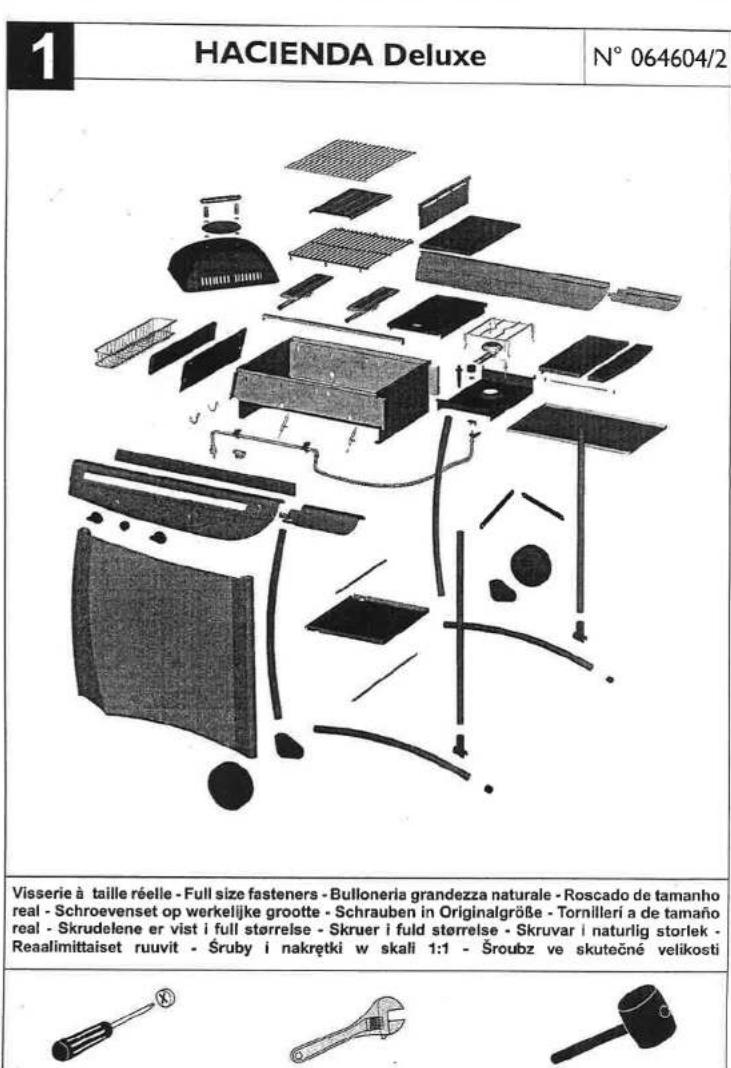

Visserie à taille réelle - Full size fasteners - Bulloneria grandezza naturale - Roscado de tamanho real - Schroevenset op werkelijke grootte - Schrauben in Originalgröße - Tornilleri a de tamaño real - Skrudelene er vist i full størrelse - Skruer i fuld størrelse - Skruvar i naturlig storlek - Reaalimittaiset ruuvit - Šruby i nakrętki w skali 1:1 - Šroubz ve skutećné velikosti

Illustration of three different tools: a screwdriver, an adjustable wrench, and a large hammer (no text or symbols present)

B2

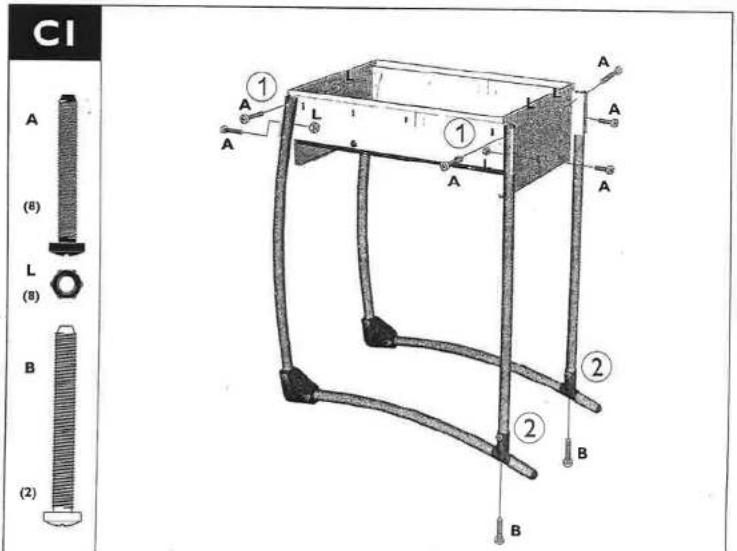

CI
