Product type	Bass amp combo
Brand	Fender
Model	Rumble 800 Combo
Output power	800 W max (with external speaker 4 Ω or 2.67 Ω); 400 W internal (8 Ω)
Power supply	100-240 V~, 50/60 Hz, 1500 W max, 380 W typical
Dimensions (W x H x D)	48.26 x 60.2 x 35.56 cm
Weight	13.15 kg
Speakers	2x 10" (25.4 cm) Eminence Neodymium 16 Ω, compression driver tweeter with switch
Equalization	Active 4-band: Bass ±15 dB at 80 Hz, Low Mid ±12 dB at 280 Hz, High Mid ±12 dB at 1.2 kHz, Treble ±15 dB at 10 kHz
Inputs	1 x Input (1 MΩ), 1 x Aux In (10 kΩ)
Outputs	1 x Balanced Line Out (600 Ω), 1 x Stereo Phones (16 Ω min), 1 x External Speaker (Speakon/Jack), 1 x Effects Send/Return (balanced)
Special features	Bright, Contour, Vintage (dynamic compression), Overdrive with footswitch, Delta-Comp limiter, Thermal and short-circuit protection, Variable speed fan
Included footswitch	Yes, economy model REF 0994049000
Other compatible footswitches	Vintage REF 0994054000, LED REF 0994052000
Certifications	CE
Safety	Protection against overheating and short circuits; automatic shutdown in case of excessive temperature
Maintenance	Clean with a dry, soft cloth; avoid solvents and abrasives
Repairability	Repairs by authorized Fender technician

Frequently Asked Questions - Rumble 800 Combo FENDER

How do I connect my bass and adjust the gain?

Connect your active or passive bass to the INPUT jack. Set the GAIN to the center position, then adjust according to your bass's output level to avoid clipping. If the signal is too strong, lower the gain.

How do I activate overdrive?

Press the OVERDRIVE switch (E) to activate the circuit. The indicator lights up. Use the DRIVE (D) control for distortion and LEVEL (F) to balance the volume with the clean sound.

What does the Contour button do?

The CONTOUR function cuts the mids and boosts the bass and treble for a more punchy sound, ideal for slapping or at low volume. It can be combined with overdrive.

Can I use a footswitch to control overdrive?

Yes, connect a compatible Fender footswitch (economy included, vintage or LED) to the FTSW jack (R) on the rear. The front panel OVERDRIVE switch remains functional. Make sure overdrive is off if using the LED model.

How do I connect an external speaker?

Use the EXT. SPKR output (M) with a Speakon or 1/4" speaker cable. Set the impedance switch to 4 Ω or 8 Ω according to the speaker. Never allow the conductors to come into contact with the chassis.

Can I use headphones?

Yes, connect stereo headphones (minimum impedance 16 Ω) to the PHONES jack (Q). The internal speaker is automatically muted.

What if the amp doesn't turn on?

Check the power cord and outlet. Make sure the POWER switch (K) is ON. If the indicator remains off, consult a Fender technician. A 20-30 second delay may occur during fast power cycles.

How do I use the effects loop?

Connect the SEND output (O) to the input of your effects, and the output of the effects to the RETURN input. This reduces noise. For a multi-amp setup, connect SEND of the first to RETURN of the second.

What does the orange light on the front panel mean?

The POWER/STATUS indicator (J) lights orange in protection mode (overheating or short circuit) or briefly during power-up/down. In normal operation, rapid orange flashes indicate a harmless level peak; red means power on.

How do I clean the amp?

Use a dry, soft cloth to dust. Do not use solvents, alcohol, or abrasive products. Make sure the amp is unplugged before cleaning.

USER MANUAL Rumble 800 Combo FENDER

THIS DOCUMENT CONTAINS INFORMATION OF PROPRIETARY NATURE TO FENDER MUSICAL INSTRUMENTS AND IS SUBMITTED TO YOU IN CONFIDENCE AND SHALL NOT BE DISCLOSED OR TRANSMITTED TO OTHERS WITHOUT AUTHORIZATION FROM FENDER MUSICAL INSTRUMENTS

REVISIONS
REV.	DESCRIPTION	BY	DATE
A	PR 6106	J.O.	9.30.21

DO NOT PRINT THIS PAGE

NOTES: UNLESS OTHERWISE SPECIFIED.

1. PRINT IN BLACK OR GRAYSCALE ONLY
2. USE 80LB UNCOATED COVER STOCK FOR THE FRONT AND REAR COVER PAGES
3. USE 20LB TEXT STOCK FOR INTERIOR PAGES
4. NO BLEED PRINTING REQUIRED
5. PAGE SIZE: 8 1/2 INCHES X 11 INCHES
6. STAPLE BOUND
7. SAMPLES OF FIRST PARTS MUST BE APPROVED BY FENDER R&D BEFORE STARTING PRODUCTION.QTY 3 UNLESS OTHERWISE SPECIFIED.

ANY PART SUPPLIED FOR USE IN ANY FENDER PRODUCT MUST CONFORM TO THE EUROPEAN RoHS DIRECTIVE.

COPYRIGHT - 4/27/2021 - FENDER MUSICAL INSTRUMENTS CORP.

PROJECT ENGINEER DATE 06-OCT-2021			FENDER MUSICAL INSTRUMENTS CORP. RESEARCH & DEVELOPMENT CORONA, CALIFORNIA U.S.A.
	TITLEMANUAL OWNER'S RUMBLE 800 COMBO
PROJECT MANAGER DATE 10/06/2021
PRODUCT MANAGER DATE
	SIZEA	PART NUMBER7724487000		REVA

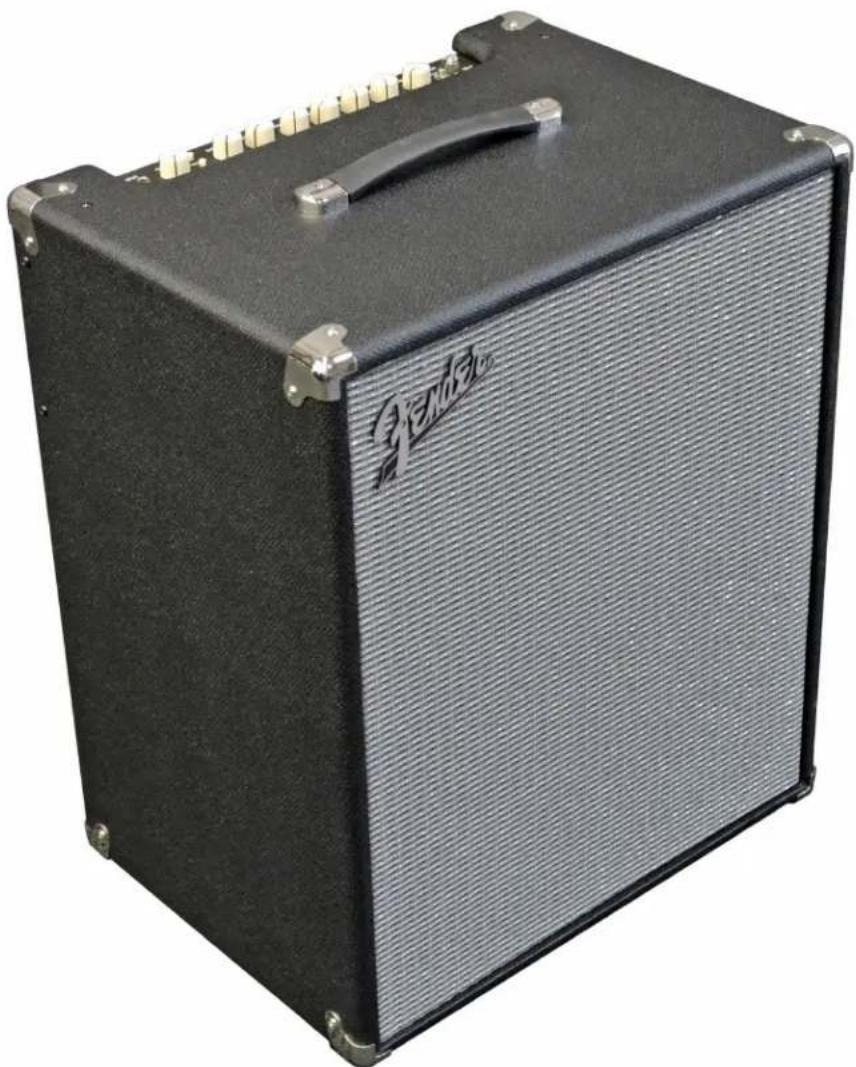

Rumble ^TM 800

COMBO AMPLIFIER

Black and white portable guitar with visible grille and side connectors (no text or symbols on body)

OWNER'S MANUAL | MANUAL DE INSTRUCCIONES

MODE D'EMPLOI | MANUAL DO PROPRIETÁRIO

MANUALE UTENTE | BEDIENUNGSHANDBUCH

INSTRUKCJA OBSŁUGI | NÁVOD K POUŽITÍ

NÁVOD NA POUŽITIE | UPORABNIŠKI PRIROČNIK

オーナーズ・マニュアル

Fender®

RUMBLE™ 800 COMBO

Thanks for buying a Fender Rumble 800 bass amplifier. Fender bass amplifiers are legendary for providing thick, natural and balanced tone that sits fat in your live or studio mix. Rumble amps are designed by and for bass players, and we take great pride in putting full-featured, easy-to-operate amps of the highest quality in the hands of working and aspiring musicians everywhere.

The Rumble family can take you from home rehearsal all the way to the concert stage and beyond. Wherever your musical path takes you, Rumble bass amps help get you there.

Register your Rumble 800 Combo online at start.fender.com.

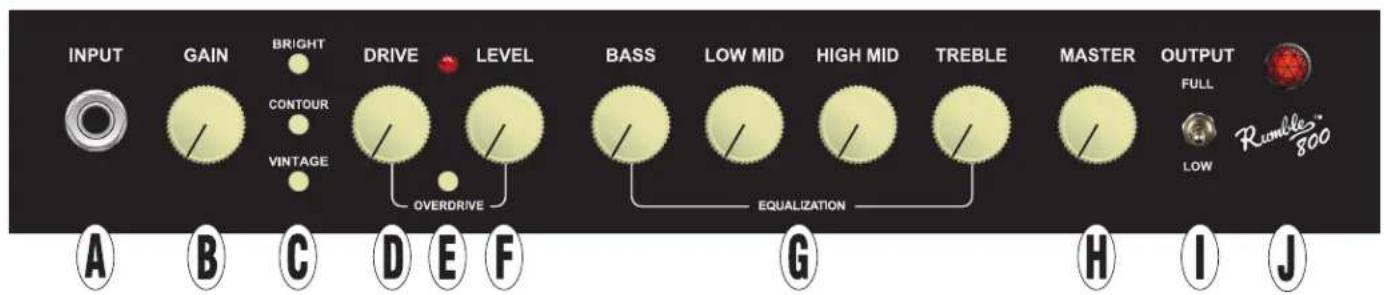

CONTROL PANEL

A. INPUT: Plug passive or active bass in here. If bass is too hot and causes unwanted distortion, turn GAIN control down.
B. GAIN: Adjusts incoming signal level (0dB to +20dB), optimizing preamp signal level for a variety of basses. Setting this control to noon is a good starting point; GAIN setting also affects level of distortion/compression when VINTAGE and/or OVERDRIVE are selected.
C. BRIGHT, CONTOUR AND VINTAGE: BRIGHT adds presence and shimmer in the upper frequencies. CONTOUR is a mid-frequency cut, combined with low- and high-frequency boosts that offer a fat pleasing tone, useful for slap and low-volume playing, or in combination with OVERDRIVE (E). VINTAGE creates a dark tone rich with harmonics and some natural compression.
D. DRIVE: Controls amount of harmonically rich preamp distortion when OVERDRIVE (E) is engaged.
E. OVERDRIVE: Activates overdrive circuit and controls; light indicates use.
F. LEVEL: Controls overdrive volume when OVERDRIVE (E) is engaged. Use to balance volume levels between clean and overdrive tones.

G. FOUR-BAND EQUALIZATION: Adjusts overall tone and compensates for room acoustics. See "Specifications" section for control parameters.
H. MASTER: Controls overall amp volume. When setting MASTER higher or playing more aggressively, modified Fender Delta-Comp™ limiter circuitry delivers more tube-like response to speakers with greater compression, harmonics and sustain.
I. OUTPUT SWITCH: Set switch to FULL for normal maximum power (800W or 400W internal). Set to LOW to get the same tone at reduced output/volume levels (200W or 100W internal).
J. POWER/STATUS INDICATOR: Illuminates solid red when power is on; flashes amber when maximum output power is produced for short periods (normal for uncompressed bass guitar). Illuminates solid amber when amp enters "protect mode" (see Thermal Performance and Protection) and briefly during power on/off.

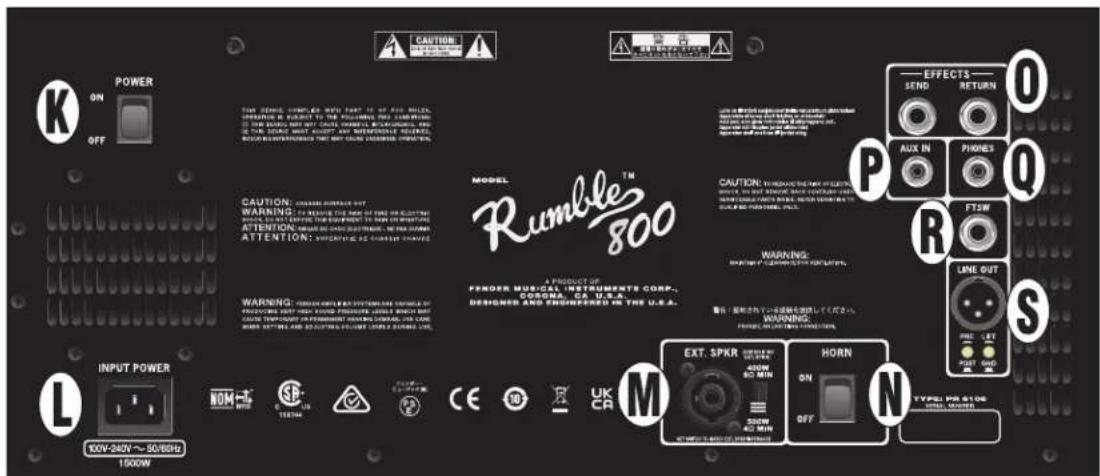

REAR PANEL

K. POWER SWITCH: Turns amplifier on and off. When quickly turning the power off and then on again, a brief delay can occur for 20-30 seconds.

L. IEC POWER INLET: Connect included power cord to a grounded A/C electrical outlet in accordance with voltage and frequency ratings specified on rear panel of amplifier.

M. EXTERNAL SPEAKER OUTPUT/IMPEDANCE SWITCH : Connect an external speaker cabinet (8Ω or 4Ω minimum impedance) to this combination output using a Speakon® or 1/4" cable. Set switch to match impedance rating of external cabinet; continuous power rating of external cabinet must meet or exceed power rating listed for chosen switch setting. Set switch to 8Ω when no external cabinet is connected.

The Rumble 800 Combo's high-power class "D" amplifier operates in bridge mode, meaning that voltage is present in both terminals (+) and (-). Use caution when connecting a speaker cable to the External Speaker output on the rear panel—never let the tip (+) or sleeve (-) of a speaker cable (see illustration below) contact the amp's metal chassis or any other earth-grounded electrical equipment (i.e., audio mixers and other sound reinforcement devices). A speaker cable plugged into the amp's External Speaker output should be connected only to another speaker cabinet.

Connect a footswitch to amplifier to remotely engage OVERDRIVE (E). Three Fender footswitches will work (shown at right with part numbers; Economy footswitch model is included with Rumble 800 combo), or any generic single-button latching-type footswitch will work. Contact a local Fender dealer to purchase a Fender footswitch of choice.

During footswitch use, front-panel OVERDRIVE switch remains functional. Note that normal front-panel switch position (in=ON, out=OFF) can become reversed depending on footswitch status. Overdrive LED status on front panel will always be correct, but indicator light on an LED footswitch (such as model 0994052000 at right) may display incorrectly (i.e., LED is off when OVERDRIVE is on) depending on front-panel switch status. When using an LED footswitch, keep front-panel OVERDRIVE switch in OUT position to ensure correct display status on footswitch LED.

N. HORN SWITCH: Activates high-frequency driver.

O. EFFECTS LOOP: Connect SEND to external effect input; connect external effect output to RETURN. Effects loop use reduces amount of noise and tone degradation caused by effects pedals. For multi-amp configuration, connect primary amp SEND to secondary amp RETURN. Instrument is connected to primary amp; preamp controls will adjust tone for both units (secondary unit preamp controls are bypassed). Use MASTER volume on both amps to independently control loudness of each.

P. AUX IN: Connect external audio player here. Adjust aux signal volume/tone at its source; amp MASTER volume (H) doesn't affect external device volume. Earth-grounded audio equipment such as a laptop with a connected power supply may result in unwanted noise/hum.

Q. HEADPHONES: Stereo headphone output (16Ω minimum impedance) automatically mutes speaker output.

R. FOOTSWITCH: Allows remote switching of OVERDRIVE section. See "Footswitches" section below.

S. LINE OUT/GROUND LIFT: Balanced output for connection to external devices such as sound reinforcement and recording equipment. Pressing GND LIFT button can help eliminate noise caused by connection to improperly grounded equipment. Select PRE for direct unaffected signal; select POST for fully processed signal (except MASTER). Speaker cabinet connection not required for silent recording applications.

FOOTSWITCHES

ECONOMY FOOTSWITCH (Included, PN 0994049000): Basic black single-button on/off footswitch.

VINTAGE FOOTSWITCH (Optional, PN 0994054000): Chrome single-button on/off footswitch.

LED FOOTSWITCH (Optional, PN 0994052000): Contemporary single-button on/off footswitch with LED indicator. NOTE: For correct operation of footswitch LED, overdrive effect must be switched off before connecting this footswitch.

THERMAL PERFORMANCE AND PROTECTION

The Rumble 800 Combo uses a class-D power amplifier with thermal and short circuit protection. In the event of a short circuit, the amplifier will temporarily mute (no sound from speakers; power indicator illuminates solid amber) and resume normal operation when the fault is removed (power indicator returns to solid red).

For increased thermal performance, the Rumble 800 combo has variable-speed fan cooling that starts at low speed and increases as amplifier temperature rises with playing use.

Leave at least 6" clearance between the amplifier vents and other objects. If the amplifier vents are blocked or if the amp is used in an extremely hot environment, the amp may overheat and

trigger thermal protection, causing temporary speaker muting (power indicator illuminates solid amber). Normal operation will automatically resume after the temperature cools to a level within operating range (power indicator returns to solid red).

Under the most severe operating conditions, the amp can overheat to the point of interrupting power, resulting in no sound from the speakers. In this unlikely event, normal operation will automatically resume after the temperature cools to a level within operating range.

ENGLISH

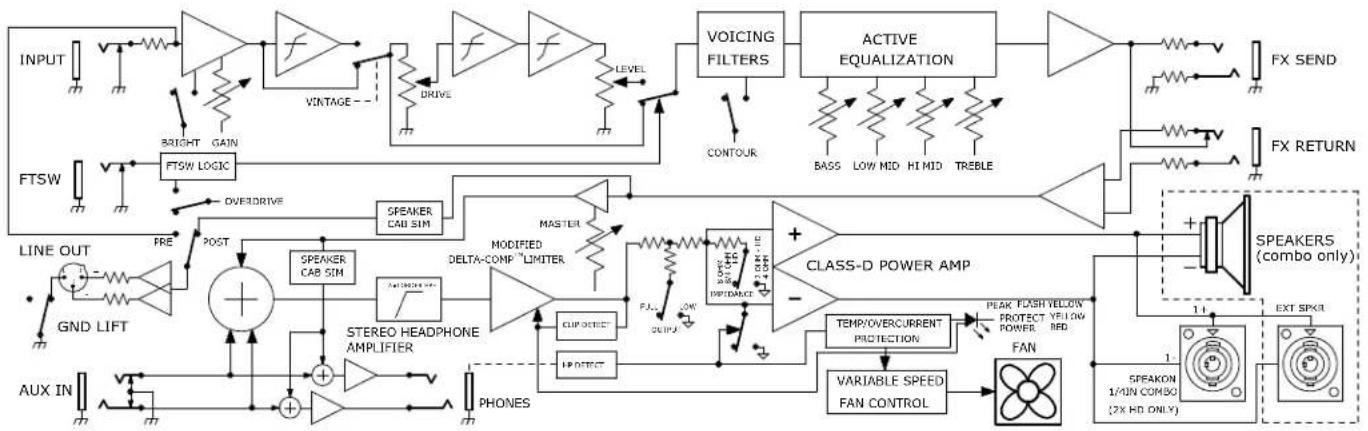

BLOCK DIAGRAM

For questions and troubleshooting, contact a Fender specialist at: 1-800-856-9801 (U.S. toll free) 1-480-596-7195 (International)

SPECIFICATIONS

CE

TYPE PR 6106

POWER REQUIREMENTS 1,500 watts (max) 380 watts (typical)

POWER AMP OUTPUT 400 watts into 8Ω (internal)

800 watts into 4Ω/2.67Ω (with 8Ω/4Ω extension cabinet)

INPUT IMPEDANCES 1MΩ (input) 10kΩ (aux in)

INPUT SENSITIVITY 25mVrms (input)

600mVrms (aux In, both channels driven) (for full power at 100Hz, with Gain/Master at "10" and EQ controls at "0")

TONE CONTROLS Bass: ±15dB @ 80Hz

Low-mid: ±12dB @ 280Hz High-mid: ±12dB @ 1.2kHz

Treble: ±15dB @ 10kHz ("shelving" type)

SHAPE FILTER Bright: +13dB @ 10kHz

Contour: +1dB @ 80Hz, -13dB @ 670Hz, +2dB @ 8kHz

Vintage: Dynamic compression (-9dB max) with low pass (-6dB/oct) @ 400Hz

SPEAKERS

EFFECTS LOOP

Nominal level: -10dB

Send: 1kΩ (balanced)

Return: 22kΩ (balanced)

LINE OUT

Max level: +7dBU

Impedance: 600Ω (balanced)

HEADPHONE OUTPUT

140mW/channel into 16Ω (minimum recommended impedance)

FOOTSWITCHES

Economy footswitch (included, PN 0994049000)

Vintage footswitch (optional, PN 0994054000)

LED footswitch (optional, PN 0994052000)

DIMENSIONS AND WEIGHT

Width: 19" (48.26 cm)

Height: 23.7" (60.2 cm)

Depth: 14" (35.56 cm)

Weight: 29 lbs. (13.15 kg)

Product specifications subject to change without notice.

CABEZAL RUMBLE™ 800

Bright: +13dB @ 10kHz

380 watios (típico)

Low-mid: ±12dB @ 280Hz

High-mid: ±12dB @ 1.2kHz

Contour: +1dB @ 80Hz, -13dB @ 670Hz, +2dB @ 8kHz

Bass: ±15dB @ 80Hz Low-mid: ±12dB @ 280Hz High-mid: ±12dB @ 1.2kHz Treble: ±15dB @ 10kHz (tipo "shelving") Bright: +13dB @ 10kHz Contour: +1dB @ 80Hz, -13dB @ 670Hz, +2dB @ 8kHz Vintage: Compressão dinâmica (máx. -9dB) com passa baixo (-6dB/oct) @ 400Hz

Bright: +13dB @ 10kHz

Bright: +13dB @ 10kHz

SPRAWNOŚĆ I OCHRONA TERMICZNA

basy: ± 15 dB @ 80 Hz

Bright: +13 dB @ 10 kHz

380 wattov (typicky)

Bright: +13 dB @ 10 kHz

Contour: +1 dB @ 80 Hz, -13 dB @ 670 Hz, +2 dB @ 8 kHz

Vintage: Dinamična kompresija (-9 dB maks.), nizkofrekvenčno (-6 dB/okt.) @ 400 Hz

ZVOČNIKA

Dva 10-palčna (25,4 cm) Eminence™ Neodymium 160, en kompresijski visokotonec s stikalom za vklop/izklop

ZANKA EFEKTOV

Nazivna raven: -10 dB

Send: 1kΩ (uravnoteženo)

Return: 22kΩ (uravnoteženo)

LINIJSKI IZHOD

Maks. raven: +7dBU

Upornost: 600, (uravnoteženo)

IZHOD ZA SLUŠALKE

140mW/kanal v 16Ω (minimalna priporočena impedanca)

NOŽNA STIKALA

Nożno stikalo Economy (prilożeno, št. 0994049000)

Nożno stikalo Vintage (dodatno, št. 0994054000)

1MΩ (入力) 10kΩ (AUX入力)

Fender ^® , Rumble ^™ and Delta-Comp ^™ are trademarks of FMIC.

Other trademarks are property of their respective owners.

Copyright © 2022. All rights reserved.
