HRM38 - Lawn mower Grizzly - Free user manual and instructions

Product type	Manual lawn mower
Brand	Grizzly
Model	HRM38
Cutting width	380 mm
Cutting height	14 - 43 mm (continuous adjustment)
Number of blades	5 vibrating blades
Weight	8.5 kg
Power source	Manual (push)
Main functions	Lawn mowing, cutting height adjustment, optional grass catcher attachment
Maintenance and cleaning	Clean after each use with a brush or cloth; oil the blades; check all nuts and screws for tightness
Safety	Read the instructions before use; wear closed shoes; keep people and animals away
Spare parts	Grass catcher (ref. 76101128), blade roller and lower blade (replace together)
Repairability	Cutting gap adjustment possible; replace blades by a professional; authorized after-sales service
Warranty	24 months (excluding professional use and wear parts)
Storage	In a dry place, out of reach of children; foldable handle

Frequently Asked Questions - HRM38 Grizzly

How to assemble the handle of the HRM38 mower?

Fit the ends of the lower part of the handle into the housing on the device, then screw the upper part onto the central parts. You can adjust the handlebar height to two positions.

How to adjust the cutting height?

Unlock the lock nuts on both sides, place a foot on the rolling wheels and use the adjustment handles to set the height from 14 to 43 mm. Retighten the nuts symmetrically.

How to attach the grass catcher?

Assemble the frame and rod of the collection bag, fasten the strap, then hook the basket onto the back of the mower. Adjust the strap so it does not drag on the ground.

How to clean the mower after use?

Use a brush or dry cloth to remove grass residue. Do not use cleaning products or solvents. Rub the blades with an oiled cloth.

Can I sharpen the blades myself?

No, the blades of the blade roller cannot be sharpened due to their special geometry. The roller and the lower blade must be replaced together by a specialized workshop if necessary.

What are the important safety instructions?

Read the instructions before use. Do not mow barefoot or with open shoes. Keep children and animals away. Work across slopes, never up or down.

How to store the mower?

Store it in a dry place, out of reach of children. To save space, unlock the wing nuts and fold the handle.

What to do if the mower cuts poorly?

Check the cutting gap adjustment using the provided metal strip. If the adjustment is not sufficient, replace the blade roller and the lower blade together.

Where can I buy spare parts?

Go to www.grizzly-service.eu or contact Grizzly after-sales service. For the grass catcher, use reference 76101128. For other parts, specify the machine type and part number.

What is the warranty of the HRM38 mower?

The warranty is 24 months for private use. Damage from normal wear, overloading, or improper use is excluded. Wear parts such as blades are not covered.

USER MANUAL HRM38 Grizzly

Red and silver lawn mower with blue wheels and metal frame (no visible text or symbols)

Translation of the original instructions for use

Grizzly Service-Center 75

Grizzly Service-Center 75

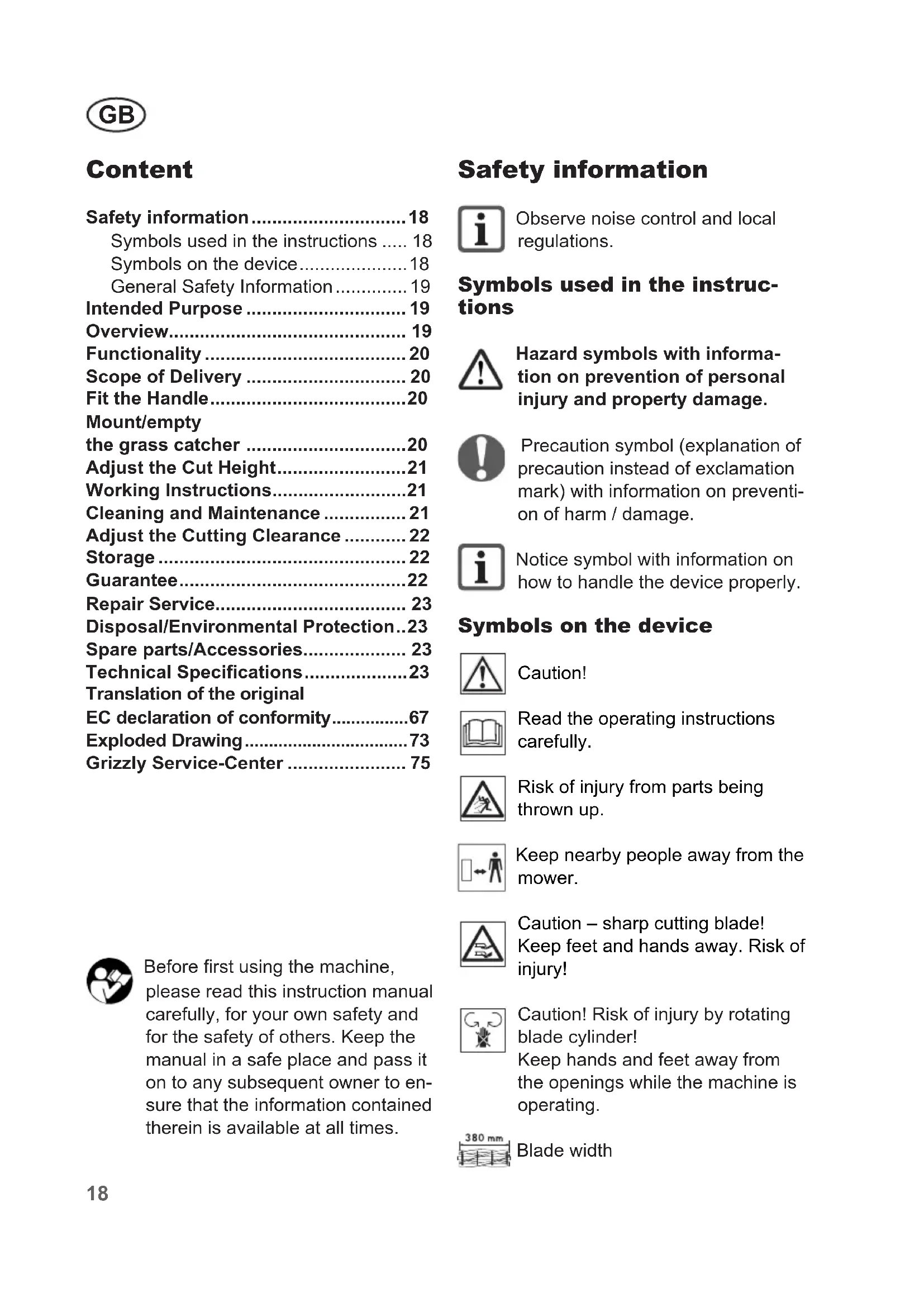

Safety information....18

Symbols used in the instructions ..... 18

Symbols on the device....18

General Safety Information...... 19

Intended Purpose 19

Overview.... 19

Functionality 20

Scope of Delivery 20

Fit the Handle....20

Mount/empty

the grass catcher ....20

Adjust the Cut Height....21

Working Instructions......21

Cleaning and Maintenance 21

Adjust the Cutting Clearance ..... 22

Storage 22

Guarantee....22

Repair Service.... 23

Disposal/Environmental Protection..23

Spare parts/Accessories.... 23

Technical Specifications....23

Translation of the original

EC declaration of conformity......67

Exploded Drawing....73

Grizzly Service-Center 75

Before first using the machine, please read this instruction manual carefully, for your own safety and for the safety of others. Keep the manual in a safe place and pass it on to any subsequent owner to ensure that the information contained therein is available at all times.

Safety information

Observe noise control and local regulations.

Symbols used in the instructions

Hazard symbols with information on prevention of personal injury and property damage.

Precaution symbol (explanation of precaution instead of exclamation mark) with information on prevention of harm / damage.

Notice symbol with information on how to handle the device properly.

Symbols on the device

Caution!

Read the operating instructions carefully.

Risk of injury from parts being thrown up.

Keep nearby people away from the mower.

Caution – sharp cutting blade! Keep feet and hands away. Risk of injury!

Caution! Risk of injury by rotating blade cylinder!

Keep hands and feet away from the openings while the machine is operating.

Blade width

General Safety Information

Caution: to avoid accidents and injuries:

• Children and young people under the age of 16 and people who are not familiar with these instructions must not work with the machine.
• Never turn the machine on when people and particularly children or animals are nearby.
  • People with motor disorders are not to operate the machine without supervision.
• Do not use the machine with bare feet or when wearing open sandals. Only run the machine at walking pace.
• When working, ensure a firm foot-hold, particularly on slopes. Always work across the slope, never up or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.
• When switching the machine on, avoid feet or hands being trapped between the moving blades and the fixed parts of the machine.
• Never carry the machine by the blade cylinder.

Caution! To avoid damaging the machine and potential injury as a consequence:

- Check the terrain on which the machine is used and remove stones, sticks, wires or other foreign bodies that may be picked up and flung outwards.

- Ensure that the machine is in a safe operating condition. Replace worn or damaged parts.

- Protect the machine from the effects of weathering (damp, frost).

Intended Purpose

The machine is intended only for mowing lawns and grass areas in the domestic domain.

The operator or user is responsible for accidents or injury to other people or damage to their property.

The manufacturer shall not be liable for damages caused by improper use or incorrect operation. This equipment is not suitable for commercial use.

Commercial use will invalidate the guarantee.

Overview

See the pages 2 - 4 for illustrations.

1 Handle top

2 2 centrepieces

3 Machine key

4 Metal strips (feeler gauge)

5 Machine holder

6 Handle bottom

7 Handle holder

8 Blade cylinder

9 Castors

10 2 screws for adjusting the blades

11 Sub-blade

12 2 locknuts

13 2 wheels

14 2 adjustable handles and scales for height adjustment

15 4 screws and 4 wing nuts for the handle fixing

Functionality

The lawn mower has a reel blade cylinder containing 5 bow-shaped blades. Its cutting height is infinitely adjustable, and its wheels turn smoothly.

Read the sections below to learn more about each operating element's function.

Scope of Delivery

• Mower
• Handle top
• Handle bottom
• 2 centrepieces
• 4 screws
• 4 nuts
• Machine key
• Metal strip (feeler gauge)
• Instruction Manual

Fit the Handle

1. Press both ends of the handle bottom (6) together and insert them vertically through the handle holder (7) on the machine.

2. Push the holes at the ends over the two holder bolts (19).

3. Screw the handle top (1) firmly onto both centrepieces (2).
4. Screw the centrepieces onto the handle bottom (6).

The two centre bars can be secured in two positions to adjust the handle bar to your height.

Mount/empty the grass catcher (Optionally available)

Use only the original collection bag GRIZLY HRM38; Product No. 76101128

Assemble the grass catcher:

Thread the larger of the two collection bag rod arches through the tab (21a) on the inside of the collection bag.
② Then assemble the three collection bag rods (20).

1. Insert the grass catcher linkage (20) into the grass catcher net (21).

2. Pull the plastic straps (22) over the grass catcher linkage.

Thread in the belt

1. The grass collecting basket has a hole on the top (23). Pull the end of the belt through the hole (23), under the frame (20). Now thread in the hanging hook (24) (the hook points towards the grass collecting basket handle).

2. Fix the end of the belt onto the plastic buckle (25).

Mount grass catcher on lawn- mower:

1. Place the grass catcher (16) on the mounting bracket (22) provided at the back of the lawn-mower.

1. Hook the hanging hook (24) into the clip ring (27).

2. Adjust the length of the belt so the grass collecting box does not drag on the ground.

Remove/empty grass catcher:

1. Lift the grass catcher (16) out of the mounting bracket (26).

2. Empty the grass catcher and re-install it.

Adjust the Cut Height

The cut height is infinitely adjustable from 14 – 43 mm:

1. Loosen the locknuts (12) on both sides of the machine.

2. Place one foot on the castors (9) and set the desired cut height with both hands on the adjusting handles (14).

Ensure that the machine is set to the same height on both sides.

1. Retighten the locking screws (12).

Set the cut height no lower than to where the blade cylinder does not touch the ground even where it is uneven.

Working Instructions

Regular mowing stimulates the stronger formation of leaves in the grass as well as allowing weeds to die off at the same time. Thus, the lawn becomes thicker each time it is mowed and a lawn with even resilience is produced.

• Run the machine at walking pace, in strips that are a straight as possible. For seamless mowing, the strips should always overlap by a few centimetres.
• On slopes, always work across the slope.

- For the first cut of the season, choose a high the cut height and reduce the height to around 20 mm for the subsequent cuts.

Cleaning and Maintenance

Have work that is not described in these instructions carried out by one of our authorised customer service centres. Use only original components.

Wear gloves when dealing with the blades.

Before each use, check the machine for obvious defects, such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.

Check covers and safety devices for damage and check that these are sitting correctly. Replace if necessary.

• Always keep the machine clean. For cleaning, use a brush or cloth, but no cleaning agents or solvents.
• After mowing, remove any plant remains stuck to the wheels and the blade area.
- Rub the blades with an oil rag or spray them with a metal maintenance spray.
- Due to the special cutting geometry, the blade cylinder blades cannot be re-sharpened. If necessary, the blade cylinder and sub-blade must therefore be replaced as a set. Have a specialist workshop carry out the installation of the blade cylinder.

Adjust the Cutting Clearance

The blade cylinder blades must be adjusted if the grass is no longer being cut evenly and cleanly.

1. Remove the machine key (3) and metal strips (feeler gauge) (4) from the machine holder (cf. 5).

2. Push the metal strip (4) between a blade cylinder (8) blade and the sub-blade (11).

3. Turn the hex bolts (10) to the right then to the left on the machine, in small steps in the clockwise direction until the metal strip sticks slightly.
4. Check the setting by turning the blade cylinder. None of the blade cylinder blades should be in contact and grinding on the sub-blade.

If it is no longer possible to adjust the cutting clearance, the blade cylinder and sub-blade must be replaced as a set.

Storage

- Keep the machine dry and out of reach of children.

For space-saving storage, loosen the wing nuts and fold the handle bar together.

Guarantee

• This appliance has a 24-month guarantee. Commercial use will invalidate the guarantee.
• Damage due to natural wear and tear, overload or incorrect use is excluded from the guarantee. Certain components are subject to normal wear and tear and are excluded from the guarantee. These include in particular: blade cylinder and sub-blade.
  • Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.

This requires that the appliance is re-turned to the merchant undismantled and with proof of purchase and guarantee.

Repair Service

• Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate. We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.
• Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.

Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

- Defective units returned to us will be disposed of for free.

Disposal/Environmental Protection

Recycle the device, accessories and packaging in an environmentally friendly manner.

• Machines do not belong in domestic waste. Take the machine to a recycling point. The plastic and metal components used can be separated by type and therefore recycled. Ask your dealer about this.
• Do not dispose of cut grass in the dustbin; use it for composting or spread it as a mulch layer under shrubs and trees.
• Defective units returned to us will be disposed of for free.

Spare parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Grizzly Service-Center"). Please have the order number mentioned below ready.

Collection bag, 76101128

When ordering any other replacement parts, always give the machine type and the component number from the blown-up drawing.

Technical Specifications

Manual Lawnmower .... HRM 38

Blade width....380 mm

Cut height 14 - 43 mm

Number of blades .... 5

Weight 8.5 kg
