USER MANUAL ERM 1851 A Q-360° Grizzly

Exterior view of a modern lawn mower with visible frictioners and wheels (no text or symbols)

Originalbetriebsanleitung Traduction de la notice d’utilisation originale Tłumaczenie oryginalnej instrukcji obsługi Vertaling van de originele gebruiksaanwijzing Translation of the original instructions for use Traduzione delle istruzioni per l’uso in originale Překlad originálního návodu k obsluze Originalios eksploatavimo instrukcijos vertimas Traducción del manual de instrucciones original Preklad originálneho návodu na obsluhu

D 24 23 Tools 14

E 6 16 14 25 Grizzly Tools

Close-up of a mechanical component with arrows pointing to a circular feature, labeled '8' (no text or symbols beyond labels)

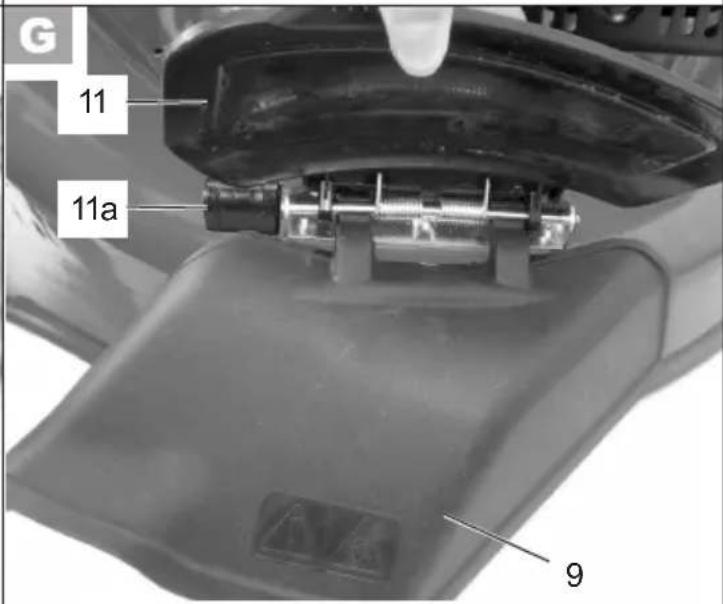

G 11 11a 9

H 1 2 27 26

Close-up of a car tire assembly with a coiled spring and adjustment knob (no visible text or symbols)

K 28 28

Close-up of a black electrical connector with wires and a central button (no visible text or symbols)

M 29 30

Grizzly cleaning machine with visible wheels and a box labeled 'Grizzly 14' (no additional text or symbols)

31 32

GB Translation of the original instructions for use......68

Before initial use, please read these operating instructions carefully in order to avoid incorrect handling. Keep the instructions in a safe place and pass them on to any subsequent user, so the information is available at all times.

Content

Intended Use....68

General Description 68

Delivery Contents......68

Functional Description ......69

Summary......69

Technical Specifications....69

Symbols and icons....70

Symbols on the device....70

Symbols in the manual....71

General Safety Information.... 71

Residual risks....75

Assembly....75

Assembling the Curved Handle .....75

Install/empty grass catchment basket ....76

Operation....76

Level gauge 76

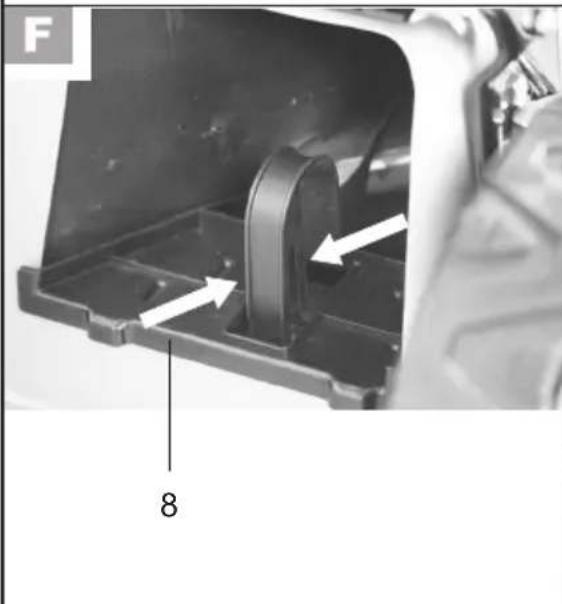

Mulch kit....76

Lateral grass ejection....77

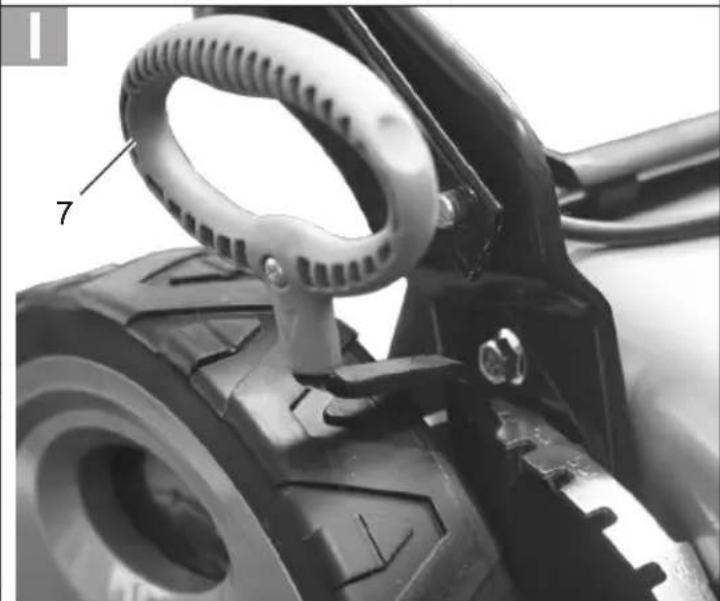

Adjusting the cutting height....77

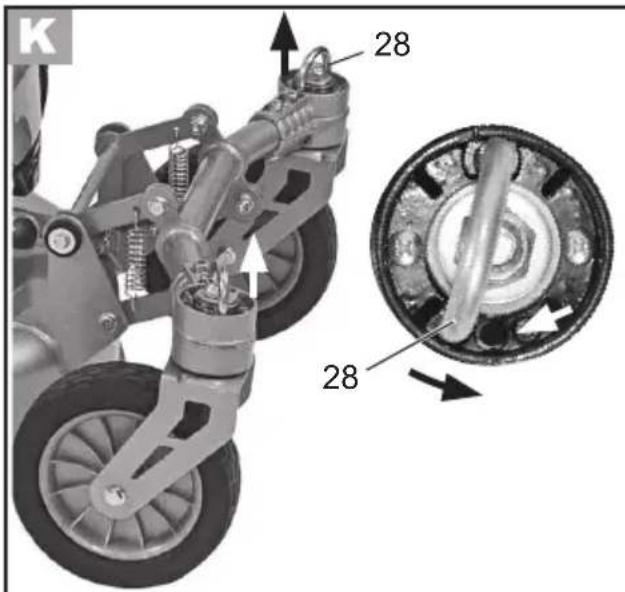

Adjust front wheels....77

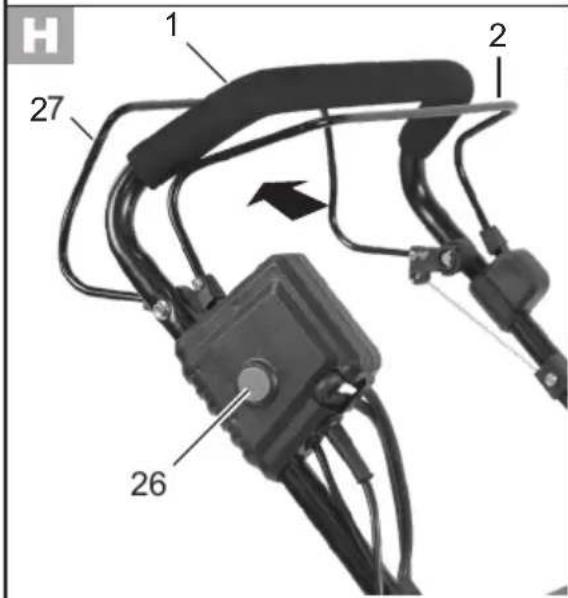

Switching On and Off 77

Working with the Lawnmower......78

Cleaning, Maintenance and Storage...78

General Cleaning and Maintenance Work....78

Changing the Blade .....79

Adjusting the Bowden Cable....79

Storage 79

Waste disposal and environmental protection....79

Replacement parts/Accessories ..... 80

Guarantee....80

Repair Service....80

Trouble Shooting 81

Translation of the original EC declaration of conformity .... 158

Exploded Drawing 165

Service-Center 167

Intended Use

The equipment is intended only for mowing lawns and grass in domestic use.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

Any use other than specifically permitted in these instructions may result in damage to the equipment and represent a serious risk to the user. The equipment is intended for use by adults. Children or other people who are unfamiliar with the operating instructions must not use the equipment.

The operator or user is responsible for accidents or damage to other persons or their property.

General Description

The illustration of the principal functioning parts can be found on pages 2 - 4.

Delivery Contents

Carefully unpack the appliance and check that it is complete:

• Petrol lawn mower
• Collapsed handle bar
• Grass collection box
• Mulching kit (inserted)
• Lateral ejection canal

• 3 x Cable clamp

• Assembly accessories for fixing the bar

• Operating instructions

Functional Description

The electric lawnmower has a cutting tool, which turns parallel to the cutting level. It is fitted with a high-performance motor, top-quality steel plate housing, a safety switch, impact protection, as well as grass collector basket with fill level indicator. Additionally, the equipment is height adjustable to six levels and has smooth-running wheels.

Three modes of operation are available for the user: Mow with the grass collection box, mulch mowing or mowing with lateral grass ejection.

For the function of the operating parts, please refer to the descriptions below.

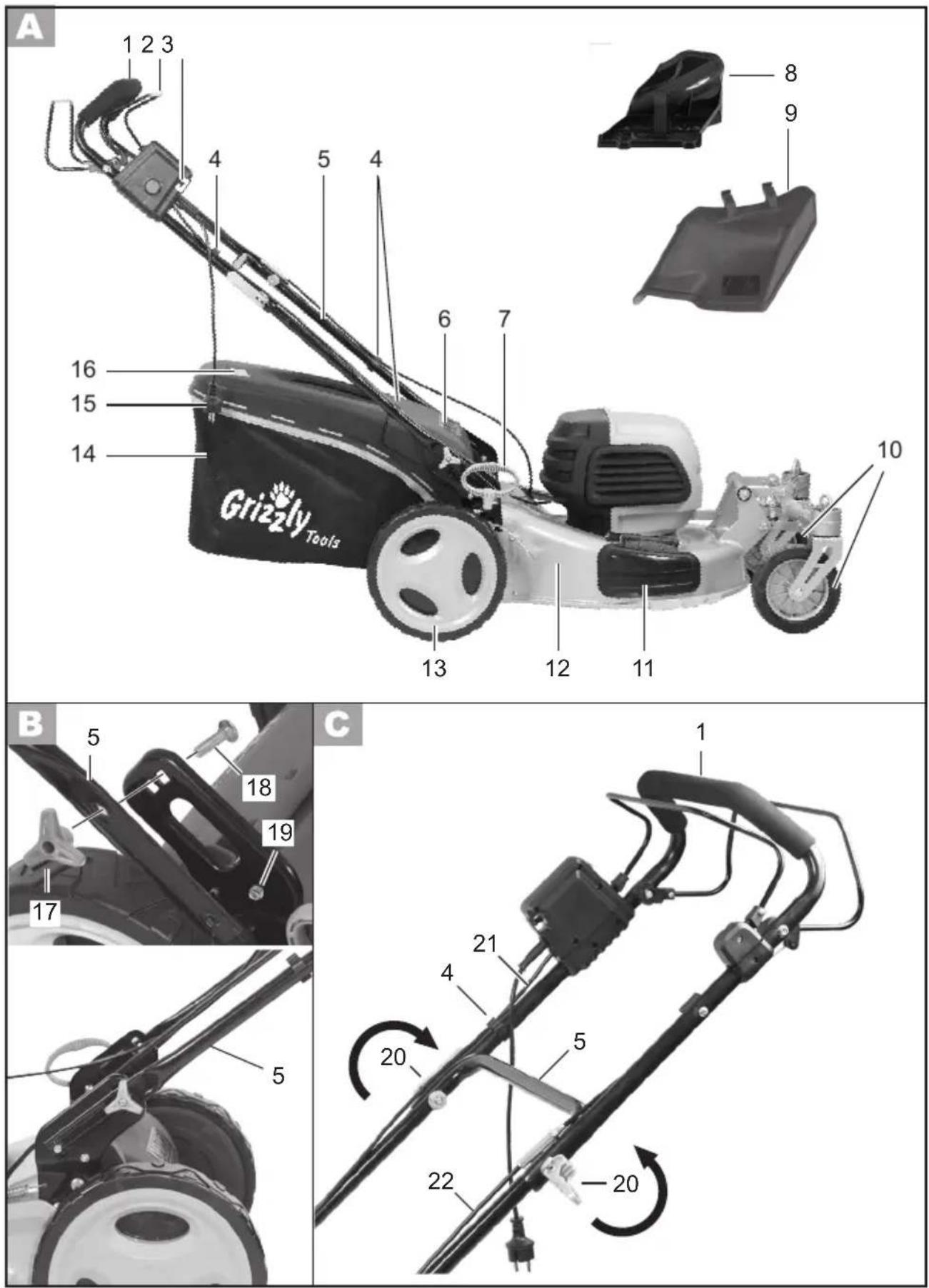

Summary

1 Bow-type handle

2 Safety bracket
3 Cable strain relief
4 Cable clamp
5 Lower bar
6 Impact protection
7 Lever for cutting height adjustment
8 Mulch kit
9 Lateral ejection canal
10 Front wheels
11 Lateral ejection with impact protection
12 Machine housing
13 Rear wheels
14 Collection bag
15 Power plug
16 Fill level indicator

17 Star grip nut

Screw for bar attachment
Screw on device housing

20 Clamping lever

Device cable
Bowden cable

23 Plastic straps - collection bag

Collection bag rod

25 Collection bag attachment

26 Release button

Drive bracket

28 Clamping bracket

Front wheel lock

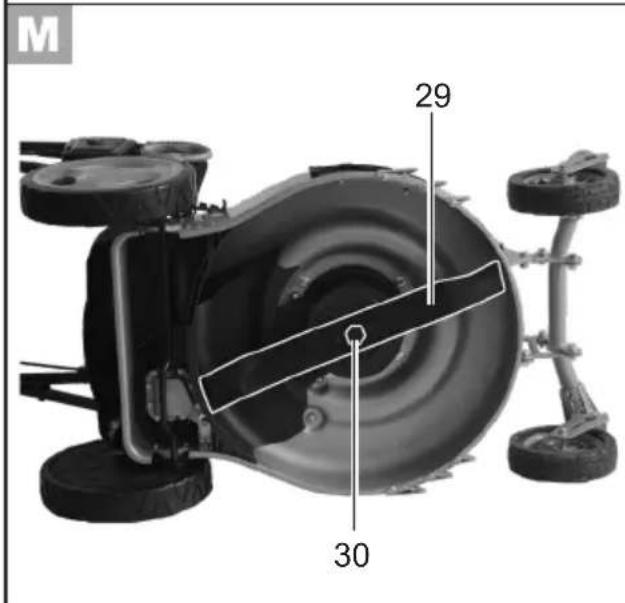

29 Blade

Blade bolt

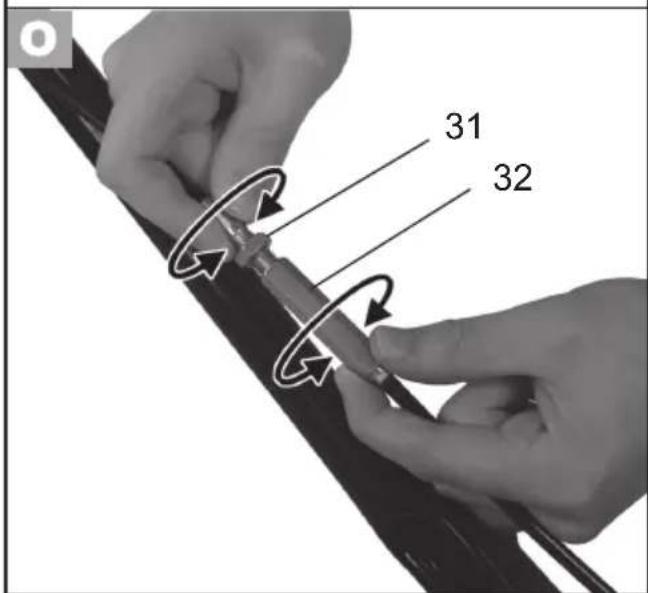

31 Bowden cable locking nut

Bowden cable adjusting nut

Technical Specifications

Electric

Lawnmower.....ERM 1851 A Q-360°

Motor input power....1800 W

Mains voltage ...... 230-240 V\~; 50 Hz

Protection class....II □

Protection type.....IPX4

Idling speed 2900 min ^-1

Cutting circle....51 cm

Cut height 25-75 mm

Weight 36.5 kg

Lawn bag volume 70 l

Sound pressure specification

(L_pA) 84.9 dB(A), K_pA = 3 dB

Noise level specification ( L_WA )

guaranteed....98 dB(A)

measured .....95.18 dB(A), K_WA = 1.23 dB

Vibration (a_h) .....1.851 m/s ^2 , K = 1.5 m/s ^2

GB

This device is designed for operation on a power supply network with a system impedance Zmax at the transfer point (domestic connection) of a maximum of 0.073 Ohms. The user must ensure that the device is operated only on a power supply network that fulfils this requirement. If necessary, the local power supply company can be asked for the system impedance.

The noise and vibration values have been determined in accordance with the standards and regulations specified in the declaration of conformity.

Technical and visual modifications may be made without notice in the course of further development. All dimensions, information and specifications in these operating instructions are therefore not guaranteed. As such, no assertion of legal claims can be enforced on the basis of the operating instructions.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at pro- tecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool

is turned off and times when the tool is turned on but is running idle).

Symbols and icons

Symbols on the device

Caution!

Read the operating instructions carefully.

Wear eye and ear protection.

Do not expose the equipment to the damp. Do not work in the rain and do not cut wet grass.

Risk of injury from parts being thrown up.

ep nearby people away from the mower.

Caution – sharp cutting blade! Keep feet and hands away. Risk of injury!

h off the motor and disconnect the plug before adjustment or repair work or if the power cable is caught or damaged.

Danger of damaged power cable.

Keep the power cable away from the cutting blade!

Caution! The lawnmower blade continues to run after switching off.

Protection class II

Noise level specification L_WA in dB.

not dispose of electrical equipment in domestic waste.

Danger!

Keep hands and feet away.

Symbols on the level gauge of the grass collection box

Symbols on the handle bar:

Stop the equipment: lease the safety catch

Wheel drive on: Pull up the drive catch

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

General Safety Information

Important! Please read the operating instructions carefully and keep the manual for future reference.

This equipment may cause serious injury in the case of improper use. In order to avoid injury to people and damage to property, the following safety information must be observed and users must familiarise themselves with all operating parts.

Preparation:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Never allow children or people unfamiliar with these instruction to use the machine. Local regulations can restrict the age of the operator.
• Do not use the equipment when people and particularly children or pets are nearby.
  • Children must be supervised in order to ensure that they do not play with the equipment.

GB

• The operator or user is responsible for accidents, injuries to other people or damage to the property of others.
• Check the terrain on which the equipment is to be used and remove stones, sticks, wires and other foreign objects that could become caught and thrown up.
• Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals. Do not wear loose clothing or clothes that straps or belts suspend from.
• Before each use, carry out a visual inspection of the equipment. Do not use the equipment if protective devices (e.g. collision guard or grass bag), parts of the cutting device or bolts are missing, worn or damaged. To avoid imbalance, damaged tools and bolts are to be replaced only in sets.
  • Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades.
• Use only spare parts and accessories supplied and recommended by the manufacturer. The use of non-original parts will immediately invalidate the guarantee.
• Prior to use, always check the cord and extension cord for signs of damage or wear. Immediately disconnect the cord

from the mains in case it is damaged in use. Do not touch the cord until it is unplugged. Do not operate the appliance if the cord is worn or damaged.

Working with the Equipment:

Do not place feet or hands near or under rotating parts when working. Risk of injury!

Observe the noise protection and local regulations.

• Switch on the motor according to the instructions and only when your feet are at a safe distance from the cutting tools.
• Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting.
• Do not work with the equipment when tired, lacking concentration or under the influence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.
• When working, ensure a firm stance, particularly on slopes. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.

• Run the equipment only at a walking pace. Take particular care when turning the equipment around, pulling it towards you or going backwards.

• Switch on the equipment carefully and in accordance with the directions in these instructions. Ensure sufficient distance between feet and the rotating blades.

• Do not tilt the equipment when starting other than if it is necessary to do so when starting up in long grass. In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before returning the equipment to the ground.
• Do not work without the grass bag or collision guard. Keep away from the ejection hole at all times.
• Do not start the motor while standing in front of the discharge duct.

Caution! Danger! The blade continues to run after switching off. There is a risk of injury.

• The equipment is not to be lifted or transported while the motor is running. Switch off the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.
  • Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.

• Do not leave the equipment unattended in the workplace.

• Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deflection and/or grass collection devices.
• Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.
• Do not use the equipment near inflammable liquids or gases. Non-observance will result in a risk of fire or explosion.
• Do not lift or carry the equipment when the motor is running.

• Turn off the appliance, unplug it from the mains and check that all moving parts are at rest:

• Whenever you leave the machine,

• Before cleaning the ejection hole or removing blockages,
• When the equipment is out of use,
• Before checking, cleaning or working on the equipment,
• If the power cable is damaged or frayed,

GB

- If the equipment has hit a foreign object or if strange vibrations occur during work. In this case, check the equipment for damage and have it repaired if applicable.

- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during sick-le mowing.

Maintenance and Storage:

When servicing the blades, remember that they can move even if the power source is off.

• Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.
• Check the mower for any damages.
• Repair damaged parts as appropriate.
• Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres that we have authorised.
• Keep the equipment in a dry location and out of reach of children.
• Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the maintenance instructions.

• Wear protective gloves when changing the cutting device.

• Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts. When adjusting the blades, take particular care to avoid fingers being trapped between the rotating blades and fixed parts of the machine.

• Check that only replacement tools authorised by the manufacturer are used.

Electrical Safety:

• Ensure that the mains voltage matches the specifications on the rating plate.
• Connect the equipment to a socked with a residual current-operated protective device (RCD) with a release current of more than 30 mA.
• Avoid bodily contact with earthed parts (e.g. metal fences, metal posts).
• Use only authorised power cables of type H07RN-F, which are no more than 75 m long and suitable for outdoor use. The power cable wire cross section must be at least 2.5 mm ^2 . Always completely unroll cable drums before use. Check the cable for damage.
• To fix on the power cable, use the cable suspension intended for the purpose.

• Keep the power cable away from the cutting tool when working. The cutting blades may damage the power cable and result in contact with live parts. Always run the power cable behind the operator.

• Do not use the power cable to pull the plug from the socket. Protect the power cable from heat, oil and sharp edges.

• Switch off the equipment and disconnect the plug from the socket if the power cable is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the customer services of the same, or a qualified person, in order to avoid hazards.

- Do not connect a damaged power cable to the mains. Do not touch a damaged power cable when it is connected to the mains. A damaged power cable may result in contact with live parts.

Residual risks

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Eye damage if suitable eye protection is not worn.
d) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain cir-

cumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Assembly

Caution! Risk of injury from rotating blades. Carry out work on the equipment only when the blade is switched off and stationary.

Disconnect the plug before any work on the equipment.

Assembling the Curved Handle

Select the greatest cutting height to help mount the bar. See chapter „Adjusting the cutting height“.

Install lower bar:

1. Place the holes on the lower bar (5) over the screws (19) at the right and left of the device housing.

2. Tightly screw in the bar (5) with a screw on each side (18) and a star grip nut (17).

Install curved handle:

1. Tilt the bow-type handle (1) into position.
2. Turn the clamping levers (20) clockwise.
3. Lock the clamping levers (20) by pushing them towards the

GB

bar (5). Clamping levers to be tightened and contacting the bar such that they clamp at average force.

Otherwise you may have to tighten (turn clockwise) or loosen them (turn anticlockwise).

Clip on the cable hook:

Clip the three cable holders

(4) onto the bar (5) and bow-type handle (1) in order to secure the device cable (21) and Bowden cable (22).

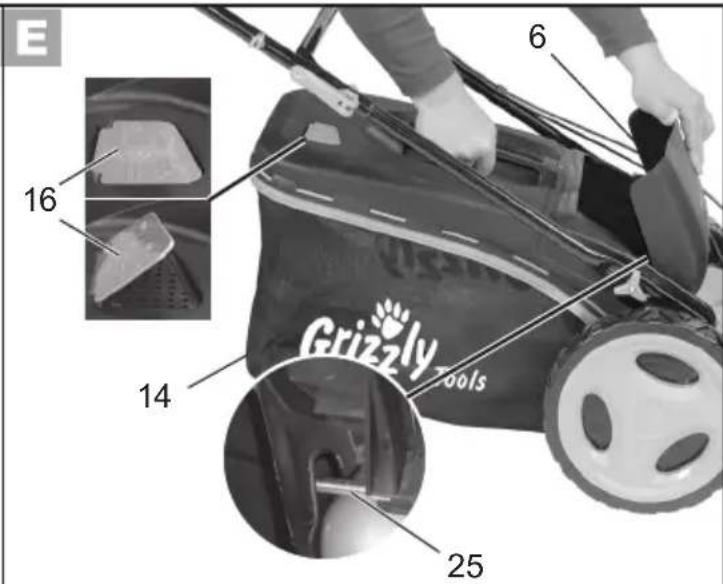

Install/empty grass catchment basket

Caution: Do not operate the equipment with the grass collection box or impact protection installed incompletely. Risk of injury!

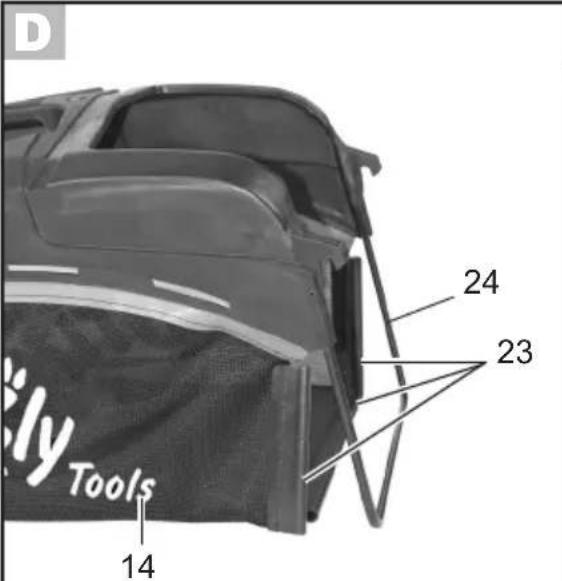

Assemble grass catchment basket (14):

Pull plastic loops (23) over basket rods (24).

Fixing the Grass Collection Box onto the Equipment::

The mulch kit and lateral ejection canal must be removed prior to using the collection bag. (See F G).

1. Lift up shock protection (6).

2. Hook the grass collection box (14) into the mounting provided for this (25) on the rear of the equipment.

3. Release the impact protection (6). It holds the grass collection box in position.

Dismantling/Empty out the Grass Collection Box:

1. Lift the impact protection (6) and remove the grass collection box (14)

2. Empty catchment basket (see chapter „Disposal / Environmental Protection“) and re-install it.

Operation

Attention: Do not operate the appliance until the collision guard and grass catcher are fully installed. Risk of injury!

Level gauge

The level gauge (16) is located on the side of the grass catcher (14). The aerodynamic air guidance provided by the flap also optimises the filling.

GO Flap open: grass catcher empty STOP Flap closed: grass catcher full

Mulch kit

Prior to using the mulch kit, the lateral ejection canal has to be removed. (see ☐)

F Attaching mulch kit

1. Remove the collection box (14), if used.

2. Lift the impact protection (6).

3. Insert the mulch kit (8).

Remove mulch kit

1. Lift the impact protection (6).
2. Release the mulch kit (8) by pressing together the double grips and then remove it.

Lateral grass ejection

Before using the lateral grass ejection, the mulch kit (8) has to be inserted and the grass collection box (14) has to be removed.

Install lateral ejection canal

Unlock the lateral impact protection (11) by pulling the locking element (11a) to the left and opening the lateral impact protection (11).

1. Mount the lateral ejection channel (9) and remove the lateral impact protection (11). It holds the side ejection channel (9) in position.

Adjusting the cutting height

Switch off the equipment, disconnect the plug and wait for the blade to stop. There is a risk of injury.

Hold the cutting height adjuster (7) and move it to the correct cutting height, as appropriate.

There are 6 different cutting heights:

25-75 mm

The correct height is around 30 – 45 mm for a decorative lawn and around 30 – 65 mm for a used lawn.

A higher cut height should be selected for the first cut of the season.

Adjust front wheels

The lawn mower is extremely flexible and manoeuvrable thanks to the special construction of the front wheels.

These are to be adjusted according to the specific situation as follows:

1. The alignment of the wheel is fixed once the clamping brackets (28) snaps into place. If the wheel is desired in another running direction, lift clamping bracket to release it. Bring wheel into new position and clamping brackets snaps into place once again.

2. Should the front wheels remain able to move freely, lift the clamping brackets (28) and do not place them in the opening, but rather set them on the plate beside it.

Switching On and Off

The red light above the release button will illuminate as soon as the lawn mower is connected to a power supply.

1. Connect the mains plug (15) to the extension cable.

2. Make a loop in the end of the extension cable and suspend this in the cable strain relief (3). (See illustration)

3. Connect the equipment to the power supply.
4. Before switching on, ensure that the equipment is not in contact with any objects.
5. To switch on, press and hold the release button (26) on the hand

GB

grip and pull the safety bra- cket (2) towards the bow-type handle (1).

Release the release button (26).

1. Wheel drive:

On: Pull the drive catch (27) towards the handle bar. The mower moves forwards.

Off: Release the drive catch (27)

The equipment stops.

1. To switch off, release the safety bracket (2).

After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury.

Working with the Lawnmower

Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn.

The first cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.

• Start mowing near the socket and work away from the socket.
  • Always keep the extension cable behind you and when you turn, move it to the side that has already been mowed.

• Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.

• Adjust the cut height so the equipment is not overloaded. Otherwise, the motor may be damaged.

• On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.
• Clean the equipment after each use, as described in the chapter on “Cleaning, Maintenance and Storage”.

Switch off the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury.

Cleaning, Maintenance and Storage

Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.

Wear gloves when handling the blade

Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops.

General Cleaning and Maintenance Work

Do not hose down the lawnmower with water.

• Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.

• After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.
• Oil the wheels from time to time.
• Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.
• Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary.

M Changing the Blade

If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbalance, it must be replaced (see chapter on "Spare Parts").

1. Turn the equipment over.
2. Use sturdy gloves and hold the blade firmly (29). Use a spanner to turn the blade bolt (30) counter-clockwise from the motor spindle.
3. Install the new blade in the reverse order. Ensure that the blade is positioned correctly and the screw tightened firmly.

0 Adjusting the Bowden Cable

If the Bowden cable becomes misplaced for the drive and has too much play, it can be adjusted.

1. Loosen the small lock nut (31).
2. -Turn the adjusting nut (32) anticlockwise:
   The Bowden cable shortens.
   -Turn the adjusting nut (32) clockwise: The Bowden cable lengthens.

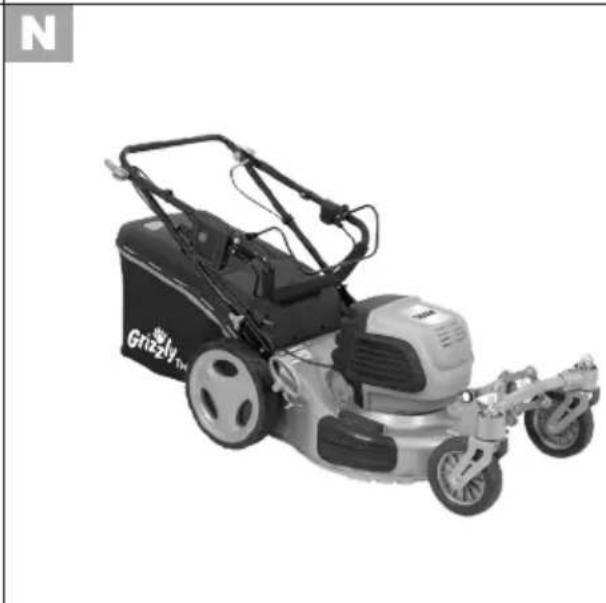

N Storage

So the equipment takes up less space, unlock the two tensioning levers and fold down the bow handle. Make sure the cables are not caught.

• Keep the equipment dry and out of reach of children.
• Allow the motor to cool before storing the equipment in a confined space.
• Do not cover the equipment with nylon bags as moisture could build up.

We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.

Waste disposal and environmental protection

Do not dispose of used oil in the sewage system or drains. Dispose of used oil in an environmentally correct manner - bring it to a waste disposal center.

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines do not belong with domestic waste.

GB

• The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
• Throw the cut grass on the compost. Do not throw it in the normal household waste.
• Defective units returned to us will be disposed of for free.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools-service.eu

If you have any other questions, contact the "Service-Center" (see "Service-Center").

Spare blade 13700454

Guarantee

• This appliance has a 24-month guarantee.Commercial use will invalidate the guarantee.
• Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee. Certain component parts are subject to a normal wear and are excluded from the guarantee. In particular, these include: blade, grass catcher.
  • Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.

This requires that the appliance is returned to the merchant undismantled and with proof of purchase and guarantee.

Repair Service

• Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate. We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.
• Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.

Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

- Defective units returned to us will be disposed of for free.

Trouble Shooting

Problem Possible Cause Fault Fixing
Equipment does not start	Power is off	Check the socket, cable, wire and plug and have any repairs carried out by an electrician
	Safety bracket (2) or release button (26) defective	Repair by customer services
	Defective motor
	Grass too long	Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar.
Motor stops Blockage by foreign object Remove the foreign object
Result unsatisfactory or motor labours	Cut height too low Set a higher cut height
	Blade (29) blunt	Have the blade sharpened or replace it
	Blade area blocked Clean the equipment
	Blade (29) assembled incorrectly	Install the blade correctly
Blade fails to turn	Blade (29) blocked by grass	Remove the grass
	Blade screw (30) loose	Tighten the blade screw
Strange noises, rat- tling or vibrations	Blade screw (30) loose	Tighten the blade screw
	Blade (29) damaged	Replace the blade

IT

We confirm, that the Electric Lawnmower ERM 1851 A Q-360° Batch number B-49444 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2000/14/EC • 2005/88/EC • 2014/30/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012+A11:2014 • EN 60335-2-77:2010 • EN 62233:2008 EN 55014-1:2006/A2:2011 • EN 55014-2:2015 • IEC 62321-3-1:2013 EN 61000-3-2:2014 • EN 61000-3-11:2000
The following are also confirmed as complying with Noise Emissions Directive 2005/88/EC: Guaranteed sound power level: 98 dB(A) Measured sound power level: 95,18 dB(A) The conformity evaluation procedure employed is compliant with appendix VI/2005/88/EC Registered Office: NB 0499 (SNCH)
This declaration of conformity is issued under the sole responsibility of the manufacturer:
[Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim, GERMANY 30.01.2021	Christian Frank (Documentation Representative)

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Exploded view diagram of a robotic device with numbered parts and labeled assembly instructions

informativ, informative, informatif, informativo informatief, pouczający, informační, informatyvus, informatívny

Service-Center

Unit 3, Beldray Park

Beldray Road, Mount Pleasant

Bilston, West Midlands WV14 7NH

Tel.: [phone]

e-mail: [e-mail]

Garden Italia SPA

Via Zaccarini, 8
