USER MANUAL ERM 1232-2 Grizzly

Red and black lawn mower with adjustable arm and wheels (no visible text or symbols)

ERM 1232-2

Originalbetriebsanleitung Traduction de la notice d’utilisation originale Traduzione delle istruzioni per l’uso in originale Vertaling van de originele gebruiksaanwijzing Translation of the original instructions for use Tłumaczenie oryginalnej instrukcji obsługi Překlad originálního návodu k obsluze Originalios eksploatavimo instrukcijos vertimas Traducción del manual de instrucciones original Preklad originálneho návodu na obsluhu

E 21 8b 17 8a

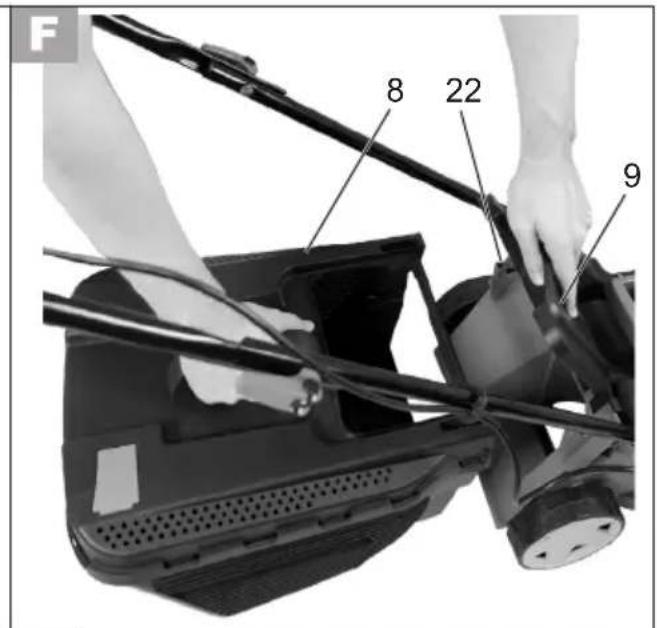

F 8 22 9

G 1 16 15

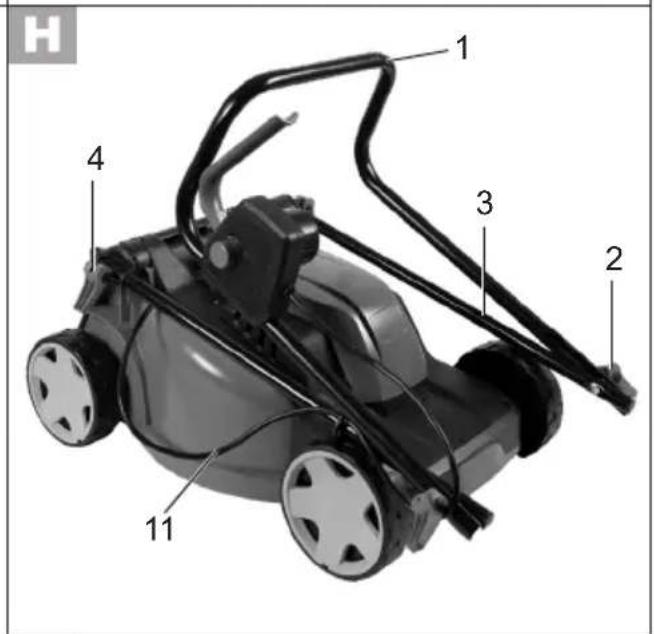

H 1 2 3 4 11

Close-up of a mechanical device showing a circular component with a blade and central hub, labeled with parts 23 and 24 (no text or symbols beyond labels)

Close-up of a mechanical component with visible fan and wheel assembly (no text or symbols)

DE Originalbetriebsanleitung....5
FR Traduction de la notice d'utilisation originale .....19
IT Traduzione delle istruzioni per l'uso in originale .....34
NL Vertaling van de originele gebruiksaanwijzing......48
GB Translation of the original instructions for use......62
PL Tłumaczenie oryginalnej instrukcji obsługi....75
CZ Překlad originálního návodu k obsluze....90
LT Originalios eksploatavimo instrukcijos vertimas...103
ES Traducción del manual de instrucciones original ... 116
SK Preklad originálneho návodu na obsluhu....131

Inhalt

Einleitung 5

General Description 62

Scope of Delivery 63

Summary......63

Function Description 63

Technical Specifications....63

Safety Information....64

Pictorial Diagrams on the Equipment 64

Symbols used in the instructions...... 65

General Safety Information 65

Assembly.... 69

Mounting the switchbox.... 69

Fitting the wheels 69

Mounting the grip rod 69

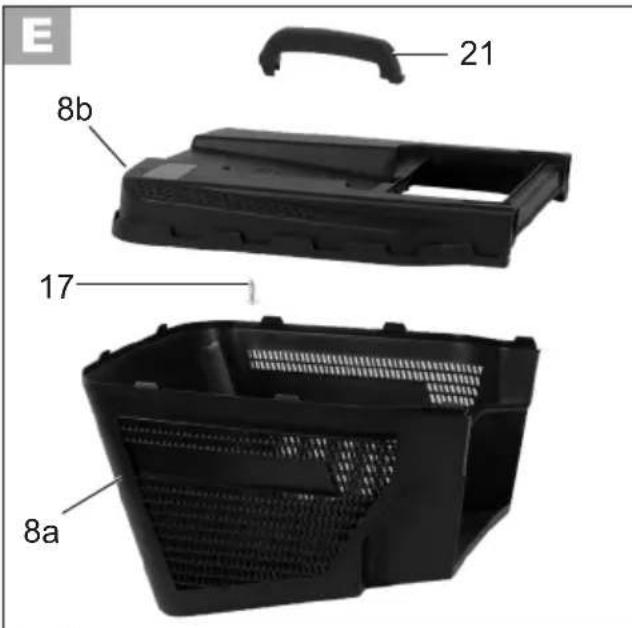

Mounting the grass collection box.....70

Operation....70

Mounting/ Removing the grass catcher .... 70

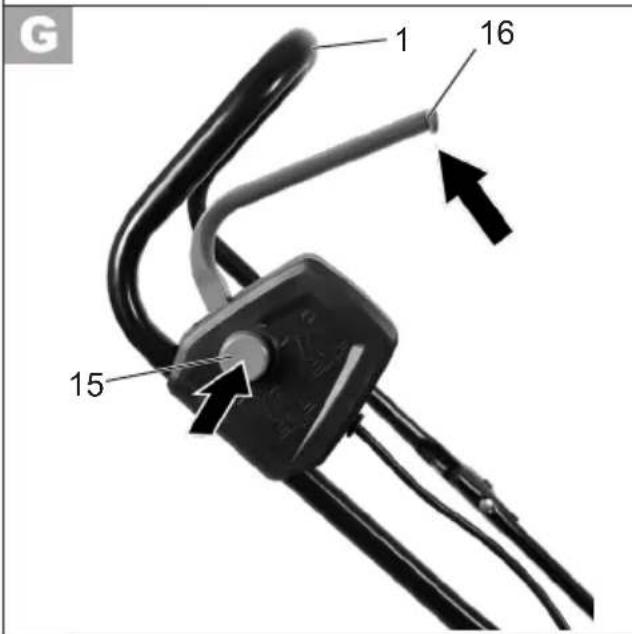

Switching On and Off 70

Level gauge.... 71

Adjusting the Cut Height 71

Working with the Lawnmower ..... 71

Cleaning/Maintenance.... 71

General Cleaning and Maintenance Work 72

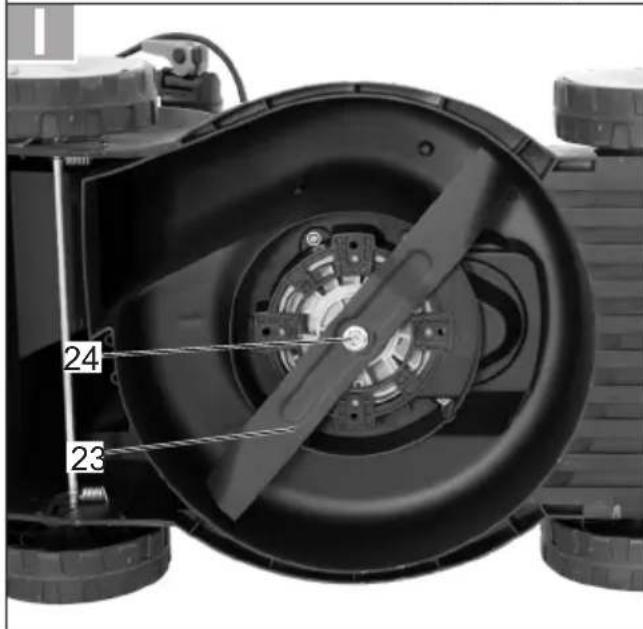

Changing the Blade.... 72

Storage 72

Waste disposal and environmental protection .... 72

Replacement parts/Accessories ..... 73

Guarantee....73

Repair Service.... 73

Trouble Shooting....74

Translation of the original EC declaration of conformity .... 150

Exploded Drawing 156

Service-Center 158

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The equipment is designed only for mowing domestic lawns and grass areas.

Any other use that is not expressly per- mitted in these instructions may result in damage to the equipment and represent a serious risk to the user.

The manufacturer will not be liable for damages caused by use other than for the intended purpose or by incorrect operation.

General Description

The illustration how to handle the appliance can be found on page 2-3.

Scope of Delivery

Carefully remove the equipment from the packaging and check whether the following parts are complete:

• Lawnmower with device cable
• Bow-type handle
• Lower bar
• Grass collection box (two-part)
• Grass collection box carrying handle
• Cable strain relief
• Mounting material (4 quick-release levers, 2 screws, 1 cable holder)
• Instruction Manual

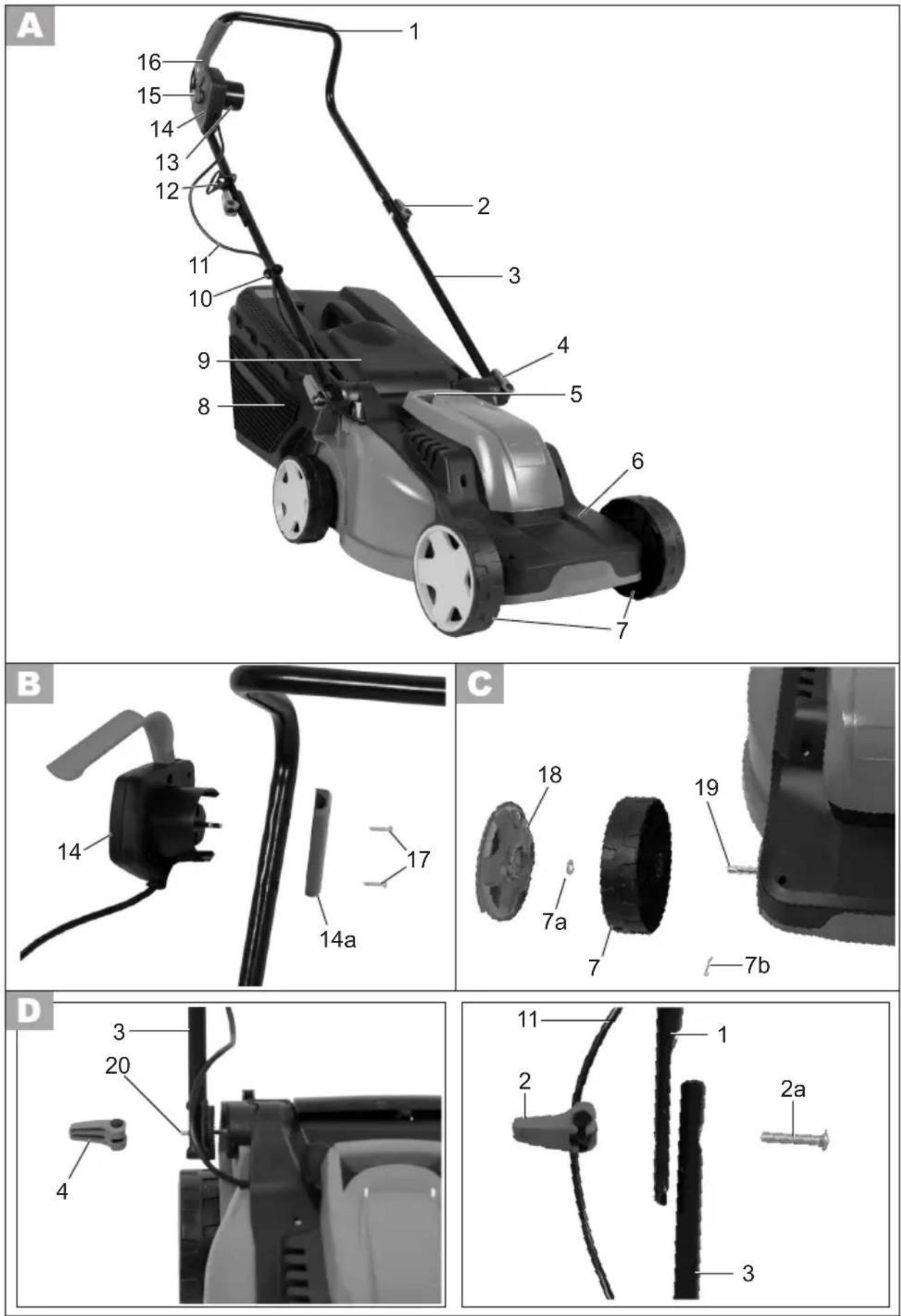

Summary

1 Bow-type handle
2 Quick-release levers for bow-type handle

3 Lower bar

4 Quick-release levers for lower bar
5 Device carrying handle

6 Device housing

7 Wheel

8 Grass collection box
9 Impact protection

10 Cable clamp
11 Device cable
12 Cable strain relief

13 Socket for extension cable

14 Switchbox

15 Release button
16 Start handle

17 Recessed head screw

14a Plastic cover

18 Hubcap

19 Wheel axle

7a Spacer washer
7b Split pin

20 Bar support
Mounting screws

21 Grass collection box carrying handle

8a Bottom of grass collection bag
8b Top of grass collection bag

22 Support for grass collection box

23 Blade
24 Blade bolt

25 Wheel axle

Function Description

The electric lawnmower has a cutting tool, which turns parallel to the cutting level. It is fitted with a high-performance motor, robust plastic housing, a safety switch, impact protection, as well as grass collector basket with fill level indicator.

For the function of the operating parts, please refer to the descriptions below.

Technical Specifications

Electric Lawnmower...... ERM 1232-2

Mains voltage ...... 230-240 V\~, 50 Hz

Motor input power....1200 W

Protection class ......II □

Protection type.....IPX4

Idling speed 3400 min ^-1

Cutting circle....32 cm

Cut height 20/40/60 mm

Weight 8,2 kg

Lawn bag volume ....30 l

Sound pressure level

(L_pA) 73,1 dB(A), K_pA = 2,96 dB

Sound power level ( L_wA )

guaranteed 96 dB(A)

measured .....93,1 dB(A); K_WA = 2,96 dB

Vibration (a_h) ......2,0 m/s²; K= 1,5 m/s²

GB

Noise and vibration values were determined according to the standards and stipulations mentioned in the declaration of conformity.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).

Safety Information

This section covers the basic safety regulations when working with the electric lawnmower.

Pictorial Diagrams on the Equipment

Caution!

Read the operating instructions carefully.

Risk of injury from parts being thrown up.

ep nearby people away from the mower.

Caution – sharp cutting blade! Keep feet and hands away. Risk of injury!

tch off the motor and disconnect the plug before adjustment or repair work or if the power cable is caught or damaged.

Danger of damaged power cable.

Keep the power cable away from the cutting blade!

Wear eye and ear protection.

Do not expose the equipment to the damp. Do not work in the rain and do not cut wet grass.

Caution! The lawnmower blade continues to run after switching off.

There is a risk of injury!

Protection class II

Noise level specification L_WA in dB.

Do not dispose of electrical equipment in domestic waste.

Cutting circle

Stop the equipment: Release the safety catch

Danger! Keep hands and feet away.

Symbols on the level gauge of the grass collection box

Symbols used in the instructions

Hazard symbols with information on prevention of personal injury and property damage.

Precaution symbol (explanation of precaution instead of exclamation mark) with information on prevention of harm / damage.

Notice symbol with information on how to handle the device properly.

Wear protective gloves.

Pull out the mains plug.

General Safety Information

Important! Please read the operating instructions carefully and keep the manual for future reference.

This equipment may cause serious injury in the case of improper use. In order to

avoid injury to people and damage to property, the following safety information must be observed and users must familiarise themselves with all operating parts.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Preparation:

• Read the operating instructions carefully. Familiarise yourself with the controls and how to use the machine correctly.
• Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.
• Do not use the equipment when people and particularly children or pets are nearby.
• This device can be used by individuals with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and un-

GB

derstand the resulting hazards. Children must never play with the device. Cleaning and user maintenance must not be carried out by children.

• The operator or user is responsible for accidents, injuries to other people or damage to the property of others.
• Check the terrain on which the equipment is to be used and remove stones, sticks, wires and other foreign objects that could become caught and thrown up.

- Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals.

Do not wear loose clothing or clothes that straps or belts suspend from.

- Before use, always perform a visual inspection to check whether the cutting blades, fastening bolts and the whole cutting unit are worn out or damaged. Damaged or worn cutting blades and fastening bolts must only be replaced as a set to prevent imbalance. Worn or damaged information signs must be replaced.

- Never use the lawnmower with damaged protective equipment or protective grating or without installed protective equipment, e.g. deflector plates and/or grass collection equipment.

- Use only spare parts and accessories supplied and recommended by the manufacturer. The use of non-original parts

will immediately invalidate the guarantee.

- Prior to use, always check the cord and extension cord for signs of damage or wear. Immediately disconnect the cord from the mains in case it is damaged in use. Do not touch the cord until it is unplugged. Do not operate the appliance if the cord is worn or damaged.

Working with the Equipment:

Do not place feet or hands near or under rotating parts when working. Risk of injury!

Observe the noise protection and local regulations.

• Switch on the motor according to the instructions and only when your feet are at a safe distance from the cutting tools.
• Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting.
• Do not work with the equipment when tired, lacking concentration or under the influence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.

• When working, ensure a firm stance, particularly on slopes. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.

• Run the equipment only at a walking pace. Take particular care when turning the equipment around, pulling it towards you or going backwards.

• Switch on the equipment carefully and in accordance with the directions in these instructions. Ensure sufficient distance between feet and the rotating blades.
• Do not tilt the equipment when starting other than if it is necessary to do so when starting up in long grass. In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before returning the equipment to the ground.
• Lift it only on the side facing away from the user.
• Do not work without the grass bag or collision guard. Keep away from the ejection hole at all times.
• Do not start the motor while standing in front of the discharge duct.

Caution! Danger! The blade continues to run after switching off.

There is a risk of injury.

- The equipment is not to be lifted or transported while the motor is running. Switch off the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported

to and from the surfaces to be mowed.

• Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.
• Do not leave the equipment unattended in the workplace.
• Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deflection and/or grass collection devices.
• Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.
• Do not use the equipment near inflammable liquids or gases. Non-observance will result in a risk of fire or explosion.
• Do not lift or carry the equipment when the motor is running.
• Turn off the appliance, unplug it from the mains and check that all moving parts are at rest:
• Whenever you leave the machine,
• before removing obstructions or loosening blockages from the discharge chute
• Before cleaning the ejection hole or removing blockages,
• When the equipment is out of use,

GB

- Before checking, cleaning or working on the equipment,

- If the power cable is damaged or frayed,

- If the equipment has hit a foreign object or if strange vibrations occur during work. In this case, check the equipment for damage and have it repaired if applicable.

- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during sickle mowing.

- If the lawnmower starts to vibrate abnormally, an immediate check must be carried out.

- search for signs of damage;

- have any necessary repairs carried out on damaged parts;

- make sure that all nuts, bolts and screws are properly tightened.

Maintenance and Storage:

When servicing the blades, remember that they can move even if the power source is off.

- Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.

- Check the mower for any damages.

- Repair damaged parts as appropriate.

- Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these

instructions is to be carried out only by customer service centres that we have authorised.

- Keep the equipment in a dry location and out of reach of children.

- Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the maintenance instructions.

- Wear protective gloves when changing the cutting device.

- Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts. When adjusting the blades, take particular care to avoid fingers being trapped between the rotating blades and fixed parts of the machine.

- Check that only replacement tools authorised by the manufacturer are used.

• Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades.

Electrical Safety:

- Ensure that the mains voltage matches the specifications on the rating plate.

- Connect the equipment to a socked with a RCD (Residual Current Device) with a release current of more than 30 mA.

- Avoid bodily contact with earthed parts (e.g. metal fences, metal posts).

- Use only approved extension cables of type H07RN-F that

are not more than 75 m long and are designed for outdoor use. The wire cross section of the extension cable must be at least 2.5 mm ^4 . Always completely unroll cable drums before use. Check the cable for damage.

• To fix on the power cable, use the cable suspension intended for the purpose.
• Keep the power cable away from the cutting tool when working. The cutting blades may damage the power cable and result in contact with live parts. Always run the power cable behind the operator.
• Do not use the power cable to pull the plug from the socket. Protect the power cable from heat, oil and sharp edges.
• Switch off the equipment and disconnect the plug from the socket if the power cable is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the customer services of the same, or a qualified person, in order to avoid hazards.
• Do not connect a damaged power cable to the mains. Do not touch a damaged power cable when it is connected to the mains. A damaged power cable may result in contact with live parts.

Assembly

Disconnect the plug before any work on the equipment. There is a risk of injury.

B Mounting the switchbox

1. Remove the two recessed head screws (17) from the switch-box (14).
2. Remove the plastic cover (14a) from the switchbox (14).
3. Insert the switchbox (14) through the locating holes on the bow-type handle (1).
4. Fasten the switchbox (14) with the plastic cover (14a) and the recessed head screws (17).

C Fitting the wheels

1. Slide the wheel (7) onto the wheel axle (19).
2. Secure the wheel (7) with a washer (7a) and a splint (7b).
3. Press the hubcap (18) onto the wheel.
4. Repeat steps 1-3 for the remaining wheels.

D Mounting the grip rod

Mounting the lower bars:

1. Insert the lower bars (3) into the bar support (20) on the device housing (6).
2. Fasten the lower bars using the enclosed quick-release levers (4).
3. Lock the quick-release levers (4) by pressing them in the direction of the bar (1).

They must fit the handle so that a tensioning with medium force can be carried out.

Otherwise, the quick release levers (4) must be turned clockwise for tensioning them or anti-clockwise to loosen them.

GB

Mounting the bow-type handle:

4 Slide the bow-type handle (1) onto the lower bars (3).
5. Put the mounting screws (2a) through the holes on the lower bars and bow-type handle (1).
6. Screw the quick release levers (2) onto the mounting screws (2a).
7. Lock the quick release levers (2) by pressing them in the direction of the bow-type handle (1).

They must fit the bow-type handle so that tensioning can be carried out with medium force.

Otherwise, the quick release levers (2) must be turned clockwise for tensioning them or anti-clockwise to loosen them.

Clipping in the cable clamp:

1. Clip the enclosed cable clamp (10) onto the lower bar (3) to fix the device cable in place (11).

E

Mounting the grass collection box

1. Attach the grass collection box carrying handle (21) to the top of the grass collection box (8b).
2. Fasten the grass collection box carrying handle (21) with a recessed head screw (17).
3. Connect the top and underside (8b) of the grass collection box (8a+8b).

Operation

Attention: Do not operate the appliance until the collision guard and grass catcher are fully installed. Risk of injury!

F

Mounting/Removing the grass catcher

Mounting the grass catcher

1. Lift the collision guard (9).
2. Hang the grass collection box (8) into the attachment (22) provided for it on the rear of the device.
3. Lower the collision guard (9) onto the grass catcher (8) - it will keep it in place.

Removing the grass catcher

1. Lift the collision guard (9).
2. Unhook the grass catcher (8) from the mounting bracket. Flap down the collision guard (9) to the housing.

On emptying the grass catcher also refer to section "Disposal/environment".

G

Switching On and Off

1. Insert the mains cable plug into the socket (13) on the bow-type handle (1).

2. Turn the end of the extension cable into a loop and hook it into the cable strain relief (12).

3. Connect the equipment to the power supply.

4. Before switching on, ensure that the equipment is not in contact with any objects.

5. To switch on, press the release button (15) on the switchbox (14) while holding down the start handle (16). Let go of the relet ton (15).

1. To switch off, release the start lever (2).

After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury.

Level gauge

The level gauge (8) is located on the side of the grass collection box. The aerodynamic air guidance provided by the flap also optimises the filling.

Flap open: grass catcher empty

Flap closed: grass catcher full

Adjusting the Cut Height

Switch off the equipment, disconnect the plug and wait for the blade to stop. There is a risk of injury.

1. Place the lawnmower on its side.
2. Grasp the wheel axle (25) on both sides.
3. Pull evenly on the axle and let it snap into the desired position.

The correct height is around 20 – 40 mm for a decorative lawn and around 40 – 60 mm for a used lawn.

A higher cut height should be selected for the first cut of the season.

Working with the Lawnmower

Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does

each mowing increase the density of the lawn, it also produces an evenly resilient lawn.

When mulch mowing the grass is cut in one cycle, finely chopped and distributed on the lawn. The cut grass acts as a natural fertilizer.

• Start mowing near the socket and work away from the socket.
  • Always keep the extension cable behind you and when you turn, move it to the side that has already been mowed.
• Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.
• On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.
• Clean the equipment after each use, as described in the chapter on “Cleaning, Maintenance and Storage”.

Switch off the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury.

Cleaning/Maintenance

Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.

Wear gloves when handling the blade

Switch off the equipment before all maintenance and cleaning work,

disconnect the plug and wait until the blade stops.

General Cleaning and Maintenance Work

Do not hose down the lawnmower with water. This would result in the danger of an electric shock and the appliance could be damaged.

• Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.
• After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.
- Oil the wheels from time to time.
- Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.
- Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary.

Changing the Blade

Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops.

If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbalance, it must be replaced (see chapter on "Spare Parts").

1. Turn the equipment over.
2. Turn the blade screw (24) anticlockwise off of the motor spindle using a screwdriver.
3. Install the new blade in the reverse order. Ensure that the blade is positioned correctly and the screw tightened firmly.

Storage

For the device to take up less space, unlock the quick-release levers (2+4) on the bow-type handle (1) and the lower bars. You can now fold up the bow-type handle (1) and the lower bar (4). Make sure that the cables do not become trapped.

• Keep the equipment dry and out of reach of children.
• Allow the motor to cool before storing the equipment in a confined space.
• Do not cover the equipment with nylon bags as moisture could build up.

We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.

Waste disposal and environmental protection

Do not dispose of used oil in the sewage system or drains. Dispose of used oil in an environmentally correct manner - bring it to a waste disposal center.

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines do not belong with domestic waste.

• The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
• Throw the cut grass on the compost. Do not throw it in the normal household waste.
• Defective units returned to us will be disposed of for free.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools-service.eu

If you have any other questions, contact the "Service-Center" (see „Service-Center“).

Guarantee

• This appliance has a 24-month guarantee. Commercial use will invalidate the guarantee.
• Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee. Certain component parts are subject to a normal wear and are excluded from the guarantee. In particular, these include: blade, v-belt.
  • Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair. This

requires that the appliance is returned to the merchant undismantled and with proof of purchase and guarantee.

Repair Service

• Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate.
  We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.
• Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.
  Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.
• Defective units returned to us will be disposed of for free.

Trouble Shooting

Problem Possible Cause Fault Fixing
Equipment does not start	Power is off	Check the socket, cable, wire and plug and have any repairs carried out by an electrician
	Defective start lever (16) or release button (15)	Repair by customer services
	Worn carbon brushes
	Defective motor
	Grass too long	Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar.
Motor stops Blockage by foreign object Remove the foreign object
Result unsatisfactory or motor labours	Cut height too low Set a higher cut height
	Blade (23) blunt	Have the blade sharpened or replace it
	Blade area blocked Clean the equipment
	Blade (23) assembled incorrectly	Install the blade correctly
Blade fails to turn	Blade (23) blocked by grass	Remove the grass
	Blade screw (24) loose	Tighten the blade screw
Strange noises, rattling or vibrations	Blade screw (24) loose	Tighten the blade screw
	Blade (23) damaged	Replace the blade

Spis treści

Wstep....75

Przeznaczenie....75

Opis ogólny....76

GB Translation of the original EC declaration of conformity
We hereby confirm that the Electric Lawnmower Design Series ERM 1232-2 Batch number B-46623 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EG • 2000/14/EG • 2014/30/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A13:2017 • EN 60335-2-77:2010 • EN 62233:2008 EN 55014-1:2017 • EN 55014-2:2015 EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 62321-1:2013
We additionally confirm the following in accordance with the 2000/14/EC emissions guideline: Sound power level guaranteed: 96 dB(A) measured: 93.1 dB(A) Compliance evaluation process carried out in accordance with Appendix VI / 2000/14/EC Registered Office: TÜV Süd Product Service GmbH, Ridlerstraße 65, 80339 München, NB 0036
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany 11.01.2021	Christian Frank Documentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Unit 3, Beldray Park

Beldray Road, Mount Pleasant

Bilston, West Midlands WV14 7NH

Tel.: [phone]

e-mail: [e-mail]

I.T.S. Winschoten bv
