Brand	ESPA
Model	DRAIN 100M
Product type	Submersible pump for clear water
Rated voltage	230 V ~ 50 Hz
Power consumption (P1)	0.75 kW
Rated current	3.4 A
Capacitor	12 µF / 450 V
Maximum head	8.5 m
Maximum flow rate	250 L/min
Maximum liquid temperature	35 °C
Protection rating	IP68 (permanent immersion)
Operating mode	Continuous (S1)
Insulation class	F
Solid passage	Up to 35 mm (DRAINEX model)
Main functions	Lifting infiltration water, draining tanks and pools
Safety	Thermal protection, level float, 30 mA residual current device recommended
Maintenance and cleaning	Clean suction filter regularly; drain before freezing
Spare parts and repairability	Contact an ESPA approved technical service
General information	Manual available in several languages; service life 10 years

Frequently Asked Questions - DRAIN 100M ESPA

What to do if the pump does not start?

First check the power supply: fuses and residual current circuit breaker. If the problem persists, the thermal protection may have tripped; wait for cooling or check voltage. In case of hydraulic blockage, contact an ESPA approved technical service.

The motor runs but water does not come out, why?

Possible causes: discharge hose not connected, air pocket in pump body (shake laterally to evacuate), check valve reversed, or suction filter clogged. Clean the filter and check connections.

The pump starts and stops continuously, what to do?

This is often due to a blocked or poorly positioned level float. Ensure the float can move freely. Also check that the pump is sufficiently immersed and the water level is adequate.

How to clean the filter of the DRAIN 100M pump?

First unplug the pump. Remove the suction filter located under the pump. Clean it with clear water to remove debris. Reinstall before reusing the pump.

What is the maximum water temperature for this pump?

The maximum liquid temperature is 35 °C. Do not use with hotter liquids, as this could damage the motor.

Can I use the pump for a pool with bathers?

No, the pump must not be used in a pool when people are present. It is designed for draining and lifting, not for continuous filtration with swimming.

How to correctly install the pump in a tank?

Place the pump on a flat surface, at least 5 cm from the bottom if there are impurities. Ensure free space around the float. Never support the pump by the electric cable or hose; use a rope attached to the handle.

What to do in case of frost?

Drain water from pipes and pump before frost periods. If the pump remains unused for a long time, clean it and store it in a dry, ventilated place protected from frost.

Is the pump repairable?

Yes, but any intervention must be carried out by an ESPA approved technical service. Do not disassemble the pump yourself, this would void the warranty and could be dangerous.

What is the meaning of the symbols on the pump?

The symbols indicate safety instructions: dangerous voltage (risk of electric shock), mandatory grounding, do not carry by cable, etc. Consult the manual for full details.

USER MANUAL DRAIN 100M ESPA

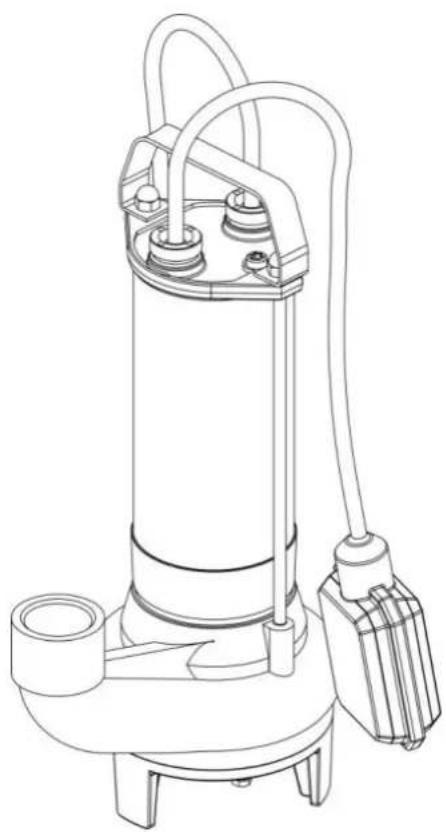

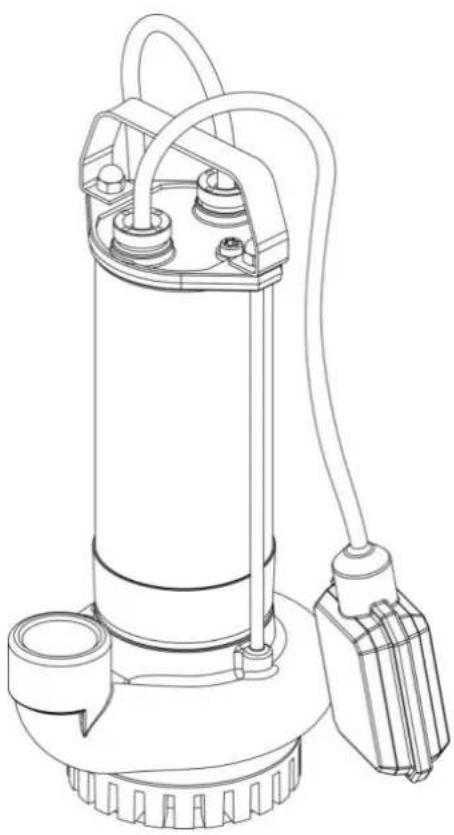

DRAIN 100M DRAINEX 100M

Line drawing of a cylindrical industrial water pump with attached tubing and control panel (no text or symbols)

Technical line drawing of a cylindrical industrial water pump with attached tubing and control panel (no text or symbols)

ES Manual de instrucciones .... 6 (Original)
EN Instruction manual.... 10 (Translation from the original Spanish)
FR Manuel d'instructions 14 (Traduction de l'original en espagnol)
DE Gebrauchsanweisung 18 (Übersetzungausdem Original in Spanisch)
IT Manuale d'istruzioni 22 (Traduzione dall'originale spagnolo)
PT Manual de instruções.... 26 (Tradução do original em espanhol)
NL Handleiding 30 (vertaling van de oorspronkelijke Spaanse)
RU Руководство по эксплуатации 34 (Перевод с оригинального испанского)
ZH 使用说明 38 (从原来的西班牙语翻译)
AR ...... 40 )

EN: EVIDENCE OF CONFORMITY

We declare, under our responsibility, that the products in this manual comply with the following directives and standards:

• Directive 2006/42/EC (Machine Security): Standard EN 809 and EN 60204-1
• Directive EMC 2014/30/EU (Electromagnetic compatibility): Standard EN 61000-6-1 y EN 61000-6-3
• Directive 2014/35/EU (Low voltage): Standard EN 60335-1, EN 60335-2-41
• Directive 2009/125/EC (ecological design): Regulation (EU) 2019/1781 electrical motors and variable speed drives. Standard EN 60034-30.
• Directive 2012/19/EU (on waste electrical and electronic equipment (WEEE)): Standard EN 50419:2006 about marking of electrical and electronic equipment.
• Directive 2011/65/UE (Restriction of hazardous substances): Standard EN 50581

FR : DECLARATION DE CONFORMITÉ

- Directiva 2014/30/UE (EMC): Norme EN 61000-6-1 e a EN 61000-6-3

EVIDENCE OF CONFORMITY

We declare, under our responsibility, that the products in this manual comply with the following directives and standards:

• Supply of Machinery (Safety) Regulations 2008: Standard BS 809 and BS 60204-1
• Electromagnetic Compatibility Regulations 2016: Standard BS 61000-6-1 and BS 61000-6-3.
• Electrical Equipment (Safety) Regulations 2016: Standard BS 60335-1 and BS 60335-2-41.
• The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019: Standard BS 60034-30.
• The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. Standard BS 50581.

Banyoles, January 14th 2021

Josep Unyó (Technical Manager)

ESPA 2025, SL

Ctra. de Mieres, s/n – 17820 Banyoles

Girona - Spain

Damage prevention and safety instructions (See figure 4)

A	Warning! Observe limitations of use.
B	The name plate voltage must be the same as the mains voltage.
C	Connect the pump to the mains via an omnipolar switch with at least a 3 mm opening between contacts.
D	Install a high-sensitivity differential switch (0.03A) as extra protection against lethal electric shocks.
E	Connect the pump to the ground.
F	Use pump only within performance limits indicated or the name plate.
G	Be careful with hazardous liquids and environments.
H	Do not carry the pump by the power cable.
I	This apparatus may be used by children 8 years or older and persons with reduced physical, sensory or mental capacities, or lacking experience and knowledge, if they are supervised or receive adequate training on the safe use of the apparatus and understand the dangers.Children should not be allowed to play with the apparatus.Children should not perform the ordinary cleaning and maintenance tasks without supervision.
J	The pump should only be dismantled by authorized personnel.
K	Cut out power supply before servicing pump.
L	Caution! Avoid icing.

Contents

Safety precautions....10

1. General information....11

2. Handling....11

3. Installation ....11

3.1. Fixing....11
3.2. Discharge pipe assembly .....11
3.3. Electrical connection .....11
3.4. Pre-start checks .....12

1. Starting 12
2. Maintenance....12
3. Disposing of the product....12
4. Nameplate 12
5. Possible faults, causes and solutions....13
6. Technical data 13
7. List of main components....42
8. Illustrations....43

Safety precautions

This symbol together with one of the following words “Danger” or “Warning” indicates the risk level deriving from failure to observe the prescribed safety precautions:

DANGER

risk of electric shock

DANGER

WARNING

Warns that failure to observe the pre cautions involves a risk of electric shock.

Warns that failure to observe the pre cautions involves a risk of damage to persons and/or things.

Warns that failure to observe the pre cautions involves the risk of damaging the pump and/or the facility.

Do not put your hand or any object into the suction or discharge mouth, since the rotating impeller could cause serious injury or damage.

1. GENERAL INFORMATION

Please observe the following instructions to achieve the best pump performance possible and a trouble free installation.

Read these instructions before installing the pump. Save them for future reference.

DRAIN series have been designed for the drainage of infiltration water, empty water tanks or swimming pools. DRAINEX series are used for the drainage of sewage water with particles in suspension, septic tanks, etc. The maximum water temperature is 35^ C. Passage of particles up to 35mm.

All pumps have been manufactured in top quality material, submitted to strict hydraulic and electric controls.

Correct pump operation is assured providing the instructions on electrical connection, installation and use are strictly adhered to.

Failure to adhere to the instructions can result in premature failure of the pump and voiding of the warranty.

The pump cannot be used in a swimming-pool while there are people bathing.

2. HANDLING

The pumps are supplied suitably packaged to prevent damage in transit. Before unpacking, check that the packaging has not been damaged or deformed,

Lift and handle the product with care and with the right tools.

3. INSTALLATION

3.1. Fixing

The pump must always be totally submerged which will provide it with the necessary cooling. If there is a lot of dirt at the bottom of the water tank, and you are using a DRAIN pump, it is important to install the pump at least 5cm away from the bottom to avoid dirt blocking the wet end.

Ensure there is enough space for the free operation of the float switch (fig.3).

The pump must never be supported by the electric cable or the discharge line, if it is necessary that the pump does not touch the bottom, suspend it by a plastic cable fixed to the transport handle.

3.2. Discharge pipe assembly

In cases in which the discharge run is lengthy or sinuous, we recommend using lines with a larger diameter than the discharge mouth, to avoid head loss due to friction as much as possible and to obtain the best hydraulic performance possible.

Install a check valve to the outlet of the pump and you will prevent pipe from emptying each time pump stops.

Ensure that the pipe is not bent and that is correctly secured to the outlet connection because, in addition to preventing the desired flow, proper pump operation will be hindered.

3.3. Electrical connection

The electrical installation must have an effective earth and comply with the national regulations in force.

The protection of the system will be based on a differential switch ( fn = 30mA ) in addition to a multi-pole isolator with a minimum 3mm contact openings,

Pumps assembled with a starting control box or fitted with a capacitor are supplied ready for operation.

In the case of three-phase pumps the user must provide the protection system.

3.4. Pre-start checks

Ensure the voltage and frequency of the supply corresponds to the values indicated on the electrical data label.

Ensure that the pump is submerged as shown in Fig.3.

THIS PUMP MUST NEVER BE DRY RUN.

NEVER MODIFY THE FLOAT SWITCH POSITION, WHICH IS ADJUSTED BY THE MANUFACTURER.

4. STARTING

If there is a line valve, open it completely.

Connect the electrical panel plug into a socket. If there is an appropriate level of water, the motor will immediately start up.

Check that the absorbed current is the same as marked on the nameplate.

If the motor does not start or no water flows at the end of the line, try to find the anomaly using the troubleshooting guide in point 8.

In the case of three-phase pumps check that the turning direction corresponds to the direction marked by the arrow situated in the suction cone.

5. MAINTENANCE

Under normal conditions these pumps require no special or planned maintenance.

During frosty periods, remember to drain the line.

If the pump is not going to be operated for a long period of time, it is recommended to remove the tank, clean it and store it in a dry, well ventilated place.

ATTENTION: In the event of faults or damage occurring to the pump, repairs or electric cable replacement should only be carried out by an authorised service agent.

The Official Technical Services list is in www.espa.com.

6. DISPOSING OF THE PRODUCT

When the pump is eventually disposed of, please note that it contains no toxic or polluting material. All main components are material identified to allow selective disposal.

This product or parts of it must be disposed of in an environmentally sound way, use the waste collection service. If this is not possible, contact the nearest ESPA service workshop.

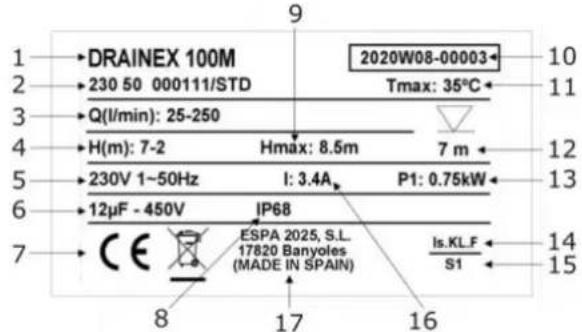

1. PLATE SHOWING CHARACTERISTICS


DRAINEX 100M 230 50 000111/STD Q(l/min): 25-250 H(m): 7-2 230V 1~50Hz 12µF - 450V IP68 ESPA 2025, S.L. 17820 Banyoles (MADE IN SPAIN) 2020W08-00003 Tmax: 35°C Hmax: 8.5m I: 3.4A P1: 0.75kW Is.KL.F S1 14 15 9 10 11 12 13 14 16 8 17

DESCRIPTION

1	Item reference
2	Voltage + frequency + item specifications
3	Flow
4	Pressure
5	Nominal voltage, no. stages, alternate current symbol and frequency
6	Capacitor (Single-phase model)
7	EC mark
8	Humidity protection level
9	Maximum pressure
10	Year and week of manufacture + Pump serial number
11	Max. liquid temperature
12	Max. immersed depth
13	Electric pump unit absorbed power (P1)
14	Designated motor insulation
15	Continuous operation symbol
16	Maximum nominal intensity at nominal voltage
17	Name and address of vendor responsible for the product

8. POSSIBLE FAULTS, CAUSES AND SOLUTIONS

1) The pump does not start.
2) Pump runs but there is no flow.
3) Pump stops automatically.
4) Pump does not deliver rated capacity.

1	2	3	4	POSSIBLE PROBLEM	SOLUTIONS
X				Lack of electricity	Replace fuses or switch RCCB (30mA)
X		X		Improper thermal protection	Switch thermal protector or check that voltage is correct
X				Float switch disconnected	Wait for water level to be back to adequate level
X		X		Wet end blocked	Call Service Engineer
X				Blocked float switch	Check the free operation of the float switch
	X			Disconnected discharge pipe	Connect it and fix the discharge pipe correctly
	X			Air trapped at the pump body	Move the pump laterally to empty the air
	X			Check valve assembled way round	Assemble the valve correctly
	X			Pump partially covered of water	Submerge the pump or wait to have the suitable level
	X		X	Inlet filter obstructed	Clean the suction filter
			X	Total manometric head higher than expected	Check the geometric head and loss of head
			X	Impeller worn	Contact a Service Engineer
			X	Deteriorated discharge pipe	Replace it by a new one

9. TECHNICAL DATA

Liquid temperature... 4°C - 35°C

Ambient temperature: 0°C - 40°C

Storage temperature: -10°C - 50°C

Ambient relative humidity, max.: 95%

Motor class I.

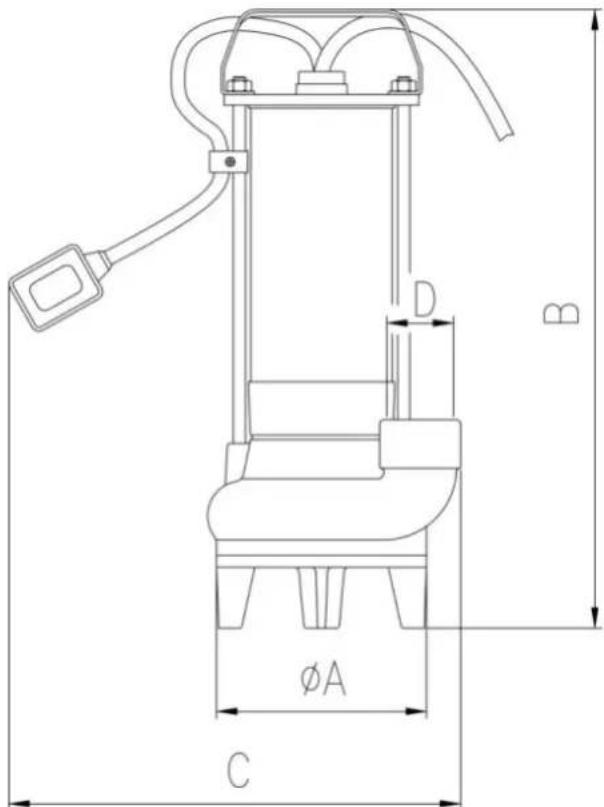

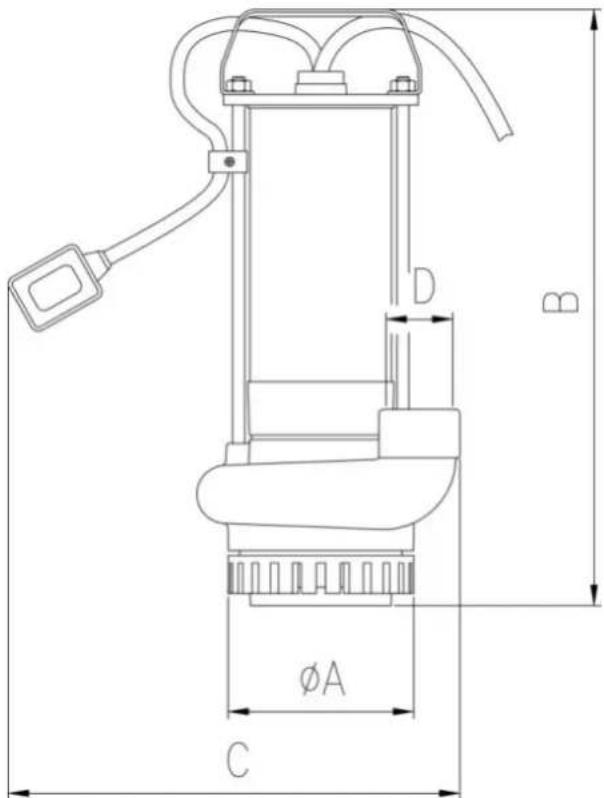

Other data see Figure 1.

6. AFVOEREN VAN HET PRODUCT

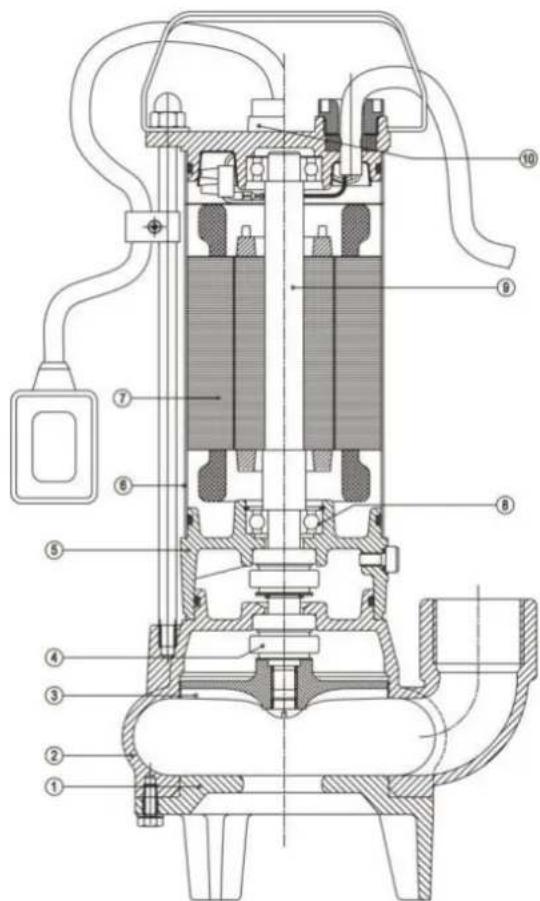

EN List of main components

Technical cross-sectional diagram of a mechanical device with numbered components for identification.

Technical schematic diagram of a mechanical device with numbered components for identification

	ES	EN	FR	DE	IT
1	Pie	Foot	Pied	Fub	Piede
2	Cuerpo bomba	Pump casing	Corps de pompe	Pumpengehäuse	Corpo della pompa
3	Rodete	Impeller	Roue	Laufrad	Girante
4	Retén mecánico	Mechanical seal	Garniture mécanique	Gleitringdichtung	Tenuta meccanica
5	Cuerpo intermedio	Interstage casing	Corps intermédiaire	Zwischengehäuse	Corpo intermedio
6	Carcasa del motor	Motor casing	Carcasse de moteur	Motorgehäuse	Carcassa del motore
7	Estátor	Stator	Stator	Stator	Estator
8	Rodamiento	Bearing	Roulement	Wälzlager	Cuscinetto
9	Eje motor	Motor shaft	Arbre de moteur	Motorwelle	Albero del motore
10	Cable	Cable	Câble	Kabel	Cavo

	PT	NL	RU	ZH	AR
1	Pe	Voet	Опора	脚	قدم
2	Corpo de pompa	Pompbehuizing	Корпус насоса	泵壳	المضخة علاف
3	Impulsor	Impeller	Рабочее колесо	叶轮	المكرد
4	Fecho mecânico	Glijringpakking	Механическое уплотнение	机械密封	الي ختم
5	Corpo intermedio	Tussenbehuizing	Масляная камера	级间套管	الوسيط الجسم
6	Carcasa motor	Motorhuis	Корпус двигателя	马达外壳	المحرك غلاف
7	Estator	Stator	Статор	定了	الثابت
8	Rolamento	Lager	Подшипник	轴承	تحمل
9	Veio de motor	Motoras	Вал двигателя	电机轴	المحرك رمح
10	Cabo	Kabel	Кабель	电缆	كابل

Fig.1 / Abb.1 / Afb.1 / Рис.1

A B C D

DRAIN100

D φA C B

DRAINEX100

230V 50 Hz	Q max. [l/min]	H max. [m]	A 1~230V	C μF	P1 [kW]	IP	η(%)	A [mm]	B [mm]	C [mm]	D [mm]	ΔT [kg]
DRAIN 100M	300	10	3.1	12	0.7	68	39	122	392	300	1 1/4"	10.5
DRAINEX 100M	250	8.5	3.4	12	0.75	68	21	138	407	300	1 1/4"	11

① ② ③ E 230V L N

E ① R 400V ② S ③ T 230V

1.	NEGRO	2.	AZUL	3.	MARRON
	BLACK		BLUE		BROWN
	NOIR		BLEU		MARRON
	SCHWARZ		BLAU		BRAUN
	NERO		AZZURRO		MARRONE
	PRETO		AZUL		CASTANHO
	ZWART		BLAUW		BRUIN
	ЧЕРНЫЙ		ГОЛУБОЙ		КОРИЧНЕВЫЙ
	أسود		ازرق		أسمر
	黑色		蓝色的		棕褐色

A B C D E F G H I J K L

ESPA 2025, S.L.

C/ Mieres, s/n - 17820 BANYOLES

GIRONA – SPAIN

www.espa.com

QR code image containing encoded data, no visible human-readable text
