Product type	Self-priming multistage centrifugal pump
Brand	ESPA
Model	Prisma 45 N
Use	Pumping of clean water without suspended solids, max temperature 40 °C
Power supply	230 V single-phase or 400 V three-phase, 50 Hz
Absorbed power (P1)	1.8 kW (model 45 3/3M N)
Motor power (P2)	1.5 kW
Rated current	7.9 A (230 V) / 3 A (400 V)
Max flow rate	216 l/min
Max head	39 m (3 stages)
Max service pressure	1.2 MPa
Max suction pressure	0.81 MPa
Protection rating	IP55
Insulation class	F
Dimensions (L x W x H)	245.9 x 281.5 x 158 mm (model 45 3/3M N)
Weight	22.6 kg
Suction / discharge connection	1 1/2" (DN40)
Ambient temperature	0 °C to 40 °C
Noise level	73 dB(A)
Maintenance	Clean with a damp cloth; drain in case of frost
Safety	Built-in thermal protection (single-phase), 30 mA residual current device recommended, grounding mandatory
Spare parts / Repairability	Contact an ESPA approved technical service

Frequently Asked Questions - Prisma 45 N ESPA

What to do if the motor does not start?

Check the power supply, fuse or circuit breaker. If the motor is locked, disassemble the pump and contact an approved technical service.

Why does the pump run but not provide pressure?

This may be due to a blocked foot valve, too high head, or air intake in the piping. Clean the valve or check the tightness of the fittings.

The motor is overheating, what to do?

Make sure the voltage matches the nameplate and that ventilation is sufficient. Insufficient flow or poor ventilation can also cause overheating.

How to prime the pump correctly?

Fill the pump body with water through the filling plug. If a foot valve strainer is installed, also fill the suction pipe. Never run the pump dry.

What type of water can be pumped with the Prisma 45 N?

This pump is designed for clean water, free of suspended solids, with a maximum temperature of 40 °C.

How to connect the pump electrically?

Use an omnipolar switch with a contact opening of at least 3 mm and a 30 mA residual current circuit breaker. Connection must be carried out by an approved installer.

What to do in case of frost?

Drain the pipes and pump to prevent ice formation. If the pump remains inactive for a long time, store it in a dry, ventilated place.

How to maintain the pump?

Under normal conditions, no special maintenance is required. Clean the outside with a damp cloth without aggressive products. In case of failure, call an approved technical service.

The pump stops and restarts by itself (cycling), why?

This is often due to motor overheating (thermal protection) caused by incorrect voltage, poor ventilation, or a worn impeller. Check these points.

Where to find spare parts for the Prisma 45 N?

Spare parts are available from official ESPA technical services. Visit www.espa.com to find the nearest approved repairer.

USER MANUAL Prisma 45 N ESPA

Technical line drawing of an electric motor with mounting flanges and housing (no text or symbols)

EN Instruction manual.... 10 (Translation from the original Spanish)

EN: EVIDENCE OF CONFORMITY

We declare, under our responsibility, that the products in this manual comply with the following directives and standards:

• Directive 2006/42/EC (Machine Security): Standard EN 809 and EN 60204-1
• Directive EMC 2014/30/EU (Electromagnetic compatibility): Standard EN 61000-6-1 and EN 61000-6-3
• Directive 2014/35/EU (Low voltage): Standard EN 60335-1 and EN 60335-2-41
• Directive 2009/125/EC (ecological design): Regulation (EU) 2019/1781 electrical motors and variable speed drives. Standard EN 60034-30.
• Directive 2012/19/EU (on waste electrical and electronic equipment (WEEE)): Standard EN 50419:2006 about marking of electrical and electronic equipment.
• Directive 2011/65/UE (Restriction of hazardous sustances): Standard EN 50581.

FR : DECLARATION DE CONFORMITÉ

EVIDENCE OF CONFORMITY

We declare, under our responsibility, that the products in this manual comply with the following directives and standards:

• Supply of Machinery (Safety) Regulations 2008: Standard BS 809 and BS 60204-1
• Electromagnetic Compatibility Regulations 2016: Standard BS 61000-6-1 and BS 61000-6-3.
• Electrical Equipment (Safety) Regulations 2016: Standard BS 60335-1 and BS 60335-2-41.
• The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019: Standard BS 60034-30.
• The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. Standard BS 50581.

Banyoles, January 4th 2021

Josep Unyó (Technical Manager)

ESPA 2025, SL

Ctra. de Mieres, s/n – 17820 Banyoles

Girona - Spain

Damage prevention and safety instructions
(See figure 4)

A	Warning! Observe limitations of use.
B	The name plate voltage must be the same as the mains voltage.
C	Connect the pump to the mains via an omnipolar switch with at least a 3mm opening between contacts.
D	Install a high-sensitivity differential switch (0.03A) as extra protection against lethal electric shocks.
E	Connect the pump to the ground.
F	Use pump only within performance limits indicated on the name plate.
G	Remember to prime pump.
H	Check for motor self-ventilation.
I	This apparatus may be used by children older than 8 and persons with reduced physical, sensory or mental capacities, or lacking experience and knowledge, if they are supervised or receive adequate training on the safe use of the apparatus and understand the dangers.Children should not be allowed to play with the apparatus.Children should not perform the ordinary cleaning and maintenance tasks without supervision.
J	Be careful with hazardous liquids and environments.
K	Caution! Look out for accidental leaks.Do not expose pump to bad weather.
L	Caution! Avoid icing.Cut out power supply before servicing pump.

Contents

Safety precautions....10

1. General information....11
2. Handling....11
3. Installation 11

3.1. Fixing....11
3.2. Suction pipe assembly .....11
3.3. Discharge pipe assembly 11
3.4. Electrical connection .....12
3.5. Pre-start checks ..... 12

1. Starting 12
2. Maintenance 12
3. Disposing of the product....12
4. Nameplate 12
5. Possible faults, causes and solutions......13
6. Technical data 13
7. List of main components....43
   11.Wiring diagrams....43
8. Illustrations....44

Safety precautions

This symbol together with one of the following words “Danger” or “Warning” indicates the risk level deriving from failure to observe the prescribed safety precautions:

DANGER

risk of

electric

shock

DANGER

Warns that failure to observe the pre cautions involves a risk of electric shock.

Warns that failure to observe the pre cautions involves a risk of damage to persons and/or things.

WARNING

Warns that failure to observe the pre cautions involves the risk of damaging the pump and/or the facility

1. GENERAL INFORMATION

Please observe the following instructions to achieve the best pump performance possible and a trouble free installation.

Read these instructions before installing the pump.

Save them for future reference.

These are multistage centrifugal pumps having more than one impeller assembled in-line. The same flow passes through each impeller but the pressure increases each time, i.e. more impellers, more pressure.

The ASPRI models are manufactured to include a recirculation system with automatic valve achieving suction lifts of up to nine meters. By using a foot valve on the suction pipe the pump will rapidly self-prime when operated.

These pumps are designed to operate with clean water, free from particles in suspension and with a maximum temperature of 40^ C.

Correct pump operation is assured providing the instructions on electrical connection, installation and use are strictly adhered to.

Failure to adhere to the instructions can result in premature failure of the pump and voiding of the warranty.

2. HANDLING

The pumps are supplied suitably packaged to prevent damage in transit. Before unpacking, check that the packaging has not been damaged or deformed,

Lift and handle the product with care and with the right tools.

3. INSTALLATION

These pumps are designed for indoor use.

Make sure that pump is never submerged and that it rests in a dry and well aired room.

3.1. Fixing

The pump should be installed on a solid, horizontal base, secured by screws or bolts and using the existing holes in the mount. Ensure that the pump mount rests squarely on the base before fixing.

3.2. Suction pipe assembly

The suction pipe, if longer than 7 meters, must be of the same or greater diameter than the pump inlet and installed in an upward inclination to prevent trapped air pockets forming.

If the pump is required to perform a suction lift, to avoid unnecessary losses of head on the discharge side, the pump should be installed as close as possible to the water.

The end of the suction pipe must always remain at least 30 cm below the water level. (Fig.3)

3.3. Discharge pipe assembly

It is recommended to use pipes with a diameter equal or greater than the pump outlet. This will reduce loss of head caused by friction in longer pipe runs.

Pipework must be supported and their weight must not rest on the pump.

If a foot valve has not been installed it is recommended to fit a check valve to prevent accidental draining down of the system.

3.4. Electrical connection

The electrical installation must have a multi-pole isolator with minimum 3 mm contact openings. The protection of the system will be based on a differential switch ( fn = 30 mA )

The power cable must correspond at least to the type H05 RN-F (according to 60245 IEC 57) and having terminals.

The connection and its dimensioning must be performed by a qualified installer according to the needs of the facility and following the regulations in force in each country.

Pump models 15 and 25: Single-phase motors have thermal protection.

The rest of the pump models with single phase motor and all three phase motor pumps do not incorporate this protection. They must be connected to a motor-protective circuit breaker that can be adjusted manually. Set the circuit breaker according to the current given in the rating plate plus 10%.

Follow instructions given on fig.1 for correct electrical connection.

3.5. Pre-start checks

Ensure the voltage and frequency of the supply corresponds to the values indicated on the electrical data label.

Ensure that the pump shaft is rotating freely.

Fill the pump body with water through the self priming plug opening. If a foot valve has been installed, also fill the suction pipe.

Check all joints and connections for leaks.

THIS PUMP MUST NEVER BE DRY RUN.

4. STARTING

Ensure all valves in the pipework are open.

Connect power supply. There will be a delay before water appears at the end of the discharge pipe.

Viewings from the fan ensure that the rotation of the motor is clockwise. On three phase pumps the motor may rotate anticlockwise. If this is happening, the flow will be lower than expected. To rectify this situation the two supply phases need to be reversed.

Ensure that the absorbed current is the same or lower than the maximum shown on the name plate. Adjust the thermal relay if is necessary.

If the pump fails to operate refer to the possible faults, causes and solutions list for assistance.

In the ASPRI models, the self-priming time can take several minutes.

5. MAINTENANCE

Under normal conditions these pumps require no special or planned maintenance.

Clean the pump with a damp cloth without using harsh products.

If the pump is not to be operated for a long period it is recommended to remove it from the installation, drain down and store in a dry, well ventilated place.

ATTENTION: In the event of faults or damage occurring to the pump, repairs should only be carried out by an authorised service agent.

The Official Technical Services list is in www.espa.com.

6. DISPOSING OF THE PRODUCT

When the pump is eventually disposed of, please note that it contains no toxic or polluting material. All main components are material identified to allow selective disposal.

This product or parts of it must be disposed of in an environmentally sound way, use the waste collection service. If this is not possible, contact the nearest ESPA service workshop.

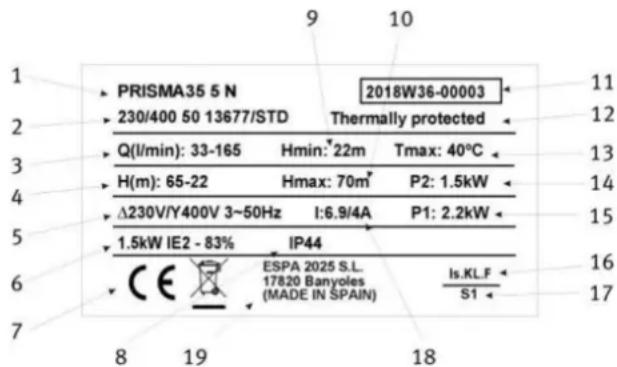

1. PLATE SHOWING CHARACTERISTICS


PRISMA35 5 N 230/400 50 13677/STD Q(l/min): 33-165 Hmin: 22m Tmax: 40°C H(m): 65-22 Hmax: 70m P2: 1.5kW Δ230V/Y400V 3~50Hz I:6.9/4A P1: 2.2kW 1.5kW IE2 - 83% IP44 ESPA 2025 S.L. 17820 Banyoles (MADE IN SPAIN) Is.KL.F S1 8 19 18

DESCRIPTION

1	Item reference
2	Voltage + frequency + item specifications
3	Flow
4	Pressure
5	Nominal voltage, no. stages, alternate current symbol and frequency
6	Energy efficiency index (Three-phase model)
6	Capacitor (Single-phase model)
7	EC mark
8	Humidity protection level
9	Minimum working pressure
10	Maximum pressure
11	Year and week of manufacture + Pump serial number
12	Thermal protection incorporated indicator
13	Max. liquid temperature
14	Motor max. nominal output (P2)
15	Electric pump unit absorbed power(P1)
16	Designated motor insulation
17	Continuous operation symbol
18	Maximum nominal intensity at nominal voltage
19	Name and address of vendor responsible for the product

8. POSSIBLE FAULTS, CAUSES AND SOLUTIONS

1) The motor does not start.
2) Motor operates but there is no pressure.
3) Motor over-heating.
4) Pump does not deliver rated capacity.
5) Motor starts and stops automatically.
6) Shaft rotates with difficulty.

1	2	3	4	5	6	POSSIBLE PROBLEM	SOLUTIONS
X				X	X	Pump blocked	Disconnect it and take it to the official Technical Service
			X			Foot valve clogged	Clean it or replaced by new one
	X		X			Total head higher than expected	Verify geometric head and loss of head
X		X		X		Wrong tension	Check that the tension is the same as that on the name plate
	X		X			Water level in well or tank has come down	Verify suction head
X						Fuse or thermal relay disconnected	Change fuse or thermal relay
	X		X			Impellers are worn out	Disconnect pump and take it to your Service Dealer
	X					Foot valve not submerged	Be sure suction pipe is submerged
	X					Pump was not primed	Fill pump body with water
		X		X		Room not properly aired	Provide good ventilation
	X					Air entry	Seal unions and joints properly

9. TECHNICAL DATA

Liquid temperature... 4°C - 40°C

Ambient temperature: 0°C - 40°C

Storage temperature: -10°C - 50°C

Ambient relative humidity, max.: 95%

Motor class I.

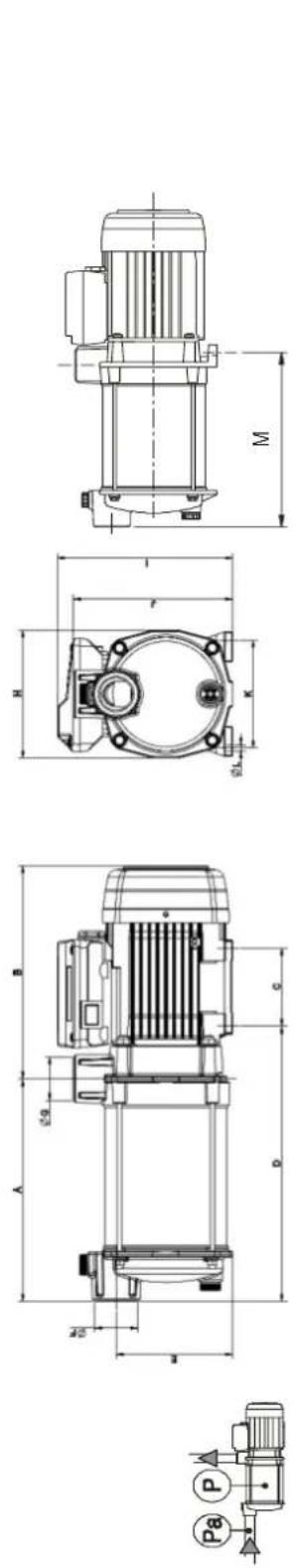

Other data see Figure 2.

6. AFVOEREN VAN HET PRODUCT

Technical cross-sectional diagram of a mechanical assembly with numbered components

* Aspri Only

	ES	EN	FR	DE	IT	PT	NL	RU	ZH
1-	Tapa aspiración	Suction cover	Fond d'aspiration	Saugdekel	Coperchio aspirante	Tapa aspiração	Aanzuigingsdop	Всасывающий патрубок	吸入端泵盖
2-	Tapón cebado	Priming plug	Bouchon de remplissage	Einfüllstopfen	Tappo di riempimento	Tampão de ferragem	Vuldop	Пробка	启动灌注塞
3-	Rodete	Impeller	Roue	Laufrad	Girante	Impulsor	Rotor	Рабочее колесо	叶轮
4-	Difusor	Diffuser	Diffuseur	Leitrad	Difusor	Difusor	Diffusor	Диффузор	导叶
5-	Cuerpo impulsión	Delivery body	Corps de refoulement	Drukgehäuse	Corpo premente	Corpo de compressã	Tussenbehuizing	Напорный патрубок	出水体
6-	Condensador	Capacitor	Condensateur	Kondensator	Condensatore	Condensador	Condensator	Конденсатор	电容
7-	Reten mecánico	Mechanical seal	Gamiture	Gleitringdichtung	Tenuta meccanica	Fecho mecanico	Glijringpakking	Торцевое уплотнение	机械密封件
8-	Rodamiento	Bearing	Roulement	Wálzlager	Cuscinetto	Rolamento	Lager	Подшипник	轴承
9-	Estator	Stator	Stator	Stator	Estator	Stator	Stator	Статор электродвигателя	转子
10-	Eje motor	Motor shaft	Arbre de moteur	Motorwelle	Albero del motore	Veio de motor	Motoras	Ротор электродвигателя	电机轴
11-	Ventilador	Fan	Ventilateur	Lüfterrad	Ventola	Ventilador	Ventilator	Крыльчатка вентилятора	风扇盖
12-	Tapa ventilador	Fan cover	Capot ventilateur	Lüfterhaube	Cuffia ventola	Tampa ventilador	Ventilatorkap	Крышка вентилятора	风扇叶
13-*	Válvula	Valve	Clapet	Ventil	Valvola	Valvula	Klep	Самовсасывающий клапан	阀门

Fig.1 / Abb.1 / Afb.1 / Puc.1 / 图 1 / 1

ALIMENTACIÓN MONOFÁSICA SINGLE PHASE SUPPLY ALIMENTATION MONOPHASÉE EINPHASENSTROM ALIMENTAZIONE MONOFASICA ALIMENTAÇÃO MONOFASICA EENFASIGE VOEDING ОДНОФАЗНОЕ ПОДКЛЮЧЕНИЕ

單相交貨

M 1 3 6 2 4 L N 5

1.	ROJO	2.	BLANCO	3.	NEGRO	4.	CONDENSATOR	5.	LÍNEA	6.	PROTECTOR TÉRMICO
	RED		WHITE		BLACK		CAPACITOR		LINE		MOTOR RELAY
	ROUGE		BLANC		NOIR		CONDENSATEUR		TENSION		PROTECTEUR MOTEUR
	ROT		WEISS		SCHWARZ		KONDENSATOR		SPENNUNG		MOTORSCHUTZ
	ROSSO		BIANCO		NERO		CONDENSATORE		LINEA		PROTETTORE DEL MOTORE
	VERMELHO		BRANCO		PRETO		CONDENSADOR		LINHA		MOTO PROTECTOR
	ROOD		WIT		ZWART		CONDENSATOR		LIJN		THERMISCHE ZEKERING
	KPACHНЫЙ		БЕЛЫЙ		ЧЕРНЫЙ		КОНДЕНСАТОР		НАПРЯЖЕНИЕ		ТЕПЛОВАЯ ЗАЩИТА
	红色		白色		黑色		电容		電壓		保護器
	أحمر		أبيض		أسود		مكُف		الجهد الكهربى		حامي المحرك

ALIMENTACION TRIFÁSICA THREE PHASE SUPPLY ALIMENTATION TRIPHASÉE DREIPHASENSTROM ALIMENTAZIONE TRIFASICA ALIMENTAÇÃO TRIFASICA DRIEFASIGE VOEDING TREXФАЗНОЕ ПОДКЛЮЧЕНИЕ

三相交貨

Z X Y U V W 400V △ Z X Y U V W 230V

Fig. 2 / Abb. 2 / Afb. 2 / Puc. 2 / 图2 / 2 alشكل

QR code image containing encoded data, no visible human-readable text
