P5760T - Doorbells Emos - Free user manual and instructions

Product type	Wireless doorbell
Brand	Emos
Model	P5760T
Category	Push button for wireless chime
Signal range	Up to 120 m in open space (about 20% indoors)
Protection rating	IP44 (waterproof)
Number of melodies	16 adjustable melodies
Maximum number of pairable buttons	8 buttons per chime
Button power supply	1 CR2032 battery (3 V)
Chime power supply	230 V AC / 50 Hz or 3 AAA batteries (1.5 V)
Package contents	Button, double-sided adhesive tape, 2 screws
Pairing	Self-learning mode (60 seconds)
Memory in case of power failure	Yes, backup of paired button codes
Usage	Press button to ring; red LED confirms transmission
Maintenance and cleaning	Clean with a soft damp cloth and a little soap
Safety	Do not use by people with limited abilities without supervision
Recycling	Do not dispose with household waste; take to a collection point
Dimensions (button)	Approximately 6 x 3 x 2 cm (estimate)
Weight (button)	Approximately 30 g (estimate)

Frequently Asked Questions - P5760T Emos

How to pair the button with the chime?

Plug in the chime (230 V) or insert the batteries (AAA). Within 60 seconds, press the button on the chime (C). The melody plays to confirm pairing.

How to change the chime melody?

Open the button, press button B (located in the battery compartment) several times until you hear the desired melody. The last melody heard is saved.

How to clear the memory of paired buttons?

Put the chime into pairing mode (plug in or insert batteries). Within 60 seconds, press button B on the button. The LED flashes and a melody sounds: all buttons are cleared.

What battery to use for the button?

Use a 3 V CR2032 lithium battery. Respect polarity: positive pole facing up.

Is the button waterproof?

Yes, it has an IP44 protection rating, but it is recommended to install it in a sheltered location (e.g. a niche).

What is the signal range?

Up to 120 meters in open air. In a building, it can drop to about 20% (about 24 m).

How many buttons can be paired?

Up to 8 buttons per chime. Each button can have a different melody.

What happens in case of a power failure?

The chime retains the codes of paired buttons in memory. When power returns, it goes into pairing mode for 60 seconds; if no new button is paired, it reloads the previous codes.

How to clean the button?

Use a soft damp cloth with a little soap. Do not use harsh products or solvents.

What to do if the button does not work?

Check the battery: if the LED does not light up when pressed, replace it with a new battery. Make sure the button is not installed on a metal surface, which could interfere with the signal.

USER MANUAL P5760T Emos

Simple geometric diagram with a rectangle and a labeled rectangle marked 'C' (no text or symbols beyond the label)

2

Technical line drawing of a rectangular industrial or storage unit with internal compartments and mounting base (no text or symbols)

Technical line drawing of a rectangular electronic device with internal compartments and mounting ports (no text or symbols)

3

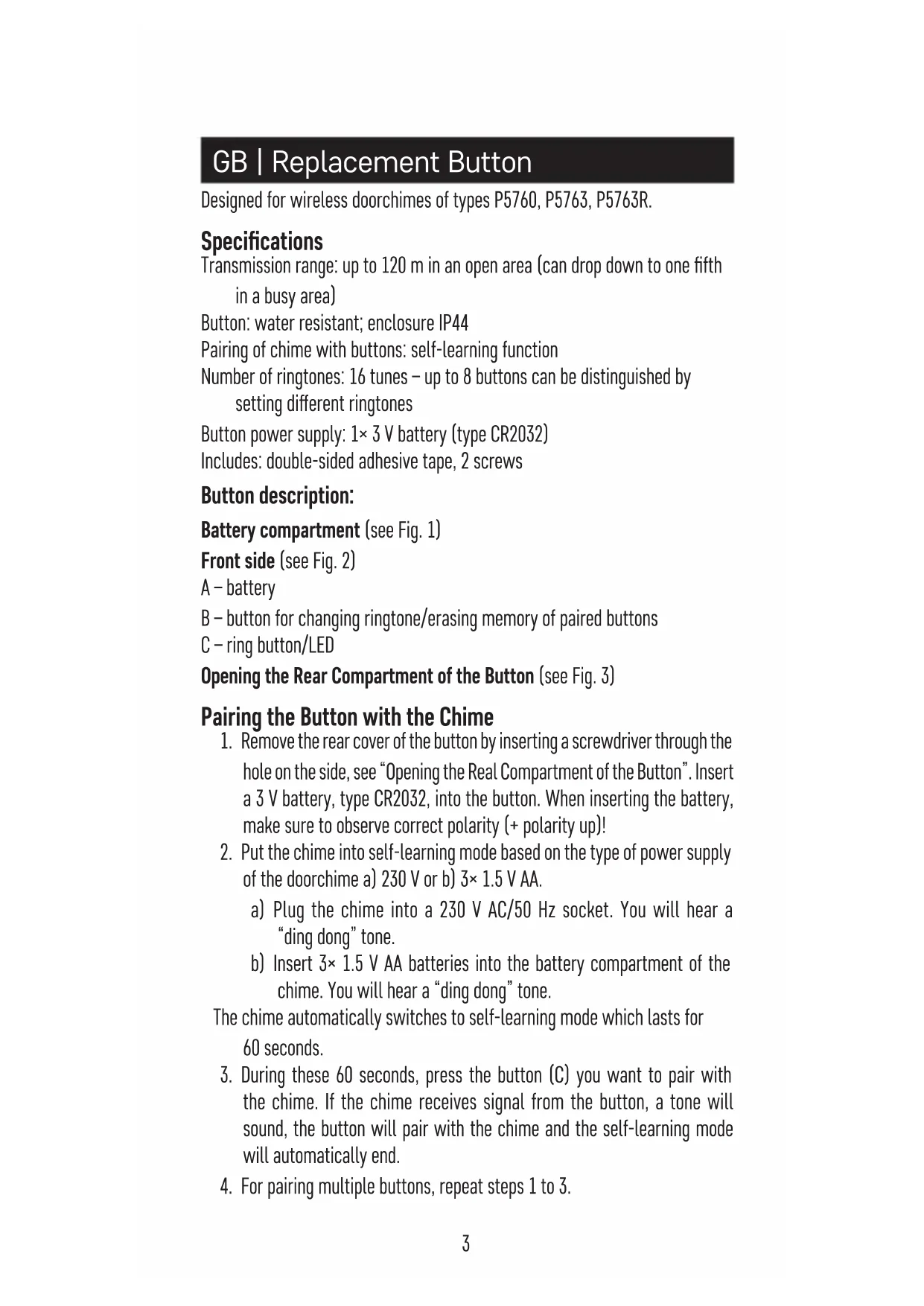

GB | Replacement Button

Designed for wireless doorchimes of types P5760, P5763, P5763R.

Specifications

Transmission range: up to 120 m in an open area (can drop down to one fifth in a busy area)

Button: water resistant; enclosure IP44

Pairing of chime with buttons: self-learning function

Number of ringtones: 16 tunes – up to 8 buttons can be distinguished by setting different ringtones

Button power supply: 1×3 V battery (type CR2032)

Includes: double-sided adhesive tape, 2 screws

Button description:

Battery compartment (see Fig. 1)

Front side (see Fig. 2)

A - battery

B – button for changing ringtone/erasing memory of paired buttons

C - ring button/LED

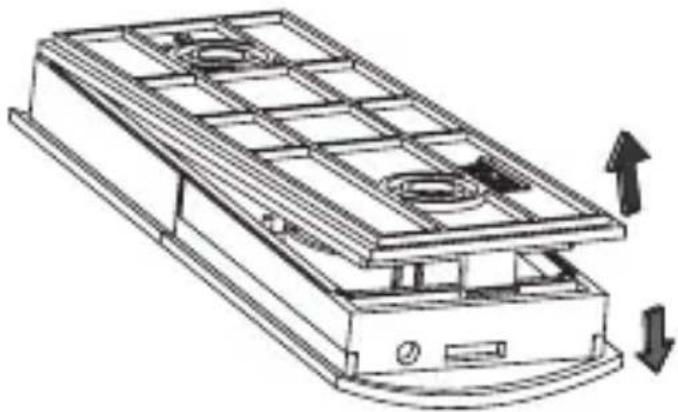

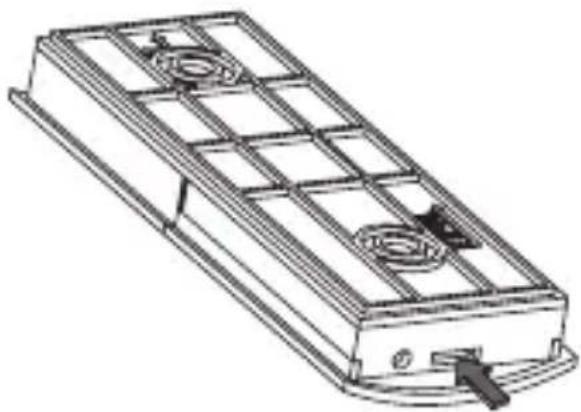

Opening the Rear Compartment of the Button (see Fig. 3)

Pairing the Button with the Chime

1. Remove the rear cover of the button by inserting a screwdriver through the hole on the side, see "Opening the Real Compartment of the Button". Insert a 3 V battery, type CR2032, into the button. When inserting the battery, make sure to observe correct polarity (+ polarity up)!
2. Put the chime into self-learning mode based on the type of power supply of the doorchime a) 230 V or b) 3× 1.5 V AA.

a) Plug the chime into a 230 V AC/50 Hz socket. You will hear a "ding dong" tone.
b) Insert 3× 1.5 V AA batteries into the battery compartment of the chime. You will hear a “ding dong” tone.

The chime automatically switches to self-learning mode which lasts for 60 seconds.

1. During these 60 seconds, press the button (C) you want to pair with the chime. If the chime receives signal from the button, a tone will sound, the button will pair with the chime and the self-learning mode will automatically end.
2. For pairing multiple buttons, repeat steps 1 to 3.

Note: You must put the chime into self-learning mode before pairing each button – see step 2.

You can pair a maximum of 8 buttons per chime this way.

Note: The chime has an internal memory where it stores the codes of the currently paired buttons for cases of power failure. Once power supply to the chime is restored, the chime will automatically enter self-learning mode for 60 seconds. However, if no signal is received within these 60 seconds (new pairing is not performed), the chime will automatically load the codes of the previously paired buttons after self-learning mode ends. There is thus no need to pair buttons again after a power failure.

Wiping the Memory of Paired Buttons

1. Remove the rear cover of the button with a screwdriver through the hole on the side.
2. Put the chime into self-learning mode based on the type of power supply of the doorchime a) 230 V or b) 3× 1.5 V AA.

a) Plug the chime into a 230 V AC/50 Hz socket. You will hear a "ding dong" tone.
b) Insert 3× 1.5 V AA batteries into the battery compartment of the chime. You will hear a "ding dong" tone.

1. Press button B in the battery compartment of the button within 60 seconds – the LED indicator on the chime and the button will flash and a tone will sound.

This will erase the memory of ALL paired buttons.

1. Re-assemble the button.

Ringtone Selection

You can change the ringtone at any time. The pairing of the chime with the button is not affected by ringtone change.

1. Remove the rear cover with a screwdriver through a hole on the side of the button.
2. Repeatedly press the B button on the printed circuit of the button. Each press will play a different ringtone.

The last ringtone played will be automatically set.

1. You can set a different ringtone for each paired button to better identify which button rang the chime (you can pair up to 8 buttons to a single chime).
2. Re-assemble the button.

Installation of the Doorchime (Transmitter) Button

The doorchime button (transmitter) can be placed on wood or brick walls. However, never place the button directly onto metal objects or materials containing metal, such as plastic window or door structures that have a metal frame. In such cases, the transmitter will not work properly.

1. Begin by pairing the button with the chime.
2. Before installation, verify the reliable functioning of the set in the chosen spot.
3. Remove the rear cover with a screwdriver through a hole on the side of the button.
4. Use the double-sided adhesive tape (included) or two screws to fix the rear portion of the cover to the wall. Although the button is weather resistant, choose a location where it is protected, e.g. in a wall recess.
5. Re-assemble the button.
6. Press the button to ring the chime. Pressing is accompanied by LED illumination indicating the button has sent a radio signal. The chime plays the selected ringtone.
7. If the blue LED on the button does not light up, the battery is low and should be replaced. The button battery is designed for one year of operation. The endurance may vary depending on the intensity and conditions of use.

Upkeep and Maintenance

The wireless digital doorchime is a sensitive electronic device. Therefore, it is necessary to observe the following precautions:

• Periodically check the functionality of the doorchime button and replace the battery in time. Use quality alkaline batteries with the required specifications.
• When the doorchime is not used for a long time, remove the battery from the doorchime button.
• Do not expose the chime to excessive vibrations and shocks.
• Do not expose the chime to excessive heat and direct sunlight or moisture.
• For cleaning, use a slightly moistened cloth with a small amount of detergent; do not use aggressive cleaning agents or solvents.
• This device is not intended for use by persons (including children) whose physical, sensory or mental disability or lack of experience and expertise prevents safe use, unless they are supervised or instructed in the use of the appliance by a person responsible for their safety. Children must always be supervised and must never play with the device.

Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfill, dangerous substances may reach groundwater and subsequently food chain, where it could affect human health.

Hereby, EMOS spol. s r. o. declares that the radio equipment type P5760T is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.emos.eu/download.
