Product type	Ice maker
Brand	Taurus
Model	MG 12 Legend
Power supply	220-240 V ~ 50 Hz
Production capacity	12 kg/24h (approx.)
Production time	7 to 12 minutes per cycle
Water tank	With MAX level indicator
Indicator lights	Empty tank, Full bin, Operation light
Refrigerant type	Not specified (compressor)
Included accessories	Ice scoop
Maintenance	Clean with a damp cloth; change water every 24 h
Safety	Do not immerse; do not block vents; use drinking water
Usage	Household use only
Warranty	In accordance with applicable legislation, approved after-sales service
Recycling	WEEE - do not dispose of with household waste

Frequently Asked Questions - MG 12 Legend TAURUS

What to do if the "Empty tank" light turns on?

The water tank is empty. Turn off the appliance, fill the tank with cold water to the MAX level, then wait 3 minutes before restarting the appliance. If the problem persists, check the water pump or remove the silicone cap to let a few drops of water escape.

What to do if the "Empty tank" and "Full bin" lights turn on at the same time?

This indicates that the ice ejector is probably blocked. Turn off and unplug the appliance, remove any ice that may be blocking the mechanism, then restart the appliance.

Why are the ice cubes not completely transparent?

Slight opacity is normal and due to trapped air during manufacturing. This does not affect the quality of the ice cubes.

How long does it take to produce ice cubes?

The first cycle takes approximately 7 to 12 minutes, depending on water and ambient temperature. The first cycles may produce smaller cubes.

How to clean the ice maker?

Unplug the appliance and allow it to cool. Clean the exterior and interior surfaces with a damp cloth moistened with a few drops of mild detergent. Rinse and dry. Never use solvents or abrasive products, and do not immerse the appliance in water.

Can I use tap water?

It is recommended to use bottled mineral water suitable for drinking. Tap water can be used, but it may cause lime scale buildup. Change the water every 24 hours to ensure quality ice cubes.

What to do if the machine does not produce ice cubes?

Check that the tank is filled and the appliance is on. If the lights are normal but no ice forms, there may be a lack of refrigerant or a fan motor problem. Contact customer service or an authorized dealer.

What is the production capacity of the MG 12 Legend?

The capacity is approximately 12 kg of ice per 24 hours, depending on usage conditions.

How to empty the water tank?

Open the silicone drain plug (A) located inside the tank, place a container under the appliance, then close the plug after emptying.

Can I leave the machine on continuously?

Yes, the appliance is designed for continuous household use. It stops automatically when the ice bin is full. For extended use, make sure to change the water regularly and clean the appliance periodically.

USER MANUAL MG 12 Legend TAURUS

Simple line drawing of a door with an oval top and a rectangular bottom (no text or symbols)

Technical diagram of a food appliance with labeled parts including battery, drawer, and door components

Español

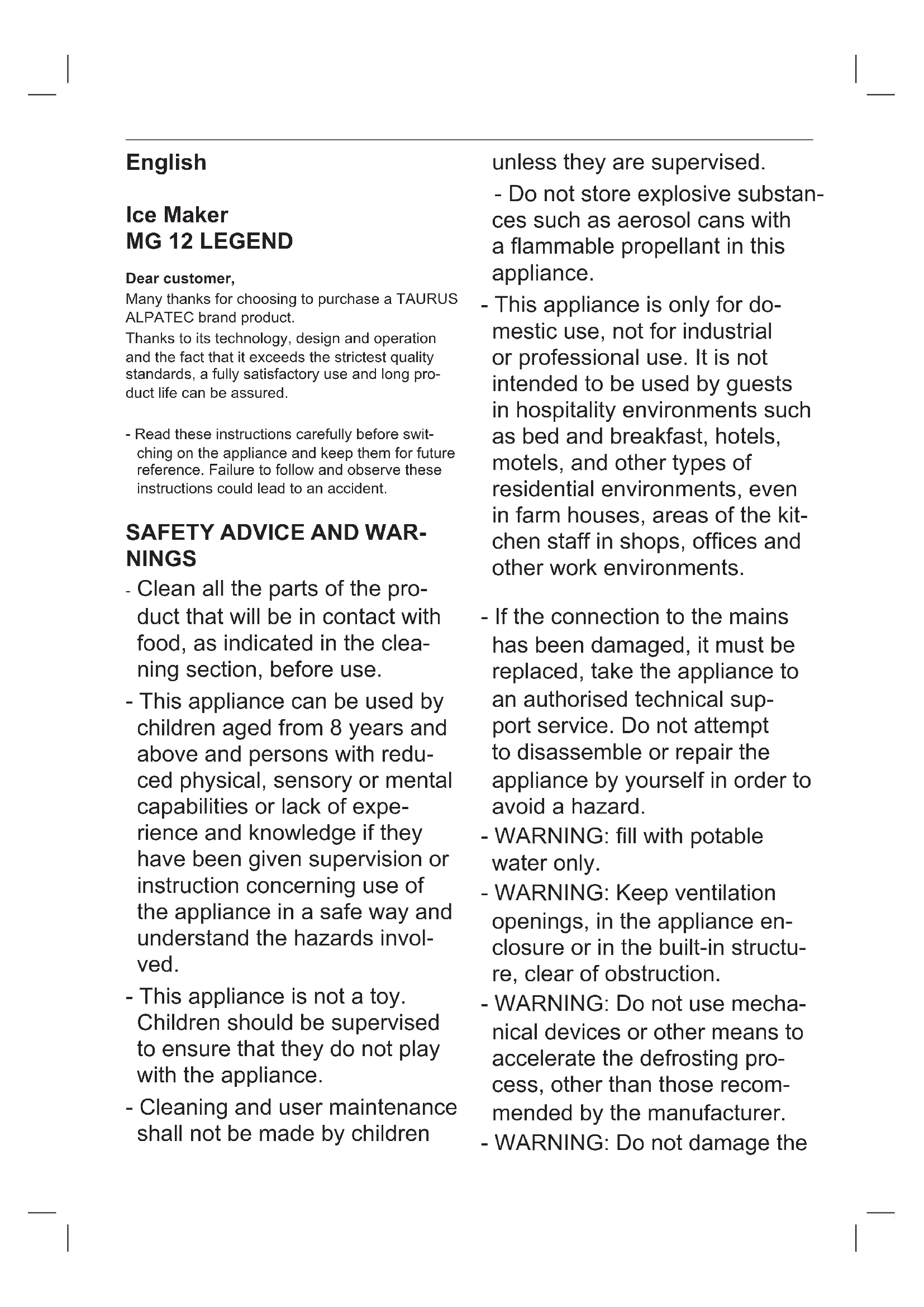

Many thanks for choosing to purchase a TAURUS ALPATEC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WAR- NINGS

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children

unless they are supervised.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is only for domestic use, not for industrial or professional use. It is not intended to be used by guests in hospitality environments such as bed and breakfast, hotels, motels, and other types of residential environments, even in farm houses, areas of the kitchen staff in shops, offices and other work environments.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- WARNING: fill with potable water only.

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the

refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.
• Do not allow the power cord to come into contact with the appliance's hot surfaces.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.
• Do not place the appliance where it can reach the sunlight.
• Place the appliance on a horizontal, flat, stable surface and away from other heat sources and contact with water.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not switch the appliance on without water.
• Do not use the appliance if the on/off switch does not work.
• Do not move the appliance while in use.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not turn the appliance over while it is in use or connected to the mains.
• Respect the MAX level indicator.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• Unplug the appliance from the mains before refilling the water tank.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
• Only use water with the appliance.
• The use of bottled mineral water adapted for human consumption is recommended.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• If for any reason the appliance is on fire, immediately disconnect it from the mains, ensure there is no presence of air currents that could stoke the fire and put out the flames with the help of a lid, or other nonflammable items, NEVER using water.

SERVICE:

- Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

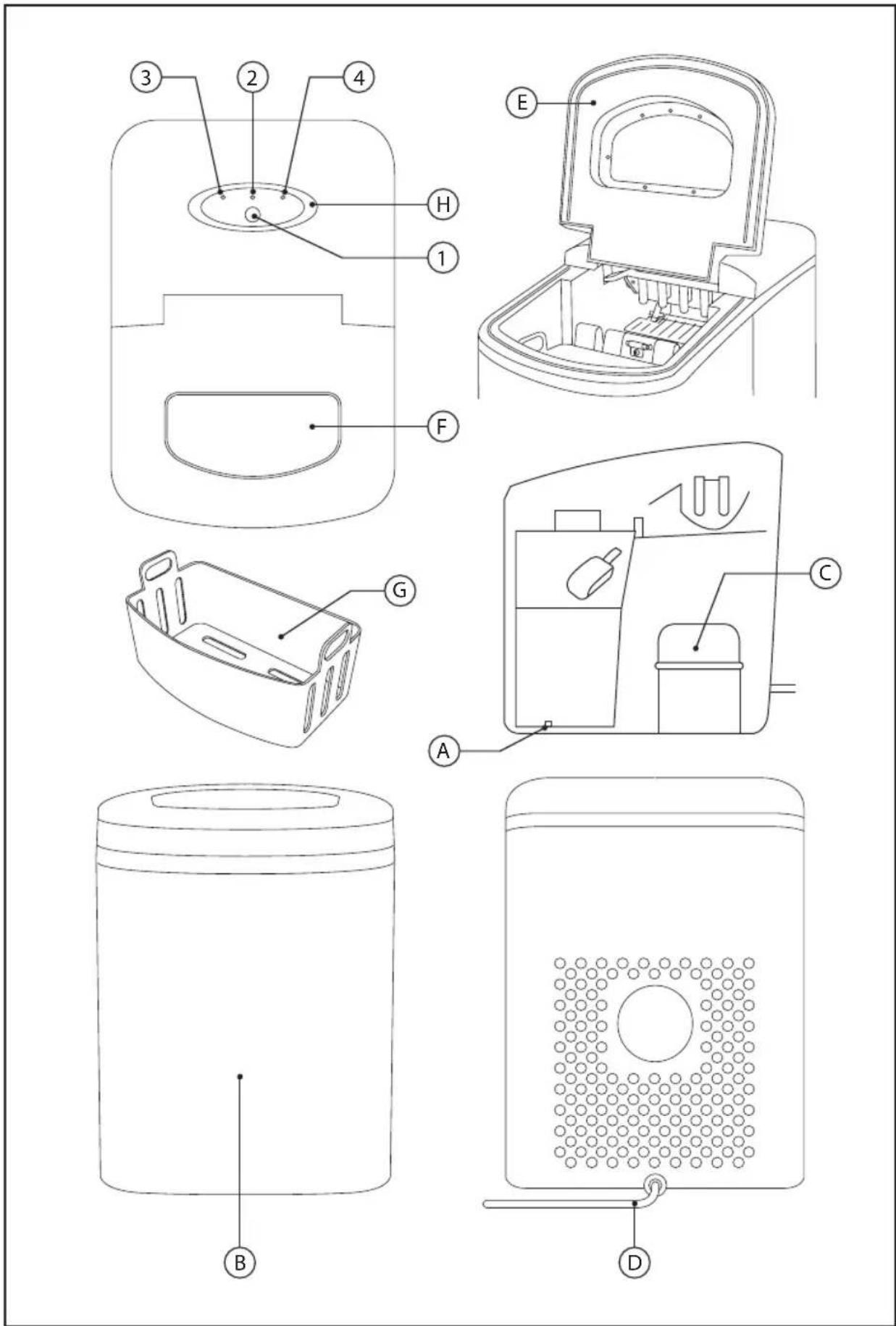

DESCRIPTION

A Silicon stopper

B Water tank

C Compressor

D Plug and power cord

E Lid

F View window

G Ice basket

H Control panel

1 On/Off button

2 On/Off light

3 Tray full light

4 Tank empty light

INSTALLATION

• Make sure you have removed all packing material. In order to prevent possible risk of accidents, do not leave items such as plastic bags, polystyrene or cables within the reach of children.
• During transportation, the tilt angle of the appliance must not exceed 45^ . Do not locate the appliance upside down as this may damage the compressor.
• Do not remove the appliance's support legs
• Place the appliance on a flat, stable surface and away from any heat source.
• Do not obstruct the opening of the door of the appliance.
• The socket should be easily accessible in order to be able to quickly disconnect the appliance in case of an emergency.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all products' packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• It is recommended that you wait for a minimum of 2 hours after having installed the appliance before you use it for the first time, leaving the front cover open.

FILLING WITH WATER:

• You must fill the water compartment before turning on the appliance.
• Open the cover.
• Detach the deposit from the appliance (G)
• Fill the compartment with cold water.

• Fill the deposit taking care to observe the MAX level.

• Put the deposit back into its housing, ensuring that it is inserted properly.

• Close the lid.

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Turn the appliance on, by using the on/off button (1).
• The processing time is approximately 7-12 minutes (depending on water temperature and room temperature). Caution: The ice cubes produced may be small and irregular during the first 3 cycles.
• Caution: the cubes may not be fully transparent, due to the air entering during processing development but this does not alter the quality of the cubes.
• When the water tank is empty, the «Tank empty» light (4) will light up in red and a beep will sound for a few seconds.
• Turn off the appliance.
• Fill tank while observing the maximum level.
• Wait 3 minutes before running the appliance again.
• When the ice cube tray is full, the «Tray full» light (3) will light up and several beeps will sound.
• Drain the ice cube tray with the help of the spoon supplied with the appliance.
• Never leave the ice tray full while the appliance is in use.
• To completely empty the water tank, open the drain plug (A) located inside the tank, ensuring that there is a container underneath the appliance. Once the tank is emptied, replace the plug (A) in the tank.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• After use, press the start/stop button to turn off the appliance.
• Unplug the appliance from the mains.
• Remove the water from the inside of the appliance.
• Drain and dry the water tank before storing the appliance if you are not going to use it for an extended period of time.
• Clean the appliance.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• If the appliance turns itself off and does not

switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

• Never submerge the appliance in water or any other liquid or place it under running water.

• Never submerge the connector in water or any other liquid or place it under running water.
• Then dry all parts before its assembly and storage.
• In order to ensure optimum quality of the cubes, it is recommended that you change the water every 24 hours.

ANOMALIES AND REPAIR

• Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.
• If any anomaly is detected, check the following table:

PROBLEM POSSIBLE CAUSES POSSIBLE SOLUTIONS
The compressor is operating abnormally and makes a humming sound.	The voltage is lower than recommended.	Do not connect the appliance to the mains supply if the voltage indicated on the rating plate does not correspond with that of the mains voltage.
The «Tank empty» indicator light lights up.	The water tank is empty.There is air in the water pump.	Turn off the appliance, fill the tank and wait 3 minutes before restarting the appliance.Remove the silicone plug and leave a few drops of water.
One/several indicator lights do not light up.	The LEDS are blown. Contact your dealer or after sales service to replace them.
Despite having observed all indications, no cubes are forming.	Lack of coolant in the freezer or the fan motor is damaged.	Contact your dealer or after sales service.
The «Tank empty» and «Tray full» indicator lights light up at same time.	If all conditions are being followed, the cube ejector may be blocked.	Turn off and disconnect the appliance, in order to remove the ice cubes.Turn the appliance back on.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This symbol means that surface could to get hot during the use.

This apliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements for energy-related products.

Français

-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%-%

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Avenue 2 Mars, Résidence Nassrallah, Appt n° 2 1er, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110
