Product type	Thermoelectric refrigerated wine cellar
Brand	Taurus
Model	PTWC18
Capacity	47 L (18 standard bottles)
Dimensions (W × D × H)	500 × 445 × 645 mm
Net weight	14.5 kg
Power supply	220-240 V ~ 50/60 Hz
Energy class	B
Annual consumption	164 kWh/year
Daily consumption	0.449 kWh/24h
Temperature range	12 – 18 °C
Cooling technology	Thermoelectric (without compressor)
Noise level	33 dB(A)
Installation type	Freestanding (independent, minimum 13 cm clearance around)
Interior lighting	LED, automatic shutoff after 10 minutes
Control panel	Touch with automatic lock (20 s)
Display	LCD, selectable °C/°F
Number of shelves	Included (removable)
Door	Glass with magnetic seal
Adjustable feet	Yes (front)
Climate class	N (ambient temperature max 32 °C)
Minimum cooling temperature	12 °C (20 °C below ambient temperature)
Maintenance	Clean with warm water and baking soda; no solvents or abrasives
Warranty	Standard (according to local regulations)
Included accessories	User manual, shelves

Frequently Asked Questions - PTWC18 TAURUS

What is the capacity of the Taurus PTWC18 wine cellar?

The capacity is 47 liters, holding up to 18 standard bottles of 750 ml.

What temperature range can be achieved?

The adjustable temperature ranges from 12 °C to 18 °C, ideal for wine storage.

Is this wine cellar noisy?

No, the noise level is very low: 33 dB(A), comparable to a whisper.

What type of cooling does it use?

It uses thermoelectric technology without compressor, silent and vibration-free.

Is clearance required around the appliance?

Yes, at least 13 cm clearance all around is required for proper ventilation.

How do I adjust the temperature?

Use the + and - buttons on the touch panel. The panel locks automatically after 20 seconds; press the unlock button for 2 seconds to unlock it.

Can I change the temperature display unit?

Yes, press the setting button for 2 seconds to toggle between Celsius and Fahrenheit.

How do I clean the interior of the wine cellar?

Unplug the appliance, clean surfaces with a soft cloth soaked in a mixture of warm water and baking soda (2 tablespoons per liter). Rinse and dry.

What to do in case of power outage?

Avoid opening the door. The temperature usually maintains for a few hours. If the outage is prolonged, protect the contents by moving them.

Is the appliance suitable for built-in installation?

No, it is designed for freestanding installation only. It should not be built into furniture.

USER MANUAL PTWC18 TAURUS

Line drawing of a rectangular kitchen appliance with control panel and indicator lights (no text or symbols)

Technical diagram of an open refrigerator with labeled parts including doors, fans, and a control panel.

Español

Vinoteca

PTWC-18

Image displaying five distinct symbols: lock, lightning bolt, square, triangle, and inverted triangle, arranged horizontally.

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

Safety advice and warnings

• This appliance is intended to be used exclusively for the storage of wine.
• WARNING: pay attention to children, they may be trapped inside.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made

by children unless they are supervised.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is only for domestic use, not for industrial or professional use. It is not intended to be used by guests in hospitality environments such as bed and breakfast, hotels, motels, and other types of residential environments, even in farm houses, areas of the kitchen staff in shops, offices and other work environments.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal protector, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the

appliance by yourself in order to avoid a hazard.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not clip or crease the power cord.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

Use and care:

• Leave the appliance standing for at least 2 hours in its normal working position after the last time it transported or moved, before switching on.
• Do not remove the support feet of the appliance.
• Do not move the appliance while in use.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not turn the appliance over while it is in use or connected to the mains.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not expose the appliance to extreme temperatures.
• Keep the appliance in a dry, dust-free place, out of direct sunlight.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- If for any reason the appliance is on fire, immediately disconnect it from the mains, ensure there is no presence of air currents that could stoke the fire and put out the flames with the help of a lid, or other nonflammable items, NEVER using water.

Service:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

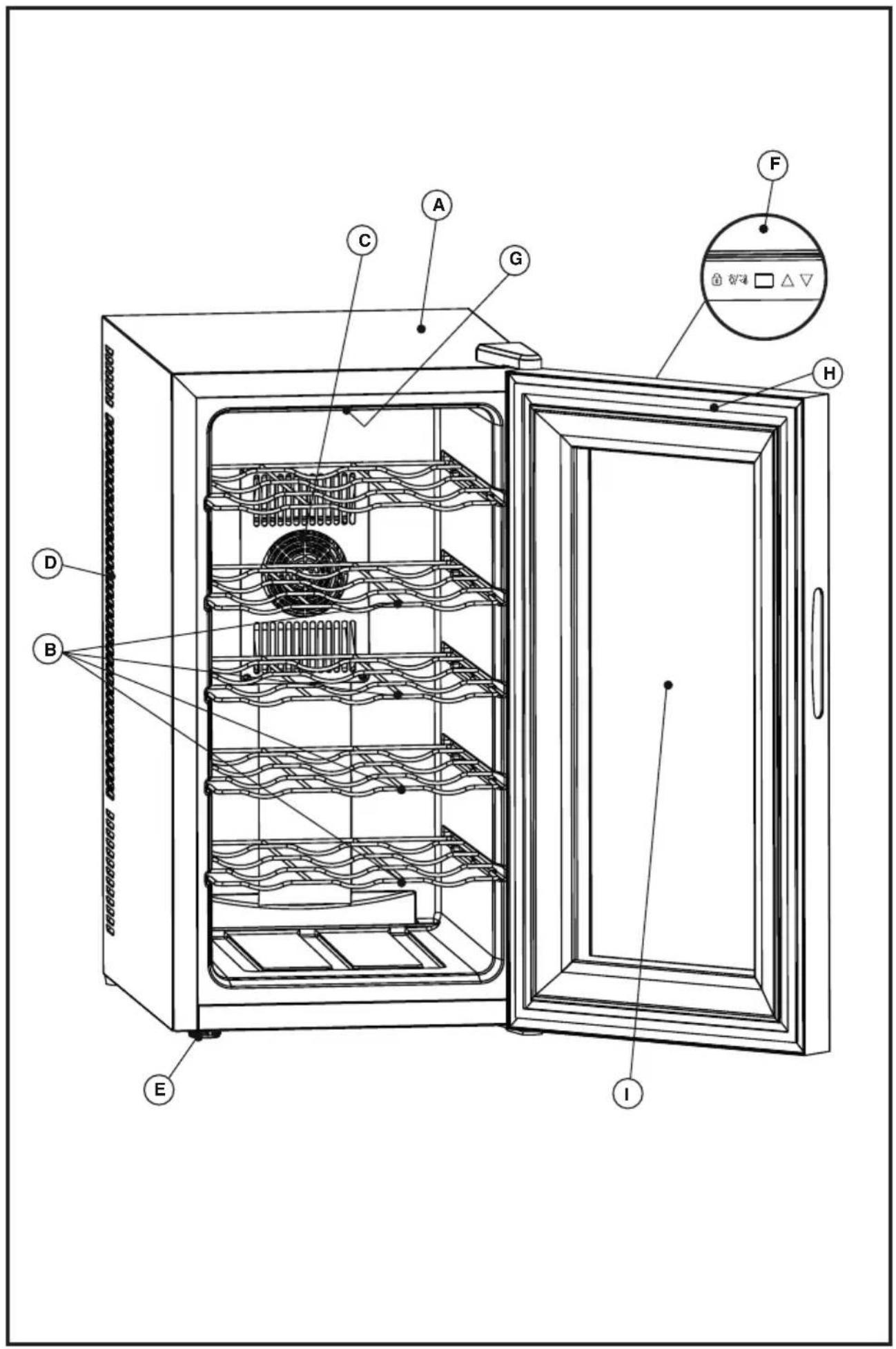

Description

A Cabinet
B Shelves
C Cold generator fan
D Ventilation holes
E Leveling leg
F Control panel
G Interior light
H Gasket
I Glass door

Installation

• This wine cooler is designed to be free standing installation only, and should not be recessed or built-in (Fully recessed).
• Place your Wine cooler on a surface that is strong enough to support it when it is fully loaded.
• Allow 5 inches of space between the back and sides of the Wine cooler, which allows the proper air circulation to cool the heat sink.
• Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• This Wine cooler uses thermoelectric refrigeration technology (no compressor) and is not designed for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a maximum of 30 degrees below the ambient temperature.
• Avoid locating the unit in moist areas.
• Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding

should be directed toward a certified electrician or an authorized Products service center.

• After plugging the Wine cooler into a wall outlet, allow the unit to cool down for 2-3 hours before placing any items in the compartment.
• The plug must be easily accessible so it can be disconnected in an emergency.

ADJUSTING THE BASE FEET:

• One of the feet of the product can be adjusted to make the product to be in a straight position.
• To adjust the base feet, place the appliance on its side.
• After adjusting it, place it back straight.

Instructions for use

Before use:

• It is recommended that you wait for a minimum of 2 hours after having installed the appliance before you use it for the first time, leaving the front cover open.
• It is recommended install the appliance in a place where the ambient temperature is between 22-25°C / 71-77°F. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. for example, placing your unit in extreme colr or hot conditions may cause interior temperatures to fluctuate. The range of 12-18°C / 54-64°F may not be reached.
• Remove the exterior and interior packing.
• Clean the interior surface with lukewarm water using a soft cloth.

Use:

• Connect the appliance to the mains.
• The appliance will show the interior temperature on the LCD screen.

TEMPERATURE RANGES FOR YOUR WINE COOLER

PTWC-18

12 - 18^ C

54 - 64^ F

STORAGE CAPACITY

• You can place 18 standard bottles in this Wine cooler
• Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux 750ml bottles and include bulk storage.

CONTROL PANEL

Image displaying five distinct symbols: lock, lightning bolt, square, triangle, and inverted triangle, arranged horizontally.

SETTING THE TEMPERATURE CONTROL

• Your wine cooler is equipped with a control panel lock feature. The lock will automatically activate 20 seconds after the last button is pressed.
• To unlock the control panel, long press button for 2 seconds. You will hear a "beep" sound to alert you that the panel is unlocked.
• Set the temperature inside the wine cooler by pressing the (increase) and (decrease) buttons to adjust the temperature in one degree increments.
• You can select the temperature to display in Fahrenheit or Celsius by long pressing the 🎨/°F button for 2 seconds.

NOTE:

- When you use the Wine cooler for the first time or restart the Wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the screen. This is normal and it is due to the length of the activation time. Once the Wine cooler is running for a few hours everything will be back to normal.

INTERIOR LIGHT

- Turn the interior light on or off by short

pressing the light bulb symbol button
- The light will be turned off automatically if it remains on for 10 minutes. Press the button 🌿/°F 🌿 again to turn it back on.

Once you have finished using the appliance:

• Unplug the appliance from the mains.
• Clean the appliance.

TRANSPORTATION:

• Remove all bottles.
• Securely tape down all loose items (shelves) inside your appliance.
• Tape the door shut.
• Protect outside of appliance with blanket or a similar item.

Practical recommendations:

• Do not insert hot drinks, which are at room temperature, inside.
• Close the door quickly when it is used, this ensures that there is no sudden change in the interior temperature.

POWER FAILURE

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

ENERGY SAVING TIPS

• The Wine cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• One characteristic of thermoelectric units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for this type of unit.

Cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

Anomalies and repair

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

- If any anomaly is detected, check the following table to find the possible causes:

Anomalies	Causes
Wine cooler does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.
Control panel is locked	Push the button for 2-3 seconds to unlock the control panel.Wait for the second beep sound.
Wine cooler isn’t cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The Wine cooler does not have the correct clearances.Abnormal voltage.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The light button is “OFF”.
Vibrations.	Check to ensure that the wine cooler is levelled.
The door will not close properly.	The Wine cooler is not level.The door was not properly installed.The gasket is dirty.The shelves are out of position.

- This appliance is protected by restarting itself of possible quick transients, in this case reestablish the desired configuration of the device.

Characteristics:

Model	PTWC-18
Category of the appliance	10
Energy Efficiency Class	B
Annual Energy Consumption (AEc)	164 kWh/year
Capacity	47 L (18 bottles)
Maximum working temperature	32 °C
Climate Class	N
Acoustical noise	33 dB(A)
Installation mode	Libre
Energy consumption	0.449 kWh/24h
Maximum cooling capacity	12 °C
Temperature Rise	12 – 18 °C
Appliance dimension	500x445x645 mm
Box Dimensions	390x560x675 mm
Net Weight	14.5 Kg
Gross Weight	16.4 Kg
Voltage	220-240V / 50/60Hz
Class	I
Humidity	N/A %

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

(WEEE).

- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
