USER MANUAL Aart Lionelo

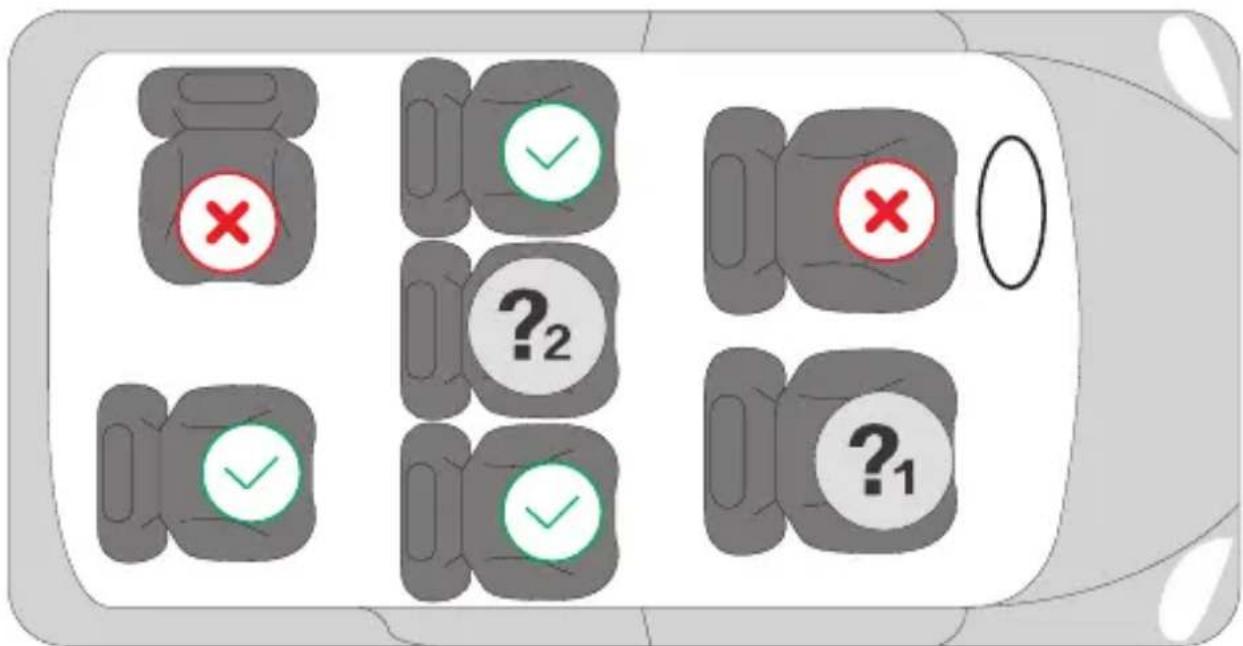

Dear customer! Should you have any remarks or quesons concerning the product, please do not hesitate to contact us: [e-mail] Producer: BrandLine Group Sp. z o. o. A. Kręglewskiego 1, 61-248 Poznań, Poland Applies to rearward-facing installaon (40 – 105 cm). NOTICE This is a Universal Belted Enhanced Child Restraint System. It is approved according to UN Regulaon No. 129, for use primarily in "Universal seang posions" as indicated by vehicle manufacturers in the vehicle user's manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer. Applies to forward-facing installaon (100 – 150 cm). NOTICE This is a i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulaon No. 129, for use primarily in " i-Size seang posions" as indicated by vehicle manufacturers in the vehicle user’s manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer. The product is suitable for installaon only on the locaons marked with the symbol in Fig. B. The product is suitable for installaon on the seat marked with the symbol in g. B only forward-facing and with the airbag deacvated. It is recommended that the seat should only be installed in the rear seats of the car. The seat is suitable for installaon on the seat marked with the symbol in g. B only if the seat is equipped with 3-point seat belts (g. C).‑ 13 ‑ EN WARNINGS:

1. The product is designed for children between 40 and 150

2. If your child is less than 15 months old or less than 76 cm

tall, do not use a forward-facing seat.

Hard parts and plasc parts of the child restraint system should be placed and installed in such a way that they cannot be trapped by a sliding seat or vehicle door under normal vehicle operang condions.

4. For rear-facing installaon, do not use the seat where the

front airbag is acve.

5. Any seatbelt that restrains the child must be well-ed to

the child's sizes. The belts must not be twisted.

The straps securing the restraint to the vehicle must be ght.

7. Make sure the lap belts run low to adequately secure the

8. If the product has been exposed to strong elements (such

as impact), it should be replaced.

Do not make any changes to the seat or add new components without approval from the approval authority. To ensure maximum safety for your child, the equipment should be aached and used as recommended in the instrucons.

The plasc parts of this seat can heat up in the sun and cause burns on the child's skin.

11. Never leave a child alone in a car seat in a vehicle.

12. Luggage and other similar items should be secured so that

they will not cause any injury in a collision situaon.

13. Do not use the seat without its fabric cover.

14. The cover cannot be replaced with an item from another

set. It is an integral part of the set and aects the operaon of the restraint.

15. Always carry this instrucon manual with you.

Refer to the vehicle manufacturer's owner's instrucon manual.

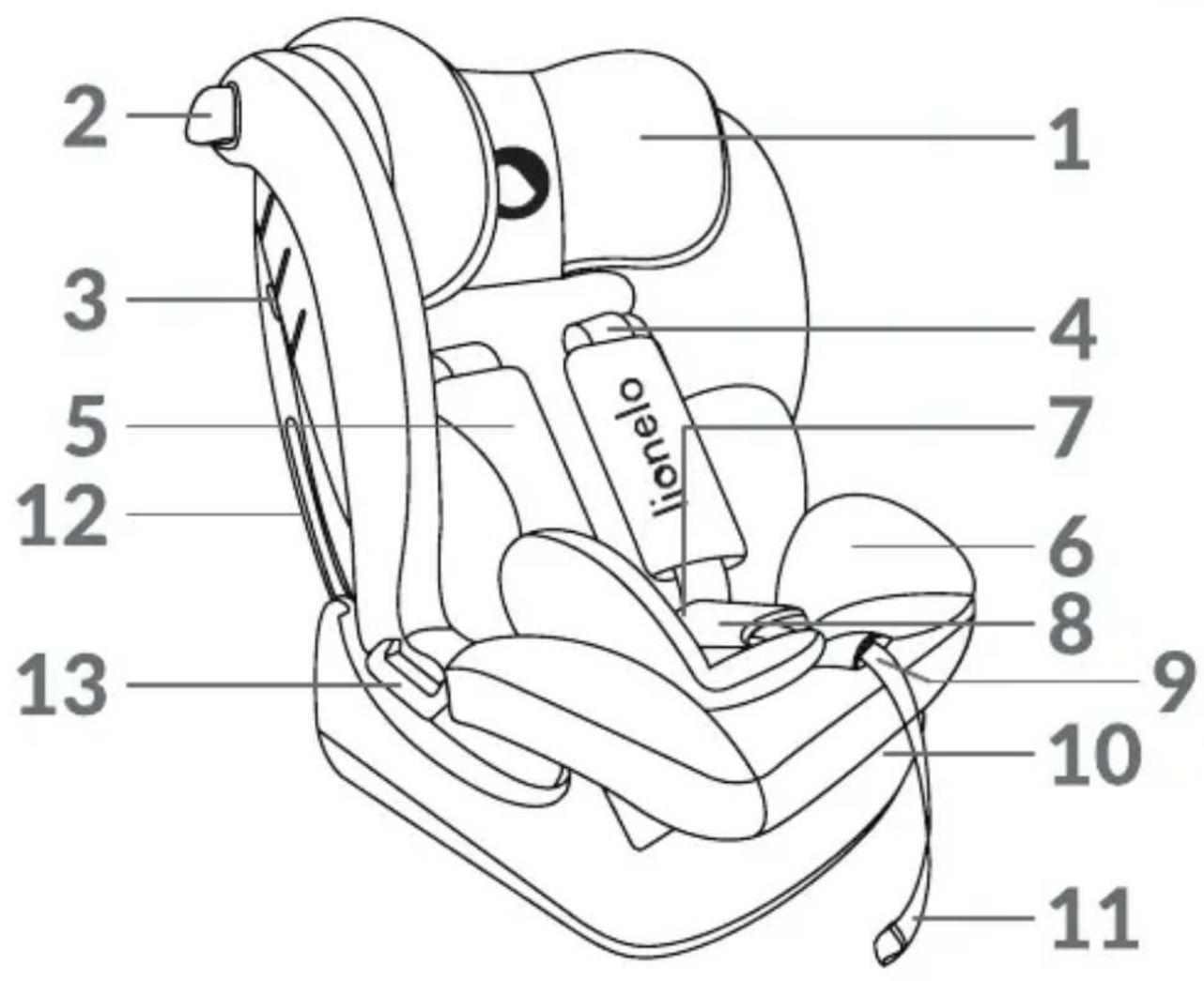

The device may not t all approved vehicles when adjusted‑ 14 ‑EN for a range above 135 cm. LIST OF PARTS (FIG. A)

INSTALLATION IN THE CAR

Seat installaon Seat orientaon Seat posion Child's measurement - Installaon with car belts - Child fastened with seat belt Put the seat in the semi-reclining posion (see: Seat lt adjustment). Rearward-facing From 40 to 105 cm Child's weight: maximum 18 kg - Installaon with car belts - Child fastened with car seat belt Adjust the seat to one of the available posions 1-2-3 (see: Seat lt adjustment). Forward-facing From 100 to 150 cm REARWARD-FACING (40 – 105 CM)

1. Adjust the seat to the semi-reclining posion (see: Seat lt adjustment).

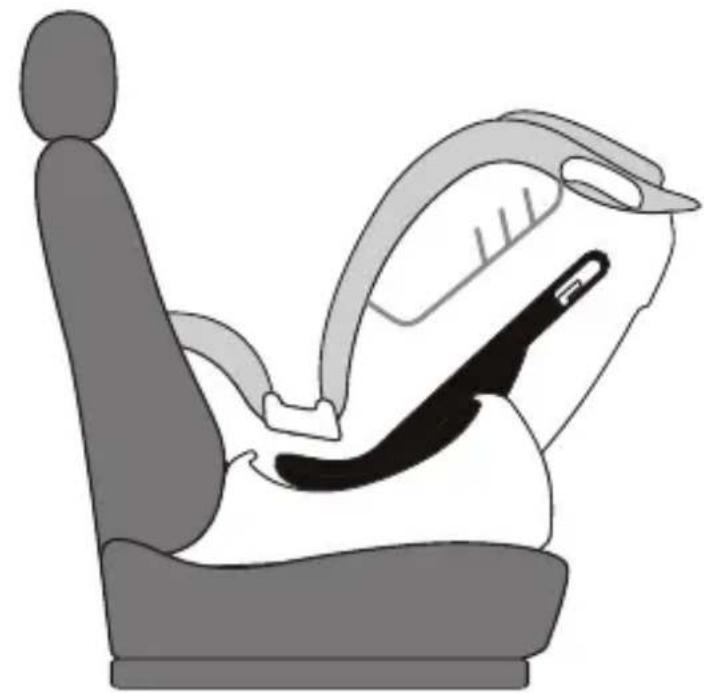

2. Place the car seat on the couch of the car. Make sure the seat ts rmly against the

back of the car seat (g. 1).

3. Pull out the car belt.

4. Pass the lap part of the car belt through the rear lower part of the seat so that it

passes under the guide in the base on both sides of the seat (g. 2). Fasten the belt.

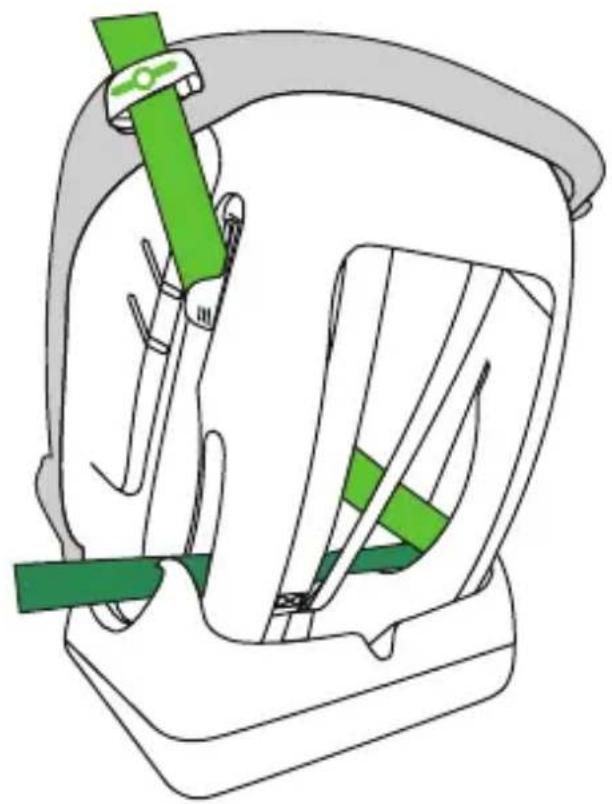

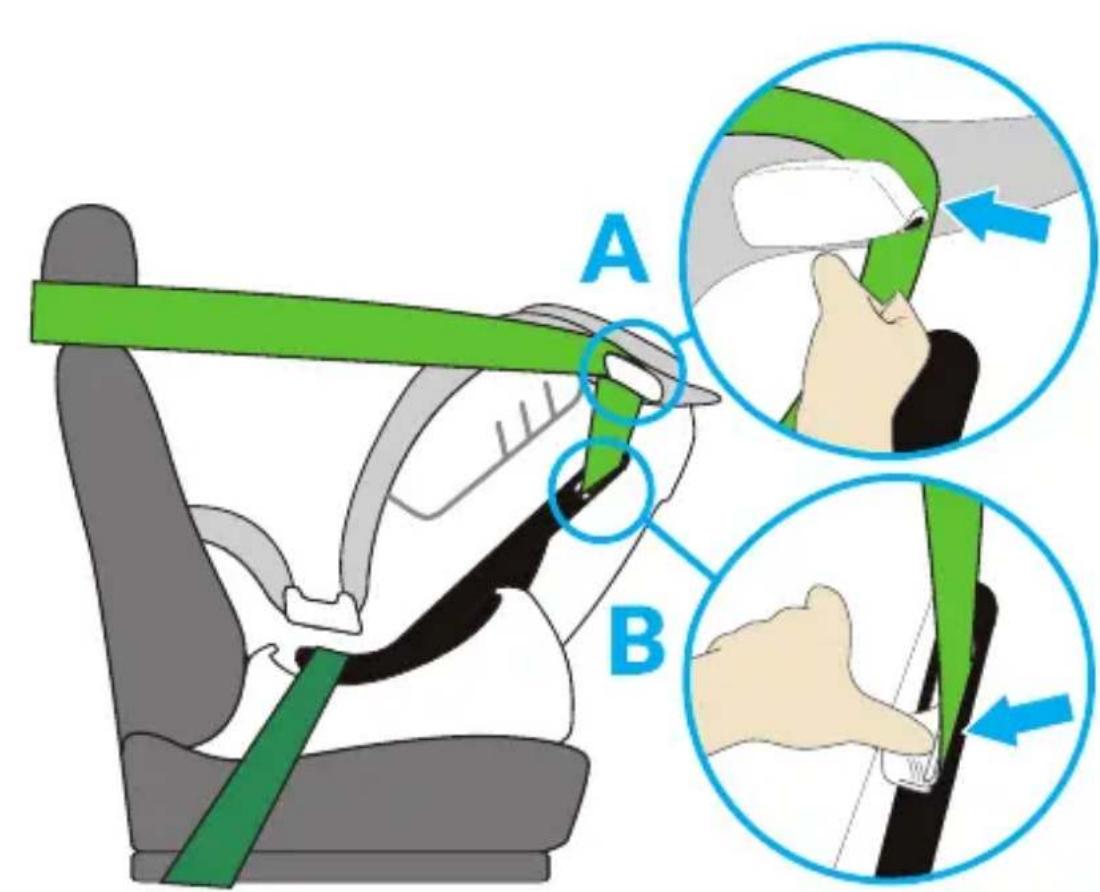

Pass the shoulder part of the belt through the guide in the seat back (A, g. 3). Then pass the shoulder belt through the belt hook by pushing it back with your

2. Shoulder belt guide (rearward-facing

3. Belt holder (rearward-facing

9. Belt tension adjustment buon

10. Backrest lt adjustment lever

11. Belt tension adjustment strap

13. Lap belt guide (forward-facing

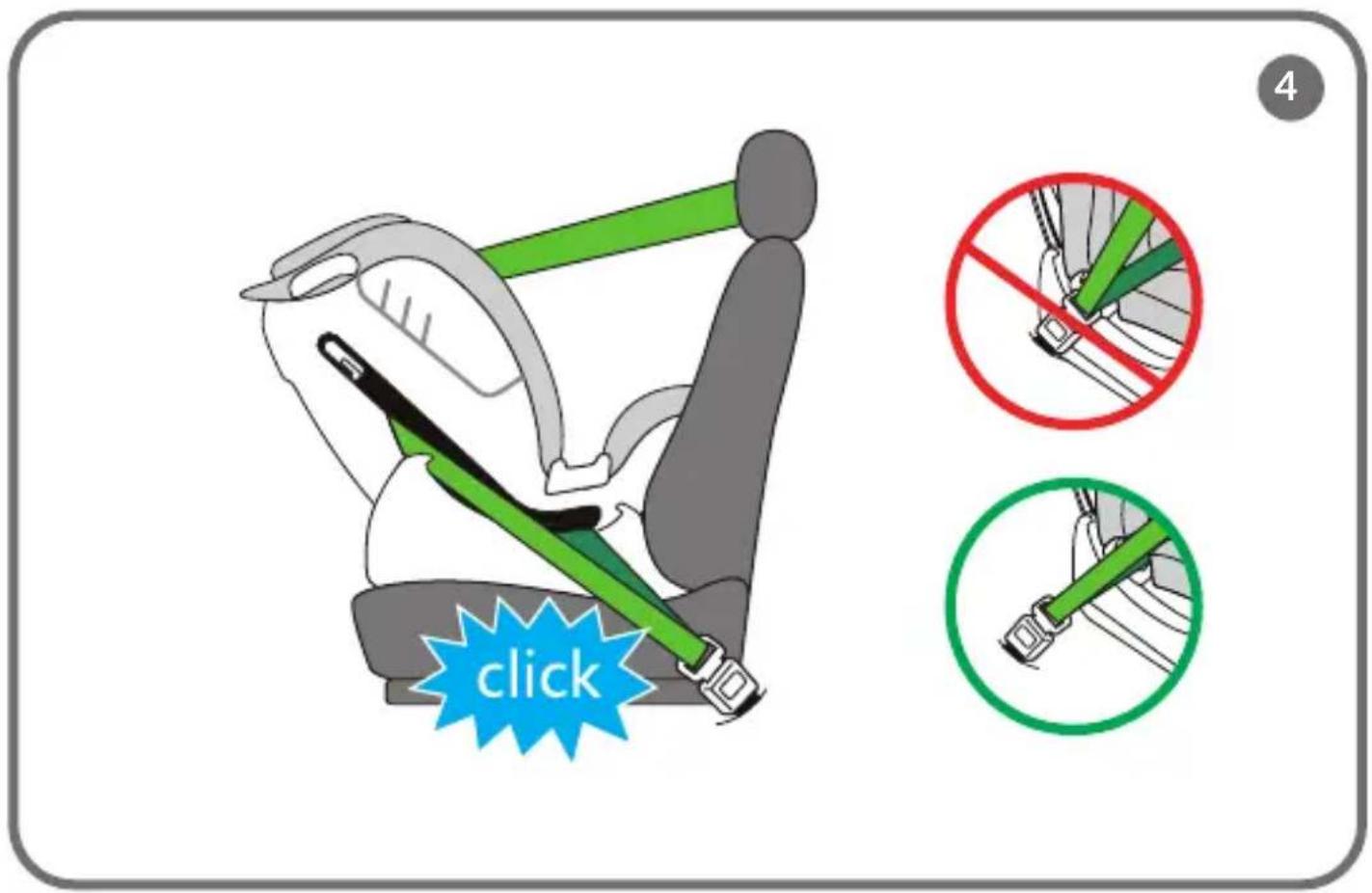

6. Make sure that the belt is as ght as possible and that it is not twisted. Make sure

the car belt buckle is not too close to the lap belt guide (g. 4).

7. Place the child in the seat (g. 5) and fasten it with the seat belts (see: Seat belts).

8. Adjust the headrest (see: Headrest adjustment).

Note! Make sure that the seat belts t ghtly on the child's body and that they are not twisted. Make sure the lap belts run low and protect the child's pelvis. The belts should be ght against the child's body, but should not be too ght and cause discomfort. REARWARD-FACING (100 – 150 CM)

Remove the seat belts (see: Removal of the seat belts) and remove the reducon pad.

2. Adjust the seat to one of the available posions 1-2-3 (see: Seat lt adjustment).

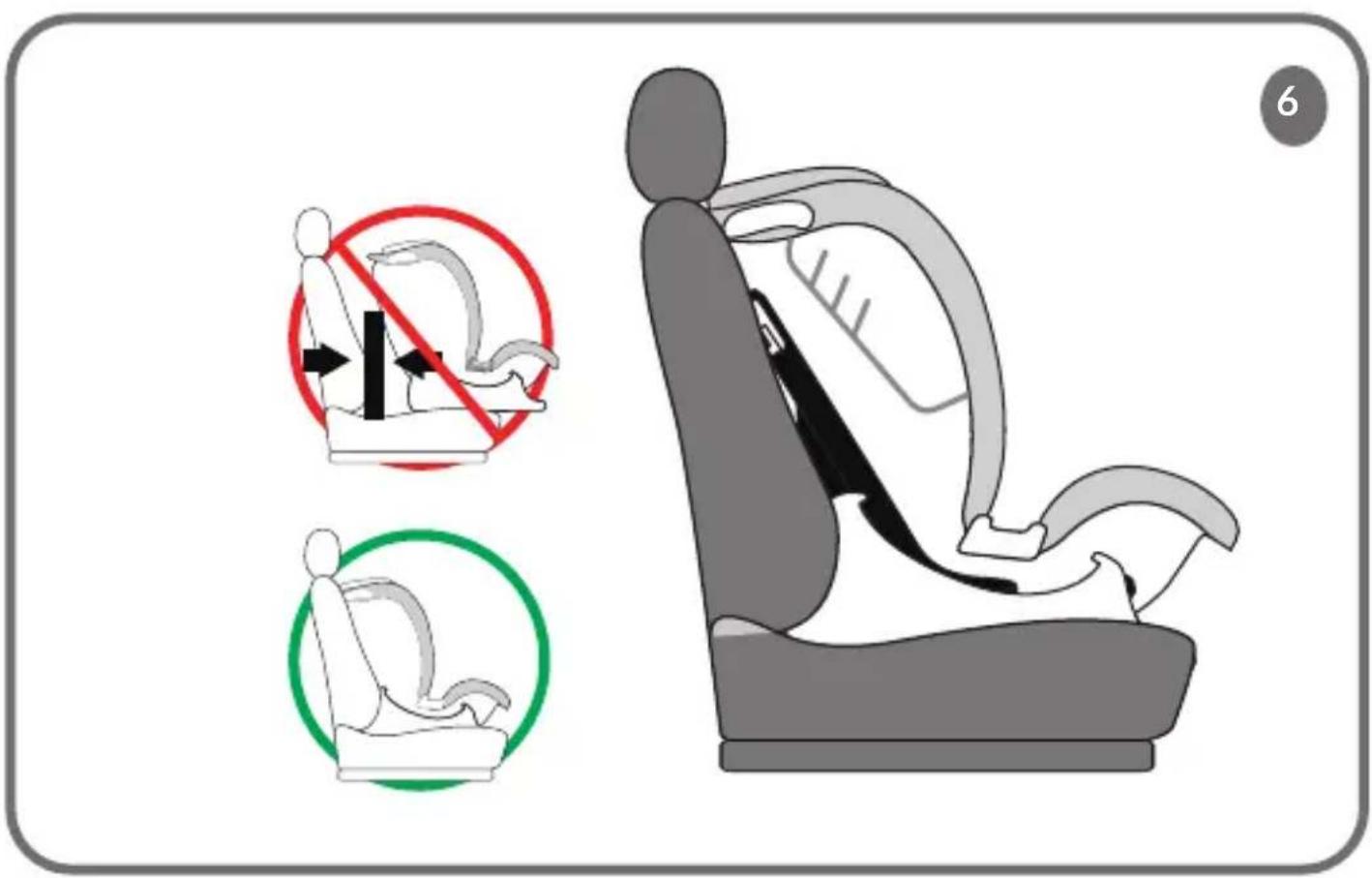

Place the car seat on the couch of the car. Make sure the seat ts rmly against the car seat (g. 6).

4. Place the child in the seat and adjust the headrest (see: Headrest adjustment).

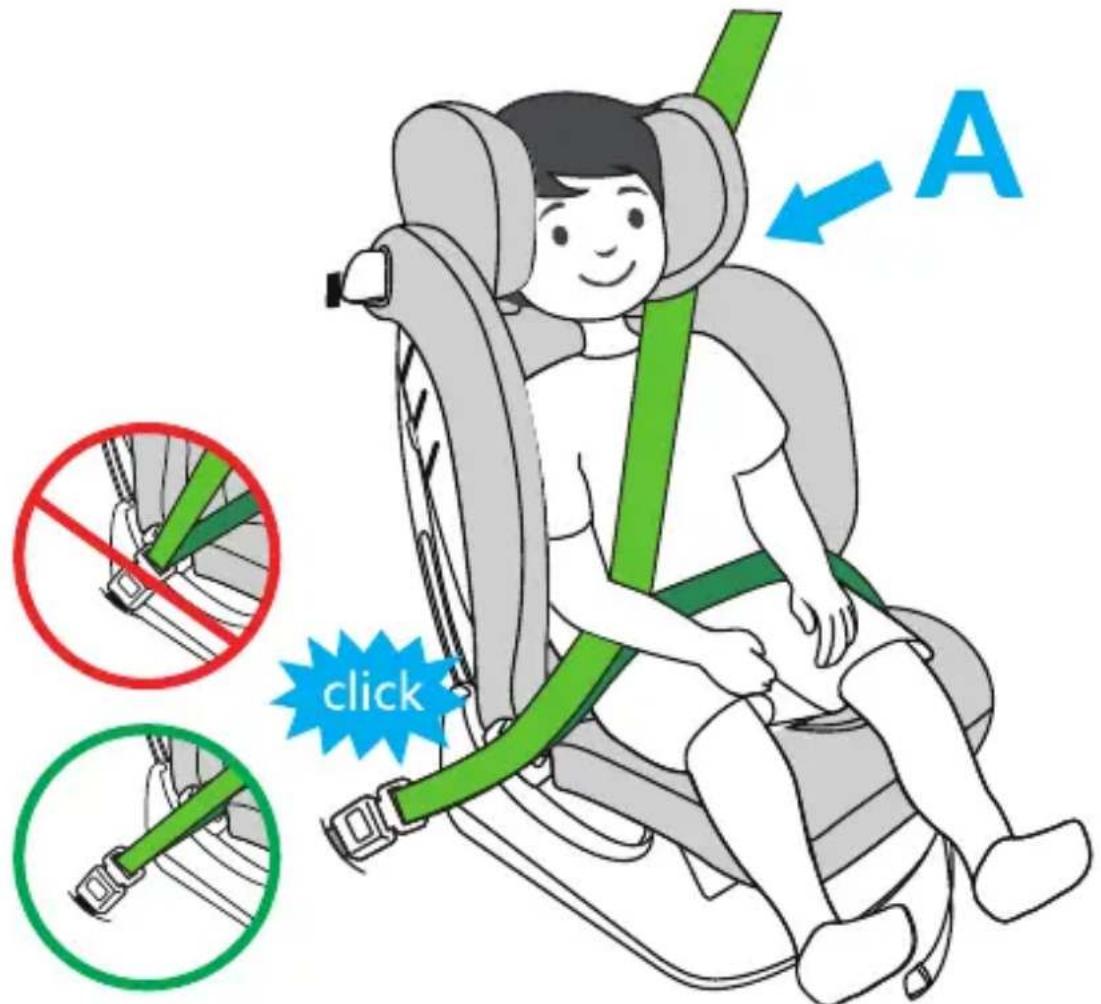

5. Feed the shoulder belt through the green colored space between the headrest and

the seat (A, g. 7). Pass the lap belt through the lap belt guide (13, g. A).

6. Fasten the belt and make sure it is as ght as possible and not twisted. Make sure

the car belt buckle is not too close to the lap belt guide (g. 7).

REDUCTION PAD AND LUMBAR PAD

The pads are designed for the smallest children, improving their comfort and providing addional support. The lumbar pad is designed for infants – pull it out when the child needs more space in the seat. The reducon pad can be used unl the child exceeds a height of 60 cm. SEAT BELTS BELT FASTENING

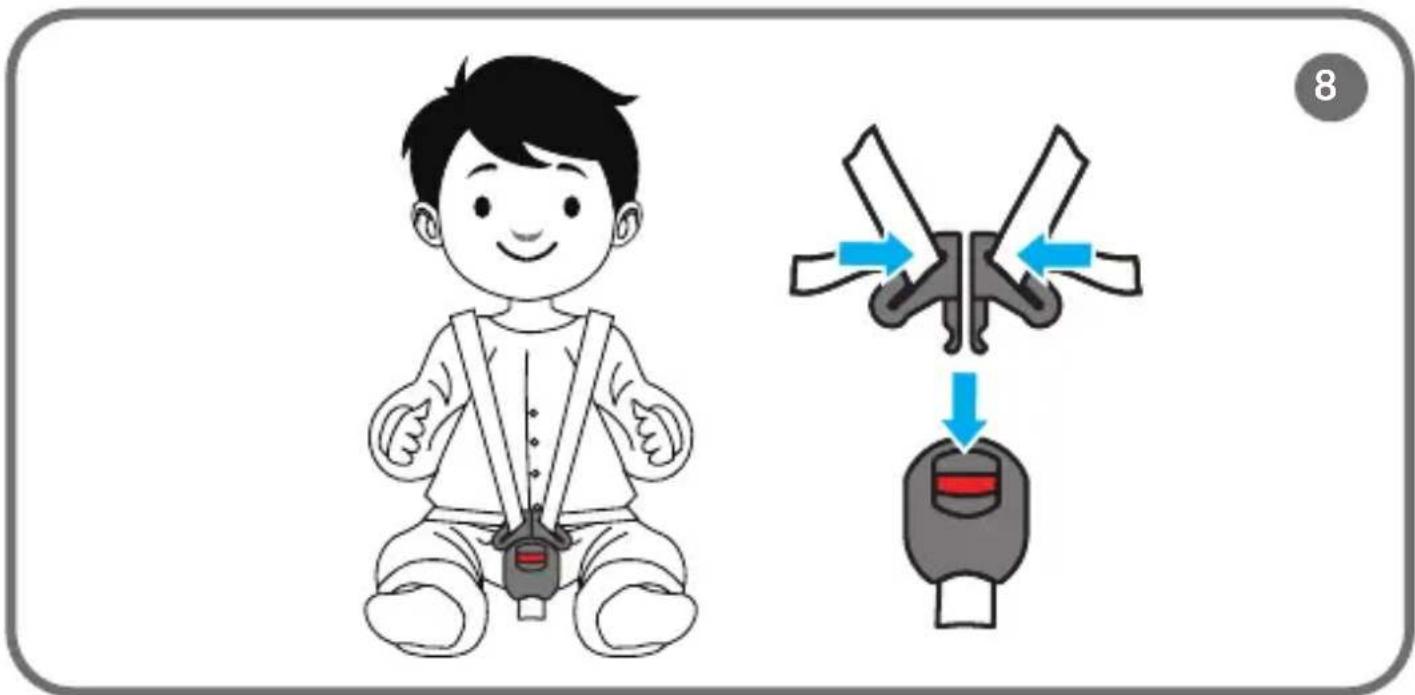

1. Connect the belt connectors , and then insert them into the buckle (g. 8). You will

hear a characterisc click. Make sure the belts are properly tensioned and not twisted.

2. To unfasten the belts, press the red buon on the buckle.

BELT TENSION ADJUSTMENT

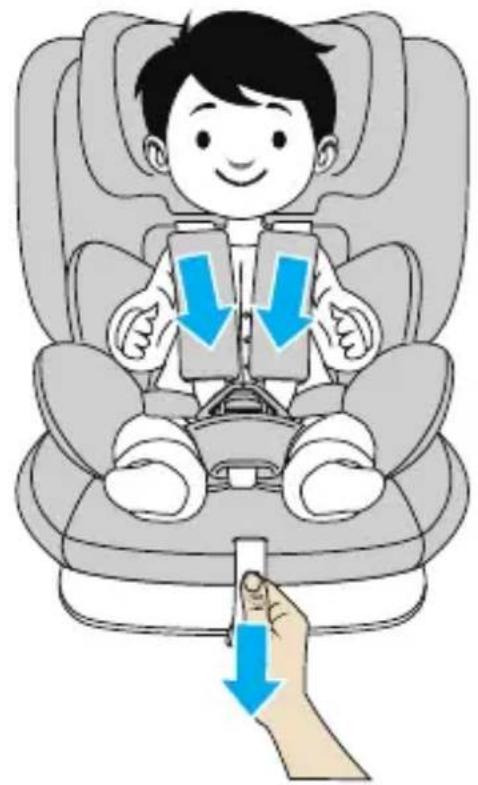

1. To ghten the belts, pull the belt tension adjustment strap (g. 9).

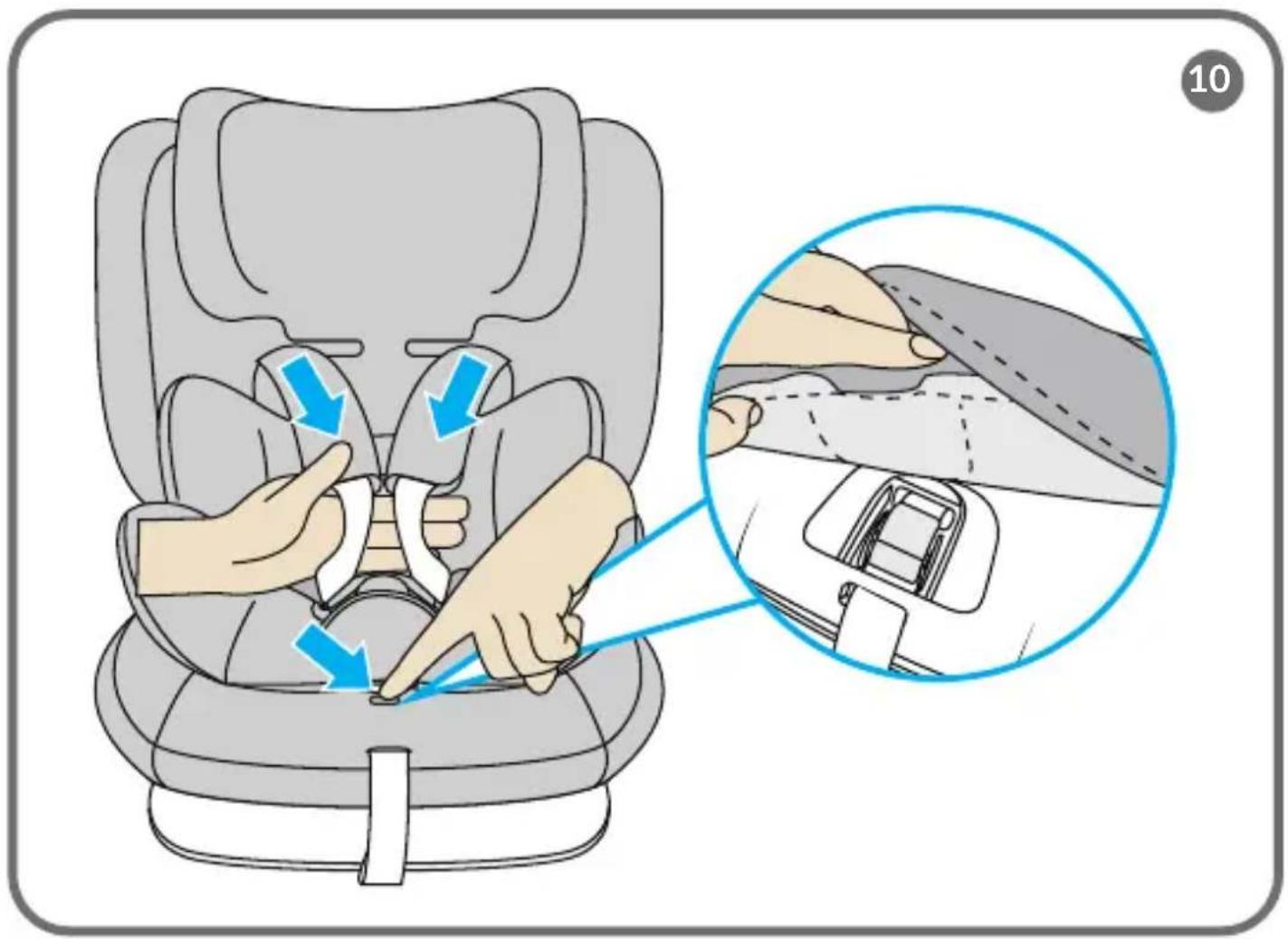

2. To loosen the belts, press the belt tension adjustment buon (g. 10) and pull on‑ 16 ‑EN

1. Loosen the belts (see: Belt tension adjustment).

2. Adjust the headrest to the highest available posion (see: Headrest adjustment).

3. Press the buon located on the buckle and unfasten the belts.

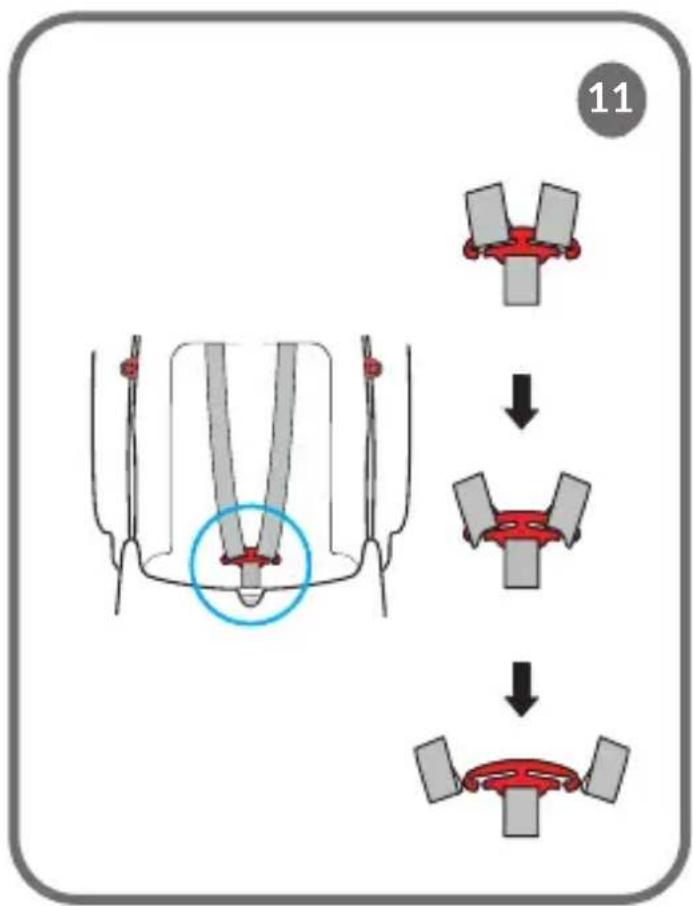

4. Remove the belts from the buckle located at the rear of the backrest (g. 11), then

put the belts through the holes in the backrest.

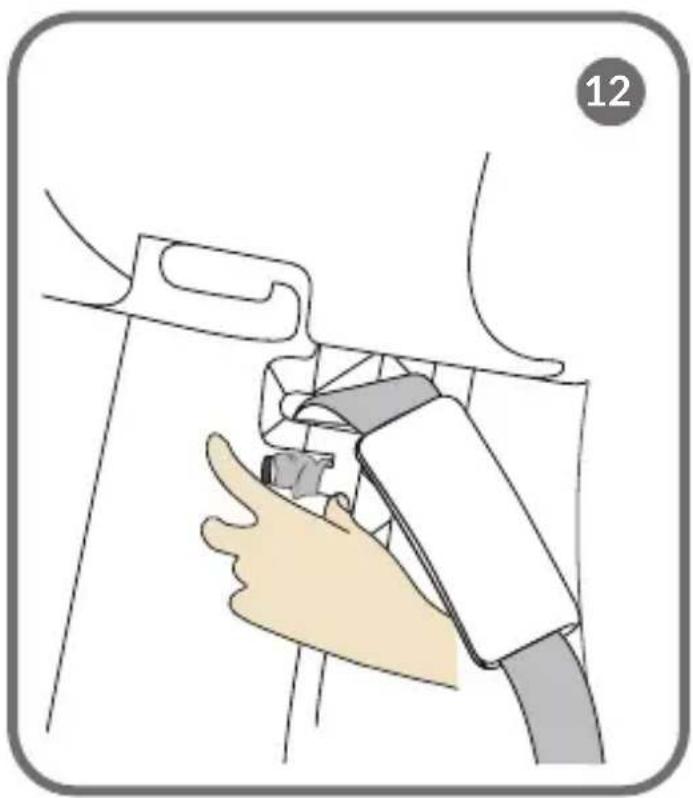

Unfasten the upper part of the backrest cover, and pull out the shorter part of the seat belts with covers, removing them from the hooks located inside the backrest (g. 12).

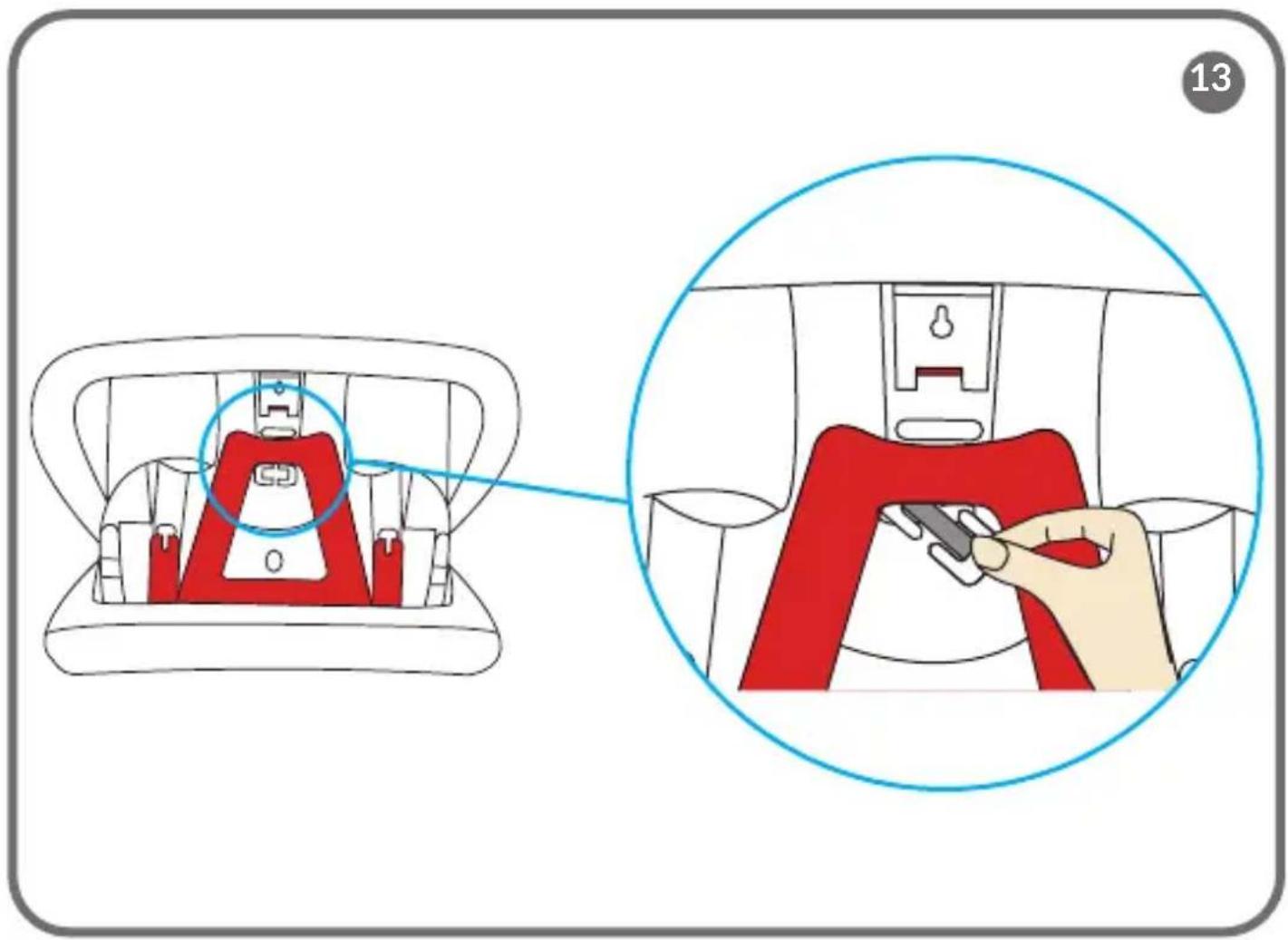

Put the seat in the reclining posion, then remove the belt from the buckle located in the base of the seat. Remove the belt along with the buckle and buckle cover (g. 13). To reinstall the belt, repeat the above steps in reverse order. HEADREST ADJUSTMENT To change the headrest height:

1. While holding the seat belt tension adjustment buon (9, g. A), loosen the belts.

This will allow you to adjust the height of the headrest more freely.

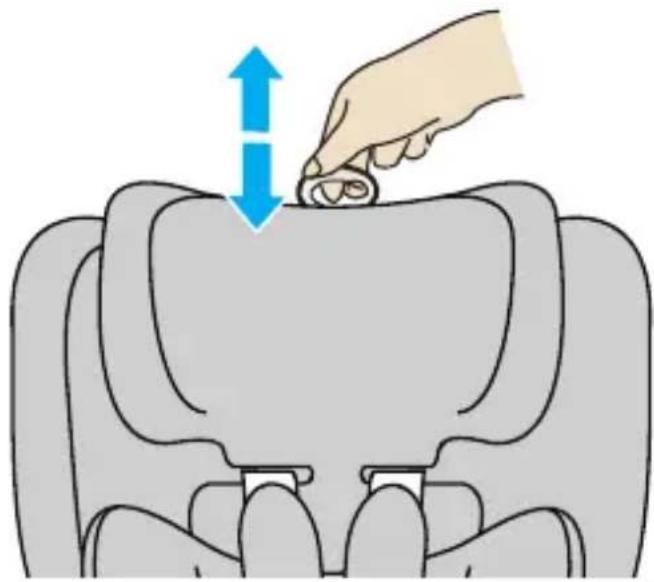

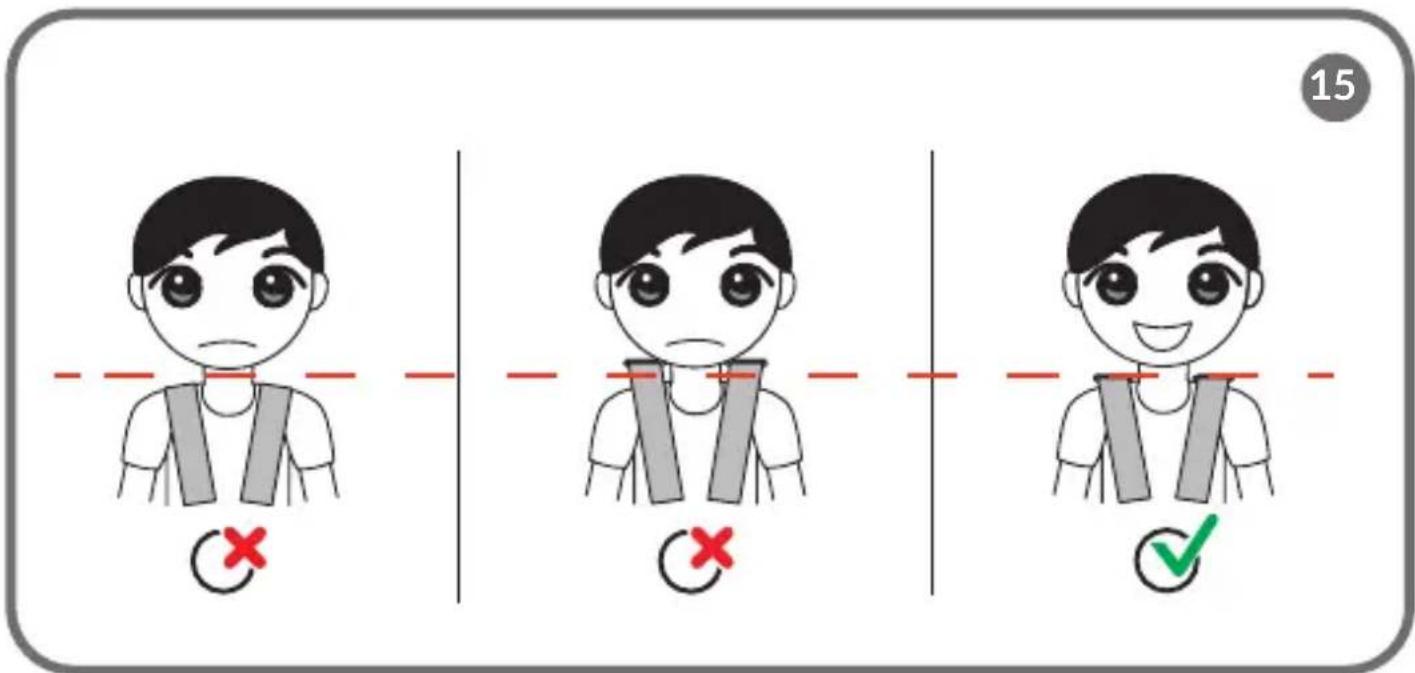

Pull the headrest adjustment lever and adjust the height of the headrest to the child's shoulder level (g. 14). Note! Make sure the belts are not too high, such as at or above the ear line, or too low, such as behind the child's back (g. 15).

SEAT TILT ADJUSTMENT

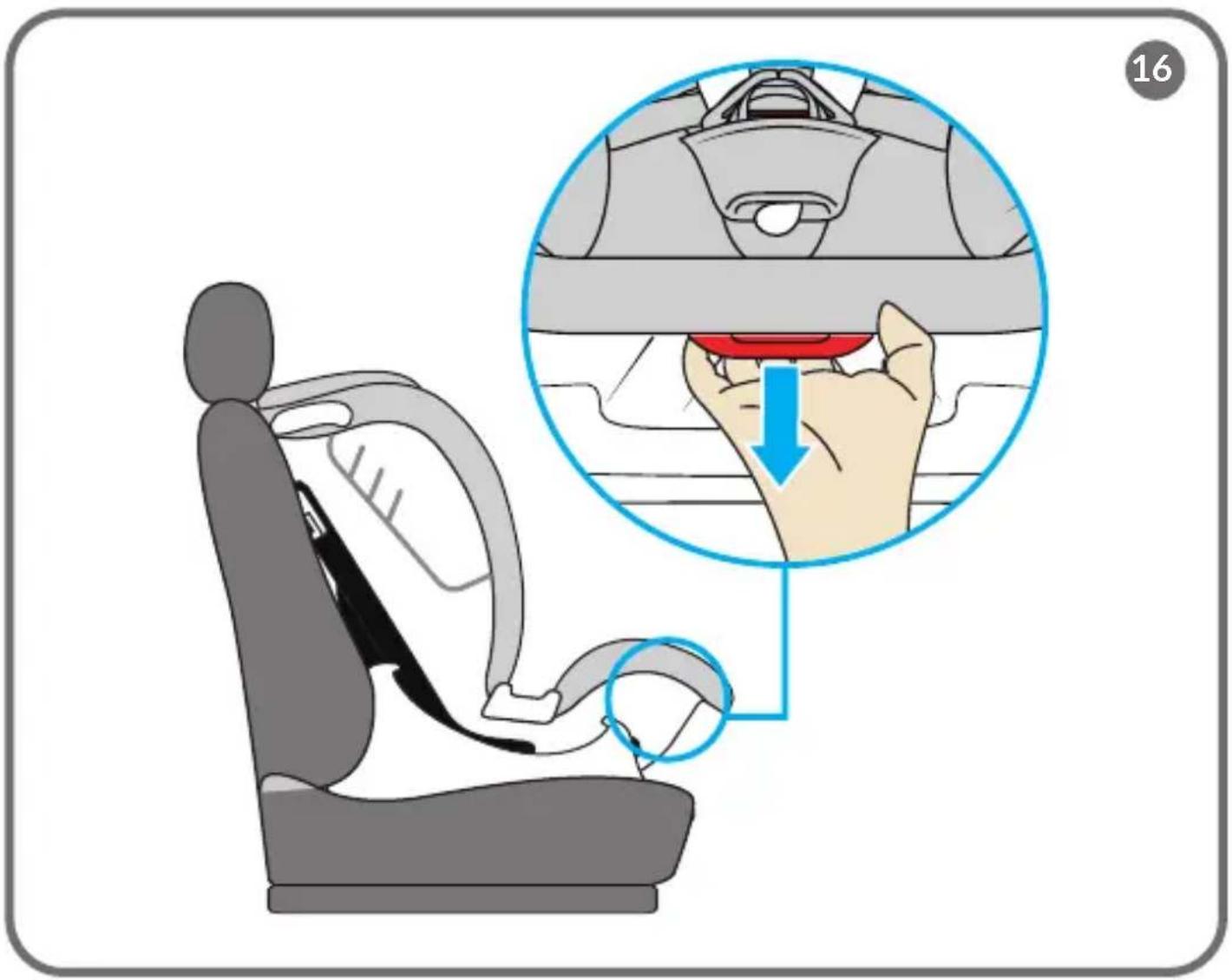

To adjust the seat lt, press the seat lt adjustment lever (10, g. A) and move the seat to the desired posion (g. 16). Move the seat slightly unl you hear a disnct click sound – the seat has been secured in the selected posion. Note! In the rearward-facing posion, use the seat in the semi-reclining posion. In the forward-facing posion, use the seat in one of the available posions 1-2-3.

REMOVING AND ATTACHING THE COVER

Unzip the cover and slide it completely o the seat body. To do this:

1. Adjust the headrest to the highest available posion (see: Headrest adjustment).

2. Unfasten the seat belts.

3. Start the removal from the cover located on the headrest.‑ 17 ‑ EN | PL

Unfasten the hook-and-loop fasteners, then remove the remaining pieces of the cover. To reaach the cover to the seat, follow the above steps in reverse order.

MAINTENANCE AND CLEANING

Regularly check the seat for damage. If there are any abnormalies, contact the manufacturer's service department. Avoid exposing the seat to direct sunlight. Covers can be washed in warm water (30 C) with soap or mild detergent. Do not dry the covers in the sun. Clean the buckle, seat belts and plasc parts with warm water. Do not use any detergents. The photos are for reference only, the actual look of the products may dier from the ones shown in the pictures.
