Product Type	Cordless Reciprocating Saw
Brand	Parkside
Model	PSSAP 20 Li C4
Nominal Voltage	20 V
Stroke Rate at No Load	0 – 3000 min⁻¹
Blade Stroke	22 mm
Maximum Cutting Capacity (wood)	150 mm
Maximum Cutting Capacity (steel)	15 mm
Maximum Cutting Capacity (non-ferrous metals)	20 mm
Maximum Cutting Capacity (metal tube)	100 mm
Blade Holder Type	Standard
Battery Type	Lithium-ion, 20 V, 8 Ah (compatible with X 20 V Team)
Charging Time (8 Ah battery)	120 minutes
Charger	PLG 20 C3, input 230-240 V~, 50 Hz, output 21.5 V / 4.5 A
LED Light	Yes, integrated
Connectivity	Bluetooth for Lidl Home app
Sound Pressure Level (LpA)	89 dB(A)
Sound Power Level (LWA)	100 dB(A)
Product Warranty	5 years
Battery Warranty	1 year
Package Contents	Reciprocating saw, 8 Ah battery, quick charger, case, 2 blades (wood/metal), quick guide

Frequently Asked Questions - PSSAP 20 Li C4 PARKSIDE

How to change the saw blade?

Turn off the device and remove the battery. Turn the chuck ring counterclockwise, insert or remove the blade, then release the ring. Wear protective gloves.

What type of battery can I use?

Use only compatible Parkside X 20 V Team batteries. The supplied battery is the PAPS 208 A1 (8 Ah). Refer to the manual for the complete list.

How to charge the battery?

Place the battery into the PLG 20 C3 charger, plug the charger into a mains outlet. The LEDs indicate the status: solid red = charging, solid green = fully charged.

What is the maximum cutting capacity?

Wood: 150 mm, steel: 15 mm, non-ferrous metals: 20 mm, metal tubes: 100 mm. Use the appropriate blade.

How to connect the saw to the Lidl Home app?

Activate the battery's Bluetooth by holding the charge level button for 3 seconds. Open the app and follow the instructions to add the device. The battery must be inserted into the saw.

What to do if the blade gets stuck?

Immediately release the on/off switch, remove the battery, then gently free the blade. Wear gloves to avoid injury.

How to clean and maintain the saw?

Turn off the device and remove the battery. Clean with a dry cloth and a soft brush. Do not use aggressive products. Check the blade condition regularly.

Can I use the saw for materials other than wood and metal?

Yes, it can cut plastic and plasterboard, but not stone or materials exceeding the maximum cutting capacity. Use the appropriate blade.

How to adjust the base plate?

Turn off the device and remove the battery. Unlock the base plate by turning the unlocking lever counterclockwise, adjust the position, then lock by turning clockwise.

What is the warranty period?

The product has a 5-year warranty, and the battery has a 1-year warranty, from the date of purchase. Keep the receipt.

USER MANUAL PSSAP 20 Li C4 PARKSIDE

PDF ONLINE www.lidl-service.com

Black Parkside 300MW power tool with visible screwdriver and base (no text or symbols on body)

AKKU-SÄBELSÄGE 20 V/CORDLESS SABRE SAW 20V/SCIE SABRE SANS FIL 20 V PSSAP 20 Li C4

DE AT CH

AKKU-SÄBELSÄGE 20 V

Operation and safety notes

Translation of the original instructions

FR BE

SCIE SABRE SANS FIL 20 V

GB/IE Operation and safety notes Page 29

D

E

1. 1.

2.

F

G

H

I

2.

J

K

1.

Authorised Signatory

Warnings and symbols used Page 31

Introduction Page 31

Intended use.... Page 31

Scope of delivery.... Page 32

You will need (for use with the Lidl Home app).... Page 32

Parts description.... Page 32

Technical data Page 32

Trademark notices Page 34

Safety instructions.... Page 34

General power tool safety warnings Page 34

Reciprocating saws safety warnings Page 37

Vibration and noise reduction Page 38

Behaviour in emergency situations.... Page 38

Residual risks Page 38

Battery charger safety warnings Page 38

Before first use Page 39

Accessories Page 39

Operation.... Page 39

Attaching/removing the battery pack Page 39

Checking the battery pack charging level....Page 40

Charging the battery pack.... Page 40

Adjusting the base plate.... Page 40

Inserting/removing the saw blade.... Page 40

Switching on and off Page 41

Speed control.... Page 41

LED work light Page 41

Trial run Page 41

Working instructions Page 42

Connecting the product to the Lidl Home app.... Page 42

Activate/deactivate the Bluetooth function on the battery.... Page 42

Connecting the product to the Lidl Home app.... Page 43

Features of the Lidl Home app Page 44

Smart battery pack Page 44

Cordless sabre saw Page 45

Reconnecting the cordless sabre saw. Page 45

Reset to factory original setting Page 46

Privacy policy.... Page 46

Disconnecting the product and deleting data from the app.... Page 46

Problems with the app - FAQ Page 46

Cleaning and care Page 46

Cleaning. Page 46

Maintenance Page 46

Repair.... Page 47

Storage Page 47

Transportation Page 47

Disposal Page 47

Warranty Page 48

Warranty claim procedure.... Page 48

Service Page 48

EC declaration of conformity Page 49

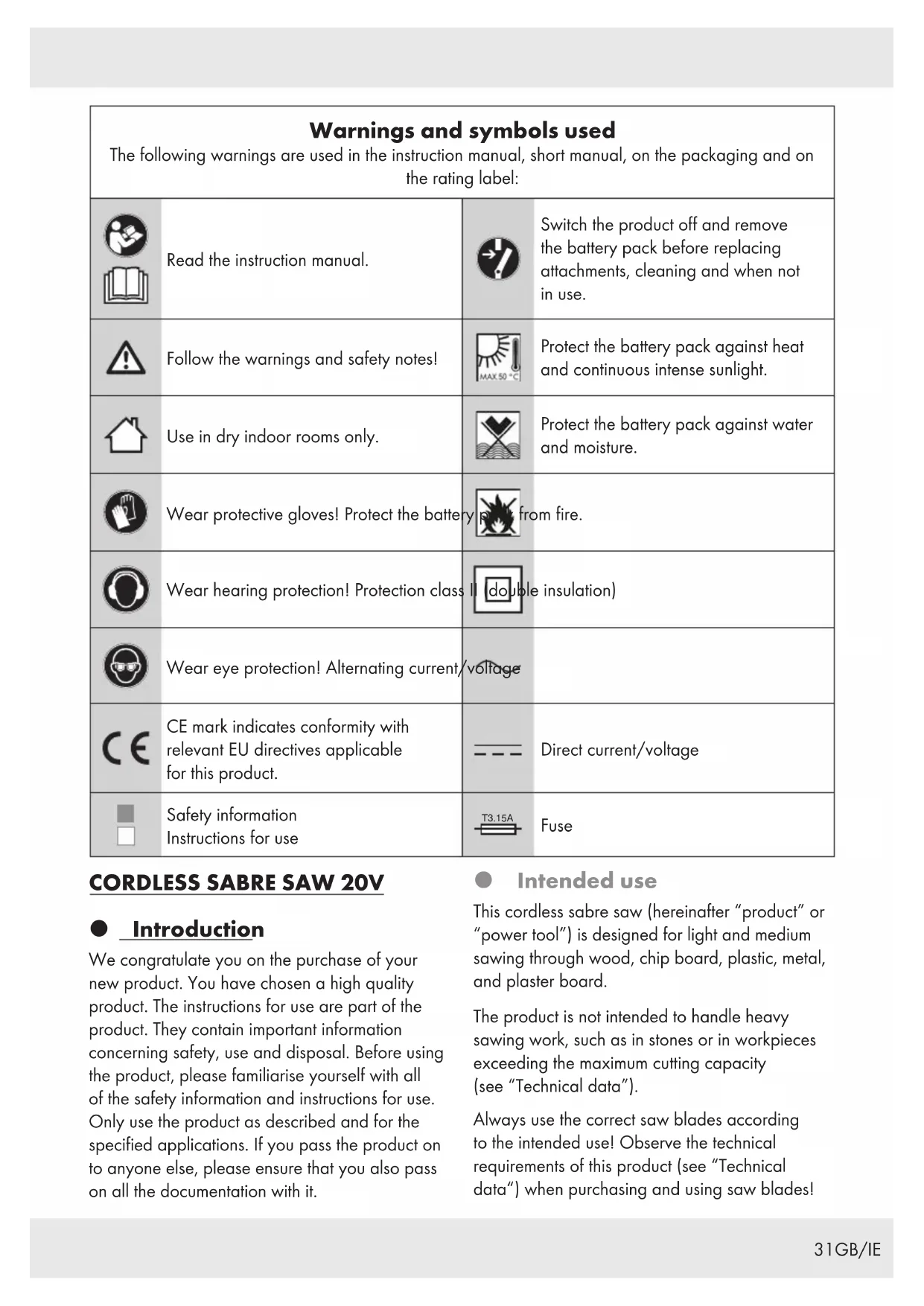

Warnings and symbols usedThe following warnings are used in the instruction manual, short manual, on the packaging and on the rating label:
	Read the instruction manual.		Switch the product off and remove the battery pack before replacing attachments, cleaning and when not in use.
	Follow the warnings and safety notes!		Protect the battery pack against heat and continuous intense sunlight.
	Use in dry indoor rooms only.		Protect the battery pack against water and moisture.
	Wear protective gloves! Protect the battery	from fire.
	Wear hearing protection! Protection class I	(ble insulation)
	Wear eye protection! Alternating current/v
	CE mark indicates conformity with relevant EU directives applicable for this product.	:	Direct current/voltage
[SIGN]	Safety information Instructions for use	.	Fuse

CORDLESS SABRE SAW 20V

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This cordless sabre saw (hereinafter "product" or "power tool") is designed for light and medium sawing through wood, chip board, plastic, metal, and plaster board.

The product is not intended to handle heavy sawing work, such as in stones or in workpieces exceeding the maximum cutting capacity (see "Technical data").

Always use the correct saw blades according to the intended use! Observe the technical requirements of this product (see "Technical data") when purchasing and using saw blades!

The LED work light 10 on this product is intended to illuminate the immediate work area.

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial use or for any other use.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1x Cordless Sabre Saw 20V PSSAP 20 Li C4
1x Battery pack PAPS 208 A1 *
1x Rapid battery charger PLG 20 C3 *
1x Carrying case
1x Saw blade for wood
1x Saw blade for metal
1x Short manual

- You will need (for use with the Lidl Home app)

Mobile device:

iOS 9.0 or higher

Android 5.0 or higher

Parts description

Figure A:

1	Locking lever
2	Chuck ring
3	Saw blade holder
4	Base plate
5	Switch lock
6	On/off switch/speed control
7	Rear handle
8	Battery pack *
9	Front handle
10	LED work light
19	Connection status LED

Figure B:

8 Battery pack *
11 Release button for battery pack
12 button (charging level)
13 Charging level LEDs (red/orange/green)

Figure C:

8 Battery pack *
14 Battery charger (rapid battery charger) *
15 Power cord with power plug
16 Charging control LED - Red
17 Charging control LED - Green

Not illustrated:

18 Carrying case

* Battery and rapid battery charger are not included

- Technical data

Cordless sabre saw PSSAP 20 Li C4

Rated voltage: 20 V	---
Stroke rate:	0-3000 min ^-1
Stroke length:	22 mm
Saw blade intake:	Standard

Maximum cutting capacity:

Wood:	150 mm
Steel:	15 mm
Non-ferrous metal:	20 mm
Metal pipe:	100 mm

Battery pack PAPS 208 A1 *

Type:	Lithium-Ion
Rated voltage: 20 V	——
Capacity:	8 Ah
Energy value:	160 Wh
Number of cells:	10
Frequency performance: ≤ 20 dBm
Frequency band:	2400 to 2483.5 MHz
Temperature:	max. 50 °C

Rapid battery charger PLG 20 C3 \*

Input:

Rated voltage: 230-240 V\~

Rated frequency: 50 Hz

Rated power: 120 W

Output:

Rated voltage: 21.5 V

Charging current: 4.5 A

Protection class: II/回

Fuse (internal): 3.15 A/T3.15A

* Battery and rapid battery charger are not included

Charging time:

Battery pack type PAP 20 B1, 2 Ah (available separately): 35 minutes
Battery pack type PAP 20 B3, PAPS 204 A1, 4 Ah (available separately): 60 minutes
Battery pack type PAPS 208 A1, 8 Ah (available separately): 120 minutes

Recommended ambient temperature:

While charging: +4 to +40 °C

During operation: +4 to +40 °C

During storage: +20 to +26 °C

Noise emission value

The measured values have been determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level L_pA : 89.0 dB(A)

Uncertainty K_pA : 5 dB

Sound power level L_WA : 100.0 dB(A)

Uncertainty K_WA : 5 dB

Vibration emission value

Vibration total values (triaxial vector sum)

determined according to EN 62841:

Cutting boards (with supplied Parkside HCS saw blade)

Main handle:

Hand/arm vibration a_h,B : 14.388 m/s ^2

Uncertainty K: 1.5 m/s^2

Auxiliary handle:

Hand/arm vibration a_h,B : 16.212 m/s ^2

Uncertainty K: 1.5 m/s^2

Cutting wooden beams (with supplied Parkside HCS saw blade)

Main handle:

Hand/arm vibration a_h,WB : 12.100 m/s ^2

Uncertainty K: 1.5 m/s^2

Auxiliary handle:

Hand/arm vibration a_h,WB : 15.210 m/s ^2

Uncertainty K: 1.5 m/s^2

WARNING!

Wear ear protection!

NOTE

The declared vibration total values and the declared noise emission values have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration values and the declared noise emission values may also be used for a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed. Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

Trademark notices

☐ iOS and Apple are registered trademarks of Apple Inc. in the USA and other countries. App Store is a registered trademark of Apple Inc.
□ Android, Gmail, Google Play and Google Assistant* are registered trademarks of Google Inc.
□ Zigbee is a registered trademark of The Zigbee Alliance.
☐ The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth ^® SIG, Inc..
☐ The Parkside trademark and trade name is the property of their respective owners.
□ Any other names and products may be trademarks or registered trademarks of their respective owners.
* Google Assistant is not available in certain languages and countries.

Safety instructions

General power tool safety varnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

1) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
5) Do not use a battery pack for tool that is damaged or modified. Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
6) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
7) Follow all charging instruction and do not charge the battery pack or tool outside the temperature range specified in the instruction. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

2) Never service damaged battery packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.

● Reciprocating saws safety warnings

1) Hold the power tool by insulated gripping surfaces when performing an operation where the accessory tool may contact hidden wiring.

Accessory tools contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

2) Use clamps or another practical way to secure and support the workpiece to a stable platform.

Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.

3) Keep hands away from the sawing area. Do not reach underneath the workpiece. Upon contact with the blade there is a risk of injury.

4) Only when the power tool is turned on should the sawing blade be moved against the workpiece. There is a risk of kickback if the accessory tool jams in the workpiece.

5) Make sure that the base plate is securely placed against the workpiece during sawing. The saw blade can tilt and lead to loss of control over the power tool.

6) After you have finished work, turn the power tool off and do not pull the saw blade out of the cut until it has come to a standstill. In this way you will avoid any kickback and can safely put down the power tool.

7) Use only undamaged saw blades in perfect condition. Bent or blunt blades can break, adversely affect the cut or cause kickback.

8) Do not brake the saw blade after switching the product off by applying side pressure. The saw blade may be damaged, break or cause a kickback.

9) Tighten the material firmly. Do not support the workpiece by hand or foot. Do not touch any objects or the ground with the saw running. There is a risk of kickback.

10) Use suitable detectors in order to find hidden supply lines or ask the local utility company. Contact with electrical cables can lead to electric shock and fire, contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property damaged and electric shock.

11) Hold the power tool tightly with both hands while working and ensure a secure footing. The power tool is guided more securely with both hands.

12) Secure the workpiece. A workpiece that is retained with clamping products or a vice is held more securely than with your hand.

13) Wait until the power tool has stopped before placing it down. The accessory tool can tilt and lead to loss of control over the power tool.

14) Do not saw any materials (e.g. lead-based paints and coatings or materials containing asbestos) whose dust can be harmful.

● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
- Ensure that the product is in good condition and well maintained.
- Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
- Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

● Battery charger safety warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Do not charge non-rechargeable batteries. Disregarding this instruction is hazardous.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ■ Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.
  The appliance is suitable for indoor use only.
  ■ ATTENTION! This charger is only designed for charging the battery pack types:

Parkside 20 V battery pack

PAP 20 B1 2 Ah 5 cells
PAP 20 B3	4 Ah 10 cells
PAPS 204 A1	4 Ah 5 cells
PAPS 208 A1	8 Ah 10 cells

An up-to-date list of battery compatibility can be found at www.lidl.de/akku.

Before first use

Accessories

To operate this product safely and correctly, the following accessories, i.e. tools and saw blades, are necessary:

Suitable saw blade

Accessories and saw blades are available through your authorised dealer. When buying always consider the technical requirements of this product (see "Technical data").

If you are not certain, ask a qualified specialist and get advice from your trusted dealer.

NOTE

This instruction manual contains information and suggestions for several saw blades and their uses. The saw blades depicted are not necessarily included in the shipment, but are meant to indicate additional possibilities for using this product.

Suitable battery packs and chargers

Battery pack: Parkside X 20 V Team

Charger: Parkside X 20 V Team

Operation

- Attaching/removing the battery pack

■ Removing the battery pack: Press the battery pack release button 11. Remove the battery pack 8 (Fig. D).
- Attaching the battery pack: Align the battery pack 8 to the handle and slide it into it. Ensure it clicks noticeably in place.

NOTE

If the battery pack 8 is inserted into the product and the on/off switch 6 is pressed for the first time, the connection status LED 19 flashes 3x.

- Checking the battery pack charging level

(Fig. B)

- Check battery pack charge level: Press the button 12. The charging level LEDs 13 light up:

LED 13

Charging level

Red/orange/green Maximum

Red/orange Medium

Red Low

● Charging the battery pack

(Fig. C)

NOTE

The battery pack 8 may be charged at any time without reducing the life.
Interrupting the charging process does not damage the battery pack 8.

- Charge the battery pack 8 before operation when it is at medium or low charging level.

The charging control LEDs (green 17 and red 16) indicate the status of the charger 14 and the battery pack 8:

LED Status

Red LED lights up Battery pack charges
Green LED lights up Battery pack fully charged
Green and red LED flashing	Battery pack defective
Red LED flashing Battery pack too cold or too warm

Green LED lights up (without battery pack) Charger ready

• Insert the battery pack 8 into the charger 14.
  Connect the power cord with power plug 15 of the charger 14 to the socket.
• When the battery pack 8 is fully charged: Remove the battery pack from the charger 14. Then disconnect the power cord with power plug 15 of the charger from the socket.

- Adjusting the base plate

(Fig. E)

WARNING!

Always switch the product off, remove the battery pack 8 and let the product cool down before making any adjustments!

CAUTION! RISK OF INJURY!

Saw blades can be sharp and become hot during use. Always wear protective gloves when handling saw blades.

CAUTION! RISK OF INJURY!

Remove the saw blade from the product before adjusting the base plate 4 (see "Inserting/removing the saw blade").
Do not use the product without having inserted the base plate 4.

To adapt to the workpiece, the base plate 4 can be adjusted and swivelled to different positions.

■ Unlock the base plate 4: Turn the locking lever 1 in a counter-clockwise direction.
- Adjust the desired position of the base plate 4 by pushing it in or pulling it out.
- Lock the base plate 4: Turn the locking lever 1 in a clockwise direction.

- Inserting/removing the saw blade

WARNING!

Always switch the product off, remove the battery pack 8 and let the product cool down before making any adjustments!

CAUTION! RISK OF INJURY!

Saw blades can be sharp and become hot during use. Always wear protective gloves when handling saw blades.

CAUTION! RISK OF INJURY!

Do not use any blunt, bent or damaged saw blade.
Always install a suitable saw blade for the job.

Inserting the saw blade

(Fig. F)

■ Turn the chuck ring 2 in a counter-clockwise direction.
- Insert the saw blade into the saw blade holder 3.
■ Release the chuck ring 2 and let it return to its original position.
Before use: Pull on the saw blade and check if it is inserted safely and tightly.

Removing the saw blade

(Fig. G)

■ Turn the chuck ring 2 in a counter-clockwise direction.
Pull the saw blade out of the saw blade holder 3.
■ Release the chuck ring 2 and let it return to its original position.

NOTE

For certain work, the saw blade can also be inserted after turning through 180°.

Switching on and off

CAUTION! RISK OF INJURY!

Always wear protective gloves when handling or working with the product.

CAUTION! RISK OF INJURY!

Before switching on the product: Ensure the saw blade is not in contact with the workpiece.
Ensure your stance is stable. Always hold the product's front 9 and rear handle 7 firmly with both hands while working (Fig. H).
Keep your hands away from the saw blade when the product is in operation.

NOTE

The on/off switch 6 cannot be locked.

(Fig. I)

• Switching on: Release the switch lock 5 by pushing it in on the left or right side. Press and hold the on/off switch 6. Regulate the speed as required (see "Speed control").
• Switching off: Release the on/off switch 6. When releasing the on/off switch, the switch lock 5 moves back into its original position.

Speed control

By using the on/off switch 6, you can progressively control the speed:

Pressure Speed

Gentle pressure: Lower

Greater pressure: Higher

LED work light

This product is equipped with a LED work light 10 to illuminate the immediate working area to improve visibility in poorly lit areas.

The LED work light 10 lights up automatically as soon as the product is switched on.

NOTE

The LED work light 10 stays on for an additional approx. 10 seconds after switching off the product.

Trial run

NOTE

Always carry out a no-load trial run before starting work and after every saw blade replacement. Switch the product off immediately if the saw blade is not running smoothly, if considerable vibration occurs or if you hear abnormal noises.

● Working instructions

CAUTION! RISK OF INJURY AND DAMAGE TO PROPERTY!

▶ Wear gloves when handling the saw blade. In this way, you avoid injury from cuts.
Do not use any blunt or bent blades or blades which are damaged in any other way.
Before sawing the workpiece, check for hidden foreign objects such as nails, screws. These must be removed.
▶ Always insert a suitable saw blade.
Secure the workpiece with the aid of clamping devices on the workbench.
Apply only as much pressure as is required for sawing. If there is excessive pressure, the sawing blade may bend and break.
Switch the product off immediately if the sawing blade jams. Spread the saw cut out and pull the blad out carefully.
Always stand to the side of the product when working.
Always make sure that the workplace is well ventilated.
Avoid over-stressing the product while working.

Regular cuts

• Verify the saw blade is not touching the workpiece. Then, switch on the product.
  ■ Apply the base plate 4 to the workpiece.
  Use even pressure, advancing at a steady pace when making your cut. You can make horizontal, diagonal, or vertical cuts.
  When you are finished: First, switch off the product. Then, pull the saw blade out of the workpiece.

Plunge cuts

(Fig. J)

■ Plunge cuts are very challenging and are associated with a higher risk of injuries. Only use this technique if you are familiar with it.

Plunge cuts may only be carried out in soft materials such as wood or plasterboard and with short blades (max. length 150 mm). There is a risk of kickback and personal injury.
Place the front edge of the base plate 4 on the workpiece so that the saw blade does not touch the workpiece.
■ Turn the product on. Let the saw blade slowly plunge into the workpiece.
- When the workpiece depth has been cut through, continue sawing as usual.

Flush cuts

(Fig. K)

• With elastic bi-metal saw blades you can separate water pipes, for example, flush to the wall.
  ■ Make sure that the saw blade is always longer than the pipe diameter. There is a risk of kickback and personal injury.

● Connecting the product to the Lidl Home app

● Activate/deactivate the Bluetooth function on the battery

☐ Press and hold the ➕ button 12 on the battery pack 8 for 3 seconds to activate the Bluetooth function. The orange LED of the charging level LEDs 13 lights up. The Bluetooth function is enabled.
☐ Release the ➕ button 12.
☐ Press and hold the ➕ button 12 on the battery pack 8 for 10 seconds to deactivate the Bluetooth function. The orange LED of the charging level LEDs 13 goes off. The Bluetooth function is deactivated. In the Lidl Home app the product is shown as offline.

Connecting the product to the Lidl Home app

NOTE

The product can only be connected to the Lidl Home app if the battery pack 8 is inserted in the product.
Only Smart Performance rechargeable batteries can be connected to the Lidl Home app.

☐ Press and hold the ➕ button 12 on the battery pack 8 for 3 seconds to activate the Bluetooth function.
□ Enable the Bluetooth function on your smartphone.
□ Open the Lidl Home app.
☐ There are 3 different options to connect the product to the Lidl Home app:

Connecting the product for the first time to the Lidl Home app:

1. Select Add device on the tab. The Lidl Home app scans the area for available devices. The Lidl Home app indicates if available devices have been found.

NOTE

If the Lidl Home app cannot find available devices, continue with "No automatic suggestion of available devices".

1. Tap Go to add to show the available devices in the list.
2. Tap √ to select the battery pack 8.

NOTE

Select only one device at a time. If there are check marks for other products: Tap √ to clear the marks.

1. Tap

2. Tap Done to confirm the connection. The battery pack 8 is listed in the tab and can be selected.

3. Select the battery pack 8. The information of the cordless sabre saw "PSSAP 20 Li C4 (2201)" can be found in Device info.

NOTE

If Smart device not connected is displayed under Device info: Check if the battery pack 8 is inserted into the product. Check if the connection status LED 19 lights up continuously.
If the connection status LED ^19 does not light up continuously: Connect the cordless sabre saw to the battery pack 8. Press the on/off switch/speed control 6 for 5 seconds. The connection status LED blinks for a few seconds and lights up continuously. The cordless sabre saw "PSSAP 20 Li C4 (2201)" is shown in Device info.

The products were already connected to the Lidl Home app:

☐ Tap + on the tab. The Lidl Home app scans the area for available devices. The Lidl Home app indicates if available devices have been found.

NOTE

If the Lidl Home app cannot find available devices, continue with "No automatic suggestion of available devices".

No automatic suggestion of available devices:

1. Tap + on the tab.
2. Select Other in the bar on the left.
3. Select Other-2. The display flashes rapidly. The Lidl Home app scans the area for available devices.
4. Tap + to select the battery pack 8 and to add the battery pack to the app.
5. Tap Next.

6. Tap Done. The overview page of the battery pack 8 is shown.

7. The information of the cordless sabre saw "PSSAP 20 Li C4 (2201)" can be found in Device info.

NOTE

Upgrading the firmware can change the features of the Lidl Home app.

● Features of the Lidl Home app

If you select a battery pack, this will take you to the battery pack overview page.

Smart battery pack

Brief overview (above)

☐ In the upper window, a brief overview of the battery pack and the following details are displayed:
-current temperature
-status
-time to complete discharge
-state of charge in %
☐ If you swipe right on the top window, you scroll through charts showing the following details:
-the temperature curve (the red line in the shows the overheating threshold. The black line shows the current battery temperature)
-the charging current curve
-the discharge current curve
-the capacity curve

Locking the battery pack

☐ Set a PIN to lock and unlock the battery pack for use.

Battery pack work mode

□ Select work modes:

• Performance
  Balance
• ECO
• Expert

In Expert mode, you can set the low discharge voltage and maximum continuous discharge current yourself.

Notification

□ Enable or disable overheat alarm:
-Receive notification on your smartphone if the battery pack exceeds the overheating threshold.
-Enable or disable notifications using the Overheated Alarm Switch option.

☐ Switch charge status display on/off:

- Switch the charge status display of the battery pack on/off via the Battery identifier. The charge status display of the battery pack switches off automatically after a short time.

°F/°C switch

☐ Switch between degrees Celsius and degrees Fahrenheit.

Information

□ Overview of information for the battery pack.

Statistics

□ Display of the following details:
-number of charging cycles
-number of discharging cycles
-total runtime

Settings

□ After selecting the battery pack, find the icon at the top right.
☐ Press the icon again and you can make the following changes to the battery pack:

- Symbol - assign a new image

- Name - assign a new name

- Location - assign a new location

☐ You can also access Device info from this menu.

Enable device

☐ Authorise another user from the same household to use the battery pack via the Lidl Home app.

FAQ

□ Check current firmware.
□ Update of the firmware via Check for firmware upgrade

Remove device

☐ See chapter "Disconnecting the product and deleting data from the app".

Cordless sabre saw

If you select Device info "PSSAP 20 Li C4 (2201)" under Battery, the overview page of the cordless sabre saw is displayed with the following details:

-ID of the power tool
-name of the power tool
-discharge current (in ampere)
-rotation speed of the motor (rpm)

Tool work mode

□ Select work modes:

• Performance - allows higher discharge current for heavy duty tasks
• ECO

Light delay off setting

☐ The LED work light 10 continues to be on for some time after switch-off. This time can be set from 1 to 99 seconds.

Usage statistics

☐ Usage statistics of the cordless sabre saw are displayed as:

-Total runtime
-Number of over temperature protection
-Number of stalls
-Number of over current protection

Firmware version

☐ Checking the firmware version of the power tool:

- If a red dot is displayed next to the version it indicates that a new firmware version is available. When you select Firmware version, you can select Update of firmware. The update status bar shows the transmission of new firmware to the battery pack.

☐ Update success means successful transfer of the new firmware to the battery pack.

The battery pack disconnects from the Lidl Home app. The firmware update will start.

IMPORTANT!

During the firmware update, the connection status LED 19 flashes 5x per second. Do not disconnect the smart battery pack from the cordless sabre saw during the update as the cordless sabre saw becomes unusable if the update fails. During the update, the cordless sabre saw becomes unresponsive to input, e.g. triggering the on/off switch. The update process takes around 5 minutes. If the firmware update is successful, the connection status LED flashes 1x per second for 5 seconds. The cordless sabre saw becomes responsive to input again. You can connect the battery pack to the Lidl Home app following the chapter "Connecting the product to the Lidl Home app".

Reconnecting the cordless sabre saw

IMPORTANT!

If the connection status LED 19 flashes alternatively between 1x and 5x per second, it means the connection was disrupted. One of the reasons is disconnecting the battery pack from the cordless sabre saw during firmware update. The cordless sabre saw will not be usable until you re-establish the connection.

Proceed as follows to re-establish the connection with the cordless sabre saw:

1. Attach the battery pack to the cordless sabre saw.
2. Release the switch lock 5.
3. Press the on/off switch/speed control 6. The connection status LED 19 flashes alternatively 1x or 5x per second.
4. Enable Bluetooth on your mobile product.

5. Press and hold the ➕ button (charging level) 12 on the smart battery pack for 3 seconds to ensure that Bluetooth is activated on the battery pack.

6. Connect the battery pack to the Lidl Home app (see "Connecting the product to the Lidl Home app").

7. Select Device info "PSSAP 20 Li C4 (2201)" under Battery. The overview page of the cordless sabre saw is displayed.

8. Select Firmware version and update the firmware.

9. After successfully updating the firmware, the connection with the cordless sabre saw should be re-established and the cordless sabre saw is ready for use.

- Reset to factory original setting

☐ Select Reset to restore the firmware to original factory setting.

- Privacy policy

You can find the complete data protection guideline under the 📁 tab in the field Data protection guideline.

- Disconnecting the product and deleting data from the app

1. In the tab, select the product that you want to remove and whose data you want to delete.

2. Select the 📋 icon in the top right.

3. Select Remove device

4. To delete the data, select Disconnect and delete data. If you just want to disconnect the device without deleting the data, select Disconnect.

- Problems with the app – FAQ

1. Select the battery pack you have questions about from the device list.

2. Select the ↗ icon in the top right.

3. Under Other select the option FAQ (= frequently asked questions).

● Cleaning and care

WARNING!

Always switch the product off, remove the battery pack 8 and let the product cool down before performing inspection, maintenance and cleaning work!

Cleaning

■ Never allow fluids to get into the product.
The product must always be kept clean, dry and free from oil or grease. Remove debris from it after each use and before storage.
■ Regular and proper cleaning will help ensure safe use and prolong the life of the product.
- Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.
In particular clean the air vents after every use with a cloth and soft brush.
■ The vents must always be clear.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Maintenance

Before and after each use, check the product and accessories (e.g. saw blades) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements (see "Technical data").
- Check covers and safety devices for damages and correct installation. Replace as necessary.
- Replace a blunt or bent saw blade or one which has been damaged in some other way.

Repair

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

■ Clean the product as described above.
■ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
■ Always store the product in a place that is inaccessible to children. The ideal long term storage (longer than 3 months) temperature is between +20 and +26 °C.
■ Store the product in its case 18.

Battery pack advice

Only store the battery pack 8 partially charged. The battery pack should be charged to 40 to 60 % (red and orange LED in the charge indicator 13 light up) before storing for extended periods.
- Check the battery pack 8 charge about every 3 months when storing for extended periods. Recharge as necessary.

Transportation

■ Transport the product in its carrying case 18.
■ Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Secure the product to prevent it from slipping or falling over.

- Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Remove the batteries/battery pack from the product before disposal.

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty for the battery pack is 1 year from the date of purchase.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 391001_2201) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

CE

● EC declaration of conformity

EC DECLARATION OF CONFORMITY

IAN:

391001_2201

Product identification:

"Parkside" Cordless Sabre Saw

Model Number:

HG09588

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-11:2016/A1:2020

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN IEC 55014-1:2021

EN 55014-2:1997/A2:2008

EN IEC 55014-2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Original declaration of conformity

Neckarsulm

Place

18.07.2022

Date

Benjamin Steeb Managing Director

ppa.Judha ppa.Jens Buchheim

Authorised Signatory

DÉCLARATION DE CONFORMITÉ CE

IAN : 391001_2201

Nominale spanning: 20 V ---

Slagfrequentie: 0–3000 min -1

Slaglengte: 22 mm

Nominale spanning: 20 V ---

Capaciteit: 8 Ah

Authorised Signatory

DEKLARACJA ZGODNOŚCI WE

IAN:

391001_2201

Nazwa produktu:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-11:2016/A1:202C

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN IEC 55014-1:2021

EN 55014-2:1997/A2:2008

EN IEC 55014-2:2021

Authorised Signatory

Rychlonabiječka PLG 20 C3 \* Vstup:

Authorised Signatory

Authorised Signatory

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-11:2016/A1:2020

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN IEC 55014-1:2021

EN 55014-2:1997/A2:2008

EN IEC 55014-2:2021

Authorised Signatory

Nazivna napetost: 20 V ---

Zmogljivost: 8 Ah

Negotovost K_pA : 5 dB

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Authorised Signatory

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG09588

Version: 08/2022

IAN 391001_2201

8=
