Type of speaker 2-way outdoor speaker Speaker drivers 5" (12.7cm) Midbass, Iris IP cone 1" (2.5cm) Aluminium 'M'-shaped tweeter Bandwidth 90Hz - 28kHz Impedance

Type of speaker 2-way outdoor speaker Speaker drivers 8" (20cm) Midbass with Iris IP cone 1" (2.5cm) Aluminium 'M'-shaped tweeter Bandwidth 45Hz – 28kHz Impedance

Type of speaker Outdoor subwoofer Speaker drivers 12" (30cm) woofer with Iris IP cone Bandwidth 40Hz – 120Hz Impedance

70 V 5 W 10 W 20 W 40 W OFF

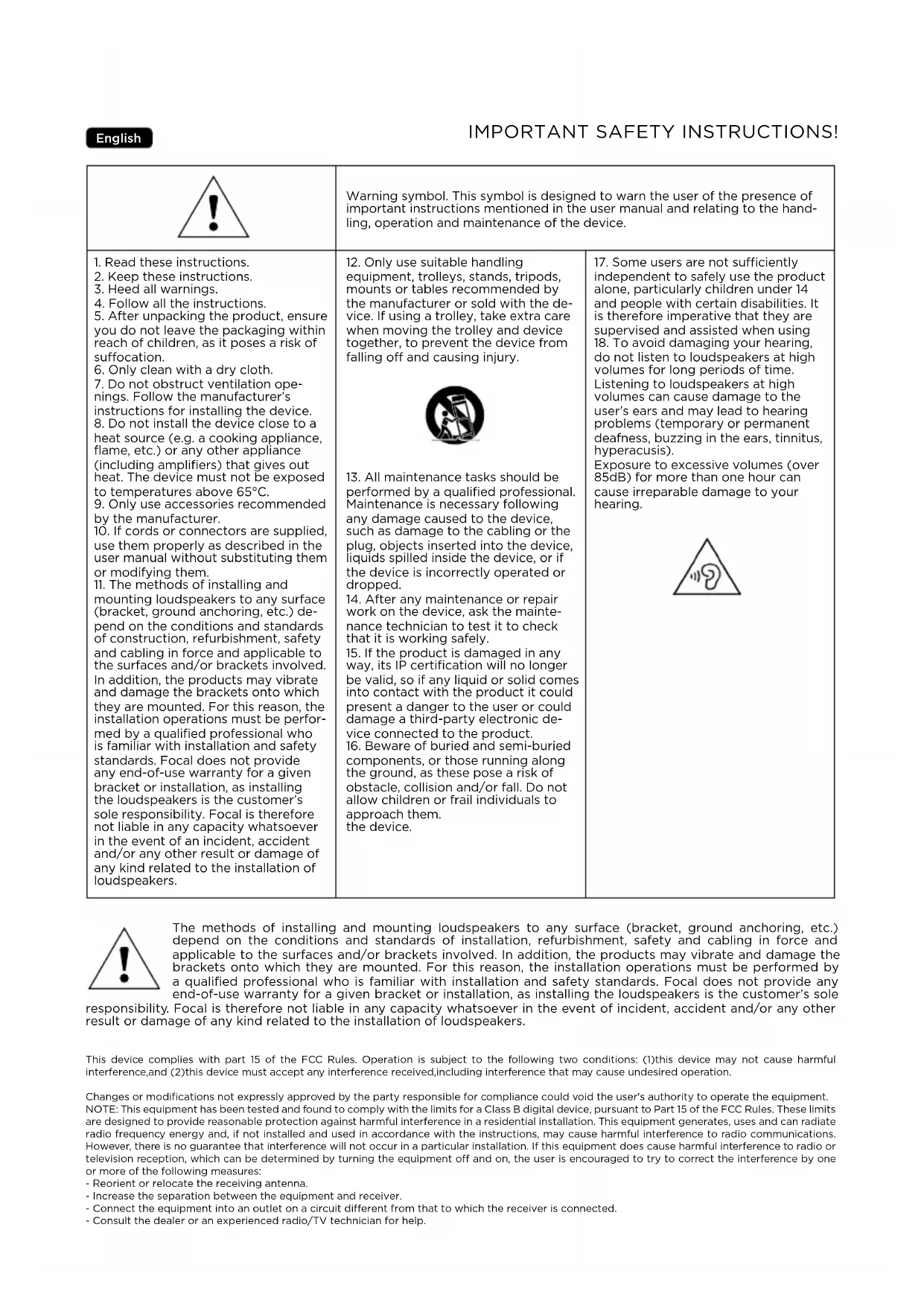

- Court-circuit 8 Ώ Rouge Gris Aucun 70/100 V Bleu Jaune Rouge et VertIMPORTANT SAFETY INSTRUCTIONS! English Warning symbol. This symbol is designed to warn the user of the presence of important instructions mentioned in the user manual and relating to the hand- ling, operation and maintenance of the device.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all the instructions.

5. After unpacking the product, ensure

you do not leave the packaging within reach of children, as it poses a risk of suocation.

6. Only clean with a dry cloth.

7. Do not obstruct ventilation ope-

nings. Follow the manufacturer’s instructions for installing the device.

8. Do not install the device close to a

heat source (e.g. a cooking appliance, flame, etc.) or any other appliance (including amplifiers) that gives out heat. The device must not be exposed to temperatures above 65°C.

9. Only use accessories recommended

by the manufacturer.

10. If cords or connectors are supplied,

use them properly as described in the user manual without substituting them or modifying them.

11. The methods of installing and

mounting loudspeakers to any surface (bracket, ground anchoring, etc.) de- pend on the conditions and standards of construction, refurbishment, safety and cabling in force and applicable to the surfaces and/or brackets involved. In addition, the products may vibrate and damage the brackets onto which they are mounted. For this reason, the installation operations must be perfor- med by a qualified professional who is familiar with installation and safety standards. Focal does not provide any end-of-use warranty for a given bracket or installation, as installing the loudspeakers is the customer’s sole responsibility. Focal is therefore not liable in any capacity whatsoever in the event of an incident, accident and/or any other result or damage of any kind related to the installation of loudspeakers.

12. Only use suitable handling

equipment, trolleys, stands, tripods, mounts or tables recommended by the manufacturer or sold with the de- vice. If using a trolley, take extra care when moving the trolley and device together, to prevent the device from falling o and causing injury.

13. All maintenance tasks should be

performed by a qualified professional. Maintenance is necessary following any damage caused to the device, such as damage to the cabling or the plug, objects inserted into the device, liquids spilled inside the device, or if the device is incorrectly operated or dropped.

14. After any maintenance or repair

work on the device, ask the mainte- nance technician to test it to check that it is working safely.

15. If the product is damaged in any

way, its IP certification will no longer be valid, so if any liquid or solid comes into contact with the product it could present a danger to the user or could damage a third-party electronic de- vice connected to the product.

16. Beware of buried and semi-buried

components, or those running along the ground, as these pose a risk of obstacle, collision and/or fall. Do not allow children or frail individuals to approach them. the device.

17. Some users are not suciently

independent to safely use the product alone, particularly children under 14 and people with certain disabilities. It is therefore imperative that they are supervised and assisted when using

18. To avoid damaging your hearing,

do not listen to loudspeakers at high volumes for long periods of time. Listening to loudspeakers at high volumes can cause damage to the user’s ears and may lead to hearing problems (temporary or permanent deafness, buzzing in the ears, tinnitus, hyperacusis). Exposure to excessive volumes (over 85dB) for more than one hour can cause irreparable damage to your hearing. The methods of installing and mounting loudspeakers to any surface (bracket, ground anchoring, etc.) depend on the conditions and standards of installation, refurbishment, safety and cabling in force and applicable to the surfaces and/or brackets involved. In addition, the products may vibrate and damage the brackets onto which they are mounted. For this reason, the installation operations must be performed by a qualified professional who is familiar with installation and safety standards. Focal does not provide any end-of-use warranty for a given bracket or installation, as installing the loudspeakers is the customer’s sole responsibility. Focal is therefore not liable in any capacity whatsoever in the event of incident, accident and/or any other result or damage of any kind related to the installation of loudspeakers. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference,and (2)this device must accept any interference received,including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.EN

LITTORA 200 User manual Please validate your Focal-JMlab warranty, it is now possible to register your product online at: www.focal.com/garantie Thank you for purchasing a Focal product. Welcome to our world, the world of High-Fidelity. Innovation, tradition, excellence and pleasure are our values; our one and only aim is to bring you a sound that is rich, pure and true. To get the most out of your product, we recommend that you read the instructions in this booklet, then store it in a safe place to refer to in the future. For the purposes of improvement or to take into account any legal or regulatory changes, FOCAL-JMLab reserves the right to modify the technical specifications of its products without prior notice. Where applicable, the images shown are intended for illustration purposes only, and may differ slightly from the product sold. Package contents: OD STONE 8 (fig. 1)

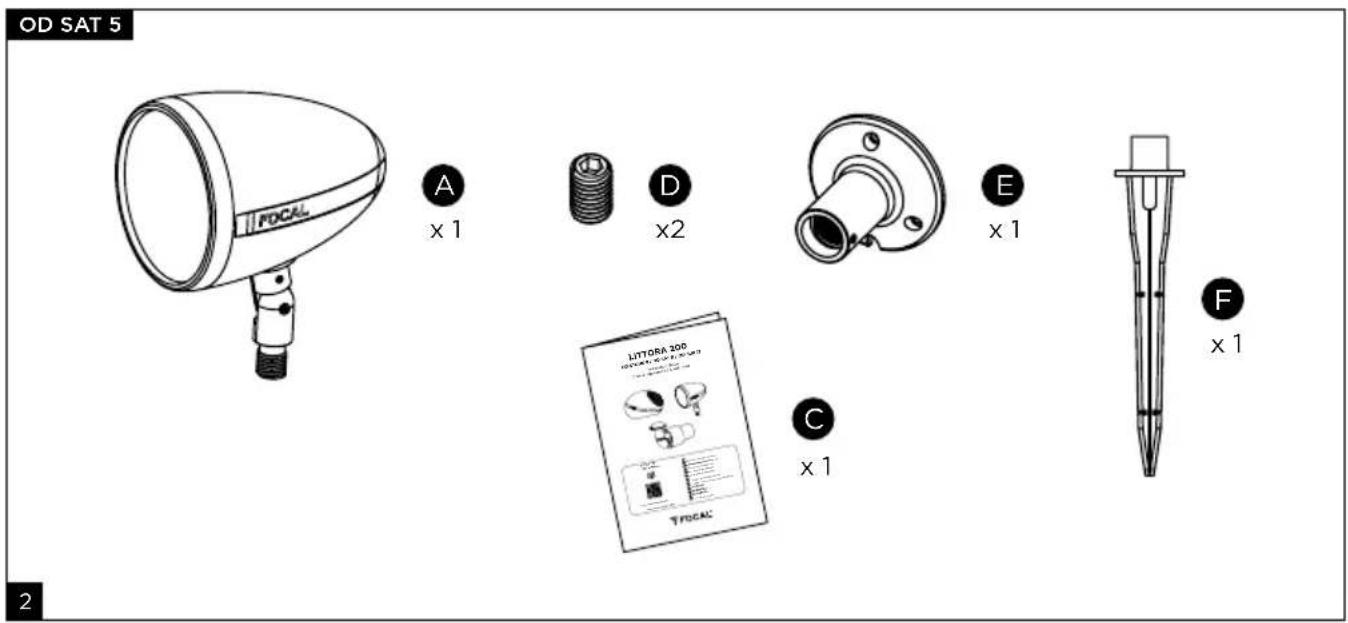

• 1 x set of safety instructions and warranty terms and conditions OD SAT 5 (fig. 2)

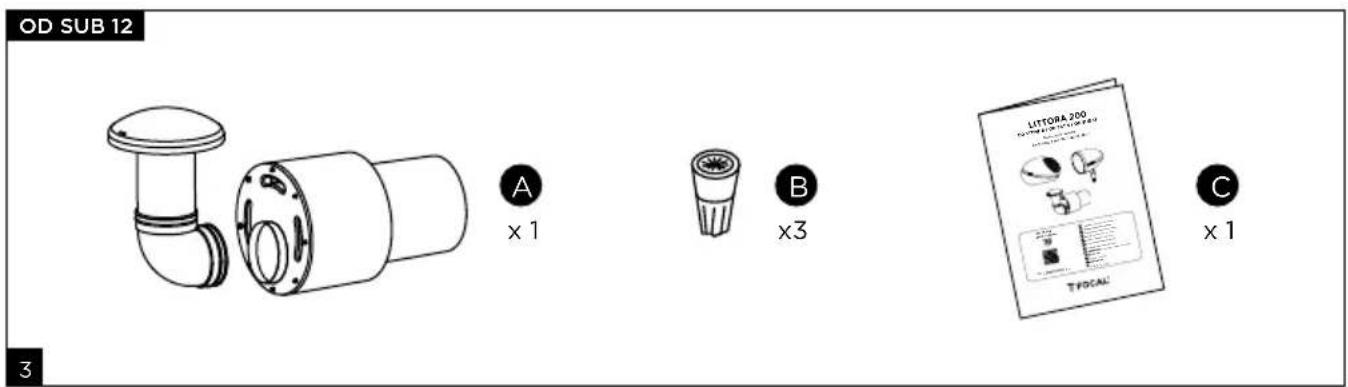

• 1 x set of safety instructions and warranty terms and conditions OD SUB 12 (fig. 3)

• 1 x set of safety instructions and warranty terms and conditions Key points: OD STONE 8

• Modern, elegant design that blends seamlessly into your outdoor space

• IP55-certified technical design (wa- ter and dust)

• 8" woofer with Iris IP cone and 1" aluminium 'M'-shaped inverted dome tweeter

• Compatible with OD SAT 5 and OD SUB 12 for an allround system OD SAT 5

• Discreet design that blends seamlessly into your outdoor space

• IP55-certified technical design (wa- ter and dust)

• 5" woofer with Iris IP cone and 1" aluminium 'M’-shaped inverted dome tweeter

• Brackets supplied for in-ground or in-wall installation

• Compatible 8Ω/70V/100V

• Compatible with OD SUB 12 for more bass OD SUB 12

• IP55-certified technical design (wa- ter and dust)

• 12 woofer with Iris IP cone: A deep and powerful 400W bass

• Compatible with OD STONE 8 and OD SAT 5 for an allround systemEN

In an 8Ώ Amplifier configuration: It is not an excess of amplifier power that can damage your loudspeaker and drivers, but rather a lack of power. In fact, if the volume is too high, the amplifier saturates and generates parasite signals that may destroy the tweeter. The dynamic capacity and definition of Littora loudspeakers are high enough to reveal the strengths and weaknesses of whatever amplifier is connected to them. Your dealer will be able to guide you, depending on your tastes and budget. In a 70V/100V Amplifier configuration: It is recommended to use an amplifier that delivers 20% more power than the system’s total power to avoid a surge or damage to Littora products. Your retailer will be able to guide you depending on your tastes and budget. An amplifier used at full power, combined with a 70V/100V transformer, can deliver dangerous voltages. Always disconnect the power from the amplifier and the transformer before handling, to avoid any risk of electric shock. Follow the recommendations and instructions/configuration of your amplifier in order to correctly connect each Littora 200 loudspeaker. Cable choice Choose good quality cables with a cross-section appropriate for outdoor installation: your dealer will be able to advise you. LOUDSPEAKER POSITIONING

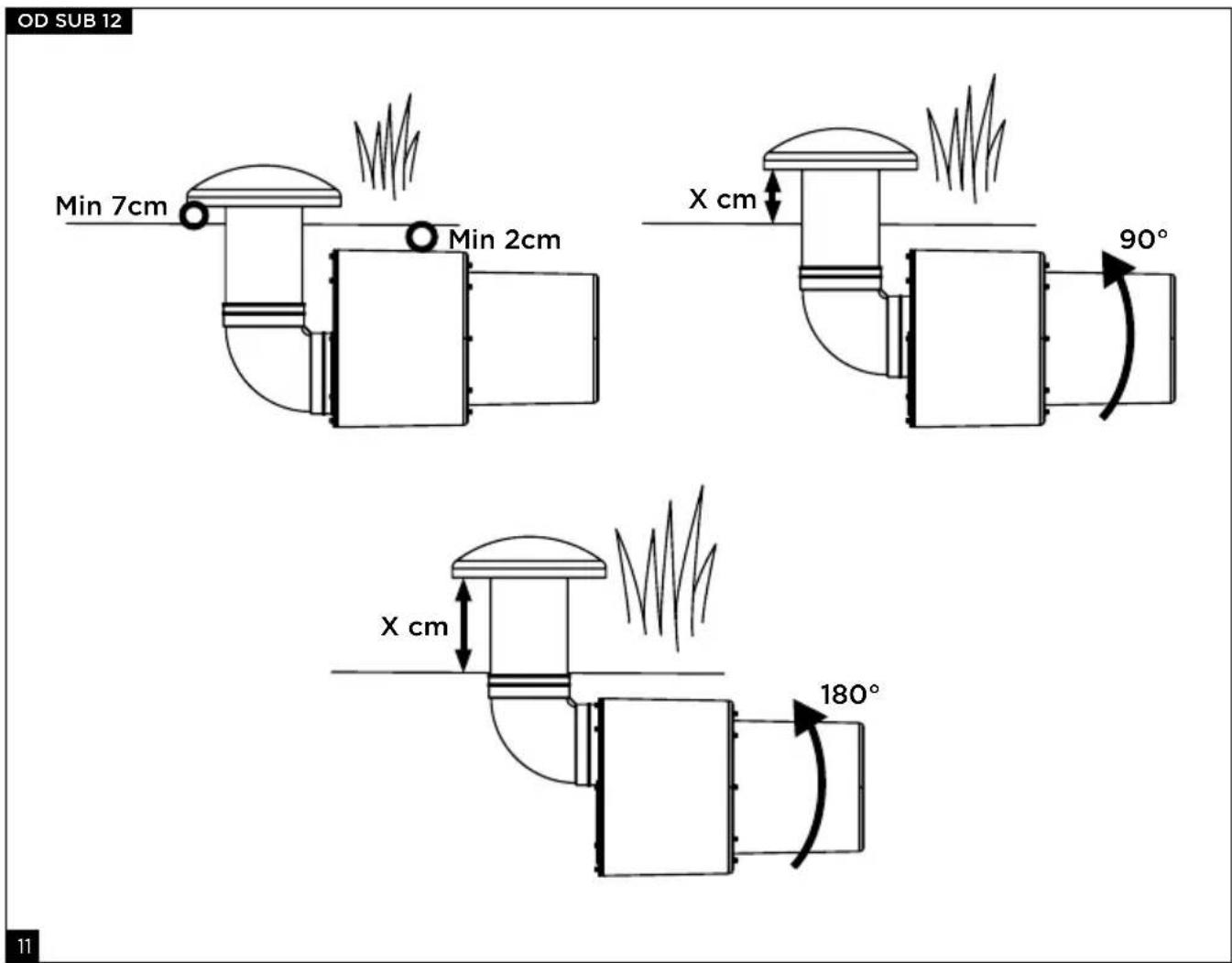

The loudspeakers should be arranged, evenly spaced, in a line or arc in order to cover the listening area as best as possible. The space between two loudspeakers will be at least 6.5ft (2m) for a listening station measuring between 6.5ft - 19.6ft (2-6m) (fig.14). However, it is possible to vary these distances to find an ideal compromise depending on the space layout. OD SUB 12 To supply the listening area as best as possible, place the OD SUB 12 as close as possible to the centre of the system, avoiding any pools (fountains, swimming pools, water sources, etc.). The optimal listening zone is a radius of 16.6ft (6m) around the sub. For more bass, place it closer to a wall (fig.15). INSTALLATION Before installing the loudspeakers, ensure that the intended positions on the ceiling/wall/ground are not obstructed by the passage of air vents, for example, or any cables that may interfere with the installation. These products are IP55 certified for increased water and dust-resistance. To protect their service life do not expose them to constantly running water and never immerse them in water. After heavy rainfall, we recommend waiting a few hours before turning them on again; allowing them to dry-out naturally will restore nominal audio functioning. OD STONE 8 The design of the OD STONE 8 allows it to be placed on any surface without mounting. It can either be placed or fixed using its attachment loop located on the base.EN

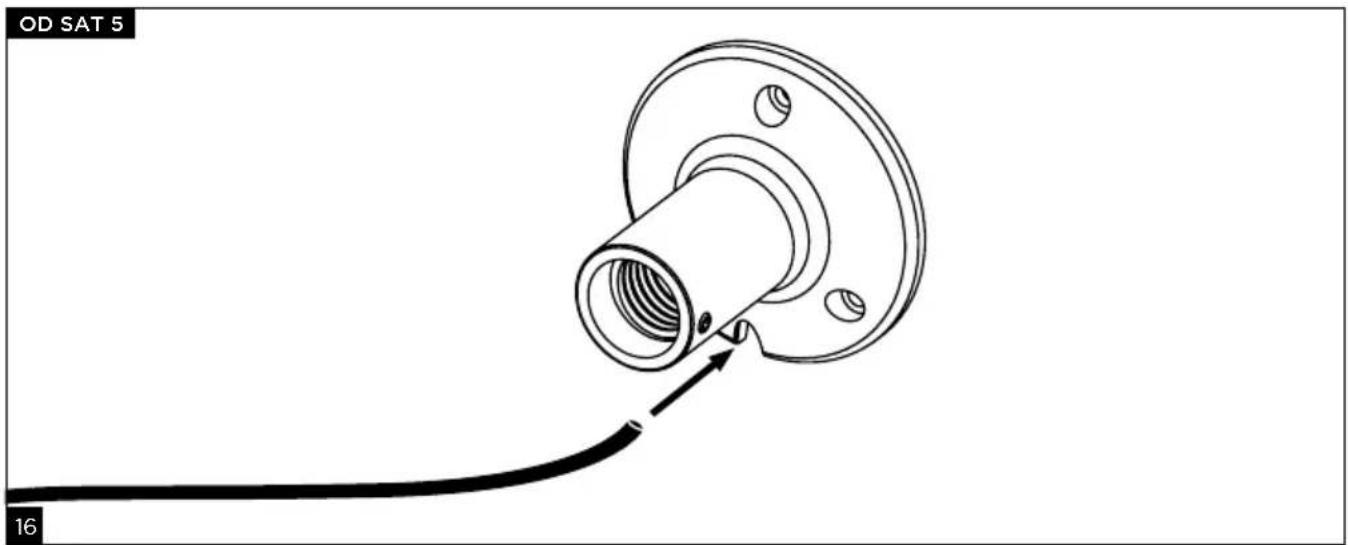

LITTORA 200 User manual WALL-MOUNTING OD SAT 5 (fig.7) Before hanging the products, make sure the ceiling/walls are strong, in perfect condition, and are suitable to remain so long- term. Use a professional to fix the wall brackets (E) and only use screws and dowels suitable for the materials. To mount the loudspeakers, securely fasten the bracket using screws suitable for the materials. For a more discreet installation, thread the cable through the hole in the middle of the mounting bracket and the notch on the base (fig. 16). Make sure to leave around

3/4 " (30cm) of cable to allow you to connect and position the loudspeaker easily afterwards. Next, direct the loudspeaker towards the listening area and tighten the joints firmly with the locking screws (fig. 8). GROUND MOUNTING OD SAT 5 (fig.9) Mounting in the ground is only possible in soil or sand. They cannot be mounted in rigid metal, wood or concrete floors. Take the stake (F) provided and plant it using your hand around 4-5cm into the ground. Then drive the stake in as far as it will go using a suitable tool. For a more discreet installation, thread the cable through the hole in the middle and the opening on the bottom of the stake. Make sure to leave around 11 3/4 " (30cm) of cable to allow you to connect and position the loudspeaker easily afterwards. The stake can be cut down for installations in shallow ground. To help cut it, there are notches on the stake at 4" and 7 7/8 " (10 and 20cm). Attention: cutting the stake will create sharp edges which could cause injury. Next, direct the loudspeaker towards the listening area and tighten the joints firmly with the locking screws (fig. 8). OD SUB 12 To supply the listening area as best as possible, place the OD SUB 12 as close as possible to the centre of the system, avoiding any pools (fountains, swimming pools, water sources, etc.). For more bass, move the OD SUB 12 nearer a wall (fig. 15). Prepare the space for the sub by digging a hole measuring 13x34 5/8 x15" (330x880x380mm) (fig.10). Positioning (fig.10 and 11): To get the most out of the sub, make sure there is a minimum 2 3/4 " (7cm) between the ground and the part above the ground. Adjust the height of the vent to suit you by twisting it whilst positioned in its location. Then cover the body with around 3/4" (2cm) of soil.

Warning: This product is only intended for use with the body underground.

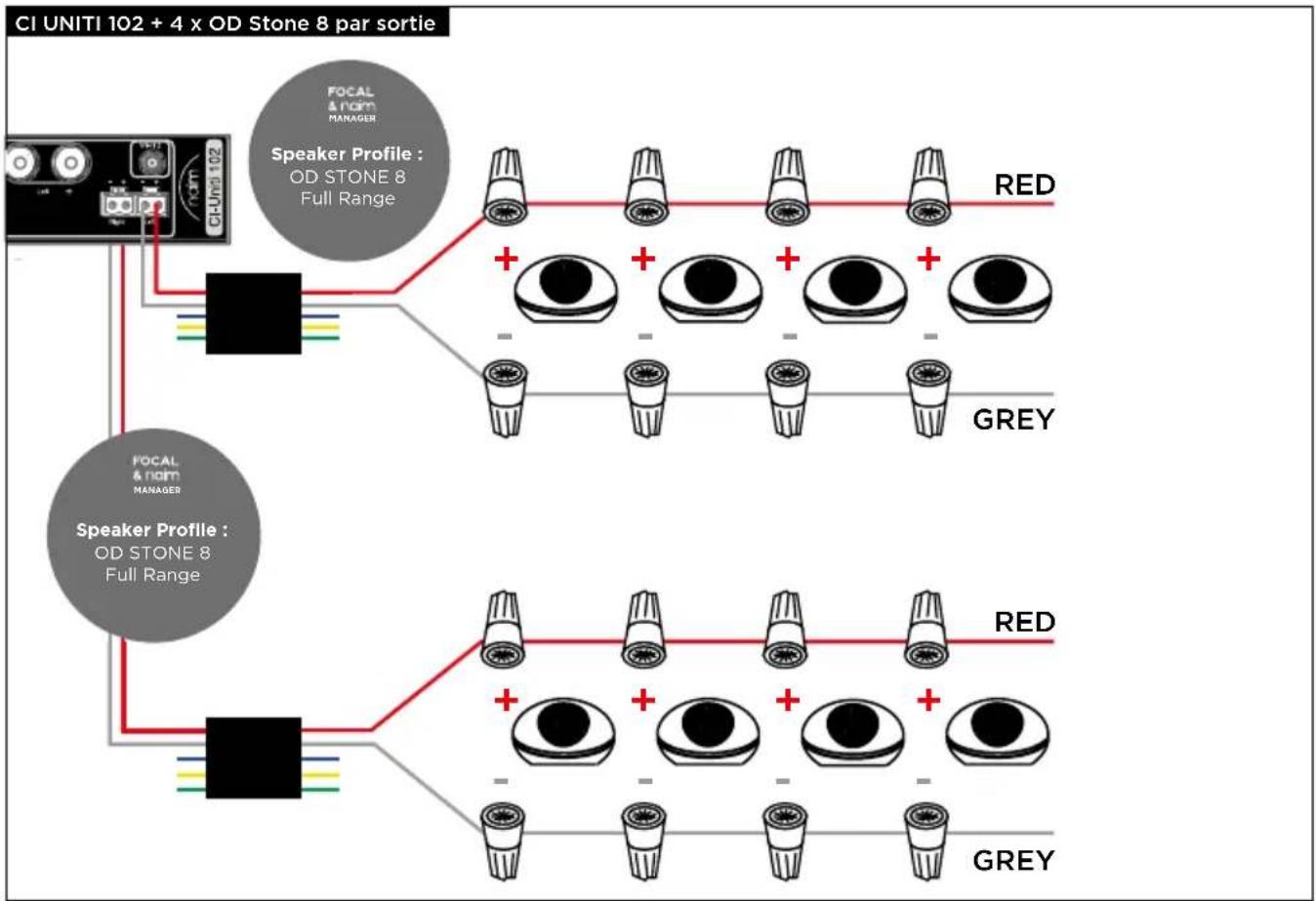

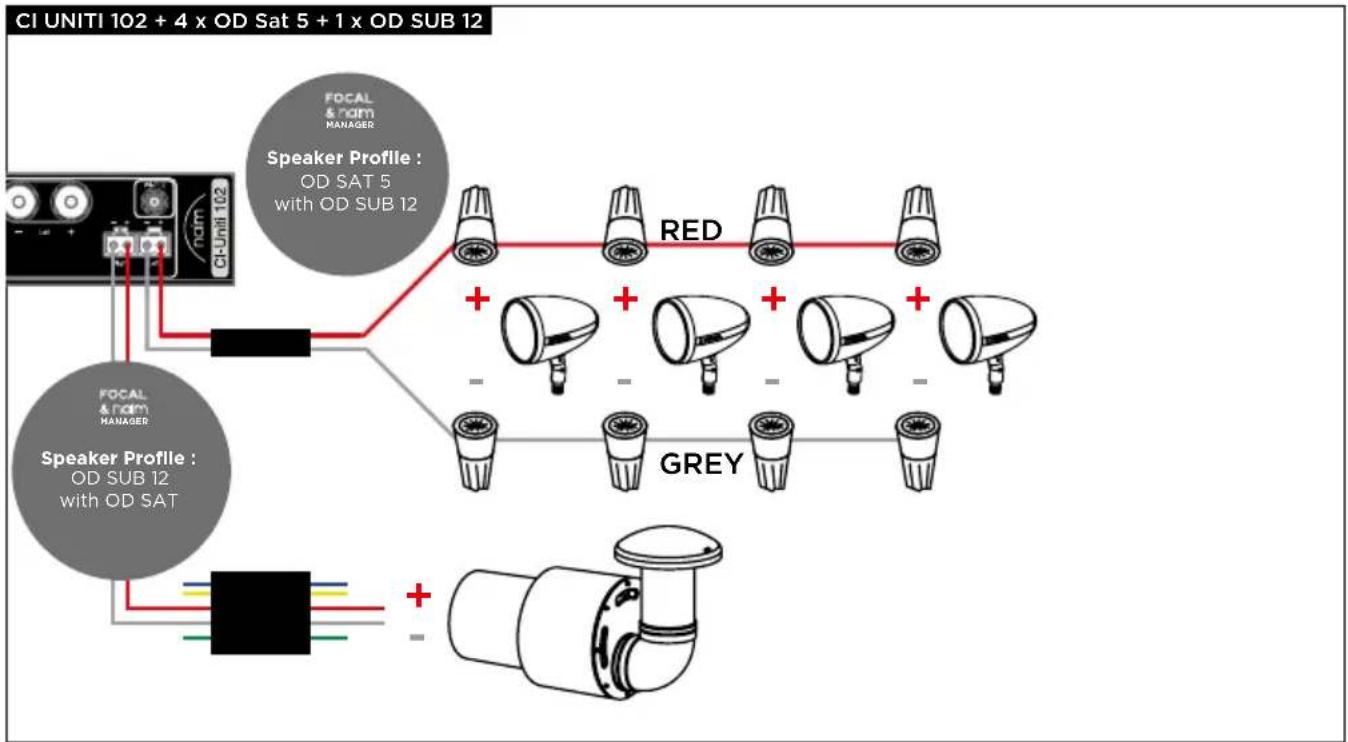

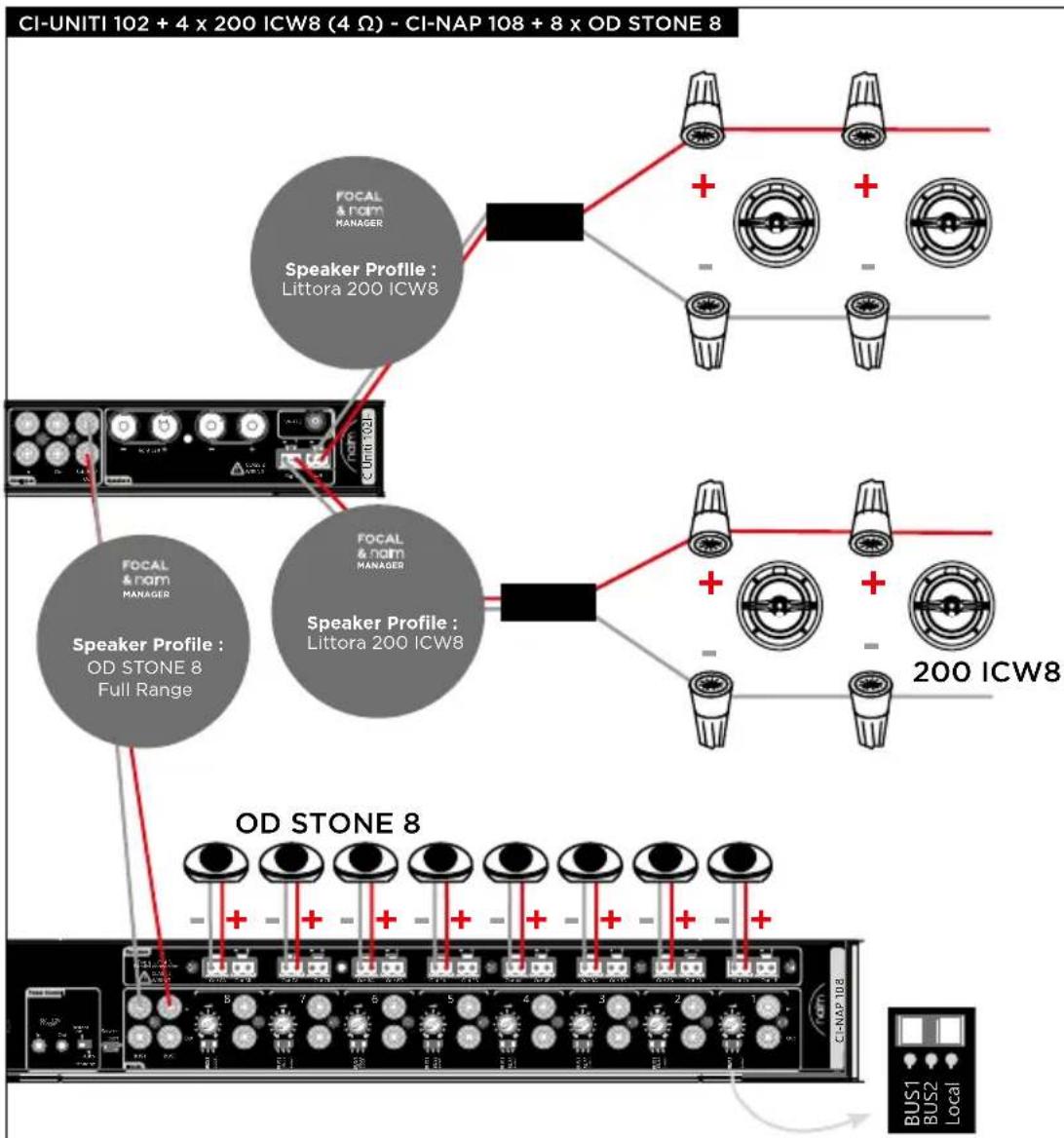

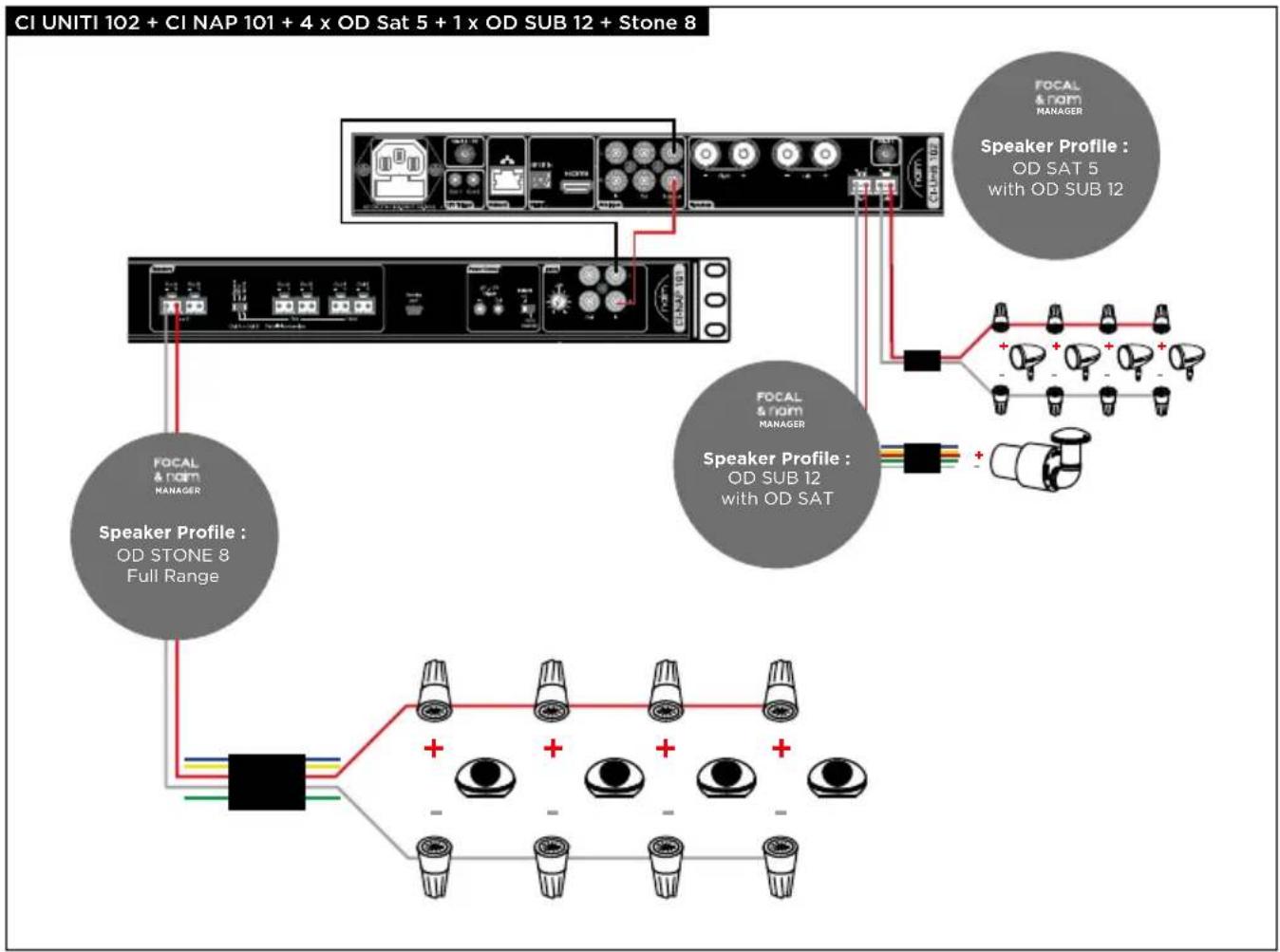

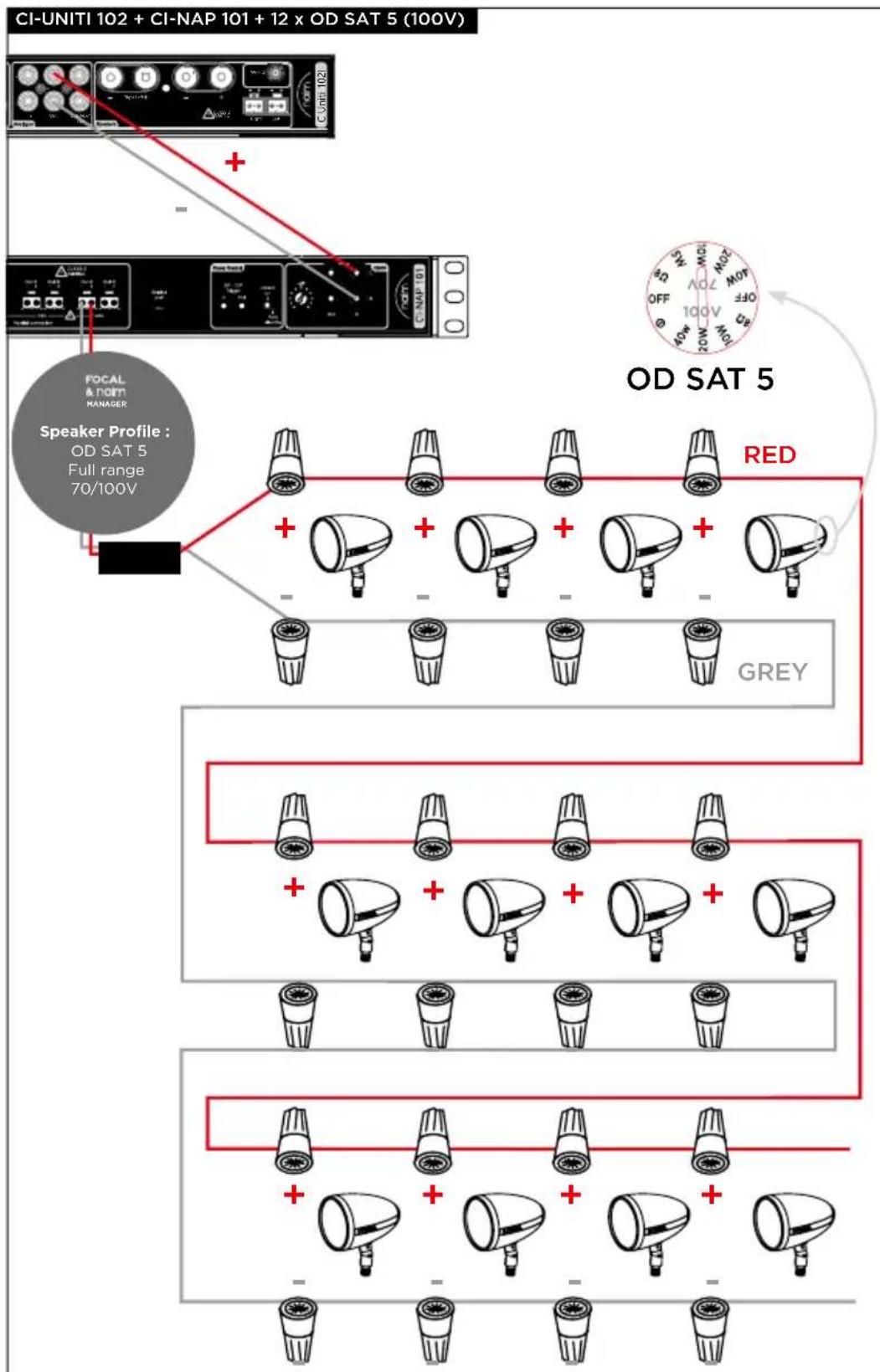

CONNECTIONS OD STONE 8 With its 5-strand cable, the OD STONE 8 adapts perfectly to 70/100V (fig.5) or 8Ω (fig.4) amplification. To do this, make the appropriate connections using the waterproof cable connectors provided (B). To avoid any signal disturbance, ensure that any strands that are not used are electrically insulated using suitable equipment. OD SAT 5 The power of the OD SAT 5 is adjusted using the two-position notched selector on the back. To access it, remove the screw on the back of the satellite (fig.6). Each position selects two values. It is the type of amplifier connected to the speaker that determines the power emitted by the speaker.

- Short circuit 8Ώ Red Grey None 70/100V Blue Yellow Red and GreenEN

Dedicated position for a traditional 8Ω hi-fi amplifier. 5W/100 W, 10W/20 W, 20W/40 W and 40W/Θ In these positions you can use a 70V or 100V amplifier. Θ Do not use This position requires the use of a 70V amplifier only. Using a 100V amplifier may damage the loudspeaker and the amplifier. OFF Default position No link is active. OD SUB 12 With its 5-strand cable, the OD SUB 12 adapts perfectly to 70/100V (fig.5) or 8Ω (fig.12) amplification. To do this, make the appropriate connections using the waterproof cable connectors provided (B). To avoid any signal disturbance, ensure that any strands that are not used are electrically insulated using suitable equipment. SPECIAL PRECAUTIONS Running-in period The speaker drivers used in the Littora range of loudspeakers are complex mechanical assemblies which need a running-in period to operate at their best and to become acclimatised to the temperature and humidity of your environment. This run- ning-in period varies depending on the conditions in question and may take several weeks. To reduce this time, we recom- mend operating your loudspeakers for about 20 consecutive hours at a moderate volume. Once the loudspeakers' character- istics have totally stabilised, you will be able to enjoy your Littora loudspeakers’ performance to the full. Conditions of warranty All Focal loudspeakers are covered by warranty drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of warranty. Warranty cover extends at least to that granted by the legal warranty in force in the country where the original purchase invoice was issued.
