Heaven 2.0 90 X Plus - Range hood FABER - Free user manual and instructions

Brand	Faber
Model	Heaven 2.0 90 X Plus
Product type	Cooker hood
Width	90 cm
Minimum safety distance from cooking surface	650 mm
Exhaust duct diameter	120 mm minimum
Power supply	Mains, class I with earth connection
Required switch	Bipolar with contact opening of at least 3 mm
Motor speeds	3 speeds + intensive (6 minutes)
Delay function	Automatic delayed shutdown of 30 minutes
Lighting	White LED, class 1M, max power 7 W
Grease filters	Metal, dishwasher safe
Active carbon filter	Replace approximately every 4 months
Filter saturation alarm	Yes, after 100 h (grease) or 200 h (carbon)
Remote control	Optional, LR03-AAA batteries (not included)
Intended use	Domestic, kitchen odor extraction

Frequently Asked Questions - Heaven 2.0 90 X Plus FABER

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm. If the manual of your gas cooker specifies a greater distance, follow that one.

How to clean the grease filters?

Wash metal grease filters every 2 months or when the S1 alarm turns on. They can be washed in the dishwasher. Let them dry before reinstalling.

When to replace the active carbon filter?

Replace the active carbon filter approximately every 4 months or more often with heavy use. It is not washable or reusable.

How to reset the filter saturation alarm?

Turn off the lights and motor. Press the T3 button for about 3 seconds until the LED blinks 3 times, confirming the reset.

Can I use the hood without external exhaust?

Yes, the hood can operate in recirculation mode with an active carbon filter. In that case, activate the carbon filter saturation alarm during installation (see manual).

How to use the Intensive function?

Press the T4 button to activate the intensive speed. It lasts 6 minutes and then automatically returns to the previous speed. If the motor was off, it turns off after 6 minutes.

Is the remote control provided with the hood?

No, the remote control is optional and not included. You can buy it separately. It uses LR03-AAA (1.5 V) batteries.

How to pair the remote control?

Press the T4 button on the hood for about 5 seconds until the LED blinks 2 times. The remote is then paired. To unpair, repeat the operation (1 blink).

What to do if the hood stops working?

First check the power supply and circuit breaker. Ensure filters are not saturated. If the problem persists, contact customer service.

Can I install the hood myself?

Installation must be done by a qualified professional. Respect safety distances and electrical standards. Incorrect connection risks electrocution.

USER MANUAL Heaven 2.0 90 X Plus FABER

RECOMMENDATIONS AND SUGGESTIONS 13

CHARACTERISTICS 16

INSTALLATION 17

USE 18

MAINTENANCE 20

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS 22

CHARACTERISTIQUES 25

INSTALLATION 26

UTILISATION 27

ENTRETIEN 29

INHALTSVERZEICHNIS

DE

EN INSTALLATION MANUAL

Warning! Before proceeding with installation, read the Recommendations and Suggestions in the User Manual.

FR MANUEL D'INSTALLATION

The Instructions for Use apply to several versions of this appliance.

Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

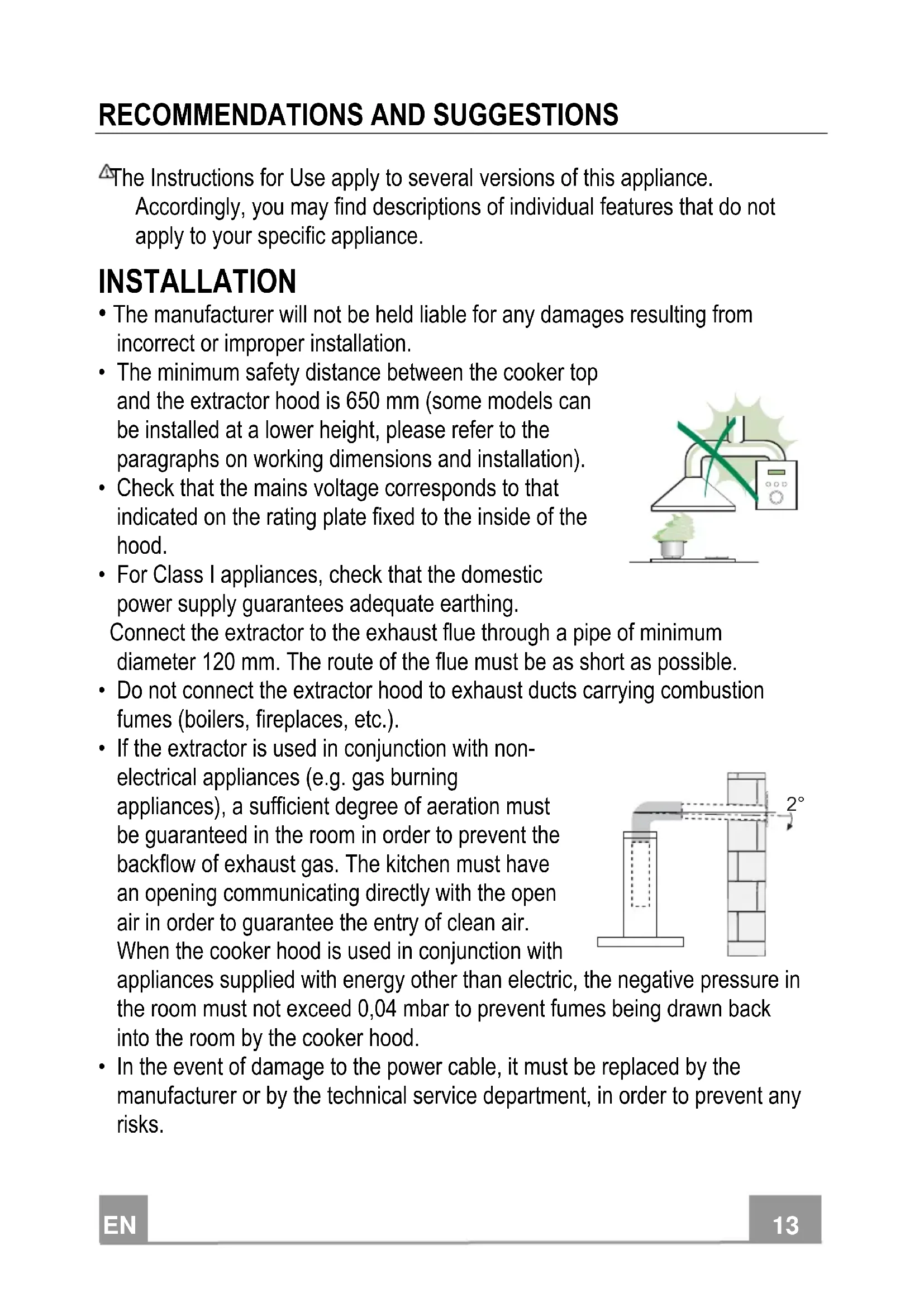

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with nonelectrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

When the cooker hood is used in conjunction with

appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambre under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• "CAUTION: Accessible parts may become hot when used with cooking appliances."

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Dimensions

Fixing the Hood

• In all cases where the ceiling is not strong enough at the suspension point, the installer must provide strengthening using suitable plates and backing pieces anchored to the structurally sound parts.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm..

T2T1T4

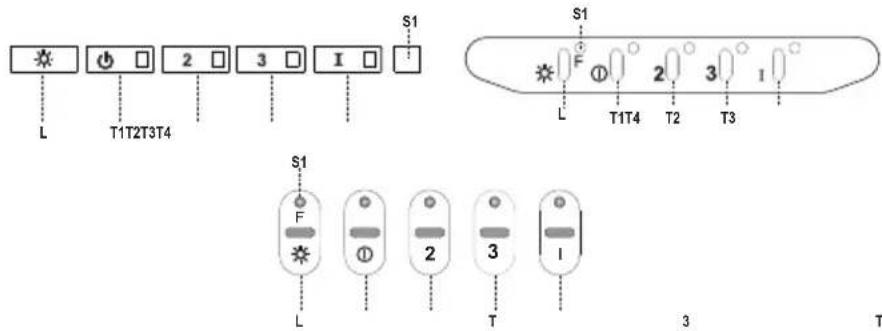

Control panel

Button	Led Function
L - Turns the lights ON/OFF at maximum strength.
		Press and hold for approx. 2 seconds to turn the lighting system on and off at reduced intensity.
T1 Fixed Tums the motor on/off at speed one.
		Delay function: Press and hold the button for approx. 3 seconds to Activate/Dactivate the Delay function (automatic switching off of the Motor, the Fans and the Lighting with a 30' delay). Cannot be enabled when Intensive or 24h are on.
T2 Fixed Tums the Motor on at speed two.
		Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. The relevant LED flashes twice to confirm. To turn the alarm off, press the button again and hold for at least 5 seconds. The relevant LED flashes once.
T3 Fixed Tums the Motor on at speed three.
		Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to perform a reset. The LED S1 flashes three times.
T4 Fixed Tums the Motor on at INTENSIVE Speed. This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, it will switch to OFF at the end of the time.
		Press and hold for 5 seconds to enable the remote control, indicated by the LED flashing twice. Press and hold for 5 seconds to disable the remote control, indicated by the LED flashing just once.
S1	Fixed	Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The alarm is triggered after the Hood has been in operation for 100 working hours. (Reset see the parag. Maintenance)
	Flashing	When this is activated, it signals the Activated Charcoal Filter saturation alarm, indicating that the filter must be changed; the Metal Grease Filters must also be washed. The Activated Charcoal Filter saturation alarm comes into operation after the Hood has been working for 200 hours. (Activation and Reset see the parag. Maintenance)

REMOTE CONTROL

The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
  Used batteries must be disposed of in the proper manner.

Remote control panel

	Motor Motor On / Off.
-	Decreases the working speed each time it is pressed.
+	Increases the working speed each time it is pressed.
①	Intensive Activates the Intensive function
◎	Delay Activates / Deactivates the Delay function
	Light Lights On / OffPress for 2 seconds to modify the intensity of the Light.

MAINTENANCE

Opening Panel

• Open the Panel by pulling it.
• Clean the outside with a damp cloth and neutral detergent.
• Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.

Metal grease filters

These can be washed in the dishwasher, and need to be cleaned whenever the S1 Led comes on or at least once every 2 months use, or more frequently if use is particularly intensive.

CLEANING THE FILTERS

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press T3 and hold for at least 3 seconds, until LED flashes three times in confirmation.

Cleaning the Filters

• Open the doors.
• Remove the Filter, pushing it towards the back of the unit and at the same time pulling downward.
• Wash the filter without bending it, and leave it to dry thoroughly before replacing (if the surface of the filter changes colour over time, this will have absolutely no effect on its efficiency).
• Replace, taking care to ensure that the handle faces forwards.
• Close the doors again.

This cannot be washed or regenerated, and must be changed when led S1 starts to flash, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.
• Press button T2 and hold it for 5 seconds until the LED flashes twice in confirmation:

CHANGING

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press T3 and hold for at least 3 seconds, until LED flashes three times in confirmation.

Changing the Filter

• Open the doors.
• Remove the Metal Grease Filter.
• Remove the saturated Activated Charcoal Filters, as indicated (A).
• Fit the new Filters, as indicated (B).
• Replace the Metal grease filters.
• Close the doors.

Lighting unit

Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7 W . Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
- For replacement contact technical support. ("To purchase contact technical support")
