Product type	Above-ground inflatable pool
Brand	Crivit
Model	53013A
Dimensions (inflated)	approx. 457 x 122 cm (length x height)
Water volume	approx. 13,293 liters
Maximum effective water depth	97 cm
Water surface area	357 cm²
Maximum inflation pressure	1 bar (15 psi)
Included filter pump	Yes, model 53013A, 12V, 70W, flow rate 3028 l/h
Pump power supply	230-240 V ~ 50 Hz (primary), 12 V AC (secondary)
Pump protection rating	IPX7
Adapter protection rating	IP65
Number of people for assembly	2
Assembly time	approx. 30 minutes
Included parts	Pool, ground and protective tarp, pump, hoses, intake screens, clamps, ladder, repair kit, caps
Warranty	3 years (material and manufacturing defects)
Usage	Above-ground pool, do not bury
Maintenance	Regular chemical treatment of water, filter cartridge cleaning
Safety	Constant supervision of children, no jumping, use with 30 mA residual-current device
Repairability	Repair kit included for small leaks
After-sales service France	Tel: [phone], Email: [e-mail]

Frequently Asked Questions - 53013A CRIVIT

How to install the Crivit 53013A inflatable pool?

Choose a flat, stable surface free of stones and sharp objects. Unroll the ground tarp, then the pool. Inflate the air chamber to a maximum of 1 bar. Fill with water up to the indicated line (max. 97 cm depth). Assemble the ladder following figures F to K in the manual. Place the filter pump between 20 cm and 1 m below the water level.

How to inflate the pool correctly?

Use a foot or piston pump (not a compressor). Open the valve flap (1a), inflate until the chamber is firm but can be pressed in with your thumb. The optimal pressure is 1 bar (15 psi). Close the valve. In hot weather, release some air to avoid overpressure.

What is the recommended inflation pressure?

The maximum operating pressure is 1 bar (15 psi). Do not overinflate to avoid damaging the seams. In intense sunlight, equalize the pressure by opening the valve.

How to maintain the pool water?

Regularly test pH and chlorine levels. The pH must be balanced. Use appropriate chemicals: chlorine (tablets, granules or liquid), algaecides and shock treatments. Never add chemicals when people are in the water. Run the filter pump for 4 to 5 hours per day.

How to use the filter pump?

Place the pump on a stable surface. Attach the hoses to the pool connectors (inlet and outlet). Ensure the pump is filled with water (bleed air via the deflation valve). Plug the adapter into a socket protected by a 30 mA residual-current device. Never run the pump dry.

What to do in case of a leak or hole in the pool?

Completely deflate the pool, clean and dry the damaged area. For a leak smaller than 2 mm, use suitable adhesive directly. For a larger leak, cut a patch from the repair kit with a 1.5 cm margin, apply it firmly, and allow to dry for at least 12 hours before reinflating.

How to store the pool in winter?

Completely drain the water, clean the pool with a mild detergent, and let it dry in the sun. Close all valves. Fold the pool following the figures in the manual (fig. M). Store it in a clean, dry place protected from frost and temperature fluctuations. Do not place heavy objects on it.

What are the essential safety instructions?

Never leave a child unattended – risk of drowning. Do not jump into the pool. Use flotation devices for non-swimmers. Install a barrier if possible. Keep a phone and a rescue buoy nearby. The electrical installation must include a 30 mA residual-current device.

How to assemble the included ladder?

Follow figures F to K in the manual. The ladder assembles tool-free by clipping the rungs and attaching the supports. Place it on a stable horizontal surface, inside or outside the pool as instructed. Ensure it is stable before use.

How to clean and replace the filter cartridge?

Unplug the pump. Open the filter housing by turning the cover counterclockwise. Remove the cartridge. Clean it with a garden hose; if it remains gray, replace it. Also check the inside of the housing and rinse it. Reassemble and plug back in.

USER MANUAL 53013A CRIVIT

Illustration of a large inflatable pool with people in water, accompanied by a ladder, small containers, and a coffee cup (no text or symbols)

QUICK-UP-POOL QUICK-UP POOL PISCINE QUICK UP

ENGLISH

Aeropore A. 1107 2019/14 - mcy

2019

sol

□02402

(1) _1 (2) _1 (3)

图图

QUICK-UP-PDDL

The image is too blurry to recognize any text content.

(四) (五)

PISCINE QUICK UP

Filampape - Original fragmenting

HU

QUICK-UP FÜRDÖMEDENCE

Moverie, Haiziaot (Ink)

Sejnezelyi - Freci kezeléi (dumatá)

图 1

QUICK-UP POOL

Pool - Instructions In use

Filter cump - Panel operating is carried out

The image is too blurry to recognize any text content.

(4) (10)

QUICK-UP ZWEMBAD

Excise - leuropics in the way

We are coming, but we do not pay a salary get allowed of the (earners' percent

030

Dajuz (insgre maa) will refer to the fact that the person is not designated as del quered.

① ②

Mad. Bader's evidence, A copy of the only source as to client health information

(1)

Slo. (a) for the usual state is a normal or severe condition of the presence of a specific variable to be present in the

[Unreadable]

that under fixed and off-the-shelf operation in the case of (q_1 per day, which is a fixed threshold rate or an approximation threshold).

00 Mr

If the case is a high, but an additional result of the condition that is required to be a limit, we are not allowed for

(3)

Kulic zirubin, septenzi sallu in a rua/raa/raa/raa/raa

18/8 Conquestable and other services Page 24

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

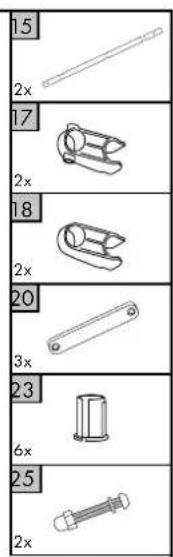

15 2x 17 2x 18 2x 20 3x 23 6x 25 2x

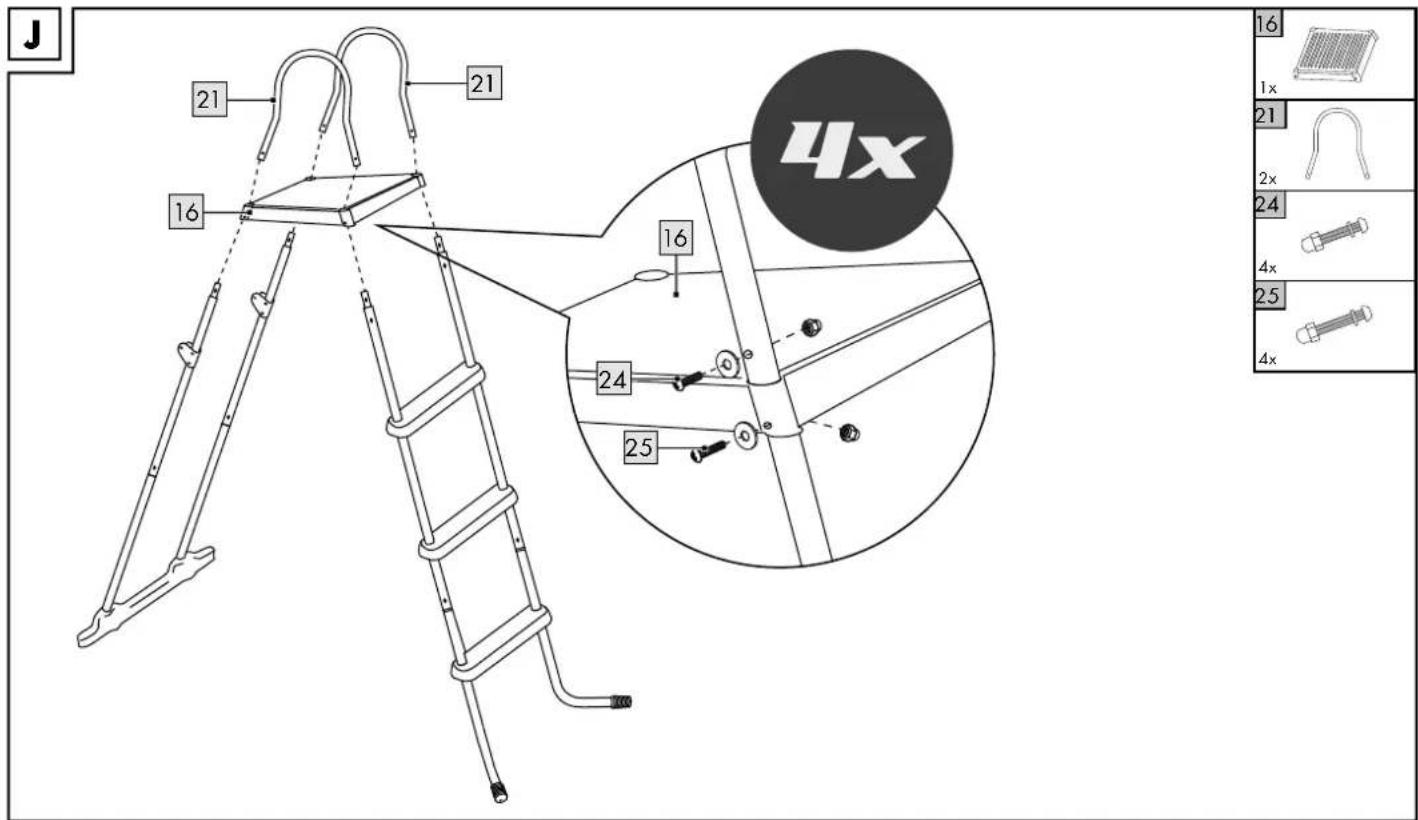

J 21 21 16 16 24 25 4x 4x 21 21 2x 24 4x 25 4x 16 1x

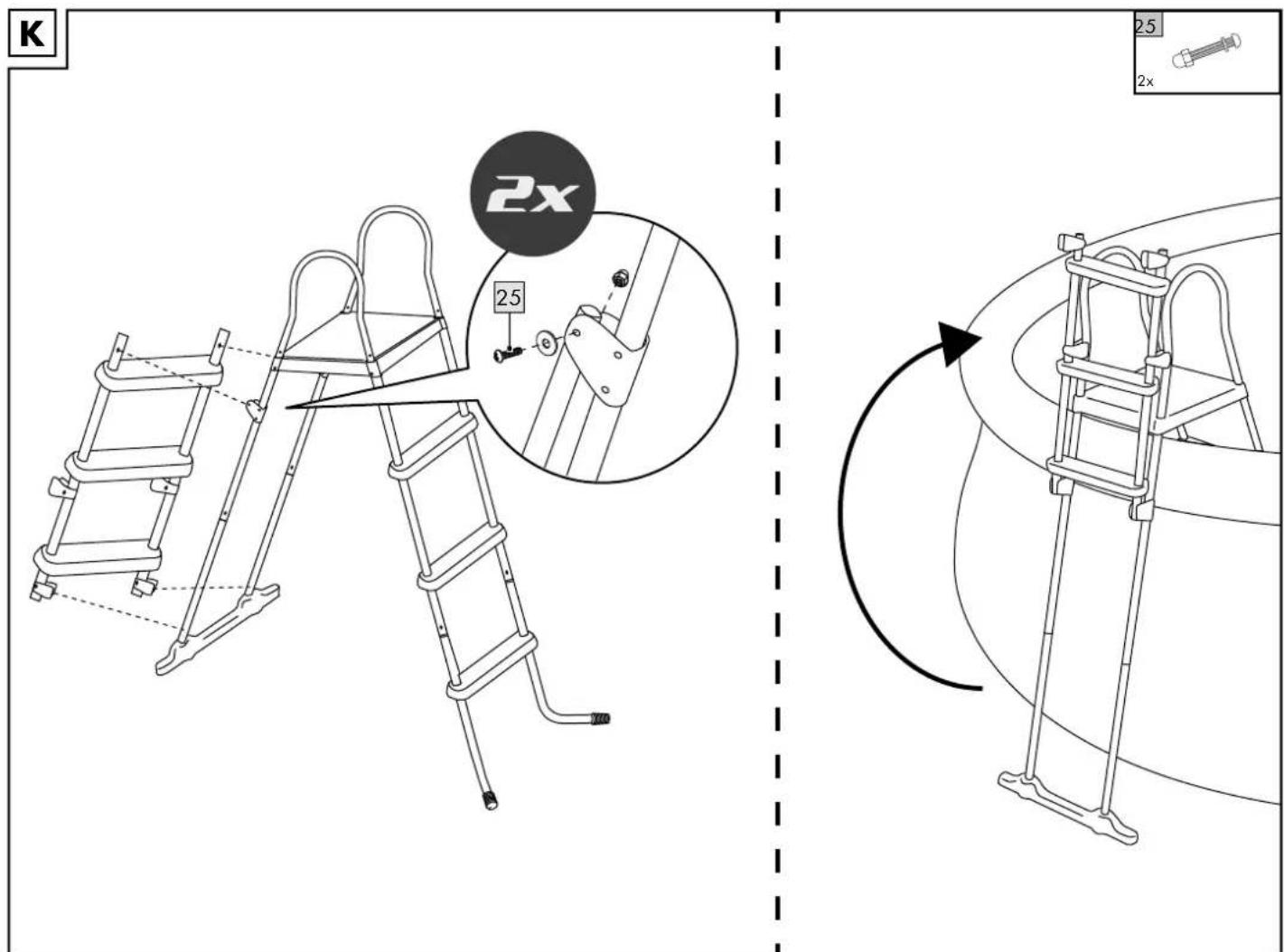

K 2x 2.5 2.5 2x

L

Line drawing of a bathtub with a ladder, water-filled basin, and medical equipment (no text or symbols)

M

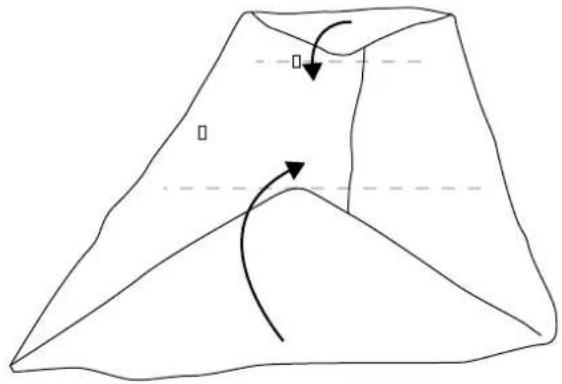

Abstract diagram of a closed loop with curved arrows indicating rotational or directional flow (no text or symbols)

Simple line drawing of a folded garment with curved lines and arrows indicating direction (no text or symbols)

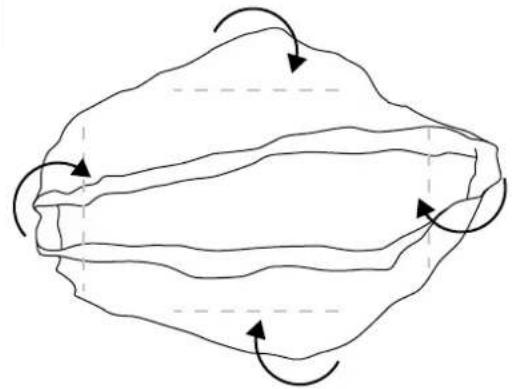

Diagram showing curved arrows on a grid-like surface with dashed centerlines (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow indicating rotation or flow, no text or symbols present.

Simple line drawing of a rolled-up fabric or scroll (no text or symbols)

DE AT CH

WICHTIG, FÜR SPÄTERE BEZUGNAHME AUFBEWAHREN: SORGFÄLTIG LESEN!

GB IE

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY!

FR BE

Scope of delivery (fig. A) 25

Parts list 25

Technical data 25

Intended use 25

Symbols used 25

Safety instructions 25 - 26

Safety of non-swimmers! 25

Safety features 25

Safety equipment 25

Safe use of the swimming pool 25

Risk of injury! 25

Avoiding material damage 25 - 26

Selecting a location 26

Assembling the swimming pool 26

Inflating the swimming pool 26

Filling the product with water 26 - 27

Impact of water quality 26 - 27

Assembling the pool ladder 27

Disassembling the swimming pool 27

Folding up the swimming pool (fig. M) ... 27

Care, storage, repairs, maintenance ..... 27 - 28

Care 27

Storage 27

Repairs 27-28

Maintenance 28

Disposal 28

Notes on the guarantee and

service handling 28

Discolourations and their possible causes ..... 29

Stains and their possible causes 29 - 30

Filter pump

Original operating

instructions 31 - 33, 127

Parts list 32

Technical data 32

Intended use 32

Safety information 32

Risk of electrical shock! 32

Connecting the filter pump 32 - 33

Operating the filter pump 33

Troubleshooting 33

Notes on disposal 33

Declaration of conformity 127

FR BE

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province

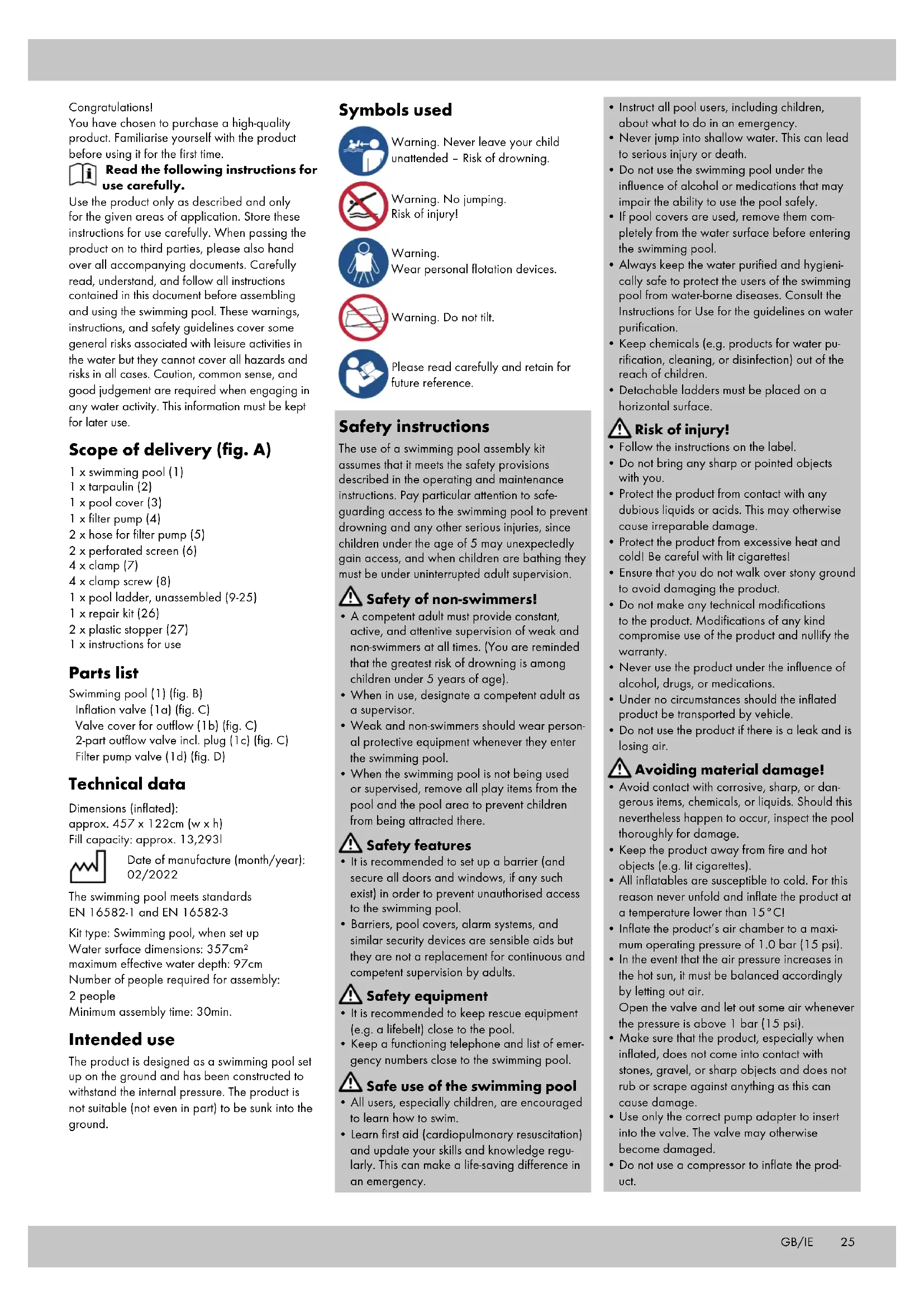

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents. Carefully read, understand, and follow all instructions contained in this document before assembling and using the swimming pool. These warnings, instructions, and safety guidelines cover some general risks associated with leisure activities in the water but they cannot cover all hazards and risks in all cases. Caution, common sense, and good judgement are required when engaging in any water activity. This information must be kept for later use.

Scope of delivery (fig. A)

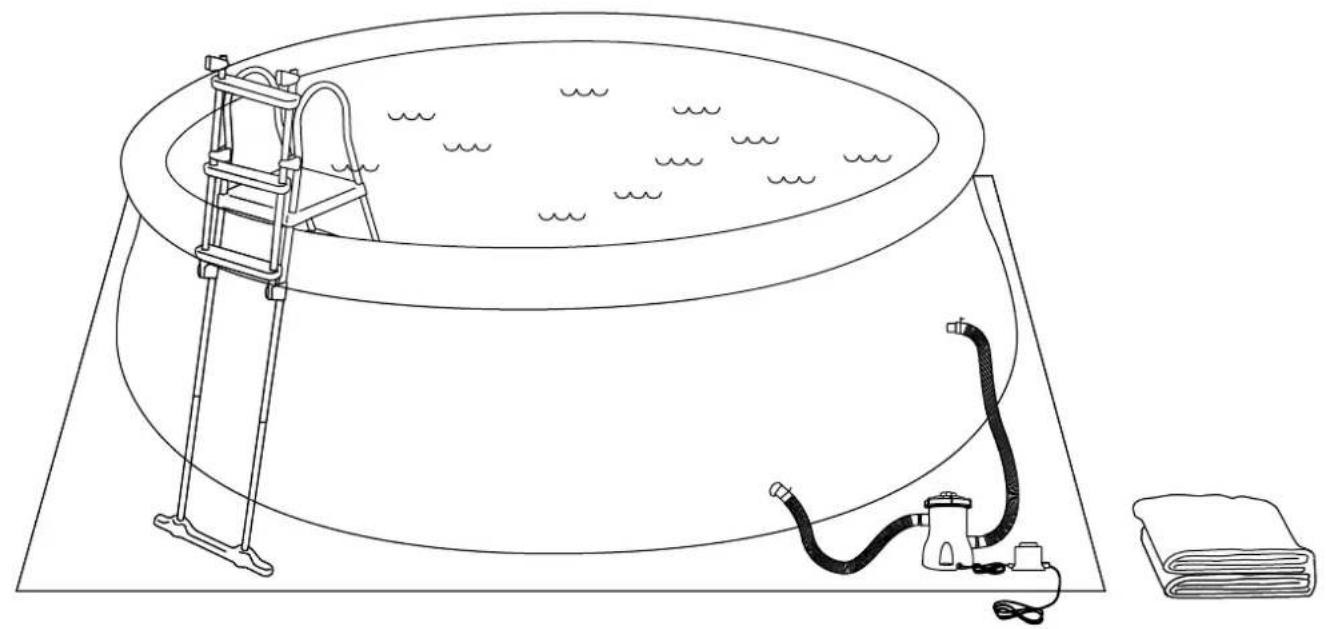

1 x swimming pool (1)
1 x tarpaulin (2)
1 x pool cover (3)
1 x filter pump (4)
2 x hose for filter pump (5)
2 x perforated screen (6)
4 x clamp (7)
4 x clamp screw (8)
1 x pool ladder, unassembled (9-25)
1 x repair kit (26)
2 x plastic stopper (27)
1 x instructions for use

Parts list

Swimming pool (1) (fig. B)

Inflation valve (1a) (fig. C)

Valve cover for outflow (1b) (fig. C)

2-part outflow valve incl. plug (1c) (fig. C)

Filter pump valve (1d) (fig. D)

Technical data

Dimensions (inflated):

approx. 457 x 122cm (w x h)

Fill capacity: approx. 13,293

Date of manufacture (month/year): 02/2022

The swimming pool meets standards EN 16582-1 and EN 16582-3

Kit type: Swimming pool, when set up

Water surface dimensions: 357cm²

maximum effective water depth: 97cm

Number of people required for assembly:

2 people

Minimum assembly time: 30min.

Intended use

The product is designed as a swimming pool set up on the ground and has been constructed to withstand the internal pressure. The product is not suitable (not even in part) to be sunk into the ground.

Symbols used

Warning. Never leave your child unattended - Risk of drowning.

Warning. No jumping. Risk of injury!

Warning. Wear personal flotation devices.

Warning. Do not tilt.

Please read carefully and retain for future reference.

Safety instructions

The use of a swimming pool assembly kit assumes that it meets the safety provisions described in the operating and maintenance instructions. Pay particular attention to safeguarding access to the swimming pool to prevent drowning and any other serious injuries, since children under the age of 5 may unexpectedly gain access, and when children are bathing they must be under uninterrupted adult supervision.

Safety of non-swimmers!

• A competent adult must provide constant, active, and attentive supervision of weak and non-swimmers at all times. (You are reminded that the greatest risk of drowning is among children under 5 years of age).
• When in use, designate a competent adult as a supervisor.
• Weak and non-swimmers should wear personal protective equipment whenever they enter the swimming pool.
• When the swimming pool is not being used or supervised, remove all play items from the pool and the pool area to prevent children from being attracted there.

Safety features

• It is recommended to set up a barrier (and secure all doors and windows, if any such exist) in order to prevent unauthorised access to the swimming pool.
• Barriers, pool covers, alarm systems, and similar security devices are sensible aids but they are not a replacement for continuous and competent supervision by adults.

Safety equipment

• It is recommended to keep rescue equipment (e.g. a lifebelt) close to the pool.
• Keep a functioning telephone and list of emergency numbers close to the swimming pool.

Safe use of the swimming pool

• All users, especially children, are encouraged to learn how to swim.

• Learn first aid (cardiopulmonary resuscitation) and update your skills and knowledge regularly. This can make a life-saving difference in an emergency.

• Instruct all pool users, including children, about what to do in an emergency.

• Never jump into shallow water. This can lead to serious injury or death.
• Do not use the swimming pool under the influence of alcohol or medications that may impair the ability to use the pool safely.
• If pool covers are used, remove them completely from the water surface before entering the swimming pool.
  • Always keep the water purified and hygienically safe to protect the users of the swimming pool from water-borne diseases. Consult the Instructions for Use for the guidelines on water purification.
• Keep chemicals (e.g. products for water purification, cleaning, or disinfection) out of the reach of children.
• Detachable ladders must be placed on a horizontal surface.

Risk of injury!

• Follow the instructions on the label.
• Do not bring any sharp or pointed objects with you.
• Protect the product from contact with any dubious liquids or acids. This may otherwise cause irreparable damage.
• Protect the product from excessive heat and cold! Be careful with lit cigarettes!
• Ensure that you do not walk over stony ground to avoid damaging the product.
• Do not make any technical modifications to the product. Modifications of any kind compromise use of the product and nullify the warranty.
• Never use the product under the influence of alcohol, drugs, or medications.
• Under no circumstances should the inflated product be transported by vehicle.
• Do not use the product if there is a leak and is losing air.

Avoiding material damage!

• Avoid contact with corrosive, sharp, or dangerous items, chemicals, or liquids. Should this nevertheless happen to occur, inspect the pool thoroughly for damage.
• Keep the product away from fire and hot objects (e.g. lit cigarettes).
• All inflatables are susceptible to cold. For this reason never unfold and inflate the product at a temperature lower than 15^ !
• Inflate the product's air chamber to a maximum operating pressure of 1.0 bar (15 psi).
• In the event that the air pressure increases in the hot sun, it must be balanced accordingly by letting out air.
  Open the valve and let out some air whenever the pressure is above 1 bar (15 psi).

- Make sure that the product, especially when inflated, does not come into contact with stones, gravel, or sharp objects and does not rub or scrape against anything as this can cause damage.

- Use only the correct pump adapter to insert into the valve. The valve may otherwise become damaged.

- Do not use a compressor to inflate the product.

• Do not over-inflate because you then risk tearing open the welded seams. Close the valve properly after inflating.
• Check the product for damage or wear before each use. The product may be used only when in good working order and condition!

Selecting a location

WARNING. When placed on uneven surfaces, swimming pools tend to leak, deform, or collapse, leading to material damage or serious bodily harm to those who are in or around the pool!

WARNING. Personal injury hazard! Do not use sand when setting up. If the use of an "aid for levelling" is needed, it is highly likely your set-up location is unsuitable.

WARNING! Select your set-up location carefully because grass and other desirable plants growing underneath the product will die. In addition, be sure not to install the product on surfaces on which vigorous plants and weeds frequently grow because both can pierce through the product.

WARNING! The swimming pool must be within reach of a 230-240-volt mains connection protected by a circuit breaker operated by residual current (FI circuit breaker). The product must be set up at a minimum distance of 2 metres from the power source but no further than the length of the filter pump cord. Under no circumstances may an extension cable be used to extend the range for connection.

Comply with the following instructions before you set the product up.

1. Select a suitable surface that is firm, flat (no humps or mounds), and completely level. There may not be a slope of more than 3^ at any point on the set-up site.
2. Make sure that the site is free from branches, stones, sharp-edged and other foreign objects so that the product does not become damaged.
3. Select a location where the product will not be beneath power cables or trees. Take care also that there are no underground pipes, supply lines, or cables on the site.
4. Insofar as possible, select a location where your product will be in direct sunlight. This will heat up the water in the pool.

Assembling the swimming pool

At least two people should assemble the product. You will need around 30 minutes just for the assembly, not including site preparation and filling up with water. Contact the Service Hotline if you have any questions or need assistance with the assembly.

Follow the individual assembly steps in the order indicated.

1. Select a smooth and clean surface with enough space to unpack the product. Check that all individual parts are present and in good order and condition.

2. First lay out the tarpaulin (2) on the site selected for the pool (fig. B).

3. When assembling the product for the second and subsequent times, you should inspect it for any possible damage, holes, and tears, and these should be sealed as described later.

4. It is recommended that you do not fill the swimming pool with groundwater, water obtained from drilling, or from wells: typically, such water contains organic substances contaminated with nitrates and phosphates. You are advised to fill the swimming pool with water from the public drinking water supply.

Inflating the swimming pool

WARNING!

• Avoid inflating the air chambers too much because there is the risk of over-stretching the welded seams and even tearing them open.
• The operating pressure may increase in the sun. Balance out the operating pressure by letting out the air from the swimming pool.
• Use standard commercial foot pumps or double-stroke piston pumps with matching adapter attachments and pressure gauge to inflate the swimming pool.
• Do not use a compressor or compressed air bottle to inflate the swimming pool. This can cause damage.
  • Always fully inflate the swimming pool.
• Do not inflate the pool next to pointed or sharp objects or on rough or pebbly ground.
  • Always inflate the air chamber fully.

IMPORTANT!

• Only open the valve to inflate and to let out air. It may otherwise become contaminated.
• The area around the valve must always be clean and dry.
• Make sure that no sand or other contaminants get into the valve.

Important!

- The optimal operating pressure for the air chamber is 1 bar (15 psi).

1. Open the valve seal (1a) (fig. C).
2. Inflate the air chamber until the product is sufficiently firm. Make sure that the air chamber is positioned centrally over the swimming pool.

Note: The air chamber must feel firm to the touch but still give when pressed gently with the thumb. Do not inflate the air chamber too tightly, as it might burst or the seams could become damaged.

1. Close back the valve outlet.

Filling the product with water

WARNING. If more than 2.5-5cm of water collects on one side before the middle has filled up, the swimming pool is standing unevenly and has to be positioned correctly. To do this, pull the outflow plug (1c) out and let the water drain off completely. Disassemble the swimming pool and erect it at a different, even location.

1. Close the outflow plug (1c), screw the valve cover (1b) onto the outflow valve (fig. C), and close the filter pump valves (1d) with the plastic stoppers (27) on the inside of the swimming pool. Fill the product with water slowly. Do not leave the product unattended while filling.

Note: Fill the product fully up to the printed marking shown. The swimming pool automatically straightens up with the volume of water.

1. Once 2.5cm of water is spread uniformly over the floor of the swimming pool, smooth out the floor. Pull out the outer wall from the upper edge all around the floor of the pool.

Impact of water quality

To keep the coating performing efficiently, and for aesthetic considerations, appropriate treatment procedures and/or recommendations of the pool manufacturer should be applied in a timely manner. It is essential that you read the manufacturer's product instructions and instructions for use before application in order to check that they are compatible with the top layer of the polyester skin. These products and procedures must correspond to the recommendations made herein.

Although the water used for filling generally comes from the public drinking water network, it can also come from a drill hole, tank, or well. In such case, a regular analysis of the water, including physical-chemical analysis, is vital in order to verify the possible presence of any metals (iron, copper, manganese) that may have a negative impact on the top layer, as there is a risk that colour stains will form due to metal sulphides. An analysis is the basis for the approaches required in order to ensure good quality of water for bathing as well as stability of the top layer. This quality analysis of the filling water must be assessed and approved by the swimming pool manufacturer.

However, the tartaric stabilisation and/or the formation of metals must be avoided. It is recommended to use calcium sequestering agents (lime scale remover or descaler) and sequestering agents for metal ions for this purpose.

WARNING. Calcium sequestering agents (lime scale remover or descaler) and sequestering agents for metal ions often contain phosphorus or phosphorous bonding agents that can cause or promote the growth of algae and/or can have an influence on measurements (of free chlorine, redox potential) with online devices. For this reason, when measuring with online systems, preference should be given to ion exchangers and/or metal filters in the water line (before water runs into the pool).

The use of products and/or treatment processes must be validated by a professional, since irreversible damage could occur to the surface layer in particular combinations.

When disinfecting with the aid of products based on stabilised chlorine or of stabilisers only, the dosage recommended by the manufacturer (which should be in accordance with "EN 16713-3") must be applied. Renewing water after a purifier/purge filter must make it possible to prevent a concentration of cyanuric acid of more than 75mg/l.

Otherwise a reduction of (at least) 30% in the swimming pool volume is required so as not to damage the surface layer.

Follow the instructions provided by the manufacturer for winter storage. No shock disinfection may be performed shortly before covering up the swimming pool because within 8 hours of disinfecting there is a risk of chemical damage to the coating of the swimming pool.

Assembling the pool ladder

Assemble the pool ladder as shown in figs. F-K.

Disassembling the swimming pool

WARNING. When draining the water make sure that there are no children downstream and opposite the outflow. The water flow might carry the children away with it.

To store the product at season's end or for a lengthy period of non-use, proceed as follows:

1. Disconnect the filter pump (4) from the power source.

2. Connect your garden hose with the hose adapter, open the outflow plug (1c), and place the other end of the hose where the water can drain off harmlessly.

Note: Please follow the local regulations regarding specific requirements for disposing of water from swimming pools.

1. Disconnect the hoses of the filter pump (5) from the swimming pool.
2. Open the valve (1a) to let the air escape. Let the swimming pool dry out completely, preferably in the sun, before folding it up.
3. Close all valves before folding up the swimming pool.

Folding up the swimming pool (fig. M)

1. Fold the protruding sides inwards to form a rectangular shape.
2. Fold each half of the rectangle inwards to make a smaller rectangle.
3. Fold the ends backwards.
4. Coil the product up into a small rectangle.

Care, storage, repairs, maintenance

Care

WARNING!

Do not use aggressive cleaning agents, brushes with metal bristles, or sharp-edged or metallic objects such as knives. Use only mild detergent.

WARNING. The purpose of the filter pump (4) included in delivery is to remove dirt and small particles from the water. However a consistent chemical water treatment is required for clean water free of algae and harmful bacteria. Ask a specialist retailer about materials to use, such as chlorine, shock treatments, algaecides, and other chemicals.

WARNING. Never add chemicals to the swimming pool when people are in it. This can cause skin and eye irritations! Never add chemicals or substances to the swimming pool if you cannot verify their correct use. Ask a specialist retailer regarding what chemicals to use, their guidelines and instructions.

WARNING. Swimming pool owners are required to test the water regularly to determine the pH and chlorine levels in the water and to make adjustments when necessary. Ask a specialist retailer about suitable test kits and their instructions for use.

WARNING. Failure to comply with these maintenance instructions can seriously endanger the health of bathers, especially that of children.

For as long as you are using the swimming pool its filter system should be in operation long enough each day for the total water volume to be recycled completely at least once (approx. 4-5 hours).

In order to guarantee the adequate cleanliness and hygiene of the water in the swimming pool throughout the whole season, comply with the following instructions:

1. Correct and continuous use of basic chemical products for swimming pools is required in order to maintain an appropriate pH level in the water of the swimming pool. Moreover, the use of such chemicals prevents the growth of harmful bacteria and algae in the water and supports the filter pump in keeping your water clean. The following chemicals are suitable for your swimming pool:

2. Chlorine in the form of tablets, granules, or liquid: Disinfects the water of the pool and prevents the growth of algae.
   • Chemicals that control the pH level: Serve to correct the pH level and make the water either more or less acidic.

3. Algaecides: Are used to destroy algae.
4. "Shock treatment" (super-chlorination): Eliminates specific organic and other combined compounds that affect the clarity of the water.

Ask a specialist retailer about the specific use of chemicals. State the nominal filled volume of your swimming pool and give them a water sample, if requested. They can best advise you regarding suitable chemicals, suitable amounts, and effective use.

1. Chlorine may never come into direct contact with the cladding of the swimming pool until it has first completely dissolved. Chlorine in the form of tablets or granules must first be dissolved in advance in a bucket filled with water before it is added to the water of the swimming pool.

Liquid chlorine must be added to the pool water slowly and uniformly over various areas.

Danger! Never pour water onto chemicals. Add the chemicals to the water. Never mix separate chemicals. Add them to the water separately so that the first chemical has dissolved completely and spread before you add the second.

1. When temperatures are high, clean the swimming pool several times each week to limit algae formation manually. Ask a specialist retailer about what cleaning agents to use, e.g. pool-floor suction cleaners, nets, brushes, etc.

2. Ask a specialist retailer about purchasing a test kit to check the pH level. Note: An excessive concentration of chlorine, as well as low (acidic) pH levels, can damage the swimming pool cladding and immediate remedial steps are required if the test result indicates either of these two conditions.

3. Inspect the filter pump cartridge every two weeks (or more frequently if the swimming pool is used frequently). Clean or replace it when necessary, e.g. If it is no longer white. Initially, it can be hosed down with a water hose. If it is still no longer white, it must be replaced.
   Checking regularly maintains the effectiveness of the filter pump.
4. Whenever the swimming pool has water in it, make sure that it does not overflow by accident because of rain or for some other reason. Otherwise, the swimming pool may become damaged. Reduce the water level immediately.

Storage

WARNING!

If the product is stored improperly, there is the risk of mildew forming.

If you live in a climate zone in which the swimming pool is not used throughout the year, it is very strongly recommended to drain out the water, clean it thoroughly, let it dry, and store it in a protected location outside the season.

• Store the product in a clean, well-ventilated, and dry place away from direct sunlight where it is not exposed to wide variations in temperature.
• Store the product in a location that is inaccessible to children and securely locked.
• Do not place any heavy or sharp-edged objects on the product.
• Inspect the product after lengthy storage for signs of wear or ageing.

Repairs

WARNING!

Check the swimming pool for loss of pressure, holes, and tears before use each time.

If the swimming pool is losing air, this may be because of a leak on the valve, a defective valve, or a leak in the swimming pool.

When there is more serious damage do not perform repairs yourself under any circumstances. You can repair minor damage with the repair kit (26) supplied.

Leaks

Use only appropriate adhesives to repair leaks on the swimming pool (1). Repairs made with unsuitable adhesives can lead to further damage!

You can obtain suitable adhesives from a specialist retailer.

Note: You can repair small areas (smaller than 2mm) with the adhesive just by applying the adhesive directly to the area. For larger areas (more than 2mm) proceed as follows:

1. Let the air out of the pool (1) completely.
2. Clean the area for repair thoroughly.

3. Dry the cleaned area.

4. Take one of the patches and trim a piece that covers the damaged area and overlaps by 1.5cm on all sides.

5. Press the patch down firmly on the leak area with a soft object. Be sure to work on an even surface without wrinkles or folds. Gently remove any air bubbles with a rounded object, working from the inside towards the outside.
6. Allow the patch to dry for at least 12 hours after repair.

Important: Check that the repaired area is waterproof before you fill the swimming pool with water after repair. When there is very serious damage do not perform repairs yourself under any circumstances. Take the swimming pool to a specialist workshop for repair.

Maintenance

The owner is primarily responsible for the maintenance of the swimming pool and the accessories.

Swimming pool

The following should be avoided:

- direct contact with the surface of the top layer by, or overdoses of, water treatment agents other than those indicated in EN 16713-3 (since this can lead to irreversible discolouration);

- mechanical impacts (e.g. falling blunt objects such as sunshades, garden chairs, diving equipment, etc.) can cause impressions or deep scratches on the top layer;

- unusual rubbing together of two surfaces;

- contact over a long period of oxidisable metal objects or organic materials with the top layer. The water line is particularly susceptible to deposits such as lime, metals, or other greasy products (sun lotion) that may be deposited on the top layer. Regular maintenance of the water line is recommended to prevent these deposits getting inside the top layer and making cleaning impossible.

Regular and careful maintenance should be performed using appropriate products that do not scour and are compatible with the top layer. Never use cleaning products that are not intended for swimming pools (household cleaners) and/or abrasive cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol – which

is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the Assembly instructions were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 388676_2107

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

Discolourations and their possible causes

Despite using high-performance materials and taking into consideration all of the aforementioned precautions, unusual stains may appear because of ageing. It is important to remember that the top layer gradually becomes discoloured because of ageing and the effects of UV rays.

The following may cause accelerated discolouration:

- use of unsuitable products and procedures for water preparation that do not match the manufacturer's recommendations;

- excessive mechanical impact (tidal swimming pools, floating layers of ice, automatic cleaners, and brushes, etc.);

- high water temperature;

- impact of the materials and the manufacturing process.

Sometimes a slight difference in colour appears between the areas that are immersed in the water and the areas that lie above the surface of the water.

This is quite normal.

Stains and their possible causes

Because of the many influencing factors, such as those mentioned above, it is extremely difficult to determine what causes stains. Stains that occur above the waterline are rarely deep in the top layer.

The following table shows the possible causes of stains once the swimming pool is in normal operation. To find the possible causes a sensible approach is to implement the measures described in the following record sheet: If these are unsuccessful, possible influences of the manufacturing process may be involved.

Types of stain Possible cause Possible solution
Whitish stains on the floor of the swimming pool.	Wrong water preparation Stains are irreversible and cannot be repaired.
	Decomposition of organic substances (humus, twigs, leaves) that are in direct contact with the top layer. The effect is more considerable when there has been contact over a longer period of time.
Whitish stains on the floor of the swimming pool and on the walls.	Excessive concentration of chemical products. Stains are irreversible and cannot be remedied.
Whitish stains at the waterline	Lime scale deposits These deposits can be prevented by using calcium sequestering agents and by maintaining the pH level balance.Cleaning is possible before placement by using a suitable product, solvent-free and non-abrasive, while taking care not to scratch the layer.Control the water hardness regularly to reduce this effect e.g. with a pre-installed ion exchanger.
	unsuitable chemicals and/or abrasives Irreversible and untreated milky or bleached areas
	Presence of algae
	Decomposition of organic substances (leaves, dirt, vegetation)	This can be prevented by regular maintenance of the swimming pool (cleaning).
	Use of copper sulphate in pure or mixed form and application of the Cu/Ag process	Irreversible. These products are not allowed in this type of swimming pool.
	unintentional presence of oxidisable metal parts (metal deposits ...)
		Earthing ^a the swimming pool: Earthing the water in the swimming pool can reduce this effect. Earthing must be via a different ground rod than the one for the security of the house. This functional earthing will merely permit leakage currents to be dissipated so as to limit the electrical charge of the pool water.
	Migration of metal through the top layer (cobalt-based gel layer)
	Presence of metal ions (copper, iron, manganese ...) in excessive concentrations and dark, insoluble metal sulphides	The use of metal ion sequestering agents is recommended to prevent high concentrations of metal ions that may contribute towards the formation of permanent staining on the top layer of the swimming pool. ^b
	Suntan lotions and cosmetics that float on the surface of the water, combustion of hydrocarbons from wood or charcoal fire, car exhausts, aeroplane exhausts, or any other pollution from the immediate vicinity or more distant surroundings of the swimming pool.
Green stains Since they are organic in origin, these stains only occur when living organisms are present (algae, fungi, etc.) and may be related to a significant disturbance in the balance of the water preparation.		See operating instructions and tips of the swimming pool manufacturer, for the filter unit or chemicals.
Pink stains These are generally found on seal parts and caused by bacteria that grow on components of these plastic parts and may be related to the water preparation. If PHMB is used for disinfection in the presence of copper, there is a risk of pink stains forming.
Yellow stains These are generally found on seal parts and caused by bacteria that grow on components of these plastic parts and may be related to the water preparation. If PHMB is used for disinfection in the presence of copper, there is a risk of pink stains forming.

FILTER PUMP

GB MT

FILTER PUMP

Original operating instructions

Parts list

Filter pump (4) (fig. E)

Air release valve (4a)

Sealing ring for air release valve (4b)

Filter housing cover holder (4c)

Filter housing cover (4d)

Filter pump cartridge (4e)

Filter housing rubber seal (4f)

Mains cord (4g)

Inlet (4h)

Outlet (4i)

O-ring (4j)

Filter housing (4k)

Hose for filter pump (5) (fig. D)

Perforated screen (6) (fig. D)

Clamp (7) (fig. D)

Clamp screw (8) (fig. D)

Plastic stopper (27) (fig. D)

Technical data

Use only this pump for this swimming pool.

Model: 53013A, 12V, 50Hz, 70W,

Maximum, IPX7

Flow rate: 3028 l/h

Pump power-supply unit:

Stermay HT-53013A-1

IP 65

Plug IP 44

Primary: 230-240V \~ 50 Hz

Secondary: 12V-AC, 8000 mAh, 96VA, 0.98 PF

□ = Protection Level II

Manufacturer: DongGuan Huatao Metal&Plastic Products Co., Ltd.

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province Importer: DELTA-SPORT Handelskontor GmbH Wragekamp 6, 22397 Hamburg

Germany

Intended use

The filter pump is used to keep the water clean and may be connected only to those swimming pools for which it is intended. The swimming pool and the filter pump have been developed for private leisure use.

Safety instructions

- This product can be used by children above the age of 8 and by people with reduced physical, sensory, or mental capacities or by those lacking experience and knowledge provided they are supervised or have been instructed in the safe use of the product and understand the risks involved. Children may not play with the product. Cleaning and user maintenance may not be performed by children without supervision.

- WARNING. Use only the 53013A pump included in delivery and supplied by the manufacturer: DongGuan Huatao Metal&Plastic Products Co., Ltd.

- WARNING. Inspect all clamps and accessories before starting the pump.

- WARNING. Do not bury the power supply cord. Place the power supply cord where it cannot be damaged by lawnmowers, hedge trimmers or other devices.

- WARNING. Do not use the filter pump to empty the pool. The pump may be used only on an erectable pool, not on one that has been sunk into the ground.

- WARNING. Power supply cord and input cable are not interchangeable. Should the power supply cord or the input cable become damaged, the power supply unit or pump must be disposed of.

- WARNING. Pump and adapter may not be installed at locations where they may be subject to flooding or where there is no suitable power outlet available.

- WARNING. Make sure that the external power outlet is protected with a residual-current-operated circuit breaker (FI/RCD) with a maximum trip current of 30 mA.

- WARNING. The filter pump must be attached to a stable base with screws before it is switched on.

- WARNING. Take care that the filter pump motor does not overheat. Ensure that the pump is always full of water so that it does not operate when empty. Incorrect use can lead to overheating and subsequent damage due to the motor burning out.

- WARNING. If air remains in the system, this makes the pump work faster and leads to damage. Open the air release valve (4a) slightly to allow all air to escape from the hose and from the filter pump.

- WARNING. The pump must be supplied via a residual-current-operated protective device with a rated differential current of not more than 30 mA.

• WARNING. The power-supply unit should be installed at least 2m away from the swimming pool. The mains plug should be located 3.5m away from the pool.
• WARNING. The pump should be firmly anchored to the ground to prevent it from possibly tipping over. Ask a specialist retailer regarding what screws or bolts to use.

Risk of electrical shock!

Defective electrical installation or too high a mains current can lead to electrical shocks. Connect the pump only to an easily accessible power plug so that you can quickly disconnect it from the mains supply in case of a failure.

• Connect the pump only to a correctly installed shock-proof socket and then only if the supply voltage of the socket matches the information on the product label.
• The pump may not be used when people are in the water.
• Do not operate the pump if it shows visible signs of damage or if the mains cord and/or power plug is defective.
• If the mains cord to the pump is damaged, the pump must be disposed of.
• Do not open the housing. Entrust repairs to professionals. Contact a specialist workshop. In the event of repairs being made independently (by the owner or by a third party) improper connections, or incorrect operation, liability and warranty claims are excluded.
• Only parts matching the original equipment data can be used in repairs.
• This pump contains electrical and mechanical parts that are indispensable to protect against potential hazards.
• Do not immerse the pump, mains cord, or power plug in water or other fluids.
• Never touch the power plug with wet hands.
• Never pull the power plug out of the socket by the mains cord; always hold the power plug instead.
• Never use the mains cord to carry the product.
• Keep the pump, power plug, and mains cord away from open flame and hot surfaces.
• Place the mains cord so that no one can trip over it.

Connecting the filter pump

1. Assemble the swimming pool completely and fill it with water.
2. Remove all parts of the filter pump (4) and hoses (5) from the packaging.
3. Set up the filter pump so that it stands 20cm to 1m below the water level of the swimming pool.

Note: The filter pump must be mounted on an even and stable base. On the bottom of the filter pump there are drill holes for appropriate assembly materials (not included in delivery).

1. Place the filter pump cartridge (4e) in the filter housing (4k) (fig. E). Ensure that the filter cassette is located fully in the filter housing.
2. Place the filter housing rubber seal (4f) on the filter housing (fig. E).

3. Place the filter housing cover (4d) on the filter housing (fig. E).

4. Tighten the filter housing cover by turning clockwise.

5. Connect the first hose of the filter pump (5) to the inlet (4h) of the filter pump with the aid of the clamp (7) and the clamp screw (8) (fig. D).
6. Connect the other end of the hose to the swimming pool's lower hose connection (1d) (fig. D).
7. Turn the air release valve (4a) slowly one to two rotations anticlockwise.
8. Connect the second hose to the swimming pool's upper hose connection (1d) and to the outlet (4i) of the filter pump.

Operating the filter pump

1. Make sure that the swimming pool (1) is completely full of water and that the filter pump (4) has been set up at a suitable location.
2. Remove the plastic stopper (27) from the filter pump valve (1d) on the inside of the swimming pool (fig. D).
3. When water flows into the filter pump, trapped air is able to escape via the air release valve (4a).
4. Then close the air release valve slowly by turning clockwise.
5. Connect the mains cord (4g) to a suitable power outlet and let the filter pump run until the water is sufficiently clean.

Repairs, maintenance

Before each maintenance disconnect the power supply from the filter pump (4).

Do not place the filter pump in tall grass as this may lead to overheating.

Should you detect any damage to or defects in the filter pump, take it to a specialist workshop for repair or else replace it with a new one. Do not make any technical modifications to the product.

Do not use solvents to clean the filter pump.

1. Disconnect the mains cord (4g) from the power supply completely.
2. Detach the filter housing cover (4d) and its cover holder (4c) by turning it anticlockwise.
3. Clean the filter pump cartridge (4e) and if need be replace it with a new one.
4. Check the inside of the filter housing (4k). If there are dirt or deposits inside, rinse them out with clear water.
5. Reassemble all parts and plug in the mains cord again.

Troubleshooting

1. The filter pump does not work.

2. Check for burnt or tripped fuses; check for loose electrical wiring.

3. Inspect the motor. If the motor is overheated or overloaded, switch the device off. Let the motor cool down.

4. Consult a specialist.

5. The motor runs but little or no water is being pumped.

- Check for blockages in the inlet or outlet hose inside the pool walls.

- Tighten the hose clamps, inspect the hose for damage, and check the water level in the pool.

• Clean the filter cartridge more frequently. Use a garden hose for this.
• Replace the filter cartridge.

• Consult a specialist.

• The filter pump no longer draws water.

• Make sure that the water level in the pool with the pump switched off is at least 5cm above the suction port.

• Make sure that the suction hose is in good order and condition.
• Check the filter cartridge for dirt. Clean if necessary. Use a garden hose for this.

• Consult a specialist.

• The filter pump is not cleaning the water.

• Set correct chlorine content and pH value.

• Replace or clean the filter cartridge. Use a garden hose for this.
• Check the filter cartridge for damage and replace it if necessary.
• Run the pump for a good while.
• Remove dirt from the screens on the pool wall.
• Consult a specialist.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished with it, but rather take it to a specialty

disposal facility. Find out about collection sites and their hours of operation from your local authority.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a)

and numbers (b) with the following meaning:

1-7: plastics/20-22: paper and cardboard/80-98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Félicitations !

No. 2 Yan He Road, Xia Bian Avenue, Chang

An Town, DongGuan City, GuangDong Province

Veiligheidsuitrusting

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province

Producent: DongGuan Huatao Metal&Plastic Products Co., Ltd.

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province Importér: DELTA-SPORT Handelskontor GmbH

Wragekamp 6, 22397 Hamburg

Germany

No. 2 Yan He Road, Xia Bian Avenue, Chang

An Town, DongGuan City, GuangDong Province

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province Importador: DELTA-SPORT Handelskontor GmbH

Volumen: ca. 13.293 |

Fremstillingsdato (måned/år): 02/2022

Producent: DongGuan Huatao Metal&Plastic Products Co., Ltd.

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province Importer: DELTA-SPORT Handelskontor GmbH Wragekamp 6, 22397 Hamborg Tyskland

Tilsigtet brug

Volume: circa 13.293 l

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province Importatore: DELTA-SPORT Handelskontor GmbH

Wragekamp 6, 22397 Hamburg

Germany

Utilizzo conforme

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong tartomány, Kina

No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province Uvoznik: DELTA-SPORT Handelskontor GmbH

Wragekamp 6, 22397 Hamburg

Nemčija

Namenska uporaba

and/or default street costs

www.delta-smart.com

CE Declaration of Conformity

We, the company

declare, that this declaration of conformity is issued under the sole responsibility of the manufacturer.

Article: Filter Pump

Model-No.: 53013A

The above-mentioned article(s) are in conformity with the relevant Community harmonisation legislation:

Directive / Requirement	Harmonised standards
Machinery2006/42/EG	EN60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019EN60335-2-41:2003+A1:2004+A2:2010, EN62233:2008
EMC2014/30/EU	EN55014-1:2017, EN55014-2:2015, EN61000-3-2:2019, EN61000-3-3:2013+A1:2019
RoHS 2011/65/EU	EN 62321:2009
AfPS GS 2019:01 PAK

The object of the declaration described above is in conformity with directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. The sole responsibility of issuing this declaration carries the manufacturer.

Manufactured by DongGuan Huatao Metal&Plastic Products Co., Ltd. No. 2 Yan He Road, Xia Bian Avenue, Chang An Town, DongGuan City, GuangDong Province

Hamburg, 11.11.2021, Quality Manager

Place, Date

Benjamin Struve

Name, Function

Geschäftsführung

Steflon Schröder

Philip Kohl
