USER MANUAL MultiSync FP1375X NEC

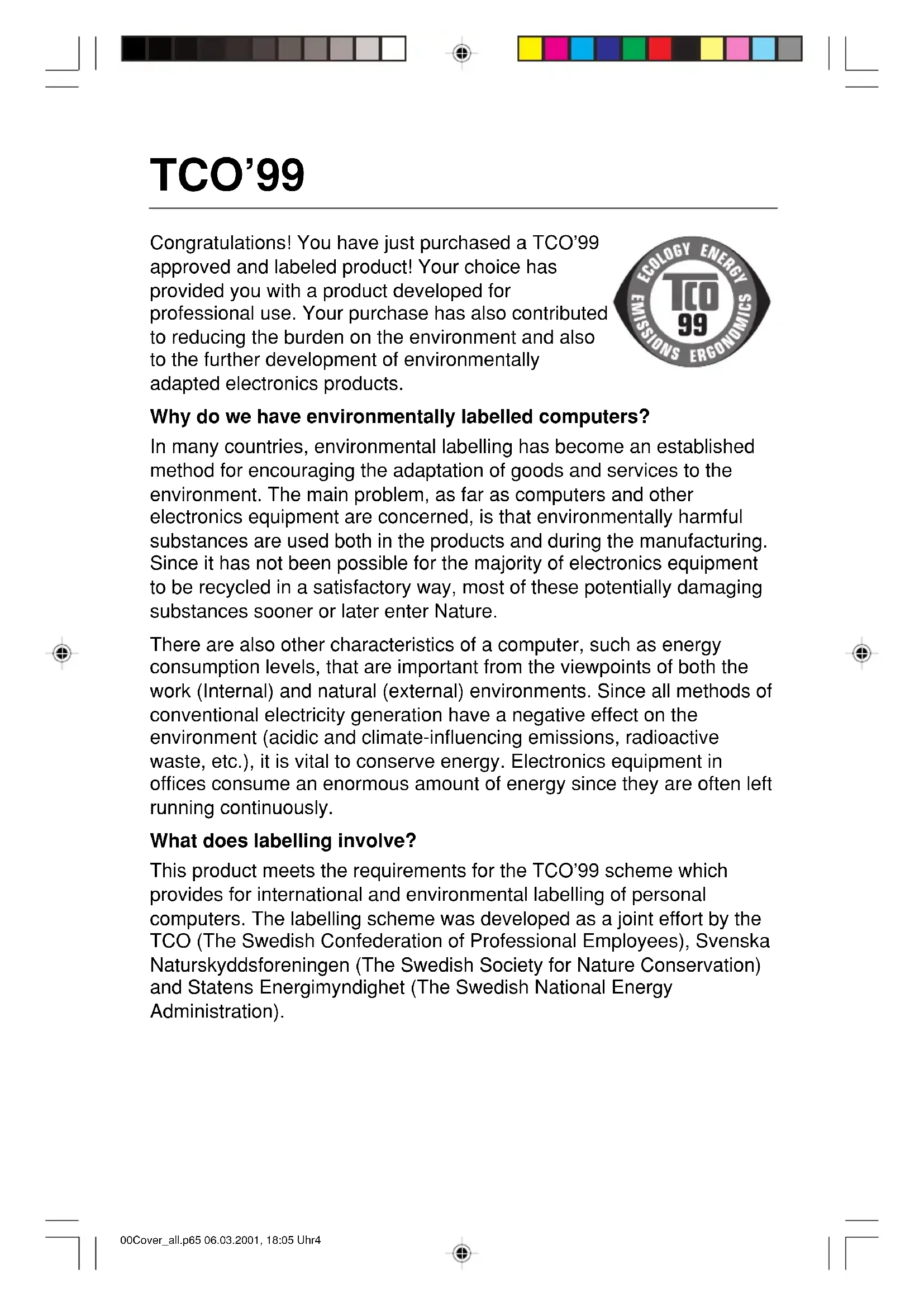

MultiSync FP1375X User’s Manual UÏivatelská pfiíruãka Bedienerhandbuch Οδηγίες Χρήσης Manual del usuario Manuel Utilisateur Manuale utente Gebruikershandleiding Podr´cznik u˝ytkownika Руководство пользователя Kullan∂c∂ Klavuzu 00Cover_all.p65 06.03.2001, 18:05 Uhr100Cover_all.p65 06.03.2001, 18:05 Uhr2Declaration Declaration of the Manufacturer We hereby certify that the colour monitor MultiSync FP1375X (NSZ3101STTUW) is in compliance with Council Directive 73/23/EEC: - EN 60950 Council Directive 89/336/EEC: - EN 55022 - EN 61000-3-2 - EN 61000-3-3 - EN 55024 and marked with NEC-Mitsubishi Electric Visual Systems Corporation 4-13-23, Shibaura, Minato-Ku Tokyo 108-0023, JAPAN 00Cover_all.p65 06.03.2001, 18:05 Uhr3TCO’99 Congratulations! You have just purchased a TCO’99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously. What does labelling involve? This product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration). 00Cover_all.p65 06.03.2001, 18:05 Uhr4The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety. The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user. Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability. Environmental Requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur. TCO’ 99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available. Lead** Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. TCO’ 99 requirement permits the inclusion of lead since no replacement has yet been developed. 00Cover_all.p65 06.03.2001, 18:05 Uhr5Cadmium** Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. TCO’ 99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium. Mercury** Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses. TCO’ 99 requirement states that batteries may not contain any Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit. CFCs (freons) CFCs (freons)are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma). The relevant TCO’ 99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.

• Bio-accumulative is defined as substances which accumulate within living organisms. ** Lead, Cadmium and Mercury are heavy metals which are Bio- accumulative. To obtain complete information on the environmental criteria document, order from: TCO Development Unit SE-114 94 Stockholm SWEDEN FAX Number: [phone] E-mail (Internet): [e-mail] You may also obtain current information on TCO’ 99 approved and labelled products by visiting their website at: http://www.tco-info.com/ 00Cover_all.p65 06.03.2001, 18:05 Uhr6English âesky Deutsch

• Video Signal Cable (VGA to DVI-A)

• Video Signal Cable (DVI-D to DVI-D)

• CD-ROM: Includes complete User’s Manual in PDF format and Windows related files (INF file and colour profile). To see the complete User’s Manual, Acrobat Reader 4.0 must be installed at your PC.

• Remember to save your original box and packing material to transport or ship the monitor. Power Cord for E.U. Video Signal Cable VGA to DVI-A User’s Manual CD-ROM USB cable Video Signal Cable DVI-D to DVI-D Power cord for U.K. 01b_english 06.03.2001, 18:05 Uhr1English-2 Quick Start To attach the MultiSync FP1375X monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. If necessary, install the display card into your system. For more

information, refer to the display card manual.

3. For the PC Analog output: Connect the VGA to DVI-A signal cable

to the connector of the display card in your system (Figure A.1). Tighten all screws. For the PC with DVI digital output: Connect the DVI-D to DVI-D signal cable to the connector of the display card in your system (Figure A.2). Tighten all screws. For the Mac: Connect the Macintosh cable adapter (not included)to the monitor connector on the Macintosh (Figure B.1). Attach the VGA end of the captive signal cable to the Macintosh cable adapter on the computer (Figure B.1). Tighten all screws. NOTE: Incorrect cable connections may result in irregular operation, damage display quality/components of CRT monitor. Figure A.1 Figure A.2 USB Cable Detachable Signal Cable (VGA to DVI-A) DVI-A VGA USB Cable Detachable Signal Cable (DVI-D to DVI-D) DVI-D DVI-D 01b_english 06.03.2001, 18:05 Uhr2English-3 English

95/98/2000/Me INF file for your MultiSync monitor can be found on the CD-ROM, delivered with the monitor.

5. Connect one end of the power cord to the MultiSync FP1375X monitor

and the other end to the power outlet (Figure C.1).

6. Turn on the monitor (Figure D.1).

7. Turn on the Computer.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual. Figure B.1 VGA Detachable Signal Cable (VGA to DVI-A) Computer Mac Adapter (not included) Figure C.1 Power Outlet Power Cord Figure D.1 Power Button DVI-A DVI-I/D-SUB Reset 01b_english 06.03.2001, 18:05 Uhr3English-4 Controls OSM (On-Screen Manager) control buttons on the front of the monitor function as follows: When OSM controls are activated, icons are displayed at the top of the menu. If an arrow (→) is displayed in a sub-menu, it indicates further choices are available. To enter a sub-menu, press PROCEED. Brightness/Contrast Controls Brightness: Adjusts the overall image and background screen brightness. Contrast: Adjusts the image brightness in relation to the background. Sub-Menu Exits to the OSM main menu. Moves the highlighted area up/down to select one of the controls. Moves the bar in the - or + direction to decrease or increase the adjustment. Only executes control or enters sub-menu. Resets all the controls within the highlighted menu to the factory setting. EXIT CONTROL ▲/▼ CONTROL -/+ PROCEED RESET Main Menu Exits the OSM menu. Moves the highlighted area up/down to select one of the controls. Moves highlighted area left/right to select one of the controls. Has no function. With OSM menu screen, reset. D-SUB/DVI-I Without OSM menu screen, push to select the signal input connector, D-SUB (VGA) or DVI-I. NOTE: When the DVI input has been changed, you must restart your computer. NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the reset function. 01b_english 06.03.2001, 18:05 Uhr4English-5 English Degauss: Eliminates the build-up of stray magnetic fields which alter the correct scan of the electron beams and affect the purity of the screen colours, focus, and convergence. When activated, your screen image will jump and waver a bit as the screen is demagnetised. Caution: Please allow a minimum of 20 minutes to elapse between uses of the Degauss function. Size and Position Controls Auto Adjust: Automatically adjust the horizontal and vertical size and position settings for applicable timings. Left/Right: Moves the image horizontally (left or right). Down/Up: Moves the image vertically (up or down). Narrow/Wide: Decreases or increases the horizontal size of the image. Short/Tall: Decreases or increases the vertical size of the image. Colour Control/Colour Control System Colour presets 1 through 5 selects the desired colour setting. The bar is replaced by the colour setting choice from 1 to 5. Each colour setting is adjusted at the factory to the stated Kelvin. If a setting is adjusted, the name of the setting will change from Kelvin to Custom. Red, Green, Blue: Colour Control System decreases or increases the monitor’s red, green or blue colour guns depending upon which is selected. The change in colour will appear on screen and the direction (decrease or increase) will be shown by the bars. sRGB Mode: sRGB mode provides the suitable colour managed picture image. You can not change Red, Green and Blue colours individually. NOTE: In this mode, Brightness and Contrast are not adjustable. Geometry Controls Geometry Controls Menu The Geometry controls allow you to adjust the curvature or angle of the sides of your display. Sides In/Out (pincushion): Decreases or increases the curvature of the sides either inward or outward. 01b_english 06.03.2001, 18:05 Uhr5English-6 Sides Left/Right (pincushion balance): Decreases or increases the curvature of the sides either to the left or right. Sides Tilt (parallelogram): Decreases or increases the tilt of the sides either to the left or right. Sides Align (trapezoidal): Decreases or increases the bottom of the screen to be the same as the top. Rotate (raster rotation): Rotates the entire display clockwise or counterclockwise. Tools 1 Moiré Canceler: Moiré is a wavy pattern which can sometimes appear on the screen. The pattern is repetitive and superimposed as rippled images. When running certain applications, the wavy pattern is more evident than in others. To reduce moiré, adjust the level by using -/+ control buttons. Basic Convergence: Aligns all three colours (R,G,B) to form a single colour (white). The purpose of this control is to ensure that a white line drawn on the screen is as crisp and clear as possible.

• Use the Horizontal control to adjust the alignment of the white lines in the up/down direction.

• Use the Vertical control to adjust the alignment of the white lines in the left/ right direction. Corner Correction: Allows you to adjust the geometry of the corners of your display – Top, Top Balance, Bottom or Bottom Balance. Linearity: This selection allows you to adjust the spacing of the area on the screen. The purpose of this control is to ensure that a one-inch circle is a true one-inch circle wherever it is on the screen. The best way to determine the vertical linearity is as follows:

• Draw equally spaced horizontal lines using a drawing application that has a ruler.

• Use the Vertical Balance control to adjust the lines near the top and bottom of your screen.

• Use the Vertical control to adjust the spacing between the lines near the center and top of your screen. 01b_english 06.03.2001, 18:05 Uhr6English-7 English GlobalSync Control: Eliminates picture impurities that may result from the earth’s magnetic field. While in the sub-menus (GLOBALSYNC, TOP LEFT, TOP RIGHT, BOTTOM LEFT or BOTTOM RIGHT), use the –/+ control buttons to fine tune the GlobalSync corrections. Note: NEC recommends that you perform GlobalSync correction while running a typical application such as a spreadsheet or text document. Auto Save: The monitor automatically saves the last settings of the user controls. Factory Preset: Selecting Factory Preset allows you a reset most OSM control settings back to the factory settings. A warning statement will appear to confirm that you do want to reset ALL settings. Individual settings can be reset by high-lighting the control to be reset and pressing the RESET button. Tools 2 Language: OSM controls menus are available in six languages. OSM Position: You can choose where you would like the OSM controls menu to appear on your screen. Selecting OSM Position allows you to manually adjust the OSM controls menu left, right, up or down. OSM Turn Off: The OSM controls menu will stay on as long as it is in use. In the OSM Turn Off sub-menu, you can select how long the monitor waits after the last touch of a button for the OSM controls menu to disappear. The preset choices are 10, 20, 30, 45, 60 and 120 seconds. OSM Lock Out: This control completely locks out access to all OSM controls functions except Brightness and Contrast. When attempting to activate OSM controls while in the lock out mode, a screen will appear indicating that OSM controls are locked out. To activate the OSM Lock Out function, press PROCEED, then press ▲ and hold down simultaneously. To deactivate the OSM Lock Out, press PROCEED, then press ▲ and hold down simultaneously. IPM System Off Mode: Enable: The IPM System works normally and all stages of energy savings are utilized. Disable: The Off Mode of the IPM System is not used. 01b_english 06.03.2001, 18:05 Uhr7English-8 NOTE: For standard systems and graphics boards, keep the factory setting at ENABLE. EdgeLock Control: Operating your monitor at a non-standard timing may cause images to appear darker than normal or have colour distortion. Use of the EdgeLock control will adjust images to their normal state. Video Detect: Selects the method of video detection when more than one computer is connected. NONE: The monitor will not search the other video input port unless the monitor is turned on. FIRST DETECT: The video input has to be switched to “FIRST DETECT” mode. When current video input signal is not present, then the monitor searches for a video signal from the other video signal input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present. LAST DETECT: The video input has to be switched to the “LAST DETECT” mode. When the monitor is displaying a signal from the D-Sub and a new secondary source is supplied to DVI-Analog or Digital, then the monitor will automatocally switch to the new video source. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. DVI Selection: This function selects the DVI input mode. When the DVI selection has been changed, you must restart your computer. DIGITAL: DVI digital input is available. ANALOG: DVI analog input is available. Information Display Mode: Indicates the current mode and frequency setting of the monitor. Monitor Info: Indicates the model and serial numbers of your monitor. Refresh Notifier: A message will advise you if the refresh rate of the signal being applied to the monitor by the computer is too low. For further information, please refer to your display card or system manual. 01b_english 06.03.2001, 18:05 Uhr8English-9 English Recommended use Safety Precautions and Maintenance:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• Keep the monitor away from high capacity transformers, electric motors and other devices such as external speakers or fans, which may create strong magnetic fields.

• If possible, position the monitor so that it is facing the east to minimize the effects of the earth’s magnetic field.

• Changing the direction of the monitor while it is powered on may cause image discolouration. To correct this, turn the monitor off for 20 minutes before powering it back on.

• When operating the MultiSync FP1375X with its AC 220-240V worldwide power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV- F should be used except in UK.)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier. Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions. 01b_english 06.03.2001, 18:05 Uhr9English-10 CAUTION

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting. CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 60 cm.

• Rest your eyes periodically by focusing on an object at least 6 m away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean your monitor regularly. Use a lint-free, non-abrasive cloth and a non- alcohol, neutral, non-abrasive cleaning solution or glass cleaner to minimize dust.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups. Ergonomics To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears

• Do not position the Contrast control to its maximum setting

• Use the preset Size and Position controls with standard signals

• Use the preset Colour Setting and Sides Left/Right controls

• Use non-interlaced signals with a vertical refresh rate between 75-160Hz

• Do not use primary colour blue on a dark background, as it is difficult to see and may produce eye fatigue due to insufficient contrast 01b_english 06.03.2001, 18:05 Uhr10English-11 EnglishENERGY STAR is a U.S. registered trademark. All other brands and product names are trademarks orregistered trademarks of their respective owners. As an ENERGY STAR Partner, NEC-Mitsubishi Electric Visual Systems Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The ENERGY STAR emblem does not represent EPA endorsement of any product or service. All other trademarks mentioned in this manual are the property of their respective owners. TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit. This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems. CAUTION WARNING RISK OF ELECTRIC SHOCK • DO NOT OPEN Safety Instruction VCCI Statement 01b_english 06.03.2001, 18:06 Uhr11English-12 01b_english 06.03.2001, 18:06 Uhr12âesky-1 âesky Obsah V balení * monitoru MultiSync FE1375X by mûly b˘t následující poloÏky:
