USER MANUAL AccuSync LCD7V NEC

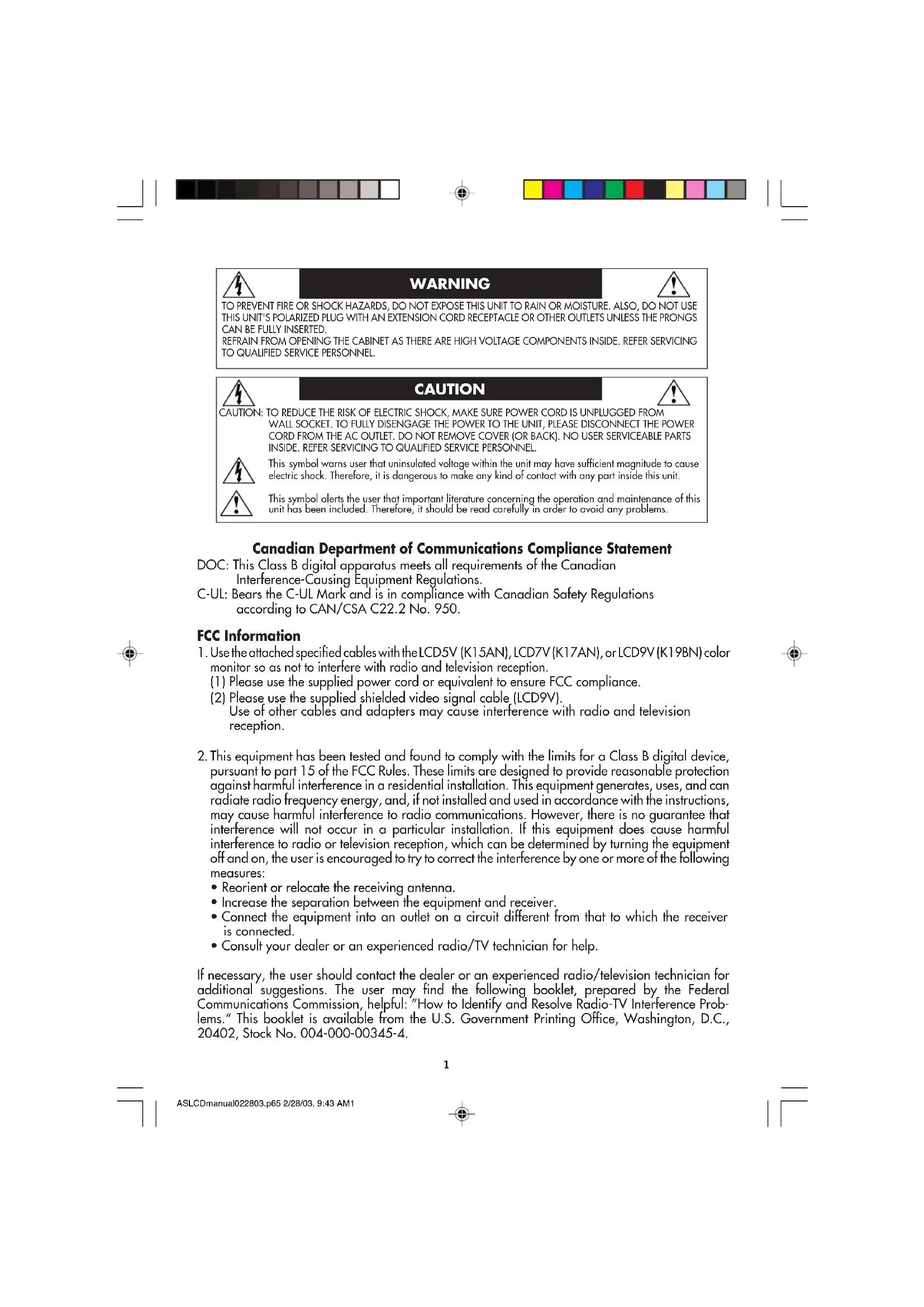

Use the attached specified cables with the LCD5V (K15AN), LCD7V (K17AN), or LCD9V (K19BN) color monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded video signal cable (LCD9V). Use of other cables and adapters may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help. If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Prob- lems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4. TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ASLCDmanual022803.p65 2/28/03, 9:43 AM12 Congratulations for purchasing an NEC AccuSync LCD5V, LCD7V, or LCD9V, a high performance color TFT LCD monitor. The AccuSync LCD5V/LCD7V/LCD9V monitor provides flicker-free and color images at optional resolutions. The AccuSync LCD5V/LCD7V/LCD9V is a TFT LCD monitor that is intelligent, microprocessor-based and ergonomically designed display, compatible with most analog RGB (Red, Green, Blue) display standards, including PS/V, PS/2, optional for Apple Macintosh Centris, Quadra, and Macintosh II family signals. The LCD monitor is capable of displaying crisp and vibrant color graphics with VGA, SVGA, XGA (non-interlaced), SXGA (LCD7V/LCD9V only) and most Macintosh compatible color video cards.

• The monitor is able to properly function even in case of upgrade video cards or software because of the wide auto-scanning compatibility range without requiring to buy a new monitor.

• LCD5V: The internal microprocessor digitally controls auto-scanning. For horizontal scan frequencies between 31.5 kHz and 61 kHz, and vertical scan frequencies between 56 Hz and 75 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision of a fixed frequency.

• LCD7V: The internal microprocessor digitally controls auto-scanning. For horizontal scan frequencies between 31.5 kHz and 81 kHz, and vertical scan frequencies between 56 Hz and 75 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision of a fixed frequency.

• LCD9V: The internal microprocessor digitally controls auto-scanning. For horizontal scan frequencies between 31.5 kHz and 81 kHz, and vertical scan frequencies between 56 Hz and 75 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision of a fixed frequency.

• The resident memory allows for storing factory default settings and also additional user adjustment parameters.

• LCD5V: The maximum resolution achievable is XGA 1024 x 768.

• LCD7V/LCD9V: The maximum resolution achievable is SXGA 1280 x 1024.

• The compact and sleek cabinet design saves lot of your desk space and makes your desk look neat and tidy. Features ASLCDmanual022803.p65 2/28/03, 9:43 AM23 Contents Your new NEC LCD monitor box* should contain the following:

• Video Signal Cable (LCD9V) Power Cord *Remember to save your original box and packing material to transport or ship the monitor. Video Signal Cable (LCD9V) AccuSync

1. Align the four hooks on the bottom of the monitor with the corresponding slots on the

2. Slide the base in the direction of the arrows.

1. Depress the hook as indicated.

2. Remove the base in the direction of the arrows.

Insure the lock is hooked completely. Hook position Remove direction ASLCDmanual022803.p65 2/28/03, 9:43 AM45 Quick Start –continued Raise and Lower Monitor Screen (LCD9V) The monitor may be raised or lowered Landscape mode. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height. NOTE:

Handle with care when raising or lowering the monitor screen. Screen Position Adjustment In order to optimize the best viewing position, you can adjust the tilt of the monitor by using both of your hands to hold the edges of the monitor as shown in the figure below. LCD9V: The monitor can be adjusted to 20 degrees up or 5 degrees down as indicated by arrow below. LCD5V/LCD7V: The monitor can be adjusted to 30 degrees up or 5 degrees down as indicated by arrow below. 20X

• Check first to make sure that the power cord you use is the correct type required for your area.

• This monitor has a universal power supply that allows operation in either AC 100- 240 V AC voltage area. No user-adjustment is required.

• Plug one end of the power cord to the AC Inlet, plug another end to a proper AC outlet.

• If you use this monitor at AC125-240V, please refer to Recommended Use section of this manual for proper selection of an AC power cord. Installation To install the monitor to your host system, please follow the steps as given below:

1. Connect Video Cable

a. Make sure both the monitor and computer are powered-OFF. b. Connect the video cable to the computer.

2. Connect power cord

Connect the power cord to the monitor, then to a properly grounded AC outlet.

4. If the monitor still does not function properly, please refer to the troubleshooting

section to diagnose the problem. Quick Start –continued LCD9V

2. Power LED: Lights up to indicate that the monitor power is turned ON

3. MENU: To exit and enter OSD menu

4. : To move downward in the OSD Item

5. – :To decrease the value of the parameter in the OSD, which has been selected for

adjustment – : Choose the previous OSD MENU page

6. + :To increase the value of the parameter in the OSD, which has been selected for

adjustment + : Choose the next OSD MENU page AUTO: Act as AUTO adjustment hot key when OSD is not displayed Standard OSD Operation

2. Use Select key to move down through the menu cyclically. The parameter will be

-’’ to increase or decrease the value of the parameter, or make selection between different options.

4. To quit the OSD screen at any time during the operation, press

MENUMENU MENUMENU MENU key. If no keys are pressed for a time period, the OSD automatically disappears.

5. When OSD is not displayed, press “

+” key to start Auto-Adjust. Controls –continued MENU ▼ – +/AUTO

ASLCDmanual022803.p65 2/28/03, 9:43 AM910 OSD Function Description Controls –continued Brightness To increase or decrease the brightness. Contrast To increase or decrease the contrast. Auto Contrast Press “+” key to start auto contrast. Color Temperature Press “-” or “+” to select 5000, 6500, 7500, 9300 and USER. Only when selecting USER, you can make adjustments to the R/G/B content. Horizontal Size To increase or decrease the size of image. Fine To increase or decrease the noise of the image. Left/Right To move the screen toward left or right. Up/Down To move the screen upward or downward. Auto-Adjust Press “+” to turn on this function. The Auto-Adjust will automatically adjust V-Position, H-Position, Clock, and Clock-Phase, the whole process takes about 5 seconds. Flesh Tone To adjust flesh tone of color. Hue To adjust hue of color. Saturation To adjust saturation of color. Language Select among English, French, Italian, German and Spanish. Factory Preset To return the monitor to its default settings. OSD Time Out To adjust the period of OSD auto turn-off time. OSD Left/Right To move the OSD position horizontally on the screen. When the “+” key is pressed, the OSD control menu will move to the right side of the screen. Likewise when the “–” key is pressed, the OSD control menu will move to the left side. OSD Up/Down To move the OSD position vertically on the screen. When the “+” key is pressed, the OSD control menu will move to the up side of the screen. Likewise when the “–” key is pressed, the OSD control menu will move to the lower side. Information Indicates the current resolution and V-Frequency. ASLCDmanual022803.p65 2/28/03, 9:44 AM1011 Controls –continued Power Saving Mode The monitor will be driven into “Power Saving” mode by the control signal from the display controller, as indicated by the amber-color power LED. The power saving states will be kept until a control signal has been detected or the key- board or mouse is activated. The recovery time from Active OFF state back to ON state is around 5 seconds. DDC (Display Data Channel) To make your installation easier, the monitor is able to Plug and Play with your system if your system also supports DDC protocol. The DDC (Display Data Channel) is a communication protocol through which the monitor automatically informs the host system about its capabilities, for example, supported resolutions and corresponding timing. The monitor supports DDC2B standard. etatSetatS etatS etatSetatS rewoPrewoP rewoP rewoPrewoP noitpmusnoCnoitpmusnoC noitpmusnoC noitpmusnoCnoitpmusnoC thgiLDELthgiLDEL thgiLDEL thgiLDELthgiLDEL NOlamroNneerG FFOevitcAW2<rebmA LCD5V etatSetatS etatS etatSetatS rewoPrewoP rewoP rewoPrewoP noitpmusnoCnoitpmusnoC noitpmusnoC noitpmusnoCnoitpmusnoC thgiLDELthgiLDEL thgiLDEL thgiLDELthgiLDEL NOlamroNneerG FFOevitcAW3<rebmA

FOLLOWING WHEN SETTING UP AND USING

DO NOT OPEN THE MONITOR. DO NOT OPEN THE MONITOR. DO NOT OPEN THE MONITOR. DO NOT OPEN THE MONITOR. DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• When operating the LCD monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly. Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• If glass is broken, handle with care.

• Do not cover vent on monitor.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting. Image PersistenceImage Persistence Image PersistenceImage Persistence Image Persistence Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image. NOTE: NOTE: NOTE: NOTE: NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. Recommended Use CAUTION ASLCDmanual022803.p65 2/28/03, 9:44 AM1213 Recommended Use –continued CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.

• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).

• Get regular eye checkups. Ergonomics To realize the maximum ergonomics benefits, we recommend the following:

Use the preset Size and Position controls with standard signals

Use non-interlaced signals with a vertical refresh rate between 60-75Hz

Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406. ASLCDmanual022803.p65 2/28/03, 9:44 AM1314

95/98/Me/2000/XP INF File: 95/98/Me/2000/XP INF File: 95/98/Me/2000/XP INF File: 95/98/Me/2000/XP INF File: 95/98/Me/2000/XP INF File: http:// www.necmitsubishi.com and select “Drivers and Downloads” ASLCDmanual022803.p65 2/28/03, 9:44 AM1819 Limited Warranty NEC-Mitsubishi Electronics Display of America, Inc. (hereinafter “NMD-A”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NMD-A’s sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NMD-A-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NMD-A. No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NMD-A to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product. It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NMD-A to render the services provided hereunder in the original package. All Products returned to NMD-A for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NMD-A to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), image burn-in, accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty. NMD-A SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NMD-A PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUEN- TIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NMD-A Products are considered to be compatible with many systems, specific functional implementation by the custom- ers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NMD-A. For the name of your nearest authorized NEC-Mitsubishi Electronics Display service facility, contact NEC-Mitsubishi Electronics Display of America at 1-800-632-4662. ASLCDmanual022803.p65 2/28/03, 9:44 AM1920 Declaration of the Manufacturer We hereby certify that the color monitor LCD5V (K15AN), LCD7V (K17AN), LCD9V (K19BN) are in compliance with Council Directive 73/23/EEC: – EN 60950 Council Directive 89/336/EEC: – EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024 and marked with NEC-Mitsubishi Electric Visual Systems Corporation 4-13-23, Shibaura, Minato-Ku Tokyo 108-0023, Japan ASLCDmanual022803.p65 2/28/03, 9:44 AM2021 AFIN D’ÉVITER TOUT RISQUE D’INCENDIE OU D’ÉLECTROCUTION, NE PAS EXPOSER CET APPAREIL À LA PLUIE OU À L’HUMIDITÉ. NE PAS UTILISER LA FICHE D’ALIMENTATION POLARISÉE AVEC UNE PRISE DE CORDON DE RALLONGE OU AUTRE PRISE SAUF SI LES BROCHES PEUVENT ÊTRE ENTIÈREMENT INTRODUITES. NE PAS OUVRIR LE BOÎTIER, LEQUEL CONTIENT DES COMPOSANTS À HAUTE TENSION. CONFIER TOUS TRAVAUX À DU PERSONNEL TECHNIQUE QUALIFIÉ. AVERTISSEMENT ATTENTION RISQUE DE DÉCHARGE ÉLECTRIQUE • NE PAS OUVRIR ATTENTION : POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE PAS OUVRIR LE COUVERCLE (L'ARRIÈRE). À L'INTÉRIEUR, AUCUNE PIÈCE NE NÉCESSITE L'INTERVENTION DE L'UTILISATEUR. EN CAS DE PROBLÈME, S'ADRESSER À DU PERSONNEL TECHNIQUE QUALIFIÉ. Ce symbole est une mise en garde contre les risques d'électrocution que présentent certaines parties dépourvues d'isolation à l'intérieur de l'appareil. Il est donc dangereux d'établir le moindre contact avec ces parties

PROPRIETARY NOTICE AND LIABILITY DISCLAIMER

The information disclosed in this document, including all designs and related materials, is the valuable property of NEC-Mitsubishi Electronics Display of America and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use and sales rights thereto, except to the extent said rights are expressly granted to others. The NEC-Mitsubishi Electronics Display of America product(s) discussed in this document are warranted in accordance with the terms of the Limited Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon factors such as system configuration, customer data and operator control. Since implementation by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NEC-Mitsubishi Electronics Display of America. To allow for design and specification improvements, the information in this document is subject to change at any time without notice. Reproduction of this document or portions thereof without prior approval of NEC-Mitsubishi Electronics Display of America is prohibited.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.U.S. Responsible Party: NEC-Mitsubishi Electronics Display of America, Inc.Address: 1250 North Arlington Heights Road, Suite 500Itasca, Illinois 60143-1248Tel. No.: [phone]Type of Product: Display MonitorEquipment Classification: Class B PeripheralModel:LCD5V (K15AN) / LCD7V (K17AN) / LCD9V (K19BN) We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules. Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. ENERGY STAR is a U.S. registered trademark. All other brands and product names are trademarks or registered trademarks of their respective owners. As an ENERGY STAR

Partner, NEC-Mitsubishi Electronics Display of America has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The ENERGY STAR emblem does not represent EPA endorsement of any product or service.
