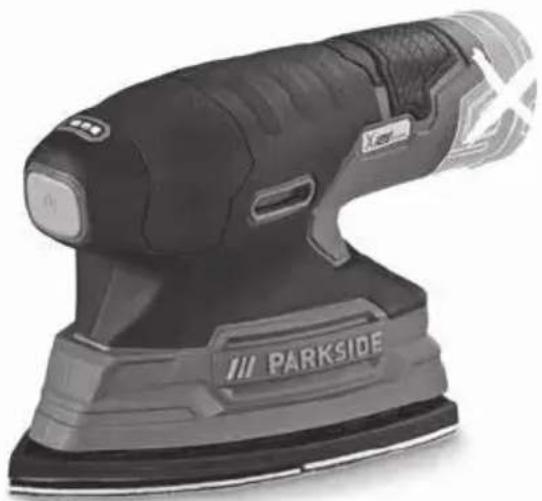

ACCU- SCHUURMACHINE 12 V

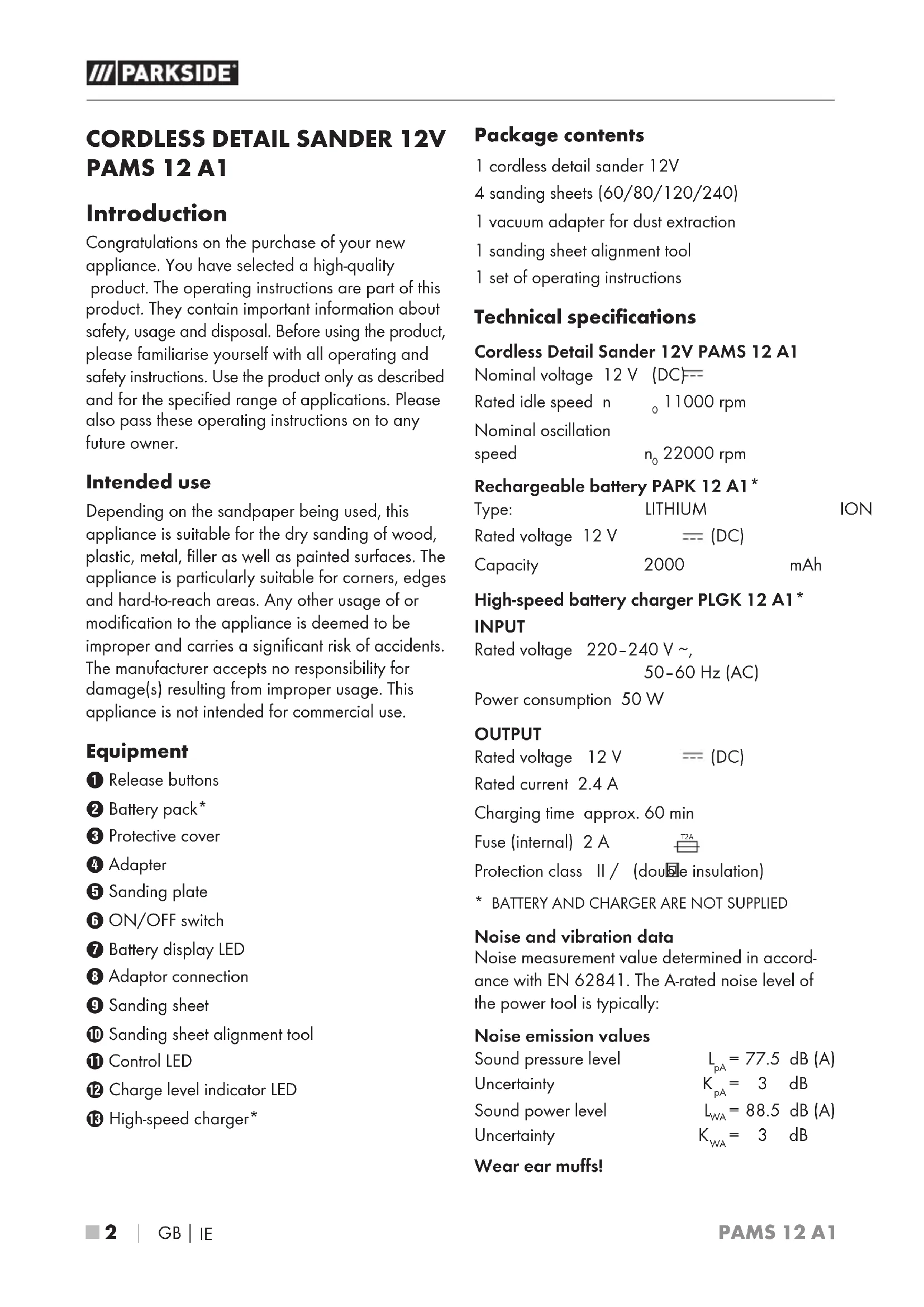

PAMS 12 A1 Introduction Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass these operating instructions on to any future owner. Intended use Depending on the sandpaper being used, this appliance is suitable for the dry sanding of wood, plastic, metal, filler as well as painted surfaces. The appliance is particularly suitable for corners, edges and hard-to-reach areas. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This appliance is not intended for commercial use. Equipment 1 Release buttons 2 Battery pack* 3 Protective cover 4 Adapter 5 Sanding plate 6 ON/OFF switch 7 Battery display LED 8 Adaptor connection 9 Sanding sheet 0 Sanding sheet alignment tool q Control LED w Charge level indicator LED e High-speed charger* Package contents 1 cordless detail sander 12V 4 sanding sheets (60/80/120/240) 1 vacuum adapter for dust extraction 1 sanding sheet alignment tool 1 set of operating instructions Technical specifications Cordless Detail Sander 12V PAMS 12 A1 Nominal voltage 12 V (DC) Rated idle speed n

22000 rpm Rechargeable battery PAPK 12 A1* Type: LITHIUM ION Rated voltage 12 V (DC) Capacity 2000 mAh High-speed battery charger PLGK 12 A1* INPUT Rated voltage 220–240 V ∼, 50–60Hz (AC) Power consumption 50 W OUTPUT Rated voltage 12 V (DC) Rated current 2.4 A Charging time approx. 60 min Fuse (internal) 2 A T2A Protection class II / (double insulation)

• BATTERY AND CHARGER ARE NOT SUPPLIED Noise and vibration data Noise measurement value determined in accord- ance with EN62841. The A-rated noise level of the power tool is typically: Noise emission values Sound pressure level L

= 77.5 dB (A) Uncertainty K

= 3 dB Sound power level L

= 88.5 dB (A) Uncertainty K

= 3 dB Wear ear muffs!PAMS 12 A1

 3 ■ Total vibration value (vector total of three directions) determined in accordance with EN 62841: Sanding Vibration emission value a

NOTE ► The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool. ► The specified total vibration values and the noise emission values can also be used to make a provisional load estimate. WARNING! ► Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instruc- tions during actual use of the power tool. ► It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (wherein all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all safety warnings, instructions, illustrations and specifications provided with this power tool.Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-op- erated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flam- mable liquids, gases or dust. Power tools cre- ate sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.PAMS 12 A1 ■ 4 

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entan- gled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate condi- tions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites acci- dents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is danger- ous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detacha- ble, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool acci- dentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dan- gerous in the hands of untrained users.

Maintain power tools and accessories care- fully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.PAMS 12 A1

 5 ■ g) Use the power tool, accessories and acces- sory tools, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unex- pected situations.

5. Use and handling of the cordless

electrical power tool a) Charge a rechargeable battery using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is a risk of fire if the battery charger specified for a par- ticular type of battery is used with other batteries. b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire. c) When they are not being used, store rechargeable battery units away from paper- clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire. d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek addi- tional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns. e) Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury. f) Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130°C (265°F) can cause an explosion. g) Follow all instructions regarding charging and never charge the battery or the cordless tool outside of the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible tempera- ture range can destroy the battery and increase the risk of fire. CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries. Protect the rechargea- ble battery from heat (for example, from continuous exposure to sunlight), fire, water and moisture. There is a risk of explosion.

a) Have your power tool serviced by a qualified repair person using only original replacement parts. This will ensure that the safety of the power tool is maintained. b) Never try to repair damaged batteries. Batter- ies should only be maintained by the manufac- turer or an approved customer service centre. Appliance-specific safety instructions ■ Secure the workpiece. A workpiece that is securely held in place by a clamping device or vice is much safer than one held in your hand. ■ Do not rest your hands next to or in front of the appliance and the area being worked as there is a risk of injury if you slip. ■ RISK OF FIRE DUE TO FLYING SPARKS! Sanding metal causes sparks. Ensure that nobody can be put at risk and that no combus- tible materials are located in the immediate vicinity of where you are working. WARNING! TOXIC VAPOURS! ► Working with the tool can produce harmful/ toxic dusts that represent a health hazard for the person operating the appliance and for any other people in the area.PAMS 12 A1 ■ 6 

WARNING! RISKS DUE TO DUST! ► When working for extended periods of time on wood and, in particular, materials that produce dust that is hazardous to health, connect the appliance to an appropriate external dust extraction tool. Wear safety goggles and a protective dust mask! ■ Provide sufficient ventilation when working on plastics, paints, lacquers, etc. ■ Do not soak the materials or the area to be processed with liquids containing solvents. ■ Never work on moistened materials or damp surfaces. ■ Avoid sanding lead paint or other harmful materials. ■ Do not process materials containing asbestos. Asbestos is a known carcinogen. ■ Avoid contact with the sanding sheet while the appliance is running. ■ Do not use the appliance without a sanding sheet fitted. ■ Never use the appliance for purposes other than those for which it was designed, and only use original parts/accessories. Using attach- ments or accessory tools other than those rec- ommended in the operating instructions can lead to a risk of injury. ■ Always allow the appliance to come to a com- plete standstill before putting it down. ■ The appliance must always be kept clean, dry and free from oil or grease. Safety instructions for battery chargers ■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervi- sion or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by chil- dren unless they are supervised. ■ To avoid potential risks, if the mains cable of this appliance is damaged, it must be replaced by the manufac- turer, its customer service depart- ment or a similarly qualified person. The charger is suitable for indoor use only. WARNING! ■ Do not operate the appliance with a dam- aged cable, power cord or mains plug. Damaged power cords pose a risk to life due to electric shock. CAUTION! ► This charger can only charge the following batteries: PAPK12A1/PAPK12A2/

PAPK12A3/PAPK12B1/PAPK12C1/

PAPK12D1. ► A current list of battery compatibility can be found at www.Lidl.de/Akku.PAMS 12 A1

 7 ■ Before use Removing/charging/ insertingthebattery pack CAUTION! ► Always disconnect the mains plug before removing the battery pack 2 from or insert- ing it into the charger. NOTE ► The battery is supplied partially charged. Ideally, charge the battery completely before use. You can charge the lithium-ion battery at any time without shortening its service life. Interrupting the charging process does not damage the battery. ► Never charge the battery pack if the ambient temperature is below 10°C or above 40°C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry, and the ambient tem- perature should be between 0°C and 50°C.

1. To remove the battery pack2, press the release

buttons1 and pull the battery pack2 out of the appliance.

2. Insert the battery pack2 into the high-speed

3. Insert the power plug into the socket. The control

LED q lights up red.

4. The green charge level indicator LEDw indi-

cates that the charging process is complete and the battery pack2 is ready for use.

5. Push the battery pack 2 back into the appli-

ance. Checking the battery charge level ♦ Press the ON/OFF switch 6 to check the charge level of the battery (see also main dia- gram). The status/remaining charge is shown on the battery display LED 7 as follows: RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge – charge the battery Using the appliance NOTE ► Always switch the sander on before applying it to the workpiece. Switching on the appliance ♦ Press the ON/OFF switch 6. Switching off the appliance ♦ Press the ON/OFF switch 6. Connecting a dust extraction unit WARNING! RISK OF FIRE! ► There is a risk of fire when working with power tools that are fitted with a dust collec- tion box or can be connected to a vacuum cleaner via the vacuum cleaner adapter! In unfavourable conditions, e.g. when sparks are flying while sanding metal or metal resi- dues in wood, wood dust in the dust sack (or in the vacuum cleaner dust bag) can sponta- neously ignite. This is a particular risk if the wood dust is mixed with paint residues or other chemicals and the workpiece has become hot after being worked for a long time. Therefore, do not allow the workpiece and appliance to overheat and always empty the dust box or the dust bag in the vacuum cleaner before taking a break from work. Wear a dust mask! WARNING! ► Always disconnect the battery pack 2 before carrying out any work on the appli- ance. Connecting ♦ Remove the protective cover 3 from the adapter connection8. ♦ Plug the adapter4 into the adapter connec- tion8. ♦ Push the hose from a suitable dust extraction appliance (e.g. a workshop vacuum cleaner) onto the adapter4.PAMS 12 A1 ■ 8 

Removal ♦ Pull the vacuum cleaner hose off the adapter4. ♦ Pull off the adapter4. ♦ Replace the protective cover3 onto the adapter connection8. Attaching/removing a sanding sheet WARNING! ► Always disconnect the battery pack2 before carrying out any work on the appli- ance. NOTE ► Before fitting a new sanding sheet, remove any dust and dirt from the sanding plate5. Attachment ♦ You can attach the sanding sheet 9 to the sanding plate 5 using the Velcro. ♦ Ensure that the extraction holes on the sanding sheet9 match up with those on the sanding plate5. Use the sanding sheet alignment tool 0 as shown in fig. A on the fold-out page. Removal ♦ Simply pull the sanding sheet9 off the sanding plate5. Working procedures ■ Please note that you need to use appropriate sanding sheets with different grains for working different materials. ■ Switch the appliance on before applying it to the workpiece. ■ Apply minimal pressure when working. ■ Work at a constant speed. ■ Change the sanding sheets regularly. ■ Never use the same sanding sheet for sanding different materials (e.g. wood followed by metal). Optimum sanding results can only be achieved by using clean sanding sheets. ■ Clean the sanding sheet every once in a while using a vacuum cleaner. ■ Sand hard-to-reach places with the front or side edge of the sanding sheet on the sanding plate. ■ Guide the sander over the workpiece in parallel and use overlapping sanding motions. ■ After completing the task, lift the appliance from the workpiece and then switch it off. Maintenance and cleaning WARNING! ► Always disconnect the battery pack2 before carrying out any work on the appli- ance. The cordless sander is maintenance-free. ■ Always clean the appliance directly after com- pletion of work. ■ Use a dry cloth to clean the housing. ■ Remove any sanding dust stuck to the appliance with a brush. ■ Never use sharp objects, petrol, solvents or cleaning agents which can damage plastic. Do not allow any liquids to get into the interior of the appliance. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.PAMS 12 A1

 9 ■ Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statu- tory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your prod- uct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper han- dling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazardsPAMS 12 A1 ■ 10 

Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN)405828_2201 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please con- tact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 405828_2201. WARNING! ► Have your appliances repaired by the Service Centre or a trained electrician, and use only original spare parts. This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manu- facturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained. Service Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] E-Mail: [e-mail] IAN 405828_2201 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

 11 ■ Disposal The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately. Do not dispose of power tools in your normal domestic waste! The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. Do not dispose of batteries in your normal household waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, com- mercial disposal companies). Batteries/recharge- able batteries may contain toxic heavy metals. For this reason, do not dispose of batteries/ rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged. The packaging is made from environ- mentally friendly material and can be disposed of at your local recycling plant. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packag- ing material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.PAMS 12 A1 ■ 12 

Original declaration of conformity We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EC Low Voltage Directive (2014/35/EU, charger only) Electromagnetic Compatibility (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the sole responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. Applied harmonised standards EN 62841-1:2015 EN 62841-2-4:2014 EN 55014-1:2017/A11:2020

EN IEC 61000:2018 Type/appliance designation: Cordless Detail Sander 12V PAMS 12 A1 Year of manufacture: 06–2022 Serial number: IAN 405828_2201 Bochum, 14/03/2022 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the context of further product development.PAMS 12 A1

 13 ■ Ordering a replacement battery If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone. Due to limited stocks, this item may sell out in a relatively short time. NOTE
