USER MANUAL PBSM 1300 A1 PARKSIDE

text_image QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE
parkside-diy.com

PARKSIDE PBSM 1300 A1 - 1

natural_image Black and white photo of a power tool with a circular head and mechanical base (no visible text or symbols)

PARKSIDE PBSM 1300 A1 - 2

Satin Finishing / Sanding Brush Machine /

Satin Finishing / Sanding Brush Machine

Translation of the original instructions

NL BE

Satineer-/borstelschuurmachine

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

natural_image Technical illustration of a mechanical assembly with labeled parts (8), showing two views: top view and side view (no text or symbols beyond labels)

PARKSIDE PBSM 1300 A1 - Satineer-/borstelschuurmachine - 1

text_image 15 17 8

Inhaltsverzeichnis

Einleitung......4

Introduction......22

Proper use....22

Scope of delivery/accessories....23

Overview.... 23

Description of functions...... 23

Technical data.... 23

Safety information.... 24

Meaning of the safety information.... 24

Pictograms and symbols......24

General Power Tool Safety Warnings.... 24

Safety warnings common for grinding.... 26

Additional safety instructions.....28

Residual risks.... 29

Preparation....30

Control elements......30

Fitting/adjusting/removing the guard cover.... 30

Attaching and removing the brush.... 30

Fitting the auxiliary handle...... 31

Fitting the connection for dust extraction.... 31

Connecting dust extraction......31

Operation....31

Working instructions...... 31

Switching on and off.... 31

Transport.... 32

Cleaning, maintenance and storage....32

Cleaning.... 32

Maintenance....32

Storage....33

Disposal/environmental protection....33

Troubleshooting......33

Spare parts and accessories......34

Service....34

Guarantee....34

Repair service....35

Service Centre......36

Importer....36

Translation of the original EU declaration of conformity....37

Exploded view....195

Introduction

Congratulations on purchasing your new satin finishing/brush sanding machine (hereafter referred to as device or power tool).

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

PARKSIDE PBSM 1300 A1 - Introduction - 1

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

This device is only intended for the following use:

• Metal surface treatment

- Satin finish

Only operate in dry areas.

Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the

machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation.

Scope of delivery/ accessories

Unpack the device and check that everything is present.

Dispose of the packaging material properly.

  • Satin Finishing / Sanding Brush Machine
  • Auxiliary handle
  • Suction nozzle
  • Adapter for external dust extraction
  • 2× Feather key
  • Brush
  • 2× Carbon brush
  • Hex key
  • 2× Screw
  • Hexagon socket screw
  • Washer
    • Translation of the original instructions

Overview

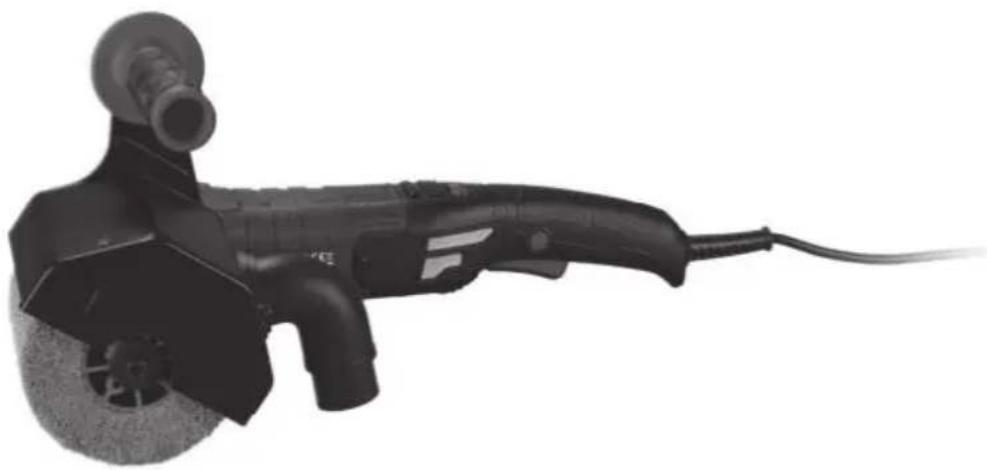

PARKSIDE PBSM 1300 A1 - Overview - 1

The illustrations for the device can be found on the front and back fold-out page.

1 Handle
2 On/Off switch
3 Lock button
4 Rotary dial
5 Suction nozzle
6 Holder for auxiliary handle
7 Auxiliary handle

8 Guard cover
9 Brush
10 Spindle lock
11 Screw (Service panel)
12 Service panel
13 Power cord
14 Carbon brush
15 Hex key
16 Reducer piece

(Fig. A)

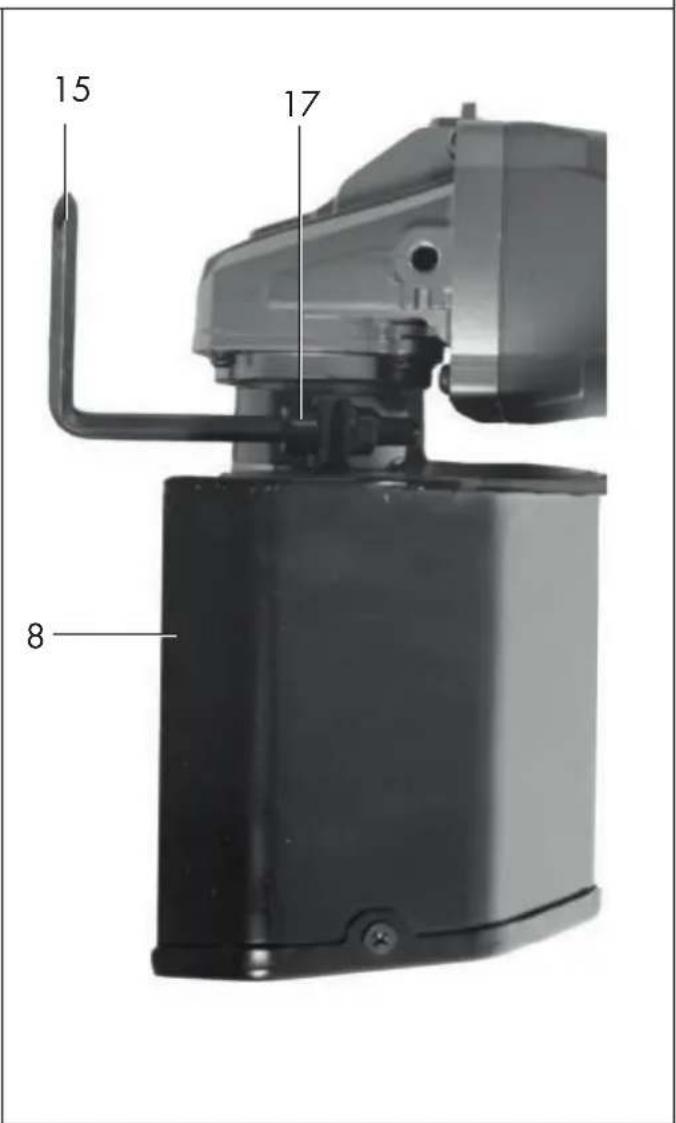

17 Hexagon socket screw (Guard cover)

(Fig. B)

18 Uptake spindle
19 Feather key
20 Hexagon socket screw (Brush)
21 Washer
22 Screw (Attachment)
23 Attachment
24 Screw (Suction nozzle)

(Fig. C)

25 External suction hose

(Fig. D)

26 Groove for pressure spring
27 Pressure spring
28 Contact shoe
29 Contact plug
30 Wire

Description of functions

Please refer to the descriptions below for information on how the operating elements work.

Technical data

Satin Finishing / Sanding Brush Machine ...... PBSM 1300 A1 Rated voltage U ......230 V\~, 50 Hz Rated input power P ...... 1300 W

Weight ≈ 3.9 kg

No-load rotation speed n 900–3200 min ^-1

Brush

- diameter ....∅120 mm

- Thread ......M8

Sound pressure level ( L_pA ) 83.1dB; K_pA=3 dB

Sound power level ( L_WA ) 94.1 dB; K_WA=3 dB

Vibration ( a_h )

- Handle ......2.36 m/s ^2 ; 1.5 m/s ^2

- Auxiliary handle . 2.78 m/s ^2 ; 1.5 m/s ^2 Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity.

The vibration emission value has been measured according to a standardised testing method and may be used for comparison with another power tool. The indicated vibration emission value may also be used for an introductory assessment of the exposure.

⚠ WARNING! The vibration emission value whilst actually using the power tool may vary from the given values depending on the type and way in which the power tool is used. Safety measures for the protection of the operator are to be determined that are based on an estimate of the exposure under real operating conditions (for this, all parts of the operating cycle are to be taken into account, for example, times in which the power tool is turned off, and those during which it is turned on but running without a load).

Safety information

This section deals with the basic safety instructions for using the device.

Meaning of the safety information

⚠️ DANGER! If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.

⚠ WARNING! If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

CAUTION! If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury. NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols

Symbols on the device

PARKSIDE PBSM 1300 A1 - Symbols on the device - 1

Read the instruction manual

PARKSIDE PBSM 1300 A1 - Symbols on the device - 2

Protection class II (double insulation)

PARKSIDE PBSM 1300 A1 - Symbols on the device - 3

Use eye protection

PARKSIDE PBSM 1300 A1 - Symbols on the device - 4

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

General Power Tool Safety Warnings

⚠ WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/

or serious injury. Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (R-CD) protected supply. Use of an RCD reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the

3. PERSONAL SAFETY

power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety warnings common for grinding

- This power tool is intended to function as a grinder. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

- Operations such as sanding, wire brushing, polishing, hole cutting or cutting off are not to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

- Do not convert this power tool to operate in a way which is not specifically designed and specified by the tool manufacturer. Such a conversion may result in a loss of control and cause serious personal injury.

- Do not use accessories which are not specifically designed and specified by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

- The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

- The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

- Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the ar-bour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

- Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

- Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various applications. The dust mask or respirator must be capable of filtrating particles generated by the particular application. Prolonged exposure to high intensity noise may cause hearing loss.

- Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

- Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may con-

tact hidden wiring or its own cord. Cutting accessories contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

  • Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
  • Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
  • Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
  • Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
  • Do not operate the power tool near flammable materials. Sparks could ignite these materials.
  • Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Additional safety instructions

- If the power cord of this device is damaged, it must be replaced by the manufacturer, their customer service or by a similarly qualified person in order to avoid hazards. contact the service centre.

- Only use accessories recommended by PARKSIDE. Unsuitable accessories may cause electric shock or fire.

Safety warnings specific for grinding

- Use only wheel types that are specified for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.

- The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.

- The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.

- Wheels must be used only for specified applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

- Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.

- Do not use worn down wheels from larger power tools. A wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

  • Maintain a firm grip with both hands on the power tool and position your body and arms to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
  • Never place your hand near the rotating accessory. Accessory may kickback over your hand.

  • Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

  • Use special care when working corners, sharp edges, etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
  • Do not attach a saw chain wood-carving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Residual risks

There will always be residual risks even if you operate this device according to the instructions. The following hazards may occur in connection with the type and design of this device:

  • Eye damage if no suitable eye protection is worn.
  • Health injuries resulting from the effect of hand/arm vibration in the event that the tool is used over a longer period of time or is not used and maintained properly.

  • Damage to health as a result of:

  • touching the area of the grinding tool which is not covered;
  • ejection of parts of workpieces or damaged grinding discs.

⚠ WARNING! Danger due to electromagnetic field generated while the tool is in operation. Under certain circumstances, this field may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their

doctor and the manufacturer of the implant before operating the tool.

Preparation

⚠ WARNING! Risk of injury due to unintentional start-up. Do not insert the plug into the outlet until the device is fully prepared for use.

Control elements

Familiarise yourself with the operating elements before using the device for the first time.

- On/Off switch (2)

  • Switching on: Press
  • Switching off: Release

- Lock button (3)

  • Lock the on/off switch: Press
  • Unlock the on/off switch: Press the on/off switch (2)

- Rotary dial (4)

Set the rotational speed in 6 increments.

- Spindle lock (10)

- Locks the spindle when attaching/removing the attachment tool.

Fitting/adjusting/removing the guard cover

⚠ WARNING! Never use the device without the guard cover fully fitted. Tools and aids required

- Hex key (15)

Fitting the guard cover (Fig. A)

  1. Place the guard cover (8) on the device.

Pay attention to the recesses in the holder on the device.

  1. Turn the guard cover to the working position.
  2. Tighten the hexagon socket screw (17) firmly.

Adjusting the guard cover (Fig. A)

  1. Loosen the hexagon socket screw (17).
  2. Adjust the guard cover (8) so that any sparks or detached parts cannot hit either the user or any bystanders.

Position the guard cover (8) so that the sparks do not ignite any combustible parts, including those in the surroundings.

The closed side of the guard cover must always face the user.

  1. Tighten the hexagon socket screw firmly again.

Removing the guard cover (Fig. A)

  1. Loosen the hexagon socket screw (17).
  2. Pull the guard cover (8) off the device.

Attaching and removing the brush

Tools and aids required

- Hex key (15)

Attaching the brush (Fig. B)

  1. Loosen the screws (22) on the attachment.
  2. Remove the attachment (23) from the guard cover (8).
  3. Place the feather keys (19) in the grooves on the uptake spindle (18) and hold them in place.
  4. Place the brush (9) on the uptake spindle.
  5. Press and hold the spindle lock (10).
  6. Fasten the brush with the hexagon socket screw (20) and washer (21).
  7. You can release the spindle lock (10).
  8. Reattach the attachment (23) to the guard cover (22) using the screws (8).

Removing the brush (Fig. B)

  1. Loosen the screws (22) on the attachment.
  2. Remove the attachment (23) from the guard cover (8).
  3. Press and hold the spindle lock (10).
  4. Loosen the hexagon socket screw (20).
  5. You can release the spindle lock (10).
  6. Remove the brush (9). Make sure that the feather keys (19) are not lost.

Fitting the auxiliary handle

⚠ WARNING! Risk of injury! Never use the device without the auxiliary handle.

Procedure (Fig. B)

  1. Screw the auxiliary handle (7) into the holder (6) on the guard cover (8).

Fitting the connection for dust extraction

Tools and aids required

- Phillips screwdriver

Procedure (Fig. B)

  1. Attach the suction nozzles (5) to the guard cover (24) using the enclosed screws (8).

Connecting dust extraction

Notes

- Ensure that the dust extraction system is suitable, e.g. workshop vacuum cleaner. Normal household vacuum cleaners are not suitable for vacuuming sanding material. This information can be found in the operating instructions of the external device.

Procedure (Fig. C)

  • Try connecting the external suction hose (25) (not included) directly to the suction nozzle (5).
  • If this does not work, insert the reducer piece (16) into the suction nozzle (5). Connect the external suction hose (25) to the reducer piece.
  • The reducer piece (16) and external suction hose (25) can be easily pulled off the suction nozzle (5).

Operation

Working instructions

  • Do not use the device without external dust extraction. Use of dust extraction can reduce hazards caused by dust. Make sure that the workplace is well ventilated.
  • Move the device against the workpiece once it is switched on.
  • Lift off the brush after working before switching off the device.
  • Only work with brushes in perfect condition to achieve good sanding results.
  • Work with low and even pressure and even forward pressure. This will protect the device and brush.
  • Empty the vacuum cleaner regularly in order to ensure optimal suction.

Switching on and off

Switching on

  1. Use the rotary wheel (4) to select a speed level (1 ... 6).
  2. Connect the device to the power supply.
  3. Press the On/Off switch (2).
  4. Wait until the device has reached full speed.

  5. Guide the brush against the workpiece.

Switching off

  1. Remove the brush from the workpiece.
  2. To turn it off, release the on/off switch (2).
  3. Wait until the power tool has stopped before placing it down.
  4. Pull the device plug out of the wall outlet if you are leaving the device unattended or if you have finished working.

Transport

Notes

  • Turn off the device.
  • Make sure that all moving parts have come to a complete stop.
  • Pull out the mains plug.
  • Remove the attachment tool.
    • Always carry the device by the handle (1).

Cleaning, maintenance and storage

⚠ WARNING! Electric shock! Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work. Switch off the device and disconnect the mains plug from the socket.

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

⚠ WARNING! Electric shock! Never spray down the device with water. NOTICE! Risk of damage. Chemical substances may attack the plastic parts of the machine. Do not use any cleaning agents or solvents.

- Keep the ventilation slits, motor housing and handles of the machine clean. Use a damp cloth or brush to do this.

Maintenance

Replacing carbon brushes

⚠ WARNING! Electric shock! If you are not sure about doing this, ask a qualified specialist.

Criteria

  • The motor performance has deteriorated.
  • Excessive sparking.

Tools required

- Phillips screwdriver

Procedure (Fig. D)

Switch off the tool and unplug the mains plug. Allow the tool to cool down.

Always replace both carbon brushes at the same time.

  1. Loosen the screw (11) on the service panel (12) and remove the service panel (12).

  2. Lift the pressure spring (27) out of the groove for the pressure spring (26) of the carbon brush (14).

  3. Pull the contact plug (29) off the contact shoe (28) and remove the carbon brush (14) upwards from the guide.

  4. Insert a new carbon brush (14) into the guide with the stranded wire (30) facing upwards.

  5. Place the stranded wire (30) in an arc through the side opening of the guide.

  6. Push the contact plug (29) onto the contact shoe (28).

  7. Replace the pressure spring (27) in the groove for the pressure spring (26) for the carbon brush (14).

  8. Replace the service panel (12) and fasten with the screw (11).
  9. Repeat steps 1 to 8 on the other side of the tool.

Storage

Always store the device and accessories:

  • clean
  • dry
  • protected against dust
    • out of the reach of children

Disposal/ environmental protection

The device, accessories and packaging should be properly recycled.

PARKSIDE PBSM 1300 A1 - Disposal/ environmental protection - 1

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

The symbol of the crossed-out wheeled bin means that this product must not be disposed of as unsorted municipal waste at the end of its useful life.

Directive 2012/19/EU on waste electrical and electronic equipment:

Consumers are legally obliged to recycle electrical and electronic equipment in an environmentally sound manner at the end of its life. In this way, environmentally friendly and resource-saving recycling is ensured. Depending on the implementation in national law, you may have the following options:

  • Return to a shop,
  • Hand over to an official collection point,
  • Return to the manufacturer/distributor.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Troubleshooting

The following table will assist you in fixing faults:

Problem Possible causeError correction
Device does not startNo mains power supply Check the socket, mains connection cable, plug and fuse and have them repaired by a qualified electrician if necessary.
On/Off switch (2) is brokenContact the service centre.
Defective motor
Low or no motor power Worn out carbon brushes Replace carbon brushes or contact the Service Centre.
ruptionsInternal loose contactDeviceOn/Off switch (2) is brokenContacts with center centre.

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact: Service Centre, p. 36

Pos. nr. Name Order No.
5+16 Suction nozzle + Reducer piece 91120027
7 Auxiliary handle 91120028
8 Guard cover 91120024
9 Brush 91120030
14 2× Carbon brush 91120025
20+21Hexagon socket screw (Brush) + Washer91120023

Service

Guarantee

Dear Customer,

This product is provided with a 3 year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The guarantee period begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective product and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The product has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This

guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts(e.g. Brush, Carbon brush) or to cover damage to breakable parts (e.g. switch).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

  • Please have the receipt and product number (IAN 467687_2407) ready as proof of purchase for all enquiries.
  • Please refer for the product number to the type plate on the product, an engraving on the product, the title page of the operating instructions (bottom left) or the sticker on the back or underside of the product.
  • Should functional errors or other defects occur, please initially contact the service centre specified below by telephone or use the contact form available on parkside-diy.com in the category Service.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the appliance inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair service

For repairs that are not covered by warranty, contact the service centre. They will gladly create a cost estimate for you.

  • We can only work on devices which are sent in properly packed and with postage paid.
    Note: Please send your device cleaned and with an indication of the defect to the address named for the service centre.
  • The following are not accepted: devices sent in without prepaid postage, sent as bulky goods, sent as an Express shipment, or devices sent as any other form of special freight.
  • We will dispose of defective devices you ship to us free of charge.

PARKSIDE PBSM 1300 A1 - Repair service - 1

text_image PDF ONLINE parkside-diy.com

You can view and download these and many other manuals on parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and search for the operating instructions via the search mask. You can open your operating instructions by entering the article number (IAN) 467687_2407.

Service Centre

GB Service Great Britain Tel.: 0800 051 8970 Contact form on parkside-diy.com IAN 467687_2407

MT Service Malta Tel.: 800 65168 Contact form on parkside-diy.com IAN 467687_2407

Importer

Please note that the address below is not a service address. Contact the service centre named above first.

Translation of the original EU declaration of conformity

Product: Satin Finishing / Sanding Brush Machine

Model: PBSM 1300 A1

Serial number: 000001-076000

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2006/42/EC • 2014/30/EU • 2011/65/EU & (EU) 2015/863

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

To ensure conformity, the following harmonised standards and national standards and regulations have been applied:

EN 60745-1:2009/A11:2010 • EN 60745-2-3:2011/A13:2015 EN IEC 55014-1:2021 • EN IEC 55014-2:2021 • EN IEC 63000:2018 EN IEC 61000-3-2-2019/A1:2021 • EN 61000-3-3:2013/A2:2021

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Authorised representative of documentation

Sommaire

Introduction......38

- diameter ....∅120 mm

⚠ WAARSCHUWING! De tril-

1. BEZPIECZEŃSTWO W MIEJSCU PRACY

Reparationsservice......189

Service-Center 189

Importør......189

text_image Exploded view diagram of a mechanical assembly with numbered parts for identification

informativ • informative • informatif • informatief • informativo • informatív • informacyjny • informační • informatívny

PARKSIDE PBSM 1300 A1 - BEZPIECZEŃSTWO W MIEJSCU PRACY - 1

text_image FR ©

GRIZZLY TOOLS GMBH & CO. KG

text_image FSC® www.fsc.org MIX Supporting responsible forestry FSC® C153489

PARKSIDE PBSM 1300 A1 - GRIZZLY TOOLS GMBH & CO. KG - 1

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PARKSIDE

Model : PBSM 1300 A1

Category : Sander
