Brand	Parkside
Model	PPTSA 20Li A1
Product type	Cordless plunge saw
Intended use	Sawing longitudinal, transverse and alternating cuts in wood, plastic or light building materials
Motor voltage	20 V (Li-Ion battery)
No-load speed	2800 - 5500 min⁻¹ (adjustable in 6 steps)
Weight (without battery)	4.0 kg
Max. cutting depth without guide rail	52 mm (at 90°), 38 mm (at 45°)
Max. cutting depth with guide rail	46 mm (at 90°), 32 mm (at 45°)
Saw blade included	HW 42, ∅ 140 mm, bore 20 mm, 42 teeth
Adjustable cutting angle	0° to 45° (fine adjustment -1° to +47°)
Protective guard	Yes, with functionality check before use
Guide rail supplied	Yes, two parts with connector
Parallel guide	Yes, for parallel cuts
Battery and charger	Not included (compatible with X 20 V TEAM batteries)
Connectivity	Bluetooth (with Lidl Home app, Smart battery required)
Eco mode	Yes, via button (Eco-LED indicator)
Battery charge indicator	LED: red (empty), yellow (half), green (full)
Overload indicator	Yes, lights up and turns off the device
Sound pressure level (LpA)	76.86 dB(A), K=3 dB
Sound power level (LWA)	87.86 dB(A), K=3 dB
Vibration (wood, handle)	2.611 m/s² (K=1.5 m/s²)
Charging temperature range	4 °C to 40 °C
Operating temperature range	-20 °C to 50 °C
Warranty	5 years (France and Belgium)
Cleaning and maintenance	Clean with a damp cloth, no water or solvent. Keep ventilation slots clean.

Frequently Asked Questions - PPTSA 20Li A1 PARKSIDE

What is the intended use of the Parkside PPTSA 20Li A1 saw?

This cordless plunge saw is designed for sawing longitudinal, transverse and alternating cuts in wood, plastic and light building materials such as plasterboard. Sawing metal is not permitted.

Which battery can I use with this model?

The device is part of the Parkside X 20 V TEAM range. Use only compatible batteries, e.g. Smart PAPS 204 A1, Smart PAPS 208 A1, PAP 20 A1, PAP 20 A3, PAP 20 B1 or PAP 20 B3. The charger must also belong to the same range.

How do I adjust the cutting depth?

Press and hold the lock (15) for cutting depth adjustment, then set the desired depth on the scale (29) based on the reference mark (28). Release the lock to secure. Two marks are provided: A for without guide rail, B for with rail.

Can I use the saw without the guide rail?

Yes, the saw can be used without the guide rail for freehand cuts. The guide rail improves accuracy and is recommended for long or straight cuts.

How do I change the saw blade?

Turn off the device and remove the battery. Lower the blade using the locking lever (2) and the snap lock (3). Press the spindle lock (37), loosen the screw (39), remove the flange (38) and then the blade. Mount the new blade observing the rotation direction, replace the flange and tighten the screw with the hex key.

What should I do if the overload indicator lights up?

The overload warning light (21) lights up briefly and the device switches off to prevent damage. Wait for the device to cool down, reduce the workload and check that the blade is not blocked.

How do I connect the saw to the Lidl Home app?

Use a Smart Performance battery. Switch on the saw and press the button (22) to activate Bluetooth. Enable Bluetooth on your smartphone, open the Lidl Home app and follow the instructions to add a device. The app allows monitoring of speed, mode and usage history.

What accessories are supplied with the saw?

The delivery includes: cordless plunge saw, a parallel guide, a universal saw blade ∅ 140 mm (pre-assembled), a guide rail in two parts with connector, two hex keys (in the case and the auxiliary handle), a storage case and the instruction manual. Battery and charger are not included.

How do I clean and maintain the saw?

Clean the ventilation slots, motor housing and handles regularly with a damp cloth or brush. Do not use pressurised water or solvents. Check the condition of the blade and protective guard before each use. Store the device in a dry, dust-free place.

What is the warranty for this product in France?

The warranty is 5 years from the date of purchase. It covers material and manufacturing defects, but not normal wear (saw blade, etc.). Keep the receipt and contact Grizzly customer service (0800 919270) in case of problems.

USER MANUAL PPTSA 20Li A1 PARKSIDE

Exterior view of a Parkside power saw with visible blade and base plate (no text or symbols)

PDF ONLINE www.lidl-service.com

Akku-Tauchsäge / Cordless Plunge Saw / Scie plongeante sans fil PPTSA 20-Li A1

DE AT CH

Akku-Tauchsäge

Translation of the original instructions

NL BE

Accu-insteekzaag

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / MT Translation of the original instructions Page

Service-Center......25

Importeur 25

Original-EG-

Intended purpose......27

General description......27

Extent of the delivery 27

Overview....27

Functional description......28

Technical data 28

Charging time 28

Safety instructions......29

Symbols and icons 29

General Safety Directions for Power Tools....30

Additional instructions ....33

Residual risks....33

Safety information for all saws......34

Further safety instructions for all saws 34

Safety information for the saw blade..36

Operation 36

Removing/inserting the battery ..... 36

Checking the charge status of the battery 37

Charging the battery 37

Checking the function of the protective hood....37

Installing/changing the saw blade ...37

Connecting the dust extraction......38

Mounting the rip fence....38

Overload warning 38

Adjusting the cutting angle....38

Adjusting the cutting depth 39

Connecting the guide rail....39

Working instructions....39

Setting the speed and ECO Mode .....40

Switching on/off......40

Connecting the device with the Lidl Home App ....41

Features of the app ....41

Privacy policy 42

Disconnecting the device and deleting data from the app....42

Problems with the app? - FAQ......42

Cleaning and maintenance......42

Cleaning....43

Maintenance 43

Storage....43

Disposal and protection of the environment ....43

Replacement parts/accessories...43

Guarantee 44

Repair Service....45

Service-Center......45

Importer 45

Translation of the original EC declaration of conformity .....257

Exploded Drawing ......269

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The cordless plunge saw is suitable for sawing lengthwise, crosswise and exchange cuts in wood, plastic or light building materials (e.g. plasterboard). Sawing of metal is not permitted.

Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user. The user or operator is responsible for accidents causing injury to other people or damage to property. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The device is part of the (Parkside) X 20 V TEAM series and can be operated using (Parkside) X 20 V TEAM series batteries. The batteries may only be charged using chargers from the (Parkside) X 20 V TEAM series.

General description

An illustration of the most important functional components can be found on the fold-out pages.

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Cordless plunge saw
• Parallel guide
• Universal saw blade ∅ 140 mm (pre-assembled)
• Guide rail (2-part) + connecting element

• 2x hex key (1x in storage case, 1x in auxiliary handle)

• Storage case

• Instruction Manual

Battery and charger are not included.

Overview

1 Auxiliary handle

2 Locking lever

3 Switch lock

4 Shavings ejector

5 On/Off switch

6 Handle

7 Butterfly screw (cutting angle)

8 Eccentric screw

9 Guide rail

10 Saw table

11 Butterfly screw (parallel guide)

12 Reference mark (cutting angle)

13 Cutting angle scale

14 Adjusting knob

15 Locking mechanism (cutting depth scale)

16 Large hex key

17 Small hex key

18 Smart LED display

19 ECO LED display

20 Charge level indicator

21 Overload warning indicator

22 Button (speed)

23 Case

24 Guard cover

25 Recess

26 Cutting width marking

27 Saw blade

28 Reference marking (cutting depth scale)

29 Cutting depth scale

30 Parallel guide

31 Guide rails

32 Connecting element

33 Grub screws

GB MT

B 34 Rechargeable battery
35 Release button
36 Charger

C 37 Spindle lock 38 Flange 39 Screw

E 40 Parallel guide holder

Functional description

The cordless plunge saw is suitable for sawing longitudinal, cross and exchange cuts and can be used either with or without a guide rail. A parallel guide is included for parallel cuts.

Please refer to the descriptions below for information on how the operating elements work.

Technical data

Cordless plunge

saw PPTSA 20-Li A1

Motor voltage U....20 V=

No-load rotation speed n _0 2800-5500 rpm

Weight (without battery).... 4.0 kg

Weight (accessories only) 2.0 kg

Max. cutting depth, without guide rail at 90°.....approx. 52 mm at 45°.....approx. 38 mm

Max. cutting depth, with guide rail at 90°.....approx. 46 mm at 45°.....approx. 32 mm

Sound pressure level (L_pA) .....76.86 dB(A), K_pA=3 dB

Sound power level (L_WA) ..... 87.86 dB(A); K_WA = 3 dB

Vibration ( a_h,w ) sawing in wood Handle ..... 2.611 m/s ^2 ; K= 1.5 m/s ^2 Auxiliary handle .3.107 m/s ^2 ; K= 1.5 m/s ^2

Temperature..... max. 50°C Charging ..... 4 - 40 °C Operation ..... -20 - 50°C Storage..... 0 - 45°C

For use with smart batteries (Smart PAPS 204 A1/Smart PAPS 208 A1) Operating frequency/ Frequency band....2400 - 2483.5 MHz Max. transmission power......≤ 20 dBm

Saw blade....HW 42

Dimensions .....∅ 140 mm x 1.8 x ∅ 20 mm Teeth thickness ..... 1.8 mm Size of borehole ..... ∅ 20 mm Number of teeth ..... 42 teeth Cutting part thickness ..... 1.8 mm No-load rotation speed, n max. ..... 7000 min ^-1

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The specified vibration emission value can also be used for a provisional assessment of the load.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).

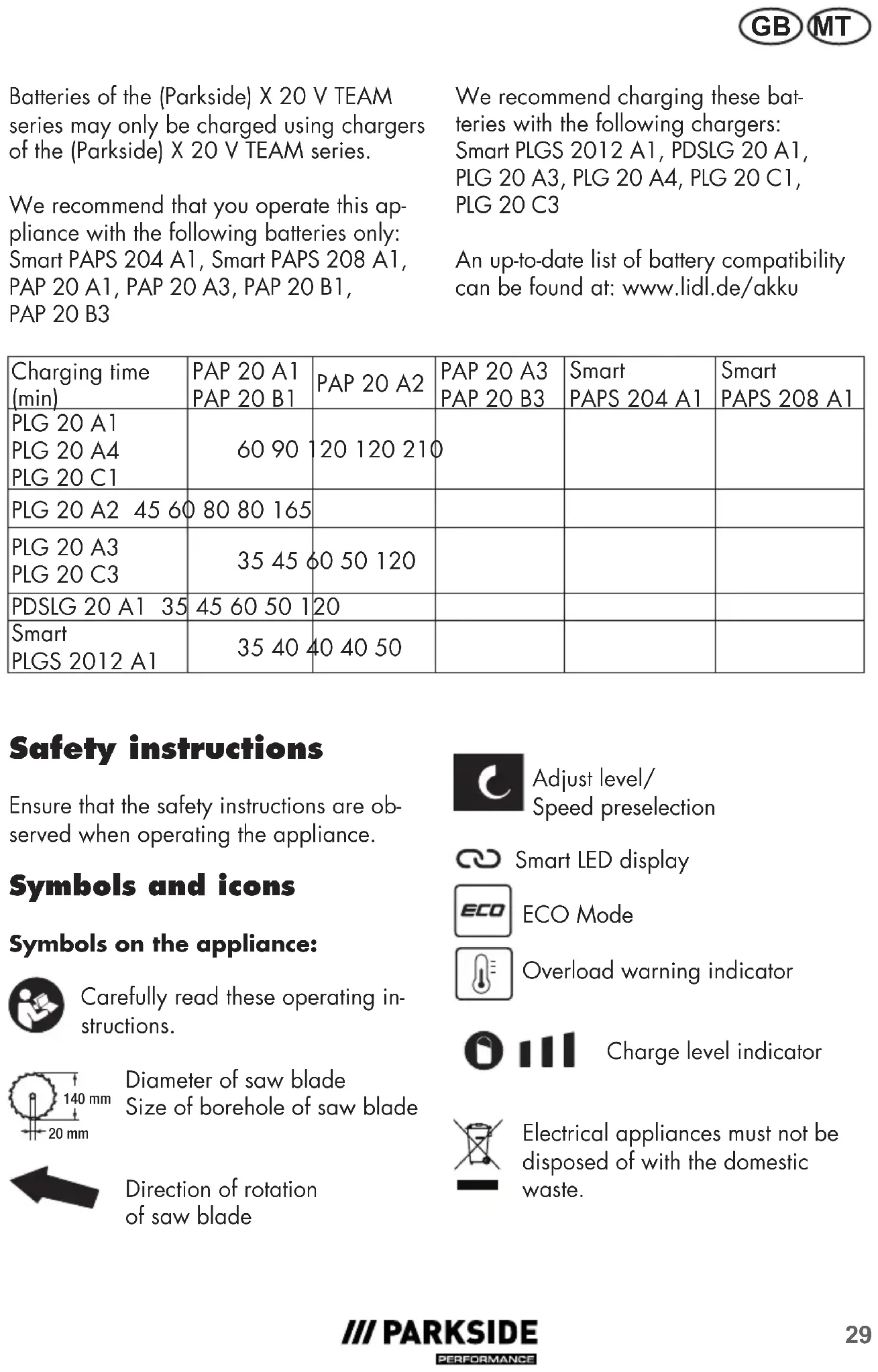

Charging time

The device is part of the (Parkside) X 20 V TEAM series and can be operated with batteries of the (Parkside) X 20 V TEAM series.

Batteries of the (Parkside) X 20 V TEAM series may only be charged using chargers of the (Parkside) X 20 V TEAM series.

We recommend that you operate this appliance with the following batteries only: Smart PAPS 204 A1, Smart PAPS 208 A1, PAP 20 A1, PAP 20 A3, PAP 20 B1, PAP 20 B3

We recommend charging these batteries with the following chargers: Smart PLGS 2012 A1, PDSLG 20 A1, PLG 20 A3, PLG 20 A4, PLG 20 C1, PLG 20 C3

An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

Charging time (min)	PAP 20 A1 PAP 20 B1	PAP 20 A2	PAP 20 A3 PAP 20 B3	Smart PAPS 204 A1	Smart PAPS 208 A1
PLG 20 A1 PLG 20 A4 PLG 20 C1	60 90	120 120 210
PLG 20 A2 45 60	80 80 165
PLG 20 A3 PLG 20 C3	35 45	60 50 120
PDSLG 20 A1 35	45 60 50	120
Smart PLGS 2012 A1	35 40	40 40 50

Safety instructions

Ensure that the safety instructions are ob- served when operating the appliance.

Symbols and icons

Symbols on the appliance:

Carefully read these operating instructions.

Diameter of saw blade Size of borehole of saw blade

Direction of rotation of saw blade

Adjust level/ Speed preselection

Smart LED display

ECO Mode

Overload warning indicator

Charge level indicator

Electrical appliances must not be disposed of with the domestic waste.

Additional graphical symbol on the saw blade:

Wear safety goggles!

Wear breathing protection!

Wear hearing protection!

Do not use any damaged saw blades

Direction of rotation of saw blade

Graphical symbols in the storage case:

Space for cordless plunge saw

Space for battery

Space for charger

Space for parallel guide

Space for instruction manual

Recycling code

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols with information on preventing damage.

Help symbols with information on improving tool handling.

General Safety Directions for Power Tools

WARNING! Read all safety notices, instructions, illustrations and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless power tool).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operation of the power tool in a damp environment is unavoidable, please use a residual current circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat,

or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related hazards.

h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Remove the plug from the wall socket and/or remove the rechargeable battery before you change the device's settings, change accessory parts or put away the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Look after the power tool and application tool carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking

into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in unexpected situations.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

e) Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.

f) Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130 °C can cause an explosion.

g) Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

Additional instructions

a) Do not use grinding discs.

b) Select the right saw blade based on the material you will saw.

Saw blades that are intended for cutting wood or similar materials must comply with EN 847-1. Only use the saw for cutting wood, plastic and lightweight materials

c) Only use saw blades with a speed designation that meets the specified speed for your appliance or higher.

d) Only use saw blades with a diameter of 140 mm corresponding to the markings on the saw blade.

e) Make sure the tips of the saw teeth do not overheat.

f) When sawing plastic, make sure the plastic does not melt.

g) Pay attention to the maximum cutting depth. (see technical data)

h) When sawing, wear a dust mask.

i) Always wear hearing protection!

j) Do not use any accessories (see section "Spare parts/accessories") that are not recommended by PARKSIDE. This can result in electric shock or fire.

Residual risks

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts

b) Ear damage if working without ear protection.

c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the (Parkside) X 20 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.

Safety information for all saws

SAWING METHOD

a) DANGER! Do not put your hands in the cutting area or on the saw blade. If you hold the saw with both hands, they cannot be injured by the saw blade.

b) Do not reach underneath the workpiece. The protective hood cannot protect you from the saw blade under the workpiece.

c) Adjust the cutting depth to the thickness of the workpiece. Less than one full tooth height should be visible below the workpiece.

d) Never hold the workpiece you want to saw in your hands or over your leg. Secure the workpiece in a sturdy support. It is important to fasten the workpiece securely to minimise the risk of physical contact, the saw blade jamming and loss of control.

e) Hold the electric tool by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring. Contact with a live wire also causes a charge in metal parts of the electric tool and results in an electric shock.

f) When performing longitudinal cuts, always use a stop or a straight edge guide. This improves the cutting

precision while minimising the possibility of the saw blade jamming.

g) Always use the right size saw blades with the appropriate locating holes (e.g. diamond or round). Saw blades that do not fit in the saw fitting parts run unevenly and lead to a loss of control.
h) Never use damaged or incorrect saw blade washers or screws. The saw blade washers and screws were designed specifically for your saw to ensure optimal performance and dependability.

Further safety instructions for all saws

SPRING-BACK – CAUSES AND CORRESPONDING SAFETY INSTRUCTIONS

• Spring-back is the sudden reaction caused by a jammed, stuck or improperly aligned saw blade resulting in an out-of-control saw lifting and moving out of the workpiece and towards the operator.
• If the saw blade snags or gets caught in the closing sawing gap or sticks, it will jam, and the motor force will kick the saw back towards the operator.
• If the saw blade is twisted in the saw cut or incorrectly aligned, the teeth of the rear edge of the saw blade can jam in the wood surface, causing the saw blade to move out of the sawing gap and the saw to recoil in the direction of the operator.

Spring-back is caused by wrongly or incorrectly operating the saw. It can be avoided by suitable precautionary measures, such as those described below.

a) Hold the saw firmly and bring your arm into a position in which you can resist the spring-back force. Always hold onto the side of the saw blade and never align the saw blade with your body. In the event of a spring-back, the circular saw can kick back, but the operator can keep control over the spring-back forces using suitable precautionary measures.

b) If the saw blade jams or you interrupt your work, switch the saw off and keep it still in the workpiece until the saw blade has come to a full stop. Never try to remove the saw from the workpiece or pull it back as long as the saw blade is moving, as otherwise it may spring back. Identify and correct the cause of the saw blade jamming.

c) If you want to restart a saw that is in the workpiece, centre the saw blade in the sawing gap and check whether the teeth are jammed in the workpiece. If the saw blade jams, it can move out of the workpiece or cause spring-back when the saw is restarted.

d) Support large plates to reduce the risk of spring-back due to a jammed saw blade. Large plates can bend under their own weight. Plates must be supported on both sides, not only near the sawing gap, but also at the edge.

e) Do not use any blunt or damaged saw blades. Saw blades with blunt or improperly aligned teeth cause increased friction, saw blade jamming and spring-back due to an excessively tight sawing gap.

f) Before sawing, fix the cutting depth and cutting angle settings. If the settings change during sawing, the saw blade can jam, resulting in spring-back.

g) Be particularly careful when sawing existing walls or other areas where

you cannot see what is there. During sawing, the cutting saw blade can jam in hidden objects and cause spring-back.

FUNCTION OF THE PROTECTIVE HOOD

a) Before each use, check whether the protective hood closes properly. Do not use the saw if the protective hood does not move freely or close right away. Never clamp or bind the protective hood in an open position. If the saw accidentally falls to the ground, the bottom protective hood may be bent. Make sure that the protective hood moves freely and does not touch the saw blade or other parts at all cutting angles and depths.

b) Check the condition and function of the springs for the protective hood. If the protective hood and spring do not work properly, have the saw serviced before using it. Damaged parts, sticky deposits or accumulations of chips cause the bottom protective hood to work with a delay.

c) When making a "plunge cut" that is not made at right angles, secure the base plate of the saw against moving sideways. Moving sideways can cause the saw blade to jam, resulting in kick-back.

d) Do not place the saw on the work bench or the floor if the protective hood is not covering the saw blade. An unprotected saw blade that is still running will move the saw in the direction opposite of the cutting direction and cut whatever is in its way. Pay attention to how long the saw blade remains running.

Safety information for the saw blade

This information on the saw blade complies with standard DIN EN 847-1:2017.

The tool may only be used by trained, experienced people who know how to handle tools.

Safe working

• The maximum speed stated on the tool must not be exceeded. If indicated, the speed range must be complied with.
• Circular saw blades with cracks in them must be taken out of service (repair is not permitted).

- Tools with visible cracks must not be used.

- Tools must be cleaned regularly.

- Tool parts made of light metal alloys, e.g. resin, may only be cleaned with solvents that do not impair the mechanical properties of these materials.

- Tools and tool bodies must be tightened in such a way that they cannot become loose during operation. Please note the information on assembly.

Tighten the clamping screw holding the saw blade in place hand-tight using the enclosed hex key.

- Extending a spanner or tightening with the help of hammer blows is not permitted.

- The tightening surfaces on the saw blade must be cleaned to remove any dirt, grease, oil and water.

- Use original spare parts from the manufacturer to ensure safe use, see the section "Spare parts/accessories".

- Maintenance work and modifications to circular saw blades should only be performed by a professional, i.e. a person

with specialist training and experience who is familiar with the design requirements and the necessary safety steps.

Cleaning

- Remove any dirt, such as resin, from the saw blade using only solvents that do not impair the mechanical properties of the saw blade.

- Try to clean resinous surfaces with a damp, lukewarm cloth that has been wrung out well. Make sure that no liquids can get into the interior of the housing! Alternatively, you can use a special cleaner (resin solvent) or multispray. Please take notice of the safety information and instructions provided by the manufacturer of the special cleaner/multispray.

Maintenance

- Check the saw blade for obvious defects after each use and replace a blunt or bent blade or one which has been damaged in some other way.

- Maintenance work on the saw blades, such as repair or regrinding, should be performed by a professional.

Storage

Store the saw blade in a dry and dustproof location and out of reach of children.

Operation

Removing/inserting the battery

1. To remove the battery (34) from the device, press the release button (35) on the battery (34) and pull the battery (34) out.

2. To insert the battery (34), push the battery (34) along the guide rail (9) into the device. You will hear it click into place.

B Checking the charge status of the battery

The battery charge status indicator (20) shows the charge status of the battery (34).

The charge level of the battery is indicated by illumination of the corresponding LED lights while the device is in operation. To see the charge level, keep the on/off switch (5) depressed.

Red-amber-green => battery fully charged Red-amber => battery approx. half charged Red => battery needs to be charged

B Charging the battery

If warm, allow the battery to cool before charging.

Charge the battery (34) when only the red LED on the level indicator is illuminated.

1. Remove the battery (34) from the device.
2. Slide the battery (34) into the charging slot of the charger (36).
3. Plug the charger (36) into an outlet.
4. After charging is complete, a green light will be illuminated permanently. You can now disconnect the charger (36) from the mains supply.
5. Remove the battery (34) from the charger (36).

A Checking the function of the protective hood

1. Place the device with the saw table (10) on the edge of a solid surface so that the plunge saw can be lowered completely.
2. Push the switch lock (3) forward and lower the plunge saw.
3. Check whether the saw blade (27) is rubbing against the protective hood (24). Check whether it moves back to its original position on its own.

If the function of the protective hood is faulty, do not put the device into operation and contact our Service Centre.

Installing/changing the saw blade

Switch off the device and remove the battery before carrying out any work.

1. Push the locking lever (2) towards the auxiliary handle (1).
2. Push the switch lock (3) forward and lower the plunge saw until it audibly engages.
3. Release the switch lock (3). The motor unit stops at the point where you can mount/change the saw blade through the cut-out in the protective hood (24).

Removing the saw blade

1. Press the spindle lock (37) and loosen and remove the screw (39) and the flange (38) with the large hex key (16) (from the auxiliary handle (1)).

GB MT

1. Carefully remove the saw blade (27) from the bottom of the protective hood (24).

Installing the saw blade

1. Place the saw blade (27) from below in the protective hood (24) on the spindle.

The marked running direction on the saw blade (27) must correspond with the marked running direction on the protective hood (24).

1. Place the flange (38) on the saw blade (27).
2. Press the spindle lock (37) and fix the flange (38) and the saw blade (27) with the screw (39) using the large hex key (16).

WARNING! The arrow on the saw blade must match the direction arrow (direction of travel, marked on the protective hood).

Make sure that the saw blade is suitable for the speed of the tool.

Connecting the dust extraction

Connect a approved dust and shavings extraction directly to the chip ejector (4).

When working with materials that produce dangerous dust, connect the device to an appropriate, tested dust class M suction device.

Mounting the rip fence

1. Loosen the butterfly screw (11) for the parallel guide holder (40) and insert the parallel guide (30) in the parallel guide holder (40).

2. the desired cutting width. Use a metre for this if necessary.
   The recesses (25) on the front edge of the saw table (10) indicate the cutting edge for the cutting angle settings 0^ and 45^ (see detail picture).
   3 Tighten the wing screws (11) of the parallel guide holder (40).

Overload warning

- If the device is in danger of being damaged, the overload warning indicator (A 21) lights up (briefly). The device turns off.

Adjusting the cutting angle

You can determine the cutting angle using the cutting angle scale (13).

1. Loosen the two wing screws (7) of the cutting angle preselection.
2. Set the desired angle on the cutting angle scale (13) based on the top edge of the reference mark (12).
3. Tighten the wing screws (7) again.

To set a mitre angle of -1^ or +47^ , turn the adjusting knob (14) after

swivelling.

For mitre cuts, the cutting depth is less than the set value on the cutting

depth scale (29).

Hold the device firmly with both hands during the angle cut to maintain better control of the tool.

Adjusting the cutting depth

1. Press the locking mechanism (15) of the cutting depth adjustment and keep it pressed.

2. Set the desired cutting depth on the cutting depth scale (29) using the reference mark (28).

A: Marking without guide rail

B: Marking with guide rail

1. Release the locking mechanism (15).

Connecting the guide rail

The guide rails have tension tear protection (black rubber lip) on their undersides. This tension tear protection must be shortened to be flush with the length of the guide rail before the first cut. Place the guide rail on a workpiece. Set a cutting depth of approx. 10 mm on the plunge saw and turn the plunge saw on. Guide the plunge saw evenly in the cutting direction, applying slight pressure.

1. Slide the connecting element (32) into the groove on the guide rails (31). The connecting element should be in the middle between the two guide rails.

2. Tighten the grub screws (33) with the small hex key (17).

Working instructions

The cutting width markings (26) on the protective hood (24) show the front and rear cutting point of the saw blade (∅ 140 mm), at maximum cutting depth.

Sawing (without guide rail)

Right angle sawing

- Hold the machine with both hands, one hand on the handle (6) and the second on the auxiliary handle (1).

- Switch on the device, see chapter "Switching on/off"

- Place the machine with the front part of the saw table (10) on the workpiece.

- Lower the plunge saw and saw forward with moderate pressure – never backward.

Mitre cuts up to 45°

- Set the desired cutting angle as described in the chapter "Setting the cutting angle".

- Hold the machine with both hands, one hand on the handle (6) and the second on the auxiliary handle (1).

- Switch on the device, see chapter "Switching on/off"

- Place the machine with the front part of the saw table (10) on the workpiece.

- Lower the plunge saw and saw forward with moderate pressure – never backward.

Plunge cuts

- Set the desired cutting depth as described in the chapter "Setting the cutting depth".

- Place the device on the workpiece.

- Hold the machine with both hands, one hand on the handle (6) and the second on the auxiliary handle (1).

- Switch on the device, see chapter "Switching on/off"

- Lower the plunge saw and saw forward with moderate pressure – never backward.

Reduce the risk of kickback by placing the rear edge against a stop

(e.g. the guide rail).

GB MT

i Moving sideways during the cut can cause the saw blade to jam, resulting in kickback. When making plunge cuts that are not made at right angles, secure the saw table against moving sideways.

Sawing (with guide rail)

Right angle sawing

• Place the guide rail (31) on the workpiece with the black rubber lip facing downwards.
• Place the device with the groove on the guide rail.
• Hold the machine with both hands, one hand on the handle (6) and the second on the auxiliary handle (1).
• Switch on the device, see chapter "Switching on/off"
• Lower the plunge saw and saw forward with moderate pressure – never backward.

Mitre cuts up to 45°

• Place the guide rail (31) on the workpiece with the black rubber lip facing downwards.
• Place the device with the groove on the guide rail.
• Set the desired cutting angle as described in the chapter "Setting the cutting angle".
• Hold the machine with both hands, one hand on the handle (6) and the second on the auxiliary handle (1).
• Switch on the device, see chapter "Switching on/off"
• Lower the plunge saw and saw forward with moderate pressure – never backward.

Plunge sawing with guide rail

• Place the guide rail (31) on the workpiece with the black rubber lip facing downwards.
• Place the device with the groove on the guide rail.
• Set the desired cutting depth as described in the chapter "Setting the cutting depth".
• Place the rear edge of the saw table (10) (as far as possible) against a stop.
• With the eccentric screws (8) the fitting accuracy of the saw table in the guide rail can be improved. Tighten the eccentric screws (8) to minimise the play between the device and the guide rail (31).
• Hold the machine with both hands, one hand on the handle (6) and the second on the auxiliary handle (1).
• Switch on the device, see chapter "Switching on/off"
• Lower the plunge saw and saw forward with moderate pressure – never backward.

A Setting the speed and ECO Mode

Use the ⚫ (22) button to set one of the 6 speed levels.

An ECO Mode is also available. The ECO LED indicator (19) lights up when the ECO Mode is active.

A Switching on/off

Switching on:

1. Push the switch lock (3) forward.
2. Operate the on/off switch (5).
   Once the machine has started up, you can release the switch lock (3).
3. Lower the plunge saw.

Switching off:

1. Release the on/off switch (5).
2. Guide the saw blade back into the protective hood (24).

Connecting the device with the Lidl Home App

The device can only be connected to the Lidl Home App if you are using it with a Smart Performance battery.

1. Slide the device base onto a Smart Performance battery until it clicks into place.
   Push the button (22). The Smart LED display (8)
   starts to light up.

1. Enable Bluetooth® on your smartphone.

2. Open the Lidl Home App. From here there are options ①, ② and ③ to connect the device.

① If this is the first device you want to connect to the app:

1. On the tab "At home", select the option "Add device". The app scans the area for available devices and indicates if available devices have been found.

If this is not the case, read on if possible ③.

1. If you select "Go to add", the available devices are displayed in a list.

2. Select the device by setting the check mark √. Select only one device at a time. If there are other check marks for other devices, clear the check marks by pressing them.

3. Now press the ⭕, that has the same colour as the set check mark.

4. Confirm the successful connection with "Finish". The device is now listed on the tab "At home" and can be selected.

② If you have already connected other devices to the app:

1. On the tab "At home", select the in the upper right. The app scans the area for available devices and indicates if available devices have been found. If this is not the case, read on if possible ③.

2. Proceed as with ① from point 5.

③ If a list of available devices is not automatically suggested to you:

If the device is not suggested automatically, follow these steps:

1. On the tab "At home", select the + in the upper right.

2. Select "Other" in the bar on the left.

3. Select „Other-2“.

4. Confirm that the display is flashing rapidly. The app now searches for available devices and suggests them to you.

5. Select the desired device by pressing the + to add it to the app.

6. First confirm with „Next“, then with „Finish“.

i Upgrading the firmware can change the features of the app.

Features of the app

Select the smart battery (that you are using for the device). This takes you to the overview page for the device with the following information and settings:

If you are not immediately directed to the overview page of the device, select the Performance device PPTSA 20-Li A1 under "Device information" on the overview page of the battery.

GB MT

• The Tool Virtual ID helps you identify the exact tool
• The Tool Model is indicated along with the production batch in brackets
• the Tool Discharge Current indicates the current discharge in amperes
• the Tool Rotation Speed is shown in RPM (rounds per minute). In the "Professional" setting, adjustable under Tools in working mode, the speed can be preset.
• Tools in Working Mode can be used to select: Power, Professional and ECO
• the Tool Total Runtime can be read out
• the frequency of the overtemperature times can be read out via Tool Overtemperature Times
• the frequency at which the is blocked can be read out via Tool Blocking Time
• You can find the tool overcurrent times
• A red dot next to the Firmware Version indicates if an update is available. The update can be installed by tapping the firmware version
• You can restore the operating settings via the "Reset" selection under Reset to Factory Settings. All stored data are deleted.

Selecting the image will take you to a 360° view of the device.

Privacy policy

The complete data protection guideline can be found under the tab in the field "Data protection guideline".

Disconnecting the device and deleting data from the app

1. In the tab, select the device that you want to remove and whose data you want to delete.
2. Select the ↕ icon in the top right.
3. Select „Remove device“.
4. To delete the data, select „Disconnect and delete data".
   If you just want to disconnect the device without deleting the data, select "Disconnect".

Problems with the app? - FAQ

1. Select the battery you are using the Performance device with from the device list.
2. Swipe from left to right to go to the battery overview page.
3. Select the ↕ icon in the top right.
4. Under „Other“ select the option „FAQ“ (Frequently Asked Questions).

Cleaning and maintenance

Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury!

Turn off the appliance and, before doing any servicing, remove the battery.

Perform the following cleaning work regularly. This will guarantee long and reliable use.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

- Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush. Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

Maintenance

The appliance cleaner is maintenance free.

Storage

• Store the equipment in a dry place well out of reach of children.
• The storage temperature for the battery is between 0 °C and 45 °C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.
• Store device and accessories in the supplied case (23).

Disposal and protection of the environment

Remove the battery from the device and recycle the device, battery, accessories and packaging in an environmentally-friendly manner.

Electrical devices do not belong in domestic waste.

Do not throw batteries into domestic waste, fire (risk of explosion) or water. Damaged batteries can harm the environment and your health if poisonous or liquids escape.

Dispose of the batteries according to local standards. Defective or used batteries must be recycled in accordance with Directive 2006/66/EC. Hand in the batteries at a used battery collection point where they are recycled in an environmentally friendly manner. For more information, please contact your local waste management provider or our service centre.

Dispose of batteries in a discharged state. We recommend covering the contacts with an adhesive strip to protect against short circuits. Do not open the battery.

Replacement parts/ accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 45).

Saw blade,

∅ 140 mm × 1.8 × ∅ 20 mm ..... 13800414

Guarantee

Dear customer, this device comes with a 5-year warranty from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Warranty conditions

The warranty period begins upon the date of purchase. Please retain the original receipt. This documentation will be required as proof of purchase.

If a material or manufacturing defect occurs within five years from the date of purchasing of this product, the product will be repaired or replaced by us for free – according to our choice. This warranty service requires you to present the defective device and proof of purchase (sales receipt) within five years and describe briefly in writing the nature of the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. Saw blade) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 396073_2201) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
  • After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the

proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone]

E-Mail: [e-mail]

IAN 396073_2201

MT Service Malta Tel.: [phone] E-Mail: [e-mail] IAN 396073_2201

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Avertissement de surcharge......60

Service-Center....70

Importeur ....70

Poids (accessoires uniquement) .....2,0 kg

Sciage (sans rail de guidage)

Service-Center......91

Importeur ......91

Trilling (q _h,w ) zagen in hout

Handgreep.....2,611 m/s²; K= 1,5 m/s²

Hulphandgreep..3,107 m/s ^2 ; K= 1,5 m/s ^2

Service-Center....113

Importer 113

Tarcza tnqca......HW 42

Wymiary ......∅ 140 mm x 1,8 x ∅ 20 mm

Grubość zęba 1,8 mm

Service-Center....132

Dovozce....132

Service-Center......152

Dovozca....152

Service-Center......171

Importør 171

Service-Center......213

Pooblaščeni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

We hereby confirm that the Cordless Plunge Saw model PPTSA 20-Li A1 Serial number 000001 - 067000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/53/EU • 2014/30/EU • 2011/65/EU* & (EU) 2015/863 Device incl. smart battery Smart PAPS 204 A1/Smart PAPS 208 A1: 2014/53/EU
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 62841-1:2015 • EN 62841-2-5:2014 EN IEC 55014-1:2021 • EN IEC 55014-2:2021 • EN 847-1:2017 • EN IEC 63000:2018 Device incl. smart battery Smart PAPS 204 A1/Smart PAPS 208 A1: EN 301 489-1 V2.2.3:2019 • EN 301 489-17 V3.2.4:2020 EN 300 328 V2.2.2:2019 • EN 50663:2017
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim, GERMANY 01.09.2022	Christian Frank (Documentation Representative)

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

FSC www.fsc.org MIX From responsible sources FSC® C167024

FSC www.fsc.org MIXTE Issu de sources responsables FSC® C167024
