USER MANUAL Lumi Lamp LANAFORM

Thank you for choosing the Lanaform® Lumi Lamp. This device will help you combat tiredness, apathy and the lack of energy often felt in autumn and winter when it’s grey and the days get shorter. These symptoms are the expression of what is referred to as the winter blues. The Lumi Lamp is based on the use of very bright light that simulates natural sunlight. The light produced by the Lumi Lamp re-establishes the essential light signals naturally so that you feel happy and full of energy. With its technology and broad light distribution (approximately 10,000 Lux at 10cm), the Lumi Lamp will help quickly help you rediscover energy and vitality. You may use the Lumi Lamp while carrying on with other activities, such as reading, writing, using the telephone and even when working. LIGHT EXPOSURE Light and its intensity have an enormous impact on our body’s life processes. During the autumn and winter, the sun’s rays diminish. Conventional articial lighting of buildings is not in itself capable of compensating for this shortage of natural light. The consequences of this reduction in luminosity may lead to a lack of drive and energy, insomnia or melancholy, to problems with concentration and diculty getting up in the morning. These are symptoms grouped together under the term “seasonal aective disorder or winter blues”. Many health professionals agree about the benets of exposure to bright light for treating the winter blues. By bright light, they mean daylight of a certain intensity. In winter, the intensity of the light never exceeds 2500 Lux*, whereas in summer it can reach 100,000 Lux* on a beautiful summer’s day. LANAFORM® has therefore developed this specic light device so that you can benet from the amount of light you need to chase away the winter blues. Use of the Lumi Lamp by LANAFORM® is medically proven for treating the symptoms of seasonal aective disorder. Exposure to light consists of using light with a strong Lux* coecient in order to simulate the sun’s natural light. The symptoms of the winter blues can be reduced, and even disappear, through regular exposure to light with a strong Lux coecient during a given period.

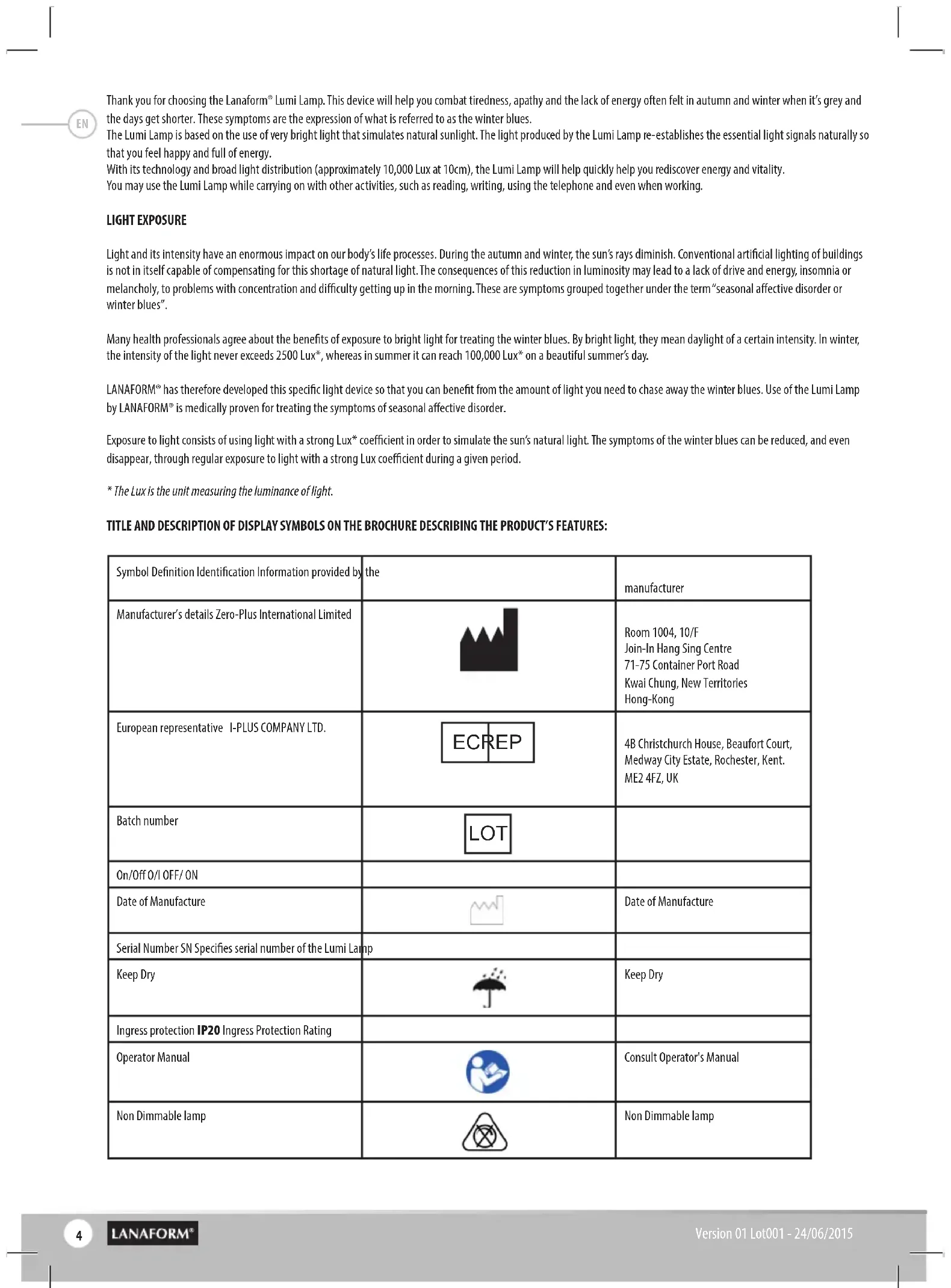

• The Lux is the unit measuring the luminance of light. TITLE AND DESCRIPTION OF DISPLAY SYMBOLS ON THE BROCHURE DESCRIBING THE PRODUCT’S FEATURES: Symbol Denition Identication Information provided by the manufacturer Manufacturer’s details Zero-Plus International Limited Room 1004, 10/F Join-In Hang Sing Centre 71-75 Container Port Road Kwai Chung, New Territories Hong-Kong European representative I-PLUS COMPANY LTD. 4B Christchurch House, Beaufort Court, Medway City Estate, Rochester, Kent. ME2 4FZ, UK Batch number On/O O/I OFF/ ON Date of Manufacture Date of Manufacture Serial Number SN Species serial number of the Lumi Lamp Keep Dry Keep Dry Ingress protection IP20 Ingress Protection Rating Operator Manual Consult Operator's Manual Non Dimmable lamp Non Dimmable lamp LOT EC REP5 Version 01 Lot001 - 24/06/2015

Please note: see instructions for use Please note: consult the enclosed documents. Please read these instructions before using the device. Please also follow these instructions carefully when using the device. See instructions for use Read the instructions for use accom- panying the product Category II equipment Electrical and electronic waste (WEEE) Symbol CE The CE labeling certies that the product complies with the essential requirements of Directive 93/42/EEC on medical products PLEASE READ ALL THE INSTRUCTIONS BEFORE USING YOUR DAYLIGHT DEVICE, PARTICULARLY THESE FEW BASIC SAFETY INSTRUCTIONS:

• Only use this device by following the instructions for use described in this manual.

• This device is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or people with lack of experience or knowledge, unless someone responsible for their safety can supervise or instruct them beforehand on how to use the device. Children should be supervised to make sure they do not play with the device.

• Before connecting the device, check that the voltage shown on the device corresponds to the local voltage.

• Do not use accessories that are not recommended by LANAFORM® or that are not supplied with this device.

• This device shall not be modied in any way.

• If the power cable is damaged, it must be replaced by a similar one available from the supplier or its after-sales department.

• Do not use this device if the power plug is damaged, if the device is not working properly, has been dropped on the oor or if it is damaged or has been dropped into water. Have the device examined and repaired by the supplier or its after-sales department.

• Do not carry this device around by its power cable and do not use this cable as a handle.

• Always disconnect the device after using it and before cleaning it.

• An electrical device should never remain connected unsupervised. Unplug it when you are not using it.

• Keep the power cable away from hot surfaces.

• Do not use this product before going to sleep. Exposure to light acts as a stimulant that may hinder sleep.

• Never let anything drop and never insert any object into any openings.

• Do not use this device in a damp atmosphere (in a bathroom, close to a shower, etc.)

• Never use this device in a room in which aerosols (sprays) are used or in a room in which oxygen is administered.

• Do not use this device under a cover or under a cushion. Excessive heat can cause re, electrocution or injury.

• This unit is intended only for family use. The Lumi Lamp should not therefore be used for medical treatment.

• Do not use the device in a room not lit by another light source as this may cause eye fatigue. Use this device in addition to normal lighting (daylight or electric light).

• If you experience any pain at all when using this device, stop using it immediately and consult your doctor.

• We would advise you not to look at the lamp during your session. You may notice that your eyes ache during the rst few sessions. That will subsequently disappear.

• Consult your doctor before starting to use the Lumi Lamp if:

• you suer or have suered from serious depression;

• you are hypersensitive to light;

• you have had an eye disorder;

• you are taking certain drugs (e.g. certain anti-depressants, psychotropic substances, malaria tablets) that might have a detrimental eect when using the Lumi Lamp;

• you have high blood pressure.

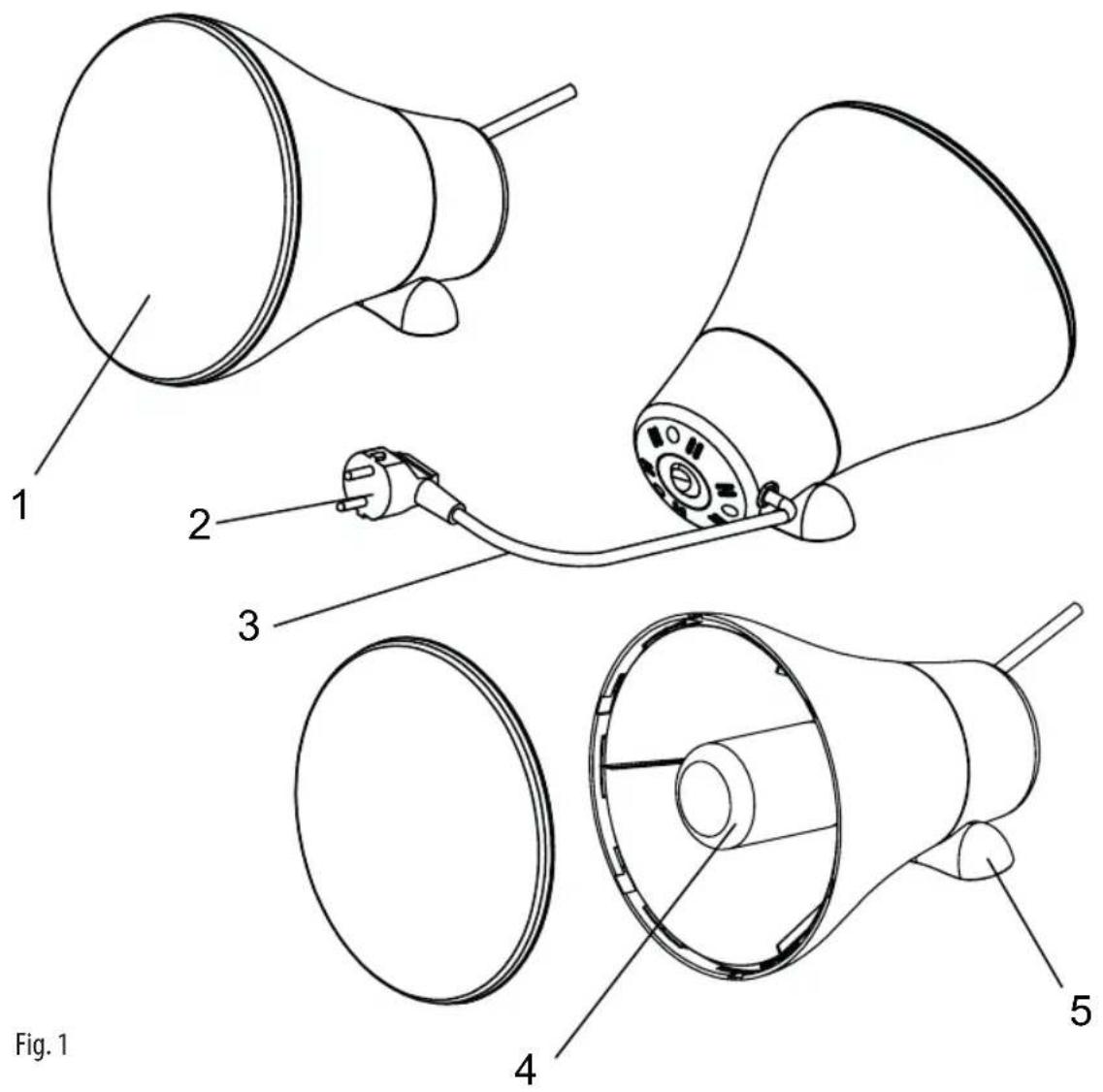

• The exposure time depends specically on the distance between you and the Lumi Lamp. To nd out the recommended distance and exposure time, please read the chapter “Instructions for Use”. PRODUCT COMPOSITION (Fig.1.)

• The Lumi Lamp should be used preferably during the day and not in the evening. Installation: 1.Place your Lumi Lamp on a solid, at and stable surface. 2.Your face should be between 15 and 30cm away from the Lumi Lamp. 3.Plug the power cable into a socket corresponding to the product’s rating plate. - Make sure that the socket is near the Lumi Lamp. - Lay out the power cable so that no-one trips over it. - To prevent any risk of strangulation, keep the cable out of the reach of young children. Use:

• You can switch on the Lumi Lamp using the (On/O) button.

• The recommended exposure time to the Lumi Lamp depends on the distance from the lamp and the light intensity selected. The general advice, however, is that the device should be used for 1 hour at a light intensity of 5000 Lux. You can therefore easily calculate the recommended exposure time from the table below: Distance Lux Exposure time 10cm 10,000 +/- 30 mins. 15cm 5,700 +/- 1hr 25cm 2,600 +/- 2 hrs

• Sit down in front of the device. o The distance between your face and the screen should be between 15 and 50cm. Adjust as required and so that your eyes are comfortable. o You are not obliged to sit directly opposite the device. o You can space out the length of your light therapy session.

• Exposure must be regular for a prolonged period. Throughout the darkest days of the year, repeat the therapy for at least 7 consecutive days and more, according to individual requirements. - The light tube is at full power after a few minutes. - Stop the machine after use by turning the button to the “0” position on the front of the device and unplug it. Wait for 10 minutes before replacing the product in its package. - If, during the exposure to light session, your eyes ache or you feel any other pain, stop using the Lumi Lamp immediately and consult your doctor. - Do not look at the lamp directly. You can read, write, make telephone calls etc. during the session.

• Unplug the device and allow it to cool down.

• Use a damp cloth or sponge to clean the outer surface of the lamp.

• Never use scrubbing brushes, abrasive products or aggressive detergents such as acetone or spirit to clean the device. Storage:

• Store your unit in a safe, dry place out of the reach of children.

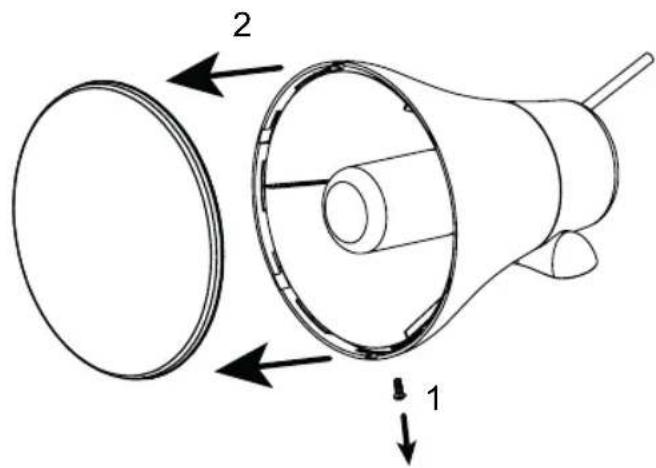

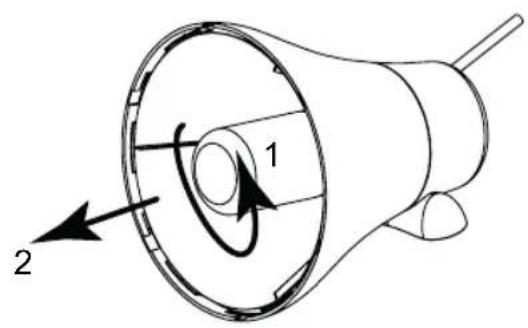

Apart from the tube, the device does not contain any other part that needs to be replaced. The tube has a service life of approximately 8,000 hours (corresponding to several years of normal use). The tube must be replaced with a similar tube. To replace the tube, please follow the instructions below: - Using a screwdriver (not supplied), unscrew the screw on the product’s base and then remove the reector cover as shown on the diagram (Fig. 2.) - Then unscrew the tube as shown on the diagram (Fig. 3). - Once the tube has been replaced, replace the reector cover and the screw before using the Lumi Lamp again. EN7 Version 01 Lot001 - 24/06/2015

TECHNICAL SPECIFICATIONS Normal conditions of use Power 24W Light element 24W, E27 tubes, lifespan: 8,000 hours Fuse T3.15AH250V Light intensity 10,000 Lux at 10cm Operating temperature 10 to 35°C (moisture content: 30<H<90%) Atmospheric pressure: 700-1060hPa Storage and transport temperature -20°C ~50°C (moisture content: <90%) Atmospheric pressure: 700-1060hPa Power supply 220-240V, 50Hz Product classication Class II equipment No applied part Not category AP / APG equipment Mode of operation: Continuous operation. Maximum output of radiation/ spectral radiant: 1.8W.cm-2sr-1 Location of emission aperture Lamp Screen Dimensions 200x85x240mm Weight 0.5kg net This device has been developed and manufactured in compliance with the highest safety and performance standards, including electromagnetic compatibility standards (EMC). This device also complies with the requirements of the directive concerning medical devices 93/42/EC FAQ Troubleshooting Possible causes Solutions No light No current The device may not be connected properly or your electricity supply is faulty Main power switch is turned o Switch on main power switch One side of the product is no longer working Faulty tube Change the tube Tube at the end of its service life Change the tube The light continues to ash for 20 seconds after it has been switched on Tube inserted incorrectly Replace the tube8 Lumi Lamp Version 01 Lot001 - 24/06/2015 Normative references Guidance and manufacture’s declaration – electromagnetic emissions – for all EQUIPMENT and SYSTEMS Guidance and manufacturer’s declaration – electromagnetic emissions The model Lumi Lamp LA190109 is intended for use in the electromagnetic environment specied below. The customer or the user of the model LUMI LAMP LA190109 should ensure that it is used in such an environment. Emissions test Compliance Electromagnetic environment – guidance RF emissions CISPR 11 Group 1 The LUMI LAMP LA190109 uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. RF emissions CISPR 11 Class B The model LUMI LAMP LA190109 is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes. Harmonic emissions

Class C Voltage uctuations/ icker emissions

Complies Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM – for ME EQUIPMENT or ME SYSTEM that are not LIFE-SUPPORTING Recommended separation distances between portable and mobile RF communications equipment and the model LUMI LAMP LA190109 Equipment. The model LUMI LAMP LA190109 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model LUMI LAMP LA190109 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model LUMI LAMP LA190109 as recommended below, according to the maximum output power of the communications equipment. Rated maximum output power of transmitter

Separation distance according to frequency of transmitter

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is aected by absorption and reection from structures, objects and people. EN9 Lumi Lamp Version 01 Lot001 - 24/06/2015 Guidance and manufacture’s declaration – electromagnetic immunity – for all ME EQUIPMENT and ME SYSTEMS Guidance and manufacture’s declaration – electromagnetic immunity The model LUMI LAMP LA190109 is intended for use in the electromagnetic environment specied below. The customer or the user of model LUMI LAMP LA190109 should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance Electrostatic discharge (ESD)

±6 kV contact ±8 kV air ±6 kV contact ±8 kV air Floors should be wood, concrete or ceramic tile. If oor are covered with synthetic material, the relative humidity should be at least 30%. Electrical fast transient/burst

±2 kV for power supply lines ±2 kV for power supply lines Mains power quality should be that of a typical commercial or hospital environment. Surge

± 1 kV line(s) to line(s) ± 1 kV line(s) to line(s) Mains power quality should be that of a typical commercial or hospital environment. Voltage dips, short interruptions and voltage variations on power supply input lines

<5% UT (>95% dip in UT) for 0.5 cycle 40% UT (60% dip in UT) for 5 cycles 70% UT (30% dip in UT) for 25 cycles <5% UT (>95% dip in UT) for 5 sec <5% UT (>95% dip in UT) for 0.5 cycle 40% UT (60% dip in UT) for 5 cycles 70% UT (30% dip in UT) for 25 cycles <5% UT (>95% dip in UT) for 5 sec Mains power quality should be that of a typical commercial or hospital environment. If the user of the model LUMI LAMP LA190109 requires continued operation during power mains interruptions, it is recommended that the model LUMI LAMP LA190109 be powered from an uninterruptible power supply or a battery. Power frequency (50/60Hz) magnetic eld

3A/m 3A/m Power frequency magnetic elds should be at levels characteristic of a typical location in a typical commercial or hospital environment. NOTE UT is the a.c. mains voltage prior to application of the test level. EN10 Lumi Lamp Version 01 Lot001 - 24/06/2015 Guidance and manufacture’s declaration – electromagnetic immunity – for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING Guidance and manufacture’s declaration – electromagnetic immunity The model LUMI LAMP LA190109 is intended for use in the electromagnetic environment specied below. The customer or the user of model LUMI LAMP LA190109 should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance Conducted RF

3 Vrms 150 kHz to 80 MHz 3 V/m 80 MHz to 2.5 GHz 3 Vrms 3 V/m Portable and mobile RF communica- tions equipment should be used no closer to any part of the model LUMI LAMP LA190109, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Portable and mobile RF communi- cations equipment should be used no closer to any part of the including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance d = 1.167 d = 1.167 80 MHz to 800 MHz d = 2.333 800 MHz to 2.5 GHz where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manu- facturer and d is the recommended separation distance in metres (m). Field strengths from xed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol: NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is aected by absorption and reection from structures, objects and people. a Field strengths from xed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to xed RF transmitters, an electromagnetic site survey should be considered. If the measured eld strength in the location in which the model LUMI LAMP LA190109 is used exceeds the applicable RF compliance level above, the model LUMI LAMP LA190109 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the model LUMI LAMP LA190109. b Over the frequency range 150 kHz to 80 MHz, eld strengths should be less than 3 V/m. EN11 Lumi Lamp Version 01 Lot001 - 24/06/2015 Advice regarding the disposal of waste:

• All the packaging is composed of materials that pose no hazard for the environment and which can be disposed of at your local sorting centre to be used as secondary raw materials. The cardboard may be disposed of in a paper recycling bin. The packaging lm must be taken to your local sorting and recycling centre.

• When you have nished using the device, please dispose of it in an environmentally friendly way and in accordance with the law. LIMITED WARRANTY LANAFORM® guarantees this product against any material or manufacturing defect for a period of two years from the date of purchase, except in the circumstances described below. The LANAFORM® guarantee does not cover damage caused as a result of normal wear to this product. In addition, the guarantee covering this LANAFORM® product does not cover damage caused by abusive or inappropriate or incorrect use, accidents, the use of unauthorized accessories, changes made to the product or any other circumstance, of whatever sort, that is outside LANAFORM®’s control. LANAFORM® may not be held liable for any type of circumstantial, indirect or specic damage. All implicit guarantees relating to the suitability of the product are limited to a period of two years from the initial date of purchase as long as a copy of the proof of purchase can be supplied. On receipt, LANAFORM® will repair or replace your appliance at its discretion and will return it to you. The guarantee is only valid through LANAFORM®’s Service Centre®. Any attempt to maintain this product by a person other than LANAFORM®’s Service Centre will render this guarantee void.

±2 kV for power supply lines ±2 kV for power supply lines Mains power quality should be that of a typical commercial or hospital environment. Stoßspannung
