Mixy LA120115 - Humidifier LANAFORM - Free user manual and instructions

Product type	Ultrasonic humidifier
Brand	Lanaform
Model	Mixy LA120115
Dimensions (L x W x H)	20 x 20 x 30 cm
Weight	1.3 kg
Power supply	220-240 V, 50/60 Hz
Power	25 W
Tank capacity	4 litres
Steam output	250 ml/h
Recommended area	20-30 m²
Noise level	35 dB
Main functions	Ultrasonic, auto shut-off, night light, humidity adjustment
Maintenance and cleaning	Clean the tank with diluted white vinegar every week
Safety	Automatic shut-off when tank is empty
Spare parts and repairability	Demineralization filter available as option
Color	White and silver

Frequently Asked Questions - Mixy LA120115 LANAFORM

How to clean the Mixy LA120115 humidifier?

To clean the humidifier, empty the tank and clean it with a mixture of water and white vinegar (1:1). Rinse thoroughly with clean water. Do not use abrasive products. It is recommended to clean the device every week.

Why is my humidifier no longer producing steam?

First check that the water tank is sufficiently filled. If the tank is empty, the device automatically shuts off. Also make sure the outlet nozzle is not blocked. Regular cleaning of the tank and the ultrasonic membrane can solve the problem.

What type of water should be used in the humidifier?

It is recommended to use distilled or demineralized water to prevent limescale buildup and extend the life of the device. Tap water may cause a white deposit on surfaces.

How to adjust the desired humidity level?

The Mixy LA120115 is equipped with a built-in hygrostat. You can adjust the desired humidity level (usually between 40% and 60%) using the rotary knob or buttons on the control panel. The device automatically stops when the humidity reaches the selected level.

Can the humidifier be used in a child's room?

Yes, this humidifier is quiet (35 dB) and has a built-in night light, making it suitable for a child's room. However, place it out of reach of children and never leave the device unattended.

What is the operating time with a full tank?

With a 4-liter tank and a steam output of 250 ml/h, the humidifier can operate for up to approximately 16 hours without refilling. In maximum mode, this time may be reduced.

What to do if the humidifier makes an unusual noise?

An unusual noise may be due to a lack of water or a poorly positioned tank. Check the water level and make sure the tank is properly in place. If the noise persists, clean the ultrasonic membrane with a soft brush.

Does the device have automatic shut-off?

Yes, the Mixy LA120115 is equipped with a safety automatic shut-off when the tank is empty or when the ambient humidity reaches the set level. This prevents any risk of overheating.

How to replace the demineralization filter?

The demineralization filter (optional) is located in the water tank. To replace it, remove the old filter and insert a new one. It is recommended to change the filter every 3 to 6 months depending on water hardness.

Can I use essential oils with this humidifier?

No, this humidifier is not designed to be used with essential oils. Adding oils may damage the plastic parts and clog the membrane. If you want to diffuse oils, use a specific diffuser.

USER MANUAL Mixy LA120115 LANAFORM

Thank you for your interest in Lanaform ^® 's MIXY humidifier. This humidifier uses a high frequency ultrasound oscillator to break the water down into minute particles with a diameter of some 1 to 5 SYMBOL µ m.

The ventilation system diffuses the water in the form of cold vapour and thus provides the desired humidity. This vapour is characterised by a light mist leaving the diffuser.

PLEASE READ ALL THE INSTRUCTIONS BEFORE USING YOUR HUMIDIFIER, IN PARTICULAR THESE FEW FUNDAMENTAL SAFETY RULES:

• Only use this appliance for the purposes described in this manual.
• Make sure that the voltage indicated on the appliance corresponds to that of your power supply.
• This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities are impaired, or by persons lacking experience or knowledge, unless they have had the benefit of prior supervision and instruction in using the device from a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Please do not use accessories which are not recommended by LANAFORM or which are not supplied with this appliance.
• If the power lead is damaged, it must be replaced by a special or similar lead available from the supplier or after-sales department.
• Do not use this appliance if the plug is damaged, if it is not working correctly, if it has been dropped or damaged or if it has fallen into water. If this is the case, have the appliance inspected and repaired by the supplier or its after-sales department.
  • Always disconnect the appliance from the mains after use and before cleaning it.
• Do not try to retrieve an appliance which has fallen into water; simply disconnect it from the mains electricity supply immediately.
• An electrical appliance should never be left plugged in and unsupervised. Disconnect it from the mains electricity supply if you are not using it.
• Keep the power lead away from hot surfaces.
• Never use this appliance in a room where aerosol products (sprays) are used or in a room where oxygen is administered.
  • This appliance is intended exclusively for family use.
• Never obstruct the appliance's air vents and never place the device on an unstable surface such as a carpet or mattress. This could prevent air circulation. Make sure that the air vents are not clogged with hair, lint, dust, etc. Do not insert any objects into the air vents.
• Always position the humidifier on a hard, flat, horizontal surface, at least FIFTEEN centimetres from walls and keep away from heat sources such as cookers, radiators, etc. The humidifier cannot work correctly on a non-horizontal surface.
• Do not use this appliance near water, electrical appliances or wooden furniture.
• Never attempt to plug or unplug this appliance if you are in contact with water or in a damp environment. This could result in the risk of electric shock.
• Never immerse or plunge the appliance into water or any other liquid in order to clean it.
• The ultrasound humidifier must be cleaned regularly. To do this, refer to the cleaning instructions in this manual and follow them closely.
• Never remove the base unit.

• If there is water leaking from the appliance or if there is an unusual smell during use, switch the appliance off immediately and return it to the supplier or after-sales department.

• Do not add any substance other than distilled or demineralised water to the tank at a temperature below 40°C .

• Never switch on the humidifier if there is no water in the tank.
• Do not shake the appliance. This could cause water to overflow into the base unit and affect its operation.
• Never touch the water and the immersed components when the unit is in operation.
• To prevent any damage to the components, avoid splashing the inside of the base unit.
• Never scratch the transducer.
• In temperatures of below freezing (below 0°C), remove the water from the tank and the base to prevent the risk of freezing.
• Do not use the humidifier if the air in the room is already humid enough (at least 50% relative humidity). Excess humidity manifests itself by condensation on cold surfaces or cold walls in the room. To determine the correct humidity level in the room, use a hygrometer - these are available in most material stores and in hypermarkets.
• The appliance should be used at a temperature of between 5°C and 40°C and a relative humidity of less than 50% RH.

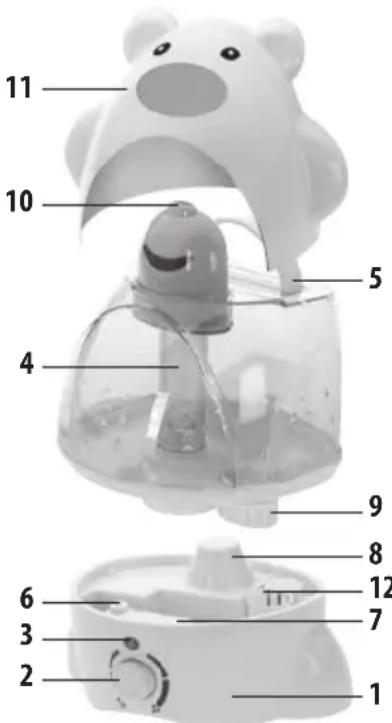

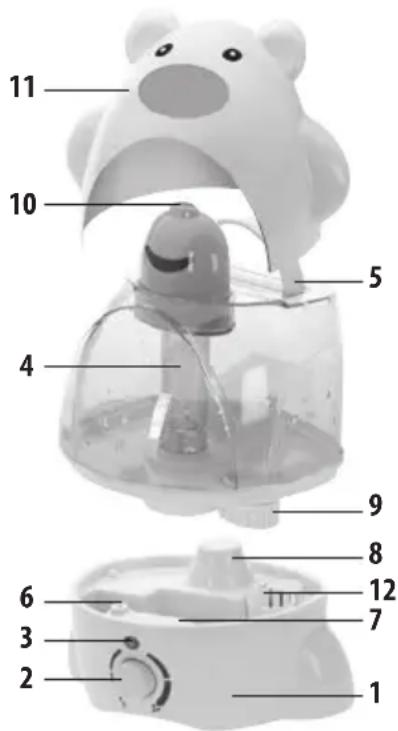

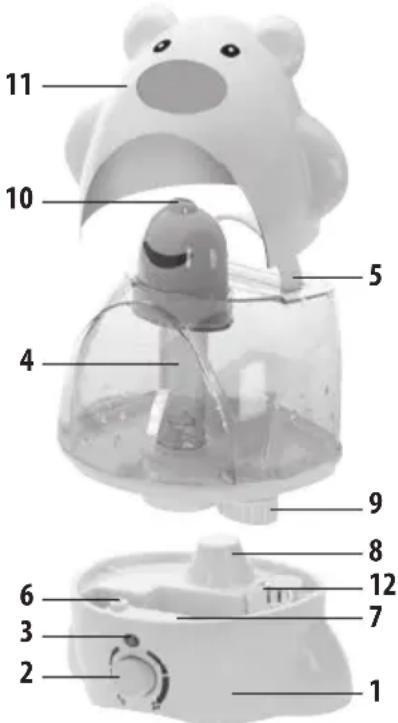

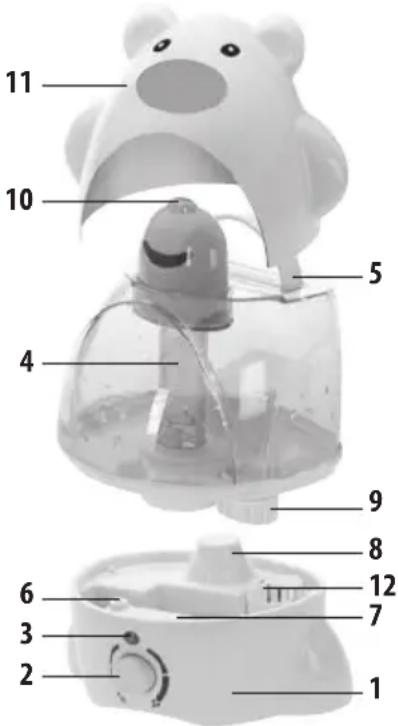

COMPONENTS (Fig. 1)

1. Base unit
2. Main switch (ON/OFF and Vapour Setting)
3. Warning light
4. Tank
5. Tank handle
6. Water level sensor
7. Transducer
8. Fan
9. Tank plug
10. Spray
11. Cover
12. Filter
13. Transformer

Fig. 1

INSTRUCTIONS FOR USE

Characteristics:

• Capacity 2 litres
  • Continuous operation for more than 18 hours.
• Easy-fill water tank.
• Integrated safety mechanism which automatically stops the diffuser from working when the water tank is empty.
• High-quality transducer guarantees correct and long-lasting operation.

Functions:

• Increases and adjusts the relative humidity of the room.
• Eliminates electrostatic charges.
• Improves the quality of the air in the room.

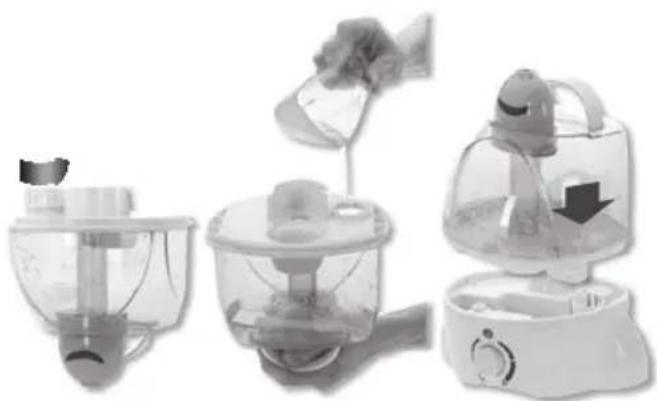

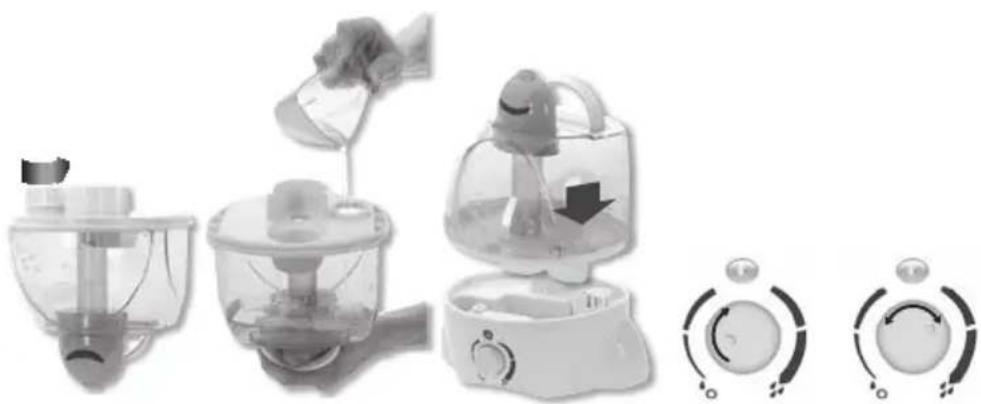

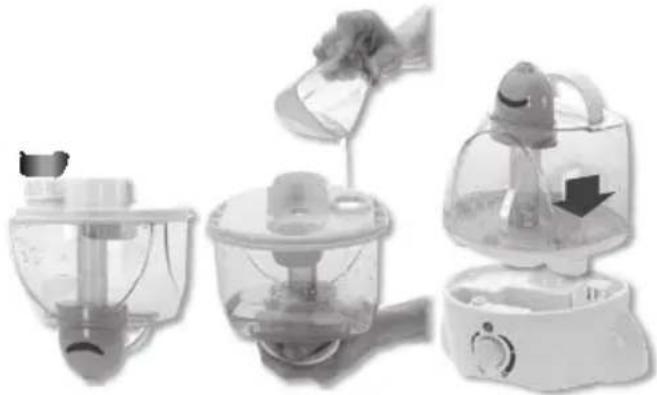

How to use it:

• Place the appliance in the room half an hour before turning it on so that it becomes adjusted to the room temperature.
• Remove the water tank from the appliance (Fig. 2), unscrew the cap by turning it anticlockwise (Fig. 3).
• Fill the tank with clean water at a maximum temperature of 40°C (Fig. 4). Check that the silicon washer is correctly positioned, then close the cover by turning the latter in a clockwise direction.
• Make sure that it is clean and watertight then carefully position the tank in the base unit. (Fig. 5).
• With dry hands, plug in and switch on the appliance. The blue warning light lights up. The appliance starts working. (Fig. 6).
• You can then adjust it to the desired vapour intensity by turning the vapour intensity control button (Fig. 7).
• Once the tank is empty, the safety mechanism inside the appliance will automatically stop the electricity supply if the circuit is overheating.
• Strict monitoring is required at all times to prevent any risk.

Fig. 2 Fig. 5

Warning: DESPITE THE SAFETY MECHANISM WHICH STOPS THE TRANSDUCER WORKING, AVOID AS MUCH AS POSSIBLE LEAVING THE DEVICE PLUGGED IN WHEN NOT IN USE.

MAINTENANCE AND STORAGE:

If the water is hard - in other words, if it contains too much calcium and magnesium - it can leave a «white powder» in the appliance and cause heavy scaling on the surface of the tank, on the transducer (ceramic tablet which generates ultrasounds) and on the internal walls of the water tank. Build-up on the surface of the transducer prevents the appliance from working correctly.

We recommend:

1) Using boiled water which has been allowed to cool or distilled water each time,
2) cleaning the tank every 3 days and the transducer every week,
3) changing the water in the tank regularly so that it is fresh, not leaving it in the appliance for more than 2 days,
4) Cleaning the appliance and making sure that all its components are completely dry when not in use.

To clean the transducer:

1) Pour 2 to 5 drops of vinegar on its surface and leave for 2 to 5 minutes.
2) Brush the scale off the surface with a soft brush. Do not use a hard tool to scratch at the surface.
3) Rinse the transducer with clear water.
4) Do not use soap or other alkaline substances to clean the transducer.

To clean the tank unit:

1) Clean the water tank with a soft cloth and use vinegar if there is scale or chalky deposits on its interior.
2) If there is scale covering the cut-out switch, pour a few drops of vinegar on it and clean with a brush.
3) Rinse the tank with clear water.

Storage:

1) Carefully clean and dry the ultrasound humidifier, following the maintenance instructions.
2) Let it dry completely before placing in storage. Do not store it with water remaining in the base.
3) Store the appliance in a cool and dry place away from children.

TROUBLESHOOTING

If the appliance malfunctions in everyday use, please refer to the table below:

Breakdown Possible causes	Remedies
No blowing, no vapour	No power Plug in the appliance
	The vapour intensity control is at minimum	Adjust the vapour intensity
	Water level in the groove is too high. Remove the water from the trough
	Water tank leak Tighten the lid correctly
Blowing but no vapour	No water in the tank Fill the tank
	The temperature of the device is too low.	Place the device in the room at room temperature for half an hour prior to use.
Strange-smelling vapour The water has	been in the tank too long.	Clean the tank and fill with fresh water.
Low intensity The vapour intensity control is at minimum		Adjust the control button
		Sediment on the transducer. Clean the transducer.
		The water is too cold. Use water at room temperature.
		The water is unclean. Clean the tank and fill with fresh water.
The vapour is not rising	The vapour intensity control is at minimum	Adjust the vapour intensity
	The tank and the base are not connected properly	Check that they are connected properly
	The fan is not working correctly Return appliance to supplier or after-sales department.
Noise	Resonance due to the water level in the tank being too low	Add water to the tank.
	Resonance due to an unstable surface Place the unit on a stable surface

TECHNICAL SPECIFICATION

• Capacity of the water tank: 2l
• Maximum evaporation rate: 110 ml/h
- Noise: ≤ 50dB

ADVICE REGARDING THE DISPOSAL OF WASTE

• All the packaging is composed of materials that pose no hazard for the environment and which can be disposed of at your local sorting centre to be used as secondary raw materials. The cardboard may be disposed of in a paper recycling bin. The packaging film must be taken to your local sorting and recycling centre.
• When you have finished using the device, please dispose of it in an environmentally friendly way and in accordance with the law.

LIMITED WARRANTY

LANAFORM ^® guarantees this product against any material or manufacturing defect for a period of two years from the date of purchase, except in the circumstances described below.

The LANAFORM ^® guarantee does not cover damage caused as a result of normal wear to this product. In addition, the guarantee covering this LANAFORM ^® product does not cover damage caused by abusive or inappropriate or incorrect use, accidents, the use of unauthorized accessories, changes made to the product or any other circumstance, of whatever sort, that is outside LANAFORM ^® 's control.

LANAFORM ^® may not be held liable for any type of circumstantial, indirect or specific damage.

All implicit guarantees relating to the suitability of the product are limited to a period of two years from the initial date of purchase as long as a copy of the proof of purchase can be supplied.

On receipt, LANAFORM ^® will repair or replace your appliance at its discretion and will return it to you. The guarantee is only valid through LANAFORM ^® 's Service Centre ^® . Any attempt to maintain this product by a person other than LANAFORM ^® 's Service Centre will render this guarantee void.
