USER MANUAL Lily LANAFORM

Purifies and cleans the air

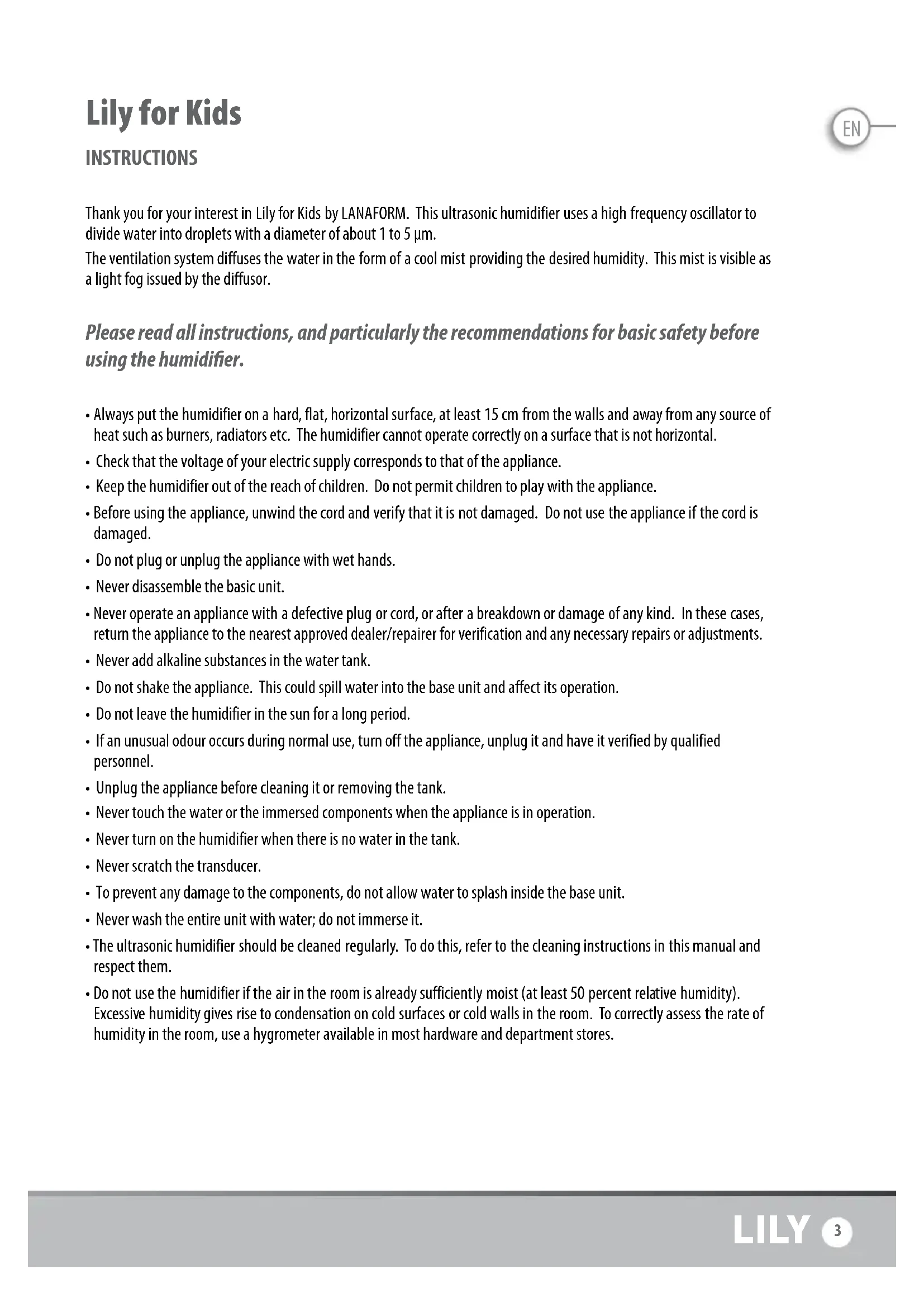

Thank you for your interest in Lily for Kids by LANAFORM. This ultrasonic humidifier uses a high frequency oscillator to divide water into droplets with a diameter of about 1 to 5 m.

The ventilation system diffuses the water in the form of a cool mist providing the desired humidity. This mist is visible as a light fog issued by the diffusor.

Please read all instructions, and particularly the recommendations for basic safety before using the humidifier.

• Always put the humidifier on a hard, flat, horizontal surface, at least 15 cm from the walls and away from any source of heat such as burners, radiators etc. The humidifier cannot operate correctly on a surface that is not horizontal.
• Check that the voltage of your electric supply corresponds to that of the appliance.
• Keep the humidifier out of the reach of children. Do not permit children to play with the appliance.
• Before using the appliance, unwind the cord and verify that it is not damaged. Do not use the appliance if the cord is damaged.
• Do not plug or unplug the appliance with wet hands.
• Never disassemble the basic unit.
• Never operate an appliance with a defective plug or cord, or after a breakdown or damage of any kind. In these cases, return the appliance to the nearest approved dealer/repairer for verification and any necessary repairs or adjustments.
• Never add alkaline substances in the water tank.
• Do not shake the appliance. This could spill water into the base unit and affect its operation.
• Do not leave the humidifier in the sun for a long period.
• If an unusual odour occurs during normal use, turn off the appliance, unplug it and have it verified by qualified personnel.
• Unplug the appliance before cleaning it or removing the tank.
• Never touch the water or the immersed components when the appliance is in operation.
• Never turn on the humidifier when there is no water in the tank.
• Never scratch the transducer.
• To prevent any damage to the components, do not allow water to splash inside the base unit.
• Never wash the entire unit with water; do not immerse it.
• The ultrasonic humidifier should be cleaned regularly. To do this, refer to the cleaning instructions in this manual and respect them.
• Do not use the humidifier if the air in the room is already sufficiently moist (at least 50 percent relative humidity). Excessive humidity gives rise to condensation on cold surfaces or cold walls in the room. To correctly assess the rate of humidity in the room, use a hygrometer available in most hardware and department stores.

COMPONENTS

1- Aromatic oil container

2- nozzle

3-lid

4- water tank

5- water tank cap

6- wind exit

7-buoy

8- transducer

9- indicator (if the lamp is red, this means that the tank is empty)

10- mist adjustment

11-base

12- main switch

13- filter

14- cord

1 2 3 4 5 6 7 8 9 10 1214MB

INSTRUCTIONS

Characteristics:

• Capacity 3.5 L.
  • Functions continuously for more than 17 hours at maximum mist intensity
• Diffuses large numbers of ions, promoting cell metabolism, increasing vitality and appetite, purifying the blood and calming the nerves.
• Easy-to-fill water tank
• Integrated safety device automatically stops diffuser operation when the water tank is empty. Note that the unit is no longer in operation if the signal light stays on.
• Quiet and economical
  • High-quality transducer ensures correct, lasting operation.
  • The essence oil container allows you release fresh fragrances

Functions:

Increasing and regulating the relative humidity of the room

Illuminating electrostatic charges

Improving the quality of the ambient air

Promoting visible good health and protecting the skin

Regulating the temperature of the program

Instructions:

Put the appliance in the room for half an hour before switching it on, so that it reaches the ambient temperature.

We recommend using the appliance at a temperature between 5 and 40 °C and a relative humidity of less than 50%.

Remove the water tank from the appliance, unscrew the cap by turning it counter clockwise.

Fill the water tank with clear water at 40^ C maximum. Check that the silicon ring is in place and close the cover by turning clockwise.

Verify the cleanliness and watertightness and then gently put the water tank back on the base.

With dry hands, connect the plug and turn the appliance on. The main signal light comes on. The appliance begins to operate. Adjust for desired intensity of mist by turning the mist control knob.

How to use aromatic oil

To nebulise aromatic oils indoors, only use the oil container supplied with the equipment. Add a few drops of aromatic oil into the oil container, taking care not to fill it excessively. Then place the oil container under the lid of the nozzle.

Diagram illustrating a three-step process: adding a bottle, pouring liquid into a container, and applying 3X water to a person wearing a hat.

WARNING:

DO NOT USE ANY AROMATIC OILS DIRECTLY INTO WATER TANK. IT COULD PERMANENTLY DAMAGE THE EQUIPMENT.

ALTHOUGH THE SAFETY DEVICE STOPS THE OPERATION OF THE TRANSDUCER, AVOID LEAVING THE APPLIANCE PLUGGED IN WHENEVER POSSIBLE.

DO NOT PLUG IN OR UNPLUG THE APPLIANCE WITH WET HANDS.

MAINTENANCE AND STORAGE:

If the water is hard, meaning that it contains too much calcium and magnesium, it may leave a white powder in the appliance and cause foaming at the surface of the tank, on the transducer (metal disc producing the ultrasonic waves), and on the inside walls of the water tank. Foam on the surface of the transducer will prevent the appliance from operating properly.

We recommend:

• Using boiled, cooled water or distilled water for each utilization,
• Cleaning the tank every three days, cleaning the transducer every week,
• Changing the water in the tank often so that it stays fresh – don't leave it for more than two days,
• Cleaning the whole appliance and ascertaining that all the components are perfectly dry when it is not in use.

To clean the transducer

Place 2 to 5 drops of vinegar on the surface and leave it from 2 to 5 minutes.

Brush the foam from the surface with a soft brush. Do not use a hard tool or scratch the surface.

Rinse the transducer with clear water.

Do not use soap or other alkaline substances to clean the transducer.

To clean the tank:

Clean the water tank with a soft cloth and vinegar if there is foam OR calcium deposits in it.

If the foam covers the safety switch, put a few drops of vinegar on it and clean it with the brush.

Rinse the tank with clear water.

Storage:

Clean and dry the ultrasonic humidifier carefully, complying with the maintenance instructions.

Let it dry completely before storing it. Do not store with water in the base.

Store the appliance in a dry cool place, out of the reach of children.

PROBLEMS AND SOLUTIONS

Problem Possible causes Solutions
No wind, no mist No electric current Plug in the appliance
		Main switch closed Turn on main switch
		The water level in the groove is too high
		Leak in the water tank Close the lid properly
Wind, but no mist	No water in the tank Fill the tank
	The water level indicator is not in the right position	Correctly reposition the water level indicator
	The temperature of the unit is too low	Put the unit in a room at ambient temperature for half and hour before use
Strange mist smell Water has been stagnant to long in the tank		Clean the tank and add clean water
Too little intensity Too much water in the groove Empty water from the groove and put the tank back
		Mist adjustment is set at a minimum Adjust intensity adjustment knob
		Sediment on the transducer Clean the transducer
		Water too cold Use water at ordinary temperature
		Water is not clean Clean the tank and add fresh water
The mist does not rise The mist intensity is set at minimum Adjust the intensity
		The tank and the base are not perfectly matched
		The ventilator does not function correctly
Noise	Resonance due to a low level of water in the tank	Add water in the tank
	Resonance due to an unstable surface	Place the unit on a stable surface

LIMITED WARRANTY

LANAFORM® guarantees that this product is free from any defects in materials and any manufacturing defect. This guarantee is effective for two years as from the date of purchase, except in the following cases:

This warranty on a LANAFORM ^® product does not cover damage resulting from inappropriate or excessive use, accident, the use of prohibited accessories, a modification of the product or any other circumstance beyond the control of LANAFORM ^® .

LANAFORM ^® cannot be held liable for any type of unforeseeable, consequential or special damage.

All warranties on well-being products are limited to a total duration of two years as from the date of purchase.

On reception, LANAFORM ^® will repair or replace your ultrasonic humidifier, as the case may be, and will return it to you carriage paid. Only LANAFORM ^® Service Centre is authorized to implement the guarantee. Any maintenance of this product by any service other than LANAFORM ^® Service Centre voids the guarantee.

LILY for Kids

MANUEL D'INSTRUCTION

Diagram illustrating a three-step process: adding a pencil, pouring liquid into a container labeled '3X' with a droplet, and working on a hooded garment.

ATTENTION

Diagram illustrating a three-step process: adding a bottle, pouring liquid into a container labeled '3X' with a droplet, and finally adding a jacket to a hood.

OPGELET

DOE DE OLIE NIET RECHTSTREEKS IN DE WATERTANK, DIT KAN HET APPARAAT ONHERSTELBAAR BESCHADIGEN.

HOEWEL HET VEILIGHEIDSSYSTEEM DE WERKING VAN DE TRANSDUCENT ONDERBREEKT, DIENT U IN DE MATE VAN HET MOGELIJKE TE VERMIJDEN HET APPARAAT ONDER STROOM TE LATEN.

STEEK DE STEKKER NIET IN HET STOPCONTACT EN TREK HEM ER NIET UIT MET NATTE HANDEN.

ONDERHOUD EN OPBERGEN:

Diagram illustrating three-step process: adding a tool, pouring liquid labeled '3X', and working on a hooded garment.

ATENCIÓN

Diagram illustrating a three-step process: adding material, pouring liquid into a container, and applying 3X water to a person wearing a beanie.

ACHTUNG!

DAS AROMAÖL NICHT DIREKT IN DIE HEIZKAMMER ODER IN DEN WASSERBEHÄLTER GEBEN, DAS GERÄT KÖNNTE SONST UNWIDERRUFLICH BESCHÄDIGT WERDEN.

Diagram illustrating a three-step process: adding a tool, pouring liquid into a container labeled '3X', and working on a hooded garment.

ATTENZIONE :

NON INTRODURRE L'ESSENZA DIRETTAMENTE NELLA TANICA DELL' ACQUA, L'APPARECCHIO POTREBBE DANNEGGIARSI IRREPARABILMENTE

NONOSTANTE IL DISPOSITIVO DI SICUREZZA CHE INTERROMPE IL FUNZIONAMENTO DEL TRASDUTTORE, NON LASCIATE COLLEGATO L'APPARECCHIO.

NON COLLEGATE, NÉ SCOLLEGATE LA SPINA CON LE MANI BAGNATE.

Diagram illustrating a three-step process: adding a bottle, pouring liquid into a container, and adding 3X water to a jacket.

TOGE :

Diagram illustrating a three-step process: adding a bottle, pouring liquid into a container labeled '3X' with a droplet, and working on a hooded garment.

ВНИМАНИЕ

Diagram illustrating a three-step process: adding a bottle, pouring liquid into a container, and applying 3X water to a hooded garment.

Uwaga

Diagram illustrating a three-step process: adding a bottle, pouring liquid into a container labeled '3X' with a droplet, and finally adding a jacket to a hood.

UPOZORENJE:

NE STAVLJAJTE NIKAKVA AROMATIČNA ULJA IZRAVNO U SPREMNIK VODE. TO BI MOGLO TRAJNO OŠTETITI UREĐAJ.

IAKO ZAŠTITNI UREĐAJ PREKIDA RAD PRETVORNIKA, IZBJEGAVAJTE OSTAVLJANJE UREĐAJA UPALJENOG KAD GOD JE TO MOGUĆE.

Ne uključujte I ne isključujte uređaj mokrim rukama.

ODRŽAVANJE I POHRANJIVANJE:

Ako je voda tvrda, odnosno ako sadrži previše kalcija i magnezija, to može ostaviti bijeli prah u uređaju i uzrokovati pjenjenje na površini spremnika, na pretvorniku (metalni disk koji proizvodi ultrazvučne valove), i na unutarnjim stijenkama spremnika vode. Pjena na površini pretvornika ugrozit će ispravan rad uređaja.

Preporučujemo:

PROBLEMI I RJEŠAVANJE PROBLEMA

Diagram illustrating a three-step process: adding material, pouring liquid into a container, and applying 3X water to a person wearing a beanie.

OPOZORILO:

ETERIČNIH OLI NE SMETE VLIVATI NEPOSREDNO V REZERVOAR ZA VODO. TO BI LAHKO TRAJNO POŠKODOVALO NAPRAVO.

KLJUB TEMU, DA VARNOSTNA NAPRAVA USTAVI DELOVANJE PRETVORNIKA, ČE JE LE MOGOČE NE PUŠČAJTE NAPRAVE PRIKLOPNLJENE.

Diagram illustrating three-step safety procedure: adding a bottle, pouring liquid labeled '3X', and adjusting a jacket with a cap.

FIGYELEM!

NE ÖNTSE AZ ILLÓOLAJAKAT KÖZVETLENÜL A VÍZTARTÁLYBA, MERT EZZEL A KÉSZÜLÉKBEN HELYREHOZHATATLAN KÁROSODÁST OKOZHAT!

BÁR A BIZTONSÁGI MEGSZAKÍTÓ A TRANSZDUKTOR MÜKÖDÉSÉT LEÁLLÍTJA, LEHETÓLEG NE HAGYJA A KÉSZÜLÉKET FESZÜLTSÉG ALATT!

VIZES KÉZZEL NE DUGJA BE, NE HÚZZA KI A CSATLAKOZÓ DUGASZT!

Diagram illustrating a three-step process: adding material, pouring liquid into a container, and applying 3X water to a person wearing a beanie.

التنيه:

Diagram illustrating a three-step process: adding material, pouring liquid into a container, and applying 3X water to a person wearing a hat.

DİKKAT

Diagram illustrating a three-step process: adding a bottle, pouring liquid into a container labeled '3X' with a droplet, and finally adding a jacket to a hood.

ΠΡΟΣΟΧΗ

Diagram illustrating a three-step process: adding material, pouring liquid into a container, and finally applying 3X water to a person wearing a hat.

ATENÇÃO

PROBLEMAS E SOLUÇÕES

Diagram illustrating a three-step process: adding a pencil, pouring liquid into a container labeled '3X' with a droplet, and finally adding a jacket to a hood.

VAROVÁNÍ
