Product type	Universal laser level with laser pointer
Brand	Laserliner
Model	HandyLaser Compact
Category	Laser pointer
Beam color	Red, 650 nm
Laser class	2 / < 1 mW (EN 60825-1:2014/AC:2017)
Working area	Up to 50 m (depending on brightness)
Bubble accuracy	± 0.5 mm/m
Power supply	2 x 1.5 V LR03 (AAA) batteries
Weight	130 g (batteries included)
Dimensions (L x H x D)	210 x 59 x 62 mm
Bubble type	Horizontal and vertical bubble
Magnetic mount	Yes, 2 magnets underneath the device
Spring clamp mount	Yes, for wall tile installation
Adjustable feet	Yes, adjustable
90° beam splitter	Available depending on model
Laser LED indicator	Yes, visible
Housing	Impact-resistant plastic material with rubberized edges
Operating temperature	0°C to 50°C
Storage temperature	-10°C to 70°C
Max humidity	80% RH (non-condensing)
Maintenance	Clean with a slightly damp cloth, no solvents
Long-term storage	Remove batteries, store in dry place
Safety	Do not look into the laser beam, class 2 laser
Applications	Leveling, alignment, tile installation, metal work

Frequently Asked Questions - HandyLaser Compact Laserliner

How to use the magnetic mount?

The device has two magnets on the bottom. You can attach it directly to a metal surface (beam, frame) for hands-free work.

How to lay tiles with this laser level?

Use the included spring clamp to attach the device to the first tile. The laser beam parallel to the horizontal bubble guides you to align the tiles.

How to change the batteries?

Open the battery compartment on the back of the device. Insert 2 LR03 (AAA) batteries respecting the indicated polarity.

What does the LED indicator mean?

The LED lights up when the laser is on, making it easy to see that the device is powered.

Is this laser dangerous for the eyes?

This product is a class 2 laser (< 1 mW). Never look directly into the beam. If your eyes are exposed, close them and turn your head immediately.

What is the accuracy of the bubbles?

The bubble levels have an accuracy of ±0.5 mm/m, ideal for common leveling tasks.

Can I use the device in the rain?

No, the device is not waterproof. Avoid excessive humidity. Store it in a dry place.

How to maintain the device?

Clean it with a slightly damp cloth. Do not use harsh cleaning products or solvents. Remove the batteries if not used for a long time.

What is the maximum range of the laser?

The working area can reach 50 m in favorable lighting conditions. It depends on ambient light.

How to adjust the adjustable feet?

The adjustable feet allow compensating for small irregularities of the support. Turn them to level the device before use.

USER MANUAL HandyLaser Compact Laserliner

3D model of a white and black mechanical component with mounting brackets (no visible text or symbols)

DE 02

EN 06

NL 10

DA 14

FR 18

ES 22

IT 26

PL 30

FI 34

PT 38

SV 42

NO 46

TR

RU

UK

CS

ET

RO

BG

EL

SL

HU

SK

HR

magnetic

Laserliner

Laserliner

Warning symbol with a triangle and central sunburst pattern (no text)

Close-up of a battery component with two cylindrical batteries and one external bulb (no visible text or symbols)

Laserliner

Mechanical component with a downward arrow indicating a specific feature (no text or symbols visible)

Diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols)

3D diagram of a mechanical device with downward arrows indicating force or movement (no text or symbols)

3D rendered mechanical part with no visible text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Technical illustration of a mechanical component with two views (top: cylindrical, bottom: fan-like structure) showing internal components and motion lines (no text or symbols)

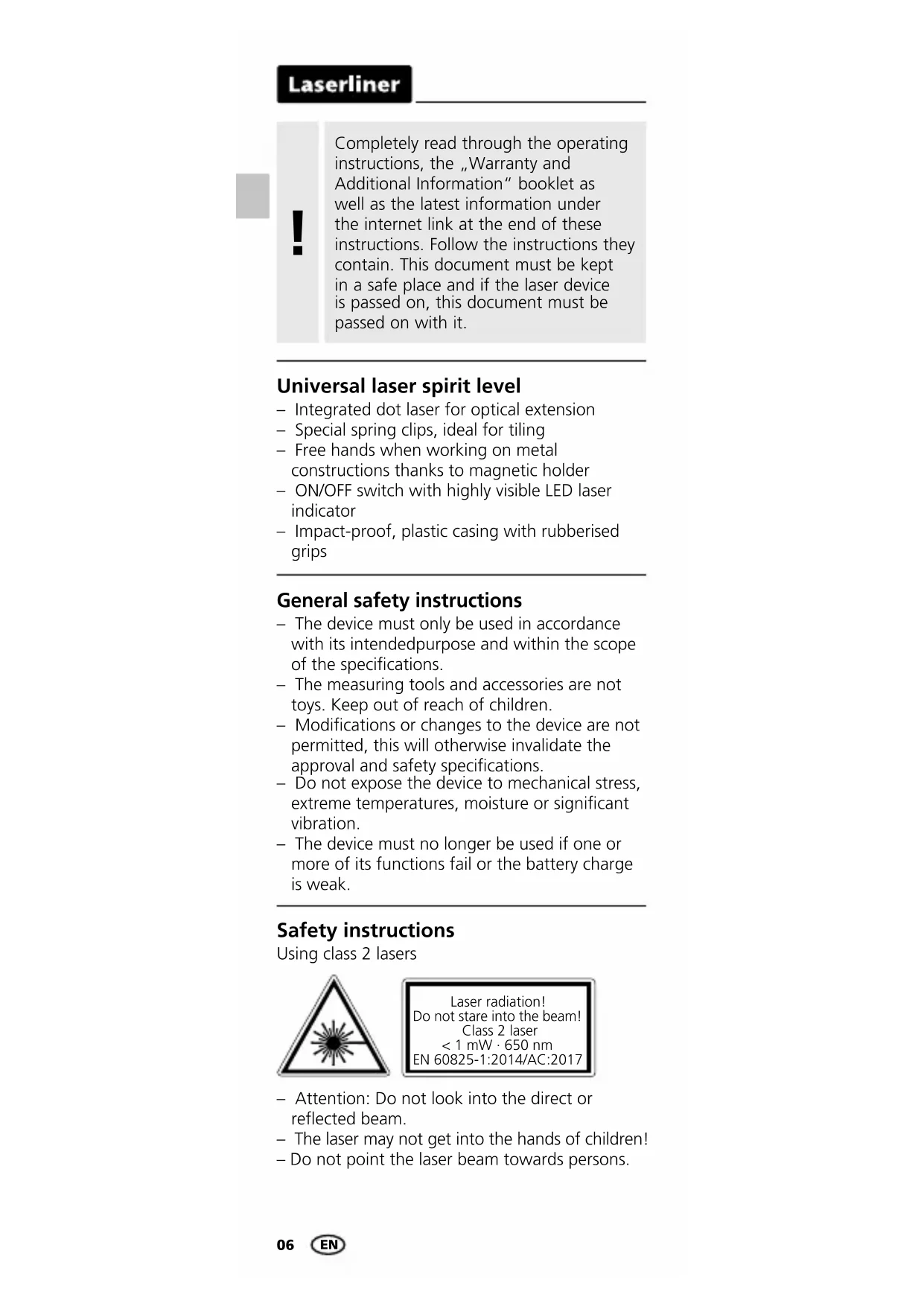

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Universal laser spirit level

• Integrated dot laser for optical extension
• Special spring clips, ideal for tiling
  – Free hands when working on metal constructions thanks to magnetic holder
• ON/OFF switch with highly visible LED laser indicator
• Impact-proof, plastic casing with rubberised grips

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

Warning symbol with a triangle and central starburst (no text or numbers)

• Attention: Do not look into the direct or reflected beam.
• The laser may not get into the hands of children!

• Do not point the laser beam towards persons.

• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.

• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must only be used in accordance with its intended purpose and within the scope of the specifications. Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Danger – powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields" (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

1 Inserting batteries

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

Close-up of a battery with two charging ends and a separate cylindrical component (no visible text or symbols)

Laserliner

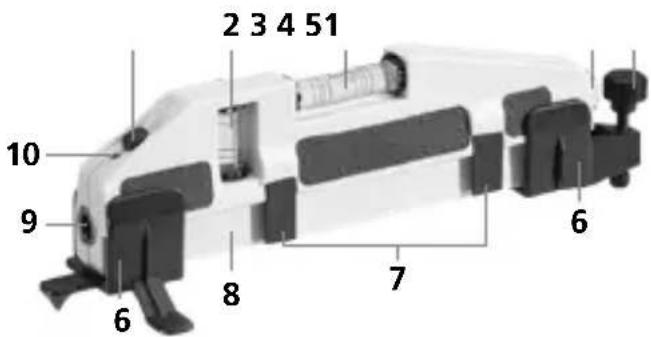

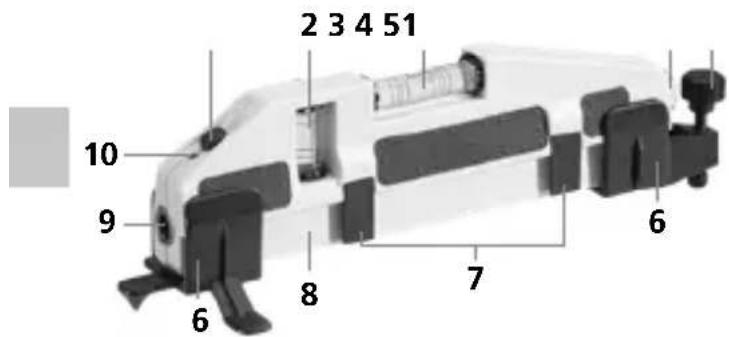

1 ON/OFF switch
2 Vertical vial
3 Horizontal vial
4 Battery compartment
5 Levelling foot adjustment

6 Levelling foot
7 Spring-clamp holder
8 Magnets (bottom)
9 Laser output windows
10 LED laser indicator

2 ON/OFF

3D mechanical component with a black arrow pointing to a small cylindrical feature (no text or symbols visible)

3 Attaching adjustable legs

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

4 To fit wall tiles

3D diagram of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Pure mechanical component diagram without any text, numbers, or symbols

To fit wall tiles, the device is attached to the first tile by means of the spring-clamp holder that is pushed out with the pins at the rear. The laser beam that runs parallel to the horizontal spirit level is directed along the edge of the tile. This makes it possible to precisely align the tile with the bubble level.

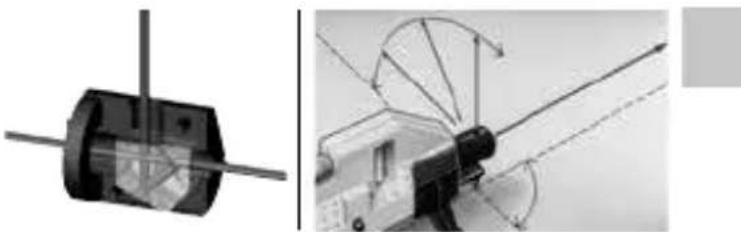

5 90° beam splitter (depending on product version)

Mechanical assembly diagram showing a cylindrical component and a truck-mounted device with directional arrows (no text or symbols)

The 90° beam splitter allows the laser beam to be additionally deflected by 90°.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technische Daten

Vial accuracy ± 0.5 mm / m
Operating range	(depending on room illumination) 50 m
Laser wavelength	650 nm
Laser class	2 / < 1 mW (EN 60825-1:2014/AC:2017)
Power supply	2 x 1.5V LR03 (AAA)
Operating conditions	0°C ... 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions	-10°C ... 70°C, max. humidity 80% rH
Weight	130 g (incl. batteries)
Dimensions (W x H x D)	210 x 59 x 62 mm

Subject to technical alterations. 20W44

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info?an=ACQ
