RangeXtender 30 Mag - Laser pointer Laserliner - Free user manual and instructions

Product type	Laser receiver for red line lasers
Brand	Laserliner
Model	RangeXtender 30 Mag
Laser reception range	Up to 30 m
Receiving unit length	30 mm
Automatic shut-off	After 5 minutes (display unchanged)
Power supply	1 9V battery (6LR61)
Operating time	Approx. 15 h
Operating conditions	0 °C to 50 °C, max. 80% humidity (non-condensing), max. altitude 4000 m
Dimensions (L x H x P)	60 x 110 x 26 mm
Weight	130 g (battery included)
Main functions	Pulsed laser reception, acoustic signal, LED display, tolerance range switching (precision/freehand), universal mount, magnetic top surface, level
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use aggressive chemicals.
Safety	Do not use in case of malfunction or low battery. Keep away from strong magnetic fields (minimum distance 30 cm from implants).
Spare parts and repairability	Repair only by an authorized service center. Standard battery available in stores.
General information	Complies with EMC directive 2014/30/EU. CE marking. Disposal according to WEEE directive.

Frequently Asked Questions - RangeXtender 30 Mag Laserliner

How to install the battery in the RangeXtender 30 Mag?

Open the battery compartment on the back of the housing and insert a 9V battery (6LR61) observing polarity. Close the compartment.

How to turn on the laser receiver?

Press the On/Off button (F). The operation LED (G) lights up.

What is the maximum range of the receiver?

The reception range is up to 30 meters provided that the laser emitter is in manual receiver mode and the lines are visible.

How to use the receiver with a line laser?

Set the laser to manual receiver mode (the lines become darker). Move the reception area (B) vertically or horizontally until the center LED lights up. Then mark the reference.

What is the purpose of the tolerance range switching?

The button (H) allows switching between the precision range (LED off) and the freehand range (LED red). Use the precision range for exact measurements and the freehand range for faster locating.

How to clean the laser receiver?

Use a soft, dry cloth. Avoid solvents or abrasives. Protect the reception area from scratches.

What to do in case of malfunction?

Check the battery and its polarity. If the device does not turn on, replace the battery. If the problem persists, do not use the device and contact an authorized service center.

Is the receiver compatible with all lasers?

It is compatible with all red line lasers featuring RX-READY technology (high-frequency pulsation).

Is there a risk related to magnets?

Yes, the integrated magnet can affect medical implants (pacemakers) and damage magnetic mounts. Always maintain a distance of at least 30 cm.

How to dispose of the device at the end of its life?

The product is subject to the WEEE directive. Do not dispose of it with household waste. Return it to a collection point for used electrical equipment.

USER MANUAL RangeXtender 30 Mag Laserliner

Completely read through the operating instructions, the ,Warranty and Additional Information' booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

Laser receiver for all red line lasers with RX-READY technology

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Insert battery

Open the battery compartment on the housing's rear side and insert a 9 V battery. Correct polarity must be observed.

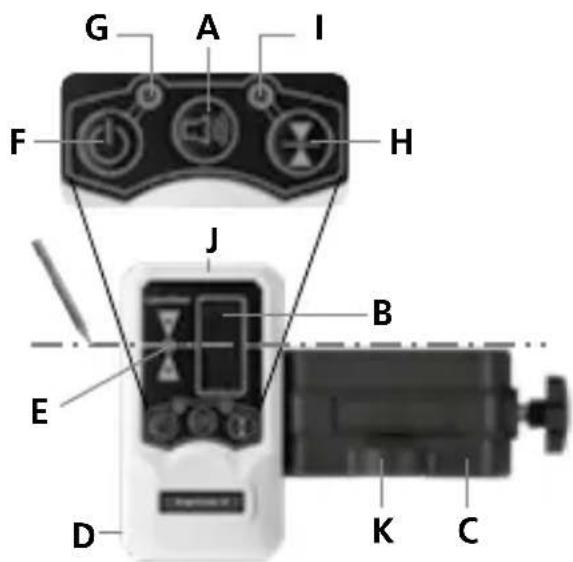

A Sound ON / OFF
B Receiver field for laser beam
C Universal mount
D Battery compartment
E LED's for laserindication: front
F ON/OFF switch
G LED status indicator

H Switch tolerance range: precision range / freehand range
LED tolerance range: switched off, precision range / red, free-hand range
J Head magnet
K Vial

2 Working with the laser receiver RX

Use the laser receiver RX for levelling over longer distances or when the laser lines are no longer visible. Switch on with button F; control lamp G will light up.

Line lasers: This button switches hand receiver mode on and off.

RX 30: This button is used to establish the tolerance range.

Set the line laser to hand receiver mode. The laser lines will now pulsate with high frequency, making the laser lines darker. The laser receiver can detect these pulsating laser lines up to a maximum distance of 30m . Minimum distance from the laser device about 3m .

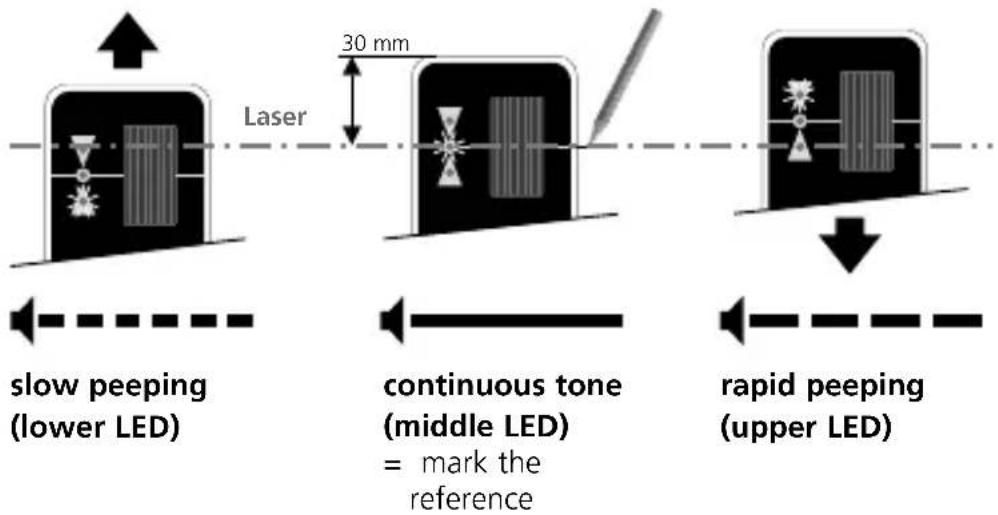

Now move the receiver field (B) of the laser receiver through the laser lines upwards and downwards (horizontal laser line) and/or sideways (vertical laser line) until the centre LED lights up. Now mark the horizontal and/or vertical reference dimension.

Laserliner

Minimum distance from the laser device about 3m . Pay attention that the laser lines are not reflected by reflective surfaces. Such reflections can lead to false indications.

The light intensity of the laser lines is greatest at the centre and diminishes toward the ends. This can reduce the maximum reception range of the laser receiver.

Used with levelling staff

The laser receiver RX can be fitted on measuring staffs with the universal mount. The Flexi measuring staff is always recommended when measuring from floor heights. It also allows you to determine heights directly without any need for calculation.

Danger - powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields" (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30~cm away from the magnet.

Technical data
Laser reception range max.	30 m
Length of receiver unit 30 mm
Auto power off after 5 minutes (if display remains unchanged)
Power supply 1 x 9V 6LR61	(9-volt block)
Operating time approx. 15	hours
Operating conditions 0°C	.. 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions 0°C ...	70°C, max. humidity 80% rH
Dimensions (W x H x D) 60	x 110 x 26 mm
Weight 130 g (incl. battery)

Subject to technical alterations. 19W45

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info?an=AEP

Laserliner
