Product type	Line laser pointer
Brand	Laserliner
Model	SuperLine 2D
Main functions	Horizontal, vertical and slope alignment; angle adjustment by 360° rotatable graduated ring
Bubble accuracy	± 1 mm/m
Leveling	Manual
Laser wavelength	635 nm
Laser class	2 / < 1 mW (EN 60825-1:2014/AC:2017)
Power supply	2 AAA (LR03) 1.5 V batteries
Battery life	Approx. 15 hours
Dimensions (L x H x W)	126 x 65 x 98 mm (mount included)
Weight	188 g (batteries included)
Mounting	Special pins for walls (plaster, carpet, wood); magnets for metal surfaces; optional adhesive tapes
Illuminated bubble	Yes, clearly visible
Operating conditions	0°C to 50°C; max. humidity 80% RH, non-condensing; max. altitude 4000 m
Storage conditions	-20°C to 70°C; max. humidity 80% RH
Maintenance and cleaning	Clean with a slightly damp cloth; do not use solvents or abrasive products; remove batteries before prolonged storage
Safety	Laser class 2: do not look directly into the beam or its reflections; keep out of reach of children; avoid strong magnetic fields (distance >30 cm from implants)
Package contents	Device, batteries, user manual
Warranty	Refer to the additional notes provided

Frequently Asked Questions - SuperLine 2D Laserliner

How to replace the batteries of the Laserliner SuperLine 2D?

Open the battery compartment (4) and insert two AAA (LR03) 1.5 V batteries, observing the indicated polarity. Close the cover.

Can the laser be used outdoors?

Yes, but the laser beam is less visible in bright light. For better visibility, use appropriate protective glasses or work in reduced lighting conditions.

How to mount the device on a wall?

Use the supplied special pins (7): insert them into the designated holes (9) and push them into the wall. You can also use Laserliner ConTacts adhesive tapes (optional) or the integrated magnets on a metal surface.

What is the leveling accuracy of this device?

The bubble accuracy is ± 1 mm/m. Regularly check calibration, especially after transport or prolonged storage.

Is the laser dangerous for eyes?

Yes, it is a class 2 laser (< 1 mW). Never look directly into the beam or its reflections. If the beam hits your eyes, close your eyes and turn your head immediately. Keep the device out of reach of children.

How to clean the device?

Wipe it with a slightly damp cloth. Do not use solvents, abrasive products, or harsh cleaners. Remove batteries before prolonged storage.

Can the SuperLine 2D be mounted on a tripod?

The device's base can be placed on the ground. There is no standard tripod thread built in, but you can use optional accessories like adhesive tapes to attach it to a support.

What to do if the laser beam is very weak or does not light up?

First check the batteries: replace them if discharged. If the problem persists, the device may be defective. Contact Laserliner after-sales service.

How to adjust the tilt angle?

Turn the graduated ring (6) independently of the instrument to set the desired angle. The base remains fixed during rotation.

Is the device waterproof?

No, it is not waterproof. Avoid any exposure to excessive moisture and observe the operating conditions: 0°C to 50°C with a maximum relative humidity of 80% RH non-condensing.

USER MANUAL SuperLine 2D Laserliner

White and black helmet with hexagonal patterns, mounted on a mechanical base (no visible text or symbols)

Laser 635 nm

Laserliner

Laserliner

!

Warning symbol with a sunburst pattern inside a triangle (no text or numbers)

Close-up of a mechanical device with labeled components (no readable text or symbols)

Close-up of a mechanical tool with a knob and base component (no visible text or symbols)

Simple line drawing of a robot on tiled floor (no text or symbols)

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Line laser for aligning work on all surfaces

– Exact alignment of horizontal/vertical surfaces and slopes

- 360^ rotatable angle scale allows device to be tilted at any angle

- Suitable for use on floors and walls

- Safe attachment with special pins without damaging surfaces such as finishing coats, carpets, wood, veneered surfaces etc.

- Alternative: attachment with optional Laserliner ConTacts adhesive stripes

– Strong magnetic clamps for attaching to metal surfaces

– Easy-to-read, illuminated spirit-level

General safety instructions

- Attention: Do not look directly into the laser beam!

– The laser may not get into the hands of children!

- Do not point this device unnecessarily toward persons.

- Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.

- The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

Warning symbol with a triangular frame and central sunburst pattern (no text)

Laser radiation!

Do not stare into the beam!

Class 2 laser

< 1 mW · 635 nm

EN 60825-1:2014/AC:2017

- Attention: Do not look into the direct or reflected beam.

- Do not point the laser beam towards persons.

- If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.

- Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.

Laserliner

• Do not use the laser at eye level (1.40 ... 1.90 m)
• Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
• In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Safety instructions

Danger – powerful magnetic fields

• Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electro-mechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).
• With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields“ (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.
• To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

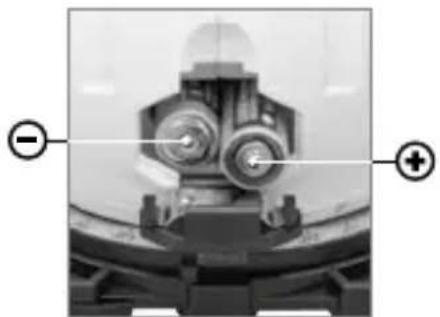

1 Inserting batteries

Open the battery compartment (4) and insert batteries according to the symbols. Be sure to pay attention to polarity.

Close-up of a mechanical component with two circular indicators (− and +) pointing to specific parts, no visible text or symbols.

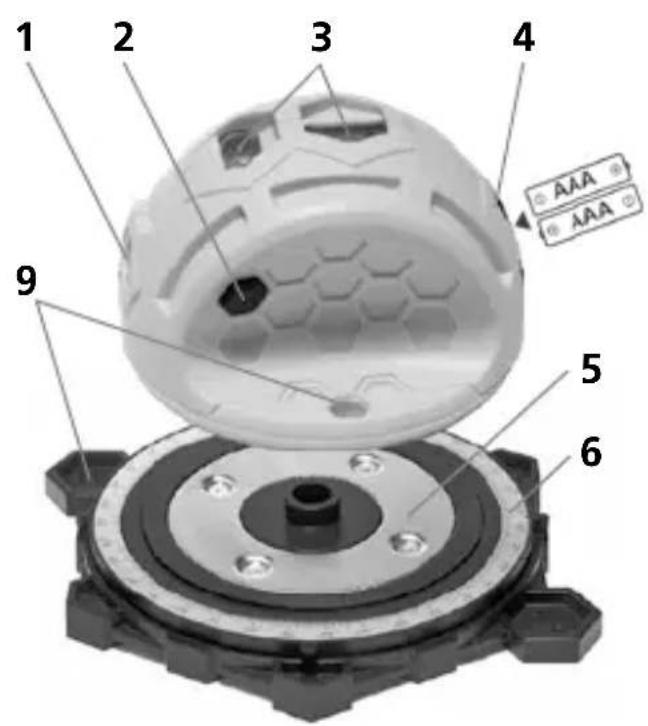

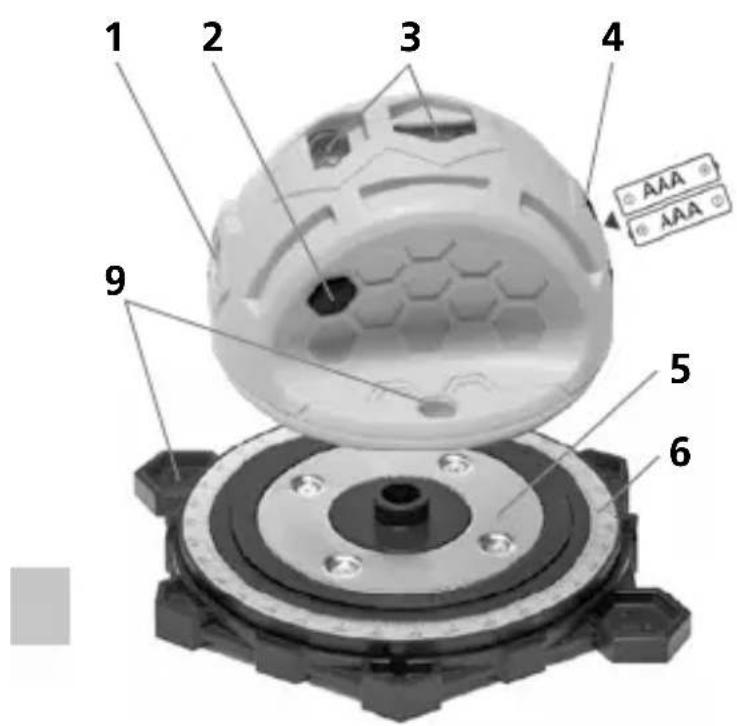

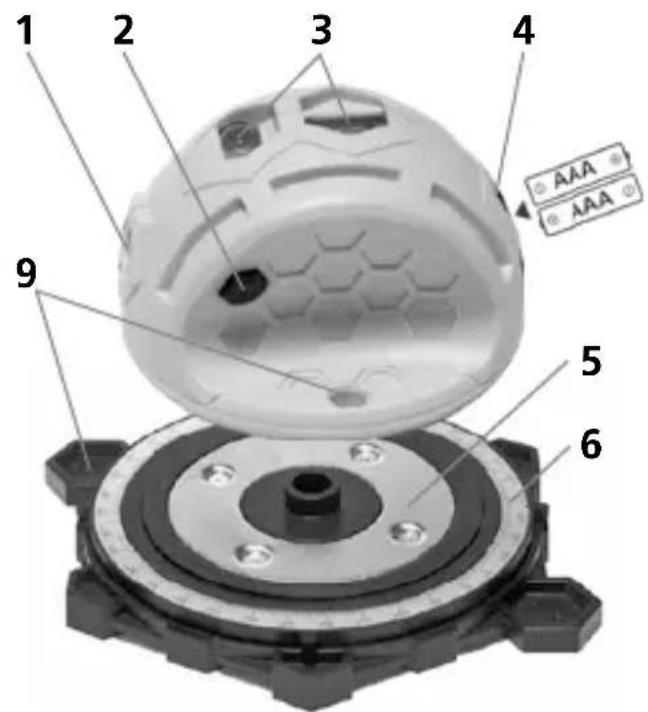

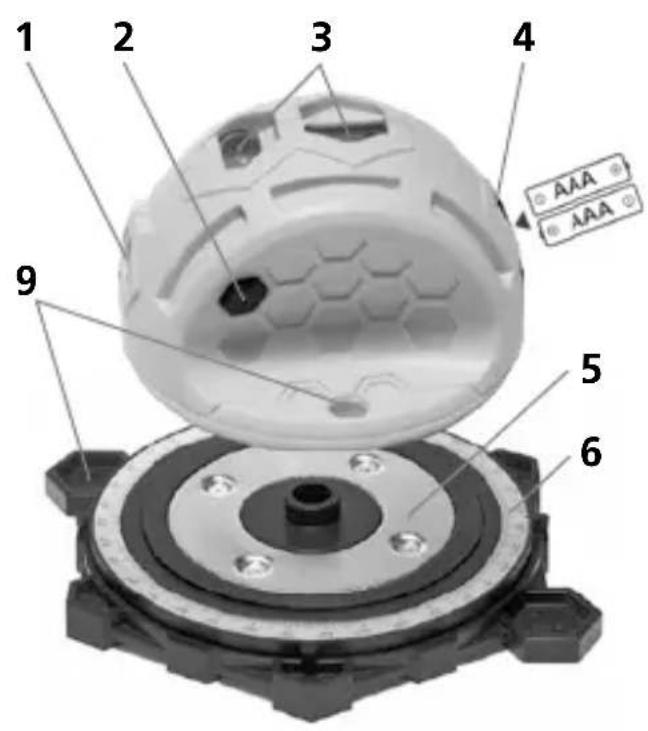

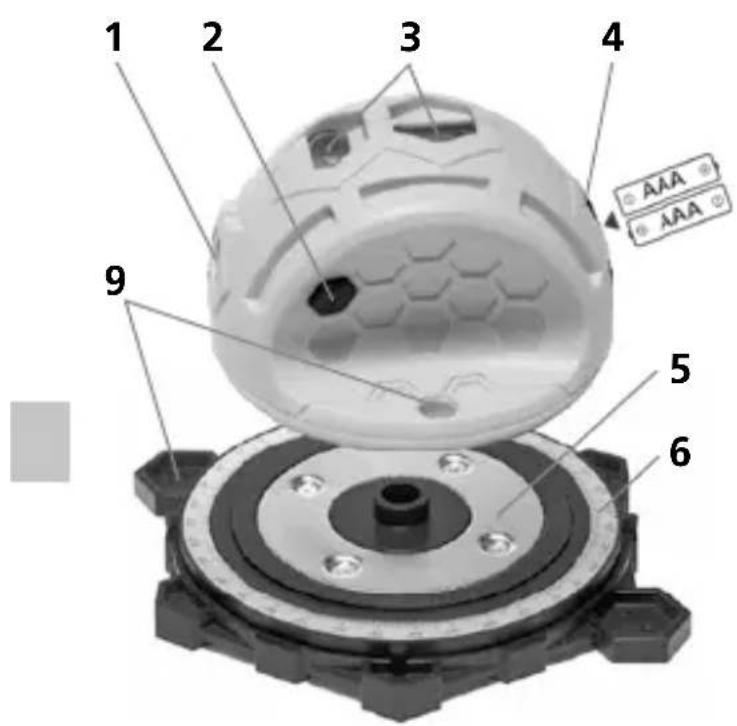

1 Laser output opening
2 ON / OFF switch
3 Illuminated spirit levels
4 Battery compartment
5 Base plate
6 Scale ring

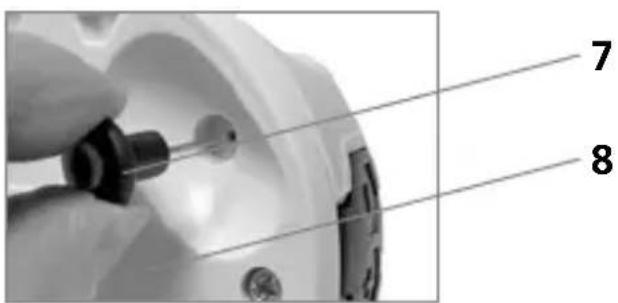

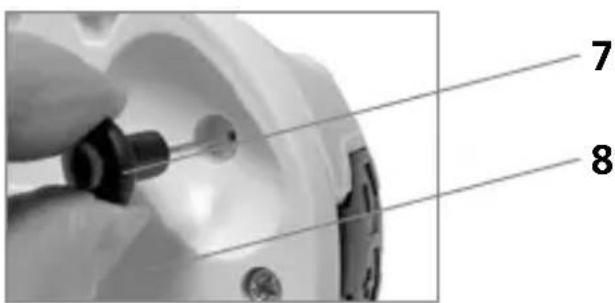

7 Special pins
8 Magnetised device bott
9 Fastening points for special pins

Close-up of a mechanical tool with a knob and base, no visible text or symbols

2 On-floor applications

Place the device with its base plate on the floor and turn it on. The spirit levels (3) are not needed for this type of application. The spirit levels are not adjusted to the supporting surface (floor) therefore the unit cannot be used as a level.

Close-up of a small mechanical component on a tiled floor (no visible text or symbols)

Laserliner

3 Wall applications

For horizontal and vertical levelling fix the baseplate to the wall with the special pins (7). The optional adhesive strips can be used for this, Laserliner ConTacts (Art-No: 081.101A). Then place the device onto the baseplate and align the levels vertically and/or horizontally.

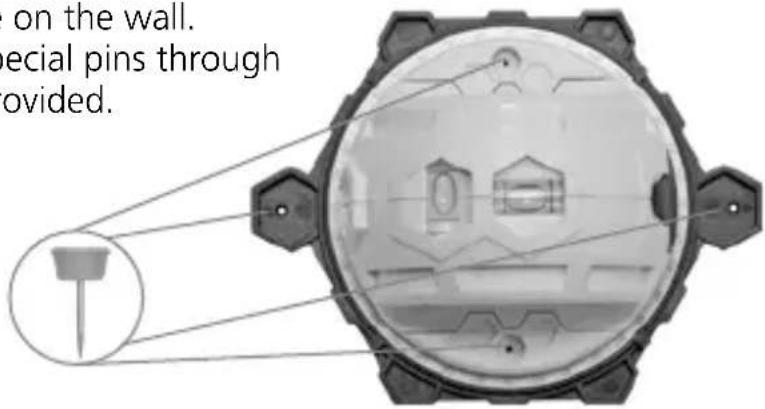

4 Mounting on the wall

1. Place device on the wall.
2. Push the special pins through the holes provided.

5 Setting an angle

The scale ring (6) and the device can be rotated independently of one another. This makes it easy to set any desired angle.

! Regularly check the calibration before use, after transport and after extended periods of storage.

! Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.

The device must only be used in accordance with its intended purpose and within the scope of the specifications. Keep out of reach of children.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data (Subject to technical changes without notice. 21W06)

Vial accuracy ± 1 mm / m
Levelling manual
Laser wavelength 635 nm
Laser class	2 / < 1 mW(EN 60825-1:2014/AC:2017)
Power supply 2 x 1,5V LR0B (AAA)
Operating time approx. 15 hours
Operating conditions	0°C ... 50°C, max. humidity80% rH, no condensation,max. working altitude 4000 mabove sea level
Storage conditions	-20°C ... 70°C,max. humidity 80% rH
Dimensions (W x H x D)	126 x 65 x 98 mm(incl. bracket)
Weight 188 g (incl. batteries)

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AHP

Laserliner

Laserstraling!

Close-up of a mechanical device with labeled components (no readable text or symbols)

Close-up of a mechanical component with a knob and base, no visible text or symbols

Simple line drawing of a tiled floor with a small object on the right side (no text or symbols)

Laserstråling!

Close-up of a mechanical component with two circular indicators (− and +) pointing to specific parts, no visible text or symbols.

Close-up of a mechanical tool with a knob and base, no visible text or symbols

2 Anvendelse på gulv

Close-up of a kitchen utensil on tiled floor (no text or symbols visible)

Laserliner

3 Anvendelse på væg

Close-up of a mechanical component with two circular indicators (− and +) pointing to features, no visible text or symbols.

Close-up of a mechanical component with a black cylindrical pin inserted, showing a hexagonal base and a numbered label '7' (no readable text or symbols)

Simple 3D-rendered robot on tiled floor (no text or symbols)

Close-up of a mechanical device with two circular indicators (− and +) pointing to the central component, no visible text or symbols.

Close-up of a mechanical tool with a knob and base mount (no visible text or symbols)

2 Usos en el suelo

Close-up of a kitchen sink with a curved handle on tiled floor (no text or symbols visible)

Laserliner

3 Usos en la pared

Diagram of a mechanical device with a central component and surrounding components, showing alignment lines (no text or symbols)

5 Ajustar el ángulo

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical component with a knob and base, no visible text or symbols

Close-up of a kitchen sink with a curved handle against a tiled floor (no text or symbols visible)

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical tool with a knob and base, no visible text or symbols

Close-up of a kitchen sink with a curved handle against tiled floor (no text or symbols visible)

Laserliner

Warning symbol with a sunburst pattern inside a triangle (no text or numbers)

Lasersäteilyä!

Close-up of a mechanical component with no visible text or symbols

Laserliner

Close-up of a mechanical component with a cylindrical pin inserted, showing no visible text or symbols.

2 Käyttö lattioissa

Simple 3D-rendered diagram of a tiled floor with a small object on the right side (no text or symbols)

3 Käyttö seinällä

Warning symbol with a triangular triangle and central sunburst pattern (no text)

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical tool with a knob and base, no visible text or symbols

Close-up of a small electronic component on a tiled floor (no visible text or symbols)

Laserliner

Warning symbol with a triangular triangle and central sunburst pattern (no text)

Laserstrålning! Titta aldrig direkt in i laserstrålen! Laser klass 2 < 1 mW · 635 nm EN 60825-1:2014/AC:2017

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical component with a bolt and base, no visible text or symbols

Simple illustration of a robot-like object on tiled floor (no text or symbols)

Warning symbol with a triangle and radiating lines, no text or numbers present

Laserstråling! Ikke se inn i strålen!

Laser klasse 2

< 1 mW · 635 nm

EN 60825-1:2014/AC:2017

Close-up of a mechanical component with two circular indicators (− and +) pointing to features, no visible text or symbols.

1 Laseruttaksåpning
2 PÅ- / AV bryter
3 Belyste vaterpass
4 Batterirom
5 Grunnplate
6 Skalering
7 Spesialstifter
8 Magnetisk instrumentbunn
9 Festepunkter for spesialstifter

Close-up of a mechanical tool with a knob and base mount (no visible text or symbols)

2 Anvendelser på gulv

Simple 3D-rendered object on tiled floor, no text or symbols visible

Laserliner

Illustration of a staircase with framed artworks and a robotic arm, no text or symbols present
