Brand	Laserliner
Model	SuperSquareLaser 4
Product type	Line laser pointer
Angular accuracy	± 0.5 mm/m
Working range	15 m
Laser wavelength	635 nm
Laser class	2 (EN 60825-1:2014/AC:2017)
Laser power	< 1 mW
Power supply	2 AA batteries (LR6) 1.5 V
Battery life	Approximately 15 hours
Operating conditions	0 °C to 50 °C, max RH 80% without condensation, max altitude 4000 m
Storage conditions	-10 °C to 70 °C, max RH 80%
Dimensions (L × H × D)	200 × 48 × 100 mm
Weight (including batteries)	260 g
Number of laser lines	4
Applications	Tiling alignment, vertical and horizontal leveling on walls and floors
Leveling	Integrated level vials for adjustment
Wall mounting	Special pins included
Cleaning and maintenance	Slightly damp cloth, no solvents, remove batteries before prolonged storage
Safety instructions	Do not look into the beam, keep out of reach of children, observe laser class 2
EU compliance	EMC Directive 2014/30/EU, WEEE directive
Waste disposal	Electrical device, mandatory separate collection

Frequently Asked Questions - SuperSquareLaser 4 Laserliner

How to use the SuperSquareLaser 4 for laying floor tiles?

Place the device on the floor and turn it on. The four laser lines project right-angle markers. Use the guide edge (4) and the setting surface (5) to adjust the first tile.

How to attach the device to a wall?

Place the device against the wall, then insert the special pins (7) into the designated holes. You can then adjust the level using the vials (2).

What is the accuracy of the device?

The angular accuracy is ± 0.5 mm per meter. This means a maximum deviation of 0.5 mm over a distance of 1 m.

How to check the calibration of the vertical line?

Suspend a plumb line of at least 2.5 m. Turn on the device and align the laser line with the string. If the deviation between the laser line and the string is less than 0.5 mm/m, the calibration is correct.

What batteries to use and what is the battery life?

Use two AA (LR6) 1.5V batteries. Battery life is approximately 15 hours of continuous operation.

What to do if the laser beam becomes dim or goes out?

Check the battery charge level and replace them if necessary. If the problem persists, contact after-sales service.

How to clean the device?

Clean the components with a slightly damp cloth. Do not use cleaning agents, abrasives, or solvents.

What safety precautions must be observed?

Do not look directly into the laser beam. Avoid directing the laser at people. Cover reflective surfaces. The device is Class 2 (<1 mW).

Can I use the device outdoors?

Yes, but within operating conditions (0°C to 50°C, max humidity 80%). Laser visibility may be reduced in direct sunlight.

How to store the device long-term?

Remove batteries before prolonged storage. Store the device in a dry, clean place between -10°C and 70°C.

USER MANUAL SuperSquareLaser 4 Laserliner

Completely read through the operating instructions, the „Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

90^ line Laser

• The 4 clearly visible laser lines are ideally suited for aligning tiles.
• Vertical and horizontal levelling on walls
• The applied lay edges and contact surface make it easy to position floor tiles.
• Clean application on all surfaces - also when using pins
  Vials to adjust the device

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.

• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.

• Do not use the laser at eye level (1.40 ... 1.90 m)

• Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
• In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

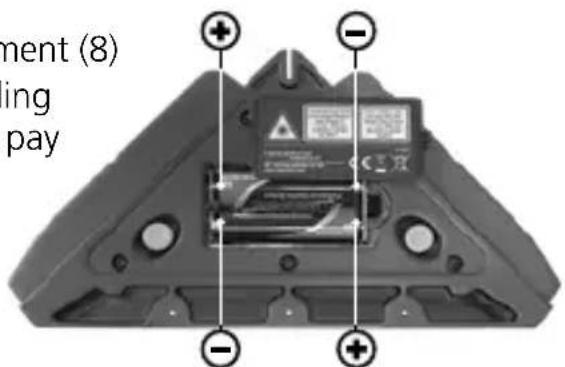

1 Inserting batteries

Open the battery compartment (8) and insert batteries according to the symbols. Be sure to pay attention to polarity.

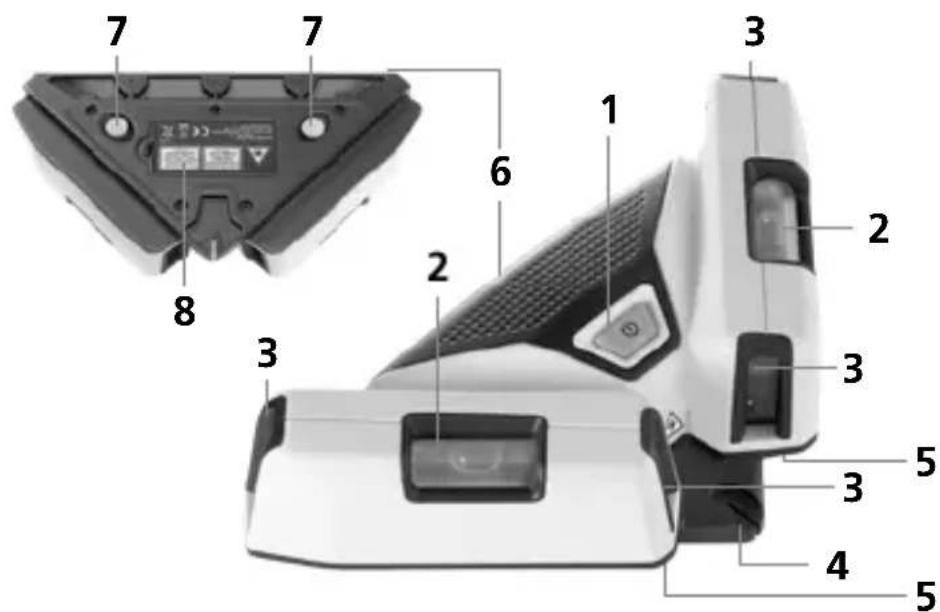

1 ON/OFF switch
2 Vials for wall applications

3 Laser output windows
4 90^ try-square edge
5 Contact surface

6 Lay edge
7 Pins
8 Battery compartment

Laserliner

2 On-floor applications

Turn on the unit with the ON/OFF switch (1). The laser lines now produce four marks at 90^ angles on the floor. These projected lines allow tiles to be laid easily, yet precisely. The 90^ lay edge (4) and the contact surface (5) make it easy to align the first floor tile.

3 Wall applications

Mount the device on the wall for horizontal and vertical levelling. Then align the device with the vials.

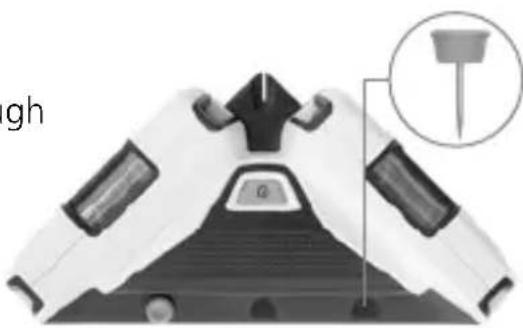

4 Mounting on the wall

1. Place device on the wall.
2. Push the special pins through the appropriate holes.

Regularly check the calibration before use, after transport and after extended periods of storage.

5 Checking the vertical line

Fix a plumb bob with a line at least 2.5m in length on the wall, making sure that the bob can swing freely. Switch on the laser, direct the lines at the plumb and align the bubble levels (2). The precision is within tolerance if the deviation between the laser line and plumb line is not greater than 0.5mm / m .

Calibration

The measuring device should be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend the measuring device is calibrated every 1 - 2 years. If necessary, contact your distributor or the UMAREX-LASERLINER service department.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data (Subject to technical changes without notice. 20W41)

Angle accuracy ± 0.5 mm / m
Visibility (typical)* 15 m
Laser wavelength 635 nm
Laser class	2 / < 1 mW (EN 60825-1:2014/AC:2017)
Power supply 2 x 1.5V LR6	(AA)
Operating time approx. 15 hours
Operating conditions	0°C ... 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions	-10°C ... 70°C, max. humidity 80% rH
Dimensions (W x H x D) 200 x 48 x 100 mm
Weight 260 g (incl. batteries)

• at max. 300 lux

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info?an=AHP
