PondoStar LED Set 6 - Lighting Pontec - Free user manual and instructions

Product Type	LED Lighting Set for Pond and Fountain
Brand	Pontec
Model	PondoStar LED Set 6
Number of Lights	6
Bulb Type	Integrated LED
Dusk Sensor	Yes, included
Transformer	Included
Supply Voltage	12 V (via mains transformer)
Electrical Protection	30 mA residual current device recommended
Usage	Above and underwater (pond, basin, fountain)
Transformer Safety Distance	At least 2 m from water
Protection Rating	IP68 (submersible lights)
Housing Material	Robust UV-resistant plastic
Light Color	Warm white (estimate)
Cable Length	Approx. 5 m (estimate)
Spot Dimensions (L x W x H)	Approx. 10 x 6 x 4 cm (estimate)
Total Weight	Approx. 1.2 kg (estimate)
Cleaning	Clear water and soft brush
Maintenance	Clean the glass and sensor regularly
Warranty	2 years (on material and manufacturing defects)
Repairability	Original spare parts only

Frequently Asked Questions - PondoStar LED Set 6 Pontec

How to install the PondoStar LED Set 6 in my pond?

Place the transformer at least 2 m from the water. Connect the lights to the dusk sensor or directly to the transformer. Position the lights out of the water or submerged as desired, then tilt the lamp heads. Finally, plug the transformer into an outlet protected by a 30 mA residual current device.

The dusk sensor is not working properly, what should I do?

First clean the sensor eye with a soft cloth. If the problem persists, check if the sensor is obstructed or damaged. If necessary, replace the dusk sensor.

Can I use this kit with a dimmer?

No, the device must not be connected to a dimmable power supply. This could damage the electrical components.

Can the lights be fully submerged?

Yes, the kit is designed for underwater use. The lights are waterproof with IP68 protection. Ensure the dusk sensor remains out of the water.

How to replace a defective LED bulb?

The LEDs are integrated and not individually replaceable. In case of failure, contact customer service or replace the entire light with an original spare part.

What to do if the light intensity decreases?

Clean the lamp glass with clear water and a soft brush. Limescale or algae deposits can reduce brightness.

What safety precautions should I take?

Before any intervention in the water, cut off the power supply. Use a 30 mA residual current device. Do not operate the kit if people are in the water. Keep connections dry.

Can I use the kit without the dusk sensor?

Yes, you can connect the lights directly to the transformer. The sensor is optional for automatic activation at nightfall.

Can the transformer be installed outdoors?

Yes, but it must be placed out of the water and protected from weather. The minimum distance from water is 2 meters. The plugs are not waterproof, so protect them from moisture.

How to clean and maintain the kit?

Always unplug the device before cleaning. Use clear water and a soft brush. Do not use abrasive chemicals. Clean the light glass and dusk sensor regularly.

USER MANUAL PondoStar LED Set 6 Pontec

EN Operating instructions

FR Notice d'emploi

Technical line drawing of a laboratory apparatus with three flasks, a central control unit, and a coiled tubing (no text or symbols)

A

Technical diagram showing a mechanical setup with labeled components including flasks, a central rotary knob, and a connected electrical device.

PSR0011

B

≥2 m

PSR0013

C

Diagram illustrating a cable installation procedure with labeled components and steps 1 and 2.

PSR0012

Translation of the original Operating Instructions

Information about these operating instructions

You made a good choice with the purchase of this product PondoStar LED Set 6.

Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.

Ensure that all work on and with this unit is only carried out in accordance with these instructions.

Adhere to the safety information for the correct and safe use of the unit.

Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new owner.

Symbols used in these instructions

The symbols used in this operating manual have the following meanings:

Risk of injury to persons due to dangerous electrical voltage

This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate measures are not taken.

Risk of personal injury caused by a general source of danger

This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate measures are not taken.

Important information for trouble-free operation.

Reference to one or more figures. In this example: Reference to Fig. A.

Scope of delivery

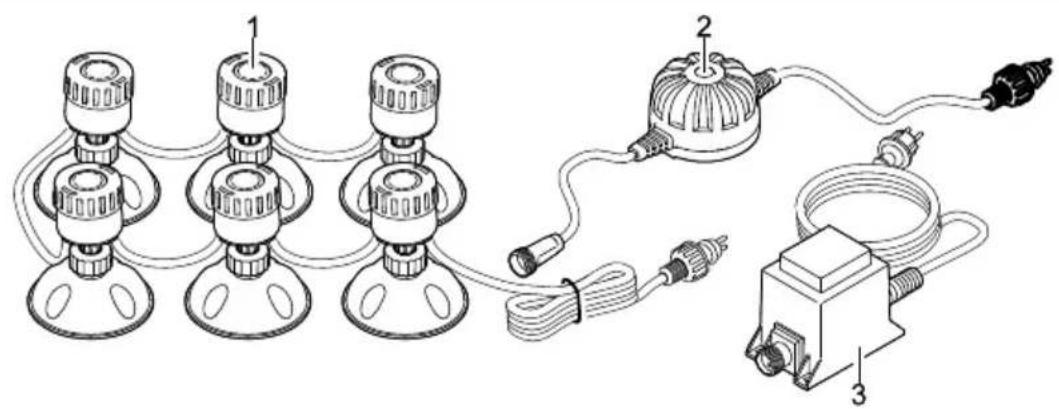

☐ A	Quantity	Description
1 6 LED spot including bulb
2	1	Twilight sensor
3	1	Transformer

Intended use

PondoStar LED Set 6, referred to in the following as "unit", may only be used as specified in the following:

• For use in water fountain systems and ponds.
• For use above and under water.
  • Operation under observance of the technical data.

The following restrictions apply to the unit:

• Do not use for commercial or industrial purposes.
• Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.

Safety information

Hazards to persons and assets may emanate from this unit if it is used in an improper manner or not in accordance with its intended use, or if the safety instructions are ignored.

This unit can be used by children from the age of 8 and by persons with physical, sensory or mental impairments or lack of experience and knowledge, as long as they are supervised or instructed on how to use the unit safely and are able to understand the potential hazards. Do not allow children to play with the unit. Do not allow children to clean or maintain the unit without close supervision.

Hazards encountered by the combination of water and electricity

• The combination of water and electricity can lead to death or severe injury from electrocution, if the unit is incorrectly connected or misused.
• Prior to reaching into the water, always switch off the mains voltage to all units used in the water.

Correct electrical installation

• Electrical installations must meet the national regulations and may only be carried out by a qualified electrician.
• A person is regarded as a qualified electrician if, due to his/her vocational education, knowledge and experience, he or she is capable of and authorised to judge and carry out the work commissioned to him/her. This also includes the recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regulations.
• For your own safety, please consult a qualified electrician.
• The device may only be connected if the electrical data of the device and the power supply coincide. The device data is to be found on the device type plate, on the packaging or in this manual.
• Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
• Extension cables and power distributors (e. g. outlet strips) must be suitable for outdoor use.
  • Install the transformer at a minimum safety distance of 2 m from the water.
• Protect the plug connections from moisture.
• Only plug the unit into a correctly fitted socket.

Safe operation

• Never operate the unit if either the electrical cables or the housing are defective!
• Do not carry or pull the unit by its electrical cable.
• Route cords/hoses/lines in a way that they are protected against damage, and ensure that they do not present a tripping obstacle.
• Only open the unit housing or its attendant components, when this is explicitly required in the operating instructions.
• Only execute work on the unit that is described in this manual. If problems cannot be overcome, please contact an authorised customer service point or, when in doubt, the manufacturer.
• Only use original spare parts and accessories for the unit.
• Never carry out technical modifications to the unit.
• The power connection cables cannot be replaced. When the cable is damaged, the unit or the component needs to be disposed of.
• Only operate the unit with the supplied transformer.
• Only operate the unit if no persons are in the water!
• Keep the connection plugs dry.
• The power pack and the plug connectors of the power cables supplied are not water-tight, but only rain and splash-proof. Do not route or fit in the water.

Installation and connection

□ B, C

Ensure that units are positioned and secured such that they cannot present a hazard:

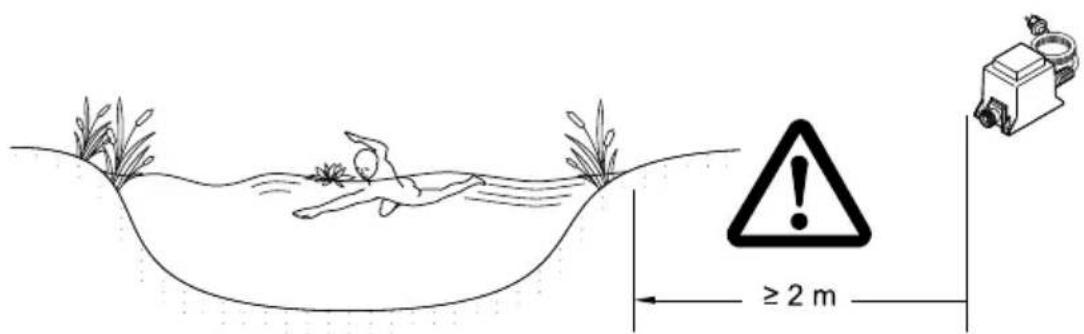

• Install the transformer at a minimum safety distance of 2 m from the water.
• Install the twilight sensor outside of the water with the sensor eye pointing upwards.
- Position the lights outside of the water or in the water and tilt the light head as desired.

How to proceed:

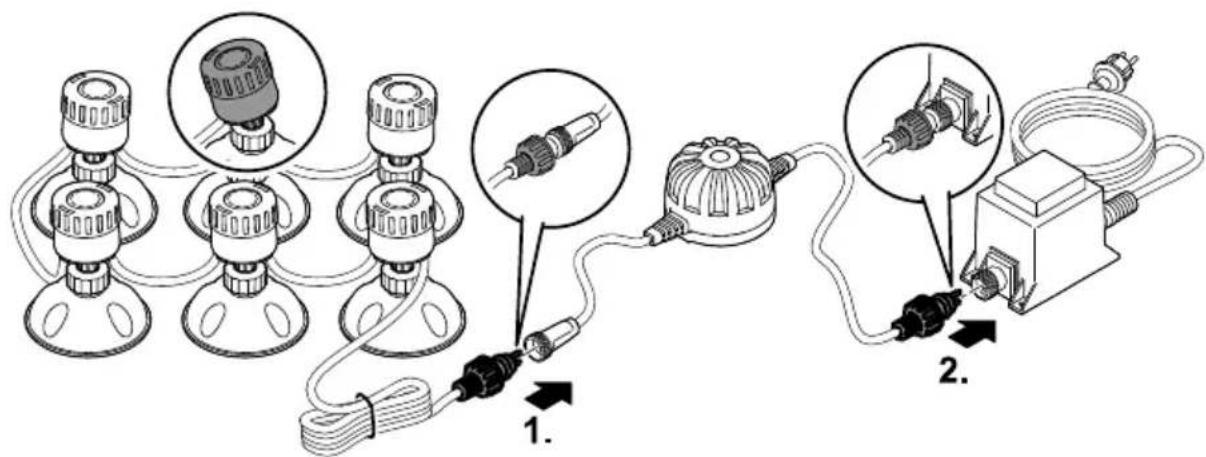

1. Connect the plug of the spotlight connection cable to the socket on the twilight sensor and hand-tighten the union nut.

- Alternatively: Connect the spotlight to the transformer without the twilight sensor in-between.

1. Connect the connection cable of the twilight sensor to the socket on the transformer and hand-tighten the union nut.

Commissioning/start-up

Attention! Dangerous electrical voltage.

Possible consequences: Death or severe injury.

Protective measures:

• Electrical units and installations with a rated voltage of U > 12 V AC or U > 30 V DC located in the water: Isolate the units and installations (switch off and disconnect from the power supply) before reaching into the water.
• Isolate the unit before starting any work.
• Secure the unit to prevent unintentional switching on.

Sensitive electrical components.

Possible consequences: The device will be destroyed.

Protective measure: Do not connect the unit to a dimmable power supply.

Switching on: Insert the power plug of the transformer into the socket.

- Check the function of the spotlights.

Switching off: Disconnect the transformer power plug.

Remedy of faults

Malfunction	Cause	Remedy
Lamp does not light up. Power supply interrupted	Check power supply
	Twilight sensor soiled or defective Clean or replace
	Transformer defective Replace transformer
Luminosity decreasing Lamp glass soiled Clean

Maintenance and cleaning

Attention! Dangerous electrical voltage.

Possible consequences: Death or severe injury.

Protective measures:

• Electrical units and installations with a rated voltage of U > 12 V AC or U > 30 V DC located in the water: Isolate the units and installations (switch off and disconnect from the power supply) before reaching into the water.
• Isolate the unit before starting any work.
• Secure the unit to prevent unintentional switching on.

Cleaning the unit

If necessary, clean the unit with clear water using a soft brush.

Disposal

Do not dispose of this unit with domestic waste! For disposal purposes, please use the return system provided. Disable the unit beforehand by cutting off the cables.

Guarantee conditions

PfG grants a 2 year guarantee from the date of sale on proven material and manufacturing faults. Prerequisite for our guarantee is the presentation of the purchase receipt. Our guarantee will become null and void if the unit is misused, electrically or mechanically damaged by inappropriate use and improper repair by non-authorised workshops. Repairs are reserved for workshops authorised by PfG or by PfG itself. In the case of warranty claims, please return the defective unit or part freight paid to PfG together with a description of the fault and the purchase receipt. PfG reserves the right to invoice repair costs. PfG is not liable for transport damage. Any damage must be claimed against the carrier. Further claims of whatever type, especially consequential damage, are excluded. This guarantee does not affect the final customer's claims against the dealer.

Technical line drawing of a mechanical device with three identical flasks connected to a coiled cable and a coiled hose, showing no text or symbols.

PSR0015

pontec

PfG GmbH

Tecklenburger Straße 161

D - 48469 Hörstel

Germany

www.pontec.com

CE
