USER MANUAL 2Z 126FL BARTSCHER

ENGLISH from page 21 to 40

1.1 Key to symbols 22
1.2 Safety instructions 23
1.3 Proper use 27

2. General information 28

2.1 Liability and Warrantees 28
2.2 Copyright protection 28
2.3 Declaration of conformity 28

3. Delivery range, transport, package, storage 29

3.1 Delivery range and transport inspection 29
3.2 Packaging 29
3.3 Storage 30

4. Technical data 30

4.1 Technical specification 30
4.2 Overview of parts 32

5. Installation and operation 33

5.1 Installation 33
5.1.1 Unpacking 33
5.1.2 Preset 33
5.1.3 Feet 34
5.1.4 Fixing of handle 34
5.1.5 Wooden shelves: 34
5.2 Electric connection 35
5.3 Operation 35

6. Cleaning 37

7. Possible Malfunctions 38

8. Discarding old devices 40

Bartscher GmbH

Read this instruction manual before using and keep them available at all times!

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

Please keep these instructions and give them to future owners of the device.

1. Safety

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

All persons using the device must follow the recommendations and instructions in this instruction manual.

1.1 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards which could lead to injury.

WARNING!

This symbol highlights dangerous situations which could lead to injury or death.

FIRE HAZARD / FLAMMABLE MATERIALS HAZARD / EXPLOSION

HAZARD!

This symbol highlights potentially dangerous situations which could lead to injury or death.

CAUTION!

This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device.

NOTE!

This symbol highlights recommendations and information aimed for effective and trouble-free device operation.

1.2 Safety instructions

• The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/ knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers. Children should not play with the device. Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision. Children under the age of 8 years old must be kept away from the device and its power cord.
• Only use the device indoors.

• The device must be operated in correct and safe technical condition only. In case of operational problems disconnect the device from the power supply (pull the plug from the socket) and contact the service company.

• Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard!

• Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

DANGER! Electric shock hazard!

To avoid the hazard results please follow the safety instructions below.

• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.
• The power cable must not be folded, bent or tangled, and must always remain fully unrolled. Never place the device or other objects on the power cable.

• Do not cover the cable. Keep away the cable from operating range and do not immerse it into water.

• Check the power cord regularly for damage. Do not use the device if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers.

• The supply cable must be disconnected from the socket only by pulling the plug.

• Never carry or lift the device by the supply cable.

• In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.

• Do not use any acid agents and make sure no water ingresses the device.

• Never operate the device with moist hands or standing on wet floor.

• Remove the plug from its socket:

• when the device is not used.

• in case of anomalies during operation,
• before cleaning.

FIRE HAZARD / FLAMMABLE MATERIALS HAZARD / DOSION HAZARD!

Incorrect operation of the device may cause fire or explosion hazard due to ignition of its content.

To avoid the hazard please follow the safety instructions below:

• Do not use any electric devices in the device.
• Never use any flammable liquids for cleaning the device or its parts. Gases releasing during above activities may cause fire or explosion hazard.
• Do not store or use petrol or other flammable liquids and gases in the vicinity of this or any other device. Those gases may cause fire or explosion hazard.
• Do not put any explosive materials, like sprays filled with flammable propellants, into the device.
• The cooling system in the device may be damaged.

1.3 Proper use

CAUTION!

The device has been designed and manufactured for the industrial use and should be operated only by the qualified personnel of the restaurants, canteens and similar places.

The operational safety of the device is assured only in case of proper use, according to the operation manual.

All technical activities like installation and maintenance must be performed by the qualified service personnel only.

The wine cooler is intended only for wine cooling.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

2. General information

2.1 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology.

CAUTION!

Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on!

Manufacturer is not liable for any damages or faults caused by:

• violation of advice concerning operation and cleaning;
• use other than designed;
• alterations made by user;
• use of inadequate spare parts.

We reserve the right to make technical changes for purposes of developing and improving the useful properties.

2.2 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

2.3 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.

3. Delivery range, transport, package, storage

CAUTION!

• The wine cooler should be transported in the vertical position only.

• Due to high weight of the device it should be transported, unpacked, and installed by two persons.

• Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. There is the suffocation hazard!

3.1 Delivery range and transport inspection

The wine cooler is in standard delivered with the following elements:

Device

• 7 wooden shelves (700131) / 8 wooden shelves (700132)

Operation manual

• Handle with screws for fixing

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• do not store outdoors,
• keep it dry and dust-free,
• do not expose it to aggressive media,
• do not expose it to direct sunlight,
• avoid mechanical shocks and vibration,
• in case of longer storage ( >3 months) make sure you check the state of the packaging and the parts regularly, if required refresh or renew.

4. Technical data

4.1 Technical specification

Construction:

• Double glazing, insulating glass with UV filter
  Thermostat
  Digital display
  Control: touch, electronic
  Cooling: Compressor
  Insulation: thermal
  Automatic thawing function
• Drip water evaporation
  Fan
  Number of doors: 1, lockable
• right side, door hinge side cannot be changed
• Lighting: LED, can be switched separately per temperature zone
  Vibration-dampened feet for quiet operation
• Ergonomic handle

Name	Wine cooler
Model:	126FL	2Z 180FL
Code-No.:	700131	700132
Material:	lacquered steel, glass interior: steel
Colour:	black
Climate class:	ST	ST
Energy class:	B	C
Ambient temperature:	16 °C to 38 °C
Cooling medium:	R600a	R600a
Capacity:	313 litres upper part: 138 litres lower part: 175 litres	453 litres upper part: 219 litres lower part: 234 litres
Capacity:	126 bottles: upper part: 54, lower part: 72	180 bottles: upper part: 80, lower part: 100
Number of shelves:	upper part: 3 lower part: 4	upper part: 4 lower part: 4
Type of shelves:	wooden shelves, ball bearings, drawer: 275 mm
Dimensions of shelves:	1 x W 505 x D 340 mm 6 x W 505 x D 440 mm	1 x W 505 x D 425 mm 7 x W 505 x D 440 mm
Number of temperature zones:	2	2
Temperature range:	upper part: 5 °C - 20 °C lower part: 5 °C - 20 °C	upper part: 5 °C - 20 °C lower part: 5 °C - 20 °C
Dimensions:	W 595 x D 625 x H 1590 mm	W 600 x D 750 x H 1860 mm
Power supply:	0.15 kW/220-240 V 50/60 Hz	0.15 kW/220-240 V 50/60 Hz
Weight:	76.05 kg	86.35 kg

We reserve the right to implement the technical modifications!

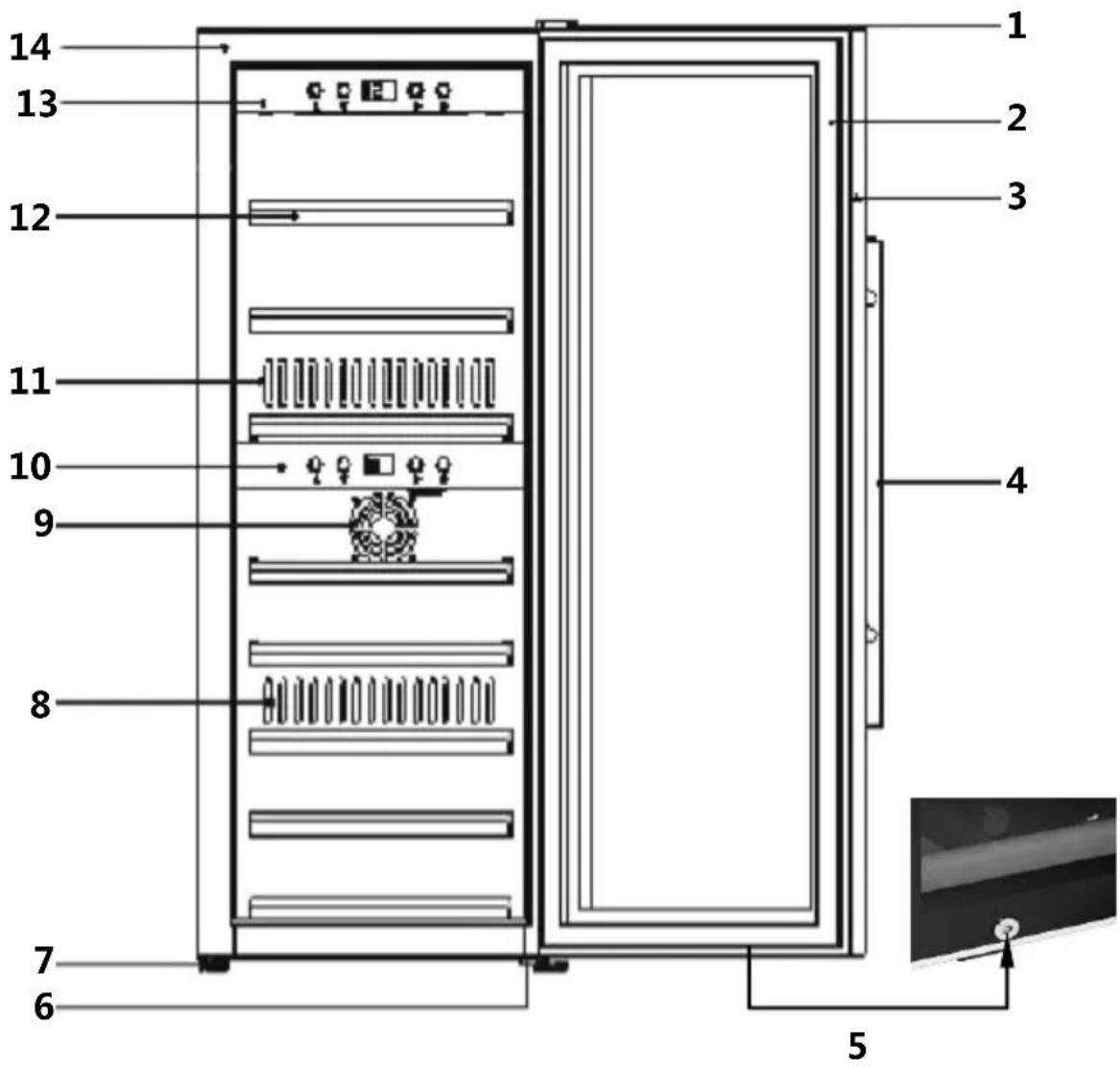

4.2 Overview of parts

1 Upper hinge cover
2 Door seal
3 Door frame (lockable)
4 Door handle
5 Lock
6 Lower handle with foot adjustment
7 Foot (3)

8 Hot air outlet
9 Air inlet

10 Lower control panel
11 Cold air outlet
12 Wooden shelves: 7 pcs. (700131) / 8 pcs. (700132)
13 Lower control panel
14 Housing

5. Installation and operation

5.1 Installation

5.1.1 Unpacking

The device should be unpacked in the following way:

• Remove the device from the carton box, then remove the external and internal package.

• Clean the interior with warm water and soft cloth. Follow instructions in section 6 "Cleaning".

• In order to avoid scratches and stains remove the protective foil just before installing the device in its place.

CAUTION!

Never remove the rating plate or any warning signs from the device.

5.1.2 Preset

• Place the device on an even and safe surface which supports the weight of the device and assures stability at full load.

• Do not place the device in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Direct sunlight may cause changes in the acrylic surface and the heat sources have negative impact on energy consumption.

• The ambient temperatures below 16^ and above 38^ may lead to limited functionality of the device.

• The device is designed for indoor operation only. Never place the device in humid or wet environment.

• Do not place the device in hot environment or in the vicinity of flammable materials.

• The device requires sufficient air circulation for correct operation. Assure the minimum side distance of 10cm of the device.

• Do not remove or block the holes of the device.

• The electric socket should be easily accessible so it it possible to quickly disconnect the supply cable when necessary.

• Installation and assembly of this device in the non-stationary location (e.g. ship) should be realized by the specialized companies/persons only, after assuring the fulfilment of conditions necessary for safe operation of the device.

• Due to energy savings make sure that the door of the device is closed during its operation.

• In case of moving the device to another location disconnect the power supply and remove the plug from the socket. Remove all content from the device. Due to safety reasons fix all loose elements inside. Fix the door with use of adhesive tape. The wine cooler should be transported in the vertical position only.

5.1.3 Feet

The device is equipped with 3 large feet and 1 small adjustable foot. Adjust the foot in such way that the device stands straight and does not sway.

5.1.4 Fixing of handle

Before the first use fix the supplied stainless steel handle to the device door with use of screws.

Move the rubber seal on the door internal side left or right to uncover the fixing holes. Fix the handle to the door using supplied set of screws.

Then replace the seal in correct position.

5.1.5 Wooden shelves:

Each wooden shelf may be removed to allow for storage of bigger bottles.

Intermediate shelf

Lower shelf

Before removing the shelf the bottles must be removed first. Then lift the shelf slightly and pull it out (loose the screws when required).

NOTE!

Make sure that the wooden shelves are properly snapped before placing bottles on them. Pay attention to uniform distribution of load inside the device.

5.2 Electric connection

DANGER! Electric shock hazard!

The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance!

• Wait 12 hours before connecting the device to the socket, connect it, and place the wine bottles inside.
• The power supply circuit with the socket must be protected by the fuse of at least 16A. The device should be connected directly to the wall socket. Due to fire hazard do not use any adapters or extension cords.

The electric safety of the device may be assured only when it is connected to correctly realized electric system with the protective wire. It is forbidden to connect the device to the socket without the protective wire. When in doubts, the house electric system should be checked by the qualified technician. The manufacturer is not responsible for damages caused by connecting the device to the missing or interrupted protective wire.

5.3 Operation

Control elements and display

• The temperature zones of the wine cooler are controlled independently with use of control elements.

• Pressing ON/OFF on allows for turning on

• on the upper control panel: device and upper temperature zone;
  on the lower panel: lower temperature zone.

• The digital display shows current average temperature for a given temperature zone.

• The buttons and are used for adjustment of the following temperature settings: from 5^ to 20^ in the upper and lower temperature zone.
• Recommended storage temperature for white wine: 6^ - 10^ , for red wine: 12^ - 18^ .
• If both temperature zones are used, the temperature in the upper zone should be lower than in the lower zone.
• The lower temperature zone may be deactivated so only the upper zone remains active.
• Wait until the device reaches the preset temperature and put the wine bottles inside.

Hint: Keep in mind that in case of maximum load of the device chambers it must work longer to reach the preset temperature.

When preset temperature (e.g. 20^ ) is reached, in the bottom and on the right side of temperature value "c" character appears.

When preset temperature (e.g. 5^ ) is not reached yet, the character "c" is displayed in the top and on the right side of temperature value.

• By pressing two buttons and simultaneously for 5 seconds it is possible to switch between ^ C and ^ F .

• With use of buttons and it is possible to adjust temperature every 1^ .

• Button used for turning on and off the internal light; LED lamp is installed under the ceiling of a given chamber.

• Temperature in the device depends on environment, number of stored bottles, and preset temperature.

• Moreover the device is equipped with heating, so in case of lower ambient temperatures it may maintain wine temperature at desired level.

• When the device is no longer used, turn it off using ON/OFF and disconnect from the power supply (pull the plug!).

6. Cleaning

WARNING!

Before cleaning disconnect the device from the power supply (pull the plug!).

Do not use pressurized water jest for cleaning!

Protect the device from the water penetration.

CAUTION!

Do not use any aggressive and abrasive cleaning agents or solvents.

Clean the device before restarting it.
Clean the device regularly during operation. Pay attention to the following instructions for cleaning the individual elements.

Device interior

Clean the device interior with warm water, using gentle washing agent and soft cloth. Then dry the cleaned surfaces thoroughly using a soft cloth.

Door seal

In order to assure correct operation of the device make sure that the door seal is clean.

Housing

Clean the device exterior with soft cloth, soaked in warm water and gentle cleaning agent. Then dry the device thoroughly with soft cloth.

Exhaust hole/fan

• The cooling efficiency may be reduced due to accumulation of dust or other contaminants blocking the exhaust holes. If necessary, clean the exhaust holes with the vacuum cleaner.

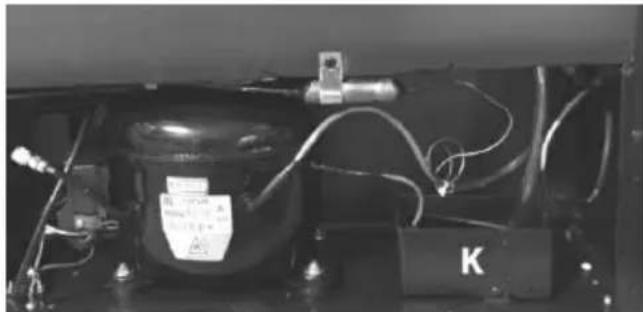

Condensate tank/drip tray (K)

• Condensate should be periodically removed with use of sponge. That tank is located in the back of the device, on the right side.

Manual thawing

The device should be thawed at least every 6 months. When the device door is often opened thawing should be performed more frequently. Turn the device off and remove the plug from the socket. Then start the manual thawing. Pay attention to the drip tray (K) filling and remove water.

7. Possible Malfunctions

In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation.

Failure	Possible cause/solutions
The wine cooler is not working.	- The plug is not connected to the socket or incorrect network voltage. - Damaged or blown fuse.
The cooling efficiency is insufficient or the device is not reaching the preset temperature.	- Check temperature settings. - The ambient conditions may require other settings. - The door is opened too often. - The door is not completely closed. - The door seal does not assure sufficient sealing. - The wine cooler does not have sufficient distance to other objects. - Thaw the device.
The light is not working.	- Contact the service company.
Vibrations.	- Check if the device is levelled.
The device operation is too loud.	- The device is not levelled. - Check fan. - Loose parts. - The device is touching the wall.
The door is not closing properly.	- The device is not levelled. - The door is installed in the opposite way or incorrectly. - Worn out seal. - Lowered shelves.
LED display is not showing anything. LED display: “Lo”.	- The main switchboard is not working. - Damaged power supply plug. - Problem in the printed circuit. - Contact the service company.
The buttons are not working.	- The temperature controller is damaged.
The compressor does not start.	- The compressor does not start when the ambient temperature is lower than the preset temperature.
The compressor starts again.	- The compressor stops working after reaching the preset temperature but starts again until the preset temperature is reached.
Dew on the cooler surface.	- Dew appears on the front glass, especially when the device operates in humid environment. It is connected with humidity of air contacting the wine cooler. Remove dew using a soft cloth.
Bubbling sound of a liquid.	- Sound of compressor operation when it starts or stops. - Sound of refrigerant in the circuit.
Condensate in the cooler.	- The door has been left opened for a long time in humid environment or has been opened frequently. Leave the door closed for as long as possible.
Error E2.	- Contact the service company.

If you cannot remove the malfunctions:

• do not open the body,

• notify the customer service point or contact the sales agent, while providing the following information:

type of malfunction;
- article and serial number (rating plate at the rear of the device).

8. Discarding old devices

The electric and electronic devices often contain valuable materials. They also contain harmful plastics, necessary for their operation and safety. In case of disposing as a common waste material or incorrect utilization they may pose threat for human health and environment. Therefore in any case the device should be disposed as a common waste.

After the operational period old device should be utilized according to valid regulations. Use the list of collection points for your location to return the electric and electronic devices. We recommend contacting the professional company of proper unit of the local authorities.

CAUTION!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

Make sure that old device is stored beyond the reach of children until its removal: remove the door and leave shelves inside so children are not able to enter the device.

The propellant used in the device is flammable. Its utilization should be realized according to the valid regulations.

Bartscher GmbH

4.1 Indications techniques

Matière:

Ipi6op n3roTOBneH cornaCHO DeiCTbUOuIM B daHHbIM MOMENT npaBnAm TexNkN. HecmOTpHa 3TO np6op moKet IpeDcTabJIbTb ONaCHOCtB, ECIN NM NOJb3OBaTbcr He B COOTBeTCTBnC pYKOBOdCTBOM IO 3KcPJIyatauIN IJIH He NIO PnPOMy Ha3HaueHIO.

Bce nica, noJIb3yIOUeCn npIbOpOM, dOJIKhbl co6IIOdaTb yka3aHnA, coDEpXkaUeCn B daHHo INCTpyKuIN NO o6cIyKuBAHnIO.

1.1 3haueHne cMBOJIKN

Baxhble TexHnueckne yka3aHnI Mepbl npeoctopoxhoCTN BbIeJeHbIB daHHoINHCTpyKcnnno 3Kcnnyataun CmboJamn / 3NaKaAMn. Heo6xoJIMO o6raTeNbHO co6JIOnaTb 3TNyka3aHnBO n36exKaHHe HeCuaCThBIX clyuAeB, YelOBeuecknx IN BeUeCTBeHHbIX uIep6OB.

ONACHO!

3TOT CnMBOJ CNrHaJIH3NpyET O HEnocpeIcTBeHHoYrpo3e, NocJeIcTBnEM KOTOPOMORyT CTaTb cepbe3HbIe NOBpeXdEHnI NII cMePeTbHbI INCXOD.

OCTOPOXHO!

3TOT cIMBOJ cnHann3npyet 6 onaChbIX cnTyauqnx, KOToPbIe MOrJI 6bl npNBecTN K TAnKeJbIM TeJeCHbIM NOBpeXdEHNrM INN K CMePTeJbHOMy IcXOdy.

ONACHOCTb BO3HnKHOBEHnI POJAPA / ONACHOCTb BC HAJINyEM JERKOBOCpIAMEHryIOxxCr MATEPNAIOB / OCTb B3PbIBA!

3TOT cIMBOJ CNrHaJIIN3npyeT 6O anachbIX cnTyauqnx, KOToPbIe MOrJI N 6bl npNBecTN K TjXeJIbIM TeJeCHbIM NOBpeKdEHNm IIN K CMePTeJbHOMy NCxOy.

BHIMAHHE!

3TOT CnMBOJ CNrHaJIH3NpyET O BO3MOxHbIX ONaCHbIX CNTyaUnx, KOTOpBie MORJI6bl npNBecTN K JERKIM TeJeCHbIM NOBpeXdEHNyAM NJI TpaBMam, DepeKTHOMYDeiCTBNUo /nIIN NOJOMKe pnp6opa.

YKA3AHNE!

3TOT cIMBON BbIeJIeRcOBEtbl NnHΦopMauH, KOtOpbIe cJIeIyET co6JIHOaTb dJIra oBecepeHnRA 3ΦΦeKTHBHorO n 6e3aBapnHoro 06cJyXnBaHnra np6opa.

1.2 Mepbl npedoctopoXHocTn

• Pn6bopom MOryT nOJIb3OBaTbc8 Detn CTapwe 8 JeT, Iuca C OrpaHnueHHbIMN cIIN3UeCKIMN, CEHCOPHBIMN, yMCTBeHHbIMN OTKIOHeHnAIMN, a TAKKe IuCa C He6OJIbShm ONbITOM N/IIIN 3HaHnAIMN, pRn YcNOBnN, UTO OHN HaxOJrTcN IOd PnICMOrPOM IIN PPOJIN INCTpykTaX Ha Temy 6e3OJaCHoN 3KcIpyaTuIN N IOHMaOT CBa3aHHbIE C HeN NotEHuaJIbHbIe YrPo3bl. DeTn He DOJIxHbI INPaTbc8 Pn6bOpom. DEtN He MOryT BblONHrTb OYNCTKU TexO6cLnyKuBaHne np6opa, KpOME cIyuaEB, ecIn NcNoJIHnIOCb 8 JeT, IN OHn HaxOJrTcN IOd PnICMOrPOM B3POCSbIX. Detn MoLoXe 8 JeT He DoJIxHbI HaxOJrTbc8 No6IIN30CTN OT np6opa n IpOBoDa pncOeDInHeHnA.

• Пибор седует Испльь3OBаТь ИСКПЮЧИТьНВ 3aKpbITbIXnomeшени.

• Ппбор можно Incnoь30ВаТ b TОьКВ cLуаe, ecn erO TexHnueCKoe COCTOЯнe He Bbl3bIBAeT COMHeHn KaCateЛьНо ИспраВHOCTи n 6e3OJaNCHOCtN. B cLyuae n3BJaHOB B DeiCTBnnp6opa ero cIeJyET OTCoEДИHHTb OT IcTOUHnKa PITaHnA (BblHyTB BnJIky n3 pO3eTKn) n COO6uNTb B CepBnCHbI ΚeHTp.

CdelaTb HeBO3MOXHbIM DoCTyn DeTei K ypaKOBOHybIM MaTePnaJaM, TaKIM KaK NOJIaTHJeHOBbie NaKeTbI JINI NeHONOJIncTnPOJIOBbie 3JIeMeHTbl. OnaCHOCTb yduWeHra!
Pa60tbl no yxody n peMOHTy doJXHbI npOBODITbCra TOnbKO KBaJIncnupOBaHHbIMn CneUaJIncTaMn npN NCNoJIb3OBAHmOpINHaJIbHbIX 3anachbIX qacTei npInaJIeXHOCTe. HnkOrdaHe nbItaTecb camn npNBecTN np6Op B nCnpaBHOCTb.
He nCnoIb3OBAtB npHaIeJXHOCTn IIn 3aIaChbIe YacTn, KOToPbIe He 6blI N Odo6peHbI n3rOToBHTeJIem. OHn MOryT pPeIcTaBIArTB ONaCHOCTb IJa NOTpe6nteJIa IIn npUHHITb BpeI prN6OpBy IIn yUeRb6 YeNoBeky, K TOMy Jx TepeTec TpaBO Ha yDoBJeTBopeHne rapaHTn.
Bo n36eXaHne IOBpeJdeHn i dIy oBeCneueHn ONTmAlbHO npOn3BOInTeJIbHOCTn HeIO3BOInTeJIbHO pPeIprHnMaTb KaK n3MeHn Ipn6opa, TaK n IpecTpoEk, ecnn OHn YETKO He DO3BOJeHbI IN3ROTOBInTeJem.

ONACHO! Onachoctb nopaxeHn 3JIeKtpnuecknM TOKOM!

Bo n36eXaHne nocIeDCTBn yrpo3bI cIeIyEt co6JIoudaTb yKa3aHHbIe HIXe peKOMeHdaUIN NO 6e3OpaCHOCTN.

He donyckatb KOHTaKta npoBOna nItaHnC nCTOuHnKaMn TeIJa n OCTpbIMn KpaAMn. PpOBOD nITaHnHe DoJXeH CBnCaTb CO CToJa nn DpyrO OCHOBaHn. CneDInTe 3a Tem, YTO6bl HnKTO He MOr HaCTVNaTb Ha npoBOD nn CNOTbKaTbCS O6 Hero.
- Пювов пітань He может подеверраься n3rnbam, 3anyTbIBaHnIO, И дожен Bceгда нахоДиТьсяВ pa3IoЖeHHOM COCTOЯн. Hnkorda He yctанавлваыт рпбор nIуnpdpyгne пpedmetbl Ha pювODE пітань.
He hakpbBaTb npOBoD nHTaHn. PpOBoD nHTaHn He doJxeh HaxOHTbcB 30He pa6Otbl N He doJxeh NorpykaTbcB B Body IIN dpyrne KNDKOCTN.

• ПювOD пітань ретуларно пюверят ha пpeДмET NOВпжден. He nспоьзовать пибор с NOВпжденHBIM пювODOM пітань. Ecni пювOD NOВпжден, BO n3бжанne onaCHOCTN, erO 3amEny cIeDyET nopuytB nepcoHany cepBnCHOrO obcnykBaHnry nII n əJIeKTPNKy.

• Пювов пітая сіедует BCERда OТCoeДинять OT po3etkn C NOMOшьЮ ВИЛКИ.

• HnKoIa He nepemeaTb, He nepeBnraTb n He noHmAtb np6op c NOMOsbIO npOBODa NITAHIA.

HnB Koem cnyae He OTKpbBaTb KOpnyc npnbopa. B cnyae HapuweHna 3JeKtpnuecknx PnpcoeHNHeHn nn MoDnΦnKaaun 3JeKtpnuecko nn MexaHnuecko KOHCTpyKcnn, NOBNTcYrpo3a nopaxeHna 3JeKtpnueckm TOKOM.

He npimehaTb HnkaKne eKne YnCTaIe BeIecTba n CJeIITb 3a Tem, yTO6bI BODa He nonaJa B np6Op.

• HNKoIa He o6cnyKbAtb np6Op BnaXHbIMn pykAmn nIi CTOHa MOKPOM OCHOBaHIn.

BbIHyTb BNJky N3 rHe3Da,

• ecnnp6op He nCNoB3VeTc.
• ecn BO Bpem KcnpyaTau nnoBraTc nomexn B pa6ote np6opa.
  -пегд очinctко рибopa.

ОПACHOCТь BO3нКHOBEHЯ NOЖAPA / HOCTь CBЯЗС HAJINЧЕМ JERKOBOCSJIAME-ДИNXСМATEРNAJOВ / ONACHOCТь B3РБIBA!

HenpaBnIbHaJekCnIyatauJa npnbopa moKeT co3daTb pNCK BO3HnKHOBeHnI NOXapa IJI N B3PbIBa B pe3yJIbTaTe BO3rOpAHnI erO coDepeKIMOrO.

Bo n36exaHne yrpo3bI cJeNyET co6JIIOaTb yka3aHHbIe HnXe peKOMeHdaUIN:

Bnytpn np6opa He cneDyeT nCNOJb3OBaTb KaKne-Jn60 3JIeKTPnuYeCKne np6Opbl.
HnkOrda He cIeDyET nCnOJb3OBaTb IerKo BO3rOpaUoInecXnIDKOCTn dIra OuncTKn np6opa nn erO yacTei. Ra3bl, KOtOpbIe MOryt npN 3TOM o6pa3OBaTbcR, MOrY T CO3DaTb yrpo3y BO3HnKHOBeHnI NOkapa nn B3PbIBa.
He cneyuET xpaHnTB nIIN IcNoJb3OBaTb 6eH3nH nI IN dpyrne IerKo BocPnaMeHaOuIeCra3bl nIIN XnIDKOCTN B6IIN 3TOrO nIIN dpyrOro npnbopa. Ra3bl MOryT 6bl TnoXapo- IN B3pbIBOONaCHbIMN.
He cIeJyET BkIaIbIbATb B npI6Op KaKne-JnIbO B3PbIBOONaCHbIe MaTePnaJIbI, HApPIMep, a3pO30JI, HAnOJIHeHHbIe rOpIOUHMN BCNEHNBauOuIMN BeIecTBaMn.
Cnctema oxlaqdeHnB npnbope He moKet 6bItb nobpeKdHa.

IpeTeH3nIIO6Oro poDa K n3rOToBHTeJIu I /nn erO ppeDCTaBHTeJIIO no NObOy HaHeCehHoro yuepe6a B pe3yJbTaTe NOnb30BaHnI np6Opom He no Ha3HaYeHnIO NCKJIIOUeHbl.

3a BeCb yUeP6 npn noIb3OBAHn npIbOpom He nO Ha3NaYeHnO OTBeuAet cam notpe6ntel.

2.Obuine cBeDeHnA

2.1 OTBetCTBeHHOCTb n rapaHTnHbIe 06ra3aTeJbCTBa

Bce cBeHeHn yka3aHn B 3ToI IHCTpyKuIN NO 3KcNlyaTauIN 6blnn COCTaBHeBI C yueTOM DeiCTByIOx INpeDncaHn, aKtyaJbHOrO yPOBn INHXeHepHO-TexHneCKNX IccNeIOBaHn, a TaKKe Hauero MHOrOJIeTHero ONbTA n 3HaHn.

IpeboDbl Hnctpykunno 3Kcnnyataun TaKke cdeJahbHa ypoBHe JyUxnx 3HaHni.

Ondako OTBETCTBEHOCtB 3a OwN6Kn B nepeBoe Mbl Ha Ce68 B38Tb He MOXem. OCHOBOI Cnyknt npINIOXeHHa HemeKcA BerCnHa HcTpyKcNn No 3KcNpyaTaun. DeiCTBnTeJbHbI ObEM NOCTaBOK MoKet OTKIOHARbCn Pn Cne3aKa3ax, PpeDbRAVeHN DoONHHTeJbHbIX 3aKa3HbIX YcNOBn IOCTaBOK NnNo PnpUHe HOBeIWx TexHnueCKnx N3MeHeHN, OTNIuHOxxCr OT ONCaHHbx 3deCb ObyacHeHn N cepTExHbIX N3O6paKeHN.

BHIMAHNE!

Ipeed hauanom kaKx-ri6o DeiCTBn C npnbopom, ocObeHno nepeed ero BKIOueHHem, cJeDeyET BHMMaTeJbHO npouHTb daHHyU IHcTpyKcNIO no 06cIyXINBaHIO!

Ipon3BOiTeJIb He Hecet OTBcTcBeHHocTb 3a NOBpeJdeHn I BpeI, BO3HKnI IN BCJeIDCTBVE:

• Heco6JIOeHnY yKa3aHn Ha Temy o6cnyKbAHnry n OChCTKn;
• INCNoJIb3OBAHnI He No Ha3HaueHnIO;
• BBeHeHnI3MeHeHn IOnb3OBaTeJIeM;
• PpIMHeHn HeCOOTBeTcTByUx 3aPuaTei.

Mbl ocTabnem 3a co6oI npaBO Ha texHnueckne n3MeHeHnI npOyKTa B paMKax yJluyuHnKaueCTB nCNoJIb3OBaHnI n DaJIbHeIWeI OCCNeIOBaHnI.

2.2 3aunta aBTOpcknx npab

Hnctpykunno 3aunuuebI aBTOPKMn npabam. Pa3mHOKeHnaJIIOBO Bua n B IIOBOI
fOpme -daxe uactuho - a TaKxe NcNoB3OBAHne n/nn nepeDauca coepxahan
3aPeeHbI 6e3 NcBMeHHoro corlacn H3rOToBnteJn. HApUeHne BeTe 3a COoB
NocJeCTBHe BO3MeUeHn y6bITKOB. Mbl OCTaBnem 3a COoB npaBO Ha npedbYBHeHne
daNbHeiXn npeteh3n.

YKA3AHNE!

CopejxHne, TeKCTbI n npOyHe n3o6paXeHn 3aunuEhbl aBTOpCKMn npaBAmN HaxoTcR IOd 3aUNToI dpyrnx npaB 3aunTbI npON3BODcTBa. KaJdoe 3IoynOTpe6JIeHne haka3yEmo.

2.3ДeКлараця O HopMaTHNBOM COOTBeTCTBn

Ppnbop COOTBeTCTByeT DeiCTBlyUOuHm HopMaM n DnpeKtNbAm EC.

3TO NOITBepKdaeTcHAMB 3aBHeHHO COOTBeTCTBUN EC.

Pn Heo6xOIMOCmMb C yIOBOJIbCTBHeM BblJem Bam 3aABneHne O COOTBeTCTBnI.

3.Objem noctabkn, TpaHcnpT, ynaKOBka n xpaHeHne

BHIMAHHE!

BHHbXoJOpHbHK CneJyET TpaHCnOPTnpOBaTb NCKIQUHTeJIbHO BVEPTKAbHOM NOIOKeHN.

• По пчине 6ольшoro BEca npubopa ero TpaHcnpT, a TAKke paacakOBky N MOHTaJ IOJXHbI BblONHrTb Dba YeNoBeka.

CdeIaTb HeBO3MOXHbIM DoCTyI DeTAM K ynaKOBOUHbIM MaTePnaJaM, TAKIM KAK NOIN3TNJIeHOBBie NaKeTbI NIN NEHONOJNCTnPOJOBBie 3JIeMeHTbI. IMeet MeCTo onaCHOCTb YdVseHnra!

3.1 06bem noctabkn n KOHTpoJIb TpaHcnpTa

BHHbXoJIOJIbHnK NOCTaBnEeTcB CtHaDapTHoB BepCn CO CneIyUOIMN YactrM:

Pnp6op.
7 DepeBHHbIX npomExyToHbIX noJOK (700131) / 8 DepeBHHbIX npomExyToHbIX noJOK (700132)
- HCTpyKnnaNo 06cnyXnBaHnIO
PvUka C BnHTaMn IJN KpENNeHm

Ionyuehhblrpy3 He3aMeJNTeJbHO npOBepntb Ha KOMJIeKTHOCt b Ha TpaHCnOpTHbIyuepe6. Pn BHeUHe OOn3HaBaemom TpaHCnOpTHOM yuepe6 rpy3 He npHIMaTb IINpInHrtb c OROBOPKO.

Pa3mep yuepe6a yka3aTb B TpaHcnpTHbIX DOkymeHTax / HaKlaHOn/ nepeBO3uKa. Poadtbpeknamauiu.

Ckpblu yuep6 peKnamnpoBaTb cpa3y nocne obHapyKeHn, TaK KaK 3aBky Ha BO3MeueHne yuep6a MoXHO NpOaTb NlUb B npEeJax DeIcTBYIOxpeKnAmauOHbIX CpOKOB.

3.2 YnakoBka

He BbIbpaCbIbAaTe ynaKOBouHb KApToH BaUeO np6opa. OH MoKeT Bam noHaIObntbcra Iy XpAHEnH, pN nepeE3e nn Ecnn Bbl B cnUyae BO3MOXhBIX NOBpeJDeHn 6yJeTe BbICbIaTb np6Op B HaSy cepBnCHyO cnyk6y. POnHOCTbIO OCBO6oNTe np6Op nepeD BBOOM B CTPOI OT BHeuHero IN BHyTpENHero ynaKOBouHOrO MaTePnAna.

Ecnn Bbl HamepeBaetecb BbIKHyTb ynaKOBOHbIM MaTePnA1,

co6JIouaIte npedncaHna, deiCTbUoune B Bauei cTpaHe.

IodBo3nTe BToPnHNo nepepa6aTbIBaEMbI ynaKOBouHbIM MaTePnA1 K MeCTy c6opa MaTePnaJOB BToPnHOn Nepepa6OTKn.

PpOBeBTe, noJIHocTbIy IyKOMnJIeKToBaH np6Op n 3aNaChbIe npHaIeJXHOCTN.

B cnyuae Heoctaun KaKx-Jn6o YacTee CBXtEcB c HaWei Cnykbo CepBuca.

3.3 XpaHeHne

Pnpobj DepkaTb Do yCTaHOBKn B He paCnakOBaHHom Bnde, CO6IIOJa HaHeceHbIe Na BHeuHne CTOpOHe MapKInpOBKn No yCTaHOBKe I XpaHeHNo.

YnaKOBKn XpaHnTb NCKNIOHTeNbHO npCneNyUOuNX ycNOBnX:

• He ČepjkaTb IOD OTKpbITbIM He6om;
  -XpaHHTB CXYOM N CBOOHNOM OT Nbln MeCTe;
• He NOBBePraTb BO3DeIcTBnIO aRpeCCNBbIX BeIeCTB;
• PpeOxpaHrTb OT Bo3dEeCTBnA CONHeuHbIX Jyuei;
• N36eRaTb MExaHnuecknx COTpRceHn;
  -придпinteьнхраненn（60nee3 mecaeB）perynapho KOHTPOINPOBaTb obuee coCToHne BCex yacteN uYnaKOBKn, B Cnyaae Heo6xOAnMOCTn OCBExNTb NIn O6HOBTb.

4. TexHnueckne daHHbIe

4.1 Texnueckne xapaKtepncTKN

McnonHeHne:

-Двоиhoe octeКленue,ИЗолированhoe 6e3oNaChoe cTeKNo c YΦ-ФиЛьТрOM
Tepmoctat
LncpobaynHdkauy
- YnpabJIeHHe: ceHCOPHoe, 3JIeKTpOHHOe
- OxnaJdeHne: KOMPpeccop
- 130JIaIy: TepMueeckaI
ФункиаabTomatnueckoOTaIKN
-Испаразно Талов Вобь
- BeHTnJIaTOp
KolnueCTBODbepen:1,3aKpbBaETcHaKnIOU
CTopoHaOTKpbBaHnIaBepn:cnpaba
OcBeueHHe: CBeToOnoHoe, KaJda TemnepaTyPha 30Ha BKJIIOuAeTc8 OTJeBHO
- Perynpyemble IO BbICote HOKKN, C COKpaueHHeM BbBpaun DNJ TnxO pa6oTbi
-3proHOMnHaR pyka

Ecn He ydaetc ycTpaHnTB HenCnpaBHOCTN:

• He OTKpbIbA Tb KOpnyc,
• COO6uNTb B nyHKT o6cnyxuBaHnra KJIneHTa NJIu C8y3aTbC c npoDaBcOM, npn 3tOM cJeDuYET ppeDocTaBnTB cJeDuOuSyU HΦOpMaunU:

BnD HeNCpabHOCTN;
HOMep apTnKyJa n cepu (yKa3aHa Ha HOMHaJIbHOM 3HTKe B 3aDHe yactn np6opa).

7.Утнизачия

B coCTaB 3JIeKTPnuecknx I 3JIeKTPoHHbIX yCTpOINCTB YacTo BXODI T CEHHbIE MaTePnaJIb. OHI TAKKe CODepXaT BpeHbIe BeUeCTBa, KOTOpbIe 6blI IN Heo6xOIMMbI dIg IN XyHKUHOHPOBAHnI N 6e3OnaChocTn. Bbl6poWeHHbIE BMecTe C 06blHbIMN OTXODAMN IIN HENpaBnIbHO YTNlN3IPoBAHHbIE OHI MOryt CTaTB yrpo3OJ dIg 3IDOPOBJIIODeN I OKpyKaIOSeI cpeblI.

IooTOMy Hn B KOem Cnyae HeNb3a Bbl6paCbIBaTb npnbop BmecTe C 06bIHyIMN KOMMyHaJIbHbIMN OTXoJaMn.

IooKoHuaHn nepnoa 3Kcnpnyatau, cTapb np6op npepaTb dna yTuN3aunn B COOTBeTCTBn C DeiCTByUOzIMn B DaHHo CTpaHe npedncaHnMa. BocnoJb3yInTeCb ycnyramn haojaueroC B Bawe MeCTHOCTN pyHKta c6opa n yTuN3aunn 3JeKtpnuecknx n 3JeKTPoHNbIX np6obop. PekomeHdyem BocnoJb3OBAtbcra YcLyraMn CneunaHn3IpOBaHNO fnpMbI NIN CB8aTbCRA O TDeJOM MeCTHOrO yUpeXdEHHa, OTBECTBeHHORO 3a yTuNJ3aUIO TaKOrO BVnda OTXODOB.

BHIMAHNE!

Дя ncklquhenn HapuweHn N CBra3aHHbIMN C 3TUM OnaCHOCTaMn, npNBeNTe np6op nepey yTuHn3aunen B He npriroDhoe coctoHne. Jny 3toro np6op OTKnIOHTb OT cETn u ydaIITb ceTeBOJ kaBb OT np6opa.

YKA3AHNE!

CneyuT no3a60TuTBcra O TOM, yTO6bI BnJOTb Do MOMeHTa erO yCTpaHeH, CTapbI np6op xpaHnIcB HBe DocraemocTn DeTei: CHrTb DBePn N OCTaBNTb npomexyToUhBiE NOkN BHyTpN TaKIM CnocO6OM, yTO6bI DeTn He MORJI NErKO BOITN BHyTpB np6opa.

IprnmeHHoe B np6ope BCneHbAooee BeuecTBO JERKO BocnnaMeHareTc. Ero ytnn3aunB bInonHHTb B COOTBeTCTBUN C MeCTHbIMN IpeDnncAHnMn.

Bartscher GmbH

TEHLIKESI / PATLAMA TEHLIKESI!

ALMA TEHLIKESI / PATLAMA TEHLIKESI!
