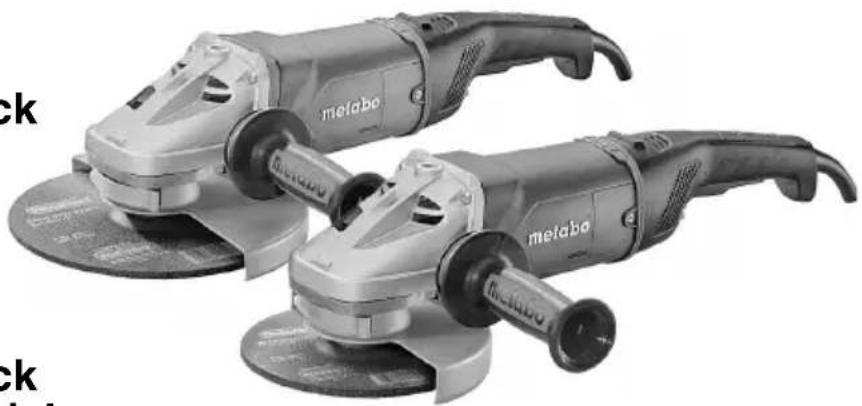

USER MANUAL WEPB 24230 MVT Quick METABO

WEPBA 24-180 MVT Quick

WEPBA 24-230 MVT Quick

W 26-180 MVT

W 26-230 MVT

WE 26-230 MVT Quick

WEA 26-230 MVT Quick

WEPBA 26-230 MVT Quick

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

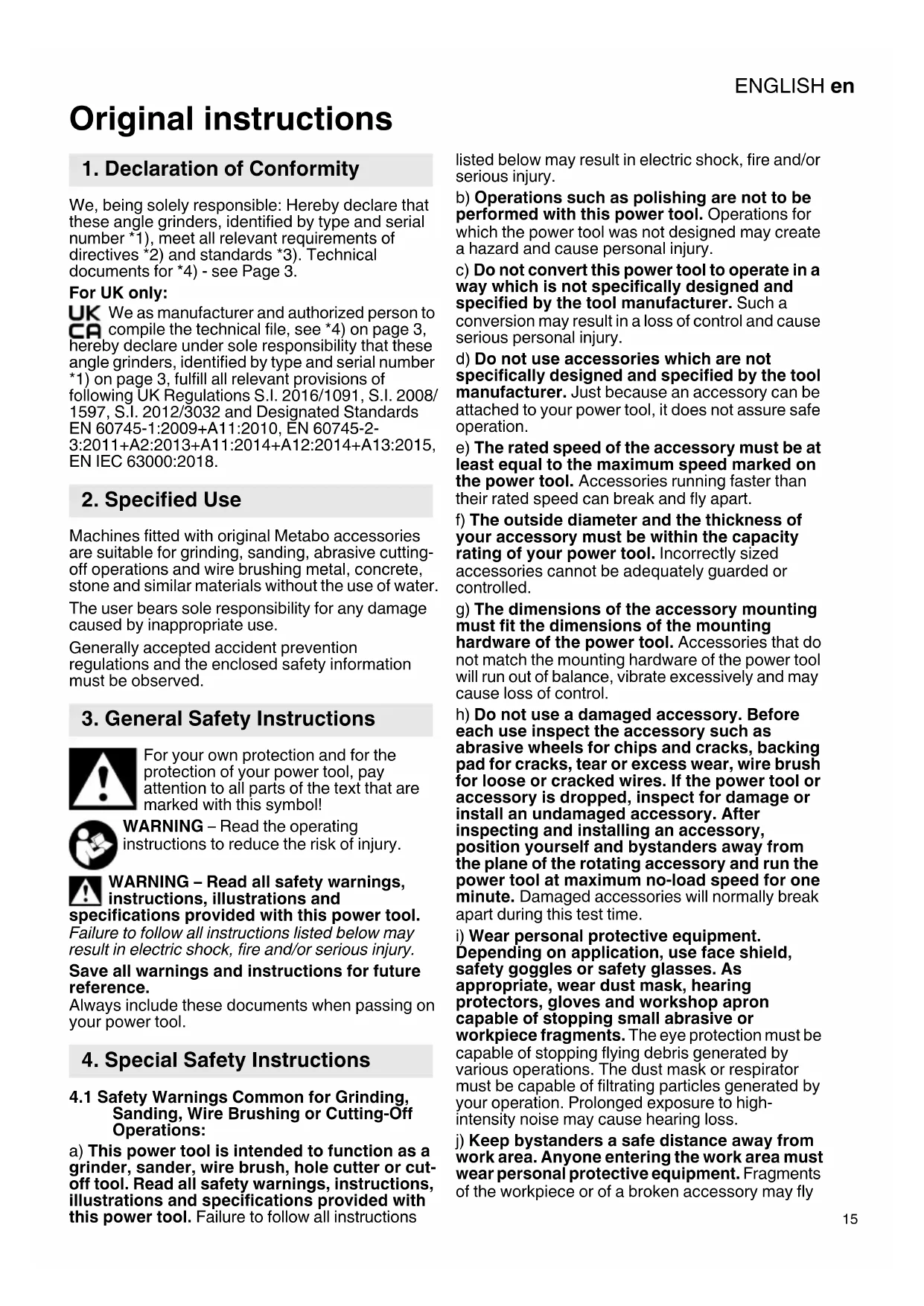

Original instructions

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these angle grinders, identified by type and serial number 1 , meet all relevant requirements of directives 2 and standards 3 . Technical documents for 4 - see Page 3.

For UK only:

UK We as manufacturer and authorized person to compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these angle grinders, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2008/ 1597,S.I.2012/3032 and Designated Standards EN 60745-1:2009+A11:2010,EN 60745-2- 3:2011+A2:2013+A11:2014+A12:2014+A13:2015, EN IEC 63000:2018.

2. Specified Use

Machines fitted with original Metabo accessories are suitable for grinding, sanding, abrasive cutting-off operations and wire brushing metal, concrete, stone and similar materials without the use of water.

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident prevention regulations and the enclosed safety information must be observed.

3. General Safety Instructions

For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol!

WARNING - Read the operating instructions to reduce the risk of injury.

WARNING - Read all safety warnings, instructions, illustrations and

specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Always include these documents when passing on your power tool.

4. Special Safety Instructions

4.1 SafetyWarnings Common for Grinding, Sanding, Wire Brushing or Cutting-Off Operations:

a) This power tool is intended to function as a grinder, sander, wire brush, hole cutter or cutoff tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions

listed below may result in electric shock, fire and/or serious injury.

b) Operations such as polishing are not to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

c) Do not convert this power tool to operate in a way which is not specifically designed and specified by the tool manufacturer. Such a conversion may result in a loss of control and cause serious personal injury.

d) Do not use accessories which are not specifically designed and specified by the tool manufacturer. Just because an accessory can be attached to your power tool, it does not assure safe operation.

e) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

f) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

g) The dimensions of the accessory mounting must fit the dimensions of the mounting hardware of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

h) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If the power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

i) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high-intensity noise may cause hearing loss.

j) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of the workpiece or of a broken accessory may fly

ENGLISHen

away and cause injury beyond immediate area of operation.

k) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
1) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
m) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
n) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
o) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
p) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
q) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

4.2 Kickback and related warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory, which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kickback. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the power tool and position your body and arms to allow you to resist kickback forces. Always use the auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.

c) Do not position your body in the area where the power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10mm or toothed saw blade. Such blades create frequent kickback and loss of control.

4.3 Safety warnings specific for grinding and cutting-off operations:

a) Use only wheel types that are specified for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
d) Wheels must be used only for specified applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
f) Do not use worn down wheels from larger power tools. Wheels intended for larger power tools are not suitable for the higher speed of a smaller tool and may burst.
g) When using dual purpose wheels always use the correct guard for the application being performed. Failure to use the correct guard may not provide the desired level of guarding, which could lead to serious injury.

4.4 Additional safety warnings specific for cutting-off operations:

a) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessively deep cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.

b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When the wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold it motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
g) Do not attempt to do curved cutting. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage, which can lead to serious injury.

4.5 Safety warnings specific for sanding operations:

a) Use proper sized sanding disc paper. Follow the manufacturer's recommendations, when selecting sanding paper. Larger sanding paper extending too far beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

4.6 Safety warnings specific for wire brushing operations:

a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
b) If the use of a guard is specified for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

4.7 Additional Safety Instructions:

WARNING - Always wear protective goggles.

Use elastic cushioning layers if they have been supplied with the grinding media and if required.

WARNING - Always wear protective goggles.

Wear ear protectors.

WARNING - Always operate the power tool with two hands.

Do not use the guard for cutting-off operations. When working with cut-off wheels, always use the parting safety guard ety reasons.

Do not use any segmented diamond cut-off wheels with segment slits >10mm . Only negative segment cutting angles are permitted.

Use bonded cut-off wheels only if these are reinforced.

Use elastic cushioning layers if they have been supplied with the sanding media and if required.

Observe the specifications of the tool or accessory manufacturer! Protect wheels from grease or impact!

Accessories must be stored and handled with care in accordance with the manufacturer's instructions.

Never use cut-off wheels for roughing work or deburring! Do not apply pressure to the side of the cut-off wheels.

The workpiece must lay flat and be secured against slipping, e.g. using clamps. Large workpieces must be sufficiently supported.

If accessories with threaded inserts are used, the end of the spindle may not touch the base of the hole on the grinding tool. Make sure that the thread in the accessory is long enough to accommodate the full length of the spindle. The thread in the accessory must match the thread on the spindle. See page 3 and chapter 14. Technical Specifications for more information on the spindle length and thread.

Use of a suitable fixed extractor system is recommended. Always install an RCD with a maximum trip current of 30mA upstream. If the angle grinder is shut down via the GFCI, it must be checked and cleaned. See chapter 9. Cleaning.

Damaged, eccentric or vibrating tools must not be used.

Avoid damage to gas or water pipes, electrical cables and load-bearing walls (static).

Pull the plug out of the socket before making any adjustments, converting or servicing the machine.

A damaged or cracked additional handle must be replaced. Never operate a machine with a defective additional handle.

A damaged or cracked safety guard must be replaced. Never operate a machine with a defective safety guard.

Do not switch on the machine if tool parts or guard devices are missing or defective.

ENGLISHen

Machines with a soft start (indicated by "WE" in the model designation): An electronic error occurs if the machine accelerates to maximum speed very quickly when switched on. Other safety-related electronic functions are no longer available. Have the machine repaired immediately (see 12.).

Secure small workpieces. For example, clamp in a vice.

When using dual-purpose (combined grinding and cut-off wheels), only the following guard types must be used: type A, type C. See chapter 11.

Using the correct guard:

Using an incorrect guard can lead to loss of control and serious injuries. Examples for incorrect use:

• when using a type A guard for lateral grinding, the guard may interfere with the workpiece causing poor control.
• when using a type B guard for cutting-off operations with bonded cut-off wheels, there is an increased risk of exposure to emitted sparks and particles, as well as exposure to wheel fragments in the event of a wheel burst.
• when using a type A, B, C guard for cutting-off operations or lateral grinding in concrete or masonry, there is an increased risk of exposure to dust and loss of control resulting in kickback.
• when using a type A, B, C guard with a wheel-type wire brush with a thickness greater than the maximum permitted thickness, the wires may catch on the guard leading to breaking of the wires.

Always use the matching guard for the accessory. See chapter 11.

Reducing dust exposure:

WARNING - Some dust created by power or sanding, sawing, grinding, drilling, and other

construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

This also applies to dust from other materials, such as some timber types (like oak or beech dust), metals, asbestos. Other known diseases are e.g. allergic reactions, respiratory diseases. Do not let dust enter the body.

Observe the relevant guidelines and national regulations for your material, staff, application and place of application (e.g. occupational health and safety regulations, disposal).

Collect the particles generated at the source, avoid deposits in the surrounding area.

Use suitable accessories for special work. In this way, fewer particles enter the environment in an uncontrolled manner.

Use a suitable extraction unit.

Reduce dust exposure with the following measures:

• do not direct the escaping particles and the exhaust air stream towards yourself or nearby persons or towards dust deposits,
• use an extraction unit and/or an air purifier,
• ensure good ventilation of the workplace and keep it clean using a vacuum cleaner. Sweeping or blowing stirs up dust.
• Vacuum or wash protective clothing. Do not blow, beat or brush protective gear.

5. Overview

See page 2.

1 " Quick " clamping nut *
2 S u p p o r t f l a n g e *
3 Spindle
4 W A.: Autobalancer support flange (non-detachable) *
5 Spindle locking button
6 Electronic signal indicator
7 Handl e
8 Lock (to prevent the machine from being switched on unintentionally, or for continuous operation)*
9 Trigger (for switching on and off)
10 Button (to turn the main handle)
11 Main handle
12 Additional handle/Additional handle with vibration damping
13 Safety cover
14 Adjusting nut *
15 2-hole spanner
16 Quick-release clamp (to adjust safety guard without the use of tools)
17 Screw (to adjust clamping force of quick-release clamp)

• depending on equipment/not in scope of delivery

6. Commissioning

Before plugging in, check that the rated mains voltage and mains frequency, as stated on the label, match with your power supply.

Always install an RCD with a max. trip current of 30mA upstream.

Use only extension cables with a min. cross-section of 1.5mm^2 . Extension cables must correspond to the power consumption of the machine (cf Technical Specifications). If a cable roller is used, always roll up the cable completely.

6.1 Attaching the additional handle

Always work with the additional handle (12) attached! Manually screw in the additional

handle securely in the left, centre or right threaded hole (depending on requirements).

6.2 Attach the safety guard

Prior to operation: Attach safety guard.

For safety reasons, only use the guard provided for the respective accessory! Using an incorrect guard can lead to loss of control and serious injuries. See also chapter 11. Accessories! See illustration F on page 2.

• Open quick-release clamp (16). Mount the safety guard (13) in the position indicated.
• Turn the safety guard until the closed section is facing the operator.
• Close quick-release clamp.
• If necessary, increase clamping force of quick-release clamp by tightening the screw (17) (with opened quick-release clamp).

Use only accessories that are covered by at least 3.4mm by the safety guard.

6.3 Pivotable main handle

Only work with the main handle (11) engaged. See illustration C on page 2.

• Push in the button (10).
• The main handle (11) can now be turned 90^ to both sides and can be engaged.
• Make sure that it is securely positioned: the main handle (11) must be engaged and it should not be possible to move it.

6.4 Power-supply connection

The mains sockets must be protected using timedelay fuses or circuit breakers.

Machines with "WE..." in the model designation: (with inbuilt automatic startup-current limitation(soft start).) The mains sockets can also be protected using fast-acting fuses or circuit breakers.

7. Attaching the grinding disc

Prior to any conversion work: Pull the mains plug from the socket. The machine must be bed off and the spindle at a standstill.

For reasons of safety, attach the parting guards before performing parting work (see chapter 12 accessories).

7.1 Locking the spindle

Press in the spindle locking button (5) only when the spindle is stationary!

• Press in the spindle locking button (5) and turn the spindle (3) by hand until the spindle locking button engages.

7.2 Placing the grinding wheel in position

See illustration D on page 2.

Machines with the designation W 2..., WE 2...

• Fit the support flange (2) on the spindle. The flange should not turn on the spindle when properly attached.
• Position the grinding wheel on the support flange (2) as shown in illustration D.
  The grinding disc must lay flat on the supporting flange.

Machines with the designation W...A 2....

The Autobalancer support flange (4) is permanently fitted on the spindle. As is the with most other angle grinders, a detachable port flange is not necessary.

The contact surfaces of the Autobalance support flange (4), grinding wheel and the k -Stop adjusting nut (1) or other adjusting nut must be clean. Clean if necessary.

• Place the grinding wheel on the Autobalancer support flange (4). The grinding wheel must lie flat on the Autobalancer supporting flange.

7.3 Securing/Releasing the "Quick" clamping nut (depending on features)

Securing the "Quick" clamping nut (1):

Do not use the "Quick" clamping nut if the accessory has a clamping shank thicker than 8. In this case, use the clamping nut (14) with 2-spanner (15).

Only use the "Quick" clamping nut when undamaged and in perfect operating condition: the arrow must point to the notch on the ring (see illustration on page 2).

• Lock the spindle (see chapter 7.1).
• Fit the "Quick" clamping nut (1) on the spindle (3). See illustration on page 2.
• Tighten the "Quick" clamping nut by turning clockwise by hand.
• Turn the grinding wheel firmly clockwise to tighten the "Quick" clamping nut.

For machines with the designation W...B... an increased resistance is to be felt on the last 180^

Releasing the clamping nut (1):

• Lock the spindle (see chapter 7.1).
• Turn the "Quick"clamping nut (1) anticlockwise to unscrew.

7.4 Securing/Releasing the clamping nut (depending on features)

Securing the clamping nut (14):

The 2 sides of the clamping nut are different. Screw the clamping nut onto the spindle as follows:

See illustration E on page 2.

- A) For thin grinding discs:

The edge of the clamping nut (14) faces upwards so that the thin grinding disc can be attached securely.

B) For thick grinding discs:

The edge of the clamping (14) faces downwards

ENGLISHen

so that the 2-hole nut can be attached securely to the spindle.

• Locking the spindle. Turn the clamping nut (14) clockwise using the 2-hole spanner (15) to secure.

For machines with the designation W...B... an increased resistance is to be felt on the last 180^

Releasing the clamping nut:

• Lock the spindle (see chapter 7.1). Turn the clamping nut (14) anticlockwise using the 2-hole spanner (15) to unscrew.

8. Use

8.1 Switching On and Off

Always guide the machine with both hands.

Switch on first, then guide the accessory towards the workpiece.

Avoid inadvertent starts: always switch the tool off when the plug is removed from the socket or if there has been a power cut.

In continuous operation, the machine continues running if it is forced out of your box. Therefore, always hold the machine with hands using the handles provided, stand freely and concentrate.

Avoid the machine swirling up or taking in dust and chips. After switching off the machine, place it down when the motor has come to a dstill.

See illustration A on page 2.

Torque activation

Switching on: Slide the lock (8) in the direction of the arrow and press the trigger switch (9).

Switching off: Release the trigger switch (9).

Continuous operation (depending on features)

Switching on: Slide the lock (8) in the direction of the arrow, press the trigger switch (9) and keep it pressed. The machine is now switched on. Now slide the lock (8) in the direction of the arrow once more to lock the trigger switch (9) (continuous operation).

Switching off: Press the trigger switch (9) and release.

Machines with the designation W...B: Torque activation (with dead man's lever)

See illustration B on page 2.

Switching on: Slide the trigger switch (9) forwards and then push the trigger switch (9) upwards.

Switching off: Release the trigger switch (9).

8.2 Working Directions

Grinding:

Press down the machine evenly on the surface and move back and forth so that the surface of the workpiece does not become too hot.

Rough grinding: position the machine at an angle of 30^ - 40^ for the best working results.

Cutting-off operations:

Always work against the run of the disc (see illustration). Otherwise there is the danger of the machine kicking back from the cut out of control. Guide the machine evenly at a speed

suitable for the material being processed. Do not tilt, apply excessive force or sway from side to side.

Sanding:

Press down the machine evenly on the surface and move back and forth so that the surface of the workpiece does not become too hot.

Wire brushing:

Press down the machine evenly.

9. Cleaning

Particles may become deposited inside the power tool during operation. This impairs the cooling of the power tool. Conductive build-up can impair the protective insulation of the power tool and create an electrical hazard.

The power tool should be cleaned regularly, often and thoroughly through all front and rear air vents using a vacuum cleaner or by blowing in dry air.

Prior to this operation, separate the power tool from the power source and wear protective glasses and suitable dust mask. Ensure appropriate suction is available when blowing out vents.

Button (10) for adjusting the handle: Occasionally blow compressed air through the button (when pressed, in all 3 main handle positions). Prior to this operation, separate the power tool from the power source and wear protective glasses and dust mask.

10. Troubleshooting

Machine with "WE..." in the model designation:

• Overload protection: The electronic signal display (6) lights up and the load speed decreases dramatically. The motor temperature is too high! Run the machine in idling until it cools down and the electronic signal display switches off.
• Overload protection: The electronic signal display (6) lights up and the load speed decreases slightly. The machine is overloaded. Work with a reduced load until the electronic signal display goes out.
  Electronic safety stop: The electronic signal display (6) lights up and the machine was SWITCHED OFF automatically. If the slew rate of the current is too high (for example, if the machine suddenly seizes or kickback occurs), the machine switches off. Switch off the machine at the trigger switch (9). Switch it on again and continue to work as normal. Try to prevent the machine from seizing. See Section 4.2.

• Restart protection: The electronic signal display (6) FLASHES and the machine does not start. The restart protection is active. If the mains plug is inserted with the machine switched on, or if the power supply is restored following an interruption, the machine does not start up. Switch the machine off and on again.

• When switched on, the machine accelerates to maximum speed very quickly, i.e. automatic restriction of the starting current does not work (soft start). An electronic error exists. Other safety-related electronic functions are no longer available. Have the machine repaired immediately (see 12.).
  W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

• Switching on the machine reduces the voltage briefly. Unfavourable mains power conditions may have a detrimental effect on other machines. Power impedances less than 0.2 ohm should not cause malfunctions.

11. Accessories

Use only genuine Metabo accessories.

Use only accessories which fulfil the requirements and specifications listed in these operating instructions.

Fit accessories securely. Secure the machine if it is operated in a bracket. Loss of control can cause personal injury.

See page 4.

Always use the suitable accessory and the prescribed guard for the matching guard for

the application. See page 5. (Illustrations are examples).

Application:

1 = surface grinding
2 = cut-off grinding
3 = drilling of holes
4 = wire brushes
5 = grinding with sanding paper

Accessories:

1.1 = grinding wheel
1.2 = cup wheel (ceramic)
2.1 = cut-off wheel "metal"
2.2 = cut-off wheel "masonry/concrete"
2.3 = diamond cutting disc "masonry/concrete"
2.4 = dual-purpose diamond cutting discs (combined grinding and cutting disc)
3.1 = diamond drill bits
4.1 = wheel brush
4.2 = cup brush
5.1 = flap disc
5.2 = backing pad for sanding sheets

prescribed guard:

Type A = cutting guard

Type B = guard for grinding

Type C = guard for grinding and cutting-off operations (combination)

Type D = guard for cup wheel

Type F = extraction guard for cutting-off operations

Other accessories:

(see also www.metabo.com)

A Bench cut-off stand

B Adjusting nut (14)

C "Quick" clamping nut (1)

For the complete range of accessories, see www.metabo.com or the main catalogue.

12. Repairs

Repairs to electrical tools must be carried out by qualified electricians ONLY!

A defective mains cable must be replaced only with a special, original mains cable from Metabo available from the Metabo service.

For machines with the designation W...B... the braking pad also needs to be replaced when replacing the carbon set.

Contact your local Metabo representative if you have Metabo power tools requiring repairs. For addresses see www.metabo.com.

You can download a list of spare parts from www.metabo.com.

13. Environmental Protection

The generated grinding dust may contain harmful substances. Dispose appropriately.

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Directive 2012/

19/EU on waste electrical and electronic equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling.

14. Technical Specifications

Explanatory notes on the specifications on page 3. Changes due to technological progress reserved.

D_ =max.diameter of the accessory

t_,1 = . permitted thickness of clamping shank on accessory when using clamping nut (14)

t_,2 = . permitted thickness of clamping shank on accessory when using "Quick" clamping nut (1)

t_max,3 =roughing disc/cutting disc: max. permitted thickness of accessory

t_max,4 =max. permitted thickness of wheel-type wire brushes

M = s p i n d e

I =length of the grinding spindle

n_0 =no-load speed (maximum speed)

P1 =rated input power

P2 =power output

m = weight without mains cable

Measured values determined in conformity with EN 60745.

Machine in protection class II

AC Power

The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).

A Emission values

These values make it possible to assess the emissions from the power tool and to compare

ENGLISHen

different power tools. Depending on the operating conditions, the condition of the power tool or the accessories, the actual load may be higher or lower. For assessment purposes, please allow for breaks and periods when the load is lower. Based on the adjusted estimates, arrange protective measures for the user e.g. organisational measures.

The grinding of thinner metal sheets and other workpieces with large surfaces that easily vibrate can lead to a significantly higher overall sound emission (up to 15 dB) than the sound emission values specified. The sound radiation of such workpieces should be prevented to the greatest extent possible by means of suitable measures, such as fitting heavy, flexible damping mats. The increased sound emission must also be taken into account when assessing the risk of noise exposure and selecting suitable hearing protection. Vibration total value (vector sum of three directions) determined in accordance with EN 60745: a_h, SG = Vibration~emission~value~(surface~grinding) a_h, DS = Vibration~emission~value~(disc~sanding) K_h,SG/DS = Uncertainty (vibration)

Typical A-effective perceived sound levels:

LpA =Sound-pressure level LWA =Acousticticpowerlevel K_pA,K_WA = Uncertainty

Wear ear protectors!

Notice originale

Voir page 2, figure F.

Voir page 2, figure C.

Voir page 2, figure D.

Voir page 2, figure A.

Voir page 2, figure B.

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

n0 =Tomgangsturtall (hoyesteturtall)

P1 =Nomineit effektopptak

P2 =Utgangeffekt

m = V e k t u t e

Måleverdier iht. EN 60745.

Maskin med beskyttesesklasse II

Vekselström

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

POLSKIpl

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

He BkIIOuHaIe HNCTpyMeH TpH OTCyTCTBHN NnN NOBpeKdEHH erO deTaIeN nn 3aunTHbIX npncnoc6JIeHn.

MaunHbC nIaBbIM nyckom (c MapnpoBkoN "WE..." Ha TINOBO TaBnueKe): Ecn np3anucke MaunHa Oeyh6bICTPO yCKopaeTcdo MaKcImaJIbHOJyactOTbI BpaueHn,TO IMeET MeCTO Own6Ka B 3JeKTPoHHOM 6LoKe. Dpyrne Yka3aHnno TExHnke 6e3OpacHocTn OTHOCHTeLbHO FyHKnI 3JeKTPoHHOro 6LoKa He npNbOaTcR.HemdLenHo CdaTe 3JeKTPoHHCTpymeHT B peMOHT (CM. rnaby 12.).

3aKpeIJIeTe He6OJIbUJne 3aROTOBKn, HApPIMep, 3aHMaIte INB TnCKax.

Pn HcNoB3OBaHn yCTaHaBJIbNAeMbIX Ha
fHaIaHcE KpyROB DBOHORO nPpIMHeHn (KpyROB
dIy IINΦOBaHn I a6pa3NBHO pe3KN) MOxHo
npIMeHrTb 3aUHTbIE KOJxN TOlbHO TnA A N C.
Cm. rnaBy 11.

IcnoJb3yIte COOTBeTCTByIOUm 3aunTHbI KOHyX:

Ecn He hCnOJb30BaTb COOTBETCTByUoyni 3aunTHbI KOKyX,3TO MOKeT npNBecTN K NOTEpe KOHTpOJI HaI INHCTpyMeHTOM I cepBe3HbIM

TpaBMaM. IprnMepbI He npBaHJIbHOrO nCNoJIb3OBAHn:

• npn HcnoB3OBAHnn 3aunTHoro KOxhyxa Tnna A Dnla WlnfoBaHnra TopcOM Kpyra 3aunTHbI KOKyX MOKeT CToJKNHyTbcR C 3aROTOBKO, YTO BeDeT K HeoCTaTOHOMy KOHTPOIO.
• npn nCnoJb3OBAHnn 3aunTHoro KOKyxa Tnna B npn a6pa3NBHO pe3Ke yCTaHOBJIeHHbIM OTpe3HbIM KpyROM BO3HnKaeT ONaCHOCTb BbIbPOca NCKp INOTUINΦOBaHHbIX YactNu, a TaKHe OCKoJKB WJINΦOBaJIbHO RKOpyra B Clyuae erO pa3JaMbIBAHn.
• npn HcnoB3OBAHn 3aunTHoro Koxyxa Tnna A, B, C npn a6pa3NBHO pe3Ke n uinfoBaHn TopoM Kpyra 6eToHa nn KnpnHOn KlaKn BO3HNKaET NOBbIeHHa ONaCHOCTb BCJeDCTBne Bblpoca nbIn, a TaKHe BCJeDCTBne NOTepn KOHTPOJHaINHCTpyMeHTOM,pe3yJIbTaTOM yeRo YBJIeTcER oTO Daay.
• npn HcnoB3OBAHn 3aunTHoro KOHyxa Tnna A, B, C tapeIbYaToI ueTko, ToIuHa KOTopoN 6oJIbwe DoNyCTUMoN, nPOBOLOKa MoKeT KaCaTbCra 3aunTHoro KOHyxa, N 3TO npNBODNT K 06pbIBAHNO npOBOLOKn.

Bcerda nCnoIb3yIte noXoJn Ira pa6Oero HNCTpyMeHTa 3aunTHbI KOxIyxC.M. rIaby 11.

CHINHEHNE nblJeBOH Harpy3HN

A NPEyPExEHEHNE. IbIb,

O6pa3OBaBsaJcB pe3yIbTaTe ⅢnΦOBKn HaKaDaUHOb 6yMaRo, paCnINiBaHn, ⅢnΦOBKn, CBepHeNn I DpyrNX BnDOb pa6oT, MoKET CODepKaTb XmMueChne BeuEcTBA, O KOTOpbIX N3BeCTHO, YTO OHN Bbl3bIBaHt PaK, BPOKeHHbIe DeΦeKTbI INn DpyrNe NOBpeKDeHnR pePnoDyKTHBHO CnCTembl. PpImepbl TaHX XmMuecknx BeuEcTB:

CBNHueB KpaChe C COdepKaHnem CBNHua;
-MHepaIbHaN PbIb OTCpOnTeIbHOrO KInPnUa, cEmeHTa N DpyrNX BeuEcTB KInPnUHoKlaAKn;
- MblbHK IN XpOM IN3 XHMnueckN O6pa6oTaHHoN DpeBecnHbl.

CTeneh pncka 3aBnCnT OT TO, KaK qacto Bbl BbINOJIHReTe 3OT BnD pa60t. YTO6bl yMeHbIHTb BO3dEChTBnE XIMNueCKnx BeIeCTB, pa6OtaIe TB NOMEuEHnX C DOCTaTOUHO BEHTIaIcneN i C NcNoJIb3OBaHnEM pa3peWeHHbIX CpeIcTb INHDbNyAlbHO 3aUNrbl, HApPmep, C pecnnpaTopamn, pa3pa6OtaHHbIMn CneuaIbHO DnA FNJIbTpaunM MKNPOcKOnNueCKnx YaactNu.

3TO TaKHe KacaetcNbIIN OT dpyrnx MaTePnaIOB, HAnpIMep, HeKOTOpbIX BnIOB dpeBeCnHbI (dpeBeCha Nblb Dy6a nn 6yHa), MetaIIa, ac6ecTa. PyrHe n3BeCThBiE 3abOJIeBaHnra — 3TO, HAnpIMep, aIleprHueckne peakun, 3abOJIeBaHnra DblxAtelNbHbIX nyTei. He DonyckaTe nonadHnra Nbln BHyTpboPaHn3Ma.

Heo6xOIMO CO6IIOaTb Tpe6OBaHnN DnpeKTHB, DeiCTByUOuNX BOTHOWeHn MaTePnaJIOB, nepcoHaJa, BapnaHTOB npImeHnN MeCT npoBeDeHn pa60T, a TaKHe HaOnHaJIbHbIe npednCaHn (HaNPmep, pIoJKeHnO6 OxpAte Tpyda, npaBnla yTnIn3aun).

Obecneyte ydaJIeHne o6pa3yUOxNc8 YaCTnC, He donyckaIte o6pa3OBAHnO TIOJKeHnB OKpykaIoUeM npocTpaHCTBe.

Дяспаьнбix pa6OT nCNoIb3yIte NOxOJaIyIO OChAcThy. 3TO nO3BOJNT COKpaTHTb KOJIYeCTBO YacTHU, HeKOHTpOJIpyeMo Bbl6pacbIbAeMbIX B OKpyKaIOU cyIy.

IcnoIb3yIte nOxOJaUe yCTpoiCTBO ydaJIeHnIbIIN.

ДяУMeHbSeHЯпblJeBOH Harpy3Kn DeJaNTe CLeDyUoUee:

-He HanpaBnIte BbI6paCbIbAeMbIe n3 3JIeKTPoHnCTpyMeHTa YAcTnCbI NOTpa6OtaHHbI BO3DyX Ha Ce6R, HaxOJaUnxCpRdOM JIODei NNHa CKONJIeHN IblI.
- IcnoIb3yIte BbITaHHOe yCTpoIcTBO n/nn BO3dyXOOuHCTnTeJIb.
- xopowo npoBETpnaIte pa6ooye MeCTO n COepeHNTe eRO B YNCTOTE C NOMOu bIO PbIIEcOCA. POnMeTaHne HIN pOyBbKa TObKo NODHMaOT PbIbB BO3dYx.
- 06paTaBbAaTe 3aunTHyU OeJy NblneCOCOM HIn CTnpaIte. He npOdyBaIte OeJy BO3dYxOM, He BbIbNbaIte HcMeTaIte C Hee PiJIb.

5.0630p

Cm. c. 2.

1 3aKHMHraIka Quick *
2IopdepKnBaHouuNnΦlaHeu
3Unnndelb
4 WEA....POndepKnBaHouuNΦlaHeu abTo6aHaHCnpa (HeCbeMhB)
5KhoNka ctonopa uHHndela
6 ΘлектpoHHbI CNHаньИинДИКaTOp*
7PyKoTHa
8Блoknapot (ДЯЗаиТыОТСучанHOrO Bкючehн/aKTHIN3aциН HeпрьIBHOro peЖIMpa60TbI)
9 HaKIMHOI nepeKIOUaTeIb (DJIY BKIIOUeHn/ BBIKIOUeHn)
10 KhoNka (DJIpeRyIInpOBKn OCHOBHO pyKoTkn)
11 OchOBHpa pyKoRTka
12 DOnOHnHTeJIbHa pyKoTka/DoOnIHnTeJIbHa pyKoTka c rAweHem Bn6paun
13 3aunTHbI KOJyX
14 CTaXHbIe raIKn*
15 DByxwTnΦTOBbI KJIouc
16 3aueIka (IJIpeRyIINPOBKN 3aUHTHOKOKHyxa 6e3 INHCTpyMeNTa)
17 BnHT (IJIpeRyIpOBKn 3aJHMMHO yCNIJIa 3aUeJIKN)

*B 3aBNCIMOCHTO NT KOMJIeKtauu / He BXoNT B KOMJIeKT NOCTaBKN

6. BBOD B 3KcPnyatauio

IpeD BBODOMB 3KcNlyaTaunIO npOBepbTe, COBnaDAHOT Jn yKa3aHHbIE Ha 3aBOdCKOJ

Tabluyke 3NaueHn HAnpJKeHn N YaCTOTbI CETN CnapaMeTpamn 3JIeKTPocetN.

PYCCKHru

IpepeHnHCTpyMeHToM BcerdaNoKJIIOuayTe aBTOMaT 3aUHTbI OT ToKa yTeuKN (Y3O) c MaKC. TOKOM OTKJIIOUeHn 30 MA.

IcnoJIb3yInTe ydHnHtBbHbI Ka6eIb C MNHmAlhBbIM CeueHem 1,5 MM². YdHnHtEJIbHbIe Ka6eJIN DoJIHXbI COOTBeTCTBOBaTb NOTpe6JIeMoM MOUHOCTN IHCTpyMeHTa (cp.TexHueckne xaKaTEpncTNI).Ppi NcNoJIb3OBAHN Ka6eJIbHOro 6apab6aHa Ka6eJIb CneDyeET PONHOCTbIO pa3MOTaTb.

6.1 YctaHObKa dOnoJIHHTeJIbHOpyKOrTKn

Pa6oTaHTe TOnbKO C yCTaHOBJIeHHoJ DOnOJIHnTeJIbHOpyKOrTko(12)! BBInHTnte DOnOJIHnTeJIbHyIO pyKOrTKy Do yNopa B JIeBOe, CpeDHee HnI npaBOe (B 3aBnCmOcTn OT NOTpe6HoCTn) pe3b6OBoE OTBepCTne n 3aTAHnTe OTpyKn.

6.2 YctaHOBka 3aunTHoro KOHyxa

IpeH hauanpa6oT: ycTaHOBnTe 3aunTHbI KOxYX.

H3 coo6paKeHn 6e30NaCHOCTN HCNoJIb3yIte TOnbKO TaKoN 3aUHTbI KOKyx, KOTOpB IpeDyCMOTpeH dIa COOTBeTCTByUOepo paOoeryo HnCTpyMeHa! EcIn He NcNoJIb3OBaTb COOTBeTCTByUOuN 3aUHTbI KOKyx, 3TO MOKeT npNBecTN K NOTepe KOHTpOJa HaI INHCTpyMeHToM n cepBe3HbIM TpaBMam. Cm. TaKHe rIaby 11. "PpHaJdJeKHOCTn"! Cm.pncyHok F ha c.2.

• OTKpoIe 3aueJky (16). YcTaHOBInTe 3aUHTbIy KOKyx (13) B NOKa3aHHOM NOLOXHeHn.
  -ПовернITEЗашитный кокух тakIMобра3OM,УTOбI erO 3aKpbITaR 3OHa 6bla obpaueHa K BAM.
• 3aKpoITe 3aUeJIky.
  -При Heo6xOДMOCtN, yBelenuYe 3aJHmHoE yCnIe 3aUeJIKN, 3aTaNHy BnHT (17) (prn OTKpbIToN 3aUeJIKe).

Hcnojb3yTe ToJbKO Te pa6oue HNCTpyMeHTbl, KOtOpbie BbICTyNaOT N3-NOd 3aunTHoro KOKyxa He 6oJe, Yem Ha 3,4 MM.

6.3 Поворотна OCHOBHЯ pyKoTHa

Pa60TaIe TOJbKO C 3aΦHKCnPOBaHHoN OCHOBHOpyKoTko(11).

CM.pncyHOKCHa c.2.

• HaKmTe KhoNky (10).
• Tenepb OCHOBHyO pyKoRTHy (11) MoXHO NOBepHyTb B o6e CTOpOHbI Ha 90^ n 3aФнКсИрВaTb.
• PpOBepbTe npOuHOCbI NOcAaH: OCHOBHa pyKoAHa (11) DOJIHHa 6bITb 3aΦHKcnpOBaHa N He DOJIHHa npOBopauuBaTbCra.

6.4 IopKIOUeHne K cETn 3/NTaHnA

CetebIe wTeNCEJIbHbIe po3eTKn DOJIHHbI 6bITb 3aunueHb INHePcUNOHbIMN PnabKIMN

PpeOxApaHnTeJMaHm Hnn JInHeHbIMN 3aUHTbIMN aBTOMaTAMN.

MaunHbIcMapKnpOBHO"WE..."HaTINOBO Ta6nue: (co BCTPOeHHbIM aBTOMaTHueCKM OrpaHnHTeJIem NyCKOBOro TOka (fynKcnnei PnABHOrO nycKa)) CeTeBBie wTeNceJIbHbIe p03ETKn DOJHKhbl 6blTb 3aUnCeHbl INepuOHbIMn PnabKHMn PpeDOxpaHNTeJIam INI JInHeHbIM 3aUHTbIMn aBTOMaTaMn.

7. yctaHOBka a6pa3HBHOro Kpyra

Ipeed IIO6oI nepeHaiaKo: N3BLeKeHTeTeByIO BnIKy n3 po3eTK.NHCTpyMeHTdoJHKEN HAXOINTBcB B BbIHIOUeHHOM COCTOHN, a WnHdJIb DOJIKeH 6bITb HeNOdBnXHBIM.
Дя pa6ot C OTpe3HbIMN Kpyramn B ueJx 6e30nacHOCTN nCNoIb3yIte CneuaJIbHbie 3aunTHbIe KOxyN DЯ OTpe3HOrO Kpyra (cM. rIaby 11. PnHaadJeKHOCTn).

7.1Фнcaишннdeя

KhONKy cTOnopa WnHdEJIa (5) MoXHO haXIMaTb TOLbKO npn HEnoDBNKHOM WnHdEJIe!
- HaKmTe KhONky cTOnopa shnHdJIe (5) n KpyTnte wHHdJIb (3) ot pyKn do Tex nop, noka KhoNka cTOnopa shnHdJIe OuyTMo He 3a6loKnpyETc.

7.2 YctaHOBka a6pa3nBHorO kpyra

CM. pncyHok D ha c. 2.

MaunHbI c MapKnpOBkOw W 2..., WE 2...

• YctaHOBnTe NOdepKINBaIOUmI ΦlaHeu (2) Ha UINHDeIb. ΦlaHeu yCTaHOBJIeN IpaBnIbHO, ecIn OH He npOBOpauHBAeTcRa HA WnIHDeJe.
• YcTaHOBnTe a6pa3nHBn Kpyr, KaK nOKa3aHo Ha pncyHke D,Ha noDdepKnBaIOuSniΦlaHeu (2). A6pa3nHBn Kpyr DoJIKeH paBHomepHo npInIeRaTb K noDdepKnBAIOUeMyΦlaHcy.

Maunhbc MapKnpOBKn WEA 2...

NoepKnBaUHmΦaHeu aBTo6aHaCnpa (4) JeCTKO KpeNTcHa WnHdJe. 3TO O3Haayet, TO, B OTInuHne OT dpyrNx yIIObIX WlnfMaunH, He Tpe6yeTc DOOnJIHnTeJbHbI CbeMhbl NoepKnBaUHmΦaHeu.
NoBepxHocTn NOdEepKNaHoJeroФlaHca (4)abTO6aJIaHCipa,abpa3NBHOr Kpyra n 3aHHMOHraIKN Quick (1)INN 3aHHMOHraIKN (14)doJIHKbI 6bITb YNCtBIMn. PpHHeoXoDMOCTH INX HJHHO NOUcHNTb.
- YctaHOBHTe a6pa3nBHykpyHa NOdepKINBAUoHmФlaHeu (4) aBTO6aIahCnpa. A6pa3NBbIKpyrdoJHKeH paBHOMepHo npIneratb KФlaHcy aBTO6aIahCnpa.

7.3 KpenIeHne/OTBnHcNbHaHne 3aKHMHO raIKu Quick (B 3aBNCmOCTn OT HOMJIeHTaUN)

HpenIeHne 3aHHMHOraHn Quick (1):

EcnToIiHa pa6Oero HNCTpyMeHTa B 0bIactn 3aKIma IpeBbIaeaT 8 MM, 1b3OBaHne 3aKIMHOraIKN Quick eueHo! B 3tOM clyuae HcNoJIb3yIte raIKHy C DByXWTnΦTOBbIM KInOUM (15).

IcnoJb3yIte TOLbKO HeNoBpeKdEHHyU 3aHmHyO raHy Quick: cTpeJIka DoJIKHaa bIBaTb Ha BbIeMHy HapyHHO KOJIbua (CM. CTp.2).

• 3aФИКСИРУТЕ ШПИНDEЛь (CM. ГЛаву 7.1).
• HacaIte 3aJHmHyO raHy Quick (1) Ha IINHeJIb (3). Cm. pnc. Ha c. 2.
  -Pyko3aTAHHTe 3aHmHyIO raHy Quick no YacobOcTpeJIke.
• 3aTaNHTe rAky Quick no yacobO CTpeJIKe, cnIbHO NOBepHyB a6pa3NBHbIKpyr.

Y MaunH C 603NaueHem W...B... Ha nocJeHnx 180^ DoJxHO yBCTBOBaTbcra NObIiHeHHoe COnpOTnBJIeHne.

OTBHHUBAHHe 3aHHMHOraKn Quick (1):

• 3aФИСИРУТЕ WIПИДЕЛь (cM. rIaBy 7.1).
• OTBnHTnte 3aKIMHyo raHy Quick (1) npotNB YacOBON CTpeKN.

7.4 KpenJIeHHe/OTBnHcNbAHne 3aKHMHOI raIKN (B 3aBNCMOCTH OT KOMJIeHTaUH)

Hpenenne (14) 3aXHMHO raHn:

DBe CTOpOHbI 3aJHMHOn rAaN OToJIuHaOTcR dpyr OT dpyra. HABnHTnte 3aJHMHyO raKy Ha WnHdJIb B CJeDyUoE M nopAKe:

CM. pncyHok E Ha c. 2.
-A)ДЯToHHx a6pa3nBbIx KpyROB:

TTO TOTO6bMoKHO 6blHO HaedeKHO 3aKaTb TOHKn a6pa3NBHykpyr,6ypTN 3aHHMOH raKn (14)doJKeH 6bITb HappaBHe BBePx.

B)ДЯTOJICTbIXa6pa3HBHbIXHpyROB:

TTO TO6bMOHHO 6bIIO HaJeHHO HABnHTNb 3aKHMHyO rAky Ha IINHeIb, 6yptNK 3aKHMHO rAkn (14)doJKeH 6bITb HnpaBLeH Bn3.

-3aΦnKcnpyIe IINHdJIb.3aTAHnte 3aKIMHyO raNky (14) c NOMOsbIO DByXHToTOBOrO KJIoua (15) no yacoboi cTpeJIke.
Y MaunH C 6o3HaueHem W...B... Ha nocJeHnx 180^ DoJxHO yBCTBOBaTbcra NOBbIeHHoe COnpOTnBJIeHne.

OTBHHUBAHHe 3aJHMHOraKn:

• 3aФИСИРУТЕ WIINHДELь (CM. rIaBy 7.1). OTBИNTHTe 3aЖIMHyIO raIky (14) c nOMOцьIO DByXHTnΦTOBOr KJIIOyA (15) npOTnB YacOBoi CTpeJKN.

8.Зкплуатацья

8.1 BkIIOueHHe/ByIKIOueHHe

HCTpyMeHT Heo6xOaMo Bcerda DepeKaTb oBeMN pyKaMn.
I OIOBODNTe HNCTpyMeHT K 3aROTOBKe TOJIbKO BO BKJIIOUeHHOM COCTOAHIN.
He donyckaTe HnpeHaMepeHHoro 3anycka: Bcerda BBklnouaTe INHCTpyMeHT, ecnBnIka 6bila n3BLeueHa n3 po3eTKn nnecn npon3oWeJ c60B B noDaue 3JeKtpo3Heprnn.
BpeKHe HepepbIBHOJ 3KcNlyaTaunn HNCTpyMeHT npoDoJIkaeT pa60TaTb, DaKe ecn OH BbIPBeTcH n3 pyKn. NToTMy Bcerda KpeKN DEpKHTe INCTpyMeHT DByM pyKaMn 3a pyKoAHTKn, 3aIMnTe yCTOuHBOE NOLOKeHne I NOHOCtBu CkOHueHTpHiTEcB BbINOJIHReMoI pa6Ote.
He donyckaite 3abnxpeHnI INBcacbBaHHN IHCTpyMeHTOM nbIN NCTpyKNI. He KlaIndte 3JeKTPoHNCTpyMeHT DO NOHNOCTaHOBNDIBrATeJI.

CM.pncyHOKAHa c.2.

HpaTHOBpeMeHHoe BKNIOueHne:

BkIIOueHHe: nepeDbINbTe 6IoKnpaTop (8) B HApBaBLeHn CTpeJKN HaKMITE nepeKnOyateJIb (9).

BbIKJIIOUeHHe:OTnycTnte HaKIMHOI nepeKIIIOuHaTeIb (9).

HenpepbBbHbI peXnMa60TbI (B 3aBnCmOCTn OT KOMnJIeKtauu):

BkIIOUeHHe:pepeBnHbTe 6IoKHpAToP (8) B HApPaBHeHn CTpeKn n HaKMnTe nepeKlIOuAteIb (9).3JeKtpOnHCTpyMeHT BkIIOUeH. TeNepb pepeBnHbTe 6IoKHpAToP (8) eue pa3 B HAppaBHeHn CTpeKn, YTObI 3a6IoKpOBaTb HaKHMHOI nepeKlIOuAteIb (9) (peKm HeppepbIBHOI pa6Otbl).

BbIKIOueHHe:HaKMnTe NOTNcyCTNTe nepeKIOuATEIb (9).

HnctpymEnbI c 6o03haueHneM W...B: KpaTkoBpeMeHHoe BkJIIOUeHne (cФyHKuNei abTOCTOna)

CM.pncyHOKBha c.2.

BkIoueHne: nepeBnHbTe BnpeE HaKHMHO npeKIOuataJIb (9), 3aTeM HaKHMHO HAKMITE BBepx nepeKIOUaTeJIb (9).

OTKIOUcHHe:OTNcyCTnTe HaXHMHOI nepeKIOuOaTeJIb (9).

8.2 Pa6oUne yHa3aHnA

UlnfoBaHne:

PnHKMaIte HNCTpyMeHCTc yMEpeHHbIM ycJIHem I nepeMeaTe erO NO NOBepxHOCTN B3aD IN BnepeD, YTO6bIOBepxHOCTb 3aROTOBKN He neperpeBaJacb.

YepHOBoe wIINΦOBaHHe: IJIЯ NOJUyeHnXopoWero pe3yIbTaTapa6oTaIteCycTaHOBOuHbIM yrIOM 30^ - 40^

PYCCKHru

A6pa3HBHOe OTpe3aHHe:

Pn a6pa3NBOM OTpe3aHnB CcERda pa6oTaIe BO BCTpeHOM HappaBHeHH (CM. pucyHok). NHaue HHCTpyMeHT MOKeT HeOHNDaHHO BbICKOHTb n3 npOnnla.Pa6oTaIe c

yMepeHHoIpoaYe, COOTBeTCTByIOUeI O6paBaIBaEMOMy MaTePnAly. He dOnyckaIte nepeKocA, He HaXIMaITe I He paKaYbaiTe IHCTpymEHT.

IInnoBaHne CnOJIb3OBaHHem HauJaUHOJ 6ymaru:

PnHKMaIte HNCTpyMeHCTc yMEpeHHbIM ycHIneM nIepemaeaTe erO NO nobEPxHOCTn B3aN IN BnepeD, YTO6bIOBepxHOCTb 3aROTOBKn He neperpeBaIacb.

06pa6oTHa hapdouTeHamn:

ymepenHNO npnKmaiTe nHCTpymeNT.

9. Ovnctka

Pn pa6Ote BO3MOxHcKoJIeHHe yactnuc
obpaTaBIAEMORo MaTePnaJa BHyTpN
3NeKTponHCTpyMeHTa.3To yXyDwaet
OXlaKeHHe 3NeKTponHCTpyMeHTa.

TokopobOJaune cKoJIeHnMOryT HApuyuNTb 3aUHTHyU N30JIaCNIU 3JeKTpONHCTpyMeHTa, YTO COnpJKeHO C ONaCHOCIO npaKeHn 3JeKtpNueCKHM TOKOM.

Yepe3 He60JIbUHe paBHbIe npOMeKHTKn BpEmEH TtateJIbHO ydaJIaTb 3aIrp3HeHnI N3 nepeDnIX N 3aDHNX BEHTNIAUONHHbIX UeJIe
3JIeKTPOINHCTpyMeHTa IIN pOdyBaTb INC cyXIM BO3dYxOM. PepeD 3TNM OTcoEduHITe
3JIeKTPOINHCTpyMeHTOT HCTOCHNkA NITaHnA, a npn pa60Te NCNoJIb3yIte 3aUHThIe OUKN I COOTBeTCTByIOuI peCnnpaTOP. Ppi npOdyBKe DOJXHa 6bITb ObecneueHa DoCTaTOUHa BBITJHKHa BEHTNIAU.

KhoHa (10) dnypeylnpoBnu pykOHTn: Pn HEO6xOIMOCTN ydaIaIyTe 3aIpy3HeHn I3 KHOHN IIIN pOdyBaIte ee cyXm BO3dyXOM (B HaKaTOM COCTOAHN, BO BCEX 3 NIOJKeHn OCHOBHOn pyKoTKn). IpePe 3TmM OTcoEHNHTe 3JIeKTPoHHCTpymeHt OT NCTOCHNka NITaHn I HOCHTe pN tON 3aUHTbIe OUYn I peCnnpaTOP.

10. YcTpaHHe HEnCnPaBHOcteI

MaunHbI C MapKnpOBkOJ "WE..." Ha TnIOBOJ Ta6nUKe:

-3aunTa OT neperpy3Hn: 3JeKtpoHHbI CNrHaNbHi INHdNkATOp (6) 3aropaeTcN Yactota BpaueHn NO Harpy3HOJ 3AMETHO ChnHaetc. NObblneHHa TEmpeatypa Dbratela! DaIte nopabotb 3JeKtpoHNCTpyMeHTy Ha XOIOCTOM XOy, nOKa OH He OCTbIHET IN He NorachET 3JeKtpoHHbI CNrHaNbHi INHdNkATOp.
-3aunTaOTneperpy3Hn:3JeHTPOHHbIN CNrHaNbHbI INHnKaTOp (6) 3aropaetcN Uactota BpaueHnnoh Harpy3HoCJELHA NOHNxAeTc.3JeHTPOINHCTpymeHT neperpyhen.PpoDOnHkaTe paOtaTb C

NOHNKeHHoH HArpy3KoN, NOKa 3JeKToPOHHbI CNHaJIbHbI INDnKaTOP He NoraCHET.

-3JeHTPOHHOe abapnHoe OTKIOUOHe: 3JeHTPOHbI CNrHaJIbHbI INHdNkAtOp (6) 3aRopaETc, H MaunHa cAmOCToTeJbHO OTHJIOUaETc. Pn CInuHOM 6bICTpOM HapacTaHn TOKa (3TO pOnxCoDHT HaPmEp npBHe3aHNo 6IokHnpOBKe nIIN OTdaYe) 3JeHTPOHnCTpyMeHT OTKIOUaETc. BbIKIOUHTe 3JeHTPOHnCTpyMeHT HaKIMHBIM NpeKIOUaTelem (9). Pocne 3Toro erO cIeDyET CHOBA BKIOUHTb I npOdoJIKNITb pa6OTy B HopMaJIbHOM peKHMe. N36eraIte 6IokHnpOBKn B daJIbHeIWe.M. rIaby4.2.
- 3auneta OT NOBTOPOHOro nycKa: 3JeKToPHbIcHraJIbHbI INHdINHaTOp (6) MInrAETn3JeKToPHOHCTpymeHT He pa6Otaet.

Cpa6oTala 3aunTa OT NOBtOPHOro 3anycHa.
EcIn npn BkIIOUeHHOM INCTpyMeHT CeTeBaJ
BnIka BCTabJIeTcR Bpo3eTKy, INN NocLe C60r
BOcCTaHOBHeHa NODaCa 3JeKTPoNTaHIN,
INCTpyMeHT He 3anycKaeTcR. BbIKIOuHTe IN
CHOBa BkIOUHTe INCTpyMeHT.
-При ВКлючени Зелктонсгтумент Oчев БьICTpo DOCTHrae МAKСИМАЛбНОЧАТОТБ Врашени, T. e. abTomatNuceckIN ORpaHNUHTeNB псковоно TOka (ФуннцIN ПлавHorO руСKa) He срабаТыВаeТ. Имeel MeCTo OShN6Ka B ЗелктонHom 6LoKe; Дугге уКAZAHIN NO ТexнIKE 6e3OJACHOCTN OTHOCHTeNBHO ФунKцIN ЗелктонHOrO 6LOKa He npINBOdЯTcR. HemeДлЕнHо садTe ЗелктонHСтчмENTВ РемоNT (CM. rIaby 12.).

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

-ПроцссыВКЛЮЧЕНьВИЗБИВАОТ КраТКOCPOчHьп NaДeн_HaнРЯЖЕн. Пpr НеблагорпгTHыХ NapamETpax CETn MOryT БыИт n3 CTpoДpyгп epn6Opbl. Пpr NOIHom СоюТВLEнн сTeN MeHee 0,2 Oma ПовpeжденMaIOBepoRTHbl.

11.Принодлжности

IcnoB3yInTe Toblko OpnHaJIbHbIe npHaJNeKHOCTNu Metabo.

IcnoJIb3yIte TOLbKO Te npHaJdLeKHOCTN, KOToPbIE OTBeUaOT Tpe6oBaHnM nnapaMeTpam, NepeHCJIeHHbIM B DaHHOM pyKOBOdCTBe NO 3KcNlyaTaun.

HaedKHO fHKcnpyIte npHnAdJeHocTn. Ppr 3KcNlyaTaUe NJIeKTPoHnCtpyMeHTa B DepKaTeIe: HaedKHO 3akpeNiTe 3JIeKTPoHnCtpyMeHT. IOTepra KOHTpOJa MOKeT IpnBeCTN K TpaBMnPoBaHnIO.

CM.c.4.

Bcerda nCnoJb3yIte noDxOJaun dJa pa6oTbI pa6OuH IHCTpyMeHT nPpeDncaHHbI 3aUHTbIK KOHX.CM.cTp.5. (PncyHKn npuBeDeHbIBKaueCTBe npimepa).

Pa6o7a 3a7a:

TnD=3aHTbI KoxyX IJIaIIIOBaJIbHOJ

TnF=BbITJHKHOJ3aUNTHbI KOKyXdJIa6pa3NBHOpe3KN

Bo3MOHHbIe npHnAdJeHxHocTH: (Cm. TaKHe caHT www.metabo.com)

A CToIka Ia pe3Km MeTaIIa

BCTaXHbIe raKn (14)

C 3aKHMHa raKa Quick (1)

Полны accopTUMeNT npHnAJIeJHKoCTe CMOTpIte Ha caIte WwW.metabo.com Илв ГЛаВHOM KaTAlore.

12. PemoHT

KpeMOHTy 3JIeKTpOHnHCTpyMeHTa DONYCKaIOTCra TOIbKO KBaINΦnCnPObaHHbIE NaJIInCTbl-3JIeKTprNK!

NoBpeKdEHHbI CeTeBOKa6eJIb CJIeDyeT 3aMeHrTb TOnbKO Ha CNeUHaJIbHbI, OpiRnHaJIbHbI CeTeBOKa6eJIb Metabo,KOTOpbIMoJHO pnpO6pctN B cepBnCHOM ueHTpe Metabo.

Y MaunH C 06o3HaueHnem W...B... npn 3aMeHe KOMnJIeKTa yroJbHbIX UeTOK TaKHe CneDyET 3aMeHrTb TOPMO3HbIe HaKnAaKn.

CnNcKn 3aNaChbIX YacTei MoXHo cKaaTb C caYTa www.metabo.com.

13. 3auntata OKpyhaioe cpebl

O6pa3ykuocraIshnfoBaIbHaIbMOKeT coepKaTaB BpeHbIe BeueCTBa, NO3tOMy ee CneDeyET yTNIN3NpOBaT HaJIeKaUIM 6pa3OM.

Co6IIOdaIte HaunOHaJIbHbIe npaBnla yTIN3aUN IN nepepa60TKN OTCnyKINBwero IHCTpyMeHTA, yNaKOBOK IN pInHaJdEJKHOCTeN.

ToIbKO dIaN cTpaH EC: He yTHIN3npyIte 3JIeKTPoHNcTpymEnTbI BMeCTe C 6blTOBbIMN OTXODAM! CorlaChO dIpeKTNBE EC 2012/ 19/EU no OTXoAM 3JIeKTPuYeCKoro n 3JIeKTPoHNHO6OpyDoBaHH N COOTBeTcTBkyUOM HaUHOHaIbHbIM HopMam 6blWne B yNOTpe6JIeHHN 3JIeKTPoPn6Opbl N 3JIeKTPoHNcTpymEnTbI NOJIeJkaT pa3dJIbHOYTHIN3aCNI C ceJIbIOHX NocJeDyIoSe I KOLOrnueCNI 6e3OnaCHO nepepa6OTKn.

14. TexHnueckne xapaKTepeNCTnKN

IorcheHnKaaHHbIM,yKa3aHHbIM Ha c.3. OctabJIeM 3a co6oN npaboHaTexHnueckne n3MeHeHn.

Dmax =MaKc.ДиamEtpo pa6Oyero HnHCTpyMeHTa tMaKc.1 =MaKc.DOnyCTmMaJTOJIuHa pa6Oyero HnHCTpyMeHTaB DnHaNa3OHe 3aKIma npN HCNoJIb3OBaHHN 3aKIMHOJraIKN (14)

t_max,2 = MaKc. ДуСТМАЯТOLИнha pa6Oчero HCTpyMeHTa B O6JIaCTn 3aЖИма пи HcNoIb3OBAHIn 6bICTpo3aЖИMHOn raJKN Quick (1)

t_max,3 = Kpyr Дя черноюшлфовань/ OTpe3Hoi Kpyr: MaKC.ДОпустимаяТолцина paбочero INHCTpyMeHTa

P2 =BbIXOHaRA MOUHOCTb

m =Macca 6e3 cTeBOrO Ka6eJra

Pe3yIbTaTbI n3MepeHn noJyHeBb COOTBeTcBnco cTaHapToM EN 60745.

HnctpymEnKlacca3aunTbI I \~ nepemehhbi TOK

Ha yka3aHHbIe TexHnueckne xapaKTepeNTKN pacnpoctpaHIOITc DOnyCKN, npdeYCMOTpeHHbIE DeiCTByIOUIMN CTaHdApTaMn.

3HaueHn 3Mnccn Wyma
3Tu 3HaueHn IO3BOJIO T OeHNBaTb N
CpaBnBaTb 3MnCCnIO Wyma pa3NHybIX
3LeKTPoHHCTpyMeHTOB. B 3aBnCmOcTn OT
YcNoBn 3KcNlyaTaUIN, COCTOHN
3LeKTPoHHCTpyMeHTa INI pa6OuHX HCTpyMeHTOB
fAKTnueCKa HaPy3Ka MOKeT 6bITb BblE INI
HnKe. IJIa OceHN II pImeHPO rOyOBHr 3MnCCn
yHTbBAIne nepepbIBbI B pa6Ote IN fAsbI pa6OtBc
NOHNHeHNO (WymoBOH) Harpy3KoI. OnpeDeJInte
IpeyeHb OpraHn3aUHOHHbIX Mep NO 3aUNTe
10JIb3OBaTeJI C yYeToM Tex INI INhBX 3HaueHn
3MnCCn Wyma.

Ipn WJHFOBAHN TOHNKX JNCTOB HIN Dpyrnx IeRHO BnObnpuyuux 3aROTOBOK C 60JIbwoi NOBepxHOCTbIO MOKeT BO3HNKaTb 60JIbwoe WymBOoe DaJIeHne (do 15 b), npeBbIwaIOoee 3aDaHHbIe 3NaueHn. TaKHX 3aROTOBOK Heo6XODIMO ppeDpNIHmAtb COOTBeTCTByUOuHe MEPbl dN 3aUnTb OT paCnpocTaHEnra Wyma,

PYCCHNru

Ha npimep, yklaabibTaB Hx Ha TaKeIbIe, npyHHbIe WymONOrLoaHouIne MaTbl.

Bo3MOxHocTb yBelenHOro WymOBoro DaBHeHn Heo6xoDIMO npHHMaTb BO BHNMaHne TaKHe npu OueHKe OnaCHOCTN WymOBo Harpy3Kn N BblOpe COOTBeTcTBYIOxN CpeIcTB 3aunTb CIcyxa.

O6uee 3NaueHne Bn6paunu (BeKTopHaCyMa Tpex HappaBHeH), paccHTaHHoe COrJaCHO EN 60745:

ah,SG =3MnCCNOHHOe 3HaueHne Bn6paun (UINΦOBaHne NOBepxHOCTn)

ah,DS =3MnCCNOHHOe 3HaueHHe Bn6paun (WJINΦOBaHne CO WJINΦOBAJIbHBIM TapeIkanm)

Kh,SG/DS =Ko3ΦΦHcHEnT nOprpeHocTH (Bn6paun)

YpOBeHbIyMa IIO TnIyA:

LpA =ypoBHeb 3ByKOBOr DaBHeHn

LWA =ypoBcHb3ByKOBOMOUHOCTN

KpA, KWA = KO3ΦΦHηηENT norgpeWHOCTn

HaedeBaIe 3aunTHbIe HayuHnKn!

EAC

HΦopmaunДIy nokynatela:

CepTHΦHKa COOTBETCTBnA:

CepTHΦHkAT COOTBETCTBnR: No TC RU C-

DE.BJ08.B.00909, cpoK DeiCtBnRc 26.10.2017

no 25.10.2022 r., BbIaH opraHOM no

ceptnФнkaци npodykuzn «NBAHOBO-

CEPTHΦHKAT>OOO «ИBaHOBcNΦOHd

CepTnΦnKaun»;Adepoc(lop.nΦaKT.):153032,

Pocchcka Phedepaun, IbaHOBCKaObl.,r.

IbahoBO, yI. CtaHkoCTpOteIeN, d. 1; TeI.

[phone]; Φακς [phone]; E-mail:

[e-mail]; ATTectaakpeudatauu No

RA.RU.11BJ08OT24.03.16r.,BbIaH

ΦeepaIbHoi cIyK6oI no aKpeiTaun

CTpana n3rOToBLeHn: TepMaHn

Поживдпель: "Metabowerke GmbH",

Metaboallee 1, D-72622 Nuertingen, RepMaHnA

HmnpTeB Pocn:

OOO"MeTa6oEBypa3n"

Poccn,127273,MockBa

yI. BepezOBa aIJIe, I 5 a, cTp 7, oΦnc 106

TeI.:[phone]

Upt uwhuGnui; h npdu8; hrhuqniiph hn, oquuqnbpf Lwwnhghwnhp:

Aunnpnppn qnpafil qnpdhfllph uupuquqilph
upwnpnngh gngnufkph: Nucunqutul quununlglpp
gupugh li nncig:

Umpf hkn oqunnpn nn qnp nffip npwhumnf h oqnuqnol [vuiuifnl], uwnuynnngh gignuufphh huwuuwwu wu:

bppf zoqumnqdpk npnn hnmuulmnuuulh6pp
lquunnmclmuuug hnn htpnuuuhufug mcjmmuuffghp hnup:
qhpplh npnn hnluwudwnuulgtpp kpuplk hnnujj6
66cuu6:

2u.3bftthy

Luvuunpuununudfp uanf l uipugulud h duyn uubhlng uucinuqulud hih, ophuul ubnulglph oqunlpup: Utd nunLgph m Gwuwuunwnuunudfgpp unbf I huiuunuunuunl uufhupuunu

p1uulunuHg, unquulhglpp uupugnlaLg L. qnn8ifH, uqu h/hcuihghd ujnp 2uunf h huih hnuuwwh wgtfh dmyph6: zunqub, np h1 hpluapnepnup hauuuuunuwuubunl l uuaunuuh uupnpuh syuwhf: hpundnauuunuwuupnpul uantf h uauuunuwuuhh h uupnpulhu: hlpmpipu6 h uupmpuulw6h umgm6bphswu6 uhttbpimgh huupup utu k3, qmu 14. Sluuulumg pfmpqhp

hnphmipn uipnuiuunpnl hwwuunnuuunwug ununnud
h2whtnmgun/oguf: U'pcn u[mgptf wquhnul
uqunun (RCD) uunlumqj30 u|luwup
hwnuw: Gpkuupf qpuqnpwupt1 k uinnwn
uqunun uqununu uupf uqwnuwrk, uuuw uq uutuf
k qufh l uufpnh: Sku 9. uufpnul:

qI hmuIh oquunuqupol fumulmd, nI I npun npnpnn qnpshf6k/HRnquulquununuHgP:

qmu mc mnuuhtf, npuauh qnuuunp, gnuunmp uumnulhtp, tLthnpuulh umhp h npun apmukp (mmunl):

Uuufu qnpf h qu npqunnpnufp w6lu, ulmwnl/
Junqunh hnolh uun uunumplnuf mclnnwif6p
Immuptlu hnlf tthupunngnuf umph npugul
quppwhg:

fimuln qun fumw Lpugmghpnfumlpbiplmk qumphgim: QoqnnqnpshkL qnpshphtpnp npnfuiuud t:

fumud qun fumud uununuufu h uununuufu bfpumuk uununuufu: Qoquumqupdt L. qupdt pukunuufu uununuufu fhuunud t:

Uupfppgugil,lpuupfh npnc dwalp qud uqucunquhhy hmpimpufffp qulummm 6 qum uupf6 6:

u| u| 南 qn#u#l#u#i #n#lglghujnunp（anl.lh u##u#u#u#u#1.9 unlu#t"WE...).bpl ahuugna#hgblnn uupnp w#ihyu#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#u#uu# u##m##m##t##h##n##h##m##j##h##n##h##n/ u##: b#.dpunpghujh m##mua###pjuhi h## h##qud uJ n| u| g| u| p pu#guljuunl.Lg/sIg qnpns:Ufhuquun huifdfl uupfp ##puufinpnqdu (Slu 9nu 12.):

Udpugghl uufip nkanuIgpp: Op. UhtanuIhnnj dculnnp nkanuIgpp uunuulh y:

LgwnppwHbqpwH uipuWuWp uwhunuWfBp
oqnueepdnu bghh hguwnuWfBp hnup (huwUg)
huiu u npn uudunuHlp), uuuu npnn L.
oqnueepdll uwhfblnluu uuwH uucunuGh
lwhuphsfapp ukuuA, ukuuC:
Stpuad11.

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT.

• Uhuugui qnpnnpnllippp unusuginlu gupuulg uupwudwulun gwlqtgnu: 0 wlpph Lthpwnwwuupwupuug uwwuogptmu wwhqldg G uul uuplpp: 3uigh 0,2 Ohgh guo nhuqnnpjuu uuaufuulpnuuuhucu p yuupauuqupiu:

11. qupuquifkp

Oqmuqppl.f hui j ophqhuiu Metabo qupuquilp:

Oqunqnptf hwhj wju nntgm jgnl fucw qwhghbphlu 1
snuhcbcph hmnuummuumnnn mpuqmhep:

Wpuquilpp 6hwn lu wufuq liuuiuln uipugil
uupfhi: gpt uqihpnuulhhtn cuhuqnudnuupfp,
muu qihmupwugbf amfp: gpt umpfl mquumunupgbl t
qumfinu, uunumfinu k fumunufiunumun

Stu k 4:

Oqnnqnpdtf pungnnmuu uuiu mcmmnffitp huunp gwnntuud hnhuulununu/qpnhf h

hwunwnuunw uwnuunu 5: (uupp ppuu 6 uupu hunnp):

Ppuluuguiun uwnuunffgip.

1=2nHmUuHbUHmJpn
2 = tnpwhq
3 = Ufigfphlmppmmn
4=Uhmmunmuulqufjnnqufinghkpmlnhkl
5=2h[hu]h[hu]p[pu]

Uupfhblin hhpunnn qnpdaffilp.

1.1 =uunumunucununulumunumh6kp
1.2 = 2q|wq|b|h（htpuu|duu6）
2.1 = yunnnnulununununll «Ulunun»
2.2 = ynpnnuljununl «Pwpluwn/Flnnnf
2.3 = U,1uununununununununununununununununununununununununununununun
2.4 = ympnn uqnmunmwh kphwh h pfumghumn] (hunmghmuu hlnnnl hnnpnn uqununu)
3.1 = U,ulunl.hnpunh> q|h|ulp
4.1 = u np unquiful filp
4.2 = qwipwadlunqwulh
5.1 = 4nnnnf npnnl qnnl gnn ulnnl nnnnl
5.2 = 21fuwuufukhhuulwhunuufukh uup

Iumunutud uucmuaufih yunuunu.

S[uiA= nwnuqih2 qunwip/s/wnunjg lupnn uununulphilbunup

SHuB=nnuunuHlyIuuuuphhyhnqiuu uchuanuufil.ph huidun

Shu C=nwunuwgh2 hwhuph2 hnqwul qnpwug wumwnuifghp hwnup (hnwlgnu)

S[1w]D=nnmwnuwhlqunwphqwnpwpa hlnqwlh

S|u|F=Oqunfuc huupufuwif uullplntjpn] unpuwU wluwnuifgph huiwip

U. uuppuqunfil.p. (uk'u www.metabo.com [mu]fnu)

A Ubuunuwhufhfnn
B UeHg uWgh (14)
CUpuquwutnhyunfli(1)

Lpugnigh qupwqutph wupnnuulg dpuqph
dwfinpwunm hwnw ughlf www.metabo.com qn
oqunlbf qumpmqutph hnuuulm qmmnng:

12. lipunnpnmu

l111puluq qnpohfllph dlpuinpnnup npnnl lhpulwGuqI LshJhwnuunnuuWg pUwquunnnu TuHngw uuwuqbn hng:

Juuuud Ll.lnpuluiuupuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipuipu

Unllh wufuufuW...B... uupnulun uupflph nkaufnuwulpht hnuupnhduuufuul uihpuudcn l gwh hnpuqgl mqhlwl/hcuhuul uunppu:

Metabo l.l.lnpulu qnpdhfip h pnuunpnuu ughpuudwnnpuui nluufn uhtf glp Metabo Gplwugngs:Zmgkpp qquiff www.metabo.com Lmyf 1pim

Phiwupfhinn duuulph guifip qupnnlf glplnffl
www.metabo.com qufihg:

13. Tgulwihgwlwph uucunuufimpnuf

ZnHuiu mchnnmffhphug unnuugud hnc hupun L
fhuwuhp gmpb npumgwhl, qhpnp t Gpuig fchu
kpugm/ntnqulhufup:

mmnptf oqnnnpodt. qpohffitph, hmpkpu npnuuufgh p 1uppuquafih qipugufi t kipucucufu fipupplj u npnn nunhnghpunhugqgpp:

Uhj6Btplgph hnmmp. khlmpnmuq
qnpdhglpp lptf spuuhl qguguujmupht hn
chhuhi: bpaunquul' L1klnpuul' u L1klnpnuu

h6 umpfunnupuupbplpumpl 2012/19/hpuunuqih mqujhu hnnununnuuunuog opgfh hnunomj, tllpnulm qnpohfukqkuf t muaqgh hunufh kspumphl H qnqhuuul uuduuiq q pueuculu:

14. Sljulihlqulquf pflpuqhp

Upnnnnpnf tphp'qtpnffm

Uppnn"Metabowerke GmbH", Utnnpn1b1, 1, D72622 uJmuuhqbf, HmuuHm

Lepunldn nn nnuuunwn

"Ueunupn bIpuuuh" UQ

127273, Unulju
. Flpqnuiwu luw, nnu 5 a, chf.-7, qpuuljul 106
hbn. ^+ 74959807841

Upuunpufuuf uunuphulpduolhuqpuud qnodf h quhuuluh
pu fucu 10-ghc ulphuluf huaduphdt.1-hg hcp
fcuwulnlf uuptphl, ophuwf 4 Gcuwulnlf, np
qnpswpunwnpbl2014 pumluqih:2-pn 3-pnytpp
fcuwulnla lui ununpufuuf muupuufu uunupp h hauuupp, op 05 uuuju:

qnpdh dwnwnpjuf duhltup 7 uwhk: hnphmipn qhpunuunuug fucuulu unnuuqui oquuqpok qnpdh npunuupuuf uunuupuyh uluud'5 uuph cupanuul uuuhununuupnbln gl hnn (upunuupuuf uuuuppu pntu uunlwhl pum):

Паадалану hyckaylbifbIH TynHcyckaB

4.2 Kepi COKKbI XaHe OFaH KaTbICTbI Kayinci3diK TexHNKacbl 6oBbIHwa HycKaynap

Kepi cokbI axkapnaftu DeHreIek, tipeyiI
axkapnaftu Ta6aKaU, CbIM KbluaK xeHe T.6.
CnKtbl aHaJIbIN TyPfAH aImaJIbI-CanMaJIbI
KypaldbH 6yfaTTaYbIH HEmeCe KapMaJIbI
KaIybiHah naJa 6oNaTbIH KeHET peakun 6oJIbI
Ta6bIaNbI. KapMay HEmece 6yfaTTay aHaJMaJIbI
aImaJIbI-caJMaJIbI KypaldbH KeHET TokTan
KaIybiHa anapbIn coraDbI. HEtNkeciHde
6akblaycb3 KaJIFaH 3JeKTPnIK Kypal aImaJIbI
CaImaJIbI KypaldbIH aHaNy 6afblbHa Kapcbl
6yfaTTanFah XepDe ydeNiI.

MbicaIbI, axapnaftwi DeHreIek daBihdamaJa
kapmaIbI KAIFaH Hemece 6yfaTTanFaH XaFdaIHa,
daBihdamaFbIbIFAH axapnaftbi
DeHreIeKTIH JNeri WataCbI IN KaNybl XaHe
HTnIXecIHde 6y3bIYbI Hemece Kepi COKbl
Tydbpybl MymKiH. Axapnaftwi DeHreIek CoHaH
COH 6yfaTTanFaH Kepderi DeHreIekTIn AINaLy
6aftbHa 6aIIaHbICTbl NaJaIaNHyMbifa KaPaH He
NaIDaIaNHybIdAn apbl KO3faIbn KeTei. ByI
peTte axapnaftbiW DeHreIekTep 6y3bIYbI Da
MymKiH.

Kepi cokkbl 3JneKtpnik Kypanbl KaTe
PnaDanaHydbIH XHe/Hemece JapamCbI 3KymbIC
WapTtapbHbIH HAtnxcei BoBn TaBnAbl. Ohbl
TemeHde CnNaTTaNfHaDaI apHaBl CaKtBk
WapanapbH Ka6blDan 6oBdIpMayfa 6oJaBl.

a) 3NeKtpnik KypaNbI eki KOJImeH MblkTan YcTaHbI3 XHe DeHeH3 6eH KOJIbHbI3DbI Kepi COKKbI KYWIte T03IMdi etETIH OPHbIKtBi KaIbInKa KOJIbHbI3. Kepi COKKbI KYWIH Hemece KbIqDAMdTy Ke3IHpe peAKUra Me3EtIH SaBILay MyMKHirIH MyMKHirIHwe XOFapBI DeHreJe caTay ywiH, 6ap 6oJca, apDaibIM KocbIMwA TyTKbIWTBI NaDAHaHBHbI3. PaJaHaHywI apHaBI CaTbIK WapAnapBbIH KEMerImeH Kepi COKKbI MeH peAKUra KYWiH 6aKbIaybl MyMKH.
e) Ewkaaah KOnbHb3dbI aHaHbIn TyprAh anMaJIb-CAImaJIb KypaIbIH KaHbHa anapMaHbI. KMybIC KypaJIb Kepi COKKbl HtINXeciHde KOJIbHb3Fa XbIJXbIN KETyI MymKiH.
6) Dehehi3di 3neKtpnik Kypan Kepi cokkbidaH KO3faIbIn KaIybi MymKiH aMakTaH anWak YCTaHbI3. Kepi cokkbl 3neKtpnik KypaJIbbl 6yfattanfah Xepderi axkapnaFbIw DeHreJekTIH KO3faIbIC 6afblbHa KapcbI kypri3eDi.
B)БypbIHTap,etKip xneKTepeT.6.
aMaftbIHda aHpbIKwa caKTbIKneH Xymblc
ICTeH3.AmAlbl-canMaIbI KypanDaPdbIH
dAnbIHdAmara Kapay yWbIn KeTyiHe XHe iNih
kanybHa kon 6epMeH3.AhJaMaJIbI anMaJIbI-
caMnbl kpaJ bypbITapda,etKip xneKTepe
Hemece cekipin KaIraH xaFaDaIa IInHyre 6eIM.
ByI 6aKnay MymKiHdiReH aHbpInyFa Hemece
kepi cokkbifa anapblcofaDbI.

KA3AKJWAKk

e) Araaw kecyre aphaJraH wbiHxbipnbI apa Tocemih, cerMeHTTep apaIbIbI 10 MM-deh acatbIH cerMeHTTeIReH anMaCTbI KeckiW deHreNeKTI XHe Ticti apa Tocemih NaJaAHa6BaHbI3. MyHdai anMaJIbI-caImaJIbI KypaIapXnI Kepi cokkbifa XHe 6aKbIay MymKiHdiirHeH aibpblyfa anapbIn cofaIbI.

4.3 Axapay XeHe a6pa3nBTi Kecy Ke3iHderi Kayinc3dIK TexHNKacbl 6oBbIHwa apHaNbI Hyckaynap:

a) Tek 3neKtpnik Kypan ywiH MaKyIaHaFah
abpa3NBti KypaIapDbI XHe TnicTi abpa3NBti
KypaIra apHaJIFaH KopFaHbIi KaIINaKTbI
naIdaIaNbIHbI3. 3neKtpnik KypaIra apHaImaFah
abpa3NBti KypaIapDbI XeTkiJIkTI TypDe Xa6y
MymKiH 60MaIdbI XHe Onap KayintI BoNbIn
Ta6blaBl.
e) Niirre h axkapnaftbiw DeHreIeKTePdi OnapdbiH axkapnAHTbIH 6eti KopraHbI W KaJnak KneeriH Xa3bIKTbIFbY cTInHe 6oJMaHTbIHd aetin ophaty Kepek. KopfahBiW KaJnak KneeriH Xa3bIKTbIFbIH aH XOFApbl 1bIFbIN TyPfAH, KaTe OPhaTbJFaH axkapnaftbiw DeHreIeKti XeTKJIikTi Xa6y MymKiN 6oJMaIDbI.
6) Kopfahbiw kaIInak 3neKtpnik Kypanfa 6epik OphatbIybyi XeHe eH XOFapbl Kayinci3dk MaKcaTbIHda abpa3NBTi KypaIbHbI 6apbIHwa WaftbH 6eniri naJaIaNHyBIfa awbIK 6onbl TpytaHdai etin peTEnyi Tnic. Kopfahbiw KaIINaK naJaIaNHybIHbI CbIHbIKTapdaH, abpa3NBTi KypaImHen KeHET XaHaCyduh XeHe KIMDi TYTaHdbPa aIaNtBuH YUkBiHHaH KopFayFa KEMekTeceDi.
B) A6pa3nBTi KypaIapDbI TeK ycbIHbIaTbIH MaKcaTbHa cainkec KOndaHyra 6oanaBl. MblcAnl: eW XaIadJa Keckiw DeHreKeTIn 6yip 6eTimEn axapnaMaHbI3. Keckiw DeHreKeTep MaTePnaIdbI DeHreKeTIH xnerimEn AnyFa apHaIraH. Keckiw DeHreKeKke 6yipipHeh KwJ KOndaHy OHbIH 6y3bIyBaHa eKeJyIMMkiH.
r) ΘραдыIM 3aКьIMДаЛмаган КьICпаФлаHeцTi NaДАнБИHbI3,ОьИн Eишемi MeH NiшИТанДАнFAH axapnaftbIw DeHReLEKKE cAkeC Kenyi Tnic.ЖapamDbI ФлаHeцTeP axapnaftbIw DeHReLEK ywiH Tipek 60nbT Ta6bln Ta6bln KaNY KayniH a3aITaBl. AxapnaftbIw DeHReLEKTePre apHaJIFaH ФлаHeцTeP 6acka axapnaftbIw DeHReLEKTePre apHaIFaHФlaHeцTeP deHReLENeyi MymkiH.
F) YnkeHipeK 3JneKtpIik KypanIapIbIH To3FaH axapIaRbIw DeHreJIeKTePIN naIdaIaN6aHbI3. YnkeHipeK 3JneKtpIik KypanIapFa apHaIFaH axapIaRbIw DeHreJIeKTeP IaFBiH 3JneKtpIik KypanIapDbIH KOFApbl aHany XninirHe Xo6aIaN6aFaH XeHe cblHybl MymKiH.
I) Eki MaKcaTbI DeHreNeKeTpDi KOnDaHraH Ke3De ePdaBIM OpbIHdAnaTbIH XMybIC YwIH XapamDbI KopFaHbI W KaNnakTbI NaDanaHbIHbI3. Dypbc KOpFaHbI W KaJNaK NaJaHaNbIMaca, KaJaaynb I KopFaHbIC KaMTaMaCbI 3 etINMei, 6yI aybp JxapaKaT aNyfA eKenyi MymKiH.

4.4 A6pa3nBti Kecy Ke3iHderi Kayinci3dk TexHNKacbl 6oBbIHwa KocbIMwa apHaNbl HycKaynap:

a) Keckiw dHreKeTih CbHaJahybiHa Hemece TbIM KOFapbl 6acy KbICbIMbHa XoJ BepMeHi3. TbIM Tepeh Kecik XacamaHbI3. Keckiw DeHReJeKke apTBiK JYKTeMeHi Tycyi OHbiH apTBiK KepiNicHe XeHe KNFaWtAHyFa Hemece CbHaJahyFa eKein, a6pa3nBTi KypaJIdbIH Kepic COKKbI Hemece CbIHy MymKiHdiH apTTbIpaDiI.
e) AInHaBIn TyprAn KeckiDHeReIeKTH anDbIHDa XHe apTbIHDa TypMaHbI3. Erep KeckiU DeHReNEkTI daBHdAmamEn 6ipre e3iHi3deH apBi KblKbITcaHbI3,KePI COKbI KaFdaBbIHDa 3NeKtpnIK Kypan aHaBbIn TyPraH DeHReNKeHep 6ipre Tpya e3iHI3re Kapai NaKTbIPbJIybl MyMkiH.
6) Keckiw DeHreIeK KbcblbIn KaIca Hemece Kymblctb1 TOKtaTcAhbl3, 3NeKTpNik Kypalbl Ewipih3 De, DeHreIeK ToBbIK TOKtaHaHwa KOJIbIHb3Da YcTaay TpybHb3. OJIa aHaNbIn TyprAH Keckiw DeHreIeKTI KecikTeH bIrapbl Anyra opekeT XacamaHb3, aITnece Kepi cokkbl TybIHdaybl MyMkiH. Kbcblny ce6e6IH anbIKtan KOJIbIHb3.
B) 3NeKtpnik Kypan DaHbIHdamaOpHaIacca, OHb KaNtakocnahbl. AnDbIme Keckiw DeHreNEKe Tohik aHaJy KInirine KeTyre MymKINdk6epiH3, TeK codan Kein Kecy OpeKeTIH abaunlan KaIFactbipbHbl3. Kepi XaFdaJaDeHreNEK yCTaNbIN KaNybl, DaBHdAmadah cekipin KeTyi Hemece kepi COKkbl TydbIPybl MymKiH.
r) Keckiw DeHReJKeTIc bHaIaHybIHAn Kepi COKKbl KayniH a3aHTy YwiH TaKTanap MeH YNKeH daBHdAmanapDbI eHderen Ke3De TipeN KOBIHB13. YNKeH daBHdAmanap 3 CaIMaFBiBih, OcepHe MaBICbIN KaNybl MymKIn. DaBHdMaHbI DeHReJIeKTIe EKI XaFbIHAn, ocipece KecIK cb3bIFbIHn XaHbIHDa XaHe XNeK YCTIHde TipeN KOIO KepeK.
f)Bap Ka6bipraJapda Hemece 6aca da KepiH6eTih aImaKTapda 6aTbipbIn Keckeh Ke3de epeKwe MyKnT 60nbHbI3. BaTbipbInaTbIH Keckiw DeHreIek ra3 Hemece cy Ky6bipnapbIH, 3NeKtpJIk CbIMdApbl HeMece 6aKa HbICAHaapdbI Keckeh Ke3de Kepi COKkbl TyDbipybl MymKiH.
I) Knaew KecikTep XacamaHbI3. Keckiw DeHreJekke apTbIK KYKTeMeHH Tycy i OHbIH apTbIK KepiNiciHe XeHe KNFaWtAHyFa HEmece CbHaJaHyFa eKeIn, abpa3nBti KypaIdbH Kepic cokkbl HEmece cbHy MymKiHdiH apTtbipadbl. ByI aybp Jkapakat anyfa eKeenyi MymKiH.

4.5 Ereykym Kaara3bImeH axkapny Ke3iHderi Kayinci3dk TexHNKac6oBihwa apHaibI HycKaynap:

a) Dypbic eJWeMdi KaKaKcbIbIpfbInapDbI NaIdaIaNbIHbI3 XHe KaKaKcbIbIpfbIHbI TaHay 6oBbIHwa eHdpywi MmimETTepiHe Ha3ap aydapbIHbI3. Tipeiyu axapnaftbIu TabakuaapdaH bIfbn TypatbIH KaKaKcbIDpfbInap naJaIaNHybifa kapaKat Turi3yi MyMKIn XHe IInHyre, KaKaKcbIDpfbInapdbH y3inyiHe Hemece kepi COKKbIF a npabIN COFybIMMKIN.

4.6 CbIM KblIwauKapMeH Kymbic icTey Ke3iHderi Kayinci3ik TexHNkacbi 6oynbIHwa apHaBbl HycKaynap:

a) CbIM Kblwak eDetteriDen naDanaHbINFAH Ke3de De, OHbIH iWHeH CbIM 6eJWeKTepi Tycetihc Ecepehi3. CbIMdapFa TbIM XOFapBi 6acy KbICbIMbi apKbIbnI apTbIK KxKTMe TycipMeHi3. YUna cbIM 6eJIWeKTepi KxKa KNIM XHe/Hemec Tepi apKbIbnOHaJ Kipin KeTyi MymKiH.
e) KopraHbIkwKaJNaKTbI naJaIaNHyfKeHec 6epince, KopraHbIkw KaNak neH cbIM KblnwaKtbIH XaHacybiHa Kon 6epMeHi3.

Tepenkeni XeHe Ta6aKwJbI KblIwaKTapdbIH DnAmetpi 6acy KbcBIMb MeH opTaHaH TeNkiu KWTiH acepiHeYfAHObMyMKH.

4.7 Kayinci3dk TexHnKacb60nbHwa KocbIMHa HycKaynap:

ECKEPTY - ΘρДaɪbɪM KOPFaHbɪU Ke3ɪnɪdiPIkTi TaFbɪŋ Jypiɪh3.

KynaK KopFaHbCbIH KIn JypiH3.

ECKEPTY -3JneKtpnIK KypaIbI epaIbIM Eki KOJImEH naiDaIaNbIHbI3.

Akapnaftbiu DeHreNeke apHaJFaH KOpFaHbiu KaNaKaTbI a6pa3nBti Kecy Kymictapbi yuiin naDanaHaBb3.Keckiu

AnHreKeTepMeN XMbIC icTeY yWIn Kayinci3dk TypfbicbHaH KeckIu DeHreNeKke apHaJFaH KopfaHbIu KaNaKTbI naJaAnaHbIbI3.

CerMeHTTep apaIbIbI 10 MM-DeH acatbIH cerMeHTTeIReH anMaCTbI KeckiW DeHreJIeKTEpDi naIaHa6aHbI3. Tek Tepic cerMeHTtIK Kecy 6ypblTapbHa pyKcat etinei.

BaiNaHbICtbpBlnFaH KeckiIeHreNeKeTepDi, Onap HbIfaTbInFaH 60nca faHa naJaDaNaHbIHb3.

Ninriu TceMeIepDi axkapnaftbIw KypaJImeH 6ipre XeKti3iIReH XHe TaIan eTInrRe HkaFdaJa KaJDaHa KaJDaHbIHbI3.

Kypal MeH KepeK-JapaK eHdipyuiciciH HcaynapbIH opbHaBbI! DeHreJeKeTepdi MaM MeH cokkbIDAH KopfahbI3!

AnMaIbI-caImaJIbI KypaIapIbI eHdpywiHiH HyckaynapbHa caikec YKbINTbI caTay XeHe KOJaHy KepeK.

Ewkaaah Keckiw DeHreJeKTepei cnbipa axkapay Hemece Terictey XmbicTapbi ywiH naDanaHaBIs! Keckiw DeHreKeTepre 6yipliK KbICbIM KOndaHyFa TbIbIM caJIbHaDbI.

JaBbIHdAmaHbI, MbICaNbl, KbICkBll KpyblfblnapdbH KeMeRimEn 6epik 6eKity XHe KblNkbl KeTydeH Kopfay KepeK. YJKeH DaBbIHdAmanapdbI XeTKiNtI TypDe Tipen KOHO KepeK.

BypaHdaJIbI eHdIpMeci 6ap anMaJIbI-caIMaJIbIKypaIap naJaHaNbIINFaH Ke3De, UINHdeJIb YUbI axapnaFbIu Kypan caHbInaybIHbIH TY6Ie TImeyiTnic.AmMaJIbI-caMaJIbIKypan IpeK OIMacBIHbIH

y3bIHdbfblwnHdelen ywiH xeTkiNkTI eKeHdiriHe Ke3 keTki3iHi3.AmAlbl-caImalbl KypaIbH npeK OIMacbl wHnHdeIbDiH npeK OIMacbHa cKeKC Kenyi Tnic. WnHdelen y3bHdbfbl MeH wHnHdeIb npeK OIMacbH 3-6eTTeh XeHe 《 T E X H N k A l b i k DepekTeP> aTb1 14.-6eimHe KapaHbI3.

Kapamblc taunohapblk copfblw kypblfnbhl naananahyfa kehec bepinei. 2pdaibIM MAKC. kblctay torbl 30 mA kypaunTBH FI aBTOMATTbl axbipatkbih (RCD) aandh ana KocbiHb3. Bypbltbk axkapnaflwi FI aBTOMATTbl axbipatkbih apkblnbewipiiren KaFdauna, acnantbTekcepy XeHe Ta3anlay Kepek. 工 Ta3anay aTTb9-6enimdi kappaHb3.

3aKbIMdaJFaH,deOpMaunraFa yuBipapaHaH HeMece dipinneTIn KypaIapdbI naJaIaNHyFa TbIbIM CaNbHaDbI.

a3 Hemece cy K6bIpnapbIbH, 3neKtpnik xeJinepein XaHe KeTepriu Ka6bpFaIapdbH (cTaNka) 3akbIMdanybHa kon 6epMeHi3.

KaHdai da 6ip peTey, KaTaa ka6dbkTay Hemece TexHnKaJIbIK Kbl3MeT KepCeTy apeKeTIH opbIHdAmac 6ypbIH KeiNik aHaHbI po3eTKaDaH sbIFapBIn aBlHb13.

3aKbIMdaIaNFaH Hemece KapbIKwAkapbI6apbI 6ap KocbIMwa TyTKblTbI aMnAcMbpy KepeK. KocbIMwa TyTKblWb6y3bnFaH acnantbI naJaHaH6aHbI3.

3aKbIMdaJFaH HeMece XapbIKwakTapbI 6ap KopFaHbI W KannakTbI anMaCTbIpy KepeK. KopFaHbI W KaNaFbI 6y3blfAH acnantB I naJaIah6aHbI3.

EeKeTepi HemeC KOpFaHbIC Kypblfblnapbl XeticneuTH Hemece 6y3bIFaH acnantbl KocnaHbI3.

Bipkabntb icke kocy cyHKcnaCb6ap acnantap (Typ TaTaaacbHda «WE...» 6enrici 6ap):erep acnan icke KocbInFaH Ke3de MaKcmaNDbai aHaNy Xnirine DeHHe Xblnam yDece,6yn 3neKTPOHdbIK 6JIOkTa akaylbIKTBiH opBH anFaHbIH 6IiDipei. 3neKTPOHdbIK 6JIOk 4yHKcnaJapbHa KaTbCTbKayinci3dk TexHnKaCbI 60bIHwa 6acka HycKaynap KepctinMei. dAcnantb Ipepy XehdTeHi3 (12.-6enimdi KapaHbI3).

UaBn daBnHdAmJapb6eKtiH3.Mbcanbl, onapbl 6iNdek KblckblHda Kblicbl3.

ФлаHeц opHaTbIINFaH eKI MaKcaTTbI DeHReJIeKTeP (Kypama axkapnaftbIsh XeHe abpa3nBti KeckiUdEhReJIeKTeP) naДaNaHbInFaH XaFdaɪda, TeK KeNeci KopFaHbIsh KaIINaK TypnepiH naДaIaNHyfA6OlaIbI: A typi, C typi.

11.-6eImdi KaapaHb3

Dypbc KopraHbI W kannakTbI naJaNaHy:

Kate KopfahbIi KaIINaK 6aKbIay MyMkiHdiriHe H aibIpblNyfa XeHe aybp JapaKaT aNyFa eKenyi MymkiH. Kate naIdaIaNy MbicaIapbl:

A typin deri Kopfahbii KaJnak 6yipinen aXkapnay MaKcaTbIHda naJaHaNbIHaHda, KopfahbII KaJnak neH daBbHdama 6ip-6ipHe Keepri KeTtipin, XeTKJIikci3 6aKbIayfa eKeenyi MymkiH.
-BTypiHderi KopFaHbIw KaJnak 6aHaNbIcTbIpBlnFaH KeckiW DeHreJeKTePMeH abpa3nBTi Kecy MaKcatbIHda naIdaNaHbIHaFHa, aXapNaBfIw DeHreNEk cbHbIN KaJFaH XaFdAaHa, naJaDa BoNFaH YsKbH MeH axapnay BeNIkTepiHi

KA3AKJWAgk

coHdaa-ak axapnaFbI W DeHreNEK cbHbIKTapbIHbIH TIO Kayni apTaDbI.

-A,B,CTypiHderi KopFaHbI KaNnak 6eToH Hemece KipniK Kanay BoBbHa 6yNipiHeh axapnay MaKCaTbIHda naDanaHbINFaHda, WahHBiH WbIFyBHaH Hemece 6aKbIay MymKiHirIHeH aibpblnydAn Kepi COKKbIHbIH apTKaH KayPi TybIHdaIbI.
-A,B,C TypiHderi KopFaHbIa KaNak pyKcaT etinreH WAMadaH KaNbIH 6oNfAH DnCKJI KbluAknE biPre naJaHaBbIHaHaDa, cbIMdap KopFaHbIa KaNakKa TaHOI XeHe 6yI cbIMdApDbIH CbiHybHa eKeJyI MymkIH.

OpaHbIM aImaJIb-CAImaJIb I KypaNFa JkapaMdbI KOpFaHbI W KaIINaKTbI NaIdaIaNbIHbI3. 11.-6eIIMdi KapaHbI3

UaH KykTeMecin a3aIy:

ECKEPTY-EreyKmKaFa3bImeH axkapay, apanay, axapay, 6ypfblay xehe baca da KymbICTapdbI OTKI3ReH Ke3de naJa 6oNaTbIH WaHHbIN Ke6ip TypJepi ObIpDbI, Tya 6itKeH KEMictikTepeH Hemece Ke6eEO KyneCiHh Baca Da 3aKbIMdApBH TydbIPAbHbI 6enrini XmMnAblk 3aTTapdbI KamTnDbI. MyHdaI XmMnAblk 3aTTapdbH 6ipHeWe MbICaNbl:

-KopfaBH KaMTnTbH 6oay iwiHderi KopfaCbIH,
KpybIbc Kpnilu, CemHn H BacKa Kpnil Kanay 3aTTeKTepeH naiDa 6oJatbH MnHepaJdbI ShaH XaHe
-XIMNAbIK KOJMEH OHdJIReH CypeKTeri KUaJaXeHE XpOM.

Tayekn DApexekci MyHdAn KymbicTapdbIH Typi KaHsaibkTbI Kni opbIHdAaTbIHDbIFbHa TayeJI. MyHdAn XmMnBik 3aTAPdbIH acepiH a3aHTy ywiH:KetKiniKTI TypDe KeJedTeINRe H kaJnapda Kymbic icTeH3 KHe Kymbic 6apbcihda MInkpockonnabik 6eJWeKtePdi cy3riJeY wih apHaBbl E3ipNeHreH pecnPapTop cnaKtbl Xeke KopFaHbICKa6dbfBih KOJaDaHbIHbI3.

ByepekeBaKaMaTePnAnDapDaH,MbICaNbI, cyeKTHBeNRIiBipTypnePiHe(EmeH HemeC WAMwAT CyperiH,HaHb),MeTaNdA,Hc6ecTTeH naJa 6oJatbH WaHaFa Da KaTbICTb GoBn KeJeDi. BaKa BeNRIi CbIPKaTTapFa,MbICaNbI, anPeprnAblk peakunnap XHe TbHbIC any KOndapbHbH CbIPKaTTapbl KaTaDbI. WHaHbIH DeHere eHyH BoNDbIpMaHbI3.

MaTePnAJIbIbI3, Kbl3MeTKePnep, KjMbIC KaFdaIbI MeH KjMbIC opHbI 60nbIHwa KOJDaHbIaTbIH DnpeKtNbIaIapDbI XeHe YJTTbIK HycKaMaIapDbI CaKaTaHbI3 (MbIcaJIbI, eH6ekTi KopFay epExeJIepi, KeDeRe Jkapaty).

Paina 6onaTbH 6eJIkTeepi dAn con Jxepde XnHaBb3, KopwaFah optafa TycyIHe Kon6epMeHi3.

ApaHai jymbicapuHjapaMdbi KepeKjapaTapdbi naDanaHbHb3. OcbinaWa KopwafAnOpTaFa 6akblaycb3 TycetIH 6eikTepeHHmIeepiaaHbJaBbl

ApaHai bI waHcOpFbIUtbI naJaIaNbIHbI3.

WahKyKTeMeCin a3aTu yuH:

• naJa 6oNaTbH 6eJIKTePdi XHe acnAnTbH aya aFbIHbH e3iH3re, aHaHaNbI3daFbl aDAMapFa Hemece KaTkah WaHaFa 6aFbITTamaHb3,

• COPfblKW KOHdbIpfbHbJ XeHe/Hemec e aya Ta3aJaFbIUtB1 KOJIdaHaHbIHbI3,

• Kymblc OphbH XaKcbIan XeJntiH3 XHe copy apKbIbI Ta3a Kynde YCTahbl3. KaIbIKtan XaTkaH WaHdbI cbInbIPbIHb3 HEmec Eypen WbIFapbHb3.
  -KopfaHbI KIMJxHybHb3 HeMece WahbH copbHb3.YpJeYre, KaFyFa Hemece KbIJaKneH Ta3aJIayFa 60JMaJDbI.

5. Wony

2-6etti kapaHb3.

1 Quick kbcna raikacbi*
2 TipeiyuФланeц*
3 W n H d e Jb
4 W A...ABTO6aJaHcnpDIn TipeyiuΦnanei (anbIH6aIbI)
5UHHndb6ekitkiinH Tymeci
6 ΘлектpoHдьИ сигнанДыИ ИнданКаТОP*
7 T Y T K bI W
8 KynbIn (Ke3deincoK KocblnydaH KopfayFa Hemece y3iKc3 Kymbic peKmIH Kocyfa apHaHa)
9 BaTbIpMa aybIcTbIpBIn KocKbIi (Kocy/ewipyre apHaIFaH)

10 TyIme (Heri3ri TyTKbIuTbI 6ypan peTeyre apHaIFaH)
11 Heri3ri TyTkbii
12 KocbIMwTaTkbiw /diipinDi 6ackbiw KocbIMwA TTKbiw
13 KopfahbIw KaIInaK
14 Kbicna raika
15 Eki caHbIayJIiKiTT*
16 bcbpma (KopfaHbIkw KaJnaKaTbI KypaJcbl3 petteyre apHaJIFaH)
17 BypaHda (bICbIPMaHbIH KbICy KyuH peTteyre apHaHaH)

*Xa6dbkTanyfaoaHnabHcTbI / XeTKiIm XNbIHbTbFbHa KipMeNi

6. Kɔлданьіcka eнri3y

KoIaHbIcKa eHI3y aIbIHda 4npMaIbIK TaTaNwada KepeTeINReH HOMHaNDbI KepHey MeH HOMHaNDbI JnIiK TOK JeJIiHi3DiH DepeKeTpIe Caikec KeJIeIHirHe Ke3 JeTKi3iHi3.

OpaHbIM MaKC. XbIbICTay Torbl 30 MA (RCD) aIbIH aJa KocbIHbI3.

MnHmamdbi KeIeHeN KIMacb1 1,5 MM2 KypaHTbIH ¥3apTKbIi Ka6enbdi FaHa naJaIaNahBbHb3. ¥3apTKbIi Ka6enbdep acnTbIH TYTBHbJNaTbIH KyaTbHa cKec KeJyI Tnic (TexHkaJIbIK DepeKTePdi KapaHb3). Ka6enb 6apabaBHn NaJaIaNFaH Ke3de Ka6enbdi apaNbIM TObIKTaJ Ka3bIHb3.

6.1 KocbIMwa TyTkbluTbI opHaTy

OpHaTbIiFaH KocBIMwA TyTkblWineH (12) FaHa JyMbIC ICTeHi3! KocBIMwA TyTkblWtBi CoJxKaK, OptaHfbl Hemece OH xKaK 6ypaHdAnbCaHbInayFa (KaKeTTinikke kapan) KOImen 6ypan Kipri3iHi3.

6.2 KopfahbIw KaJINaKTBIOphATo

KoIdaHbicka eHri3y aIdbIHda: KopFaHbIi KaIINaKTbl OPhaTbIHbI3.

Kayinci3dkTypfbicbHaH TEK Tnicti aImaIbI- canMaJIbI KypaJFa apHaNfAH KopFaHbIw KaNaKaTbI naJaIaNbIHbI3! KaTe KOpFaHbIu KaJnak 6aKaJIay MymKiHdiRHeH aBIPbIyFa XeHe aybp JxapaKaT aNyFa eKeJyI yMmKIn. CoHdai-aK «KepekXapakTap» aTbI 11.-6eImDi kapaHbI3!

2-6etteri F cypeTih kapaHb3.

-blcipmaHbI (16) aUbIHb3. KopFaHbIi KaIIaKaTbI (13) KepcetijreH Kynde opHaTbIHb3.
- KopFaHbI KajnakTbI OHbIH Ka6bIK 6eJIiri naJaIaHaHybIfa Kapan TypaTBHdai etin 6ypaHbI3.
-bcipMaHbJxaybIN KObHb3.
Kaket 6oJca, bICbIPMaHbIH Kbicy KyWih 6ypaHaHaBI (17) TapTy apKbJIbI (BICbIPMa aWbIK 6oJFaHa) apTbIpyFa 6oJaBl.

KopFaHbI W KaIINaKTaH KEM
DereHe3,4 MM WAmacbHa
WbIFbIN TypaTbIH aImaJIbICaIMaJIb KypaIapDbI
naJaIaHbIHbI3.

6.3 AHaMaJIbI Heri3r TyTkbl

Bekitnyi Herizri TyTkbluNeH (11) fHa XyMbic icTeHi3!

2-6eTTeri C cypeTIH kapaHb3.

-Tyumehi (10) 6acbHb3.
-EHdi Heri3ri TyTkbIHTbI (11) eki xakka da 90^ -ka 6bypayfa kHe bekityre 6oana.
- Bepik opHaTbIJaHbIH TeKcepiHi3: Heri3ri TyTkbiU (11) 6ekitin TpyjxHe aHaJMaBtiNic.

AnMaIbI-caImaJIbI KypaJIbI daJIbIHdAmFaTeK KocyJIbI KyiHHe anapbIHbI3.

Kehet icke kocbIybHa xon 6epMeHi3: Jekinik awa po3eTkaDaH cybipInFaH HeMece HJxabkTay y3iInreH 6oJa,epaBbIM NTbl eWipiHi3.

Y3dkci3 KymbcpexunmiHde acnan KOJaH Tycipinre HkaFdaHa da apbI Kapa JyMbic 1di. CoHbIKTaH epaBIM acnantbIeKoJMeH bI TYKbIHTapbIH aH yCTaHbI3, TypaKTbI INTA TypbIHb3 XHe 6ap Ha3apbIHb3DbI HdaTaNH KymbcKa aydpbIHb3.

Acnanka WAn MeH KOHNKaHbIH KYbIHdAyBH Hemece TaPbIyBbH 60JIbIPMaHbI3. AcnantbI ReHHe KeIH KO3FaNTKbIIT OJIbIKTaI aHaHwa KOIMaHbI3.

2-6etteri A cypeTih kapaHb3.

Kbicka Mep3imre Kocy:

Kocy: KyIbITbI (8) KepcTeKi 6aFbITbIMeH XblXbITbIN, 6aTbIPMa ayBICTbIPbIN Kockbltbl (9) 6acblb3.

Owipy: 6aTbipMa aybICTbipIN KockblWTbl (9) xi6epihi3.

Y3dkci3 xymbic pexnmi (ka6dbikTaJnyf aanhaHbICTbl):

Kocy: KjIbInTbi (8) KepcTeKi 6aftbImeH KblNkBiTbn, 6aTbIPMa aybICTbipin KockbiWtbi (9) 6acBn TypbIHb3. Acnan eHdi KocblBn Typ. Ehdi KjIbInTbi (8) Taft Bi 6ip pet KepcTeKi 6aftbIMeH KblNkbITbn, 6aTbIPMa aybICTbipin KockbiWtbi (9) 6ekitih3 (y3dikci xymbic peximi).

Owipy: 6aTbipMa aybICTbipBn KocblWtB (9) 6acbln xi6epiH3.

W...B 6enrici 6ap acnanTap: Kbicka Mep3imre Kocy (Kayinci3 ToKtaty cyHKnraCbImeH)

2-6eTTeri B cypeTih kapaHbI3.

Kocy: 6aTbIPMa aybICTbIPbIN-KOCKblHTbl (9) aNfakapai XblJXblITbIHb3 Da, CoDAH KeiH6aTbIPMa aybICTbIPbIN KOCKblHTbl (9) KOfapbl Kapai bacblhbl3.

Θωipy: 6aTbIpMa aybICTbIpBn KockblWTbl (9) xi6epiH3.

8.2 Kymbic 6oBInHwa HycKaynap

Akapnay:

Acnantb optawa Kywnen Kbcbn，daibHdamaHbIH 6eti KaTbKb36aTbHda etin yctiHri 6et 6oBihwa anfapaTka XblXbITbHbI3. Cnbpia axapnay:KaKcbHtNkere kon keTki3y yuih 30^ - 40^ opHaTy 6ypblbHda kymbic icTeHi3.

A6pa3nBti kecy:

A6pa3nBti kecy ke3iHne apdaNBIM
kapama-Kapcbi 6afttneH (cypETTI
kapaHbI3) kymblc icTeHi3. Kepi
XaFdaiDa acnan keciKTEH KeHET
cekipin WbIFbyMymKiH. OptaHa,

EHneNetIH MaepnAnFa JapamDbI 6epinicneH Kymbc icTeHi3. KucayTuFa, 6acyFa XHe TEHceNTyre 6oMaNDbI.

Ereykym kara3bimeh axkapnay:

AcnantbI opta KUwneH KbICBn, DaNBHaMaHbIH 6eti KaTbKb36aunTBHda ein yCTiHi 6eT 6oBHwa aNfApTKa XblXkBiTBHbI3.

CbIM KbINaKaTpMeH XyMbic ICTey:

AcnanTbI opTaWa KywneH KbICbHb3.

9. Ta3aJay

KymbicapbicbHda 3neKtpnIK KypandbH iWihde MaepnAn 6eIweKtepi XHaNhybl MymkiH.5yn 3neKtpnIK KypanDbH cyItbIybiH HaawapNaTaDbI. Tok etki3riu weriHdi 3neKtpnIK KypanDbH KopraaTbH OKwaynaBbH 6y3bIn, TOK COFy KayinH Tydbipybl MymkiH.

3neKtpnik KypaIdaFbI KipDi 6apNbIK aIbIHbIMeH apTKbI XeJIDeTy caHbIaynapbI apKbINbI KyIeni TypDe, XnXHe MyKmT CopBIn HemeCe KypFaK ayAmeH YpIen Ta3apTbHbI3. ByI apeKeTTiH anDbIHDa 3neKtpnIK KypaIdbI KyAT Ke3iHeH axkbipTaBn, KopFaHbI Kc3IqipIK neH JkapMdbI pecnnpaTopbl Knin aIbHbI3. YpIen Ta3apTy Ke3iHde XeTKiniKiTi aya TApTkbl W KeJDeTy kAMTamacbI3 etiny Tnic.

TytkbwTb peTeyre apHaIFaH TyIme (10): KaKeT 6oJca, TyIMeDeH KipDi copBIn Hemece Kypfak ayameH yPJIen Ta3apTbHbI3 (6acblfAaH KyIe, Heri3ri TytkbWtBn 6apNbIK 3 KyiHde). Byn epeKeTTIH anDbIHda 3JeKtpJIk KypaIbI KyaT Ke3iHeH axbIpaTbIN, KopraHbIW Ke3iNdiPIK neH pecnnpaTopdbI KIn aNbHbI3.

10. AkayIbIKTapDbI KOHO

Typ TaKaTaNacbHnDa «WE...» 6enrici 6ap acnantap:

-ApTbIK KYKTeMeDeH KopFaHbIC: 3JKeKtpOHDbIK CnHaJIbIK INDnKaTOP (6) XaHbIN, KYKTeMe actbIHdafta aHany Xniriri KATTbl TEmeHneDi. Ko3FaNTkbiI TEMnepaTypacbl TBIM KOFapbl! Acnantbl cybIFaHwa XoHe 3JKeKtpOHDbIK CnHaJIbIK INDnKaTOP cHReHwe 6oc Kypic KyiHde XyMbIC ICTetih3.
-AptbIK KyKTeMeH KOPFaHbIC: 3NeKTPoHDbIK CnHaJIbIK INHdNKaTOP (6) XaHbIN, KYKTeMe actbIHafta aHaNay Xniniri A3FAHTA TEmeHnei. Acnapka apTbIK KxKTeMe TyCTi. 3NeKTPoHDbIK CnHaJIbIK INHdNKaTOP cHReHWe KymbICTbl TEmeHDeTIInrEHN KYKTeMeMe HkALFactbIPbIHbI3.
-3neKtpoHdbik Kayinci3diik axbipaTkbIbI: 3neKtpoHdbIK cHrHaDbIK HndkaTop (6) XaHbIn, acnan e3diirHeH ΘWEJI. TOkTBiH apTybl TBIM XbIJaDAM 6OJFaH (MbICaJIbI, KeHet 6yfaTTaJIFaH Hemece Kepi COKkbI TureH) XaFdaNda, acnan eWedeI. Acnantbl 6aTbIpMa aybICTbIPbIN-KOCKbIw (9) apKbIbI bIeWiPiHi3. CoaH KeiIH KaTaNKOcbIN, XyMbICTbI eDeTTerIeJ KeAIfactbIPbIHbI3. KeiHI r 6yfaTTaNyFA Kon1 BepMeHiz. 4.2 60nlimH kapaHbI3.
- Kaɪta icke kocbɪnydən KopfaHbɪc: 3neKtpoHɒdɪk CnɪrHaɪɒdɪk NɪHʌnKaTOp (6) XbɪNbɪbɪNbɪkTAN, acnan xуMbɪc icTeMeɪdi. Kaɪta icke kocbɪnydən KopfaHbɪc icke Kocbɪnɒbl. Acnʌntbɪn Kocyɒl kyyɪnDE keŋiɪk awa po3eTKaFa caɪbɪHfAhn Hemece 3neKtp KyaTbɪmeh JæbɪkTay y3ɪnreHHeN KeɪiH KɑnɒbɪHa KeɪrRe HkaFdaɪda, acnan icke kocbɪnmaɪɒbl. Acnʌntbɪ eWipin Kaɪta Kocbɪnɒbl3.
- Acnan KocbIraH Ke3de MaKcMaJbI aHaNy Xnirine Dein H Te Xbldam YdeNi, FHN icKe KOCY TOBih ABTomATbI TpyDe WekTeri (6ipKaIbINTbI icKe Kocy) KbImet eTnei. 3NeKTPOHbIK 6IOKTa aKaynbIK opbIH anDbI, 3NeKTPOHdbIK 6IOK QyHKuJaIapbHa KaTbICTbI Kayinc3dk TexNkacbI 6ObblHa 6aCaKa Hyckaynap KepceTInMei. AcnanTbI depey XeHdTeHi3 (12.-6eimdi kapaHbI3).
W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:
-Kocny npouectepi KepHeydiH Kbicka Mep3imDi TEmeHdeYIH Tydbipadbl. KaFBIMcbI3 KeJI napameTpIepinde backa KypblfBilnap icTeH 1bIfbyMymKIN.ToIbIKKeJI KapcbIbIFbl0,2OM 1MaacbiHaH KEM 6OJFaHda,aKayIbIKTapdbIH bIKTImaIDbIbIFbl TeMeH 6OJaBl.

11. KepeK-ЖаразКтap

Tek KaHa TynHycKa Metabo KepeK-kaPaKaTapbIH KOJaHaHbIHbI3.

Tek KaHa Ocbi NaDanaHy BoBbIHwa HyckayIbIKTa KeNTipINReH TaNaTAP MeH CnNaTTapFa cai KeNtIH KepeK-JapaKaTapDbI NaDanaHaHbIbI3.

Kepek-kaapakapdb6epik 6eKtiH3. Acnan yctaftiwiHne naDanaHbIFaH KaFdaHa acnantb6epik 6eKtiH3. BaKbIay MymKiHirHeH aBipbIcAhbI3, JapaKaT aIyblH3 MymKiH.

4-6ettri kapaHb3.

OpaaiBIM TEK eHdipictik TancbipMaFa Kapambl anmaIbI-CanMaIbI Kypanbl XaHe 6enrireHre H KopfaHbI W KaJNaKTbl NaJaHaNbIHbI3.

5-6eTTI kapaHbI3. (CypeTTeP MbIcA I peTIHe 6epiJIreH).

OHHipicTik TancbipMa:

1=yctihri6etimehaxkapay
2 = abpa3nBtKecy
3 = caHbInay 6ypfbInay
4 = cbIM KblJlJaKaTpMaH XyMbIc iCTey
5 = ereyKYM KaFa3bImeH aXapnay

AnmaIbI-calMaJIbI KypaJdAp:

1.1 = cnbpa axkapnafbiW dHReNek
1.2 = axapnaftbIb6actneK (kepaMknabIK)
2.1 = «MeTann» KeckiW dHreIerI
2.2 = «Kipniшkanay/6eToH» KeckiudHreIeri
2.3 = «Кірпіш Калay/6eTOH» anMaCTы Keckiш DeHreneri
2.4 = eki MaKcaTbI KeckiU DeHreNeKeTep (Kypama aXkapnaFbIu XaHe a6pa3nBti KeckiU DeHreNeKeTep)
3.1 = anMaCTbI 6ypfbInay KopoHkanaPbI
4.1 = domanaKbInlwaK
4.2 = ta6aKaJbI KbluA
5.1 = nameJIbDi TIpeyiW axapnaFbI W Ta6aKwanap
5.2 = kaxakcbidbipfblnapfa apHaIFaH Tipeyiw axkapnafbwu Ta6aKaWanap

6eJrineHren KopraHbIkw KaIInaK:

A Typi =-KeckiH DeHreNEKKe apHaJFaH KOpFaHbIa KaJNaK

B Typi = axapnayFa apHaIFaH KopFaHbI W KaJIInaK

CTpyi axkapnya fa xane he abpa3nBti kecyre apHaFaanKopFaHbIi KaJNaK (KNCbIHdacy)

D Tpyi = axapnafbiw 6actneke apHaIFaH KopFaHbIi KaJNaK

F Tpyi = a6pa3nBti Kecyre apHaIFaH aya TapTaTbIH KopfahbIw KaIINaK

KocbImwa kepek-kakapTap:

(www.metabo.com Be6-caTbIH Da KapaHbI3)

A MetaJIbI Kecyre apHaJIFaH 6aFaHa

B Kbcna raika (14)

C Quick Kbicna raikacbi (1)

Kepek-kaapakTapdbH TOnbIK Ti3iIMH www.metabo.com caTbIHda Hemece Herizri KaTaNOrTeH KapaHbl3.

12. XoHney

3neKtpnik KypaIJa XeHDey KymbICTapbIH TeKaHa 3neKtpsi MaMaH eTKi3yi Tnic!

KA3AKUAKk

Bv3bnFaH XeJIiK Ka6eIbDi TeK Metabo Kbl3MeT Kepcety opTaJIbIFbIHda catbIn anyfA 6oNaTbIH apHaBbl, TynHycKa Metabo XeJIiK Ka6eImeH aybICTbpyFa pyKcat etineDi.

W...B... 6enrici 6ap acnanTapda Kemip KbInwaKTap XnHaFbIH anMaCTbIPFaH Ke3e TeXeriiW KaIbITAPdbI da aJMAcTbipy Kepek.

Metabo fJnnaIbHa JENDeyI KaKeT eTeTIH Metabo 3JIeKTpIk KypaJIdApbIMeH 6IpRe 6apbIHbI3. MekeHkaInapbI www.metabo.com caHTbIHda 6epinreH.

Kocajkb6eJWeKTePdiH Ti3iMepin www.metabo.com caJbIHDa JyKTen aNyfa 60ana.

13. Kopwafrn opTaHbI Kopray

Akapayda nai da 60nataHshaHa 3nHdbI 3aTTeKTepe 60nybl MymkiH, COHdbIKTaH OHbl TnicHwe Kdere Xapaty Kepek.

NananaHbInFaH acnantapdbI, opaybiTapdbIXhe KepeK-kaPaKaTapdbI KOpwaHaN opTa ywiH Kayinci3 Typde Kedere Kapaty XeHe KaTAt eHdey BoBHwA YTTbIK epKeJepdi YCTaHBiB13.

TeKaHa EO enDiepiHne: 3JNeKtpnik KypaIdbI TyPmbICTbIK KOkbicka TactamaHbI3! 3JNeKtpnik XHe 3JNeKtpoHdbIK ecki

KpybIIFbnap KHe YTTbIK 3aHFa TypneHdipy
XeHHderi 2012/19/EU eyponanbIK DnpeKTnBacbHa
Caikec, naDanaHbINFaH 3neKtpNIk Kypannap
6eneK XnHaBIn, KopwafAn opta ywiH Kayinci
KaHTa eHdeyre xibepinyi Tnic.

14. TexHnKaJIbI K DepeKTeP

3-6eTteri mJImeTTepre TyciHKTeMeNep. TexHnKaJIbIK dAmyFa Kapai e3repyi MymK

Dmax =aJMaJIbI-caJMaJIbIKypaJIbIH MaKc. dJaMeTpI

t_max,1 = raikka (14) naJaHbJfAH Ke3deKbICy DnAna3OHbIHdAfbI aJMaJIbI- canMaJIbI KypaJIdbIH MaKC. pyKcaT etiJIreH KaJIbIHdbIFbl

t_max,2 = Quick kbcna raikacbl (1) naJaHaHbJFaH Ke3De KbCy dNaana30HbIHDaFbI aMaNbI-CAImaJIbI KypaIbIH MaKc. pyKcat etinreH KaNbIHDbIFbl

t_max,3 = Cnbypa axkapnaFbI DeHreNEk/KeckiUdHreNEK: aImaIbI-caImaIbI KypaIbIH MaKC. pyKcat etinreH KaIbIHdbIFbl

t_,4 = Диickii KblnwaKapdbH MaKc. pyKcat etinreH KaBbHdbIfbl

M=wnHdJeBdiH npek OiMaCbI
| =axapnaftbiw wnnHdeJbDiH y3bHDbIfBi
n0 =6oc kypic kyinHderi aHany xinniri (makc. aHany xinniri)

P1 =HOMINHaJIbI TyTbIHbIaTbIH KyaT

P2 WbIfbc KyaT m=xeJIiIK ka6eJIbc3 caIma

OJIwey MAnepi EN 60745 cTaHapTbHa caI ecentenei.

AиHbIMaJIbI TOK

BepinreH TexnKakIbI DepeKeTepDe yFapblHdbI aybITkynap 6onybl MymKiH (kapaMdbI cTaHdapTTapFa ca).

3MnccnayIbIK KepcetkiuTep

AtanMbIw KepceTkiWTepeNekTpnik KypaIapDbH 3MmCCnrcBih aHbIKTayFa XHe ePtpni 3NeKtpnik KypaIapDbI caIbICTbipyfa MymKiHdk 6epei. PAndaIaNHy XaFdaIbHa Kapa, 3NeKtpnik KypaIapDbH Hemece anMaIbI-caImaIbI KypaIapDbH KyIbHaibI KyKTMeHi KeTepyi Hemece TeMeHdTeYi MymKIn. KymbICTaBi y3iNicTeppDi XHe pa3anapDbI aHbIKTay YsiH TEmeHipek KyKTMeHi KaMTaMcB3 etIH3. CaikeciHwe BeimdeJreH 6arafa cai naDaIaNhybl yuH KopFaHbc WapanapbH, MbCaIbI, yBIMdaCTbipy wapaIapbIH aHbIKTaHbI3.

Kya Ta6ak MetanbI Hemece yctIHri 6eti Ykenb Baca OHa dipindeiTIN daBHaMaIapDb aXapnay KepcTeINrH WbyIn 3MnCCnrcbHbH KepcTeKiUTePiHe anTapblkTaJ KofapbKaIbNb WbybN 3MnCCnrcbH (15D5 WamacbHa DeiH) Tydbpyb MyMKIn. MyHdai daBHaDamaIapDaH TybHdaTbH Wbylndb aybp, NKEMdi dipin backbiw KineMeWepepi OPhaty CnKtBi apHaBb Iwaapanap apkblb 6oJbIpMayfa 6oJaDb. AckbH WbyIn 3MnCCnrcbH, coHda-nak WbyIn JyKTemecinH Kayinb 6aFanaFaH XaHe KapamDb KyNaK KopFaHbcBtH TaHdaFaH Ke3De eckepy KaKeT.

IipinH xanblkpcetkiwi (yw 6afttbH BEKTopbIK KocbiHdbicbl) - EN 60745 cTahdapTBHa caa hblKTanaDbI:

ah,SG =ipinidH 3Mnccnayk KepceTkiwi (yctihri 6eTTepdi aXapnay)

ah,DS =iipinIH 3MnCCnIbIK KepcTeKlIiTI (tipeyiawapnaftbIw Ta6aKaameh axkapay)

Kh.SG/DS =Annci3diK (dipin)

YnriA eIwemdi IbIbIc DeHrei:

LpA =Bb6bcKbCbIMbHbIH DeHreI

LWA =db6bc KyuhiH DeHreH

KpA, KwA =ДэлсizДИК

Kopfahbw Kyaakkan TaftbHb3!

EAC

Catbin anywblifa apHaJfAH aknapaT:

Caikectik ceptnufkaTbI:

CeykeciK cepTnФkaTbI: Nc TC RU C-DE.BJ08.B.00909, JapamDbIbIK Me3iMi: 26.10.2017 K. - 25.10.2022 K., «ИbaHOBCKM ΦOHD CeTnФkaaun» KUHK, «INBAHOBO-CEPTNΦKAT» eHIMdepdi cepTnФkaTay oprahbI bepreH; MekehkaBbl (3aHdbI XeHe HaKTbI MekehkaBbl): 153032, Pecen Φedepaunrcbl, INbaHOBCaOBn, INbaHOBO K, CtaHKOcTpOnTeJIb Koeeci, NqI yu; ten. [phone]; qakc [phone]; E-mail: [e-mail]; AkkpeDntaun aTtEcTaBl Nc RA.RU.11BJ08,

24.03.16 J. AkpeDnTaun BoBbHwa

ΦeepaIbIK Kbl3MeTneH 6epijreH

Ondipuyi eJ: TepmaHnna

Öhdpuyi: "Metabowerke GmbH", Metaboallee 1, D-72622 Nuertingen, Германь

Peceire mtnopTaybI:

ЖШК «MetaбоЕваимя»

Pecen, 127273, Møckey

Bepe3oBa aannn Keuieci, No 5 a, 7-KypbIbIc, 106-KeHce

Tei:[phone]

OHyI KpaIbIH TaTaNwacBHa

KepcetinreH 10 TaH6aJIbK cepnJIbK HemipiHne

wnppnHaFaH.1-cah Xblnbbl bInipei, MbicaIbI

«4» caHbI eHIM 2014 kblbl eHdiipilireHIN 6iJdpedi.

2- XeHe 3-caH eHdiipiIreH Kbldafb ai caHbIH

6iIipedei,Mbicanbl,《05》-MaMbip aBl.

Kooncy3nykTy caKTOO MaKcaTbIHda kapaKaTa Ka Tyypa KeIyyu aTaBbH

YbIrapBInraH KoproOuy YexOny KOJIOHyHy3! Typa 3Mec KoproOuy YexON WaIMHaDbI 6aWKapyydAn YbIRbIN KeTYYCyHe KaHa ap KaHdaJ XapaKaTTapra aJIbIN KENYYCy MymKyH.11. Akceccyapnap 6eMyn da kapaHbI3!

2-6eT, F cypeTyH kapaHbI3.

• CbIbIpMaHbI (16) aHybIbI3. Koprooy KaTamaHbI (13) KepcTeYnreH a6aJda opHOTyHy3.
  -Koproooy kankkaktjka6bik aImarbl KOnDoHyyHy Kapan Tpydai KbIbn 6byHy3.
  -CbIbIPMaHbI Xa6bIbIb3.
  -KepeK 6oJrOH yUpyda, (cblbIpMa aUbIbIn TyprAnDa) BnHTtn 6eKnTyy apkblnyy (17) CblbIpMaHBn KblNchTy yy KyuyH Ke6eNtYHy3.

Koprooy kanoTTOH
kemnHe 3,4 MM YbIbIN
TyprAn Ns WaMaHaDapBIn
raHa KOJDoHyy KepeK.

6.3 Herns 6ypynMa Tytka

Heru3rTuTka TaBilraH abaIda rHa NHTee (11)KepeK.

2-6et, C cypetyh kapaHb3.

• BacbIyTbI (10) 6acbHb3.
• 3Mn HErn3rN TyTKaHbI (11) 3Kn TapaKka TeH 90^ 6byyn, 6ekntce 6oJOT.
  -BekeM OToypraHbIbH IN TeKUeepHnH3: HErn3rN TyTKa (11) 6ekntuHn, 6ypyn6aHkKepeK.

6.4 ΘηεκTp TapMarbiHa TyTaawTbipyy

TapMaKtBik WTeNceIb po3EtKaIapb IHePcunJaBik 3pIMe CaKTabiHTap JIINHJbIK KOproOuy aBTOMaTTap MeHeH KoprOlyu KepeK.

Tnntyy ta6aIbHda "WE..." Den Xa3bIraH MaunHaJap:

(Kypr3yyTOKTy aBtOMaTTbIK Tpyde YeKTeRnH KAMTbJrAn (KaJaDah Kypry3yy FyHKUraCbI).

TapMaKTBiK WTeNceJIb PO3eTKaIapbl INHepuJIbIK 3pIMe CaKTarblTAP JKe IINHuaJIbIK KOPROOuy aBTOMaTTap MeHeH KOpROnyUy KepeK.

7.Жылmaлооу диСКТи OPHOTуy

Kaipa Ka6dyu NHTepHHnH aNbIHda: KybaTTOO uHpyH po3eTKaDaH axbIpaTyy 3apbl. CtaHOKTy euypyn, uHHdeJIN TOKTOTyy KepeK.
Kooncy3nykTy KaMcbI3DOO MaKcaTbIHda, Kecyyy X3EKTHN KaKKaHbIH KOJIOHYy cyHywTaIaT (AKececcyapnap 6eJMyH 11. kapaHbI3).

7.1 WnnHdJn 6eTtTee

I 55

• UnnHdenn 6eTee (5) 6aKbIyBH 6acbln, UHHdeIIN H 6eTTeeuy 6ackbIybl 6eETenreHy ce3NJMeHHue (3) KOI MeHeH aJNaHTbIHb3.

7.2 Kblmaoooy dncktn ophotyy

2-6eT, D cypeTyH kapaHbI3.

W 2..., WE 2...den 6eIInJeHReH MaunHaJap:

-Tnpoeuy (2) pnaheuTn uHHdene opHOtHy3. Pnaheu uHHdene aJNaH6aca, Tyypa opHOtUny den 3cenTeNET.
- 6pa3nBdyy TerepekTn D cypetyHne KepcTyrIeHdei, Tnpeev (2) fnaHeuKe opHOtvy3. Xblmaooy Terepek Tnpeev fnaHeuKe Tern3 Otypuy Kepek.

W...A 2... den 6eIrrnHeHre MaunHaIap:

ABTO6aHaHcnpHn Tpueey fnaHeu (4) WnnHdIeIre Kayy 6ekntIeT. BaUKa 6ypTu yy KblMaIOOuy MaunHaJapdaH aibIpMaHaBbIN, KOUyma Tpueey fnaHeu Taan KbInbH6aNT.
ABTo6aHaHcnpHIN Tnpeeuy φIaHeuHHN (4), a6pa3nBdyTerepeKTH JkaHa (1) Quick Tnpeeuy raikacbIHbH (14) Xe Tnpeeuy raikahbH

6eT Ta3a 6onyu kepek. Kepek yypda anapdbi Ta3anoo 3apbln.

• 6pa3nBdyy Terepektn aTo6aHcnpnH Tnpeey (4) pnaHeunhe opHoTyHy3. A6pa3nBdyy Terepek aTo6aHaHcnpDnH Tnpeey pnaHeunHe Tern3 Otpuy KepeK.

7.3 Quick KbInyBITMa raKacbH 6eKnTyy/ 6oWoTyy (KOMnJIeKTAuNcBHa XapaWa)

Quick KblnbyTMa raKacbH (1) 6ekntyy:

3rep KblnyaMaraHdaBnWuMaMaHbI 8 MM DeH KaJbH 6oJco, Quick KblnybITMa raKacBH KOJDOHyra 6oJbOHT! AnDaH COH KblNyBTMa raKaHbI (14) 3KN Ke3eHKeAaKbU MeHen (15) 6eKNTyy Kepek
Bnp raha MaHdEmcN3 Quick KblInybitMa raKacbH KOJIIOHyHy3:Ke6e MeHeH cbIpTkbl WakeKueHH OHry rHa KepyHywY Kepek (2-6., cyp. kapaHbI3).

• ⅢnHdEeDn6eTeTToHy3 (7.16eJMyN kapaHbI3).
• Quick KbInyItMa rainKacBn (1) uinnHdene (3) opHOryHy3. CypETTy kapaHb3, 2-6eTTe.
  -Quick Kblnhybta raikacbH caat Xe6ecn 60oHua KOJI MeHeH 6ekntuHn3.
• Kblimanoooy terepeKTN Kyu MeHen caaT xe6ecn 60IOHua aaiNaHTyy apkblny Quick kbInyItMa raikacbin 6ekntnH3.

W...B... den 6enrnneneHmawnHaanapda akbipkbl 180^ kYyTyy TOckOoONdyk MeHeN KoUToNyy KepeK.

Quick kblnhybImraRakcbH (1) 6oowotyy:

• ⅢnHdenn6eTtEny3(7.16nymHaKapaHbI3).
• Quick KblnhyItMa raiKaHbI (1) caat Jxe6ecnHe Kapshb 6ypan yeuHn3.

7.4 KbInyblMa raKaHbI 6ekntyy/6oWoTyy (KOMnneKeTauuCbHa JapaWa)

KbInybitMa raJkaHbI (14) 6eKNTyy:

KbIyBtMa raiKaHbIH 26EtN 6bpN-6pHneH aIbIpMaJHaT. KoHTpraKaHbI 7nnHdJIre TeMeHKyDeN KblbIn 6ypaHbI3:

2-6eT, E cypetyH kappaHb13.

A) Kya Ka BImanooy TerepeKTe p uYH: KbIyItMa rKaHbH XomTy (14) eIe kapan TypraHDbIKTaH, Kya Ka BImaNooy TerepeKTo 6ekem opHotyyra 6oJOT.
B) KaIbIH XbINMaIOOuy TerepeKTeP yUH: KblnYbITMa raiKaHBiXOMyTu (14) TeMeH kapan TyprAHHbIKTaH, KblNcBTMa raiKaHbI WnnHdJIeTge6ekem opHOtyyra 6oJOT.
-ⅢnHdEJn6eTToHy3.KbInyblMa raKaHbI (14) caat Je6ecn 6oHua (15) aukbi MeHeH 3Kn Ke3eHekKe 6eKNTnHn3.

W...B... den 6enrnlneH reH MaunHaIapda akbipKbl 180^ kuyTyy TOckOoNdyk MeHe H KOuToJyWy KepeK.

KbInybitMa raKaHbI 60wOToHy3:

-ⅢnHdEJn6eTToHy3(7.16JyMyN KapaHbI3).KbInyblMa raKaHbI (14) caa TkeBecnHe KapWbI

KbIPfbl34Aky

(15) aukbIy MeHeH 6ypan 3KN Ke3eKTeH YeuHn3.

8. KɔŋdoHyy

8.1 Kyurzy3yy/Thuypyy

Maunha by ap daibim 3kn KOJOn Kapmoo Kepek.

Aderene waimaHdbkyry3yn, aHaH coH daepanma MaTepeNaIra anbIn KeJIyyKepeK.

KokcytaH Jypr3yn anyyydah caKaTHyy yUH: BnIka po3eTKaJa cyppyyn KETKeHDe Jke

3NeKtp Ky6aTbHda 6y3yIyy opyn aIraHda MaunHaBb eyypn KOoy KepeK.

Y3ak y6aBkItka KyIgY3yIgHne, MaunHa kondoon 6oWotyIgA da nIwTei 6epet.

OwoHnyKaTah, MaunHaHbI ap daBIM 3KN KOJ MeHeH TyTKacbIHaH KapMaI, TpyKTyU abaIra KeTKnipu, aHdAn COH KymuSha Ka KehyI bypyy Kepek.

HaJxC cypyHdy waimaHra copyynn KnpuHHe kOJ 6ep6eHn3.MaunHaHbI

eUpyrEHNKINNH KbIMMbIaTkbIy TOKTOHOraHa UHypdy Cyypuw Kepek.

2-6eT, A cypeTyH kappaHbI3.

MometaJyy Kyry3yy:

Kny3yy:BeTTeIyTu (8) Xe6eHH 6aRbITbIHda XblDbipBn, KOtOpryu 6acKbUbH (9) 6acblb3.

Upyy:Kotopy (9) 6acbIHyH KoE 6epnHn3.

TbIHbIMcbI3 NHTeYY (ka6dbINbIiUbiHa xapaawa):

Kyu3yy:BeetTeryy (8) Xe6eHH 6aBtBnDa KblDbipBIn, KOToPry 6acBtuH (9) 6acBn, KapMan TpyHy3. 3Mm MaunHa Kyry3yNdy. 3Mn KOTopy 6acBtuH 6eTTee yuyn (8) 6eTTeryy DaBti 6np J0ny Xe6e 6oHua (9) XblDbipBbI3 (TbIHbIMCbI3 NWTETYY peKIMn)

Oupyy:Kotopyu 6acbIyBH (9) 6acbln, Kaipa KoE 6epHn3.

W...B den 6eIrnJIeHren MaunHaIap:

Kbicka MoeHETKe Knyr3yy (ABTOKTOTyy cyHKnrcbl MeHeH):

2-6eT, B cypeTyH kappaHbI3.

Knyry3yy: KOTopy6aCKbUbH (9) aIbira XblDbIpBIn, KOtopyTu eIe kapa (9) 6acblb3.

Oурyy:KoTopryu (9)6aKbUbIn KoE bepnHn3.

8.2 Nw HycKaMaJapbl

Xbimnmaoo:

CTaHOKTy opTo Kyy MeHen 6acbIn, daarpaJIma MaTePnAnDbIn YcTsyKv 6eNyry eTe bCbIn KeTneuYyH anDbira, apTKa XblnDblpBlh13.

OdypakaJ KblMaJoo:KaKbI HaTbIJa anyy YUH 30^ -40?C 6ypu MeHen NHTee Kepek.

KbIMmaooy Terepek MeHeH keCyy:

KbImanooy Terepek MeHeH Kecn
KaTkaHa ap DaIbIM NcCKTHN
aIaNbIbIbHa KapWbI (CypETy
KapaHbI3) IwTee KepeK, BoJbOco,
MaINHaHbIH KecnReH KepDeH

Ke3eMeJcY3 Tuyn KeTyy KOpKyHyy JkapanaT.
IwTeJIIN XaTKaH MaTePnaJra bIaNbIKTanraH,
optOo Kyy MeHen NwTee KepeK. OTe KblwaIyyra,
aUbIKya KUY KeNTnpyyre KaHa MaUNHaHbI
yauKOoro KOJ 6ep6ehn3.

Bapa6aHdyy, yoiJraH haxdaKtyy cyprycy MeHen XblImaIooOy cTaHOKTOP:

CTaHOKTy opTo kyu MeHen 6acbIn, daapdaIma MaTePnAnDbIH YCTYHKV 6eNvY 8Te bCbIn KETneWn YyH anDbira, apTKa XblDblpblHb3.

3bIMdyu 电Tkanap MeHeH NHTee:

MaunhaHbOpToO Kyu MeHeh 6acbHb3.

9. Ta3aJoo

IwTeTIN KaTkHaMaunHaHbIn NcHHe KOUToOy YAH OTpyn KAlbIbIMymKvH. ByJ 3NeKTp WaimaHbIM My3DaTyHy HaayapNaTaT. Tok ETKepyyyu YAH 3NeKTp WaimaHbIHbIKoproOuy H30JIaIcBbH 6By3yn, 3NeKTp COKkyCHy Anyy KOPKyHyH JapaTbIbIMymKvH.

Bnpu kTaN 6aKbI apalnbHda aIdbIHkbI KaHa apTKbl a6a aINaHTyyu Ke3eHKeTp apkblnyy
YAHbl Ta3anAn Je KypraK aba MeHeh YInETyn
Typyy KepeK. Koprooy Ke3 aIHeKTePdN Knnn
XaHa YauHdAn KoproOuy Tyupa KeJreH 6eTKantbl
Kninn IaMnDbl TOK 6yIarbln 6epyyUyeKNTtEH
axbipatbHb3.YInETyy UypyHda XeTNIUTYY
copdyppyUa6 KaMcbI3daJIbIbIbI KepeK.

TyTkahbI (10) Tyypanooy 6ackbIy: 3apbln 60JCO, 6ackbIyTbIh KInpH Ta3aJaHbI3 JKe Kpyran a6a MeHen yIeTVHy3 (6acblraH abalbHa, Heru3rN TyTkahbIH 3 abaJIbHaTeH). An yuyH 3neKtp WaImaHbIH 3JeKTp 6yIarbHaH axbIpTaBn, KoproOuy Ke3 aIHeK XaHa peCnnpaTop KInyy 3apbln.

10. MyuIyTuKTepy Ondoo

TunTyu Ta6aBbHda "WE..." den Ka3bIraH MaunHaJap:

Ausbikya JyKToH KOPRO: 3JKeTPOHdyK cnHAn HndnKaTopy (6) Kyuyn, Kyu KeIReHde aHaNhyy XbiUtbIgI KaIMKNDEn a3aNaT. KbIMbIJaTkbIyTaIbI aBbIKyA TemnepaTypa! IaImaH My3daIbIy JaHa 3JKeTPOHdyK cnHAn HndnKaTopy eKyu, aHbI Kpy KypuWTe NHTeINH3.
-AuBikya KKTEN KOPRO: 3NeKTPoHdyK CnHaI INDkATopy (6) Kyyn, KUy KeJREHe aNaHyy KbiWtblbI KNUHReA a3aaiat. 3NeKtp WaMHaBHa aBikya KUy KeJreH. 3NeKTPoHdyK CnHaI INDkATopy eukye, TeMeH KUY MeHe NwTei bepHHN3.
-3NeKtpoHdyk abapnIbIK eUpyy: 3NeKtpoHdyk cInHan nHdNkaTopy (6) Kynyn, MaunHa e3yHoH-e3y OyN Kanat. 3rep yypdaI bcyblIaMdbIgI eTe XorOpTy60nc (MICAJIbI, KYTYCY3eH TOKTON JKe T3n KeTKeHDe)

MaunHa euypyIeT. Ouypyy 6ackbIbH 6acbln, Ka6dbkTbI euypyy (9).MbIHdAn KINH aHbI Kaipa Kyry3yn, KaIMKn peXIMde NwTei 6epu KepeK. KnHHKeIe 6nOKo Twyyp6eere apakETteHrIne. ByI 6enymdy kapaHbI3:4.2.

-KaIraan Kypr3yydH KOPRO: 3NeKTPoHdyK CnHAn HnDnKaTOpY (6) BYLbYlDHT KaHa 3NeKtp WaimaHbI NwTe6eB KaIaT. KaIraan Kyry3yyHy 6eETTEeuy TY3Mek NwTeN KeTeT. MaunHa Kyry3yLrEHeJe Ky6aTbI eUpyrReHDe H KInn H Kaipa bepuIreHde UHypdyh BNJkacbl CaibnlbIn Typca, MaunHa Kxpr3yy6eHt. MaunHaHbI eUpyn, Kaipa KYNy3yHy3.
- Kyriy3reHne 3neKtp waimaHbI Xoropky aHaHyy KbiUThbIrBaHa eTe Te3 XeTeT, 6.a. JYrpy3yy TOryHyN ABTomaTTbIK YeKTErHu (KaJdaH Knyr3yy fYHKuJaCbl) mUte6eBn KaNat. 3NeKTPoHdyk 6JIOKTO KaTa 6ap; 3NeKTPoHdyk 6JIOKTH fYHKUJaPbIH TmNtUTy TExHnKaJIbIK KOONCy3dyK BOHOHa 6aSha Ka KepcETMeJeP JOK. 3NeKTP waimaHbI DaopoO OHDOOR eTKepyHy3 (12.6eJyMn KapaHbI3).

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

Knyry3yy npoecctepnHne ybHaany Kyicka MeeHETKe Tswyn KaanT. TapMaKTbIH napameTppepn bHraIcbI 60Ico, 6aWka acnanTap 6y3yyn KaNbIbIbMyMkyH. TapMaKTbIH TOnyk TOckOOndYry 0,2 Omro JeTnece, 6y3yyy d3apnik opyn an6aayt.

11. Akceccyapnap

Metabo nmpMacbHaH yBikKaH TynHycka TaTnKTeTnKTePdHa RaHa KOJdoHyy CyHyTaJaT.

Uyyn 6apakyaKeJtnpunreH TaanTapra XaHa MyHe3dEmeIepre TnNtYY akceccyapnapdbI rana KOnDoHryna.

AkeccyapnapdbI 6ekem opHoTyHy3. 3JekTp
waMaHbIH KapMarbUHTa NwTeTIN KaTKaHda:
3JekTp waMaHbIH 6ekem opHoTyHy3. BaWKapyyHy
Xorotyy kapaKaT anyyra ceBen 6onyu MymkyH.

4-6eTTn kaparblia.

Kymuyu 3JemeHTke Tyypa KeIyyu KoIOnyuy 6eIyK TY JkaHa KepcTeYJrE H Koprooy cExoJdy KOnDoHyHy3 5-6ETn Kaparbila. (Cypetep Mncal 60no aNaT).

Iw TanwbipMacbi:

1 = YCTVHKY 6eTN MeHeH KblImaNoO
2 = Белучу Гумдер
3 = TeuNKTePdN KeCyy
4 = 3bIM ΦeTKaIapbl
5 = Haxdkaara3bHbHxblImaIOOCy

KoJonyyy6JnykTep:

1.1 = Kapá JbIIMaJIooOу dIck
1.2 =Жылmaлоочуndиш(kepaMknalbIK)
2.1 = KecyyuyДиСК "MeTaNП"
2.2 = KecyyuДиСК "KnpnU/BeToH
2.3 = Kecyyu anma3 nckn "Knpnn/BeToH"
2.4 = ΘKN MUNIeTTn aTkapyyuy dNcK (apanaW KblMaIOOuy KaHa KeCyyyu KbIMaIOOuy dNcK)
3.1 = Anma3 6byprynooocy

4.1 = Terepek ΜεΤα
4.2 = έιπις γυγή Μετκα
5.1 = nlaactnHaIbIK XblImaIoooy Ta6aKaHa
5.2 = Kbimmaooy JnCTTep yuy H Kblmnaoooy Ta6aKa

Kazbilaran Koprooy yexoI:

A Tn6n =Benyyu Koprnooy Bnyk
B Tn6b = kblImaNoo yUyH KoprOooY 6eNyK
C Tn6n = XbIImaJoo XaHa (apana) 6eJyyy JXbIImaJIOO YyH KoprooY 6eJyK
D Tn6u = nIiNtTu KblImaNoo yUyH KoproOuy 6eNyK
F Tn6n = copyn anyyuy 3neKtp toryH euypyyyu Kopr00uy 6eNyK

Башka akceccyapnap: (www.metabo.com kapaHbI3)

A MeTaN Kecyy yuyh Tnpoeu
B KbInyblMa raiKa (14)
C Quick Tnpeeu raika (1)

AkeccyapnapdbIn Tonyk accoptmehtnH www.metabo.com caTbHaH JKe 6aikbl KaTaNOrDnKapaHbI3.

12. PeMoHT

3JIeKTPHCTpyMeHTTpeMOHTTOO aTaIIaIbIraH TeIeO yCTaKaHaIapbIHda raha Kypry3yIyUy Kepek!

By3yIraH TapMaK Ka6eHH TynHycka Metabo Ka6eHN MeHeH rHa aImaWtBipyy Kepek. AhbI Metabo TeJnnee 6op6OpyHaH caTbIn anyyra 6oNt.

W...B... den 6enrnenreH MaunHaapda
IeTKanap TOnTOMy H anMaWTbIPbIN XaTKaHDa,
TOPMO3 KaNTaTManapbIH Da anMaWTbIPyy KepeK.

Metabo qnpMaCbIHbIH 3JKeTp Jka6dbIKTapbIH peMOHTTOO yUH Metabo eKyIuYnyrHe KaipblbIbI3. IapeKTePn www.metabo.com caHTbIHan Tabacbi3nap.

KamdbikTapdbIH TN3MecnH www.metabo.com caHTbHaH KyKTen anacbi3ap.

13. AúnaHa-уeɪpəHy Koproo

Paina 60IroH XbJIMMaJIOO yaHbIHda 3bIH 3aTTap KaMTbIbIbIbMyMKyH 60IroHdyKTah, aHbI TaanTaraDai yTuIN3aCuaJNO KepeK.

3KoIornblk Kaipa naJaIaHy KaHa NtTeH YbIKaH Ka6DbIKTapbl, TaHraKTapbl KaHa akceccyapnapbl Kaipa NtTeTyy 6OIOHya yIyTTYK 3pexeJepn caKaTaBla.

EB eKeIepy yUH rHa: 3u KaaH 3JekTp KypaIdapbIn YIDey TaWtAHbI KyTcyHa TaWtAbbIa! KOnDoHyIraH 3JekTpOHNyK XaHa 3JekTp KypaIdapbI 6oHua 2012/19/EC Ebpona 3peKeIepn 6oHua KaHa yLyTTyK MbI3aMdapra bJaBik, KOJDOHyIraH 3JekTp KypaIdapbIn 3yHNe YoYlTyun, aAlNaHa-yeIpeRe 3bIaN KeJItnp6BeHeDei KbIbIn bIpRbTIbI W KepeK.

14. TexHnKaIbIK IapTTapbl

TeTaNapdbIn CypETeJyWHy 3-6eTTeH Kaparblia.
TexNkaBik nporpeccke baNaHbIwTyy
e3repyyIepdy anDbH ana Kaparblia.

Dmax =nWuMaMhBHyH ypyKcat 6epnIreH mAKcMmAnDyy DnaMeTpN

t_max,1 = n KbInyblTMa raKacbl KOJIOHyIraHda KblNbITMaHbH YeRnHdern Nw WaMHaBbHbH ypykcat 6epnIreh MaKcImaNdyy KaNbHdbIbI (14)

t_max,2 = Quick KBINyBITMa raNkacbl KOJIOHUYIraHda KbINyBITMaHbIH YerHHdern Ns WaaMHaBbHbIH ypyKcAT 6epuInReH MaKcImaIddyy KaJIbIHdbIRbI (1)

t_,3 = cypyyy Terepek/kecyyy Terepek: nshwaimaHbIHbIN ypyKcat 6epnIreH
MaKcImaNdyy KaJIbIHdbIbl

t_,4 = [ \text{KaJIbIHdIgbl} ]

M=Kvrgptme cau

=KbImMaNoOuyIINHDeIyIePKTHNCHKaH

n0 =Kpy KpyuTery aHnaHyy bINaAMdbIRbl (MaKcImaNdy aHnaHyy XbIITbIbl)

P1 =HomHaIyy KepeKeTeyyy Ky6aT

P2 =Ubyyyky6aT

m=TapmaKa6eIncn3 caImarbl

OJIyHmAAHcN EN 60745 cTaHapTka bIaNbIK aHbIKTaJaT.

II KnaacctarbI Ka6dbIK

\~ Θ3repeMe TOK

BepnJreHep Knpn3yyIepyH 3ce6n MeHeh BepnJre (yypdaBcTahdapTTapra binaik).

KaIaIKTap

75 Byn Maahnep 3neKtp HNCTpyMeHTTN KaandbIKTapbIH 6aanaT XaHa ap KaHdA 3neKtp HNCTpyMeHTTepDn CanblbipBn 6epeT. Iw peXMMdePHe XapaSha, 3neKtp INHCTpyMeHTTN Xe NaTPOHNy H abanapbl, yUypDarbl Mmndetyu NUnHeH XOROpY Ke TEmH 6OlyWy MyMKvH. MnDeTTyy NWTINH TbiHBiYynapbIH XaHa TemeH pa3acbIH 6aAnoo yUyH KapaBila. BepJireh 6aanapra bIaNbIK KOJDOHyUy UyH TNIWHTYY Kooncy3dyk YapaanapbIH 6BelrInerNe, MICAbl, yIOwTypyy YapaanapblH.

AaHTbI yOH 6eTTepn, Jyka NInCTTepn JKe 6bp a3 dnpunDen TyprAh Hecpepepn XbIMAlaraHda YHdyN KepCEtyIReHdEh DaIbIK KeN YbIbIbHa (15 Da Ra YeHH) c6en 6onyuMymkyH. MbiHdAn Hecpelep YHdyH aIbIKya YblryyCuyH TneWeJyy YapaIap MeHen KoprOlycy Kepek. McaJIbI, YoH nnU3K DeMnΦnpiHe TyprAh KInEmuepep. OoOHdoI 3Je bI3bI-yy TaacnPunHn KOpKyHyUH 6aaNooo JaHa yRyyHyB IaIaNbIKTyU KOpROOHy TaHDOOO YHdyH KOrOpyNaBbI KapaJIbIbIkepK.

DinpHJDeeHyH kAnIbI eJHcMy (yU 6aBtTBiH BeKTopdyK cyMMacbI) EN 60745 bJaNbIK aHbIKTaJIraH:

ah,SG =INpINIDeOHyH 3MNCCNnBbIK KepCOTKvY (YCTYHKy KaTMapDbI XblmMaNOO)

ah,DS =4aHkaJyyHyh 3MnccnJbIK KepcETkyy (Ta6ak TpyHdery XblmanoooTerepek MeHen Xblmaooo)

Kh,SG/DS =KaTaIbIK KOaΦΦnueHTN (DnPnDae)

bl3bIyyHvN DeHr3aJI:

LpA =akyctNkajbIK 6acbIM

LWA =akcyTnKaIbIK Ky6aTTyJnyK

WaiKeHTNK TaTbIKTaMaCbI:

UaKeTnK TAcTbIKTaMaCbI: Nc TC RU C-DE.BJ08.B.00909, XapakTyy MoeHToY 26.10.2017-#. 6a#tan 25.10.2022-#. YeinH, «UBAHOBO-CEPTNΦHKAT» OOO «UBaHOBckn IOnd CeTnФkaCun» eHymdy TAcTbIKTOO orpaHbI TaPabHaHbepnre; Dapern(lop. JkaHa paKT 6oHua): 153032, Poccna Fedepaunca, IBAHOB obl., UBAHOBO W., CtaHKOCTponteNei Keu., 1; TeJ. [phone]; fakc [phone]; E-mail: [e-mail]; AkpeDntaun aTTecTaTbI No RA.RU.11BJ08, 24.03.16-#. FedepaNbik aKKpeDNTaun Kbl3MaTbI TaPabHaHb epnire

HdpyyIeH eke:epmaHna

ΘΗνργμγύ: "Metabowerke GmbH", Metaboallee 1, D-72622 Nuertingen, Γερμαήσι

PocnnaarblmnpTTOoy:

OOO "MeTa6o EBa3n"

Poccn,127273,MockBa

Bepesobar anner Kue., 5 a, ctp 7, 106-KeHce Ten.: [phone]

OHypyrReH KyHy WaaMaHaBbIH 3HTaMraCbIHda KepcTeYrIReH 10 opyDyy cepnIbIK HomepHHe IuΦpIeHReH. 1-can XblbH 6nIInpeT, MncaIbI, 《4》 caHbI 6yIOMdyH 2014- kblbI eHdVpyrReHvH 6nIInpeT. 2 KaHa 3-caHapbl eHdVpyrReH XblDaIbI aIbI 6nIInpeT, MncaIbI, «05» - MaI

BiyomdyuKoJdoHyyMeehety7XbIJ.

HnyyIeHnKnn5KbIcKaTanca,anBHa ana TeKwepe6ecTeH uke Knpn3yy CyHyuTaIbaNT (daepaIraH KyHyN 3TNKeTkaDaH kapaHbI3).

OpnirhaIhna IInctpyKci3 ekcnlyataii

MOKe npn3BeCTN Do ydapy eIeKTpHnM CTpyMOM.

4.2 BiDaua Ta BiNobiHn npaBnla 6e3neHn

Bidaa-ue panToBa peakia B pe3yIbTaTi 3acTpaHnA 60kUbaHHn IHCTpymeHTaIbHOi HacaHn, 0o o6epTaetbc: uIiOyBaIbHOrO dNcKa, Tapilactoro uIiOyBaIbHOrO Kpyra, DpOTaHO iITKn TaIH. 0o BeDe Do p3Koi 3ynHKn IHCTpymeHTaIbHOi HacaHn. Lc BnHInKae HEKOHTPOJbOBaHn pyx eJeKTpoIHCTpymeHTy B Micti 6IOkyBaHH y HanpMy, IpOTnJIeXHOMy HAnpMy o6epTaHH nHCTpymeHTaIbHOi HacaHn.

KaH,HaPnKnaD,LiΦyBaJIbHni DNCK 3a6loKOBaHni a6o 3acTpyB 3arOTobci, KpOMka 1IiΦyBaJIbHO rO DnCHA, 0o 3aHypeHa y 3arOTOBky, BIKInKa e N6KoJKeHHr DnCHA Ta BiDauy. 1IiΦyBaJIbHni DNc pyXaETbcR y HaprrMky KopNCtYBaHa a6o BiD HbOrO, 3aJeHXo BiD HaprrMky O6epTaHnR DaNcKa B MOMHT 6LOKyBaHHr. Ppi CbOMy WlΦyBaJIbHi DNCHN TaKOx MoKyTB NaMaTnCra.

BidaeHaacIikomHe npabHnHO a6o NOMIKOBORO BHKOPNCTaHH
eEKeTPOiHCTpyMeHTa/a6o HeBIDNOBIDHX
po6OuX yMO.3anobirnoRBI iDauHi
DONOMOxyb BiINOBIDHI 3axOOn, kki ONncahi
HNKHe.

a)MiUHO TpImaIte eJEnTPOiHCTpyMeHT, BawI TIIO Ta pyKN NOBHHI nepe6yBaTH B NOLOHeHHI, IAE rapaHTyec MOKlnBicTB npOTnCToTn BiDaui. 3aBKnBuHKOpNCTOByTe DOaTHOBY pyHOaTHy, RkUO BOHa E, DIA MaHCmAlbHOrO KOHTPOJIu HaB BiDaueKO Ta peAKTHBHMN MOMeHTAmn NiAc po3roHy. 3a yMOBN BxHBaHN BIDNOiDHN 3axoIB 6e3neKn KOpNCtBuAch 3daTHN KOHTPOJIbBATn CINN BiDaui Ta peakui.
b) He Trpmaite pyHn no6n3y IHCTpyMeHTaIbHOi HacAdH, 0o o6epTaecTbcra. IHCTpyMeHTaJIbHa HacaIka MoKe B MOMeHT BiJaI TpaBMByTu BaUy pyKy.
c) YHnKaIe 3HaxOJHeHH B 30Hi, B AHy eIeHTpoIHcTpymeHT notpanNTb npn BiDaayi. Pn BiDaui eIeKTPoIHcTpymeHT pyXaETbcR B HAnpMky, IpOTnJIeXHOMy HAnpMky OepeTaHHr WlifyBaIbHO rNCKa B MOMHT 6LOKyBaHHr.
d) IpaioTe Oc06nBO yBaHHo 6Ia HyTIB, roctpnx Kpomok Toso. He donyckaaiTe pHooWety IHCTpyMeHTaJIbHOi HacaHKn BiD 3aROTOBKn Ta II 3aHInHIOBaHHa.
IhCTpyMeHTaJIbHa HacaIka, 10 o6eptTaetbcra, MoKe 3aKlnHITncs6Iy KytB, rOcTpnx KpOMOK Ta npn pIKoWeti. HacIidKOM e Btpata KOHTpoIIO a6o BiDaua.
e) He BHKOpNCTOByTe NOJOTHO JIaHcIOrOBoI NIIIN dJIe PI3aHHa DEpeBHN,3OKpema cerMeHTOBaHn aIma3HN BiDiPI3HN Kpyr 3 BiDCTaHHIO MIX cerMeHTAMn NOHaD10 MM,a TaKoH He BHKOpNCTOByTe NIIbHeNoJIoTHO 3 3y6zamn.Taki IHCTpyMeHTaJIbHi HaCaADKn YacTo BHKJIkaHOb BiJaDaUy Ta BTPaTy KOHTPOJIIO.

4.3 Oco6nBi Bha3iBKN 3 Texhikn 6e3neHn niJ yac wliyBaHHra Ta a6pa3NBHoro BiDiPI3aHHa:

a) BnHOpncToBnyTe TlIbHN Ti a6pa3NBHi IHCTpymeHTN, 10 peKoMeHDoBaHI dJI BaWoRo eJeHTpoiHcTpymeHTy, I 3axnchNHOxU, 10 nepeD6aueHNI dJI a6pa3NBHX IHCTpymeTIB. 1JI a6pa3NBHX IHCTpymeTIB, 10 He nepeD6aueHII dJI BaWoRO eJeHTpoiHcTpymeHTy, He rapaHTOBaHNI DOCTaTHIIN 3axnCT, OTKe HemaE rapaHTII 6e3neKN.

b) ⅢIΦyBaJIbHI DnCKN BuRHyTORO npoΦiIO MaOTb 6yTN BCTaHOBJIeHi TaHm YINOM, 0o6 ix ⅢIΦyBaJIbHa NOBExHr He BVCTyPana HaI NLOUHO 3axCHORO KpaIO. HenpaBInbHO BCTaHOBJIeHN ⅢIΦyBaJIbHI Kpyr, RAKNI BNXODITb 3a MeKi 3axCHORO KpaIO, He MOHe 6yTN 3aTeMHeHn HAJIeXHM YINOM.

c) 3axnchno koxy Tpe6a haidinHO BCTaHOBHTn Ha eJeKtpoiHCTpymeHT i dI MaHCmMaJIbHOi 6e3neKn HalaWtYBaTH TaHIM YHOM, 0o6 BiKpHTOIO 3aIIHwaJACr IHe HeMeHsuaCTHa a6pa3NBHOI IHCTpymeHTa. 3axnchno koxy Doonomarae 3axnCTHTn KOpNCTyBaHa BiD yIaMkiB, BnPaIKOBOrO KOHTaKTy 3 a6pa3NBHM IHCTpymeHTOM Ta icKOp, BiD JIKX MoKe 3aHHTNCr OdIg.

d) A6pa3nBHi iHCTpyMeHTN NOBHHi BHKOPNCOBYBaTcra TlBKn 3a npn3HaueHHam. HanpNHlad: 3a6OpOHAcTbCBAKHOHyBaTH NJIiOyBaHH6iHoIO NOBepXHeIO BiDiPI3HOro Kpyra. BiDpi3HI Kpyrnp3HaueHdIe 3HRTMaTePiaJy KpOMKOIO Kpyra.CNI,Io BnINBaIOTh Ha Kpyr 3 6iHuOi CTOpOH,MOKyTb CTAtn pniuHoiO Ioro pyHyBaHHa.

e)Дя yctaHOBN WlifyBaIbHOrO nchA 3aBKnBn BnKOpNCbYnte CnpaBHN 3aTnCKHnФlaHeCb notpi6HOro po3mipy i fopMn. BiNobiDiHa oPmOIO pO3MpOMФlaHci φIKCyOTb WlifyBaJIbHn DnCK I 3HnKHyOTb Pn3NK Horo po3lOMy. 3aTnCKHiФlaHci dJa BiDpI3Hnx KpyrIB MoKyTB BiDpI3HrTncB Bd 3aTnCKHx ΦlaHcIB dJa IHsX WlifyBaJIbHnx DnCKiB.

f) He BnHOpNCToBvIe 3NoWeHI wLiiFyBaJIbHi dNcN BiD eJeKtPoIHCTpymeHTIB 6IbWoO p03mipy. LliiFyBaJIbHi dNcN, BnroTOBJIeHI dNpeJeKtPoIHCTpymeHTIB 6IbWoO p03mipy, He po3paXoBAhi Ha BnCOHy qAcTOTy OBeptAHHa MaIOra6apHTHnx eJeKtPoIHCTpymeHTIB i TOMy MOJkyTb 3pyHbATnCra.

g)ПдчаснКОпСТУВаHнДИСЧAMNДЛЯДBox 3aBxDn BnKOpNCTOByte BiDNOBiDHN 3axnCHN KOnyX DnBnKoHaHOrO 3actocyBaHn. HeBnKOpNCTaHHra BiNObiHOrO 3axnCHOrO KOxya MoHe Iprn3BecTn Do BiCyTHOCtI Heo6xIDHOrO ekpaHyBaHn, Ta JH HacJIIOk DO TЯнKOrTO TpaBMyBaHn.

4.4 DoaTHOBI Bha3iBn 3 TexHInn 6e3neHN npn BiDpi3aHHi a6pa3NBHMn dnchamn:

a) YnKaIte 6JIOkyBaHH BIDpi3Horo Kpyra Ta 3aHaTo BucOHOro npTnCKHoro 3ycNJIA. He BnKohyTe 3aHaTo rIn60i po3pi3N.

IpeBaHTaKeHnB BiDiPI3HOro Kpyra npncKOpOe

Ioro 3Hoc i 36iJbUye cxNJIbHicTb Do nepeKocy a6o
6LOkyBaHHa RK HacJIIDOK - MOKJIINBicTb BiJaChi
abo pyHyBaHHa.

b) YHnKaIte 3NaXoJHHeHH B 30Hi nepei BiDiPi3Hm Kpyrom, 10 O6eptaetbcra, i no3ady HbOr. Ppi 3MiueHHi BiDiPi3Horo Kpyra B 6OboJIbOHaII DeTani B HAnpami BiD c6e eJeKtpoIHCTpyMeHT y BnPaHy BiDaqui MoKe BiDCHOHTI pRMO Ha Bac pa3OM 3 DnCHOM, 10 o6eptaETbcra.

c) Y pa3i 3aKlnHIOBaHH BIDpi3HOro Hpyra a60 nepepNBaHH pO6OTn BmMHITb eIeKtpoiHCTpymEt i DoueKaHTecr, nOnn Kpyr NOBHicTTO 3ynHHTbcr. HikoN He HAmaraiTEcB BtARHyTN BIDpi3Hn Kpyr, 0o 06epTaETbcr, 3 PO3pi3y - MoJInBa BiJa4a. BCTahOBiTB i ycyhble Te npuHny 3aKlnHIOBaHH.

d) He BMHaIte IHCTpMEnT 3HOBy, RaHcO BIn BCE ue 3NaXoNtbcB O6po6JIIOBaHIN DeTAli. Ipepe npOoBHeHHm po6To N DoueHaNTecn, nOnn IHCTpMEnT DOcRHe PO6Ooi YactOTn 06ptAHn. IHaKSe MoKInBe 3aJaHHN Kpyra, Ioro BVsCKaHbAHN 3 O6po6JIIOBaHOI DeTAli a6o INoBa BiDau.i.

e)Пинраite ПИNTa603arOTOBH BeINKOro
po3mipy, 7O6 3HN3nTn pN3nH y BnnaHy
3aIaHHaBn H3HO Kpyra. BeInki 3arOTOBH
MOHyTB npOnHaTnc NiB BLaCHOIO BarIO.
3arOTOBky CIIpiNpaTH 3 DBOX CTOpIH: 6ln3bKO
JIiHII BVkoHaHH P03pI3y Ta y3DObHK II KpOMKn.

f) BydbTe OcO6nB0 O6epeKHi npu BnHOHaHHi 3aRn6hNx po3pi3iB CtiHax Ta iHnx 3oHax, 1o He nporIaIObCra. Pn 3arN6JIeHHI DnCKa NiJ Yac pi3aHH MoJINBNI KOHTaKT 3 ra30-i BOONpOBoDAmN, eJeKTPnuHOIO npOBODKOIO Ta iHsIMN o6'kTaMn, 1o BnKlnKaE BiDaay.

g) He BnKohyIe KpNBoJIHiHn pi3.

IpeBaHTaKeHH BIDpi3HOro Kpyra npNcKOpIOe Ioro 3Hoc i 36iJIbUye CxINbHicTb DO nepeKocy a60 6LoKByBaHHa, a Ka HacLiDOK-MOHNBicTb BiDaayi abo pyHyBaHHa, lo MoKe PnN3BeCTn Do TAnKKOro TpaBMyBaHHa.

4.5 Oco6nBi Bha3iBHN 3TexhIKN 6e3neHn npu wliifybaHHHaKaDaHm nanepom:

a) BnHOpncTOByTe HaJdaHn nnip BiNobiDHoro po3Mipy,doTpMyItecb IHcTpynii Bnpo6HnHa 0do Bn6Opy panepy. HauJaHn nanip, 0o BnCTynae 3a MeKi TapiJnaCToro 7JIiFyBaJbHorO Kpyra, MoKe CTaTI npuHIO TpaBM, 3aCtprAHH, pO3pHBy HauJaHOrO nanepy Ta BiDaayi.

4.6 Oco6nBi Bha3iBKn 3 Texhikn 6e3neH npn BHKoHaHHi p06it 3 dpOToHmM nithaMn:

a) Ppimitbdo ybaru, 0o dpotrahi utkntn Btpaayotb wmaTOUHN dpOTy TaKOH npn 3BnuahHomy BHKOpncTaHHi. He npnHJaadte 3aHaADTO BnCOHe pNTnCKHe 3ycnJIJIa.

BidniTaOciI SmaToUKN dPoTy MoKyTb IerKo npoxOuNTn Ckpi3b TOHky TKAHNHy OJrpy Ta/a60 npOHKnATn B wKipy.

YKPAIHCbKAuk

b)ПиВИнОнСТаHи 3axnCHOrO KOHyxa He DonychaIte NOro HOHTaHTy 3ДрOTAHIOU ⅢITHO. TapiJuaCTi i YauKOBi ⅢIeKIO npTnCKHOrO 3ucIIJI a BiDuEHTpOBHX CIN MoKyTB 36IbSByBaTN CBi DiAmETp.

4.7 DoaTHOBI Bha3iBKN 3 TexHIN 6e3neH:

PONEPENHEHH!3aBKnHaJaRaTe 3axnchi OKyIApn.

HaJaTaIe 3axChi HabyuHnKn.

NONEPEDHEHHIPiJvacpo60TH3aBKnTpImaTe eJeKtpoiHcTpymeHToboma pykam.

He BnKOpNCToBvIe 3axNCHn KOxyn IJ
IiDyBaHHnPiD Yac BnKoHaHHn PO6iT 3
BIDpi3aHHn ABpa3HBMn DNCKAMn. Pid Yac
AHnPO6iT 3 BiDi3HNMn DNCKAMn 3 MeTOO
KN KOpNCTuTEcra 3axNCHm KOxYXOM IJ
AHHaBpa3NBHMn DNCKAMn.

He BnKOpNCToBvTe cerMeHToBaHi aIma3Hi BiDi3Hi KpyrN 3 BiDCTaHHIO MIX CERMeHTAmN NOHaI 10 MM. DOnyckaETbCRA BnKJIIOUHO Bi'EMHNI KyT pi3aHHc CerMeHtA.

BnKOpncToByTe 3'eHaHi BiDiPi3Hi KpyrN TiIbKn, AkiO BOH NocnJIeHi.

BnKOpNCToByTe eJnactuHbKn, RKnO BOHn BXoJaTb DO KOMnEHTy a6pa3nBnHex IHCTpyMeHTi BnPo6HnK HanoJIrae Ha ix BnKOpNCtAHHi.

DotpmyTecbpeKomeHdauiBnpo6Nka IHCTpymentTu Ta npnilaJr! 3axuauTe DnCKn BiD NOTpanJHHMaCTnla Ta ydapib!

36epiraTe iHCTpyMeHTaJIbHI HacaIKN Ta NOBOdTEc3 HIMN BiIOBIDHO DO BKa3IBOK Bnpo6Hnka.

He BnKOpNCToBvIe BiDiPi3Hi Kpyr nIyOphOBoro 1iIyBaHnA6o BnJaIeHHN 3ayCeHeu! Tpe6a yHnKaTn 6iHOro TnCKy Ha BiDiPI3Hn Kpyr.

3aROTOBka NOBHHa HadiHNo npJIraTH Do
NOBePxHi Ta 6yTu 3aKpIJIeHa BiD 3iCKOB3yBaHHa,
HAnpIKJa, 3a DonOMoTO 3aTnCKHnx pInCTpoIB.
ДЯ BELINKHX 3aROTOBOK Tpe6a NepeIb6aHTNt
DOCTaTHIO ONOpY.

Pn BHKOpCTaHHi IHCTpyMeHTaBbHx HacaDOK 3 pi3b6oBOIO BCTaBHO KIHeCb IINHDeJI He NOBHeH TOpKaTHcNepΦopOBaHOI OCHOBn a6pa3HBoro IHCTpyMeHTy. NepeKoHaTecr, Io p3b6a IHCTpyMeHTaBHOI HacaDN Mae DOCTaTHO IOBXHNy DIA KpINLeHNr DO WNNHDeJI. Pi3b6a IHCTpyMeHTaBHOI HacaDN NOBHNa CnIBNaTaTI 3 pi3b6oU WNNHDeJI. DaHI UDO DOBxHNr Ta pi3b6u WNNHDeJI DN.Ha CTOp. 3 Ta B po3di1 14. TexhiHi xapaKTePcNTKN.

PeKOMeHDoBaHO BnKOpNCToBbATn BiIDNoBIdHn CtaioHapnBn BnTJXHHN PnCTpii.3aBXdni NiKJIouaTe npncTpi 3axnCHoro BiKJIoueHHa (Pi3B) 3 MaKcImaJIbHmC TpyMOM BHTOKy 30 mA. IicIa BiKJIoueHHa KyTOBOi WlifMaunHn PnCTpOcEM 3axnCHoro BiKJIoueHHa Tpe6a nepeBipNT Ta NouchTtN MaunHy. DInB. po3di9. YnueHHa.

He BnKOpNCTObYTe noWkoDjKeHi, ekCSeHTpNHi Ta Bi6pyuOi iHcTpymeHTaIbHi HacaKn.

YHnKaIe N0sKoJxHeHHra3OBHX Ta BOOpPObiDnHex Tpy6, eJeKtpnHoi IpoBODKn Ta Hecyux CTIN (CTaTnKa).

Ipeed npoBeeHnM pO6IT 3 HaJauTyBaHHn, nepeoChaueHHa 60 o6ClyroByBaHHn BNTTHiTBuIKy 3 po3ETKn.

NoWKoJKeHy a6o noTpickaHy DoaTKOBy pyKoRTKy cIiD 3amInHTn. He ekCnJIyAtyTe MaunHy 3 NOWKoJKeHcO pyKoRTKOIO.

POnKoJKeHn a6o nOtpickaHn 3axnCHn KOxHy cIi3amHHTn. He eKcnLyatyTe MaunHy 3 POnKoJKeHm 3axnCHm KOxYXOM.

He BMnKaIte iHCTpymeHT, kNo Ioro DeTaJI a60 3axiChi npncTpoBicCyTHa6o yuKoDkeHi.

MaunHn 3 nlaBnM nycOM (3 mApKyBaHHaM "WE..." HaTexhui Tabnuci): RaKo npn 3anych MaunHa dyKe WbNDIO pncKOpOeTbcr Do MaKcImaJIbHnx OBeptIB, To Mae MicIe NOMInKa B eJeKTPOHOMy 6Looi. He MoJHa po3paxOByBatn Ha iHsi FyHKuE JeKtPOHOrO 6LOKy, RKi BiNObIaIOb 3a 6e3neKy. HeraHNo 3daTe eJeKTPOIHCTpyMeHT B peMOHT (INB. PO3d1 12.).

3aKpInIIOHe MaJI 3aROTOBKn. BnKOpNCTOByNe, HAnpNKlaI, neUaTa.

JHKUO DNCKH, BCTaHOBJIeHI Ha 0JIaHci,
BKNKOpNCTOBYIOTBcI DJIg DBOX UJIeN (KOM6iHOBaHI
WIIfYBaJIbHI DNCHN Ta a6pa3INBHI DNCHN DJI
BiDpI3aHH), MOKHs BKNOPNCTOByBaTn TIlbKn TaHi
TINN 3axNCHNX KOJxIB: TIN A, TIN C.
DNB. po3di1 11..

BHHOPNCTOByTe BiIDNOBIiHn 3axHCHN KOHyX:

BnKOpNCTaHHeBIDNOIBHO3axnCHOrO KOxya MOKe npu3BeCTn DO BTPaTH KOHTPOI TO Ta TAKHO TpaBMyBaHH. PnKlaDn HeHaJIeKHO RnKOpNCTaHH:

-Пдчасвикорисангязхис Horo KoKHyxa Tnny A ДлЯшліфуванг Topсeм Крура 3axиснй KoKHyx Та 3aROTOBka MoKуTb 3aBaKaTH OДHe OДHOMy, Цо пиЗveDEdo HeDOCTaTHbOro KOHTpoJIIO.
-Пдчасвнорисангязaxис Horo koxyxa Tnny BДЯ abpa3nBHorO BiDpi3aHHra 3a DOnomorOHO 3'EDHaHnx BiDpi3Hnx KpyrIB BHNHKac ПIDBnueHn pN3NK BiD icKOp, lo BiDJItaIbTb, Ta YactOK BiD WlifCyBaHHa, a TaKOH yIamKIB WlifCyBaIbHoro Kpyra y pa3i NOro po3IOMy.
-ПдчасВИКОРИСТАнгЯЗХСHOrO KOKHyxa TINIB A,B,CДЯ abpa3nBHoro BiDpi3aHHa60 шлфуванн Topcem Kpyra 6eToHy a6o ueIHOI KlaDNK BUNHKaE NiDbuHcEHn Pn3NK Upe3 NINOBE HABaHTaKeHHa, a TaKoK Upe3 BTPaTy KOHTPOnIO 3 BiDauCeI OK HacLiIDOK.
-Пд ус ВИКОРиСТАнг 3axиСHOrO KOxуха TnIiB A,B,C 3 TariluacToH OJITKOIO,TOBUnHa JKOI nepeBnUyE DoNyCTmMy,ДрOTn MOxTyb 3ITKHyTnC3 3axInCHIM KOxYoxm I ue MoXe npn3BecTn Do IX 3JIaMv.

3aBKn BnKOpNCToByTe 3axnCHn KOxH, 10 niXoNTb Do IHCTpyMeHTaIbHOi HacAn. DnB. po3dIn 11..

3HHHeHHBnNBy nIy:

NONEPENHEHH-NNI,IOYTBOPINBCB HbacnIDOK WlifyBaHH HaKaHMM

naepom,po3nHIOBaHH,UIiΦyBaHH, CBepdIiHH Ta iHxN xPo6iT, MCTHTb xIMiHi peOBUHN, 0C npuHnHOb paK, BPOJKeHI deFeKTn a6o iHwi ykoHKeHH pePpOdyKTNBHOI cnCTem. PnKlaDi TaNX xIMiHNx peOBOH:

• CBNHecb y φap6i 3 BMICTOM CBNH4IO
  -MinepaIbHn nn 3 6yDInBeIbHOI cErJI, cEmeHTy Ta iHNx peOBN cErJIAHOI KlaKn, a TaKoK
  -MNJHK Ta XpOM 3XIMiHNO O6pO6JIeHOI DepeBHNCTynihpn3nky 3aJeKHTb BiD TORO, Jk qacto BN BnKOHyTe ue BnDpo6it. Uo6 3MeHUnTN BnNB XIMiHx peOOBH: npauKeITe B nPmiiueHHx 3 DOCTaTHbOBeHTnJaicETo Ta 3 3aTBepdKeHNM OC0buctHM 3axNCHM CnpAJaHeHHM, Jk-OT pecnipatop, pO3pO6JIeHNI CneiaJIbHo DIAf fIbTpaqii MiPKoCKOnIHNX qactuHOK.

Ie TaKoK CTocyETbcNnly BiD iHnX MaTepiAIB, HAnpHKaD DeaKnx BnID IB DepeBa (DepeBnHHn nn dyba a6o 6yka), MetaNy, a36ecTy. IuSi BiOmi 3axBopIOBaHHra-ue, HAnpHKaD, anepriHi peakii, 3axBopIOBaHHra dNXaJIbHNx WJIAxIB. YnKaIte NotpanJaHHn NnLy BCEpeDInHy TiJa.

DToPmMyTecb BkazIBOK CTOCOBHO BaWOro MaTepiaIy, NepcoHaIy, Cpepn Ta Micya BnKOpNCtAHH, a TaKoK DepeKaBHX npaBnI (HaipnKlaI, nOIOKeHH npO oxopoHy npaCi, yTNIi3aiciu ToIo).

3a6e3neuTe yIOBIOBaHH NIIy B Micci YTbOpEHn, He dOnyckaTe Ioro BiIkaJeHH Ha NOBepxHx.

Iy CneuaJIbHnx po6it BnKOpncToByTe BiIOBIDHe npnila. Ie Do3BOJNTb 3MeHUnTI KJIbKiCTb NIIy, 10 HeKOHTpOJIbOBAHO NOTpanJIOTb y DOBkInla.

BnKOpncToByTe BiIDNoBIiHi 3acO6n yIobJIIOBaHHa nnly.

J3MeHHeHHBnNBy N

• He HanpaBnIte NOTIK NOBITpr, 10 BNXOJNTb 3 IHCTpyMeHTa, Ha Ce6e, IIOJe, JKI 3HAXOJrTbcra NOBJN3y, Ta Ha CkyNJueHHNJIy;
• BHKOPNCTOByTe BNTJHHN npNCptpi Ta/a6o OUYBaH NOBITp;
• DObpe npoBriptpojTe po6Oe Micce Ta 3a6e3neuYte YnCTOTy 3a DonOMoroIO NnIOcoca. NiIMiTahHrTa BNDyBaHHra 3diMae nnI y nobITpJ.
  -3axnchno 0ndcnd ouhctntn 3a donomoro npioocaca a6o npaHn. He moHa no npodyBaTN, BnBnBaTH a6o uHCTNTuIITKIOU.

5.Orna

DUB.CTOp.2.

1Швднозатинckha raIGNa Quick*
2 OnopnH ΦlaHeCb*
3Unnndelb
4 W A... onopHnI ΦlaHeIb aBTo6aIaHcnpa (He3HIMN)
5 KhoNka fikcaqii IHHndela
6 EneKtpoHHn CnHnaJIbHN iHnKaTOp
7PyKoRHa

8 ΦικaTOp (ДЯ 3axncty BiД BnnaIkoBOro BMKahHra/ aKTnBauciб 6e3nepepeBHOrO peKIMy po60Tu) *
9 HaTnckHn nepemHKaY (YBIMK/BIMK)
10 KhoNka (JnpepyJIIOBaHHaOCHOBHOI pyKoRTkn)
11 OchOBHa pyKoTka
12 OdaTkoBa pyKoAThKa /doaTkoBa B6pOnonHaNoya pyKoATha
13 3axnchnoKohyX
14 3aTnckHa raKa*
15 KJIou niДBa OTBOpn*
16 KJIaMHa (ДЯpeRyIIOBaHHa 3axHcHOro KoKHyXa 6e3 iHCTpyMeHTy)
17 TBNHT (Для ретуловаHHЯ 3aTnCKHOrO 3yCINJI KJAMKU)

*3aJIeHHO BiID KOMnJIeKHaTcii / He BXoHt b y KOMnJIeKT IOCTaHaHH

6. BBeDeHnB eKcnLyataciio

Ipeed noaTkom po60n nepeKoHaTeC8, 10 Bka3aHi Ha TexHcHt Tabnuc nplaNy

Hanpyra Ta Yactota B MepeKi cnBnaAHOb 3 DaHIMBaOoi eNekTpomepeKi.

3aBxnnPiKnHouaTe npncTpi 3axnchoro

BIDKJIIOUeHHa (N3B) 3 MaKcHMaJIbHNM CTpymOM BHTOKy 30 mA.

BnKOpNCTOByTe NODOBKyBaIbHn Ka6eJIb 3 MIHimaIbHnM nepetINHom 1,5 MM². NODOBKyBaIbHi Ka6eJI IOBHHI BiIDNOBIDAtn CNOXHBaHI NOTyKHOCTI IHCTpyMeHTy (nopIBH. TexHiHi XapaKTepnCTnKn). PnBnKOpNCTaHHi Ka6eJIbHOro 6apabHa Ka6eJIb cIId NOBHICTU p03MOTaTI.

6.1 BcTaHOBLeHHaDoatKBOIpyKoTTH

PnBukohHHi 6yDb-RAKnx pObi 3aBKnMae 6bTu BCTAHOBLeHa DoaTHKOba pyKoTka (12)!

BkpyTiTbdoataKOBy pykoTky do ynpy B liBni, cepeHni a6o npabn (3aJeKHO bID noTpe6n) pi3b6obn OTbip i 3aTgHiTb BiD pyKn.

6.2 BctaHOBJIeHH3axnCHoro KOnyxa

Peped noaTkom po60TN:

BCTaHOBITb 3axnCHN KOJxh.

3 npuHn 6e3neKn BnKOpncToBynte

BnKIOUHO 3axHCHN KOxYX, npn3HaueHn Iy BIDNOBIDHOI IHCTpMeHTaIbHOI HacaKn!

BnKOpNCaHHeBIDIOBHO3axNCHOroKOxya MoKe npu3BeCTNo BtpaTH KOHTPOITo Ta TAKKORO TpaBMyBaHH. DnB. TaKOH po3dIn 11. PpnaJa!

INB.CTOp.2,MaI.F.

-BiDkPnIte KJIaMky (16).BCTaHOBITb 3axnCHN KOxh (13) Ha Bka3aHe Miche.
-Поверніть кOKуx 3aKpntOIO CTopoHOIO Do KOpNCTyBaaya.
-3aKnIe KJIaMky.
- 3a Heo6xHocTi 36ilbWitb 3aTnCKHe 3cHJIJI KJIAMKNI, 3aTARHyBwN rBNHT (17) (npn BiDkPnti KJIAMCi).

YKPAIHCbKAuk

BnKOpNCToByTe IHCTpyMeHTaJIbHi HacaIKN, Iki 3axIChN KOxUx nepeKpNbAc He MeHwe, Hk Ha 3,4 MM.

6.3 NobopoTHa OCHOBHa pyKoRTHa

IpaqOnTe TlBKn i3 3aqiKcObaHO OCHOBHOpyKoTko1 (11).

ДиВ.стор. 2, мал. C.

• HaTnCiHtB KhoNky (10).
• OCHOHy pyKoTky (11) MoKHa noBepHyTN B Ody 3 DBOx CToPiH Ha 90^ i 3aΦikCyBaTu.
• IpepeBipTe HaidHicThb Nocaikn: OCHOBHa pyKoRTKa (11) NOBHHa 3aΦiKcyBaTnCra Ta He oBeptatncr.

6.4Плкlioуеняdo eJeKtpomepehi

TencbHipo3eTKnKINBHeHHMaOTb6yTN 3axuhehiIhepuiHMMnPnaBKMn3aNo6iXHNKamn a6oJIiHIMN3axNCHMnabTomatm.

MaunHn3MapKyBaHHaM"WE..."HaTexHiHni Ta6nuyi:

(3i B6ydoBaHm aBtOMaTHHM 06MeJyBaHem NyckoBOrO CTpyMy (fYHKUIEIO NlaBHoro NyCKy)).

Tencbhi po3eTKn HNBLeHHMaOTb 6yTN 3axuhei IHepuINHMn PnaBKMn 3aNo6iKHKamn a6o LiHInHMn 3axNCHMn aBTOMaTAMN.

7. BctaHOBJIeHnHaIiΦyBaJIbHOrO dNcHa

Ipeed6ydb-ramnpo6oTaMn3

IpeoChaueHHaBKnBnTgAInTe BnKy 3

po3eTKn.MaunHa nobHHa 6yTN BmKHeHa, UNHdJIb NOBHeH 3ynHHTNCr.

Ppno p60ti 3 BiDiPI3HIMN DnCKaMn 3 MeTOO

6e3neH KOpNCTyItec3axnCHM KOxYXOM

ДЯ BiDiPIaHHa 6pa3HbHMn DnCKaMn (DnB. po3di 11. PpIaIaJIa).

7.1ΦiKcaui wnnHdeJia

KhoNky fikcaqii wHnHdJIa (5) MoXHa HATNCKaTN TiJbKn pIn HepyXOMomy

wnnndeni.

• HaTnCHiB KhoNky fikcauii uHHdela (5) Ta nobepHITb uHHdela (3) pykoIO,doKu KhoNka He 3aphiKcyETbcra.

7.2 BctaHOBJIeHHIJIiΦyBaJIbHOrO nIcHa

ДиВ.стор. 2, мал. D.

Maunn3 maphybaHHm W 2..., WE 2...

• BctaHOBIb onOpHn ΦlaHeCb (2) Ha uHHdeJIb. ΦlaHeCbBCTaHOBJIeHn npaBnIbHO, RAuO BiH He oBeptaETbcra Ha uHHdeJI.
  BCTaHOBIb ⅢIiΦyBaJIbHn DnCK, Ra NOKa3aHo Ha MaJIIOHNy D,Ha onOpHn ΦJIaHEuB (2). ⅢIiΦyBaJIbHn DnCK NOBHeH pIBHomipHO npINJRAtn Do ΦJIaHua.

Maunn3 maphyBaHHm W...A 2...

OnopnHnΦlaHeCb aBTo6aJaHCnpa (4)MiHo npKpInIeHn Do uHHdJeA.AnAoIyHo do

iHux KuyTOBnx UliΦMaunH TyT Hemae nOTpe6n y 3HIMHomy onOpHOMy fHaHci.

KoHTaKTHi NOBepxHi OOnOpHOrO fJaHcA aBTObaHaHCnpa (4), WlIpyBaJIbHOrO dNcKa Ta WbNtKO3aTnCKHOi RaIKu Quick (1) a60 3aTnCKHOi raIKu (14) NOBHHi 6yTN YnCTHMn. OunchTe 3a Heo6xIdNocti.

• POKlaDiTb ⅢIiΦyBaJbHnДИСК Ha onOpHn ΦlaHeuB aBTObaHaNcHpa (4). ⅢIiΦyBaJbHnДИСК NOBInHeH pIBHomipHO npJIraTn Do ΦlaHcz.

7.3 3aTgHeHHBbIckpyBaHHbWbNIO3aTHCKHOIraHKn（3aJIeXHO BIDKOMnJIeKHTaii)

3aTARHeHHaBnKo3aTHcKHOIraKN (1):

IHKUo IHCTpymeHTaJbHa HacaKa B Micci 3aTnCKy MaE TOBUnHy 6JIbWe 8 MM,

WBnDKo3aTnCKHy raKy BnKOpNCTOByBaTu He MoXHa! Y cboMy BnnaDky KOpNCTyITeC 3BnuAHOIO 3aTnCKHOIO raKOIO (14) Ta BiNOBiDNHM KJIOnyem NiD DBA OTBOPN (15).

BnKOpncToByTe TlBKn HeuKoJKeHy WbNdkO3aTtCKHy raKy: CtpiKa NOBHHa

BkayBaTHa BnIMky 3OBHIuHbOro KJIbUra (INB. MaIOHOK Ha CTOp.2).

-3aφikcyIte wnnHdeIb (nVB. po3di7.1).
- BCTaHOBIb 5BnIko3aTnCKHy raHy (1) Ha 5nnHneIb (3).DnB.MaI. Ha cTOp.2.
- 3aTЯгнITb WbNДКоЗаТиССКИу raйky pyKaМn 3a ROДИHнIKOBОЮ CTPIJKOIO.
-NotyHHM NOBOPOTOM WlifyBaJbHOro DnCKa 3a RoINHHKOBOIO CTPIIKOIO 3aTARHiTb WBNIDKO3aTNCKHy raIHy.

Y MaunHax 3 MapkyBaHHm «W...B...» Ha octaHHix 180^ BiDyBaETbcra 6IbIsh 3HaHn CynpoTnB.

BiDkpyyBaHHaBnKD03aTnCnHOi raHN (1):

-3aφikcyIte winnHdJIb (DnB. po3diJ 7.1).
-BiKpyTtB WbNdko3aTnckHy raKy (1) npOtI rOHHNKOBOI CTpiKN.

7.4 3aTnHeHHBipHyBaHH3aTnckHoi raHn (3aJIeHHo BiKOMnIeKtaui)

3aTARHeHHaTHcHooIraHKn (14):

3aTnCKHa raKa Mae 2 pi3Hi CTOpOHn. HaKpyTiTb 3aTnCKHy raKy Ha IINHdJIb, JIK NOKa3aHO Ha MaJIIOHKy:

ДиВ.стор. 2, мал. E.

A)ДЯTOHнxшлcfyBaIbHnxДиСИВ:БурТИКЗATNCHNOIraIKN（14）nobepHyTNIDOROpN，IIO3a6e3neUeHaJIHHN3aTnCKTOHKnXDINCHIB.
B)ДЯTOBCTNX WJIiФуВaJIbHnX DnCkIb:
BypTNK 3aTnCKHOI raKN (14) NOBepHyTNIOHN3y, 0o 3a6e3neue HaJIiHe po3TaWbAHNRAIK NHa WnHNeJI.

• 3aφikcyte wHnHdeIb. 3aTgHiIb raHy (14) KIOUcH PiD IBa OTBOpN (15) 3a RoINHHNKOBIO CTPIKIO.

Y MaunHax 3 MapkyBaHHM «W...B...» Ha octaHHix 180^ BiDyBaETbcra 6IbIsh 3HaHn CynpOTNB.

BiDkpyuBaHHaTnCHHOraHn:

-3aφikcyIte winnHdJIb (nVB. po3di7.1). BiKpyTiB 3aTnCKHy raHy (14) KliOyem nID Dba OTBOpN (15) npOTn rOdnHHNKoBOi CTpiKN.

8. EKcnnyatacia

8.1YbIMKHeHHBIMKHeHHA

IHCtpymeHT 3aBxDn Tpe6a TpImaTn O6oma pyKaMn.

IiIDBObTe Do 3aROTOBKn TiJIbKn yBIMKHeHn iHCTpymEnT.

He donyckaIte Heymchoro 3anycky: 3aBKnBIMnKaIte iHCTpyMeHT, kHIO BnHa 6yla BVITrHyTa 3 po3eTK a6o JkIo CTaBCa 36iB nOdaui eJeKtpoeHeprii.

Y peKnMI 6e3nepepBHOIO pO6OTn IHCTpyMeHT npoOBKHy e npaUOBaTH, HABiT bKIO BIN BnPBBeTBcR 3 pyK. Tomy 3aBKnM iuH O TpIMaIte IHCTpyMeHT dBOMa pykAMN 3a pyKoTky, 3aIMtB CTiKe NOLOKeHH I NobHICTTO CKOHcHTpyNTecr Ha BNKOHyBaHI pO6OtI.

He donyckaTe 3aBnXpeHHa6o BCMOKTyBaHHIhCTpyMeHToM Nlny I TnpCn. He KlaIbTB BmKHeHneEJIeKTpOIHCTpyMeHT Do NOBHOI 3ynHHN DnRgamma.

ДИВ.стор. 2, мал. A.

HopotKouchn peKm po60Tu:

YbIMKHeHHa: nepecyHbTe fiKcaTOp (8) yHaNPmky CTpiKN i HaTnCHiTB HaTnCKHn nepemHKa4 (9).

BIMKHeHHa: BiDnyctiTb HaTnckHn nepemnkau (9).

Be3nepepeBHH pexnM po60TN (3aJIeHHO BID KOMnIeKHTaui):

YbIMKHeHHa:peceyHbTephiKcAtop(8) yHaPmky CTpiKN,HaTncHiTBpepMnKau (9)i yTpmyte noTo HaTncHeHm.IHCTpyMeHT yBIMKHeHn. PeceyHbTephiKcAtop (8) 1e pa3 yHaPpMkCy CTpiKN, 0o6 3aΦiKcyBaTH HaTncHNnpepMnKau (9)(6e3nepepbH a pO6ota).

BIMKHeHHaTNCiTB nepemkaq (9) i BiDnycTiB Noro.

Maunn3 mapkyBaHHm «W...B»: MomentaJIbHe BBIMKHeHHr (3 yHkuicIO abTomatNuHOI 3yHHN)

ДиВ.стор. 2, мал. B.

YbIMKHeHHa:HaTnCKHn nepemHKauch (9) nepecyHyTu Bnepei nicJzboro HaTnCKaHHaepemicHTu HaTnCKHn nepemHKauch (9) Doropu.

BnMKHeHHaBnPyCTHTHaTnCKHn (9) nepemka.

8.2 Po60qi Bha3iBHN

山iΦyBaHHa:

PnHTNcKyIte IHCTpymeH3 NOMIPHN 3ucnllm I nepemiiuyTe Ioro no nobepxHi Ha3a i BnepeD, Uo6 nobepxHraarotOBKn He neperpiBalaac. O6dnpi pO6To: dIra OTpmaHHdo6poro pe3yIbTaTy npauOHe 3 Kytom Haxiny 30^ - 40^

Bidi3aHH a6pa3NBHMn dNcAmn:

Ipn BiDpi3aHHi a6pa3nBnMMn DnCKamN 3aBKn npaouTe B 3yctpiHOMy Haprmi (mB. MaIOHOK). IHaKHe IHCTpyMeHT MoKe HecNoDiBaHO BVsCKoHTN 3 npONJy.

IpaouTe 3 nomipHO IOndaueo, BiIOBIDHO OoObo6IOBaHOro MaTepiAly. He IOnyckaIte nepeKocy, He HaTnCKaIte i He po3roI dyIte IHCTpyMeHT.

UliyBaHH 3 BnKOpNCtAHHm UliyBaJbHoro nanepy:

PnTnckyIte iHCTpymeHT 3 nOmiPnHm 3cynllam i nepemiiuyTe Ioro no nobepxHi Ha3a,I bpeD, 0o6 nobepxHa 3arOTOBKn He neperpiBalaac.

06p06Ha DpoTAHMn 1tKamn: NOMIPHO npNTUckyIte iHCTpyMeHT.

9. OvnüeHHa

Ipnpo6oTI MoKJIbBE ChyUeHHaCTOK
Obo6pIIOBaHOro MaTePiAly ycepeNHi
eKeTPOIHCTpyMeHTy. Ce noripWye OxolodKeHHa
eKeTPOIHCTpyMeHTy.CTpymOpOBiHi cKUneHHa
MOKyTb NoripuHTn 3axHCHy i3OJIauIO
eKeTPOIHCTpyMeHTy, IO BHKInKae pN3NK
ypaKeHHa eKeTPruHm CTPYMOM.

Yepe3 HeBENKi PiBHi npomixn yacy peTeIbHO OunuYte NpeaHI i 3adHI BeHTnlauiHni UINHH eKeKtpoiHCTpyMeHTy a6o npodyBaHTe ix cyxHM NOBITpAM. Npeed cIM BID'EDHaHTe eKeKtpoiHCTpyMeHTB iD dKepeLa JNIBLeHNH I HAdiHbTe 3axNCi OKyIprn i BiNDOBiDNH pecnPapToP. 3BeptaHTe yBary Ha TexHiHo npabInbHy BVITXkKy pRn BVdyBaHHi.

KhoHa (10) peryIIOBaHH pyHOaTHn: 3a Heo6xHocTi BnJaIe Te 3a6pyDHeHHa 3a DonOMoroIO nIIOcoca a6o IJIaXOM BnDuBaHH CyXIM NOBITpAM (KHOHa B HaTNCHTOMy POJKeHHi, B 3NoJKeHHax OCHOBHOI pyKOaTHN). Ppeed cHm BiD'EdHaIe eIeKtpoiHCTpymENT Bd DkepeLa KInBLeHH i HAdiHbTe 3axnChi OkyIapri i pecnPipatop.

10. YcyeHHHa HecnpaBHOCTeH

MaunHn 3 MapkyBaHHaM "WE..." Ha TexHiHiI Ta6nHi:

• 3axnct BiD nepeBaHTaHexHH: rOpNTb eIeKtpoHHN CnHaNbHN iHdNKATOp (6), Yactota ObeptaHH Nid HabaHTaHexHHM IOMITHO 3MeHwcyTbcra. Temepatypa DnuryHa 3aHaTo BnCOka! 3aJIuTe MaunHy npaQOBaTH Na XOIOCTOMy XODi, DOHN

YKPAIHCbKAuk

TemnepaTpa He 3Hn3ntbca i eIeKtpoHHN CnHnabHn IHnKaTOP He 3rache.

3axnct BiD nepeBaHTaKeHHa: ropntb eIeKtpoHHN CnHahbHni iHnHaTOp (6), yactota 06epTaHH NiD HabaHTaKeHHM 3MeHwetybcra NOBILbHO.MaunHa nepeBaHTaKeHa. IpoDobKnyTe npaOBoTu 3i 3HNKeHHM HaBaHTaKeHHa, DOKN eIeKtpoHHN CnHahbHni iHnKaTOp He 3rache.
- EileKtpoHHe abapiHne BiDJIIOUeHHa: 3aIopraTeBcR eEkeTPOHHn CnHaJIbHN iHdNkATOp (6), MaunHa camOCTiHo BIMNKAeTBcR. Iprn 3aHaTo WBNHOMy HapocTaHHi cTpyMBy (ue BiID6yBaetbcR, HanpHKlaI, npn paTTOBOMy 6loKyBaHHi a60 BiJaai) eEeKTPoiHCTpyMeHT BIMNKAeTBcR. BImKHITb eEeKTPoiHCTpyMeHT HaTnCKHM nepemHKaem (9).PiCJzBoRo NOro cIid 3HOBy YBMKNHTi npoDoBxHtpo60Ty y HopMaJIbHOMy peHmI. YHNaIte 6IoKvBAHHB nOdaJIbWOMy. NIB. po3di 4.2.
3axnct BiD NOBTOPHORO nycy: eIeKTPoHnn CnHaJIbHn iINHnatop (6) BJIIMAE, eIeKTPoIHcTpymEt He npaioe. CnpauOBab 3axnct BiD NOBTOPHORO 3anyscky. JaKIO npu yBIMKHeHOMy IHCTpymEtTi BNka Ka6eJIO HINBLeHH BCTaBJIeTbC8 Bpo3eTHy, a60 nicJr 360IO BiHDOBHeHO NODaUy eIeKTPoHNBHeHH, IHCTpymEt He 3anysckaetbcra. BImKHITb i 3HOby yBIMKHITb IHCTpymEt.
-ПиувIMнEHi eIeKtpoiHCTpyMeHT duHe WBnIDHO DOcRAe MAKcHMaJIbHNx O6eptIB, TO6TO aBTOMaTHHnOBMeJyBaU nyCtOBOrO CTpyM (ФункцЯ плabHOrO ncy) He cnpaCbOBye. Mae Micue nomnIka B eIeKTPoHHOMy 6loci, He MOJHa pO3paxOByBaTn Ha iNsi FyHKuII eIeKTPoHHORo 6loky,ЯКi BiINOBiJaIOb 3a 6e3neKy. HeraIno 3daIte eIeKTPoIHCTpyMeHT B peMOHT (DInB. po3dI12.). W 22-180 MVT,W 22-230 MVT,W 24-180 MVT, W 24-230 MVT,W 26-180 MVT,W 26-230 MVT:
- PpOecn yBIMKHeHH BnKlnKaHOb KOpOTKocTPOKOi naIHNN HAnpyr. PpN HeCpNRTIINBHX napaMeTpax MepeXi MoKyTb BnITN 3 NaNy iHsi npHaDi. PpN nobHomy onopi MepeXi MeHwe 0,2 OMa yUkoJKeHHa MaIOHMoBipHi.

11.Приладя

BnKOpncToByTe TiIbKn opnirHaJIbHe npnlaJa Metabo.

BnKOpncToByTe TlBKn Te npnaJa,Ke BiIOBIdaE BnMOram i napametpam ciiei IHcTpkyu3 ekCnIyataui.

Haioho fikcyte npnaia. Pn eKcnyataaie EeKtpoiHCTpyMeHTy 3 TpMaayem: HaioHO 3aKpinib eEeKtpoiHCTpyMeHT. BtpaTa KOHTpoIIO MOKe npN3BecTN Do TpaBM.

ДиВ.СТОр.4.

3abKdN BnKOpncTOByte iHCTpyMeHTaJIbHy HacaKa, npu3HaueHy dIy BnHOHaHH po6oYOrO 3aBdaHHa TaKOx nepe6aueHn 3axnCHn KOxUx. DInB. CToP.5.(PucyHKn HabedeHO y JKOcTi npNKlaady).

Po6oye 3aBdaHnHa:

1=WlifyBaHH3 NOBepxHeIO
2 = a6pa3nBHe BiDpi3aHHA
3 = cbeprnHHnO TBOPiB
4=obpo6ka dpoTAHMN uTkamn
5=UJIΦyBaHHHaJdAChm Naepom

IhctpymteTalbhi HacaHn:

1.1 = INCK DnIyOphOBOrO WJIiΦyBaHHA
1.2 = wliiφyBaIbHa yawka (KepamiuHa)
2.1 = BiДріЗній круг «MeТаN»
2.2 = BiDpi3Hn Kpyr «UeIgIHa KlaIka/6eToH»
2.3 = aIMa3Hn BiDpi3Hn Kpyr «LeIgIHa KlaIka/6eTOH»
2.4 = BiDpi3Hn Kpyr, 0o BnKOpNCTOBycTbCra DnA DBOXiJeN (KOM6iHOBaHN WlIΦyBaJIbHN NCK Ta a6pa3NBn DNCK DnRA BiDpi3aHH)
3.1 = aIma3hi KOpOHKn CBepeJa
4.1 = Kpyrna ujTka
4.2 = yaikOBA ujTka
5.1 = lamelbHnI IJIyBaIbHn Kpyr
5.2 = wlii fybaIbHn Kpyr dny HauKaHoro nanepy

pepe6aueHn 3axncn KoxhX:

TnAaxnchnn KoxyX JnB Bip3Hnx po6it

TnB=3axnchnoKoxyDnlaWliOyBaHHa

TnC=3axncnKoKxyDnaIyBaHHaTa a6pa3nBHO Bip3aHH (KOMbHaui)

TnD=3axncnKoKxIaJuJIyBaJIbHOI 1

TnF=3axncnKoKyxIyBIDBeHHeNpy Ia6pa3NBHO BIDpi3AHH

OoataKOBe npHnaIaIaI: (TaHOx dNb. www.metabo.com)

A CtiKa dIpaPi3aHHMeTany
B 3aTnCKHa raIka (14)
C LbBnKo3aTncKa raKa Quick (1)

PobHn acopTmEnT npIaIaIy dNb. Ha caiT www.metabo.com a60 B OCHOBHOMy KaTaN03i.

12. PemoHT

PemOHTeEKeTpoHCTpyMeHTy NOBHeH 3diCHIOBaTHcra TIlbKn KBAJIiKIOBaHMM faxibzHMn-eEKeTpHKaMn!

IooKoJKeHm MepeKeBn Ka6eJIb MoJHa 3amIHIn TIIbKn Ha CneuaJIbHN, OpiRiHaJIbHN MepeKeBn Ka6eJIb Metabo, AKN MOxHa npd6aTHy cepBichOMy cHTpi Metabo.

Ha MaunHax 3 MapKyBaHHaM «W...B...», niД qac 3amHn DepeBHorO ByrIInI Heo6xIDHO TaKoK BiDHOBTn ralbMbHy HaKnadKy.

Для ремонту eелктоиспунуmetа Metabo 3Веретаитесьdo PerioHOBOR npeДТаBHNTBa Metabo.Адеси ДИВ.на caNi www.metabo.com.

Cnncn 3aapanchnx yactnh MOxHa 3aBaHTaXHTn Ha caTti www.metabo.com.

13. 3axnct doBknla

Пил,ю yTbOpoEtbcprn wIiФyBaHHi, moKe MICTHTU WkIDJIbI peOvBHN, TOMy Ioro cIiD yTNI3yBaTHn HaleKHM YINOM.

DToPmMyTeCeHaZioHaIbHnX npaBnI 6e3neHoYtNl3aui i nepepo6Kn BnKOpncTaHxIHCTpyMeHTIB,naKyBaIbHnx MaTepiAniB i npilaJa.

Tilbkn dIa KpaIH EC: He yTuNl3yIte eJeKTPoIHCTpyMeHTn pa3OM 3 NObyTOBIMN BiXoDAm! 3rIdHO 3 DnpeKTnBOHO EC 2002/

96/EG npo BnKOpncTahHi eJeKtpnHi i eJeKtpOHHi npcTpoi Ta BiIDNoBIDHMM NaioHbHMM HOpMaMn BiDnpaCboBaHi eJeKtpoiHCTpyMeHTN niJaRaIObPo3diJIbHi yTuJI3aCi II 3 MeTOI IX nOdaJIbWoI eKOJOrIHy Be3neUHO nepepO6Kn.

14. Texhichi xapaKtepcntkN

IorcheHHo DaHnX, HabeDeHHx Ha CTOp.3. 3aIIuHaeMo 3a cO6O npabo Ha TexHiHi 3miHN.

0 =MaHC.ДiameTp iHCTpyMeHTaJIbHOI HacaIKN

t_,1 = MaHc. ДОпуСТИМА TOВДИHA [ \text{IHCtpymeHTaJIbHOI}] Hacади B OБlaCTi [ 3aTnCKy]При ВИКОПИСТаHHI 3aTnCKHOI [ \text{raHKn} ] (14)

_max,2 =MaHC.ДОпуCTиmaTOBuznHa IHCTpyMeHTaJIbHOI HacadKnВO6laCTi 3aTnCKy npN BnKOpNCtAHHi WBNdKO3aTNCKHoi raHKn Quick (1)

t_,3 = 06Дирн /BiDipi3HmДИСК: MaKc.ДОпуCTиMaTOВцИнHa IHCTpyMeHTaJIbHOI HacadKN

t_,4 = MaKc.ДОпуСТИМаTOВЦИHAТаРИЧАCTИX

M = pi3b6a wnnHdela

=IOBxHaIyBaIbHOrO IINHdJIa

n0 =yactota o6epTaHHHa xOIOCTOMy xoDi (MaKcIMaJIbHa)

P1 =HOMiHaIbHa cNoKnBaHa nOtYHKHicTb

P2 =BIDaBaHa nOTyHnHcTb

m =Bara6e3Ka6eIIO

Pe3yIbTaTn BmMipIOBaHb OTpIMaHI 3rIiHO 3i CTaHdApTom EN 60745.

IHCtpymeHT Klnacy 3axnctTy II

\~3miHHnCtpym

Ha Bka3aHI TexHicHi xapaKTepeNCTnKn NOINPIIOJBcA DOnyckn, nepeIb6aueHi YHHHMn CTaHdapTaMn.

3haeHHemicii ymy

L3NaueHnI Do3BoJIOb OciHOBaTI i
NOPIBHOBATN EMICIO WMy pi3Hnx
eJeKTPoIHCTpMentIB.3aJeHXo BiD yMOB
EKCNIyATAuII, CTAny eJeKTPoIHCTpMentTa a60
po6OuNX IHCTpMentIB paHTUHe HabaHTaKeHHa
MOHe 6Tu Bnue abo HnHue. DnA OcIHKn
3pa3KOBOrO pIBHЯ EMICII BpaxOByIte nepePBn B
po6OTi Ta fo3n PO6OTn 3I 3HNKeHM (WymOBm)
HabaHTaKeHHa.M. Bn3Haute nepelik
opraHi3auiHnx 3axOdi UoDo 3axNCtY
KOpNCtBuBaa 3ypaxyBaHHaTINx Yn iHux
3NaueHb EMICII WMy.

IJIyBaHHToHKXMeTaeBnxJNCtIBa60 iHnIX Deo Bi6pyOuNx 3aROTOBOKi3 BENIKOIO NLOeIO NOBepXHi MOKe PnI3BeCTNu DO cyTTeBOrO 36IbSeHHe 3araIbHOi aKycTNUHOi emici (do 15 b) y npOpBnHHi i3 BkA3aHmN

3HaueHnMaKcTnHoIeMicii.TaKi 3arOTOBKn C1iTpImaTn RaKOMora DaJI BiD 3ByKOBOr0 BInpOMiHOBaHHa paxyHOK BiIDNOBIDHNX 3axoIDIB (HaPnKlaA, BCTaHOBJIeHHaBaKKNX, rHycknx 3ByKOIsOJIuNHNKIIIMKIB). Kpim TOrO, nID qac OciHOBaHH Pn3NkY 3anODJHH NKOJUpe3 WymOb He HabaHTaKeHHa, a TaKo Nid qac BVbOpy BiIDNOBIDHO 3acOBy 3axNCTy opraHb Clyx Cy C1d BpaxOByBatnPiDbNtHuAcSTNuHy emicio.

CymapHe 3HaueHnB i6pauii (BeKTopHa Cyma Tpbox HanpMIB) po3paxOByeTbcra y BiIDNOBIDHOCTi 3i CTahdaptOM EN 60745:

ah,SG =3HaueHnB Bi6paui (WJIiΦyBaHHn NOBepxHi)

ah,DS =3HaueHnB Bi6pauii (WliiphiyBaHHn WliiphiyBaIbHmN yawKaMn)

Kh,SG/DS = KoephiieHT noxnbHn (Bippaia)

PIBEh3ByKOBOrO TnCKy 3a TnIOMA:

LpA =piBeH3ByKOBOTo TnCHy

LWA =piBeHb3ByKOBOInotyKHOCTi

KpA, KWA = KOeΦiUεHT nOxN6Kn

BnKOpncToByTe 3axnChi HabyuHnKn!

TOB "Metaabo YkpaHa"

Byl. 3opHa, 22

c.CBraToneTpIbCbKe

KniBcbka 06J.

08141,KnIB

www.metabo.com

UK Symbol und

Adresse

28.02.2022

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

• Postupy zapinani generuji docasnePoklesy napeti.V pripadeneprzniivych podminek site mohou ovlivnit jina zairzeni.Pri sitovych impedancich mensich nez 0,2 ohmu se neocekavaji zdne poruchy.

11. Príslušenství

W 22-180 MVT, W 22-230 MVT, W 24-180 MVT, W 24-230 MVT, W 26-180 MVT, W 26-230 MVT:

(Vt ka saidilt www.metabo.com)

A Metallloikerakis

B Kinnitusmutter (14)

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

a aal lal alr g jlll Jlll J 15!
Lao guoail aabg aagall g aagaae gaii 288 gauill
gaiy iay y d y gaiy g ayuy
gaiy gaiy gaiy gaiy gaiy gaiy

Jaaal a gaiy jayssaall yblal piaiuyaiy ayii yaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

a.1

Jus no sall a jll a Jl gai: ay aal y gswy b jn 1.3aas (4*gai (2*

L 2

ailll aal 1 Metabo caiol aclslall
gag aell plsiuily lacyl gaiuall gaiuall
oall plauu u dall algl y jll wll
jpluill jc agall jgswall gabaiuall
calil lll ball

aL 1

aalai aolai 3

J 1

a aiaaaal jolai dawg jall gaiy (g) 2 aaywai yjai ci1i jaiy gll iiaa Jai

a aaaannnnae 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

ailll jlljll "sllg bll" 10 cals jll g (g) jllg bll n j s y aall g bllal g g lglbgs g ll gl jllg bgs g b sic d jg g

aill 1e b jall Jaaill y j. gia 8i i aii y (j
aiic! glll, glll g ai jaiy ai jaiy ai S0i jao oaoi
aiu! gdi l gdi lao i jaiy jauil

:diulaiiaaiyui 4.5

a 1

:dllll lal alal yall aal alal 4.6

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

eall gia 1g 1al 1a 1s 11 ( 4
aii aai y 8y j j ay 8y g 8
.5y 2y 8y abc 8y g Jd

:alull alu 4.7

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

i 1

aaii iiaii aaii iiaii

（RCD）FI

30

2015.1.5 1

(2) = ( x1,y1) , = ( x2,y2)

JSLI JSLI 2jLai LJI SIO

6

(12)

a aal aal alal

（a）（）

y jll 1

6.2

aal al bll 1y

aaiial gill baill biiai i auiy

aayssall ayjdlal yg j aelllll lalil j

aIgSll I galsl gall g jll lgl

(1)

aaii i 1

jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

y

a 1

1 1

a 100

A

"WE..."

（）

aaiy jiyj yll 1i yj yj lly jll aie gae jw qai (.12 jaiil jbi) i yajslal c xyl a .g jyia jai

aia 1

（）

Abe yjBaBaaBjllgJyIaIaIwJy

EC SB

1.11 Jull jbil

:

y

j 1 j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

y

Soll

e b 1

i j 1

j 1

i 1

y j 1

a a a a a a a a a a a a a a

a 1 gill jg albe plisalie

gill bailly dLwai jSay aJ gannal no kaw jsi

1 1

11 Jall jll lal llll

：

j 1

ailll lal 10

auiuui 1aiiui

e e e e e e e e

e i 10

1

a

Jac: aill sll alall ool jaoell no dall Jaoell no gill ldi

aai jia oiaea aayaa o jygi i ci yjgill aia

yjgall yjgall claynll jgnll gajns jgall

1 1

1. 2.

y

Jgssssssssssssssssssssssss

iiaii (jio) iisni 1sog iisii all, jieii

jolll jol olalil, aigall aoxlil, aoally aiolil

i 1

haill jll

（）

(1)

QUICK

8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

.7.1 Jall jil) 1jll d gac ciit y -
i0yall jil.(3) pall (1) 1gall algalus gia - 24
aclll blae olal gbiy biy balaal glalos lay -
8gai hll sra jolr lalglalalalal

sIe iagalldj W...B... aolly o jaoal cllsl 180

:1)

(7.1 Jall jil) jjglal gac ciit y - Aclll w jie olil uSc (1) 1yill bail aluia

（j）b#algla 7.4

:14)

aLaalalalalalalalalalalalalalalalalal

1 1

aagaaal llll aae 4 (1) algauu uuuu jai (14) baii ay gaoa eia ybi

14 15

sI 180

al golus 7.1 Jaaill jai (15) aee

1.8

1

8.1

L 1

a aie aiee eae

jglal jla lal p: gall y 1yll c i jill e bai s 1s

J 1

:WE 2...W 2... aally a jallll

121 1g 10000000000000000000000000000000000000000000000000000000000000000

W...A 2...

if we will “WE...” go to all cities

6) 15000000000000000000000000000000000000000000000000
