Product type	Refrigerator-freezer combination
Brand	Hoover
Model	HOOT1S45FWHK
Power supply	220-240 V ~ 50 Hz
Climate class	SN, N, ST, T (10°C to 43°C)
Freezing capacity (24 h)	2.0 kg
Default refrigerator temperature	5°C (setting 3)
Default freezer temperature	-18°C
Freezer star rating	4 stars (suitable for freezing)
Refrigerant	R600a (flammable)
Super freeze function	Yes (24 h, automatic shut-off)
Door open alarm	Yes (after 1 minute)
Interior lighting	LED (class G, professional replacement)
Reversible door	Yes, reversible (instructions provided)
Adjustable feet	Yes
Energy saving	Recommendations: avoid hot food, do not overload, clean dust from back
Maintenance	Cleaning every 4 weeks with warm water and mild soap
Defrosting	Manual (do not use sharp objects or heating appliances)
Spare parts available	Thermostats, sensors, printed circuit boards, LED (7 years); handles, hinges, bins, baskets (7 years); door gaskets (10 years)
Warranty	2 years (EU), varies by country

Frequently Asked Questions - HOOT1S45FWHK HOOVER

How to adjust the refrigerator temperature?

Use the Adjust button on the right. Press to cycle through settings 1 to 5, where 1 is warmest and 5 is coldest. The default setting is 3 (about 5°C).

What to do before first use?

Let the appliance rest for 4 hours after transport. Clean the inside with a baking soda and hot water solution, then dry. Plug in and set the temperature.

How to reverse the door opening direction?

Follow the manual instructions: remove the covers, unscrew the top and bottom hinges, reverse the pin, then reassemble on the other side. Use the provided stopper and check the seal tightness.

What to do if the appliance does not work?

Check that the appliance is on (Power button for 3 s). Make sure the plug is connected and the fuse has not blown. If the problem persists, contact after-sales service.

How to clean the refrigerator interior?

Unplug the appliance. Clean with warm water and a mild detergent. Rinse and dry with a soft cloth. Do not wash parts in the dishwasher.

Why is there moisture inside?

This may be due to high ambient temperature, a poorly closed door, or uncovered food. Increase the temperature if necessary and close the door properly.

How to use the Super freeze function?

Set the thermostat to 5, then press the door switch and the adjust button simultaneously until LED 5 flashes. The function lasts 24 h then stops automatically.

What to do in case of power outage?

Open the door as little as possible. Food stays cold for the time indicated on the rating plate. If the outage is long, prepare ice cubes to keep cool.

How to replace the LED lamp?

The LED lamp must be replaced by a professional. Contact customer service for assistance.

What to do if the audible alarm sounds?

The door open alarm triggers after 1 minute. Close the door or press the SET button to temporarily disable it.

USER MANUAL HOOT1S45FWHK HOOVER

Discover extra contents and create your inventory list

EN-English 3 BG-Български 28 CS-Čeština 54 DA-Dansk 80 DE-Deutsch 106 EL-Ελληνικά 132 ES-Español 158 FI-Suomi 184 FR-Français 212 HR-Hrvatski 238 HU-Magyar 264 IT-Italiano 290 NL-Nederlands 316 NO-Norsk 342 PL-Polski 368 PT-Português 394 RO-Română 420 RU-Русский 446 SK-Slovenský 472 SL-Slovenski 498 SR-Srpski 524 SV-Svenska 550 UA-Українська 576 ET-Eesti 602 LT-Lietuvių k. 628 LV-Latviski 654

Content

SAFETY INFORMATION 2 SCRAPPING OLD APPLIANCES 10 Energy Saving 11 Before first use 12 Fridge use 13 Freezer use 13 Overview 14 Storage 15 Control panel 16 Installation of the appliance 21 Care and Cleaning 23 Troubleshooting 25

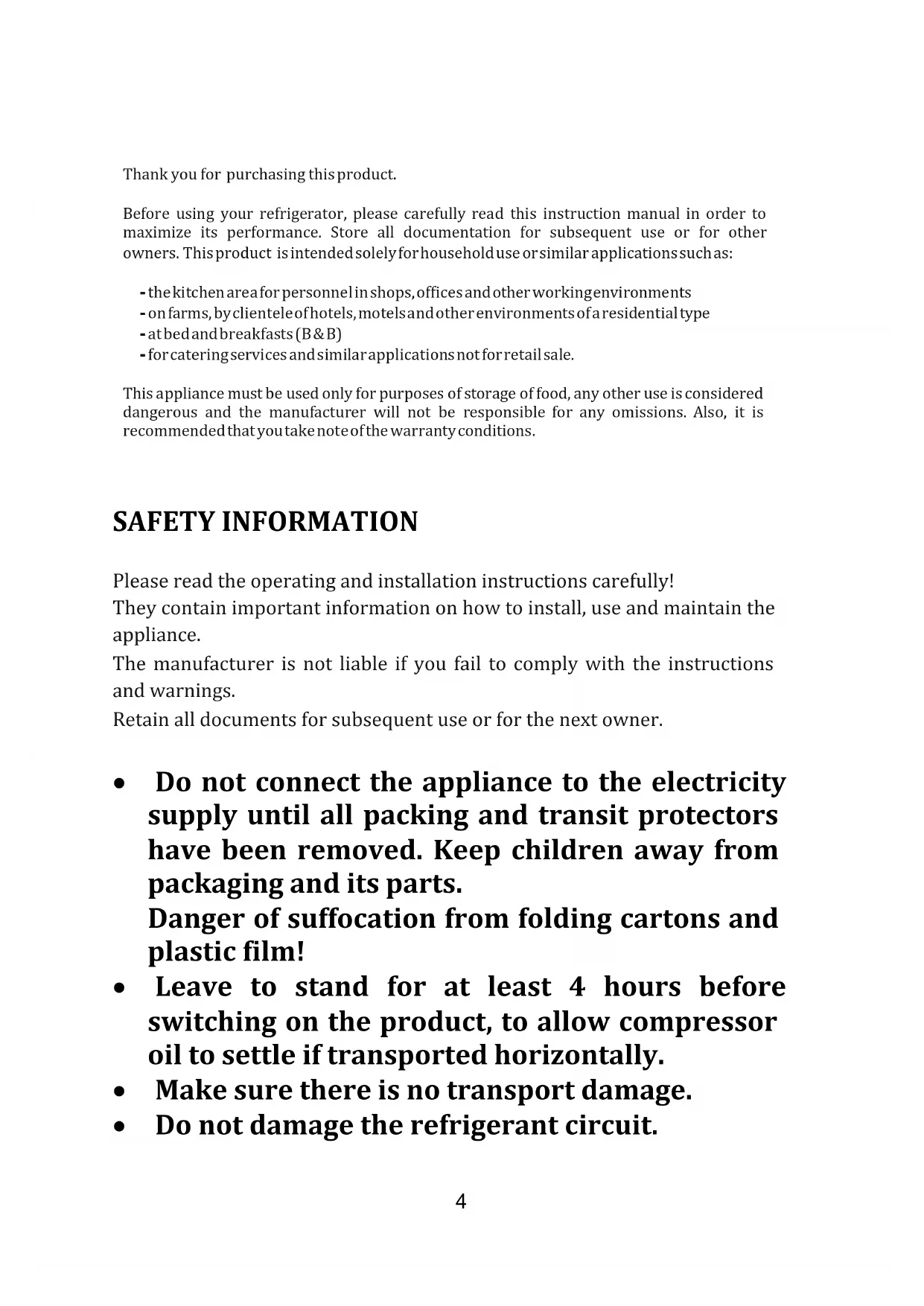

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B & B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.

Danger of suffocation from folding cartons and plastic film!

• Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.
• Make sure there is no transport damage.
• Do not damage the refrigerant circuit.
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• Handle the appliance always with at least two persons because it is heavy.
• Install and level the appliance in an area suitable for its size and use.
• Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
• The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
• Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible. Make sure that mains cable is not caught under the appliance during and after

When carrying or moving the appliance, avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard.

• Do not install the appliance in humid, oily, or dusty places, nor expose it to direct sunlight or water.
• Do not install the appliance near heaters or inflammable materials. For appliances with a freezer compartment: if there is a power failure, do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (temperature rise time). If the failure is longer, then the food should be checked and eaten immediately, or cooked and then refrozen.
• If you find that the lid of the appliance is difficult to open just after you have closed it, don't worry. This is due to the pressure difference, which will equalize and allow the lid to be opened normally after a few minutes.
• Do not store medicines, bacteria, or chemical agents in the appliance. This appliance is a household appliance; it is not recommended to store materials that require strict temperatures.
• Do not excessively pull or fold the power cord,

or touch the plug with wet hands.

• Do not store products which contain flammable propellant (e.g., spray cans) or explosive substances in the appliance. Risk of explosion!
• Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
• At risk here are children, people who have limited physical, mental, or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
• Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance. Children should not play with the appliance.

Children aged from 3 to 8 years are allowed to load and unload this appliance. FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns! - Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous. - Before performing any operation, unplug the power cord from the power socket. - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. - Do not use pointed or sharp-edged objects such as knives or forks to remove the frost. - Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. - It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. - Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.

Supervise children while the appliance is being cleaned or maintained.

• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
• WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.
• If the refrigerant circuit should be damaged:
• Switch off the appliance and pull out the mains plug,
• Keep naked flames and/or ignition sources away from the appliance,
• Thoroughly ventilate the room for several minutes,
• Inform customer service.
• WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
• WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.
• Do not attempt to sit or stand on the top of the

appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.

• The product is designed and built for domestic household use only.
• Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

One-, two- and three-star compartments, if present in the appliance, are not suitable for the freezing of fresh food.

If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine. FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance. FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. Replaceable (LED only) light source by a professional. This product contains a light source of energy efficiency class G.

Scrapping old appliances

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the C mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Guarantee

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Energy Saving

For better energy saving we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of cold. In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible.
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance.

Before first use

You must allow the fridge to settle for at least four hours prior to switching the

power on.

It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. The fridge may have an odor to it at first use. This will disappear as the appliance cools.

Please note:

The appliance will start at 5°C for the fridge and -18°C for the freezer and work continuously until it comes down to the correct temperature. If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor. Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This fridge cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of frosting at the back is not a malfunction of the fridge.

Fridge use

• Never put liquids in the refrigerator uncovered.
• Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator.
• Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
• Make sure food is clean and any extra water is wiped away before putting into the fridge.
• Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food fresh and avoid unpleasant odors.
• Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelf to prevent deterioration caused by the door being open for prolonged periods.
• Do not overfill the fridge. There should be sufficient space between the foods to allow the cool air to circulate.
• Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
• Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices from raw meat contaminating other foodstuffs.

Freezer use

The freezer compartments are designed to store only frozen food. - Never put hot or warm foods in the freezer; allow them to cool fully before putting them into the freezer. - Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be stored for more than three months after the purchase date. - Store food in small packages (ideally less than 1 kg). This reduces the freezing time and improves the quality of the food after thawing. - Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry. Label the food before freezing with information including type of food and dates of storage and expiry. - Once food is thawed, it must not be refrozen. Only defrost as much food as is required to prevent wastage. - Bottled or canned drinks should not be stored in the freezer compartments as they could explode. The maximum amount of fresh food that can be frozen within a 24 hour period is 2.0 kg. - Do not attempt to freeze more than the maximum amount.

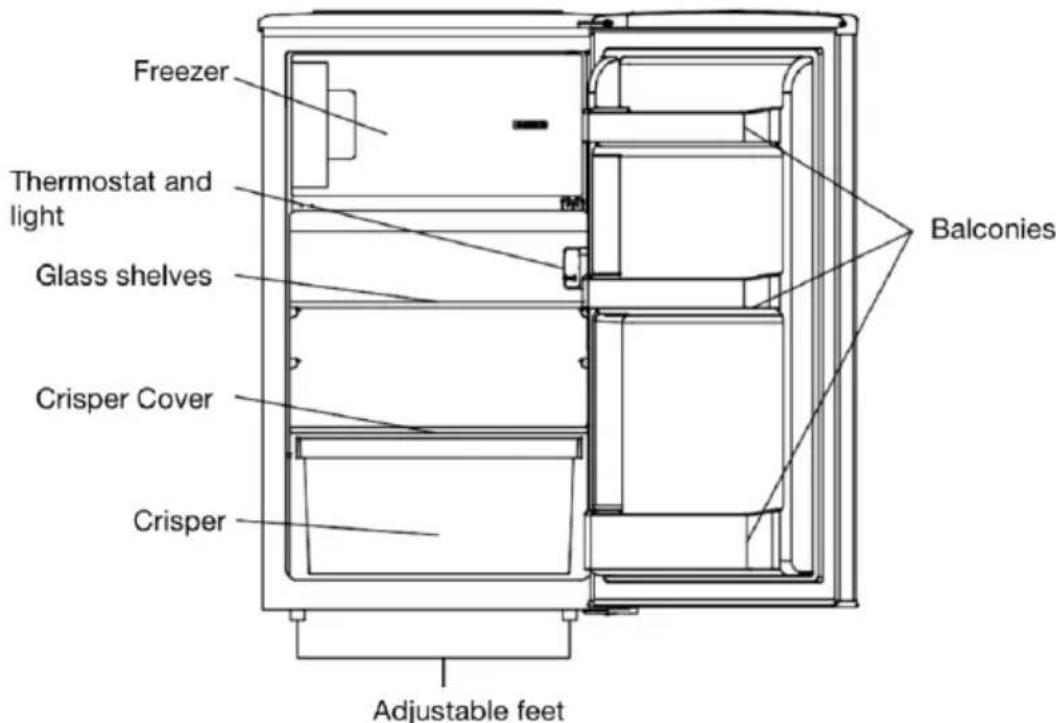

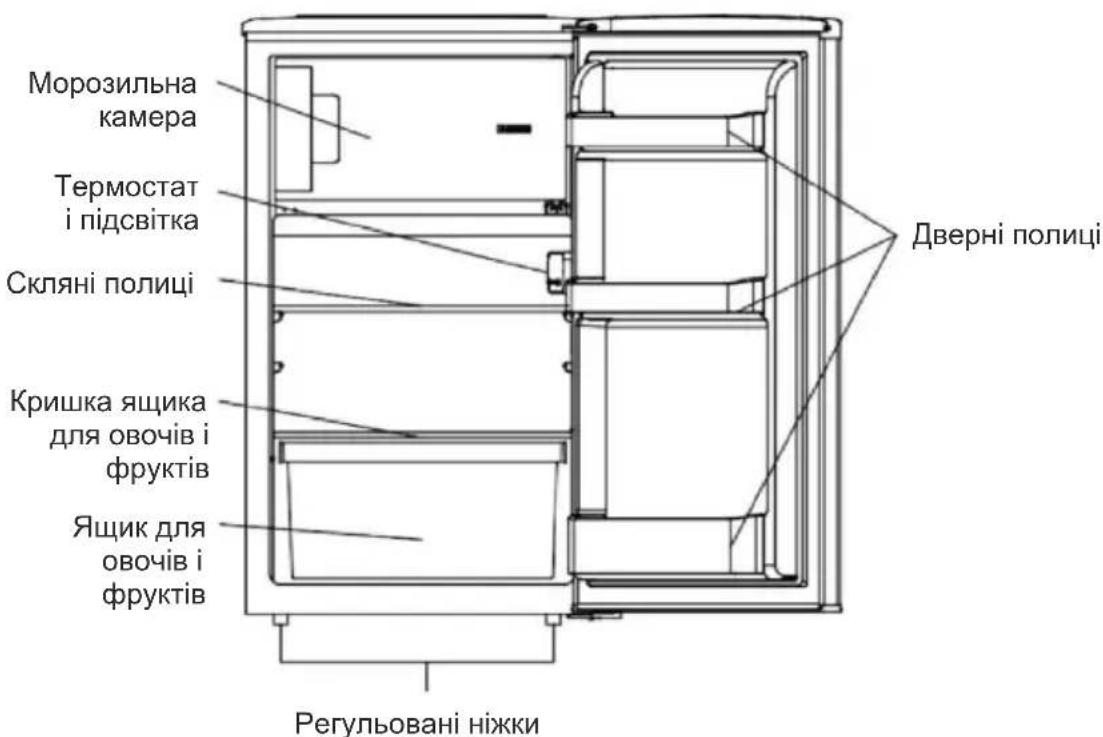

Overview

** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

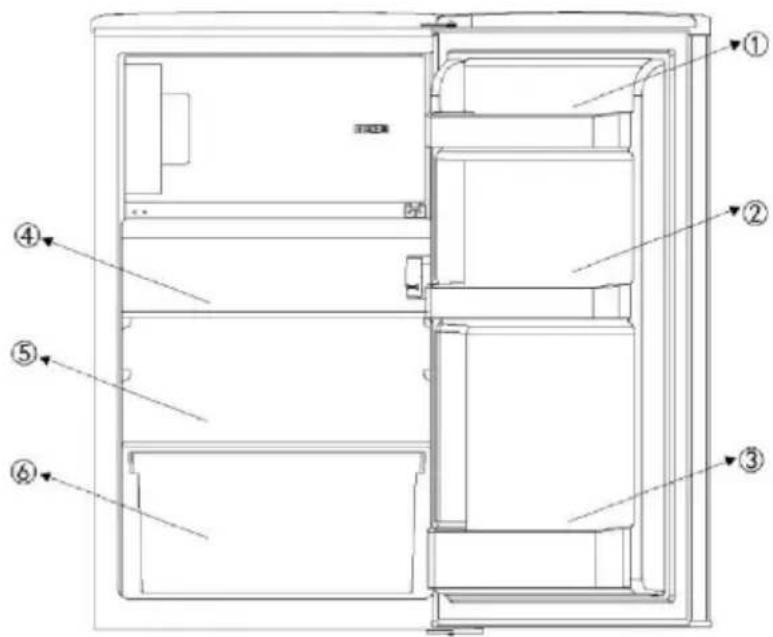

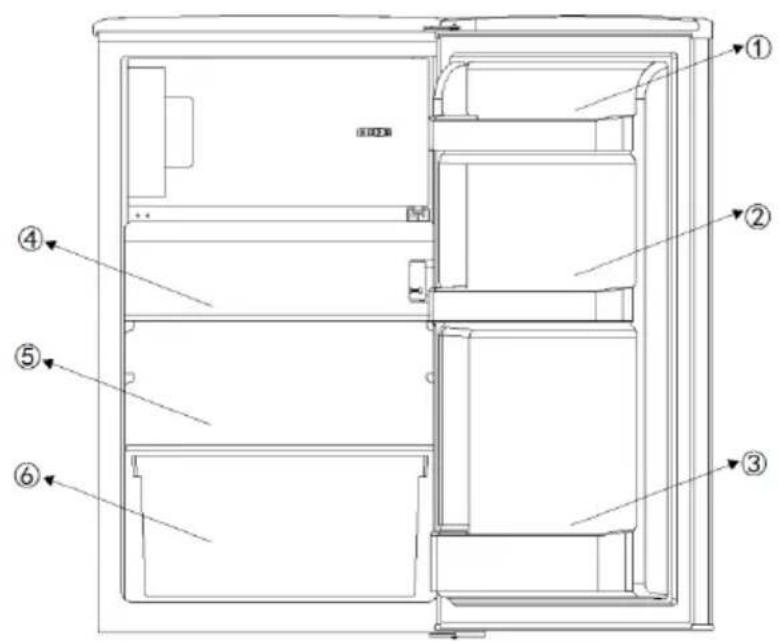

Storage

The fridge section is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended.

As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type.

1. Butter, cheeses etc.
2. Food in jars and bottles 3. Drinks, e.g. milk
3. Cooked food
4. Yogurts, preserves etc.
5. Fruit and vegetables

The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards.

To replace, slide the shelf back into the slot, and then lower the rear section.

The most energy-saving configuration requires drawers, food boxes, and shelves to be positioned in the product; please refer to the above pictures.

Control panel

There are a total of 5 temperature settings for the refrigerator. After connecting to the power supply, the refrigerator will be set to setting 3, which is the default setting.

Button "Power": Located on the left side, functions as switching on/off by pressing for 3 seconds.

Button "Adjust": Located on the right side, functions as adjusting the temperature settings for the refrigerator.

Adjusting the temperature:

The inside temperature of the refrigerator is adjusted by pressing the left "adjust" button. By pressing the button, settings 1 to 5 represent different temperatures from the highest to the lowest.

Position	Conditions
1-2	Summer or ambient temperature between 25°C-35°C
3-4	Spring Autumn or ambient temperature between 15°C-25°C
5	Winter or ambient temperature between 5°C-15°C
Super freezing function	Quick freeze

Caution: Some time will be required for the refrigerator to reach the set level when temperature adjustments are made. The length of this period is determined by the difference in the existing and set temperatures, the ambient temperature, the frequency with which the door is opened and closed, and the amount of food in storage.

Super freezing function

To activate the Super Freezing function:

Set the thermostat to position 5, press the door switch and temperature adjustment button

together, wait until the LED of position 5 blinks continuously; the SF function has been activated.

SF will work for 24 hours, after which the function will quit automatically, then return to the original position setting. Note: During the SF period, the LED of position 5 will keep blinking.

Reversing the appliance doors

We recommend you seek the help of another individual to support the doors whilst performing this operation.

1. remove the top screws cover	2.remove the screws then remove the top cover
3.unscrews the top hinge and then unscrew the hinge pin,turn the hinge over and replace it.	4. remove the door
5. unscrews the lower hinge and adjustable feet then unscrew the hinge pin,turn the hinge over and replace it.	6. get the left side stopper from accessory bag and install it on the lest side of refrigerator,then install the lower hinge on the on the lest side of refrigerator accordingly.
7. fix the door on the lower left side hinge	8. refit the top hinge
9. change the screws hole cover from left side to right side and refit the top cover.	10. install the top cover screws
11. refit the top screws cover

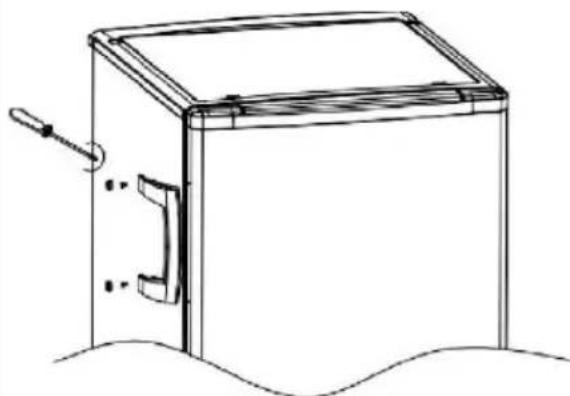

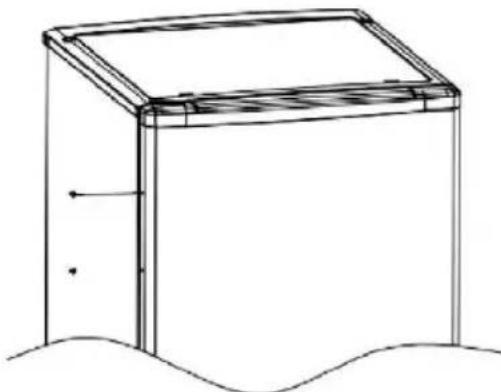

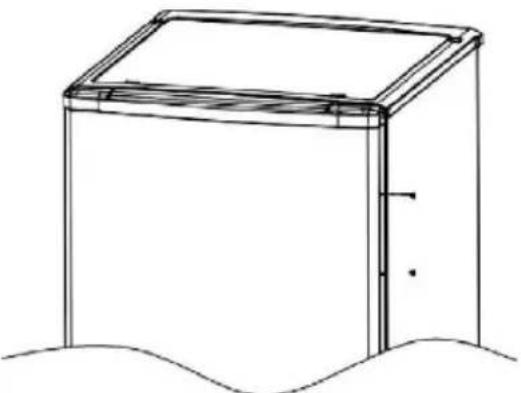

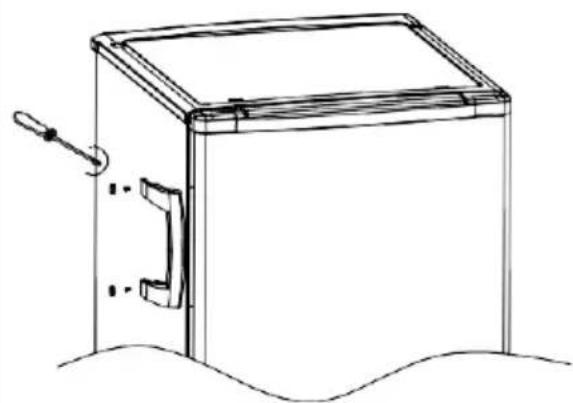

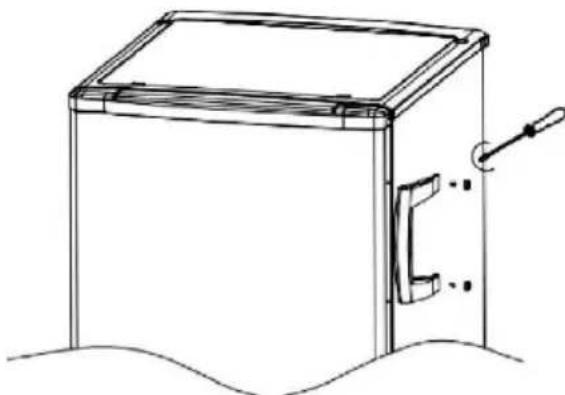

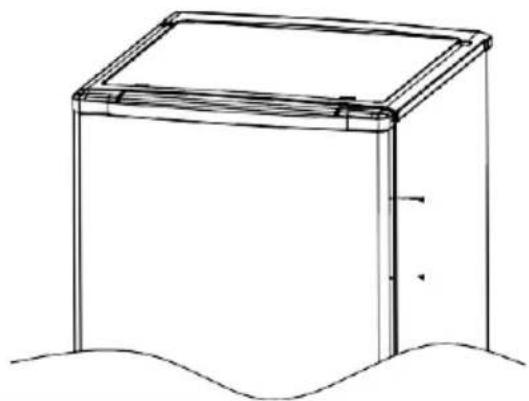

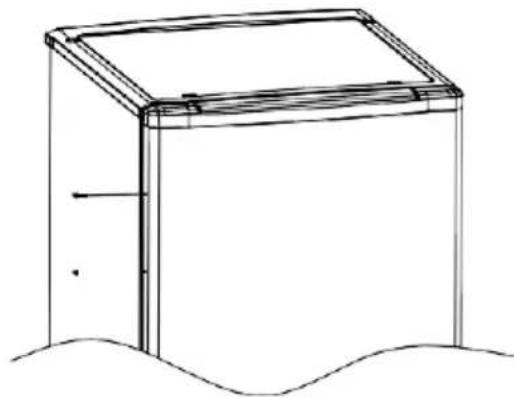

Install door external handle (if external handle present)

1. Unscrew the handle on the left side.
2. Remove the screws cover from right side

1. Install the screw cover on the left side
2. Install the handle to the right side

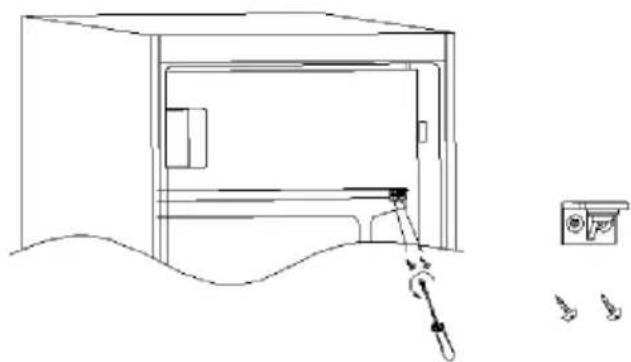

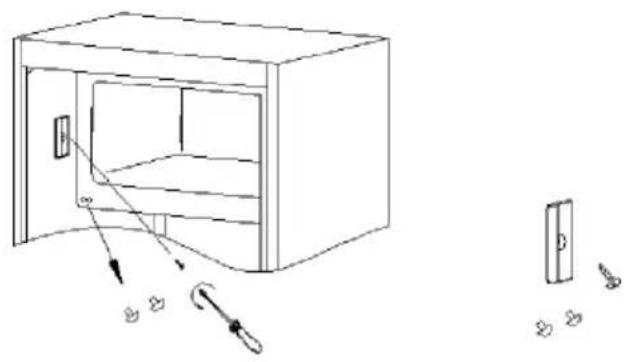

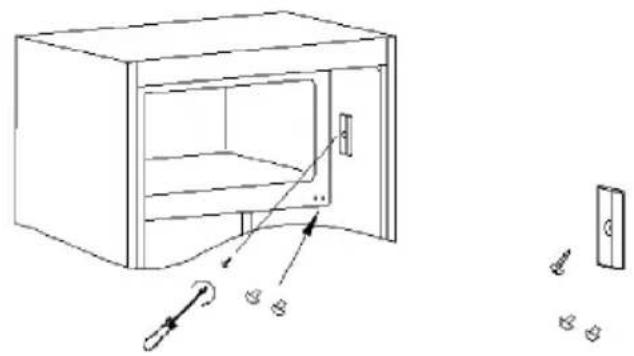

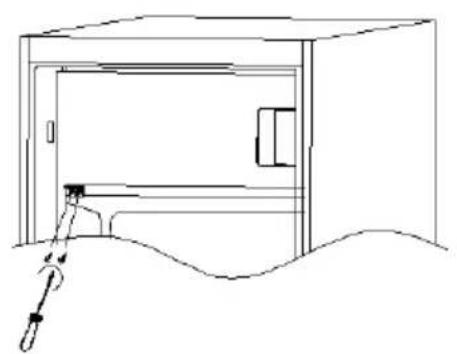

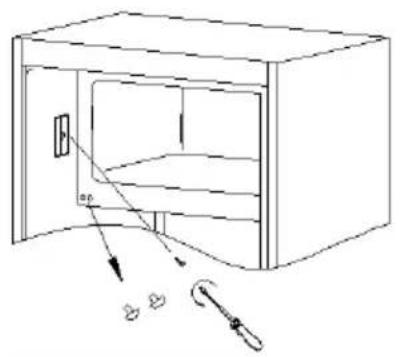

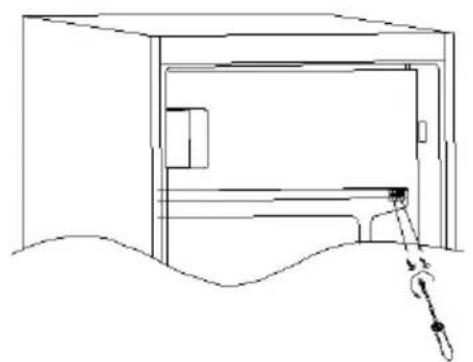

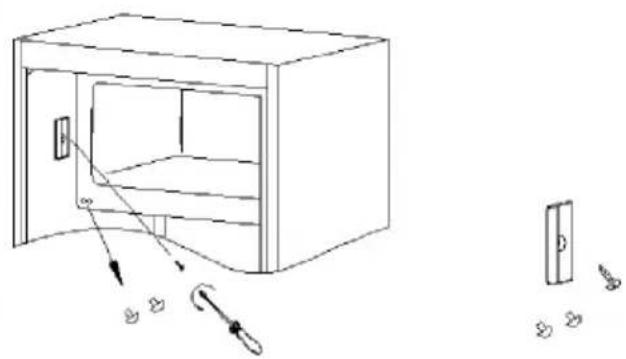

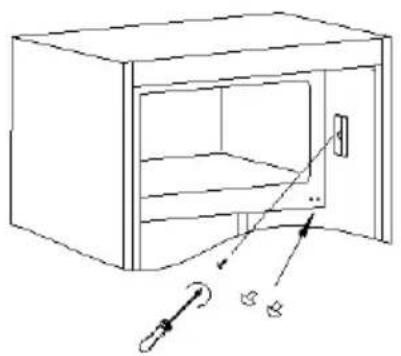

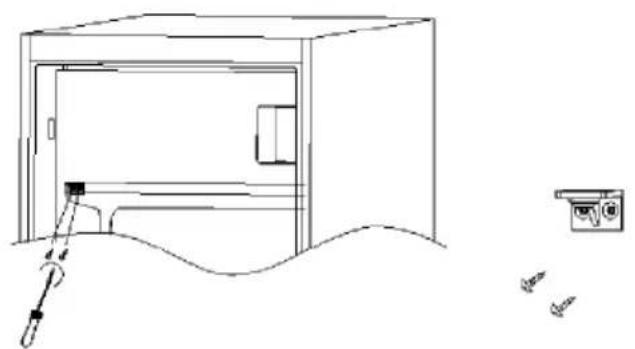

Reversing the inner doors

1. Remove the screw cover on the right side, then unscrew the screws.

1. Remove the screw cover on the left side.

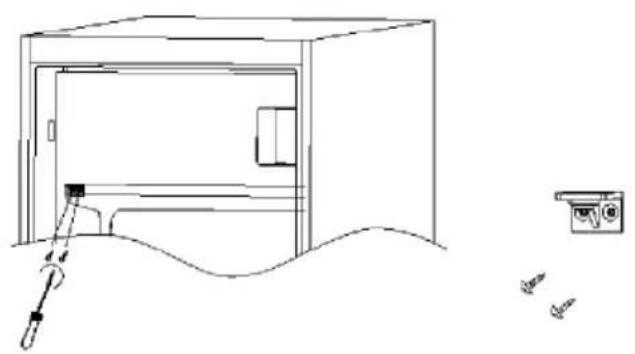

1. Install the screw cover from left side to right side.
2. Rotate inner door and install to the left side and then install the screws.

Ensuring the door seals correctly:

It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal. A distance of approximately 10 cm should be adequate. When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.

INSTALLATION

WARNING! The appliance is heavy. Always handle with at least two persons.

Before first use

Remove all packaging materials. Clean the appliance with water and a mild detergent and dry it with a soft cloth. Check if the power supply, socket, and fusing are appropriate to the rating plate. Check if the power socket is earthed and no multiplug or extension is present. Check if the power plug is accessible after the appliance has been positioned. Refrigerator and freezer temperatures are automatically set at 4°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. See Adjust the temperature.

Environmental conditions

This appliance should be installed in a room that is dry and well ventilated.

Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation or exposed to direct sunlight. If this appliance is situated in a cold environment (such as a shed, outhouse, or garage), the performance will be affected and this may damage the food.

Install this product in a position where the ambient temperature is not lower or higher than the operating temperature; in this case the appliance does not work properly.

• Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C'.
• Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C'.
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C'.
• Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C'.

Levelling the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the appliance slightly backwards.
2. Turn the feet clockwise to raise the refrigerator.
3. Turn the feet counterclockwise to lower the refrigerator.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and in the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

TIPS FOR FOOD STORAGE

Position different food in different compartments according to the table below:

Refrigerator compartment Type	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments ·Do not store perishable foods
Crisper drawers (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin ·Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cocking, such as ready-to-eat foods, deli meats, leftovers
Freezer drawer(s)/tray	·Foods for long-term storage ·Bottom drawer for raw meat, poultry, fish ·Middle drawer for frozen vegetables, chips ·Top tray for ice cream, frozen fruit, frozen baked goods

It's suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment. For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisp drawers, whenever present. If not present, maintain an average setting of the thermostat. For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C).

Tips for storing food in the fridge

Keep your fridge temperature below 5°C. Hot food must be cooled to room temperature before storing in the appliance. Foods stored in the refrigerator should be washed and dried before storing. Food to be stored should be properly sealed to avoid odour or taste alterations. It is advisable to keep food covered with materials that are tasteless, impermeable to air and water, non-toxic and free of pollution, to avoid contamination or odour transfer. It is recommended not to obstruct the air outlets of the refrigerator compartment. Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogenous cooling. Leave a gap between foods and the inner walls, allowing air flowing. In special way don't

store foods against the rear wall, as food could freeze.

The ageing process of some fruit and vegetables (such as melons, papaya, banana, pineapple etc) can be accelerated in the refrigerator; therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.

Tips for freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

Place the fresh food to be frozen in the freezer compartment. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate. The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Tips for storing food in the freezer

Keep the freezer temperature at -18°C. Hot food must be cooled to room temperature before storing in the freezer compartment. Food cut into small portions will freeze faster and will be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg. It is better to pack the food before putting it into the freezer. Defrosted food cannot be re-frozen unless it is first cooked. Do not load excessive quantities of fresh food in the freezer compartment. Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables 6-12 months). Do not exceed the food storage time recommended by the manufacturers.

CARE AND CLEANING

WARNING! Disconnect the appliance from the power supply before cleaning.

General

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odours.

Clean the inside and housing of the appliance with lukewarm water and some neutral soap. Rinse and dry with soft cloth. Clean the accessories only with lukewarm water and neutral detergent. Make sure that all soap is rinsed off and all parts are dry before replacing them inside the appliance. Do not clean any of the parts of the appliance in a dishwasher. Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Replacing the LED-lamps

The internal light is a LED type. To replace the lamp, please contact the customer service. See Troubleshooting.

Door opening alarm

When the appliance door is left open for more than 1 minute, the door opening alarm will sound. The alarm can be silenced by closing the door or by pressing the SET key (this will not affect the temperature setting, it will just mute the alarm).

Non-use for long periods

If the appliance is not used for an extended period of time:

1. Take out the food and unplug the power cord.
2. Clean the appliance as described in the "Care and Cleaning - General" section.
3. Keep the door and freezer drawers/door open to prevent the creation of bad odors inside.

Power interruption

In the event of a power cut, food should remain safely cold for the time indicated on the rating plate. Follow these tips during a prolonged power interruption, especially in summer:

Open the door/drawer as few times as possible. Do not put additional food into the appliance during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than the amount of hours indicated on the rating plate, make some ice and put it in the top of the refrigerator compartment. The storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) in order to prevent health risks.

Availability of spare parts

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of 7 years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of 7 years and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market.

TROUBLESHOOTING

In case of a problem, please check all shown possibilities and follow the below instructions before contacting an after-sales service.

Problem Possible cause Possible solution
The appliance does not work	The appliance is turned off	Press the ON/OFF key to turn on the appliance
	Mains plug is not connected in the mains socket	Connect the mains plug
	Fuse has blown or is defective	Check the fuse and replace it if necessary
	Socket is defective	Mains malfunctions should be corrected by an electrician
The appliance runs frequently or runs for a too long period of time	The indoor or outdoor temperature is too high	It is normal for the appliance to run longer
	The appliance has been off power for a period of time	Normally, it takes 8 to 12 hours for the appliance to cool down completely
	A door/drawer of the appliance is not tightly closed	Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door
The inside of the refrigerator is dirty and/or smells	The inside of the refrigerator needs cleaning	Clean the inside of the refrigerator
	Food of strong odour is stored in the refrigerator	Wrap the food thoroughly
Moisture formation on the inside of the refrigerator	The climate is too warm and too damp	Increase the temperature
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer
	Food containers or liquids are left open	Let hot foods cool to room temperature and cover foods and liquids
Moisture accumulates on the refrigerators outside the surface or between the doors/door and drawer	The climate is too warm and too damp	This is normal in damp climate and will change when the humidity decreases
	The door/drawer is not closed tightly	Ensure that the door/drawer is tightly shut
Strong ice and frost in the freezer compartment	The goods were not adequately packaged	Always pack the goods well
	A door/drawer of the appliance is not tightly closed	Close the door/drawer
Unusual noises	The appliance is not at level Re-adjust the feet
	The appliance is touching the wall or other objects	Slightly move the appliance
UI Led's are flashing	One of the sensors is out of range Contact the assistance
An alarm is beeping	The fridge storage compartment door is open	Close the door or silence the alarm manually
The interior lighting or cooling system does not work	The LED-lamp is out of order	Please call the service for changing the lamp

During operation, the side walls and perimeter of the freezer compartment may be hot: this is normal and is due to the normal working cycle of the product.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance

User Manual Table Top

Contents

SAFETY INFORMATION 37 Energy efficiency 38 Intended use 39 Using the refrigerator 40 Using the refrigerator 40 Care and cleaning 41 Storage 42 Control panel 43 Troubleshooting 50 Disposal 52

Thank you for purchasing this product.

Before using your refrigerator, please read this user manual carefully to achieve the best efficiency. Keep this documentation for future reference or for other owners. This product is intended solely for household use or similar applications such as:

• Kitchen areas for staff in shops, offices and other working environments
• In farms, by clients of hotels, motels and other residential environments
• In guesthouses, bed and breakfast (B & B)
• For catering services and similar applications, but not as mass catering equipment for sale to the public.

This appliance should be used only for storing food; any other use is considered dangerous. The manufacturer is not responsible for any damages that may occur. It is recommended to familiarize yourself with the warranty terms.

SAFETY INFORMATION

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not responsible if the instructions and warnings are not followed.

Place all documents for the last reference or for the following event.

Do not connect the device to the electrical supply until all protective elements from the packaging and for transport have been removed. Do not allow the packaging or any of its parts to fall into the water.

Danger! Risk of suffocation from plastic bags and nylon foil!

• Leave it at rest for 4 hours before switching it on, so that the compressor oil can be distributed, if it has been transported horizontally.
• Make sure there is no transport damage.

Do not damage the cooling circuit. - Keep the ventilation openings on the device housing or the built-in structure free from obstructions. - Never use water to clean the compressor area; after cleaning, wipe it dry with a dry cloth to prevent rust. - The device must be placed at least 20 cm away from walls, as it is hot. - Place and level the device in an area suitable for its size and use. - Make sure the information about the electrical installation on the data plate matches the power supply. If not, contact an electrician. - The device operates on 220 - 240 VAC/50 Hz. Abnormal voltage fluctuations in the supply voltage can lead to unreliable starting of the device, damage the temperature control or compressor, or cause abnormal noise during operation. In such cases, an automatic voltage regulator is installed. - Only for the UK: The power cord of the device is fitted with a three-pin (earthed) plug, which corresponds to the standard three-pin (earthed) contact. Never cut off or modify the third pin (earth). After installing the device, there must be sufficient access to the plug.

• Make sure the power cord is not trapped under the device during and after transport/relocation, to prevent cutting or damage to the power cord. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a potential hazard.

Do not install the device in damp, oily, or dusty places, nor expose it to direct sunlight and water.

Do not install the device near heaters, hot surfaces, or flammable materials.

For devices with a freezer: if the power goes out, do not open the lid. Frozen food should not be refrozen if the interruption lasted longer than the time indicated on the data plate (the time needed for the temperature to rise). If the power outage is longer, the food must be checked and consumed immediately or cooked and refrozen.

Do not be alarmed if you notice that the lid of the device is difficult to open right after you have closed it. This is due to the difference in air pressure, which will equalize and allow the lid to be opened after a few minutes.

Store medicines, bacteria, or chemical agents in the refrigerator. This is a household refrigerator; it is not intended for storing materials that require strict temperatures.

Do not place excessive force on or bend the power cord, and do not touch the appliance with wet hands. Do not store products that contain flammable fuel (e.g., paint thinner) or explosive substances in it. Risk of explosion! Do not place unstable items (heavy items, containers with water) on top of the refrigerator, to avoid damage caused by falling or electric shock upon contact with water. Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer. Do not touch the internal cooling elements, especially with wet hands, to avoid burns or injuries. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Ensure that children and persons in vulnerable positions understand the dangers. Children should be supervised or instructed when using the appliance. Only children aged 8 years and above may use the appliance. - Children must not play with the appliance.

• Children aged 3 to 8 years are allowed to load and unload the appliance. For refrigerators with a freezer: Do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! For refrigerators with a freezer: Never consume ice cream directly from the freezer. Risk of burns at low temperatures!
• Clean the plastic parts and the door gasket with mild detergent. Otherwise, the plastic parts and the door gasket may become brittle.
• Before performing any operation, disconnect the power cord from the outlet. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use sharp objects or tools such as screwdrivers or knives to remove ice.
• Never use steam cleaners, electric heaters, or other similar electrical appliances for defrosting.
• It is recommended to keep the appliance clean; dust accumulation on the appliance can cause fire. Do not attempt to repair, disassemble, or modify the appliance yourself. If repair is needed, please contact our service center for customer service.
• Observe the appliance until it stops operating or is serviced. Do not place your dishes in the dishwasher with hot water. The sudden temperature difference may cause damage to the glass.
• WARNING: The refrigeration circuit contains a small amount of natural refrigerant (R600a) and insulating gas (cyclopentane).

It does not damage the ozone layer and does not increase the greenhouse effect. The release of refrigerant may cause eye irritation or affect its replacement.

• If the refrigeration circuit is damaged:
• Disconnect the appliance and ventilate the room. Keep away from the appliance, open flames, and/or ignition sources.
• Ventilate the room well for a few minutes.
• Inform the customer service center.
• WARNING: Do not damage the pipes or the power cord; this may cause electric shock or fire.
• WARNING: Do not use portable sockets or portable power sources for connection. We do not recommend the use of extension cords or adapters. Do not lean on or stand on the appliance. You may get hurt or damage it. This appliance is not intended for use in a column with the appliance.
• Food and beverage storage.
• For household use only.
• Only original spare parts provided by the manufacturer may be used. The manufacturer guarantees that only these parts meet safety requirements.
• Opening the doors for long periods can cause a significant increase in the temperature of the appliance's compartments.

-Clean surfaces that may come into contact with food and accessible drainage systems. -Clean water reservoirs if they have not been used for 48 hours; flush the water system connected to the water supply if water has not been drawn for 5 days. -Store raw meat and fish in suitable containers in the refrigerator, so that they do not touch or drip onto other food. -Compartments marked with two-star (if present in the appliance) are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. -Compartments marked with one, two, and three stars (if present in the appliance) are not suitable for freezing fresh food. -If the refrigerator is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mold from developing in the appliance.

For wine cooler: This appliance is intended exclusively for storing wine. For free-standing appliance: This refrigerator is not intended for use as a built-in appliance. For appliance without a 4-star compartment: This refrigerator is not suitable for freezing food.

• Replacing the light source (only LED) by a professional. This product contains a light source with energy efficiency class G.

Disposal of old appliances.

This appliance is marked in accordance with European Directive 2012/19/EC regarding waste electrical and electronic equipment (WEEE).

WEEE contains both polluting substances (which can have negative effects on the environment) and basic components (which can be reused). It is important that WEEE is subjected to specific treatment to remove and properly dispose of all pollutants and to collect and recycle all materials.

Individual users can play an important role in ensuring that WEEE does not become an environmental problem; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the appropriate collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection may be possible.

In many countries, when you buy a new appliance, the old one can be returned to the retailer, who must take it back free of charge on a one-for-one basis, provided the equipment is of equivalent type and has the same functions as the supplied one.

The CE marking on this product confirms its compliance with the applicable European safety, health, and environmental protection requirements, as required by the legislation for this product.

Warranty

Minimum warranty: 2 years for EU countries, 3 years for Turkey, 1 year for the UK, 1 year for Russia, 3 years for Sweden, 2 years for the USA, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, no legal warranty required for Tunisia.

Energy saving tips

For more economical energy use, we recommend:

Install the appliance away from heat sources, direct sunlight, or in a room with good ventilation. Avoid storing warm food in the refrigerator to prevent temperature fluctuations that lead to prolonged compressor operation. Do not overload with food to ensure good air circulation. Defrost the appliance when ice forms to reduce cold air transfer. In case of a power outage, it is advisable to keep the refrigerator door closed. - Open the doors as little as possible and for the shortest time. Avoid setting the temperature too low. - Clean the back of the appliance from dust.

First use

Leave the refrigerator to rest for at least four hours before connecting it to the power supply.

It is recommended before first use to clean the interior of the appliance with a solution of baking soda and warm water, then dry the interior well.

During first use, the refrigerator may emit an odor. This will disappear after the appliance has been running for a while.

Please note:

Set the thermostat to -18°C for the freezer to reach the correct temperature.

If the appliance is switched off, wait at least five minutes before switching it on again to prevent unnecessary damage to the compressor. Never store flammable or explosive items, or corrosive acids or bases in the appliance.

The refrigerator cools food by evaporating refrigerant in the back wall of the sealed compartment. It is normal for frost to form on this surface; it will melt and drain away through a small hole, which is harmless.

Check the appliance for damage before installation.

1. Place the cap on the screw from the left side of the appliance.
2. Remove the cap from the screw from the left side.

1. Close the door and mount the hinges, then install the screws.

Checking the correct adjustment of the door:

It is normal for the adjustment to compress, especially when the door is closed. When the door is closed, use a screwdriver to widen the adjustment and fill the gap between the door and the cabinet. Be careful not to tighten the screwdriver too much into the cabinet, as this may damage the adjustment. A distance of about 10 cm should be sufficient. When you are done, leave the adjustment and the door to cool before you check them. After you finish, the adjustment should remain in place.

INSTALLATION

WARNING! The appliance is heavy. When moving it, at least two people are required.

Before first use

Remove all packaging material.

Clean the appliance with water and mild detergent, then dry with a soft cloth. Check that the power supply, contacts, and plugs are suitable for the appliance. Check that the contacts are grounded and make sure there are no loose connections or damaged parts. Check that the appliance will be accessible after it is installed. The temperature of the refrigerator and freezer is set automatically to 4°C and -18°C respectively. These are the recommended settings. You can change these temperatures manually. See "Temperature Adjustment".

Installation environment

This appliance must be installed in a dry and well-ventilated room.

Install the appliance away from heat sources (furnaces, radiators) without insulation or in a place where it is exposed to direct sunlight. If this appliance is placed in a humid area (for example, a garage, an annex to a garage), make sure it is well ventilated and that it does not cause condensation.

Install this product in a place where the ambient temperature is not lower or higher than the operating temperature: in this case, the appliance will not work properly.

Extended temperate climate (SN): This refrigerator is intended for use at ambient temperatures ranging from 10° C to 32° C - Temperate climate (N): This refrigerator is intended for use at ambient temperatures ranging from 16° C to 32° C. Subtropical climate (ST): This refrigerator is intended for use at ambient temperatures ranging from 16° C to 38° C. Tropical climate (T): This refrigerator is intended for use at ambient temperatures ranging from 16° C to 43° C.

Leveling the appliance

The appliance must be placed on a flat and stable surface.

1. Make sure the appliance is level.
2. Turn the feet clockwise to raise the refrigerator.
3. Turn the feet counterclockwise to lower the height of the refrigerator.

Moving the appliance

1. Remove the plug from the socket. 2. Secure the shelves and other movable parts of the refrigerator and freezer. 3. Do not tilt the refrigerator more than 45° to avoid damaging the cooling system.

Tips for storing food

Place different types of food in different compartments of the refrigerator:

Хладино отдени	Видхрана
Враза пли рафтоve на враза та нахладиноTOОТдени	•Храни с ecteстveни консерваHTи, kaTo habримерMapmaлади/koHФитюри, сokOBe, habNTKN, подравки•He sbxpanяваite HeTPaRIHn xpaHI
Чекmedжete 3a по-дьлготрайнacbexжесТ (чекmedжete 3a салata)	•Плodobe, bILTKIи 3eileнчуци ТрЯбВада 6ьдат поставпИНOTДЕЛNO B KUTYATA 3a по-дьлготрайнacbexжесT•He sbxpanяваite bSahAHN, lyK, KapTOФи и чecьнВхладилинka
Среен рафТ в xладилинka	•Млechни п探测кTи, рИцa
Горен рафТ в xладилинka	•Храни, koITо Нямат hyЖдо AT rotве He, habримерrotobи 3a KOHCymaць XpaHI, noLlyrotobи Meca,HeIN3ЯденЯRCTИЯ
Чекmedжete(Ta)/taba на Фprизера	•Xрани 3a дьлгocspочno sbxpaneHnE•Долно чекmedжete 3a cypobo Meco, птуе мсeo, рИБa•Срени чекmedжete 3a замразEHи 3eileнчуци,Бlanширани и hapязahi karToФи•Горна taba 3a садолед, замрazEHи плodовe,ЗамрazEHи Тe的表情ихраHI

It is recommended to set the temperature to 4° C in the refrigerator compartment and, when possible, to -18° C in the freezer. For most food categories, the recommended storage time in the refrigerator compartment is achieved at the coldest temperatures. However, some specific products (for example, fresh fish and vegetables) may be damaged by too low temperatures, so it is recommended to store them in the crisper drawer for fresh produce, if available. If the refrigerator does not have a crisper drawer, set the thermostat to a medium setting. For frozen food, follow the storage time indicated on the packaging. This storage time is achieved when the setting corresponds to the reference temperature of the compartment (one star -6° C, two stars -12° C, three stars -18° C)

Tips for storing food in the refrigerator

Keep the temperature of the refrigerator at 5°C. The food must be cooled to the required temperature before being stored in the refrigerator. The food stored in the refrigerator must be clean and dry. Food that is to be stored must be properly covered to prevent changes in aroma or taste. It is recommended that food be covered with neutral materials that do not allow air and water to pass through, are non-toxic and do not cause contamination, to avoid contamination or transfer of odors. The recommended air outlet in the refrigerator compartment should not be blocked. Do not store excessive amounts of food. Leave spaces between food items so that cold air can circulate around them, which ensures better and more uniform cooling.

Leave distances between the food items and the inner walls so that air can circulate. In particular, do not store food that is close to the expiration date, as it may freeze. The ripening of some fruits and vegetables (e.g., pears, bananas, pineapples, etc.) may be accelerated in the refrigerator; therefore, it is not recommended to store them in the refrigerator. The ripening of many green vegetables can be stimulated for a certain period. Onions, garlic, ginger, and other root vegetables should be stored at room temperature.

Advice on freezing fresh food

The freezer is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. Place the fresh food you want to freeze in the freezer. The maximum amount of food that can be frozen in 24 hours is indicated on the data plate. The freezing process lasts 24 hours: during this period, do not add other food for freezing.

Advice on storing food in the freezer

Keep the temperature of the freezer at -18°C. The food must be cooled to the required temperature before being stored in the freezer. Food placed in small portions freezes faster and is easier to thaw and cook. The recommended weight for each portion is under 2.5 kg, and it is best for the food to be packaged before placing it in the freezer. Thawed food cannot be refrozen unless it has been cooked. Do not exceed the maximum quantities of fresh food in the freezer. Food can be stored in the freezer at a temperature of -18°C or lower for a period of 2 to 12 months, depending on the characteristics (e.g., meat: 3 to 12 months, vegetables: 6 to 12 months). Do not exceed the storage time for food, as recommended by the manufacturers.

CARE AND CLEANING

WARNING! Disconnect the appliance from the power supply before cleaning.

General information

The appliance must be cleaned every four weeks for good performance and to prevent the transfer of odors from stored food.

Clean the interior and exterior of the appliance with lukewarm water and a little neutral detergent. Rinse and dry with a soft cloth. Clean the accessories only with lukewarm water and neutral detergent. Make sure the detergent is well rinsed and all parts are dry before putting them back in the appliance. Do not wash any of the appliance parts in a dishwasher. Wait at least 5 minutes before switching the appliance back on, as frequent starting may damage the compressor.

Replacing the light bulbs

The interior light is produced by LEDs. To replace the lamp, contact the customer service department.

Troubleshooting

Door open alarm

When the appliance door has been left open for more than 1 minute, the door open alarm will sound. The alarm can be silenced by closing the door or pressing the "SET" button (this will not affect the temperature setting, it will only silence the alarm).

Use for long periods of time

If the appliance is used for an extended period of time:

1. 1. Remove all food and close the appliance door. 2. Clean as described in the section "Cleaning and Maintenance - General Information".
2. Leave the appliance door / freezer door open to prevent the development of mold inside.

Power failure

In case of a power failure, food should remain cold for a certain number of hours according to the data table. Follow the recommendations during the power failure, especially in summer:

Open the door / freezer door as rarely as possible. Do not put other food in the appliance during the power failure. If you have received a warning about a power failure and its duration is longer than the hours indicated in the data table, place the food in the upper part of the refrigerator compartment. The storage time and quality of the food will be reduced. Any food that has thawed must be consumed or refrozen immediately (if appropriate) to avoid potential health risks.

Availability of spare parts

Thermostats, temperature sensors, circuit boards, and light sources are available for a minimum period of 7 years after the last unit of the model is placed on the market.

The doors, handles, trays and baskets are guaranteed for a minimum period of 7 years, and the door hinges for a minimum period of 10 years, from the date of the last model update on the market.

TROUBLESHOOTING

In case of problems, please check all the possibilities shown and follow the instructions step by step; if the issue persists, contact the after-sales service department.

ПюбLEM	Вераяну prочиа	Бъзможно ршениe
Урémonг He paßotn	Урémonг e Источун	Натiousе 6утона за вклочвае/Источвае, за вклочпу уреа
	Шелсенье He e Велически Контакт	Величесу сцениe
	Исторг e поздочи ТEL ПИ ПИ ПМа Deф ekт end TaçьВ	Проберете поздочи ТEL ПИ ПИ ПМа Deф ekт end Ako e Heobховимо
	Контакг end e Deф ekт end	Поведи на лесенческatingа Берига Травьда BA da Бдат OTстяпавиот OTЕктуговиму
Урémonг se Величесы чебуп пождппогин Вреемe	Вътrewнata ил bьшнata TempepaTypa e TBbprde Bricoka	Hорmaлио e урémonг да рождп по-дьлro
	Урémonг e бил Источун 3a пождппелно Вреемe	Овиковешо на сеонбховиму ot 8 до 12 уа ca, за се oxлади урémonг halьлно
	Враза/чек medже на ур dedа He e 3atboreha/o пьтно	Затовete Враза/чек medжею се уberete, чу урémonг се hamira вьрху Невелега Ровьхост, касу и чу Затваряно на Враза He e ВьзрениTCTBAHO ot xpana Или контейнер
Вътrewността на xладилнika e Мрьсан/c loш мирис	Вътrewността на xладилнika Травьда BA дьдe поchristena	Почисте Вътrewнosttra на xладилнika
	В xладилнika ce сьханявахара CBc симен мирис	Опakовaite doбpe xpanaТа
Във Вътrewностtega на xладилнika ce Форміра кONDěн	Кліматыт e Тьрдe Тьл n Tьрдe Влajжен	Увелоче TempepaTypaТа
	Враза/чек medже на ур dedа He e 3atboreha/o пьтно.	Затовete Враза/чек medжею
	Контейнера c xрана ил{Teyhocstna ca OCTabechin OTborehen	Оставete ropeцiteха xpaniда Истchinatdo CTайна TempepaTypa n Pokrivaiteхраніteи{Teyhocstte
Посьрхоста на Хадилика OT Вьншата STрана ял Можду ВразITE/BразATA и Чекmedжeto ce образува кондэн	КлIMаТБЕТВьрDEТОПьIи TBьрDE ВразЖен	Това eHopмално рп ВразЖen Климати чe се промени, korото Вразността Hamalee
	ВразATA/Чекmedжeto He e ЗАТВОЕнA/O ПЛьТНО	Уberete ce, чe ВразATA/Чекmedжeto e ЗАТВОЕнA/O ПЛьТНО
Mногледи скрж Вьв Фризера	ХсанITE He ca onakobahi ад ekвathо	Виharу onakobai Te xpahtte doбpe
	ВразA/Чекmedж He upeDA He e ЗАТВОЕнA/O ПЛьТНО	ЗАТВОЕTe ВразATA/Чекmedжeto
Небочайнишимove	Уразьт He e HINBEJIран	Perugларite OTHOBO Крачета
	Уразьт се ДОпирд OTo StЕнata ял До Дуггп п徴metи	Премес-te T MaNKо урда
СbvToДиоДитEs СbvТлии Na Notpe6nteJelcknig Интерфс eПрIMiRВaT	ЕднOT сEH3ORITE e ИЗВьн обхВaT	Сbvржete ce c OTdeJa 3a TEXHNUVECKa ПOMOД
Алармatura ce akTNBIPA	ВразATA Na XlaДилинka e OTВОЕнa	ЗATВОPETe BразATA ял Заглuyшete aIapmata рыно
ВbvTreшнatura СbvТлинna ял oxlaДителнa сИстema He paBOTи	СbvToДиоДиATA Лamпа e ПОВ畴Енa	Моля, obадete ce Na обсCityKBaUц ZeHTbP 3aСмЯнa Ha ЛamпаТa

During operation, the side walls and the perimeter of the freezer compartment may be hot: this is normal and is due to the normal operating cycle of the product.

To contact the technical support department, follow this link: https://corporate.haier-europe.com/en/

In the "Support" section, select the brand of your product and enter the model. You will be redirected to the specific support page, where you can find the phone number and information to contact the technical support department.

For additional information about the product, please visit https://eprel.ec.europa.eu/ or scan the QR code on the energy label provided with the device.

SAFETY INFORMATION

Reversing the appliance doors

Reversing the interior doors

Replacing the LED lamps

User Manual

Free-standing appliance

Contents

Information on safety 448 Utilization of household appliances 455 Energy saving 456 Before first use 457 Using the refrigerator 458 Using the freezer compartment 458 Overview 459 Storage 460 Control panel 461 Cleaning and maintenance 468 Troubleshooting 470

Thank you for purchasing this product.

Before using the refrigerator, carefully read this user manual to make the most of its features and capabilities. Keep all documentation for future reference or for other users. The product is intended exclusively for household use, as well as for the following similar applications:

• - In staff kitchens in shops, offices, and other working environments; - In farmhouses, for clients of hotels, motels, and other residential premises; - In bed and breakfast establishments (B&B);
• - In catering and similar non-retail applications.

The appliance should be used only for storing food products. Use for any other purposes may be considered dangerous, and the manufacturer is not responsible for such misuse. It is also recommended to pay attention to the warranty conditions.

Safety information

Carefully read the instructions for installation and operation! They contain important guidelines for installation, use, and maintenance of the appliance.

The manufacturer is not responsible for any failure to follow these instructions and precautions.

Keep all documentation for future reference or for other users.

Do not connect the appliance to the power supply until it is completely unpacked and all elements that protect it during transport have been removed. Do not allow children to play with the packaging or its parts.

Plastic film and cardboard can be a choking hazard!

• If the appliance was transported in a horizontal position, let it stand for at least 4 hours before switching it on, so that the compressor oil can settle.
• Make sure there is no damage during transport.

Do not damage the cooling circuit.

Do not allow ventilation openings on the housing of the electrical appliance or on built-in structures to be blocked.

• Never wash the compressor with water. Carefully wipe it dry with a cloth after cleaning to prevent rust.
• Due to the weight of the appliance, it should be moved by at least two people.
• Install the appliance and adjust its level in a place appropriate to its size and use.
• Make sure that the electrical characteristics on the rating plate match the characteristics of the power supply. If not, contact an electrician.
• This appliance operates from a power supply of 220-240 V AC/50 Hz. Abnormal voltage fluctuations may cause the appliance to malfunction, damage the temperature regulator or compressor, or produce strange noises during operation. In this case, install an automatic voltage regulator.

For UK only: The appliance's power cord is equipped with a 3-contact (earthing) plug, which plugs into a 3-contact (earthed) socket. Do not cut off or remove the third prong (earth). After installation, the plug must be easily accessible.

• Make sure that during or after moving the electrical appliance, the power cord is not pinched, as this could cause damage or breakage of the power cord. If the power cord is damaged, to avoid possible danger, it must be replaced by the manufacturer, its service agent, or a similarly qualified person.

Do not install the appliance in damp, dusty, or oil-contaminated places, or in places exposed to direct sunlight or water.

Do not install the appliance near heaters or flammable materials.

-For appliances with a freezer compartment: In case of a power failure, do not open the lid. If the power outage does not exceed the number of hours indicated in the technical data sheet (temperature rise time), this will not affect frozen products. If the power outage lasts longer, the products must be checked, then consumed or cooked and refrozen.

Do not worry if the appliance door is difficult to open immediately after you have closed it. This is due to a pressure difference that will equalize after a few minutes, and the lid can then be opened normally.

Do not store medicines, bacteria, or chemical substances in the appliance. This device is a household appliance; it is not recommended to store materials that require strict temperature ranges.

Do not pull or strongly bend the power cord, and do not touch it with wet hands.

Do not store products containing flammable gases (e.g., aerosol cans) or explosive substances in the appliance. Risk of explosion!

Do not place unstable items (heavy objects, containers with water) on the refrigerator to avoid injury from falling objects or electric shock due to contact with water.

Do not use electrical appliances inside the food storage compartments, except for appliances of the type recommended by the manufacturer.

Do not touch the internal cooling elements, especially with wet hands, to avoid frostbite or injury.

Risk concerns children, people with reduced physical, sensory, or mental capabilities, and people with insufficient knowledge regarding safe operation of the appliance.

• Ensure that children from the mentioned groups understand the dangers. The person responsible for safety must supervise or instruct children from the mentioned groups who use the appliance. Use of the appliance is allowed for children not younger than 8 years.

Do not allow children to play with the appliance.

1. Remove the screw cover on the right side, then tighten the screws.

1. Install the screw cover on the left side and the right side.
2. Remove the screw cover from the left side.

4. Turn the inner door over, install it on the left side, then install the screws.

Ensuring proper sealing of the door:

It is normal for the seal to remain compressed after turning the door.

To adjust the door seal, use a tool to loosen the seal and fill

the gap between the door and the appliance body. Be careful and do not use the tool too close to the appliance, as this may damage the seal.

A distance of about 10 cm should be sufficient. After adjusting, let the seal rest for a while before touching it. After this, the seal should remain in the correct position.

INSTALLATION

Warning. The appliance is heavy. It should be carried by at least two people.

Before first use

Remove all packaging materials. Clean the appliance with water and a mild detergent, then wipe dry with a soft cloth. Check that the power supply, socket, and fuse match the specifications on the rating plate. Check that the socket is grounded and that no extension cord or adapter is used. Check that the plug is accessible after installation. The temperature settings for the refrigerator and freezer compartments are automatically set to 4°C and -18°C respectively. These are recommended settings. If desired, you can change these temperature values manually. See the section "Temperature Adjustment".

Ambient conditions

This appliance should be installed in a dry and well-ventilated room. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without insulation or under direct sunlight. If this appliance is placed in a cold location (e.g., in an unheated room, on a porch, or in a garage), it may reduce its performance and lead to food spoilage.

Install this product in a place where the ambient temperature is not lower than or higher than the operating temperature range: if this condition is not observed, the device will not work properly.

• Extended temperate (SN): "This refrigerator is intended for operation at ambient temperatures from 10°C to 32°C."
• Temperate (N): "This refrigerator is intended for operation at ambient temperatures from 16 ° C to 32°C. Subtropical (ST): "This refrigerator is intended for operation at ambient temperatures from 16 °C to 38 °C", Tropical (T): "This refrigerator is intended for operation at ambient temperatures from 16 ° C to 43°C"

Leveling the appliance

The appliance must be placed level on a firm surface.

1. Tilt the appliance slightly backwards.
2. Turn the feet clockwise to lower the refrigerator.
3. Turn the feet counterclockwise to raise the refrigerator.

Moving the appliance

1. Remove all products and disconnect the appliance from the power supply.
2. Secure the shelves and other movable parts in the refrigerator and freezer compartment with adhesive tape. To avoid damage to the cooling system, do not tilt the refrigerator more than 45°.

TIPS FOR STORING FOOD

Place different food items in the various compartments according to the table below:

Please read the installation and operating instructions carefully!

They contain important instructions for installation, use, and maintenance of the appliance.

The manufacturer is not responsible for damage caused by failure to follow the instructions and warnings.

Keep all documentation for planned use or for future users.

Do not plug in the appliance until you have completely unpacked it and checked all the elements that protect the appliance during transport. Do not dispose of the packaging and parts. The plastic bag and cardboard can cause suffocation! If the appliance was transported in a horizontal position, leave it standing for 4 hours before turning it on, so that the compressor oil can settle.

• Make sure there is no damage during transport. Do not damage the cooling circuit. Do not damage the refrigerant pipes or openings in the appliance body or internal components. Never immerse the compressor in water; carefully wipe it with a dry cloth to prevent rust formation.
• Before installing the appliance, check that the power supply voltage matches the appliance's specifications. Install the appliance and adjust its level according to the dimensions and use of the appliance.
• Check that the electrical characteristics on the nameplate match the characteristics of the power supply. If not, contact an electrician.
• The appliance operates from a power supply of 220-240 V AC, 50 Hz. Voltage fluctuations can cause malfunctions during appliance operation, or damage to the temperature regulator or compressor, or noise during operation. In this case, install an automatic regulator. For large appliances: The power cord of the appliance is equipped with a three-contact (grounded) plug, which must be connected to a three-contact (grounded) outlet. It is forbidden to cut or repair the third prong (grounding). After installation of the appliance, the plug must be easily accessible.
• Check that during or after moving the appliance, the power cord has not been pinched or damaged, as this could lead to damage or breakage of the power cord. In case of damage to the power cord or malfunction, replacement must be carried out by the manufacturer, its service representative, or a qualified person.

Do not install the device in places that are wet, dirty, or greasy, as well as in rooms with high humidity or where it may be exposed to water.

Do not install the device near heat sources or flammable materials.

For models with a freezer compartment: in case of power failure, do not open the lid. If the power outage lasts longer than the number of hours specified in the technical data table (temperature rise time), the food may be affected. If the power outage continues for an extended period, the products should be checked and then either consumed or refrozen.

Do not worry if the device lid is difficult to open immediately after closing. This is due to pressure difference, which equalizes after a few minutes, and the lid can then be opened normally.

Do not store in the device any flammable, explosive, or chemical substances. This is a household appliance; it is not recommended to store materials that require strict temperature control.

Do not store materials that require strict temperature control in it.

Do not pull the power cable and do not bend it with force, and do not touch the plug with wet hands.

Do not store products containing flammable gases (e.g., aerosol cans) or explosive substances in the device. Risk of explosion!

Do not place unstable objects (heavy objects, containers with water) on the refrigerator to avoid injury from falling objects or electric shock due to contact with water.

Do not use electrical appliances inside the food storage compartments, as they are not of the type recommended by the manufacturer.

Do not touch the internal cooling elements, especially with wet hands, to avoid cracking or injury.

Risk concerns people with reduced physical, mental, or sensory capabilities, as well as people with insufficient knowledge and experience for safe operation of the device.

• It is recommended that children and people from vulnerable groups understand the danger. The person responsible for safety must supervise children and people from vulnerable groups who use the device, or instruct them. Use of the device by children aged 8 and above is allowed.

Do not allow children to play with the device.

• It is allowed to download products and remove them from the device by the manufacturer.
• For liquid products with a freezer compartment: Do not store liquids in the freezer compartment in glass or sealed containers (especially carbonated drinks). Glasses and cans may explode!

For liquid products with a freezer compartment: Never place them directly from the freezer into the mouth. Risk of cold burns!

• Plastic parts of the appliance must not come into contact with flames or hot plates. If these conditions are not met, plastic parts of the appliance may become porous.
• Before any work, disconnect the power cord from the electrical outlet.
• To speed up the defrosting process, do not use mechanical or other devices, except those recommended by the manufacturer.

To remove ice, do not use sharp objects or pointed tools such as knives or forks.

Never use devices for defrosting with a heater, electric heater, or other electrical devices.

• It is recommended to keep the plug clean, as poor contact may cause fire.

Do not attempt to repair, disassemble, or modify the appliance yourself. For repairs, always contact the customer service department.

The appliance is intended for installation in household or similar premises.

The product is intended and manufactured solely for household use.

Using the freezer

The freezer compartment is intended for storing only frozen products. Never place hot or warm products in the freezer; let them cool completely before placing them in the freezer. - Follow the instructions on the packaging for storing frozen products. For best quality, products should be stored no longer than three months after the date of purchase. Store them in small packages (ideally less than 1 kg). This reduces freezing time and improves quality after thawing. - Before placing products in the freezer, wrap them well. To prevent odor transfer, make sure they are dry. - Label the food before freezing, indicating the type of product, storage date, and expiration date. - Thawed food must not be refrozen. Thaw only as much as needed to avoid waste. - Do not store bottled or canned drinks in the freezer, as they may burst.

The maximum amount of fresh food that can be frozen within 24 hours is 2.0 kg. Do not exceed this maximum quantity.

Overview

** The illustration is provided for reference only. The actual configuration may vary depending on the model or the distributor's specifications.

Storage

The refrigerator compartment is intended for short-term storage of food. Despite its ability to maintain low temperatures, it is not recommended to store food in it for extended periods.

Since cold air circulates inside the refrigerator, the temperature in different sections may vary. Therefore, food items should be stored in different sections according to their type.

1. Butter, cheese
2. In jars and containers
3. Eggs, milk, ready meals
4. Vegetables, canned goods, fruits

The refrigerator shelves can be moved according to the storage requirements in the refrigerator compartment. To reposition a shelf, remove the front part, then slide the shelf out of the appliance.

Insert the plug back into the socket and lower the shelf.

For maximum energy efficiency, the appliance should be installed with the drawers, product drawers, and shelves removed; see image.

Control panel

Temperature setting for the refrigerator. After disconnecting from the power source, the refrigerator will be set to a value of 3, which is the default setting.

"Power" button (on/off): located on the left, performs the on/off function with a long press of 3 seconds.

"Adjust" button (adjustment): located on the right, performs the temperature adjustment function for the refrigerator.

Temperature adjustment:

The internal temperature of the refrigerator is adjusted by pressing the "Adjust" button. With each press, the setting changes from 1 to 5, representing different temperatures from the lowest to the highest.

Install the external handle of the door

(if external handle is present)

1. Unscrew the handle screws from the left side

1. Install the screw caps on the left side
2. Remove the screw caps from the right side

1. Set the handle to the right side.

Alarm signal is activated.

When the door of the appliance is left open for more than 1 minute, an alarm signal for the open door sounds. The alarm signal can be turned off by closing the door or pressing the SET button (this does not affect the temperature setting, it simply turns off the alarm signal).

Non-use of the appliance for a long period of time

If the appliance is not used for a long period of time:

1. Remove the products and disconnect the power cord.
2. Clean the appliance as described in the section "Care and Cleaning - General Information".
3. Keep the door and the freezer drawer/door open to prevent the formation of unpleasant odors inside the appliance.

Power failure

In the event of a power failure, the products will remain cold for the time specified on the rating plate. Follow the instructions below during a prolonged power outage, especially in summer:

Open the door/drawer as rarely as possible. Do not add additional products to the appliance during a power outage. If you receive an advance warning of a power outage and the duration of such an outage exceeds the number of hours specified on the rating plate, make ice and store it on the top shelf of the freezer compartment. The storage time will be shortened, and the quality will decrease. Any thawed products should be cooked or refrozen (where appropriate) to avoid health risks.

Availability of spare parts

Thermostats, temperature sensors, printed circuit boards and light sources are available for at least 7 years after the last unit of the model is placed on the market. Door handles, door hinges, trays and baskets are available for at least 7 years, and door gaskets for at least 10 years, after the last unit of the model is placed on the market.

Troubleshooting

In case of any problems, check all the specified options and follow the instructions below before contacting the after-sales service.

Availability of spare parts

Thermostats, temperature sensors, printed circuit boards and light sources are available for at least 7 years after the last unit of the model is launched on the market. Door handles, door hinges, trays and baskets — for at least 7 years, and door gaskets — for at least 10 years after the last unit of the model is launched on the market.

TROUBLESHOOTING
