Product type	Impact wrench
Brand	Fein
Model	ASCD 181000 W34 Select
Battery voltage	18 V
Battery type	Li-ion (original Fein)
Tool holder	3/4 inch male square (19 mm)
Max torque (hard screwdriving)	1050 Nm
Speeds	6 adjustable speeds
Weight (according to EPTA)	Approx. 2.8 kg
Dimensions (L × W × H)	Approx. 230 × 85 × 260 mm
Protection electronics	Automatic shutdown in case of overload, LED indicator in handle
Direction of rotation	Reversing switch (left/right) with center lock position
Recommended protective equipment	Safety glasses, hearing protection, gloves
Battery operating temperature	5 °C to 45 °C
Sound pressure level (LpA)	Not specified in the manual
Vibration value (ah)	Not specified in the manual
Maintenance	Clean ventilation slots with dry compressed air, dry cloth for contacts
Spare parts	Available at www.fein.com
Warranty	In accordance with national regulations and the manufacturer's warranty statement
Supplied accessories	Battery, charger, case (subject to commercial version)

Frequently Asked Questions - ASCD 181000 W34 Select Fein

How to change the direction of rotation?

Use the reversing switch located above the trigger. Only operate it when the motor is stopped. The center position locks the trigger for transport.

What does the red LED indicator in the handle mean?

A steady red light indicates the battery is almost empty. A flashing red light indicates the battery is not in the operating temperature range (5°C to 45°C) or is overloaded. Let the battery cool down or warm up.

What type of battery to use?

Use only original Fein batteries compatible with your tool (18 V Li-ion). Use of non-compliant batteries may cause fire or explosion.

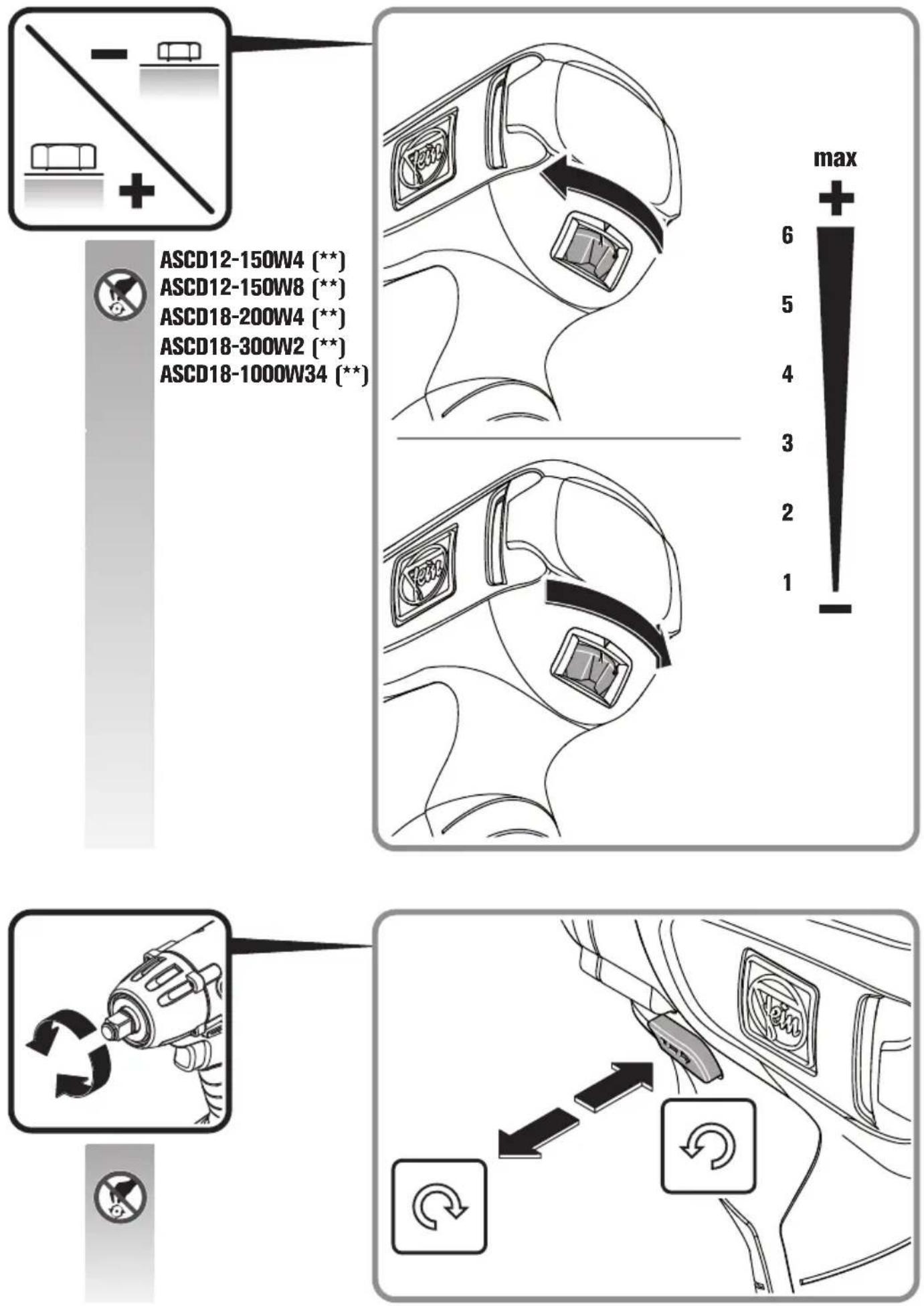

How to adjust the speed?

Turn the speed adjustment wheel located on the top of the tool. Positions 1 to 6 correspond to increasing torques. Refer to the table in the manual to choose the appropriate speed for your screwdriving.

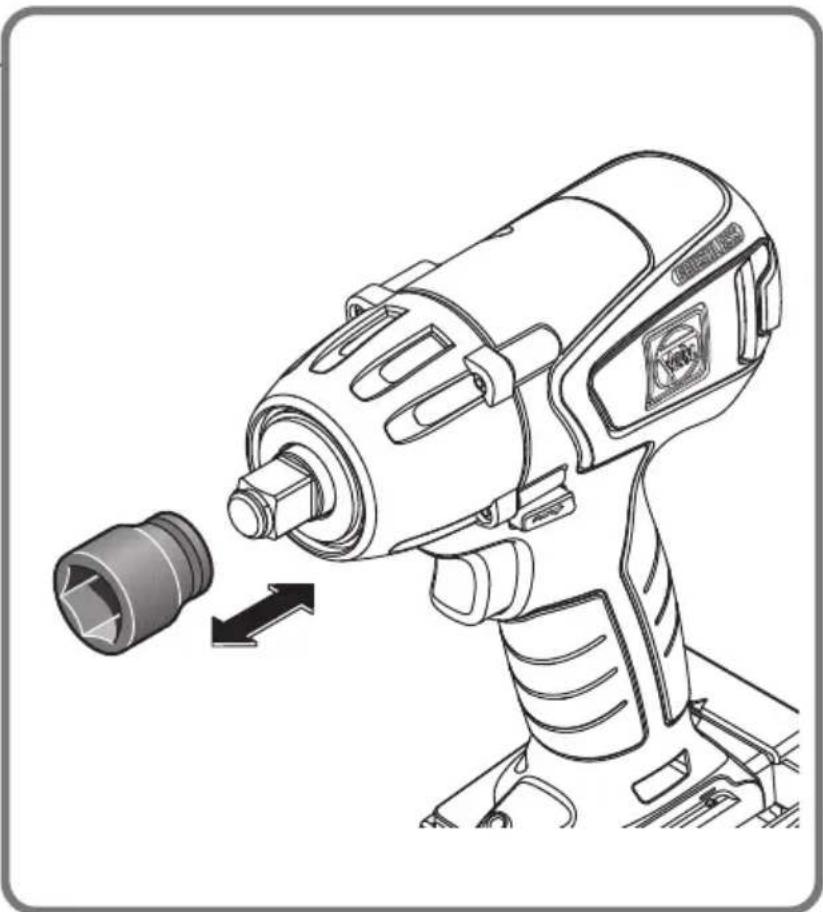

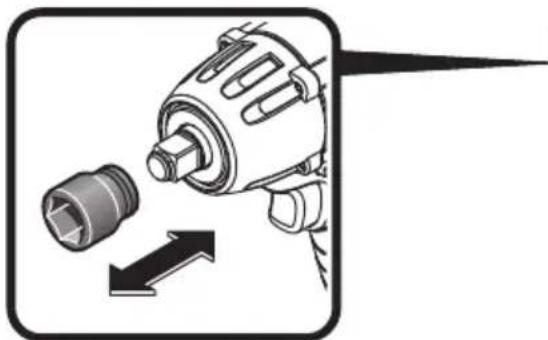

Can a 1/2 inch adapter be used on the 3/4 inch tool holder?

Yes, but with a limitation: if you use a 3/4 inch to 1/2 inch adapter, do not exceed position 3 (600 Nm) to avoid damaging the adapter.

How to clean the tool?

Regularly clean the ventilation slots with dry, oil-free compressed air using a non-metallic tool. For electrical contacts, use a dry, clean cloth.

What are the important safety instructions?

Always wear safety glasses and hearing protection. Hold the tool by the insulated surfaces. Before any intervention, remove the battery. Do not work on materials containing asbestos or magnesium.

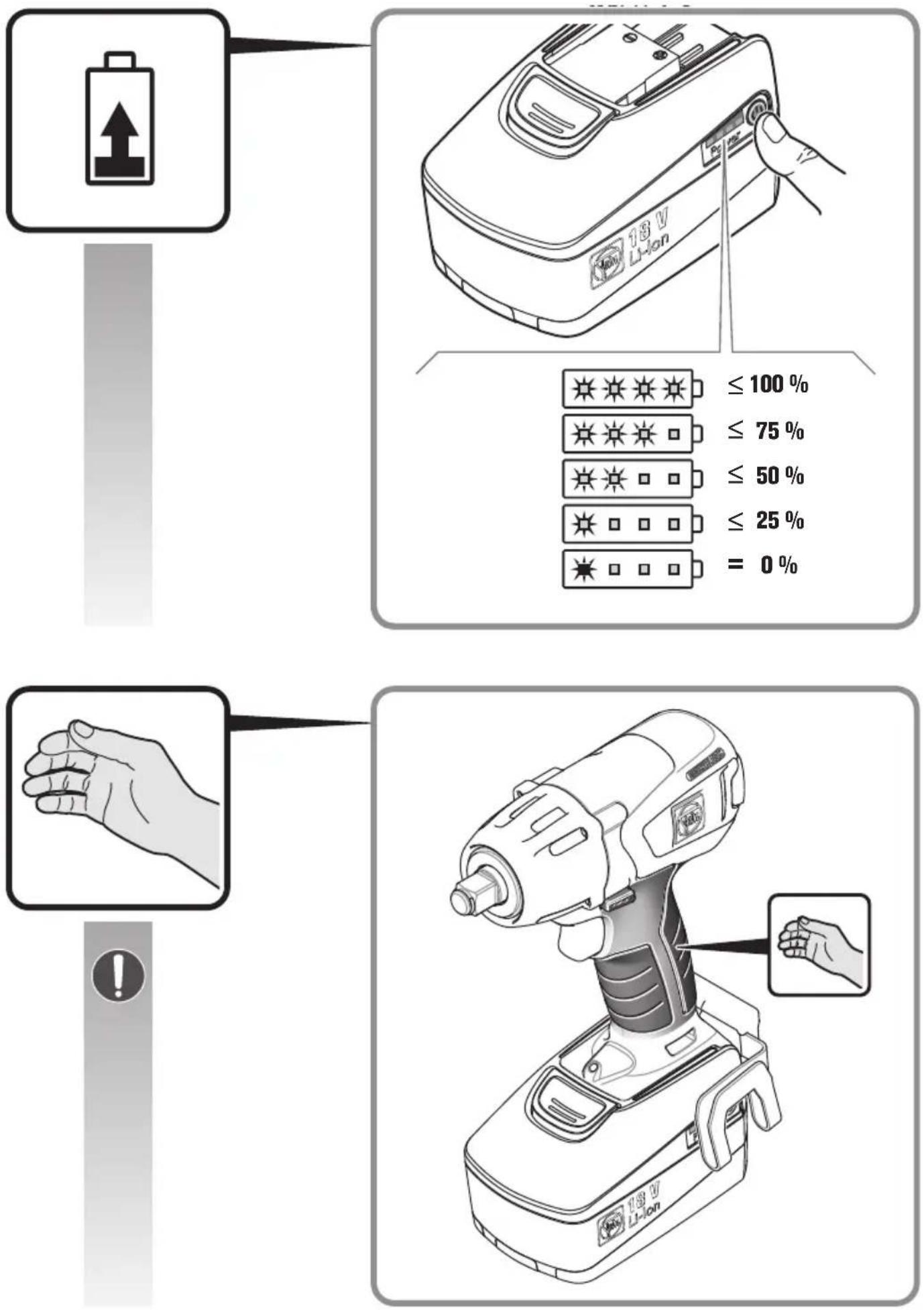

How to know if the battery is fully charged?

Use a compatible Fein charger. The charger indicates the end of charging by a green light or other signal. When the battery is on the tool, the green LEDs (1 to 4) indicate the charge level when the motor is stopped.

Where to find spare parts?

Original spare parts are available on the website www.fein.com. You can also contact Fein customer service.

What to do in case of accessory jamming?

Immediately stop the tool. Do not restart it while the accessory is jammed. Determine the cause: jamming in the workpiece, material breakage, or overload. Remove the obstruction safely.

USER MANUAL ASCD 181000 W34 Select Fein

Illustration of four different types of power drillers with no visible text or symbols

ASCD12-100W4 (**) 7 115 ...

ASCD12-150W4 (**) 7 115 ...

ASCD12-150W8 (**) 7 115 ...

ASCD18-200W4 (**) 7 115 ...

ASCD18-300W2 (**) 7 115 ...

ASCD18-1000W34 (**) 7 115 ...

		ASCD12-100W4 (**)	ASCD12-150W4 (**)	ASCD12-150W8 (**)	ASCD18-200W4 (**)	ASCD18-300W2 (**)	ASCD18-1000W34 (**)
		7 115 ... 7 115 ... 7 115 ... 7 115 ... 7 115 ...
U	V---	12	12	12	18*	18*	18*
n_0	/min, min ^-1 ,rpm, r/min	0-2700	0-1700	0-1800	0-1500	0-1700	0-1800
n_S	/min, min ^-1	0-3450	0-3400	0-3600	0-3000	0-3400	0-2200
M...	Nm 100 135 135 210 290 1050
	kg	0,90	0,85	0,85	1,00	1,00	3,0
		1/4"	1/4"	3/8"	1/4"	1/2"	3/4"
L_pA	dB	93,8	91,5	90,2	93,8	96,1	93,6
K_pA	dB	3	3	3	3	3	3
L_wA	dB	104,8	102,5	101,2	104,8	107,1	104,6
K_wA	dB	3	3	3	3	3	3
L_pCpeak	dB	112,0	111,7	113,7	114,5	118,2	119,5
K_pCpeak	dB	3	3	3	3	3	3
a_h	m/s ^2	14,5	9,7	9,1	12,9	16,1	12,9
K_a	m/s ^2	1,5	1,5	1,5	1,5	1,5	1,5

		B12A	B18A	B18A
		Lithium Ion	Lithium Ion	Lithium Ion
U	V---	12	18	18
	kg	0,25	0,45	0,70

ALG 30, ALG 50, ALG 80 (**)

de 14 pt 44 tr 75 sl 105 et 137 th 166 en 19 el 49 hu 80 sr 110 lt 142 ja 172 fr 24 da 55 cs 85 hr 115 lv 147 hi 177 it 29 no 60 sk 90 ru 120 zh(CM) 152 ar 186 nl 34 sv 65 pl 95 uk 126 zh(CK) 157 es 39 fi 70 ro 100 bg 131 ko 161

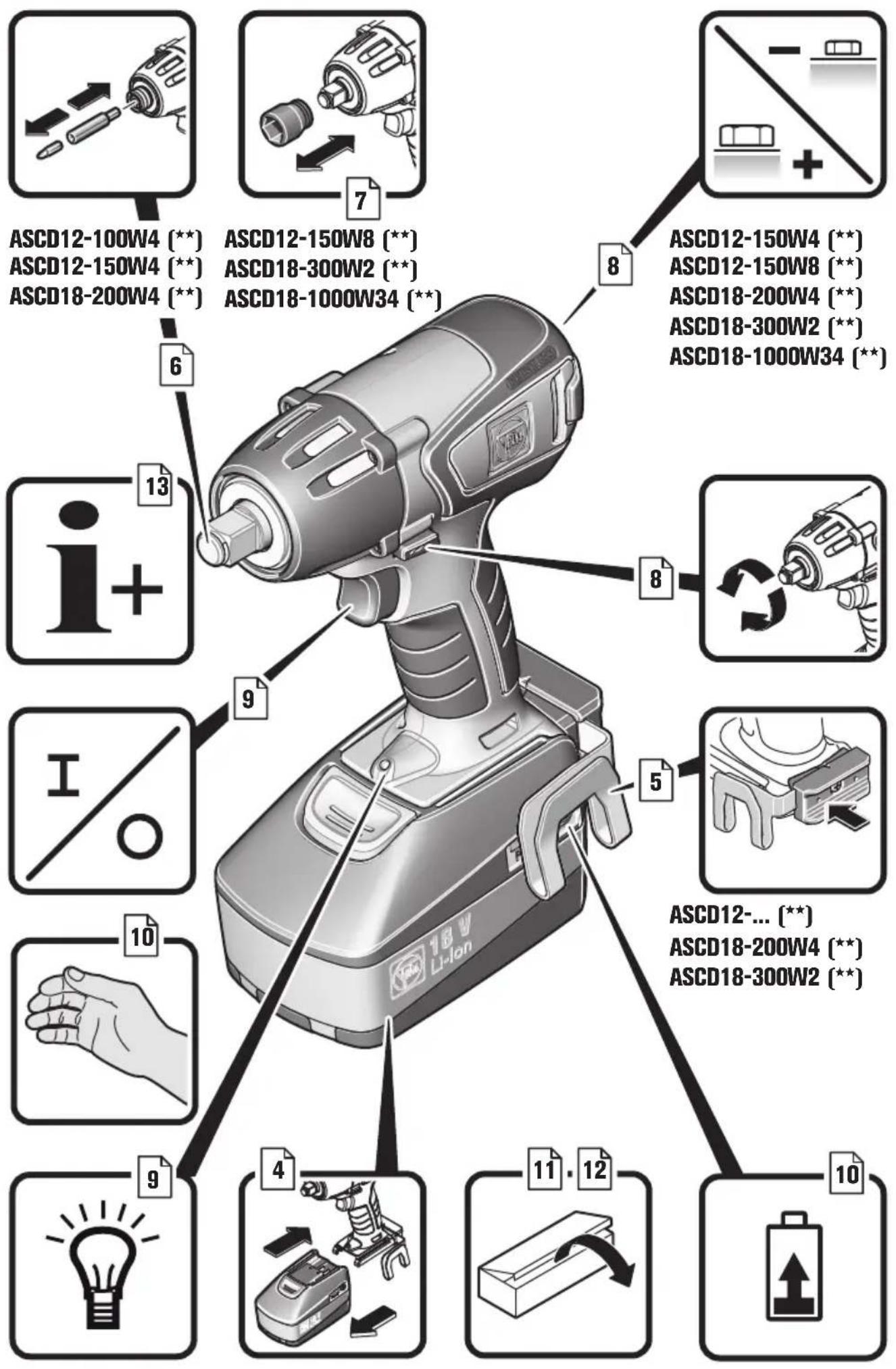

ASCD12-100W4 (**) ASCD12-150W4 (**) ASCD18-300W2 (**) ASCD18-1000W34 (**) ASCD12-150W4 (**) ASCD12-150W8 (**) ASCD18-200W4 (**) ASCD18-300W2 (**) ASCD18-1000W34 (**) i + 6 9 5 8 7 8 i+ I/ 10 9 4 11·12 10 ASCD12-... (**) ASCD18-200W4 (**) ASCD18-300W2 (**)

Diagram of a mechanical component with a highlighted section and arrow, no visible text or symbols

ASCD12-... (**)

ASCD18-200W4 (**)

ASCD18-300W2 (**)

1. 2. 3.

1. 2. 3.

1. 2. 3. 4.

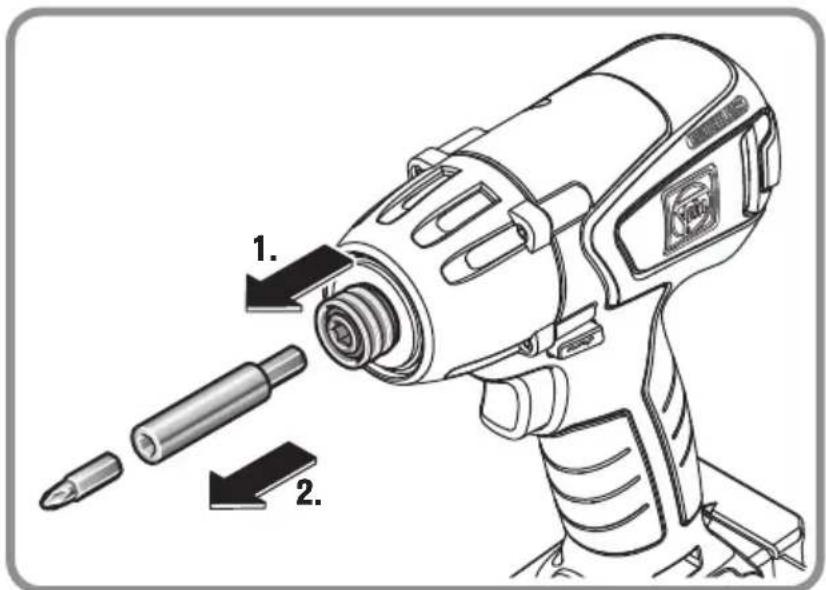

Diagram of a mechanical tool with arrows indicating process flow (no text or symbols)

ASCD12-100W4 (**)

ASCD12-150W4 (**)

ASCD18-200W4 (**)

Technical diagram of a handheld electric shaver with labeled parts and directional arrows indicating tool path

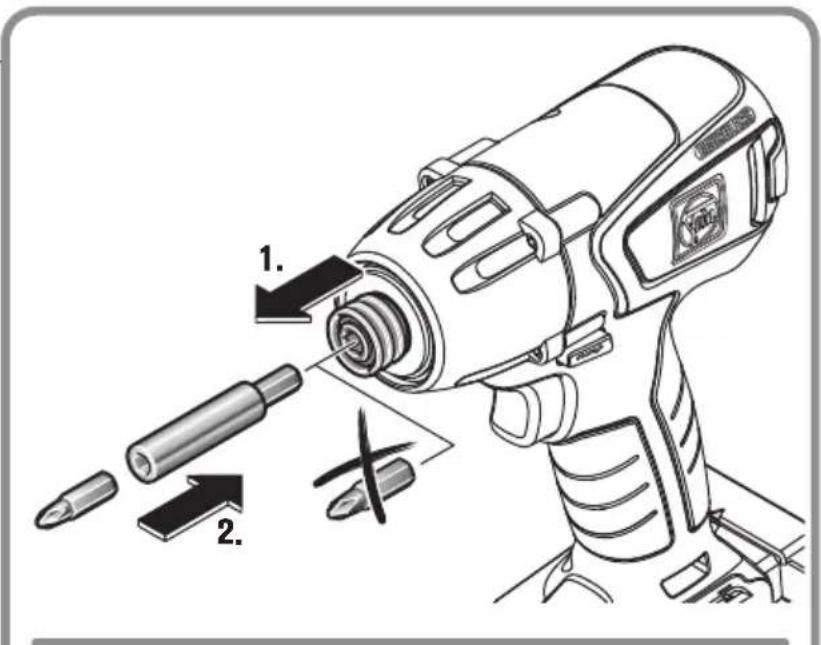

Line drawing of a power tool with a screwdriver and a pencil inserted, showing no text or symbols.

Technical diagram of a handheld electric shaver with labeled parts and directional arrows indicating assembly steps.

Illustration of a drill bit with an arrow indicating compression or disassembly (no text or symbols)

ASCD12-150W8 (**)
ASCD18-300W2 (**)
ASCD18-1000W34 (**)

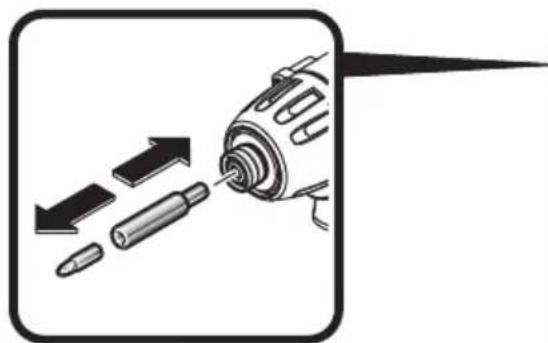

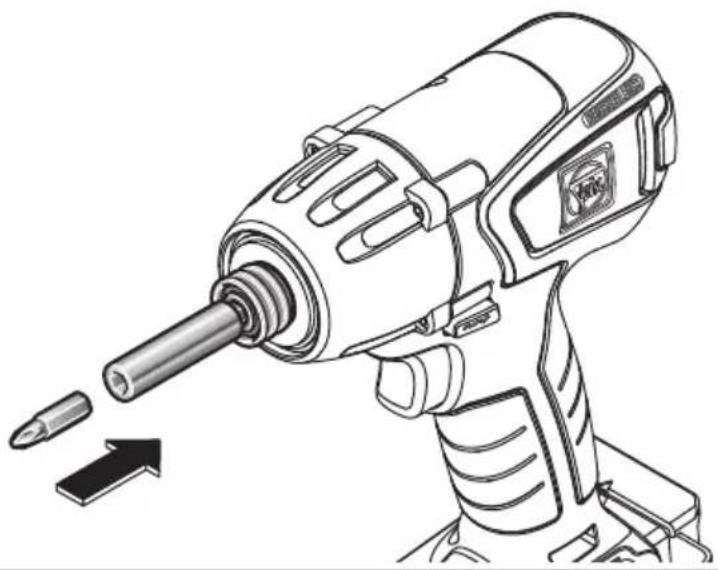

Line drawing of a handheld electric drill press with a screwdriver and arrow indicating insertion (no text or symbols)

ASCD12-150W4 (**)

ASCD12-150W8 (**)

ASCD18-200W4 (**)

ASCD18-300W2 (**)

ASCD18-1000W34 (**)

ASCD12-150W4 (**)

ASCD12-150W8 (**)

ASCD18-200W4 (**)

ASCD18-300W2 (**)

ASCD18-1000W34 (**)

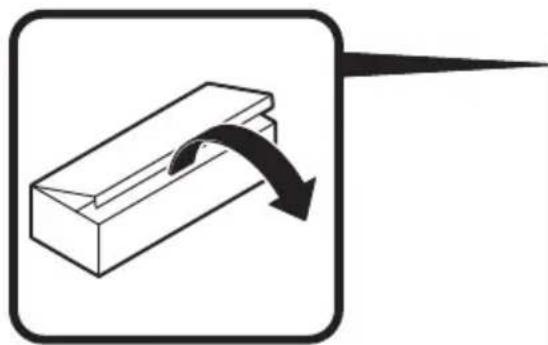

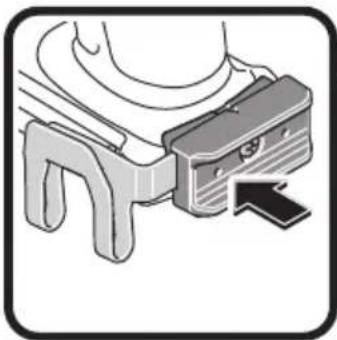

Simple line drawing of a rectangular object with an arrow indicating direction, enclosed in a rounded square (no text or symbols)

ASCD12-... (**)

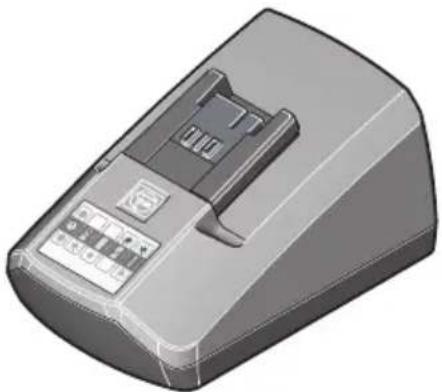

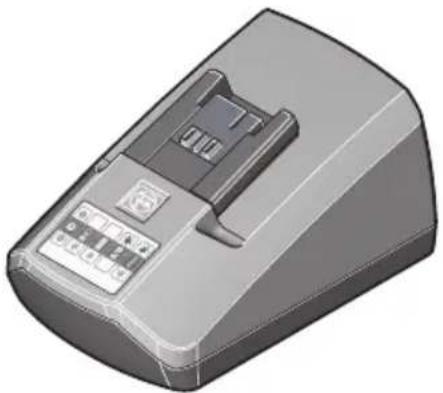

3D rendering of a gray electronic device with control panel and buttons (no visible text or symbols)

***

3D rendering of a gray industrial device with no visible text or symbols on its body

***

3D rendering of a gray industrial device with no visible text or symbols

***

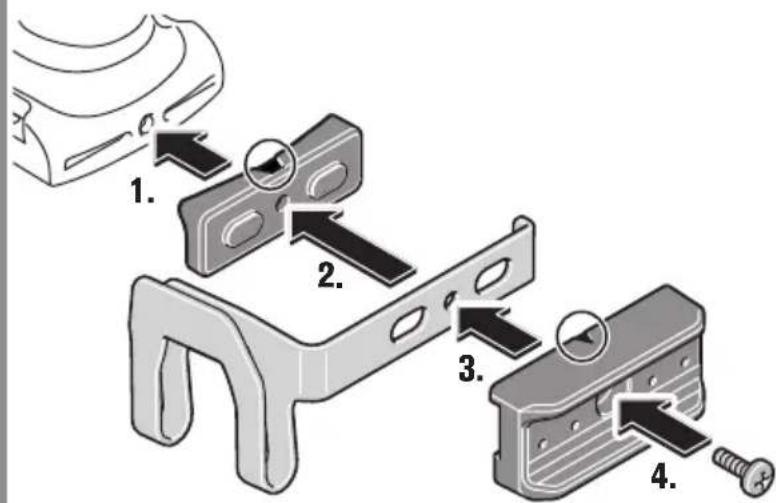

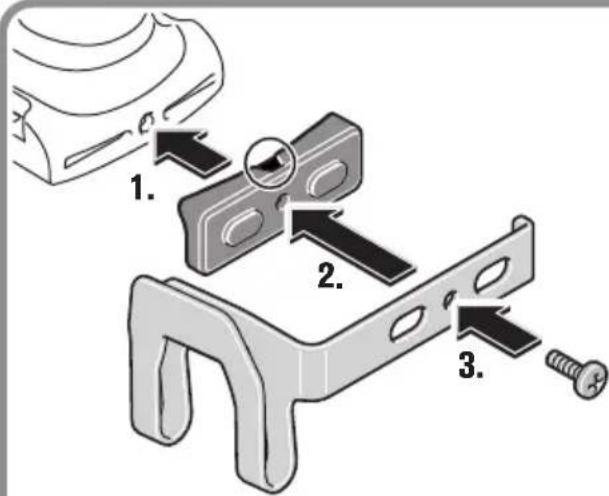

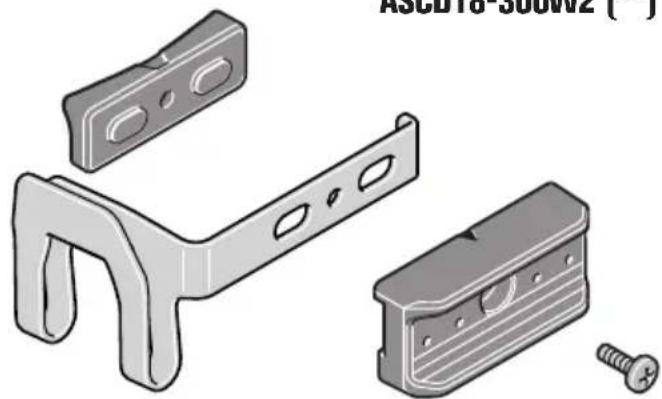

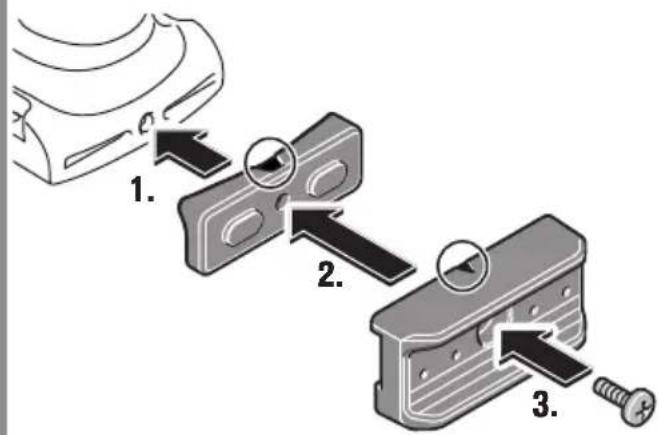

Illustration of mechanical bracket components including two plates, a bracket, and a screw (no text or symbols)

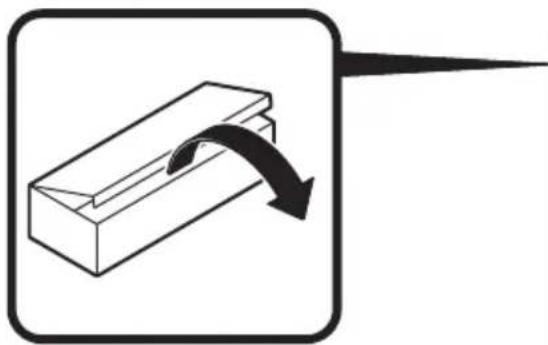

Simple line drawing of a 3D block with an arrow indicating direction, enclosed in a rounded square (no text or symbols)

ASCD18-... (**)

3D rendering of a gray electronic device with ports and buttons (no visible text or symbols)

***

Illustration of a silver and gray robotic device with no visible text or symbols on its body

***

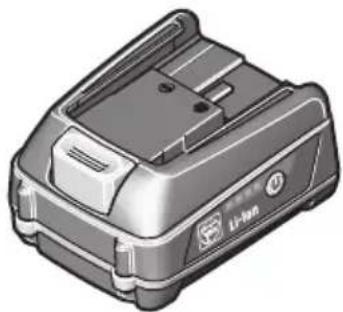

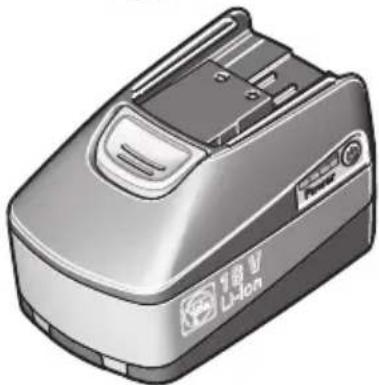

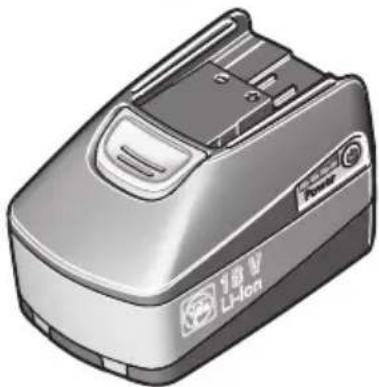

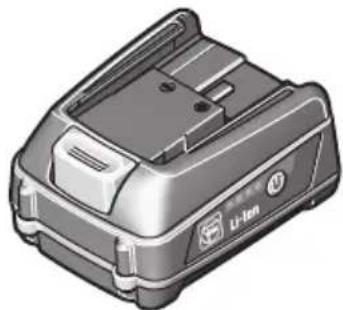

Illustration of a gray Li-ion battery with no visible text or symbols on its body

***

ASCD18-200W4 (**)
ASCD18-300W2 (**)

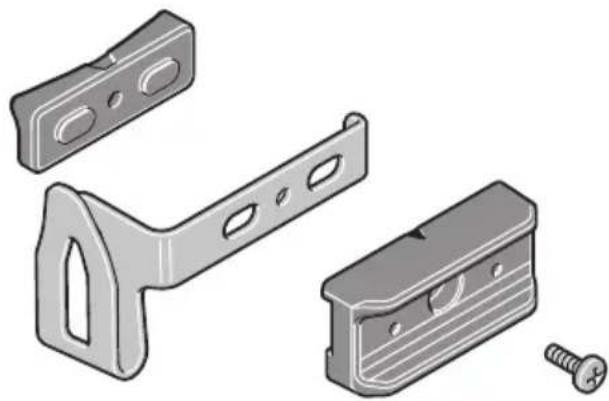

Illustration of metal bracket components including a U-shaped bracket, rectangular housing, and screw (no text or symbols)

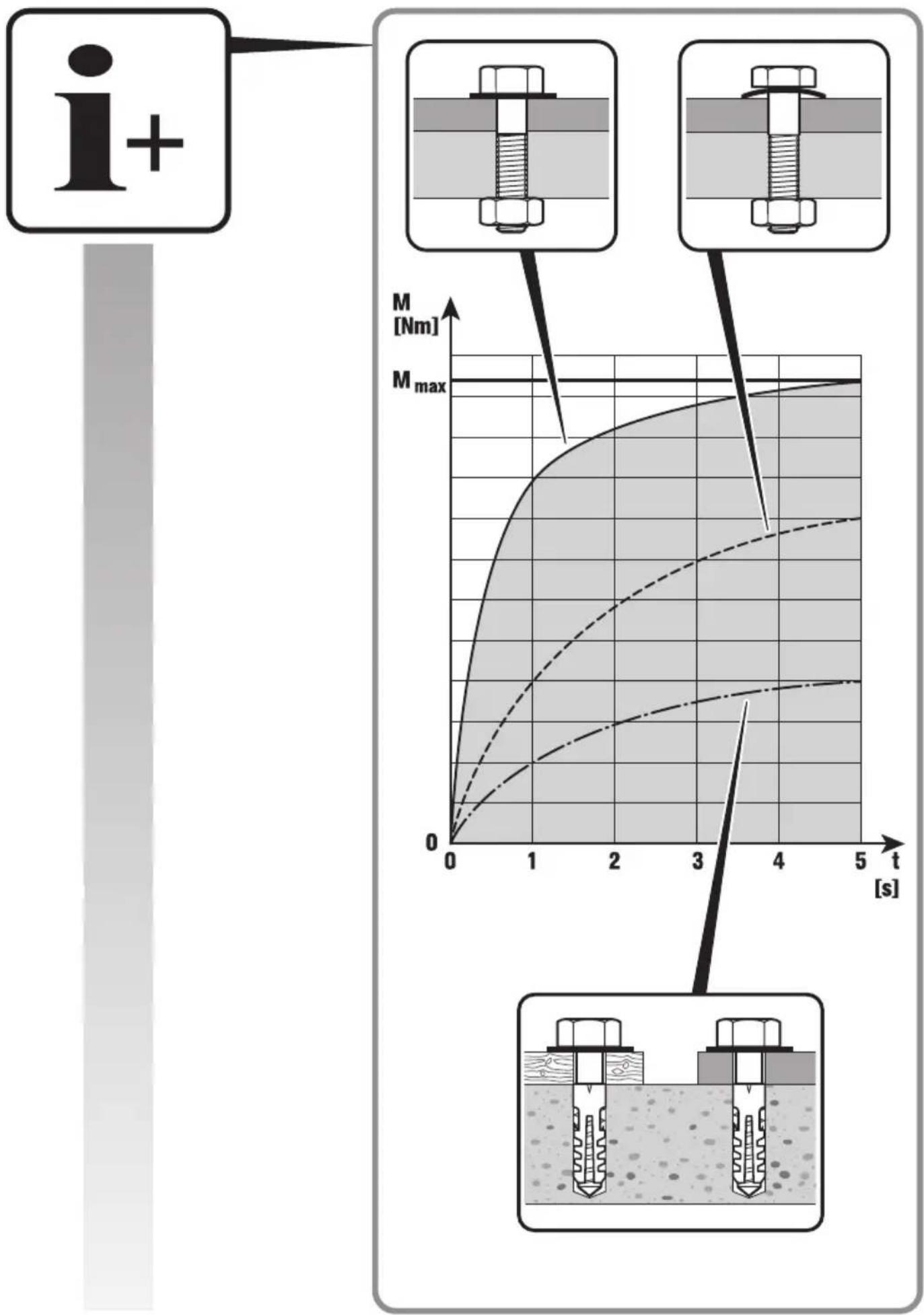

i+ M [Nm] M_max 0 1 2 3 4 5 [s] t

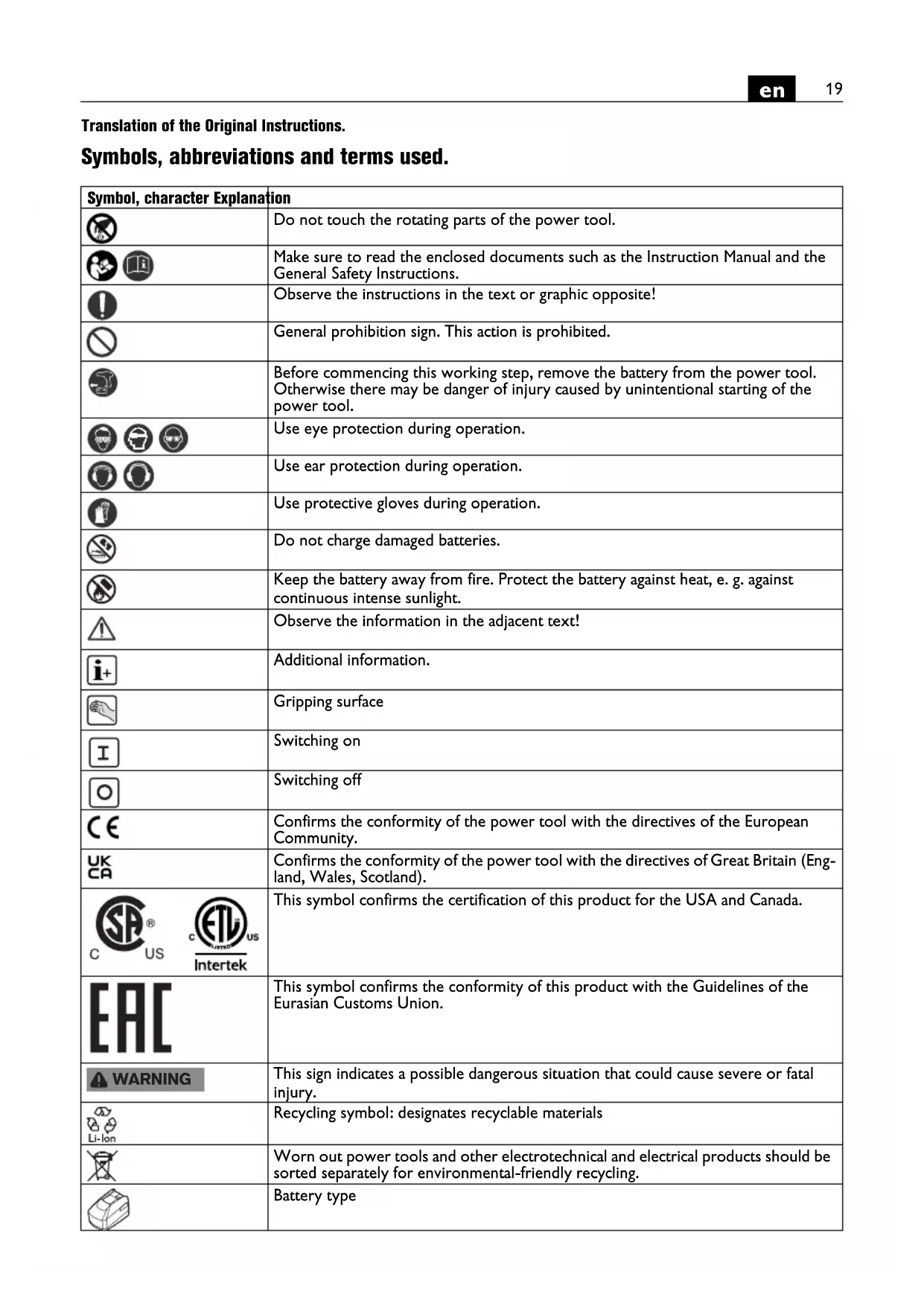

Translation of the Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Do not touch the rotating parts of the power tool.
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Observe the instructions in the text or graphic opposite!
	General prohibition sign. This action is prohibited.
	Before commencing this working step, remove the battery from the power tool. Otherwise there may be danger of injury caused by unintentional starting of the power tool.
	Use eye protection during operation.
	Use ear protection during operation.
	Use protective gloves during operation.
	Do not charge damaged batteries.
	Keep the battery away from fire. Protect the battery against heat, e. g. against continuous intense sunlight.
	Observe the information in the adjacent text!
	Additional information.

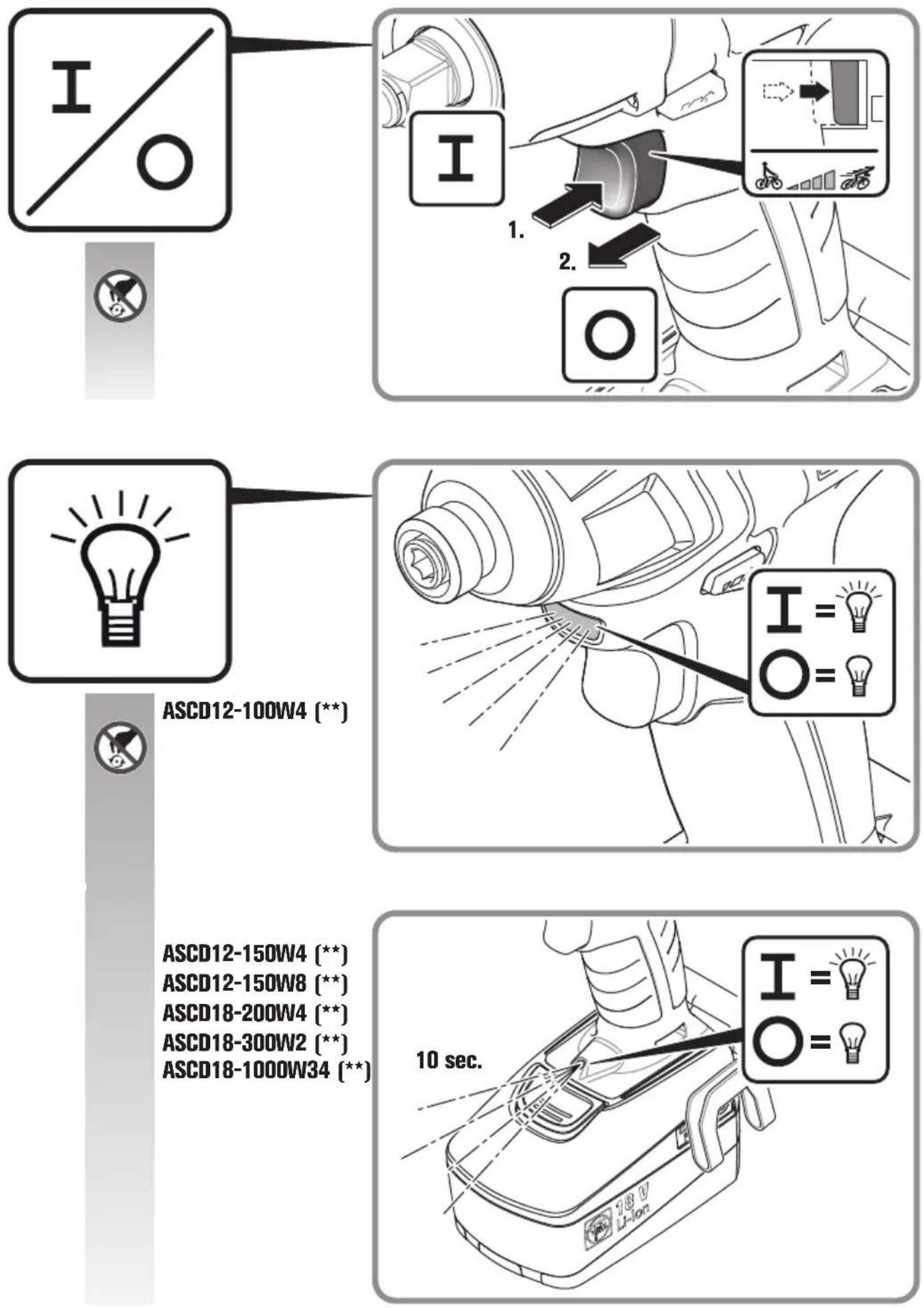

	Gripping surface
	Switching on
	Switching off
[ZGCS]	Confirms the conformity of the power tool with the directives of the European Community.
	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
	This symbol confirms the certification of this product for the USA and Canada.
	This symbol confirms the conformity of this product with the Guidelines of the Eurasian Customs Union.
	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
	Recycling symbol: designates recyclable materials
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Battery type
Symbol, character	Explanation
	Charger type
[EXZ5]	Weight according to EPTA-Procedure 01
	Low speed
	High speed
	Torque gradient for applications with hard backing, e. g., screws with nuts and washers (dependent of screw diameter and strength)
	Torque gradient for resilient applications, e. g., wheel rims, spring washers, disc springs, stud bolts, extensions
	Torque gradient for applications with soft backing, e.g., wood (dependent of screw diameter and length), lead or fibre discs
* The power tool can additionally be operated with deviating performance data in the 12 V and 14.4 V voltage classes.
(**) may contain numbers and letters
*** Partially in delivery scope
(Ax - Zx) Marking for internal purposes

Character Unit of measurement, international		Unit of measurement, national	Explanation
UV	== V	== D	C v
fHz Hz Frequency
n_0	/min, min ^-1 , rpm, r/min rpm		No-load speed (with fully charged battery)
n_S	/min, min ^-1	/min Impact rate
M...	Nm	Nm	Torque (hard screwdriving application)
○	inch	inch	Hexagon socket tool holder
	inch	inch	External square tool holder
∅	mm	mm	Diameter of a round part
L_pA	dB	dB	Sound pressure level
L_wA	dB	dB	Sound power level
L_pCpeak	dB	dB	Peak sound pressure level
K...			Uncertainty
a	m/s ^2	m/s ^2	Vibrational emission value according to EN 62841 (vector sum of three directions)
a_h	m/s ^2	m/s ^2	Arithmetic mean value of the vibration total values
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number

3 41'30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

Hand-held impact wrench for screwing in and unscrewing screws and nuts in weather-protected environments without water supply using the application tools and accessories recommended by FEIN.

Special safety instructions.

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e.g. with a metal detector.

Use ear protection during operation.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

Hold the power tool firmly. High reaction torque can briefly occur.

Do not work with materials containing magnesium. Danger of fire.

Do not work with CFRP (carbon-fiber-reinforced polymer) and materials containing asbestos. These materials are considered carcinogenic.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Ensure that the accessory is securely fastened each time before using. When using a square drive with drill hole, the accessory must additionally be positively locked. Loose or not securely fastened accessories can become loose or be thrown off.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Never look or stare into the light of the power tool's lamp from a short distance. Never point the light of the lamp into the eyes of other persons in close vicinity.

The radiation produced by the lamp can be harmful for the eye.

Do not direct the power tool against yourself, other persons or animals. Danger of injury from sharp or hot application tools.

Switch the power tool off immediately when the application tool blocks. Do not switch the power tool on again while the application tool is blocked; this could lead to kickback with high reaction torque. Determine and correct the cause of the blockage of the application tool, taking the safety warnings into account. Possible causes could be:

• Jamming in the workpiece
• Breaking through the material being worked
• Overloading the power tool.

Use and handling of the battery (battery pack).

To avoid hazardous situations such as burns, fire, explosion, skin injuries, and other injuries when handling the battery, observe the following instructions:

Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

When battery fluid from a damaged battery has come into contact with objects close by, check the respective components, clean them or replace them as required.

Keep the battery away from heat and fire. Do not store the battery in direct sunlight.

Do not remove the battery from its original packaging until it is going to be used.

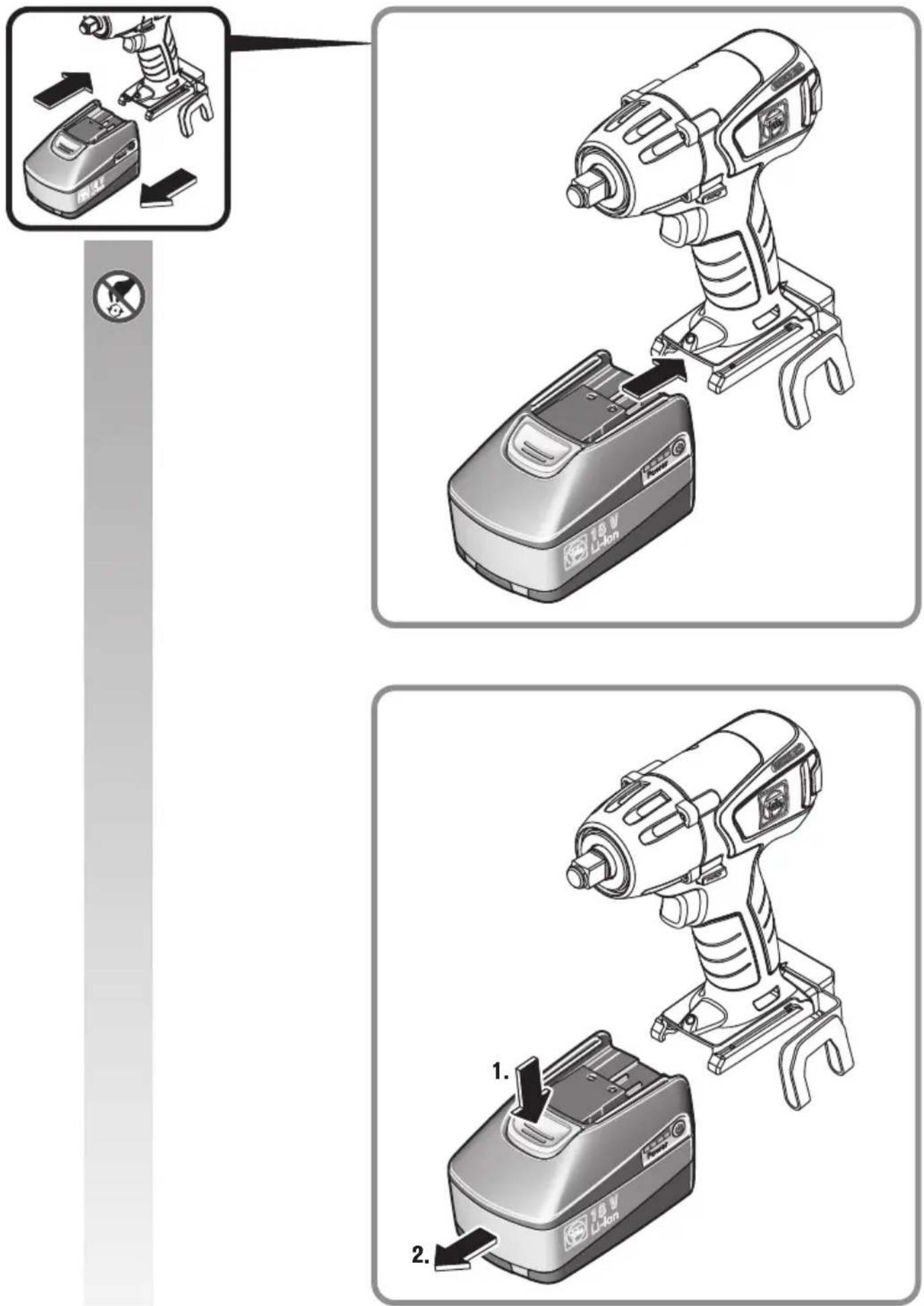

Before any work on the machine itself, remove the battery from the power tool. If the power tool accidentally starts, there is danger of injury.

Mount the battery only when the power tool is switched off.

Remove the battery only when the power tool is switched off.

Keep the battery away from children.

Keep the battery clean and protect it against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth.

Use only intact original FEIN batteries that are intended for your power tool. When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.

Follow the safety warnings in the operating instructions of the battery charger.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accesso-

ries or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Handling hazardous dusts

For work procedures with this power tool where material is removed, dusts develop that can be hazardous to one's health.

Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coatings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to specialists.

Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer's working instructions, as well as the relevant regulations in your country for the materials being worked.

Operating Instructions.

Adjust the rotation selector switch only when the machine is at a complete stop.

Thermal overload of the power tool is indicated through flashing of the LED in the handle.

In case of overload, the machine switches off.

WARNING

Danger of burning. The application tool can become hot during opera-

tion. Allow the application tool to cool down:

• after placing the power tool down
• prior to tool changing.

To avoid accidental starting, e. g., during transport, set the rotation selector switch to the centre position.

Apply the power tool to the nut or screw only when switched off, as a rotating application tool could slip off. Hold the power tool perpendicular to the screw at an angle of 90^ when screwing in and unscrewing.

If the power tool is applied inclined, the screw head can be damaged and the force is not transferred to the screw.

An unnecessary long impact period increases the wear of the power tool.

Determine the impact duration for the respective screwdriving application and check the actually reached tightening torque with a torque wrench.

Orientation values for the impact duration are shown in the diagram on page 13.

Recommendations for impact wrench adjustment by screw size:

ASCD18-1000W34 (**)
Setting M max [Nm] Screw/bolt ∅ Property class
6 1050 ≥ M 27 ≥ 8.8
5 900 ≥ M 27 ≥ 8.8
4 750 ≥ M 24 ≥ 8.8
3 600 ≥ M 22 ≥ 8.8
2 450 ≥ M 20 ≥ 8.8
1 300 ≥ M 18 ≥ 8.8

ASCD18-1000W34 ( ^** ): When using a 3/4 in to 1/2 in drive adapter, operate the drive impact wrench maximal at level 3 (600 Nm).

ASCD18-300W2 (**)
Setting M max [Nm] Screw/bolt ∅ Property class
6 290 ≥	M 18 ≥ 8.8
5 210 ≥	M 16 ≥ 8.8
4 135 ≥	M 14 ≥ 8.8
3	8 5	≥	M 1
2	5 0	≥	M 1
1	2 5	≥	M 8

ASCD12-150W8 (**)
Setting M max [Nm] Screw/bolt ∅ Property class
6 135 ≥	M 14 ≥ 8.8
5	8 5	≥	M 1
4	5 0	≥	M 1
3	2 5	≥	M 8
2	1 0	≥	M 6
1	6	≥ M	5 ≥

Handling the battery.

Store, operate and charge the battery only using FEIN battery chargers within the battery operating-temperature range between 5 °C – 45 °C (41 °F – 113 °F). At the beginning of the charging procedure, the battery temperature must be within the battery operating-temperature range.

LED indicator	Meaning Activity
1 – 4 green LED	Percentage of charge condition	Operation
Continuous red light	Battery is almost empty	Charge battery
Red flashing light	Battery is not ready for operation	Bring the battery into the battery operating-temperature range, then charge

The real percentage of the battery charge condition is only indicated when the power tool motor is stopped. The electronics automatically switch off the motor prior to the battery being deep discharged.

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

The current spares parts list for this power tool can be found on our website at www.fein.com.

Use only original spare parts.

If required, you can change the following parts yourself:

Application tools, battery, belt hook, bit garage

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at: C. & E. Fein GmbH, D-73529 Schwäbisch Gmünd

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Dispose of batteries only when discharged.

For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.

Miljøvern, deponering.

China RoHS Status Certificate

中国 RoHS 认证概况

Table of Toxic and Hazardous Substances/Elements and their Content

as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

EN 62841-1:2015 + AC:2015

EN 62841-2-2:2014 + AC:2015

EN 55014-1:2017 + A11:2020

EN 55014-2:2015

EN 55014-2:1997 + A1:2001 + A2:2008 + AC:1997

2006/42/EG, 2014/30/EU, 2011/65/EU

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

EN 62841-1:2015 + AC:2015

EN 62841-2-2:2014 + AC:2015

EN 55014-1:2017 + A11:2020

EN 55014-2:2015

EN 55014-2:1997 + A1:2001 + A2:2008 + AC:1997

Supply of Machinery Regulations 2008,

EMC Regulations 2016, The Restriction of the Use of Certain Hazardous Substances in Electrical and

Electronic Equipment Regulations 2012

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development

QR code image containing encoded data, no visible human-readable text
