| Brand | Holzmann |
| Model | MTY870 |
| Product type | Sander / Saw blade sharpener |
| Use | Sharpening of carbide saw blades |
| Power supply | Mains (230V, 50Hz) |
| Operating mode | Diamond grinding wheel, rotating table, adjustable central axis |
| Adjustments | Grinding angle, tooth positioning, table rotation |
| Environmental conditions | Temperature: +1°C to +40°C; Max humidity 90%; Indoor use only |
| Safety | Read the manual, wear protective equipment, disconnect before maintenance |
| Maintenance | Thorough cleaning after each day, check stickers, store dry |
| Spare parts | Use only original Holzmann parts |
| Warranty | 12 months (non-professional use), 6 months (industrial use) |
| Compliance | EU directives |
| Documentation | User and maintenance manual included |
Frequently Asked Questions - MTY870 Holzmann
User questions about MTY870 Holzmann
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sander in PDF format for free! Find your manual MTY870 - Holzmann and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MTY870 by Holzmann.
USER MANUAL MTY870 Holzmann
9.1 Proper usage 18
9.2 Incorrect usage 18
9.3 Safety instructions 18
9.4 General rules of security 19
9.5 Product specific rules of security 19
10 OPERATION 20
10.1 Operation instructions 21
10.2 Safe affairs 21
11 MAINTENANCE 22
12 PREFACIO (ES) 23
13 SEGURIDAD 24
EN EC-CONFORM - This product complies with the EC-directives.
EN READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to av injuries and machine defects.
CZ PRECTETESI TENTONAVOD! Prectete si radne navod na obsluhu a udzbu Vaseho stroje a dobre se sezname s ovladacimi prvky stroje, aby byl ten radne obsluhovan a predešlo se ke skodam na stroji a zranenim osob.

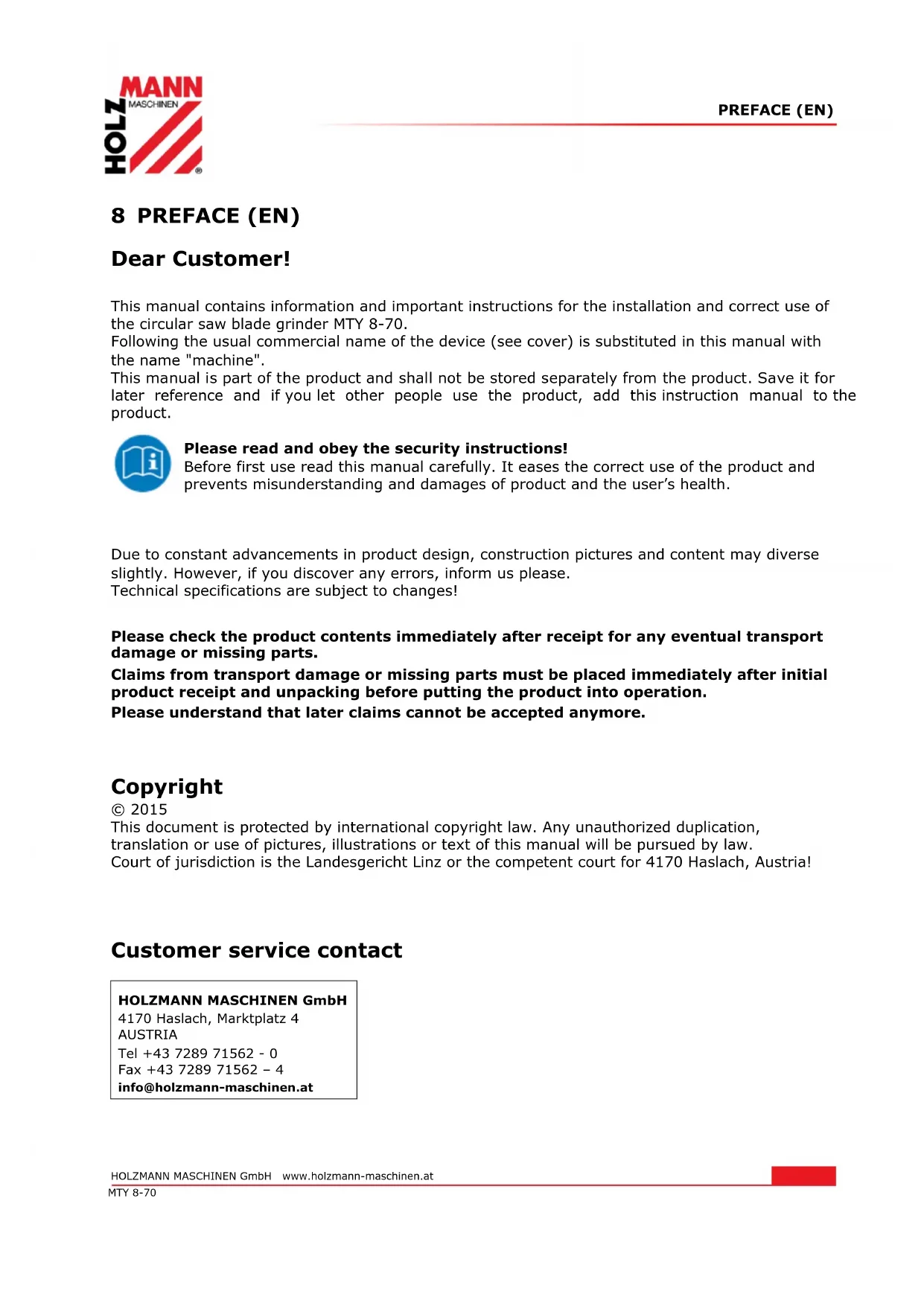

This manual contains information and important instructions for the installation and correct use of the circular saw blade grinder MTY 8-70.
Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".
This manual is part of the product and shall not be stored separately from the product. Save it for later reference and if you let other people use the product, add this instruction manual to the product.
Please read and obey the security instructions!
Before first use read this manual carefully. It eases the correct use of the product and prevents misunderstanding and damages of product and the user's health.
Due to constant advancements in product design, construction pictures and content may diverse slightly. However, if you discover any errors, inform us please.
Technical specifications are subject to changes!
Please check the product contents immediately after receipt for any eventual transport damage or missing parts.
Claims from transport damage or missing parts must be placed immediately after initial product receipt and unpacking before putting the product into operation.
Please understand that later claims cannot be accepted anymore.
Copyright
© 2015
This document is protected by international copyright law. Any unauthorized duplication, translation or use of pictures, illustrations or text of this manual will be pursued by law. Court of jurisdiction is the Landesgericht Linz or the competent court for 4170 Haslach, Austria!
Customer service contact
Holzmann Maschinen cannot be held responsible for any injuries or damages if there was performed manipulation or adjustments to the machine.
The following items are some rules about security which should be followed by everyone in common when using tools.
Please read them all very carefully before using such tools and then keep this manual after reading.
You must absolutely follow these rules when using in case of fire, personal injury and other accidents.
For another usage and resulting damages or injuries HOLZMANN MASCHINEN doesn't assume any responsibility or guarantees.
9.2 Incorrect usage
Operation of the machine that doesn't agree with this manual is forbidden!
Operation without the safety devices is not allowed.
- You mustn't remove the safety devices!
Incorrect is the usage for materials which aren't mentioned in this manual.
Changes of the machine's construction are forbidden.
For another usage and resulting damages or injuries HOLZMANN MASCHINEN doesn't assume any responsibility or guarantees.
9.3 Safety instructions
Warning labels and/or other labels on the machine must be replaced when they were removed.
Do not operate the machine at insufficient lighting conditions.
Do not operate the machine outdoors.
Do not operate the machine when you are tired, when your concentration is impaired, and/ or under the influence of drugs, medication or alcohol.
Do not wear loose clothing, long hair openly or loose jewellery like necklaces etc. when operating the machine
They might be caught by rotating parts and cause serious injuries.
Use proper safety clothing and devices when operating the machine (, safety goggles, ear protectors, safety shoes ...)! Do not wear safety gloves for operating because they decrease the working accuracy and they might be pulled into the saw blade.
Before any maintenance you have to disconnect the panel saw from the power source. Never use the plugged cable for transporting or manipulating the machine.
9.4 General rules of security
- Keep the workshop clean: It's easy to cause accidents if the workshop is in mess.
- Don't allow strangers and children to be close to the workshops:
- Keep tools carefully: Unused tools should be kept in dry and high places where children's hands couldn't reach to, please lock them if it's necessary.
- Be careful to choose tools: Don't use small tools or accessories to finish burdensome jobs.
- Maintain tools very carefully: Keep cleaning in order to make them perform fully.
- Keep vigilance: Keep your brain sober when working. Don't operate dynamoelectric tools when feeling tired.
- Check broken parts and accessories: Operators should carefully check whether every part, every accessory or every protecting equipment has been broken before intermittently using tools in order to decide whether such objects perform again.
- Advise: It's easy to cause broken tools, even personal hurt if you don't use accessories from original Company.
9.5 Product specific rules of security
- Read the operation manual before operating this machine.
- The machine should be disconnected from the power source before performing maintenance or adjustments to the internal mechanisms, or when making repairs.
- Before leaving the machine, make sure the work area is clean.
- Check timber for loose knots, nails, or other items which may cause a hazard or affect the machine's performance.
- Keep all guards in place and in working order.
- Do not force the machine. It will do the job better and be safer working at the rate for which it was designed.
- All children and visitors should be kept a safe distance from the working area.
- The operator should keep proper footing and balance at all times.
- Do not operate the machine while under the influence of drugs, alcohol, or any other medication.
- Avoid awkward operations and hand positions where a sudden slip could cause your hand to move into the sanding drum.
- Never leave the machine until it comes to a complete stop, and never leave the machine running unattended.
- The employer is responsible for selecting competent and qualified employees.
- Safety shoes should be worn to provide protection against rolling objects, falling objects, and sharp edges in the workplace.
- Eye protection should be worn and such devices should be carefully selected, fitted and used. Compulsory wearing of glasses with impact resistant lenses and side shields is a good safety policy.
- Wear hearing protection when operating the machine.
- Do not wear gloves or other hand covering articles around moving machinery.
- Cover long hair with a hair net or cap.
- Protective guards and shields must be in place at all times unless they must be removed for specific service or maintenance. They should be immediately replaced when service or maintenance is completed.
- Make sure that operator clearly knows how to stop the machine before starting work.
- Never clean or remove chips while the machine is running.
- Do not alter or remove guards and warning labels.
- Keep the immediate area clean. Do not allow the floor to become slippery, or covered with dust or obstacles. Dust that accumulates in the work area is a hazard that can cause you to fall or slip against the machine or its controls.
10 OPERATION

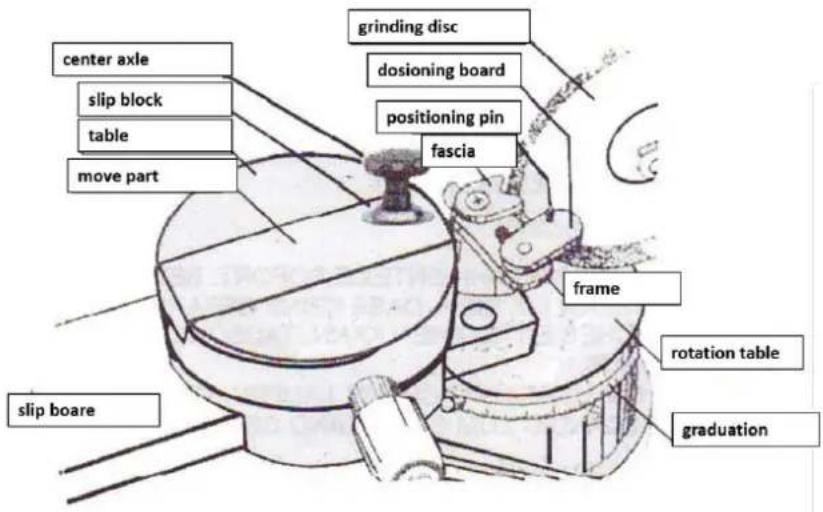

10.1 Operation instructions
- The machine is specially designed for hard alloy grinding blade, which is fit for grinding all kinds of hard alloy saw blades.
- Its fascia can support the teeth of saw blade and other parts in order to prevent jumping and improve grinding quality.
- The positioning pin can be adjusted to the best position in order to ensure the conformability of grinding blade.
- Slip board can rotate horizontally, which can ensure the primary grinding angle or change it.
- The rotation table on the fascia can adjust the process angle of grinding blade.
- If the center axle is far away from the direction of grinding blade, and when the diameter of grinding saw blade and saw teeth are bigger, the angle of saw blade is smaller, the grinding blade and saw blade can be reversed 180° and adjust the table to a proper angle.
- Slip block, centre axle, limited screw is installed on the rotation table, which is fit for operation and ensure the diameter from grinding blade to the center.
- 20 rotation structure is installed on the grinding head, which can meet grinding for bevel saw teeth.
- The diamond wheel can be dry-grinded.
-
First loose the fascia, then adjust the angle of grinding blade and fasten.
-
Adjustment of center axle
-
Rotate the center axle to the grinding blade when grinding small saw; otherwise away from the grinding blade.
- Push the center axle to the right
- Install the saw blade, rotate the wheel and decide the position of grinding surface of saw teeth.
- Rotate the rotation table to ensure the angle if grinding face of saw teeth.
- Rotate the rotation table in order to ensure process angle of grinding blade. The cross angle between the grinding surface and work.
- Adjustment of positioning assembly. Adjust the saw blade to the best grinding condition, rotate the positioning frame and fascia, adjust positioning pin to the more proper base of saw teeth and leave gap of grinding quantity, the fasten the fixed screw.
- Adjust the center axle to the same gap of grinding quantity to the right.
After all the parts are fastened, the saw blade supported with hand will be grinded.
10.2 Safe affairs
- Meet standard presure, grounding earthing well.
The machine must be put on the dry, non-corrosive, steady and level position. - First loose fascia and then adjust the angle of ginded blade.
- Fasten all the fastened parts before the machine is operated.
The machine doesn't work until it works usually.
Cut off the power when work is over. - Change the machine without permission and it will cause the bad result
11 MAINTENANCE
NOTE
Before performing any maintenance or lubrication, disconnect the machine from the power source.
- The table height adjustment screw shafts located at either end of the machine must be well lubricated with grease.
- Make sure all nuts and screws are tight before sanding. Check that the sanding belt is mounted properly, and have not become loose or torn.
Do not allow excessive dust to accumulate on or in the machine.
ATTENTION
During cleaning and maintenance in machine connected:
Property damage and serious injury from inadvertent starting the machine!
Therefore:
Before maintenance, switch off the machine and Separate power supply
Disturbances or defects which can affect the security of the machine allow to immediately remove.
The entire and regular cleaning of the machine guarantees a long life span and shows a security condition. Use exclusively mild cleaning agents, i.e. no petrol, paraffin, soda etc.
- Check regularly whether the warning tips and security tips are in the machine available and in perfectly legible state
Check before every company the flawless state of the security facilities.
- With storage of the machine this may not be kept in a humid space and must be protected against the influence by weather terms.
Control all screw combinations on firm seat every week
- Your specialist supplier does the removal of defects
Repair operations may be carried out only by specialist staff
12 PREFACIO (ES)
Estimado CLIENTE,
With original HOLZMANN spare parts you use parts that are attuned to each other shorten the installation time and elongate your products lifespan.
IMP OR TANT
The installation of other than original spare parts voids the warranty!
So you always have to use original spare parts
When you place a spare parts order please use the service formular you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need.
You find the order address in the preface of this operation manual.
Hereby we declare that the above mentioned machines meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.
(applicable from 26.09.2015)
Please consult our troubleshooting section for initial problem solving. Feel free to contact your HOLZMANN reseller or us for Customer Support!
Warranty claims based on your sales contract with your HOLZMANN retailer, including your statutory rights, shall not be affected by this guarantee declaration. HOLZMANN-MASCHINEN grants guarantee according to following conditions:
A) The guarantee covers the correction of deficiencies to the tool/product, at no charge, if it can be verified adequately that the deficiencies were caused by a material or manufacturing fault.
B) The guarantee period lasts 12 months, and is reduced to 6 months for tools in commercial use. The guarantee period begins from the time the new tool is purchased from the first end user. The starting date is the date on the original delivery receipt, or the sales receipt in the case of pickup by the customer.
C) Please lodge your guarantee claims to your HOLZMANN reseller you acquired the claimed tool from with following information:
Original Sales receipt and/or delivery receipt
Service form (see next page) filed, with a sufficient deficiency report
for spare part claims: a copy of the respective exploded drawing with the required spare parts being marked clear and unmistakable.
D) The Guarantee handling procedure and place of fulfillment is determined according to HOLZMANNs sole discretion in accordance with the HOLZMANN retail partner. If there is no additional Service contract made including on-site service, the place of fulfillment is principally the HOLZMANN Service Center in Haslach, Austria.
Transport charges for sending to and from our Service Center are not covered in this guarantee.
E) The Guarantee does not cover:
- Wear and tear parts like belts, provided tools etc., except to initial damage which has to be claimed immediately after receipt and initial check of the product.
- Defects in the tool caused by non-compliance with the operating instructions, improper assembly, insufficient power supply, improper use, abnormal environmental conditions, inappropriate operating conditions, overload or insufficient servicing or maintenance.
- Damages being the causal effect of performed manipulations, changes, additions made to the product.
Defects caused by using accessories, components or spare parts other than original HOLZMANN spare parts. - Slight deviations from the specified quality or slight appearance changes that do not affect functionality or value of the tool.
- Defects resulting from a commercial use of tools that - based on their construction and power output - are not designed and built to be used within the frame of industrial/commercial continuous load.
F) Claims other than the right to correction of faults in the tool named in these guarantee conditions are not covered by our guarantee.
G) This guarantee is voluntary. Therefore Services provided under guarantee do not lengthen or renew the guarantee period for the tool or the replaced part.
SERVICE
After Guarantee and warranty expiration specialist repair shops can perform maintenance and repair jobs. But we are still at your service as well with spare parts and/or product service. Place your spare part / repair service cost inquiry by filing the SERVICE form on the following page and send it:
via Mail to info@holzmann-maschinen.at
or via Fax to: +43 7289 71562 4
47 GARANTÍA Y SERVICIO
(Aplicable desdeel26.09.2015)
We observe the quality of our delivered products in the frame of a Quality Management policy.
Your opinion is essential for further product development and product choice. Please let us know about your:
- Impressions and suggestions for improvement.
- experiences that may be useful for other users and for product design
- Experiences with malfunctions that occur in specific operation modes
We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:
Please describe amongst others in the problem: What has caused the problem/defect, what was the last activity before you noticed the problem/defect?
For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?
3. Bite beachten
UNVOLLSTÄNDIG AUSGEGÜLLTE FORMULARE KÖNNN NICT HERBEITET WERDEN!
GARANTIEANTRAGKONNEN AUSSCHLIJESSLICH UTERBEILAGE DES KAUFBELEGES/ABLIEFERBELEGESAKZEPTIERT WERDEN.
Additional information
INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE.
THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCELERATES THE HANDLING OF YOUR INQUIRY.
