| Product type | Refrigerator (beverage cooler) |
| Brand | SilverCrest |
| Model | SGK 48 A1 |
| Dimensions (H x W x D) | 510 x 430 x 470 mm |
| Weight | Approximately 16.7 kg |
| Capacity | 48 liters |
| Power supply | 220-240 V~, 50 Hz, 0.5 A |
| Energy efficiency class | F |
| Annual energy consumption | 98 kWh/year |
| Refrigerant | R-600a (17 g) |
| Insulating gas | Cyclopentane |
| Climate class | N (16 °C to 32 °C) |
| Noise level | 39 dB(A) - Class C |
| Construction type | Freestanding (not built-in) |
| Temperature setting | 5 positions (1 = warmest, 5 = coldest) |
| Door hinge reversal | Yes |
| Number of shelves | 1 removable shelf |
| Intended use | Cooling of beverages in sealed containers (not for food) |
| Maintenance and cleaning | Interior cleaning: hot water + soda; exterior: mild detergent; annual dusting of compressor |
| Safety | Flammable refrigerant (R-600a); avoid damaging the cooling circuit; do not use flammable liquids for cleaning |
| Spare parts | Available via www.mlapp.info/contact |
| Warranty | 3 years (MLAP GmbH) |
Frequently Asked Questions - SGK 48 A1 SILVERCREST
User questions about SGK 48 A1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual SGK 48 A1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SGK 48 A1 by SILVERCREST.
USER MANUAL SGK 48 A1 SILVERCREST
Operating instructions
FR BE
RéFRIGÉRATEUR BAR
Mode d'emploi
Cz
CHLADNIČKA NA NÁPOJE
Návod k obslúze
SK
CHLADNIČKA NA NÁPOJE
Návod na obsluhu
DK
DRIKKEVAREKOLESKAB
Betjeningsveiledning
HU
ITALHUTO
Kezelesi utmutato
DE AT CH
GETRÄNKEKÜHLSCHRANK
Bedienungsanleitung
NL BE
DRANKENKOELKAST
Gebruiksaanwijzing
PL
LODÓWKA NA NAPOJE
Instrukcja obstugi
ES
FRIGORÍFICO PARA BEBIDAS
GB/IE Operating Instruction Page 5
| DE/AT/CH Bedienungsanleitung Seite 33 | |||
| FR/BE Mode d'emploi Page 63 | |||
| NL/BE Gebruiksaanwijzing Pgina 95 | |||
| CZ | Návod k obsluze | Strona | 125 |
| PL | Instrukcja obstugi | Strana | 153 |
| SK | Návod na obsluhu | Strana | 183 |
| ES | Instrucciones de uso Páginà | 213 | |
| DK | Betjeningsvejledning | Side | 243 |
| IT | Istruzioni per l'uso | Pagina | 271 |
| HU | Kezelési útmutató | Oldal | 301 |
| SI | Navodila za uporabo | Stran | 331 |
SILVERCREST
Table of Contents
1. Introduction
1.1.Information about this user manual 7
1.2.Explanation of symbols 7
2. Proper use
3. Safety instructions 1
3.1. General safety instructions 11
3.2. Transport 11
3.3. Installation and electrical connection 12
3.4. Cleaning and maintenance 15
3.5. Faults 16
3.6. Disposal 17
4. Package contents 17

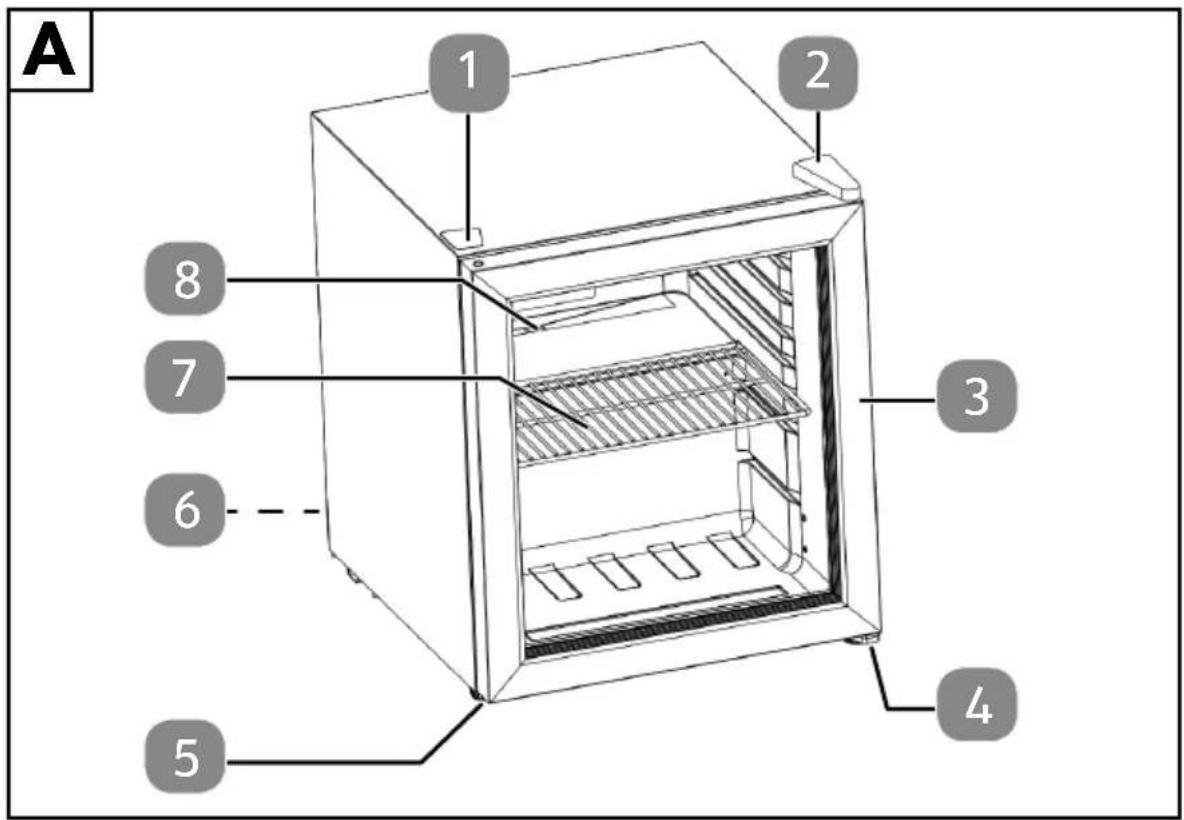

5.Description of components. 18
6. Technical specifications 18
6.1. Product data sheet 19
7. Spare parts
8. EU declaration of conformity 20
9. Information on the appliance 20
9.1. Information regarding refrigerant R-600a 21
10.Preparations 21
10.1. Setting up the appliance 21
10.2. Removing and reinserting the wire shelf 22

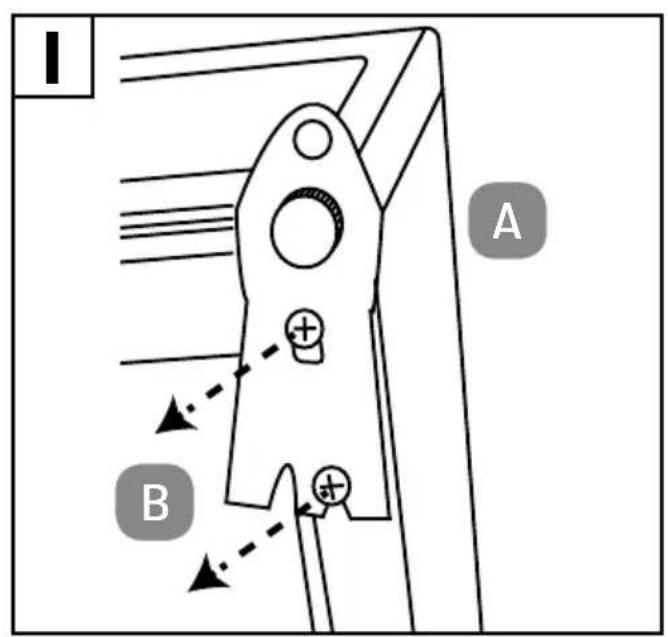

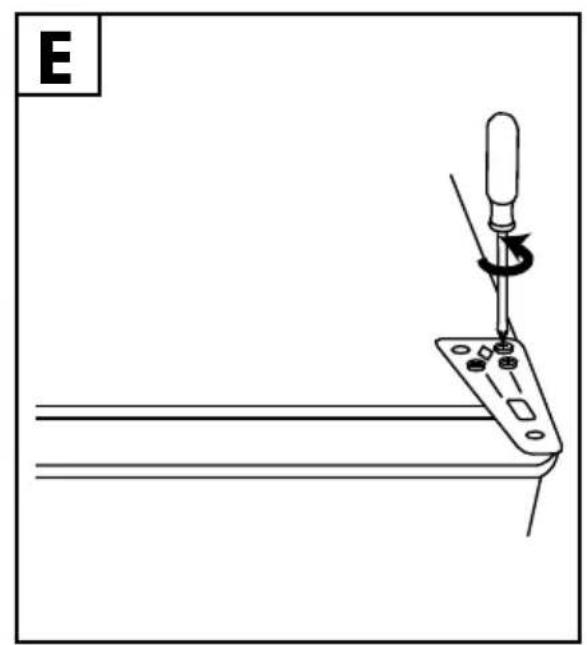

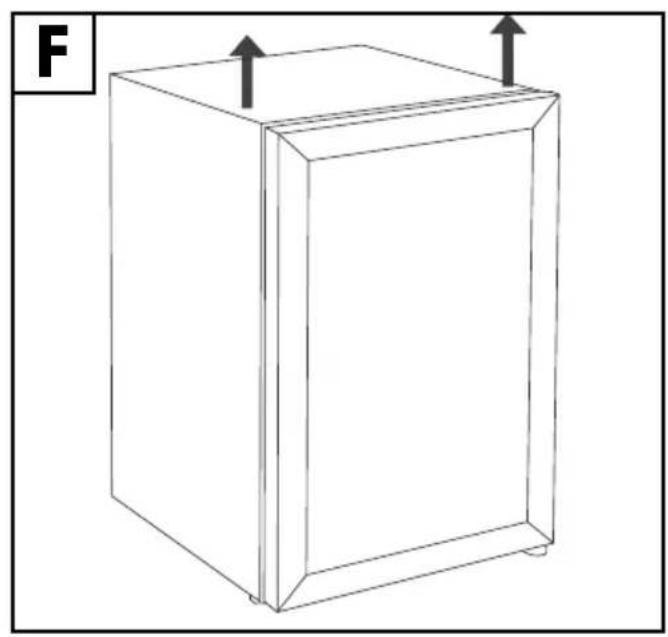

10.3. Changing the door hinge 22
11. Operating the refrigerator 24

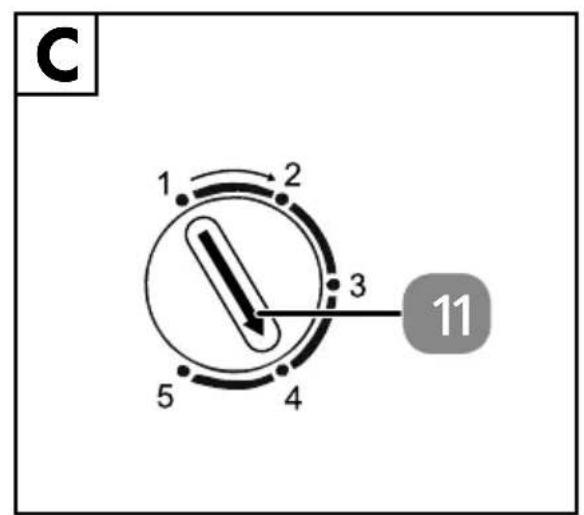

11.1.Temperature control. 24
11.2. Switching off the appliance 25
12. Tips on saving energy 25
13. Storing drinks. 25
13.1. Recommended storage temperatures for drinks 25
14. Cleaning 26
15. Transport 27
16. Troubleshooting 28
17. Longer periods without use 28
18. Disposal 29
19. Legal notice 30
19.1.Information about trademarks 30
SILVERCREST
20. MLAP GmbH Warranty 30
20.1. Conditions of warranty 30
20.2. Warranty period and legal claims for defects 30
20.3. Scope of warranty 31
20.4. Processing of warranty claims 31
21. Service 31
21.1. Supplier/Producer/Importer 32
22. Privacy statement 32

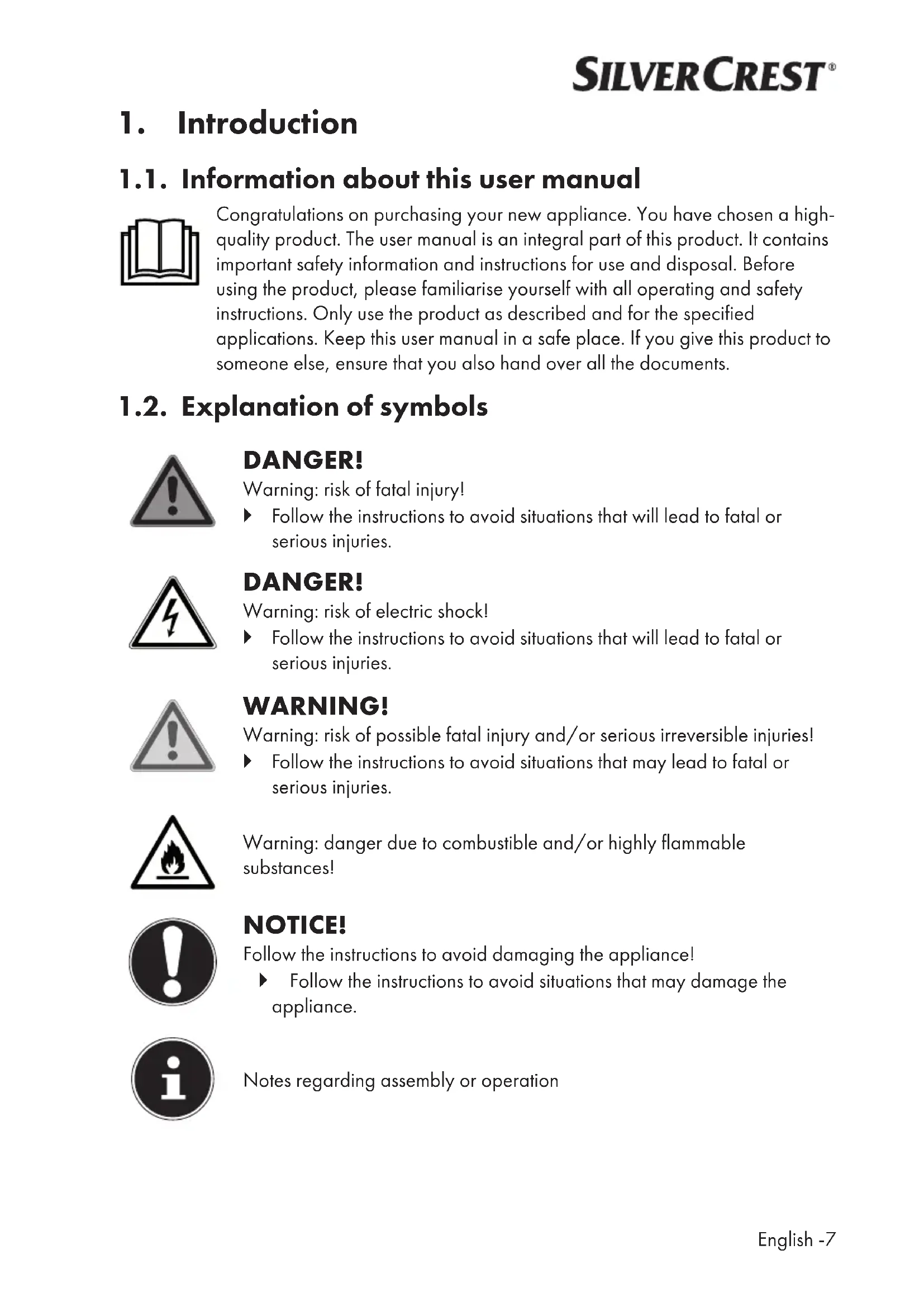

1. Introduction
1.1. Information about this user manual
Congratulations on purchasing your new appliance. You have chosen a high-quality product. The user manual is an integral part of this product. It contains important safety information and instructions for use and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Only use the product as described and for the specified applications. Keep this user manual in a safe place. If you give this product to someone else, ensure that you also hand over all the documents.
1.2. Explanation of symbols
DANGER!
Warning: risk of fatal injury!
Follow the instructions to avoid situations that will lead to fatal or serious injuries.
DANGER!
Warning: risk of electric shock!
Follow the instructions to avoid situations that will lead to fatal or serious injuries.
WARNING!
Warning: risk of possible fatal injury and/or serious irreversible injuries!
Follow the instructions to avoid situations that may lead to fatal or serious injuries.
Warning: danger due to combustible and/or highly flammable substances!
NOTICE!
Follow the instructions to avoid damaging the appliance!
- Follow the instructions to avoid situations that may damage the appliance.
Notes regarding assembly or operation
SILVERCREST
Follow the instructions in the user manual!
AC (alternating current)
Instruction to be followed to prevent hazards
Bullet point/information on steps during operation
Instruction to be carried out
Products that feature this symbol meet the requirements of the EU directives (see section entitled "EU declaration of conformity").
Tested safety: products that feature this symbol meet the requirements of the German Product Safety Act.
Packaging material label regarding waste separation
Label includes abbreviations (a) and numbers (b) with the following meaning: 1-7: plastics/20-22: paper and cardboard/80-98: composite materials.
Dispos of packaging in compliance with environmental regulations (see section "Disposal").
The "Triman" symbol tells the consumer that the product can be recycled, is covered by an extended system of manufacturer's responsibility and must be sorted by material type, in France.
Dispose of packaging in compliance with environmental regulations (see section "Disposal").
Dispose of the appliance in compliance with environmental regulations (see section "Disposal").
Indicates the correct upright position of the transport packaging.
Use hand truck here
Protect from rain!
Caution fragile!
Do not clamp as indicated
Stacking limit by number (here max. 5 transport packages)
2. Proper use
This appliance is intended for cooling drinks in closed containers. The appliance is not intended for cooling and storing food.
This appliance is designed for use in private households and similar household applications, such as:
-Staff kitchens in shops, offices and other workplaces
-In agriculture and by guests in hotels, motels and other types of accommodation
Bed-and-breakfast establishments
-In catering and similar wholesale operations.
The manufacturer accepts no liability for damages if the appliance is used for commercial purposes or for any purpose other than the purpose specified above.
Please note that we shall not be liable in cases of improper use:
- Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.
SILVERCREST
- Only use replacement parts or accessories that we have supplied or approved.
- Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.
3. Safety instructions
IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!
This appliance can be used by children of 8 years and older, and by people with reduced physical, sensory or mental capacity, or with a lack of experience and/or knowledge, but only with proper supervision, or if they have been told how to use the appliance safely, and have understood the risks involved if they use it improperly.
Children must not be allowed to play with the appliance.
Children between the ages of 3 and 8 are allowed to load and remove items from refrigerating appliances.
- Cleaning and user maintenance must not be carried out by children unless they are supervised.
DANGER!
Risk of choking and suffocation!
There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.
-
Keep all packaging materials used (bag, pieces of polystyrene etc.) out of reach of children.
Do not allow children to play with the packaging material. -
Keep children away from the appliance inner. If the door is closed, there is a risk of suffocation!
3.1. General safety instructions
Warning! Risk of injury!
The appliance's refrigeration system contains R-600a refrigerant. If the refrigerant escapes, there is a risk of injuries.
WARNING! Do not damage the refrigerant circuit.
If the refrigeration system has nevertheless become damaged, ventilate the room. Avoid naked flames and ignition sources. Have the appliance repaired by a qualified technician before using it again.
If refrigerant comes into contact with the skin or eyes, this can lead to injuries. If necessary, rinse the eyes with clean water and consult a doctor.
WARNING! Do not operate electrical appliances inside the cooling chamber that do not conform to the design recommended by the manufacturer.
Tampering with the refrigerant circuit is prohibited and invalidates the warranty.
WARNING! Risk of fire!
There are flammable liquids in the coolant circuit and the compressor.
Note the "Fire hazard" warning signs on the back of the appliance or the compressor.
- Avoid naked flames and ignition sources when using, maintaining and disposing of the appliance.
3.2. Transport
CAUTION! Risk of injury!
The appliance is heavy! There is a risk of injury from the strain of lifting the appliance.
SILVERCREST
- Seek the assistance of at least one other person in order to move the appliance. Do not transport the appliance alone.
NOTICE!
Possible material damage!
Risk of damage to the appliance if transported incorrectly
Make sure that the packaging is not damaged.
Carefully remove the packaging material and check the appliance for transport damage.
- Never connect a damaged appliance. In the event of damage, contact the Service Centre.
Always transport the refrigerator in its packaging and with the transport lock.
Ensure that no part of the refrigerant circuit is damaged when transporting and installing the appliance.
Where possible, always transport the appliance upright. If tilted to an angle of more than 40^ during transport, wait 3 hours before connecting it to the mains and switching it on to enable the refrigerant circuit to return to normal after transport.
- Do not place the appliance on its side or back, as this can cause oil from the compressor to enter and block the refrigerant circuit.
3.3. Installation and electrical connection
3.3.1. Location
NOTICE!
Possible material damage!
Risk of damage to the appliance due to improper handling
Install the refrigerating appliance in a dry and ventilated room. The room must be approx. 4m^2 to ensure that sufficient air volume is available if the refrigeration system becomes damaged.
Take the space requirements into consideration when setting up the appliance (see "10.1. Setting up the appliance" on page 21).
The appliance is suitable for climate classes N (see the type
SILVERCREST
plate). The cooling performance of the appliance is guaranteed at ambient temperatures from 16^ to 32^ . If temperatures deviate from this range, the appliance performance may be reduced.
Do not use the appliance outdoors.
Do not expose the appliance to extreme conditions. Avoid:
-high humidity or wet conditions
-extremely high or low temperatures
direct sunlight
-naked flames.
The appliance is suitable for camping use.
Do not expose the appliance to rain or spray water.
WARNING!
Risk of fire!
Insufficient air circulation can lead to heat accumulation.
WARNING! Make sure that the ventilation openings in the housing, around the appliance and in the installation niche are not blocked.
The appliance is not designed to be an integrated appliance.

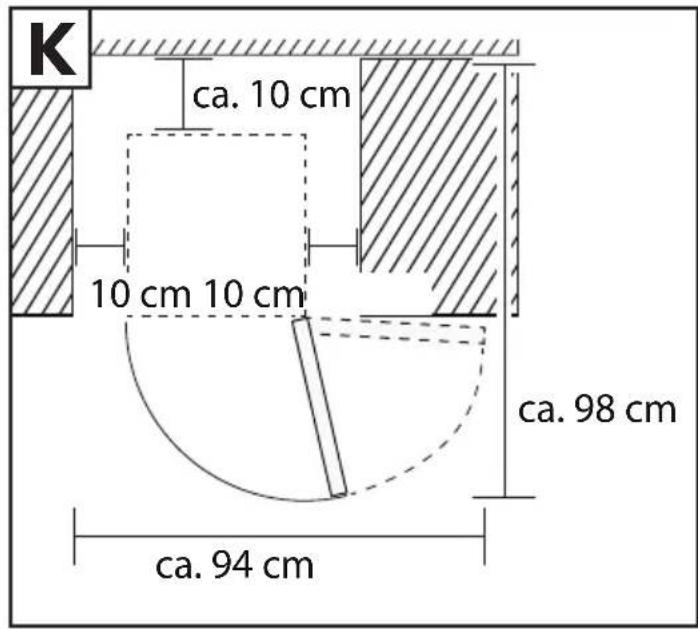

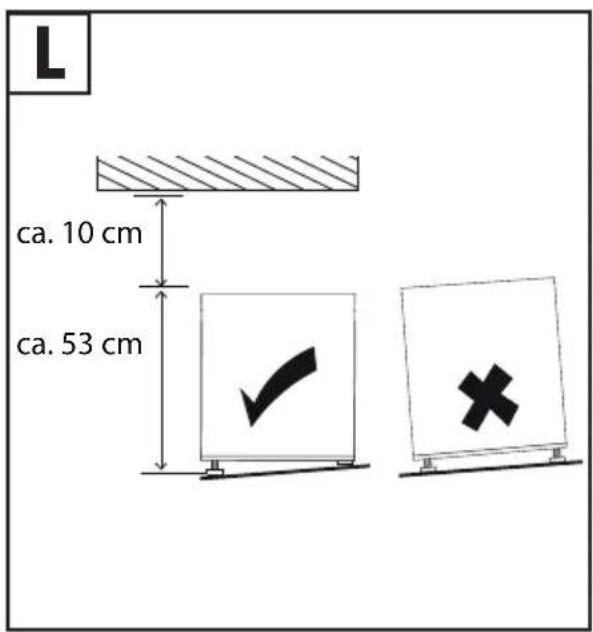

To ensure adequate ventilation, a minimum clearance of 10cm to the top, 10cm to the sides and 10cm to the back must be observed.
- Do not install near heat sources such as hobs, radiators, underfloor heating etc. If installation near a heat source cannot be avoided, use an appropriate insulation panel or maintain the following minimum clearances to the heat source:
from electric ovens or similar: approx. 10 cm
from oil, gas or coal-fired ovens: approx. 50 cm
-If installed next to another refrigerating appliance, a minimum distance of 10cm from the side is required.
SILVERCREST
3.3.2. Before connection
WARNING!
Risk of electric shock!
There is a risk of electric shock due to live parts.
After installing the appliance, check that the mains cable is not squashed or damaged.
- Do not operate the appliance if it has been visibly damaged or the mains cable or plug is defective.
In the event of damage, contact the Service Centre.
3.3.3. Mains connection
WARNING!
Risk of electric shock!
There is a risk of electric shock due to live parts.
- Only connect the appliance to a properly installed and easily accessible earthed mains socket that is close to where you are using the appliance. The local mains voltage must match the voltage stated in the technical specifications for the appliance.
The power socket must be easily accessible so that you can unplug the appliance from the mains quickly if necessary.
WARNING! Ensure the mains cable is out of harm's way and will not trip people up. Do not use an extension cable.
WARNING! Do not allow the mains cable to become trapped or damaged during installation.
WARNING! Do not connect portable multiple sockets or power supplies to the back of the appliance.
In order to disconnect the appliance completely from the electrical circuit, pull the mains plug out of the socket.
3.3.4. Use of the appliance
WARNING!
Risk of explosion!
Flammable gases and liquids can cause explosions if stored in the appliance.
- Do not store any explosive materials, e.g. aerosol containers containing propellant gas, in the appliance.
WARNING!
Risk of injury/risk to health!
Improper handling of the appliance can lead to injuries.
- Do not misuse plinths, doors etc. as a step or for support. The appliance may not work properly (temperature increase) if the appliance is exposed to temperatures that fall below the specified intended temperature range for a prolonged period of time (below 16^ ).
If the door is left open for a long time, this can cause the temperature inside the appliance zones to increase significantly.
Regularly clean surfaces that may come into contact with food and accessible drain systems.
If the appliance is not going to be used for a longer period of time, pull the mains plug out of the mains socket, defrost and clean the appliance, leaving the door open to avoid unpleasant odours and to prevent mould from forming.
3.4. Cleaning and maintenance
WARNING!
Risk of electric shock!
There is a risk of electric shock due to live parts.
Before starting any cleaning or maintenance work, pull the mains plug out of the socket (pull on the plug, not the mains cable). If the plug is not accessible, the corresponding fuse for the mains electricity supply to the house needs to be switched off.
Never touch the mains plug with wet or damp hands.
SILVERCREST
DANGER! Risk of explosion and fire!
An accumulation of gas can lead to explosions.
- Do not use any flammable liquids to clean the appliance or appliance parts.
NOTICE! Possible material damage!
Damage to the appliance caused by improper handling
-
Do not operate any electrical appliances for cleaning inside the refrigerator. Both appliances may be damaged irreparably.
-
Do not use any abrasive or harsh cleaning agents on the inside, refrigerator door or housing of the appliance as these could damage the surfaces.
-
Do not allow oil and grease to come into contact with the plastic parts and the door seal as the door seal can become porous and brittle.
-
Do not use any other mechanical equipment or synthetic agents, e.g. electric heaters, hot air blowers or hair-dryers or pointed or hard objects, to accelerate the defrosting process. The heat insulation and appliance interior are sensitive to scratches and heat and can melt.
3.5. Faults
WARNING! Risk of electric shock!
There is a risk of electric shock due to live parts.
Never try to open and/or repair an appliance component yourself.
If there is damage to the mains connection cable on this appliance, it must be replaced by the manufacturer, its customer service department, or another suitably qualified person. This is necessary to avoid hazards.
In the event of a fault, contact the Service Centre or another suitable professional repair workshop.
3.6. Disposal
DANGER! Risk of choking and suffocation! Risk of injury!
To avoid risks to children, proceed as follows before disposing of the appliance:
Remove the door and the seals or tape the door closed.
- Leave the wire shelf in the appliance so that no-one, for example children, can climb into the appliance.
■ Observe the local regulations for environmentally friendly disposal (see section "18. Disposal" on page 29).
4. Package contents
DANGER! Risk of choking and suffocation!
There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.
- Keep the packaging material and small parts out of the reach of children.
Please check your purchase to ensure that all items are included and in perfect condition. If anything is missing or damaged, please contact us within 14 days of purchase.
The following items are supplied with your product:
- Beverage refrigerator, incl. -1 wire shelf
SILVERCREST
5. Description of components
See Fig. A
1) Borehole cover
2) Upper hinge
3 Refrigerator door
4) Lower hinge with base
5) Adjustable foot
6) Mains cable with plug (not shown, on the back of the appliance)
7) Wire shelf
8) Drainage channel for condensation

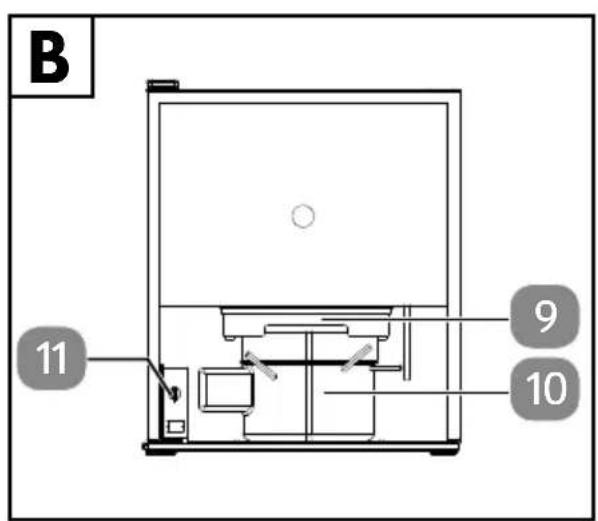

See Fig. B
9) Collection tray for condensation
10) Compressor
11) Temperature control
6. Technical specifications
Rated voltage: 220 - 240V
Rated frequency: 50Hz
Rated current: 0.5 A
Refrigerant: R-600a
Refrigerant quantity: 17 g
Insulation gas: Cyclopentane
Protection class
Weight:
Approx. 16.7 kg
6.1. Product data sheet
| Supplier's name or trademark: SilverCrest® | ||||
| Supplier's address: MLAP GmbH Meitnerstr. 9 70563 Stuttgart GERMANY | ||||
| Model identifier: SGK 48 A1 | ||||
| Type of refrigerating appliances | ||||
| Low-noise applience: | No Design type: Free- | standing | ||
| Wine cooler: No Other refrigerating | or l) applpliance: | Yes | ||
| General product parameters: | ||||
| Parameter Value | Parameter Value | |||
| Overall dimensions (in mm) | Height | 510 Total volume (in dm3) | 48 | |
| Width | 430 | |||
| Depth 470 | ||||
| EEI | 125 | Energy efficiency class | F | |
| Airborne noise emissions (in dB(A) re 1 pW) | 39 | Airborne noise emission class | C | |
| Annual energy consumption (in kWh/a)* | 98 | Climate class: | N | |
| Minimum ambient temperature (in °C) for which the refrigerating appliance is suitable | 16 | Maximum ambient temperature (in °C) for which the refrigerating appliance is suitable | 32 | |
| Winter mode No | ||||
- kWh/year energy consumption calculated on the basis of conformity testing results over 24 hours. The actual consumption will depend on the use and location of the appliance.
SILVERCREST
| Compartment parameters: | |||||
| Compartment type Co | Compartment parameters and values | ||||
| Compartment volume (in dm3or l) | Recommended temperature setting for optimal food storage (in °C) | Freezing capacity (in kg/24h) | Defrost type A/M** | ||
| Cellar compartment | Yes 48 | 12-M | |||
** Automatic defrost = A, manual defrost = M
| Light source parameters: | |
| Type of light source – | |
| Energy efficiency class – | |
| Minimum duration of the warranty offered by the manufacturer: | 36 months from date of purchase |
| Additional information: | Scan the QR code shown on the energy label to download the complete product data sheet. |
7. Spare parts
If you would like to order spare parts, please contact us using the contact form at www.mlap.info/contact.
8. EU declaration of conformity
MLAP GmbH hereby declares that this appliance complies with the fundamental requirements and the other relevant provisions of:
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
Ecodesign Directive 2009/125/EC
RoHS Directive 2011/65/EU.
9. Information on the appliance
- The appliance uses refrigerant R-600a (HCFC- and CFC-free) in the refrigerant circuit.
- The refrigerant circuit has been checked for leaks. This complies with the relevant safety regulations for electrical appliances.
Energy efficiency class F
Climate class N
The different climate classes are explained in the following table:
| Climate class Meaning Ambient temperature | |
| SN Appliances for subnormal climate +10°C to +32°C | |
| N Appliances for normal climate +16°C to +32°C | |
| ST Appliances for subtropical climate | +16°C to +38°C |
| T Appliances for tropical climate +16°C to +43°C |
9.1. Information regarding refrigerant R-600a
R-600a and cyclopentane are used as 100% HCFC-free refrigerant and insulating materials in this appliance. This helps to protect the ozone layer and reduces the so-called greenhouse effect. These appliances can be identified by the "Refrigerant R-600a" notice on the type plate.
Ensure that the refrigerant circuit is not damaged, as small quantities of R-600a can contribute to the greenhouse effect if released. This applies both when transporting the appliance and throughout its service life. Also ensure that you dispose of this appliance correctly according to local regulations.
10. Preparations
Remove all packaging materials.
- Dispose of the expanded polystyrene padding separately from the other packaging.
Before switching on the appliance for the first time, clean all parts of the appliance (see section "14. Cleaning" on page 26).
Dry the appliance thoroughly after cleaning and before switching it on for the first time.
10.1. Setting up the appliance
Place the appliance in an appropriate location (see also section "3.3.1. Location" on page 12).
Do not place the appliance on carpet, as the radiating heat of the compressor may damage the carpet. In carpeted rooms, place a wooden board under the appliance to prevent damage.
SILVERCREST
To fully open the refrigerator door (3), the room dimensions stated in Fig. D and Fig. L must be available.
The appliance must be level. Compensate for any unevenness in the floor by screwing the adjustable foot (5) in or out.
Level the beverage refrigerator with a spirit level.
- Check that the wire shelf (7) is correctly positioned in the guide rails. Adjust as required until the wire shelf (7) is correctly positioned in the rails.
10.2. Removing and reinserting the wire shelf
To remove the wire shelf (7), open the refrigerator door (3) fully.
Pull the wire shelf (7) straight out using both hands.
To insert it, place the wire shelf (7) in the side guide rails and then push it straight all the way into the refrigerator compartment. Make sure that the arches on the wire shelf side are pointing upwards. This ensures that the wire shelf (7) is firmly seated in the guide rails.
10.3. Changing the door hinge
Depending on the installation location, you can change the door hinge to the opposite side.
The following tools are required for changing the door hinge:
Phillips screwdriver (size 2)
- Flat-head screwdriver (size 2)
If necessary, 8 mm wrench
CAUTION! Risk of injury!
Sharp edges on the underside of the appliance
When changing the door hinge, be careful not to injure yourself on the sharp edges.
Unplug the mains plug.
- Open the refrigerator door (3) and remove the wire shelf (7) from the refrigerating appliance.

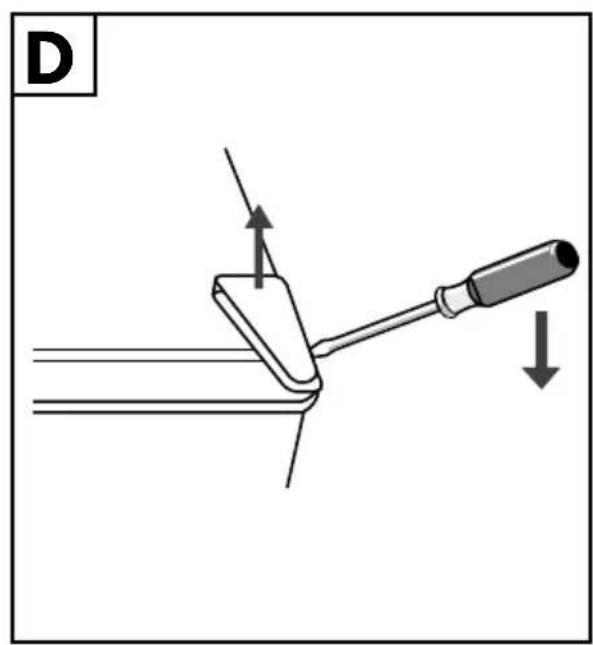

- Remove the hinge cover of the upper door hinge (2) (see Fig. D). From the side, insert a flat screwdriver under the right outer edge of the cover and carefully lift it upwards.
Unscrew the three screws of the upper door hinge (2) using a Phillips screwdriver or an 8 mm spanner and remove the door hinge (2) (see Fig. E). - Lift the refrigerator door (3) out of the lower fixing (see Fig. F). Place the refrigerator door (3) on a soft underlay to avoid scratching and secure it against falling over.
- Remove the borehole cover (1) on the top left side of the appliance as well (see Fig. G) and put the borehole cover (1) on the screw holes on the opposite side that are now free.
- Remove the blind plug for the hinge pin from the left-hand side of the appliance door (3) and insert it in the hole on the right-hand side.
Carefully place the beverage refrigerator on its back on a soft underlay.
Unscrew the two retaining screws (A) and (B) of the lower door hinge (4) with a Phillips screwdriver or an 8 mm spanner (see Fig.1).

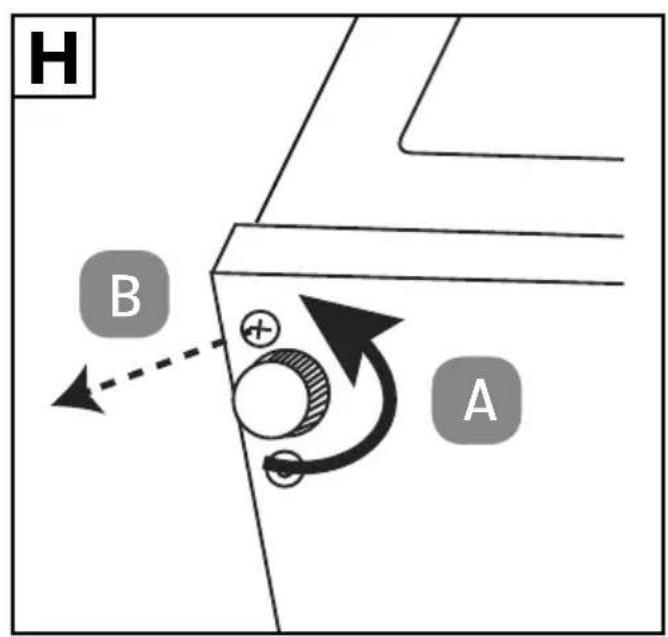

Remove the adjustable foot (5) (A) and the screw (B) on the opposite underside of the appliance (see Fig. H) and fit the adjustable foot (5) and the screw where the lower hinge was previously mounted (see Fig. J).
Leave the small base on the lower door hinge (4).
When changing the door hinge for the first time, the holes may not be completely pre-drilled, making it a little more difficult to screw in, as the respective screw has to be drilled through the housing. Use a cordless screwdriver if necessary.
- Place the perforated plate of the lower hinge (see Fig. J) on the opposite underside of the appliance so that the holes in the perforated plate line up with the holes in the appliance housing. The perforated plate is parallel to the side edge of the appliance and the hinge pin is pointing towards the front of the appliance.
Screw on the hinge using the four mounting screws.
Return the appliance to the upright position.
Now put the refrigerator door (3) back on the lower hinge (4) so that the hinge pin fits into the recess provided in the refrigerator door (3).
- With the refrigerator door (3) closed, insert the upper hinge with the hinge pin into the refrigerator door (3).
SILVERCREST
Position the perforated plate of the upper hinge so that the holes in the perforated plate match the holes in the appliance housing.
Align the refrigerator door (3) horizontally.
Screw on the upper hinge using the mounting screws.
Place the hinge cover on the upper door hinge (2) and press it on until it audibly clicks into place.
Align the appliance horizontally and, if necessary, compensate for any unevenness in the floor by unscrewing and adjusting the adjustable foot (5).
Replace the wire shelf (7) and close the refrigerator door (3).
Please note: The door seal adapts to the new door hinge after a few hours.
11. Operating the refrigerator
- Connect the appliance to an earthed mains socket. The local mains voltage must match the voltage stated in the technical specifications for the appliance. The appliance switches on.
Turn the temperature control (11) to position 1-5.
Audible noises such as cracking, humming or gurgling are caused by the expansion and shrinkage of the components as a result of the temperature changes or by the compressor working and do not indicate a malfunction.
11.1. Temperature control
Setting the temperature control (11) to one of the selected angular positions automatically adjusts the temperature in the refrigerator compartment.
The following temperature control settings (11) can be selected:
1 The maximum refrigerator temperature (the warmest)
2 to 4 Intermediate position
5 The lowest refrigerator compartment temperature (coldest)
Before storing drinks, set the temperature control (11) to position 5. The maximum level of cooling on the temperature control (11) should only be set for short periods in the event of high external temperatures or when filling the refrigerator with drinks that must be cooled quickly. Check the temperatures in the refrigerator compartment with a thermometer. Once the desired temperature inside the refrigerator has been reached, the temperature control (11) should be turned down again.
The internal temperatures can be influenced by factors such as the installation location, ambient temperature and the number of times the door is opened. Take these factors into account when setting the temperature.
11.2. Switching off the appliance
To de-energise the appliance, unplug the mains plug (6).
Wait approx. 10 minutes before switching on the appliance again.
12. Tips on saving energy
In order to achieve the best possible cooling performance with low energy consumption, observe the following:
Do not position the appliance near a heat source (radigator or cooker etc.).
The location should be not too warm, dry, dust-free and well ventilated.
Ensure that air can circulate freely around the appliance.
The energy consumption will be lowest if the wire shelf (7) is left inside the appliance when it is in use.
If the refrigerator door (3) is left open for a long time, this can cause the temperature inside the refrigerator compartment to increase significantly. Only open the refrigerator door (3) briefly when loading and removing drinks. Less cold can escape if the door is left open for only a short time and therefore the appliance requires less energy.
Select the temperature control setting according to how full the appliance is.
Ensure that the door seals are undamaged and that the refrigerator door (3) closes properly.
If the appliance is left empty for an extended period of time, switch it off. Defrost and clean the appliance and allow it to dry. Leave the refrigerator door (3) open to prevent mould from forming in the appliance.
13. Storing drinks
- Place bottles/cans upright or lying down in the refrigerator compartment, depending on the container size. If necessary, change the insertion height of the wire shelf (7).
Make sure that the drinks containers do not touch the back wall in the refrigerator compartment.
13.1. Recommended storage temperatures for drinks
| Drink Recommended temperature | |
| Soft drinks 5°C to 8°C | |
| Beer 7°C to 9°C, depending on variety 10°C | |
SILVERCREST
| Drink Recommended temperature | |
| White wines (depending on variety and preference) | 9°C to 10°C |
| Clear Schnapps 0-4°C | |
| Gin/Tequila 5-6°C | |
| Herbal liqueurs 10°C | |
| Sparkling wine 7-8°C | |
14. Cleaning
DANGER!
Risk of electric shock!
There is a risk of electric shock from electrified parts.
Before starting any cleaning or maintenance work, pull the mains plug (6) out of the socket (pull on the plug, not the cable). If the plug is not accessible, the corresponding fuse for the mains electricity supply to the house needs to be switched off.
Never touch the mains plug (6) with wet hands.
NOTICE!
Possible material damage!
Damage to the appliance due to improper handling of the sensitive surfaces of the appliance.
Sensitive surfaces: Do not allow oil and grease to come into contact with the plastic parts and the door seal as the surface can become porous and brittle.
- Never use acidic, abrasive or granular, acetic-acid-, soda- or solvent-based cleaning agents. These may damage the surfaces of your appliance.
- Do not operate any electrical appliances inside the cooling compartment of the beverage refrigerator. Both appliances may be damaged irreparably.
CAUTION! Risk of injury!
Sharp edges on the underside of the appliance
- When cleaning, take care not to injure yourself on the sharp edges.
Unplug the mains plug (6).
Remove all bottles, drinks containers and the wire shelf (7) from the refrigerator compartment.
Clean the appliance surfaces and the wire shelf (7), except for the door seal, with a mild cleaning agent and a soft cloth.
Wipe the door seal with clean water and allow to dry. Abrasive or acidic cleaning agents are unsuitable for cleaning.
Clean the interior of the appliance with warm water and soda crystals. We recommend 2 tablespoons of soda crystals to a litre of water.
Reinsert the wire shelf (7).
Also clean the drainage channel (8) for condensation on the rear wall inside the appliance, e.g. with a cotton bud or a cleaning spike.
Empty and clean the collection tray for condensation (9) regularly. Pull the collection tray (9) out of the guide above the compressor (10) horizontally. Pour the water out of the collection tray (9) and clean it with a mild cleaning agent and a soft cloth. Place the collection tray (9) with the groove on the guide on the compressor (10) and push the collection tray (9) in fully.
- Remove dust from the back of the appliance and from the compressor (10) once or twice a year to prevent the appliance's performance from being affected. Use a brush or carefully vacuum the appliance parts.
Plug the mains plug (6) back into the socket and switch the appliance on. The appliance can now be filled again.
15. Transport
Carry out the following steps before transporting the refrigerating appliance:
Pull the mains plug (6) out of the mains socket.
Remove all bottles, drinks containers and the wire shelf (7) from the refrigerator compartment.
Fully screw in the adjustable foot (5).
- Tape the refrigerator door (3) in place using adhesive tape to prevent it opening accidentally during transport.
SILVERCREST
16. Troubleshooting
Malfunctions may occur during operation.
Please use the following table to check whether you can resolve the problem yourself.
All other repairs are prohibited and will invalidate the warranty cover.
Therefore, in the event of a fault, contact the Service Centre.
| Malfunctions Problem Solution | ||
| The appliance is not working. | The power supply is interrupted. | Check whether the connection cable is plugged in. Check whether the socket is live. To do this, plug in another electrical device (e.g. a bedside lamp). Check if the connection cable is damaged. |
| The temperature is too high. | The refrigerator door (3) does not seal properly when closed or has been opened too often. | Resorb the bottles so that the refrigerator door (3) can be closed properly. Always open the refrigerator door (3) for a short time only. Check the door seal. |
| The appliance is dirty. Clean the appliance. | ||
| The temperature is too high. | The appliance has been set up in a place where it is exposed to direct sunlight or near a heat source. | Move the appliance to a different location. Set the appliance to a lower temperature. |
17. Longer periods without use
If you are not intending to operate the appliance for a longer period of time, please carry out the following:
Pull the mains plug (6) out of the mains socket.
Empty the appliance completely and clean it.
Leave the refrigerator door (3) open to avoid unpleasant odours and to prevent mould from forming.
18. Disposal
DANGER!
Risk of choking and suffocation! Risk of injury!
To avoid risks to children, proceed as follows before disposing of the appliance:
- Remove the door and the seals or tape the refrigerator door (3) closed.
Leave the wire shelf in the appliance so that no-one, for example children, can climb into the appliance.
Packaging
Your appliance has been packaged to protect it from damage in transit. Packaging materials are raw materials and can therefore be reused or recycled.
Appliance
Do not dispose of old appliances in normal household waste.
In accordance with Directive 2012/19/EU, these appliances must be disposed of correctly at the end of their service life.
This involves separating the materials in the appliances for the purpose of recycling and minimising the environmental impact.
Take old appliances to a collection point for electrical scrap or a recycling centre.
Contact your local waste disposal company or your local authority for more information on this subject.
During disposal, please note that the appliance/insulation contains cyclopentane (a flammable expanded gas for insulation).
The appliance/insulation must be disposed of correctly.
SILVERCREST
19. Legal notice
Copyright © 2022
All rights reserved.
This user manual is protected by copyright.
Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.
Copyright is owned by the company:
MLAP GmbH
Meitnerstr. 9
70563 Stuttgart
GERMANY
19.1. Information about trademarks
SilverCrest® is a registered trademark of Lidl Stiftung & Co. KG, 74167 Neckarsulm, Germany.
All other names and products are trademarks or registered trademarks of their particular owners.
20. MLAP GmbH Warranty
Dear customer,
The warranty on this product is 3 years from the date of purchase. In the event of defects in this product, you have legal rights against the product vendor. These legal rights are in no way limited by the warranty described below.
20.1. Conditions of warranty
The warranty period begins on the date of purchase. Please take care to keep the original purchase receipt. This document will serve as a proof of purchase.
If, within three years of the date of purchase of this product, any defect in material or manufacture should become evident, the product will – as we choose – be repaired free of charge or replaced. This warranty is subject to presentation, within the three-year term, of the defective product and the proof of purchase (receipt) and a brief, written description of what constitutes the defect and when it became evident.
If the defect is covered by our warranty, you will receive back the repaired product or a new replacement. Repair or exchange of the product does not lead to a renewed warranty period.
20.2. Warranty period and legal claims for defects
The warranty period is not prolonged by the above fulfilment. This also applies for replaced and repaired parts. Any damage or defects present at the time of purchase must be notified immediately after unpacking. Repairs that are carried out after the expiration of the warranty period are subject to a charge.
30 - English
20.3. Scope of warranty
The product is manufactured in accordance with strict quality guidelines and thoroughly tested before dispatch.
The warranty applies for defects in materials or manufacture. This warranty does not extend to product parts that are subject to normal wear and can therefore be regarded as wearing parts or to damage to fragile parts, e.g. switches, batteries or parts made of glass.
This warranty is void if the product has been damaged or not properly used or serviced. For proper use of the product, exact compliance with all instructions listed in the user manual is required. It is essential to avoid procedures and use for purposes against which the user manual advises or warns.
The product is intended for private use only and not for industrial/commercial use. Improper handling and usage not in accordance with the intended purpose, use of force and any interventions that are not carried out by our authorised service centre will render the warranty null and void.
20.4. Processing of warranty claims
For speedy processing of your request, please observe the following instructions:
-
For all enquiries, please keep the receipt and the article number IAN 388942_2107 to hand as proof of purchase.
-
The article number is to be found on the type plate, an engraving, on the title page of your instructions (bottom left) or on an adhesive label on the rear or underside.
-
If functional or other defects occur, first contact the service department named below by telephone or via our contact form.
21. Service
You can download this user manual and many other manuals, product videos and installation software from www.lidl-service.com.
Scan this QR code to be directed straight to the Lidl Service website (www.lidl-service.com) where you can open your user manual by entering the article number IAN 388942_2107.
| IE | Service Ireland Hotline 1 +353 1 6533859 2 Mon - Fri: 09:00 - 17:00 Please use the contact form at www.mlap.info/contact |
| IAN 388942_2107 |
21.1. Supplier/Producer/Importer
Please note that you cannot use the address below for returns. Please contact the Service Centre mentioned above.
MLAP GmbH
Meitnerstr. 9
70563 Stuttgart
GERMANY
22. Privacy statement
Dear Customer,
We wish to inform you that we, MLAP GmbH, Meitnerstr. 9, 70563 Stuttgart, Germany, process your personal data as a data controller.
For matters regarding data protection, we are supported by our company data protection officer who can be contacted at MLAP GmbH, Datenschutz, Meitnerstr. 9, 70563
Stuttgart, Germany, datenschutz@mlap.info. We process your data for the purpose of warranty processing and associated processes (e.g. repairs) and therefore rely on processing your data for the sales contract concluded with us.
Your data will be provided to repair service providers contracted by us for the purpose of warranty processing and associated processes (e.g. repairs). We generally store your personal data for a period of three years in order to fulfil your legal warranty rights.
You have the right to be informed of the personal data concerned as well as the right to rectification, deletion, restriction of processing, the right to object to processing and the right to data portability.
In case of access and cancellation rights, restrictions apply according to paragraphs 34 and 35 of the BDSG (Federal Data Protection Act) (Art. 23 GDPR). In addition, there is a right of appeal to a competent data protection supervisory authority (Article 77 GDPR in conjunction with paragraph 19 BDSG). For MLAP, this is the Landesbeauftragte für Datenschutz und Informationsfreiheit Baden-Württemberg, Postfach 10 29 32, 70025 Stuttgart, Germany, www.baden-wuerttemberg.datenschutz.de.
The processing of your data is necessary for warranty processing: it is not possible to process the warranty without the provision of the required data.
SILVERCREST
Inhaltsverzeichnis
1. Einführung 35
Chere CLIENT, Cher Client
Chere cliente, cher client,
WAARSCHUWING! Explosiegevaar!
Si se guardan gases o liquidos inflamables en el aparato,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO, SEO
-nei bed & breakfast;
