USER MANUAL SMK 41 A2 SILVERCREST

MINI-KÜHLSCHRANK / MINI FRIDGE / MINI-RéFRIGÉRATEUR SMK 41 A2

DE AT CH

MINI-KÜHLSCHRANK

Bedienungsanleitung

FR BE

MINI-RéFRIGÉRATEUR

Mode d'emploi

PL

MINI LODÓWKA

Instrukcja obstugi

SK

MINICHLADNIČKA

Návod na obsluhu

DK

MINI-KOLESKAB

Betjeningsveiledning

GB IE

MINI FRIDGE

Operating instructions

NL BE

MINI KOELKAST

Gebruiksaanwijzing

cz

MINI CHLADNIČKA

Návod k obsluze

ES

MINI NEVERA

Instruccionedesuso

IAN 360836_2007

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating Instruction Page 37

1. Information about these operating instructions 39

1.1.Key to symbols 39

2. Proper use 4

3. Safety information 41

3.1. General safety instructions 42
3.2. Transport 43
3.3. Installation and electrical connection 44
3.4.Use of the appliance 46
3.5. Cleaning and maintenance 47
3.6. Faults 48
3.7. Disposal 49

4. Description of components.. 49

5. Package contents 50

6. Technical specifications 50

6.1. Product data sheet 51

7.Declaration of Conformity 52

8. Information on the appliance 52

8.1. Information regarding refrigerant R-600a 53

9. Before operation 53

9.1. Changing the door hinge over to the opposite side 53
9.2.Setting up the appliance 54
9.3. Removing and reinserting the wire shelf 55

10. Operating the appliance.. 55

10.1. Switching off the appliance 56
10.2. Tips on saving energy 56
10.3. Storing food in the cooling chamber 56

11. Using the ice cube compartment 57

12. Defrosting the ice cube compartment 58

13. Cleaning the appliance 59

14. Transport 60

15. Troubleshooting 60

16. Spare parts 61

11.1. Making ice cubes 57

SILVERCREST

1. End of operation 61
2. Disposal 61
3. Legal notice 62

19.1.Information on trademarks 62

1. MLAP GmbH Warranty 62

20.1. Conditions of warranty 62
20.2.Warranty period and legal claims for defects 62
20.3. Scope of warranty 63
20.4. Processing of warranty claims 63

1. Service 64
2. Privacy statement 65
3. Supplier/Producer/Importer 65

1. Information about these operating instructions

Thank you for choosing our product. We hope you enjoy using this appliance. Please read the safety instructions and all other instructions carefully before using the appliance for the first time. Note the warnings on the appliance and in the operating instructions.

Always keep the operating instructions close to hand. If you sell the appliance or give it away, please ensure that you also pass on these operating instructions. They are an essential component of the product.

1.1. Key to symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

DANGER!

Warning: risk of fatal injury!

Follow the instructions to avoid situations that will lead to fatal or serious injuries.

WARNING!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

• Follow the instructions to avoid situations that may lead to fatal or serious injuries.

CAUTION!

Warning: risk of minor and/or moderate injuries!

Follow the instructions to avoid situations that may lead to moderate or minor injuries.

NOTICE!

Follow the instructions to avoid property damage.

• Follow the instructions to avoid situations that may damage the appliance.

More detailed information about using the appliance!

SILVERCREST

Follow the instructions in the operating instructions!

WARNING!

Warning: risk of electric shock!

WARNING!

Warning: danger due to combustible and/or highly flammable substances!

Bullet point/information on steps during operation

Instruction to be carried out

Instruction to be carried out to prevent hazards

Declaration of Conformity (see "Declaration of Conformity" section): Products that feature this symbol meet the requirements of the EC directives.

Dispose of the packaging in compliance with environmental regulations (see "18. Disposal" on page 61)

Dispose of the appliance in compliance with environmental regulations (see "18. Disposal" on page 61)

Indicates the correct upright position of the transport package.

Packaging material label regarding waste separation. Label includes abbreviations (a) and numbers (b) with the following meaning: 1-7: plastics/20-22: paper and cardboard/80-98: composite materials.

2. Proper use

The appliance is intended for cooling food and making ice cubes. This appliance is designed for use in private households and similar household applications, such as:

Staff kitchens in shops, offices and other workplaces
In agriculture and by guests in hotels, motels and other types of accommodation

• Bed-and-breakfast establishments
• Catering establishments and wholesale use

Please note that we shall not be liable in cases of improper use:

• Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.
  Only use replacement parts or accessories that we have supplied or approved.
  Comply with all the information in these operating instructions, especially the safety information. Any other use is considered improper and can cause personal injury or property damage.

3. Safety information

WARNING!

Risk of injury!

Risk of injury to persons with limited physical, sensory or mental abilities (for example, partially disabled people or older people with limited physical or mental abilities) or to those without experience and knowledge (such as older children).

This appliance can be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and have understood the dangers that result from it.

Children must not be allowed to play with the appliance.

SILVERCREST

• Cleaning and user maintenance must not be carried out by children, unless they are aged 8 or over and are supervised.
  Children between the ages of 3 and 8 are allowed to load and remove items from cooling appliances.
  Children younger than 8 must be kept away from the power cable.

DANGER!

Risk of choking and suffocation!

Risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

• Do not store any of the packaging material used (bags, polystyrene, etc.) within the reach of children.
  If the door is left open, there is a risk of suffocation for children that may climb inside the appliance.
• Keep children away from the appliance inner.

3.1. General safety instructions

WARNING!

Risk of injury!

The appliance's refrigeration system contains R-600a refrigerant. If the refrigerant escapes, there is a risk of injuries.

• Do not store or transport the appliance on its side or back, as this can cause oil from the compressor to enter and block the refrigerant circuit.
  WARNING! Do not damage the refrigerant circuit.
  If the cooling system has nevertheless become damaged, ventilate the room. Avoid open flames and ignition sources. Have the appliance repaired by a qualified technician before using it again.

If refrigerant comes into contact with the skin or eyes, this can lead to injuries. If necessary, rinse the eyes with clean water and consult a doctor.

SILVERCREST

WARNING! Do not operate electrical devices inside the cooling chamber that do not conform to the design recommended by the manufacturer.
WARNING! Do not use any mechanical devices or means to accelerate defrosting other than those recommended by the manufacturer.
Keep away from open flames.

Tampering with the refrigerant circuit is prohibited and invalidates the warranty.

WARNING!

Risk of fire!

There are flammable liquids in the coolant circuit and the compressor.

Note the fire hazard warning signs on the back of the appliance or the compressor.
- Avoid open flames and ignition sources when using, maintaining and disposing of the appliance.

3.2. Transport

NOTICE!

Possible material damage!

Risk of damage to the appliance if transported incorrectly.

Ensure that no part of the refrigerant circuit is damaged when transporting and installing the appliance.
Where possible, always transport the appliance upright. If tilted to an angle of more than 40^ during transport, wait 4 hours before connecting it to the mains and switching it on to enable the refrigerant circuit to settle after transport.
- Do not store or transport the appliance on its side or back, as this can cause oil from the compressor to enter and block the refrigerant circuit.
Do not expose the appliance to rain or spray water.

SILVERCREST

3.3. Installation and electrical connection

3.3.1. Location

NOTICE!

Possible material damage!

Risk of damage to the appliance due to improper handling.

• Set up the refrigerator in a dry and ventilated room. The room should be approx. 4m^2 to ensure that sufficient air volume is available if the cooling system becomes damaged.

Take the space requirements into consideration when setting up the appliance (see "9.2. Setting up the appliance" on page 54).

The appliance is suitable for climate classes N/ST (see the type plate). The cooling performance of the appliance is guaranteed at ambient temperatures from 16^ to 38^ . If temperatures deviate from this range, the appliance performance may be reduced.

• Never place the appliance with the front edge along the edge of a table top or shelf, because there is a risk of the appliance tipping forwards and falling if the door compartment is overloaded. Take care to ensure that there is adequate space in front of the appliance so that when opening the door, the door lies on the storage surface when the appliance is tipped. Always load the cooling chamber first and then the door compartment.

Do not expose the appliance to extreme conditions. Avoid:

• high humidity or wet conditions
  extremely high or low temperatures
  direct sunlight
  open flames.

WARNING!

Risk of fire!

Insufficient air circulation can lead to heat accumulation.

Make sure that the ventilation openings in the housing, around the appliance and in the installation niche are not blocked.

SILVERCREST

The appliance is not designed to be an integrated appliance.

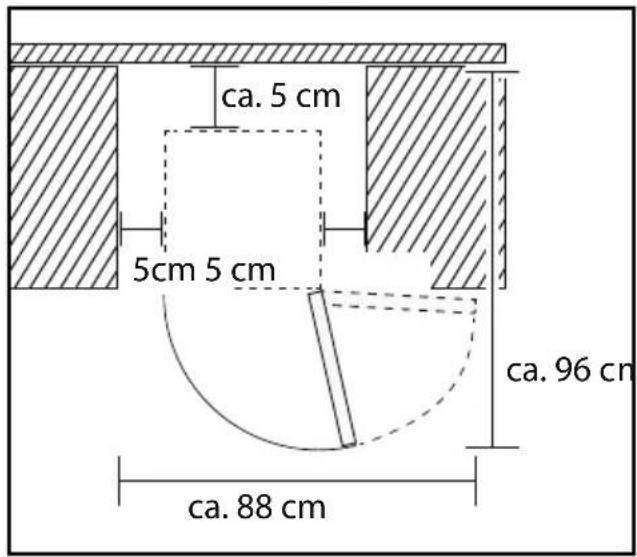

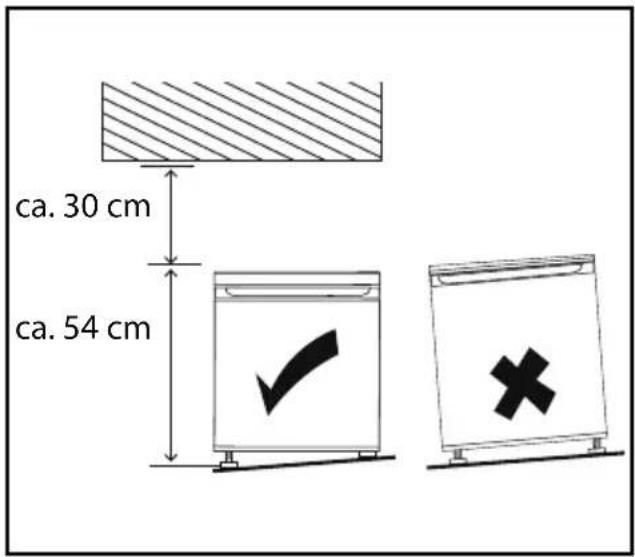

To ensure adequate ventilation, a minimum clearance of 30~cm to the top and 5cm to the back must be observed.

• Do not install near heat sources such as hobs, radiators, underfloor heating etc. If installation near a heat source cannot be avoided, use an appropriate insulation panel or maintain the following minimum clearances to the heat source:

• To electric or gas ovens or similar: approx. 3 cm

• To oil or coal-fired ovens: approx. 30 ~cm

• If installed next to another cooling appliance, a distance to the side of 10cm is required.

3.3.2. Before connection

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

After installing the appliance, check that the mains connection cable is not squashed or damaged.
- Do not operate the appliance if it has been visibly damaged or the mains cable or plug is defective.
In the event of damage, contact our Service Centre.

3.3.3. Mains connection

• Connect the appliance to a properly installed safety socket which is easily accessible and close to the place of installation. The local mains voltage must correspond to the technical specifications for the appliance.
  The power socket must be easily accessible so that you can unplug the appliance from the mains quickly if necessary.
  WARNING! Ensure the mains cable is out of harm's way and will not trip people up. Do not use an extension cable.
  WARNING! Do not allow the mains cable to become trapped or damaged during installation.

SILVERCREST

WARNING! Do not connect portable multiple sockets or power supplies to the back of the appliance.
In order to de-energise the appliance completely, pull the mains plug out of the socket.

3.4. Use of the appliance

WARNING! Risk of explosion!

Flammable gases and liquids can cause explosions if stored in the appliance.

• Do not store any explosive materials, e.g. aerosol containers containing propellant gas, in the appliance.

• Do not freeze any carbonated beverages. Expanding water can break the container.

• Only freeze high-proof alcohol in a tightly closed container that is standing upright.

• Do not store glass or metal containers filled with liquid in the freezer compartment.

WARNING! Risk of injury/risk to health!

Improper handling of the appliance can lead to injuries.

• Do not touch the freezer compartment's frozen inner walls or frozen foodstuffs with your hands. Do not put ice cubes or ice lollies directly from the freezer compartment into your mouth. There is a possible risk of burns resulting from the low temperatures.
• Do not use the holder, drawer compartments, doors etc. as a step or support.

The appliance may not work properly (possibility of stored goods defrosting or the temperature in the freezer compartment increasing), if the appliance is exposed to temperatures that fall below the specified intended temperature range for a prolonged period of time (below 16^ ).

SILVERCREST

In case of power failure or a switched off appliance, stored foodstuffs may start to thaw or defrost completely. There is a risk of food poisoning.

If there has been a power failure, check that the food which is stored in the appliance still looks and smells safe to eat.
If there has been a power failure, dispose of any frozen food which has visibly started to thaw.
Do not refreeze food that has thawed or defrosted.
In the event of disconnection, even of a temporary nature only, take the frozen food out of the appliance and keep it in sufficiently cold storage.

3.5. Cleaning and maintenance

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

Before starting any cleaning or maintenance work, pull the mains plug out of the earthed mains socket (pull on the plug, not the mains cable). If the plug is not accessible, the corresponding fuse for the mains electricity supply to the house needs to be switched off.

DANGER!

RISK OF EXPLOSION AND FIRE!

An accumulation of gas can lead to explosions.

• Do not use any flammable liquids to clean the appliance or any part of the appliance.
  Do not use de-icer sprays. They may produce explosive gases.

SILVERCREST

NOTICE!

Possible material damage!

Damage to the appliance caused by improper handling. Do not use any mechanical equipment or synthetic agents to accelerate the defrosting process, e.g. electric heaters, hot air blowers or hair-dryers or pointed or hard objects. The heat insulation and appliance interior are sensitive to scratches and heat and can melt.

• Do not operate any electrical appliances inside the appliance. Both appliances may be damaged irreparably.

Sensitive surfaces:

• Do not use any abrasive or harsh cleaning agents on the inside, door or housing of the appliance as these could damage the surfaces.

• Do not allow oil and grease to come into contact with the plastic parts and the door seal as the surface can become porous and brittle.

3.6. Faults

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

Never try to open and/or repair an appliance component yourself. There is a risk of electric shock.

To prevent unnecessary risks, damaged mains cables may only be replaced by authorised workshops or the technical customer service.

In the event of a fault, contact our Service Centre or another suitable professional repair workshop.

3.7. Disposal

DANGER!

Risk of choking and suffocation! Risk of injury!

To avoid risks to children, proceed as follows before disposing of the appliance:

Remove the door or tape the door closed.
Leave the tray in the appliance so that no-one, for example a child, can climb into the appliance.
Unplug the mains plug and cut the mains cable.

4. Description of components

See Fig. A

1) Storage tray
2) Container shelf
3) Bottle rack
4) Lower hinge with adjustable foot
5) Adjustable foot
6) Cooling chamber
7) Temperature control, can be set to level 0-5 (at rear, not shown)
8) Wire shelf
9) Ice cube compartment
10) Upper hinge

The type plate is located on the back of the unit.

A) The ice cube compartment is suitable:

• for making ice cubes
• for storing fresh pork, beef, fish, chicken, some ready-made products etc. (we recommend that these products are eaten the same day, preferably do not store for longer than 3 days).
  Not suitable for freezing fresh food.

B) Recommended for cheese, baked goods, ready meals
C) Recommended for eggs, butter, products to be consumed the same day
D) Recommended for jam, tins, glass containers
E) Recommended for milk, drinks

SILVERCREST

5. Package contents

DANGER! Risk of choking and suffocation!

Risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

• Keep the plastic packaging out of the reach of children.

Remove the product from the packaging and remove all packaging material.
Please check your purchase to ensure that all items are included and in perfect condition. If anything is missing, please contact us within 14 days of purchase.

The following items are supplied with your product:

Refrigerator with ice compartment
1 wire shelf
- Operating instructions with warranty information

6. Technical specifications

Rated voltage: 220 - 240V

Rated frequency: 50Hz

Rated current: 0.55 A

Refrigerant: R-600a

Refrigerant quantity: 12.5 g

Insulation gas:

Cyclopentane

Weight:

Approx. 14kg

Protection class

1

6.1. Product data sheet

Supplier's name or trademark:		SilverCrest®
Supplier's address: MLAP GmbH Meitnerstr. 9 70563 Stuttgart GERMANY
Model identifier: SMK	41 A2
Type of refrigerating appliance:
Low-noise apppliance:		No Design type: Free-standing
Wine cooler: No Other refrigerating		her refrigerating apppliance:		Yes
General product parameters:
Parameter Value		Parameter Value
Overall di- mensions (in mm)	Height 510 Total		volume (in dm3or l)	41
	Width 440
	Depth	470
EEI		124 Energy efficiency class		F
Airborne noise emissions (in dB(A) re 1 pW)		39	Airborne noise emissions class	C
Annual energy consumption (kWh/a)		99 Climate class: N, ST
Minimum ambient temperature (°C) appropriate for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C) for which the refrigerating appliance is suitable	38
Winter mode No

• kWh/year energy consumption calculated on the basis of conformity testing results over 24 hours. The actual consumption will depend on the use and location of the appliance.

SILVERCREST

Compartment parameters:
Compartment type Comp	Compartment parameter and value
	Compartment volume (in dm3or l)	Recom-mended tempera-ture settings for optimal food storage (in °C).	Freezing capacity (in kg/24h)	Defrost type A/M*
Compartment for fresh food	Yes41≥0, ≤+4-M

Automatic defrost = A , manual defrost = M

Minimum term of the warranty provided by the manufacturer:	36 months from the date of purchase
Additional information:	Scan the QR code shown on the energy label to download the complete product data sheet.

7. Declaration of Conformity

CE

MLAP GmbH hereby declares that the product SMK 41 A2 conforms to the following European requirements:

EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
Regulation (EC) No. 1935/2004

8. Information on the appliance

• The appliance uses refrigerant R-600a (HCFC- and CFC-free) in the refrigerant circuit.
• The refrigerant circuit has been checked for leaks. This complies with the relevant safety regulations for electrical appliances.
  Energy efficiency class A++
  Climate class N/ST

The different climate classes are explained in the following table.

Climate class Meaning
SN Appliances for subnormal climate
N	Appliances for normal climate
ST Appliances for subtropical climate
T Appliances for tropical climate

8.1. Information regarding refrigerant R-600a

R-600a and cyclopentane are used as 100% HCFC-free refrigerant and insulating materials in this appliance. This helps to protect the ozone layer and reduces the so-called greenhouse effect.

These appliances can be identified by the "Refrigerant R-600a" notice on the type plate.

Ensure that the refrigerant circuit is not damaged, as small quantities of R-600a can contribute to the greenhouse effect if released.
This applies both when transporting the appliance and throughout its service life. Also ensure that you dispose of this appliance correctly according to local regulations.

9. Before operation

Unpack the appliance and remove the adhesive tape.

Use a mild cleaning agent to remove any adhesive residues.

Dispose of the expanded polystyrene padding separately from the other packaging.
- Rinse the inside of the appliance and the fittings with lukewarm water and mild cleaning agent and allow to dry (see section "13. Cleaning the appliance" on page 59).

9.1. Changing the door hinge over to the opposite side

The refrigerator is supplied with a door hinged on the right-hand side. If you would like to change the door hinge over to the opposite side, proceed as follows.

Required tools:

Wrenches (width across flat of 8mm and 10mm )
- Small flat-head screwdriver
Phillips screwdriver

The mains plug has been unplugged.

Empty the refrigerator - including the shelf.

• Remove the hinge cover on the right-hand side, for example using a flat-head screwdriver (see Fig. B).
  Use a Phillips screwdriver to loosen the three screws on the upper hinge (10) (see Fig. C).
  Remove the screw hole cover on the left-hand side, for example using a flat-head screwdriver (see Fig. D).
  Remove the dummy plug for the hinge pin from the left-hand side of the appliance door and insert it in the hole on the right-hand side (see Fig. E).

SILVERCREST

Place the refrigerator on its back.

Unscrew the lower hinge (4) and then unscrew the adjustable foot (see Fig. F).
- Remove the screws from the side housing on the left-hand side and place them on the opposite side.
- Place the two white washers and the locking washer from the lower hinge safely to one side. They will be required when reinstalling the door.
Use a wrench (width across of 10mm ) to unscrew the pins on the lower hinge and when doing so hold in place with a flat-head screwdriver to remove the pins (see Fig. G).
Turn over the hinge and reinsert the pins and locking washer.
Screw the lower hinge on the left-hand side again. Screw in the adjustable foot (5) on the right-hand side (see Fig. H).
- Stand the appliance upright again. While doing so, hold the appliance door quite firmly in place.
Before screwing the upper hinge back on, ensure that the door closes flush with the appliance housing horizontally and vertically so that all seals close.
Then put the upper hinge (10) back in place and screw on the hinge with the three screws. Use a wrench to tighten the screws (see Fig. 1).
Then place the hinge cover and screw covers back into position (see Fig. J).

Please note: The door seal adapts to the new door hinge after a few hours.

If tilted to an angle of more than 40^ during transport or when changing the door fittings, wait 4 hours before connecting it to the mains and switching it on to enable the refrigerant circuit to settle.

9.2. Setting up the appliance

Place the appliance in an appropriate location (see also section "3.3.1. Location" on page 44).
Ensure that the appliance is level, compensate for any unevenness in the floor by screwing in the screw feet.
Level the refrigerator with a spirit level.

To fully open the door, the room dimensions stated in the following figures must be available.

9.3. Removing and reinserting the wire shelf

To remove the wire shelf (8), open the door fully.

• Lift the wire shelf upwards with both hands and remove the wire shelf from the cooling chamber (6) at a slight angle.

To assemble the wire shelf, proceed as follows:

Insert the wire shelf into the guide rails and push in as far as it will go.

10. Operating the appliance

• Connect the appliance to an earthed mains socket. The local mains voltage must correspond to the technical specifications for the appliance.

The temperature control (7) setting automatically adjusts the temperature setting in the cooling chamber (6) and ice cube compartment (9).

The cooling temperature can be set as follows:

0 The appliance is switched off

1 The lowest level of cooling (the warmest at approx. 6^ )
2-4 Intermediate position
5 The highest level of cooling (the coldest at approx. -4^ )

Fluctuating ambient temperatures can cause the energy consumption and temperature inside the refrigerator to rise.

Before loading fresh food, set the cooling chamber (6) temperature to the coldest setting 5 and close the door.
- Check the temperature in the cooling chamber compartment with a thermometer. The ideal temperature is +5^ C . You can load the food once this temperature is reached. Them set the temperature control (7) to a centre position.

The internal temperatures can be influenced by factors such as the installation location, ambient temperature and the number of times the door is opened. Take these factors into account when setting the temperature control (7).

SILVERCREST

Do not load the cooling chamber (6) and ice cube compartment (9) before the appliance has cooled.

Place food or drinks, which are at max. room temperature, into the refrigerator. Do not place hot food or drinks into the cooling chamber (6).

10.1. Switching off the appliance

To de-energise the appliance, set the temperature control (7) to 0 and pull the mains plug out of the socket.

Wait approx. 10 minutes before switching on the appliance again.

10.2. Tips on saving energy

The energy consumption will be lowest if the wire shelf (8) with storage tray (1) are left inside the appliance when it is in use.

If the appliance is left empty for an extended period of time, switch it off. Defrost and clean the appliance and allow it to dry. Leave the door open to prevent mould from forming in the appliance.

Do not position the appliance near a heat source (radiator or cooker etc.).

Ensure that air can circulate freely around the fridge.

During defrosting, turn the frozen food in the cooling chamber. This enables the temperature of the frozen food to be used to cool the food in the cooling chamber.

If a layer of ice has formed, defrost the appliance. A thick coating of ice will adversely affect the energy consumption.

If the door is left open for a long time, this can cause the temperature inside the appliance zones to increase significantly. Only open the door briefly when loading and removing foodstuffs. Less cold can escape if the door is left open for only a short time and therefore the appliance requires less energy. Opening the door for less time also means that less ice forms on the walls of the ice cube compartment.

Set the temperature control (7) according to how full the appliance is.

10.3. Storing food in the cooling chamber

NOTICE!

Possible material damage!

Possible risk of damage to the door seal

Sensitive surfaces: Do not allow oil and grease to come into contact with the plastic parts and the door seal as the surface can become porous and brittle.

To avoid food from becoming contaminated, please observe the following instructions:

Regularly clean surfaces that may come into contact with food and accessible drain systems.

SILVERCREST

• Store raw meat and fish in appropriate containers in the refrigerator to ensure that they do not come into contact with or drip onto other food.
  Store food on plates, in appropriate containers.
  Distribute the food evenly throughout the appliance. Please note that food must not touch the rear wall of the cooling chamber, as this could cause frost and condensation to form.
• Allow hot foods to cool down before placing them into the fridge to avoid increasing the energy consumption.
  Ensure that foods that take on other smells easily, such as butter, milk and quark, are well packaged. i.e. in tightly sealed containers.
  Store food in the correct cooling zone according to its type and sensitivity, see Fig. A.
• Storing vegetables with a high water content causes condensation to form on the vegetable containers. This does not impair the proper function of the cooling chamber.
  Dry vegetables thoroughly before placing in the cooling chamber. The storage time is reduced for vegetables with a high water content (e.g. leaf vegetables, cucumbers).

11. Using the ice cube compartment

Drinks in bottles and cans, particularly those that are carbonated, must not be stored in the ice cube compartment (9) as the bottles and cans may burst.
Fruit can be frozen in the ice cube compartment and ice cubes can be made.

The ice cube compartment is not suitable for freezing foods or storing highly perishable foods. Food that has already been frozen can, if necessary, be stored in suitable packaging for 1-3 days.

11.1. Making ice cubes

Clean an ice cube tray thoroughly before using for the first time.
Fill the container with drinking water.
Place the ice cube tray in the ice cube compartment.

As soon as the ice cubes are frozen and you require ice cubes, remove the ice cube tray from the ice cube compartment and press the ice cubes out of the mould.

SILVERCREST

12. Defrosting the ice cube compartment

WARNING! Risk of injury!

There is a possible risk of burns resulting from the low temperatures.

• Do not touch the ice cube compartment's frozen inner walls or frozen foods with your hands. Use a dry cloth, for example, to hold the frozen products.

• Thick deposits of ice on the ice cube compartment surfaces reduce the efficiency of the appliance and increase the energy consumption. Defrost the appliance regularly, as soon as the layer of ice is more than 3 - 4mm thick.

NOTICE! Possible material damage!

Damage to the appliance caused by improper handling.

• Do not use any other mechanical equipment or synthetic agents to accelerate the defrosting process, e.g. electric heaters, hot air blowers or hair-dryers or pointed or hard objects. The heat insulation and appliance interior are sensitive to scratches and heat and can melt.

• Do not operate any electrical appliances inside the refrigerator. Both appliances may be damaged irreparably.

Take the frozen product out of the ice cube compartment (9), wrap in a few layers of newspaper and possibly a blanket and store it in a cool location.
Set the temperature control (7) to 0 and pull out the mains plug.
Clean the appliance, see section "Cleaning the appliance".

13. Cleaning the appliance

WARNING!

Risk of electric shock!

There is a risk of electric shock from electrified parts.

Before starting any cleaning work, pull the mains plug out of the socket (pull on the plug, not the cable). If the plug is not accessible, the corresponding fuse for the mains electricity supply to the house needs to be switched off.

NOTICE!

Possible material damage!

Equipment damage due to improper handling of the sensitive surfaces of the appliance.

Sensitive surfaces: Do not allow oil and grease to come into contact with the plastic parts and the door seal as the surface can become porous and brittle.

• Never use acidic, abrasive or granular, acetic-acid- or solvent-based cleaning agents. These may damage the surfaces of your appliance.

Empty the cooling chamber.
Set the temperature control (7) to 0 and pull out the mains plug.
Remove the shelf from the cooling chamber.

• Wash the cooling chamber and ice cube compartment with a mild cleaning agent (e.g. washing-up liquid or a sodium carbonate solution of 3 teaspoons soda to 1 litre of water) and leave to dry completely.
  Carefully clean and dry all fittings.
  Clean the appliance surfaces, except the door seal, with a mild cleaning agent. If necessary, the appliance surfaces can be treated with silicone grease.
  Clean the door seal with clean water, wipe it off and allow to dry.
  Plug the mains plug back into the socket.
  As soon as the appliance has reached operating temperature, you can put the food back into the appliance.

SILVERCREST

14. Transport

Pull the plug out of the earthed mains socket.
Remove all objects and inserts from the interior of the appliance.
Screw in the adjustable feet (5).
▶ Tape the door shut.

• Where possible, always transport the appliance upright. If tilted to an angle of more than 40^ during transport, wait 4 hours before connecting it to the mains and switching it on to enable the refrigerant circuit to settle after transport.

15. Troubleshooting

Faults may occur during operation. Please use the following table to check whether you can resolve the problem yourself. All other repairs are prohibited and invalidate the warranty. Therefore, in the event of a fault, contact our Service Centre or another suitable professional repair workshop.

Fault Cause	Solution
The appliance is not working.	Interruption in the electrical circuit.	Check whether the mains plug is plugged in. Check that the connection cable is not damaged.
The temperature is not low enough.	The door does not seal properly or is opened too often.	Arrange chilled goods so that it does not prevent the door from closing properly. Open the door for less time. Check the door seal.
The temperature is not low enough.	The appliance has been set up in a location exposed to direct sunlight or next to a heat source.	Place the appliance in a different position. Set the appliance to a higher refrigeration level.
The appliance makes too much noise or vibrates.	The appliance has not been set up properly.	Level.
Temperature control is not working.	The temperature sensor is defective.	Contact the Service Centre.

16. Spare parts

To order any spare parts you need, contact the Service Centre.

17. End of operation

If the appliance is not to be used for a long time, the following activities must be carried out:

• First set the temperature control (7) to 0 and then remove the plug from the mains socket.

Clear out the appliance.

Clean the cooling chamber and ice cube compartment (9) and leave to dry.

Carefully clean all fittings (inc. shelves).

Leave the door open to avoid unpleasant odours and to prevent mould from forming.

18. Disposal

Appliance

Old appliances that carry the symbol illustrated may not be disposed of in ordinary household waste.

In accordance with Directive 2012/19/EU, these appliances must be disposed of correctly at the end of their service life.

This involves separating the materials in the appliances for the purpose of recycling and minimising the environmental impact.

Take old appliances to a collection point for electrical scrap or a recycling centre.

Contact your local waste disposal company or your local authority for more information on this subject.

Cut the cable before disposal.
During disposal, please note that the appliance/insulation contains cyclopentane (a flammable expanded gas for insulation).
The appliance/insulation must be disposed of correctly.

Packaging

Your appliance has been packaged to protect it from damage in transit. Packaging materials are raw materials and can therefore be reused or recycled.

SILVERCREST

19. Legal notice

Copyright © 2021

All rights reserved.

These operating instructions are protected by copyright.

Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MLAP GmbH

Meitnerstr. 9

70563 Stuttgart

GERMANY

19.1. Information on trademarks

SilverCrest® is a registered trademark of Lidl Stiftung & Co. KG, DE-74167 Neckarsulm, Germany.

All other names and products are trademarks or registered trademarks of their respective owners.

20. MLAP GmbH Warranty

Dear customer,

The warranty on this product is 3 years from the date of purchase. In the event of defects in this product, you have legal rights against the product vendor. These legal rights are in no way limited by the warranty described below.

20.1. Conditions of warranty

The warranty period begins on the date of purchase. Please take care to keep the original purchase receipt. This document will serve as a proof of purchase.

If, within three years of the date of purchase of this product, any defect in material or manufacture should become evident, the product will – as we choose – be repaired free of charge or replaced. This warranty is subject to presentation, within the three-year term, of the defective product and the proof of purchase (receipt) and a brief, written description of what constitutes the defect and when it became evident.

If the defect is covered by our warranty, you will receive back the repaired product or a new replacement. Repair or exchange of the product does not lead to a renewed warranty period.

20.2. Warranty period and legal claims for defects

The warranty period is not prolonged by the above fulfilment. This also applies for replaced and repaired parts. Any damage or defects present at the time of purchase must be notified immediately after unpacking. Repairs that are carried out after the expiration of the warranty period are subject to a charge.

20.3. Scope of warranty

The product is manufactured in accordance with strict quality guidelines and thoroughly tested before dispatch.

The warranty applies for defects in materials or manufacture. This warranty does not extend to product parts that are subject to normal wear and can therefore be regarded as wearing parts or to damage to fragile parts, e.g. switches, batteries or parts made of glass.

This warranty is void if the product has been damaged or not properly used or serviced. For proper use of the product, exact compliance with all instructions listed in the user manual is required. It is essential to avoid procedures and use for purposes against which the user manual advises or warns.

The product is intended for private use only and not for industrial/commercial use. Improper handling and usage not in accordance with the intended purpose, use of force and any interventions that are not carried out by our authorised service centre will render the warranty null and void.

20.4. Processing of warranty claims

For speedy processing of your request, please observe the following instructions:

• For all enquiries, please keep the receipt and the article number (e.g. IAN 12345) to hand as proof of purchase.
• The article number is to be found on the type plate, an engraving, on the title page of your instructions (bottom left) or on an adhesive label on the rear or underside.
• If functional or other defects occur, first contact the service department named below by telephone or via our contact form.

21. Service

At www.lidl-service.com, you can download this and many other handbooks, product videos and software.

GB	Service United Kingdom Hotline 1 [phone] Mon - Fri: 09:00 - 17:00 Please use the contact form at www.mlap.info/contact
IE	Service Ireland Hotline 1 [phone] Mon - Fri: 09:00 - 17:00 Please use the contact form at www.mlap.info/contact
NI	Service North Ireland Hotline 1 [phone] Mon - Fri: 09:00 - 17:00 Please use the contact form at www.mlap.info/contact
	IAN 360836_2007

22. Privacy statement

Dear Customer,

We wish to inform you that we, MLAP GmbH, Meitnerstr. 9, 70563 Stuttgart, Germany, process your personal data as a data controller.

For matters regarding data protection, we are supported by our company data protection officer who can be contacted at MLAP GmbH, Datenschutz, Meitnerstr. 9, 70563 Stuttgart, Germany, [e-mail]. We process your data for the purpose of warranty processing and associated processes (e.g. repairs) and therefore rely on processing your data for the sales contract concluded with us.

Your data will be provided to repair service providers contracted by us for the purpose of warranty processing and associated processes (e.g. repairs). We generally store your personal data for a period of three years in order to fulfil your legal warranty rights.

You have the right to be informed of the personal data concerned as well as the right to rectification, deletion, restriction of processing, the right to object to processing and the right to data portability.

In case of access and cancellation rights, restrictions apply according to paragraphs 34 and 35 of the BDSG (Federal Data Protection Act) (Art. 23 GDPR). In addition, there is a right of appeal to a competent data protection supervisory authority (Article 77 GDPR in conjunction with paragraph 19 BDSG). For MLAP, this is the Landesbeauftragte für Datenschutz und Informationsfreiheit Baden-Württemberg, Postfach 10 29 32, 70025 Stuttgart, Germany. www.baden-wuerttemberg.datenschutz.de.

The processing of your data is necessary for warranty processing: it is not possible to process the warranty without the provision of the required data.

23. Supplier/Producer/Importer

Please note that you cannot use the address below for returns. Please contact the Service Centre mentioned above.

MLAPGmbH

Meitnerstr. 9

70563 Stuttgart

GERMANY

SILVERCREST

SILVERCREST

Sommaire

Chere CLIENT, Cher Client

Chere CLIENT, Cher Client

Chere cliente, cher client,

WAARSCHUWING! Brandgevaar!

In de koelmiddelleidingen en in de compressor bevinden sich brandbare vloeistoffen.

WAARSCHUWING! Explosiegevaar!

m = 311

Si se guardan gases o liquidos inflamables en el aparato,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO, SEO

ADVARSEL! Brandfare!
