ThermoMaître - Food thermometer Laserliner - Free user manual and instructions

Product type	Professional food thermometer
Brand	Laserliner
Model	ThermoMaster
Use	Internal temperature measurement for meats, poultry, fish (barbecue, cooking, roasts)
Sensor type	Highspeed folding contact sensor
Measuring range	-40 °C to 230 °C
Accuracy	±2 °C (-18 °C to 100 °C), ±4 °C (< -18 °C or > 100 °C)
Resolution	0.1 °C
Display	LCD screen with °C value and battery indicator
Measuring tip length	110 mm (diameter 3.5 mm)
Dimensions (L x H x D)	190 x 52 x 19.5 mm
Weight	122 g (batteries included)
Power supply	3 AAA 1.5 V batteries (LR03)
Battery life	Approximately 10 hours
Protection rating	IP54 (protected against water splashes and dust)
Operating conditions	0 °C to 50 °C, humidity ≤ 85 % RH, altitude ≤ 2000 m
Storage conditions	-20 °C to 60 °C, humidity ≤ 85 % RH
On/Off	Rotation of the folding sensor
Cleaning and maintenance	Clean the probe before and after use with a damp cloth; do not use solvents. Remove the batteries for prolonged storage.
Safety	Do not use in a closed oven; do not touch the hot measuring tip; do not immerse the device in water; store the probe by folding the sensor.
Spare parts / Repairability	Replaceable folding plug-in sensor (measuring tip); standard AAA batteries

Frequently Asked Questions - ThermoMaître Laserliner

What is the measuring range of the ThermoMaster?

The ThermoMaster measures contact temperatures from -40 °C to 230 °C, which covers the cooking needs of meats, poultry and fish.

How to turn the device on and off?

To turn the thermometer on or off, simply rotate the folding sensor (plug-in sensor). In the open position, the device turns on; in the closed position, it turns off.

Can I use this thermometer in an oven?

No, it is forbidden to use the instrument in a closed oven. The ThermoMaster is designed for outdoor use (barbecue) or in the kitchen, but not in a closed high-temperature environment.

How to clean the probe?

Thoroughly clean the probe before and after each use with a slightly damp cloth. Do not use aggressive cleaning agents, detergents or solvents.

What is the accuracy of the thermometer?

The accuracy is ±2 °C in the range of -18 °C to 100 °C, and ±4 °C outside this range (temperatures below -18 °C or above 100 °C).

What type of batteries should be used?

The device operates with 3 AAA 1.5 V batteries (type LR03). Observe the polarity indicated in the battery compartment.

How long does the battery last?

With new batteries, the battery life is approximately 10 hours of continuous use.

Is the device waterproof?

The ThermoMaster has a protection rating of IP54, meaning it is protected against water splashes and dust. However, it is not waterproof: only immerse the measuring tip up to about 10 mm below the connection plug.

What to do if the display becomes dim?

A dim display indicates that the batteries are exhausted. Replace the 3 AAA batteries observing polarity. The battery indicator on the screen warns you of the level.

How to store the device after use?

For safety reasons, always fold down the plug-in sensor to protect the measuring tip. Store the device in a dry and clean place. Remove the batteries if not used for an extended period.

USER MANUAL ThermoMaître Laserliner

Laserliner 58.71° 58.71° CELSIUS RARE 50° MED 58° WELL 65° 65° 78° 80° 15° 65°

FAST MEASURING

3 SEC ^®

LCD RESOLUTION

0.1°

FINE PENETRATOR

3.5 mm

Laserliner

DE	02
EN	05
NL	08
DA	11
FR	14
ES	17
IT	20
PL	23
FI	26
PT	29
SV	32
NO	35
TR
RU
UK
CS
ET
RO
BG
EL
SL
HU
SK
HR

Laserliner

!

Diagram of a mechanical device with a lever and adjustment knob, showing motion arrows (no text or symbols)

Technische Daten

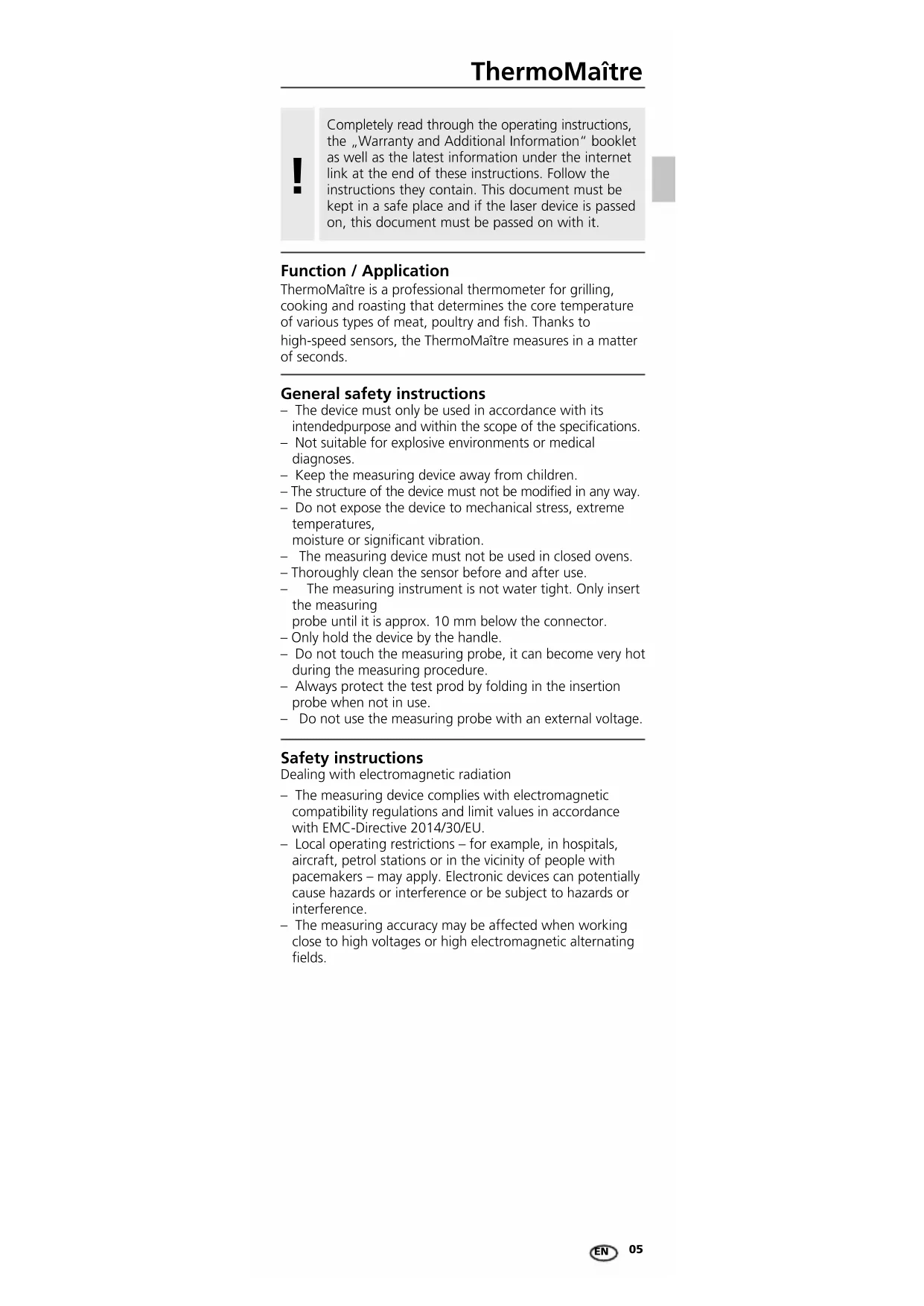

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Function / Application

ThermoMaître is a professional thermometer for grilling, cooking and roasting that determines the core temperature of various types of meat, poultry and fish. Thanks to high-speed sensors, the ThermoMaître measures in a matter of seconds.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Not suitable for explosive environments or medical diagnoses.
• Keep the measuring device away from children.
  – The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
  – The measuring device must not be used in closed ovens.
  – Thoroughly clean the sensor before and after use.
• The measuring instrument is not water tight. Only insert the measuring probe until it is approx. 10 mm below the connector.
• Only hold the device by the handle.
• Do not touch the measuring probe, it can become very hot during the measuring procedure.
• Always protect the test prod by folding in the insertion probe when not in use.
• Do not use the measuring probe with an external voltage.

Safety instructions

Dealing with electromagnetic radiation

– The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
- The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Laserliner

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

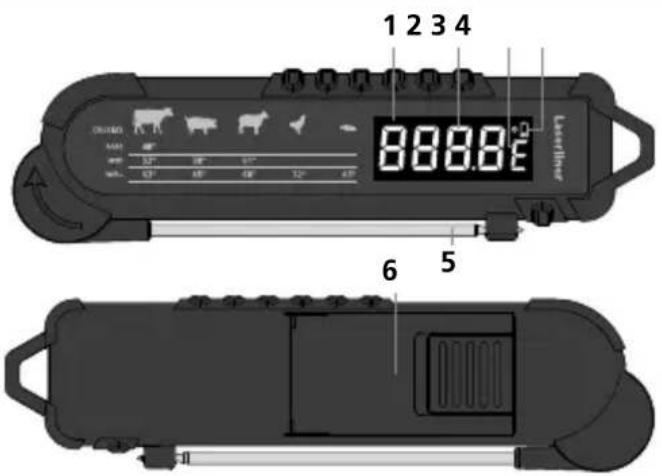

1 2 3 4 888.8E Laserfilter 6 5

1 LC display
2 Measurement in °C
3 Unit of measurement °C
4 Battery indicator

5 Fold-out probe for insertion
6 Battery compartment

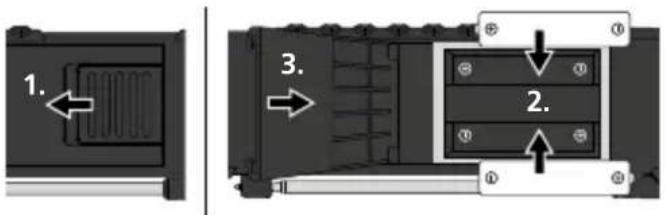

1 Inserting batteries

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

1. 3. 2.

2 ON / OFF

Turn the probe to switch on or off.

Diagram of a handheld device with a lever and digital display showing '0000' (no text or symbols on the device itself)

Technical Data

Measured variable Contact temperature
Contact temperature measuring range	-40°C ... 230°C
Contact temperature accuracy	± 2°C (-18°C ... 100°C) ± 4°C (< -18°C) ± 4°C (>100°C)
Contact temperature resolution	0.1°C
Degree of protection IP 54
Power supply 3 x 1.5V LR03 (AAA)
Operating time approx. 10 hours
Operating conditions	0°C ... 50°C, max. humidity 85% rH, no condensation, max. working altitude 2000 m above sea
Storage conditions	-20°C ... 60°C, max. humidity 85% rH, no condensation
Features	Test prods, 110 mm long (ø 3.5 mm)
Dimensions (W x H x D)	190 x 52 x 19.5 mm
Weight	122 g (incl. battery)

Subject to technical changes without notice. 21W02

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU. This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment. Further safety and supplementary notices at: http://laserliner.com/info?an=AFV

Laserliner

!

Diagram of a mechanical device with a lever and adjustment knob, showing motion arrows (no text or symbols)

Technische gegevens

Diagram of a mechanical device with a lever and adjustment arrow, no visible text or symbols

Tekniske data

1 2 3 4 8:00:02 Watercolor 6 5

Diagram of a handheld device with a lever and indicator lights, showing motion (no text or symbols)

Données techniques

1 2 3 4 8:00:00 Water Heater 6 5

Diagram of a device with a tool and digital display showing '000.01' (no text or symbols on the device itself)

Datos Técnicos

1 2 3 4 8:00:00 E Laser/Box 6 5

Mechanical device with a lever and adjustment knob, no visible text or symbols

Dati tecnici

Diagram of a digital stopwatch with an arrow indicating speed and direction (no text or symbols)

Dane Techniczne

Mechanical tool with a lever and adjustment arrow, no visible text or symbols

Tekniset tiedot

Diagram of a mechanical tool with a lever and adjustment arrow, no readable text or symbols present

Dados técnicos

Mechanical tool with a lever and adjustment arrow, no visible text or symbols

Tekniska data

Mechanical tool with a curved handle and a pointed tip, showing motion direction (no text or symbols)

Tekniske data

Illustration of a cooking process with a digital thermometer and meat pieces on a griddle, set against a cloudy sky background (no text or symbols)
