USER MANUAL ThermoControl Duo Laserliner

OPEN CENS CLOS

CE UK CA Rev21W35 CR 2032 + A quality product from UMBREX GmbH & Co. KG Donnerfeld 2. 59757 Armsberg, Germany Tel.: [phone], www.laserliner.com

1 2 3 4 5 Laserliner P1 76 °C P2 76 °C a b c e d f THERMOCONTROLOUD P1 P2

7 8

Download on the App Store

GET IT ON Google Play

QR code image containing encoded data, no visible human-readable text

CE UK CA =

!

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Function / Application

ThermoControl Duo is a professional thermometer for grilling, cooking and roasting that determines the core temperature of various types of meat, poultry and fish. Preset core temperatures, individual temperatures, or a specific time can be set using the linked app.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Not suitable for explosive environments or medical diagnoses.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• The measuring device must not be used in closed ovens.
  – Thoroughly clean the sensor before and after use.
• The measuring instrument is not water tight. Only insert the measuring probe until it is approx. 10 mm below the connector.
• Do not use the measuring probe with an external voltage.
  – Danger of injury! The measuring probes are sharp and can cause injuries.

!

The measuring probe and the coloured insulation can become very hot. Wear protective gloves or BBQ gloves when handling.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU which is covered by the Radio Equipment Directive 2014/53/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Safety instructions

Dealing with RF radiation

• The measuring device is equipped with a wireless interface.
• The measuring device complies with electromagnetic compatibility and wireless radiation regulations and limits in accordance with the RED 2014/53/EU.
• Umarex GmbH & Co. KG hereby declares that the ThermoControl Duo radio equipment complies with the essential requirements and other provisions of the European Radio Equipment Directive 2014/53/EU (RED). The EU Declaration of Conformity can be found in its entirety at the following address: http://laserliner.com/info?an=AGQ

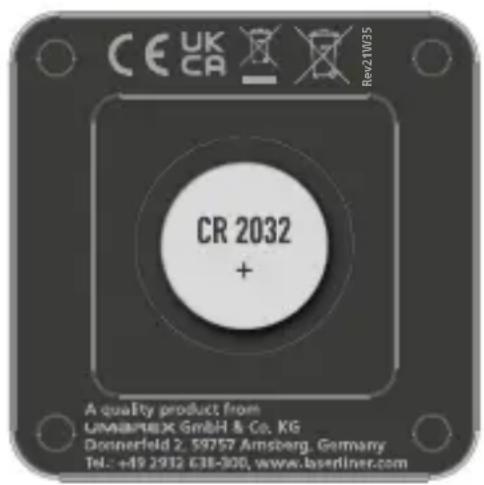

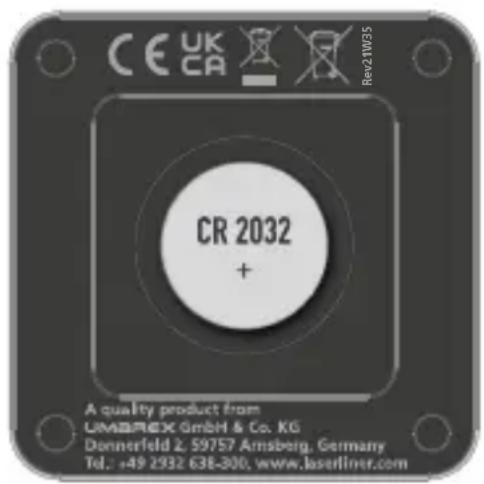

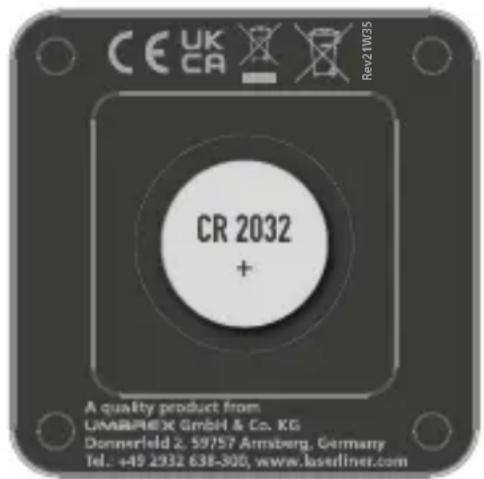

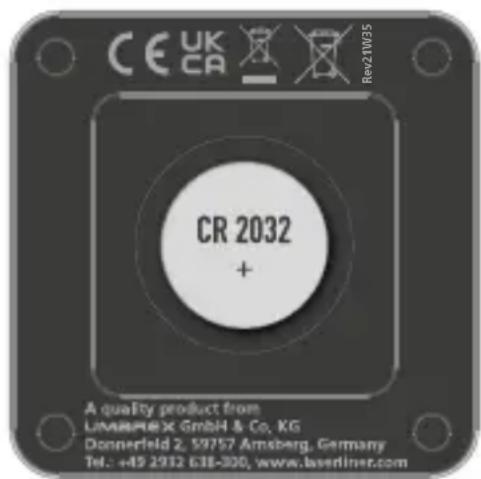

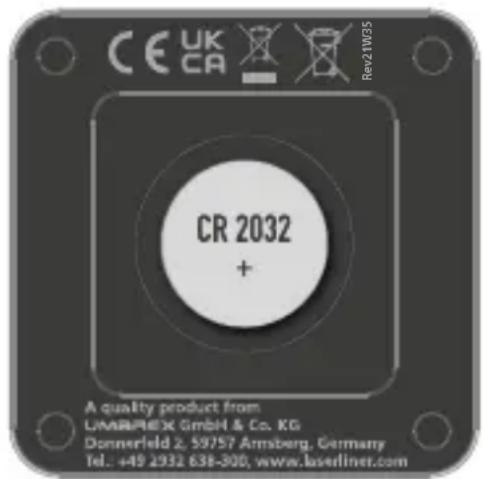

1Inserting battery

Open the battery compartment and insert battery according to the symbols. Be sure to pay attention to polarity.

OPEN CN2033 35073

CE UK CA Rev21W35 CR 2032 + A quality product from UMARPEK GmbH & Co. KG Donnerfeld 2, 59757 Amsberg, Germany Tel: [phone], www.laserliner.com

1 2 3 4 5 Laserliner P1 76 °C P2 76 °C a b c e d f THERMOCONTROLOUD P1 P2

7 8

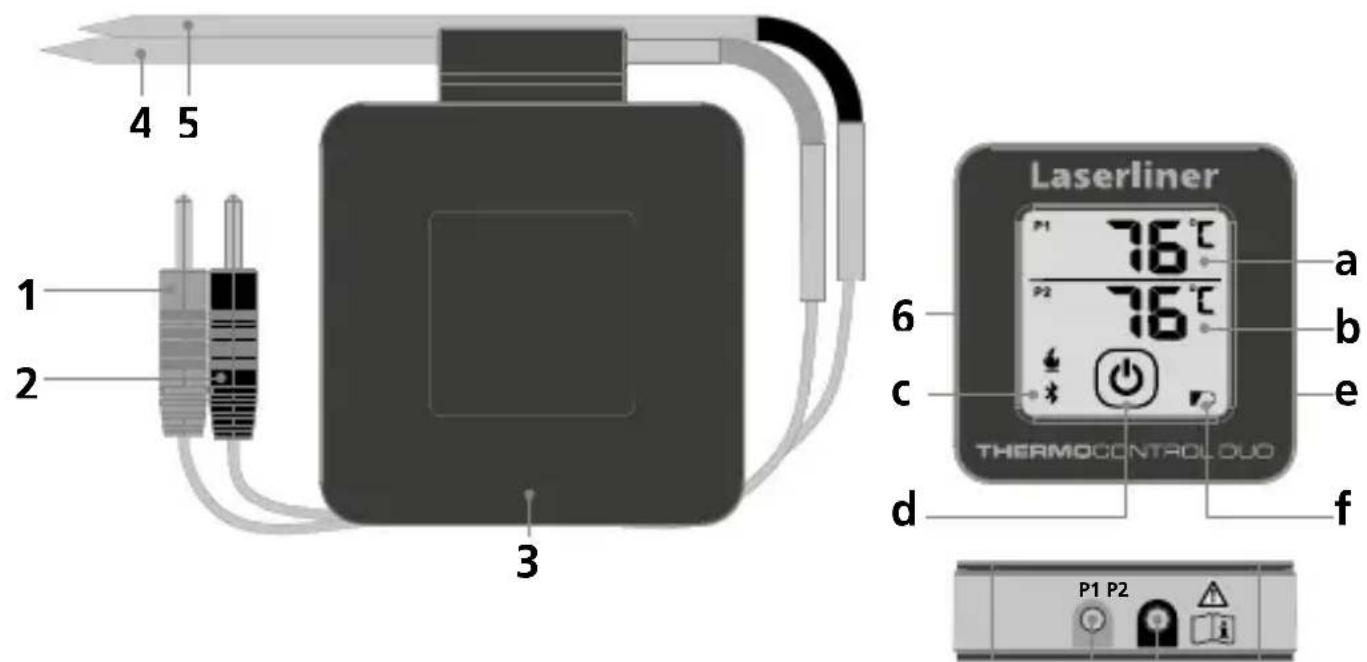

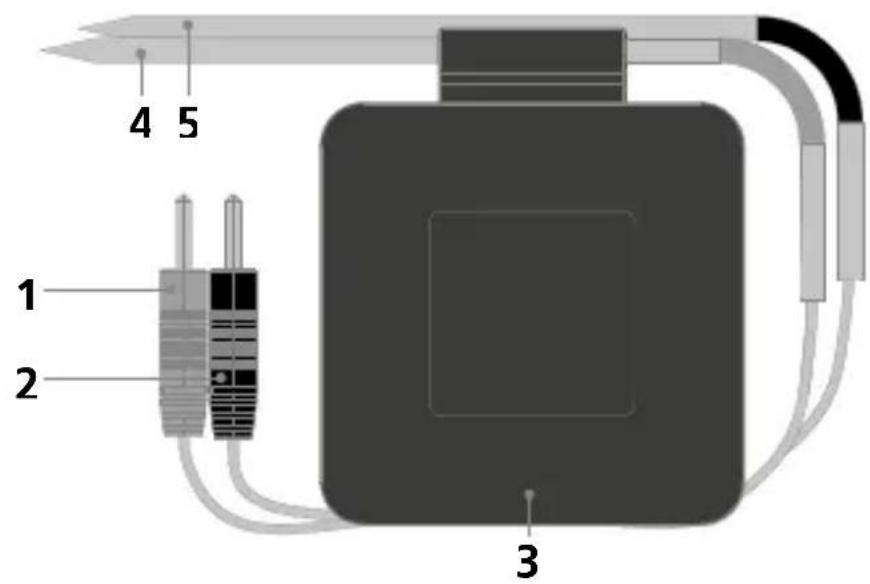

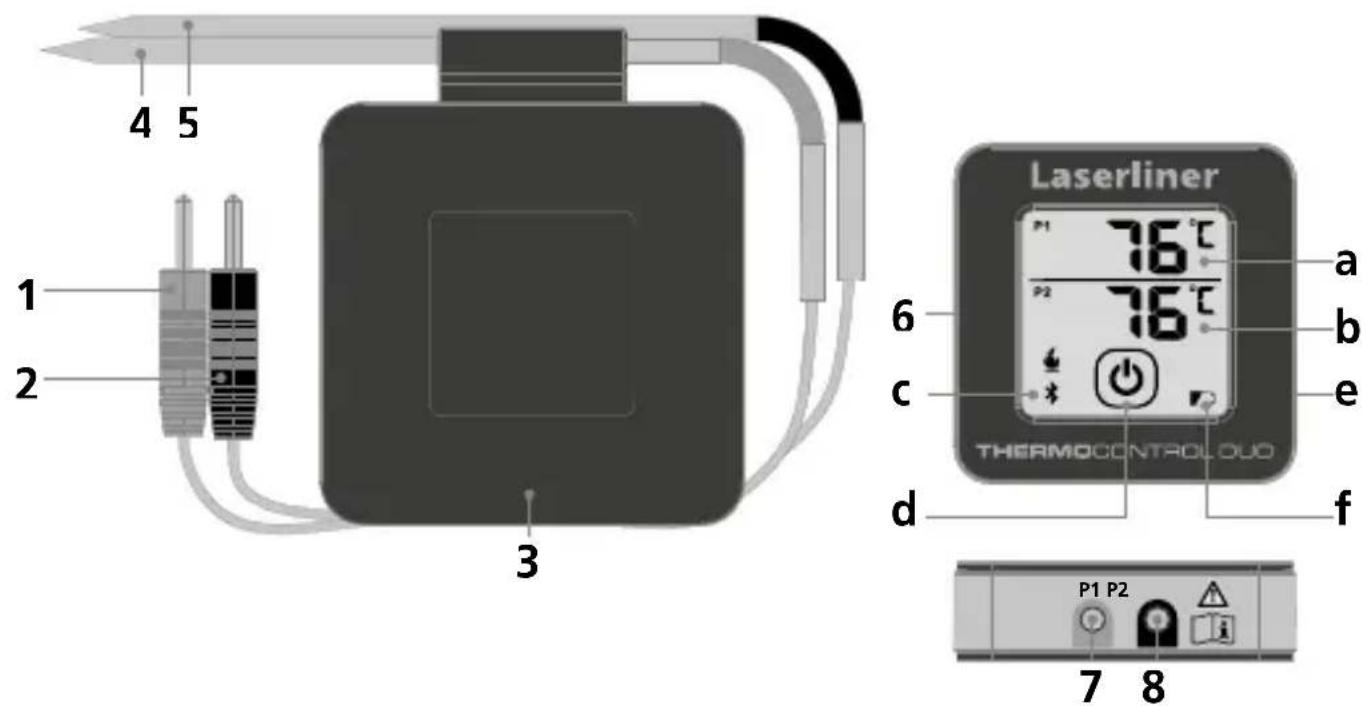

1 Measuring cable jack P1
2 Measuring cable jack P2
3 Measuring cable coil
4 Probe P1
5 Probe P2
6 Battery compartment (rear)
7 Jack socket P1
8 Jack socket P2

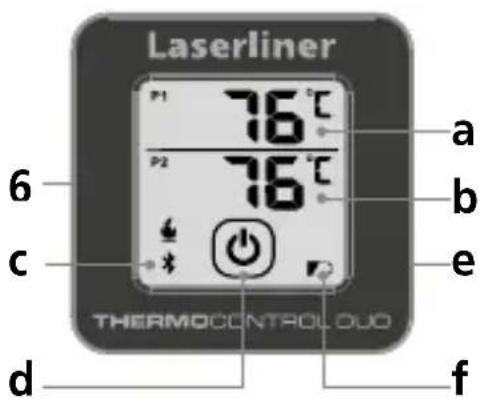

a Temperature display P1
b Temperature display P2
c Digital Connection live
d ON/OFF / Backlighting ON/OFF
e Magnet (rear)
f Battery indicator

2Connecting the probes

When connecting the probes, match up the colours.

P1 P2

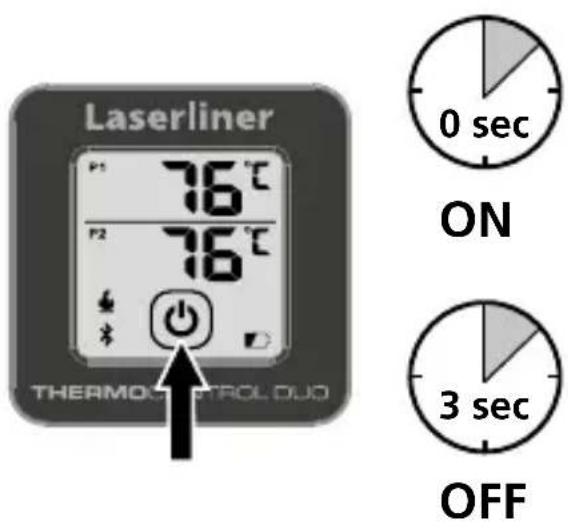

B ON/OFF

Laserliner 76°C 76°C THERMOCH TROLO DIO 0 sec ON 3 sec OFF

4 Core temperatures (guidelines)

Beef	rare medium rare	medium medium well	well done
Beef brisket, Beef rose 90°C
Beef fillet 48°C 54°C 60°C 65°C 68°C
Chateaubriand 48°C 54°C 60°C 65°C 68°C
Entrecôte / Rib-eye steak 48°C 54°C 60°C 65°C 68°C
Faux fillet 60°C 73°C
Fillet steak 48°C 54°C 60°C 65°C 68°C
Medallions 48°C 54°C 60°C 65°C 68°C
Minced beef 48°C 54°C 60°C 65°C 68°C
Prime boiled beef 90°C
Roast beef 53°C 60°C
Roasting prime rib 48°C 54°C 60°C 65°C 68°C
Rump-tail 48°C 54°C 60°C 65°C 68°C
Rump, sirloin steak	48°C 54°C 60°C 65°C 68°C
Steak (flank steak, flat iron, New York strip, Philadelphia, Porterhouse, rump steak, sirloin, skirt, T-bone)	48°C 54°C 60°C 65°C 68°C
Tournedos	48°C 54°C 60°C 65°C 68°C
Whole fillet	48°C 54°C 60°C 65°C 68°C

Pork	rare medium rare	medium medium well	well done
Fillet of pork		62°C 65°C
Haunch		67°C 75°C
Knuckle, roasted			83°C
Meat loaf			72°C
Medallions of pork, Suckling 65°C
Pork chop		62°C 78°C
Pork chop, boneless		62°C 68°C
Pork mince		62°C 68°C 75°C
Pork neck			73°C
Pulled pork			95°C
Ribs / Spare ribs			87°C
Saddle of pork		68°C
Sausage (fresh or precooked)
Smoked pork chop		58°C 66°C
Lamb	rare medium rare	medium medium well	well done
Lamb 82°C
Lamb (minced), Lamb square 48°C 54°C 60°C 65°C 68°C
Lamb chop (loin or rib) 48°C 54°C 60°C 65°C 68°C
Leg of lamb (boneless, rolled)	48°C 54°C 60°C 65°C 68°C
Leg of lamb (butterflied)	48°C 54°C 60°C 65°C 68°C
Roast crown of lamb	48°C 54°C 60°C 65°C 68°C
Poultry	rare medium rare	medium medium well	well done
Turkey (whole, unstuffed) 85°C
Breast of guinea fowl 70°C
Chicken 85°C
Chicken drumsticks (on the bone), chicken (whole leg, breast, wing, thigh), turkey breast (boneless)			73°C
Chicken, whole 83°C
Duck (whole) 83°C
Duck breast (boneless) 65°C 73°C
Goose 78°C 91°C
Ostrich, fillet steak 58°C
Roast turkey 70°C
Turkey (whole, unstuffed) 85°C
Turkey (whole, unstuffed) 85°C

Fish	rare medium rare	medium medium well	well done
Halibut, salmon			60°C
Monkfish (glazed)			58°C
Pike			63°C
Prawns, Monkfish, Tuna, Pikeperch			62°C
Red snapper, swordfish, sea bass			57°C
Redfish			55°C
Trout			65°C

5 HI / Lo display

HI or Lo is displayed as soon as the measured temperature falls outside the measuring range.

Data transfer

This device has digital connectivity which allows wireless data transfer to mobile devices such as smart phones or tablets with a wireless interface.

The system prerequisites for a digital connection are specified at

http://laserliner.com/info?an=ble

This device can generate a wireless connection to devices which are compatible with the wireless standard IEEE 802.15.4. The wireless standard IEEE 802.15.4 is a transfer protocol for Wireless Personal Area Networks (WPAN). The range is set to a maximum distance of 10 m from the terminal device and greatly depends on the ambient conditions such as the thickness and composition of walls, sources of interference as well as the transmit / receive properties of the terminal device.

Application (app)

An app is required to use the Digital Connection. You can download the app from the corresponding stores for the specific type of terminal device:

Download on the App Store

GET IT ON Google Play

QR code image containing encoded data, no visible human-readable text

Make sure that the wireless interface of the mobile device is activated.

After starting the app and activating the digital connection, a connection can be set up between a mobile device and the measuring device. If the app detects several active measuring devices, select the matching device.

This measuring device can be connected automatically the next time it is switched on.

Auto power off

The device switches off automatically if left for 20 minutes. If a live Digital Connection is available, the device will not switch off automatically.

Back lighting

The back lighting can be switched on at the touch of a button d. In order to preserve the batteries, the lighting switches off automatically after 20 seconds.

Danger – powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields“ (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data Subject to technical changes without notice. Rev21W36

Precision / Measuring range	± 1°C (0°C ... 100°C) ± 2°C (-20°C ... 0°C / 100°C ... 150°C) ± 3°C (-50°C ... -20°C / 150°C ... 200°C) ± 5°C (200°C ... 300°C)
Operating conditions	0°C ... 50°C, max. humidity 80% rH, no condensation, max. working altitude 2000 m above sea level
Storage conditions	-10°C ... 70°C, max. humidity 80% rH
Radiomodule operating data	IEEE 802.15.4. LE ≥ 4.x (Digital Connection) interface; Frequency band: ISM band 2400–2483.5 MHz, 40 channels; Transmission power: max. 10 mW; Bandwidth: 2 MHz; Bit rate: 1 Mbit/s; Modulation: GFSK/ FHSS
Degree of protection	Base unit: IP 54 Temperature sensor: IP 56
Power supply	1 x 3V CR2032
Operating time 150 h
Dimensions (W x H x D) 135 x 40 x 80 mm
Sensor	90 mm, ø 2,5 / 4 mm
Weight 145 g (incl. battery)

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AGQ

CE UK CA =

!

OPEN CLOSE

CE UK CA Rev21W35 CR 2032 + A quality product from UMBREX GmbH & Co. KG Donnerfeld 2, S9757 Amsberg, Germany Tel.: [phone], www.laserliner.com

1 2 3 4 5 Laserliner P1 76 °C P2 76 °C a b c e d f THERMOCONTROLLOUD P1 P2 7 8

Download on the App Store

GET IT ON Google Play

QR code image containing encoded data, no visible human-readable text

CE UK CA =

!

CE UK CA Rev21W35 CR 2032 + A quality product from UMAREX GmbH & Co. KG. Donnerfeld 2, 59757 Armberg, Germany Tel. [phone], www.laserfilter.com

Laserliner

1 2 3 4 5 Laserliner P1 76 °C P2 76 °C a b c e d f THERMOCONTROLLOUD P1 P2 7 8

1 Stik Måleledning P1
2 Stik Måleledning P2
3 Haspe til måleledninger
4 Sonde P1
5 Sonde P2
6 Batterirum (bagside)
7 Tilslutningsbøsning P1
8 Tilslutningsbøsning P2

a Temperaturvisning P1
b Temperaturvisning P2
c Digital Connection aktiv
d ON/OFF / baggrundsbelysning tænd/sluk
e Magnet (bagside)
f Batteri-indikator

Download on the App Store

GET IT ON Google Play

QR code image containing encoded data, no visible human-readable text

CE UK CA =

!

OPEN CLOSE CLOSE

CE UK CA Rev2W85 CR 2032 + A quality product from UMRPEX GmbH & Co. KG Donnerfeld 2, 59757 Armsberg, Germany Tel.: [phone], www.laserliner.com

Laserliner

1 2 3 4 5

Laserliner 76°C P1 P2 a b c 76°C THERMOCONTROLDO d f

P1 P2 7 8

Close-up of a device with two labeled connectors (P1, P2) and warning symbols, no readable text or numbers present.

B ON/OFF

Laserliner P1 76°C P2 76°C THERMOC CONTROL DIO

ON

OFF

Download on the App Store

GET IT ON Google Play

QR code image containing encoded data, no visible human-readable text

OPEN CLOSE

CE UK CA Rev21W35 CR 2032 + A quality product from LIMAREX GmbH & Co. KG Donnerfeld 2, 59757 Armsberg, Germany Tel.: [phone], www.laserliner.com

1 2 3 4 5 Laserliner P1 76 °C P2 76 °C a b c e d f THERMOCONTROLOUD P1 P2

7 8

Download on the App Store

GET IT ON Google Play

QR code image containing encoded data, no visible human-readable text

CE UK CA =

!

OPEN CLOSE

CE UK CA Rev2 W35 CR 2032 + A quality product from LIMARPEX GmbH & Co. KG Donnerfeld 2, 59757 Amsberg, Germany Tel.: [phone], www.laserliner.com

Laserliner

1 2 3 4 5 Laserliner 76°C 76°C P1 P2 a b c e d f THERMOCONTROLLOUD P1 P2 7 8

Download on the App Store

GET IT ON Google Play

QR code image containing encoded data, no visible human-readable text

CE UK CA =

!

OPEN CLOSE CLOSE

CE UK CA Rev21W35 CR 2032 + A quality product from UMARPEX GmbH & Co. KG Donnerfeld 2, 59757 Armsberg, Germany Tel.: [phone], www.laserliner.com

Laserliner

1 2 3 4 5 Laserliner P1 76 °C P2 76 °C a b c e d f THERMOCONTROLLOUD P1 P2 7 8

QR code image containing encoded data, no visible human-readable text

Download on the App Store

GET IT ON Google Play

Black-and-white illustration of a grilled outdoor grill with meat and wrapped food, placed on a grater (no text or symbols visible)

SERVICE

Umarex GmbH & Co. KG

- Laserliner -
