USER MANUAL ThermoSpot Laserliner

Laserliner THERMOSPOT 706.9 206.4 MIN 3026 THERMOSPOT MIN/MAX

Laserliner

!

Warning sign with sunburst symbol inside triangle, indicating radiation hazard

a b c 888.8 888.8 d e f

Diagram showing a firearm and a screen with a checkmark (no text or symbols present)

Diagram showing a device emitting a beam of light into a screen, with a cross symbol below (no text or labels)

4 MIN/MAX-Anzeige

CE UK CA I — —

!

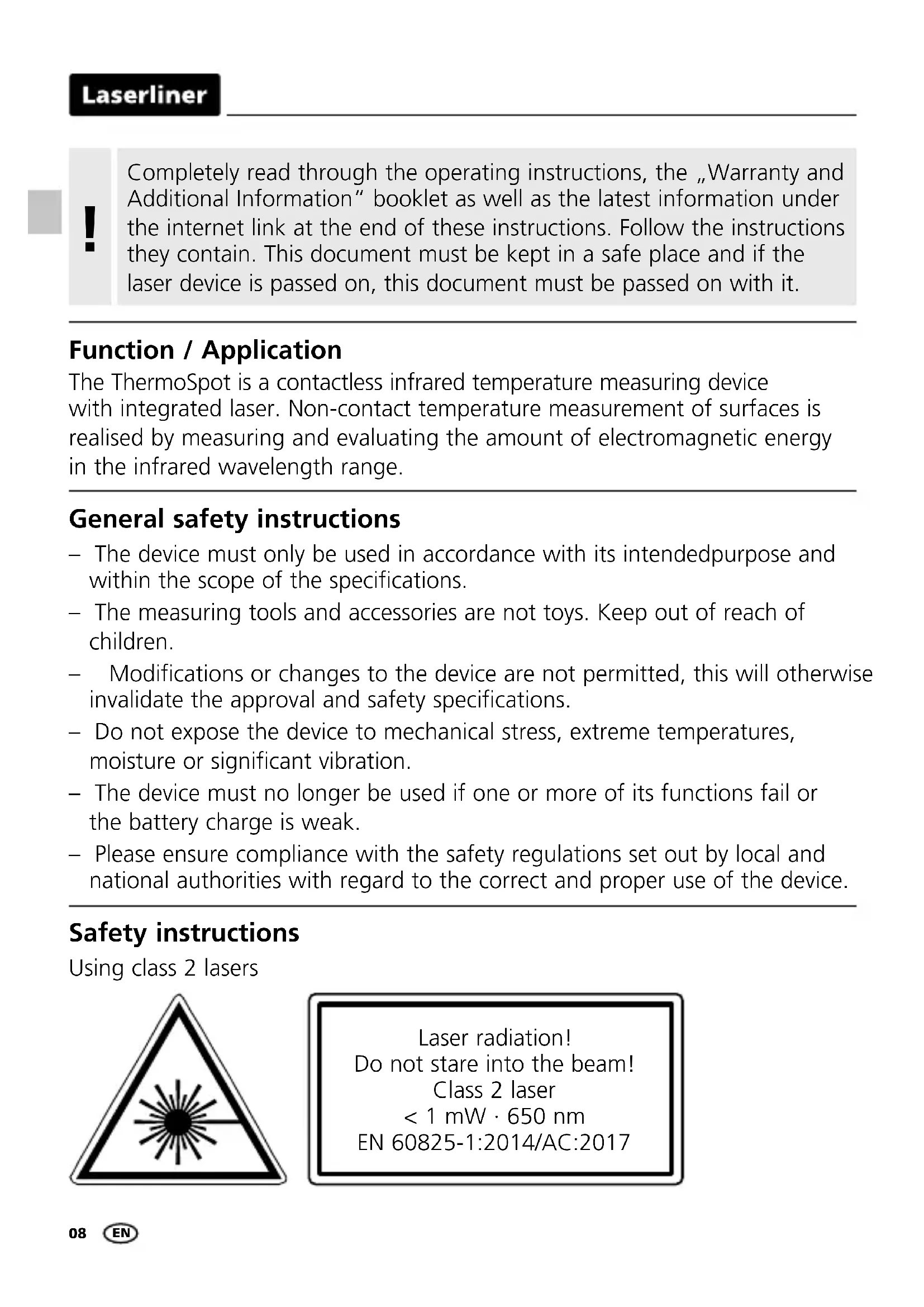

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Function / Application

The ThermoSpot is a contactless infrared temperature measuring device with integrated laser. Non-contact temperature measurement of surfaces is realised by measuring and evaluating the amount of electromagnetic energy in the infrared wavelength range.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Safety instructions

Using class 2 lasers

Warning sign with sunburst symbol inside triangle, indicating radiation hazard or warning

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 650 nm EN 60825-1:2014/AC:2017

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Under no circumstances should optical instruments (magnifyingglass, microscope, binoculars)
• Do not use the laser at eye level (1.40...1.90 m).
• Tampering with (making changes to) the laser device is not permitted.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year.

Laserliner

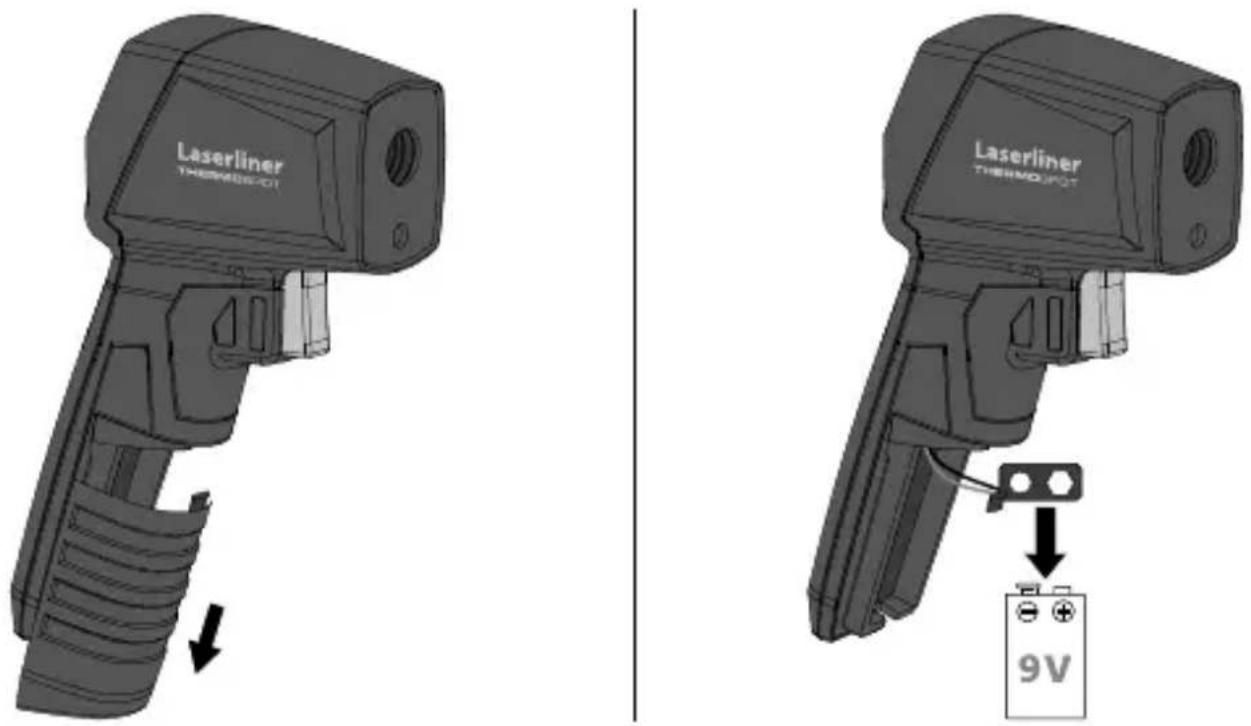

1 Inserting battery

Open the battery compartment and insert battery according to the symbols. Be sure to pay attention to polarity.

Laserliner THERMOUT Laserliner THERMOUT 9V

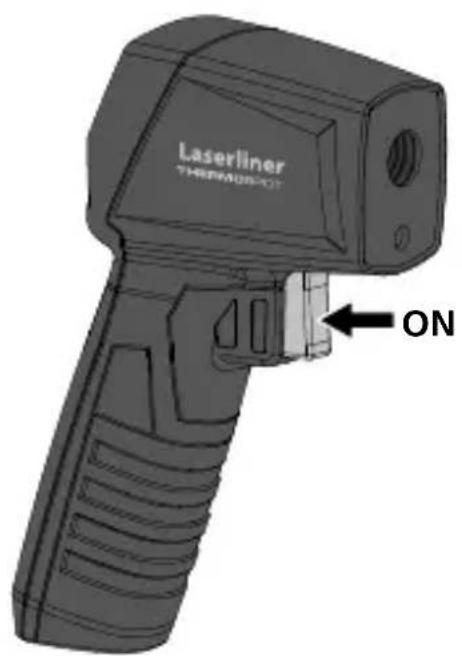

2 ON/OFF

The device switches off automatically after 30 seconds. Press the button again to switch the device back on.

Laserliner THERMISTRY ON

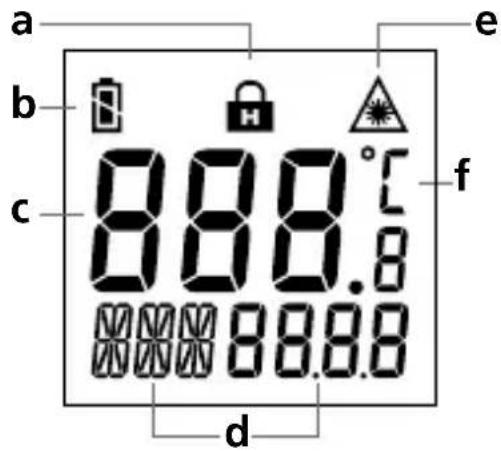

a b c 888.8 888.8 d e f

a Hold function
b Battery status
c Measured value display
d MIN or MAX value during the measurement
e Laser beam switched on
f Unit of measurement °C

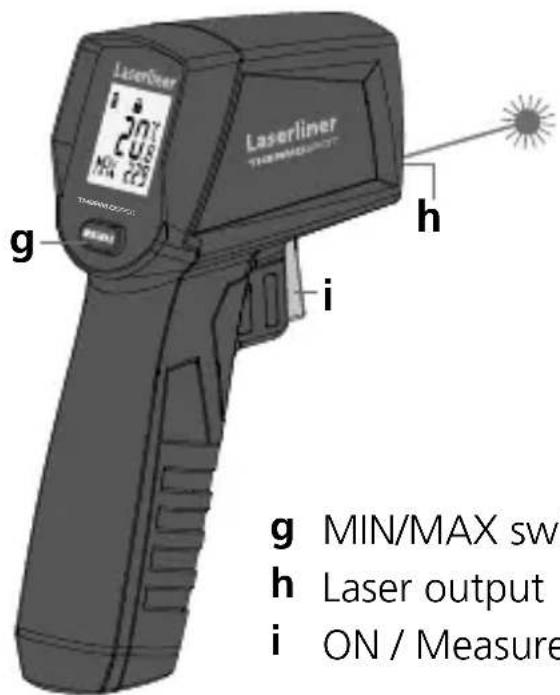

Laserline 20% MIN 229 g h i g MIN/MAX sw/ h Laser output i ON / Measure

g MIN/MAX switching

h Laser output

i ON / Measure

B Continuous measurement / Hold

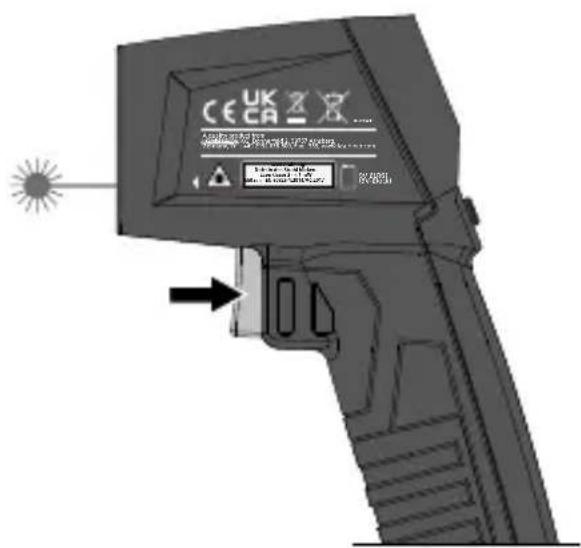

For continuous measurement activate the laser (see figure) and keep the button pressed.

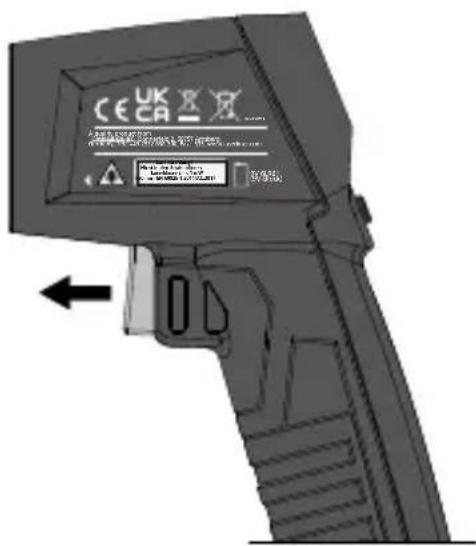

Release the button as soon as the target laser pinpoints the measurement location. The measured value is held.

This infrared temperature instrument detects the temperature of various surfaces and materials. A built-in sensor head detects the material-specific infrared rays emitted by every object. The amount of these emissions is determined by the material's emission coefficient (0 ... 1). This instrument is permanently set to an emission coefficient of 0.95, which is applicable to most organic materials as well as plastics, ceramics, wood, rubber and stone. Please ensure that the space between the instrument and surface to be measured is free of disturbances (steam, gas, contamination, glass). It is recommended to season a grill oven before the first surface temperature measurement, creating a so-called patina coating. The resulting fat layer binds with the cast iron and prevents the food from sticking. If the patina coating has not been created via seasoning, then this can lead to erroneous results for oven measurements.

Laser

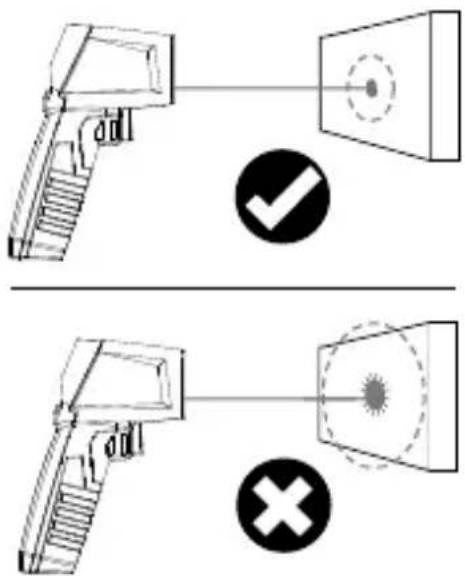

The laser is a targeting aid to sight the location for the infrared measurement. Only the surface's temperature is measured. Set the optimum measuring distance for the measured spot (12:1) such that it is completely within the target object.

Diagram illustrating gun safety and explosion detection, showing correct and incorrect states with symbols for detection and explosion.

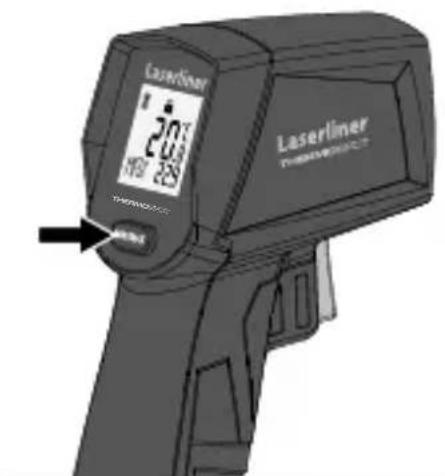

4 Min/Max display

The MIN or MAX value can be displayed during a continuous measurement. Press the MIN/MAX button to switch between the two values.

Laserliner 20.0 H3 225 PHOSKONICER Laserliner PHOSKONICER

Technical data (Technical revisions reserved. Rev 21W26)

Measured variable Infrared temperature
Functions	Min / Max / Hold
Measuring range infrared temperature	-40°C ... 400°C
Accuracy infrared temperature	±2°C + 0.1°C/degree (-40°C ... 0°C) ±2°C or ±2% (0°C ... 400°C), greater value applies
Laser wavelength	650 nm
Laser class 2 / < 1 mW (EN 608)	25-1:2014/AC:2017)
Emission coefficient Fixed, 0.95
Optic	12:1 (12 m distance : 1 m measured spot)
Auto power off after 30 seconds
Operating conditions	0°C ... 40°C, max. humidity 80% rH, no condensation, max. working altitude 2000 m above sea level
Storage conditions	-10°C ... 60°C, max. humidity 80% rH, no condensation
Power supply 1 x 9V 6LR61 (9-volt block)
Operating time approx. 35 hours
Dimensions (W x H x D)	95 x 132 x 37 mm
Weight 144 g (incl. batteries)

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AJB
