Product type	Wireless Bluetooth stereo headset
Brand	Hama
Model	Freedom Run 00184121
Weight	14.5 g
Power supply	Lithium-polymer battery 3.7 V, 57 mAh, recharge via micro-USB
Charging time	Approximately 2 hours
Listening time	Up to 6 hours
Talk time	Up to 5.5 hours
Standby time	Up to 180 days
Bluetooth technology	Bluetooth 5.0
Supported Bluetooth profiles	A2DP V1.3, AVRCP V1.6, HFP V1.7
Range	Less than 10 meters
Main functions	Play/pause, track change, volume control, hands-free calling, voice assistant Siri/Google, multipoint (connection to 2 devices)
Included items	1 pair of earbuds, 1 USB cable, 3 pairs of ear tips (S/M/L), 2 pairs of ear hooks (M/L), 1 cable clip, instruction manuals
Care and cleaning	Clean with a slightly damp lint-free cloth, avoid harsh detergents
Safety	Do not use at excessive volume, do not use while driving or operating machinery, protect from moisture and shocks, do not open, non-removable battery
Spare parts and repairability	Replaceable ear tips and hooks (included), other repairs by a professional only
General information	Non-commercial domestic use, moderate climatic conditions, CE certification

Frequently Asked Questions - Freedom Run 00184121 HAMA

How to turn on and off the Hama Freedom Run Bluetooth headset?

To turn on, press the MFB (multi-function) button for about 3 seconds until you hear "Power on" and see the LED flash blue. To turn off, press the same button for about 5 seconds until you hear "Power off" and the LED turns off.

How to pair the headset with a smartphone?

Make sure the headset is on and Bluetooth on your smartphone is enabled. Search for available devices, select "Hama Freedom Run" from the list. If a password is requested, enter 0000. Once connected, you will hear an audio signal.

How to charge the headset and how long does it take?

Connect the provided USB cable to the headset's micro-USB port and to a USB charger. The solid red LED indicates charging; it turns blue when finished. Full charging takes approximately 2 hours.

What to do if the battery is low?

When the battery is low, the LED flashes red and an announcement "Battery Low" sounds. Recharge the headset as soon as possible.

How to use the multipoint function to connect two devices?

First connect the first device to the headset. Then disable Bluetooth on that first device, then connect the second. Reactivate Bluetooth on the first device: the headset will automatically reconnect to both.

How to answer or end a call with the headset?

To answer, press the MFB button once. To end, press the same button once during the call. To reject a call, press the MFB button twice.

How to activate Siri or Google Assistant voice assistant?

Press and hold the MFB button for about 2 seconds until you hear an audio signal. Your voice assistant (Siri on iOS, Google Assistant on Android) will then be active. Make sure you have the appropriate app installed.

How to adjust volume and change tracks?

To increase volume, briefly press the + button. To decrease, press the - button. To skip to next track, press and hold the + button for about 2 seconds; for previous track, press and hold the - button for 2 seconds.

What to do if the headset does not connect or turn on?

Check that the headset is charged. If the problem persists, perform a reset (turn off and on). Make sure Bluetooth on your device is enabled and the headset is in pairing mode (flashing LED). If necessary, forget the device in Bluetooth settings and repeat pairing.

How to clean and maintain the headset?

Use a slightly damp lint-free cloth to clean the headset. Avoid harsh products. Do not expose the headset to moisture or extreme temperatures. Store it in a dry place.

USER MANUAL Freedom Run 00184121 HAMA

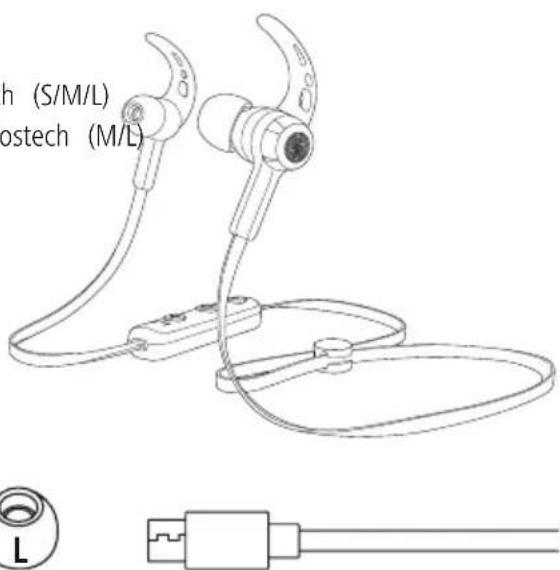

Line drawing of a pair of outdoor earbuds with adjustable straps and earphones (no text or symbols)

GB Operating Instructions D Bedienungsanleitung F Mode d'emploi E Instrucciones de uso

NL Gebruiksaanwijzing I Istruzioni per l'uso PL Instrukcja obsługi H Használati útmutató

RO Manual de utilizare CZ Návod k použití SK Návod na použitie P Manual de instruções

GB Operating Instructions

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference you sell the device, please pass these operating instructions on to the new owner.

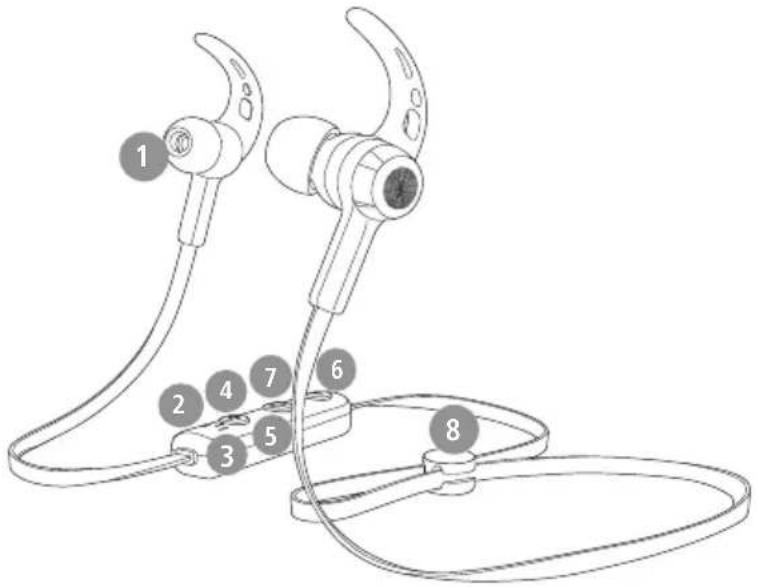

Controls and displays

1. Earphone
2. Microphone
3. Status LED
4. • button
5. Multi-function button (MFB)
6. • button
7. Micro-USB connection
8. Cable manager

Diagram of an outdoor ear with numbered labels pointing to different ear components

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and

Note

This symbol is used to indicate additional information or important notes.

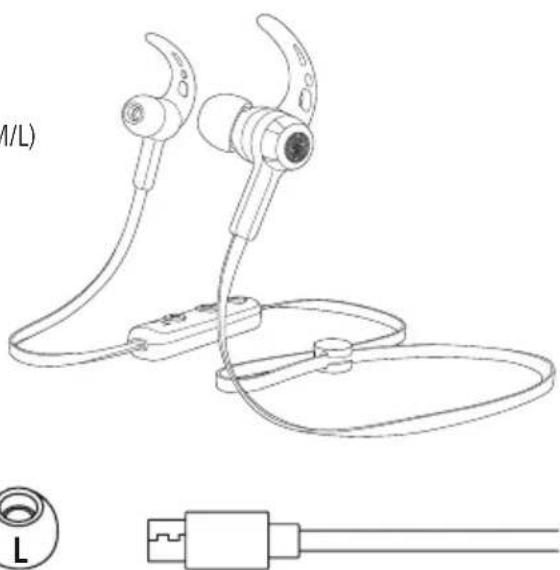

2. Package contents

1 x "Freedom Run" Bluetooth earphones
1 x USB charging cable
3 pairs of ear pads in various sizes (S/M/L)
2 pairs of silicone ear hooks in various sizes (M/L)
1 x cable clip
1 x quick guide
1 x warning and safety instruction

on M L S M

Line drawing of a pair of outdoor earbuds with attached cable, plus a separate plug symbol (no text or labels)

3. Safety notes

• The product is intended for private, non-commercial use only
• Use the product only for the intended purpose.
  • Children should be supervised to ensure that they do not play with the product
• Do not use the product in areas in which electronic products are not permitted
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts
• Do not open the device or continue to operate it becomes damaged
• Do not bend or crush the cable.
• Do not drop the product and do not expose any major shocks.
• Dispose of packaging material immediately in accordance with the locally applicable regulations.
• Do not modify the product in any way. Doing voids the warranty
• Protect the product from dirt, moisture and overheating and use it in dry environments only
• Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight
• Only use the article under moderate climatic conditions.
  • As with all electrical products, this device should be kept out of the reach of children
• Do not operate the product outside the power limits given in the specifications
• Do not use the product in a damp environment and avoid splashing water
• While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings.
• The battery is permanently installed and cannot be removed; dispose of the product as a whole accordance with the statutory regulations
• Do not incinerate the battery or the product.
• Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries
• Do not use the product during the charging process!

Warning - rechargeable battery

• Only use suitable charging devices or USB ports to charge the product.
• Do not use defective chargers or USB ports by and do not attempt to repair .them
• Do not overcharge the product or allow the battery to completely discharge.
• Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high italiftitudes).
• When stored over a long period of time, batteries should be charged regularly (at least it to every three months).

Warning - magnets

• This product generates magnetic fields. Individuals with cardiac pacemakers should
^SO consult a doctor before using this product as it may affect the pacemaker's proper function
- Do not store bank or similar cards with ty magnetic strips near the charging box or right earphones. The data on the cards could be damaged or completely deleted.

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
• To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.
- Always keep the volume at a reasonable level. doLoud volumes can damage hearing – even octover short periods.

• Using this product limits your perception of

ambient noise You should therefore not operate vehicles or machines while using them.

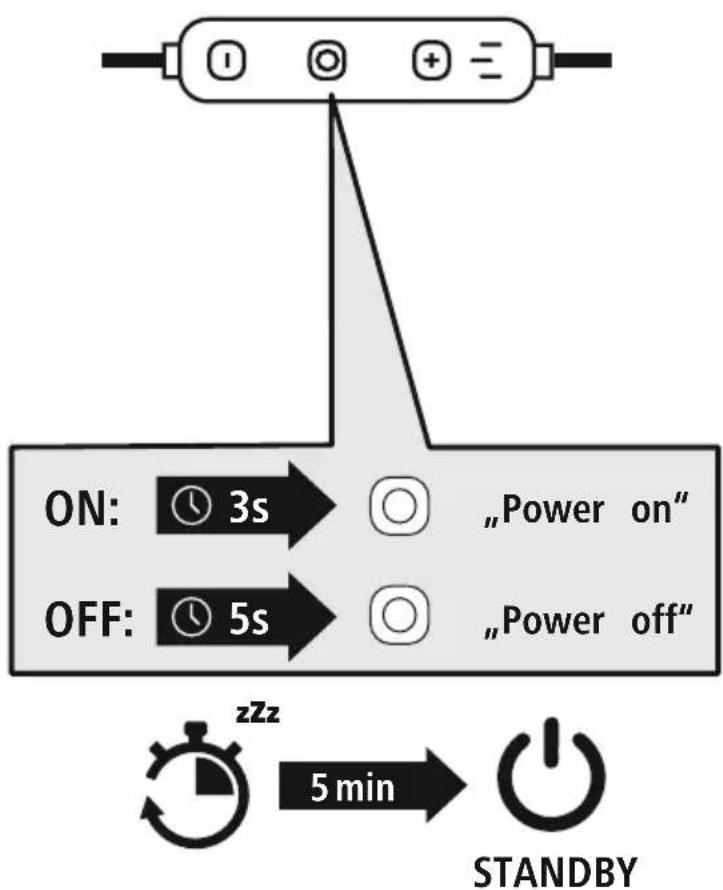

4. Switch On/Off

Press the MFB key (5) for approx. 3 seconds until the announcement "Power on" is heard and the LED (5) flashes blue.

To switch off, press the MFB key (5) for approx. 5 seconds until the announcement "Power off" is heard and the LED (5) flashes red and then goes out.
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

Note - Automatic product switch-off

The product is equipped with an automatic switch-off mechanism. There is no connection to your device within 5 minutes, it switches itself off automatically.

5. Charging

Fully charge the earphones once before using them for the .first time

Switching off and connecting the earphones

micro USB

Ensure that the earphones are switched off before charging them.

Connect the USB charging cable included to the charging socket (7). Connect the free plug on the micro-USB charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

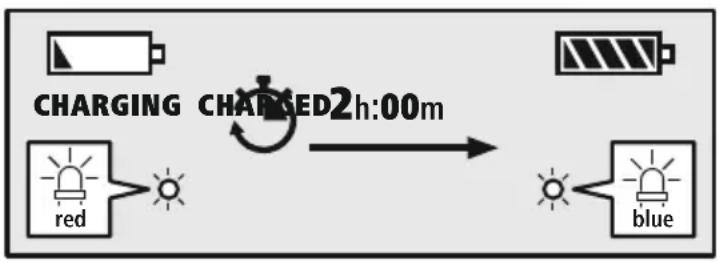

2 Earphones charging process

The LED (3) lights up solid red during the charging process.

Once the charging process is complete, the LED (3) lights up blue.

It can take up to 2 hours for the battery to be fully charged.

3 Battery capacity

When the earphones' battery capacity is low, the LED (3) flashes red and the announcement "Battery Low" is heard

The actual battery life will vary depending on how you use the device, the settings and the an temperatures (rechargeable batteries have a limited life).

Note

If you have not used the product for a few months, it can take up to 15 - 30 minutes until status LED (3) lights up red during the charging process

6. Bluetooth® pairing

Note - pairing

• Ensure that the Bluetooth® enabled device is switched on and that the Bluetooth® function is activated.
• Please refer to the operating instructions of your device for more information.

The earphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

Ensure that the earphones are switched on.

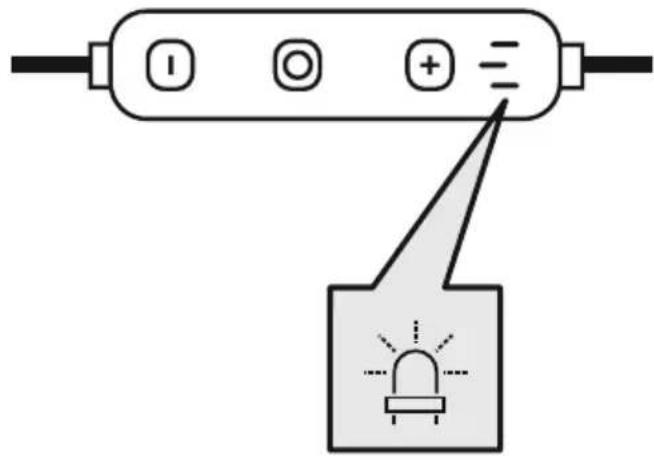

1 Check the status of the status LED (3)

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

If the status LED (3) is flashing alternately and the announcement is:

the earphones are searching for a Bluetooth connection.

If the status LED (3) is flashing and the announcement:

the earphones are already paired with a Bluetooth device.

2

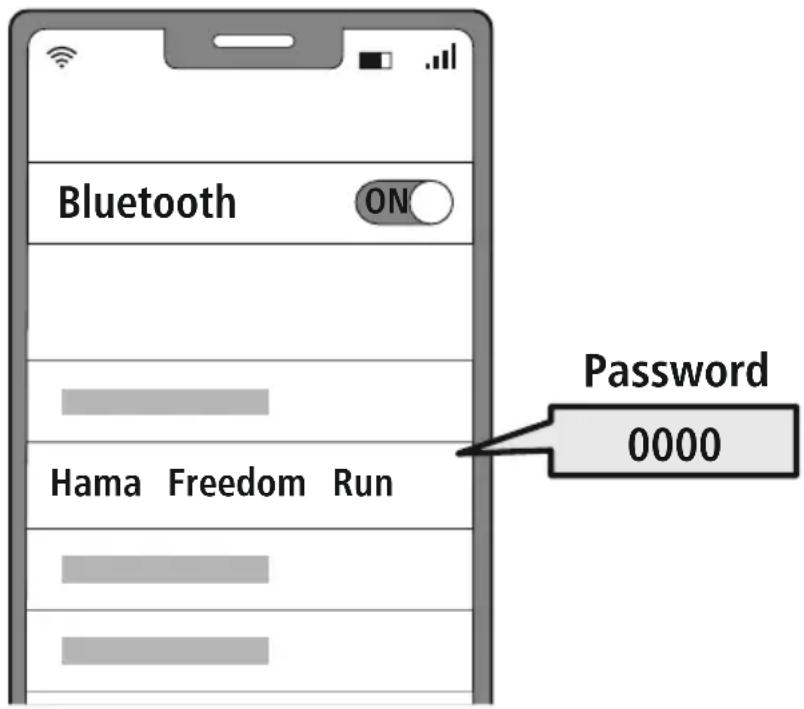

Search using your device for the earphones (only required on the first connection)

Open the Bluetoothsettings on your device and wait until the list of found Bluetooth shows Hama Freedom Run

Select Hama Freedom Run and wait until the earphones are shown as connected in your device's Bluetooth® settings. You will hear a brief signal tone.

Bluetooth ON Password 0000 Hama Freedom Run

Note - Bluetooth@password

Some devices require a password in order to connect to another ^® device through • If your device requests a password to connect to the product, enter 0000.

3

Multi-point technology

These headphones can connect to two Bluetooth-based devices simultaneously (multi-point).

Two smartphones with sound waves between them, no text or symbols present

• First connect the first device to the headphones.
• Then deactivate the Bluetooth® function on this device.
• Then connect the second device to the headphones.
• Activate the Bluetooth® function on the first device again. The headphones then connect to this device too.

7. Control elements

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• Please refer to the operating instructions of your device for more information.

7.1 Voice assistant function

Siri/Google

Press and hold the MFB key (5) for around 2 seconds to start communication with your Siri or Google Assistant. As soon as you hear a signal tone, your voice assistant is ready to assist you.

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

• The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.
• The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 Hands-free function

It is possible to use the earphones like a hands-free facility for your device.

1 Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Press the MFB key (5) to accept an incoming call.

3 Reject a call

Press and hold the MFB button (5) twice or use your device to reject an incoming call.

4 End a call

During the call, press the MFB key (5) once to end the call.

5 Last number redial

Press the MFB key (5) twice to redial the last number you called.

Note

The "Last number redial" function is only available for the device which was paired first in a multi-pairing situation

7.3 Audio playback

1 Start playback on your device.

2 Play / Pause

Press the MFB button (5) once to pause or start audio playback.

3 Next track

Press and hold the + key (4) for around 2 seconds to skip the next track.

4 Previous track

Press and hold the - button (6) for around 2 seconds to skip to the previous track.

7.4 Volume control

1 Increase volume

+ 1x +

Press the + button (4) once to increase the volume. Once the maximum volume is reached, the announcement "Maximum volume" is heard

2 Reduce volume

- 1x -

Press the -button (6) once to reduce the volume. Once the minimum volume is reached, you will hear "beep . beep"

1. Technical data

Bluetooth® earphones
Bluetooth technology Bluetooth	® v5.0
Supported profile A2DP V1.3 / AVRCP V1.6 / HFP V1.7
Frequency for Bluetooth Transfers	2402 - 2480 MHz
Range < 10 m
Battery
Battery type 3	.7V Li polymer
Min. capacity 57 mAh
Current consumption max	. 5 V 45 mA
Charging time 2	h
Standby * 180 d
Music playing * 6	h
Call time * 5.5h
Weight 14	.5g

* Once fully charged

9. Care and maintenance

Only clean this product using a lint-free, slightly damp cloth and do not use any harsh cleaners

10. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from imprint installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes

11. Service and support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here:.haw.com

12. Declaration of conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00184121] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:

www.hama.com->00184121->Downloads.

Frequency band(s) 2402MHz - 2480MHz

Maximum radio-frequency power transmitted 2.5mW E.I.R.P.

Line drawing of a pair of outdoor earbuds with adjustable straps and earphones (no text or symbols)

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

Two smartphones with sound waves between them, no text or symbols present
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

Two smartphones with sound waves between them, no text or symbols present

Remarque - Assistant Google
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and a warning symbol, likely representing an electrical or diagnostic interface.

10s blue "Connected"

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of outdoor earbuds with attached straps and earphones (no text or symbols)

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

Two smartphones with sound waves between them, no text or symbols present

micro USB

Diagram showing a device with three labeled buttons and a warning icon, likely representing a control or status indicator.

10s blue "Connected"

Two smartphones with sound waves between them, no text or symbols present

reach (S/M/L) (M/L)
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of outdoor earbuds with adjustable straps and earphones (no text or symbols)

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

Two smartphones with sound waves between them, no text or symbols present
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "zzz"
    note right of E "5 min"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

Căștile sunt deja conectate la un terminal Bluetooth®.

2

Two smartphones with sound waves between them, no text or symbols present

Indicatie – Google Assistant

Diagram of an outdoor ear with numbered labels pointing to different ear components

yny M L S M

S/M/L M/L L

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

Two smartphones with sound waves between them, no text or symbols present

Diagram of an outdoor ear with numbered labels pointing to different ear components
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a hazard or alert system.

Two smartphones with sound waves between them, no text or symbols present

manhos (S, M, L) L)

micro USB

Diagram showing a device with three labeled buttons and a warning symbol, likely representing a control or status indicator.

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of outdoor earbuds with adjustable straps and earphones (no text or symbols)
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    subgraph Time
        zzz
        5min
    end

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

Two smartphones with sound waves between them, no text or symbols present

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light inside a box.

оповещении:

Two smartphones with sound waves between them, no text or symbols present

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

10s blue "Connected"

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of outdoor earbuds with attached straps and earphones (no text or symbols)
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a women's earless earbuds with adjustable straps and earphones (no text or symbols)
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and a warning icon, likely representing an electrical or control interface.

Two smartphones with sound waves between them, no text or symbols present

Diagram of an outdoor ear with numbered labels pointing to different ear components

Line drawing of a pair of outdoor earbuds with adjustable straps and earphones (no text or symbols)
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and a warning icon, likely representing an electrical or diagnostic setup.

Two smartphones with sound waves between them, no text or symbols present
