compactON 3000 - Pump EHEIM - Free user manual and instructions

Product type	Aquarium pump
Intended use	Indoor, domestic aquarium
Location	Inside or outside the aquarium
Maximum immersion depth	1 m
Maximum water temperature	35 °C
Power supply	Mains (nominal voltage not specified)
Protection class	II
IP rating	IP68 (protection against permanent immersion)
Flow rate	Adjustable via built-in power regulator
Hose connection	Adaptable connector (cut to desired length)
Attachment	Suction cups for bottom or wall mounting
External pump cover	Provided for use outside the aquarium
Cleaning	Under running water, without harsh chemicals or dishwasher
Maintenance	Periodic cleaning of the impeller and regulator
Safety	Leakage current protection (30 mA max)
Thermal protection	Built-in thermal circuit breaker
Spare parts	Available (see page 131 of the manual)
Repairability	EHEIM authorized service only
Storage	Frost-free after cleaning
Authorized users	Adults and children from 8 years under supervision

Frequently Asked Questions - compactON 3000 EHEIM

What types of aquariums are suitable for the Eheim compactON 3000 pump?

The pump is designed for domestic aquarium use indoors. It can be placed inside or outside the aquarium.

What is the maximum immersion depth?

The maximum immersion depth is 1 meter.

How to adjust the pump flow rate?

Use the built-in power regulator on the pump cover to adjust the water flow.

What to do if the pump does not start?

First check the mains voltage and power cord. Make sure the plug is properly inserted. If the impeller is blocked, clean the pump. If the thermal circuit breaker has tripped, unplug the device and wait about an hour before plugging it back in.

How to clean the pump?

Unplug the device from the mains. Remove the pump from the aquarium, disassemble the cover and pump impeller. Clean all components under running water without using harsh chemicals or dishwasher. Reassemble in reverse order.

Can the pump be used outside the aquarium?

Yes, the external pump cover is provided. It allows connecting an inlet hose. Make sure to fix the pump on a stable surface.

What are the important safety instructions?

Use a leakage current protection device of 30 mA maximum. Always unplug all devices before maintenance. Protect sockets from moisture. Do not let children play with the device.

What to do if the flow rate is insufficient?

Clean the power regulator if it is dirty. If the problem persists, contact EHEIM service.

What accessories are included?

The pump comes with a pump cover, suction cups for attachment, and an adaptable hose connector.

How to store the pump when not in use?

Remove the pump from the aquarium, clean it, then store it in a frost-free place.

USER MANUAL compactON 3000 EHEIM

Technical line drawing of a mechanical device with no visible text or symbols

2100

3000

de Bedienungsanleitung
en Operating instructions
fr Mode d'emploi
it Istruzioni per l'uso
es Manual de instrucciones
pt Manual de instruções
nl Bedieningshandleiding
da Betjeningsvejledning

sv Bruksanvisning
no Bruksanvisning
fi Käyttöohje
pl Instrukcja obsługi
cs Návod k obsluze
hu Használati utasítás
ru Руководство по обслуживанию
ko 사용 설명서

A Ø19 mm (3/4") Ø27 mm (1") BEMIM

Diagram of a mechanical device with three circular components and rotational arrows indicating motion (no text or symbols)

C ① ② ①

D ③

Technical illustration of a mechanical pump assembly with rotating shaft and housing (no text or symbols)

F

Diagram of a mechanical device with directional arrows indicating flow or movement, no text or symbols present

H max min

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

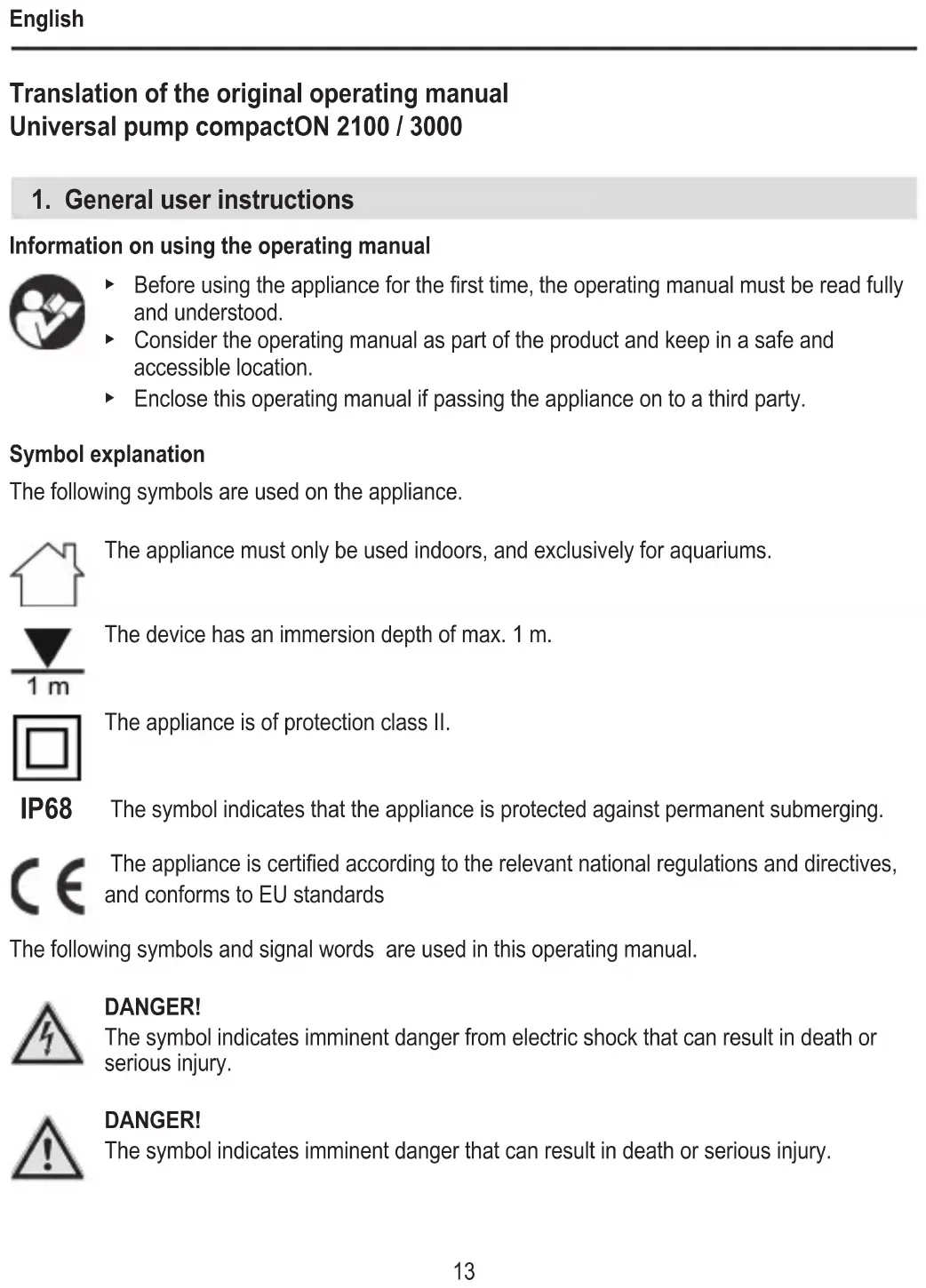

Translation of the original operating manual

Universal pump compactON 2100 / 3000

1. General user instructions

Information on using the operating manual

Before using the appliance for the first time, the operating manual must be read fully and understood.
- Consider the operating manual as part of the product and keep in a safe and accessible location.
▶ Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the appliance.

The appliance must only be used indoors, and exclusively for aquariums.

The device has an immersion depth of max. 1 m.

The appliance is of protection class II.

IP68

The symbol indicates that the appliance is protected against permanent submerging.

The appliance is certified according to the relevant national regulations and directives, and conforms to EU standards

The following symbols and signal words are used in this operating manual.

DANGER!

The symbol indicates imminent danger from electric shock that can result in death or serious injury.

DANGER!

The symbol indicates imminent danger that can result in death or serious injury.

WARNING!

The symbol indicates imminent danger that can result in moderate to minor injury or a health risk.

CAUTION!

The symbol indicates the danger of material damage.

Note with useful information and tips.

Typographical conventions

☒A Reference to a figure, in this case, reference to figure A

You are prompted for an action.

2. Application

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

· for aquarium-related purposes
· indoors
· in compliance with the technical data

The following limitations apply to the appliance:

· do not use for commercial or industrial purposes
· the water temperature may not exceed 35^ C

VERY IMPORTANT SAFETY INSTRUCTIONS

WARNING- To guard against injury, basic safety precautions should be observed, including the following.

FOR HOUSEHOLD USE ONLY
WARNING! RISK OF ELECTRIC SHOCK!
- This pump has not been investigated for use in swimming pools areas!
· DO NOT RUN DRY!

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

• DANGER. To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment.
  For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized service facility for service or discard the appliance.
• If the appliance falls into the water DON'T reach for it. First unplug the appliance immediately (Non-immersible equipment only)
• If the appliance shows any sign of abnormal water leakage, immediately unplug it from the power source.
• Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not intended to be wet.
• Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or if it is dropped or damaged in any manner.

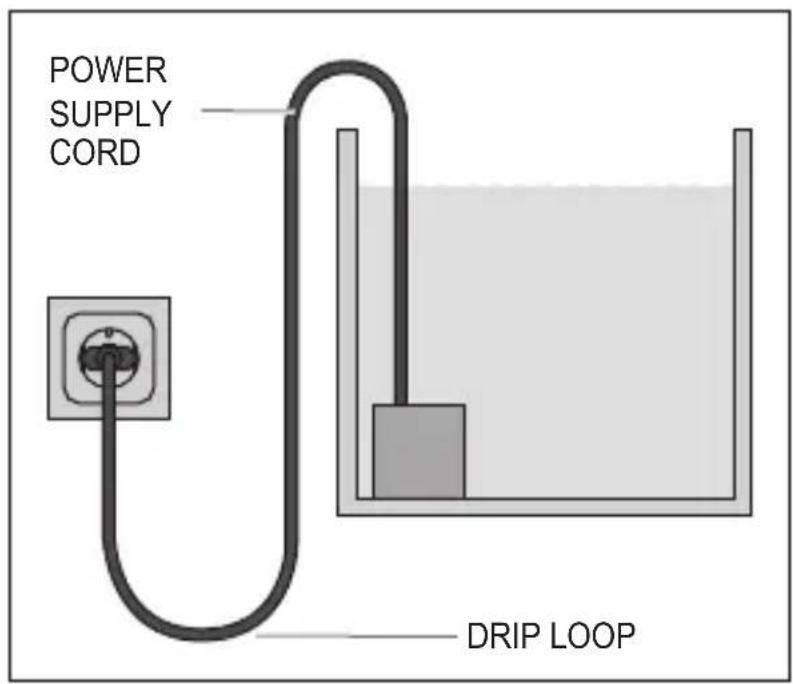

POWER SUPPLY CORD DRIP LOOP

- To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium stand and tank to one side of a wall mounted receptacle to prevent water from dripping onto the receptacle or plug. A “drip loop”, shown in the figure, should be arranged by the user for each cord connecting the aquarium appliance to a receptacle.

The “drip loop” is that part of the cord below the level of the receptacle, to prevent water travelling along the cord and coming in contact with the receptacle. If the plug or receptacle does get wet, DON'T unplug the cord; disconnect the fuse or circuit breaker that supplies power to the appliance. Then unplug and examine for presence of water in the receptacle.

- Close supervision is necessary when any appliance is used by or near children.

· To avoid injury, do not contact moving parts.

• Always unplug an appliance from an outlet when not in use, before putting or taking off parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to disconnect.

- Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.

- Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.

- Make sure an appliance mounted on a tank is securely installed before operating it.

• Read and observe all the important notices on the appliance and its cord.
• If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.
• Check that the voltage shown on the label of the unit corresponds to the voltage of the mains supply.
• Disconnect all electrical appliances from the mains before placing hands in the water.
• The line cord of this unit cannot be replaced or repaired. Should the line cord become damaged the appliance must be discarded.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

3. Safety instructions

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

- This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe

use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.

- Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and plug, are undamaged.

• Repairs must only be carried out by an EHEIM service centre.
• The mains cable of this appliance cannot be replaced. If the cable is damaged, the appliance must be scrapped.
• Only carry out the work described in these instructions.
• Only use original spare parts and accessories for the appliance.

- The appliance must be protected by a residual current protection device with a maximum rated residual current of 30 mA. Please contact

an electrician if there are any questions or problems.

• In the event of water leakage or when the residual current protection device is triggered, immediately disconnect all devices in the aquarium from the power supply.
• If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.
• Protect the mains socket and mains plug against moisture. It is recommended to form a drip loop with the mains cable to prevent any water running along the cable to the mains socket.
• The electrical data of the appliance must match the data of the power mains. This data is found on the type plate, the packaging and in these instructions.

4. Commissioning

Connecting the hose

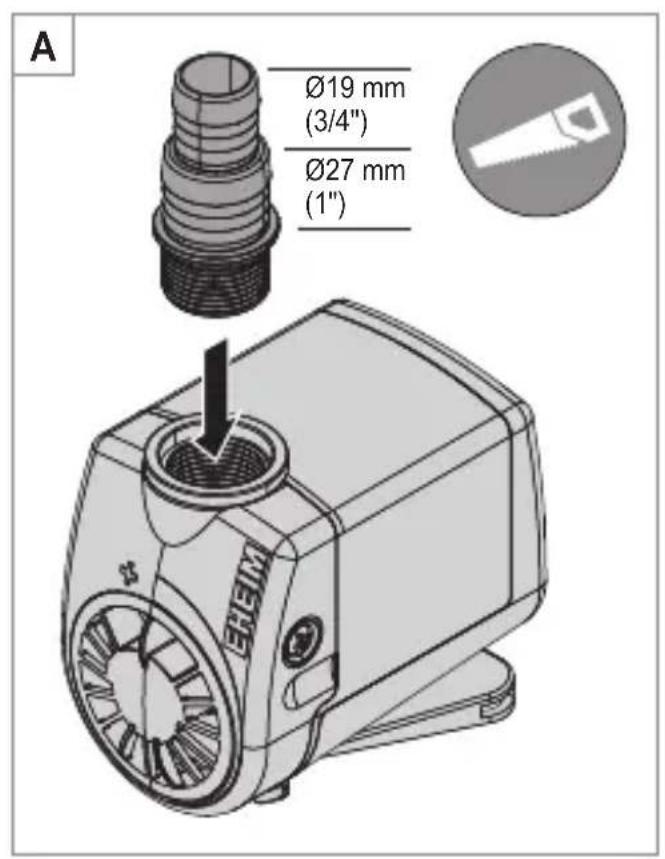

1. Use a saw to shorten the connecting piece to the diameter of your hose (☒A).
2. Screw the connecting piece onto the pump.
3. Connect your hose to the connecting piece.

Installing suction devices

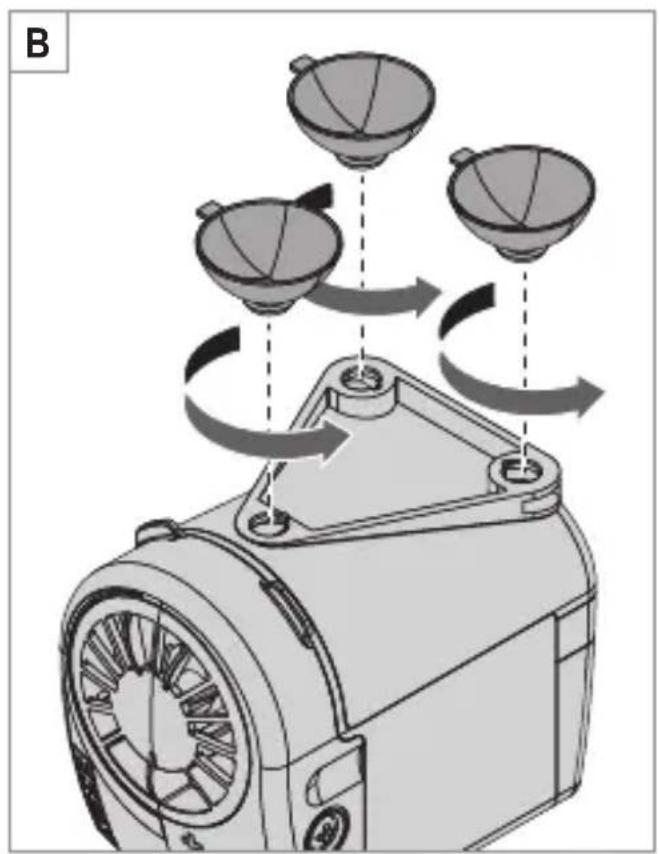

1. Screw the suction devices into the openings of the body of the engine (☒B).

Hint: Moisten the suction devices with water for easier installation.

Installing the pump cover for external use

The pump can be used inside and outside of the aquarium. Among the benefits of the pump cover③ for external use is that it allows the connection of an inlet hose.

1. Loosen and remove the two lateral fastening screws ① (☒C).
2. Pull the pump cover ② with integrated power controller out of the engine body from the front.
3. Push the pump cover ③ into the engine body (☒D).
4. Tighten the pump cover with the locking ring (☒E).

• Make sure that the lugs on the pump cover engage in the recesses in the motor body.
  ▶ Make sure that the impeller is installed complete with the two axle grommets④ (☒I).
  ▶ Make sure that the locking ring engages.
• Screw the intake nozzle into the pump cover.
• Connect your hose to the intake nozzle.
• You can re-install the pump cover with integrated power controller in reverse order.

5. Operation

CAUTION! Material damage.

The pump must not run dry.

Switching the pump on/off

1. Inside the aquarium: Attach the device below water level at the bottom or the inside of your aquarium (☒F). Pay attention to the maximum pond depth (see Technical data).

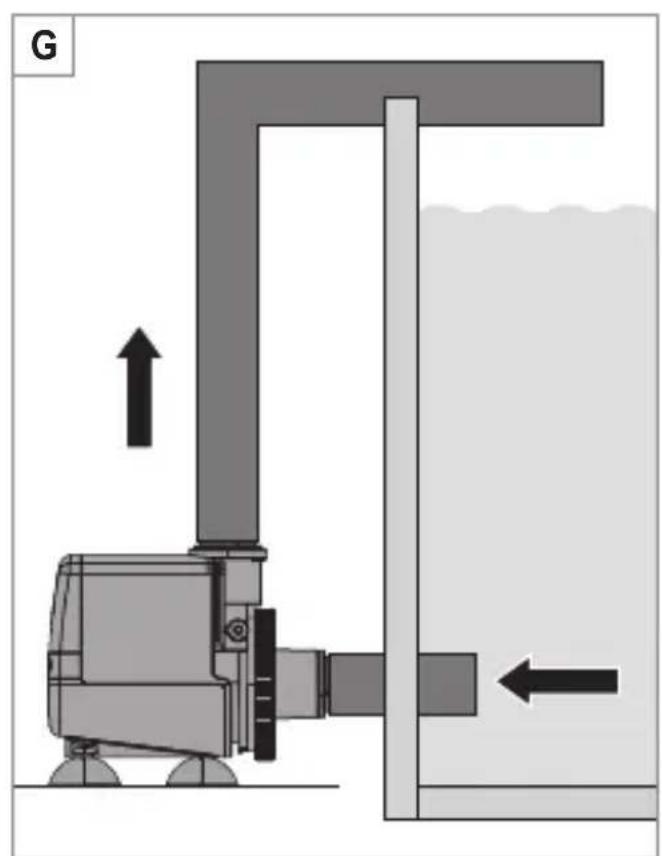

Outside the aquarium: Attach the device to a stable surface outside of your aquarium (☒G).

1. Insert the mains plug in the mains socket. Attention: The pump starts immediately!
2. To turn it off, remove the mains plug from the mains socket.

Controlling the flow rate

1. Turn the power controller to adjust the water flow rate (☒H).

6. Maintenance

DANGER! Electrocution!

- All devices must be disconnected from the power supply before any maintenance work is carried out.

CAUTION! Material damage.

- Do not use hard objects or aggressive cleaning agents for cleaning.

The appliance components are not dishwasher-proof. Do not clean the appliance or appliance parts in the dishwasher.

The following sections describe maintenance work necessary for optimum and fault-free operation. Regular maintenance prolongs the service life and assures functionality of the appliance over a long period.

Cleaning the pump

1. Remove the pump from the aquarium.
2. Loosen and remove the two lateral fastening screws ① (☒C).
3. Pull the pump cover ② out of the engine body from the front.
4. Pull the impeller⑤ out of the engine body (☒I).
5. Clean all components under running water.
6. Install the pump again in reverse order.

7. Clearing faults

Attention! Electrocution!

Before clearing faults, remove the mains plug.

Faults Possible cause Remedy

Pump does not start	No mains voltage	▶ Check the mains voltage▶ Check the supply line
Pump does not pump	Mains plug is not inserted	▶ Insert the mains plug in the mains socket
	Impeller is blocked ▶ Clean the pump
	Thermal cut-out has activated 1.	Remove the mains plug and let the pump cool down.2. Insert the mains plug again after approx. one hour.
Pump not pumping sufficiently	Power controller is dirty	▶ Clean the power controller

For other faults, please contact EHEIM Service.

8. Decommissioning and disposal

Storage

1. Take the appliance out of the aquarium.
2. Clean the appliance
3. Store the appliance in a frost-proof place.

Disposal

When disposing of the appliance, heed the respective statutory regulations. Information on the disposal of electrical and electronic appliances in the European Union:

Within the European Union, disposal of electrically operated appliances is governed by national regulations that are based on the EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

9. Spare parts

See page 131.
