Product Type	Portable USB-C Docking Station
Brand	i-TEC
Model	C31TRAVELDOCKPD20
Dimensions	129 x 69 x 17 mm
Weight	92 g
Power	USB-C Power Delivery (max 60 W) or USB bus
HDMI Video Output	1 x HDMI, max resolution 4K (3840x2160) @30 Hz
VGA Video Output	1 x VGA, max resolution Full HD (1920x1080) @60 Hz
USB-A Ports	2 x USB-A 3.0, up to 5 Gbit/s
USB-C Port	1 x USB-C Power Delivery / Data (max 60 W, data transfer, no video)
Ethernet Port	1 x RJ-45 Gigabit (10/100/1000 Mbit/s)
Integrated Cable	USB-C 3.1, length 20 cm
Chipset	VL102, PS176, VL817, RTL8153B, RTD2166
Supported Operating Systems	Windows 10 (32/64-bit), macOS X, Chrome OS, Android 6+ (requires USB-C with DP Alt Mode or Thunderbolt 3)
Package Contents	Docking station, travel pouch, quick start guide
Care and Cleaning	Do not expose to extreme temperatures or humidity. Place on a flat surface to avoid falls.
Safety	Unplug the USB-C cable for about 10 seconds in case of issues. Use original accessories.
Warranty	2 years (standard)

Frequently Asked Questions - C31TRAVELDOCKPD20 i-TEC

Which devices are compatible with this docking station?

The station is compatible with any device equipped with a USB-C port supporting DisplayPort Alternate Mode or a Thunderbolt 3 port. This includes laptops, tablets, and smartphones running Windows 10, macOS X, Chrome OS, and Android 6 or later.

Can I use the HDMI and VGA ports simultaneously?

No, only one video output can be active at a time (HDMI or VGA). Mirror or extended mode is possible with a single external monitor.

How do I charge my laptop via the dock?

Connect your original USB-C charger to the USB-C Power Delivery port on the dock. The dock provides up to 60 W to charge the host device while using the other ports.

What is the maximum resolution for the HDMI port?

The HDMI port supports a maximum resolution of 3840x2160 at 30 Hz (4K UHD).

Does the dock work without additional drivers?

On Windows 10 and macOS X, drivers install automatically. Make sure you have the latest system and BIOS updates.

Can I connect an external hard drive to a USB-A port?

Yes, the USB-A 3.0 ports offer speeds up to 5 Gbit/s, ideal for hard drives, USB drives, and other peripherals.

How do I use the Ethernet port?

Connect an RJ-45 cable from your router or switch to the Ethernet port on the dock. The dock automatically recognizes the network and provides speeds 10/100/1000 Mbps.

What to do if the external screen flickers or does not display?

Unplug the USB-C cable from the computer for about 10 seconds, then plug it back in. Also check that your device supports DisplayPort Alternate Mode.

Can the dock charge multiple devices at the same time?

Yes, via the USB-C PD port, it can charge the host device while powering connected USB peripherals. However, total power is limited to 60 W.

How to adjust audio output?

On Windows, go to System Settings > Sound > Output and select 'USB Audio Device'. On macOS, use 'Audio MIDI Setup' to create a multi-output device.

USER MANUAL C31TRAVELDOCKPD20 i-TEC

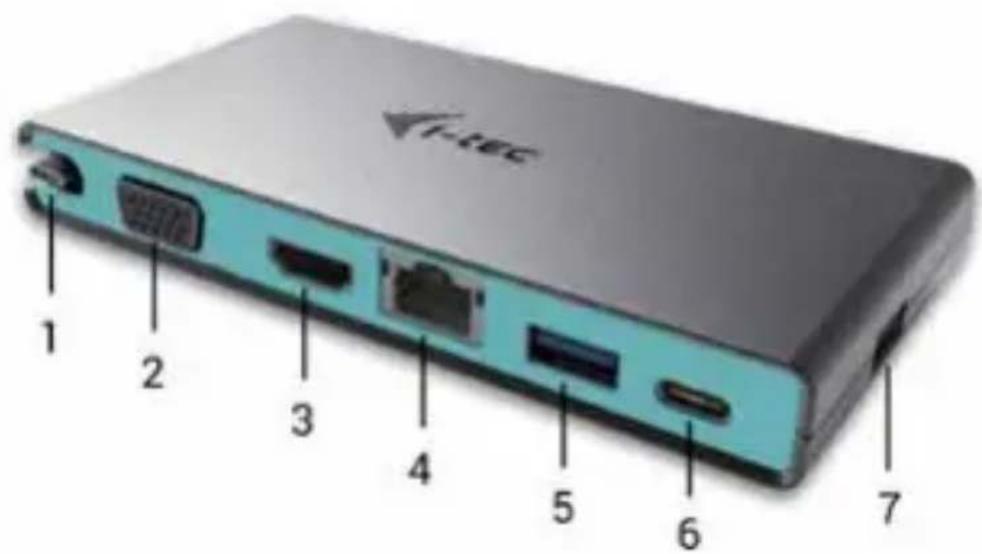

Exterior view of a T-sec device with USB cable and port labels (no readable text beyond branding)

User's guide • Gebrauchsanweisung • Mode d'emploi Manual de instrucciones • Manuale • Uživatelská príručka Instrukcje obsługi • Užívatel'ská príručka Vartotojo vadovas • Handleiding

P/N: C31TRAVELDOCKPD20

EN

Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.cz/en/ in the tab „Manuals, drivers“. In case of any issues, please contact our technical support at: [e-mail]

DE

[e-mail].

USB-C Travel Docking Station

ENGLISH.... 9-11

DEUTSCH....12-15

FRANÇAIS....16–19

ESPAÑOL....20-23

ITALIANO....24-27

ČESKY.... 28–31

POLSKI.... 32-35

SLOVENSKY.... 36–39

LIETUVOS....40-43

NEDERLANDS....44-47

WEEE....48

Declaration of Conformity.... 50

FCC....52

www.i-tec.cz/en

ENGLISH

1. Integrated cable with USB-C connector
2. VGA port
3. HDMI port
4. Ethernet GLAN RJ-45 port
5. USB 3.0 port
6. USB-C Power Delivery / Data port
7. USB 3.0 port

DEUTSCH

Thank you for purchasing the i-tec docking station, our product allows you to connect your favourite devices via a single USB-C connector to a laptop, tablet or smartphone with a USB-C port. The docking station provides 1x HDMI 4K port, 1x VGA Full HD, 2x USB-A 3.0 port, 1x Ethernet GLAN RJ-45 port, 1x USB-C Power Delivery / Data port.

PACKAGE CONTENTS

• i-tec USB-C Docking Station with cable (20 cm)
• Travel case
• Quick Start

SPECIFICATION

• Graphic interface: 1x HDMI (max. resolution 4K 3840x2160@30Hz, for connecting a HDMI monitor), 1x VGA (max. resolution Full HD 1980x1080@60Hz, for connecting a VGA monitor). It is not possible to use both graphic outputs simultaneously, a single monitor only can be connected to the docking station (HDMI or VGA).
• Mode: Extend, Mirror and Primary Display
  • Supported colors 16 / 32 bit
• 2x USB-A 3.0 ports for connecting USB 3.1/3.0/2.0 devices for high-speed data transmission up to 5 Gbps
• 1x USB-C Power Delivery / Data Port – Power Delivery with the profile 4 (max. 60W) for charging laptops, tablets or smartphones with support for Power Delivery. To this port you can connect an original or a universal AC power adapter with USB-C connector, it ensures the constant charging of your laptop, tablet or smartphone during your work. This port also enables data tranfer, therefor can be used to connect modern data devices with USB-C connector (e.g. Ethernet adapter, USB Flash Drive...) However the port does not enable video tranfer.
• 1x Ethernet GLAN RJ-45 port for fast network and Internet access with Gigabit Ethernet connection, it supports speeds of 10 / 100 / 1000 Mbps
• 1x integrated USB-C 3.1 cable for connecting the docking station to laptop, tablet or smartphone
• Powered through USB bus (no power adapter is needed) or through USB-C PD / Data port
• Chipset: VL102 & PS176 & VL817 & RTL8153B & RTD2166
• OS: Requires USB-C interface with „DisplayPort Alternate Mode“ and „Power Delivery“ support (not all devices / systems with USB-C interface support this as standard) or Thunderbolt 3 port – Windows 10 32/64bit, macOS X, Chrome OS and Android 6 (Google) with Intel Broadwell Processor and R51 and higher
  • Product dimensions: 129 x 69 x 17 mm
• Product weight: 92 g

i-tec USB-C Travel Dock 4K HDMI/VGA

SYSTEM REQUIREMENTS

Hardware requirements: Requires USB-C interface with „DisplayPort Alternate Mode“ and „Power Delivery“ support (not all devices / systems with USB-C interface support this as standard) or Thunderbolt 3 port

Operating system: Windows 10 32/64bit, macOS X, Google (Chrome OS and Android 6 and higher) with latest updates

DRIVER INSTALLATION

Windows 10 32/64bit: After connection, the drivers for the docking station are installed automatically on the system. Before installation make sure that your system has installed the latest drivers for your device and updated BIOS.

macOS X: Installation of the drivers in macOS X is automatic. Before installation make sure that your Mac has installed the latest OS for your device.

CONNECTING A HDMI MONITOR

The docking station is equipped with 1x HDMI 4K Ultra HD port for the connection of an external monitor or beamer with a HDMI interface. For displaying your images you can use a modern plazma or LCD monitors and TVs. The graphic chip, which is the heart of the docking station, supports up to 4K resolution 3840x2160@30Hz. Connect the monitor to the docking station using a highquality HDMI cable. During installation of an additional monitor the screen of the notebook or tablet can flicker which is a standard condition.

CONNECTING A VGA MONITOR

The docking station is equipped with 1x VGA Full HD port for the connection of an external monitor or beamer with a VGA interface. For displaying your images you can use a plazma or LCD monitors and TVs. Connect the monitor to the docking station using a VGA cable. During installation of an additional monitor the screen of the notebook or tablet can flicker which is a standard condition.

It is not possible to use both graphic outputs simultaneously, a single monitor only can be connected to the docking station (HDMI or VGA).

CONNECTING TO THE LAN

You can use the GLAN RJ-45 port for connecting the Ethernet to a router / switch and to the internet, it supports speeds of 10 / 100 / 1000 Mbps.

CONNECTING USB DEVICES

You can use USB 3.0 ports for connecting your keyboard, mouse, external hard drive, printer and other devices or you can use it for connecting a USB HUB, which will give you more free USB ports.

CHARGING

The docking station supports charging of USB mobile devices, such as smart phones, e-book readers, multimedia players, navigation devices, and tablets. Simply connect the device that you want to charge using the original cable to the USB port of the docking station. If the device is not charged, connect the original USB-C power adapter to the USB-C Power Delivery port of the docking station.

CHARGING THROUGH POWER DELIVERY

HP Folio G1, Dell XPS13, Acer UX390, MacBook Pro 2016, Chromebook Pixels or Windows 10 devices with USB-C port and power delivery support and power adapter up to 60W.

The docking station offers USB-C Power Delivery / Data port, designed for energizing of the connected "parent" device using the original power adapter and for charging of devices connected through the USB ports. If you no need charging your devices through Power Delivery, you can use the port for data transfer.

AUDIO

Audio output devices, for listening through graphic output, need to be set / verified here: System Preferences-Sound-Output – select USB Audio Device. Setting the audio output device to both the earphones and the monitor simultaneously can be done in Open-Applications-Utilities-Audio settings MIDI.app – click on „+“ on the left at the bottom – Create device with multiple outputs and select the desired outputs from the offered options on the Device with multiple outputs.

The majority of problems with the docking station and the connected peripheral devices can be solved by disconnecting the USB-C cable of the docking station from the USB-C port of the PC / Mac / smartphone and reconnecting after approximately 10 s.

SAFETY INSTRUCTIONS

• Do not expose to extreme temperatures and air humidity.
• Use the device on flat surfaces – you will prevent it from slipping and falling to the ground.
• Save the user manual for a possible use later.

In cooperation with the service department:

• Check functionality after falling to water or to the ground.
• Check functionality when the cover is broken.
• Send the device back if it does not work in accordance with the user manual.

FREQUENTLY ASKED QUESTIONS

Available on our website www.i-tec.cz/en/ on the "FAQ" tab of this product.

EINLEITUNG

INSTRUCTIONS DE SÛRETÉ

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream. This will benefit the environment for all. (European Union only)

DEUTSCH

C31TRAVELDOCKPD20 / C31TRAVELDOCKPD

Determination, Bestimmung, La détermination, Determinación, Determinazione, Určení, Určenie, Opcje, Ustatymas, Doel:

Product is determined for using in PC as equipment.

This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
