Vita - Bottle sterilizer Neno - Free user manual and instructions

Product Type	Bottle Sterilizer
Brand	Neno
Model	Vita
Power Supply	AC 220-240V, 500W
Warming Function	Temperature range 35-50°C
Defrosting Function	Temperature range 30-45°C
Food Heating Function	Temperature range 60-80°C
Sterilization Function	100°C for 10 minutes
Timer	From 1 to 24 hours (except sterilization)
Night Light	Yes, activation by dedicated button
Reservoir Capacity (Sterilization)	Approximately 150 ml
Overheat Protection	Yes, with E3 error display
Display	Temperature and function indicator
Cleaning	Unplug, clean with a damp cloth; descale with citric acid/vinegar every 10-15 days
Recommended Ambient Temperature	15-30°C
Recommended Ambient Humidity	30-80%
Warranty	2 years
Kit Contents	Sterilizer, bottle filter

Frequently Asked Questions - Vita Neno

How to use the sterilization function?

Add approximately 150 ml of water into the warmer, select the sterilization function. The device heats up to 100°C and maintains this temperature for 10 minutes.

What to do if the screen shows E3?

The E3 error indicates overheat protection due to lack of water. Turn off the device, add water to the reservoir, and restart.

Can I heat milk directly in the device?

No, never pour milk or food directly into the heating container. Use a bottle or suitable container placed inside the device.

How to clean and descale the device?

Unplug the device and let it cool. Clean with a damp cloth. For descaling, use a mixture of citric acid, vinegar, and water, then run a sterilization cycle. Repeat every 10 to 15 days.

What is the sterilization duration?

Sterilization lasts 10 minutes at 100°C. This duration is fixed and cannot be changed.

How to set the timer?

Select one of the modes (warming, defrosting, food heating), set the temperature with +/-, then press TIMER to choose a duration from 1 to 24 hours. The device starts automatically at the end of the countdown.

Is the device suitable for glass bottles?

Yes, the device can be used with glass bottles. Place the bottle in the filter and add water up to the milk level.

Can I use the device without water?

No, the device does not work without water. Lack of water triggers the E3 error and overheat protection.

How to turn on the night light?

Press the night light button (E) to turn on the light. This allows you to see at night without disturbing the baby.

What to do in case of overheating?

If the device overheats, it turns off automatically and displays the E3 error. Unplug it, let it cool, then add water before using again.

USER MANUAL Vita Neno

White neonatal infant sprout device with digital display and two baby bottles in a transparent casing (no visible text or symbols)

A B C D 100°C 100°C E F G H I MILK THAW K J FOOD STERILIZE L

2

Line drawings of a kitchen appliance and a test tube with liquid (no text or symbols)

INSTRUKCJA OBSŁUGI

Szanowny Kliencie,

thank you for purchasing Neno Vita. Please refer to the user manual for information concerning safety, use and disposal.

01. SAFETY

1. Read the user manual carefully before use.
2. To avoid overflowing of the appliance, do not clean it under running water.
3. Keep the appliance away from children and infants. Unplug the appliance if it is not used for a long time.
4. If the power cord is damaged, you must have it replaced by a Neno authorized service center to avoid hazard.
5. Do not pour milk or food directly into the heating container.
6. Before feeding the baby, check the food temperature on your wrist. Make sure the food does not cook for too long to not lose nutrients.
7. A slight plastic smell will appear after a few first uses, which is normal and will disappear with time.
8. The appliance can be used by children aged 8 years and above if they have been given supervision or instruction on the use of the appliance, and if they understand the hazards involved. Cleaning and maintenance must not be done by children unless they are 8 years or older and under supervision. Keep the appliance and its cord out of reach of children younger than 8 years old.
9. The machine can be used by people with reduced physical, sensory, or mental capabilities or with a lack of experience and knowledge if they have been given supervision or instruction on the use of the appliance, and if they understand the hazards involved.

Tips: For a better comfort of use, wipe the appliance with a damp cloth before first use. Clean the bottle strainer, pour water into the heating cup, and turn on the sterilization. After the sterilization is finished, pour out the water and let the appliance dry naturally.

02. CLEANING AND MAINTENANCE

1. When cleaning, please unplug the power plug and wait for the heating plate to cool to room temperature before cleaning.

2. Do not scratch the heating surface with sharp metal objects.

3. In case of accumulating scale, pour a mixture of citric acid, vinegar and water into the water container and boil using the sterilize function.

4. It is recommended to clean the appliance every 10-15 days.

5. After cleaning the machine let it dry naturally.

6. It is recommended to pour a mixture of citric with vinegar or detergent and put aside for 10 minutes and then rinse with water.

03. SPECIFICATION

Rated Power: AC 220\~240V 500W

Recommended room temperature & humidity: 15-30°C / 30% - 80%

Warranty: 2 years

04. SCREEN AND DISPLAY PANEL

SEE FIG. 1

The machine is equipped with A - „Temperature display“, B - „Function indicator“ and six buttons: C - „function selection”; D - „increase temperature”; E - „night light”; F - „time”; G - „reduce temperature“ and H - „power button“

1. After you plug the appliance into the socket it will automatically switch to standby mode.

2. Press (H), to turn the appliance on or off. After turning on, the buttons on the display panel will light up.

3. Press the button (C), to pick the heating, defrosting, warming food and sterilization functions.

a. To heat up milk: press the heating milk function and a (l) icon will light up and the display will show a temperature of 40^ C by default. To change the temperature range from 35 to 50^ C use + and – buttons. The icon will flash 2 times, the buzzer will beep, and the machine will start working. During the heating process, the display will show the current and the selected temperature.

b. Thaw: select the thaw function and the (K) icon will light up, and the display will show a temperature of 37^ C by default. To change the temperature range from 30 to 45^ C use + and – buttons. The icon will flash 2 times, the buzzer will beep, and the machine will start working. During the heating process, the display will show the current and the selected temperature.

c. Heat food: select the heat food function and the (J) icon will light up, and the display will show a temperature of 75^ C by default. To change the temperature range from 60 to 80^ C use + and – buttons. The icon will flash 2 times, the buzzer will beep, and the

machine will start working. During the heating process, the display will show the current and the selected temperature.

d. Sterilize: add about 150ml of water to the milk warmer and select the sterilize function. The (L) icon will light up and the display will show a temperature of 100 °C, and then show the process of temperature rise. After the water is boiled, sterilize for 10 minutes. The sterilization time is fixed and cannot be changed - it takes 10 minutes.

1. Time settings: The TIMER button is responsible for setting the time, after which the power-on device will start the previously selected mode. To set the timer, select one of the three modes (heating milk, feed, defrost), set the target temperature with the +/- buttons. Then click TIMER and select the time (from 1 to 24 hours), after which the device will start working on the selected mode.

NOTE: does not apply to the sterilization process.

1. Night light: press the (E) button and the night light will turn on.

2. NOTE: The device maintains the temperature in the selected mode (warming milk, warming food, defrosting) for 72h unless it is turned off or another function is not started.

05. ASSEMBLY AND USE

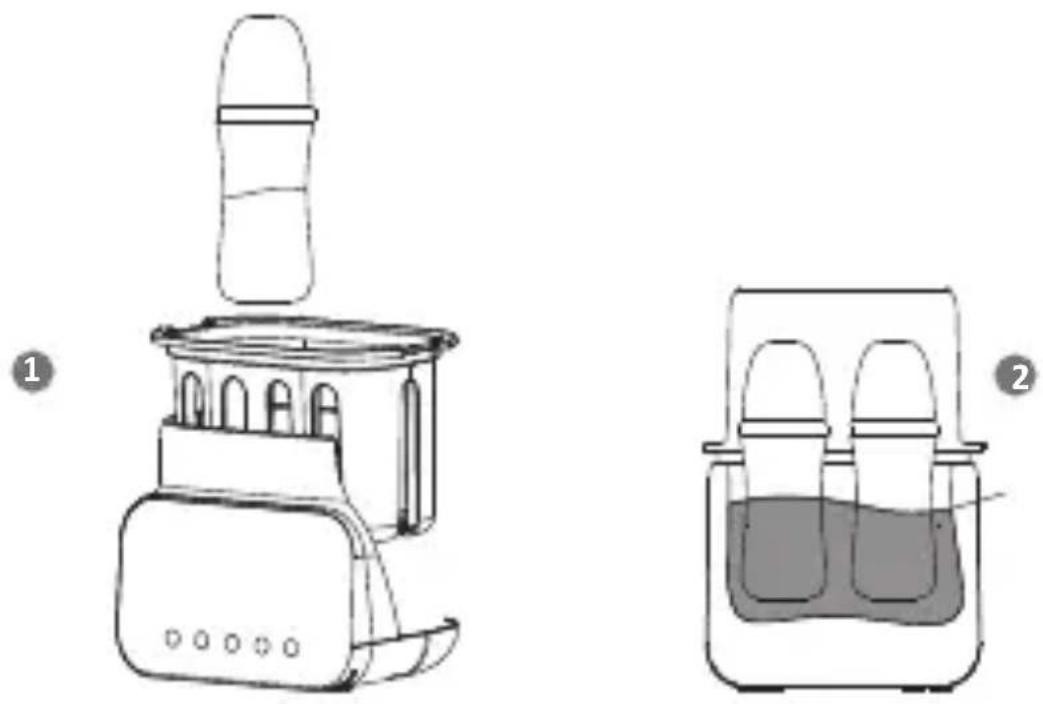

SEE FIG. 2

Add water to the same level as milk in the bottle. The water cannot exceed the MAX logo.

1. Fill the bottle with milk and then place it in the strainer.
2. Add the correct amount of water into the milk warmer.

ATTENTION! The appliance has a built-in anti overheat protection. If there is no water in the water tank, the screen will display an E3 warning, and the machine will not work.

06. WARRANTY CARD

Dear Customer, thank you for purchasing the Neno Vita baby formula machine. If you have any problems in normal use conditions, please contact the authorizedNeno distributor. Please keep the warranty card and show it to the distributor when repairing.

The product is covered by a 24-month warranty. The terms of the guarantee can be found at: https://neno.pl/gwarancja

Details, contact and website address can be found at: https://neno.pl/kontakt

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.

BEDIENUNGSANLEITUNG

The crossed-out wheeled bin symbol indicates that unwanted electrical or electronic equipment, including accessories (such as power supplies or cables) and components (e.g., batteries, if included), must not be disposed of with household waste. Instead, these items should be taken to an appropriate collection point where they will be accepted free range for proper disposal or recycling. This requirement is in accordance with the revised WEEE Directive (2012/19/EU) and tion (EU) 2023/1542, which amends Directive 2008/98/EC and tion (EU) 2019/1020, and repeals Directive 2006/66/EC. disposal of such devices helps prevent environmental e. Information on local collection points is available from the at municipal authorities. Improper disposal of waste may be to penalties under applicable local laws.

DE

KGK TREND Sp. z o.o.

ul. Ujastek 5b, 31-752 Kraków, Polska.

Wyprodukowano w PRC

Producer:

KGK TREND Sp. z o. o.

Ujastek 5b, 31-752 Cracow, Poland.

Made in PRC
