Product type	Electric paint sprayer XVLP (Extra Volume Low Pressure)
Brand	WAGNER
Model	Finish Control 5000
Mains voltage	230 V ~, 50 Hz
Power consumption	1400 W
Spray power	300 W
Container capacity	1000 ml (standard container)
Air hose length	5 m
Power cord length	4 m
Protection class	I (grounded)
Sound pressure level	84 dB(A) (uncertainty K = 4 dB(A))
Sound power level	97 dB(A) (uncertainty K = 4 dB(A))
Vibration level	< 2.5 m/s² (uncertainty K = 1.5 m/s²)
Total weight (turbine, hose and gun)	8 kg
Click&Paint system	Tool-free interchangeable spray attachments
Settings	Spray pattern (round/flat), material flow (1-12), air flow
Usable product types	Paints, stains, varnishes, primers (solvent and water-based), emulsions (with WallSpray attachment)
Non-applicable products	Abrasive, acidic, alkaline, combustible products
Cleaning	Rinse with water or solvent; do not immerse the handle
Maintenance	Clean the air filter regularly; replace if clogged
Available accessories	StandardSpray, FineSpray, WallSpray attachments; 1400 ml container; Can Adapter
Warranty	36 months (online registration required)

Frequently Asked Questions - Finish Control 5000 WAGNER

What types of paint can I use with the Finish Control 5000?

You can use solvent-based paints, water-thinned paints, stains, varnishes, primers and effect paints. For interior wall paints, use the WallSpray attachment (accessory). Avoid abrasive, acidic or alkaline products.

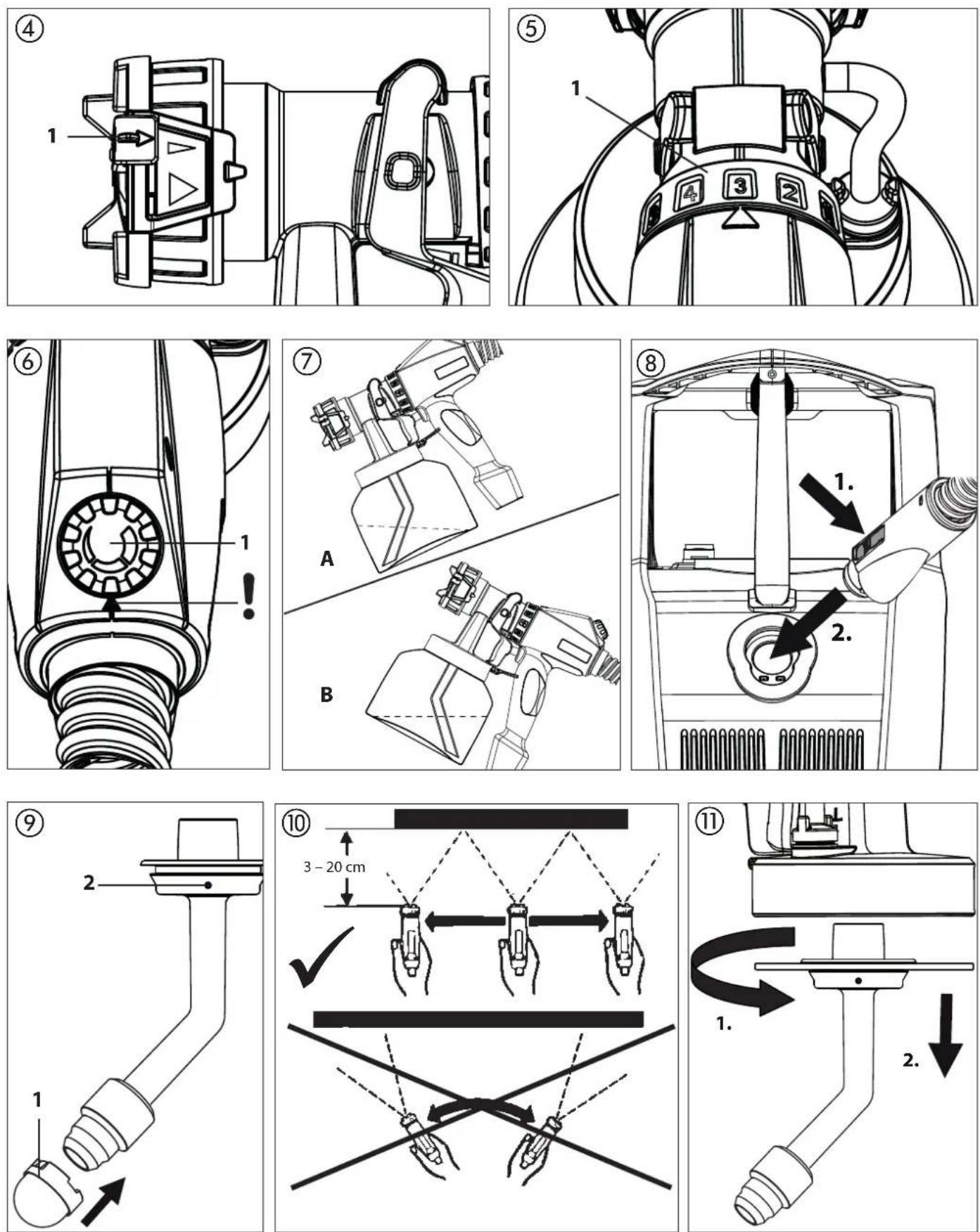

How to adjust the spray pattern?

The spray pattern can be adjusted by turning the black adjustment ring (fig. 3) to switch from horizontal to vertical spray. The adjustment lever (fig. 4) allows choosing between a wide and a compact spray.

What to do if the turbine does not start?

First check the voltage and the power outlet. If the unit has overheated, unplug it and let it cool down for about 30 minutes. Also check that the air hose is not kinked and the air filter is not clogged.

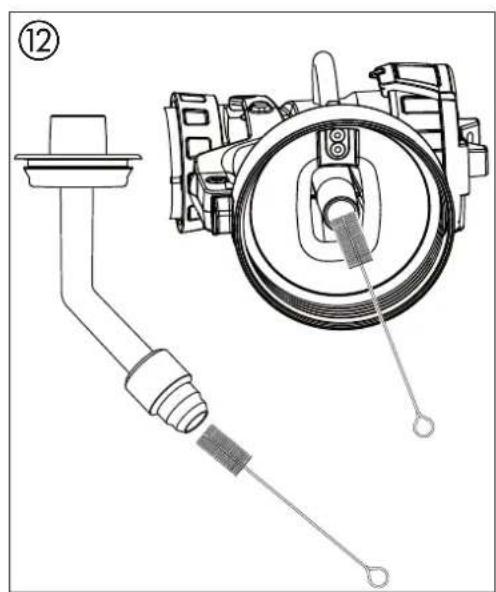

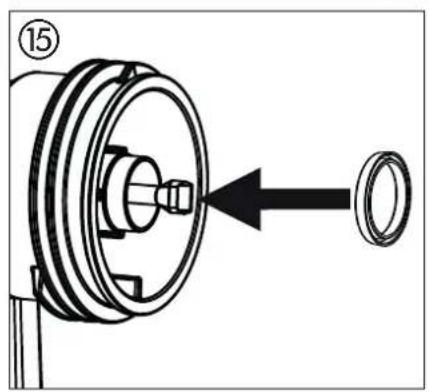

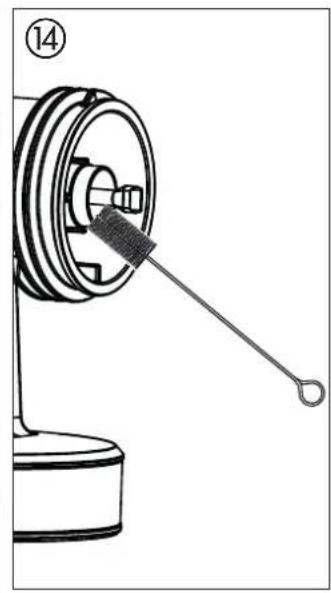

How to clean the spray gun after use?

After emptying the container, fill it with water or suitable solvent, then rinse the spray attachment by spraying until the liquid runs clear. Clean the nozzle, air cap and needle with a brush. Never immerse the handle in liquid.

How to change the spray attachment?

The Click&Paint system allows quick attachment changes. Push the closure down under the trigger, turn the attachment 90° and remove it. To install a new one, align the arrows and turn until it clicks.

What is the recommended spraying distance?

Hold the spray gun at a distance of 3 to 20 cm from the surface. Move it steadily in transversal or vertical motions for an even application.

How to adjust the material flow?

Use the material flow regulator located on the gun (fig. 5). Turn it gradually from 1 (minimum) to 12 (maximum) to adapt the flow to the product viscosity.

What to do if the spray is too coarse?

This may be due to excessive material flow, clogged nozzle, excessive viscosity or a blocked air filter. Reduce the flow, clean the nozzle, thin the product or replace the air filter.

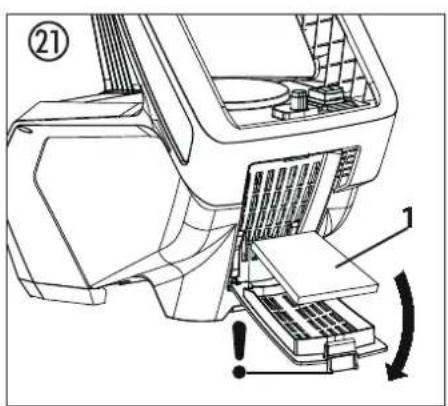

How to maintain the air filter?

Check the air filter before each use. To clean it, open the compartment cover (fig. 21) and blow out the filter to remove dust. Replace it if it is heavily soiled. Never use the unit without a filter.

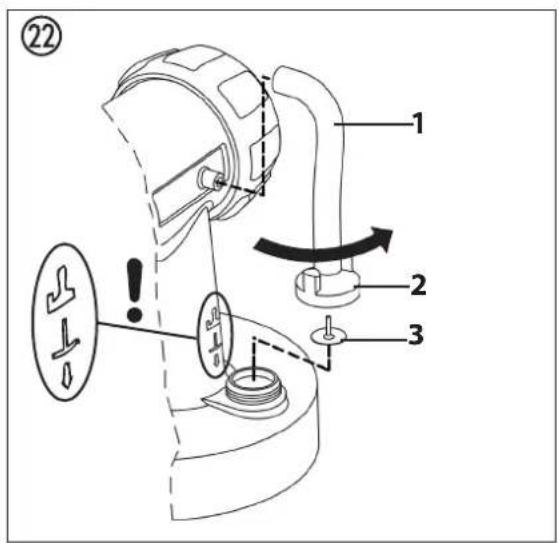

What to do if paint comes back into the vent tube?

This indicates that the membrane is clogged or defective. Disassemble the tube, unscrew the valve cap, remove the membrane and clean it carefully. If it is damaged, replace it with an original Wagner part.

USER MANUAL Finish Control 5000 WAGNER

Technical line drawing of a robotic device with attached spray gun (no text or symbols)

FINISH CONTROL 5000

• D - Betriebsanleitung 1
• GB - Operating manual 15
• F - Mode d'emploi 28
• NL - Gebruikshandleiding 42

• E - Manual de instrucciones 56

• I - Istruzioni per l'uso 70

• DK - Driftsvejledning 84
• S - Bruksanvisning 97
• P - Manual de instruções 110

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Technical line drawing of a mechanical pulley system with a handle and base (no text or symbols)

Mechanical assembly diagram showing a pulley and housing with an arrow indicating direction (no text or symbols)

Mechanical component diagram showing two pulleys crossed by a diagonal black crossbar (no text or symbols)

Technical line drawing of a mechanical device with labeled components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly showing two components with a directional arrow (no text or symbols)

Simple line drawing of a cylindrical mechanical component with an arrow pointing to its end (no text or symbols)

Inhaltsverzeichnis

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

Translation of the original operating instructions

Contents

1 SAFETY REGULATIONS 16

2 EXPLANATORY DIAGRAM 18

3 THE WAGNER CLICK&PAINT SYSTEM 18

3.1 Disassembly of the spray gun 18

4 TECHNICAL DATA 19

5 INTRODUCTION TO SPRAYING USING THE XVLP PROCEDURE 19

6 COATING MATERIAL 19

6.1 Coating Materials Suitable for Use 19

6.2 Coating Materials Not Suitable for Use 19

6.3 Coating materials that can only be processed with relevant spray attachment (accessories) ____ 19

6.4 Preparing the coating material 19

7 SETTING THE SPRAY GUN 20

7.1 Setting the required spray pattern ____ 20

7.2 Setting the amount of material 20

7.3 Setting the amount of air 20

7.4 Align the feed tube 20

12 TAKING OUT OF OPERATION AND CLEANING _ 21

12.1 Assembly 21

13 MAINTENANCE 22

13.1 Air filter 22

13.2 Air relief valve 22

14 CORRECTION OF MALFUNCTIONS 23

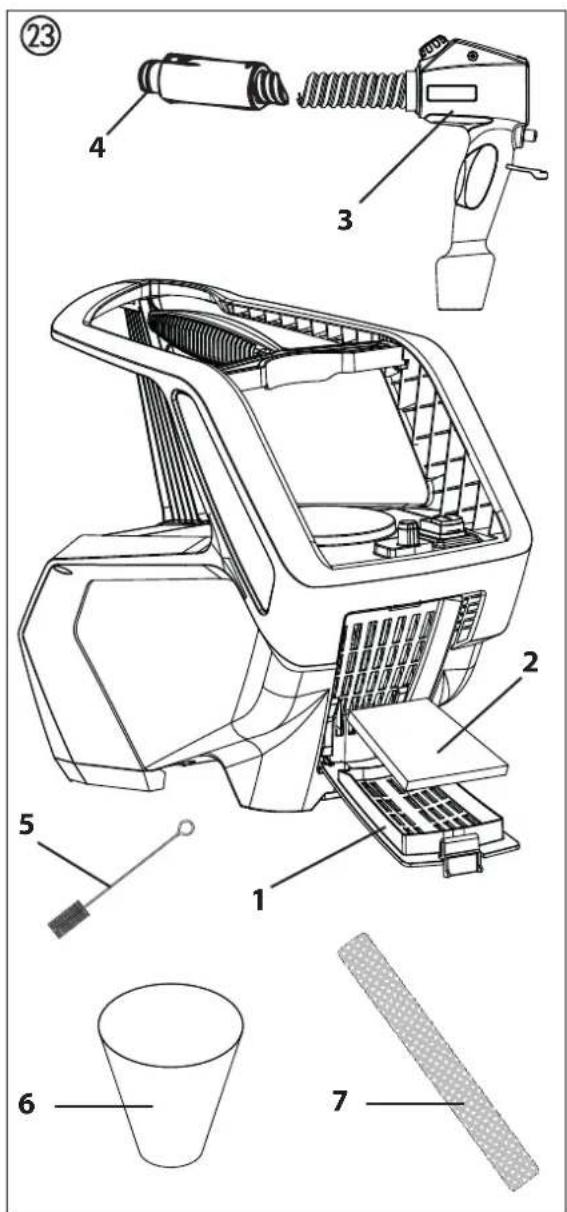

15 ACCESSORIES AND SPARE PARTS 24

15.1 Accessories 24

15.2 Spare parts FinishControl 24

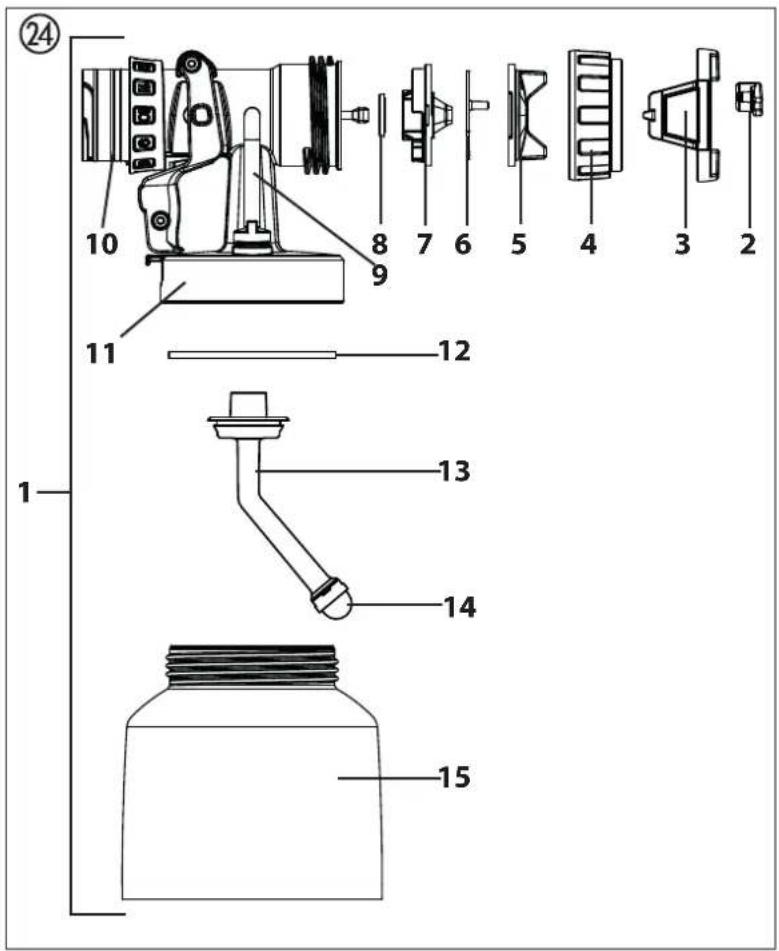

15.3 Spare Parts StandardSpray spray attachment ____ 24

Testing of the unit 26

Note on disposal 26

Important information on product liability ____ 26

Guarantee declaration 26

CE - declaration 27

European service network 126

Explanation of symbols used

	This symbol indicates a potential danger for you or for the device.Under this symbol you can find important information on how to avoid injuries and damage to the device.
	Indicates tips for use and other particularly useful information.

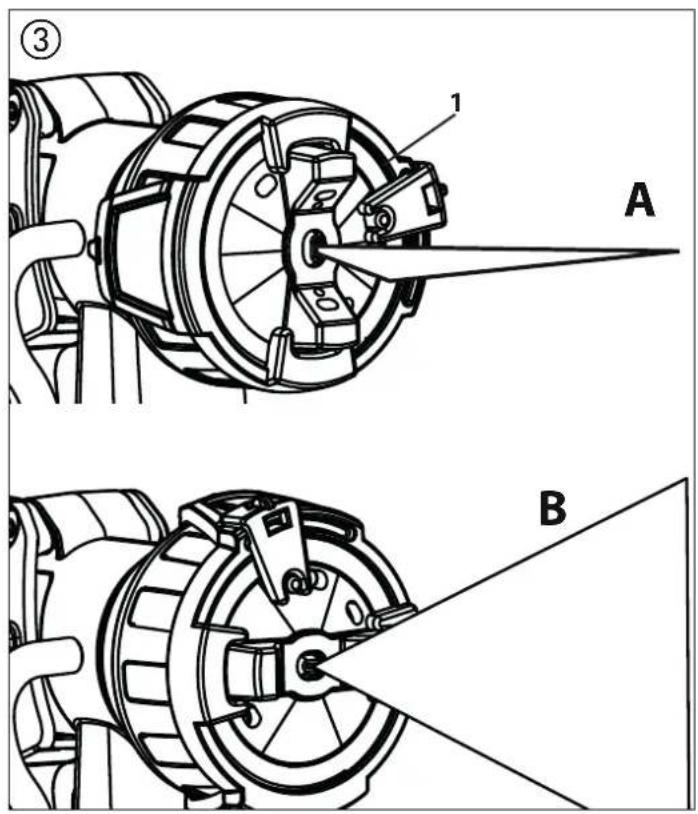

	Wide spray jet setting
	Narrow spray jet setting

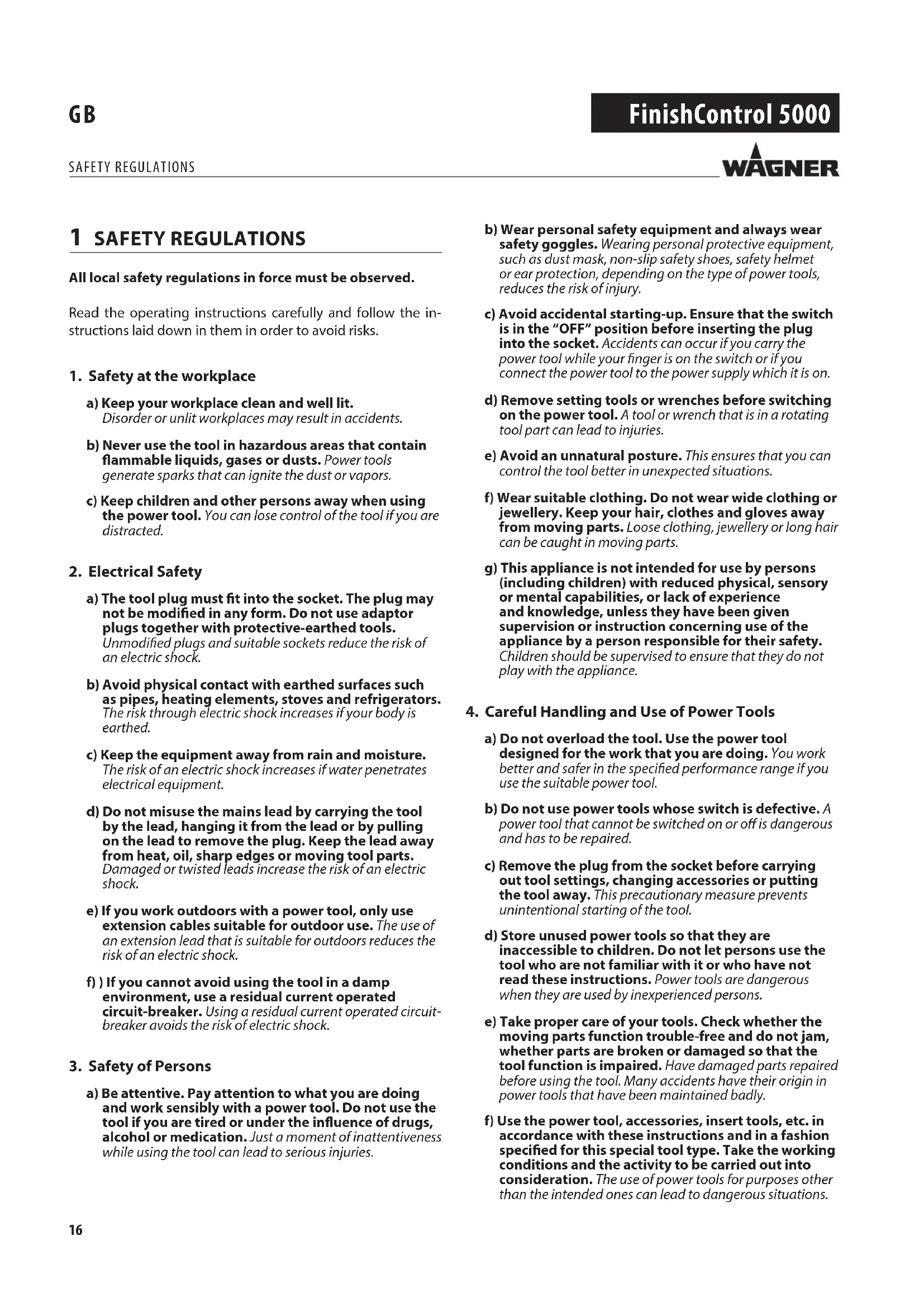

1 SAFETY REGULATIONS

All local safety regulations in force must be observed.

Read the operating instructions carefully and follow the instructions laid down in them in order to avoid risks.

1. Safety at the workplace

a) Keep your workplace clean and well lit.
Disorder or unlit workplaces may result in accidents.
b) Never use the tool in hazardous areas that contain flammable liquids, gases or dusts. Power tools generate sparks that can ignite the dust or vapors.
c) Keep children and other persons away when using the power tool. You can lose control of the tool if you are distracted.

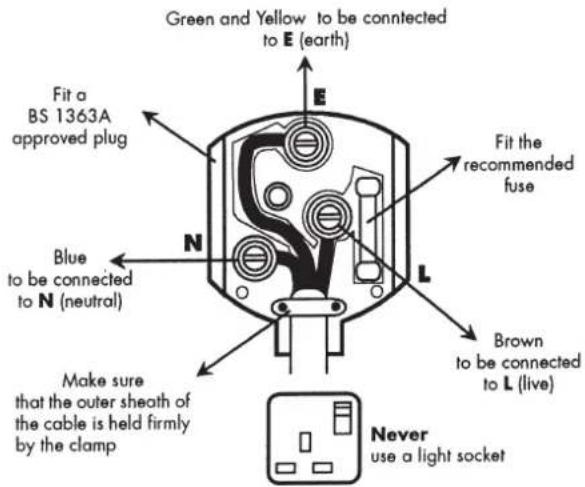

2. Electrical Safety

a) The tool plug must fit into the socket. The plug may not be modified in any form. Do not use adaptor plugs together with protective-earthed tools.
Unmodified plugs and suitable sockets reduce the risk of an electric shock.
b) Avoid physical contact with earthed surfaces such as pipes, heating elements, stoves and refrigerators. The risk through electric shock increases if your body is earthed.
c) Keep the equipment away from rain and moisture. The risk of an electric shock increases if water penetrates electrical equipment.
d) Do not misuse the mains lead by carrying the tool by the lead, hanging it from the lead or by pulling on the lead to remove the plug. Keep the lead away from heat, oil, sharp edges or moving tool parts. Damaged or twisted leads increase the risk of an electric shock.
e) If you work outdoors with a power tool, only use extension cables suitable for outdoor use. The use of an extension lead that is suitable for outdoors reduces the risk of an electric shock.
f) If you cannot avoid using the tool in a damp environment, use a residual current operated circuit-breaker. Using a residual current operated circuit-breaker avoids the risk of electric shock.

3. Safety of Persons

a) Be attentive. Pay attention to what you are doing and work sensibly with a power tool. Do not use the tool if you are tired or under the influence of drugs, alcohol or medication. Just a moment of inattentiveness while using the tool can lead to serious injuries.

b) Wear personal safety equipment and always wear safety goggles. Wearing personal protective equipment, such as dust mask, non-slip safety shoes, safety helmet or ear protection, depending on the type of power tools, reduces the risk of injury.
c) Avoid accidental starting-up. Ensure that the switch is in the "OFF" position before inserting the plug into the socket. Accidents can occur if you carry the power tool while your finger is on the switch or if you connect the power tool to the power supply which it is on.
d) Remove setting tools or wrenches before switching on the power tool. A tool or wrench that is in a rotating tool part can lead to injuries.
e) Avoid an unnatural posture. This ensures that you can control the tool better in unexpected situations.
f) Wear suitable clothing. Do not wear wide clothing or jewellery. Keep your hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair can be caught in moving parts.
g) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

4. Careful Handling and Use of Power Tools

a) Do not overload the tool. Use the power tool designed for the work that you are doing. You work better and safer in the specified performance range if you use the suitable power tool.
b) Do not use power tools whose switch is defective. A power tool that cannot be switched on or off is dangerous and has to be repaired.
c) Remove the plug from the socket before carrying out tool settings, changing accessories or putting the tool away. This precautionary measure prevents unintentional starting of the tool.
d) Store unused power tools so that they are inaccessible to children. Do not let persons use the tool who are not familiar with it or who have not read these instructions. Power tools are dangerous when they are used by inexperienced persons.
e) Take proper care of your tools. Check whether the moving parts function trouble-free and do not jam, whether parts are broken or damaged so that the tool function is impaired. Have damaged parts repaired before using the tool. Many accidents have their origin in power tools that have been maintained badly.
f) Use the power tool, accessories, insert tools, etc. in accordance with these instructions and in a fashion specified for this special tool type. Take the working conditions and the activity to be carried out into consideration. The use of power tools for purposes other than the intended ones can lead to dangerous situations.

5. Service

a) Have your tool repaired only by qualified specialist personnel and only with original spare parts. This ensures that the tool safety is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer or it's service agent or a similarly qualified person in order to avoid a safety hazard.

Safety instructions for colour application devices

1. Risks of Fire and Explosion

Combustible gases develop in the work area when spraying coating substances and due to the autonomous formation of coating substances and solvent vapors (danger zone).

Risk of fire and explosion due to ignition sources in this danger zone.

The electrically operated spray device contains potential ignition sources (spark formation when switching the motor on and off, when inserting and removing the power plug, due to potential static electricity at the spray gun)

-> Device must not be used at operating sites that fall under the explosion protection ordinance.
-> Basic unit and mains connection must be located outside the danger zone.
-> Do not use combustible coating substances and cleaning agents -> observe product data sheets!
->Always seal paint or solvent containers tightly in the vicinity of the device.
-> No ignition sources such as open fire, lit tobacco products, glowing wires, hot surfaces, sparks e.g. due to angle grinders etc. must be present.
-> When cleaning the device with solvent do not spray into a container with a small opening (bung hole). Danger due to formation of an explosive gas/air mixture.

The container into which you are spraying must be earthed.

2. Warning: Danger of injury!

Never point spray gun at yourself, other persons or animals.

3. Wear breathing equipment when spraying.

The user should be supplied with a breathing mask. In order to avoid occupational diseases, the working instructions

provided by the manufacturer of the materials, solvents and cleaning agents used must be complied with during preparation, working with and cleaning the equipment. Protective clothing, gloves and, if necessary, protective skin cream is required to protect the skin.

1. Warning: When working with the paint spraying system, both indoors and outdoors, care should be taken that no solvent vapours are driven to the motor-operated blower or that no solvent containing vapours form in the area around the paint spraying system. Place the motor-operated blower on the opposite side to the object to be sprayed. When working outdoors take wind direction into account. When working in closed places a sufficient ventilation must be ensured to remove the solvent vapours. The distance from the motor - operated blower to the object to be sprayed must be at least 3 m.
2. Warning: The device is not splash proof. It should not be used, neither outdoors in the rain nor be sprayed with water nor immersed in liquid. Do not use the device in damp or wet environments.
3. The units may only be used with a functional valve. If paints rises in the ventilating hose (Fig. 1, item 17) do not operate the unit further! Dismantle and clean the ventilating hose, valve and diaphragm and replace the diaphragm if necessary.
4. Do not lay the filled spray gun down.
5. Extraction systems should be installed on-site according to the local regulations.
6. The object to be coated must be earthed.
7. Caution against dangers that can arise from the sprayed substance and observe the text and information on the containers or the specifications given by the substance manufacturer.
8. Do not spray any liquid of unknown hazard potential.
9. Before dismounting the spray attachment, relieve pressure by opening the container.
10. Before working on the device, remove the power plug from the socket.
11. Work or repairs on the electrical equipment should only be carried out by a professional electrician, even if there are instructions regarding such work in the operating instructions. No liability will be accepted for improper installation.
12. Do not sit or stand on the device. Danger of tilting/breaking!

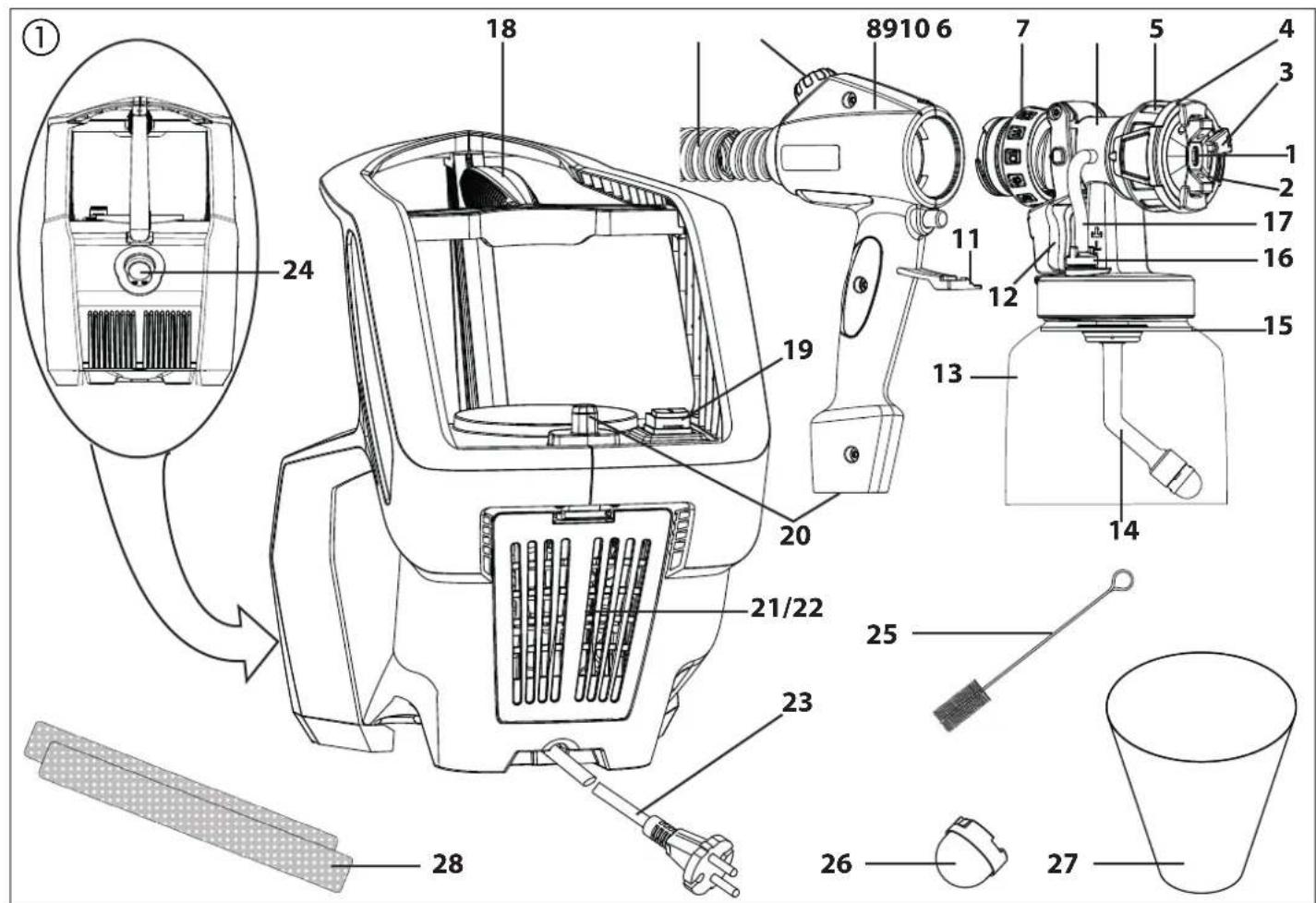

2 EXPLANATORY DIAGRAM (FIG. 1)

POS. DESIGNATION

1 Nozzle

2 Air cap

3 Spray jet width adjusting lever (shaping air)

4 Spray jet level adjusting ring (vertical/horizontal)

5 Union nut

6 Spray attachment complete

7 Material volume regulation

8 Gun handle

9 Air volume control

10 Air hose

11 Click&Paint catch

12 Trigger (actuates turbine starting switch → material is conveyed)

13 Container

14 Suction tube

POS. DESIGNATION

15 Container seal

16 Valve

17 Ventilating hose

18 Carry handle

19 ON/OFF switch (I = ON, 0 = OFF)

20 Gun mounting for park position

21 Air filter cover

22 Air filter

23 Power cable

24 Air hose connection

25 Cleaning brush

26 Fine feed tube filter (red)Coarse feed tube filter (white)

27 Funnel (3 pcs.)

28 Air hose fixing straps (2 pcs.)

3 THE WAGNER CLICK&PAINT SYSTEM

With the Wagner Click&Paint System, the front part of the gun (spray attachment) can be replaced quickly and easily.

This enables a rapid material change without cleaning, and ensures that the right tool is available for every material and application.

The following spray attachments are available:

Spray attachment Area of application
StandardSpray (yellow)Order No. 2321 879	Spray attachment with slit nozzle and 1000 ml stainless steel container. Processes all standard paints.
FineSpray (brown)Order No. 2321 877	Spray attachment with round nozzle and 1000 ml stainless steel container. Ideal for low-viscosity paints and glazes.
WallSpray (white)Order No. 2321 880	Dispersion spray attachment with slit nozzle and 1400 ml plastic container. Designed for processing dispersions.

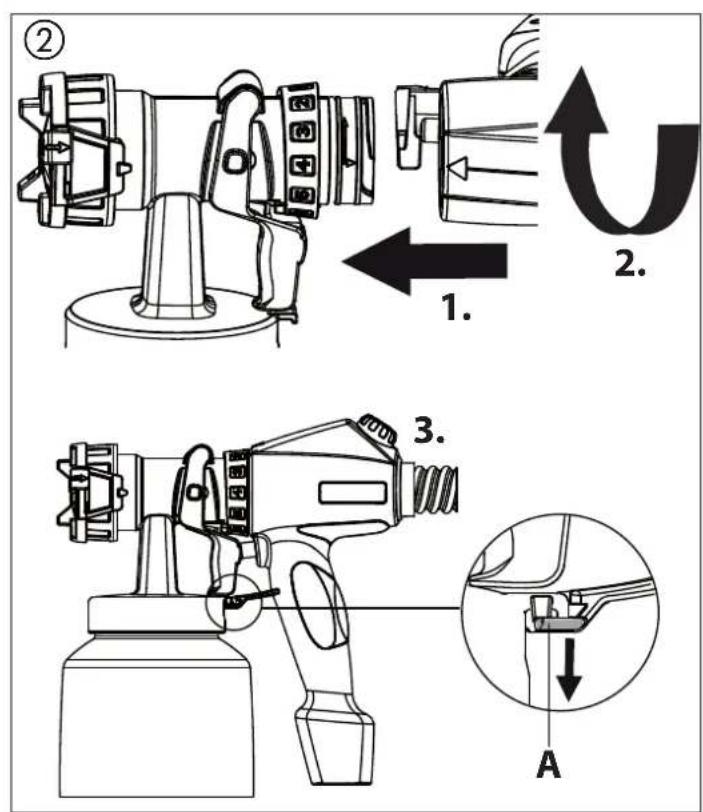

3.1 DISASSEMBLY OF THE SPRAY GUN

For assembly, insert the spray attachment into the gun handle so that the two arrows point at each other. Turn the gun handle 90^ in the arrow direction until it audibly engages. (Fig. 2)

To remove the spray attachment, push the catch (Fig. 2, A) beneath the trigger down and turn the spray attachment by 90^ .

4 TECHNICAL DATA

Voltage: 230 V~, 50 Hz
Power consumption: 1400 W
Atomizing output: 300 W
Container volume: 1000 ml
Air hose: 5 m
Power cable: 4 m
Protection class: I
Sound pressure level:*Uncertainty K:	84 dB (A)4 dB (A)
Sound pressure output:*Uncertainty K:	97 dB (A)4 dB (A)
Oscillation level:Uncertainty K:	<2.5 m/s ^2 1.5 m/s ^2
Weight (motor-operated blower, air hose and spray gun): 8 kg

* The acoustic emission value was ascertained in accordance with EN 50144-2-7:2000

5 INTRODUCTION TO SPRAYING USING THE XVLP PROCEDURE

XVLP (Extra Volume Low Pressure) is a low pressure spraying technique, which works with a high volume of air and a low air pressure. The greatest advantage of this spraying technique is the low paint mist formation. This reduces the amount required to cover the object to a minimum.

As opposed to conventional application of coatings, this method achieves a highly economical and perfect surface quality and is, at the same time, environmentally friendly.

Function description

The paint spraying system consists of a motor-operated turbo-blower, which provides the spray gun with atomisation air through an air hose.

In the spray gun, a part of the atomisation air is used to pressurise the container. This pressure causes the coating material to be fed through the uptake pipe to the nozzle where it is atomised by the rest of the atomisation air.

All settings necessary for operation (e.g. material volume) can be conveniently made, directly on the gun.

6 COATING MATERIAL

6.1 COATING MATERIALS SUITABLE FOR USE

Solvent-based and water-soluble lacquer paints Mordants, glazes, impregnations, oils, clear varnishes, synthetic enamels, coloured paints, alkyd resin varnishes, primers, radiator paints, hammer effect enamels, anti-rust paints, special-effect paints, textured paints

6.2 COATING MATERIALS NOT SUITABLE FOR USE

Materials that contain highly abrasive components, facade paint, caustic solutions and acidic coating substances.

Flammable materials.

6.3 COATING MATERIALS THAT CAN ONLY BE PROCESSED WITH RELEVANT SPRAY ATTACHMENT (ACCESSORIES)

Interior wall paint (dispersions and latex paint)

6.4 PREPARING THE COATING MATERIAL

Observe the manufacturer's instructions for the use of the coating material on the paint tin or on the technical instruction sheet.

Coating material purity:

An absolute pre-condition for the trouble-free operation of the fine-spray system is that the coating material is uncontaminated. If you have doubts as to the purity of the coating material, we recommend that you first filter it through a fine sieve.

Processing the coating material with the StandardSpray spray attachment (yellow)

Coating Material	Processing	Comments
Solvent-based lacquer paints	observe manufac-turer's instructions
Water-soluble lacquer paints	observe manufac-turer's instructions
Mordants, glazes, im-pregnations, oils	undiluted	FineSpray spray attachment (brown) recommended
Clear varnishes, syn-thetic enamels, col-oured paints, alkyd resin varnishes	observe manufac-turer's instructions
Primers, radiator paints, hammer ef-fect enamels	observe manufac-turer's instructions
Anti-rust paints, special-effect paints	observe manufacturer's instructions
Multicolor paints, textured paints	observe manufacturer's instructions	WallSpray spray attachment (white) recommended

7 SETTING THE SPRAY GUN

7.1 SETTING THE REQUIRED SPRAY PATTERN

!	Attention: Never pull trigger while adjusting the air cap settings.

The alignment of the spray jet can be determined by turning the black adjusting ring (Fig. 3, 1).

A horizontal flat jet

→ for vertical surfaces

B vertical flat jet

→ for horizontal surfaces

It is also possible to switch between a wide (i) and a compact (j) spray jet with the adjusting lever (Fig. 4, 1).

7.2 SETTING THE AMOUNT OF MATERIAL (FIG. 5)

The material volume can be adjusted incrementally from 1 (minimum) to 12 (maximum) by turning the material volume control (Fig. 5, 1).

7.3 SETTING THE AMOUNT OF AIR (FIG. 6)

Turn the air volume control (Fig. 6, 1) clockwise to increase the air volume or anti-clockwise to reduce the air volume (note arrow on body of gun).

The correct setting of air and material volume is crucial for atomisation and paint mist formation.

7.4 ALIGN THE FEED TUBE

If the feed tube is positioned correctly, the container contents can be sprayed without almost any residue.

When working on lying objects:

Turn the feed tube forwards. (Fig. 7 A)

Spraying work when working on overhead objects:

Turn the feed tube rearwards. (Fig. 7 B)

Before connecting to the mains supply make sure that the mains voltage corresponds to the operating voltage on the rating plate. The unit must be connected with a properly earthed shockproof socket.

1. Squeeze the side clips together and insert the air hose onto the basic unit. (Fig. 8)
2. Unscrew the container from the spray attachment.

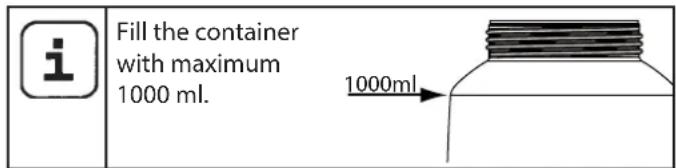

3. Pour in the prepared coating material.

1. Fit the appropriate filter to the feed tube depending on the coating material used (Fig. 9, 1)

Low-viscosity coating materials → Fine filter (red)

Viscous coating materials → Coarse filter (white)

1. Screw the container firmly onto the spray attachment.
2. Connect spray attachment and gun handle. (Fig. 2)
3. Plug in the power cable.
4. Switch on the main switch at the device.

The device is now ready for operation.

9 SPRAYING TECHNIQUE

i	The FinishControl has a trigger with 2 pressure points. In the first stage the turbine is started. If the trigger is pressed further, the material is trans- ported.

Operate trigger on the spray gun.

Test spray a piece of cardboard to ensure correct setting of the spray pattern, spray jet width, material and air volume.

Hold the paint spray gun upright and maintain a constant distance of about 3 - 20 cm to the object being sprayed. (Fig. 10)

Move the paint spray gun evenly either from side to side or up and down. If the gun is moved evenly, it will produce an even surface finish.

Always start spraying away from the object and avoid stop-ping spraying whilst still on the object.

In case of excessive paint mist formation, adjust the air and material flow respectively and alter the distance from the object.

10 BREAKS IN WORK

1. Switch device o with main switch on the basic unit.
2. Insert spray gun into gun mounting on the device.

In using quick-drying or two-component coating materials, do not fail to rinse unit through with a suitable cleaning agent during the processing period.

Important: The application life of the material can change as a result of heating. Therefore, please consult the material manufacturer.

11 TRANSPORTATION

1. Coil power cable around the basic unit.
2. Insert spray gun into gun mounting on the device.
3. Disconnect air hose by pressing the two side clips (Fig. 8).
4. Roll up the air hose and tie up with the xing straps.

12 TAKING OUT OF OPERATION AND CLEANING

1. Turn the machine o .
2. Divide the spray gun. Press catch (Fig. 2, A) down slightly. Twist spray attachment and gun handle towards each other.

ATTENTION! Electrical contacts in gun handle. Never hold the gun handle under water or immerse it into liquids. Clean the housing only with a moistened cloth.

1. Unscrew the container.
   Empty the remaining coating material into the original container.
2. Pre-clean the container and feed tube using a brush and suitable cleaning agent. Clean the ventilating bore. (Fig. 9, 2)

3. Pour solvent or water into the container. Screw the container back on.
   Do not use flammable materials for cleaning purposes.

4. Connect spray attachment and gun handle. (Fig. 2)

5. Switch device on and ash spray attachment through with solvent or water.

Repeat the above procedure until the solvent or water emerging from the nozzle is clear.

1. Turn o the machine and divide the spray gun.

2. Screw o the container and empty it.

Unscrew feed tube with container seal. (Fig. 11)

1. Clean feed tube and suction nozzle in spray attachment with cleaning brush. (Fig. 12)

CAUTION! Never clean seals, diaphragm and nozzle or air holes of the spray gun with metal objects.

The ventilation hose and diaphragm are only solvent-resistant to a limited extent. Do not immerse in solvent, only wipe.

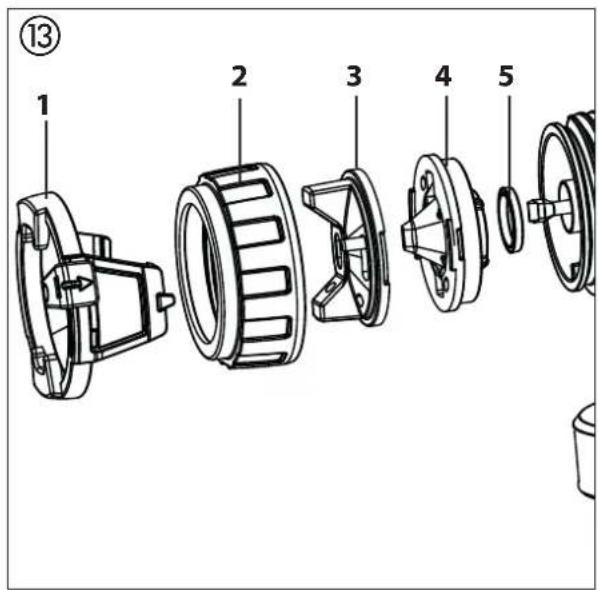

1. Remove the adjusting ring (fig. 13,1) carefully from the union nut (2). Unscrew union nut (2), remove air cap (3), nozzle (4) and nozzle seal (5). Thoroughly clean all parts.

Take special care when cleaning the interstices on the needle (Fig. 14)

1. Clean the outside of the spray gun and container with a cloth soaked in solvent or water.

2. Assemble the parts again (see "Assembly").

12.1 ASSEMBLY

ATTENTION! Follow the steps described below exactly for assembly. Otherwise the spray attachment may be damaged.

1. Push nozzle seal onto the needle so that the groove (slot) points away from the spray attachment. (Fig. 15)

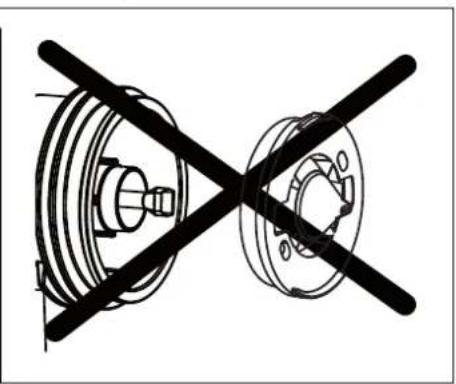

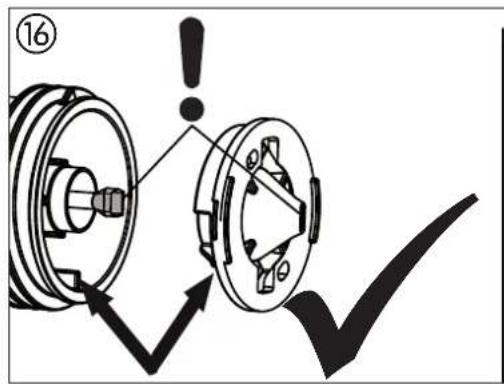

2. Place nozzle on the needle with recess downwards. Attention: Position of needle must be congruent with the nozzle aperture. (Fig. 16)

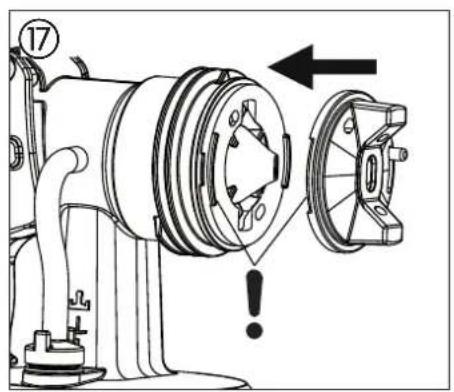

3. Place air cap on nozzle (pay attention to recesses in the air cap). (Fig. 17)

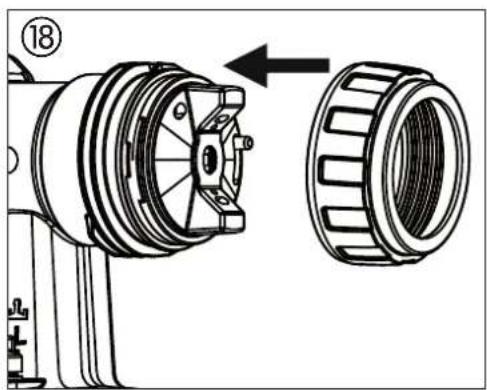

4. Screw on union nut. (Fig. 18)

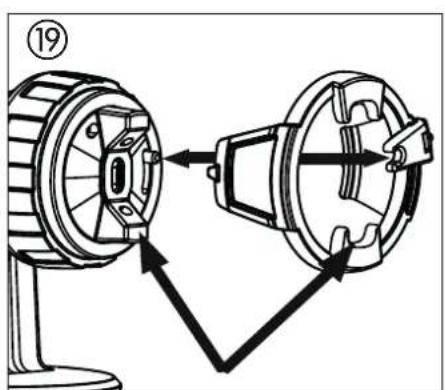

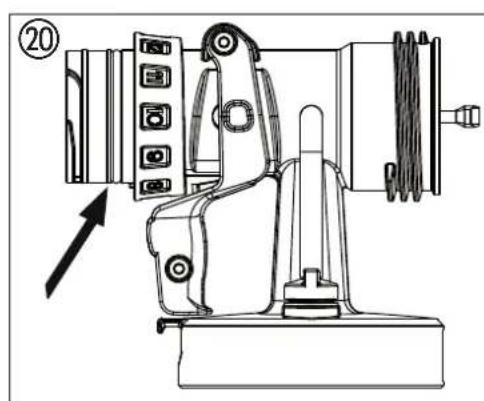

5. Snap the adjusting ring into the union nut. (Fig. 19) Make sure that the two recesses on the adjusting ring are engaged in the air cap clamps and that the lever for adjusting the spray jet width is located on the pin.
6. Place the container seal from below on the feed tube and slide it over the collar, while turning the container seal slightly.
7. Screw the feed tube with the container seal into the body of the gun.

In order to mount the gun more easily apply lubricating grease (enclosed) liberally to the O-ring at the spray attachment and to the O-ring of the plug connection of the air hose (Fig. 20).

13 MAINTENANCE

13.1 AIR FILTER

Attention! Never operate the device with the air filter soiled or missing, as dirt could be sucked up and affect the operation of the device.

Always check the air filter before starting work.

1. Unplug the power plug.
2. Open the cover of the air filter compartment (Fig. 21).
3. Clean (blow out) or replace the air filter (Fig. 21,1) depending on the degree of soiling.

13.2 AIR RELIEF VALVE

If paint has entered the ventilation hose, proceed as follows:

1. Pull the ventilating hose (Fig. 22, 1) at the top from the gun body. Screw off the valve cover (2). Remove the diaphragm (3). Clean all the parts carefully.

CAUTION! The ventilation hose and diaphragm are only solvent-resistant to a limited extent. Do not immerse in solvent, only wipe.

1. Place the diaphragm in the valve cover with the pin facing forward (Also see the marking on the gun body).
2. Turn the body of the gun upside down and screw on the valve cover from underneath.
3. Place the ventilating hose on the valve cover and on the nipple at the gun body.

Warning

If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

The wires in this mains lead are coloured in accordance with the following code:

$$ \begin{array}{r l} \text { green / yellow } & = \text { earth } \ \text { blue } & = \text { neutral } \quad \text { brown } = \text { live } \end{array} $$

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured brown.
• Should the moulded plug have to be replaced, never re-use the defective plug or attempt to plug it into a different 13 A socket. This could result in an electric shock.
• Should it be necessary to exchange the fuse in the plug only use fuses approved by ASTA in accordance with BS 1362. Only 13 Amp fuses may be used.
• To ensure that the fuse and fuse carrier are correctly mounted please observe the provided markings or colour coding in the plug.
  • After changing the fuse, always make sure that the fuse carrier is correctly inserted. With out the fuse carrier, it is not permissible to use the plug.
• The correct fuses and fuse carriers are available from your local electrical supplies stockist.

14 CORRECTION OF MALFUNCTIONS

MALFUNCTION CAUSE REMEDY
The unit will not start	No mains voltageDevice overheated	CheckUnplug the power plug, let the device cool down approx. 30 minutes, do not bend the hose, check the air filter, do not cover the intake slots
No coating material emerges from the nozzle	Nozzle cloggedMaterial volume setting too lowPaint container seal damagedNo pressure build-up in containerContainer emptyVentilation hose loose/damagedFeed tube looseFeed tube / feed tube filter cloggedAir vent on feed tube blockedDiaphragm stuck	CleanIncrease volumeReplaceTighten containerRefillInsert or replaceInsertClean or use another filterCleanRemove and clean (see section 13.2)
Coating material drips from the nozzle	Air cap, nozzle or needle soiledSpray attachment incorrectly assembledNozzle looseNozzle seal wornNozzle wornNeedle worn	CleanAssemble correctly (see section 12.1)Tighten Union nutChangeChangeUse new spray attachment
Atomisation too coarse	Material volume too largeNozzle contaminatedViscosity of coating material too highToo little pressure build-up in containerAir filter heavily soiledAmount of air too lowAir hose damaged	Reduce volumeCleanDilute furtherTighten containerChange (see section 13.1)Increase volumeCheck and replace if necessary
Spray jet pulsates	Coating material in container running outNozzle seal wornAir filter heavily soiledFeed tube looseFeed tube / feed tube filter clogged	RefillReplaceChange (see section 13.1)InsertClean or use another filter
Coating material causes "paint tears	Too much coating material appliedDistance too smallIncorrect spray attachment	Reduce volumeIncrease distanceUse another spray attachment
Excessive paint mist (overspray)	Distance to the object too largeToo much coating material appliedAmount of air too highCoating substance over-dilutedIncorrect spray attachment	Reduce distanceReduce volumeReduce volumeReduce degree of dilutionUse another spray attachment
Paint in the ventilating hose	Diaphragm soiledDiaphragm defective	Clean the diaphragm (see section 13.2)Replace the diaphragm (see section 13.2)

15 ACCESSORIES AND SPARE PARTS

15.1 ACCESSORIES

POS. ORDER NO. DESIGNATION

1 2321 879 StandardSpray spray attachment (yellow) (with 1000 ml container) Processes all standard paints.
2 2321 877 FineSpray spray attachment (brown) (with 1000 ml container) Ideal for low-viscosity paints and glazes.
3 2321 880 WallSpray spray attachment (white) (with 1400 ml container) Designed for processing dispersions.
4 2324 749 Container with cover (1400 ml)
5 2350 692 Can Adapter With the Can Adapter, paint cans can be attached directly to a Click&Paint spray attachment. Suitable for: commercially available 750 ml paint tins (maximum dimensions ∅=102 mm, h=119 mm) and 1000 ml paint tins (maximum dimensions ∅=112 mm, h=132 mm).

The FC 5000 cannot be used with the heatable TempSpray spray attachment.

15.2 SPARE PARTS FINISHCONTROL 5000 (FIG. 23)

POS. ORDER NO. DESIGNATION

1 2312 650 Cover of air filter compartment
2 2322 446 Air filter (3 pcs.)
3 2314 573 Gun handle with air hose
4 0420 316 O-ring of air hose
5 0514 209 Cleaning brush
6 2324 745 Funnel (3 pcs.)
7 2324 751 Air hose fixing strap

15.3 SPARE PARTS STANDARDSPRAY SPRAY ATTACHMENT (YELLOW) (FIG. 24)

POS. ORDER NO. DESIGNATION

1 2321 879 StandardSpray spray attachment (yellow) (with 1000 ml container)
2 2314 594 Spray jet width adjusting lever
3 2314 591 Spray jet adjustment ring
4 2332 577 Union nut (yellow)

5 2317 807 Air cap
6 2314 585 Air screen
7 2317 423 Nozzle (S 4.1)
8 2323 934 Nozzle seal

POS. ORDER NO. DESIGNATION

9	2304 027	Ventilating hose, valve cover, diaphragm
10	0417 308	O-ring of spray attachment
11	2324 250	Body of gun (including position 8-10)
12	2319 223	Container seal
13	2319 222	Feed tube
14	2324 248	Fine feed tube filter (red, 5 pc.)
	2324 249	Coarse feed tube filter (white, 5 pc.)
15	2322 451	Container with cover 1000 ml
	2315 539	Lubricating grease

TESTING OF THE UNIT

For safety reasons, we would recommend having the device checked by an expert as required but at least every 12 months to ensure that it can continue to operate safely.

In the case of unused devices, the check can be postponed until they are next started up.

All (potentially deviating) national inspection and maintenance regulations must also be observed.

If you have any questions, please contact the customer service team at Wagner.

IMPORTANT INFORMATION ON PRODUCT LIABILITY

An EU directive valid since 01.01.1990 specifies that the manufacturer is only liable for his products if all the parts originate from the manufactured or are approved by him, and if the units are mounted and operated properly.

If accessories or spare parts from third parties are used, liability can be partially or completely inapplicable. In extreme cases the responsible authorities can prohibit the use of the entire unit (German industrial employer's liability insurance association and factory inspectorate).

With original WAGNER accessories and spare parts, compliance with all safety regulations is guaranteed.

NOTE ON DISPOSAL

In observance of the European Directive 2002/96/EC on waste electrical and electronic equipment and implementation in accordance with national law, this product is not to be disposed of together with household waste material but must be recycled in an environmentally friendly way!

Wagner or one of our dealers will take back your used Wagner waste electrical or electronic equipment and will dispose of it for you in an environmentally friendly way. Please ask your local Wagner service centre or dealer for details or contact us direct.

GUARANTEE DECLARATION

(Status 01.02.2009)

1. Scope of guarantee

All Wagner professional colour application devices (hereafter referred to as products) are carefully inspected, tested and are subject to strict checks under Wagner quality assurance. Wagner exclusively issues extended guarantees to commercial or professional users (hereafter referred to as "customer") who have purchased the product in an authorised specialist shop, and which relate to the products listed for that customer on the Internet under www.wagner-group.com/profi-guarantee.

The buyer's claim for liability for defects from the purchase agreement with the seller as well as statutory rights are not impaired by this guarantee.

We provide a guarantee in that we decide whether to replace or repair the product or individual parts, or take the device back and reimburse the purchase price. The costs for materials and working hours are our responsibility. Replaced products or parts become our property.

2. Guarantee period and registration

The guarantee period amounts to 36 months. For industrial use or equal wear, such as shift operations in particular, or in the event of rentals it amounts to 12 months.

Systems driven by petrol or air are also guaranteed for a 12 month period.

The guarantee period begins with the day of delivery by the authorised specialist shop. The date on the original purchase document is authoritative.

For all products bought in authorised specialist shops from 01.02.2009 the guarantee period is extended to 24 months providing the buyer of these devices registers in accordance with the following conditions within 4 weeks of the day of delivery by the authorised specialist shop.

Registration can be completed on the Internet under www.wagner-group.com/profi-guarantee.

The guarantee certificate is valid as confirmation, as is the original purchase document that carries the date of the purchase. Registration is only possible if the buyer is in agreement with having the data being stored that is entered during registration.

When services are carried out under guarantee the guarantee period for the product is neither extended nor renewed.

Once the guarantee period has expired, claims made against the guarantee or from the guarantee can no longer be enforced.

3. Handling

If defects can be seen in the materials, processing or performance of the device during the guarantee period, guarantee claims must be made immediately, or at the latest within a period of 2 weeks.

The authorised specialist shop that delivered the device is entitled to accept guarantee claims. Guarantee claims may also be made to the service centres named in our operating instructions. The product has to be sent without charge or presented together with the original purchase document that includes details of the purchase date and the name of the product. In order to claim for an extension to the guarantee, the guarantee certificate must be included.

The costs as well as the risk of loss or damage to the product in transit or by the centre that accepts the guarantee claims or who delivers the repaired product, are the responsibility of the customer.

4. Exclusion of guarantee

Guarantee claims cannot be considered

-for parts that are subject to wear and tear due to use or other natural wear and tear, as well as defects in the product that are a result of natural wear and tear, or wear and tear due to use. This includes in particular cables, valves, packaging, jets, cylinders, pistons, means-carrying housing components, filters, pipes, seals, rotors, stators, etc. Damage due to wear and tear that is caused in particular by sanded coating materials, such as dispersions, plaster, putty, adhesives, glazes, quartz foundation.

-in the event of errors in devices that are due to non-compliance with the operating instructions, unsuitable or unprofessional use, incorrect assembly and/or commissioning by the buyer or by a third party, or utilisation other than is intended, abnormal ambient conditions, unsuitable coating materials, unsuitable operating conditions, operation with the incorrect mains voltage supply/frequency, over-operation or defective servicing or care and/or cleaning.

-for errors in the device that have been caused by using accessory parts, additional components or spare parts that are not original Wagner parts.

-for products to which modifications or additions have been carried out.

-for products where the serial number has been removed or is illegible

-for products to which attempts at repairs have been carried out by unauthorised persons.

-for products with slight deviations from the target properties, which are negligible with regard to the value and usability of the device.

-for products that have been partially or fully taken apart.

5. Additional regulations.

The above guarantees apply exclusively to products that have been bought by authorised specialist shops in the EU, CIS, Australia and are used within the reference country.

If the check shows that the case is not a guarantee case, repairs are carried out at the expense of the buyer.

The above regulations manage the legal relationship to us concludingly. Additional claims, in particular for damages and losses of any type, which occur as a result of the product or its use, are excluded from the product liability act except with regard to the area of application.

Claims for liability for defects to the specialist trader remain unaffected.

German law applies to this guarantee. The contractual language is German. In the event that the meaning of the German and a foreign text of this guarantee deviate from one another, the meaning of the German text has priority.

J. Wagner GmbH

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

Federal Republic of Germany

Subject to modifications

EU Declaration of conformity

We declare under sole responsibility that this product conforms to the following relevant stipulations:

2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU

Applied harmonised norms:

EN 60745-1, EN 50580, EN 62233, EN 55014-1, EN 55014-2,

EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-4,

EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

The EU declaration of conformity is enclosed with the product.

If required, it can be re-ordered using order number

2368397.

6.1 PRODUITS DE REVÊTEMENT APPLICABLES

14 ELIMINATION DES DÉFAUTS

INDICATION DE MISE AU REBUT

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

5 INTRODUCTIE IN HET SPUITEN VOLGENS HET XVLP-PROCÉDÉ

10 ARBEIDSONDERBREKING

www.wagner-group.com/profi-guarantee.

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

www.wagner-group.com/profi-guarantee.

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

15 ACCESSORI E RICAMBI 80

15.1 Accessori 80

15.2 Ricambi FinishControl 80

15 ACCESSORI E RICAMBI

15.1 ACCESSORI

POS. N° ORD. NOME

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

15.2 Reservedele FinishControl 93

15.3 Reservedele pistol StandardSpray 93

2 BESKRIVELSE AF APPARATET (FIG. 1)

POS. BETEGNELSE

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

Forbundsrepublikken Tyskland

5 INTRODUKTION TILL SPRUTNING MED XVLP _ 101

6 SPRUTMATERIAL 101

5 INTRODUKTION TILL SPRUTNING MED XVLP

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

Division Professional Finishing

Otto Lilienthal Strasse 18

88677 Markdorf

GB Wagner Spraytech (UK) Limited

The Coach House

2 Main Road

Middleton Cheney OX17 2ND

Great Britain

UK-Helpline 01295 714200

Fax [phone]

[e-mail]

B WSB Finishing Equipment

Veilinglaan 56-58

1861 Meise-Wolvertem

Belgium

Tel. [phone]

Telefax +32/2/269 78 45

[e-mail]

NL WSB Finishing Equipment BV

De Heldinnenlaan 200,

3543 MB Utrecht

Netherlands

Tel. [phone]

Telefax +31/ 30/241 17 87

[e-mail]

D J. Wagner GmbH

Telefax 04.42.53.44.36
