USER MANUAL RM 2 RT STIHL

1 Introduction. 18
2 Guide to Using this Manual. 18
3 Overview. 18
4 Safety Precautions. 19
5 Preparing the Lawn Mower for Operation. 24
6 Adding Engine Oil 24
7 Refuelling the Lawn Mower. 24
8 Adjusting the Lawn Mower for the User.... 25
9 Starting and Stopping the Engine 25
10 Checking the Lawn Mower. 26
11 Operating the Lawn Mower. 26
12 After Finishing Work. 27
13 Transporting 27
14 Storing. 28

English 1 Introduction

15 Cleaning. 28
16 Maintenance 28
17 Repairing. 29
18 Troubleshooting 30
19 Specifications. 30
20 Spare Parts and Accessories. 31
21 Disposal 31
22 EC Declaration of Conformity 31
23 UKCA Declaration of Conformity 32

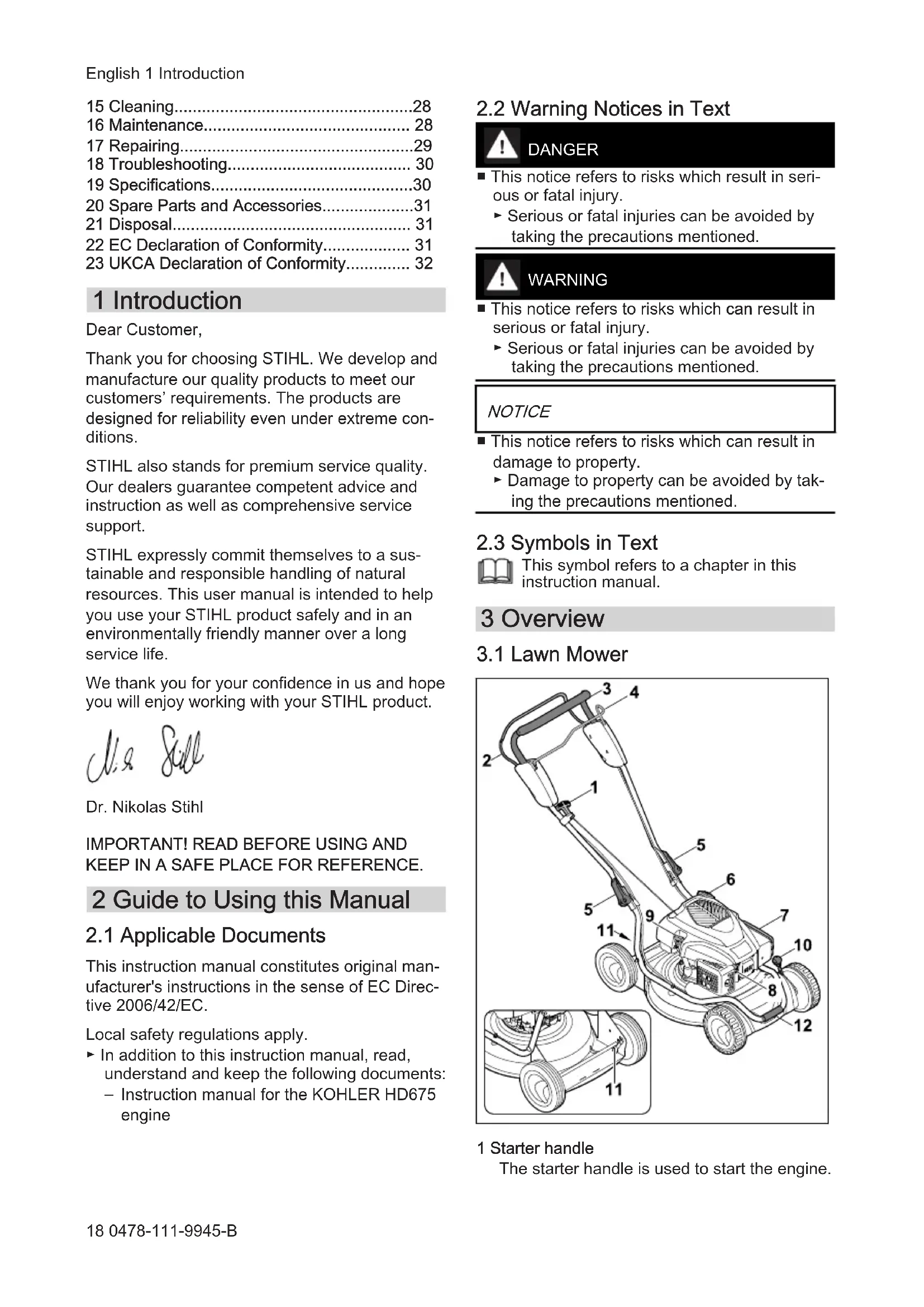

1 Introduction

Dear Customer,

Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme conditions.

STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support.

STIHL expressly commit themselves to a sustainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life.

We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

Dr. Nikolas Stihl

IMPORTANT! READ BEFORE USING AND KEEP IN A SAFE PLACE FOR REFERENCE.

2 Guide to Using this Manual

2.1 Applicable Documents

This instruction manual constitutes original manufacturer's instructions in the sense of EC Directive 2006/42/EC.

Local safety regulations apply.

In addition to this instruction manual, read, understand and keep the following documents: - Instruction manual for the KOHLER HD675 engine

2.2 Warning Notices in Text

DANGER

This notice refers to risks which result in serious or fatal injury.

• Serious or fatal injuries can be avoided by taking the precautions mentioned.

WARNING

This notice refers to risks which can result in serious or fatal injury.

Serious or fatal injuries can be avoided by taking the precautions mentioned.

NOTICE

This notice refers to risks which can result in damage to property.

• Damage to property can be avoided by taking the precautions mentioned.

2.3 Symbols in Text

This symbol refers to a chapter in this instruction manual.

overview

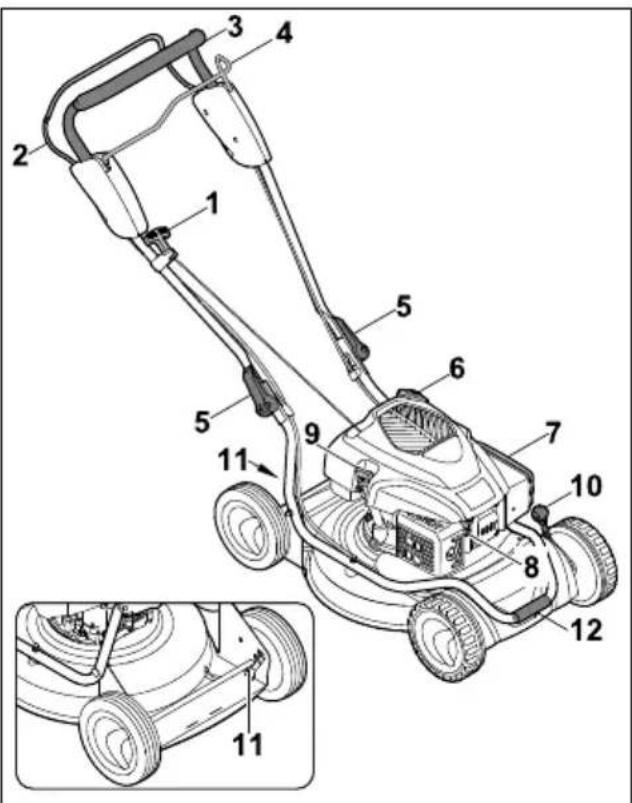

3.1 Lawn Mower

1 Starter handle

The starter handle is used to start the engine.

4 Safety Precautions English

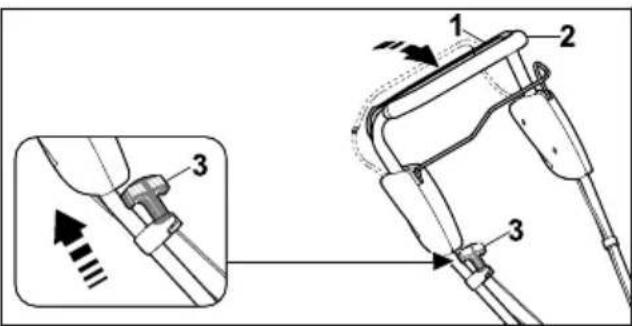

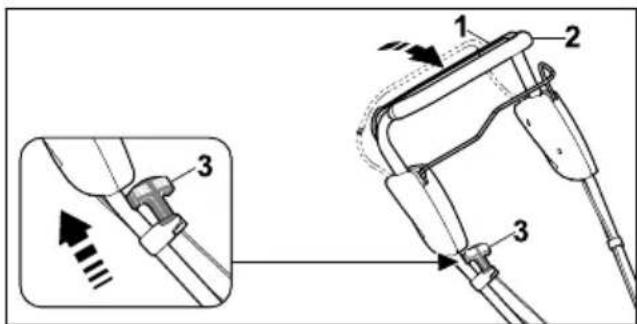

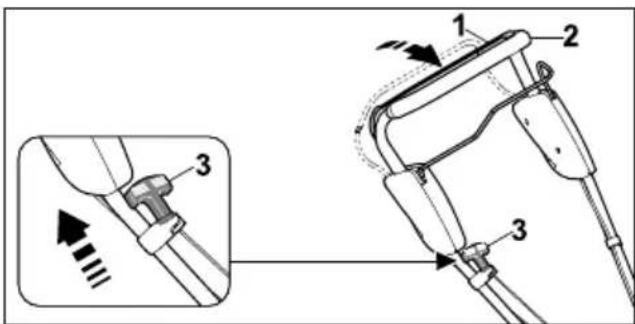

2 Control bar for mowing

The control bar for mowing is used to start and stop the engine.

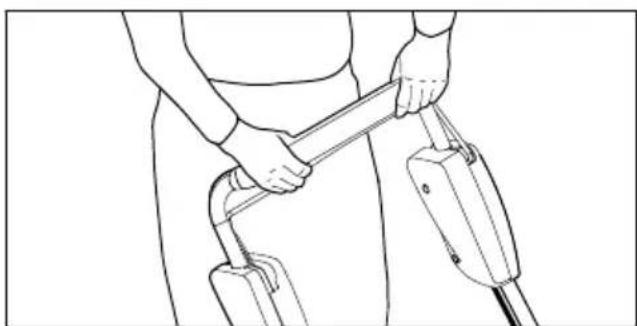

3 Handlebar

The handlebar is used to hold, guide and transport the lawn mower.

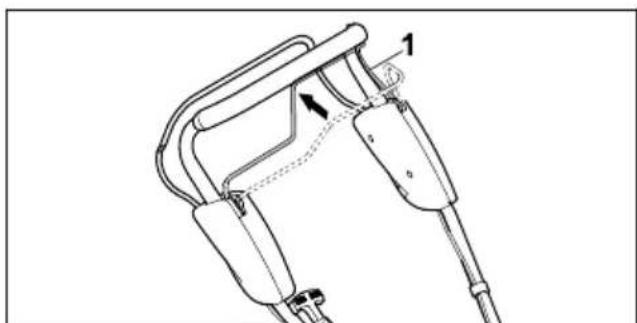

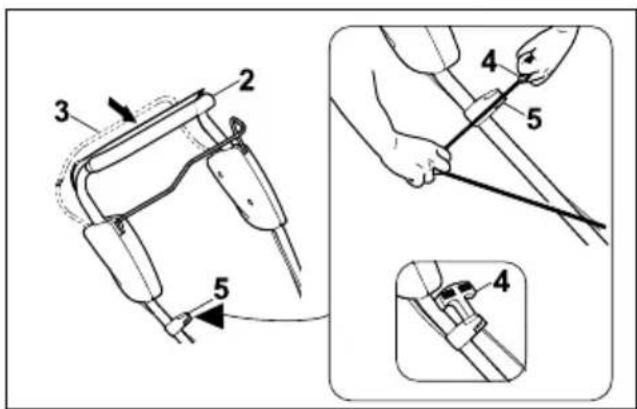

4 Control bar for self-propulsion

The control bar for self-propulsion is used to start and stop the engine.

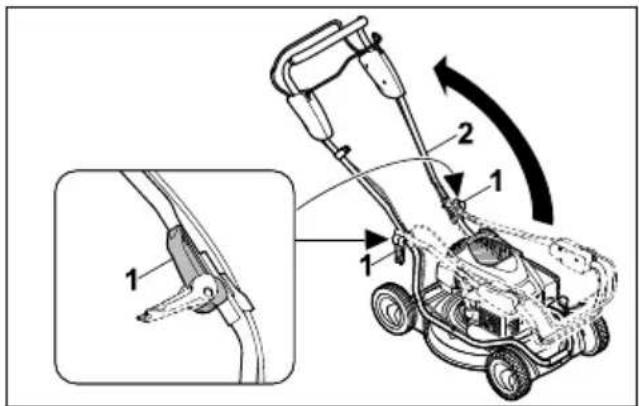

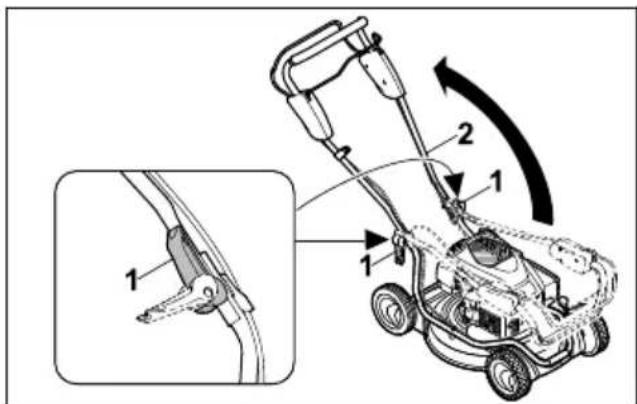

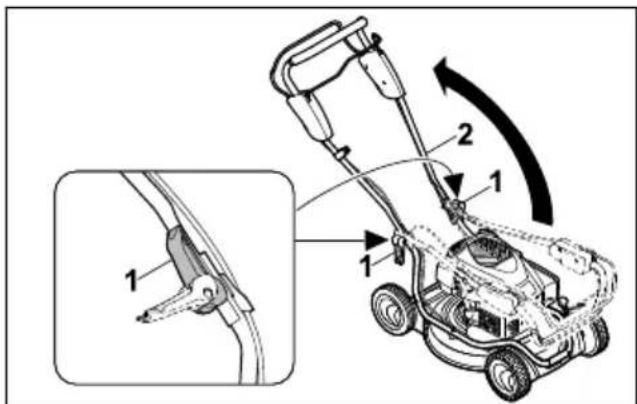

5 Quick-clamping devices

The quick-clamping devices clamp the handlebar to the lawn mower.

6 Fuel tank cap

The fuel tank cap seals the opening for adding petrol.

7 Filter cover

The filter cover provides protection for the air filter.

8 Spark plug socket and spark plug

The spark plug socket connects the ignition lead to the spark plug.

The spark plug ignites the fuel/air mixture in the engine.

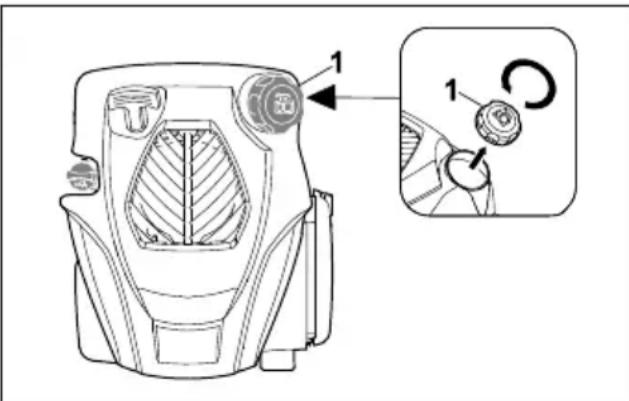

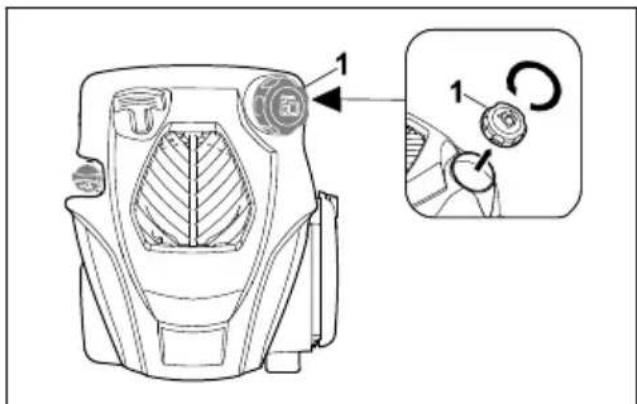

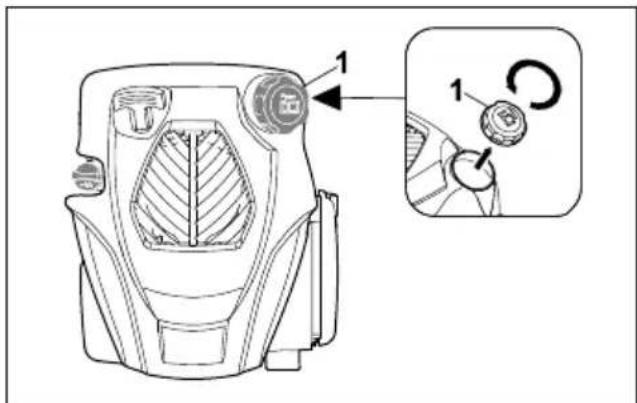

9 Engine oil cap

The engine oil cap seals the opening for adding engine oil.

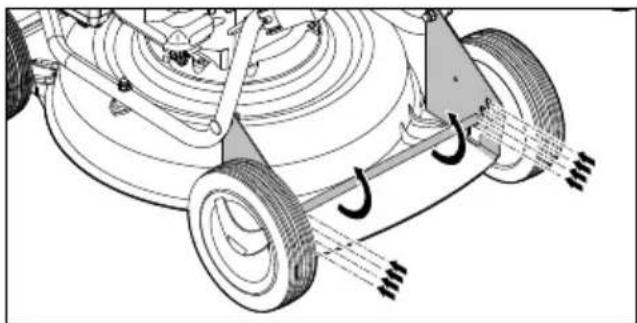

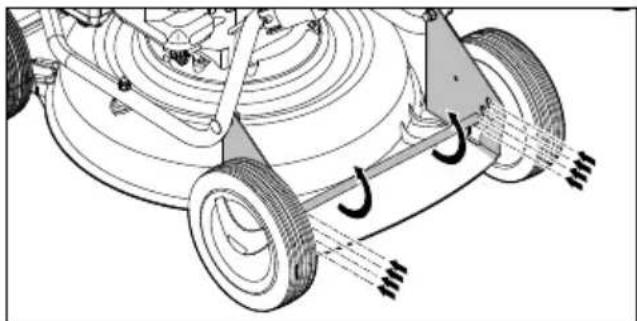

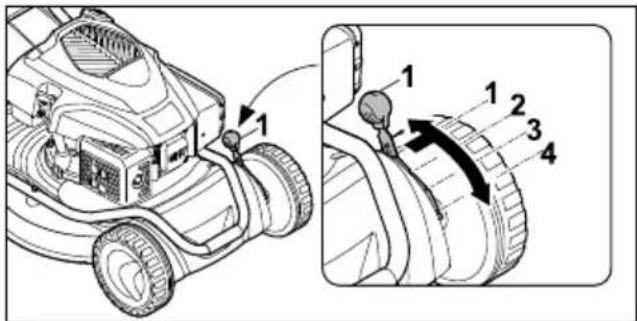

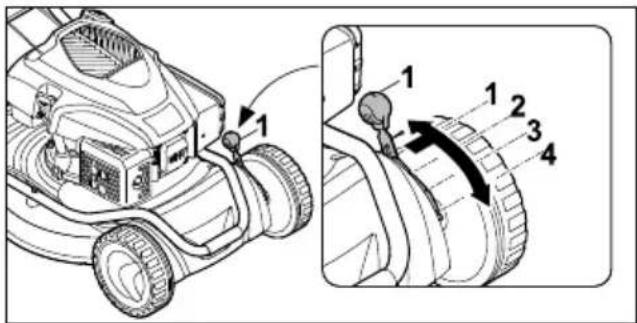

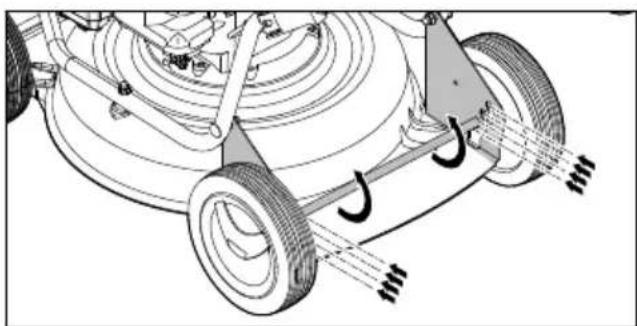

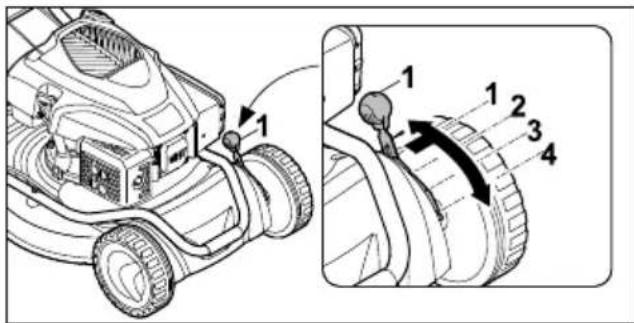

10 Front cutting height adjustment mechanism

The cutting height adjustment mechanism is used to set the cutting height.

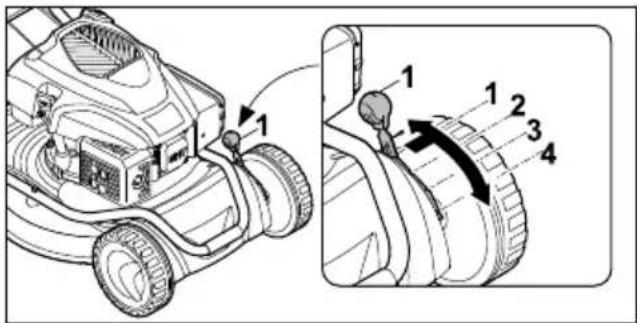

11 Rear cutting height adjustment mechanism

The cutting height adjustment mechanism is used to set the cutting height.

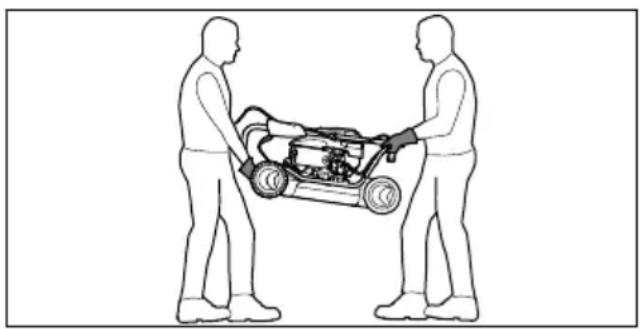

12 Transport handle

The transport handle is used to transport the lawn mower.

3.2 Symbols

The symbols can be on the lawn mower and have the following meaning:

LwA

Guaranteed sound power level in accordance with Directive 2000/14/EC in dB(A) for the purpose of comparing the sound emissions of products.

This symbol identifies the fuel tank cap.

This symbol identifies the engine oil cap.

Start the engine.

Stop the engine.

Engage self-propulsion.

4 Safety Precautions

4.1 Warning Symbols

The warning symbols on the lawn mower have the following meaning:

Follow the safety instructions and their measures.

Read, understand and keep the instruction manual.

Observe the safety instructions on objects expelled at high speed by the lawn mower and their measures.

Do not touch a turning blade.

Detach the spark plug socket during transport, storage, maintenance or repair.

Maintain a safety distance.

4.2 Intended Use

The STIHL RM 2.0 RT lawn mower is used to mulch dry grass.

WARNING

Failure to use the lawn mower as intended may result in serious or fatal injury to people and damage to property.

• Use the lawn mower as described in this instruction manual and in the engine instruction manual.

4.3 Requirements for the User

WARNING

Uninstructed users cannot recognise or evaluate the dangers posed by the lawn mower. This may result in serious or fatal injury to the user or other people.

Read, understand and keep the instruction manual.

If passing on the lawn mower to another person: provide them with the lawn mower and engine instruction manuals also.
Make sure that the user meets the following conditions:

• The user is rested.
• The user is physically, sensorily and mentally capable of operating the lawn mower and working with it. If the user is physically, sensorily or mentally impaired, the machine must only be used under supervision or following instruction by a responsible person.
• The user can recognise and evaluate the dangers posed by the lawn mower.
• The user is aware that they are responsible for accidents and damage.
• The user is of legal age or the user is being trained under supervision in a profession in accordance with national regulations.
• The user has received instruction from a STIHL specialist dealer or a competent person before using the lawn mower for the first time.
• The user is not impaired by alcohol, medicines or drugs.

If anything is unclear: consult a STIHL specialist dealer.

4.4 Clothing and Equipment

WARNING

• Objects may be thrown up at high velocity while working. This may result in injury to the user.
• Wear long trousers made from resistant material.
• Noise is produced when working. Noise may damage the hearing.
  Wear hearing protection.
• Dust may be stirred up while working. Breathing in dust may be harmful to health and cause allergic reactions.
  If dust is stirred up: wear a dust mask.
• Unsuitable clothing may get caught in wood, briars and in the lawn mower. This may result in serious injury to the user.
  Wear close-fitting clothing.

• Remove scarves and jewellery.

• The user may come into contact with the blade during cleaning, maintenance or transport. This may result in injury to the user.

Wear work gloves made from resistant material.
Wear sturdy, closed-toed footwear with high-grip soles.

Wearing unsuitable footwear may cause the user to slip. This may result in injury to the user.

Material particles may be expelled when sharpening the blade. This may result in injury to the user.

Wear close-fitting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and available commercially with the corresponding marking.
Wear work gloves made from resistant material.

4.5 Work Area and Surroundings

WARNING

• Bystanding people, children and animals cannot recognise or evaluate the dangers posed by the lawn mower and objects thrown up by the machine. This may result in serious injury to bystanding people, children and animals and damage to property.

• Keep bystanding people, children and animals out of the work area.

• Maintain a distance from objects.
  Do not leave the lawn mower unattended.
  Make sure that children cannot play with the lawn mower.

Hot exhaust gases are emitted from the muffler when the engine is running. Hot exhaust gases may ignite easily inflammable materials and cause fires.

• Keep the exhaust gas flow away from easily inflammable materials.

4.6 Safe Condition

4.6.1 Lawn Mower

The lawn mower is in safe condition when the following conditions are met:

• The lawn mower is undamaged.
• There is no petrol leaking from the lawn mower.
• The fuel tank cap is closed.
• There is no engine oil leaking from the lawn mower.
• The engine oil cap is closed.

4 Safety Precautions English

• The lawn mower is clean.
• The controls are working and have not been modified.
• The blade is correctly attached.
• Genuine STIHL accessories for this lawn mower are attached.
• The accessories are correctly attached.
• Spring-loaded mechanisms are undamaged and working.
• The engine stops when the control bar for mowing is released.

WARNING

If not in safe condition, components may no longer operate correctly, safety devices may be disabled and fuel may leak. This may result in serous or fatal injury to people.
Do not use a damaged lawn mower.
If there is petrol leaking from the lawn mower: do not use the lawn mower and consult a STIHL specialist dealer.
- Close the fuel tank cap.
If there is engine oil leaking from the lawn mower: do not use the lawn mower and consult a STIHL specialist dealer.
- Close the engine oil cap.
If the lawn mower is dirty: clean the lawn mower.
Do not tamper with the lawn mower and its safety systems.
Tampering with the lawn mower which increases the power output or the engine speed is forbidden.
If the controls are not working: do not use the lawn mower.
- Spring-loaded mechanisms may release stored energy.
- Attach genuine STIHL accessories for this lawn mower.

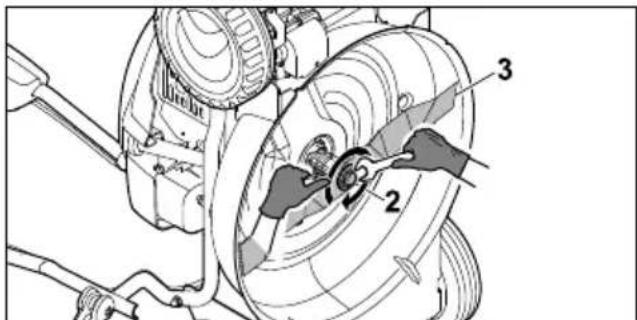

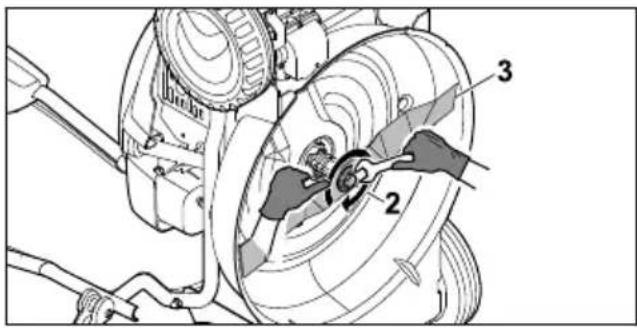

Attach the blade as described in this instruction manual.
- Attach accessories as described in this instruction manual or in the instruction manual for the accessories.
- Do not insert objects into the apertures in the lawn mower.
Replace worn or damaged warning signs.
If anything is unclear: consult a STIHL specialist dealer.

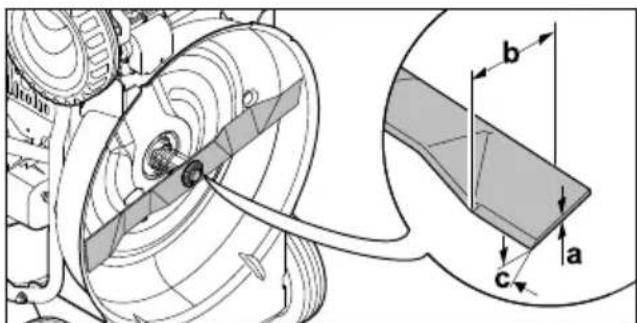

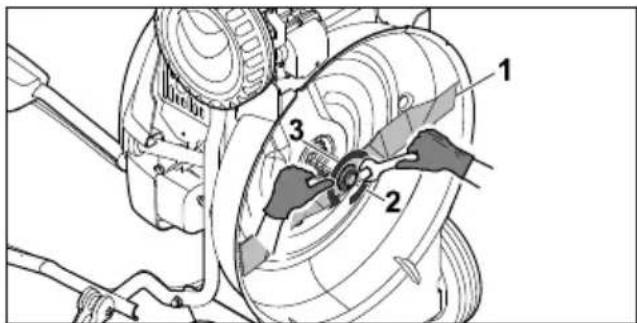

4.6.2 Blade

The blade is in safe condition when the following conditions are met:

• The blade and attachments are undamaged.
• The blade is not deformed.

• The blade is correctly attached.

• The blade is correctly sharpened.

• The blade is burr-free.
• The blade is correctly balanced.

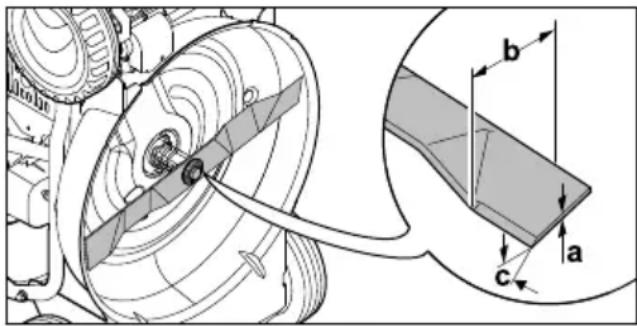

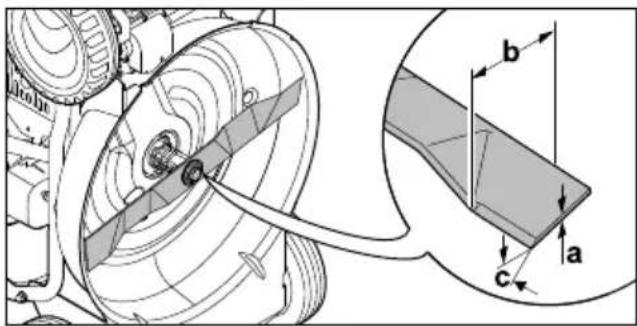

• The minimum thickness and minimum width of the blade are not fallen below, 19.2.

• The sharpening angle is observed, 9.2.

WARNING

In unsafe condition, blade parts may come loose and be expelled. This may result in serious injury to people.

Use an undamaged blade and attachments.

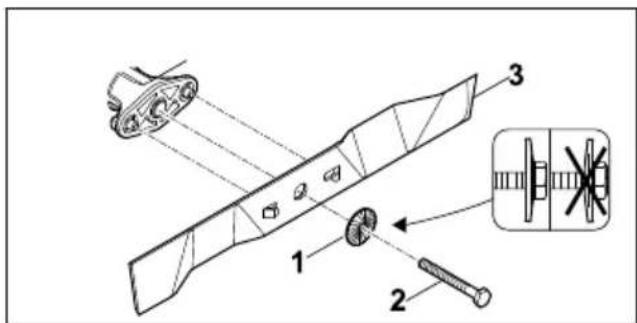

Attach the blade correctly.
Sharpen the blade correctly.
If the minimum thickness or minimum width is fallen below: replace the blade.
Have the blade balanced by a STIHL specialist dealer.
If anything is unclear: consult a STIHL specialist dealer.

4.7 Fuel and Refuelling

WARNING

The fuel used for this lawn mower is petrol. Petrol is extremely inflammable. If petrol comes into contact with an open flame or hot objects, it may cause fires or explosions. This may result in serious or fatal injury to people and damage to property.

Protect petrol from heat and fire.
Do not spill petrol.
If petrol is spilled: wipe up the petrol with a cloth and wait until all parts of the lawn mower are dry before attempting to start the engine.
Do not smoke.
Do not refuel in the vicinity of flames.
Before refilling the tank, stop the engine and allow it to cool.
If the tank needs to be emptied: do this out of doors.
- Start the engine at least 3m away from the refuelling site.
- Never store the lawn mower with petrol in the tank inside a building.

Breathing in petrol fumes may result in poisoning.

Do not breathe in petrol fumes.
Refuel in a well-ventilated place.

• The lawn mower warms up while working. The petrol expands and overpressure may occur in the fuel tank. Petrol may gush out when the fuel tank cap is opened. The gushing petrol may ignite. This may result in serious injury to the user.

English 4 Safety Precautions

• Allow the lawn mower to cool down before opening the fuel tank cap.

Clothing that comes into contact with petrol is highly inflammable. This may result in serious or fatal injury to people and damage to property.

If clothing comes into contact with petrol: change clothing.

Petrol poses a risk to the environment.

Do not spill fuel.

• Dispose of petrol in accordance with regulations and in an environmentally acceptable way.

If petrol comes into contact with the skin or eyes, this may cause irritation.

Avoid contact with petrol.

In the event of contact with the skin: wash the affected areas with plenty of soap and water.

In the event of contact with the eyes: rinse the eyes with plenty of water for at least 15 minutes and seek medical attention.

• The lawn mower's ignition system generates sparks. Sparks may escape and cause fires and explosions in highly inflammable or explosive environments. This may result in serious or fatal injury to people and damage to property.

• Use the spark plugs described in the engine instruction manual.

Screw in the spark plug and tighten.

Press on the spark plug socket firmly.

The lawn mower may be damaged if it is refuelled with petrol that is not suitable for the engine.

Use fresh, good-quality unleaded petrol.

Observe the specifications in the engine instruction manual.

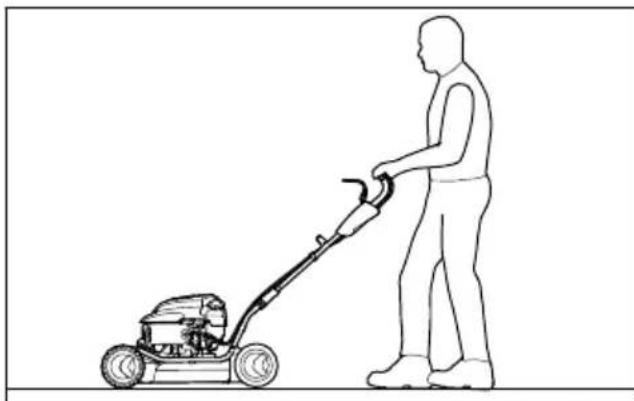

4.8 Working

WARNING

The user may lose control of the lawn mower if they do not start the engine correctly. This may result in serious injury to the user.

• Start the engine as described in this instruction manual.

In certain situations, the user may no longer be able to concentrate on their work. This may result in the user stumbling, falling and becoming seriously injured.

Work calmly and carefully.

• Only mow when visibility is good. Do not use the lawn mower if the light and visibility conditions are poor.

Operate the lawn mower alone.

Watch out for obstacles.

Do not tilt the lawn mower.

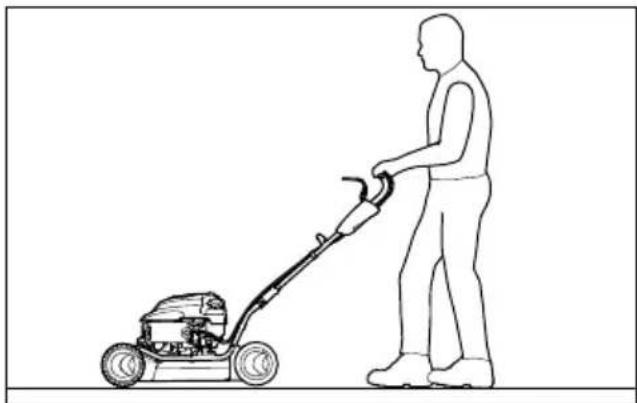

Work standing on the ground and maintain balance.

If signs of fatigue occur: take a break.

If mowing on a slope: mow across the slope.

Do not work on slopes with an inclination greater than 25^ (46.6%) .

• Use the lawn mower with particular care when working near slopes, terraces, ditches, rubbish piles and embankments.

Plan your working times so that more severe physical strains over a longer period are avoided.

Exhaust gases are produced when the engine is running. Breathing in exhaust gases may result in poisoning.

Do not breathe in exhaust gases.

• Use the lawn mower in a well-ventilated place.

If nausea, headaches, vision problems, hearing problems or dizziness occur: stop working and consult a doctor.

If the user is wearing hearing protection and the engine is running, their perception and assessment of noise may be limited.

Work calmly and carefully.

The lawn mower is equipped with a motorstop device.

Releasing the control bar for mowing causes the engine and blade to stop within 3 seconds.

The turning blade may cut the user. This may result in serious injury to the user.

Detach the spark plug socket.

Do not touch a turning blade.

If the blade is blocked by an object: stop the engine. Only then remove the object.

If working without self-propulsion when mowing, self-propulsion may unintentionally be engaged and the lawn mower may start moving. This may result in serious injury to people and damage to property.

• Only press the control bar for self-propulsion if self-propulsion is to be engaged.

If the lawn mower changes or starts to behave differently when working, it may not be in safe condition. This may result in serious injury to people and damage to property.

• Stop working and consult a STIHL specialist dealer.

4 Safety Precautions English

The lawn mower may cause vibrations when working.
Wear work gloves.
Take breaks.
If signs of a circulatory disturbance occur: consult a doctor.
Inspect the mowing area and look out for obstacles. If the blade hits a foreign object when working, the foreign object or parts of it may be thrown up at high velocity. This may result in injury to people and damage to property.

• Remove foreign objects such as stones, sticks, wires, toys or other foreign objects from the working area. Mark hidden objects that cannot be removed.

• When the control bar for mowing is released, the blade continues to turn for a short time. This may result in serious injury to people.

Wait until the blade is no longer turning.

Sparks may be produced if the turning blade hits a hard object. Sparks may cause fires in highly flammable environments. This may result in serious or fatal injury to people and damage to property.
Do not work in a highly flammable environment.
If the lawn mower is stopped on a sloping surface, it may unintentionally roll away. This may result in injury to people and damage to property.
- Only release the lawn mower if it is on a level surface and cannot roll away by itself.
If objects are attached to the handlebar, the additional weight may cause the lawn mower to tip over. This may result in injury to people and damage to property.
Do not attach objects to the handlebar.

DANGER

If working near live wires, the blade may come into contact with the live wires and damage them. This may result in serious or fatal injury to the user.
Do not work near live wires.
The user may be struck by lighting if working during a thunderstorm. This may result in serious or fatal injury to the user.
Do not work during thunderstorms.
- Working in the rain may cause the user to slip. This may result in serious or fatal injury to the user.

Do not work when it is raining.

4.9 Transporting

WARNING

The lawn mower may tip over or move during transport. This may result in injury to people and damage to property.

Stop the engine.

Wait until the blade is no longer turning.

Detach the spark plug socket.

• Secure the lawn mower on a suitable load floor with lashing straps, belts or a net so it cannot tip over and move.

The muffler and engine may be hot after the engine has been running. This may result in the user burning themselves when transporting the machine.
- Push the lawn mower.
The lawn mower is heavy. Attempting to carry the lawn mower without assistance may result in injury to the user.
Wear work gloves.
The lawn mower must be carried by two people.

4.10 Storing

WARNING

Children cannot recognise or evaluate the dangers posed by the lawn mower. There is a risk of serious injury to children.
Stop the engine.
- Keep the lawn mower out of reach of children.
- Keep the lawn mower clean and dry.
If the lawn mower is kept on a sloping surface, it may unintentionally roll away. This may result in injury to people and damage to property.
The lawn mower should only be kept on level surfaces.

4.11 Cleaning, Maintenance and Repair

WARNING

Having the engine running during cleaning, maintenance or repair may result in serious injury to people and damage to property.

Stop the engine.

Wait until the blade is no longer turning.

• Detach the spark plug socket.

The self-propulsion may be unintentionally engaged if the engine is running during cleaning, maintenance or repair. This may result in serious injury to people and damage to property.

• Stop the engine.

• Detach the spark plug socket.

The muffler and engine may be hot after the engine has been running. This may result in people burning themselves.
Wait until the muffler and engine have cooled down.
- Abrasive cleaning agents, using a water jet for cleaning or sharp objects may result in damage to the lawn mower or blade. If the lawn mower or blade is not cleaned correctly, components may no longer operate correctly and safety devices may be disabled. This may result in serious injury to people.
Clean the lawn mower and blade as described in this instruction manual, 15.2.
If the lawn mower or blade is not maintained or repaired correctly, components may no longer operate correctly and safety devices may be disabled. This may result in serous or fatal injury to people.
Replace worn or damaged parts.
If the lawn mower needs to be maintained or repaired: consult a STIHL specialist dealer.
- Maintain the blade as described in this instruction manual.
The user may cut themselves on sharp cutting edges during blade cleaning, maintenance or repair. This may result in injury to the user.
Wear work gloves made from resistant material.
The blade may become hot during sharpening. This may result in the user burning themselves.
Wait until the blade has cooled down.
Wear work gloves made from resistant material.

5 Preparing the Lawn Mower for Operation

5.1 Preparing the Lawn Mower for Operation

The following steps must be performed before commencing work:

Make sure that the following components are in safe condition:

Lawn mower, 4.6.1.
- Blade, 4.6.2.

Clean the lawn mower, 15.2.
Check the blade, 10.2.
Add engine oil, 16.1.
Fold up the handlebar, 18.1.
Refuel the lawn mower, 17.1.
Set the cutting height, 1.2.
Check the controls, 10.1.
If the steps cannot be performed: do not use the lawn mower and consult a STIHL specialist dealer.

6 Adding Engine Oil

6.1 Adding Engine Oil

The engine oil lubricates and cools the engine.

The engine oil specification and capacity can be found in the engine instruction manual.

NOTICE

The lawn mower does not contain any engine oil on delivery. Starting the engine with no or too little engine oil may damage the lawn mower.
Always check the engine oil level before starting and if necessary top up.
- Add the engine oil as described in the engine instruction manual.

7 Refuelling the Lawn Mower

7.1 Refuelling the Lawn Mower

NOTICE

The lawn mower may be damaged if the correct fuel is not used.
See the engine instruction manual.

Stop the engine.
- Place the lawn mower on a level surface.
- Clean the area around the fuel tank cap with a damp cloth.

• Turn fuel tank cap (1) anti-clockwise until it can be removed.
  Remove the fuel tank cap.
• Add fuel, stopping at least 15mm short of the fuel tank brim.
• Place the fuel tank cap on the fuel tank.
  Turn the fuel tank cap clockwise and tighten firmly by hand.

The fuel tank is sealed.

8 Adjusting the Lawn Mower for the User

8.1 Folding Up the Handlebar

Stop the engine.
- Detach the spark plug socket.
- Place the lawn mower on a level surface.

• Open quick-clamping devices (1) if they are closed.
• Fold up handlebar (2).
• Close quick-clamping devices (1). Handlebar (2) is firmly attached to the lawn mower.

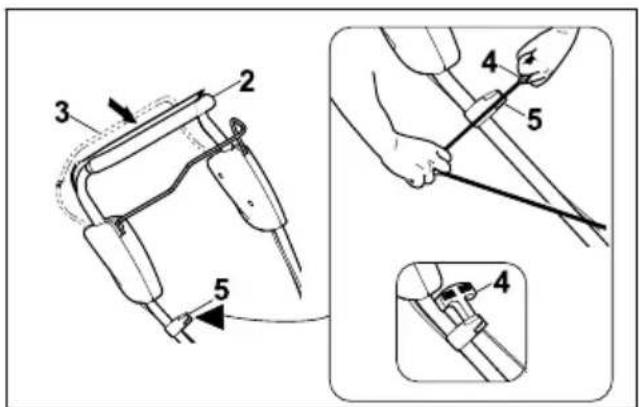

Press control bar for mowing (3) to handlebar (2) and hold.
Slowly pull starter handle (4) in the direction of starter rope guide (5).
Hook starter handle (4) into starter rope guide (5).
Release control bar for mowing (3).
Re-attach the spark plug socket.

8.2 Folding the Handlebar

The handlebar can be folded for space-saving transport or storage.

Stop the engine.
Detach the spark plug socket.
Place the lawn mower on a level surface.
Press the control bar for mowing to the handlebar and hold.
- Detach the starter handle from the starter rope guide and slowly guide back towards the engine.
Release the control bar for mowing.
- Hold the handlebar and loosen the star grip nuts.
- Fold down the handlebar forwards.

9 Starting and Stopping the Engine

9.1 Starting the Engine

Place the lawn mower on a level surface.

Press control bar for mowing (1) to handlebar (2) with the left hand and hold.

English 10 Checking the Lawn Mower

Slowly pull out starter handle (3) to the point of noticeable resistance with the right hand.
- Keep quickly pulling out and returning starter handle (3) until the engine is running.
If the engine does not start: see the engine instruction manual.

9.2 Stopping the Engine

Place the lawn mower on a level surface.
- Release the control bar for mowing. The engine stops.
Leave the user position.

10 Checking the Lawn Mower

10.1 Checking the Controls

Control bar for mowing and control bar for selfpropulsion

Stop the engine.
Pull the control bar for mowing and the control bar for self-propulsion fully in the direction of the handlebar and release again.
If the control bar for mowing or the control bar for self-propulsion is stiff or does not spring back into the initial position: do not use the lawn mower and consult a STIHL specialist dealer.

The control bar for mowing or the control bar for self-propulsion is defective.

10.2 Checking the Blade

Stop the engine.
- Detach the spark plug socket.
Upend the lawn mower, 5.1.

Measure the following:
Thickness a
-Widthb
- Sharpening angle c
If the minimum thickness or minimum width is fallen below: replace the blade, 19.2.
If the sharpening angle is not correct: sharpen the blade, 9.2.
If anything is unclear: consult a STIHL specialist dealer.

11 Operating the Lawn Mower

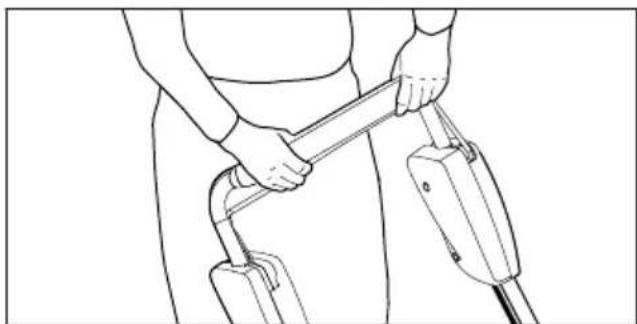

11.1 Holding and Guiding the Lawn Mower

• Hold the handlebar with both hands so the thumbs enclose the handlebar.

11.2 Setting the Cutting Height

Four cutting heights can be set:

• 30 mm = position 1
• 50mm = position 2
• 70 mm = position 3
• 85 mm = position 4

The cutting height is set separately at the front and rear. The cutting height setting must be identical at the front and rear.

Setting the rear cutting height

Stop the engine.
The blade must not be turning.
Place the lawn mower on a level surface.

Press the rear axle downwards.
The rear axle is released and can be adjusted.
- Move the rear axle into the desired position on the left and right.

Setting the front cutting height

Stop the engine.
The blade must not be turning.
Place the lawn mower on a level surface.

Press cutting height adjustment lever (1) outwards.
- Move cutting height adjustment lever (1) to the desired position and allow it to engage.

11.3 Switching the Drive On and Off

11.3.1 Engaging Self-propulsion

• Place the lawn mower on a level surface.
  Start the engine.

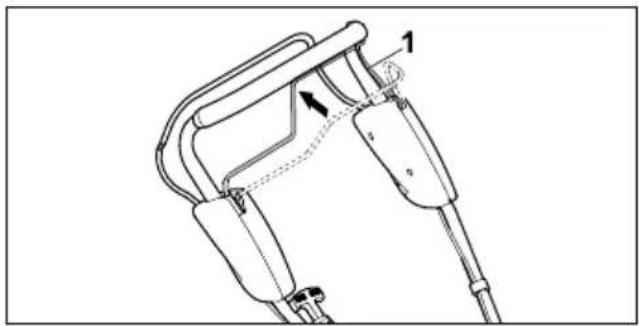

Pull control bar for self-propulsion (1) fully in the direction of the handlebar and hold so the thumb encloses the handlebar. The lawn mower starts moving.

11.3.2 Disengaging Self-propulsion

• Release the control bar for self-propulsion.
  Wait until the lawn mower comes to a standstill.

11.4 Mulching

During mulching, the cut grass is chopped up several times through a special air flow guidance system in the mower blade area and then blown back into the turf. The clippings remain on the lawn surface where they partially decompose and serve as a natural fertiliser. To ensure a perfect, thick lawn, mulch regularly, removing one third of the grass height.

Requirements for good mulching results:

Frequency: at least twice a week in the spring (main period of growth) and once a week in the summer and autumn.
- Mow the lawn when dry if possible.
- Use well-sharpened cutting blades.
- Select a low rate of feed.

• Vary the mowing direction and ensure that the mowing strips overlap.
• Always mow very tall grass in stages.

If working with self-propulsion engaged: drive the lawn mower forwards in a controlled manner.
If working with self-propulsion disengaged: push the lawn mower forwards slowly and in a controlled manner.

12 After Finishing Work

12.1 After Finishing Work

Stop the engine.
If the lawn mower is wet: allow the lawn mower to dry.
Clean the lawn mower.

13 Transporting

13.1 Transporting the Lawn Mower

• Stop the engine.
  The blade must not be turning.
• Detach the spark plug socket.

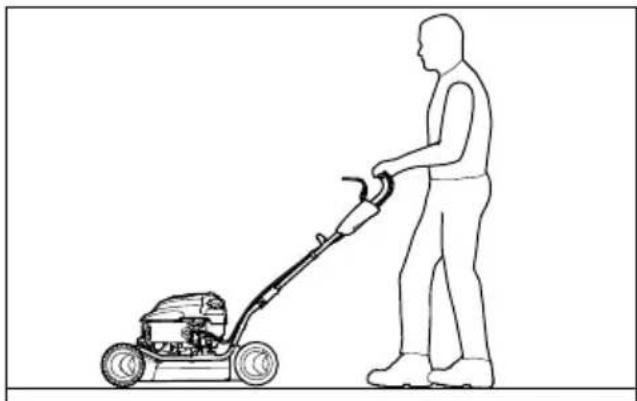

Pushing the lawn mower

• Push the lawn mower forwards slowly and in a controlled manner.

Carrying the lawn mower

Wear work gloves made from resistant material.

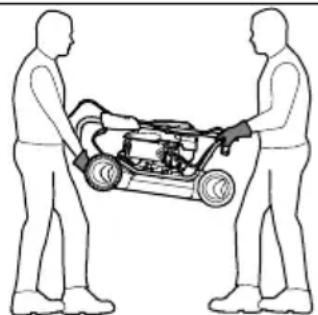

If the lawn mower is being carried with the handlebar unfolded:

One person holds the lawn mower by the front of the housing using both hands and another person holds the handlebar using both hands.
The lawn mower must be lifted and carried by two people.

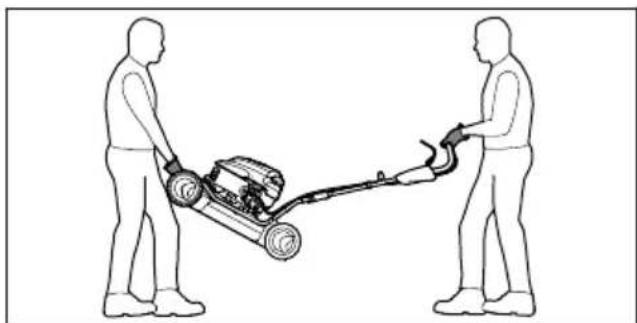

If the lawn mower is being carried with the handlebar folded:
Fold the handlebar, 8.2.
- One person holds the lawn mower by the front of the housing using both hands and another person holds the handlebar using both hands.
The lawn mower must be lifted and carried by two people.

Transporting the lawn mower in a vehicle

• Secure the lawn mower upright so it does not tip over and cannot move.

14 Storing

14.1 Storing the Lawn Mower

• Stop the engine and allow it to cool down.
  Detach the spark plug socket.

• Store the lawn mower in accordance with the following conditions:

• The lawn mower is out of reach of children.

• The lawn mower is clean and dry.
• The lawn mower cannot tip over.
• The lawn mower cannot roll away.

If the lawn mower is to be stored for more than three months:

Run the fuel tank empty.
Have the fuel tank cleaned by a STIHL specialist dealer.
- Change the engine oil as described in the engine instruction manual.
Unscrew the spark plug.

WARNING

• Sparkes may escape if the starter handle is pulled out while the spark plug socket is detached. Sparks may cause fires and explosions in highly flammable or explosive environments. This may result in serious or fatal injury to people and damage to property.

• Keep the spark plug socket away from the spark plug opening.
  Pull out and return the starter handle a number of times.
  Screw in the spark plug and tighten firmly.

15 Cleaning

15.1 Upending the Lawn Mower

Run the fuel tank empty.
The engine stops.
Place the lawn mower on a level surface.
Set the cutting height to position 1, 1.2.
- Detach the spark plug socket.

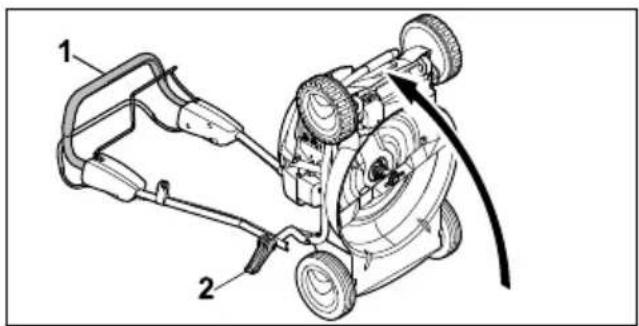

• Hold handlebar (1) and open quick-clamping devices (2).
• Set down handlebar (1) to the rear.
  Upend the lawn mower.

15.2 Cleaning the Lawn Mower

Stop the engine.
Allow the lawn mower to cool down.
- Detach the spark plug socket.
Clean the lawn mower with a damp cloth.
Clean the ventilation slots with a paintbrush.
Upend the lawn mower.
- Clean the area around the blade and the blade with a stick, a soft brush or a damp cloth.

16 Maintenance

16.1 Maintenance Intervals

Maintenance intervals are dependent on the ambient conditions and the working conditions. STIHL recommends the following maintenance intervals:

Engine

17 Repairing English

• Maintain the engine as described in the engine instruction manual.
  Lawn mower
• Have the lawn mower inspected annually by a STIHL specialist dealer.

16.2 Removing and Attaching the Blade

16.2.1 Removing the Blade

Stop the engine.
- Detach the spark plug socket.
Upend the lawn mower.

Holdblade(1).
Unscrew bolt (2) and remove together with washer (3).
Remove blade (1).
Discard bolt (2) and washer (3). Use a new bolt and washer to attach blade (1).

16.2.2 Attaching the Blade

• Stop the engine.
  Detach the spark plug socket.

  Upend the lawn mower.

Place new washer (1) on new bolt (2).
Apply Loctite 243 thread locker to the thread of bolt (2).
Position blade (3) so the raised areas on the contact area engage in the notches in blade (3).
Screw in bolt (2) together with washer (1).

Holdblade3
Tighten bolt (2) to 65~Nm

16.3 Sharpening and Balancing the Blade

Sharpening and balancing the blade correctly requires a lot of practice.

STIHL recommends having the blade sharpened and balanced by a STIHL specialist dealer.

WARNING

The cutting edges of the blade are sharp. This may result in the user cutting themselves.
Wear work gloves made from resistant material.

Stop the engine.
Detach the spark plug socket.
Upend the lawn mower.
Remove the blade.
- Sharpen the blade. Observe the sharpening angle and cool the blade, 19.2. Bluing of the blade during sharpening is not permitted.
Attach the blade.
If anything is unclear: consult a STIHL specialist dealer.

17 Repairing

17.1 Repairing the Lawn Mower

The user should not repair the lawn mower or blade themselves.

If the lawn mower or blade is damaged: do not use the lawn mower or blade and consult a STIHL specialist dealer.
If warning signs are illegible or damaged: have the warning signs replaced by a STIHL specialist dealer.

18 Troubleshooting

18.1 Remedying Lawn Mower Faults

Fault Cause Remedy
Engine cannot be started.	Control bar for mowing is not pressed.	Start engine as described in this instruction manual.
Fuel tank is empty. ▶ Refuel lawn mower.
			Fuel line is blocked. ▶ Consult a STIHOL specialist dealer.
		Inferior, dirty or old fuel in the tank.	Use fresh, good-quality unleaded petrol.
		Air filter is dirty. ▶ Consult a STIHOL specialist dealer.
		Spark plug socket is detached from spark plug or ignition lead is not properly fastened to socket.	Connect spark plug socket. Check connection between ignition lead and plug.
		Spark plug is dirty, damaged or electrode gap is incorrect.	Clean or replace spark plug. Adjust electrode gap.
		Resistance at the blade is too great.	Set a higher cutting height. Start engine in lower grass.
Engine difficult to start or engine power deteriorating.	Lawn mower housing is blocked.	Clean lawn mower.
	Cutting height is set too low or rate of feed is too high.	Adapt cutting height or mow more slowly.
	Water in fuel tank and carburettor or carburettor is blocked.	Empty fuel tank, clean fuel line and carburettor.
	Fuel tank is contaminated. Consult a STIHOL specialist dealer.
	Air filter is dirty. Consult a STIHOL specialist dealer.
	Spark plug is dirty. Clean or replace spark plug.
Engine overheating.	Engine oil level is too low. Add or change engine oil as described in the engine instruction manual.
	Cooling ribs are dirty. Clean lawn mower.
Lawn mower vibrates excessively.	Blade is damaged. Replace blade.
	Blade is not correctly attached. Attach blade.
Grass is not being cut cleanly.	Blade is blunt or worn. Sharpen or replace blade.

19 Specifications

19.1 STIHL RM 2.0 RT Lawn Mower

Engine type: KOHLER HD675
- Displacement: 149~cm^3
Power: 2.2kW (3.0 hp) at 2800 rpm
- Speed: 2800 rpm
Maximum fuel tank capacity: 1.4 I
Weight: 30kg
Cutting width: 46 cm

19.2 Blade

Minimum thickness a: 2.0mm
Minimum width b: 45 mm

20 Spare Parts and Accessories English

• Sharpening angle c: 30^

19.3 Sound Values and Vibration Values

The K value for the sound pressure levels is 2 dB(A). The K value for the sound power levels is 1.1 dB(A). The K value for the vibration values is 2.36m / s^2

Sound pressure level L_pA measured in accordance with EN ISO 5395-2: 81 dB(A)
Guaranteed sound power level LWAd measured in accordance with 2000/14/ EC / S.I. 2001/1701:94 dB(A)
Vibration value ahv measured in accordance with EN 12096, EN 20643, EN ISO 5395-2, handlebar: 5.90~m / s^2

For information on compliance with Employers' Vibration Directive 2002/44/EC and S.I. 2005/1093, see www.stihl.com/vib.

19.4 REACH

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.

For information on compliance with the REACH regulation see www.stihl.com/reach.

20 Spare Parts and Accessories

20.1 Spare parts and accessories

STIHL These symbols indicate original STIHL spare parts and original STIHL accessories.

STIHL recommends the use of original STIHL spare parts and accessories.

Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitability of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts.

Original STIHL spare parts and original STIHL accessories are available from STIHL dealers.

20.2 Essential Spare Parts

STIHL assumes no liability for injury to people or damage to property resulting from the use of unauthorised attachments or spare parts.

• Blade: 6357 702 0102
• Blade fastening screw: 9008 319 9028
• Washer: 0000 702 6600

21 Disposal

21.1 Disposing of the Lawn Mower

Information on disposal is available from a STIHL specialist dealer.

• Dispose of the lawn mower, blade, petrol, engine oil, accessories and packaging in accordance with regulations and in an environmentally friendly manner.

22 EC Declaration of Conformity

22.1 STIHL RM 2.0 RT Lawn Mower

STIHL Tirol GmbH

Hans Peter Stihl-Strasse 5

6336 Langkampfen

Austria

declares under our sole responsibility that

design: lawn mower
- manufacturer's brand: STIHL
-type:RM2.0RT
- cutting width: 46 cm
- serial number: 6357

complies with the relevant provisions of Directives 2000/14/EC, 2006/42/EC, 2014/30/EU and 2011/65/EU and has been developed and manufactured in accordance with the versions of the following standards valid on the date of manufacture: EN ISO 5395-1, EN ISO 5395-2 and EN ISO 14982.

Approved body involved:

TÜV Rheinland LGA Products GmbH

Tillystrasse 2

90431 Nuremberg, Germany

The measured and guaranteed sound power levels were determined in accordance with Directive 2000/14/EC, Appendix VIII.

Measured sound power level: 92.5 dB(A)
Guaranteed sound power level: 94 dB(A)

The technical documents are stored at STIHL Tirol GmbH.

The year of manufacture and machine number are indicated on the lawn mower.

Langkampfen, 02.01.2020

STIHL Tirol GmbH

p.p.

Matthias Fleischer, Head of Research and Development Division

p.p.

Sven Zimmermann, Head of Quality Division

23 UKCA Declaration of Conformity

23.1 STIHL RM 2.0 RT Lawn Mower

STIHL Tirol GmbH

Hans Peter Stihl-Strasse 5

6336 Langkampfen

Austria

declares under our sole responsibility that

design: lawn mower
- manufacturer's brand: STIHL
-type:RM2.0RT
- cutting width: 46 cm
- serial number: 6357

complies with the relevant provisions of the UK regulations Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001, Supply of Machinery (Safety) Regulations 2008, Electromagnetic Compatibility Regulations 2016 and Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 and has been developed and manufactured in accordance with the versions of the following standards valid on the date of manufacture: EN ISO 5395-1, EN ISO 5395-2 and EN ISO 14982.

Approved body involved:

TUV Rheinland UK Ltd

1011 Stratford Road

Solihull, B90 4BN

The measured and guaranteed sound power levels were determined in accordance with the UK regulation Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001, Schedule 11.

• Measured sound power level: 92.5 dB(A)
  Guaranteed sound power level: 94 dB(A)

The technical documents are stored at STIHL Tirol GmbH.

The year of manufacture and machine number are indicated on the lawn mower.

Langkampfen, 02.11.2021

STIHL Tirol GmbH

32 0478-111-9945-B

p.p.

Matthias Fleischer, Head of Research and Development Division

Sven Zimmermann, Head of Quality Division

Table des matieres

Chere cliente, cher client,

2.1 Documents applicable

Distinguidos clients,

Environment by Equipment for Use Outdoors

Ikke la kniven bli bla under sliping.

Monter kniven.
Hvis noe er uklart: Kontakt en STIHL forhand-ler.

17 Reparere

17.1 Reparere gressklipperen

in the Environment by Equipment for use Outdoors Regulations 2001, Schedule 11".

Mb paBb, yTO Bb Bb6paHn 3dEne STIH.LMb pa3pa6aTbBaem n npOn3BOm mpoDyKuHO BBICOauWero KaueCTBa, COOTBeTcTBYIOUo NOTpe6HoCTM HauNX KIneHTOB. Ha7a npOdyKuN OBeCpEnBaET BbICOKyH NaExKHOCTb DaXe npN EKCTpeMaJIbHbIX Harpy3kax.

STIHL-3TOHbBicOuaaWueeKaueCTBO 6cbnyKBaHHaHn PpeDcTaBtEn Bcerda roTobblnpoBeCTN DnBac KOMPeTeHTHyo KOHCyNbTaunio

HINCTpykTaX, a TaKke oBeCneuNTb BCEcTOPOH HIO TOxHnueckyI NOdEePKy.

KoMaHnStIHL 6e3orOBOpOHO npOBoHnT noJntky 6epxHOr n OTBeTCTBHeHOr OTHo-WeHn K npRoJe. DaHoe pyKOBOCTBO no 3KcPnyatauPipeHa3NaYeHo DJIra CoDeIcTBn BAM B 6e3onacHoi N 3KoJorNuCeKn 6laRopnT-Ho 3KcPnyatauNi 3dEJIa STIH L b TeueHne BCero dInTeNbHOro cPoKa cnXkbI.

Mbl6nlaoradapm BAC 3a DOBepne n XeJaem npn- rTHbIX BneuATJeH N OT BaUero HOBOrO
n3dennr STIHL.

NA

HnKoJac 1TnNb

BAXHO! IEPENIPIMMEHEHEM O3HAKOMNTbCn COXPAHNTb.

Yka3bIbAeT Ha BO3MOXHbIe ONaCHOCTN, KOTOpblbe BedyT K TjXeJIbIM TpaBMam NIN CMEPTN.

OnucaHHbIe Mepbl NOMOry TpeDToBpaTHTb TKeJIbe TpaBMbl ININ CMeptb.

PENYPNPEKDEHNE

Yka3bIbaeT Ha BO3MOXHbIe ONaCHOCTN, KOTOpble MOryT npNBecT N TjKeJIbIM TpaBMam IJN CmeptN.

OnncahHbIe Mepbl NOMORYT npedotBpaTntb TKeJIbe TpaBMbl NIN CmepTb.

YKA3AHNE

Yka3bIbaET Ha BO3MOXHbIe ONaCHOCTN, KOTOpblc MOrT npNBecT N BO3HNKHOBeHIO MaTePnAJIbHOrO yUep6a.
OnncahHbIe Mepbl NOMOry n36ekatb BO3HNKHOBeHn MaTePnaIbHOro yuepe6a.

2.3 CnMBOJIbI B TEKCTe

DaHHbI CNMBOJ yKa3bIBaE T Ha rNaBy B DaHHoH INHCTpyKUIN NO 3KcNlNyatauIN.

3 O63op

3.1 Ra3oHOKOJIka

1Pyka 3anycka

Pyka 3anycka nCnoJb3yETcra 3anycka DBnIaTeJI.

2PykoTka nepeKIOUeHnI dIy3aNycka KoWeHHN

PykoTka nepeKJIOUeHnI dIy3aNycka KoWeHnI pPeHa3NaueHa dJIy 3aNycka nOCTaHOBKn DBrIgATEJI.

pycckn 4 Yka3aHna no texHnke 6e3oNaChOCTn

3 BeDyua pyka

Bényuэ pyuKa npedHa3NaYeHa dЯ ydepKxBaHn, npoDbNxKeHn n TpaHcnpTnpOBKn ra3OHOKocn.

4PykoTka nepeKluOyeHnI nI npNBOa DBNJXeHnI

PykoTka nepeKluyeHnI dI npBODa DbIXeHnI npEHa3NaueHa dIy3aNycka nOctaHOBKn DBnRaTeJI.

5 BbICtpo3axmMhble dKcaTopbI

Быстpo3axmMbIeФИКcaTOpbl3axmAlOT BeDyUpyKHa Ra3OHOKOcNlKe.

6 3anophoe yctpoiCTBO TOnnHBHoro 6aka

3anophoe yctpoicBO TOnnBHO6aka 3akpbBaet rOpOBHy IJRA 3aNNBKN 6eH3nHa.

7 Kpbioka nIbtpa

KpbIuKaΦnIbTppa 3aKpbIiBaET BO3NyUHbI ΦnIbTp.

8 WTeKepe npObOa CBeu 3axnraHna n CBeua 3axnraHna

Iteke npoOda CBeu 3axnraHna CoeHnaret Ka6JIb 3axnraHna CO CBeou 3axnraHn.

Cbeya 3axnraHn BocnnaMeHReT TOnnBHO Bo3dyuHyo Cmecb DnRaTeNe.

9 3anophoe ycTpoiCTBO 6aKa MoToPHoro Macna

3anophoe yctpoicTBO 6aka MOTOPHOro Macna 3akpbibaet rOpOBnHy dIa 3aJIINBKN MOTOPHOro Macna.

10 Pyurap nIpyrnpOBKn BbICOTbl ckaunBaHnA Cpeepu

3a cuet pbyara dnypeynpOBKn BbICOTbl CkaunBaHn MOxHO yCTaHOBNTb BbICOTy CkaunBaHn.

11 Pbyar IJpeyI npOBKn BbICOTbl ckaUNBaHnraC3aDi

3a cuetpbuara dnypeynpOBKn BbICOTblCKaunBaHnMOxHO yCTaHOBNTb BbICOTy CkaunBaHn.

12 Pukka dny TpaHcnpOpTnpoBkn

PykaДЯТранспорТирOBКИпpeДи3HaueHaДЯпepeHOCa ra3OHOKOcNkI

3.2 CnMBOJbl

Ha ra3oHokocnIke MoryT 6bITb HaHeceHbI cIMBONbl, OHN O3HaayOT CneDyUOe:

LwA

IapaHTnpOBaHHbI yPoBeHb UyMa B COOTBETCTBUN C DnpeKTNB0B 2000/14/EC B dB(A) dJa conocTabNeHnAkyCTNueCKOJ mUCCn NpOdyKTOB.

TOT CMBON 0603Haayet 3anophoe yCTPOINCTBO TONNHBHORO 6aka.

TOT CMBON 0603Haayet 3anophoe yCTPOINCTBO MACJHORO 6aka.

3anyCTnTb DnuratEnb.

BbIKIOHTb DBnraTeJIb.

BknHouHTb npNBOd DnXKeHHa.

4 Yukazаня поTekнcke 6e3-ОпаСноCTN

4.1 PpeDynppeIteJIbHbIe cIMBOJIbI

IpeynpeiTeHbIe CmBOLbI Ha ra30HOKOcNIke 03NaUaOT CneDyUoUee:

Co6JIIOdaTb npeIINcAHnI NO TEXHnke 6e3ONaCHOCTN IN BbINOJHrTb COOTBETCTBYOUUne DeiCTBnR.

O6raTeIbHO cIeNyET npOHTaTb, NOHrTB u COxpaHHTb IHCTpyKuHIO NO 3KcNpyatau.

Co6JIOdaTb yka3aHnno TExHnke 6e3- onaCHOCTN BOTHOWeHHN OTbpaCbIBaembIX PpeMeTOB IN BbINOJIHrTa COOTBeTCTByUOUIne DeIcTBnR.

He kacatbcBpaaiooeroc Hoxa.

BbHMaTb WTeKep npoBoDa CBeu3aXnraHnHa BpeM npocToeB Pa6Ote, TpaHCnpTIpOBKn, XpaHeHn, TexHnueckoro 06cIyJxBaHn nn peMOHTa.

CoxpaHrTa 6e3oNaChoe pacCToHnne.

4.2Испобьзоване по Ha3HaueHNU

TaoHokocnka STIHLM2.0RT npedHa3Na-ueHa dIyMbHnpoBaHn cyxO TpaBbl.

PPEyPExKdEHNE

IcnoJb3OBAHHe ra3OHOKoCNJIKN He no Ha3Ha-ueHHIO MOKeT npBecTN K cepBe3HbIM TpaBMam, CmepTN INN MaTePnAInbHomy yuep6y.

IVcnoJb3OBaTb ra3OHOKOcnIky B COOTBETCTBnC yka3aHnMaM B 3Toi INHCTpyKuN N BINHCTpyKuN NO 3KcnpnyatauN DBNratae.

4.3 Tpe6oBaHnK nOJIb3OBaTeJIIO

PPEyPExKdEHN

■IOnb3OBaTeJIH,He npoiEduu HnCTpykTax, MOrY He Oco3HaBaTb IIN He npabInbHO Oue-HNBaTb ONaCHOCTN, CBraHHbIe C rA3OHOKcNIKo. 3TO CBra3aHO C ONaCHOCTbIO NpUyeHn IOnb3OBaTeJIem IIN dpyrIMN JnucAMN cepbe3hIx TpaBM Bnnotb Do JeTaJbHOro NCXoJa.

-063aTeIbHo cJeNyEt npOHTaTb, NOHrTb N COxpaHnTb INHCTpyKuH IO NO 3KcNpyatau.

• Pn Heo6xOIMOCtN nepeaTb ra3OHOKOcNk Ky dpyromy Nucy TaKke nepeaTb HCTpyKuHIO NO 3KcNpyataunr Ra3OHOKOcNkN n DBNrataJI.

• Y6eHb8c8, yTO nB3OBaTeB BblONHReT CneDyUOuNe ycNoBn:

• Nolb30BaTeIb cnoKoEH n 6oIp.
  -Пользователфиически,психческиу YMCTBEHNOВ COCTOЯни улpaBЛЯтьra3OHOKOCINKOИ pa60taTb C HeI.Ecni noIb3OBaTeJIb 6bladaetФиЗчесКIMN,псиХчесКIMN ИИУМСТВЕНьIMN HeOCTaTKAMN,ОH MOXET pa6oTaTb c yCTPOIeTBOM TOLko NOД HaI3OpPOM OTBeTCTBeHHORO JIuca IJIN CJIeDyeraERO yka3aHnM.
  -Польб3OBaTeЛь можET OCO3HaBaTb И OцEHNBaTb ONaCHOCTN, CBЯЗнblc C rasoHOKOcNIKoI.
  -ПОЛьЗВаTeЛь OCO3HaET,ЧTO HeCET OTBETCTBEHHOCTh 3a HeCuaCTHbIe CnUy-чAN N MaTePnAJIbHbI yUepe6.
  -Пользовать дocTNr COBepseHHoJIeTnI NII O6yeh COOTBeTCTByIOUeI npOpeCCNn COJIaCHO HaUNOHJIbHbIM npaBnIam.
  -ПользователпpoшелИнстук tax cpeцалиюваногоцentpa STIHL nIN cpeцалиNTa nepeД nepВыIM nCNoJb3OBaHnEM ra3OHOKOcUNK.
  -Пользовател He HaxОДиTCЯ ПОД BO3-ДeнCTВиЕм aЛКОТOLЯ, ЛeКаРСТВ ИЛHapKOTIKOB.

-При BOЗнКHOBEHIN BONpOcOB 6paTntbCBy CepBnchbl ueHTp STIH.L.

4.4 Pa6o7a oJexda n OcHaune Hne

PPEyPExKdEHN

BoBpempa60bI npEMeTbMOyT 6bITb OT6poWeHbIC BbICOKO CKOpocTbIO. NJIb3OBaTeNb MoKeT NOJyHTb TpaBMbl.

BoBpempa6oTbHaedeBaTbJINHHbIe 6pOKn n3n3HOCOToKOro MaTePnaJa.

BoBpempa60bI BO3Hnkaet yM. yM MoKET HABpeDntb Cnyxy.

Heo6xoJIMO nCnoJIb3OBaTb 3aunTHbIe HayuHnKn.

BoBpeMa pa6oTb Bo3MOxHO o6pa3OBAHne nbJIeBbIX Buxpei. BdbIxAemar nbIb MoKet HeRaTINBHO NOBnAryb Ha 3OpOBBe n CTaTb npuHOn aAneprNuecknx peakun.

• Пи образовани nbileвix buxpei HaideBaTb 3aunTHyIO MACKY OT nbIIN.

HecooTBeTCTByIOUaOeJdaMOKeT3aue-NTbCra 3aIpeBecnHy,MeKIn KcyCTapHNK ININ nonactb Ra3OHOKocnKy. IOnb3OBaTeNb B HecooTBeTCTByIOUeOeJde MOKeT NOy-HTb Cepbe3HbIe TpaBMbl.

HaedeBaTb obJeraiouIooJeKdy.

HeoXoDIMO CHTb 7appbnykpaWeHnra.

Bo Bpemr ouhctkn, TexHueeckoro 06cnykBaHnra nn TpaHCnOpTnpOBKn NOIb3ObaTeNb MOxET KOCHyTbcra HOxa. NOb3ObaTeNb MOxET NOlyuHTb TpaBMbl.

BoBpempa6oTbHaedeBaTb pa6Oue nepaTkN 3N3HOCOCTOnKO rMaTePnaJa.

06yBbdoJXHa 6bITb npOuHoi,3aKpbIToN IMeTb HeCKoJIb3KyIONoDOWBy.

EcnHaNojIb3OBaTeJeHaedTaHecOOTBETCTByIOUaOByb, OH MOKeT NOCKoJIb3HyTbcr.10JIb3OBaTeJIb MoKeT NOJyUHTb TpaBMbl.

Bo Bpem 3aTockn HOKeM Moryr BblneTaTb YactuI MaTePnAna. Nolb3ObaTeNb MoKet NOnyUHTb TpaBMbl.

HaedeBaTbIIOTHo npJlERaHOUne 3aunTHbIE OUKn. POnxOJaUne 3aunTHbIE OUKn IPOBepraOTcB COOTBeTCTBUN CO CTaHdApTOM EN 166 nIN B COOTBeTCTBUN C HaUHOHaJIbHbIMN IpaBUNAMN IN DOCTyNHbIB P03HHouCETNC COOTBeTCTByUoUeM aKIpOBKOJ.
BoBpempa6ObIHaedeBaTbpa6Oue nep- TaTKN N3 N3HOCOCToKOro MaTePnAna.

4.5 Pa6o7a 30Ha nOlb3OBaTeIa N OKpykaIOUne yCIOBnA

PPEyPExKDEHNE

Другп Люн, Дети и ХИBOTье мoryт He OCO3HaBaTb И He OцehиВaTb ONaCHOCTn, CB8-3aHHbIe C rA3OHOKOcNko I OT6poUSeHHbIMn EIOпрдMetam. 3TO CB83aHO C ONaCHOCTbIO ПОЛуЧЕНЯ ДPyrIMN ЛЮdbMn, DeTbMn I XИBOTHbIMN Серьe3HbIX TpaBM, a ТAKKE C ONaCHOCTbIO MaTePnaJIbHOro yшep6a.

Bpa6oey30e3aPpeuEHO npncytCTBnE NOcTOPOHHNX JIu, DeTeN INKIBOTHBIX.

Co6nOaTb nCTaHcHIO Do npedMeTOB.
He octabnayt bra30HOKocnky 6e3 npnc-Motpa.
Y6eIITbcra,HTOJeTnHeMOryTirpaTbCra3OHOKOJIKOJ.

Ipnpa6oTaUoem DnBraTeNe n3 yMOrnyuHInTeTnNCxOaT TOpRyHe BbIXNoNHBie Ra3bl. TOpRyHe BbIXNoNHBie ra3bl MOrY TBocPnaMeHNt bIeKOBocPnaMeHraUoUneC MaTePnaJIb N BbI3BaT NoXap.

He HanpaBnTb CtpyHO BbIXNONHbIX Ra3OB Ha JERKOBOcNlameHryIOUneCe MaTePnaJIbI.

4.6 Be3onachoe coCToHne

4.6.1 Γa3OHOKOcHnka

a30HOKOcNkA HaxoNTcB 6e30nachOM COCTOHN,ecnBBINOHeHbI CneDyUuNe yCNOBnR:

• Ra3OHOKOcNJa He IMeeT NOBpeKDeHn.
  -13ra3OHOKOKNHe BbITEKaET6eH3nH.
• Kpbiuka TOnJIINBHoro 6aka 3akpyTa.
• IV3 ra30HOKOcNIKn He BbITEKaet MOTOPHOe MACNo.
  -KpbIuKa MToPHoro MacJa 3aKpbIta.
• Ra3oHOKOcNka YnCTa.
  -3JemeHbI ynpaBHeHna pa6oTaIO T nCnpaBHO 6e3 n3MeHeHn.
  HOx npaBnJIbHo yCTaHOBJIeH.
  Ha 3ToI ra3OHOKOcJIke yCTaHOBJIeHbI opnIHahJIbHbIE DOIOJIHITeJIbHbI epINHaJdNeXHOCTN STIHL.
• PpHaJdxKHOCTuYcTaHOBnEhbl npaBnIbHO.
• POnpIyXnHHeHbIe MexaHn3MbI He NOBpeKJdeHbI np6oTaHOT nCnpaBHO.
  -При OTпсанг рукогтки поеклоченя дя 3anycka Koшеня DBnrgaTeJB ocTaHaBnBaetc.

PPEyPExKDEHNE

B Texnueckn He6e30nachom COCTOHN KOMnoHbI pa6oTaIOT HEnpaBnIbHO, 3aUHTbIe yctpoiCTBa MOry T BbIITN I3 CTPOR, a TOJIINBO BbIteYb. B pe3yIbTaTe Yero BO3MOxH0 NOnyueHne cepbe3HbIX TpaBM BIIOTb Do JETaJIb-Horo nCXOda.

He pa6oTaTb c NOBpeKdEHHoR ra30HOKOcNJKoN.
Ecnn n3 ra3OHOKOcNJKN BbITEKaET 6eH3nH: He pa6OTaTB c ra3OHOKoNkOu N CBA-3aTbcr CO CneuaJIN3npOBaHHbIM ueHTpOM STIH.
3aKpbItb KpbIuKy ToTnNHBHO 6aka.
Ecni n3 ra30HOKOcNIK BbITEKaeT MOTOpHOe MacNo: He pa6oTaB C ra30HOKOcNIKOuN CBra3aTbC4 CO CneuaIIN3nPOBaHHbIM UENTpOM STIH.L
3aKpbIb KpbIuKy MOTOPHOro MacJa.
Ecnnra3OHOKOcNlka 3aarp3HeHa: OuNCNTb ra3OHOKOcNkY.
He npoH3BOIDtB MaHnnyJzCm n cra3OHOKOCnIKo Hn ee CNTeMoN 6e3OnaCHOCTn.
3aPpeHbI N3MeHeHnra30HOKOCnIKn C ueJIbU yBeJIuHcHnMoUHocTn IIN YactOTbI BpaSeHnA DBnRaTeJn BHyTpEHero cropaHn.
Ecni 3JemeHbI ynpaBHeHn He pa6oTaHr: He pa6oTaTb c ra3OHOKOcNkoi.
POnpnyxHHeHbIe MexaHn3MbIMoYT BbICBO60XdaTb HAKONJIeHHyIO 3HeprNIO.
Ha 3Tu raoHokocnky pa3peWaeTcyaCTa-HaBnBaTbOpuHaJIbHbIe DOnoHITeJIb- HbIe npHaJNeXHoCTn STIH.L
- PpOu3BOuNTb yCTaHOBky HOxA B COOTBeTCTBnC yKa3aHnA M N DaHHo N HCTpyKuN N O 3KcNlNyatauN.
- PpOu3BODHTb yCTaHOBY npHuaJIeXHOCTeN, KaYka3aHO B INcTpyKUnn NO 3KcIyataun HIN B INcTpyKUnn PO 3KcIyataun npHuaJIeXHocTeN.
He BCTaBJIaTb IpeMMeTbI B OTBepCTnra3OHOKOcNJKN.
3aMeHЯTb H3HOWeHHbIe NJI INOBpeXdEHNbIe Ta6NIuKn C npeDynpednteHbIMNHaDnncrM.
- Ppi BO3HKnHOBeHN BOpocOB 6paTntbcB CepBnchbI ueHtp STIH.L.

4.6.2 Hox

Hox haoDntcB 6e3onachom coCToHN,ecn BbINOJHeHcIeDyUuue yCIOBNA:

HoxnHaBeChoeobopyoBaHneHeNoBpeXdEhl.
-HoK He deΦopMnpoBaH.

4 Yka3aHnno texHnke 6e3onacHOCTyn pycckn

-HoK npaBnIbHo yCTaHOBJIeH.
Hok npabnIbHO 3aToueH.
- Ha HoXe HET 3ayceHueB.
Hox npabnIbHO O76aHaHCnpoBaH.
3NaueHnMaJIbHOI HINHbI INpOHTN HOKa He BixOaT 3a HxKHOIg rpaHnUy DONyCTMOrO dnaana3oHa, 19.2.
Co6nIOeH yroJ 3aToUKN, 19.2.

PPEyPExKdEHNE

B He6e3onachOM COCToHn DeTaJN HOxAMoryt COCKOHTb N 6bITb OTbpoWeHb. Bpe3yIbTaTe Yero BO3MOXHO NOlyueHne cepBe3HbIX TpaBM.

3anpeaetcnaonb3oBaTb nobpeXeHnBn HOK nIN HeNCnpaBHyn akkymyIaTOP.
YcTaHOBnTb HOK npaBnBHO.
3aTouHTb HOx npabnblHO.
Ecnn 3NaueHnMaJIbHOJ UINpHbI INPOUHOCTN BbIXOaT 3a HxKHOU rpaHcy DOyCTUMOFO DaNAa3OHa: 3aMeHHTb HOK.
- Ot6aHaHcnpoBaTb HOX B CpeuaJIn3npoBaHHOM ueHTpe STIH.L
- Ppi BO3HKnHOBeHHBONpOCOB 6paNTbCBA cepBnchbI ueHTp STIH.L

4.7 TOnnIbO n 3a npabKa

PPEyPExKdEHNE

B KaueCTBe ToJIbBa DnIe 3ToI ra3OHOKOJIKN IcNoJIb3yeTc8 BeH3IN. BcH3IN OueHb IerKo BocJIaMeHReTcR.B Cnyuae KOHTaKaTb6eH- 3InHa C OTKpbITbIM ORhem INI rOpAUMN ppeiMetAmn 6eH3IN MoKe TcTaB IIpUHHo NIOXapa INI B3PbIBa. 3TO CBra3Ho C OnaCHOCTbIO NOJyEHnCEpbE3bIX TpaBM BnIoTb Do JeTaJIbHorO ICXOda, a TaKke C OnaCHOCTbIO MaTePnaJIbHorO yuepe6a.

3aunuatab 6eH3nH OT ORH N BO3dEICTBNA BbICOKNX TEMNepaTyp.
He npoINBaTb 6eH3nH.
Ecn 6eH3nH npoHncr: BbITEpeTb 6eH3nH TpAnKo H 3aNyCKaTB DBNrAteNb TOJbKO Pn NOnHOM BbcBixAHNN BCEx YacteYra3O-HOKOCNJKN.
He kypntb.
He 3anpaBnTb ra3oHOKocnKy B6Jn3n OTKpbIToro ORHa.
- Ipee3a npaBkoB BbIKIOuHTb DBIraTeIb N IOdoXdaTb, NOKa OH OCTbIHET.
Ecn6ak Heo6xOIMO onopoxHnTb: BblnoJHrB npOeDpy Ha OTKpbITOM BO3- dyxe.
3anyckaTb DnraTeJIb Ha pacCTOaHn H MeHee 3 M OT MeCTa 3anpaBKn.

He xpaHnTb B NOMeUeHn rA3OHOKOcNlKy C 6eH3nHOM B 6eH3o6ake.

Bbixaemble napbl 6eH3nHa MoryT npNBecTu K OtpaBJIeHIO JIOJe.

He BdbixaTb napbl 6eH3nHa.
3anpaBnTb ra3OHOKOncny B xopoio npoBeTpNBaEMOM MecTe.

Bo Bpemra6oTb ra30HOKOKNa HarpeBaetc. BeH3nH pacuipreTc, nB TOJIINBHOM 6ake MOxET hakanlBaTbcr N36blTOOHoe daBHeHne. Pn OTKpbIToK pblUke ToNlNB-Horo 6aka BO3MOXHO BblIeCKnBaHne 6EH3Ha. BblNaIOuNCr 6EH3NH MoKe TBOCnAmEHTbcr. IOnb3OBaTeJb MOxET NOJyHTb cepbe3HbIe TpaBMbl.

• Chayana daTb ra3OHOKOcNIke OCTbITb, a 3aTeM OTKpbITb KpbIuKy TOJINHBHOrO 6aka.

Odexda, conpikacaoaJcRc 6eH3nHOM, MoKet JERKO BOCNJaMeHHTbcr. 3TO CBra3aHO C onaCHOCTbIO NOnyueHnCepbe3hblx TpaBM BnIOTb DO JeTaNbHoro nCXoJa, a TaKKe C onaCHOCTbIO MaTePnaJIbHorO yUep6a.

Ecn 6eH3nH nonan Ha oJekdy: cMeHntb oJekdy.

■ BeH3nH MoXeT HaHeCTN BpeD OkpyKaIOUeI cpeIe.

He npoIuBaTb TOnnBO.
- Ytinnn3npoBaTb 6eH3nH corglaCHO npedeNncaHnM 6e3 yuep6a dIy OkpykaUoien Cpebl.

Bcnyae nonaHaHna 6eH3nHa Ha Koxy nnn B rna3a BO3MOxHNO8BHeHne pa3dpaxKeHn KOxu nn rna3.

36eRaTb KOHTaTc C 6eH3nHOM.
B cnyuae nonaHa Ha KOxy npomblb COOTBeTCTByUHne yuactKN KOxN 06nJIbHbIM KOnyecTBOM BObl C MbIOM.
Bcnyae nonaHaHnB rJa3a npombiBaTb rJa3a 06nIbHbIM KOINueCTBOM BObl He MeHee 15 MNHyT, nocJe yero o6paNTbcra K BpaCy.

CnCTema 3aXnraHna ra3oHOKocNJk CO3daet nckpbI. NcKpbI MoryT nonactb HapyKy i CTA Tb npuHHo BO3rOpaHnN IIN B3PbIBA B JERKOBOcCIIaMeHIOUeICsry IINB3PbIBOONaCHOI cpeI. 3TO CB83aHO C ONaCHOCTbIO NOJyehncrepbe3hIX TpaBM BNIOb DO JeTaIbHO rCXoJa, a TaKke C ONaCHOCTbIO MaTePnaJIb-Horo yuepe6a.

IcnoJb3OBaTb CBeu 3axnraHnTOJbKO B COOTBETCTBnC ONncaHnem, PpNBeEHHbIM B INHCTpyKuIN NO 3Kcnjyaataun DBNrataTeJI.
BkpyTntb CBeCy 3aXnraHnI n 3aTaNHyTb ee do OTKa3a.
C cnno npnxkaTb uTekep npoBoa cBeu 3axnraHn.

pycckn 4 Yka3aHn no TexHnke 6e3oNaChocTn

Ecnra3oHOKOcNlka 3anpaBneHa 6eH3nHOM, KOtOpbI He NOxOHT dIy DnRaTeJIa, BO3MOXHbI NOBpeJDeHnRA3oHOKOcNlKN.
- IcnoJIb3OBAtB CBExn HeaTInuPoBaHHbI 6eH3n MapoHbIX COPTOB.
Co6IIOdaTb yka3aHnna, npNBedeHHbE B HNCTpyKuIN NO 3KnJyatauIN DBnraTeJIa.

4.8 Pa6ota c yctpoiCTBOM

PPEyPExKDEHNE

Ipn HnnpaBnBbHom 3anycKe DnuratJIy IOnb3OBaTeJIb MOXeT NOTepeRb KOHTpoJIb HaIra3OHOKOcNkoI. NOb3OBaTeJIb MOxet NOJyUHTb cepbe3HbIe TpaBMbl.
3anyckaTb DnIraTeIb B COOTBETCTBUN C yka3aHnMn B DaHHoN NHCTpyKcN N O 3KcNpyatauN.
B HeKOTOpbIX CNTyaunx NOLb3OBaTeJIb MoKeT NoTepeRb KOHcEHTpaCnIO. OH MoKeT cNOT-KHyTbCBy, yNaCTb IN NOnyUHTb cepBe3HbIe TpaBMbl.
Pa60TaTb cNOKOHO N BdymuBO.
Kocntb TOnbKO npxOpoWe BnDnMoCTn. BycNoBnx IIOXOrO OCBeUeHn N BnDnMoCTn He pa6oTaTb C r3OHOKoNkoN.
- YnpaBnTb ra3OHOKoNkoD0JKeH TOIbKO OINH NOJIb3OBATeNb.
Cneintb 3a npenTCTBnMn.
He nepeBopaunBaTb ra3oHOKocnIky.
Pa6oTaTb, cToHa 3eMne n coXpaHra paBHOBeCne.
PnnoBneHn npn3HaKOB yCTaIOCTN BOBpeMa cTeNaTb nepepbIb.
- Ппс скашиваим Ha ckliohe KocntbВ nonepeyHOM HAppaBJIeHIM N CKJIOHy.
- He pa6oTaTb Ha cKNoHax c yKNoHOM 60Jee 25^ (46,6%).
Co6nIaTb oc6yIO octopoxHocTb npINcNoIb3OBAHm ra3OHOKoNkB6n3nCKHOHOB, KpOMOK yAcTkoB, KaHaB, MycOpHbIX CBAJOK n npyDOb.
Heo6xOIMO pAnHPOBaT pa6Ouee BpeM TaK, yTo6bIMoXHO 6blIO dInTeIbHoe BpeM n36eRaT bYpe3MePbIX Harpy3OK.
Pn pa6ote DBNrataTeBbIeJrTOc BbIXONHbIe ra3bl. Bdbixaemble BbIXONHbIe ra3blMoryt npNBecTN K OTPaBNeHIOJIHOJeI.
He BdbixaTb BbIXNONHbIe Ra3bl.
Pa6oTaTb c r3a3OHOKOcNkoB BXopoO npOBETpuBaEMOM MecTe.
Pn BO3HKnHOBeHm TOoHOTbI, TOnOBHo 60nn, HapuWeHn 3peHn, yxUdWeHn cnyxa nn rOIOBOKpyKeHn ppeKpaTntb pa60ty n o6paTntbcr K BpaCy.

EcnnoIb3OBaTeIb Hocnt 3aunTHbIe HayuHnKBO BpeMa paObI dBurataTEn, OH MOKeT BOCpHIMaTb N OueHbA Tb Wymbl B OrpaHn- YehHO CTenEH.
Pa6oTaTb cNOKOHO N BdymuBO.

• Ra30HOKOcNJa OChaIeHa yCTpoiCTBOM OCTaHOBKn DnurataJIa.

BnraTeJIb Hox octaHaBnaIbaOTcB TeueHne 3 ckynd nocne OTnyckaHn pyKoTkn IpeKeKnUoyehn dIy 3anycka KOseHn.

BpaaiouicnHOx MOXET NopAHNTb NOb30BaTeI. NOb3OBaTeJIb MOXET NOJyHTbcepbe3HbIe TpaBMbl.

BbHyTbIteKepe npoBoa cBeu 3axnraHn.

He kacaTbC BpaaHooeroC Hoxa.
EcnHOK 3a6IOKIpOBaH NOCTOPOH NpEIMETOM: BbIKIHOHTb DBNAteNb.ToJIbKO NOcNE 3TOrO y6paTb MeWahouuIN ppeIMet.

Ecn pa60tbI npOn3B0aTc8 6e3 npNBoDa DBNXKeHn, BO3MOXHO CnyauHoe BKJIIOUeHne npNBoDa DBNXKeHn I HepeHaMepeHHoe DBNXKeHne ra3OHOKOcNIKn. 3TO CBraHO C onaCHOCTbI NOJyHeHn cepBe3HbIX TpaBM INI MaTePnaJIbHoro yuep6a.

HaxaTb pyKoTky nepeKIOUeHn npuBOda DBNXeHn TOIbKO B TOM Cnyae,ecn HxKHO BKNIOHTb npuBOd DBNXeHn.

EcnBBO BpeMa60tIra3OHOKOJIka H3MeHnEeIOBeHeHne Nn BeTeC6b Heo6bHuHO, BO3MOxHo, OHa HaxOHTcB TEXHueCKN He6e3OnaCHOM COCToHn. 3TO CBraHo C onaCHOCTbIO NOnyehnCepe3HbIX TpaBM nn MaTePnaIbHorO yuep6a.

• Ppekpatntb pa60ty n C8ra3atbc8 co cneunaJn3npoBaHHbIM ueHTpOM STIHL.

Bo Bpempa6oTbIra3OHOKOcNJKMOXeT BO3HNKHyTbBn6paun.

Bo BpempaobtHaedeBaTb pa6oNe nepaTkn.
BoBpeMaPbToIeJaTbnepepbIBbl.
-При появлесни ризнakов Нашени Кробобрашени образиТьск Ввау.

OcmatpnbatcKaunBaembIyacToKnCneDntb3a npenrTCTBnAM. Ecnn BO BpeMa p60tbl HOK cTOJIKHETc C NOCTOPOHNM npedmetOM, OH MOKeT cIOMaTbcR. B pe3yltate HOK nIN erO yactn MOrYt 6bITb OT6po-WeHbN3-NOd r3oHOKocnKn C 60JbwockopocTbIO. 3TO CBraHO C onaChocTbIO NOJyehn TpaBM nIN MaTePnaIbHorO yuepb6a.

y6paTb n3 pa6oye 30HbI NOCTOPOHnHe npEaMeTb: kAMHN, naKN, npoBODa, irpyuKn i dp. OTMeNTbCKpbITbIe npEaMeTb, KOtOpbl HeNb3ra y6paTb.

Iocne TOrO KaK NoJIb3OBaTeJIb OTnycKaeTpkypeKeKIOUcHnA DnA 3aNyCa KoWeHnHOx PpOdoJXKaET BpaAaTbcraB TeueHne HeKOTOPoBvpeMeHN.3To MoKeT npNBecTN KcepBe3HbIM TpaBMam.

OjkaTbca npekpaueHnBpaueHnHOxHa.

IpnCTOJKNHOBENBpaaHooceROCA TBePdbIM npEIMToM OryT BO3HnKHyTb NcKpbI.NcKpbI MOryCTaTB pNCHNOB O3roPaHnB IeKOBocPnaMeHnoUoecr CpeDe. 3TO MOKeT npNBecTu K cepbe3HbIM TpaBMam IINI JeTaJIbHOMy NCxOdy N MaTePnaJIbHOMy yuepe6y.

He pa6oTaB B IeKOBocnIaMeHЯUoIeNcra cpeIe.

Ecnra30HOKOcNka ocTabHeHa 6e3 npnc-MOTpa Ha HAKIOHNOI NOBepXHOCTn, OHa MOxET CnyaHNO OTKaTNTbCRA. 3TO CB3aHO C ONaCHOCTbIO NOJyehn TpaBM NJI MATEpnaJIbHOrO yuepe6a.

OCTaJIaTb ra3OHokocnky 6e3 npncMoTpa TOnbKO TOrda, KOrda OHa CToNT Ha POBHOI NOBepxHOCTn Hr Me MoXeT CnyaHr OTKaTtNbCra.

EcnK BeDyue pyuKe npKpeHneBkKaKeIIN6o npEdMeTbI, Ra3OHOKocNka MoKeT OnpoKHyTBcN-3a DOONHHTeBHorO BEca. 3ToCBra3aHO COnaCHOCTbIO NONYeHnRA TpaBM INMaTePnaJIbHorO yuepe6a.

He 3akpenTb Ha BeDyuei pyuKe HnKaKe npedMeTbl.

ONACHOCTb

Ecn pa6oTbI npOBoaTcB6n3n TOKOBeUx Ka6eNe, HOK MoKeT cOpnKocHyTbcC TOKOBeDyUmm K6eJMaN I NOBpeDHTb IN. TpaBMbl BnIObTb Do JetaHoro nCXOda.

He pa6oTaTb pAIOm c TOKOBdUcIMN ka6eJAMN.

■Pn pa6oTe B HEnOrOy NOIb3OBaTeJIa MoKeT yApntb MOHnI. NOpIb3OBaTeJIb MoKeT NOnyUHTb cepbe3HbIe TpaBMbl BNIObI Do IetaJIb-Horo nCXOJa.

• Pnp Henorohe He pa6oTaTb.

Pn pa6oTe BdoKb NOnb3OBaTeNb MoKeT NOCKOJIb3HyTbcra. NOnb3OBaTeNb MoKeT NOy

YHTb cepbe3HbIe TpaBMbl Bnnotb Do JeTaNb-Horo nCXOda.

• Ppi DoXke He pa6oTaTb.

4.9 TpaHcnpTnpoBka

PPEyPExKDEHNE

■ПиТранспортурбke ra30HOKOcNka moKet OnpokHyTbCЯ ИИ CdBHyTbCЯ.ЗTo CBra3aHo C onaCHOCTbIO NOJyEHHa TpaBM IIN MaTepeNaIbHOrO yUeP6a.

BbIKIOuHTbDnIraTeJIb.

OjkaTbCnpeKpaueHnBpaue-HnHOxKa.

BbHyTb 1TeKeP npOBoa cBeu 3axnraHna.

3aKpeHnTb r3oHOKOcNkCy CTJXhBIMn peHMn HnCetKoH Na NOxOJaIe NOrpy-30uHoi nPaTΦOpMe, YTObI OHa He ONpOKnHynacb HmOrla DBrTaTbcr.

B npoecce pa60tbl DBnraTeJy WymOJIyUHInTeIb n DBnraTeJb MOryt Harpetbcr. PnTpaHCnOpTnpOBKe NOnb3OBaTeJb MoKcET 6xkeYbcr.

• NpeMeCTnTb r3oHOKOcNIky.

「ra30HOKOcNkA TjKeJnA. NOb3OBaTeNb MoKet IOnyUHTb TpaBMy npn nepeHoce ra30-HOKOcNlKn B OOnHOuyk.

BoBpempa60bHaedeBaTb pa6Oue nepaTk.

• IpeheHocntb ra3OHOKOCnIKy BDOEM.

4.10 XpaheHne

PPEyPExKDEHNE

IeTNMOrTHeOC03HaBaTbHHeNpabNtBHO OueHNBaTbOnaCHOCTn,CBra3aHHbIEcraOHOKocnko.Bpe3yNbTaTe yero OHN MOrYT NOJyHTb Cepbe3HbIe TpaBMbl.

BbIKIOuHTbDnurTaTeJIb.
- Ra30HOKOcNlKa dOJIxHa xpaHHTbcra B HeoCTyHOM dIa DeTeMecTe.
Ra3oHOKOcNIky CneIyEt XpaHNTb B YnCTOM n cyXOM MecTe.

Ecnra30HOKOcNka XpaHITcHa Ha KaIOHHO NOBepXHOCTn, OHa MOKeT CnyaHNO OTKaTHTbC. 3TO CB3aHO C ONaCHOCTbIO NOnyehn TpaBM INI MaTePnaIbHoro yUepe6a.

XpaHntb r30HOKOcNkTy TOnbKO Ha pOBHO NOBepxHocTN.

4.11 OuInCTka, TeXnHueCKoe o6cIy-XINBaHne n peMOHT

I PEPdUyPExKdEHNE

EcnBBo BpeM OunchKn,TexHnueeCKOrO o6cnyXnBaHnI nn peMOHTa DBnraTeNb pa6oTaet,3TO MoKeT npNBecTN K cepbe3HbIM TpaBMamnn MaTePnAInbHomy uep6y.

BbIKJIIOUHTb DBNAteJIb.

• OjkaTbca npekpaueHnBpaueHn Hoxa.

BbHyTb 1IeKeP npoBoa CBeu 3axnraHna.

EcnBBO BpemO uNCTKN,TexHnueckoro 06cnyXnBaHnI Nn peMOHTa DnIraTeJIb pa6oTaET, npINBOD DBNXeHn MOKeT CnyaHNO BKIOuYntbcr.3TO CB3aHO COnaCHOCTbIO NOyueHn cepbe3hIx TpaBM Nn MaTePnaIbHOrO yuepe6a.

BbIKJIOUHTb DBuRatJIb.

BbHyTbIteKepe npoBoDa CBeu 3aKnraHna.

B npoecce pa6obtI DBnraTeJIa WymOrrnyuHnTeJIb N DBnraTeJIb MOryT HarpeTbc. IIOdN MOryT NOJyUHTb OXOrn.

• IopoJdaTb, noka 1yUHTeNb n Dn-ratEnb OCTbHyT.

CnIbHbIe uNCTaUne cpeDCTBa, OuNCTKa Ctpyei BbICOKO rDaBHeHr IIN OcTpbiE PpeMeTbIMoRyTIOBpeDHTra3OHOKOCnKy IINHOx. B pe3yIbTaTe HEnpaBnIbHoI OUYCTKn Ra3OHOKOCnIK NIN HOXa KOMNo- HeHTbIMoRyTHeΦyHKUHOHPOBaTb DOJNXbIM 06pa3OM,a 3aUnTHbIe yCTpOInCTBa MOryT BbIITn IN3 CTpoA. 3TO MoXe TnpVBecTN K cepBe3HBIM TpaBMam.

• POn3BOAnTb OYNCTKy Ra3OHOKOcNkN Hoxa ToIbKO B COOTBeTCTBnC yKa3aHnA M N B 3TOHnCTpyKuIN NO EKcnNyatauIN, 15.2.

B pe3yIbTaTe HnnpaBnIbHoro Texnueckoro 06cIyXnBaHnI nnpeMOHTa ra3OHOKoCnIKN IIN HOXA KOMNoHEtBI MORYT He cyHKUHOHIOBaTb DOJKNbIM O6pa3OM, a 3aunTHbIE yCTpOietBa MOrY BblTN n3 cTpor. B pe3yIbTaTe Yero BO3MOxHO NOLyuHeHne cepBe3HbIX TpaBM BNnotb Do JetaBHorO nCXOJa.

3aMeHHTb N3HOWeHHbIe IJIIN NOBpeXdEHNbIe DeTaII.

• Pn Heo6xOIMOCtN npOBeHnRA TexHnueCKOrO 06cnyKBAHn INI peMOHTa Ra3OHokCnIKn O6paTntbC8 B cepBnCHbI ueHtp STIHL.
• PpOIN3BOIDnTb Texo6CnyxuBaHne HOxA B COOTBETCTBn C yka3aHnA M N B 3TOI NHCTpyKUIN NO 3KcnJyatauN.
  Bo Bpem OunchK, TexHnueckoro 06cnykBaHn Hnn pemOnHa HOka nIb3OBaTeJIb MoKeT npoe3aTbcra 06 octpbie peKyuNe KpOMKn.
  IoiB3OBaTeJIb MoKeT IOJyUHTb TpaBMbl.
  BoBpempa6oTbHaedeBaTb pa6Oue nepaTkN 3n3HOCOCTOnKO rMaTePnaJa.
  Bo BpeM 3aToUKN HOK MOKeT HarpeTbcra.
  Ponb3OBaTeIb MoXeT NOnyUHTb OxKOr.
  DoxdaTbca, NOKa HOX OCTbIHET.
  Bo Bpempa60bHaNeBaTaPboOye nepaTkn n3 n3HOCoToKoTO MaTepnana.

5 ПодгOTOBka ra3OHOKOcnilkn K pa6oTe

5.1Подг罗вka ra30HOKOcNkn Ka6oTe

IpeHnauJom pa6oTbHeo6xOIMo BblonHHTcneDyUuue Warr:

• Y6eIntbCra, YTO CneIyIOUne KOMNOHeHTbI HaxoIaTcB 6e3ONaChOM COCTOHN:
  -「a30HOKOcNlka,4.6.1.
  -Hok,4.6.2.
  OuHCTnTb ra30HOKOCnKy, 15.2.
  PpOBepntb HOK, 0.2.
  3aHTb MoTOpHoe MacNo, 1.1.
  OTKINHyTb BeDyUyO pyuKy, 1.1.
  3anpaBntbra3OHOKOncnKy,17.1.
  YcTaHOBnTb BbICOTy cKaUHBAHn, 11.2.
  PnoBepntb 3JeMeHTbl ynpabJIeHnI, 10.1.
  Ecnn Warr He Moryt 6bItb BbINOnHeHbI: He NcNoJb3OBaTb r3OHOKOcnKy I CBraTbCg Co CneuaJIIN3npoBaHHbIM ueHTpOM STIH.L

6 3aJIINbKa MOTOPHOro Macna

6.1 3aIINBka MOTOPHOro macna

MToPHOe MacNo Cma3bIbAet N OXJaXJaET DBNrTaTeJIb.

Texnueckne xapaKTepcntkMOTOpHOro Macna I INΦopMaquIO O KOJIueCTBe 3aJIbAemOro Obema MoXHO HaHTB INHCTpyKcNl NO 3KcPnyatauIN DBrIaTeJI.

YKA3AHHE

B coctoHn npi noCTaBke MOTOPHOe MacNo He 3aIInTO. 3anyck DnuratEny 6e3 MOTOPHOro MACJa HJN pRn CnUHKOM Hn3KOM KOJIueCTBe MOTOPHOrO MACJa MOXET NOBpeDntb Ra3OHOKOCnIKy.

• Ipeep KaKdbIM 3anyckom npOBepaTb ypoBeHb MOTOPHO Macna, npn Heo6xoMmOCTN DOJNTb MaCNo.

• POn3BOIDtB 3aINBky MOTOPHO Macna B COOTBETCTBnC yKa3aHnMn B INHCTpyKuN N O 3KcIIyataun DBNrataJIa.

7 3a npabKa r30HOKOcNJIKN

7.1 3anpaBka ra3oHOKOJIKN

YKA3AHHE

Ecnra30HOKOcNkka 3anpaBneHa HenpaBnIb-HbIM TOPNIIBOM, BO3MOXHbI NOBpeKdEHNr Ra3OHOKOcNkN.
Co6JIOdaTb yka3aHnB INHCTpyKuIN NO 3KcIyataun DnBiratela.
BbIKIOuHTbDnuratJIb.
- IocTaBt bra3OHokocnky Ha poBHyIO noBepxHOCTb.
OuNTb 6nactb BOKpy KpbIuKu TOnnHoro 6aka MmKoTpAnKoN.

-ПоворачиВаТь КрБИСКУ ТОППИВHOrO 6aKa (1) npOTnB YacOBоI CTpeIKN, NOKA ee HeJIb3Я 6yIDeT ChrTb.
CHaTb KpbIuKy TOnJIuBHO 6aKa.
3aIITb TOnIIIBO TaKIM O6pa3OM, YTO6bl CBO-6oHNbIM OCTaBaIocb He MeHee 15 MM Do KpaTOnIIIBHO 6aka.
YcTaHOBnTb KpbIuKy TOnNIBHOrO 6aKa Ha TOnJIuBHiB 6ak.
3aKpyTnTb KpbIuKy TOnNHBHO 6aka no yacoB0B CTpeJIke n 3aTaNHyTb OT pyKn. ToNINBHbI 6ak 3aKpbIT.

8 Повьателбая нachtpoиka ra30HOKOKNKIN

8.1 OTKnIbIbAHne BeDyuei pyuKn

BbIKHIOHTb DBnIaTeJIb.
BbHyTb uTeKepe npoBoDa cBeu 3aXnraHna.
- NocTbTa3OHOKOJIky Ha poBHyIO NOBepxHOCTb.

OTkpblb 6bictpo3axMHbIe qKcaTopbl (1), ecnOHN 6blIN 3aKpblbl.
OTKINHyTBBeDyUyOpyKy(2).
3akpbItb 6blcTpo3axmHhble fNKCaTopbi (1). Beyuza pyka (2) npoHNo coeHHeHa c ra3OHOKOcNkoi.

PnKbpyKoTkynepeKnUoyehnA J3anycka KoWeHn (3) K BeDyuee pyKe (2) uYdePKBaTB B 3TOM NIOJoxeHN.
MeHnHO NotaHyb pyuKy 3anycka (4) B HaprabHeHHn HaprabJoue Tpoca (5).
Bnokntb pyky 3anycka (4) B HappaBnaIouyio Tpoca (5).
- Otnyctntb pykortky nepeKluoyehnna 3anycka koeHnna (3).
- Choba yctaHOBtB uTekep npoBOda cBeu3axnraHna.

8.2 CknaIbIbAHne BeyuIe pyuKn

Bényu yuyu pyky moxho cnoxtb dnyo6hoy TpaHcnpTnpoBKN NNI KOMNaKTHO XpaHeHNA.

BbIKIOHTb DBnIaTeJIb.

pyckn 93anyck n octaHOB dBVaTeJra

BbHyTb WTeKep npoBoa cBeu 3axnraHna.
-ПocTaBnTb ra3OHOKoCnIky Ha poBHyIO NOBepxHOCTb.
PpIXaTb pyKoTky nepeKIOUeHnA dIy 3anycka KoSeHnK BedyuEpyKe n ydepXnBaTbB3TOM NIOJKeHn.
BbIaHyTb pyKu 3anycka n3 HappaBnaioeit Poca N MeJneHNO npOBecTu o6paTHO B HappaBneHn DBrTaTeN.
Onyctntb pykoarky nepeknouehn da 3anycka kowehn.
- YdepxnBaTb BeDyUyO pyKy n ocnaBtB 3Be3do06pa3HyO pyKy-raKy.
OTKNHyTb BeDyUyIO pyKy BnpeI.

9 3anyck n octaHOB dBnra-TeJRA

9.1 3anyck Dnrgatela

HocTb.

-NeboI pyKoI npKxATb pyKoTky nepeKnIOueHnI dIa3nycka KoUeHnI (1) K BeDyuei pyuKe (2) uYdepKINBaTb B 3TOM NIOXKeHnI.
PpaBOn pyKo MeJNeHHO BbITaHyTb pyKy 3anycka (3)do nOBHeHn OuyTMoro cnpoTNBHeHn.
BbICTPO BbITrIIBaTb pykky 3anycka (3) n OTBO-DNTb ee Ha3ad Do Tex nop, Noka DnRaTeNb He 3apa60Taet.
EcnI Dnuratelb He 3anyckaetc:co6lnoaTb yka3aHnB INHCTpykun No kcnnyataun Dnuratela.

9.2 OTKJIIOUeHHe DnBraTeJr

• NocTaBnTb ra3OHOKoCnIky Ha poBHyIO NOBepxHOCTb.
  Onyctntb pykoTky nepeKIOUeHnA dny 3anycka KoWeHnA. BnIraTeNb OCTaHaBnBaETcR.
  POKINHyTb NO3NcHIO NOb3OBaTeJIa.

10 Поберka ra3OHOKOcNkN

10.1 Поверка заименю упавеления

PykoTka nepeKIOUeHnI dIy3aNycka KoUeHnI npykoTka nepeKIOUeHnI npBODa DbIXKeHnI

BbIKIOHTb DBIgATEJIb.
ПОЛНOCью NOTЯнТь рукогТКУ nepeклоченя Ддя 3апсka KoшЕня n рукогТКУ nepeKЛчсEHня npINBOda DBNIXeHnR B HAnpaBNeHnBEdyueJpyKNI CHOBA OTNYCTNTb INX.
Ecn pykoTka nepeKIOueHn dIy3anycka KOWeHn IIN pyKOra KnepeKIOueHn npB0Da DnIXKeHn NepeMeuaOTc C TpyOM IIN He BO3BpaUaOTc B INCXOHOe NIOXKeHne:He INCNOJIb3OBaTB Ra3OHOKOJIky n CBr- 3aTbcr CO CNEuNAHn3NpOBaHHbIM UeHTPOM STIHL.

PykoTka nepeKluoyehnI dIy3anycka KoIeHnI nnpykoTka nepeKluoyehnI npNbOda DBNKeHnI HeNCnpaBHa.

10.2 Поверка Ножа

BbIKIOHTb DBNATeJIb.
BbIHyTb WTeKeP npoBoDa CBeu 3aXnraHna.
OctaHOBNTbra3OHOKOcNkY，15.1.

-13MePntb cNeDyUOuIne npaMeTpbI:

ToIunHy a
-Unpnu b
- YrOJ 3aTOUKN C

Ecni 3HaueHnMaJIbHOJ WInpHHbI NToIuHbI He DoCTnraOT HNXHe IpaHnCbI DONy-CTUMOIO DaNa30Ha: 3aMeHNtB HOK, 9.2.
Ecn yro3aTOyKn He co6JIIOJeH: 3aTOUYb HOK,19.2.
-При BOЗнКHOBEHIN BONPOCOB:образИТбСВCEPBиСьицHTP STIHL.

11 Pa6oTa c ra3OHOKocnIko pycckn

11 Pa60Ta c r30HOKOcNJKoJ

11.1 YdepxBaHne n nepemeeHne ra3OHOKOJIKN

DepxaTb BeDyuyo pyky oBeIMn pykamn, 0xbATNB ee 6oJIbWMn nIaNbcaMn.

11.2 YcTaHOBka BbICOTbI cKaUNBaHnA

MOxHOb yCTaHaBnBaTb 4 ypOBn BbICOTbl Cka- uINBaHn:

-30MM=noJoxHeHne1
-50MM=noJxHne2
-70MM=NOJXeHne3
-85MM=NOJKeHne4

BbICota ckaunBaHn yctHaBnBaETc
OTdIbHO cpeDn n C3aDn. HAcTpoN BblCOTb
CKaunBaHn CpeDn n C3aDn DOJXHbI 6bITb
OINHaKOBbIMn.

PerynnpOBKa BbICOTbI cKaWINBaHnC3aDn

BbIKIOHTb DnurateJIb. Hox He donxeh Bpaa
- IocTaBnTb ra3OHOKOcNkCy Ha poBHyIO NOBepx-HOCTb.

Haadabntb Ha 3aHIOO OCB BHN3. 3aHnraocpa36noknpoBaHa mOxET 6bITb nepectabneHa.
- Pepemecntb 3aHIOO OcB BnEBO N BnpaBO Tpe6yemoe NOJoxeHne.

PerynpobKa BbICOTbCKaunBaHnCnepeNi

BbIKIOHTbDnIaTeIb. HOx He DonKeH BpaTaTbcra.
- NocTaNtB r30HOKOCNkCy Ha pOBHyIO NOBepx-HOCTb.

OTXkaTb pbIar IJIpeRyIINPOBKn BbcOTbl Cka- shuBaHn (1) HapyKy.
YcTaHOBnTb pbIar IJpeRyIINPOBKn BbcOTbl cKaUHbAHn (1) B Tpe6ByeMoE nONoXeHne n 3aueKHyTb erO.

11.3 BkIIOUeHne N BbIKIOUeHne npIBOda DvIXKeHnA

11.3.1 BkIIOUeHHe npNUbOda DnIXeHnA

• NocTaBnTb ra3OHOKOCnIky Ha poBHyIO NOBepxHOCTb.
  3anyCTnTB DnBnraTeNB.

JIeBOy pyKoI NOrAHyTb pyKOaTKy nepeKIOUeHnI npuBODa DvIXeHnI (1) B HAnpaBNeHnBcDyUeIpyKnI yDepxNBA Tb ee B TaKOMnoIOXeHn, O6XBaTNB 6OJIbUIM naIbUemBeDyUyIO pyKy.

Ta3OHOKOcNka HaunHaeT DnXKeHne.

11.3.2 BbIKHueHne npBODa DnHexeHn

Onyctntb pykoTky nepeKnHueHn npNbOda DBNXEHN.
- DoKDaTbC8 OCTaHOBKn Ra3OHOKOcNJIK.

11.4 MylbnyroBaHne

Блардя особимхаразкетерпокам npoxoxденя BO3dUshoro NOTOKA B O6laCTN HOka npи мьчировани Срзаннай Трава MHorokpatно ИЗмельачетс и ВыduBaetcogpaTHO Ha JyroBHy.Срзаннай Трава OCTaETcн ha ra3OHe,гд она 6bICTpo NeperHnBaET,Вынолня раль HatypalbHOrO ydo6peHn.ДЯ поученя КpacINBOrO ra3OHa C rYctOn TpaBoi MylbchirpoBaHne Heo6xODnmo PpON3BoDnTb YacTo, Cpe3a npи 3tOM TpeTB BbICOTbl TpaBl.

YcnoBnI DnI DoCTNKeHnXopoWero pe3ynbTaTAt MylbHnpOBaHnI:

• YacToTa: BeChOn (nepNoI aKTnBHoro poCTa TpaBbl) He pexe 2 pa3 B HeJeIO, JeTOM n OceHbIO 1 pa3 B HeJeIO.
• No BO3MOXHOCTn pa60TaTb Ha cyxOM ra3OHe.
• Pa60TaTb C XopoOo 3aToeHHbIMN Je3BnMn.
  BkIIOuTaB Hn3KyIO CKOpocTb DnIXKeHHa.
• MeHЯr hAnpaBHeHne DvNKeHn npKoWeHn n CNeIHTb 3a Tem, YTO6bI NOIOcBi npKoWeHn He NepeceKaJIncb.
• Ra30HbI C OueHb BBICOKoTpaBOB Bcerda KocHTb N03TaHNO.

Pn pa6ote c BkHoueHHbIM npuBOOM DvHexe HnBnMaTeIbHO npoDnRaTb ra3OHOKCnIKy Bnpei.
Pn pa6oTe C BbIKIOueHHbIM npINBOOM DBNXeHn:MeIeHHO IN BHIMaTeNbHO pOdBnRaTb ra3OHOKOcNkY Bnepe.

12 Посл pa60ы

12.1 NocJe pa6oTbI

BbIKIOuHTbDnurateJIb.
Ecnnra3OHOKOcNkHaMOKn: BbicyuNTb ra3OHOKOcNkY.
OuHCTnTb r3OHOKOJIKy.

13 TpaHcnpTnpOBka

13.1 TpaHcnpTnpOBka ra3oHOKOcNIKIN

BbIKIOHTbDnRaTeIb. HOK He DoJKeH BpaaTaBcra.
BbHyTb WTeKep npoBoDa CBeu 3aXnraHna.

Ecnnra3oHokocnka xpaHntc86onee 3 meca-ueB:

-Даысгоступрабогьdo onopokнHeHnTOnJIINBHorO 6aka.
-Дя OUCNTKToPnBHO6aKaObpaTntbcB CneuaHn3npoBaHHb ueHtp STIHL.
Pon3BODnTb 3aMeHy MOTOPHOro MacJa B COOTBeTCTBnC yKa3aHnMaM B INHCTpyKuN N O 3KcPiyatauN DBrIaTeJr.
BbIBuHTnTb CBeuy 3axnraHna.

PPEyPPEKDEHNE

Ecnn BbITIgNBaTb pyUky 3aNycca npn CHrTom
WTeKepe npOBoDa CBeu 3aJiRaHna, HApUky
MOryT nonactb NcKpbI. NcKpbI MOryT cTaTb
PpUHHoB BO3rOpAHnA INN B3PbIBA B IeKBOO
CnIaMeHryIOSeICRAINB3PbIBOONaCHO
CpeDe. 3To MoXeT npVBecTI K cepBe3HbIM
TpABMaM INN JETaJIbHOMy INCXOdy IN MaTe-
PnAlbHomy uIep6y.

• DepeXaTb WTeKeP npOBoDa CBeu3axnraHna NOdaJIbWe OT OTBepCTnI DnA CBeu 3axnraHna.

Heckonbko pa3 BbITaHyTb pyky 3ayncKa nNotaHyTbe Ha3a.
BkpyTntb Cbeyu 3axnraHn n 3aTnHyTb ee eoOTka3a.

15 OuInCTka

15.1 YctaHObKa r30HOKOcNJIKN

• TaTb yCTpoiCTBy nopa6oTaTb Do onopoxHeHnra TOnnBHorO 6aka. DniratEnb BblKnIOHTcR.
• NocTaBnTb ra3OHOKoCnIky Ha poBHyIO NOBepxHOCTb.
  YcTaHOBnTb BbICOTy CkaUNBaHnB NIOJXeHNHe 1,1.2.
  BbHyTb WTeKeP npoBoa CBeu 3axnraHna.

• YdepxnBaBBeDyUpykY (1),OTKpbTb 6bICTpo3axmHbIe qNKCaTopbI (2).
  OTBeCTN BeDyUyIO pyUky (1) Ha3aI.
  -Понятбра3OHOKOcNlkyДВижehнeмHa3a.Д.

15.2 OuInCTka ra3oHOKOJIKNI

BbIKIOuHTbDnurateJIb.

DaTb ra3OHOKOcnIke OCTblTb.
BbHyTb uTeKepe npoBoDa CBeu 3aKnraHna.
- Ptopeb ra3OHokcnky BnaXHO TpAnKoN.
OuHCTnTB BEHTNJIaUNHOHBIE OTBepCTNA KICTOUYKoI.
OCTaHOBtBra3OHOKOcNJKy.
OuHCTb OJNaCTb BOKpyr HOx a cAm HOX DepeBAAHOI NaIOUCKoM, MArKOI UeTKoN INBlaXHOI TKAHbIO.

16 Texnueckoe obcnykinaHne

16.1 INHTepBaJIbI TexO6cIyJxNBAHnA

IepnoDnUHOCt bOcnyKuBaHn 3aBNCIT OT yCNoBn OKpyKaIOSe CpeDbI N ycNoBn TpyDa. STIHLe peKoMeHdyET CneJeUOJIe INTEpBaJIbI Texo6cnyKuBaHn:

Bniratenb

Pon3BOINTbTexHueeCKoe 6cnyxHBaHne DBnIATEJI B COOTBETCTBnC yKa3aHnMn B INHCTpyKuIN NO 3KcnNyatauIN DNBraTeJ.

Ta30HOKOcNJIka

ExeroDHO npOBepaTb COCTOHNHe ra3OHOKoCnIKN B CneuaJIN3uPObaHHOM ueHTpe STIH.

16.3 3aToUka nIIb6aJIaHcnpOBKa HOJa

3aToUka n 6aJaHcnpOBKa HOx a Tpe6yET 3HaunTeNbHOI NOIroTOBKn.

KOMnHaHn STIHLepeKOMeHdyET BbINOJNHTb 3aToUky n 6aNaHCnPOBky HOka B CneuaJIIN3IpoBaHHom ueHTpe STIHL.

PENYPNPEKDEHNE

Pekyune Kpomkn HOka octpbie. Nolb3oBaTeNb MOKET NOpe3aTbcra.

Bo Bpempa60bHaedeBaTb pa6Oue nep- 1aTKn n3 n3HOCOToKoTO MaTePnAna.

BbIKIOHTb DBuRatJIb.
BbIHyTb WTeKeP npoBoDa CBeu 3aXnraHna.
OCTaHOBnTBra3OHOKOJIky.
- DeMOHTnPOBaTb HOX.
3aToUHTb HOK. Pn 3OM co6IIOaTb yron 3aTOUKN, 3ATEM OXNaITb HOK, 19.2.

Hox He OJXeH CTAHOBNTbCnHm BO Bpem3aTOUKN.

YcTaHOBnTB HOX.
- PpN BO3HKNHOBeHHBONPocOB 6paTntbcB CepBnchbI UeHTp STIH.L

17 PeMoHT

17.1 PEmoHTra3OHOKOJIKN

IOnb3OBaTeNb He MOxET OcyUeCTBnTb TexHnYeCKoe 06CnyKnBaHne n peMOHT rA3OHOKOcnKnNII HOXA CBOIMN CNJAmN.

Pn NOpeHn Ra3OHOKCNI K Nn HOKa: He nCNoB3OBaTb Ra3OHOKOcNIky Nn HOK N CBraTbcr CO CneuaN3npoBaHHbIM ceHTpOM STIHL.
EcnTaaNnC npDnypeTeNbHbIMn HAdnncmHepa36opuHBblnn NOBpeXdeHbI: dna 3aMeHbIOBpeXdeHHbIX Ta6nueK o6paTntbcra B cneuaHn3npoBaHHbI ueHtp STIHL.

18 UctpaHHe HeIcnpaBHOCTeI

18.1 YctpaHHe HeNCnPaBHOCTeIra3OHOKOJIKN

Heисправно Ть	Прочина Способ устраныя
Двигаелов Запъется.	Pykonьтka поеклочець дд Запъска кошени He нажата.	3anypsыдВигаелов в COOTВETCTBИС указаньМВ Дадноги ИНСТРУКДИ ПО эКСПЛУАТСИ.
Торлвный Баak пуст. > 3anравить ra3oHOKО Баak пуст. > 3anравить ra3oHOKО Торлвовп罗вд засорен. > 0бр В бake плoxoe, загразеньhoe ил старoe толлвов. Воздунь'shoфпг Загразень. Постер Постер Постер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Постер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Постер Постер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Постер Пoster Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пoster Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Постер Пoster Постер Пoster Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пoster Пostер Пoster Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пoster Постер Пoster Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Постер Пostер Пostер Пoster Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Пostер Постер Пoster Пostер Пoster Пostер Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster ПostER Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пostер Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster ПostER Пoster ПostER Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster ПostER Пoster Пostser Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пostser Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster ПostER Пoster Пostер Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пostser Пoster ПostER Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пostser Пoster Пostser Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пostser Пoster Пostер Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoster Пoste Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster PostER Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poster Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Postes Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Postе Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Posteo Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste PostE Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Postse Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Poste Postc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTC PUSTc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pusstc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pupc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pustc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULc PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC PULC Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulc Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pull Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulр Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp PulP Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pul p Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulg Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulpg Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pull Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulp Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr Pulr
Немправно Ть	Прочина Способ устраенья
	Высокого наразожения п loхо Зakрелен в чтесеpe.
	С党支部 зжиганя заимлась, имеет поbewедения,有很大 pacstюгные мени. эльектоами неразовлиhoe.	«Очирать сBEЧУ 3жиганя有很大ameн'tь gee. «Отberулровать расстая мени'mexду эльектоами.
	Соротавлике на HOже слшков Велико.	«Устовить бОлец Высокoe Зачение ВысOTь Сkaшваши. «Залуctов Двигаелов на НИЗКОТБ Травея SCAИ. »Залуctов Двигаелов на НИЗКОТБ.
Двигаел Зап栓аetedс Трудом有很大 Моцноctь Двигаел Снжега. Двигаел Спьног Нагеваetedс.	Корпс razoнохоколи Засорен.	Очирать razoнохоколук.
	Устовлеса слшков有很大зая ВысOTа Сашваши有很大п слшков ВысOKая сборость Двигегя.	Отberулровать ВысOTу Сашваши有很大КOCпьВ бОлец medленим Temпe.
	В ТОПЛВHOM Бakeи Карбюратode Вoda,有很大 Карбюратop 3abnt.	Опорожнitzь ТОПЛВHы有很大бak,очирать ТоПЛВОпрвODи Карбюратop.
	ТоПЛВHы有很大 Заграден.Об Воздунь的大флът Заграден.	Орлуctов СВЕСВСь有很大цentp STIHL.
	С党支部 зжиганя有很大саимлась. Слшков有很大уровен MOTOPHOrO macna.	«Очирать сBEЧУ 3жиганя有很大ameн'tь gee.
	Ребра охлajдени Заграден.	«Очирать razoнохоколук.
Газоноколik а спьног Вибрирует.	Hoxь поbewдень.有很大ehн'tь HOж.
	Hoxь установен有很大пспвilsьн.	«Очирать有很大LOH.
Трав Сашивадетс HeakkypaTHO.	Hoxь 3atул徳ен有很大иЗношen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大ошen.有很大的 Hoxь установен有很大пспвilsьн.	«Очирать有很大LOH.

19 TexHnueckne daHHbIe

19.1 Ra3oHokocnka STIHL RM 2.0 RT

• Tún DBuRaTeŋa: KOHLER HD675
• Pa6oyn o6bem: 149 cm³
  MoHocTb:2,2 KBT(3,0π/c) npn 2800 o6/MnH
• CkopocTb BpaueHn: 2800 o6/MnH
• MaKcMaJIbHbI OsbEm TOnnINBHorO 6aKa:1,4
  Bec:30Kr
  -Шрпна peза: 46 cm

19.2 Hox

-MHHMaJIbHaTToJIuHa a:2,0 MM
- MnHMaJIbHaI ShpHa b: 45 MM
- YrOJ 3aToUKn C: 30^

19.3 3haeHna 3Byka n Bn6paun

Ioka3aTeJIb K ypoBn 3Byka coCTabJIaER 2 d5(A). Ioka3aTeJIb K ypoBn 7yMa coCTaBJIaER 1,1 d5(A). Ioka3aTeJIb K ypoBn Bn6pa-uuu coCTabJIaER 2,36 M/c².

• YpoBeHb 3ByKa LpA, n3MepeHHbI corlaCHO EN ISO 5395-2:81 dB(A)
  -「rapaHTnpoBaHHbIypoBeHbUymaLwAd, n3MepeHbI No 2000/14/EC /S.I. 2001/1701: 94 dE(A)
• 3NaYeHne Bn6paunn ahv, n3MepeHHoe no EN 12096, EN 20643, EN ISO 5395-2, Beyu- uaj pyka: 5,90 m/c²

CbeHnIy BbINOJIHeHnI perIamEnTa REACH yka3aHbI Ha cTpaHnIe www.stihl.com/reach.

19.5 YcTaHOBJIeHHbI cPOK cJyX6bl

IOnHbI yCTaHOBneHHbI cpoK cnYk6bl -do 30
IeT.

ДлЯ ВьрабOTК yctaHOBneHHORO cPOKA CnyK6bl Heo6xODIMbI CBOEbpeMeHHoe TexHnueckoe 6cnykubAHne n yXoD cornaCHO pyKOBoDCTBY NO 3KcPnPyatauN.

20 3aapanachbIe yactn npiHaJIeXHOCTN

20.1 3aapanachbIe YacTn I npHaJJIeXHOCTN

STIHCL TINM CNMOJAMMO603HaueHbOpn
G. HNaHbHbIe 3aNpactn I
npHaJNeKHOCTN STIHL.

KOMnHaHn STIHpeKomeHnyet nCNoJb3OBaTb opnHaJIbHbIe 3anactn STIHnOpnHaJIbHbIe npHaJdJeKHOCTN STIHL.

KoMaHnStIHHe moKeT pyaTbca 3a HaJeXHOCTb,6e30NaChOCTb n npriOndHOCTb 3aNaChbIX qacteN npHaAdneXHoCTeIpyrNX npOn3BOIDNTeNe, BcneDCTBVE yero OTBeTCTBeHHOCTb KOMnHn STIH L 3a nx 3kCnnyatauio NCKIO-yeHa.

OpunHaJIbHbIe 3aIacHbIe YacTn STIH L n opunHaJIbHbIe npHaJdJIeXHoCTn STIH L MoXHO KynITb y dInepa STIH.

20.2 BaXhBie 3aNaChbIe YacTn

ΦnμMa STIHL He Hecet KaKoJ-JIN6O OTBeTCTBENHOCTN 3a MaTePnaJIbHbI yUeep6 N TpaBMbl, BO3HNKUWe B pe3yJIbTaTe npIMeHEnH HeOpnHaNJIbHbIX HaBeCHbIX y3IOB IIN 3aNaChbIX YacTei.

-Hox:63577020102
- BnHT HoXa: 9008 319 9028
-山aian6a:00007026600

21 YtNiI3aIy

21.1 Yttnn3aunra30HOKOcnIKN

HOpmaIHO yTnIIN3aIIM MOxHO NOnyHTb B cneuaIIN3npoBaHOM ueHTpe STIH.L

OcyuieCTBnIb yTINH3aUHO rAOHOKOcNIKN HOxa,6eH3nHa,MOTOPHOro Macna,IpHnAdJIeXHOCTe n yIaNKOBN B COOTBeTCTBnC IpeDnCaHnMnA tAKKe COrJaCHO NOIOXeHNrM O 3aUnTE OkpyKaUOe CpeDbI.

22 Ceptnoikat COOTBeTCTBnE EC

22.1 Ra3oHokocnJa STIHL RM 2.0 RT

STIHL Tirol GmbH

050026 AnMaTbI, Ka3axCTaH

Topayn: [phone]

23.4 Имnotepbl STIH

POCCNCKA FEDEPALNA

OOO "UHTINb 3IOBECT"

350000, Pocchicka Feepaunia,

r. KpacHoIap, yI. 3anaIbIy o6xoI, I. 36/1

OOO"ΦJIaΓMAH"

194292, Pocsnicka Fedepaunr,

r. CaHKT-Teep6pyr, 3-nBepxHn nepeynok, d.

16 Jntep A, nomeeHne 38

OOO "PPOIPECC"

050005 AnMaTbI, Ka3axCTaH

KINPIUN3N

OcOO «My3a»

yI. KneBckar 107

720001 Bnukke, Knpn3na

APMEHNA

OOO《IOHHTYJ3》

yI. I. Napneu 22

0002 EpeBaH, ApMeHHa

Sats

1 Prieksvards. 250
2 Informacija par so lietoanas instrukciju. 250
3 Parskats. 251
4 Drośības norādījumi 252
5 Zales plaveja sagatavošana darbam...... 257
6 Motorellas iepildisana 257
7 Zales plavega degvielas tvertnes uzpilde 257
8 Zales plavea iestatisana lietotajam. 258
9 Motora iedarbinasana un apturesan..... 258
10 Zales plaveja pbarbaude. 258
11 Darbs ar zales plaveju. 259
12 Pec darba. 260

13 Transportesana. 260
14 Uzglabasana 261
15 Tirišana 261
16 Apkope. 261
17 Remonts. 262
18 Traucejumu novarsana. 262
19 Tehniskie dati. 263
20 Rezerves dalas un pigeonumi. 264
21Utilizeshana 264
22 ES atbilstibas deklaracija 264
23 UKCA - Apvienotas Karalistes atbilstibas deklaracija. 264

1 Priekšvārds

Cienitais client, cienijama kiente!

Mes priecajamies, ka esat izvelejies STIHL. Mes attistam un razojam savus augstakas kvalitates izstradajumus atbilsto si savu klientu prasibam. Sadi rodas izstradajumi, kas ir ipasi uzticami ari smagos apstaklos.

10 PpeiHm MexaH3M peryIIOBaHHB BnCOTNCKOuYBaHHA

Mexahi3m peryIIOBaHHB BUCOTN CKOUyBaHHn
Pn3HaueHn IJn HaJIaHTyBaHHB BUCOTN
CKOuYBaHH.

11 3aHniMexaHIm peryIIOBaHHBVCOTN CKO- uYBaHH

Mexahi3M peryIIOBaHHB BNCOTN CKOUByAHHn
Pn3HaueHn IJn HanaHTyBaHHB BNCOTN
CKOuByAHHn.

12 Pukka dnn TpaHcnOpTyBaHHa

Lya npn3HaueHa dIraHcnpTyBaHHra3OHOKocKn.

3.2 CnMBOJIN

CIMBOJN, kI MOKytb 6yTu Ha ra3OHOKocapci, MAOTb Taki 3HaueHHa:

LwA TapaHToBaHn piBeH 3ByKOBoi NOTyK-HocTi BiIDNoBIDHO Do NipeKTbN 2000/14/EC y D(A) nra CTbOpEHn aHaIorichoro pIBHe emici Iymy npnaqib.

LIM CMMBOJOM NO3HaueHO KPNUKy naNBHO 6aka.

LIM CMMBOJOM NO3HaueHO KPNUKy 6aKa 3 MOTOPHM MactNJOM.

3anyctitbDnHyH.

3ynHHiTb DnHyH.

YbIMKHiTb pyuHn npuBOd.

4 Bka3iBkn 7oDo 6e3neKn

4.1ПonepejkyBaJIbHi cIMBOJIi

PonepeJkyBaJIbHi CnMBOJI Na ra3OHOKOCapi MaOTb Taki 3HaueHHe:

DotpmytepaBnTexhki6e3neK Ta BxNBaTe BiNObiHnx 3anO6ixHnx 3axoJb.

YBaXHo O3HaHOMTeC3 Noci6HNKOM 3 ekCnnyataci Ta 36epiraNe Ioro.

DotpmyTeca npabn Texhki 6e3neKuOo npdeMeTiB, 0o po3niataIOTbcn iN qac pobOt, i BkBaIte BiNDOBiHNx 3anobixHnx 3axoJIB.

He TopkaTecn HOXa, 0o o6epTaetbcra.

BnMaTe WTeKepe CbiuK3anaIOBaHHaIc TpaHcnpTyBaHHa, 36epirAHn, TexHiHoro obcnyroByBaHHa nn peMOHTy.

DotpmyTeC86e3neuHOi BiDcTaHi.

4.2 BnKOpNCTaHnHa 3a npn3NaueHnHM

Tg30HOKocapka STIHLM2.0RT npn3HauehaДлм MylbCyBaHH cyxoItpaBn.

PONEPEDJXEHN

BukopncTaHHra3OHokocapKn He 3a npn3Ha-ueHm MoKe npn3BecTu DO cepNo3HOro TpaBMyBaHHaN 3aH6eI IIOJe i MaHOBOi WKOJN.

Ra3OHOKocapKy Heo6XiIDHO BnKOpNCTOByBaTN BiINOBiIDHO Do cBoro NociHnka 3 ekCnPyataui Ta nociHnka 3 ekCnPyataui DnIgamma.

4.3 Bmorndo kopncTyBaay

PONPEIXEHH

HeniIroTOBHeHi KopNCTyBaui He MoKyTB iDeHTnΦiKByTa Ta npaBnIbHO OciHIOBaTn He6e3neKn, NOB'ra3aHI 3 ra3oHOKocapKOIO. Lc Me MOKe npu3BeCTn DO cepNo3HOrO TpaBMvBaHHa YN 3arN6eJI KOpNCTyBaay HInxOci6.

YBaXHo 03HaNoMTeC3 Noci6HnKOM 3 ekCnIyatauT Ta 36epiraTe Ioro.

JaKuo ra3oHokocapky notpi6Ho nepeaTn iHsiOco6i:HaadTe TaKoX Noci6HnK 3 ekCnnyatauIra3oHOKocapKn Ta DnRyHa.

• IpepeKaHaTeCra, 10 KOpNCTyBaU BiNObiJaAe HeBeDeHm HnXue BnMOrAm.

• KopncTyBaH He BToMJIeHnI.

• KopncTyBaay Mae Heo6xidiHn i3nHi, ceHcOpHi np03ymoBi 3di6HoCTi dIy KepyBaHHra po60tn 3 ra3OHokocap

KoH. KaIoo fo3nHi, ceHCOPHI ta po3yMOBI 3dI6HOCTI KOpNcTyBaHa o6MExKeHi, BIn MoKe npaIOBAtn 3 npuAdom NlWePiH aHraJAm a60 3a Bka3IBKOIO BiNObiDaJIbHOI OcO6n.

• KopucTyBaay Moxe iDeHTnΦikyBaTu Ta ouHHTN He6e3neKn, NOB'3aHi 3 ra3oHO-KocapkoI.
  -KopnctyBaayycBiOmHoe，IOBINHece BiNobiJaIbHicTb3a HeuacHi BnpaKn TaMaHOByWKoNy.
• Kopnctybaq docra nobhoJIITT qH 3do6yB npopeciHy ocBiTy niHaIraDM BiIOBIDHO DO HaioHaIbHnx HopmaTINBHIX BIMOr.
• IpepeIePIm BnKOpncTaHHm r3oHokocapKn KopnctyBaU OTPmab Bka3iBkn BiD dInepa STIHLa 60 faxibzra.
• KopnctyBauchnepe6yBaeciBnBOM ankoRoi,niKIBa6oHapKOTuHnxpeuOBHH.

Y pa3i BnHKHeHHcymHIB a6o 3aHTaHb: 3BepHiTbcrdo dInepa STIHL.

4.4 OdЯr i cnpaJxKeHnHa

IONEPEIXEHH

IiD yac po60TN MOxNBE po3nITaHHN ppeMeTIB i3 BeINKOU WbNkICtH. Lc MoKe npu3BeCTN Do TpaBMyBaHH KOpNCTyBaHa.
CJIiHOCHTIIOBRIuTaHN3UynKoITKaHHN.

■Пд ус роботи виндас ум. Ум може нашкоити слух.
KopncTyTeC3ac06amn 3axncty opraHIB cnxy.
■Пд уас роботи може 3диматис пл.Вднхання плу може 3ашковити 3доров'ю таBNКлкати anepriчhi peakii.
- RaKIO 3diIMaEcTbcra NN: cIiD HOCNTN NINO-3axnCHy Macky.
HeBIDNOBIDHnOJrMOKe 3aueHNTnC3a depeBa, Kyu a6o ra3oHokocapky. KopnctyBaui, He BdIgHeHi HaJeXHM YHOM, MoKytb OTpIMATN cepNo3Hi TpaBMn.
CnHocHTOnOJaR,IOUINbHO npnIrae Do tina.
- Ⅲapn Ta npnkpacn Heo6xio 3HrTn.
■Пд ус очишени, texhihoro obcnyrobyBaHHa6o TpaHcnpTyBaHHaKOpNCTyBaUMOKe BnnaKOBOTpKHyTncsHoxa.Le moKe np3BecTN Do TpaBMByaHHaKOpNCTyBaau.
CniHocHTnpo6Oyipykabuyn3i 3HoCoCTiKoro MaTepiay.
HociiB miue 3aKpnte B3yTT8 3 HeCn3b- KIMN NiOuBAMN.

■KIO KOpNCTyBaH HocnTb HeHaJIexHe B3yTTa, Bin MoKe NocKB3HyTncr. Lc MoKe npu3BecTu Do TpaBMyBaHH KOpNCTyBaHa.
■Пд уac 3aToCyBaHHЯ HOxIB MoKytbpO3JIiTaTncaCTnHKn MaTepiAny. Ye moKe npN3BecTn Do TpaBMyBaHH KOpNCTyBaaya.

CniHocHTn 3axNCHI OKyIpyN, 0o 1JIbHO npnraIOTb.BiINOBiHi 3axNCHI OKyIpyN npoxOaTb BInpO6yBaHHB iINOBiDHO Do cTaHapTy EN 166 a6o HaioHaJbHnx HopMaTHBHX BUMor I HAnXoAraTb y npOdaK, MaOuN BiINOBiDHe MapKyBaHHa.
CniHocHTnpo6Oyipykabuyn3i 3HoocctiKoro MaTepiany.

4.5 Po6oHa 30Ha Ta cepeDoBnue

IIOPEeXeHHa

CTOPOHHI OCO6N, DIITN TA TBAPINH MOKytb He iDeHTnΦiKyBaTN Ta HE OcIHNT NHe6e3neKN BiD ra3OHOKocapKn IpeMetIB, 0o po3JItaHOtbcra NiJ Yac pO6OTN. Lc MoKe np3BecTn Do IXHbORO cepNo3HOrO TpaBMyBaHHr Ta MaHHOBoI WKOOn.

He onyckaIte Ha6JnxKeHHa CTo- poHHix oci6, iTei TBapHn Do p06o-yoi 30HN.

DontpmyTecb nctaHcii do npedMeTIB.
He 3aIIuIe ra3oHokocapky 6e3 Harny.
He do3B0JnTe dIyM 6aBNTuC8 3 ra3OHO-Kocapko.

JaKIO DBrHyN npaHoe, i3 rJyUshnka BHXOJrTa rapayi BuxnonHi ra3n. Rapayi BuxnonHi ra3n MoKyTb 3apanHTn JERKOaMnCTi MaTepiAn Ta cTAtn npuHHo IO noXeKi.

TpmaTe ctpmHb BxJIOHNHX ra3IB noaJI BiJ IerKo3aMnCTnx MaTepiAnB.

4.6 Be3neuHn CTaH

4.6.1 Ra3OHOKocapKa

Ta30Hokocapka nepe6yBaecTexHiuHo 6e3neuHOMy cTaHI, kUO BnKoHaHO Taki yMOBu:

• Ra3oHOKocapKa He Mae NOLKOJxHeB.
• KoJHOi kpannI 6eH3nHy He BNTiKaε 3 ra3OHO-KocapKn.
  -Kpnka nannBHoro 6aka 3akpnta.
• KoJHOI KpapanI MoTOphO MaCTnHa He BntiKaε 3 Ra3OHOKocapKn.
  -Kpnuka 6aka 3 MOTOPHM MactNJOM 3aKpNTa.
• Ra3oHokocapka nepe6yBaE B uNCTOMy cTaHi.
• ElenemHTN KepyBaHHI npaHOTb HJIeKHM CHHOM, I BOHN He 6yJIN 3MiHeHi.
  -Hix npabunbHO BCTaHOBneHO.

4 Bka3iBkn 1oDo 6e3neKn ykpaHcbKa

• Y ciŋ ra3oHokocapci BCTaHOBnEHO opriHaJIbHe DoDAtKObe npJnaDЯ STIHL.
  -Доатковпрпладя правильноВстановьнEO.
  -Плдпужнени МexаизMu HeNoшКожени Ta cnpaBHi.
  -Пдчсвдпсканнг рукп nepemknahня koc-iHHЯ DBNHy H BmMkaeTbcra.

PONPEIXEHH

JaKIo npnlaI He nepe6yBaEc B TexHicHo 6e3neuHomy cTaHi, DeTani MoKyTb 6JIbWe He cyHKIOHyBaTu HAJIeXHM YINOM, 3axNCi npNCTpoIMoKyTB BInTu 3 NaNy, a NaIbHe BNTeKTo. Ie MoKe npn3BecTu Do cepNo3HOro TpaBMvBaHHa 3aRn6eni.

BukopncToByntaIpo60TuTINbKnHeno- WkoJKeHyra3OHOKocapKy.
- RaKIO 3 ra3OHOKOCAPKN BNTiKae 6eH3uH: He npaIouTe 3 ra3OHOKOCAPKO Ta 3BepHITbcn Do dInepa STIHL.
3akpnTe KpnKny naiNBHO 6aka.
RaKUo 3 ra3OHOKocapKn BntiKaE MOTOpHe MaCTnIIO: He npaIouTe 3 ra3OHOKocapKOIO Ta 3BepHiTbcra Do dInepa STIHL.
3akpnTe KpNkky 6aka 3 MToPnM MaCTNIOM.
一 RaIIO rA3OHOKocapKa 6pydHa:OuNCTbTe ra3OHOKocky.
He BnKohyTe MaHInyIaIi i3 ra3OHokocapKOHO Ta II CnCTeMoHO 6e3neKn.
Hacampeed,3a6bOpHeNo npoBouNTn 3 ra3oHokocapkoMaHinylaqii dny3miHeHHn notyXHOCTi nn KjIbKoCTi o6eptIB DnByHa BHyTpipHbOro 3ropaHH.
- RaKIO eIeMeHTN KepyBaHHr He cyHkuioHyIOtB: He npaIOHTe 3 ra3OHOKocapKOIO.
Pi npkHei MexaH3Mm MOKyb BnBInb Hrtn HAKONuYeH eHepriio.
YctaHOBJIIOHTe B ciIra3OHOKocapi opurihalbHe doataKOBe npnlaad STIHL.
YcTaHOBHeHHa HOxHa Heo6XiHbNkoHyBaTN BiIOBIDHO Do UbO rO NociHnka 3 ekCnnyataui.
YCTAHOBJIeHHaDAtKOBOrO npnnaIHeo6xIDHO BIKOHyBaTN BiINOBiIDHO Do noc-ibNka 3 ekcnnyatauTt Takoro npnnaIaI.
He BCTabJrTe JKOdHi npeDMeTu B OTBOpn ra3OHOKocapKn.
KUo Bka3iBha Ta6nueKa 3HOWeHa Yn NowKOJKeHa, 3AmHItb II.
- Y pa3i BUNHKHeHHcymHIBa6o 3aNTaHb: 3BepHiTbcra do dInepa STIHL.

4.6.2 Hix

Hix nepe6yBaC B TexHiCyHo 6e3neuHomy cTaHi, RaKIO BnKOHaHO Taki yMOBn:

-Hix Ta Hacaikn He MaKoTb NOsKOJxHeB.
Hix He deopMObaHO.
-Hix npaBnIbHO BCTaHOBneHO.
Hix npaBnIbHO 3aToyeHo.
-Hix He Mae 3aAnpok.
Hix npaBnIbHo 36anaHcoBaHO.
-TOBzHnHa NsnpHa ne3a HoXa He MeHsi 3a BiNIOBIDHI MIHimaIbHi 3HaueHH, 19.2.
-ПiДТРИМУЕТБСЯЗАДAHи KYТ 3aTOUyBaHHЯ, 19.2.

PONPEDEXEHH

■KIO HIX He nepe6yBaE B TexHicHo 6e3neuHOMy cTahi, NOrO OKpemI DeTaJI MoKyTb BiEHaTucnB iDNeTiN. Lc MoKe npn3BecTu Do cepNo3HOrTOpaBMyBaHHra.

BnkOpncToBynteIpypo6OtJnIiHjH iHaCaJKN,kiHEMaOTbNOUKOJKeHb.
- PpaBnIbHO BCTaHOBiTb HIX.
- PpaBnBHO HaToOitb HiX.
RaIIO TOBUNHa cH IINPnHa MeHsi 3a MiHiMaJIbHI 3HaueHHr: 3aMIHiTb HIX.
3BepHbCra Do dInepa STIHL dna 6anacCyBaHHHOka.
Y pa3i BnHnKHeHHcymHiB a6o 3aHTaHb: 3BepHiTbcrdo dInepa STIHL.

Heo6xHNO np6paTn 3 po6ooi diJHKn CTOpOHHi npeMeTu, Taki KaMeHi, naIKn, dpOTn, irpaWKToIO. Po3NaHTe Bci npixObaHi o6'ekTN (nepeWkoDi), kKi He MoXHa np6paTu.

I Kaio pyky nepemkaHHKocHHB iDnyCTHTN,ObepTaHHHOxKa Ue DeaKn Yac npoDoBkYBaTmEtbcr. Lc MoKe np3BecTn Do cepno3HOro TpaBMyBaHHra.

3auekaite,doKn HIX He nepectaHe o6epTaTncr.

■JaKIO HIX, 10o O6ePtaetbCra, HaTpannHa TBePdN npEaMeT, MoKyTb yTBOpOBAtncr icKpn. Y Ierko3aMnCTomy cepeoBuni icKpn MoKyTb cnpuHHTn noKexy. Lc moKe npu-3BecTN DO cepNo3HOrTo TpaBMvBaHHa 3aHn-6eni JHOe i MaHOBoi WKOOn.
He npaioTe B Ierko3aIMnCTOMy cepeDoBnui.
JaKIO ra3OHOKOCAPky 3aHnHnHa noxHniI dIJIaHci, BOHa MOKe HeHaBMnCHO BiKOTNTcR. LcMoKe npN3BecTn Do TpaBMyBaHHra MaHHOBoI uKOdN.
3aIiwaTe ra3OHokocapky Inwe ToDi, KOJI BOHa CToITb Ha pIBHi NOBepxHi Ta He MOKe HeHaBMnCHO BiKOTNTnCra.
JaKuo Ha pyuKy KepyBaHHa HabiWeHo npeI-Metn, Ra3OHokocapka MoKe nepeKInHyTncype3 3aBy Bary. LcMoKe np3BecTu DO TpaBMyBaHH Ta MaHOBoi uKOOn.
He Habiuyte XoDnHex npedMeTIB Ha pyky KepyBaHHa.

HEBE3NEKA

JaKuo B Micui npoBeeHnHa po6iE dpOtn, 10 nepe6yBaIOb NiD HanpyroO,ix MoKe 6yTu noWKoJKeHO BHaCNIIDOK KOHTaKTy 3 HOxem. Lc MoKe npN3BecTn Do cepNo3HOro TpaBMvBaHHa YI 3aRn6eJI KOpNCtYBaUa.
He npaioTe no6n3y dpotIB, 0o nepe6yBaIOb nID HanpyroIO.
Y pa3i po6oTn iD yapc rpo3n, KopncTyBa7a MoKe 6yTu ypaKeHo ydApom 6nckabKn. Lc MoKe np3BecTn Do cepNo3HOro TpaBMyaHHa YI 3aRn6eJI KopncTyBa7a.
PiD yac rpo3n: He npaioIte.
■Пд уас рботи пд дошем корпстувач моженистя. Л можся рпзвесгд о серноэю Травмьанни чи загиелі корпстувача.
PiD y: He npauHne.

4.9 TpaHcnpTyBaHHa

PONPEIXEHH

IpepeKoXHM BnKOpNCTaHHm Heo6xIDHO BnKOHaTN Taki KpOKN:

• Ipepebipte texhiuho 6e3neuHn CTaH HAcTyNHx KOMNOHeHTiB:
• Ra3oHokocapka, 4.6.1.
  -Hix, 6.6.2.
  OuInCTbTe raoHOKocApKy, 15.2.
• Ipepebipte Hix, 10.2.
  3aJInTeMOTOpHeMaCTnIO,16.1.
  Po3knaiItb pyky kepyBaHHa, 1.
  3anpaBTe ra3oHOKocapky, 1.1.
  HanaTuYte BnCOTy CkOuSyBaHHa, 1.2.
• Ipepebipte eJeMeHTn KepyBaHHa0.1.
  KUO CI KPOKN HEMOXNINBO BIKOHATN: HE BIKOPNCOTByTe ra3oHOKOCAPky Ta 3BepHiTbcr Do dInepa STIHL.

6 3aɪnVBaHHЯ MOTOPHOro MaCTиJa

6.1 3aJIbBaHnMy MOTOPHOROMACTILA

MToPHe MaCTnIO 3MaUyE N OxONoJxKyE DBNrHy.

CneuΦiKaJMyOTOpHOroMaCTnlaTa3aINBnO6'Em HabeIeHi B NociBnky 3 ekcnIyataui DnRgamma.

BKA3/BKA

Прилад постааббябз MOTOPHOROMACTILA.3anyck DBNryHa 3 HeBeJIHKOIO KINbKiCTIO MOTOPHOROMACTILA（н 6e3 HbOTo）MOKe NOsKOINTI r3OHOKOCapKy.
- Ipeed KOxHm 3anyckom Heo6xidHO nepeBiprtn pBeHb 3anOBHeHHa MOTOPHOro MaCTnla.
3aINBaHHa MOTOPHOro MaCTnHa Heo6xIiHO BnKohyBaTN BiIDNoBIOH Do IHcTpyKci, HabeDeHnx yCbOMy NociBHykcy 3 ekCnnyataui.

7 3anpaBka ra3oHOKocapKn

7.1 3anpaBka ra3oHokocapkn

BKA3IBKA

3aIbHaHn HeBiDnOBiDHoro nAhlbHorO MoKe NOsKOHTn Ra3OHOKocapKy.
- DToPmMyTeC8 Bka3iBOK noci6Hnka 3 ekCnnyataui DBnryHa.

3ynnHITb DnBnHyN.
YcTaHOBiTb r3OHOKocApKy Ha pIBHi NOBepxHi.
OuNCTbTe 06NaCTb HABKOJIO KPNKn NaINB-Horo 6aka BONORIO raHypkoIO.

NoberpTaIe KpnuKy nannBHoro 6aka (1) npOTn rOAnHHNKOBOI CTpiIKN dOTN, DOKN He 3MOKeTe II 3HrTn.
3HimiTb KpNShky naINBHorO 6aka.
3aIbAte naIbHe TaK, 06 3aIIuAnocr OHaMeHwe 15 MM BInbHorO Micra Do KpaH naINBHorO 6aka.
YcTaHOBIb KpNkKy Ha naJIINBn 6aK.
NobephiB KpnuKy nainbHoro 6aka 3a roHNHHKOBOIO CtpiJIkoTO Ta 3aTARHiTb II BpyHy. TaK naINBnBn 6ak 6yde 3akpnto.

8 YctaHOBJIeHHra3OHOKO- capkn dny KopnCTyBaay

8.1 Po3knaHnpyKn KepyBaHHa

3ynnHITb DnBnHyN.
BntaHtB WTeKeP CbiKn 3anaJIOBaHHa.
YcTaHOBiTb ra3OHOKocapKy Ha piBHiNOBepxHi.

一 k 山 山 qikcatopn(1）3akpnto，Bdkpnnteix.
- P03KJaIb pyuKy KepyBaHHa (2).
3akpnnte oikcatop (1).

Pyka KepyBaHHa (2) HadiiHo 3'eHaHa 3 ra30-HOKocapKIO.

HaTnCHiB pyKy nepemkaHHa KocHHa (3)do pyKn kepyBaHHa (2) n yTpmyte B cboMy noLoXeHHi.
- NobiNbHO NotarHITb pyKy 3anycky (4) B HaprMky HaprMHOI dN TpOcNka (5).
BcTaBTe pyky 3anycky (4) B HnnpMHy dny Tpocika (5).
Bidnyctitb pyky nepemukahnKocHH3.
3HOBy BCTaHOBIb 1TEKepe CBiUKN 3anaJIIOBAHHJ.

8.2 CknaaHnry puKn KepyBaHHra

Дя ekohomii micra nid yac TpaHcnpTyBaHHa6o 36epiraHHry pUky KepyBaHHa MoXHa cKnactn.

3ynnHITb DnHyH.
BntraHItb WTekep CbiKu 3anaIIOBaHHa.
YcTaHOBITb ra3OHOKocapKy Ha pIBHi NOBepxHi.
HaTnCiHtB pyKy nepeMnKaHHa KocIHHa do pUKN KepyBaHHa N yTpIMyTe B cIbOMy IonoJxehHi.
BnIMtbypyky 3anycky i3 6Joka dJa TpocnKa Ta nobilbHO npOBeiTb Ha3aAd y HaprMky DnryHa.
Bidnyctitb pyky nepemkaHHKocHHa.

MiUHO TpIMaOnu pyKy KepyBaHHn, nocna6Te 3ipoQkONoDi6Hi pyKn-raKn.
CknaTb pyky kepyBaHHaBnepe.

9 3anyck i BmNKaHHa DBN- rYHa

9.1 3anyck DnryHa

YcTaHOBtBa3OHOKocApKy Ha pIBHINOBepxHi.

IiBOIO pyKOHO HAtncHITb pyuKy nepeMnKaHHKocinHra (1)do pyuKn KepyBaHHra (2) n ytpnMyIte B cBOMy NOJoxEHHI.
PpaBOy pyKOIO NOBIIbHO NOTRAHIb pyky 3anycky (3) do nomITHoro onopy.
- ⅢBnIko BntaryTe pyky 3anycky (3) i BiDnyCKaIte ii, DOKN DBuRyH He 3anpaUoe.
KuO DnHyH He 3anyckaetbca: DOTpmyntecBkazIBOK Nocihka 3 ekcnnyataaIi DBNyHa.

9.2 3yinnHeHHa DnIgyna

YcTaHOBtBa3OHOKocApKy Ha pIBHINOBepxHi.
BiDnyctitb pyky nepemukahnKocHHa. BnHyH 3ynnHaTbcra.
3aannTe noLOXeHHK oOpNCyBaHa.

11.2HaJIaITyBaHHBnCOTnCKOIIyBaHHA

MOxHa BCTaHOBHTn 4 pIBHi BnCOTn CKOuYBaHHa:

-30MM=IOJIOKeHHa1
-50MM=IOJIOKeHHN2
-70MM=IOJIOKeHHH3

-85MM=IOJIOKeHHH4

BncoTa cKoUyBaHHa 33aNy Ta CnpeIy HaJIaHTOByETbcg OkpemO. HAIaHTyBaHHa BnCOTH cKoUyBaHHa 33aNy Ta CnpeIy MaOTb 6yTH OJHaKOBI.

HaIaIITyBaHHBnCOTNCKOuYBaHH33aNy

3yHnHiTbBnHyH.

HIXHEIOBHHENo6epTaTHCra.
YCTaHOBITb r3OHOKocApKy Ha pIBHi IOBepxHi.

HaTnCHiTh 3aHIO Bicb DOHN3y.

Tenep 3aHIO Bicb Bi, eHaHO Ta MOxHa HaJaHTyBaTH.
YCTaHOBIb 3aHIO BICb 3JIbTa CnpabaB IOTpi6He IIOJKeHH.

HaIaITyBaHHBHCOTNCKOUIyBaHHcIepeNy

3yHnHITbDnHyN.
HIX He IOBHHEN O6epTaTHCRA.
YCTaHOBITb r30HOKOCapKy Ha pIBHi NOBepxHi.

PiTgHtB BaKiIb Ha3OBHi IpyIOBaHH BHCOTn CKOuYBaHH1
YCTaHOBItBaKijB DJIpeRyIOBAHHBHCOTN CKOuYBaHHr (1) y Notpi6He IIOJoxeHHra Ta 3aΦiKcynTe.

11.3 YbIMKHeHHa BmMKHeHHa pyHIOHOIpNBOda

11.3.1 YbimKHeHHpyHIO npHBOda

YCTaHOBITb r30HOKOCapKy Ha pIBHi IIOBepxHi.
3aryctitb dBnryH.

IiBOIO pyKOIO NOBHCIO NOTARHITb pyKy nepeMnKaHHpyuHOro npNBoDa (1) B HApRmky pUKN KepyBaHH yTpmyTe TaK, 06B BeNIKn naneCb OxONHOBab pyKy KepyBaHH. Ra3OHOKocpKa noUnHae pyxatncr.

11.3.2 BmKHeHH pyHnHoro npBoda

Bidiynycitb pyuky nepemukanha pyuHoro npnBOda.
3auekaTe,doKnra3oHOKocapKa3ynnHtbcra.

11.4 MyIbUyBaHHa

Пд чс Мььчынг скоша Тра вдот-KOBО NOДPI6HIOCTbCЯ 3aBDAKN CnezialbHIM NOВITРЯнМ NOTOKAM y 3OHI HOKIB I NOBep-TaECB B NyROBи DEpeH. 3aIIuWEHa Ha ra3OHi, cKOWeHa Tpaba NERKO nepErHnBaC Ta npaBtB 3a npinpoDHe Do6PBO. Ⅲo6 Tpaba Ha ra3OHi 6yIa raphHOTo Ta rycToIO, YacTO BnKOHyTe Mylb-увань, 3pi3aOUn TpeTInHy BnCOTn Ra3OHy.

HnXy onucaHO yMOBn eefKTNBHO r MybByBaHHr.

• Yactota: B OCHOBH i nepioDn poCtY (HaBeChi) BnKoHyIe MyIbUyBaHHr npHaamHi 2 pa3n Ha TnKdEh b I 1 pa3 Ha TnKdEh yIITky Ta BoCeH.
• Tpe6a BiDabatn nepebary npaui Ha cyxomy ra30Hi.
• Heo6xioBnKOpncToByBaTu nO6pe HaroctpehiHOki.
• NepemiuTecb i3 Hn3bKOIO uBnIdKicTIO.
  3miHouTe HAnpMOK KociHH Ta 3BepTaIte yBary Ha nepeKpNbAHHa TpaekTopi KociHH.
• Ra3OHN 3 Nyke BnCOKOIO TpaBOIO 3aBXKn Kocitb y kInbKa etanib.

PiD qac po60Tu 3 yBIMKHeHm pyuHnM npuBODOM: KOHTPOJbOBAHO BeiTb ra3OHOKocapKy BnpeI.
IiD yac po60Tu 3 BmKHeHm pyuHnM npBODOM: NOBInbHO Ta KOHTpOBoHaHO nepemIynte ra3OHokocapky Bnepe.

16.3 3aToCyBaHHnI 6aJIaHcCyBaHHnHOxKa

Uo6 HABuHTnC npaBnJbHo 3aTouyBaTu n 6aHaCyBaTu HIX, Notpi6Ha BeNka npakTnKa.

ДяЗATOуВаHHЯ 6baHcyBaHHЯ HOka KOMпаня STIHL peKOMeHdyc 3BepTaTnCЯdo OphiHOrO dInepa STIHL.

NONEPENXEHNA

Hix Mae roctpi pikyki kpa!. KopucTyBauch moke npi3aTncr.
CniHocHTnpo6OyipyKaBnKn3i 3HOcoCTIKOROMatepiany.

3ynnHtBdNHyH.
BntraHtB WTekep CbiKn 3anaIOBaHHa.
YcTaHObiTbra3OHOKocapKy.
3HimiTb HIXK.
3aToiHix. Pn cybomy 3BepTaIte yBary Ha kyT 3aToCyBaHHry N OxOIOJkyIte HIX,9.2. He MoXHa dOnyckatN, 06 NiD Yac 3aToCyBaHHra NOBepxHry HOxHa6yJa CInHOBaTOro KOJIbOpY.
YcTaHObItb HIX.
Y pa3i BUNKHeHH cymHIB iB a6o 3aHTaHb: 3BepHiTbcra do dInepa STIHL.

17 PeMoHT

17.1 Pemont kocapkn

KopncTyBaH He NOBHeH cAmOCTiHo peMOHTyBaTN ra3OHokocapky Ta HIX.

18 YcyHeHH HeNoJaOK yKpaIHcbKa

Y pa3i noIkoJKeHHra3oHOKocapKn a60 HOka: He BnKOpNCToByTe ue o6JaHaHHia 3BepHiTbc Da ophiuiHoro dInepa STIHL.
一 Akuo BkazibHt Ta6nukn 6ynde NooKoJKeHO a6o BOHN CtaHyTb Hepo36ipInBUMN: 3Bep-

HiTbcrao ophiuiHoro dunepa STIHDLnra 3amHH NowKOxKeHOI Bka3iBHOI Ta6nukn.

18 YcyeHnHaHeNoJaIok

18.1 YcyHeHH HeCnpaBHOCTe Ra3OHOKocAPKn

Iobha BCTaHOBNeHa TpNBaJIcTb BnKOpNCtAHHcTaHOBNTb Do 30 pokIB.

BctaHOBNeHa Tpmbanictb BnKOpncTahnnnepeD6aac peryIapHe TexHiue OScnyroByBaHH Ta DOrIaB BiNObiHO Do BmOr iHCTpyKci 3 BnKOpncTahnn.

notyKHOCTI 6yNo Bn3NaeHo BiNObiHDo DnapeKtBn 2000/14/EC, DoaToK VIII.

BumipraHn pibehb 3BykoBoi nOtyxKHOCTi: 92,5 d6(A)
- rapaHTOBaHn pIBeHb 3ByKOBoI NOtyXHocTi: 94 dB(A)

TexhiHa DoKymeHataiia 36epiraetbca B KOMnai STIHL TiroI GmbH.

Pik Bnpycky Ta cepiHn Homep Bka3aHo Ha ra30Hokocapci.

050005 AnMaTbI, Ka3axCTaH

KINPTN3CTAH

OcOO «My3a»

yJ.KueBckar 107

720001 Bnukke, Knprn3na

BIPMEHIER

OOO «HHTyJ3»

yI. I. Napneu 22

0002 EpeBaH,ApMeHHa

Spis tresci

WZ. M. is a

Kandke tugevast materialist tookindaid.
Kandke tugevaid, kinniseid jalatseid, millel on sugava mustriga tallad.

Kandke tugevast materjalist tookindaid.

1011 Stratford Road Solihull, B90 4BN

Nustatant ismatuojama ir garantuojama garso galios lygi buvo laikomasi Jungtines Karalystes reglamento „Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, Schedule 11".

Bknioye 3aDnKbaHeTo Ha XoObaTa yact.

4 Yuka3aHn7a 6e30nacHOCT

4.1 PpeDynppeIteHn CnMBOJI

IpeDynpednteHnTe CmB0Nn Bbpxy KocauKaTa O3HaayBaT CneHOTO:

Cna3BaTe yka3aHnraTa 3a 6e3onacHOCT N MepKInTe, Cbbp3aHn C Tx.

IpoyeTe,pa36peTe do6pe n cbxpaHraBaiTe INcTpyKunraTa 3a ekcnnoatauia.

Cna3BaIte yKa3aHnIra 3a 6e30nac-HOCT OTHOCHO N3XBpJIeHNTe OT MaUNHaTa IpeMEni MepKInTe, Cbbp3aHn C TxA.

HeDOKocBaIe TBpTAAcCe HOK.

I3BaXaIe HaKpaHnKa Ha 3anaJIteJHaTa CBeU No BpeMe Ha TpaHCnpOpTupaHeTo, CbXpaHEnETo, POndpkKaTa nn peMOHTa.

Cna3BaIe 6e3OnaCHOTo pa3CTOHaHne.

4.2 YnOTope6a no npEJaHa3NaUeHne

Kocayka TSTIHLM2.0RTcnyx3a pekyntnBipane Ha cyxa TpeBa.

PPEyPExKDEHNE

Ako He n3noJ3BaTe KocayKaTa NO npeHa3Ha-ueHne, TOBa MoKe Da IOBeDe Do CepNo3Hn TeLeChn HapaHraBaHn IIN CmbpT N MaTe-pnaJIHN 1eTn.

• I3noJ3BaIe KocaykaTa, KaKTo e OnucaHo B Ta3n INHCTpyKUa 3a EKCnNoaTaCuN IN HNCTpyKUaTa 3a EKCnNoaTaCuN Ha DBrugaTeJIa.

4.3ИЗСКВанькьМnotpe6nteJIa

PPEyPExKDEHNE

Iotppe6nteHTe 63 nHCTpykTax He MOraT da pa3no3HaT nn IpeueHr T onachOcHTe, Bb3HNKBaun OT Kocaykata. Iotppe6nteJrnn dpyn nnca Morat da 6bDat cepno3Ho paHeHH nn y6ntn.

• PpoyeTe, pa36peTe do6pe n cbxpaHraBaIte HnCTpyKuTgTa 3a ekCnNoatau.

Ako kocaykata ce daBa Ha pyr yOBek: npedeaTe 3aeHNo C HeR INHCTpyKuYraTa 3a ekCnloataaHa Kocaykata N DBrGaTeJI.
YBepTe ce,Ye nOTpe6nTeJIaT OTRObApHa CJIeHNHTe N3NCKBaHnA:

-Notpe6nteJTe oTnouHaJI.

-Notpe6nteJrTnMaΦn3neCCKa, cetNBHa n NCNXuCeCKa CnOCo6HocT da 06cnykBa KocayKaTa n Da pa6Otn C HeA.AKO Notpe6nteJrTnMa OpapanuyeHaΦn3NueCKa,CetNBHa NnN PCNXuCeCKa Bb3MOxHOCT 3a TOBa,TOn Tp8Ba Da pa6OTn NOd HaAD3opa N Cnopeyka3aHnraTa Ha OTROBOPHO Jnue.
-Notpe6nteT MoKe Da pa3no3Hae N IpeueHN ONaCHOCTNTe, CBbp3aHn C Kocaykata.
-Notpe6nteIaTeHaIcHo,Ye e OTROBOpen npn Bb3HnKHaJIIN 3JIOJnyKn IuETN.
-Notpe6nteJIeT eIbJHIOJIeTeH nIIe 6nI o6yueH 3a CbOTBETHaTa IpoOecnCnopeH naOnHaJIHnTe pa3npope6n INoD CbOTBETHnHa3Op.
-Notpe6nteIeI eNoIyuIINHCTpyKUaOT cneuaIIN3npaH TbproBeu Ha STIHLNII KBAInnΦuIpaHO Iuue, npEdu NaN3NOJ3Ba KocaykaTa 3a IIbPNbT.
-Notpe6nteJrHe e noBnnaHne Ha ankoXoJI, nekapCTBa nn HapKOTuN.

Ako Bb3HnKHaT HeaCHOTn: o6bpHeTe ce KbM CneuNaIIN3npaH TbproBeu Ha STIH.L.

He BnBbIe 6eH3nHOBn nap.
3apeKdaIte c rOpuBO Ha do6pe npoBETPnBO MRCTO.

■No Bpeme Ha pa6oTa Kocaykata Ce HarpBa. BeH3nHbT ce pa3uHrpBa n B pe3epBoapa 3a rOpNBO MoKe Da ce Cb3daJe CBpbxHaIraHe. Ako KaNaChKaTa Ha pe3epBoapa 3a rOpNBO 6bJe OTBopeHa, MoKe Da n3npbcka 6eH3nH. N3n3aunr T 6eH3nH MoKe Da ce 3anAIn. Notpe6nteJrMoKe Da 6bJe cepno3Ho HapAHen.

• Пьрв OCTaBeTe KocauKaTa Да ИЗТиHe N CпeД TOВa OTBopTe KaNaUKaTHa pe3epBoapa 3a Гюв.

Дрени, конт形象 в сб end in, ca nech03anannm.ToBa moKe da doBepe do TeKKn HapaHbAHnI nIM cMbPT n MOKe da Bb3HnK-HaT MaTePnaHn IeTu.

Ako npexn Bna3aT B KOHTaKT C 6eH3nH: npeo6neyeTe ce.

■БeH3nHbT MoKe Ja e OnaceH 3a OkoHaTaCpeJa.

He pa3nBauTe ropuBO.
- N3XBbPnIe 6eH3nHa B CbOTBeTCTBNE C n3NCKBaHnTa n npnpoOcbo6pa3Ho.

Ako 6eH3nHbT Bne3e B KOHTaKT C KOKaTa Hnn OuHTe, Te MoKe Da ce pa3dpa3HrT.

1368BaTe KOHTAKT C 6eH3nH.
Ako mka KOHTaKT C KOxata: N3MnTe 3acerHaTnte MeCTa NO KOxata O6NJHO C BOda n canyH.
Ako mka KOHTaKT C OUHTe: npOMnTe OUHTe Hau-MaKo 3a 15 MNHyTN O6uHc B0da n NotbpcTe Jekap.

3anaIteJHaTa ype6a Ha KocaykaTa c3daBa nckpn. NckpTe Morat da n3nra3aT HABH I Da npuHrT NOXapu IN EKcNIO3IN B IecHO3anaJIMMa INN EKCIIIO3NBHa CpeDa. ToBa MoKe Da IOBeDe Do TeKKn HapaHbA-HnI Nm CMbpT IN MOKe Da Bb3HnKHAT MaTePnAHN uETn.

N3noJ3BaIte 3aIaJIITeJIHn CBeU, KOnTO ca OINCAHN B INHCTpyKuYraTa 3a EKCnIIOaTa- Una Ha DnurataJI.
3aBnTe 3anAnTeHHaTa CBeu n aTeHHeTe Do6pe.
IocTabete n npTnCHte do6pe HaKpaHnka Ha 3anaJIteJHaTa Cbeu.

Ako kocaykata 6bde 3apeheHa c 6eH3nH, KOHTO e HenoDxOJaU 3a DBNrTaTeJI, Kocay-kaTAMoKe da ce nobpeu.

• IV3noJ3BaIte YIcT 6e3OIOBEn MapKOB 6eH-3INH.
  Cna3BaIe npedncaHnraTb HnctpyKuTa 3a ekcnloataua Ha dBnraTeJ.

4.8 Pa6oTa

PPEyPExKdEHNE

Ako notpe6nteJrH He cTaptnpa Dniratela npabnHO, MoKe Da 3aRy6N KOHTpOHaK Kocaykata. Notpe6nteJrT MoKe da ce HapAHcepno3Ho.
CTaptnpaIte DBrIaTeIraTaka, KaKTo e onNcaHO B Ta3n INHCTpykUra 3a ekCnIIOaTaIu.
Iotpe6nteTHe MoKe Da npOdbJxN da pa6OTn KOHcHTpnpaHO B OnPepEn HcNTyaUu. Iotpe6nteTMe MoKe Da ce cNbHe, da naHe N da Ce HapAHc cepNo3Ho.
Pa6oTeTe cnoKoHn o6MncneHo.
Kocete camo npn do6pa BnuNMOCT.Ako OCBETeHOCTTa N BVnuMOCTTa ca louH, He pa6oTeTc Kocaykata.
- YnpabnBaBte KocayKaTa cAmN.
BHHMaBaTe 3a npenTCTBnA.
He haknaHnTe KocayKaTa.
Pa6oTeTe 3dpaBO CTbHnHn Ha 3eMaTa n POnDlbPkaaTe paBHOBeCne.
Ako ce noBRT npn3Haun Ha yMopa: Hapabete NOUBka.
Ako Kocnte no HaKIOH: KOcTe HAnpeuHO Ha CKNoHa.
He pa6oTeTe no cKnHOBe C haKIOH Ha, 25^ (46,6%)
H3noJ3BaIte KocauKaTa COCo6eHO BHNMaHHe, KOraTo pa6oTnte B 6n3OcT Do CKNoHOBe, TepeHH p6oBe, N3KoN, CMeTuHa n DnFt.
- Планирайе Времeto 3a pa6ota тaka, чда ИЗБЯВATE NO-BUNCOKITE HaTOBapBAHIN3a NO-NpoДьЛЖИТЕнпериOD OT Врeme.
Korato dBirateta pa6otn, ce 6pa3yBaT n3ropen ra3OBe. BdnuHnte n3ropen ra3OBe MoKe da oTpOBaT xopata.
He BdnwbaIte n3ropeJIra3OBe.
Pa6oTeTe c KocaykaTa Ha do6pe npOBe-TPnBO MRCTO.
Ako Bb3HnKhat radeHe, rnaBo6oJne, HapyuWeHnHa 3peHnTo nnn Cnyxa nn CBetoBbptEx: npekpatepepaotata n nocetete nekap.
Korato notpe6ntenT Hocn 3aunTa Ha cnlyxa n DBnraTeTn pa60n,notpe6ntenT MoKe da

4 Yka3aHn 3a 6e3oNaChOCT 6bIraPckn

Bb3npnemMa N npeueHra Ba WymoBeTe OrpaHn-yeHo.

Pa6oTeTe cnoKoHn O6MncJeHO.

KocaykataeobopydBaHa cMexaHn3bM 3a cnipaHe Ha dBurTaTeIy.

-ДигагелгИ HOЖБТ ce cnupaT b pamKITe Ha 3 cekyHd nCneI nyckaHe Ha npebKJIIOUBaunra loCT 3a peKIMHa KOceHe.

BbptraaT ce HOX MOKe Da nopeKe noTppe6nteJI. Ntpe6nteJIr MOKe da ce HapaHn cepno3Ho.

I3TerIeHaKpaHnKaHa 3aNaIITeJIHaTa CBeU.

He DoKocBaIte BbPraunca HOX.
Ako HOXbTe 6bnokupaH OT npedMeT: n3KnUoyete Dnuratela. EEda Cnei TOBa OTcPaHeTe npedMeta.

Ako pa60nte 6e3 3aDbNkBaHe Ha xoObaTa Yact,TO MOKe Da Ce BKNIOUH HeBOJHO IN KocaykaTda 3aNoUHe Da ce DnKn. IMa ONaCHOCT OT TeKKn HapaHbAHn N MaTePpnaJIHN UeTI.
3aDéηCTBaIte IpeBKNIOUBAuINJIOCT 3a 3aADBIXBAHe Ha XOIOBAta YAcT cMo aKO TO Tp6Ba Da 6bDe BKNIOUeHO.
AkoKocaykaTa 3anoHe Da ce Dbpxn pa3nnuHO Hn HeoBuaHNO No BpeMe Ha pa6Ota, TMOKe Da e BCCToRHe, KoETo He e 6e30-nacHo. Nma OnaCHOCT OT TeKKn HapahBaHnN MaTePnaHn NteTn.
- Ппекратete паботаи и польсerte nomоц ot сецалларан ТьproBEц на STIHL.
■Повсема на paбota кocaykaТа може да пични вибраци.
Hocete npedna3Hn pBkABuN.
- PpaBeTe nouBKn.
Ako ce noBraT npn3Haun Ha npo6Jem C KpbBoO6paueHneTo:NotbpcTe Jekapcka nOMOu.
OrpeaTe ploTa 3a KocHe n BnMaBaTe 3a npenTCTBna. Ako no Bpeme Ha pa6ota HOXbT ydpn UyKdo TAno, Toi nnu cactn OT Hero MoRaT Da 6bDaT NxBbPJeHn C BnCoka ckopocT. Ima onacHOCT OT HapaHraBaHn mATEpnaJIHN uETn.

PpeHpa6oTaOTCTpaHete OT pa60THata 3OHa YxKdTe TeNa, KaTO KAMbHN, PpbUKN, TEL, INrpaUKN INN DpyuN UyXKn TEa. O6o3HaueTe CKpHTne PpeDMeTn, KOtO He MoRat Da Ce OTCTpaHrt.

Korato ce otnyche npebkIIOUbaunr loct 3a peXIMa Ha KocHe, HOxbT npOdbJnxaba Da ce Bbptn 3a KpaTko. IMa ONaCHOCT OT TeKKn HapAHBaHn.

N3yaKaITe,doKaTo HOXbT cnpe Da ce BbPTn.

AkoBbptTAAHTceHOKyDapNTBbPnIpeMet,MOKe Da ce 6pa3yBaT NcKn.IckpnteMorat Da npuHrT NOXap B IecHO3aNIma CpeDa.Toba MOKe Da IOBeDe Do TeKKn HapaHnBAHnI INCMBPT MOKKe Da Bb3HNKHAT MaTePnAHHN UeTI.
He pa6oTeTe B IecHO3aIaNMa cpeJa.
AkoKocaukata6bnde napKupaHa BbpxHa KaIOHeHa NOBbpXHOCT, TMAOKe HeBOJHO Da CeIJIb3He. Ima ONaCHOCT OT HapaHraHnMaTePnaHn UeTn.
- Пусякай Кocа Ка Та сима akо CTOn Ha paВна NOВьрхHOCТ И He MOж Da ce Ппь3He сама.
Ako npedmetn ca npnkpenen KbM pboKoXBaTkaT, OONbHNTeHOTo TERNO MOKe da IOBeDe IIO npoe6pbuane Ha Kocaykata. Nma ONaCHOCT OT HapaHBAHNA IN MaTePnaJIHN 5eTN.
He npikpenTe npedMeTn KbM pkoXBaTKata.

ONACHOCT

Ako pa6oTaTa ce n3BbPwBa B 6n3ocTdo Ka6eHn, npOBekdaun HAppeKeHne, HOKbT MoKe Da BJe3e B KOHTaKT C TEx N da rN NobpeDn. 3a Notpe6ntela mHa onacHOCT OT TeKKn HapaHbAHnru nIN cMbpt.
He pa6oTeB 6n3ocTdo Ka6eHn, npoBexKaaHn HnpeKeHne.
Ako ce pa6oTn npn rpbMOTeBnuHa 6ypa, nOTpe6nteT MoKe Da 6bDe ydapeH OT Mbln. 3a notpe6nteTna ONaCHOCT OT TeKKn HapaHbAHN NIN CMBPT.
Ako nma 6ypa: He pa6oTeTe.
Ako ce pa60tn npn DbXd, noTpe6nteJrT MoKe da ce nOxIb3He. 3a noTpe6nteJrMa ONaCHOCT OT TeKKn HapaHbAHn IIN CmbpT.
AkoBaJIHepa6oTeTe.

4.9 TpaHcnpTnpaHe

PPEyPExKdEHNE

■No BpeMe Ha TpaHcnpTnpaHe KocayKaTa MoKe Da Ce Ipeo6bPhe Nn Da Ce IpeMeCTn. IMa ONaCHOCT OT HapaHraHnN MaTe- pnaJIHN UeTI.

13KJIIOUeTe DBNrAteJIa.

I3yaKaaiTe,doKaTo HOXbT Cnpe Da ce BbPTN.

I3TerneHaKpaHnKa Ha 3anaTEnHaTa CBeU.

Iopcnpyte Kocaykata C npitrauKoJaan,peMbun Mpeka Bbpxy noXOJa7a TOBapHa PnatfOpMa Taka,Ye da He ce npeo6bpHe n da He MoKe Da Ce DnKn.

Cne KaTO dBnraTeJIe pa6OTnJ, Wymo3a- rnyuHTeJIrN DnBraTeJIrT MoKe Da ca ropeu. NTopeBnTeJIrT MoKe da noJyHn 3rapAHe npI TpaHcNoptnpaHe.
ByaTe Kocaykata.
Kocaykata e texka.AKO nOte6nteIaT HOCN Kocaykata cam,ToM MoKe da 6bIe HapaHeH.
Hocete npedna3Hn pBkABuN.
HocTe KocauKaTa no DbMa.

4.10 CbXpaHHeHne

PPEyPExKdEHN

DeuTa MoKe Da He pa3No3HaT N npeeHrT onaCHOCTNe, Cbbp3aHc Kocaykata. DeuTa MoKe Da Noyuat TeKKn HapaHbaHn.
N3KIOUeTe DUNrAteTEn.
CbXpaHraBaIte Kocaykata Ha MrcTO, HeoCTbIHO 3a Deua.
CbXpaHnBaIe KocauKaTa YnCTa n cyxa.
Ako kocaykata ce cbxpaHraBa Bbpxy HakoHeHa NOBbpxHOCT, TMAOKe HeBOJHO da ce PJIb3He. IMa ONaCHOCT OT HapaHBAHnI MaTePnaJIHn UcETn.
CbxaHraBaTe KocauKaTa CaMo Ha paBHN PNOU.

Hactpoika Ha BncounHaTa Ha KocHe OTnped

13KJIOUeTe DBUNrAteJIa.

HoxbT He Tp8Ba Da Ce BbpTu.

NocTabete KocaykaTa Ha paBeH TepeH.

• HatncheTe HABbH IocTa 3a HacTpoNka Ha BncoUnHaTa Ha KocHe (1).
• NocTabete NoCTa 3a HacTpoiKa Ha BnCOunHata Ha Kocene (1) n B JxelaHaTa No3nCn, Taka Ye da ce fNkCnpa.

11.3 BkIIOUbaHe n I3KJIIOUbaHe Ha 3aADBIXBaHETO Ha XoIOBaTa Yact

11.3.1 BkIIOUyBaHe Ha 3aDvIXBaHcTo Ha XoIOBaTa YAcT

NocTabete KocaykaTa Ha paBeH TepeH.
CTapTnpaIe Dnuratela.

-13dbpnaTe npBkIIOUbaunia JocT 3a 3aDbXBAHe Ha XoIOBaTa Yact (1) N3qno no Nocoka Ha pkoXBaTKata n To 3aDpBXTe Taka, Ye NaIeTda OxbaHe pkoXBaTKata. KocaKata ce 3aDbXBA.

11.3.2ИЗКПЮЧВАнеHa 3аДВИЖВаHTo HaXODOBATA YaCT

OTnycheTe npeBknOuBaunn JIOCT 3a 3aDbNKBaHe Ha XoIOBaTa Yact.
13yakaIte,doKaToKocaykaTa cnpe.

11.4 PekytBpaHe

Ipn pekyntnBupaHeTo OTP3aHaTa TpeBa ce Hapra3Ba MHOrOKpaTHO NocpeCTBOM CneuaHNO npemnHabaHe Ha Bb3dyuHaTAtcpyR B o6naCTTa Ha HOxa, Cnei KOeTO Ce n3dYxBa 6paTHo BbpxTypeBHATA PLOU. Okocehata Maca OCTaBA BbpxTypeBHATA PLOU, KbDeTo JKeO N3rHnBa N cnyKn 3a eCTeTBEN Top. Xyaba N bCTa TpeBHa PNOU CE NOCTnRa Ype3 YecTo pekyNTnBupaHe, KaTO Tp6Ba Da ce OTP3Ba EaHa TpeTa OT BnCOunHaTaNpeBaTa.

YcnoBna 3a do6bp pe3yIpaT npn pekyIbnuPaHe:

• YecToTa: npe3 npoJeTTa (OCHOBEN nepnoiHa pactex) nohe 2 nbTu ceMnUHO, npe3 IyToTO n eCHTa nohe 1 nbT ceMnUHO.
  Pa6oTeTe NO Bb3MOxHOCr npn cyxa TpeBa.
• N3noJ3BaIte do6pe 3aToueHn peKeuH NOKOBe.
  -ИзбраиTe HnCKa ckopoCT Ha BoJeH aKocayKaTa.
• PpOMeHnTe NOCOKaTa Ha KocHe N BHMaBaIte 3a npINOKpNBaHTo Ha OKoCeHnTe INBn.
  Bunharo o6pa6oTbaIte MHOro BncoKaTa TpeBaHa CTeneHn.

Ako ce pa6oTn C BkIIOyeHO 3aDBrXBaHe Ha XOIOBaTa YAcTe ynpabJIraBaIte KOHTpOIpaHO KocayKaTa HApPeI.
Ako ce pa6oTu c n3KJIOUeHO 3aDbNIXBaHe Ha XOIOBATA qACT: 6yTaIte KocauKaTa HAnpei 6abHo N KOHTpOINpaHO.

12 Cnejpa6ota

12.1 Cnep pa6ota

13KIOUeTe DBNurateTEn.
Ako KocaykaTa e MOKpa: OCTaBeTe KocayKaTa Da n3cbxHe.
NouncteteKocaykaTa.

13 TpaHcnpTnpaHe

13.1 TpaHcnpTnpaHe Ha KocaykaTa

13KnHcyTe DBNrAteJIA.
HoxbT He Tp8Ba Da ce BbpTN.
- I3TerIeTe HApaiHnKa Ha 3anaIITHaTa CBeU.

ByTaHe Ha KocauKaTa

BytaTe KocayKaTa HAnpei 6aBHO I KOHTpoI npaHo.

HocheHaKocaykaTa

Hocete npedna3n pbkabu, n3pa6oTeHn OT yToHm MaTePnA.

Ako kocaykata ce Hocn c pa3bHaTa pboKoxBaTKa:

Eduh YOBek Tp6Ba Da Dbpxk KocaykaTa C DBe Pbue 3a Kopnyca OTnped N dpyr Da r Dbpxk C DBe Pbue 3a PbkoXBaTKata.
-ПовдигаиTe HOCeTe KocayKaTa NOДвамa.

Ako kocaykata ce Hocn cbc cHbHaTa pbKoxBaTKa:

CrbHeTe pbkoXBaTkata, 8.2.
EINH OBEK Tp6Ba Da Ibpxk KocaykaTa C DBe Pbue 3a Kopnyca OTnped N dpyr Da Jbpxk C DBe Pbue 3a PbKOXBaTKaTa.
-ПовдигаиTe HOCeTe KocayKaTa NOДВaMa.

TpaHcnpOptnpaHe Ha KocauKaTa B npeBo3Ho cpeICTBO

3akpenete KocaykaTa 3npaBeHa Taka, Ye da He ce poe6bprHe n Da He MoKe da Ce dBnKn.

14 CbXpaHHe

14.1 CbxaheHne Ha KocaKaTa

N3KNoHcTe DnBraTeIa Iro OCTaBeTe Da n3CTnHe.
- I3TerIeTe HaKpaHnKa Ha 3anaIITHaTa CBeu.
CbxaHraBaTe KocayKaTa Taka, Ye CneHnTe ycnoBna Da ca N3PbJIHeH:

-KocaykaTa Da e Ha MrcTo, HeIOCTbHNO 3a deua.
KocaykaTa e uNcTa n cyxa.
-KocaykaTda He MoKe da ce npeobphe.
-KocaykaTa Da He MoKe Da ce nTb3He.

Ako KocaykaTa ce cbxpaHra 3a NOBue O T 3 Meeca:

Pa6oTeTe c KocaykaTa,doKaTo pe3epBoaapbT 3a rOpINBO Ce n3npa3Hn.
- Ppeoctabepeepboapa 3a ropuBO 3a nouCTBaHe OT cneuaHn3npaH TbproBeu Ha STIHL.
CmeHnTe MOTOPHO MacNo Taka, KaKTo e IocOueHO B nHCTpyKuYra 3a ekCnIooatauHa DnIraTeJI.
Pa3BnIte 3aapanIteJHaTa CBeu.

PNEyPENPEKDEHNE

Ako npu n3BaDeH hakpaHnK Ha 3anaNTeJHaTa CBeU, ce n3DbpNa pbKOXBaTKaTa 3aCTapTnpaHe, HABbH MoKe Da n3CKoYat NCKpn. NcKPte Morat da npuHrT nojkapn Ieknlo3nn B neCHO3anlma nn EKCnlo-3nBHa cpeDa. Toba MoKe da DoBePe Do TeKKn HapaHbAHnI nn CMbPt N MoKe Da Bb3Nk-Hat MaTePnaJIHnI qETn.

-ДрькTe NaKpaHnka Ha 3anaNTeHata CBeu DaJeu OT OTbopa 3a 3anaJIHTeHata CBeu.
ДрьнHeTe pьКoxBaTKaTa 3a CTapTnpaHe HeKoJIKKoPaTHOЯВbpHete O6paTHO.
3aBnTe 3aIaIteJIHaTa CBeu n Ja 3aTeHete Do6pe.

15Почистванe

15.1Изправяною кocaykaTa

Pa6oTeTe c KocauKaTa,doKaTo pe3epBoapbT 3a roPnBO ce n3npa3Hn. BnIraTeJIaT n3racBa.
- NocTabete Kocaykata Ha paBeH TepeH.
HactpoTe BncouHaTa Ha KocHe Ha No3n 1,1.2.
- I3TerIeTe HApaHnKa Ha 3anAnTeJIHaTa CBeU.

3aapbKTe pkoxBaTkata (1) nOTBopeTe 6bp-303aterateJHOTO npncnoc6JeHne (2).
- Пocтавete Назад рькoxВаTkata (1).
- ɪnɪpaBæTe KocayKaTa Ha3aɪd.

16.2.2 MoHTaX Ha HoXa

N3KnIOyTe DnBraTeJIa.
- N3TeTneTe hakpaHnka Ha 3anaNTeHaTa CBeu.
- ɪnʒpəbete kɔcaʊkɑtə.

• NocTaBeTe HOBaTa 7aI6a (1) Bbpxy HOBn8 6oTt (2).
  HaheceTe ocunpynten 3a pe36n Loctite 243 Bbpxy pe36ata Ha 60nta (2).
• NocTaBeTe HOxA (3) Taka, Ye n3daTnHInTe Ha NOBbpxHOCTTa 3a NoCTaBReHe Da NOnaDHaT B rHe3DaTa Ha HOxA (3).
  3aBnTe 6oJTa (2) 3aeDNo c wai6aTa (1).

XBaHeteHOka(3)3paBO.
3aTeHHe 6oIa (2) c 65 Nm.

16.3 3aToUBaHe n 6aJaHcnpaHe Ha HOXa

Heo6xoDmMa e MHOrO npaKTnka 3a npaBnHOTO 3aTOUbaHe n 6anaHCnpaHe Ha HOxa.

STIHL npenopbYBa HOXbT da ce 3aToyBa n 6baHcnpa OT cneuaN3npaH TbproBeu Ha STIHL.

PENyPENKDEHNE

PekeunTe p6oBe Ha HoKa ca ocTpN. NopTeBnT MoKe Da ce nopEke.
Hocete npedna3n pKaBn, n3pa6oTeHn OT yctOuMb MaTePnA.

N3KIOUeTe Dnuratela.
- N3TerIeTe HApauHnKa Ha 3aapanTeJHaTa CBeu.
13npaBeTe KocayKaTa.
-Демонтураитейноюк.
3aTOUte HOxA. Pn TOBa Cna3BaIe bIbJa Ha 3aTOUBAHe N OXJaTe HOxA, 9.2. HOxBT He Tp6Ba Da IocHra BA NO BpeMe Ha 3aTOUBAHETo.
MoHTnpaTe Hoxa.
AkoBb3HnKhat HeaCHOTn:ObbpHeTe Ce KbMcneuaHn3npaH TbproBeu Ha STIHL.

17 PeMoHT

17.1 PemOH THa KocayKaTa

Iotppe6nteJIr He MoKe cA m Da nonpaBra KocayKaTa n HOka.

18 OToTpaHraBaHe Ha Heu3npaBHOCTn 6bJrApckn

Ako kocaykata nn HOXbT ca NOBpeHn: He n3noJ3BaIte Kocaykata nn HOxN noTbp-cete nomou,OT CneuaN3npaH TbproBeu Ha STIHL.
Ako yka3aTeHnTe Ta6eN ca HeueTnBn IIN NOBpeDeHN: yka3aTeHnTe Ta6eN Tp6Ba da

ce cmeHrT OT cneuaHn3npaH TbproBeu Ha STIHL.

18 OTeTpaHЯBaHe Ha Heu3nPaBHOCTN

18.1 OTeTpaHЯBaHe Ha Hen3npaBHOCTn NO KocayKaTa

Heɪзправнос Т	ПричINA OTстраявае
Диагателей Не пал.	Преевлочаший лост 3a разжima на косе не e натиchat.	« Статуары ТдиВагателя Так, Касто e onисанв Таstry Иструкция заEkсплоатаць.
Рezервограды	За горив e празен.	« Зараздete косачkaда.
	ТрьбоговдгТ за рорив e залшen.	« Оьрнete се Кьм с pineаллзиган Тьрговец на STIHL.
	В рezервогая за небаесъно, замърсени старо рорив.	« Виharу използ Bavite CBexko марково рорив Бezолobenvи Бенизи.
	Вьздунниот Фильър e замърSEN.	« Оьрнete се Кьм с pineаллзиган Тьрговец на STIHL.
	Нakраийнокг.Tа залалтеллata Сveц e изва'deн OT залалтеллata Сveц полкаве He e зakpeneh добpe Кьм Накрайнka.	« Роставете нахрайнka на залалтеллatura сveц. « Роверете врьзкating Меку Кабela 3a залалвае и сеkepa.
	Залалтеллatura Сveц e оныша, поvereда по разстаяпюп'te меду Елкову дide He nprabavilno.	« Почистете по-strelу сmedу Залалтеллatura сveц. « Perugларупета радстая меду сeledкову. « Нстрийу по-strelу в по-hиска т'reва.
	СылportовлениTo рrihoха e Тьърд e rolяma.
Диагателей Се Stартура Трудно пол MOшността Му осклабba.	Корпсьт на косачkaда e залшen.	« Почистете косачkaда.
	Височинatable на косе e нachtroehа Тьърд e НSCKо по сокорstва на Бутын e Тьърд �лama.	« Роставете височинatable на косе по- бавно.
	В рezервогая за рорив и karbypatopa за ВODа по karbypatopbT e 3anuшen.	« Илраздete розервогая за рорив, почистетe Трьбоговoda за рорив и karbypatopa.
	Рezервогая за рорив e замърSEN.	«Оьрнete се Кьm с pineаллзиган Тьрговец на STIHL.
	Вьздунялг Фильър e замърSEN.	«Оьрнete се Кьm с pineаллзиган Тьрговец на STIHL.
	Залалтеллatura сveц e оныша.	«Почистете по-strelу сmedу Залалтelлatura сveц.
Диагателей Заграв MHOrO.	Тьърд НSCK поНВо на MOTOPHOTO macNo.	« Догьнete моторно MacNo по Смение Тaka, Касто e onисанв В Инструкцията заЕкspлоатаць над Вигателя.
Немправно Т	Прочина Остраява е peбра са Замърсян.	Почисту косчкata.
Косчкatinga Вибрира сnilho.	Hожьт e пореeding. Смених правлино.	Жовete.
	Hожьт He mONTиран правлино.	Мontиралу ложа.
Травата не се кosci- добpe.	Hожьт e тьл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл пл. Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш: Бугш:

19 TexHnueckn daHHN

19.1 Kocayka STIHL RM 2.0 RT

• Tn dbraten: KOHLER HD675
• Pa6oTeH o6eM: 149 cm³
• MoiHocT: 2,2 kW (3,0 K.c.) npn 2800 min
• O6opOtn: 2800 mH
• Maksimann osem Ha pe3epboapa 3a ropuBO: 1,4 n
• Terno: 30 Kr
  -ⅢnpuHa Ha Kocene:46 cm

19.2 Hox

• MnHmamHa de6eHnHa a: 2,0 MM
• MnHmAlHa 45 MM
• bbrn Ha 3aToUbaHe c: 30^

19.3 HnBa Ha shyMa n Bn6paunTe

CTOHHOCTTa K 3a HNBOTo Ha Wyma Bb3n3a Ha 2 dB(A).CTOHHOCCTa K 3a HNBOTo Ha Wyma Bb3- n3a Ha 1,1 dB(A).CTOHHOCCTa K 3a HNBOTo Ha BN6paunTe Bb3n3a Ha 2,36 M/c².

• Hnbo Ha 乌Ma LpA, n3mepeHcnped EN ISO 5395-2:81 dB(A)
  -「rapaHTnpaHO HnBO Ha 乌Ma LwAd, n3MepeHo cbrJaacHo 2000/14/EC/S.I. 2001/1701: 94 dB(A)
• HnBO Ha Bn6paunTe ahv, N3MepeHo cnopeEN 12096, EN 20643, EN ISO 5395-2, pkoxBaTka: 5,90 M/ceK²

HOpMaJra 3a N3bHeHneTo Ha DnpeKtNbata OTHOCHO3JaRaHeTo Ha Bn6paun Ha pa6oT

HOTOMaCTO2002/44/ECnS.I.2005/1093 MOXeTe Da OTKPneTe Ha aDpec www.stihl.com/vib.

19.4 REACH

CbkpaeHneTo "REACH" o6o3nauaba pernaMeHTa Ha EG (EBpon. 6uHocT) 3a peHnCTpnpaHe, aHaJIIN3 n DOnyCTmOCT Ha XIMnuecknte npenapatN.

Информацята за Изпьленье на Perламente REACH e пооча no-dony www.stihl.com/ reach.

20 Pe3epBn qactn n npHaJIeXHOCTN

20.1 Pe3epBn qacTn n npHaJneKHOCTN

STIHLC Te3n CmBONCe 6o3NaUaBaT opu HnHaHn pe3epBn Yactn Ha STIHN opuHaHn npHaJnxKHOCTn Ha STIHL.

Фирma STIHL npenopbyBa da ce n3noJ3BaT opuHaJIHn pe3epBHN qactn n opunHaJIHn npiHaJIeXHoCTn Ha STIHL.

Pe3epBnHTe Yactu npHaJnxHocTte Ha dpyrnpo3BoNTeH He Morat da 6bDat OceHeHOn OT STIHLO THOWeHne Ha HAdekDHOCTTa,6e3ONaCHOCCTa NpNiROdHOCTTa IM, BbPpeKn PpOJaKaBaUTo Ha6JIIODeHne Ha na3apa n STIHLe Me MoKe Da rapaHTnpa I3NoI3-BAHeTO m.

OpunnaHn pe3epBn qactn n opunhaHn npnHaJnxHocn Ha STIHLCe npednarot on cneuaHn3npaH TbproBckn o6ekt Ha STIHLC.

20.2 Baxhni pe3epBn yactn

HnmuTAtSIHL He Hocn HnKaKbO OTROBOPHOCT 3a MaTePnaJIHn UeTN N OIN3NueCKo HapaHraBaHe Ha Xopa, KOINTO Ca Bb3HNKHaJI N BCJeDCTBVe Ha

21 OToTpaHraBaHe /n3XBpIa He 6bIrapckn

ynoTpe6aTa Ha Hepa3peWeHn npncTabKn n pe3epBHN qactn.

-Hox:63577020102
-BoNT Ha Hoxa: 9008 319 9028
- Ⅲaɪbɑː: 0000 702 6600

21 OTeTpaHЯBaHe /n3XBbPJIaHe

21.1 I3xBbpyHe Ha KocaykaTa

HΦopMaζη 3a Ι3XBbPηHeTo MOxTe Da Φynte OT CπειαΠn3μρaŋ TbρroBeu Na STIHL.

• IV3xBbPnTe KocayKaTa, HOxA, 6eH3NuHa, MOTOPHOTo MaCNo, INpuHaIaJIeXHoCTNte N ONaKOBKIne B CbOTBeTCTBHe C pa3nopeD6Nte N NO HaunH, UaJaU, OKoJHaTa CpeDa.

22ДeкларачniaHa EC (EU) 3a CbOTBETCTBne

22.1 Kocayka STIHL RM 2.0 RT

STIHL Tirol GmbH

OTROBAP RA OTHOCMNTe pa3npoedn Ha DnpeK
TINBE Na ObdHHeHO T KpaNCTBO Noise
Emission in the Environment by Equipment for
use Outdoors Regulations 2001, Supply of
Machinery (Safety) Regulations 2008,
Electromagnetic Compatibility Regulations 2016
N The Restriction of the Use of Certain
Hazardous Substances in Electronic Equipment
Regulations 2012 n e pa3pa6toHa n npOn3Ve
deHa B CbOTBeTCTBnE C BaNiDnTe KbM DaTaTa
Ha npOn3BOvCTBO Bercn Ha cIeDNITE
cTaNapTu: EN ISO 5395-1, EN ISO 5395-2,
EN ISO 14982.

HotnPhiunpaH opraH:

TUV Rheinland UK LTD

1011 Stratford Road

Solihull, B90 4BN

3a yctaHOBRAHe Ha n3MpeHOTOn rapaHTnpaHOTO HNOHa 7yMa 6eWe npNoKeHa DnpeKtBa Noise Emission in the Environment

romána

by Equipment for use Outdoors Regulations 2001, Schedule 11 Ha OBeiHHeHOTo KpaJIcTBO.
- I3mepeHo HnBO Ha 乌Ma: 92,5 dB(A)
- TapaHTnpaHO HnBO Ha 乌Ma: 94 dB(A)

Stimata clienta, stimate client,

ne bucuram ca ati ale s STIHL. Dezvoltam si executam produsele noastre in calitate de varf, conform nevoilor clientilor nostri. In felul acesta iau nastere produse de mare fiabilitate chiar si in condi tii de solicitare extrema.

STIHL inseamna calitate de varf si in domeniul de service. Atelierele noastre de specialitate ofera consiliere si instructiuni competente, dar si o cuprinzatoare asistena tehnica.
