USER MANUAL FS DW 866 XS FRANKE


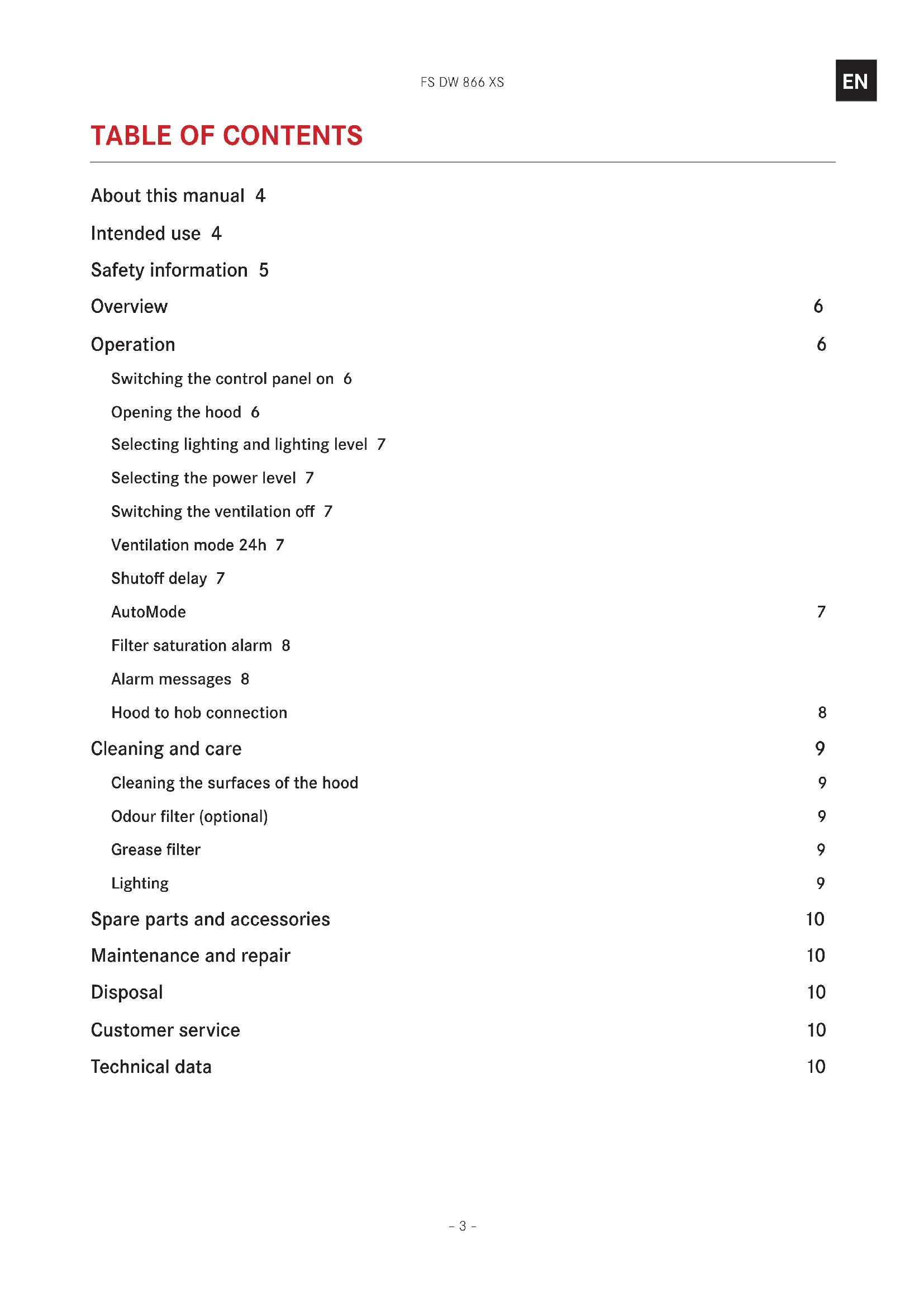

EN User manual
Switching the control panel on 6
Opening the hood 6
Selecting lighting and lighting level 7
Selecting the power level 7
Switching the ventilation off 7
Ventilation mode 24h 7
Shutoff delay 7
AutoMode 7
Filter saturation alarm 8
Alarm messages 8
Hood to hob connection 8
Cleaning and care 9
Cleaning the surfaces of the hood 9
Odour filter (optional) 9
Grease filter 9
Lighting 9
Spare parts and accessories 10
Maintenance and repair 10
Disposal 10
Customer service 10
Technical data 10
ABOUT THIS MANUAL
This user manual applies to several models of the device. Thus it may be possible that some of the described features and functions are not available on your specific model.
▶ Carefully read the user manual before using the device.
▶ Keep the user manual.
▶ Use the device described in this user manual only according to the intended use.
Symbol Meaning
Warning symbol. Warning against risks of injury.
▶ Actions in safety and warning notes to avoid injury or damage.
▶ Action step. Specifies an action to be done.
■ Result. Result of one or more action steps.
√ Precondition that has to be fulfilled before performing the following action.
INTENDED USE
The hood was developed exclusively for domestic use to eliminate cooking vapours.
The hood, which is equipped with a grease filter, removes vapours forming over a stove top via an air circulation or an air exhaust system.
This Cooker hood can be used in conjunction with Gas Cook Top having the following characteristics:
- Maximum power 12,4 kW
- 5 fire like the picture
bubble
| Bubble Size (kW) | Color | | :--- | :--- | | 2,6 | Grey | | 5 | Grey | | 1,9 | Grey | | 1 | Grey | | 1,9 | Grey |
bubble
| Category | Value (kW) | |---|---| | 1 | 1.75 | | 2 | 3 | | 3 | 4 | | 4 | 1.75 | | 5 | 1 |SAFETY INFORMATION
The manufacturer can not be made liable for possible damage which may occur due to incorrect installation and incorrect, improper or unreasonable use of the device.
The hood can not support heavy loads.
Do not climb, stand or sit on the hood.
Do not place any objects on the hoods top.
Children of 8 years or older and persons with restricted physical, sensory or mental abilities, or with limited experience or knowledge, may not use or clean the device, except they are supervised and instructed by a person responsible for their safety.
Children under 8 years may not use or clean the device even if supervised.
This device is not a toy.
▷ Keep children away from the device and the packaging material.
Do not leave children near the device unattended.
Do not let children play with the device.
▷ When using the hood, observe the manuals of the stove top and of the cooking devices that are used beneath the hood or while the hood is running.
Pans or pots may tip over when opening the hood.
Do not put pans or pots on the closed opening of the hood or leave them too near to the opened hood.
Fire hazard and risk of injury due to open flame!
Deposits in the grease filter may catch fire.
Do not use open flames near the device (e.g. flambéing).
▷ Always clean or change all filters at the specified intervals.
When using deep fat fryers, overheated oil can burst into flames.
▷ Continuously monitor fryers during use.
Risk of eye injury due to LED light!
The LED light is very bright and may damage the eyes.
Do not look directly into the LED light for a prolonged time.
Risk of electric shock due to damaged device!
▷ Do not switch on a damaged device.
▷ Switch off the fuse in the fuse box.
▷ Contact the customer service.
Risk of electric shock due to entering liquid!
The device contains electrical components.
▷ Make sure that no liquid enters the interior of the device.
Do not use pressurised steam to clean the device.
Do not use a wet cloth to clean the operating elements.
Risk of burns due to hot surfaces!
Accessible metallic parts of the hood may become very hot when used with cooking appliances, that emit great amounts of heat (e.g. gas hobs).
Do not touch hot surfaces.
▷ Be careful when opening or closing the fold-out panel.
▷ Wear heat-resistant gloves.

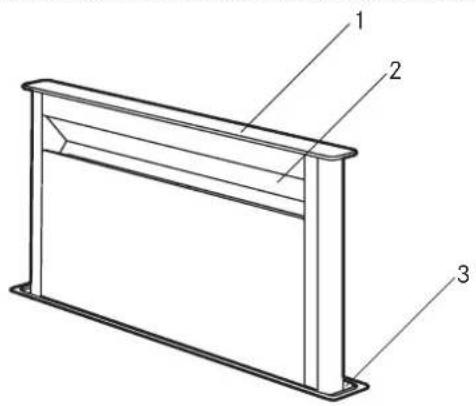

OVERVIEW
2 Hood with ventilation
3 Opening
Key Function
| Lighting on/offLighting level | |
| Alarm „filter saturation“ active/inactiveAutoMode (reactivating) | |
| Shutoff delay on/off | |
| Power level 3Intensive mode | |
| Power level 2 | |
| Power level 1Ventilation mode 24h | |
| Moving the hood up/down | |
| Ventilation on/offControl panel on/off |
OPERATION
Switching the control panel on
▶ Press Ⓘ
■ All icons light up with half their intensity.
■ If not used for 15 seconds it will revert to standby status.
Opening the hood
When the hood is closed:
▶ Briefly press
The hood is opening halfway, the ventilation is on power level 1.
When the hood is opened halfway:
▶ To open the hood completely: Briefly press
■ The hood is opening completely, the ventilation is on power level 1.
▶ To close the hood: Press and hold ⏻ for a while.
■ The ventilation is switched off, the hood is closing.
When the hood is opened completely:
▶ Press and hold for a while.
■ The ventilation is switched off, the hood is closing.
Selecting lighting and lighting level
Lighting at full intensity
▶ Briefly press
Lighting at half the intensity
▶ Press 📂 for 2 seconds.
Selecting the power level
Level 1
▶ Press ⏻ ■ The icon of the key lights up.
Level 2
▶ Press ② ■ The icon of the key lights up.
Level 3
▶ Press ③ ■ The icon of the key lights up.
Intensive mode
The intensive mode is running for 5 minutes. After 5 minutes, the hood returns automatically to the power level, that was set before. The intensive mode cannot be activated when the hood is opened halfway up.
▶ Press and hold 📊 for 2 seconds. ■ The icon of the key 📊 links once a second.
Switching the ventilation off
▶ Press Ⓙ ■ The ventilation is off.
Ventilation mode 24h
The ventilation mode 24h switches the drive to power level 1 (10 minutes on and 50 minutes off). The ventilation mode 24h can not be selected while the shutoff delay or intensive setting is running.
Switching on
▶ Press and hold for 2 seconds. ■ The icon of the key links.
Switching off
▶ Press and hold Ⓗ for 2 seconds or press . ⏱
Shutoff delay
The shutoff delay switches the ventilation and the ligthing off automatically after 15 minutes and helps to remove remaining odours. The shutoff delay can be selected at any power level. The shutoff delay cannot be selected while the intensive setting or the ventilation mode 24 h is running.
Switching on
▶ Press Ⓤ ■ The icon of the key lights up.
Switching off
▶ Press ⏻ . ⏱
AutoMode
The hood is designed to work automatically linked with the hob by a special hood to hob connection. The automode function is automatically set when your are starting a cooking and the hob is operating. The icon lights up and the lighting goes on. The speed level will be increased automatically by the hob. If you manually choose a certain power level of the ventilation or switch the ventilation off, the AutoMode function is deactivated.
After cooking and switching off the hob, the hood waits roughly 60 seconds before switching off (ventilation and lighting).
Deactivating the AutoMode
The AutoMode is deactivated, if you manually choose another power level of the ventilation.
- Press ① of ② ③ or - Press ④ for 2 seconds
Reactivating the AutoMode
▶ Briefly press Ⓐ ■ The icon of the key lights up.
Filter saturation alarm
The alarm for cleaning the grease filter turns on after 100 hours of effective running time of the hood.
The icon of the key is blinking, when the hood is switched off.
Resetting the alarm „filter saturation“
The reset has to be performed while the ventilation of the hood is switched off.
▶ Press ⓣ to switch the ventilation off.
▶ Press and hold for 2 seconds.
All icons blink 3x. The alarm is reset.
Alarm messages
Alarm „Grease filter saturation“
When alarm occurs you have to clean the grease filter.
▶ Clean the grease filter.
Hood to hob connection
Some models of this hood can be paired with specific hobs to establish a hood-hob-connection. When using for the first time, it may be necessary to establish the pairing of the hood with the hob.
Pairing of hood and hob
▶ Switch-on a new hood and a new hob within 1 minute one each other.
■ The pairing procedure starts automatically.
■ During pairing procedure hood will „beep“ periodically.
■ After few minutes beeping pairing is completed and the hood beeps with a specific sequence.
The hood and the hob are now able to re-connect to their known partner each time they are switched on/off.
Un-pairing of hood and hob
To un-pair hob or hood, repeat the following sequence for each appliance:
▶ 5 sec. switch-on, 5 sec. switch off for 5 times. This procedure could be done for the hood and the hob individually or for both devices.
■ After un-pairing the hood will restart beeping waiting for a hob to reconnect.
The pairing will not restart until hob and hood are switched off.
CLEANING AND CARE
Before performing any cleaning and maintenance:
▷ Switch off the device.
For cleaning and care details, refer to the manual delivered with the filter.
Fire hazard! Risk of injury!
Deposits in the grease filter may catch fire.
Filters that are not cleaned or changed regularly may catch fire if open flames or extensive heat are handled beneath the hood.
▷ Always clean or change all filters at the specified intervals.
Cleaning the surfaces of the hood
Do not use any scouring agents or chemical detergents, which could corrode or scratch the durfaces of the device.
▶ Clean the hood using a damp cloth and a neutral liquid detergent.
Odour filter (optional)
New odour filters (activated carbon filter) are available in specialist stores.
Do not wash or re-use an unwashable odour filter. Refer to the manual for cleaning and care details.
Change the odour filter after 4 months of operation or earlier after intensive use.
▷ Dispose of the used odour filter in the domestic waste.

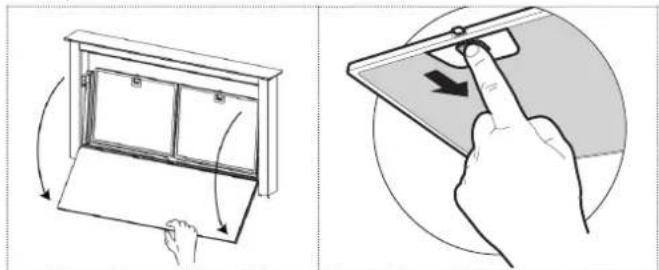

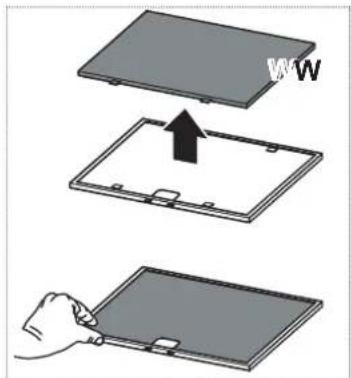

Changing the odour filter
▶ Open the cover.
Grease filter
The grease filter can be cleaned in the dishwasher.
For cleaning and care details, refer to the manual delivered with the filter.
▷ Clean the grease filter after 2 months of operation or earlier after intensive use.

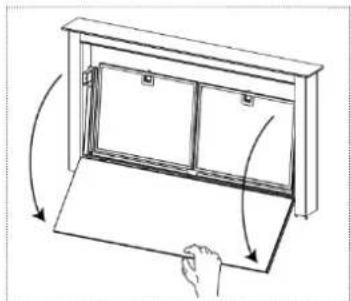

Cleaning the grease filter
▶ Open the cover.
▶ Put the grease filter back in place.
▶ Close the cover.
Lighting
▶ Make sure that the LED in the spotlights are changed only by the customer service.
SPARE PARTS AND ACCESSORIES
New odour and grease filters are available in specialist stores.
Component Type, item no. Remark
| Odour filter 112.0262.703 |
| 112.0289.753 |
| high performance, washable |
| long lasting, washable |
| Grease filter 133.0261.220 | Cassette filter 314x253 |
MAINTENANCE AND REPAIR
Repairs if carried out incorrectly may cause serious injury, damage to the device and fittings, as well as affect the functioning of the device.
▷ Make sure that maintenance on electrical components and on the smoke vent is carried out only by the manufacturer or the customer service.
▷ Make sure that damaged cables are changed only by the manufacturer or the customer service.
DISPOSAL
The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.
By disposing of the device in a proper way you help to avoid harmful consequences to environment and health.
Further information about recycling the device is available from the competent authority, the local refuse disposal service or the vendor of the device.
▷ Dispose of the device, which is to be discarded, via a specialised waste collection point for electronic and electrical devices.
CUSTOMER SERVICE
▶ Refere to the contact address for your country on the back page or www.franke.com
TECHNICAL DATA
▶ Refer to the type plate placed on the product.
Further information on technical data is available on: - www.franke.com
INHALTVERZEICHNIS
bubble
| Bubble Size | Label | |---|---| | 1.75 kW | 1,75 kW | | 3 kW | 3 kW | | 4 kW | 4 kW | | 1.75 kW | 1 kW |SICHERHEITSHINWEISE
Diagram showing three steps of installing or adjusting a device panel, with a hand holding the panel and an arrow indicating the process.natural_image
Line drawing of a cabinet with arrows indicating rotation or movement (no text or symbols)natural_image
Illustration of a hand interacting with a tablet device, showing a finger pointing at the screen (no text or symbols present)bubble
| Bubble Size | Label | |---|---| | 1.75 kW | 1.75 kW | | 3 kW | 3 kW | | 4 kW | 4 kW | | 1 kW | 1 kW | The size of the bubbles is proportional to the power consumption value. The label '4 kW' appears twice in the center of the bubbles.INFORMATIONS SUR LA SÉCURITÉ
Diagram showing three steps of installing or adjusting a device panel, with a hand holding the panel and a black arrow indicating the process.▶ Fermez le couvercle.
Filtre à graisse
| Bubble Size | Label | |---|---| | 1.75 kW | 1,75 kW | | 3 kW | 3 kW | | 4 kW | 4 kW | | 1.75 kW | 1 kW |VEILIGHEIDSGEGEVENS
▶ Druk op ① of ② ③
of
▶ Druk 2 seconden op Ⓔ
Automodus heractiveren
Diagram showing three steps of a device or panel installation: top-down, up-right, and bottom-up with a hand holding the panel.natural_image
Line drawing of a cabinet with doors open and a hand holding a paper, showing rotational motion arrows (no text or symbols)natural_image
Illustration of a hand interacting with a tablet device, showing a finger pressing the screen (no text or symbols present)natural_image
Illustration showing two steps of installing or adjusting a device panel, with no visible text or symbols.text_image
Diagram showing three steps of installing or adjusting a device panel, with a hand holding the panel and a black arrow indicating the process.natural_image
Simple line drawing of a cabinet with arrows indicating rotation or movement (no text or symbols)natural_image
Illustration of a hand pressing down on a tablet device with a downward arrow (no text or symbols)natural_image
Illustration showing two hand gestures interacting with a device, one holding a tray and the other pointing at a screen (no text or symbols present)text_image
Diagram showing three steps of a device or panel installation: top panel is open, bottom panel is closed, and the arrow indicates direction.natural_image
Simple line drawing of a window with arrows indicating rotation or movement (no text or symbols)▶ Retire el filtro de grasa.
Limpar as superfícies do exaustor
Diagram showing three steps of installing or adjusting a device panel, with a hand holding the panel and a black arrow indicating the process.▶ Feche a tampa.
Filtro de gorduras
Illustration of a hand pressing down on a tablet device with a downward arrow (no text or symbols)bubble
| Label | Value (kW) | |---|---| | 2,6 kW | 5 | | 1,9 kW | 1 | | 1,9 kW | 1 | | 1 kW | 1 | The label '5 kW' appears to be a reference point on the chart, but it is not explicitly labeled on the diagram itself. The other three bubbles are positioned at the bottom left of the chart.
bubble
| Bubble Size | Label | |---|---| | 1.75 kW | 1,75 kW | | 3 kW | 3 kW | | 4 kW | 4 kW | | 1 kW | 1 kW | | 1,75 kW | 1,75 kW |natural_image
Line drawing of a cabinet with arrows indicating rotation or movement (no text or symbols)
Diagram showing three steps of installing or adjusting a device panel, with an arrow indicating the process.natural_image
Simple line drawing of a door frame with arrows indicating rotation or movement (no text or symbols)natural_image
Illustration of a hand pressing down on a smartphone screen with a downward arrow (no text or symbols)natural_image
Illustration showing two steps: one of a door frame with hand gestures, the other of a tablet device with a finger pointing at it (no text or symbols present)text_image
Diagram showing three steps of installing or adjusting a device panel, with a hand holding the panel and a black arrow indicating the process.▶ Luk skærmen.
Fedtfilter
Illustration of a hand pressing down on a smartphone screen with a downward arrow (no text or symbols)Alarm for fullt filter 80
Alarmmeldinger 80
Alarm for fullt filter
Diagram showing three steps of a device or panel installation: top view, front view with arrow indicating upward motion, and bottom view with hand holding clip.▶ Lukk dekselet.
Fettfilter
Illustration of a hand interacting with a tablet device, showing a finger pressing the screen (no text or symbols present)VEDLIKEHOLD OG REPARASJON
INNEHÅLLSFÖRTECKNING
Diagram showing three steps of a device or panel assembly: top-down, up-right, and bottom-up with a hand holding the component.▶ Stäng skyddet.
Fettfilter
Illustration of a hand inserting a device into a smartphone (no text or symbols)Franke Kindred Canada Limited
Midland, ON L4R 4K9
Phone +1 866 687 7465
China
Franke (China) Kitchen Systems Co., Ltd.
Heshan, Guangdong, 529700
Hotline 400 882 9898
Czech Republic
Franke s.r.o.
190 00 Praha 9
Phone +420 281 090 411
Denmark
Franke Kitchen Systems Denmark
8520 Lystrup
Phone +45 8624 9024
Egypt
Franke Kitchen Systems Egypt S.A.E.
6th of October City
Hotline 16828
Finland
Franke Finland Oy
76850 Naarajärvi
Phone +358 15 341 11
France
Franke France S.A.S.
60230 Chambly
Phone +33 130 289 400
Germany
Franke GmbH
79713 Bad Säckingen
Phone +49 7761 52 0
Greece
Franke Hellas S.A.
19003 Markopoulo Attikis (Athens)
Phone +30 22991 500 00
Hong Kong SAR
Franke Asia Hong Kong Office
Causeway Bay
Phone +852 3184 1900
India
Franke Faber India Limited
Aurangabad - 431 136
Phone 1800 209 3484
Italy
Franke S.p.A.
37019 Peschiera del Garda
Numero Verde 800 359 359
Kazakhstan
Franke Kazakhstan Ltd.
040918 Almaty City
Phone +7 727 297 3812
Morocco
Franke Kitchen System SARL
21 000 Casablanca
Phone +212 522 674 200
Norway
Franke Kitchen Systems Norway
8520 Lystrup, Denmark
Phone +47 35 566 450
Poland
Franke Polska Sp. z o.o.
05-090 Raszyn
Phone +48 22 711 6700
Portugal
Franke Portugal S.A.
2735-531 Cacém
Phone +351 21 426 9670
Romania
Franke Romania SRL
Pantelimon 077145
Phone +40 21 350 1550
Russia
Franke Russia GmbH
199106 St. Petersburg
Phone +7 812 703 1540
Slovak Republic
Franke Slovakia s.r.o.
010 01 Žilina
Phone +421 41 733 6200
South Africa
Franke South Africa
Durban 4052
Phone +27 31 450 6300
Spain
Phone +46 912 405 00
Switzerland
United Arab Emirates
Franke LLC
Ras Al Khaimah
Phone +971 7 203 4700
United Kingdom
Franke UK Ltd.
Manchester M22 5WB
Phone +44 161 436 6280
USA
Franke Kitchen Systems LLC
Smyrna, TN 37167
Phone 800 626 5771
