| Product type | Robotic lawnmower |
| Brand | AL-KO |
| Model | Robolinho 3100 |
| Maximum mowing area | 1200 m² |
| Maximum permissible slope | 40 % (22°) |
| Adjustable cutting height | 30 to 60 mm (in 5 mm increments) |
| Battery | Integrated lithium-ion (not user-replaceable) |
| Power supply | Mains transformer 230 V, low-voltage cable |
| Safety sensors | Tilt, lift, collision, rain |
| Anti-theft PIN code | Yes (PIN and PUK code) |
| Mowing program | Weekly, starting points, edge mowing |
| Secondary area function | Yes, manual mowing |
| Rain sensor | Yes, with adjustable delay |
| Cleaning | Housing and cutting deck with brush, do not hose down |
| Blade replacement | Yes, cutting blades and deck |
| Transformer fuse | 2.5 A time-delay |
Frequently Asked Questions - Robolinho 3100 AL-KO
User questions about Robolinho 3100 AL-KO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Robot mower in PDF format for free! Find your manual Robolinho 3100 - AL-KO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Robolinho 3100 by AL-KO.
USER MANUAL Robolinho 3100 AL-KO
Inhaltsverzeichnis
Deutsch 8
English....34
Nederlands 60
Français....87
Italiano 115
Česky 141
Magyarul....167
Polski....194
Dansk 221
Svensk....246
Suomi 272
Slovenská 297
© 2017
AL-KO KOBER GROUP Kötz, Germany
This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.
03
04
Nr. Bauteil
Nr. Bauteil
Nr. Bauteil
1 About these instructions for use 36
1.1 Legends and signal words.... 36
2 Product description 36
2.1 Scope of supply 36
2.2 Automatic lawn mower 37
2.3 Symbols on the appliance 37
2.4 Control panel 38
2.5 Display.... 38
2.6 Menu structure 39
2.7 Base station.... 40
2.8 Integrated battery 40
2.9 Functional description 40
3 Safety 41
3.1 Designated use 41
3.2 Possible misuse 41
3.3 Safety and protective devices 41
3.3.1 PIN and PUK input 41
3.3.2 Sensors 41
3.4 Safety instructions 42
3.4.1 Operator 42
3.4.2 Safety of persons and animals 42
3.4.3 Appliance safety 42
3.4.4 Electrical safety 42
4 Installation.... 42
4.1 Unpacking the machine.... 42
4.2 Planning the mowing areas (01).... 42
4.3 Preparing the mowing areas 43

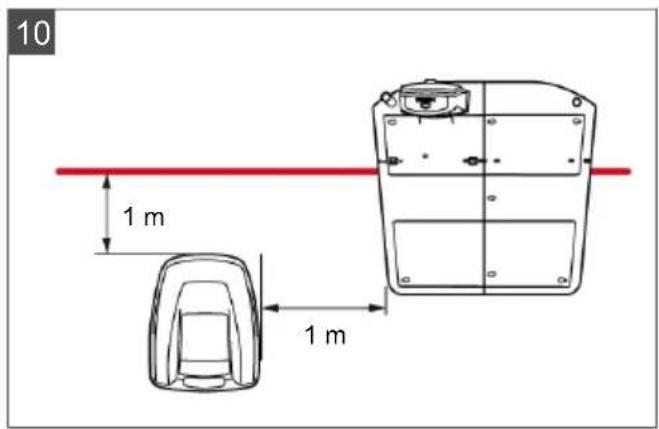

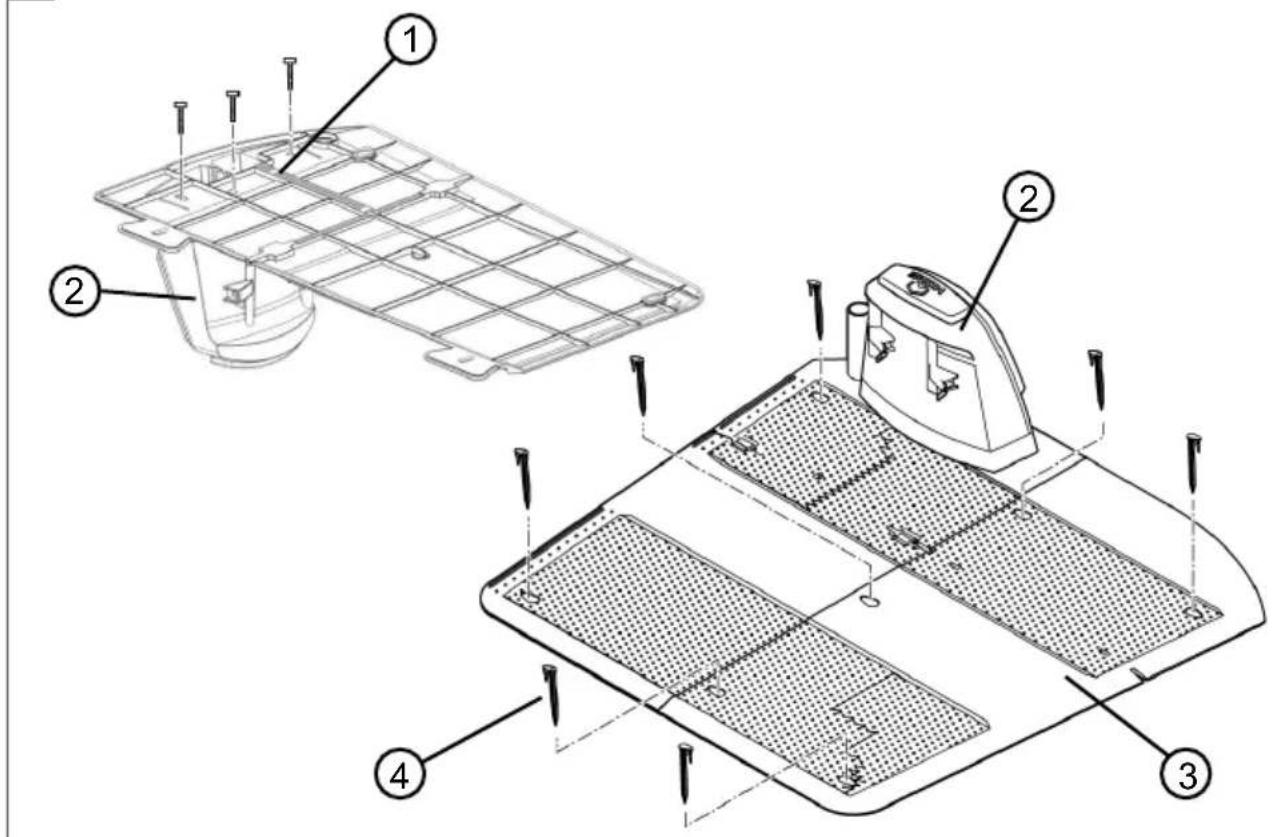

4.4 Setting up the base station (03) 43
4.5 Installing the boundary cable.... 43

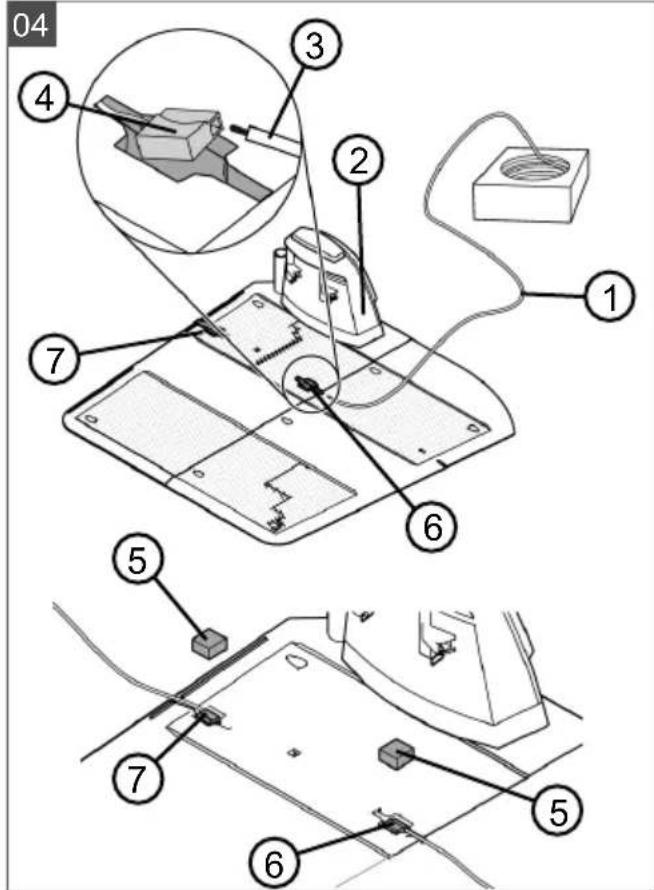

4.5.1 Connecting the boundary cable to the base station (04).... 43

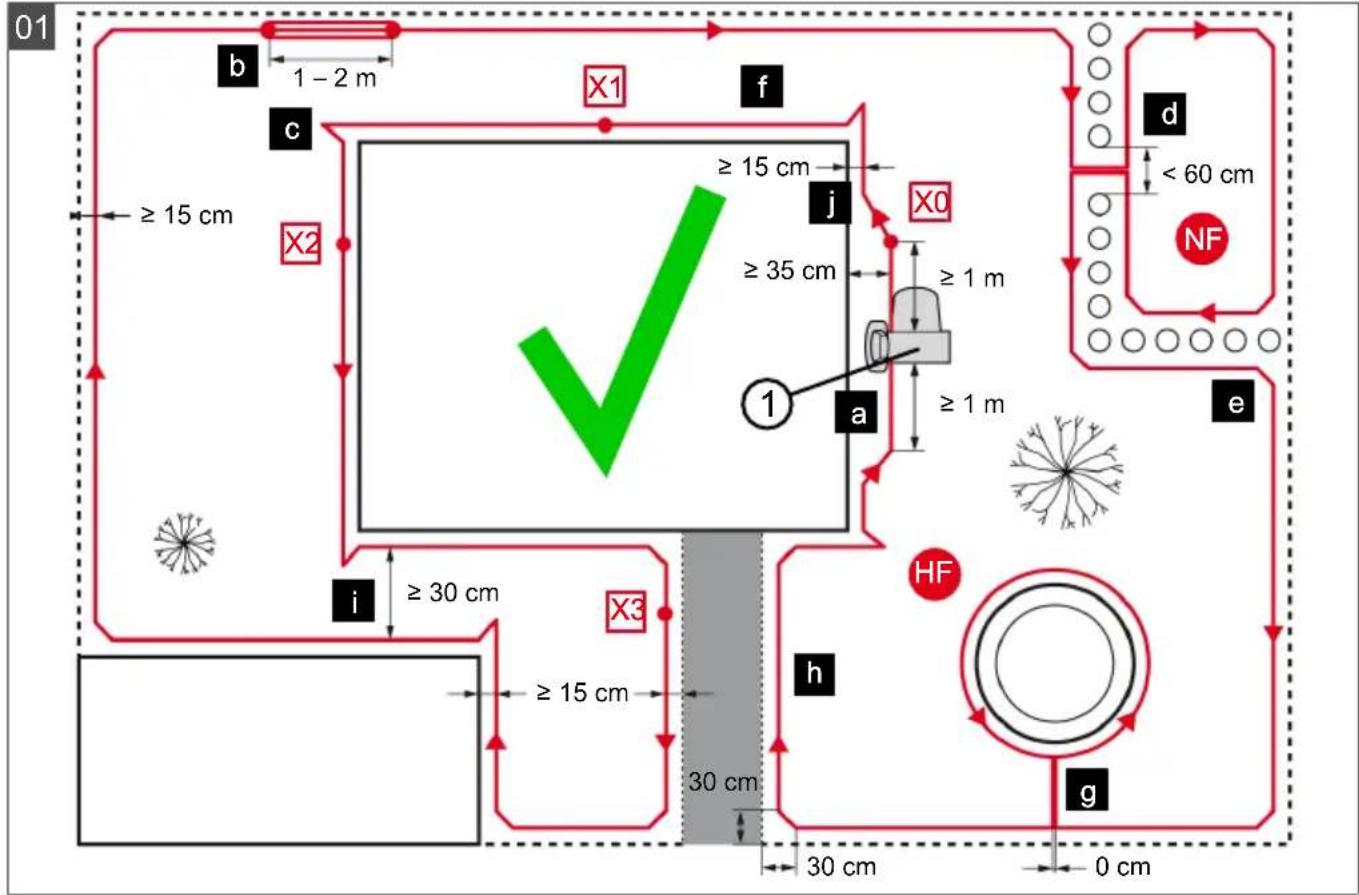

4.5.2 Routing the boundary cable (01) 43
4.5.3 Excluding obstacles.... 44
4.5.4 Enclosing corridors (01/i).... 44
4.5.5 Excluding downward slopes 44

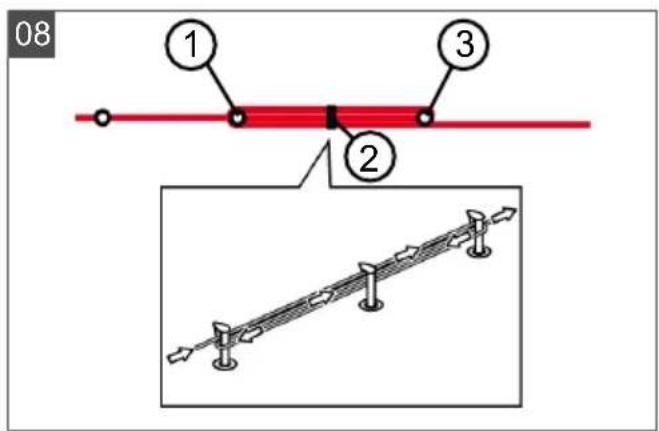

4.5.6 Creating loops of cable (08) 45

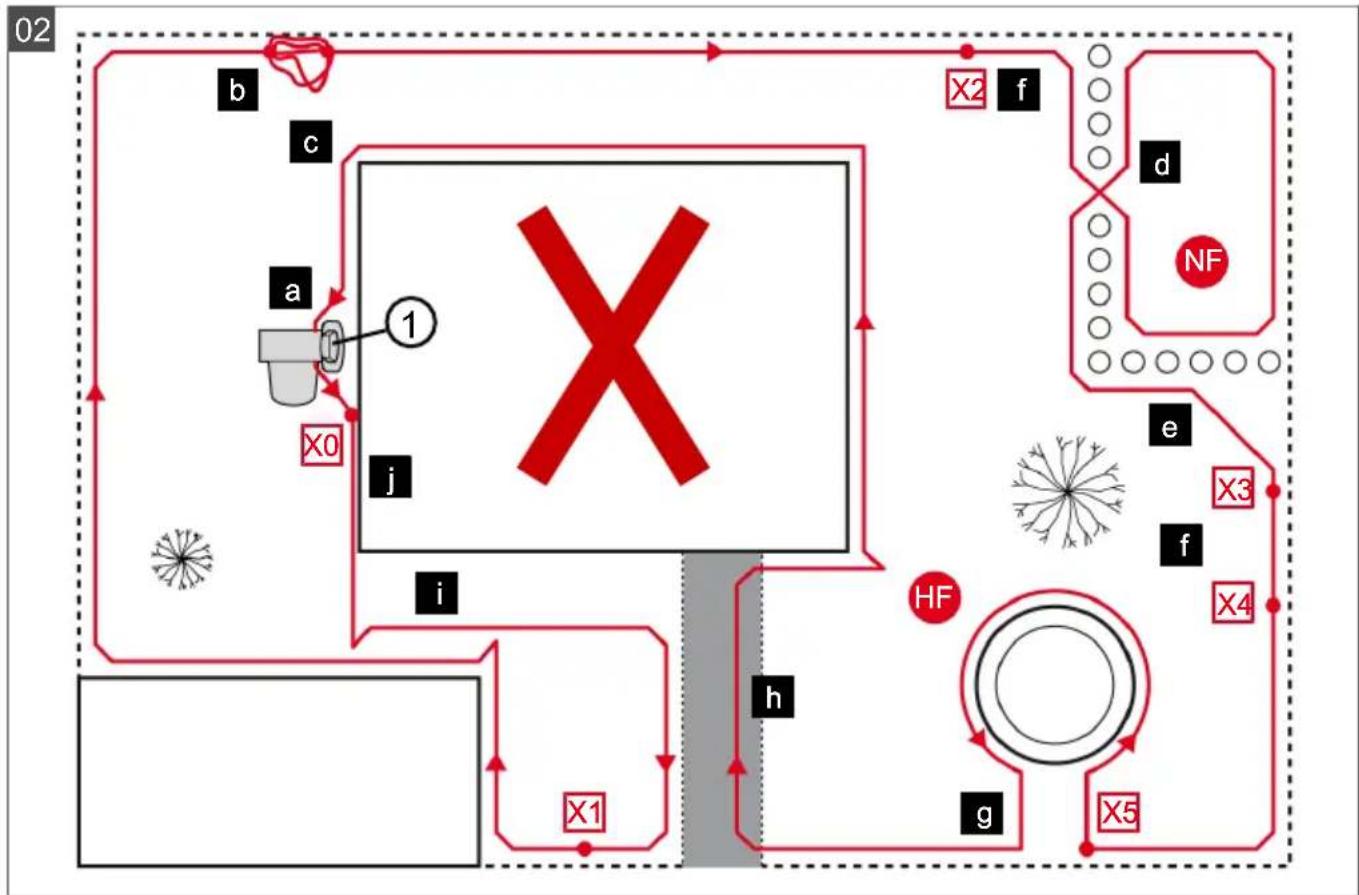

4.5.7 Typical faults in cable routing (02).... 45

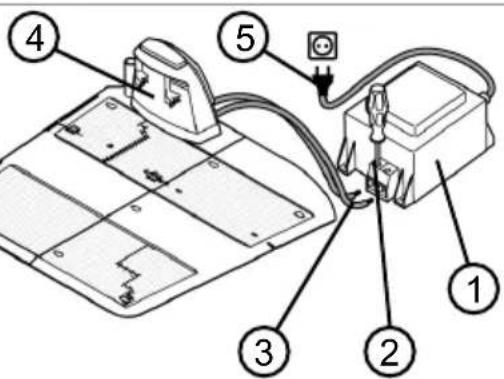

4.6 Connecting the base station to the power source (05).... 45
4.7 Checking the connections on the base station (05) 45
5 Start-up 46
5.1 Charging the rechargeable battery (09) 46
5.2 Making the basic settings 46
5.3 Setting the cutting height.... 46
5.4 Carrying out an automatic calibration movement 46
6 Operation 47
6.1 Starting the appliance manually 47
6.2 Cancelling mowing 47
6.3 Mowing the secondary area (01/NF) 47
7 Settings.... 47
7.1 Calling up the setting – General 47
7.2 Activating/deactivating the button tones 47
7.3 Setting the rain sensor 48
7.4 Setting the mowing program 48
7.4.1 Setting the mowing program – General 48
7.4.2 Setting the start points.... 48
7.4.3 Setting the mowing times 48
7.5 Edge mowing with a manual start 49
7.6 Setting the secondary area mowing 49
7.7 Setting the display contrast 49
7.8 Setting lock 49
7.9 Recalibrating 49
7.10 Restoring factory settings.... 50
8 Displaying information 50
9 Maintenance and care 50
9.1 Cleaning 50
9.2 Regular checks.... 51
9.3 Replacing the cutting blades 51

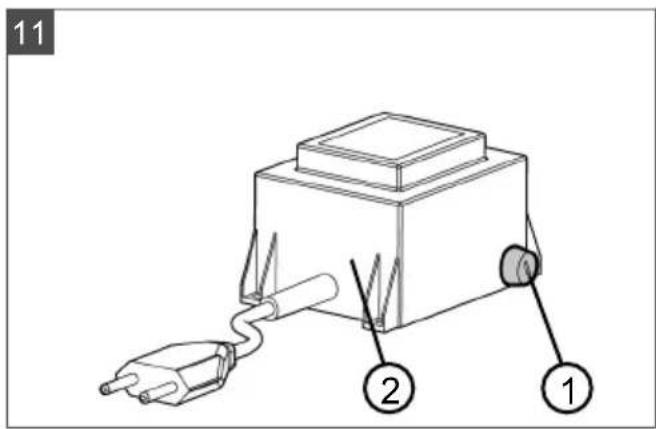

9.4 Replacing the fuse on the transformer (11).... 51
10 Transport 52
11 Storage 52
11.1 Storing the automatic lawn mower 52
11.2 Storing the base station.... 52
11.3 Winter storage of the boundary cable 52
12 Disposal 52
13 Help in case of malfunction.... 54
13.1 Correcting appliance and handling faults 54
13.2 Fault codes and troubleshooting 55
14 Guarantee....59
15 EU declaration of conformity.... 59

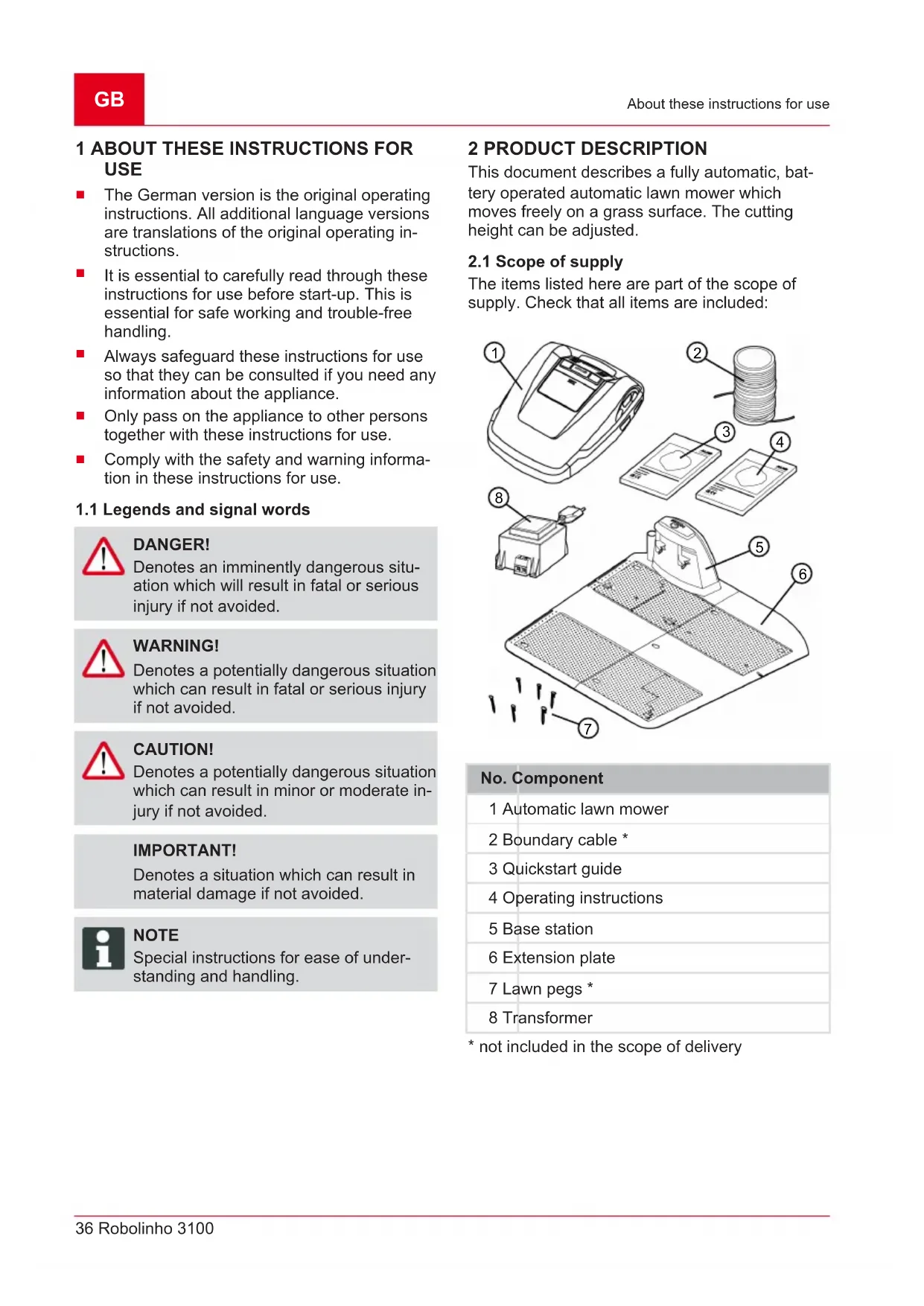

1 ABOUT THESE INSTRUCTIONS FOR USE
The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
It is essential to carefully read through these instructions for use before start-up. This is essential for safe working and trouble-free handling.
■ Always safeguard these instructions for use so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these instructions for use.
■ Comply with the safety and warning information in these instructions for use.
1.1 Legends and signal words
DANGER!
Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.
WARNING!
Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.
CAUTION!
Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.
IMPORTANT!
Denotes a situation which can result in material damage if not avoided.
NOTE
Special instructions for ease of understanding and handling.
2 PRODUCT DESCRIPTION
This document describes a fully automatic, battery operated automatic lawn mower which moves freely on a grass surface. The cutting height can be adjusted.

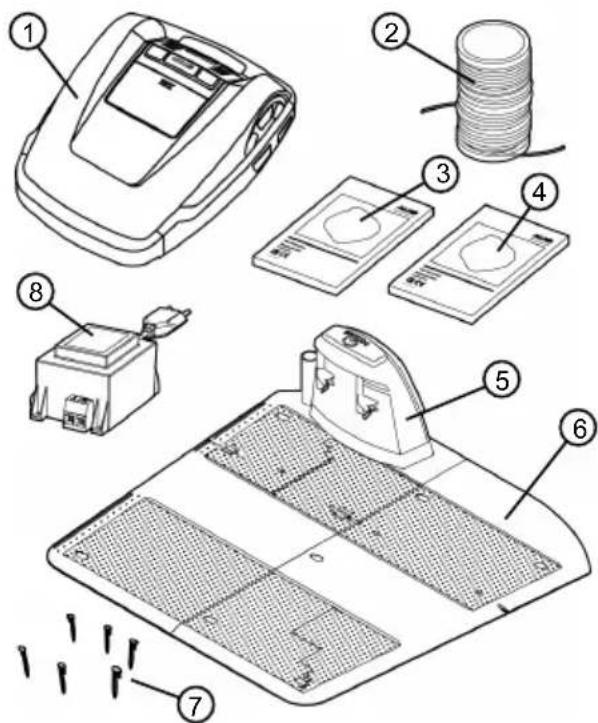

2.1 Scope of supply
The items listed here are part of the scope of supply. Check that all items are included:
No. Component
| 1 Automatic lawn mower |
| 2 Boundary cable * |
| 3 Quickstart guide |
| 4 Operating instructions |
| 5 Base station |
| 6 Extension plate |
| 7 Lawn pegs * |
| 8 Transformer |
* not included in the scope of delivery

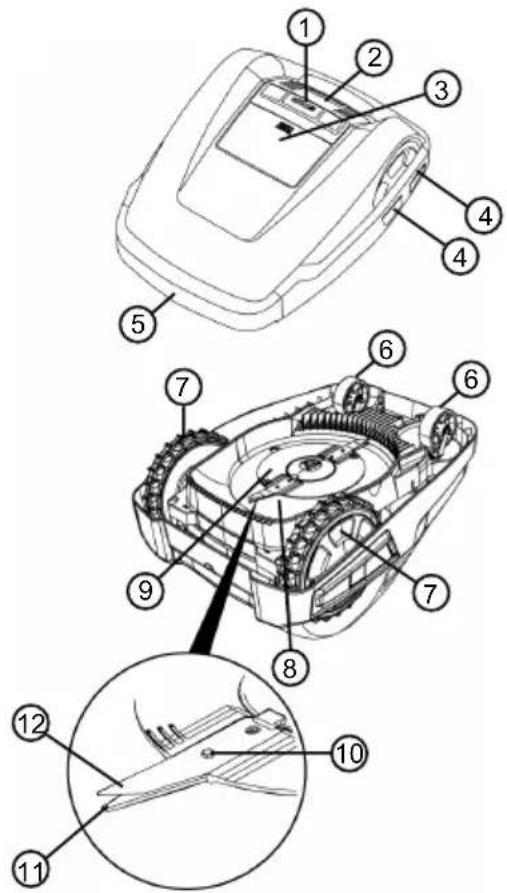

2.2 Automatic lawn mower
No. Component
| 1 STOP key (stops the appliance immediately and the cutting blade within 2 s) |
| 2 Control panel with display |
| 3 Height adjustment (interior) |
| 4 Contact surfaces |
| 5 Bumper |
| 6 Front rollers (steering) |
| 7 Drive wheels |
| 8 Mower deck |
| 9 Blade plate |
| 10 Fastening screw |
| 11 Clearer blade |
| 12 Cutting blade |
2.3 Symbols on the appliance
Symbol Meaning
 | Keep other people out of the danger area. |
 | Pay special attention when handling this product. |
 | Keep your hands and feet away from the blade system. |
 | Maintain a safety distance. |
 | Read the operating instructions before starting operation. |
 | Enter the PIN in order to start the appliance. |
 | Do not ride on the appliance. |

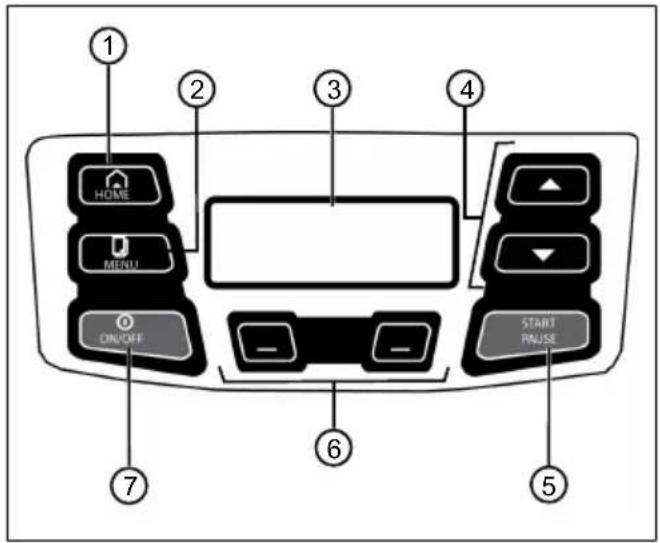

2.4 Control panel
No. Component
| 1 | HOME : Cancel mowing, the appliance returns to its base station. It starts on the next day automatically again at the set mowing time. |
| 2 | MENU : Call up the main menu. |
| 3 | The display shows the current operating status of the appliance, the name of the selected menu, its menu items and the functions to be selected. |
| 4 | ▲▼ : Select the menu items, increase and decrease numerical values, select between settings. |
| 5 | START PAUSE : Start mowing manually and stop mowing or immediately resume it again after pressing the home button (). |
| 6 | — — : Function keys. Call up the function that is displayed directly above the button on the display. |
| 7 | ON/OFF : Switch the appliance on and off. |

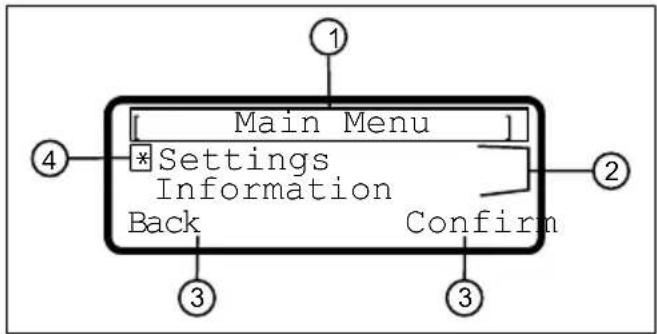

2.5 Display
No. Display
| 1 Name of the selected menu (here: "Main Menu") |
| 2 Menu items in the menu. Only two menu items are ever displayed (here: "Settings" and "Information"). Further menu items can be displayed with the arrow keys (▲▼) |
3 Functions for the selected menu item (here: "Settings") can be called up with the function keys (→below the menu.■  : Press the left function key.■  : Press the right function key. |
| 4 Asterisk for marking the displayed menu item (here: "Settings") |
2.6 Menu structure
| Main Menu | Programs | Weekly Program see chapter 7.4 "Setting the mowing program", page 48 |
| Entry Point see chapter 7.4.2 "Setting the start points", page 48 | ||
| Program Info see chapter 8 "Displaying information", page 50 | ||
| Settings | Time see chapter 5.2 "Making the basic settings", page 46 | |
| Date see chapter 5.2 "Making the basic settings", page 46 | ||
| Language see chapter 5.2 "Making the basic settings", page 46 | ||
| PIN-Code see chapter 5.2 "Making the basic settings", page 46 | ||
| Key clicks see chapter 7.2 "Activating/deactivating the button tones", page 47 | ||
| Rain sensor see chapter 7.3 "Setting the rain sensor", page 48 | ||
| After rain delay see chapter 7.3 "Setting the rain sensor", page 48 | ||
| Margin mowing see chapter 7.5 "Edge mowing with a manual start", page 49 | ||
| Sub zone active/disabledsee chapter 7.6 "Setting the secondary area mowing", page 49 | ||
| Display contrast see chapter 7.7 "Setting the display contrast", page 49 | ||
| Safety settings see chapter 7.8 "Setting lock", page 49 | ||
| Reset calibration see chapter 7.9 "Recalibrating", page 49 | ||
| Factory reset see chapter 7.10 "Restoring factory settings", page 50 | ||
| Information | Blades service see chapter 8 "Displaying information", page 50 | |
| Hardware see chapter 8 "Displaying information", page 50 | ||
| Software see chapter 8 "Displaying information", page 50 | ||
| Program Info see chapter 8 "Displaying information", page 50 | ||
| Failures see chapter 8 "Displaying information", page 50 |

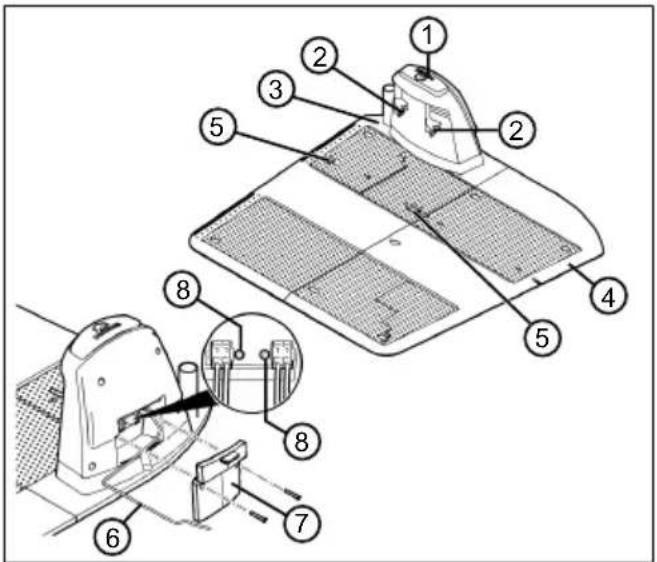

2.7 Base station
| No. Component |
| 1 HOME button |
| 2 Charging contacts |
| 3 Base plate |
| 4 Extension plate |
| 5 Spring force terminals for boundary cable |
| 6 Low voltage cable |
| 7 Cover |
| 8 LEDs for status display |
2.8 Integrated battery
The battery is installed permanently in the appliance and may not be changed by the user.
NOTE
Fully charge the rechargeable battery before using it for the first time. The rechargeable battery can be charged in any charge status. Interrupting charging does not damage the rechargeable battery.
The rechargeable battery can only be charged after the appliance has been switched on.
The integrated battery is partially charged on delivery. The battery is regularly recharged during normal operation. The appliance returns to its base station for this.
The integrated electronic control unit with a monitoring function terminates the charging procedure when a 100% charge status is reached.
The charging process only functions with perfect contact of the charging contacts on the base station with the contact surfaces of the appliance.
The built-in protection circuit prevents the battery from being charged at temperatures above 45 °C. This prevents irreparable damage to the battery.
If the operating time of the battery is reduced in spite of it being fully charged, have the battery replaced by a new genuine battery. This task should be carried out by an AL-KO dealer, technician or service partner.
If the battery charge level has dropped below the threshold set by the manufacturer as a result of ageing or excessively long storage, this means it can no longer be recharged. Have the battery and the monitoring electronic control unit checked by an AL-KO dealer, technician or service partner, and replace them if necessary.
The battery status is shown on the display. Check the battery status after about 3 months in storage. To do so, switch on the appliance and read off the battery status. If the rechargeable battery is now only charged to approx. 30 %, place the appliance in the base station and switch it on so the rechargeable battery is charged.
If electrolyte has escaped into the appliance: Have the appliance repaired by an AL-KO service centre.
If the rechargeable battery has been removed from the appliance: If the eyes or hands have come into contact with escaped electrolyte, flush them immediately with water. Immediately consult a doctor.
2.9 Functional description
Moving on the grass surface
The automatic lawn mower moves freely in a mowing area delimited by a boundary cable. The appliance is oriented by sensors that detect the magnetic field of the boundary cable.
If the appliance encounters an obstacle, it stops and then continues in another direction. If the appliance detects moisture, it automatically returns to the base station. If the appliance gets into a situation where it cannot operate, it switches off.
Mowing and charging
The mowing phases alternate constantly with the charging phases. If the charge of the rechargeable battery drops to a specific value (display: 0 %) during mowing, the appliance returns to the base station along the boundary cable.
Pre-set mowing programs are available for mowing, and also include the lawn and edge mowing function. These mowing programs can be changed.
3 SAFETY
3.1 Designated use
This machine is solely intended for use in non-commercial applications. Any other use (as well as unauthorised conversions or add-ons) are regarded as contrary to the intended use and will result in exclusion of the warranty as well as loss of conformity (CE mark); the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.
The application limits of the appliance are:
Max. area: 1200 ~m^2
Max. upward/downward slope: 40 % (22°)
■ Max. lateral inclined angle: 40 % (22°)
Temperature:
- Charging: 0 – 45 °C
Mowing: 0 – 55 °C
3.2 Possible misuse
This machine is not suitable for use in public gardens, parks, sports stadiums, and in agriculture and forestry.
3.3 Safety and protective devices
WARNING!
Risk of injury
Defective and disabled safety and protective devices can lead to serious injuries.
■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.
3.3.1 PIN and PUK input
The appliance can only be started by entering a PIN (Personal Identification Number). This prevents the appliance from being switched on by unauthorised persons. The PIN can be changed. If the PIN is entered incorrectly 3 times, the PUK (Personal Unblocking Key) must be entered. If this is also entered incorrectly, the user must wait 24 hours until entering it again.
The PIN and PUK input also serves as an anti-theft device:
- Keep the PIN and PUK so that they are inaccessible to unauthorised persons.
3.3.2 Sensors
The appliance is provided with several safety sensors. It does not restart automatically after being switched off by a safety sensor. The error message is shown on the display and must be acknowledged. The reason for the triggering of the sensor must be resolved.
Lifting sensor
If the appliance is raised by the housing during operation, the travel drive switches off and the cutting blades are stopped.
Bump sensors for obstacle detection
The appliance is equipped with sensors that ensure it changes its direction of travel if it encounters obstacles. When it encounters an obstacle, the top part of the deck is shifted slightly and the shock sensor triggered.
Tilt sensor in direction of travel/sideways
If an upward or downward slope or a laterally inclined angle of 22^ (40 %) is reached in the direction of travel, the appliance is turned or the appliance changes its direction of travel.
Rain sensor
The appliance is equipped with a rain sensor that (when activated) interrupts the mowing procedure in case of rain, and ensures that the appliance returns to the base station.
NOTE
The appliance can be operated reliably in the immediate vicinity of other automatic lawn mowers.
The signal used in the boundary cable corresponds to the standard defined by the European Garden Machinery Industry Federation (EGMF) with regard to electromagnetic emissions.
3.4 Safety instructions
3.4.1 Operator
■ Young people under 16 years of age and people who do not know the instructions for use are not allowed to use the appliance. Heed any country-specific safety regulations concerning the minimum age of the user.
- Do not operate the appliance if you are under the influence of alcohol, drugs or medication.
3.4.2 Safety of persons and animals
In areas accessible to the public, affix warning information with the following content around the mowing area:
IMPORTANT!
Automatic lawn mower!
Do not approach the appliance! Supervise children.
■ Make sure that children are not present in the vicinity of the appliance when it is operating or climb onto the appliance and do not play with the appliance.
- Sitting on the appliance and reaching into the cutting blade is forbidden.
- Keep body and clothes away from the cutting unit.
3.4.3 Appliance safety
Before working, make sure that there are no objects (e.g. branches, glass or metal pieces, and items of clothing, stones, garden utensils or toys) in the work area of the appliance. They can damage the cutting blade of the appliance or can be damaged by the appliance.
■ Only use the appliance under the following conditions:
■ The appliance is not soiled.
The appliance shows no damage or wear.
■ All controls function properly.
The base station and transformer as well as their electrical supply cables are undamaged and function properly.
■ Always replace defective parts with original spare parts from the manufacturer.
■ Have the appliance repaired if it has been damaged.
■ The user of the appliance is responsible for accidents of the appliance involving other persons or their property.
3.4.4 Electrical safety
■ Never operate the appliance when a lawn sprinkler is operating on the mowing area at the same time.
■ Do not spray the appliance with water.
■ Do not open the appliance.
4 INSTALLATION
4.1 Unpacking the machine
- Open the packaging carefully.
-
Carefully remove all components from the packaging and check for transport damage. Note: If there is any transport damage, immediately notify your AL-KO dealer, technician or service partner in accordance with the warranty conditions.
-
Check the scope of supply, see chapter 2.1 "Scope of supply", page 36.
If the appliance is going to be sent on, retain the original packaging and accompanying documents. They will also be required for return shipment.
4.2 Planning the mowing areas (01)
Location of the base station (01/1)
■ Shortest possible distance to the largest mowing area
■ Shady, level and protected against strong effects of weather
■ Connection option for power source
It must be possible to adhere to the distances:
■ Freely accessible to the automatic lawn mower
At least 1 m free on the left and right of the base station
A clearance of at least 35 cm to the rear from the boundary cable to the wall
Routing the boundary cable (01)
The boundary cable must be laid in a continuous loop in a clockwise direction.
Corridors between mowing areas (01/i)
A corridor is a narrow section in the grass surface and can be used to connect two mowing areas.
Main area and secondary area(s) (01)
■ Main area (01/HF): This is the grass surface on which the base station is located and whose entire surface can be mowed automatically by the appliance.
Secondary area (01/NF): A grass surface that cannot be reached by the appliance from the main area. Secondary areas can be processed using manual operation.
The main area and secondary areas are bounded by the same continuous boundary cable, however.
Location of start points (01/X0 - 01/X3)
At the specified mowing time, the appliance moves along the boundary cable to the specified start point and begins to mow there. The start points can be used to specify which areas of the mowing area are to be mowed several times.
4.3 Preparing the mowing areas
- Check that the grass surface is larger than the area covered by the appliance. If the grass surface is too large, an irregularly mown lawn will result. Reduce the size of the grass surface to be mowed if necessary.
- Before installation of the base station and boundary cable or start-up of the appliance: Use a lawn mower to mow the grass surface to a low cutting height.
-
Remove any obstacles on the grass surface or exclude them with the boundary cable (see chapter 4.5.3 "Excluding obstacles", page 44):
-
Flat obstacles that will be run over and could damage the cutting blade (e.g. flat stones, transitions from the grass surface to the terrace or paths, plates, kerbstones, etc.)
■ Holes and protrusions in the grass surface (e.g. molehills, burrowing holes, pine cones, fallen fruit, etc.)
■ Steep ascents and descents of more than 40 % (22°)
■ Bodies of water (e.g. ponds, streams, swimming pools, etc.) and their demarcation to the grass surface
■ Shrubs and hedges that can become broader
NOTE
Exclusions are only necessary if they cannot be detected by the bump sensors of the automatic lawn mower. Avoid too many or unnecessary exclusions.
4.4 Setting up the base station (03)
- Screw the base plate (03/1) onto the base station (03/2).
- Attach the extension plate (03/3) to the base plate (03/1).
- Place the base station (01/1) at right angles to the planned location of the boundary cable and align at ground level. Use a spirit level to check that the base station is level and adjust the position of the base station if necessary.
- Attach the base plate (03/1) and extension plate (03/3) with lawn pegs (03/4).
4.5 Installing the boundary cable
NOTE
If the supplied boundary cable is too short, an extension cable can be obtained from your AL-KO dealer, technician or service partner.
4.5.1 Connecting the boundary cable to the base station (04)
- Pull the end of the boundary cable (04/1) out of the packaging.
- Strip approx. 10 mm from the cable end.
- Insert the stripped cable end (04/3) in the spring force terminal (04/4) on the connector (04/6) of the base station (04/2).
- Push in the spring force terminal (04/4) with the cable end into the base plate of the base station.
- Put the cover cap (04/5) onto the spring force terminal (04/6).
4.5.2 Routing the boundary cable (01)
The boundary cable can be laid on the lawn and as much as 10 cm under the turf. Laying under the turf can be carried out by the dealer.
Both variants can be combined with one another.
IMPORTANT!
Danger of damaging the boundary cable
If the boundary cable is damaged or cut, the transmission of the control signals to the appliance is no longer possible. In this case, the boundary cable must be repaired or replaced. The boundary cables are available from AL-KO.
■ Always route the boundary cable directly on the ground. If necessary, secure with an additional lawn peg.
- When laying the boundary cable and during operation, protect the boundary cable from damage.
- Do not dig or scarify in the vicinity of the boundary cable.
- Lead the boundary cable at least 1 m straight from the base station (01/a).
- Attach the boundary cable at regular intervals with lawn pegs or route it underground (at a max. depth of 10 cm).
- Route the boundary cable around obstacles: see chapter 4.5.3 "Excluding obstacles", page 44.
- Create corridors between individual mowing areas: see chapter 4.5.4 "Enclosing corridors (01/i)", page 44.
- Exclude excessive upward or downward slopes: see chapter 4.5.5 "Excluding downward slopes", page 44.
- Create loops of cable: see chapter 4.5.6 "Creating loops of cable (08)", page 45.
- From a distance of at least 1 m, guide the boundary cable straight to the base station (01/k).
- After completing the routing of the boundary cable, connect to the connector (04/7) of the base station: see chapter 4.5.1 "Connecting the boundary cable to the base station (04)", page 43.
4.5.3 Excluding obstacles
Depending on the surroundings of the working area, the boundary cable must be routed at different distances to obstacles. Use the ruler that can be removed from the packaging to determine the correct distance.
NOTE
Exclusions are only necessary if they cannot be detected by the bump sensors of the automatic lawn mower. Avoid too many or unnecessary exclusions.
Distance from walls, fences, beds: min. 15 cm (01)
The appliance moves along the boundary cable with an offset of 15 cm to the outside. Therefore, route the boundary cable at a distance of at least 15 cm from walls, fences, beds, etc.

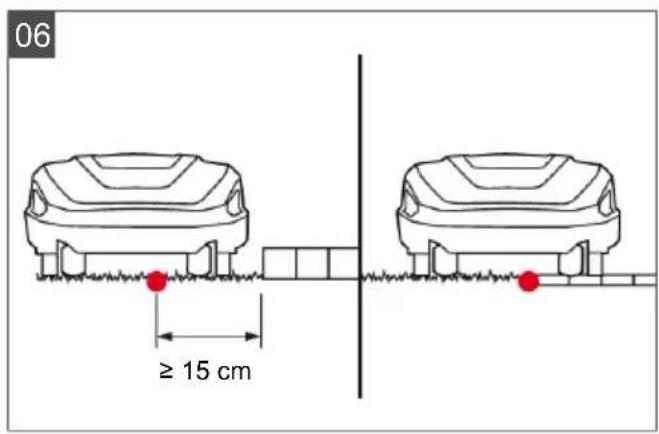

Distance from terrace edges and paved paths (06)
If the terrace or path edge is higher than the grass surface, a distance of at least 15 cm must be complied with. If the edge of the terrace or path is at the same height as the grass surface, the cable can be routed exactly along the edge.
Distance of obstacles from the boundary cable (01)
If the boundary cables are precisely folded up away from the obstacle or towards the obstacle, i.e. distance 0 cm, the appliance moves beyond the boundary cable. The boundary cables must not be crossed over (01/g).

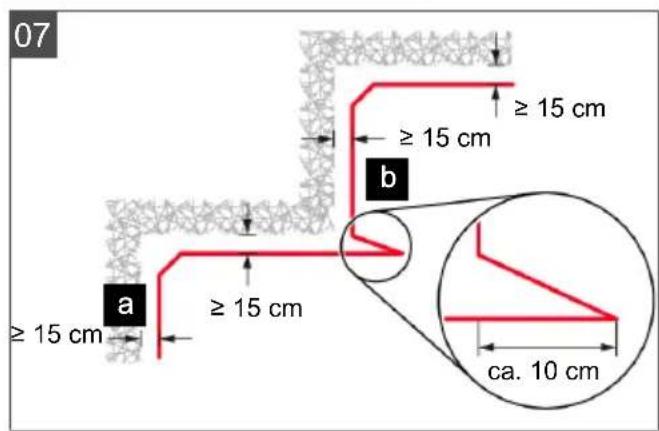

Routing the boundary cable around corners (07)
For inwards going corners (07/a): Route the boundary cable diagonally to avoid the appliance becoming caught in the corner.
For outwards going corners with obstacles (07/b): Route the boundary cable in a point in order to avoid a collision of the appliance with the corner.
For outwards going corners without obstacles: Route the boundary cable at an angle of 90^ .
4.5.4 Enclosing corridors (01/i)
In the corridor the following distances must be complied with:
■ Total width: min. 60 cm
■ Distance of the boundary cable to the edge: 15 cm
■ Distance between the boundary cables: min. 30 cm
4.5.5 Excluding downward slopes
Downward slopes that are greater than 40 % must be excluded with the boundary cable (40 % = 40 cm downward slopes per 1 m horizontally).
4.5.6 Creating loops of cable (08)
Spare loops of cable should be incorporated at regular intervals in order to reposition the base station or to extend the mowing area even after the mowing area has been laid out.
Select the number of spare cable loops according to your own judgement.
NOTE
In the case of spare cable loops, do not form open loops.
- Lead the boundary cable around the current lawn peg (08/1) and then back to the previous lawn peg (08/3).
- Then lead the boundary cable to the current lawn peg (08/1) again. This creates a loop. The cables must be close together.
- If necessary, attach the loop to the ground in the middle with an additional lawn peg (08/2).
4.5.7 Typical faults in cable routing (02)
The boundary cable is not led away straight from the base station for at least 1 m (02/a).
- Spare cable loops of the boundary cable are not laid in an even, elongated loop (02/b).
■ The boundary cable is not routed properly around corners (02/c).
■ The boundary cable is crossed over or not routed clockwise (02/d).
The boundary cable is routed too imprecisely so that edge areas of the grass surface cannot be mowed (02/e).
The start points are set too far away from the base station (02/f).
The boundary cable is not routed lying directly next to itself when guided towards and back from the edge to an obstacle inside the lawn (02/g).
The boundary cable is routed beyond the edge of the grass surface (02/h).
- When routing the boundary cable, the minimum distance for corridors of 30 cm is undercut (02/i).
The boundary cable is routed too close (i.e. at a distance of less than 15 cm) to obstacles that cannot be driven over (02/j).
4.6 Connecting the base station to the power source (05)
-
Place the transformer (05/1) at a dry location, protected from rain and spray.
-
Unwind the low voltage cable (05/3) of the base station (05/4) and route (protected from damage) to the site of the transformer.
- Connecting the low voltage cable to the transformer:
■ Unscrew the screws of the luster terminal (05/2) until a wire of the low voltage cable can be inserted into each opening.
- Insert the wires.
Note: Attention does not have to be paid to the polarity.
■ Screw in the screws of the luster terminal until the wires have been securely clamped.
- Plug the mains connection cable (05/5) of the transformer into the power socket.
NOTE
We recommend connecting the transformer to the mains supply via a earth leakage circuit breaker (ELCB) with a rated leakage current < 30 mA.
4.7 Checking the connections on the base station (05)
- Check that both LEDs (05/8, 05/9) light. If not:
■ Disconnect the mains plug.
- Check that all plug connectors of the power source and the boundary cable are positioned correctly and check for damage.
- If necessary, loosen the screws (05/7) on the cover (05/6) of the base station and remove the cover.
Status indications of the LEDs
| LEDs Operating states | |
| Yellow (05/8) | Lights up if the power source is intact.Flashes if the appliance is in the base station and is being charged. |
| Green (05/9) | Lights up when the boundary cable is laid correctly and the loop is intact.Flashes if a loop of the boundary cable is not in order. |
5 START-UP
This chapter describes the activities and settings that are necessary to put the automatic lawn mower into operation for the first time after assembly. For all further settings, refer to see chapter 7 "Settings", page 47.
5.1 Charging the rechargeable battery (09)
The integrated battery is partially charged on delivery. During normal operation, the battery of the appliance is regularly charged automatically.
NOTE
Fully charge the rechargeable battery before using it for the first time. The rechargeable battery can be charged in any charge status. Interrupting charging does not damage the rechargeable battery. The rechargeable battery can only be charged after the appliance has been switched on.
- Place the appliance (09/1) in the base station (09/3) so the contact surfaces of the appliance touch the charging contacts of the base station.
- Switch on the appliance.
- The display on the appliance shows: "Battery is being recharged". If not: see chapter 13 "Help in case of malfunction", page 54.
5.2 Making the basic settings
- Fold up the cover flap of the control panel.
- Switch on the appliance. The firmware, code number and type are displayed.
- In the menu for language selection, select:
"English"
- In the "Login" > "Enter PIN" menu, enter the pre-set PIN 0000. To do so, select the digit with ▲ and confirm each time with □. After entering the PIN, access is enabled.
- In the "Change PIN" menu:
■ Under "Enter new PIN", enter a self-selected new four-digit PIN. To do so, select one digit in sequence with ▲ and confirm each time with □
■ Under "Reenter new PIN", enter the new PIN again. If both entries are identical, the following is displayed: "PIN changed".
- In the "Enter date" menu, set the current date (format: DD.MM.20YY). To do so, select one digit in sequence with ▲ and confirm each time with □-
- In the "Enter time" > "HH:MM" menu, set the current time (format: HH:MM). To do so, select one digit in sequence with ▲ and confirm each time with □
The basic settings have been completed. The "Not calibrated Press Start key" status is displayed.
5.3 Setting the cutting height
The cutting height can be manually adjusted to between 30 - 60 mm with a step width of 5 mm.

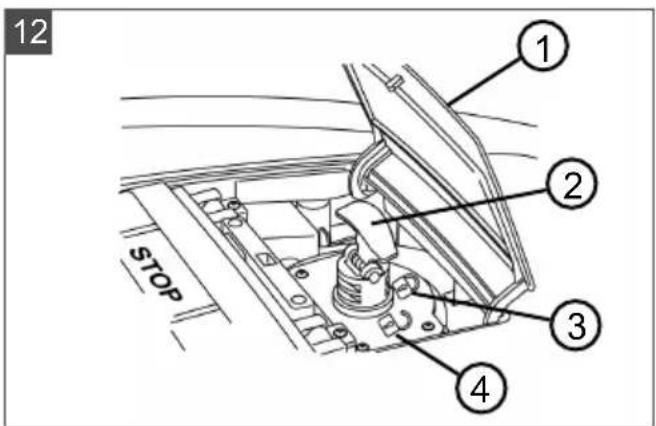

- Open the cover (12/1).
-
Fold out the lever (12/2) and turn clockwise until the broad side points towards the open lock (12/4).
-
Setting the cutting height:
■ Pull the lever upwards in stages. The cutting height (i.e. grass height) is increased.
■ Press the lever downwards in stages. The cutting height (i.e. grass height) is reduced.
-
Turn the lever anti-clockwise until the broad side points towards the closed lock (12/3).
-
Fold down the lever.
- Close the cover.
5.4 Carrying out an automatic calibration movement
Place the appliance at the starting position (10)
- Place the appliance at the starting position inside the mowing area:
At least 1 m left and 1 m in front of the base station
■ Aligned with the front side to the boundary cable
Starting the calibration movement
-
Check that there are no obstacles in the expected movement area of the appliance. The appliance must be able to move over the boundary cable with both front wheels. Remove any obstacles if necessary.
-
Start the appliance. The following is shown on the display:
■ "! Caution ! Starting Motors"
■ "Calibration", "Phase [1]"
During the calibration movement
To determine the signal strength inside the boundary cable, the appliance first moves twice straight beyond the boundary cable and then into the base station and comes to a stop there. The rechargeable battery is being charged.
NOTE
The appliance must come to a stop when it moves into the base station. If the appliance does not touch the contacts when it moves into the base station, it moves further along the boundary cable. If the appliance moves through the base station, the calibration procedure has failed. In this case, the base station must be better aligned and the calibration procedure repeated.
After the calibration movement
The pre-set current mowing duration is displayed. For all further settings, refer to see chapter 7 "Settings", page 47.
6 OPERATION
6.1 Starting the appliance manually
-
Switch on the appliance. For unscheduled edge mowing: see chapter 7.5 "Edge mowing with a manual start", page 49.
-
Start the appliance manually.
6.2 Cancelling mowing
■ HOME Press the button on the base station (09/4) or on the appliance. The appliance moves automatically into the base station. It deletes the mowing plan of the current day and starts again the next day for the set time.
■ START PAUSE Press the button on the appliance. The mowing is interrupted for half an hour.
■ ON/OFF Press the button on the appliance. The appliance is switched off.
NOTE
In dangerous situations, the appliance can be stopped with the STOP button (09/2).
6.3 Mowing the secondary area (01/NF)
- Lift the appliance and place in the secondary area by hand.
- Switch on the appliance.
- Call up the main menu.
- * "Settings"
- *Sub zone mowing"
- Select the mowing time with
- Start the appliance manually.
Depending on the setting: The appliance mows for the set time period and then switches off or mows until the rechargeable battery is flat.
After mowing the secondary area, place the appliance in the base station again by hand.
7 SETTINGS
7.1 Calling up the setting – General
- Call up the main menu.
Note: The asterisk * in front of the menu item indicates that it has just been selected. - * "Settings"
- Select the required menu item.
- Make the settings.
Note: The menu items are described in the following sections. - Return to the main menu.
NOTE
Further menu items: see chapter 5.2 "Making the basic settings", page 46.
7.2 Activating/deactivating the button tones
- * "key clicks"
- Activating/deactivating the button tones:
■ "Activate":
Activate the button tones.
■ "Deactivate"
Deactivate the button tones.
7.3 Setting the rain sensor
NOTE
Mowing when the grass is dry reduces soiling.
By activating the rain sensor and setting a delay time, it is possible to prevent the appliance mowing when the grass is wet.
If the rain sensor is activated, the appliance moves back into the base station when the rain begins. It remains there until the rain sensor has dried. Then it waits for the time period that is set as the delay before it continues mowing.
- *"Rain sensor"
- Activating/deactivating the rain sensor:
■ "Activate":
Activate the rain sensor.
■ "Deactivate":
Deactivate the rain sensor.
- Setting the delay of the rain sensor:
* "After rain delay"
■ "xx hours xx minutes"
Select the required value for the hour/minute in sequence with ▲ and confirm each time with □
7.4 Setting the mowing program
7.4.1 Setting the mowing program – General
- Call up the main menu.
- *programs"
- Select the menu item.
- Make the settings.
Note: The menu items are described in the following sections.
7.4.2 Setting the start points
Teaching-in start points
- Place the appliance in the base station.
- Switch on the appliance.
- Call up the main menu.
- *programs"
- *Entry Point"
- *interactive teach"
- *Start interactive entry point teaching"
■ " Start " The appliance moves along the boundary cable.
■ " Set " when the appliance has reached the required start point. The start point is stored.
- "Set entry point 1" if no start point has been specified during the teaching-in movement. If no start point has been specified here, the start points are automatically specified.
- "Entry point x: XXm" if the last start point has been reached.
Manually specifying start points (01)
The first start point (01/X0) is pre-set and is 1 m to right of the base station. Up to 9 other start points (X1 to X9) can be programmed behind this point. When specifying the start points, heed the following:
-
Do not set start points too far from the base station or too close to one another (02/f).
■ Only use as many start points as necessary. -
*Entry Point"
- *Point X1 at [020um]"
Select one digit in sequence with and confirm each time with
- *Point X2 at [075 m] "
Select one digit in sequence with confirm each time with ☐—
-
If necessary, specify further start points.
-
Return to the main menu.
7.4.3 Setting the mowing times
NOTE
There must be at least 30 min. between programming the mowing times and the mowing start. If not, the appliance only starts at the next programmed mowing time.
In the "Weekly Program" menu item, the days of the week and time periods when the appliance should mow are set. Adapt these settings to the size of your garden if necessary. If unmown areas are still visible after approx. one week, increase the mowing periods.
- *"Weekly Program"
*All Days [X]": The appliance mows every day at the set times. If "All Days [ ]" is shown, the appliance only mows on the set days of the week.
* "Monday [X]"...*"Sunday [X]": The appliance mows for the set time periods on the set day of the week. If "Monday [ ]" is shown, for example, the appliance does not mow on the respective day.
■ "Change": Activate the respective day [X] or deactivate it [ ], and set the time periods, type of mowing and the start points.
- Make the settings for every day or the respective day:
For example, "* [M] 07:00-10:00 [?]": Normal mowing [M] from 07:00 - 10:00 am with automatically changing start point 0 - 9 [?].
For example, "* [R] 16:00-18:00 [1]": The appliance starts with edge mowing [R] at 4 pm and moves along the entire boundary cable. The area mowing then begins at start point 1 [1]. At 6 pm or as soon as the rechargeable battery is discharged, the appliance moves back to the base station.
■ "Change" · Change the selected setting.
■ "Continue" · Confirm the changes setting and continue to the next setting.
- "Save": Save all changed settings of the menu item.
7.5 Edge mowing with a manual start
For a manual start, the setting can be made here that the appliance begins with edge mowing.
Carrying out the edge mowing at the programmed mowing time periods: see chapter 7.4.3
"Setting the mowing times", page 48.
- *Margin mowing"
- * "at manual start"
7.6 Setting the secondary area mowing
- * "sub zone mowing"
- Setting the mowing time periods:
■ "inactive": Secondary area mowing is switched off.
■ "active": The appliance mows until the rechargeable battery is flat.
■ ▲▼ "Mowing time in min":
The appliance mows the secondary area for the set time period. The following mowing time periods can be set: 30/60/90/120/until rechargeable battery flat.
7.7 Setting the display contrast
If the display is difficult to read, e.g. in sunlight, the display can be improved by changing the display contrast.
- * "Display contrast"
- Increase/decrease display contrast.
7.8 Setting lock
If the setting lock is deactivated, the PIN must only be entered when acknowledging safety-relevant faults.
- *Safety settings"
- Activating/deactivating the setting lock:
■ "Activate": —
Activate the setting lock.
■ "Deactivate": - Deactivate the setting
7.9 Recalibrating
If the position or length of the boundary cable has been changed or the appliance no longer finds the boundary cable, recalibration is necessary.
- "Reset calibration"
- "Reset loop calibration data?"
- Carrying out a calibration movement: see chapter 5.4 "Carrying out an automatic calibration movement", page 46.
7.10 Restoring factory settings
The factory settings of the appliance can be restored, e.g. before selling the appliance.
- *Factory reset"
message: "Factory reset completed"
8 DISPLAYING INFORMATION
The "Information" menu is used for displaying machine data. No settings can be made in this menu.
-
Call up the main menu.
-
*Information"
- Select the menu item.
Note: The menu items are described in the following sections.
- RETURN to the main menu.
"Blades service"
Shows in how many operating hours a blade service is required. The counter can be reset manually. Have the blade service carried out by an AL-KO dealer, technician or service partner.
Reset the counter for blade service:
- "confirm"
"Hardware"
Shows information on the appliance, such as type, year of manufacture, operating hours, serial identification number, number of mowing inserts, total mowing time, number of charging cycles, total charging time, length of the loop of the boundary cable.
"Software"
Shows the firmware version.
"Program Info"
Shows current settings such as the total weekly mowing time.
"Failures"
Shows the fault messages that last occurred with date, time and fault code.
9 MAINTENANCE AND CARE
CAUTION!
Risk of injury
Sharp-edged and moving appliance parts can lead to injury.
■ Always wear protective gloves during maintenance, care and cleaning work.
9.1 Cleaning
IMPORTANT!
Danger from water
Water in the automatic lawn mower and in the base station leads to damage on electrical components.
■ Do not spray the automatic lawn mower and base station with water.
Clean the automatic lawn mower
CAUTION!
Danger of injury due to the cutting blade
The cutting blades are very sharp and can cause cutting injuries.
■ Wear protective gloves.
■ Make sure that parts of the body do not get into the cutting blade.
Once a week, carry out the following:
- Switching off the appliance.
- Wipe off the surface of the housing with a broom, a brush, a damp cloth or a fine sponge.
- Brush off the underside, mower deck and cutting blade with a brush.
- Check the cutting blade for damage. If necessary, replace the following: see chapter 9.3 "Replacing the cutting blades", page 51.
Cleaning the base station
- Regularly remove grass residues and leaves or other objects out of the base station.
- Wipe off the surface of the base station with a damp cloth or a fine sponge.
9.2 Regular checks
General checks
- Once a week, check the whole Installation for damage:
Machine
Base station
■ Boundary cable
Low voltage cable
■ Transformer with power cable
- Replace defective parts by original spare parts from AL-KO or have them replaced by an AL-KO service centre.
Check the rollers can move freely
Once a week, carry out the following:
- Carefully remove grass residues and soiling from the areas around the rollers. Use a broom and cloth for this.
- Check that the rollers run freely and that they can be steered.
Note: If the rollers do not move freely or cannot be steered, have them replaced by an AL-KO service centre.
Check the contact surfaces on the automatic lawn mower
- Use a cloth to remove soiling and then lightly grease with contact grease.
- Rub any charring on the contact surfaces down to the bare metal surface with fine sand paper and then lightly grease with contact grease.
Check the charging contacts of the base station
- Disconnect the mains plug.
- Press the charging contacts in the direction of the base station and release them. The charging contacts must spring back into the initial position.
Note: If the charging contacts do not spring back, have them replaced by the AL-KO service centre.
9.3 Replacing the cutting blades
Worn or bent cutting blades must be replaced.
IMPORTANT!
Damage to the appliance due to incorrect repair
The blade plate can be damaged by the alignment of a bent, built-in cutting blade.
■ Do not align bent cutting blades.
■ Replace bent cutting blades by original spare parts from AL-KO.
CAUTION!
Danger of injury due to the cutting blade
The cutting blades are very sharp and can cause cutting injuries.
■ Wear protective gloves.
■ Make sure that parts of the body do not get into the cutting blade.
- Switching off the appliance.
- Put down the appliance with the cutting blades pointing upwards.
- Unscrew the fastening screws with a span-ner.
- Pull the cutting blade out of the blade seat.
- Clean the blade seat with a soft brush.
- Push in a new cutting blade.
Note: It is only allowed to use original spare parts from AL-KO.
- Insert the fastening screws again and firmly tighten.
As a rule, the clearer blades do not need to be replaced.
In case of stubborn dirt that cannot be removed with a brush, the blade plate must be replaced because an imbalance can lead to increased noise levels, greater wear and malfunctions.
9.4 Replacing the fuse on the transformer (11)
If the transformer no longer provides any current although the mains voltage supply is intact:
- Disconnect the transformer (11/2) from the mains supply.
- Unscrew the fuse cover (11/1) including the fuse from the transformer (11/2).
- Check the fuse. If defective, insert a new fuse with the same rating (2.5 A, slow blow).
- Insert the new fuse in the fuse cover.
- Screw in the fuse cover including the fuse into the transformer.
10 TRANSPORT
For transporting the appliance, e.g. from the main area to the secondary area, proceed as follows:
- Stopping the appliance.
- Switching off the appliance.
- Lift the appliance by the carrier bar:
■ Do not touch the cutting blades.
■ The cutting blades must always point away from the body.
11 STORAGE
11.1 Storing the automatic lawn mower
The appliance must be stored over winter or when it is to be taken out of service for an expected duration of longer than 30 days.
- Fully charge the rechargeable battery (see chapter 5.1 "Charging the rechargeable battery (09)", page 46).
- Thoroughly clean the appliance (see chapter 9.1 "Cleaning", page 50).
- Store the appliance:
■ upright on all wheels
■ at a dry, lockable location protected from frost
■ out of the reach of children
11.2 Storing the base station
The base station can, but does not have to be put into storage. However, the storage prevents premature ageing, such as fading of the colour, corrosion of the charging contacts and the spring force terminals.
If the base station remains outdoors:
- Remove the low-voltage cable from the transformer and roll together.
- Put the transformer into storage.
- Grease the charging contacts with contact grease.
When the base station is to be put into storage:
- First, carry out all work mentioned above.
- Disconnect the base station from the boundary cable.
-
Remove the base station and remove any soiling with a broom and a slightly damp cloth.
-
Store the base station:
■ at a dry, lockable location protected from frost
■ out of the reach of children
11.3 Winter storage of the boundary cable
The boundary cable can remain in the ground and does not need to be removed.
- When the base station has been put into storage: Grease the stripped cable ends with contact grease and wrap with adhesive tape. This protects the cable ends against corrosion.
12 DISPOSAL
Information on the German Electrical and Electronic Equipment Act (ElectroG)
■ Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.
■ Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed before disposal. Their disposal is regulated by the battery law.
- Owners or users of electrical and electronic appliances are obliged by law to return them after use.
The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.
The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.
Electrical and electronic appliances can be handed in at no charge at the following places:
■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) provided traders are obliged to take them back or offer this voluntarily.
These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions can apply to the disposal of electrical and electronic appliances in countries outside the European Union.
Information on German Battery Act (BattG)
■ Used batteries and rechargeable batteries do not belong in household waste, but should be collected and disposed of separately.
For the safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, please follow the further information within the operating or installation instructions.
- Owners or users of batteries and rechargeable batteries are obliged by law to return them after use. The return is limited to the handover of customary household quantities.
Used batteries can contain harmful substances or heavy metals that can cause damage to the environment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities.
The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in the household rubbish. In addition, if the Hg, Cd or Pb symbol is located under the rubbish bin, this stands for the following:
■ Hg: Battery contains more than 0.0005 % mercury
Cd: Battery contains more than 0.002 % cadmium
■ Pb: Battery contains more than 0.004 % lead
Rechargeable batteries and batteries can be handed in at no charge at the following places:
■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of batteries and rechargeable batteries
■ Disposal point of the common take-back system for the used batteries of appliances
■ Disposal point of the manufacturer (if not a member of the common take-back system)
These statements only apply to rechargeable batteries and batteries that are sold in the countries of the European Union and are subject to European Directive 2006/66/EU. Different provisions can apply to the disposal of rechargeable batteries and batteries in countries outside the European Union.
13 HELP IN CASE OF MALFUNCTION
13.1 Correcting appliance and handling faults
CAUTION!
Risk of injury
Sharp-edged and moving appliance parts can lead to injury.
■ Always wear protective gloves during maintenance, care and cleaning work.
| Malfunction Cause Remedy | ||
| The appliance does not start. | Rechargeable battery is flat. Charge the appliance in the base station. | |
| The appliance gets stuck and has dug itself in. The wheels continue to turn. | Bump sensors do not trigger. Contact an AL-KO service centre. | |
| The grass is too high. | ■ Increase the cutting height, then lower in stages to the required height. ■ Mow the grass short with a lawn mower. | |
| The appliance sits on an unevenness of the grass surface. | Eliminate the unevenness. | |
| The appliance mows at the wrong time. | The appliance has the incorrect time. | Set the time. |
| The mowing duration is incorrectly set. | Set the mowing times. | |
| The appliance loses the time settings. | Rechargeable battery is defective. Contact an AL-KO service centre. | |
| Motor stops during mowing. | Motor is overloaded. Switch off the appliance, set on level ground or shorter grass and restart. | |
| Rechargeable battery is flat. Charge the rechargeable battery. | ||
| The cutting blades are blunt. Replace the cutting blade. | ||
| Mowing result is uneven. Mowing time is too short. Program longer mowing times. | ||
| Rechargeable battery operating time is significantly shorter. | Cutting height level is too low. | Increase the cutting height, then lower in stages to the required height. |
| The cutting blades are blunt. | ■ Replace the cutting blade. ■ Attach the cutting blade with new screws. | |
| Malfunction Cause Remedy | ||
| Appliance vibrates or the volume is too high. | Imbalance on the cutting blade or in the cutting blade drive | ■ Clean the mower deck.■ Contact an AL-KO service centre. |
| Rechargeable battery cannot be charged or low battery voltage | ■ The charging contacts of the base station are dirty.■ The contact surfaces on the appliance are soiled. | ■ Clean the charging contacts and contact surfaces. |
| ■ Base station has no power. | ■ Connect the base station to the power source. | |
| ■ The appliance does not touch the charging contacts.■ The contact surfaces on the appliance are burned out. | ■ Place the appliance in the base station and check that the charging contacts make contact.■ Contact an AL-KO service centre. | |
| ■ The fuse on the transformer is defective. | ■ Change the fuse (see chapter 9.4 "Replacing the fuse on the transformer (11)", page 51). | |
| The service life of the rechargeable battery has expired. | ■ Contact an AL-KO service centre. | |
| The charging electronics are faulty. | ■ Contact an AL-KO service centre. | |
NOTE
For malfunctions that are not listed in this table or that you cannot resolve yourself, please contact our customer service.
13.2 Fault codes and troubleshooting
| Fault code Cause Remedy | ||
| CN001: Tilt sensor The inclination sensor has been triggered:■ Max. tilt exceeded■ The appliance has been carried■ Slope too steep | Place the appliance on a flat surface and acknowledge fault. | |
| CN002: Lift sensor The lift sensor has triggered:■ The appliance cover has been deflected upwards by lifting or by an obstacle. | Remove the obstacle. | |
| CN005: Bumper deflected | The appliance has driven into an obstacle and cannot free itself (e.g. collision close to the base station). | Place the appliance on the free, designated grass surface.Correct the location of the boundary cable. |
| CN007: No loop signal | No loop signalThe boundary cable is faulty.Loop signal is too weak. | Check the LEDs on the base station.Check the power source of the base station. Disconnect and reconnect the transformer.Check the boundary cable for damage. Repair the defective cable. |
| CN008: Loop signal weak | Loop signal too weakBoundary cable buried too deep | Check the LEDs on the base station.Check the power source of the base station. Disconnect and reconnect the transformer.Raise the boundary cable to the prescribed height; attach directly on the grass if necessary. |
| CN010: Bad position | The appliance is outside the designated grass surface.The boundary cable has been routed in a criss-cross pattern. | Place the appliance on the free, designated grass surface.Correct the location of the boundary cable around curves and obstacles. Eliminate the criss-crossing of the cable. |
| CN011: Escaped robot | The appliance is outside the designated grass surface. | Correct the location of the boundary cable around curves and obstacles. |
| CN012: Cal: no loopCN015: Cal: outside | Fault during the calibration:The appliance cannot find the boundary cable. | Check the LEDs on the base station.Check the power source of the base station. Disconnect and reconnect the transformer.Place the appliance at the prescribed calibrating position; align precisely at right angles. The appliance must be able to drive over the boundary cable. |
| CN017: Cal: signal weak | Fault during the calibration:Loop signal too weakNo loop signalThe boundary cable is faulty. | Place the appliance at the prescribed calibrating position; align precisely at right angles.Check the power source of the base station. Disconnect and reconnect the transformer.Check the boundary cable for damage. |
| CN018: Cal: Collision | Fault during the calibration:■ The appliance has bumped into an obstacle. | Remove the obstacle. |
| CN038: Battery The rechargeable battery is flat: | ||
| ■ Loop of the boundary cable is too long, too many islands. | Correct the location of the boundary cable. | |
| ■ When charging, no contact to the charging contacts | ■ Clean the charging contacts.■ Place the appliance in the base station and check that the charging contacts make contact.■ Have the charging contacts checked and replaced by a service centre of the manufacturer. | |
| ■ Obstacles close to the base station | Remove the obstacles. | |
| ■ The appliance has got stuck. | Place the appliance on the free, designated grass surface. | |
| ■ The appliance does not find the base station. | ■ Check the boundary cable for damage.■ Have the boundary cable repaired by a service centre of the manufacturer. | |
| ■ The rechargeable battery is depleted. | Have the rechargeable battery replaced by a service centre of the manufacturer. | |
| ■ The charging electronics are faulty. | Have the charging electronics checked by a service centre of the manufacturer. | |
| CN099: Recov escape | Automatic fault rectification not possible | ■ Manually acknowledge the malfunction message.■ If the fault reoccurs: Have the appliance checked by a service centre of the manufacturer. |
| CN104: Battery over heating | ■ Rechargeable battery has overheated (more than 60 °C). No discharging is possible.■ Emergency switch-off by monitoring electronic control unit | ■ Switch off the appliance and let the rechargeable battery cool down.■ Do not place the appliance on the base station. |
| CN110: Blade motor over heating | Mowing motor has over-heated (more than 80 °C). | ■ Switch off the appliance and let it cool down.■ If the fault reoccurs: Have the appliance checked by a service centre of the manufacturer. |
| CN119: R-Bumper deflectedCN120: L-Bumper deflected | The appliance has moved onto an obstacle and cannot free itself. | Remove the obstacle. |
| CN128: Recov Impossible | The appliance has moved onto an obstacle and cannot free itself. | Remove the obstacle. |
| The appliance is outside the designated grass surface. | Place the appliance on the free, designated grass surface.Correct the location of the boundary cable. | |
| CN129: Blocked WL Left | wheel motor is blocked. Remove blockage. | |
| CN130: Blocked WR Right | wheel motor is blocked. | Remove blockage. |
NOTE
For malfunctions that are not listed in this table or that you cannot resolve yourself, please contact our customer service.
14 GUARANTEE
We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warranty period is determined by the legislation of the country in which the appliance was purchased.
Our warranty promise applies only if:
■ These operating instructions are complied with
■ The appliance is handled correctly
■ Original spare parts have been used
The warranty becomes void in the case of:
■ Unauthorised repair attempts
■ Unauthorised technical modifications
Non-intended use
The guarantee excludes:
- Paint damage that can be attributed to normal wear and tear
■ Wear parts that are marked with a frame xxxxxx (x) on the spare parts card
The guarantee period commences with purchase by the first end user. The date on the proof of purchase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre.
This statement does not affect the purchaser's statutory claims for defects against the vendor.
15 EU DECLARATION OF CONFORMITY
We hereby declare that this product in its marketed form conforms to the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards.
Product
Automatic lawn mower
Serial number
G1501502
Type
Robolinho 3100
Manufacturer
AL-KO Kober GmbH
Hauptstraße 51
A-8742 Obdach
Austria
EU directives
2006/42/EC
2014/30/EU
2011/65/EU
Conformity evaluation
2000/14/EC Appendix V
Named position
Duly authorised person
Andreas Hedrich
Ichenhauser Str. 14
D-89359 Kötz
Germany
Harmonised standards
EN 55014-1
EN 55014-2
EN 61000-6-1
EN 61000-3-2
EN 61000-3-3
EN 60335-1
EN 60335-2-107
Obdach, 16/01/2017
Dr. Bernd Zöllner
Managing Director
VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING
Inhoudsopgave
2 PRODUCTOMSCHRIJVING
Nr. Component
Nr. Component
Nr. Component
8 INFORMATIE WEERGEVEN
N° Pièce
N° Pièce
N° Pièce
1 Touche HOME
2 Contacts de charge
3 Plaque de base
15 DÉCLARATION DE CONFORMITÉ CE
N. Componente
N. Componente
N. Componente
1 Tasto HOME
Č. Součást
Č. Součást
Č. Součást
1 Tlačítko DOMŮ
2 Nabíjecí kontakty
3 Základní deska
4 Rozšiřovací deska
Sz. Alkatrész
Sz. Alkatrész
Sz. Alkatrész
1 HOME gomb
2 Töltöcsatlakozó
3 Alaplemez
4 Bővítőlemez
Nr Element
Nr Element
Nr Element
Nr. Komponent
Nr. Komponent
Nr. Komponent
CN104: Battery over heating
CN110: Blade motor over heating
CN119: R-Bumper deflected
CN120: L-Bumper deflected
Nr. Komponent
Nr. Komponent
Nr. Komponent
"Programinformation"
Nro Osa
Nro Osa
Nro Osa
č. Konštrukčná časť
1 Tlačidlo HOME
2 Nabíjacie kontakty
3 Základová doska
4 Rozširovacia doska
- *Start interactive entry point teaching "
- *▲Point X1 at [020um]“
Pomocou ▲voite číslicu a potvrd'te po- mocou □
- *Point X2 at [075um]“
