Product Type	Cordless Stick Vacuum
Brand	Samsung
Model	Bespoke Jet Complete Extra (series VS20A95****)
Dimensions (vacuum)	L 250 x P 210 x H 1000 mm
Dimensions (Clean Station)	L 300 x P 300 x H 850 mm
Weight (vacuum with Dual Jet Brush)	2.7 kg
Battery Type	Lithium-ion 25.2V, 2200mAh, 7 cells
Charging Time	3.5 hours
Power Consumption	580 W
Suction Modes	MIN, MID, MAX, JET, WASH (with rotating mop)
Runtime in MID mode (Dual Jet Brush)	24 minutes
Runtime in MID mode (Combination Tool)	30 minutes
Runtime in WASH mode	Approximately 100 minutes
Included Accessories	Dual Jet Brush, Slim Action Brush, Spray Rotating Mop, Pet Hair Tool, Extension Crevice Tool, Coupling Nozzle, Telescopic Tube, Clean Station, Accessory Stand, battery, charger, dust bags
Dust Bin Capacity	Not specified in manual (estimated: ~0.5 L)
Maintenance	Dust bin, washable micro filter, fine dust filter, washable metal mesh grid filter; Clean Station dust bag replaceable
Safety	Auto shut-off in case of overheating, brush blockage, battery protection, indoor use only
Repairability Index	Not provided (spare parts available via Samsung)
Warranty	Consult Samsung's terms

Frequently Asked Questions - Bespoke Jet Complete Extra SAMSUNG

How to empty the dust bin?

Press the dust bin release button to remove it. Open the bottom cover and empty the contents. Wash filters if necessary. Make sure the cover is securely closed before reinserting the bin.

What to do if the vacuum does not turn on?

Check the battery level and recharge if necessary. Press the Power button to turn on the appliance. Check that the tube, bin and brush are not blocked. Make sure the washable micro filter is correctly inserted.

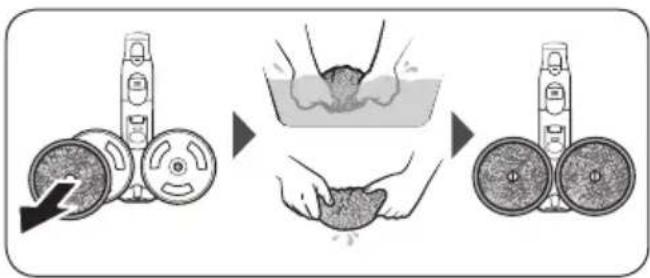

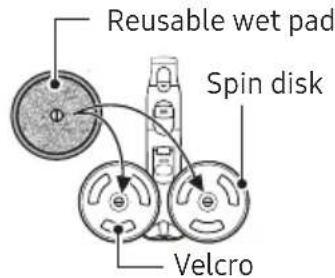

How to use the spray rotating mop?

Install a wet pad on the rotating disc. Fill the water tank with clean water. Press the + button to spray water during cleaning. Use only on hard floors. Remove the pad after use and clean it.

Why does the rotating brush stop?

The screen displays 'Brush Blockage' if an object is stuck. Turn off the vacuum, remove the foreign object, then turn on again. If the problem persists, wait 30 minutes for the motor to cool down (overheat protection).

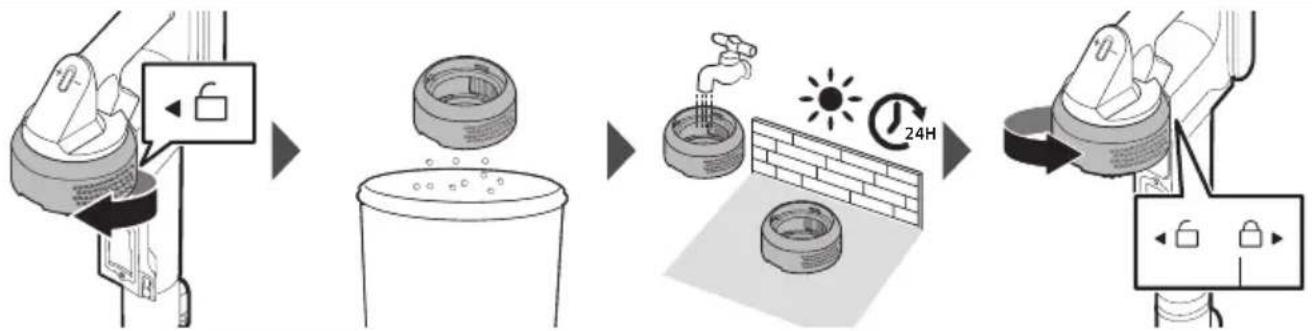

How to clean the filters?

Remove the washable micro filter and fine dust filter. Wash them under running water without detergent. Dry completely in the shade for 24 hours before putting them back. Do not use heat to dry.

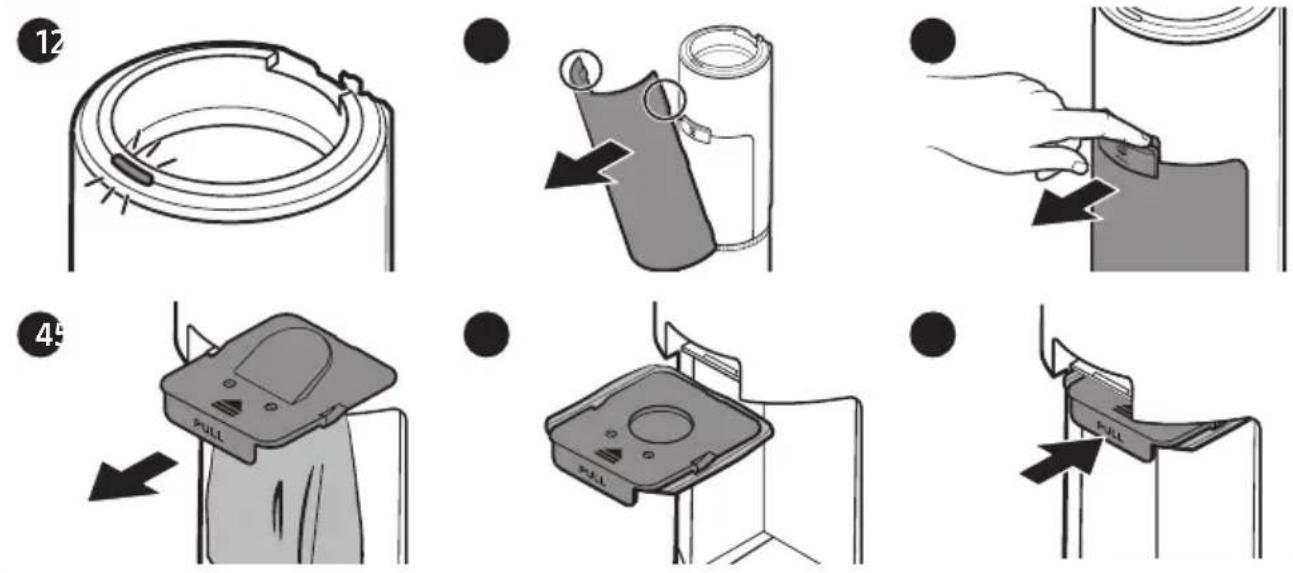

When to replace the Clean Station dust bag?

The START/STOP button turns red. Open the front cover, remove the full bag, discard it and install a new one (model VCA-ADB952). Close the cover.

Can the vacuum be used while charging?

No, the vacuum cannot be used while charging. Place it on the Clean Station or plug the charger directly into the battery (depending on model). Charging takes about 3.5 hours.

What does 'Low Battery' message mean?

The battery level is low. Recharge the battery by placing the vacuum on the Clean Station or using the additional charger. The battery slowly discharges if unused.

How to avoid unpleasant odors?

Empty the dust bin regularly and clean the filters. Replace the Clean Station dust bag when full. For persistent odors, contact a Samsung service center.

The vacuum generates static electricity on my carpet, what to do?

Some carpets (daycare, soundproofing) generate static electricity. Run the brush on a normal floor for a few moments, then continue on the carpet. If the problem persists, contact Samsung.

USER MANUAL Bespoke Jet Complete Extra SAMSUNG

• Before operating this unit, please read the instructions carefully.
• For indoor use only

Safety information 3

Important safety symbols 3

General 4

Vacuum cleaner 4

Maintenance 7

Clean Station 8

Battery 10

Preparation 12

Accessories 12

Parts overview 13

Operation 14

Installing the Clean Station 14

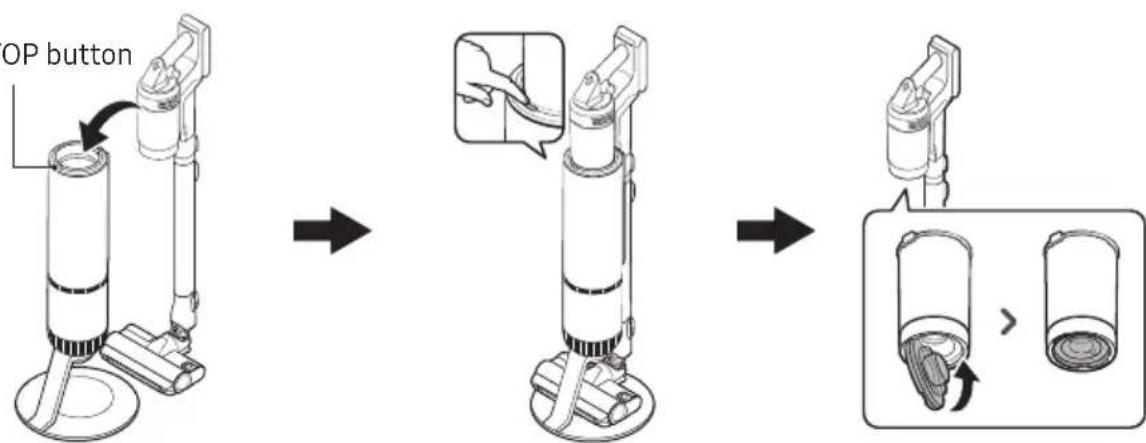

Using the Clean Station 14

Charging the battery 15

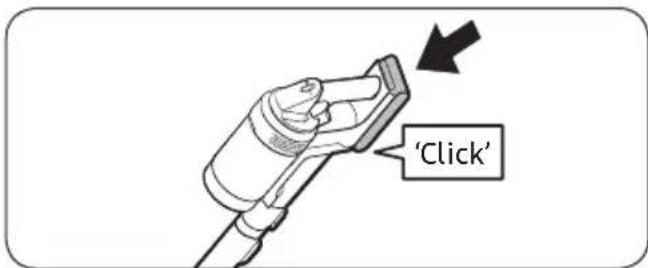

Inserting the battery 15

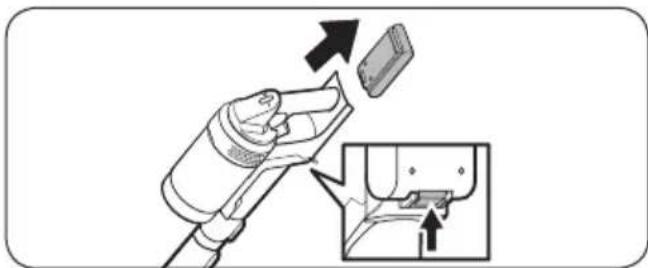

Ejecting the battery 15

Charging the additional battery 15

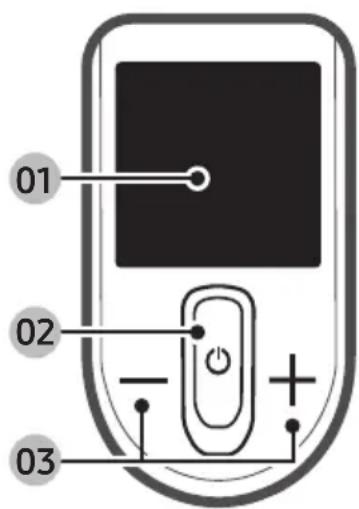

Using the buttons and display 16

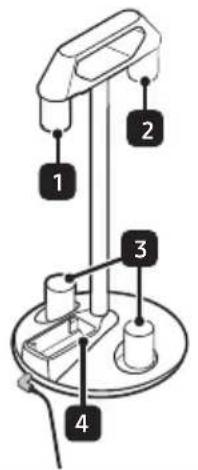

Using the Accessory Cradle 17

Using the accessories 18

Maintenance 20

Cleaning the Clean Station 20

Cleaning the vacuum cleaner 21

Appendix 24

Notes and cautions 24

Troubleshooting 30

Product specification 32

Safety information

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• Because the following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

Important safety symbols

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

NOTE

Indicates that the following text contains additional important information.

General

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH (WEEE, Batteries) visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data-corner.html

Failure to meet these requirements could cause damage to the internal parts of the vacuum and void your warranty.

• Read all instructions carefully. Before switching the vacuum on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate at the rear of the handy vacuum cleaner (battery contact side).
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Children should not clean or perform maintenance on the vacuum without adult supervision.
• Do not allow the vacuum cleaner to run unattended at any time.
• This product is intended for household use only. (Do not use this product for other than its intended purposes.)
• Do not allow children to ride on or play with the product.
• An injury or product damage may occur.

Vacuum cleaner

• When assembling the vacuum, be careful not to catch your fingers or hands in the movement fold of the handle.

• Do not use the vacuum cleaner on a wet rug or floor.

• Do not use the product at the following places;

• In a place where a burning candle or a desk lamp is placed on the floor.
  In a place where heaters are turned on or unextinguished embers exist in an unattended fireplace or an ashtray etc.
  In a place where there are combustible materials such as oil paint, paint thinner, mothproofing substances, gasoline, alcohol, thinner, ashtrays with unextinguished cigarettes, etc.

-In a closed place filled with explosive or toxic vapor.

• Do not pick up the following things. Abnormal operation or product damage may occur.

-A match or unextinguished ashes or cigarettes
-Hard or sharp objects
-Toxic materials (chlorine bleach, ammonia, drain cleaner etc.)
Liquid such as water or beverage or pet's waste
- Chalk powder

• If there is a gas leak or combustible spray such as a dust remover is used, do not touch the power outlet and open the window for ventilation.

-An explosion or fire may occur.

• If the product makes a strange sound or emits a smell or smoke, turn off the product immediately, and then contact a Samsung service center.

-Electric shock or fire may occur.

• When using the vacuum cleaner, be careful not to hurt yourself on the moving or spinning parts.

• Keep your body parts (Hair, hands, etc.) from the spin brush or the spin disk.

• When cleaning the wall or ceiling, you should use both hands.

• If you clean with one hand, you can damage your wrist or drop the vacuum and cause an injury or damage the vacuum.
• Do not use the vacuum cleaner on objects that can be easily scratched (monitors, stainless steel appliances, etc.).

• Sometimes the wheel of a brush can scratch the floor. Before using the vacuum cleaner, check the wheels of the brush.

• If there is foreign matter on the wheel of the brush which cannot be removed easily, contact a Samsung service center.

• When the spin brush inside a brush is working, do not touch the brush.
  -Otherwise, your hand can be caught and it may cause an injury.

• Do not use the vacuum cleaner in direct sunlight or high heat.
• If excessive force is applied to an accessory with motor or foreign matter is caught in the spin brush (or spin disk), the accessory may stop working to protect the motor or the product. Turn the vacuum cleaner off, remove the foreign matter, and then turn it back on.
• Static electricity may occur depending on the humidity, temperature, or floor material, etc. in your home. If it happens repeatedly, contact a Samsung service center.

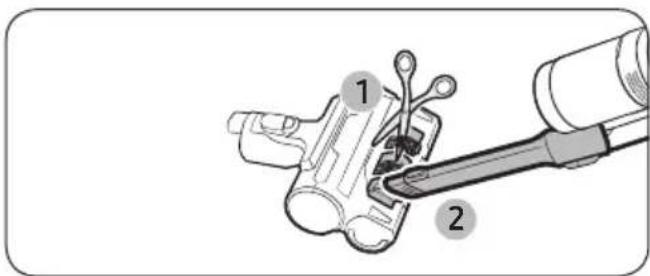

• Do not use Pet Tool in a small area for a long time and do not let Pet Tool keep spinning in one place.

-Damage may occur if used on sensitive materials

• Do not use Combination Tool on hard materials such as leather or wood while bristles are not extended.

Maintenance

• While using or after using the vacuum cleaner, you should lay the vacuum cleaner down or place it on the Clean Station to store.
• The product may fall and an injury and severe product damage occur. In addition, you may not be compensated for the damage.
• Do not store the vacuum cleaner inside a car.

• Before removing foreign matter inside the product, turn off the product first.

• If the product is on while you are removing the foreign matter, you can hurt yourself or damage the product.

• When cleaning the exterior of the product, turn off the product first and then wipe it with a dry towel. Do not spray water directly onto the product or wipe it with volatile materials such as benzene, thinner, or alcohol.

• If water gets into the product and an error occurs, turn off the product and contact a Samsung service center.

• When cleaning the washable parts, do not use alkaline detergent, acid, industrial detergent, air freshener, acetic acid, etc.

• Product damage such as plastic breakage, deformation, discoloration, printing deterioration, etc. may occur.

Washable Parts		Dustbin, Washable Micro Filter, Fine Dust Filter, Metal Mesh Grille Filter, dry cloth
Acceptable detergent	Neutral Dish washing detergent
Prohibited detergent	Alkaline Lox, mold cleaner, etc.
	Acid Paraffin oil, an emulsifier, etc.
	Industrial cleaners	NV-I, PB-I, Opti, alcohol, acetone, benzene, thinner, etc.
	Air freshener Jet spray air fresheners (coffee flavor, herb, etc.)
	Oils Animal oils, vegetable oils
	Etc. Edible acetic acid, vinegar, glacial acetic acid, etc.

• Storing the product in sunlight for long hours may cause parts of the product to deform or discolor. Therefore, store the product in the shade.

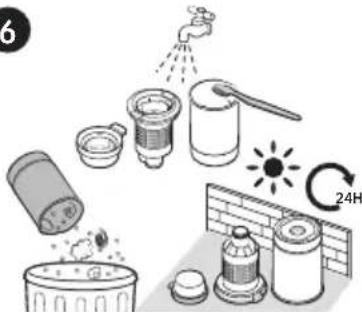

• After cleaning the dustbin, Metal Mesh Grille Filter, or Washable Micro Filter with water, dry them in the shade.

• When heat is applied, part deformation may occur.

Clean Station

• Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not pull the power cord and do not touch the power plug with wet hands.

-Electric shock or fire may occur.

• Do not use extension cords or outlets with inadequately rated current.

• If there is dust, water, etc. on a pin or contact point of the power plug pin, wipe them carefully.

-Abnormal operation or electric shock may occur.

• Do not use a damaged power plug, power cord, or loose power outlet.
  -Electric shock or fire may occur.
• Unplug the Clean Station from the outlet before servicing.
• Do not expose the Clean Station to high temperatures or allow moisture or humidity of any kind to come into contact with the Clean Station.
• Do not plug the Clean Station into a power source with the incorrect voltage. Do not plug the Clean Station into a multi-plug outlet or power strip.

-Electric shock or fire may occur.

• If the power cord is damaged, have a Samsung authorized service center replace the power cord with a new power cord.
  -Electric shock or fire may occur.
• Make sure that the charging terminals of the vacuum cleaner and the Clean Station do not come into contact with a conductor such as a bracelet, watch, metal rod, nail, etc.
• Product malfunction or electric shock may occur.
• As the Clean Station is designed for the use of Samsung Jet cordless vacuum cleaner only, do not use the Clean Station for other electronic appliances and other purposes.
• Severe damage to the Clean Station or fire may occur.
• Do not allow children to cling to or push the Clean Station.
• Personal injury, product and floor damage may occur.

• Do not charge the product near a window, heater, toilet, bathroom, etc.

• Do not attempt to open the Clean Station. Repairs should be only carried out by a qualified Samsung service center.

• Injury or product malfunction from incorrect installation of the Clean Station may not be compensated.
• Do not bend the power cord with excessive force or put heavy objects on the power cord.

-Electric shock or fire may occur.

• Before unplugging or plugging in the Clean Station, turn off the vacuum cleaner and make sure that the pins of the power plug do not come into contact with your hands.
  -Fire or electric shock may occur.

Battery

• Do not mutilate or incinerate batteries as they will explode at high temperatures.
• Do not drop or strike the battery or subject it to a sudden shock.
• Do not disassemble the battery and make sure that you do not create a short circuit across the plus (+) and minus (-) terminals.
• As the battery is manufactured only for this product, do not use the battery for other electronic appliances or other purposes.

• When you purchase a new battery, make sure to check the model name (VCA-SBTA95) and the genuine SAGM.SUNG

• Contact your nearest Samsung Electronics retailer or Samsung service center to purchase any consumable accessories.

• Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on your skin, wash the affected area quickly with water. If the liquid gets into your eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

• When attaching the battery to the vacuum cleaner, insert it until you hear a click. This assures that the battery is firmly attached.
• Otherwise, the battery may fall and could cause product damage or injury.
• If you are not going to use the vacuum cleaner for a long period of time or you are going to be away from home for a long period of time, unplug the Clean Station, and then detach the battery from the vacuum cleaner. When the battery is not being charged and not being used, it will slowly discharge.
• To protect the motor and the battery, the product may not operate when the temperature is lower than 5^ C or higher than 45^ C .
• Dispose of the dead battery in compliance with the local regulations.

Accessories

The accessories with the * mark may differ depending on the models.

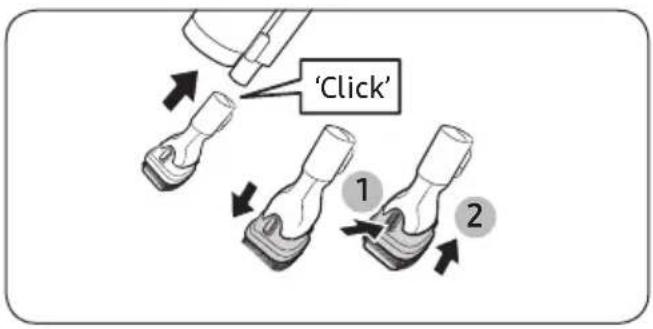

Telescopic pipe Pet Tool Combination Tool

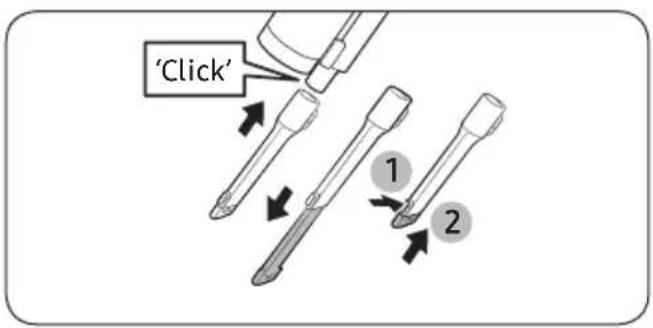

Extension Crevice Tool Flexible Tool Dust bags (1 installed, 2 extra)

User manual

• Charger Accessory Cradle Clean Station

• Jet Dual Brush * Slim Action Brush * Accessory Cradle Holder

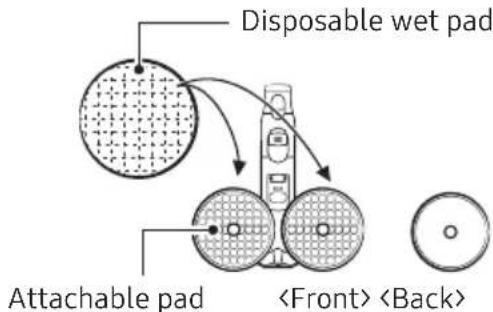

• Spray Spinning Sweeper / Reusable wet pads

• Disposable wet pads / Attachable pad

• Battery (VS20A959***: 2 units)

• Optional

• VS20A958*** model: The additional battery and charger can be purchased separately.
• The Spray Spinning Sweeper includes reusable wet pads and disposable wet pads.
• The Spray Spinning Sweeper and Jet Dual Brush are only compatible with VS20A95**** model.

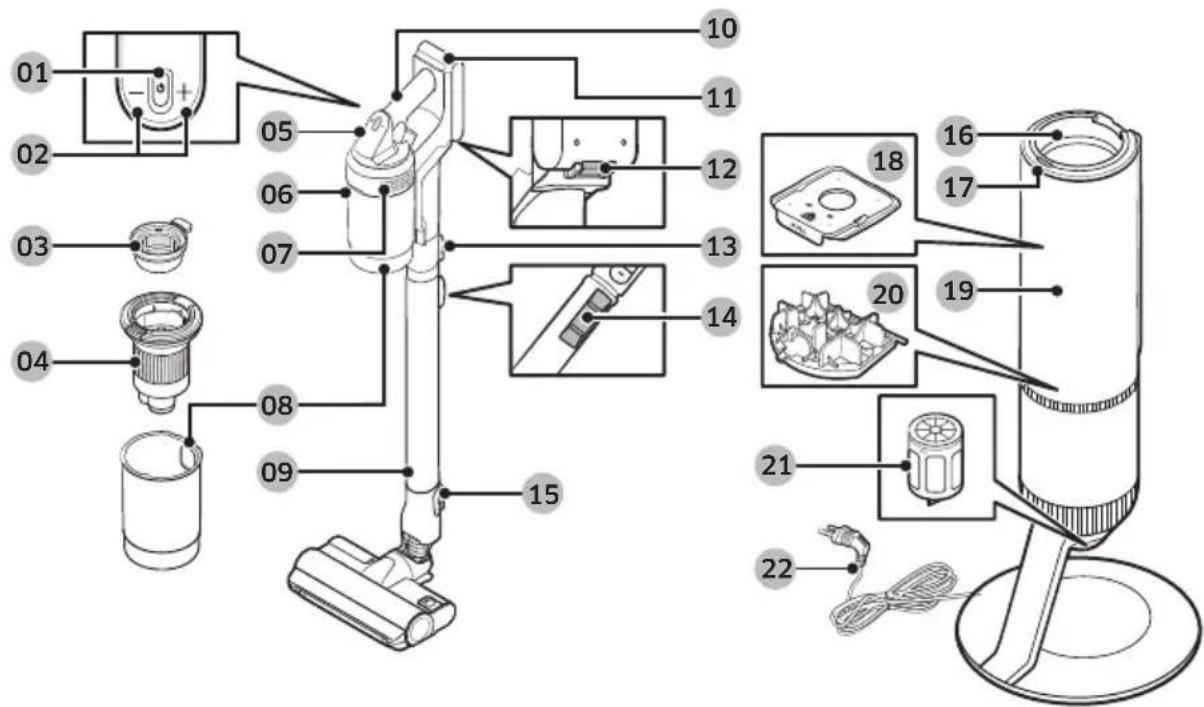

Parts overview

01 Power (按钮
02 Suction power control buttons

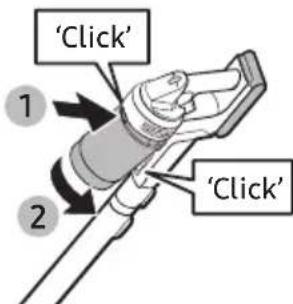

03 Washable Micro Filter
04 Metal Mesh Grille Filter

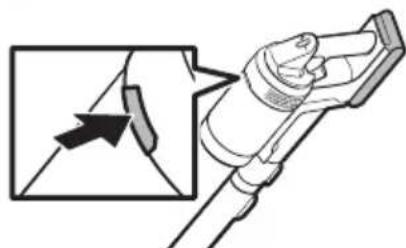

05 Display
06 Dustbin release button
07 Fine Dust Filter
08 Dustbin
09 Adjustable pipe
10 Handle
11 Battery level indicator

12 Battery release button
13 Pipe release button
14 Pipe length adjustment button
15 Brush release button
16 Dustbin joint
17 Clean Station START/STOP button
18 Dust bag

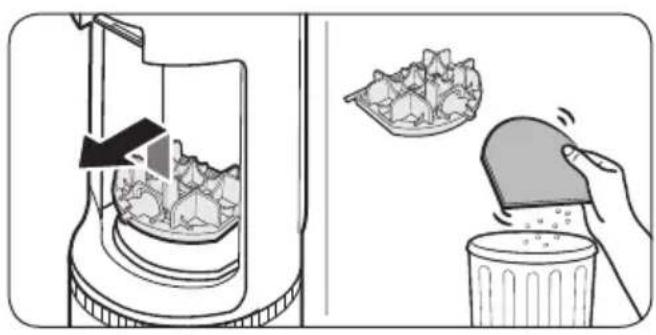

19 Clean Station front cover

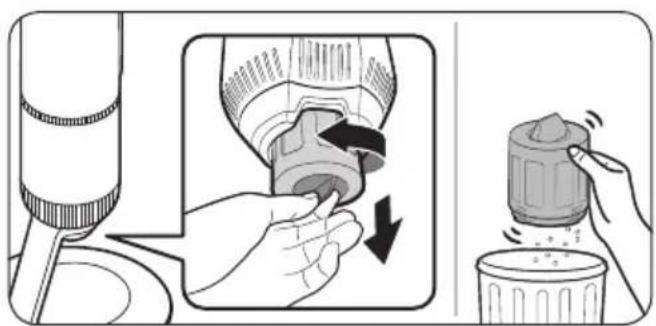

20 Clean Station Premotor Filter
21 Clean Station Fine Dust Filter
22 Power cord

NOTE

The wave pattern on the exterior of the product is a natural appearance due to the use of pearl plastic materials and its pearl distribution. In addition, the shining pearl used in the material gives an excellent gloss coating, no extra coating necessary.

For detailed information, please refer to the QR code.

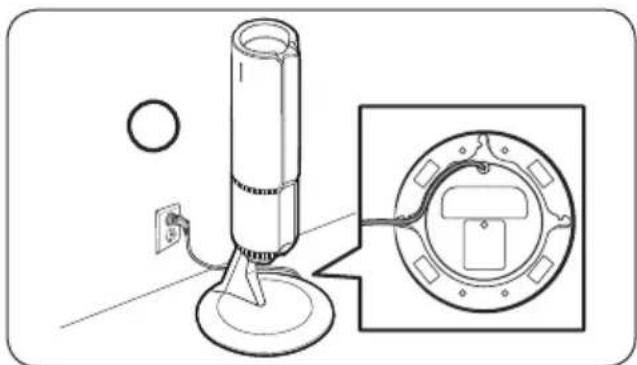

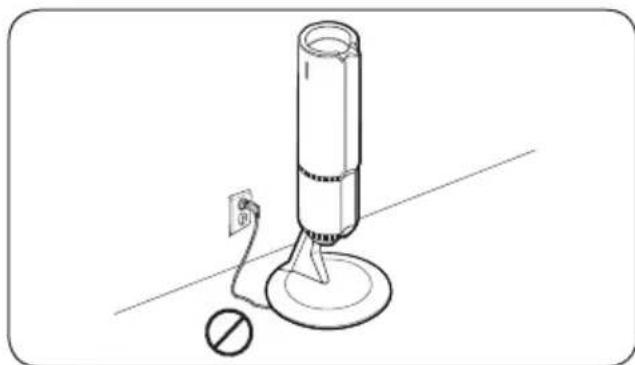

Installing the Clean Station

1. Run the power cord of the Clean Station along the round groove at the bottom.
   Make sure the power cord is correctly placed so that the Clean Station stands without tilting.
2. Before plugging in the Clean Station, arrange the power cord neatly.
3. When plugging in the Clean Station, the START/STOP button turns blue for 5 seconds and goes off.

Using the Clean Station

START/STOP button

• After inserting the vacuum cleaner into the Clean Station, press the START/STOP button to empty the dustbin.
• Press the START/STOP button again to stop its operation.
• Close the bottom cover of the dustbin before using the vacuum cleaner as the bottom cover is open after emptying dustbin at the Clean Station.

Charging the battery

• When the battery level indicator turns red or the 'Low battery' message appears on the display, charge the battery.
• You cannot use the vacuum cleaner while charging.
• Make sure the back of the battery is correctly placed onto the vacuum charging part.
• Check that the battery level indicator is displayed while charging.
• When charging starts, the battery level indicator turns on (red, orange, or yellow depending on charging progress), it rises gradually, and changes to green when the charging is complete.

Inserting the battery

Push the battery to the end until you hear it click.

Ejecting the battery

Press the battery release button at the rear of the handle to eject the battery.

CAUTION

• Before ejecting the battery, the vacuum cleaner must be turned off.

• The vacuum cleaner may malfunction if you eject the battery forcibly from the operating vacuum cleaner.

• Be careful not to drop the battery. If you do, you can injure yourself or damage the battery.

Charging the additional battery

Charge the additional battery at the additional battery charging slot at the bottom of the Accessory Cradle.

• Push the battery in firmly.

NOTE

VS20A958*** model: To charge the battery at the Accessory Cradle, a charger needs to be purchased separately. (VCA-SAPA95)

Using the buttons and display

01 Display

• Displays the current mode ('MIN, MID, MAX, JET, or WET') or the alert message.

02 Power (1)

• Press this button to turn on or off the vacuum cleaner.

• When you turn on the power, the vacuum cleaner starts in the 'MID' mode.

• If you assemble the Spray Spinning Sweeper, the vacuum cleaner starts in the 'WET' mode.

03 Suction power control (+ / -)

You can change the suction power mode ('MIN, MID, MAX, or JET').
- In the 'WET' mode, press the + button to spray water once or press and hold the + button to spray water for up to 2 seconds.
Press and hold the + button for 3 seconds to enter or exit the language setting. Press the + or - button to select a language.
While the vacuum cleaner is on the Clean Station, press and hold the + button for 5 seconds to enable or disable the Energy Saving mode.

NOTE

• Only the + button works when the vacuum cleaner is in the 'WET' mode.
• You cannot enter the language settings when the vacuum cleaner is in the 'WET' mode.
• The Energy Saving mode is automatically disabled if you use the vacuum cleaner.
• The brush may cling to the floor or does not turn properly depending on the floor material (a carpet, a mat, bedding, etc.). If such a problem occurs, change the suction power mode to 'MIN or MID'.

Alert messages

Message Explanation
Low battery Displays when battery is low.
Object stuck in brush/tool Error displays when something is caught in the brush or tool.
Filter not inserted Error displays when Micro Filter is missing.
Clogged Error displays when the vacuum cleaner is clogged.
Check brush, tool, or filter	Alerts the user to check the brush, tool, or filter in order to solve the clogging error.
Clean Micro filter	Alerts and recommends the user to regularly check and wash the Micro Filter. (Refer to the 'Cleaning the vacuum cleaner' section.)
Energy Saving on Displays when the Energy Saving mode is on.
Energy Saving off Displays when the Energy Saving mode is off.

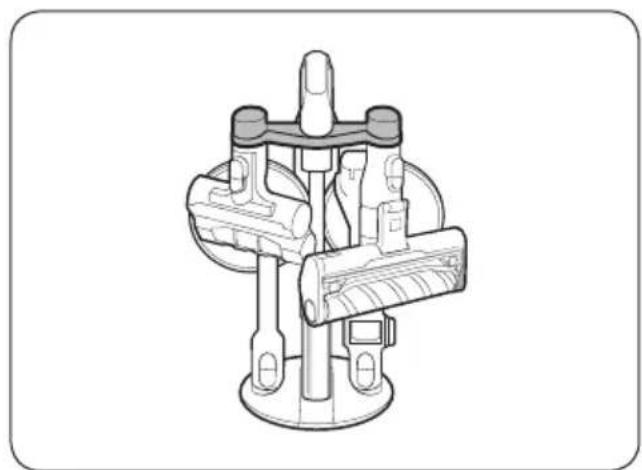

Using the Accessory Cradle

[Accessory Cradle] [Accessory Cradle +Accessory Cradle Holder]

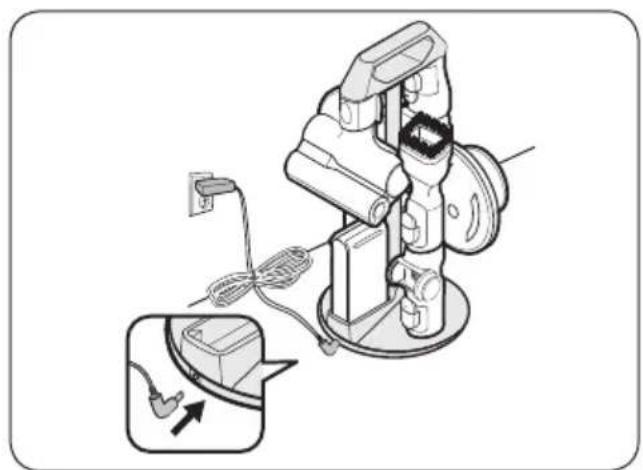

• Before charging the additional battery, plug in the charger.

• Dust that remains in the accessory may fall when you detach it from the vacuum cleaner.

• When you finish using the vacuum cleaner, shorten the Telescopic Pipe and operate the vacuum cleaner in the 'MAX' mode for more than 10 seconds.
  Make sure to remove any wet pads from the Spray Spinning Sweeper before attaching it to the Accessory Cradle.

• To detach the accessories, press the release button on the back of each accessory.

Using the accessories

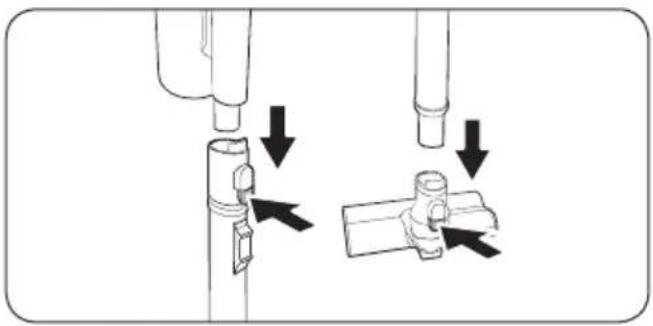

Detaching the accessories

Combination Tool

Extension Crevice Tool

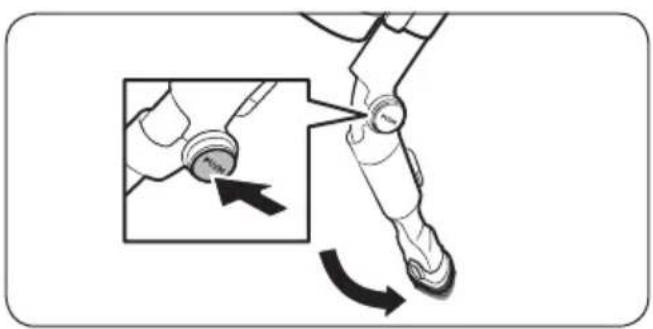

Flexible Tool

• To detach the accessories, press the release button on the back of each accessory.
• Before detaching the accessories, operate the vacuum cleaner in the 'MAX' mode for 10 seconds to prevent any foreign matter remains inside the accessory.

Use to remove dust from curtains, furniture, sofas, etc.

Use to remove dust in grooves of window frames, narrow gaps, corners, etc.

Use to clean hard to reach places such as upper or rear parts of furniture or ceilings.

NOTE

You can connect the Combination Tool or the Extension Crevice Tool to use with the Flexible Tool.

Spray Spinning Sweeper

Use to clean a wood and linoleum floor with a wet pad.

• The Spray Spinning Sweeper does not have a dust suction function.

Using the reusable wet pad

• When attaching the wet pad, make sure the pad is in the center of the spin disk.

Using the disposable wet pad

• Attach the disposable wet pad to the front side (Velcro side) of the attachable pad on the spin disk.
• If you use the disposable wet pad without the attachable pad, cleaning performance can be degraded.
  After using the disposable wet pad, discard the pad.

Detaching or attaching the water tank

• Press the lower part of the water tank to detach.
• When attaching the water tank, insert the front end first.

NOTE

• Do not use groundwater or polluted water.
• When using the Spray Spinning Sweeper for the first time, the air in the internal pump and the tube may cause to delay in spraying water. Press the + button repeatedly.

Adjusting the pipe length

Press the pipe length adjustment button to lengthen or shorten the Telescopic Pipe.

Cleaning the Clean Station

Replacing the dust bag

When the START/STOP button turns red, you should replace the dust bag.

Cleaning the Premotor Filter

Use the handle to lift the filter off and shake over a bin to remove dust.

Cleaning the Fine Dust Filter

Shake the Fine Dust Filter over a bin to remove dust.

Cleaning the vacuum cleaner

For detailed information, please refer to the QR code.

Dustbin/Washable Micro Filter

12

45

6

7

89

CAUTION

After cleaning the dustbin and Washable Micro Filter with water, you should dry them completely in the shade for more than 24 hours before use.

• When heat is applied, part deformation may occur.

If the filter is not dried completely before being used, it can cause an odor.

• If the dustbin or the filter is clogged, the vacuum cleaner may stop its operation due to the overheating prevention device of the motor.

Clean the dustbin or the filters and then operate the vacuum cleaner again.

Fine Dust Filter

Make sure to turn off the product before cleaning the filter.

• Twist and pull off the Fine Dust Filter, and tap it gently to remove the dust.
• Wash the filter with running water once a month to maintain the best performance of the filter.
  After cleaning, dry it completely for more than 24 hours in the shade before use.
• For assembly, turn it counterclockwise until the line under the lock image is not visible.

NOTE

• Do not use detergent or tool when washing the filter.
• Do not dry with heat.

Jet Dual Brush

If the foreign matter is not removed, use scissors to remove it.

CAUTION

• If a cloth or other foreign matter is vacuumed up and tangled with the spin brush, the spin brush will stop working to protect the brush motor. After cleaning the brush, turn the power off and then on again.
• If the brush does not work after cleaning, turn the power off and then on again.
• When cleaning the brush, be careful not to catch your fingers in the folding parts of the brush.

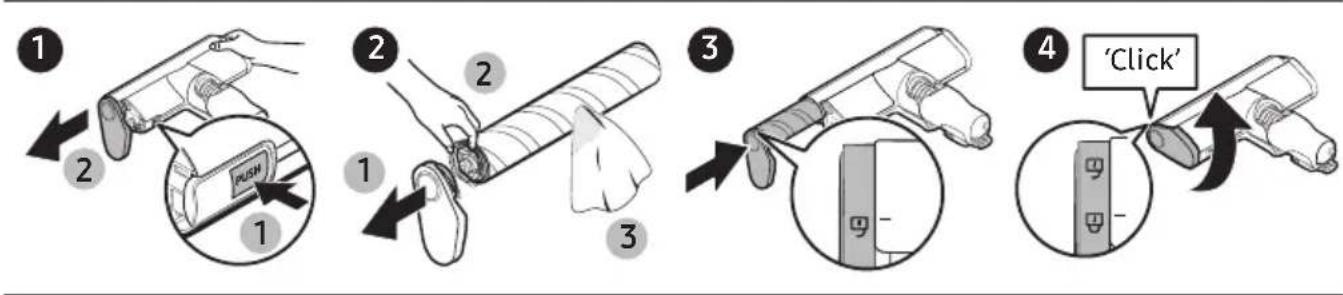

Slim Action Brush

CAUTION

• Do not clean the brush with water.
• When foreign matter remains on the brush, remove it with a wet tissue or a dry cloth.

NOTE

If the spin brush does not work after cleaning the Slim Action Brush, the overheating prevention device of the motor may have been enabled. Wait 30 minutes or more to cool the motor and operate again.

Spray Spinning Sweeper

Pet Tool

NOTE

If the spin disk does not work after cleaning the Spray Spinning Sweeper, the overheating prevention device of the motor may have been enabled. Wait 30 minutes or more to cool the motor and operate again.

Cut the tangled hair or fur with scissors, and then use a vacuum cleaner to suck up the pieces.

Extension Crevice Tool / Telescopic Pipe

Insert a long thin stick and rotate several times to clean the Extension Crevice Tool or the Telescopic Pipe.

Notes and cautions

Installation

CAUTION

• Do not install the product near water, in an area with excessive moisture, or near window, etc.
• Do not place the Clean Station in a place where people pass by frequently, in entrance way or narrow passage.
• People may trip over it and be injured, or product damage may occur.
• If the Clean Station is installed incorrectly, it may fall over, which could cause an injury and severe product damage.
• Install the Clean Station in a place where there are no objects that could break and cause damage.
• If you have a problem with installing the Clean Station, contact a Samsung service center.

Battery usage

NOTE

• If the product does not work after you charge the battery, replace the battery. If it still does not work with the new battery, contact a Samsung service center.
• Spare batteries and the Accessory Cradle chargers need to be purchased separately.

CAUTION

• Do not disassemble the battery or the Clean Station.
• Do not apply heat to the battery and do not put the battery in a fire.
• Removing the battery during operation may cause product malfunction.
• If you have removed the battery while the vacuum cleaner motor is operating, the vacuum cleaner may not work for 30 seconds even after you re-attach the battery for safety reasons.
• Battery usage time may shorten with increased battery use. When the battery no longer charges or runs down quickly, replace the exhausted battery with a new one.
• Use only the Clean Station and batteries provided by the manufacturer.
• Before inserting the battery, confirm that the battery is being inserted in the correct direction.

Operation

NOTE

• Please charge the battery before using a newly purchased battery for the first time or if you have not used the battery for a long time.
• When the battery level is low, recharge it. If the level of the battery remains low for a long period of time, it can cause the performance of the battery to degrade.
• Before using the Spray Spinning Sweeper, detach the wet pad and put some water on it, then reattach it to the spin disk.

• Clean the reusable wet pad of the Spray Spinning Sweeper in a normal washing machine by using a neutral detergent.

• However, If the wet pad is exposed to heat, softener, etc, it may be modified or discolored and product performance can be degraded. Do not boil the wet pad.

• Use a genuine wet pad of Samsung Electronics for the Spray Spinning Sweeper.

• If the Spray Spinning Sweeper is used without a wet pad, any product malfunction will not be covered by warranty and a service fee will be charged.
• When you purchase an additional reusable wet pad for the Spray Spinning Sweeper, contact a Samsung service center.
• When you purchase an additional disposable wet pad, check the model name (VCA-SPA95).

• When you purchase an additional dust bag, make sure to check the model name (VCA-ADB952).

• Contact your nearest Samsung Electronics retailer or Samsung service center to purchase any consumable accessories.

• When the dust bag in the Clean Station is filled with dust, the Clean Station may stop due to the overheating prevention device of the motor. Replace the dust bag and then use the Clean Station.

• If there is a larva in the suctioned dust, it can multiply in the dust bag. Clean the Clean Station with a wet tissue and replace the dust bag.

• Do not push the Clean Station so it falls over.

• Personal injury, product and floor damage may occur.

CAUTION

• Do not leave the product leaning against a wall or a table.
• The product may fall and an injury and severe product damage may occur.
• Do not allow children to touch the product while cleaning.
• When the vacuum cleaner overheats, children may get burnt.
• Use both hands to carry the Clean Station.

• When you pull the power cord out of the groove at the bottom of the Clean Station, do not pull it hard. Turn the cord gently on its side so that it can come out smoothly.

• The power cord may get damaged and could cause an electric shock or fire.

• Before unplugging or plugging in the Clean Station, turn off the vacuum cleaner and make sure that the pins of the power plug do not come into contact with your hands.

-Fire or electric shock may occur.

• Do not step heavily on the upper part of the Spray Spinning Sweeper while using it.

• Product damage or floor damage may occur.

• When cleaning, be careful that the side of the brush does not bump into a molding part, a wall, furniture, etc. and cause staining.

-For a slight stain, remove it with a wet tissue or a cleaner.

• Do not use water to clean the product when in use.
• You should use the product in dry places and do not use the product in wet places or on water.

• Do not put hot water, detergent, etc. into the water tank of the Spray Spinning Sweeper.

• Product malfunction or performance degradation may occur.

• When not using the Spray Spinning Sweeper, empty all the water in the water tank.

• Do not use without a filter in place.

Maintenance

NOTE

• If the inner part of the Spray Spinning Sweeper is clogged with large foreign matter, spinning speed decreases or the spin disk stops.

CAUTION

• Do not push the vacuum cleaner while it is stored in the Clean Station.
• Personal injury, product and floor damage may occur.
• Do not clean the brush of the vacuum cleaner with water. Cleaning it with water can cause deformation of parts or malfunction.
• If you notice a continuous reduction in suction or the vacuum cleaner overheats abnormally, clean the products and replace filters.
• When the Clean Station smells bad, replace the dust bag or clean the filters.

Troubleshooting

Before calling for service, review the problems and solutions below. Note that you will be charged for any service calls in which no defects were found.

Problem Solutions
The vacuum cleaner does not work.	·Check the battery level and charge the battery. ·Check whether the product is turned off, and then press the Power button to turn it on. ·Check whether the Telescopic Pipe, the dustbin or the brush is blocked. ·Check that the Washable Micro Filter is inserted correctly. ·If the vacuum cleaner has not been used for a long time, charge the battery. ·If the battery dies, replace the battery.
The spin brush (or spin disk) of an accessory is not moving.	·When the 'Check Brush' message appears on the display, turn off the vacuum cleaner and check whether the brush is clogged with foreign matter. If so, remove the foreign matter and restart the vacuum cleaner. ·When the vacuum cleaner is turned on, turn it off and on again. -For the Slim Action Brush and Spray Spinning Sweeper, if the overheating prevention device of the accessory's motor enables, it may take about 30 minutes to cool the motor.
An odor emits from the air outlet or the filter of the product.	·Empty the dustbin and clean the filters frequently. -As your vacuum cleaner is a new product, it may have a slight odor for the first 3 months after purchase. -If you use the vacuum cleaner for a long period of time, accumulated dirt in the dustbin or dust on the filter may generate an odor. ·Replacement filters are available at your local Samsung service agent.
Static electricity occurs when cleaning a thick and soft mat.	·Materials of a mat (childcare center mat, noise prevention mat for between floors, etc.) may cause the static electricity. -Move the brush on a normal floor for a while and clean again, then the static electricity should disappear.
The Spray Spinning Sweeper does not spray water.	·When using the Spray Spinning Sweeper for the first time, the air in the internal pump and the tube may cause to delay in spraying water. - Detach the water tank, press the + button, and check that the pump operates with a sound. -Fill the water tank, attach it to the Spray Spinning Sweeper, and then press the + button repeatedly.
The vacuum cleaner cannot be charged.	·Confirm that the voltage provided to the Clean Station matches the requirements of the Clean Station. ·Check that the vacuum cleaner is turned on, and then check that the LED of the battery level indicator is turned on. ·Check if foreign matter (dust) is on the charging terminal. Remove any foreign matter with a cotton swab or soft cloth.
Vacuum cleaner stops operation during cleaning.	·As this product has the overheating prevention device of the motor, product will stop operation temporarily for the following conditions. After correcting the cause of the problem, turn the product on again. (This case may differ depending on the ambient temperature.) -When the vacuum cleaner operates with a full dustbin. -When the vacuum cleaner operates with a brush clogged. -When the Extension Crevice Tool is used for long hours.
Suction force decreases suddenly and the vacuum cleaner makes a vibrating sound.	·Check whether the brush, the dustbin or the Telescopic Pipe is clogged with foreign matter and remove it. ·Check whether the dustbin is fully filled with dust. If it is, empty the bin. ·Check whether the filter is dirty. If it is, clean the filter.
Cleaning is finished but small dust particles come out of the accessories.	·After cleaning, operate the vacuum cleaner for 10 seconds or more to suck the small dust particles.

• This Vacuum cleaner is approved the following.
  The Low Voltage Directive 2014/35/EU
  The EMC Directive 2014/30/EU

Product specification

Charging and cleaning time may differ depending on the brushes and the conditions of use.

Model VS20A95**** Series
Power consumption (Vacuum cleaner) Based on a handy vacuum cleaner: 580 W
Battery specification Li-ion 25.2 V, 2200 mAh, 7 cell
Weight (Vacuum cleaner) 2.7 kg (Jet Dual Brush)
Size	Vacuum cleaner Width	250 mm x Depth 210 mm x Height 1,000 mm
	Clean Station Width	300 mm x Depth 300 mm x Height 850 mm
Charging time 3.5 hours
Cleaning time (Default mode: MID)	Combination Tool / Extension Crevice Tool	MIN: Approx. 60 min. MID:	Aprrox. 30 min.
		MAX: Approx. 10 min. JET:	Approx. 3 min.
	Jet Dual Brush	MIN: Approx. 42 min. MID:	Aprrox. 24 min.
		MAX: Approx. 14 min. JET:	Approx. 8 min.
	Slim Action Brush	MIN: Approx. 50 min. MID:	Aprrox. 25 min.
		MAX: Approx. 15 min. JET:	Approx. 9 min.
	Spray Spinning Sweeper	Approx. 100 min.

NOTE

Cleaning time stated in the above table is based on a test after using one battery. Cleaning time doubles when you use two batteries consecutively.

Tolmuimeja

Kasutusjuhend

Seeria VS20A95****

www.samsung.com/it/support

Aspirador

Manual del usuario

Serie VS20A95****

www.samsung.com/pt/support

Staubsauger

Benutzerhandbuch
