| Product type | Smart car battery charger |
| Brand | Ultimate Speed |
| Model | ULGD 5.0 D2 |
| Input voltage | 220-240 V~ |
| Frequency | 50 Hz |
| Input current | 0.8 A |
| Output voltage | 6 V / 12 V (DC) |
| Max output current | 0.8 A (programs 1 and 2) / 5.0 A (programs 3 and 4) |
| Operating temperature | -20 °C to 50 °C |
| Protection rating | IP65 (dust-tight and protected against water jets) |
| Protection class | II (double insulation) |
| Compatible battery types | Lead-acid 6V (1.2-14 Ah) and 12V (1.2-120 Ah): WET, MF, AGM, GEL, Calcium. Not suitable for lithium-ion batteries. |
| Charging programs | 4 programs: 1 (6V / 0.8 A), 2 (12V / 0.8 A), 3 (12V / 5.0 A), 4 (12V / 5.0 A - AGM/Winter) |
| Special features | Recovery/desulfation, automatic maintenance charging |
| Protections | Reverse polarity, overheating, short circuit, spark prevention |
| Display | LC display with charge indicator (4 bars) and voltage |
| Included accessories | Charger, connection clamps (red/black), instruction manual |
| Warranty | 3 years |
| Maintenance | Clean with a dry cloth; do not use solvents |
| Safety | Double insulation, IP65, spark protection |
| Manufacturer | C.M.C. GmbH |
| Year of manufacture | 2022/51 |
| Article number (IAN) | 497453_2204 |
Frequently Asked Questions - ULGD 5.0 D2 ULTIMATE SPEED
User questions about ULGD 5.0 D2 ULTIMATE SPEED
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Battery charger in PDF format for free! Find your manual ULGD 5.0 D2 - ULTIMATE SPEED and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ULGD 5.0 D2 by ULTIMATE SPEED.
USER MANUAL ULGD 5.0 D2 ULTIMATE SPEED
GB IE NL CY MT
CAR & MOTORCYCLE BATTERY CHARGER
Translation of the original instructions
FR BE CH
CHARGEUR DE BATTERIE POUR VOITURE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
Scope of delivery.... Page 7
Equipment Page 7
Technical Specifications.... Page 8
Charging characteristics....Page 8
Safety instructions ...... Page 9
Specific safety instructions ...... Page 14
Before use......Page 15
Using the device....Page 15
Connection Page 15
Disconnecting...... Page 15
Standby / Measuring battery voltage...... Page 16
6 V batteries ...... Page 16
12 V batteries Page 16
Revival Page 16
Selecting programs....Page 16
Maintenance and care......Page 18
Information about recycling and disposal...... Page 18
EC Declaration of Conformity......Page 19
Warranty and service information...... Page 20
Warranty conditions...... Page 20
Warranty period and statutory claims for defects...... Page 20
Extent of warranty....Page 21
Processing of warranty claims ...... Page 21

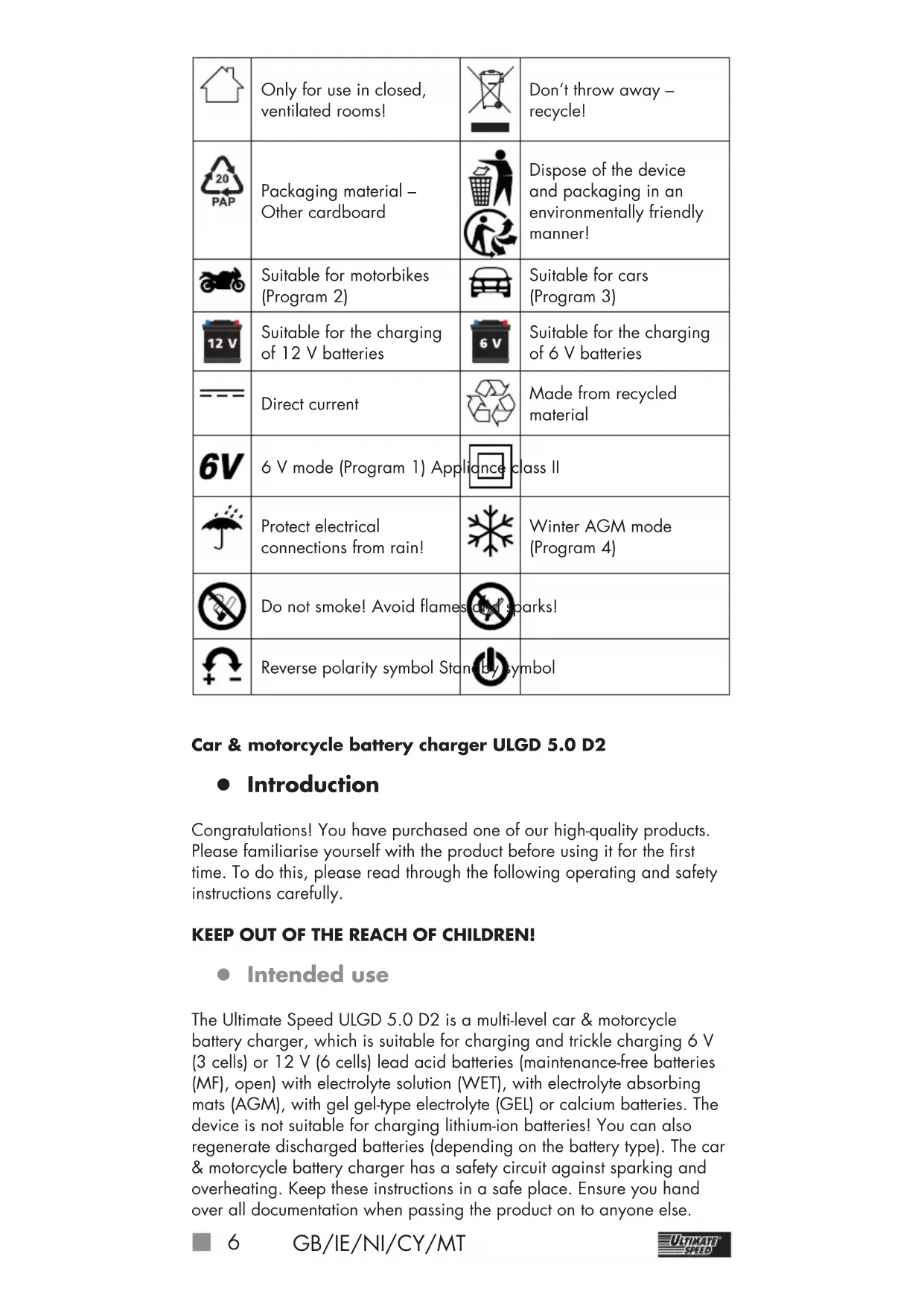

| Table of pictograms used | |||
| IP65 | Protected against jets of water and dust-proof | 220-240V~50Hz | Alternating voltage220-240 V witha frequency of 50 Hz |
| PLEASE NOTE:This symbol indicates additional information and explanations on the product and its use. | Caution!Possible risks! | ||
| Caution!Explosion hazard! | |||
| Caution!Risk of electric shock! | T2A | Internal fuse | |
| You are legally obliged to place devices marked as such in a collection which is separate from unsorted municipal waste. Disposal through household waste is prohibited.Only for use in closed, ventilated rooms! | Read the operating instructions for this product attentively and with care before use.Don't throw away - recycle! | ||
 | Packaging material - Other cardboard |   | Dispose of the device and packaging in an environmentally friendly manner! |
 | Suitable for motorbikes (Program 2) |  -- | Suitable for cars (Program 3) |
 | Suitable for the charging of 12 V batteries |  | Suitable for the charging of 6 V batteries |
 | Direct current |  | Made from recycled material |
 | 6 V mode (Program 1) Appl |  | class II |
 | Protect electrical connections from rain! |  | Winter AGM mode (Program 4) |
 | Do not smoke! Avoid flames |  | parks! |
 | Reverse polarity symbol Stand by symbol | symbol | |
Car & motorcycle battery charger ULGD 5.0 D2
- Introduction
Congratulations! You have purchased one of our high-quality products. Please familiarise yourself with the product before using it for the first time. To do this, please read through the following operating and safety instructions carefully.
KEEP OUT OF THE REACH OF CHILDREN!
- Intended use
The Ultimate Speed ULGD 5.0 D2 is a multi-level car & motorcycle battery charger, which is suitable for charging and trickle charging 6 V (3 cells) or 12 V (6 cells) lead acid batteries (maintenance-free batteries (MF), open) with electrolyte solution (WET), with electrolyte absorbing mats (AGM), with gel gel-type electrolyte (GEL) or calcium batteries. The device is not suitable for charging lithium-ion batteries! You can also regenerate discharged batteries (depending on the battery type). The car & motorcycle battery charger has a safety circuit against sparking and overheating. Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else.
Any use that differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse or disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device is not intended for commercial use and should only be used indoors. Commercial use will void the guarantee. The product must only be started up initially by people who have been trained to do so.
PLEASE NOTE:
The car & motorcycle battery charger cannot charge any electrical vehicles with integrated rechargeable battery.
PLEASE NOTE:
No jumpstart of 6 V or 12 V batteries possible.
- Scope of delivery
1 car & motorcycle battery charger 1 operating instructions
• Equipment
For this see Fig. A, B:
After unpacking the product, please check that all of the package contents are present and that the battery charger is in perfect condition. Do not use the device if it is defective.
| 1 | Car & motorcycle battery charger |
| 2 | Reverse polarity symbol |
| 3 | Standby symbol |
| 4 | 12 V / 0.8 A (Program 2) |
| 5 | 12 V / 5.0 A (Program 3) |
| 6 | 12 V / 5.0 A (Program 4) |
| 7 | 6V 6 V / 0.8 A (Program 1) |
| 8 | Charging display |
| 9 | Status display |
| 10 | Voltage display |
| 11 | Program selector button |
| 12 | Mains cable |
| 13 | Positive pole connection terminal (red) |
| 14 | Negative pole connection terminal (black) |
PLEASE NOTE:
The use of the term "product" or "device" in the following text refers to the car & motorcycle battery charger named in these operating instructions.
• Technical Specifications
| Model: ULGD 5.0 D2 | |
| Rated voltage: 220–240 V~ 50 Hz | |
| Rated intake current: 0.8 A | |
| Rated output DC voltage: 6 V | --- / 12 V --- |
| Rated output direct current: 0.8 A / 5.0 A | |
| Ambient temperature: -20 °C to 50 °C | |
| Housing protection type: IP 65 | |
| Appliance class: II (dual insulation) | |
| Battery types: 6 V lead acid battery,1.2 Ah -14 Ah12 V lead acid battery,1.2 Ah -120 Ah | |
• Charging characteristics
| 1 | Reverse polarity and diagnosis |
| 2 | Recharge / desulphation |
| 3 | Start of charging with a high current strength |
| 4 | Charging up to 80% |
| 5 | Absorption – charging up to 100% |
| 6 | Trickle charging and monitoring |
| 7 | Demand recharging |
Changes to technical and visual aspects of the product may be made as part of future developments without notice. Accordingly, no warranty is offered for the physical dimensions, information and specifications in these operating instructions. The operating instructions cannot therefore be used as the basis for asserting a legal claim.
- Safety instructions
PLEASE READ THROUGH THE OPERATING INSTRUCTIONS CAREFULLY BEFORE USE. THESE
FORM PART OF THE PRODUCT AND MUST BE AVAILABLE AT ALL TIMES! KEEP OUT OF THE REACH OF CHILDREN!
■ The charger is only suitable for indoor operation!
DANGER!
Avoid danger to life and danger of injury from improper use!
CAUTION!
Do not operate the device with a damaged cable, mains cable or mains plug. Damaged mains cables pose danger to life from electric shock.
In case of damage, the mains cable must only be repaired by authorized and trained specialists! Contact the service point of your country if you need any repairs!
RISK OF ELECTRIC SHOCK!
Ensure that the vehicle is not in operation if the battery is installed firmly in the vehicle! Switch off the ignition and put the vehicle into the parking position, with the parking brake engaged (e.g. car) or the rope attached (e.g. boat)!
RISK OF ELECTRIC SHOCK!
Disconnect the car & motorcycle battery charger from the mains before removing the connection terminals.
■ First connect the connection terminal that is not connected to the car body.
■ Connect the other connection terminal to the car body away from the battery and the petrol line.
■ Connect the car & motorcycle battery charger to the supply grid only after doing this.
■ Disconnect the car & motorcycle battery charger from the supply grid after charging.
■ Only then disconnect the connection terminal from the car body. Then disconnect the connection terminal from the battery.
RISK OF ELECTRIC SHOCK!
Only touch the pole connection terminals (“−” and “+”) in the insulated area!
RISK OF ELECTRIC SHOCK!
Conduct the connection to the battery and the socket of the mains grid completely protected from moisture!
RISK OF ELECTRIC SHOCK!
Perform installation, servicing and maintenance of the car & motorcycle battery charger only when the mains current is not connected!
RISK OF ELECTRIC SHOCK!
First disconnect the negative pole connection cable of the car & motorcycle battery charger from the negative pole of the battery upon completing the charging and trickle charging process, if the battery is continually connected in the vehicle.
■ Do not leave any toddlers or children unsupervised around the car & motorcycle battery charger!
■ Children cannot assess possible dangers in use of electrical devices. Children must be supervised to ensure that they do not play with the device.
EXPLOSION HAZARD!
Protect yourself from highly explosive oxy-hydrogen reactions! Gaseous hydrogen can escape during charging or trickle charging of the battery. Oxyhydrogen is a potentially explosive mix of gaseous hydrogen and oxygen. The oxyhydrogen reaction occurs on contact with open fire (flames, smouldering or sparks)! Perform charging and trickle charging
in a weather-protected space that is ventilated well. Ensure that there are no naked flames (flames, embers or sparks) during charging or trickle charging!
EXPLOSION AND FIRE HAZARDS!
Ensure that explosive or flammable substances, such as petrol or solvents cannot be ignited when you are using the car & motorcycle battery charger!
EXPLOSIVE GASES!
Avoid flames and sparks!
■ Ensure sufficient ventilation when charging.
- Put the battery onto a well-ventilated surface when charging. Otherwise, the device can be damaged.
EXPLOSION HAZARD!
Ensure that the positive pole connection cable has no contact with a fuel line (e.g. petrol line)!
DANGER OF CAUSTIC BURNS!
Protect your eyes and skin from caustic burns from the acid (sulphuric acid) when it comes into contact with the battery!
■ Use acid-resistant safety goggles, clothing and gloves! If your eyes or skin have come into contact with the sulphuric acid, flush the affected body region with plenty of clear, running water and seek medical advice at once!
- Avoid electrical short circuits when connecting the car & motorcycle battery charger to the battery. Connect the negative pole connection cable only to the negative pole of the battery or the car body. Connect the positive pole connection cable only to the positive pole of the battery!
■ Before connecting to the mains, verify the mains power has the required 230 V\~50 Hz, a 16 A fuse and an ELCB switch (earth leakage circuit breaker)! Otherwise, the device can be damaged.
■ Do not use the car & motorcycle battery charger near any fires, heat and long-term
temperatures above 50 °C! For higher temperatures, the output power of the car & motorcycle battery charger will drop automatically.
■ Only use the car & motorcycle battery charger with the original parts it was delivered with!
- Do not cover the car & motorcycle battery charger with any objects! Otherwise, the device can be damaged.
■ Protect the electrical contact surfaces of the battery from short circuit!
■ Only use the car & motorcycle battery charger for the charging and trickle charging of undamaged 6 V/12 V lead batteries (with electrolyte solution or gel)! Otherwise, property damage may be the consequence.
- Do not use the car & motorcycle battery charger for the charging and trickle charging of non-rechargeable batteries. Otherwise, property damage may be the consequence.
- Do not use the car & motorcycle battery charger for the charging and trickle charging of damaged or frozen batteries! Otherwise, property damage may be the consequence.
■ Please refer to the original operating instructions about the maintenance of your battery prior to connecting the car & motorcycle battery charger! Otherwise, there is a danger of injury and/or the risk of damage to the device.
■ Before connecting the car & motorcycle battery charger to a battery that is continually connected to the vehicle, learn about compliance with the electrical safety and maintenance in the original operating instructions of the vehicle! Otherwise, there is a danger of injury and/or the risk of property damage.
■ Disconnect the car & motorcycle battery charger from the mains current when it is not is use, to protect the environment as well! Note that power is consumed in standby operation as well.
■ Always pay attention and be aware of what you are doing. Proceed reasonably and do
not put the car & motorcycle battery charger into operation when you are not focused or not feeling well.
Personal safety:
This device may be used by children aged 8 years and older, and by persons with reduced physical, sensory or mental capacities, or a lack of experience and knowledge, if they are supervised or have been instructed in how to use the device safely and understand the dangers that may arise when using it. Do not allow children to play with the device. Cleaning and day-to-day maintenance must not be performed by children without supervision.
■ Children must be supervised to ensure that they do not play with the device.
- Keep the device away from people – especially children – and household pets.
■ Within the working area, the user is responsible for any damage or injury to third parties that was caused by the use of the device.
- Do not leave the device charging unattended.
- Keep the device in a dry location and out of the reach of children.
This helps prevent device damage and possible personal injuries that could result from it:
Working with the device:
■ Before setup or first use, check the device for any damage and do not use unless in perfect working order.
■ Make sure that the mains plug and connection terminals do not get wet. Do not expose the device to rain or wet weather. Do not let the device come into contact with water. Do not immerse the device in water. There is a risk of electric shock!
In hot weather, do not leave the device in a car. This could permanently damage the device.
■ Do not operate the device near to flammable liquids or gases. Failure to do so risks causing a fire or explosion!
■ Switch the device off and remove the mains plug from the socket in the following cases:
- when you are not using the device;
- if you are leaving the device unsupervised;
- if you are doing cleaning work;
- if the connection cable is damaged;
■ Only use the accessories supplied and recommended by the manufacturer.
- Do not disassemble or modify the car & motorcycle battery charger. This device must only be repaired by a maintenance technician.
- Do not expose the device to any source of heat.
JTION: How to avoid accidents and injuries resulting from electric shock:
Electrical safety:
- Do not carry the device by the cable. Do not unplug the plug from the socket by pulling on the cable. Protect the cable from heat, oil and sharp edges.
■ If the cable is damaged, unplug the plug immediately from the socket.
- Specific safety instructions
■ A slightly higher temperature during charging is absolutely normal and not a malfunction.
■ Protect the car & motorcycle battery charger 1 from moisture and high temperatures, including fires.
■ Store the car & motorcycle battery charger 1 in a dry place and protect the device from moisture and corrosion.
- Do not drop the car & motorcycle battery charger 1 while it is being used.
- Before use
Take all parts from the packaging and check whether the device or parts show any damage. If this is the case, do not use the device. Contact the manufacturer via the indicated service address. Remove all protective films and other transport packaging. Check that the delivery is complete.
■ Always pull the mains plug from the socket before you perform any work at the car & motorcycle battery charger 1.
■ Before connecting the charger please read the operating instructions for the battery.
In addition, you must adhere to the instructions from the vehicle manufacturer where a battery is continuously connected in the vehicle. Secure the vehicle, switch the ignition off.
- Clean the battery poles. Make sure that the dirt does not come into contact with your eyes.
■ Make sure that there is sufficient ventilation.
PLEASE NOTE: The ambient temperature is measured in the charger. Hence, for optimum function, make sure the battery exhibits the same temperature as the environment.
• Using the device
- Connection
PLEASE NOTE:
Always observe the instructions from the vehicle manufacturer or the battery manufacturer.
■ Disconnect the negative pole connection cable (black) of the vehicle from the negative pole of the battery first before charging and trickle charging if the battery is continually connected in the vehicle. The negative pole of your battery is usually connected to the car body of the vehicle.
■ Then disconnect the positive pole connection cable (red) of the vehicle from the positive pole of the battery.
■ Only then should you connect the "+" pole quick-contact connection terminal (red) 13 of the car & motorcycle battery charger to the "+" pole of the battery.
- Connect the “-” pole quick contact-connection terminal (black) to the “-”-pole of the battery. Connect the mains cable 12 of the car & motorcycle battery charger 1 to the socket. If the output terminals are connected in reverse, then the reverse polarity symbol 2 lights up.
- Disconnecting
■ Disconnect the device from the mains current.
- Disconnect the “−” pole quick-contact connection terminal (black) from the “−” pole of the battery.
- Disconnect the "+" pole quick contact-connection terminal (red) from the "+" pole of the battery.
■ Reconnect the positive pole connection cable of the battery to the positive pole of the battery.
■ Reconnect the negative pole connection cable of the battery to the negative pole of the battery.
- Standby / Measuring battery voltage
After connecting the mains supply, the device is in standby mode. The Standby symbol 3 lights up. When the connection terminals are connected, the battery voltage is displayed on the LC display (voltage display 10). The segments of the status display 9 are empty. If the measured voltage is below 3.8 V or above 15 V, then this means the battery is not charging. The error message "Err" will be shown briefly in the display. The device switches to standby.
If a battery is measured in the voltage range 3.7–7.3 V, then you can only select Program 1.
- 12 V batteries
If a battery is identified as being in the critical voltage range from 7.3–10.5 V, then the device will check whether it is a fully-charged 6 V battery or a discharged 12 V battery. Press the program selector button to select a program. The device carries out a test measurement procedure for approx. 90 seconds. The display will show:
• Revival
If after approx. 90 seconds, the identified value is between 7.5–10.5 V, then a 12 V battery is present. The charging process starts with pulse operation for revival of the battery. The voltage display 10 flashes. Once 10.5 V is reached, the device switches to further charging levels. The revival procedure is identical for all 12 V charging programs.
- Selecting programs
! Please note:
If a battery is identified in the voltage range of 3.7–7.3 V, then programs 2–3–4 cannot be selected. The charging process continues automatically. Depending on the program selected, the charging characteristics for voltage, time and temperature are monitored. With diagnosis program, revival mode and trickle charging.
| Program max. (V) max. (A) | |||
| 1 |  | 7.3 V 0.8 A | |
| 2 |  | 14.4 V 0.8 A | |
| 3 |  | 14.4 V 5.0 A | |
| 4 |  | 14.7 V 5.0 A | |
Program 1 6V, "6 V", (7.3 V / 0.8 A)
To charge 6 V batteries with a capacity less than 14 Ah:
Press the program selector button 11 to select Program 1. The symbol 6V 7 is shown in the LC display. During the charging process, the charging display 8 flashes and shows how far the charging process has progressed (1–4 bars). When the battery is fully charged, the status display shows 9 4 bars. The flashing stops and the device switches to trickle charging automatically.
Program 2 ©2 V", (14.4 V / 0.8 A)
To charge 12 V batteries with a capacity less than 14 Ah:
Press the program selector button 11 to select Program 2. The symbol 4 is shown in the LC display. During the charging process, the charging display 8 flashes and shows how far the charging process has progressed (1–4 bars). When the battery is fully charged, the status display shows 9 4 bars. The flashing stops and the device switches to trickle charging automatically.
Program 3, 2 V", (14.4 V / 5.0 A)
To charge 12 V batteries with a capacity of 14 Ah–120 Ah:
Press the program selector button 11 to select Program 3. The symbol 5 is shown in the LC display. During the charging process, the charging display 8 flashes and shows how far the charging process has progressed (1–4 bars). When the battery is fully charged, the status display shows 9 4 bars. The flashing stops and the device switches to trickle charging automatically.
Program 4 \*12 V", (14.7 V / 5.0 A)
To charge 12 V batteries with a capacity of 14 Ah–120 Ah under cold conditions or to charge AGM batteries.
Press the program selector button 11 to select Program 4.
PLEASE NOTE:
This program starts, with a slight time delay if necessary.
The symbol ✦6 is shown in the LC display. During the charging process, the charging display 8 flashes and shows how far the charging process has progressed (1–4 bars). When the battery is fully charged, the status display shows 9 4 bars. The flashing stops and the device switches to trickle charging automatically.
Trickle charging
As described in "Selecting programs", the device has an automatic trickle charging procedure. Depending on the drop in voltage in the battery – through self-discharge – the charger reacts with different levels of charging current. The battery can remain connected to the charger over a longer period of time. If the battery voltage decreases too much, then a new charging process will start.
Device protection function
As soon as a different situation occurs, such as a short circuit, critical drop in voltage during the charging process, open circuit or reversed connection of the output terminals, the battery charger 1 switches off automatically. The electronic system resets the system immediately to its home position, in order to avoid damage. If the device should become too hot during charging, the output power is automatically reduced. This protects the device from damage.
- Maintenance and care
■ Always pull the mains cable from the socket before you perform any work on the car & motorcycle battery charger 1.
The device is maintenance-free. Deactivate the device. Clean the metal and plastic surfaces of the device with a dry cloth.
■ Never use any solvents or other aggressive cleaning agents.
● Information about recycling and disposal
DO NOT DISPOSE OF ELECTRICAL TOOLS IN HOUSEHOLD WASTE! DON'T THROW AWAY - RECYCLE!
According to European Directive 2012/19/EU, used electrical devices must be collected separately for environmentally compatible recycling or recovery. Electrical and electronic devices which have become waste are called old devices. Owners of old devices are obliged to place them in a collection which is separate from unsorted municipal waste. Owners of old devices have old batteries and old rechargeable battery packs, which are not enclosed by the old device, as well as bulbs which must be separated from the device before it is handed in at a collection point. This does not apply if the old devices are handed in to public waste disposal authorities and they are separated from other old devices there for the purposes of preparation for recycling. If you are unsure, please contact an independent specialist. Owners of old devices from private households can hand these in to collection points for public waste disposal authorities or collection points which have been set up by manufacturers or distributors in line with the ElektroG (German disposal of electrical equipment act). The disposal of defective devices which you have sent in will be carried out free of charge. You can also return the old device to your Lidl branch, free of charge. As the end user, it is your responsibility to delete any personal information on the old devices to be disposed of.
Please return this device, accessories and packaging to your local recycling depot.
This device is marked in accordance with the 2012/19/EU directive on old electronic and electrical devices (WEEE). The symbol of the "crossed out dustbin" means that you are legally obliged to place these devices in a collection which is separate from unsorted municipal waste. Disposal through household waste is prohibited. Batteries containing harmful substances are labelled with the adjacent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the relevant heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.
Take used batteries to a waste management company in your city or community or return them to your dealer. This satisfies your legal obligations while also making an important contribution to protecting the environment.
Please note the marking on the different packaging materials and separate them as necessary. The packaging materials are marked with abbreviations (a) and digits (b) with the following definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials.
• EC Declaration of Conformity
We,
C. M. C. GmbH
Responsible for documentation:
Dr. Christian Weyler
Katharina-Loth-Str. 15
66386 St. Ingbert
hereby take sole responsibility for declaring that the product
Car & motorcycle battery charger
Year of manufacture: 2022/51
IAN:
497453_2204
Model:
ULGD 5.0 D2
Model number:
2516
meets the basic safety requirements as specified in the European Directives
Low Voltage Directive
2014/35/EU
Electromagnetic Compatibility
2014/30/EU
RoHS Directive
2011/65/EU + 2015/863/EU
and the amendments to these Directives.
The object of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and of the Council of
8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
This conformity assessment is based on the following harmonised standards:
EN 60335-2-29:2004/A11:2018 EN 60335-1:2012/A2:2019 EN 62233:2008 EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2019 EN 61000-3-3:2013+A1:2019
Dr. Christian Weyler
- Quality Assurance -
● Warranty and service information
Warranty from Creative Marketing & Consulting GmbH
Dear Customer,
The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.
• Warranty conditions
The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.
Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred.
If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.
- Warranty period and statutory claims for defects
The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any damages or defects detected at the
time of purchase must be reported immediately after unpacking. Any incidental repairs after the warranty period are subject to a fee.
- Extent of warranty
This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.
The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries or parts made from glass.
This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.
The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.
- Processing of warranty claims
To ensure prompt processing of your claim, please follow the instructions given below.
Please retain proof of purchase and the article number (e.g. IAN) for all inquiries.
The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or underside of the device.
In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.
PLEASE NOTE:
You can download this handbook and many more, as well as product videos and software at www.lidl-service.com.
How to contact us:
GB, IE, NI, CY, MT
Name: C. M. C. GmbH
Website: www.cmc-creative.de
E-mail: service.gb@cmc-creative.de
Phone: 0-808-189-0652
Registered office: Germany
IAN 497453\_2204
Please note that the following address is not a service address. Please first contact the service point given above.
Address:
C. M. C. GmbH
Katharina-Loth-Str. 15
66386 St. Ingbert
GERMANY
Ordering spare parts:
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
E-Mail: service.de@cmc-creative.de service.at@cmc-creative.de service.ch@cmc-creative.de
Raccordement Page 52
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
Programma 3, 2 V", (14,4 V/5,0 A)
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
Program 3 2 V", (14,4 V / 5,0 A)
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
- Rízení kvality -
Program 3 2 V", (14,4 V / 5,0 A)
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Ak sa napätie batérie nameria v rozsahu 3,7 – 7,3 V, zvolit' je možné iba program 1.
• 12 V batérie
Ak sa deteguje napätie batérie v kritickom rozsahu 7,3 – 10,5 V, zariadenie skontroluje, či ide o plne nabitú 6 V batériu alebo vybitú 12 V batériu. Pre výber programu stlačte tlačidlo výberu programu ^11 . Zariadenie vykoná kontrolné meranie na cca 90 sekúnd. Na displeji sa zobrazí:
• Oživenie
Program 3 2 V", (14,4 V/5,0 A)
Na nabíjanie 12 V batérií s kapacitou 14 Ah - 120:
Pre výber programu 3 stlačte tlačidlo výberu programu 11. Na LCD displeji sa zobrazí symbol 5. Počas procesu nabíjania bliká indikátor nabíjania 8 a ukazuje, ako proces nabíjania pokročil (1 – 4 pruhy). Ked'je batéria nabitá na plnú kapacitu, indikátor stavu 9 ukazuje 4 pruhy. Blikanie prestane a zariadenie sa automaticky prepne do udržiavacieho nabíjania.
Program 4 ✦,12 V", (14,7 V/5,0 A)
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
Katharina-Loth-Str. 15
66386 St. Ingbert
Dr. Christian Weyler
Program 3 2 V", (14,4 V / 5,0 A)
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
Nome: Riku Service snc
Indirizzo Internet: www.riku-service.com
E-Mail: assistenzalidl@riku-service.com
Telefono: 0039 (0) 4711430103
Sede: Germania
IAN 497453\_2204
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
- Zagotavljanje kakovosti -
- Napotki za garancijo in servisiranje
Garancija podjetja Creative Marketing & Consulting GmbH
Spoštovana stranka,
za to napravo vam je na voljo 3-letna garancija s pričetkom veljavnosti na dan nakupa. V primeru pomanjkljivosti tega izdelka za vas veljajo zakonske pravice napram prodajalcu. Naša, spodaj predstavljena garancija ne omejuje teh zakonskih pravic.
Garancijski pogoji
Program 3 2 V", (14,4 V / 5,0 A)
Prikladan za punjenje 12-voltnih baterija s kapacitetom od 14 Ah do 120 Ah:
Pritisnite gumb za odabir programa 11 kako biste odabrali program 3. Pojavljuje se simbol 5 na LC zaslonu. Tijekom punjenja treperi odgovarajući prikaz 8 koji pokazuje napredak punjenja (1 – 4 crte). Kada je baterija do kraja napunjena, na zaslonu su prikazane 9 4 crte. Prikaz više ne treperi i uređaj automatski prelazi u održavanje napona.
Program 4 ⚙,12 V", (14,7 V / 5,0 A)
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
- Osiguranje kvalitete -
- Napomene za jamstvo i odvijanje servisa
Jamstvo tvrtke Creative Marketing & Consulting GmbH
Program 3 2 V", (14,4 V / 5,0 A)
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
Ако за акумулатор е измерено напрежение в диапазона 3,7 – 7,3 V, може да се избере само програма 1.
- 12 V акумулатори
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
Dr. Christian Weyler
